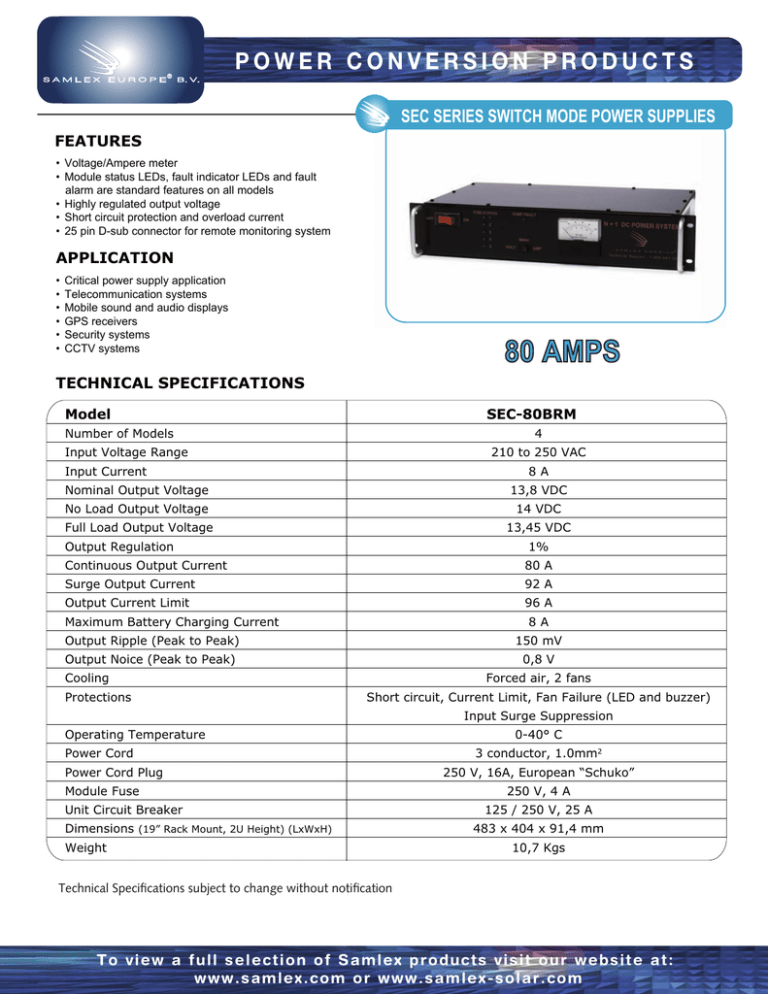

Samlexpower SEC-80BRM Specification

Samlexpower SEC-80BRM Specification
POWER CONVERSION PRODUCTS
SEC SERIES SWITCH MODE POWER SUPPLIES
FEATURES
• Voltage/Ampere meter
• Module status LEDs, fault indicator LEDs and fault
alarm are standard features on all models
• Highly regulated output voltage
• Short circuit protection and overload current
• 25 pin D-sub connector for remote monitoring system
APPLICATION
•
•
•
•
•
•
Critical power supply application
Telecommunication systems
Mobile sound and audio displays
GPS receivers
Security systems
CCTV systems
80 AMPS
TECHNICAL SPECIFICATIONS
Model
SEC-80BRM
Number of Models
4
Input Voltage Range
210 to 250 VAC
Input Current
8A
Nominal Output Voltage
13,8 VDC
No Load Output Voltage
14 VDC
Full Load Output Voltage
13,45 VDC
Output Regulation
1%
Continuous Output Current
80 A
Surge Output Current
92 A
Output Current Limit
96 A
Maximum Battery Charging Current
8A
Output Ripple (Peak to Peak)
150 mV
Output Noice (Peak to Peak)
0,8 V
Cooling
Protections
Forced air, 2 fans
Short circuit, Current Limit, Fan Failure (LED and buzzer)
Input Surge Suppression
Operating Temperature
Power Cord
Power Cord Plug
Module Fuse
Unit Circuit Breaker
Dimensions (19” Rack Mount, 2U Height) (LxWxH)
Weight
0-40° C
3 conductor, 1.0mm2
250 V, 16A, European “Schuko”
250 V, 4 A
125 / 250 V, 25 A
483 x 404 x 91,4 mm
10,7 Kgs
Technical Specifications subject to change without notification
To view a full selection of Samlex products visit our website at:
www.samlex.com or www.samlex-solar.com
