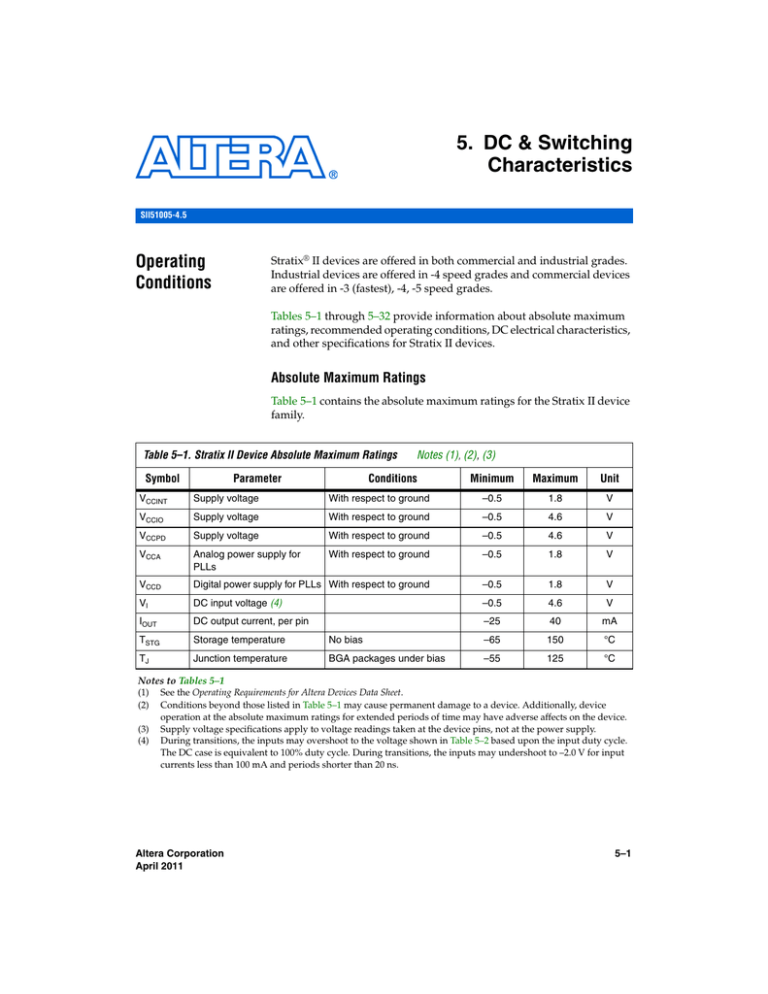

5. DC & Switching
Characteristics
SII51005-4.5
Operating
Conditions
Stratix® II devices are offered in both commercial and industrial grades.
Industrial devices are offered in -4 speed grades and commercial devices
are offered in -3 (fastest), -4, -5 speed grades.
Tables 5–1 through 5–32 provide information about absolute maximum
ratings, recommended operating conditions, DC electrical characteristics,
and other specifications for Stratix II devices.
Absolute Maximum Ratings
Table 5–1 contains the absolute maximum ratings for the Stratix II device
family.
Table 5–1. Stratix II Device Absolute Maximum Ratings
Symbol
Parameter
Notes (1), (2), (3)
Conditions
Minimum
Maximum
Unit
VCCINT
Supply voltage
With respect to ground
–0.5
1.8
V
VCCIO
Supply voltage
With respect to ground
–0.5
4.6
V
VCCPD
Supply voltage
With respect to ground
–0.5
4.6
V
VCCA
Analog power supply for
PLLs
With respect to ground
–0.5
1.8
V
VCCD
Digital power supply for PLLs With respect to ground
–0.5
1.8
V
VI
DC input voltage (4)
–0.5
4.6
V
IOUT
DC output current, per pin
–25
40
mA
TSTG
Storage temperature
No bias
–65
150
°C
TJ
Junction temperature
BGA packages under bias
–55
125
°C
Notes to Tables 5–1
(1)
(2)
(3)
(4)
See the Operating Requirements for Altera Devices Data Sheet.
Conditions beyond those listed in Table 5–1 may cause permanent damage to a device. Additionally, device
operation at the absolute maximum ratings for extended periods of time may have adverse affects on the device.
Supply voltage specifications apply to voltage readings taken at the device pins, not at the power supply.
During transitions, the inputs may overshoot to the voltage shown in Table 5–2 based upon the input duty cycle.
The DC case is equivalent to 100% duty cycle. During transitions, the inputs may undershoot to –2.0 V for input
currents less than 100 mA and periods shorter than 20 ns.
Altera Corporation
April 2011
5–1
Operating Conditions
Table 5–2. Maximum Duty Cycles in Voltage Transitions
Symbol
Parameter
Condition
Maximum
Duty Cycles
Unit
VI
Maximum duty cycles
in voltage transitions
VI = 4.0 V
100
%
VI = 4.1 V
90
%
VI = 4.2 V
50
%
VI = 4.3 V
30
%
VI = 4.4 V
17
%
VI = 4.5 V
10
%
Recommended Operating Conditions
Table 5–3 contains the Stratix II device family recommended operating
conditions.
Table 5–3. Stratix II Device Recommended Operating Conditions (Part 1 of 2)
Symbol
Parameter
Conditions
Note (1)
Minimum
Maximum Unit
VCCINT
Supply voltage for internal logic
100 μs ≤ risetime ≤ 100 ms (3)
1.15
1.25
V
VCCIO
Supply voltage for input and
output buffers, 3.3-V operation
100 μs ≤ risetime ≤ 100 ms (3), (6)
3.135
(3.00)
3.465
(3.60)
V
Supply voltage for input and
output buffers, 2.5-V operation
100 μs ≤ risetime ≤ 100 ms (3)
2.375
2.625
V
Supply voltage for input and
output buffers, 1.8-V operation
100 μs ≤ risetime ≤ 100 ms (3)
1.71
1.89
V
Supply voltage for output buffers, 100 μs ≤ risetime ≤ 100 ms (3)
1.5-V operation
1.425
1.575
V
Supply voltage for input and
output buffers, 1.2-V operation
100 μs ≤ risetime ≤ 100 ms (3)
1.14
1.26
V
VCCPD
Supply voltage for pre-drivers as
well as configuration and JTAG
I/O buffers.
100 μs ≤ risetime ≤ 100 ms (4)
3.135
3.465
V
VCCA
Analog power supply for PLLs
100 μs ≤ risetime ≤ 100 ms (3)
1.15
1.25
V
VCCD
Digital power supply for PLLs
100 μs ≤ risetime ≤ 100 ms (3)
1.15
1.25
V
VI
Input voltage (see Table 5–2)
(2), (5)
–0.5
4.0
V
VO
Output voltage
0
VCCIO
V
5–2
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–3. Stratix II Device Recommended Operating Conditions (Part 2 of 2)
Symbol
TJ
Parameter
Conditions
Operating junction temperature
Note (1)
Minimum
For commercial use
Maximum Unit
0
85
°C
For industrial use
–40
100
°C
For military use (7)
–55
125
°C
Notes to Table 5–3:
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Supply voltage specifications apply to voltage readings taken at the device pins, not at the power supply.
During transitions, the inputs may overshoot to the voltage shown in Table 5–2 based upon the input duty cycle.
The DC case is equivalent to 100% duty cycle. During transitions, the inputs may undershoot to –2.0 V for input
currents less than 100 mA and periods shorter than 20 ns.
Maximum VCC rise time is 100 ms, and VCC must rise monotonically from ground to VC C .
VCCPD must ramp-up from 0 V to 3.3 V within 100 μs to 100 ms. If VC C P D is not ramped up within this specified
time, your Stratix II device does not configure successfully. If your system does not allow for a VCCPD ramp-up time
of 100 ms or less, you must hold nCONFIG low until all power supplies are reliable.
All pins, including dedicated inputs, clock, I/O, and JTAG pins, may be driven before VCCINT, VCCPD, and VCCIO
are powered.
VC C I O maximum and minimum conditions for PCI and PCI-X are shown in parentheses.
For more information, refer to the Stratix II Military Temperature Range Support technical brief.
DC Electrical Characteristics
Table 5–4 shows the Stratix II device family DC electrical characteristics.
Table 5–4. Stratix II Device DC Operating Conditions (Part 1 of 2)
Symbol
Parameter
Conditions
II
Input pin leakage current VI = VCCIOmax to 0 V (2)
IOZ
Tri-stated I/O pin
leakage current
VO = VCCIOmax to 0 V (2)
IC C I N T 0
VCCINT supply current
(standby)
VI = ground, no
load, no toggling
inputs
TJ = 25° C
ICCPD0
VCCPD supply current
(standby)
Altera Corporation
April 2011
VI = ground, no
load, no toggling
inputs
TJ = 25° C,
VCCPD = 3.3V
EP2S15
Note (1)
Minimum Typical Maximum Unit
–10
10
μA
–10
10
μA
(3)
A
0.25
EP2S30
0.30
(3)
A
EP2S60
0.50
(3)
A
EP2S90
0.62
(3)
A
EP2S130
0.82
(3)
A
EP2S180
1.12
(3)
A
EP2S15
2.2
(3)
mA
EP2S30
2.7
(3)
mA
EP2S60
3.6
(3)
mA
EP2S90
4.3
(3)
mA
EP2S130
5.4
(3)
mA
EP2S180
6.8
(3)
mA
5–3
Stratix II Device Handbook, Volume 1
Operating Conditions
Table 5–4. Stratix II Device DC Operating Conditions (Part 2 of 2)
Symbol
ICCI00
Parameter
Conditions
VCCIO supply current
(standby)
VI = ground, no
load, no toggling
inputs
TJ = 25° C
Note (1)
Minimum Typical Maximum Unit
EP2S15
4.0
(3)
mA
EP2S30
4.0
(3)
mA
EP2S60
4.0
(3)
mA
EP2S90
4.0
(3)
mA
EP2S130
4.0
(3)
mA
4.0
(3)
mA
Vi = 0; VCCIO = 3.3 V
10
25
50
kΩ
Vi = 0; VCCIO = 2.5 V
15
35
70
kΩ
Vi = 0; VCCIO = 1.8 V
30
50
100
kΩ
Vi = 0; VCCIO = 1.5 V
40
75
150
kΩ
Vi = 0; VCCIO = 1.2 V
50
90
170
kΩ
1
2
kΩ
EP2S180
RCONF (4) Value of I/O pin pull-up
resistor before and
during configuration
Recommended value of
I/O pin external
pull-down resistor before
and during configuration
Notes to Table 5–4:
(1)
(2)
(3)
(4)
Typical values are for TA = 25°C, VCCINT = 1.2 V, and VCCIO = 1.5 V, 1.8 V, 2.5 V, and 3.3 V.
This value is specified for normal device operation. The value may vary during power-up. This applies for all
VCCIO settings (3.3, 2.5, 1.8, and 1.5 V).
Maximum values depend on the actual TJ and design utilization. See the Excel-based PowerPlay Early Power
Estimator (available at www.altera.com) or the Quartus II PowerPlay Power Analyzer feature for maximum
values. See the section “Power Consumption” on page 5–20 for more information.
Pin pull-up resistance values are lower if an external source drives the pin higher than VCCIO.
I/O Standard Specifications
Tables 5–5 through 5–32 show the Stratix II device family I/O standard
specifications.
Table 5–5. LVTTL Specifications (Part 1 of 2)
Symbol
Parameter
Conditions
Minimum
Maximum
Unit
VCCIO (1)
Output supply voltage
3.135
3.465
V
VI H
High-level input voltage
1.7
4.0
V
VIL
Low-level input voltage
–0.3
0.8
V
VOH
High-level output voltage
5–4
Stratix II Device Handbook, Volume 1
IOH = –4 mA (2)
2.4
V
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–5. LVTTL Specifications (Part 2 of 2)
Symbol
VOL
Parameter
Low-level output voltage
Conditions
Minimum
IOL = 4 mA (2)
Maximum
Unit
0.45
V
Notes to Tables 5–5:
(1)
(2)
Stratix II devices comply to the narrow range for the supply voltage as specified in the EIA/JEDEC Standard,
JESD8-B.
This specification is supported across all the programmable drive strength settings available for this I/O standard
as shown in the Stratix II Architecture chapter in volume 1 of the Stratix II Device Handbook.
Table 5–6. LVCMOS Specifications
Symbol
Parameter
Conditions
VCCIO (1)
Output supply voltage
VIH
High-level input voltage
VIL
Low-level input voltage
VOH
High-level output voltage
VCCIO = 3.0,
IOH = –0.1 mA (2)
VOL
Low-level output voltage
VCCIO = 3.0,
IOL = 0.1 mA (2)
Minimum
Maximum
Unit
3.135
3.465
V
1.7
4.0
V
–0.3
0.8
V
VCCIO – 0.2
V
0.2
V
Notes to Table 5–6:
(1)
(2)
Stratix II devices comply to the narrow range for the supply voltage as specified in the EIA/JEDEC Standard,
JESD8-B.
This specification is supported across all the programmable drive strength available for this I/O standard as
shown in the Stratix II Architecture chapter in volume 1 of the Stratix II Device Handbook.
Table 5–7. 2.5-V I/O Specifications
Symbol
Parameter
Conditions
VCCIO (1)
Output supply voltage
VIH
High-level input voltage
VIL
Low-level input voltage
VOH
High-level output voltage
IOH = –1mA (2)
VOL
Low-level output voltage
IOL = 1 mA (2)
Minimum
Maximum
Unit
2.375
2.625
V
1.7
4.0
V
–0.3
0.7
V
2.0
V
0.4
V
Notes to Table 5–7:
(1)
(2)
Stratix II devices VC C I O voltage level support of 2.5 ± -5% is narrower than defined in the Normal Range of the
EIA/JEDEC standard.
This specification is supported across all the programmable drive settings available for this I/O standard as shown
in the Stratix II Architecture chapter in volume 1 of the Stratix II Device Handbook.
Altera Corporation
April 2011
5–5
Stratix II Device Handbook, Volume 1
Operating Conditions
Table 5–8. 1.8-V I/O Specifications
Symbol
Parameter
VCCIO (1)
Output supply voltage
VI H
High-level input voltage
Conditions
VIL
Low-level input voltage
VOH
High-level output voltage
IOH = –2 mA (2)
VOL
Low-level output voltage
IOL = 2 mA (2)
Minimum
Maximum
Unit
1.71
1.89
V
0.65 × VCCIO
2.25
V
–0.30
0.35 × VCCIO
VCCIO – 0.45
V
V
0.45
V
Notes to Table 5–8:
(1)
(2)
The Stratix II device family’s VC C I O voltage level support of 1.8 ± -5% is narrower than defined in the Normal
Range of the EIA/JEDEC standard.
This specification is supported across all the programmable drive settings available for this I/O standard as shown
in the Stratix II Architecture chapter in volume 1 of the Stratix II Device Handbook.
Table 5–9. 1.5-V I/O Specifications
Symbol
Parameter
VCCIO (1)
Output supply voltage
VI H
High-level input voltage
Conditions
VIL
Low-level input voltage
VOH
High-level output voltage
IOH = –2 mA (2)
VOL
Low-level output voltage
IOL = 2 mA (2)
Minimum
Maximum
Unit
1.425
1.575
V
0.65 × VCCIO
VCCIO + 0.30
V
–0.30
0.35 × VCCIO
V
0.75 × VCCIO
V
0.25 × VCCIO
V
Notes to Table 5–9:
(1)
(2)
The Stratix II device family’s VC C I O voltage level support of 1.5 ± -5% is narrower than defined in the Normal
Range of the EIA/JEDEC standard.
This specification is supported across all the programmable drive settings available for this I/O standard as shown
in the Stratix II Architecture chapter in volume 1 of the Stratix II Device Handbook.
Figures 5–1 and 5–2 show receiver input and transmitter output
waveforms, respectively, for all differential I/O standards (LVDS,
LVPECL, and HyperTransport technology).
5–6
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Figure 5–1. Receiver Input Waveforms for Differential I/O Standards
Single-Ended Waveform
Positive Channel (p) = VIH
VID
Negative Channel (n) = VIL
VCM
Ground
Differential Waveform
VID
p−n=0V
VID
Figure 5–2. Transmitter Output Waveforms for Differential I/O Standards
Single-Ended Waveform
Positive Channel (p) = VOH
VOD
Negative Channel (n) = VOL
VCM
Ground
Differential Waveform
VOD
p−n=0V
VOD
Altera Corporation
April 2011
5–7
Stratix II Device Handbook, Volume 1
Operating Conditions
Table 5–10. 2.5-V LVDS I/O Specifications
Symbol
Parameter
Conditions
Minimum
Typical
Maximum
Unit
2.375
2.500
2.625
V
VCCIO
I/O supply voltage for left and
right I/O banks (1, 2, 5, and
6)
VID
Input differential voltage
swing (single-ended)
100
350
900
mV
VICM
Input common mode voltage
200
1,250
1,800
mV
VOD
Output differential voltage
(single-ended)
RL = 100 Ω
250
450
mV
VOCM
Output common mode
voltage
RL = 100 Ω
1.125
1.375
V
RL
Receiver differential input
discrete resistor (external to
Stratix II devices)
90
100
110
Ω
Minimum
Typical
Maximum
Unit
3.135
3.300
3.465
V
Table 5–11. 3.3-V LVDS I/O Specifications
Symbol
Parameter
Conditions
VCCIO (1)
I/O supply voltage for top
and bottom PLL banks (9,
10, 11, and 12)
VID
Input differential voltage
swing (single-ended)
100
350
900
mV
VICM
Input common mode voltage
200
1,250
1,800
mV
VOD
Output differential voltage
(single-ended)
RL = 100 Ω
250
710
mV
VOCM
Output common mode
voltage
RL = 100 Ω
840
1,570
mV
RL
Receiver differential input
discrete resistor (external to
Stratix II devices)
110
Ω
90
100
Note to Table 5–11:
(1)
The top and bottom clock input differential buffers in I/O banks 3, 4, 7, and 8 are powered by VCCINT, not VCCIO.
The PLL clock output/feedback differential buffers are powered by VCC_PLL_OUT. For differential clock
output/feedback operation, VCC_PLL_OUT should be connected to 3.3 V.
5–8
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–12. LVPECL Specifications
Symbol
Parameter
Conditions
Minimum
Typical
Maximum
Unit
3.135
3.300
3.465
V
600
1,000
mV
VCCIO (1)
I/O supply voltage
VID
Input differential voltage
swing (single-ended)
300
VICM
Input common mode voltage
1.0
2.5
V
VOD
Output differential voltage
(single-ended)
RL = 100 Ω
525
970
mV
VOCM
Output common mode
voltage
RL = 100 Ω
1,650
2,250
mV
RL
Receiver differential input
resistor
110
Ω
90
100
Note to Table 5–12:
(1)
The top and bottom clock input differential buffers in I/O banks 3, 4, 7, and 8 are powered by VCCINT, not VCCIO.
The PLL clock output/feedback differential buffers are powered by VCC_PLL_OUT. For differential clock
output/feedback operation, VCC_PLL_OUT should be connected to 3.3 V.
Table 5–13. HyperTransport Technology Specifications
Symbol
Parameter
Conditions
Minimum
Typical
Maximum
Unit
2.375
2.500
2.625
V
VCCIO
I/O supply voltage for left and
right I/O banks (1, 2, 5, and 6)
VID
Input differential voltage swing RL = 100 Ω
(single-ended)
300
600
900
mV
VICM
Input common mode voltage
RL = 100 Ω
385
600
845
mV
VOD
Output differential voltage
(single-ended)
RL = 100 Ω
400
600
820
mV
Δ VOD
Change in VOD between high
and low
RL = 100 Ω
75
mV
VOCM
Output common mode voltage RL = 100 Ω
Δ VOCM
Change in VOCM between high
and low
RL
Receiver differential input
resistor
440
600
RL = 100 Ω
780
mV
50
mV
90
100
110
Ω
Minimum
Typical
Maximum
Unit
3.0
3.3
3.6
V
VCCIO + 0.5
V
Table 5–14. 3.3-V PCI Specifications (Part 1 of 2)
Symbol
Parameter
VCCIO
Output supply voltage
VIH
High-level input voltage
Altera Corporation
April 2011
Conditions
0.5 × VCCIO
5–9
Stratix II Device Handbook, Volume 1
Operating Conditions
Table 5–14. 3.3-V PCI Specifications (Part 2 of 2)
Symbol
Parameter
Conditions
VIL
Low-level input voltage
VOH
High-level output voltage
IOUT = –500 μA
VOL
Low-level output voltage
IOUT = 1,500 μA
Minimum
Typical
–0.3
Maximum
Unit
0.3 × VCCIO
V
0.9 × VCCIO
V
0.1 × VCCIO
V
Maximum
Unit
3.6
V
Table 5–15. PCI-X Mode 1 Specifications
Symbol
Parameter
Conditions
Minimum
Typical
VCCIO
Output supply voltage
3.0
VIH
High-level input voltage
0.5 × VCCIO
VCCIO + 0.5
V
VIL
Low-level input voltage
–0.30
0.35 × VCCIO
V
VIPU
Input pull-up voltage
VOH
High-level output voltage
IOUT = –500 μA
VOL
Low-level output voltage
IOUT = 1,500 μA
0.7 × VCCIO
V
0.9 × VCCIO
V
0.1 × VCCIO
V
Maximum
Unit
Table 5–16. SSTL-18 Class I Specifications
Symbol
Parameter
Conditions
Minimum
Typical
VCCIO
Output supply voltage
1.71
1.80
1.89
V
VREF
Reference voltage
0.855
0.900
0.945
V
VTT
Termination voltage
VREF – 0.04
VREF
VREF + 0.04
V
VIH (DC)
High-level DC input voltage
VREF + 0.125
VIL (DC)
Low-level DC input voltage
VREF – 0.125
V
VIH (AC)
High-level AC input voltage
VIL (AC)
Low-level AC input voltage
VOH
High-level output voltage
IOH = –6.7 mA (1)
VOL
Low-level output voltage
IOL = 6.7 mA (1)
V
VREF + 0.25
V
VREF – 0.25
VTT + 0.475
V
V
VTT – 0.475
V
Note to Table 5–16:
(1)
This specification is supported across all the programmable drive settings available for this I/O standard as shown
in the Stratix II Architecture chapter in volume 1 of the Stratix II Device Handbook.
5–10
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–17. SSTL-18 Class II Specifications
Symbol
Parameter
Conditions
Minimum
Typical
Maximum
Unit
VCCIO
Output supply voltage
1.71
1.80
1.89
V
VREF
Reference voltage
0.855
0.900
0.945
V
VTT
Termination voltage
VREF – 0.04
VREF
VREF + 0.04
V
VIH (DC) High-level DC input voltage
VREF + 0.125
V
VIL (DC) Low-level DC input voltage
VREF – 0.125
VIH (AC) High-level AC input voltage
VREF + 0.25
V
VIL (AC) Low-level AC input voltage
VREF – 0.25
VOH
High-level output voltage
IOH = –13.4 mA (1)
VOL
Low-level output voltage
IOL = 13.4 mA (1)
V
VCCIO – 0.28
V
V
0.28
V
Note to Table 5–17:
(1)
This specification is supported across all the programmable drive settings available for this I/O standard as shown
in the Stratix II Architecture chapter in volume 1 of the Stratix II Device Handbook.
Table 5–18. SSTL-18 Class I & II Differential Specifications
Symbol
Parameter
Conditions
Minimum
Typical
Maximum
Unit
1.80
1.89
V
VCCIO
Output supply voltage
1.71
VSWING
(DC)
DC differential input voltage
0.25
VX (AC) AC differential input cross
point voltage
V
(VCCIO/2) – 0.175
(VCCIO/2) + 0.175
V
VSWING
(AC)
AC differential input voltage
VISO
Input clock signal offset
voltage
0.5 × VCCIO
V
ΔVISO
Input clock signal offset
voltage variation
±200
mV
VOX
(AC)
AC differential cross point
voltage
Altera Corporation
April 2011
0.5
(VCCIO/2) – 0.125
V
(VCCIO/2) + 0.125
V
5–11
Stratix II Device Handbook, Volume 1
Operating Conditions
Table 5–19. SSTL-2 Class I Specifications
Symbol
Parameter
VCCIO
Output supply voltage
VTT
Termination voltage
Conditions
Minimum
Typical
Maximum
Unit
2.375
2.500
2.625
V
VREF – 0.04
VREF
VREF + 0.04
V
1.188
1.250
VREF
Reference voltage
1.313
V
VIH (DC)
High-level DC input voltage
VREF + 0.18
3.00
V
VIL (DC)
Low-level DC input voltage
–0.30
VREF – 0.18
V
VI H (AC)
High-level AC input voltage
VR E F + 0.35
VI L (AC)
Low-level AC input voltage
VOH
High-level output voltage
IOH = –8.1 mA (1)
VOL
Low-level output voltage
IOL = 8.1 mA (1)
V
VR E F - 0.35
VTT + 0.57
V
V
VTT – 0.57
V
Note to Table 5–19:
(1)
This specification is supported across all the programmable drive settings available for this I/O standard as shown
in the Stratix II Architecture chapter in volume 1 of the Stratix II Device Handbook.
Table 5–20. SSTL-2 Class II Specifications
Symbol
Parameter
Conditions
Minimum
Typical
Maximum
Unit
2.375
2.500
2.625
V
VREF – 0.04
VREF
VREF + 0.04
V
1.188
1.250
1.313
V
VCCIO
Output supply voltage
VTT
Termination voltage
VREF
Reference voltage
VIH (DC)
High-level DC input voltage
VREF + 0.18
VCCIO + 0.30
V
VIL (DC)
Low-level DC input voltage
–0.30
VREF – 0.18
V
VR E F + 0.35
VR E F - 0.35
V
VI H (AC)
High-level AC input voltage
VI L (AC)
Low-level AC input voltage
VOH
High-level output voltage
IOH = –16.4 mA (1)
VOL
Low-level output voltage
IOL = 16.4 mA (1)
V
VTT + 0.76
V
VTT – 0.76
V
Note to Table 5–20:
(1)
This specification is supported across all the programmable drive settings available for this I/O standard as shown
in the Stratix II Architecture chapter in volume 1 of the Stratix II Device Handbook.
5–12
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–21. SSTL-2 Class I & II Differential Specifications
Symbol
Parameter
Conditions
Minimum
Typical
Maximum
Unit
2.500
2.625
V
VCCIO
Output supply voltage
2.375
VSWING
(DC)
DC differential input voltage
0.36
VX (AC) AC differential input cross
point voltage
V
(VCCIO/2) – 0.2
(VCCIO/2) + 0.2
V
VSWING
(AC)
AC differential input voltage
VISO
Input clock signal offset
voltage
0.5 × VCCIO
V
ΔVISO
Input clock signal offset
voltage variation
±200
mV
VOX
(AC)
AC differential output cross
point voltage
0.7
V
(VCCIO/2) – 0.2
(VCCIO/2) + 0.2
V
Table 5–22. 1.2-V HSTL Specifications
Symbol
Parameter
Conditions
Minimum
Typical
Maximum
Unit
1.14
1.20
1.26
V
0.50 × VC C I O
0.52 × VC C I O
V
VCCIO
Output supply voltage
VR E F
Reference voltage
0.48 × VC C I O
VIH (DC) High-level DC input voltage
VR E F + 0.08
VC C I O + 0.15
V
VIL (DC) Low-level DC input voltage
–0.15
VR E F – 0.08
V
VIH (AC) High-level AC input voltage
VR E F + 0.15
VC C I O + 0.24
V
VIL (AC) Low-level AC input voltage
–0.24
VR E F – 0.15
V
VOH
High-level output voltage
IO H = 8 mA
VR E F + 0.15
VC C I O + 0.15
V
VOL
Low-level output voltage
IO H = –8 mA
–0.15
VR E F – 0.15
V
Altera Corporation
April 2011
5–13
Stratix II Device Handbook, Volume 1
Operating Conditions
Table 5–23. 1.5-V HSTL Class I Specifications
Symbol
Parameter
Conditions
Minimum
Typical
Maximum
Unit
VCCIO
Output supply voltage
1.425
1.500
1.575
V
VREF
Input reference voltage
0.713
0.750
0.788
V
VTT
Termination voltage
0.713
0.750
0.788
V
VIH (DC)
DC high-level input voltage
VREF + 0.1
VIL (DC)
DC low-level input voltage
–0.3
VIH (AC)
AC high-level input voltage
VREF + 0.2
VIL (AC)
AC low-level input voltage
VOH
High-level output voltage
IOH = 8 mA (1)
VOL
Low-level output voltage
IOH = –8 mA (1)
V
VREF – 0.1
V
V
VREF – 0.2
VCCIO – 0.4
V
V
0.4
V
Note to Table 5–23:
(1)
This specification is supported across all the programmable drive settings available for this I/O standard as shown
in the Stratix II Architecture chapter in volume 1 of the Stratix II Device Handbook.
Table 5–24. 1.5-V HSTL Class II Specifications
Symbol
Parameter
Conditions
Minimum
Typical
Maximum
Unit
1.425
1.500
1.575
V
VCCIO
Output supply voltage
VREF
Input reference voltage
0.713
0.750
0.788
V
VTT
Termination voltage
0.713
0.750
0.788
V
VIH (DC)
DC high-level input voltage
VREF + 0.1
VIL (DC)
DC low-level input voltage
–0.3
VIH (AC)
AC high-level input voltage
VREF + 0.2
VIL (AC)
AC low-level input voltage
VOH
High-level output voltage
IOH = 16 mA (1)
VOL
Low-level output voltage
IOH = –16 mA (1)
V
VREF – 0.1
V
VREF – 0.2
V
V
VCCIO – 0.4
V
0.4
V
Note to Table 5–24:
(1)
This specification is supported across all the programmable drive settings available for this I/O standard as shown
in the Stratix II Architecture chapter in volume 1 of the Stratix II Device Handbook.
5–14
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–25. 1.5-V HSTL Class I & II Differential Specifications
Symbol
Parameter
Conditions
Minimum
Typical
Maximum
Unit
1.425
1.500
1.575
V
VCCIO
I/O supply voltage
VDIF (DC)
DC input differential voltage
0.2
VCM (DC)
DC common mode input
voltage
0.68
VDIF (AC)
AC differential input voltage
0.4
VOX (AC)
AC differential cross point
voltage
0.68
V
0.90
V
V
0.90
V
Table 5–26. 1.8-V HSTL Class I Specifications
Symbol
Parameter
Conditions
Minimum
Typical
Maximum
Unit
VCCIO
Output supply voltage
1.71
1.80
1.89
V
VREF
Input reference voltage
0.85
0.90
0.95
V
VTT
Termination voltage
0.85
0.90
0.95
V
VIH (DC)
DC high-level input voltage
VREF + 0.1
VIL (DC)
DC low-level input voltage
–0.3
VIH (AC)
AC high-level input voltage
VREF + 0.2
VIL (AC)
AC low-level input voltage
VOH
High-level output voltage
IOH = 8 mA (1)
VOL
Low-level output voltage
IOH = –8 mA (1)
V
VREF – 0.1
V
V
VREF – 0.2
VCCIO – 0.4
V
V
0.4
V
Note to Table 5–26:
(1)
This specification is supported across all the programmable drive settings available for this I/O standard as shown
in the Stratix II Architecture chapter in volume 1 of the Stratix II Device Handbook.
Altera Corporation
April 2011
5–15
Stratix II Device Handbook, Volume 1
Operating Conditions
Table 5–27. 1.8-V HSTL Class II Specifications
Symbol
Parameter
Conditions
Minimum
Typical
Maximum
Unit
VCCIO
Output supply voltage
1.71
1.80
1.89
V
VREF
Input reference voltage
0.85
0.90
0.95
V
VTT
Termination voltage
0.85
0.90
0.95
VIH (DC)
DC high-level input voltage
VREF + 0.1
VIL (DC)
DC low-level input voltage
–0.3
VIH (AC)
AC high-level input voltage
VREF + 0.2
VIL (AC)
AC low-level input voltage
VOH
High-level output voltage
IOH = 16 mA (1)
VOL
Low-level output voltage
IOH = –16 mA (1)
V
V
VREF – 0.1
V
V
VREF – 0.2
VCCIO – 0.4
V
V
0.4
V
Note to Table 5–27:
(1)
This specification is supported across all the programmable drive settings available for this I/O standard as shown
in the Stratix II Architecture chapter in volume 1 of the Stratix II Device Handbook.
Table 5–28. 1.8-V HSTL Class I & II Differential Specifications
Symbol
Parameter
Conditions
Minimum
Typical
Maximum
Unit
1.71
1.80
1.89
V
VCCIO
I/O supply voltage
VDIF (DC)
DC input differential voltage
0.2
VCCIO + 0.6 V
V
VCM (DC)
DC common mode input
voltage
0.78
1.12
V
VDIF (AC)
AC differential input voltage
0.4
VCCIO + 0.6 V
V
VOX (AC)
AC differential cross point
voltage
0.68
0.90
V
5–16
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Bus Hold Specifications
Table 5–29 shows the Stratix II device family bus hold specifications.
Table 5–29. Bus Hold Parameters
VCCIO Level
Parameter
Conditions
1.2 V
Min
Max
1.5 V
Min
1.8 V
Max
Min
2.5 V
Max
Min
Max
3.3 V
Min
Unit
Max
Low
sustaining
current
VIN > VIL
(maximum)
22.5
25.0
30.0
50.0
70.0
μA
High
sustaining
current
VIN < VIH
(minimum)
–22.5
–25.0
–30.0
–50.0
–70.0
μA
Low
overdrive
current
0 V < VIN <
VCCIO
120
160
200
300
500
μA
High
overdrive
current
0 V < VIN <
VCCIO
–120
–160
–200
–300
–500
μA
2.00
V
Bus-hold
trip point
0.45
0.95
0.50
1.00
0.68
1.07
0.70
1.70
0.80
On-Chip Termination Specifications
Tables 5–30 and 5–31 define the specification for internal termination
resistance tolerance when using series or differential on-chip termination.
Table 5–30. Series On-Chip Termination Specification for Top & Bottom I/O Banks (Part 1 of 2)
Notes (1), 2
Resistance Tolerance
Symbol
25-Ω RS
3.3/2.5
Description
Conditions
Commercial
Max
Industrial
Max
Unit
Internal series termination with
calibration (25-Ω setting)
VC C I O = 3.3/2.5 V
±5
±10
%
Internal series termination without
calibration (25-Ω setting)
VC C I O = 3.3/2.5 V
±30
±30
%
Altera Corporation
April 2011
5–17
Stratix II Device Handbook, Volume 1
Operating Conditions
Table 5–30. Series On-Chip Termination Specification for Top & Bottom I/O Banks (Part 2 of 2)
Notes (1), 2
Resistance Tolerance
Symbol
50-Ω RS
3.3/2.5
Description
Conditions
Commercial
Max
Industrial
Max
Unit
Internal series termination with
calibration (50-Ω setting)
VC C I O = 3.3/2.5 V
±5
±10
%
Internal series termination without
calibration (50-Ω setting)
VC C I O = 3.3/2.5 V
±30
±30
%
50-Ω RT
2.5
Internal parallel termination with
calibration (50-Ω setting)
VC C I O = 1.8 V
±30
±30
%
25-Ω RS
1.8
Internal series termination with
calibration (25-Ω setting)
VC C I O = 1.8 V
±5
±10
%
Internal series termination without
calibration (25-Ω setting)
VC C I O = 1.8 V
±30
±30
%
Internal series termination with
calibration (50-Ω setting)
VC C I O = 1.8 V
±5
±10
%
Internal series termination without
calibration (50-Ω setting)
VC C I O = 1.8 V
±30
±30
%
50-Ω RT
1.8
Internal parallel termination with
calibration (50-Ω setting)
VC C I O = 1.8 V
±10
±15
%
50−Ω RS
1.5
Internal series termination with
calibration (50-Ω setting)
VC C I O = 1.5 V
±8
±10
%
Internal series termination without
calibration (50-Ω setting)
VC C I O = 1.5 V
±36
±36
%
50-Ω RT
1.5
Internal parallel termination with
calibration (50-Ω setting)
VC C I O = 1.5 V
±10
±15
%
50−Ω RS
1.2
Internal series termination with
calibration (50-Ω setting)
VC C I O = 1.2 V
±8
±10
%
Internal series termination without
calibration (50-Ω setting)
VC C I O = 1.2 V
±50
±50
%
Internal parallel termination with
calibration (50-Ω setting)
VC C I O = 1.2 V
±10
±15
%
50-Ω RS
1.8
50-Ω RT
1.2
Notes for Table 5–30:
(1)
(2)
The resistance tolerances for calibrated SOCT and POCT are for the moment of calibration. If the temperature or
voltage changes over time, the tolerance may also change.
On-chip parallel termination with calibration is only supported for input pins.
5–18
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–31. Series & Differential On-Chip Termination Specification for Left & Right I/O Banks
Resistance Tolerance
Symbol
Description
Conditions
Commercial Industrial
Max
Max
Unit
25-Ω RS
3.3/2.5
Internal series termination without
calibration (25-Ω setting)
VC C I O = 3.3/2.5 V
±30
±30
%
50-Ω RS
3.3/2.5/1.8
Internal series termination without
calibration (50-Ω setting)
VC C I O = 3.3/2.5/1.8 V
±30
±30
%
50-Ω RS 1.5
Internal series termination without
calibration (50-Ω setting)
VC C I O = 1.5 V
±36
±36
%
RD
VC C I O = 2.5 V
Internal differential termination for
LVDS or HyperTransport technology
(100-Ω setting)
±20
±25
%
Pin Capacitance
Table 5–32 shows the Stratix II device family pin capacitance.
Table 5–32. Stratix II Device Capacitance
Symbol
Note (1)
Parameter
Typical
Unit
CI O T B
Input capacitance on I/O pins in I/O banks 3, 4, 7, and 8.
5.0
pF
CI O L R
Input capacitance on I/O pins in I/O banks 1, 2, 5, and 6, including highspeed differential receiver and transmitter pins.
6.1
pF
CC L K T B
Input capacitance on top/bottom clock input pins: CLK[4..7] and
CLK[12..15].
6.0
pF
CC L K L R
Input capacitance on left/right clock inputs: CLK0, CLK2, CLK8, CLK10.
6.1
pF
CC L K L R +
Input capacitance on left/right clock inputs: CLK1, CLK3, CLK9, and
CLK11.
3.3
pF
CO U T F B
Input capacitance on dual-purpose clock output/feedback pins in PLL
banks 9, 10, 11, and 12.
6.7
pF
Note to Table 5–32:
(1)
Capacitance is sample-tested only. Capacitance is measured using time-domain reflections (TDR). Measurement
accuracy is within ±0.5pF
Altera Corporation
April 2011
5–19
Stratix II Device Handbook, Volume 1
Power Consumption
Power
Consumption
Altera® offers two ways to calculate power for a design: the Excel-based
PowerPlay Early Power Estimator power calculator and the Quartus® II
PowerPlay Power Analyzer feature.
The interactive Excel-based PowerPlay Early Power Estimator is typically
used prior to designing the FPGA in order to get an estimate of device
power. The Quartus II PowerPlay Power Analyzer provides better
quality estimates based on the specifics of the design after place-androute is complete. The Power Analyzer can apply a combination of userentered, simulation-derived and estimated signal activities which,
combined with detailed circuit models, can yield very accurate power
estimates.
In both cases, these calculations should only be used as an estimation of
power, not as a specification.
f
For more information about PowerPlay tools, refer to the PowerPlay Early
Power Estimator User Guide and the PowerPlay Early Power Estimator and
PowerPlay Power Analyzer chapters in volume 3 of the Quartus II
Handbook.
The PowerPlay Early Power Estimator is available on the Altera web site
at www.altera.com. See Table 5–4 on page 5–3 for typical ICC standby
specifications.
Timing Model
The DirectDriveTM technology and MultiTrackTM interconnect ensure
predictable performance, accurate simulation, and accurate timing
analysis across all Stratix II device densities and speed grades. This
section describes and specifies the performance, internal timing, external
timing, and PLL, high-speed I/O, external memory interface, and JTAG
timing specifications.
All specifications are representative of worst-case supply voltage and
junction temperature conditions.
1
The timing numbers listed in the tables of this section are
extracted from the Quartus II software version 5.0 SP1.
Preliminary & Final Timing
Timing models can have either preliminary or final status. The Quartus II
software issues an informational message during the design compilation
if the timing models are preliminary. Table 5–33 shows the status of the
Stratix II device timing models.
5–20
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Preliminary status means the timing model is subject to change. Initially,
timing numbers are created using simulation results, process data, and
other known parameters. These tests are used to make the preliminary
numbers as close to the actual timing parameters as possible.
Final timing numbers are based on actual device operation and testing.
These numbers reflect the actual performance of the device under
worst-case voltage and junction temperature conditions.
Table 5–33. Stratix II Device Timing Model Status
Device
Preliminary
Final
EP2S15
v
EP2S30
v
EP2S60
v
EP2S90
v
EP2S130
v
EP2S180
v
I/O Timing Measurement Methodology
Altera characterizes timing delays at the worst-case process, minimum
voltage, and maximum temperature for input register setup time (tSU)
and hold time (tH). The Quartus II software uses the following equations
to calculate tSU and tH timing for Stratix II devices input signals.
tSU = + data delay from input pin to input register
+ micro setup time of the input register
– clock delay from input pin to input register
tH = – data delay from input pin to input register
+ micro hold time of the input register
+ clock delay from input pin to input register
Figure 5–3 shows the setup and hold timing diagram for input registers.
Altera Corporation
April 2011
5–21
Stratix II Device Handbook, Volume 1
Timing Model
Figure 5–3. Input Register Setup & Hold Timing Diagram
Input Data Delay
micro tSU
micro tH
Input Clock Delay
For output timing, different I/O standards require different baseline
loading techniques for reporting timing delays. Altera characterizes
timing delays with the required termination for each I/O standard and
with 0 pF (except for PCI and PCI-X which use 10 pF) loading and the
timing is specified up to the output pin of the FPGA device. The
Quartus II software calculates the I/O timing for each I/O standard with
a default baseline loading as specified by the I/O standards.
The following measurements are made during device characterization.
Altera measures clock-to-output delays (tCO) at worst-case process,
minimum voltage, and maximum temperature (PVT) for default loading
conditions shown in Table 5–34. Use the following equations to calculate
clock pin to output pin timing for Stratix II devices.
tCO from clock pin to I/O pin = delay from clock pad to I/O output
register + IOE output register clock-to-output delay + delay from
output register to output pin + I/O output delay
txz/tzx from clock pin to I/O pin = delay from clock pad to I/O
output register + IOE output register clock-to-output delay + delay
from output register to output pin + I/O output delay + output
enable pin delay
Simulation using IBIS models is required to determine the delays on the
PCB traces in addition to the output pin delay timing reported by the
Quartus II software and the timing model in the device handbook.
1.
Simulate the output driver of choice into the generalized test setup,
using values from Table 5–34.
2.
Record the time to VMEAS.
3.
Simulate the output driver of choice into the actual PCB trace and
load, using the appropriate IBIS model or capacitance value to
represent the load.
5–22
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
4.
Record the time to VMEAS.
5.
Compare the results of steps 2 and 4. The increase or decrease in
delay should be added to or subtracted from the I/O Standard
Output Adder delays to yield the actual worst-case propagation
delay (clock-to-output) of the PCB trace.
The Quartus II software reports the timing with the conditions shown in
Table 5–34 using the above equation. Figure 5–4 shows the model of the
circuit that is represented by the output timing of the Quartus II software.
Figure 5–4. Output Delay Timing Reporting Setup Modeled by Quartus II
VTT
VCCIO
RT
Output
Buffer
Output
GND
Outputp
RS
VMEAS
CL
Outputn
RD
GND
Notes to Figure 5–4:
(1)
(2)
(3)
Output pin timing is reported at the output pin of the FPGA device. Additional
delays for loading and board trace delay need to be accounted for with IBIS model
simulations.
VCCPD is 3.085 V unless otherwise specified.
VCCINT is 1.12 V unless otherwise specified.
Figures 5–5 and 5–6 show the measurement setup for output disable and
output enable timing.
Altera Corporation
April 2011
5–23
Stratix II Device Handbook, Volume 1
Timing Model
Table 5–34. Output Timing Measurement Methodology for Output Pins
Notes (1), (2), (3)
Measurement
Point
Loading and Termination
I/O Standard
RS (Ω)
RD (Ω)
RT (Ω)
VCCIO (V)
VTT (V)
CL (pF)
VMEAS (V)
LVTTL (4)
3.135
0
1.5675
LVCMOS (4)
3.135
0
1.5675
2.5 V (4)
2.375
0
1.1875
1.8 V (4)
1.710
0
0.855
1.5 V (4)
1.425
0
0.7125
PCI (5)
2.970
10
1.485
PCI-X (5)
SSTL-2 Class I
2.970
25
50
2.325
1.123
10
1.485
0
1.1625
SSTL-2 Class II
25
25
2.325
1.123
0
1.1625
SSTL-18 Class I
25
50
1.660
0.790
0
0.83
SSTL-18 Class II
25
25
1.660
0.790
0
0.83
1.8-V HSTL Class I
50
50
1.660
0.790
0
0.83
1.8-V HSTL Class II
25
25
1.660
0.790
0
0.83
1.5-V HSTL Class I
50
50
1.375
0.648
0
0.6875
1.375
0.648
0
0.6875
0
0.570
1.5-V HSTL Class II
1.2-V HSTL with OCT
25
50
1.140
Differential SSTL-2 Class I
50
50
2.325
1.123
0
1.1625
Differential SSTL-2 Class II
25
25
2.325
1.123
0
1.1625
Differential SSTL-18 Class I
50
50
1.660
0.790
0
0.83
Differential SSTL-18 Class II
25
25
1.660
0.790
0
0.83
1.5-V Differential HSTL Class I
50
50
1.375
0.648
0
0.6875
25
1.375
0.648
0
0.6875
1.5-V Differential HSTL Class II
1.8-V Differential HSTL Class I
50
50
1.660
0.790
0
0.83
1.8-V Differential HSTL Class II
25
25
1.660
0.790
0
0.83
LVDS
100
2.325
0
1.1625
HyperTransport
100
2.325
0
1.1625
LVPECL
100
3.135
0
1.5675
Notes to Table 5–34:
(1)
(2)
(3)
(4)
(5)
Input measurement point at internal node is 0.5 × VCCINT.
Output measuring point for VMEAS at buffer output is 0.5 × VCCIO.
Input stimulus edge rate is 0 to VCC in 0.2 ns (internal signal) from the driver preceding the I/O buffer.
Less than 50-mV ripple on VCCIO and VCCPD, VCCINT = 1.15 V with less than 30-mV ripple
VCCPD = 2.97 V, less than 50-mV ripple on VCCIO and VCCPD, VCCINT = 1.15 V
5–24
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Figure 5–5. Measurement Setup for txz
Note (1)
tXZ, Driving High to Tristate
Enable
OE
OE
½ VCCINT
Dout
Din
100 Ω
Disable
“1”
Din
100 mv
Dout
thz
GND
tXZ, Driving Low to Tristate
Enable
OE
100 Ω
Disable
½ VCCINT
OE
Dout
Din
Din
Dout
“0”
tlz
VCCIO
100 mv
Note to Figure 5–5:
(1)
Altera Corporation
April 2011
VCCINT is 1.12 V for this measurement.
5–25
Stratix II Device Handbook, Volume 1
Timing Model
Figure 5–6. Measurement Setup for tzx
tZX, Tristate to Driving High
Disable
OE
OE
Enable
½ VCCINT
Dout
Din
“1”
Din
1 MΩ
tzh
Dout
½ VCCIO
tZX, Tristate to Driving Low
Disable
Enable
½ VCCINT
OE
1 MΩ
OE
Dout
Din
“0”
Din
½ VCCIO
tzl
Dout
Table 5–35 specifies the input timing measurement setup.
Table 5–35. Timing Measurement Methodology for Input Pins (Part 1 of 2)
Notes (1)–(4)
Measurement Conditions
Measurement Point
I/O Standard
VCCIO (V)
LVTTL (5)
VREF (V)
3.135
Edge Rate (ns)
VM E A S (V)
3.135
1.5675
LVCMOS (5)
3.135
3.135
1.5675
2.5 V (5)
2.375
2.375
1.1875
1.8 V (5)
1.710
1.710
0.855
1.5 V (5)
1.425
1.425
0.7125
PCI (6)
2.970
2.970
1.485
PCI-X (6)
2.970
2.970
1.485
SSTL-2 Class I
2.325
1.163
2.325
1.1625
SSTL-2 Class II
2.325
1.163
2.325
1.1625
SSTL-18 Class I
1.660
0.830
1.660
0.83
SSTL-18 Class II
1.660
0.830
1.660
0.83
1.8-V HSTL Class I
1.660
0.830
1.660
0.83
5–26
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–35. Timing Measurement Methodology for Input Pins (Part 2 of 2)
Notes (1)–(4)
Measurement Conditions
Measurement Point
I/O Standard
VCCIO (V)
VREF (V)
Edge Rate (ns)
VM E A S (V)
1.8-V HSTL Class II
1.660
0.830
1.660
0.83
1.5-V HSTL Class I
1.375
0.688
1.375
0.6875
1.5-V HSTL Class II
1.375
0.688
1.375
0.6875
1.2-V HSTL with OCT
1.140
0.570
1.140
0.570
Differential SSTL-2 Class I
2.325
1.163
2.325
1.1625
Differential SSTL-2 Class II
2.325
1.163
2.325
1.1625
Differential SSTL-18 Class I
1.660
0.830
1.660
0.83
Differential SSTL-18 Class II
1.660
0.830
1.660
0.83
1.5-V Differential HSTL Class I
1.375
0.688
1.375
0.6875
1.5-V Differential HSTL Class II
1.375
0.688
1.375
0.6875
1.8-V Differential HSTL Class I
1.660
0.830
1.660
0.83
1.8-V Differential HSTL Class II
1.660
0.830
LVDS
2.325
1.660
0.83
0.100
1.1625
HyperTransport
2.325
0.400
1.1625
LVPECL
3.135
0.100
1.5675
Notes to Table 5–35:
(1)
(2)
(3)
(4)
(5)
(6)
Input buffer sees no load at buffer input.
Input measuring point at buffer input is 0.5 × VCCIO.
Output measuring point is 0.5 × VCC at internal node.
Input edge rate is 1 V/ns.
Less than 50-mV ripple on VCCIO and VCCPD, VCCINT = 1.15 V with less than 30-mV ripple
VCCPD = 2.97 V, less than 50-mV ripple on VCCIO and VCCPD, VCCINT = 1.15 V
Performance
Table 5–36 shows Stratix II performance for some common designs. All
performance values were obtained with the Quartus II software
compilation of library of parameterized modules (LPM), or MegaCore®
functions for the finite impulse response (FIR) and fast Fourier transform
(FFT) designs.
Altera Corporation
April 2011
5–27
Stratix II Device Handbook, Volume 1
Timing Model
1
The performance numbers in Table 5–36 are extracted from the
Quartus II software version 5.1 SP1.
Table 5–36. Stratix II Performance Notes (Part 1 of 6)
Note (1)
Resources Used
ALUTs
TriMatrix
Memory
Blocks
DSP
Blocks
-3
Speed
Grade
(2)
-3
Speed
Grade
(3)
-4
Speed
Grade
-5
Speed
Grade
Unit
21
0
0
654.87
625.0
523.83
460.4
MHz
Applications
LE
16-to-1 multiplexer (4)
Performance
32-to-1 multiplexer (4)
38
0
0
519.21
473.26
464.25
384.17
MHz
16-bit counter
16
0
0
566.57
538.79
489.23
421.05
MHz
64-bit counter
64
0
0
244.31
232.07
209.11
181.38
MHz
TriMatrix
Memory
M512
block
Simple dual-port RAM
32 × 18 bit
0
1
0
500.00
476.19
434.02
373.13
MHz
FIFO 32 x 18 bit
22
1
0
500.00
476.19
434.78
373.13
MHz
TriMatrix
Memory
M4K
block
Simple dual-port RAM
128 x 36 bit (8)
0
1
0
540.54
515.46
469.48
401.60
MHz
True dual-port RAM
128 × 18 bit (8)
0
1
0
540.54
515.46
469.48
401.60
MHz
FIFO
128 × 36 bit
22
1
0
530.22
499.00
469.48
401.60
MHz
Simple dual-port RAM
128 × 36 bit (9)
0
1
0
475.28
453.30
413.22
354.10
MHz
True dual-port RAM
128 × 18 bit (9)
0
1
0
475.28
453.30
413.22
354.10
MHz
5–28
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–36. Stratix II Performance Notes (Part 2 of 6)
Note (1)
Resources Used
ALUTs
TriMatrix
Memory
Blocks
DSP
Blocks
-3
Speed
Grade
(2)
-3
Speed
Grade
(3)
-4
Speed
Grade
-5
Speed
Grade
Unit
Single port
RAM 4K × 144 bit
0
1
0
349.65
333.33
303.95
261.09
MHz
Simple dual-port
RAM 4K × 144 bit
0
1
0
420.16
400.00
364.96
313.47
MHz
True dual-port
RAM 4K × 144 bit
0
1
0
349.65
333.33
303.95
261.09
MHz
Single port
RAM 8K × 72 bit
0
1
0
354.60
337.83
307.69
263.85
MHz
Simple dual-port
RAM 8K × 72 bit
0
1
0
420.16
400.00
364.96
313.47
MHz
True dual-port
RAM 8K × 72 bit
0
1
0
349.65
333.33
303.95
261.09
MHz
Single port
RAM 16K × 36 bit
0
1
0
364.96
347.22
317.46
271.73
MHz
Simple dual-port
RAM 16K × 36 bit
0
1
0
420.16
400.00
364.96
313.47
MHz
True dual-port
RAM 16K × 36 bit
0
1
0
359.71
342.46
313.47
268.09
MHz
Single port
RAM 32K × 18 bit
0
1
0
364.96
347.22
317.46
271.73
MHz
Simple dual-port
RAM 32K × 18 bit
0
1
0
420.16
400.0
364.96
313.47
MHz
True dual-port
RAM 32K × 18 bit
0
1
0
359.71
342.46
313.47
268.09
MHz
Single port
RAM 64K × 9 bit
0
1
0
364.96
347.22
317.46
271.73
MHz
Simple dual-port
RAM 64K × 9 bit
0
1
0
420.16
400.0
364.96
313.47
MHz
True dual-port
RAM 64K × 9 bit
0
1
0
359.71
342.46
313.47
268.09
MHz
Applications
TriMatrix
Memory
M-RAM
block
Performance
Altera Corporation
April 2011
5–29
Stratix II Device Handbook, Volume 1
Timing Model
Table 5–36. Stratix II Performance Notes (Part 3 of 6)
Note (1)
Resources Used
ALUTs
TriMatrix
Memory
Blocks
DSP
Blocks
-3
Speed
Grade
(2)
-3
Speed
Grade
(3)
-4
Speed
Grade
-5
Speed
Grade
Unit
9 × 9-bit multiplier (5)
0
0
1
430.29
409.16
373.13
320.10
MHz
18 × 18-bit
multiplier (5)
0
0
1
410.17
390.01
356.12
305.06
MHz
18 × 18-bit
multiplier (7)
0
0
1
450.04
428.08
391.23
335.12
MHz
36 × 36-bit
multiplier (5)
0
0
1
250.00
238.15
217.48
186.60
MHz
36 × 36-bit multiplier
(6)
0
0
1
410.17
390.01
356.12
305.06
MHz
18-bit, four-tap FIR
filter
0
0
1
410.17
390.01
356.12
305.06
MHz
8-bit,16-tap parallel
FIR filter
58
0
4
259.06
240.61
217.15
185.01
MHz
8-bit, 1024-point,
streaming, three
multipliers and five
adders FFT function
2976
22
9
398.72
364.03
355.23
306.37
MHz
8-bit, 1024-point,
streaming, four
multipliers and two
adders FFT function
2781
22
12
398.56
409.16
347.22
311.13
MHz
8-bit, 1024-point,
single output, one
parallel FFT engine,
burst, three multipliers
and five adders FFT
function
984
5
3
425.17
365.76
346.98
292.39
MHz
8-bit, 1024-point,
single output, one
parallel FFT engine,
burst, four multipliers
and two adders FFT
function
919
5
4
427.53
378.78
357.14
307.59
MHz
Applications
DSP
block
Larger
designs
Performance
5–30
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–36. Stratix II Performance Notes (Part 4 of 6)
Note (1)
Resources Used
ALUTs
TriMatrix
Memory
Blocks
DSP
Blocks
-3
Speed
Grade
(2)
-3
Speed
Grade
(3)
-4
Speed
Grade
-5
Speed
Grade
Unit
8-bit, 1024-point,
single output, two
parallel FFT engines,
burst, three multiplier
and five adders FFT
function
1725
10
6
430.29
401.92
373.13
319.08
MHz
8-bit, 1024-point,
single output, two
parallel FFT engines,
burst, four multipliers
and two adders FFT
function
1594
10
8
422.65
407.33
373.13
329.10
MHz
8-bit, 1024-point,
quadrant output, one
parallel FFT engine,
burst, three multipliers
and five adders FFT
function
2361
10
9
315.45
342.81
325.73
284.25
MHz
8-bit, 1024-point,
quadrant output, one
parallel FFT engine,
burst, four multipliers
and two adders FFT
function
2165
10
12
373.13
369.54
317.96
256.14
MHz
8-bit, 1024-point,
quadrant output, two
parallel FFT engines,
burst, three multipliers
and five adders FFT
function
3996
14
18
378.50
367.10
332.33
288.68
MHz
8-bit, 1024-point,
quadrant output, two
parallel FFT engines,
burst, four multipliers
and two adders FFT
function
3604
14
24
391.38
361.14
340.25
280.89
MHz
Applications
Larger
designs
Performance
Altera Corporation
April 2011
5–31
Stratix II Device Handbook, Volume 1
Timing Model
Table 5–36. Stratix II Performance Notes (Part 5 of 6)
Note (1)
Resources Used
ALUTs
TriMatrix
Memory
Blocks
DSP
Blocks
-3
Speed
Grade
(2)
-3
Speed
Grade
(3)
-4
Speed
Grade
-5
Speed
Grade
Unit
8-bit, 1024-point,
quadrant output, four
parallel FFT engines,
burst, three multipliers
and five adders FFT
function
6850
28
36
334.11
345.66
308.54
276.31
MHz
8-bit, 1024-point,
quadrant output, four
parallel FFT engines,
burst, four multipliers
two adders FFT
function
6067
28
48
367.91
349.04
327.33
268.24
MHz
8-bit, 1024-point,
quadrant output, one
parallel FFT engine,
buffered burst, three
multipliers and adders
FFT function
2730
18
9
387.44
388.34
364.56
306.84
MHz
8-bit, 1024-point,
quadrant output, one
parallel FFT engine,
buffered burst, four
multipliers and two
adders FFT function
2534
18
12
419.28
369.66
364.96
307.88
MHz
8-bit, 1024-point,
quadrant output, two
parallel FFT engines,
buffered burst, three
multipliers five adders
FFT function
4358
30
18
396.51
378.07
340.13
291.29
MHz
8-bit, 1024-point,
quadrant output, two
parallel FFT engines,
buffered burst four
multipliers and two
adders FFT function
3966
30
24
389.71
398.08
356.53
280.74
MHz
Applications
Larger
designs
Performance
5–32
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–36. Stratix II Performance Notes (Part 6 of 6)
Note (1)
Resources Used
ALUTs
TriMatrix
Memory
Blocks
DSP
Blocks
-3
Speed
Grade
(2)
-3
Speed
Grade
(3)
-4
Speed
Grade
-5
Speed
Grade
Unit
8-bit, 1024-point,
quadrant output, four
parallel FFT engines,
buffered burst, three
multipliers five adders
FFT function
7385
60
36
359.58
352.98
312.01
278.00
MHz
8-bit, 1024-point,
quadrant output, four
parallel FFT engines,
buffered burst, four
multipliers and two
adders FFT function
6601
60
48
371.88
355.74
327.86
277.62
MHz
Applications
Larger
designs
Performance
Notes for Table 5–36:
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
These design performance numbers were obtained using the Quartus II software version 5.0 SP1.
These numbers apply to -3 speed grade EP2S15, EP2S30, EP2S60, and EP2S90 devices.
These numbers apply to -3 speed grade EP2S130 and EP2S180 devices.
This application uses registered inputs and outputs.
This application uses registered multiplier input and output stages within the DSP block.
This application uses registered multiplier input, pipeline, and output stages within the DSP block.
This application uses registered multiplier input with output of the multiplier stage feeding the accumulator or
subtractor within the DSP block.
This application uses the same clock source that is globally routed and connected to ports A and B.
This application uses locally routed clocks or differently sourced clocks for ports A and B.
Altera Corporation
April 2011
5–33
Stratix II Device Handbook, Volume 1
Timing Model
Internal Timing Parameters
See Tables 5–37 through 5–42 for internal timing parameters.
Table 5–37. LE_FF Internal Timing Microparameters
-3 Speed
Grade (1)
Symbol
-3 Speed
Grade (2)
-4 Speed
Grade
-5 Speed
Grade
Parameter
Unit
Min
(3)
Max
Min
(3)
Max
Min
(4)
Max
Min
(3)
Max
tS U
LE register setup time before
clock
90
95
104
104
121
ps
tH
LE register hold time after clock
149
157
172
172
200
ps
tC O
LE register clock-to-output
delay
62
tC L R
Minimum clear pulse width
204
214
234
234
273
ps
tP R E
Minimum preset pulse width
204
214
234
234
273
ps
tC L K L
Minimum clock low time
612
642
703
703
820
ps
tC L K H
Minimum clock high time
612
642
703
703
820
ps
94
62
99
59
62
109
62
127
ps
tL U T
162
378
162
397
162
170
435
162
507
ps
tA D D E R
354
619
354
650
354
372
712
354
829
ps
Notes to Table 5–37:
(1)
(2)
(3)
(4)
These numbers apply to -3 speed grade EP2S15, EP2S30, EP2S60, and EP2S90 devices.
These numbers apply to -3 speed grade EP2S130 and EP2S180 devices.
For the -3 and -5 speed grades, the minimum timing is for the commercial temperature grade. Only -4 speed grade
devices offer the industrial temperature grade.
For the -4 speed grade, the first number is the minimum timing parameter for industrial devices. The second
number is the minimum timing parameter for commercial devices.
5–34
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–38. IOE Internal Timing Microparameters
-3 Speed
Grade (1)
Symbol
-3 Speed
Grade (2)
-4 Speed
Grade
-5 Speed
Grade
Parameter
Unit
Min
(3)
Max
Min
(3)
Max
Min
(4)
Max
Min
(3)
Max
tS U
IOE input and output
register setup time
before clock
122
128
140
140
163
ps
tH
IOE input and output
register hold time after
clock
72
75
82
82
96
ps
tC O
IOE input and output
register clock-tooutput delay
101
169
101
177
97
101
194
101
226
ps
tP I N 2 C O M B O U T _ R Row input pin to IOE
combinational output
410
760
410
798
391
410
873
410
1,018
ps
tP I N 2 C O M B O U T _ C Column input pin to
IOE combinational
output
428
787
428
825
408
428
904
428
1,054
ps
1,101
2,439
ps
991
2,246
ps
tC O M B I N 2 P I N _ R
Row IOE data input to
combinational output
pin
1,101
2,026 1,101
2,127
1,854
tC O M B I N 2 P I N _ C
Column IOE data
input to combinational
output pin
991
1,946
tC L R
Minimum clear pulse
width
200
210
229
229
268
ps
tP R E
Minimum preset pulse
width
200
210
229
229
268
ps
tC L K L
Minimum clock low
time
600
630
690
690
804
ps
tC L K H
Minimum clock high
time
600
630
690
690
804
ps
991
1,049 2,329
1,101
944
991
2,131
Notes to Table 5–38:
(1)
(2)
(3)
(4)
These numbers apply to -3 speed grade EP2S15, EP2S30, EP2S60, and EP2S90 devices.
These numbers apply to -3 speed grade EP2S130 and EP2S180 devices.
For the -3 and -5 speed grades, the minimum timing is for the commercial temperature grade. Only -4 speed grade
devices offer the industrial temperature grade.
For the -4 speed grade, the first number is the minimum timing parameter for industrial devices. The second
number is the minimum timing parameter for commercial devices.
Altera Corporation
April 2011
5–35
Stratix II Device Handbook, Volume 1
Timing Model
Table 5–39. DSP Block Internal Timing Microparameters (Part 1 of 2)
-3 Speed
Grade (1)
Symbol
-3 Speed
Grade (2)
-4 Speed
Grade
-5 Speed
Grade
Parameter
Unit
Min
(3)
Max
Min
(3)
Max
Min
(4)
Max
Min
(3)
Max
tS U
Input, pipeline, and
output register setup
time before clock
50
52
57
57
67
ps
tH
Input, pipeline, and
output register hold
time after clock
180
189
206
206
241
ps
tC O
Input, pipeline, and
output register clockto-output delay
tI N R E G 2 P I P E 9
Input register to DSP
block pipeline register
in 9 × 9-bit mode
1,312 2,030 1,312 2,030 1,250 2,334 1,312 2,720
1,312
ps
tI N R E G 2 P I P E 1 8
Input register to DSP
block pipeline register
in 18 × 18-bit mode
1,302 2,010 1,302 2,110 1,240 2,311 1,302 2,693
1,302
ps
tI N R E G 2 P I P E 3 6
Input register to DSP
block pipeline register
in 36 × 36-bit mode
1,302 2,010 1,302 2,110 1,240 2,311 1,302 2,693
1,302
ps
tP I P E 2 O U T R E G 2 A D D DSP block pipeline
register to output
register delay in twomultipliers adder
mode
0
1,450
0
924
0
880
924
0
924
0
ps
tP I P E 2 O U T R E G 4 A D D DSP block pipeline
register to output
register delay in fourmultipliers adder
mode
1,134 1,850 1,134 1,942 1,080 2,127 1,134 2,479
1,134
ps
tP D 9
Combinational input
to output delay for
9×9
2,100 2,880 2,100 3,024 2,000 3,312 2,100 3,859
2,100
ps
tP D 1 8
Combinational input
to output delay for
18 × 18
2,110 2,990 2,110 3,139 2,010 3,438 2,110 4,006
2,110
ps
tP D 3 6
Combinational input
to output delay for
36 × 36
2,939 4,450 2,939 4,672 2,800 5,117 2,939 5,962
2,939
ps
tC L R
Minimum clear pulse
width
2,212
ps
2,543
2,543
1,667
0
ps
2,322
1,522
0
0
1,943
5–36
Stratix II Device Handbook, Volume 1
924
0
2,964
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–39. DSP Block Internal Timing Microparameters (Part 2 of 2)
-3 Speed
Grade (1)
Symbol
-3 Speed
Grade (2)
-4 Speed
Grade
-5 Speed
Grade
Parameter
Unit
Min
(3)
Max
Min
(3)
Max
Min
(4)
Max
Min
(3)
Max
tC L K L
Minimum clock low
time
1,190
1,249
1,368
1,368
1,594
ps
tC L K H
Minimum clock high
time
1,190
1,249
1,368
1,368
1,594
ps
Notes to Table 5–39:
(1)
(2)
(3)
(4)
These numbers apply to -3 speed grade EP2S15, EP2S30, EP2S60, and EP2S90 devices.
These numbers apply to -3 speed grade EP2S130 and EP2S180 devices.
For the -3 and -5 speed grades, the minimum timing is for the commercial temperature grade. Only -4 speed grade
devices offer the industrial temperature grade.
For the -4 speed grade, the first number is the minimum timing parameter for industrial devices. The second
number is the minimum timing parameter for commercial devices.
Table 5–40. M512 Block Internal Timing Microparameters (Part 1 of 2)
-3 Speed
Grade (2)
Symbol
-3 Speed
Grade (3)
Note (1)
-4 Speed
Grade
-5 Speed
Grade
Parameter
Unit
Min
(4)
Max
Min
(4)
2.433
Max
1,989 2,664
2,089
Min
(4)
Max
2,089
3,104
tM 5 1 2 R C
Synchronous read cycle
time
2,089
tM 5 1 2 W E R E S U
Write or read enable
setup time before clock
22
23
25
25
29
ps
tM 5 1 2 W E R E H
Write or read enable
hold time after clock
203
213
233
233
272
ps
tM 5 1 2 D ATA S U
Data setup time before
clock
22
23
25
25
29
ps
tM 5 1 2 D ATA H
Data hold time after
clock
203
213
233
233
272
ps
tM 5 1 2 WA D D R S U Write address setup
time before clock
22
23
25
25
29
ps
tM 5 1 2 WA D D R H
Write address hold time
after clock
203
213
233
233
272
ps
tM 5 1 2 R A D D R S U
Read address setup
time before clock
22
23
25
25
29
ps
tM 5 1 2 R A D D R H
Read address hold time
after clock
203
213
233
233
272
ps
Altera Corporation
April 2011
2,318 2,089
Max
Min
(5)
ps
5–37
Stratix II Device Handbook, Volume 1
Timing Model
Table 5–40. M512 Block Internal Timing Microparameters (Part 2 of 2)
-3 Speed
Grade (2)
Symbol
-3 Speed
Grade (3)
Note (1)
-4 Speed
Grade
-5 Speed
Grade
Parameter
Unit
Min
(4)
298
Max
Min
(4)
Max
478
298
501
2,461
Min
(5)
Max
Min
(4)
Max
284
298
548
298
640
ps
2,003
2,102
2,695
2,102
3,141
ps
tM 5 1 2 D ATA C O 1
Clock-to-output delay
when using output
registers
tM 5 1 2 D ATA C O 2
Clock-to-output delay
without output registers
2,102
2,345 2,102
tM 5 1 2 C L K L
Minimum clock low time
1,315
1,380
1,512
1,512
1,762
ps
tM 5 1 2 C L K H
Minimum clock high time 1,315
1,380
1,512
1,512
1,762
ps
tM 5 1 2 C L R
Minimum clear pulse
width
151
165
165
192
ps
144
Notes to Table 5–40:
(1)
(2)
(3)
(4)
(5)
FMAX of M512 block obtained using the Quartus II software does not necessarily equal to 1/TM512RC.
These numbers apply to -3 speed grade EP2S15, EP2S30, EP2S60, and EP2S90 devices.
These numbers apply to -3 speed grade EP2S130 and EP2S180 devices.
For the -3 and -5 speed grades, the minimum timing is for the commercial temperature grade. Only -4 speed grade
devices offer the industrial temperature grade.
For the -4 speed grade, the first number is the minimum timing parameter for industrial devices. The second
number is the minimum timing parameter for commercial devices.
Table 5–41. M4K Block Internal Timing Microparameters (Part 1 of 2)
-3 Speed
Grade (2)
Symbol
-3 Speed
Grade (3)
Note (1)
-4 Speed
Grade
-5 Speed
Grade
Parameter
Unit
Min
(4)
Max
Min
(4)
Max
2,240
1,462
2,351
Min
(5)
2,575
Max
tM 4 K R C
Synchronous read cycle
time
1,462
tM 4 K W E R E S U
Write or read enable
setup time before clock
22
23
25
25
29
ps
tM 4 K W E R E H
Write or read enable
hold time after clock
203
213
233
233
272
ps
tM 4 K B E S U
Byte enable setup time
before clock
22
23
25
25
29
ps
tM 4 K B E H
Byte enable hold time
after clock
203
213
233
233
272
ps
5–38
Stratix II Device Handbook, Volume 1
1,393
1,462
Max
Min
(4)
1,462 3,000
ps
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–41. M4K Block Internal Timing Microparameters (Part 2 of 2)
-3 Speed
Grade (2)
Symbol
-3 Speed
Grade (3)
Note (1)
-4 Speed
Grade
-5 Speed
Grade
Parameter
Unit
Min
(4)
Max
Min
(4)
Max
Min
(5)
Max
Min
(4)
Max
tM 4 K D ATA A S U
A port data setup time
before clock
22
23
25
25
29
ps
tM 4 K D ATA A H
A port data hold time
after clock
203
213
233
233
272
ps
tM 4 K A D D R A S U
A port address setup
time before clock
22
23
25
25
29
ps
tM 4 K A D D R A H
A port address hold time
after clock
203
213
233
233
272
ps
tM 4 K D ATA B S U
B port data setup time
before clock
22
23
25
25
29
ps
tM 4 K D ATA B H
B port data hold time
after clock
203
213
233
233
272
ps
tM 4 K R A D D R B S U B port address setup
time before clock
22
23
25
25
29
ps
tM 4 K R A D D R B H
B port address hold time
after clock
203
213
233
233
272
ps
tM 4 K D ATA C O 1
Clock-to-output delay
when using output
registers
334
524
334
549
319
334
601
tM 4 K D ATA C O 2
(6)
Clock-to-output delay
without output registers
1,616
2,453
1,616
2,574
1,540
1,616
2,820
tM 4 K C L K H
Minimum clock high time 1,250
1,312
tM 4 K C L K L
Minimum clock low time
1,250
tM 4 K C L R
Minimum clear pulse
width
144
334
701
ps
1,616 3,286
ps
1,437
1,437
1,675
ps
1,312
1,437
1,437
1,675
ps
151
165
165
192
ps
Notes to Table 5–41:
(1)
(2)
(3)
(4)
(5)
(6)
FMAX of M4K Block obtained using the Quartus II software does not necessarily equal to 1/TM4KRC.
These numbers apply to -3 speed grade EP2S15, EP2S30, EP2S60, and EP2S90 devices.
These numbers apply to -3 speed grade EP2S130 and EP2S180 devices.
For the -3 and -5 speed grades, the minimum timing is for the commercial temperature grade. Only -4 speed grade
devices offer the industrial temperature grade.
For the -4 speed grade, the first number is the minimum timing parameter for industrial devices. The second
number is the minimum timing parameter for commercial devices.
Numbers apply to unpacked memory modes, true dual-port memory modes, and simple dual-port memory modes
that use locally routed or non-identical sources for the A and B port registers.
Altera Corporation
April 2011
5–39
Stratix II Device Handbook, Volume 1
Timing Model
Table 5–42. M-RAM Block Internal Timing Microparameters (Part 1 of 2)
-3 Speed
Grade (2)
Symbol
-3 Speed
Grade (3)
Note (1)
-4 Speed
Grade
-5 Speed
Grade
Parameter
Unit
Min
(4)
Max
Min
(4)
Max
2,774
1,866
2,911
Min
(5)
Synchronous read cycle
time
1,866
tM E G AW E R E S U
Write or read enable
setup time before clock
144
151
165
165
192
ps
tM E G AW E R E H
Write or read enable
hold time after clock
39
40
44
44
52
ps
tM E G A B E S U
Byte enable setup time
before clock
50
52
57
57
67
ps
tM E G A B E H
Byte enable hold time
after clock
39
40
44
44
52
ps
tM E G A D ATA A S U
A port data setup time
before clock
50
52
57
57
67
ps
tM E G A D ATA A H
A port data hold time
after clock
243
255
279
279
325
ps
tM E G A A D D R A S U A port address setup
time before clock
589
618
677
677
789
ps
tM E G A A D D R A H
A port address hold time
after clock
241
253
277
277
322
ps
tM E G A D ATA B S U
B port setup time before
clock
50
52
57
57
67
ps
tM E G A D ATA B H
B port hold time after
clock
243
255
279
279
325
ps
tM E G A A D D R B S U B port address setup
time before clock
589
618
677
677
789
ps
tM E G A A D D R B H
B port address hold time
after clock
241
253
277
277
322
ps
tM E G A D ATA C O 1
Clock-to-output delay
when using output
registers
480
715
480
749
457
480
821
480
957
ps
tM E G A D ATA C O 2
Clock-to-output delay
without output registers
1,950
2,899
1,950
3,042
1,857
1,950
3,332
1,950
3,884
ps
tM E G A C L K L
Minimum clock low time
1,250
5–40
Stratix II Device Handbook, Volume 1
1,437
1,437
3,189
1,777
1,866
Max
tM E G A R C
1,312
1,777
1,866
Max
Min
(4)
1,675
3,716
ps
ps
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–42. M-RAM Block Internal Timing Microparameters (Part 2 of 2)
-3 Speed
Grade (2)
Symbol
-3 Speed
Grade (3)
Note (1)
-4 Speed
Grade
-5 Speed
Grade
Parameter
Unit
Min
(4)
Max
Min
(4)
Max
Min
(5)
Max
Min
(4)
Max
tM E G A C L K H
Minimum clock high
time
1,250
1,312
1,437
1,437
1,675
ps
tM E G A C L R
Minimum clear pulse
width
144
151
165
165
192
ps
Notes to Table 5–42:
(1)
(2)
(3)
(4)
(5)
FMAX of M-RAM Block obtained using the Quartus II software does not necessarily equal to 1/TMEGARC.
These numbers apply to -3 speed grade EP2S15, EP2S30, EP2S60, and EP2S90 devices.
These numbers apply to -3 speed grade EP2S130 and EP2S180 devices.
For the -3 and -5 speed grades, the minimum timing is for the commercial temperature grade. Only -4 speed grade
devices offer the industrial temperature grade.
For the -4 speed grade, the first number is the minimum timing parameter for industrial devices. The second
number is the minimum timing parameter for commercial devices.
Stratix II Clock Timing Parameters
See Tables 5–43 through 5–67 for Stratix II clock timing parameters.
Table 5–43. Stratix II Clock Timing Parameters
Symbol
Altera Corporation
April 2011
Parameter
tC I N
Delay from clock pad to I/O input register
tC O U T
Delay from clock pad to I/O output register
tP L L C I N
Delay from PLL inclk pad to I/O input register
tP L L C O U T
Delay from PLL inclk pad to I/O output register
5–41
Stratix II Device Handbook, Volume 1
Timing Model
EP2S15 Clock Timing Parameters
Tables 5–44 though 5–47 show the maximum clock timing parameters for
EP2S15 devices.
Table 5–44. EP2S15 Column Pins Regional Clock Timing Parameters
Minimum Timing
Industrial
Commercial
-3 Speed
Grade
tC I N
1.445
1.512
2.487
2.848
3.309
ns
tC O U T
1.288
1.347
2.245
2.570
2.985
ns
Parameter
-4 Speed
Grade
-5 Speed
Grade
Unit
tP L L C I N
0.104
0.102
0.336
0.373
0.424
ns
tP L L C O U T
-0.053
-0.063
0.094
0.095
0.1
ns
-4 Speed
Grade
-5 Speed
Grade
Unit
Table 5–45. EP2S15 Column Pins Global Clock Timing Parameters
Minimum Timing
Parameter
Industrial
Commercial
-3 Speed
Grade
tC I N
1.419
1.487
2.456
2.813
3.273
ns
tC O U T
1.262
1.322
2.214
2.535
2.949
ns
tP L L C I N
0.094
0.092
0.326
0.363
0.414
ns
tP L L C O U T
-0.063
-0.073
0.084
0.085
0.09
ns
Table 5–46. EP2S15 Row Pins Regional Clock Timing Parameters
Minimum Timing
Industrial
Commercial
-3 Speed
Grade
1.232
1.288
2.144
Parameter
tC I N
-4 Speed
Grade
-5 Speed
Grade
Unit
2.454
2.848
ns
tC O U T
1.237
1.293
2.140
2.450
2.843
ns
tP L L C I N
-0.109
-0.122
-0.007
-0.021
-0.037
ns
tP L L C O U T
-0.104
-0.117
-0.011
-0.025
-0.042
ns
5–42
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–47. EP2S15 Row Pins Global Clock Timing Parameters
Minimum Timing
Industrial
Commercial
-3 Speed
Grade
1.206
1.262
2.113
Parameter
tC I N
-4 Speed
Grade
-5 Speed
Grade
Unit
2.422
2.815
ns
tC O U T
1.211
1.267
2.109
2.418
2.810
ns
tP L L C I N
-0.125
-0.138
-0.023
-0.038
-0.056
ns
tP L L C O U T
-0.12
-0.133
-0.027
-0.042
-0.061
ns
EP2S30 Clock Timing Parameters
Tables 5–48 through 5–51 show the maximum clock timing parameters
for EP2S30 devices.
Table 5–48. EP2S30 Column Pins Regional Clock Timing Parameters
Minimum Timing
Parameter
Industrial
Commercial
-3 Speed
Grade
-4 Speed
Grade
-5 Speed
Grade
Unit
tC I N
1.553
1.627
2.639
3.025
3.509
ns
tC O U T
1.396
1.462
2.397
2.747
3.185
ns
tP L L C I N
0.114
0.113
0.225
0.248
0.28
ns
tP L L C O U T
-0.043
-0.052
-0.017
-0.03
-0.044
ns
-4 Speed
Grade
-5 Speed
Grade
Unit
Table 5–49. EP2S30 Column Pins Global Clock Timing Parameters
Minimum Timing
Industrial
Commercial
-3 Speed
Grade
tC I N
1.539
1.613
2.622
3.008
3.501
ns
tC O U T
1.382
1.448
2.380
2.730
3.177
ns
tP L L C I N
0.101
0.098
0.209
0.229
0.267
ns
tP L L C O U T
-0.056
-0.067
-0.033
-0.049
-0.057
ns
Parameter
Altera Corporation
April 2011
5–43
Stratix II Device Handbook, Volume 1
Timing Model
Table 5–50. EP2S30 Row Pins Regional Clock Timing Parameters
Minimum Timing
Industrial
Commercial
-3 Speed
Grade
1.304
1.184
1.966
Parameter
tC I N
-4 Speed
Grade
-5 Speed
Grade
Unit
2.251
2.616
ns
tC O U T
1.309
1.189
1.962
2.247
2.611
ns
tP L L C I N
-0.135
–0.158
–0.208
–0.254
–0.302
ns
tP L L C O U T
-0.13
–0.153
–0.212
–0.258
–0.307
ns
-4 Speed
Grade
-5 Speed
Grade
Unit
Table 5–51. EP2S30 Row Pins Global Clock Timing Parameters
Minimum Timing
Parameter
Industrial
Commercial
-3 Speed
Grade
tC I N
1.289
1.352
2.238
2.567
2.990
ns
tC O U T
1.294
1.357
2.234
2.563
2.985
ns
tP L L C I N
-0.14
-0.154
-0.169
-0.205
-0.254
ns
tP L L C O U T
-0.135
-0.149
-0.173
-0.209
-0.259
ns
EP2S60 Clock Timing Parameters
Tables 5–52 through 5–55 show the maximum clock timing parameters
for EP2S60 devices.
Table 5–52. EP2S60 Column Pins Regional Clock Timing Parameters
Minimum Timing
Industrial
Commercial
-3 Speed
Grade
tC I N
1.681
1.762
2.945
3.381
3.931
ns
tC O U T
1.524
1.597
2.703
3.103
3.607
ns
tP L L C I N
0.066
0.064
0.279
0.311
0.348
ns
tP L L C O U T
-0.091
-0.101
0.037
0.033
0.024
ns
Parameter
5–44
Stratix II Device Handbook, Volume 1
-4 Speed
Grade
-5 Speed
Grade
Unit
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–53. EP2S60 Column Pins Global Clock Timing Parameters
Minimum Timing
Industrial
Commercial
-3 Speed
Grade
tC I N
1.658
1.739
2.920
tC O U T
1.501
1.574
2.678
3.072
3.575
ns
tP L L C I N
0.06
0.057
0.278
0.304
0.355
ns
-0.097
-0.108
0.036
0.026
0.031
ns
-4 Speed
Grade
-5 Speed
Grade
Unit
Parameter
tP L L C O U T
-4 Speed
Grade
-5 Speed
Grade
Unit
3.350
3.899
ns
Table 5–54. EP2S60 Row Pins Regional Clock Timing Parameters
Minimum Timing
Parameter
Industrial
Commercial
-3 Speed
Grade
tC I N
1.463
1.532
2.591
2.972
3.453
ns
tC O U T
1.468
1.537
2.587
2.968
3.448
ns
tP L L C I N
-0.153
-0.167
-0.079
-0.099
-0.128
ns
tP L L C O U T
-0.148
-0.162
-0.083
-0.103
-0.133
ns
-4 Speed
Grade
-5 Speed
Grade
Unit
Table 5–55. EP2S60 Row Pins Global Clock Timing Parameters
Minimum Timing
Industrial
Commercial
-3 Speed
Grade
tC I N
1.439
1.508
2.562
2.940
3.421
ns
tC O U T
1.444
1.513
2.558
2.936
3.416
ns
tP L L C I N
-0.161
-0.174
-0.083
-0.107
-0.126
ns
tP L L C O U T
-0.156
-0.169
-0.087
-0.111
-0.131
ns
Parameter
Altera Corporation
April 2011
5–45
Stratix II Device Handbook, Volume 1
Timing Model
EP2S90 Clock Timing Parameters
Tables 5–56 through 5–59 show the maximum clock timing parameters
for EP2S90 devices.
Table 5–56. EP2S90 Column Pins Regional Clock Timing Parameters
Minimum Timing
Industrial
Commercial
-3 Speed
Grade
tC I N
1.768
1.850
3.033
3.473
4.040
ns
tC O U T
1.611
1.685
2.791
3.195
3.716
ns
Parameter
-4 Speed
Grade
-5 Speed
Grade
Unit
tP L L C I N
-0.127
-0.117
0.125
0.129
0.144
ns
tP L L C O U T
-0.284
-0.282
-0.117
-0.149
-0.18
ns
Table 5–57. EP2S90 Column Pins Global Clock Timing Parameters
Minimum Timing
Commercial
-3 Speed
Grade
-4 Speed
Grade
-5 Speed
Grade
Unit
Industrial
tC I N
1.783
1.868
3.058
3.502
4.070
ns
tC O U T
1.626
1.703
2.816
3.224
3.746
ns
Parameter
tP L L C I N
-0.137
-0.127
0.115
0.119
0.134
ns
tP L L C O U T
-0.294
-0.292
-0.127
-0.159
-0.19
ns
-4 Speed
Grade
-5 Speed
Grade
Unit
3.124
3.632
ns
Table 5–58. EP2S90 Row Pins Regional Clock Timing Parameters
Minimum Timing
Industrial
Commercial
-3 Speed
Grade
1.566
1.638
2.731
Parameter
tC I N
tC O U T
1.571
1.643
2.727
3.120
3.627
ns
tP L L C I N
-0.326
-0.326
-0.178
-0.218
-0.264
ns
tP L L C O U T
-0.321
-0.321
-0.182
-0.222
-0.269
ns
5–46
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–59. EP2S90 Row Pins Global Clock Timing Parameters
Minimum Timing
Industrial
Commercial
-3 Speed
Grade
1.585
1.658
2.757
Parameter
tC I N
-4 Speed
Grade
-5 Speed
Grade
Unit
3.154
3.665
ns
tC O U T
1.590
1.663
2.753
3.150
3.660
ns
tP L L C I N
-0.341
-0.341
-0.193
-0.235
-0.278
ns
tP L L C O U T
-0.336
-0.336
-0.197
-0.239
-0.283
ns
EP2S130 Clock Timing Parameters
Tables 5–60 through 5–63 show the maximum clock timing parameters
for EP2S130 devices.
Table 5–60. EP2S130 Column Pins Regional Clock Timing Parameters
Minimum Timing
Parameter
Industrial
Commercial
-3 Speed
Grade
-4 Speed
Grade
-5 Speed
Grade
Unit
tC I N
1.889
1.981
3.405
3.722
4.326
ns
tC O U T
1.732
1.816
3.151
3.444
4.002
ns
tP L L C I N
0.105
0.106
0.226
0.242
0.277
ns
tP L L C O U T
-0.052
-0.059
-0.028
-0.036
-0.047
ns
-4 Speed
Grade
-5 Speed
Grade
Unit
Table 5–61. EP2S130 Column Pins Global Clock Timing Parameters
Minimum Timing
Industrial
Commercial
-3 Speed
Grade
tC I N
1.907
1.998
3.420
3.740
4.348
ns
tC O U T
1.750
1.833
3.166
3.462
4.024
ns
tP L L C I N
0.134
0.136
0.276
0.296
0.338
ns
tP L L C O U T
-0.023
-0.029
0.022
0.018
0.014
ns
Parameter
Altera Corporation
April 2011
5–47
Stratix II Device Handbook, Volume 1
Timing Model
Table 5–62. EP2S130 Row Pins Regional Clock Timing Parameters
Minimum Timing
Industrial
Commercial
-3 Speed
Grade
1.680
1.760
3.070
Parameter
tC I N
-4 Speed
Grade
-5 Speed
Grade
Unit
3.351
3.892
ns
tC O U T
1.685
1.765
3.066
3.347
3.887
ns
tP L L C I N
-0.113
-0.124
-0.12
-0.138
-0.168
ns
tP L L C O U T
-0.108
-0.119
-0.124
-0.142
-0.173
ns
-4 Speed
Grade
-5 Speed
Grade
Unit
Table 5–63. EP2S130 Row Pins Global Clock Timing Parameters
Minimum Timing
Parameter
Industrial
Commercial
-3 Speed
Grade
tC I N
1.690
1.770
3.075
3.362
3.905
ns
tC O U T
1.695
1.775
3.071
3.358
3.900
ns
tP L L C I N
-0.087
-0.097
-0.075
-0.089
-0.11
ns
tP L L C O U T
-0.082
-0.092
-0.079
-0.093
-0.115
ns
EP2S180 Clock Timing Parameters
Tables 5–64 through 5–67 show the maximum clock timing parameters
for EP2S180 devices.
Table 5–64. EP2S180 Column Pins Regional Clock Timing Parameters
Minimum Timing
Industrial
Commercial
-3 Speed
Grade
tC I N
2.001
2.095
3.643
3.984
4.634
ns
tC O U T
1.844
1.930
3.389
3.706
4.310
ns
tP L L C I N
-0.307
-0.297
0.053
0.046
0.048
ns
tP L L C O U T
-0.464
-0.462
-0.201
-0.232
-0.276
ns
Parameter
5–48
Stratix II Device Handbook, Volume 1
-4 Speed
Grade
-5 Speed
Grade
Unit
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–65. EP2S180 Column Pins Global Clock Timing Parameters
Minimum Timing
Industrial
Commercial
-3 Speed
Grade
tC I N
2.003
2.100
3.652
3.993
4.648
ns
tC O U T
1.846
1.935
3.398
3.715
4.324
ns
-0.3
-0.29
0.053
0.054
0.058
ns
-0.457
-0.455
-0.201
-0.224
-0.266
ns
-4 Speed
Grade
-5 Speed
Grade
Unit
Parameter
tP L L C I N
tP L L C O U T
-4 Speed
Grade
-5 Speed
Grade
Unit
Table 5–66. EP2S180 Row Pins Regional Clock Timing Parameters
Minimum Timing
Parameter
Industrial
Commercial
-3 Speed
Grade
tC I N
1.759
1.844
3.273
3.577
4.162
ns
tC O U T
1.764
1.849
3.269
3.573
4.157
ns
tP L L C I N
-0.542
-0.541
-0.317
-0.353
-0.414
ns
tP L L C O U T
-0.537
-0.536
-0.321
-0.357
-0.419
ns
-4 Speed
Grade
-5 Speed
Grade
Unit
Table 5–67. EP2S180 Row Pins Global Clock Timing Parameters
Minimum Timing
Industrial
Commercial
-3 Speed
Grade
tC I N
1.763
1.850
3.285
3.588
4.176
ns
tC O U T
1.768
1.855
3.281
3.584
4.171
ns
tP L L C I N
-0.542
-0.542
-0.319
-0.355
-0.42
ns
tP L L C O U T
-0.537
-0.537
-0.323
-0.359
-0.425
ns
Parameter
Altera Corporation
April 2011
5–49
Stratix II Device Handbook, Volume 1
Timing Model
Clock Network Skew Adders
The Quartus II software models skew within dedicated clock networks
such as global and regional clocks. Therefore, intra-clock network skew
adder is not specified. Table 5–68 specifies the clock skew between any
two clock networks driving registers in the IOE.
Table 5–68. Clock Network Specifications
Name
Description
Min
Typ
Max
Unit
Clock skew adder
EP2S15, EP2S30,
EP2S60 (1)
Inter-clock network, same side
±50
ps
Inter-clock network, entire chip
±100
ps
Clock skew adder
EP2S90 (1)
Inter-clock network, same side
±55
ps
Inter-clock network, entire chip
±110
ps
Clock skew adder
EP2S130 (1)
Inter-clock network, same side
±63
ps
Inter-clock network, entire chip
±125
ps
Clock skew adder
EP2S180 (1)
Inter-clock network, same side
±75
ps
Inter-clock network, entire chip
±150
ps
Note to Table 5–68:
(1)
This is in addition to intra-clock network skew, which is modeled in the Quartus II software.
5–50
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
IOE Programmable Delay
See Tables 5–69 and 5–70 for IOE programmable delay.
Table 5–69. Stratix II IOE Programmable Delay on Column Pins
Minimum
Timing (2)
Parameter
Paths Affected
Available
Settings
Note (1)
-3 Speed
Grade (3)
-4 Speed
Grade
-5 Speed
Grade
Min
Max
Min
Max
Min
Max
Min
Max
Offset Offset Offset Offset Offset Offset Offset Offset
(ps)
(ps)
(ps)
(ps)
(ps)
(ps)
(ps)
(ps)
Input delay from Pad to I/O
dataout to logic
pin to internal
array
cells
8
0
0
1,696
1,781
0
0
2,881
3,025
0
3,313
0
3,860
Input delay from Pad to I/O input
register
pin to input
register
64
0
0
1,955
2,053
0
0
3,275
3,439
0
3,766
0
4,388
Delay from
output register
to output pin
I/O output
register to pad
2
0
0
316
332
0
0
500
525
0
575
0
670
Output enable
pin delay
tX Z , tZ X
2
0
0
305
320
0
0
483
507
0
556
0
647
Notes to Table 5–69:
(1)
(2)
(3)
The incremental values for the settings are generally linear. For the exact delay associated with each setting, use the
latest version of the Quartus II software.
The first number is the minimum timing parameter for industrial devices. The second number is the minimum
timing parameter for commercial devices.
The first number applies to -3 speed grade EP2S15, EP2S30, EP2S60, and EP2S90 devices. The second number
applies to -3 speed grade EP2S130 and EP2S180 devices.
Altera Corporation
April 2011
5–51
Stratix II Device Handbook, Volume 1
Timing Model
Table 5–70. Stratix II IOE Programmable Delay on Row Pins
Minimum
Timing (2)
Parameter
Paths Affected
Available
Settings
Note (1)
-3 Speed
Grade (3)
-4 Speed
Grade
-5 Speed
Grade
Min
Max
Min
Max
Min
Max
Min
Max
Offset Offset Offset Offset Offset Offset Offset Offset
(ps)
(ps)
(ps)
(ps)
(ps)
(ps)
(ps)
(ps)
Input delay from Pad to I/O
dataout to logic
pin to internal
array
cells
8
0
0
1,697
1,782
0
0
2,876
3,020
0
3,308
0
3,853
Input delay from Pad to I/O input
register
pin to input
register
64
0
0
1,956
2,054
0
0
3,270
3,434
0
3,761
0
4,381
Delay from
output register
to output pin
I/O output
register to pad
2
0
0
316
332
0
0
525
525
0
575
0
670
Output enable
pin delay
tX Z , tZ X
2
0
0
305
320
0
0
507
507
0
556
0
647
Notes to Table 5–70:
(1)
(2)
(3)
The incremental values for the settings are generally linear. For the exact delay associated with each setting, use the
latest version of the Quartus II software.
The first number is the minimum timing parameter for industrial devices. The second number is the minimum
timing parameter for commercial devices.
The first number applies to -3 speed grade EP2S15, EP2S30, EP2S60, and EP2S90 devices. The second number
applies to -3 speed grade EP2S130 and EP2S180 devices.
Default Capacitive Loading of Different I/O Standards
See Table 5–71 for default capacitive loading of different I/O standards.
Table 5–71. Default Loading of Different I/O Standards for Stratix II (Part 1
of 2)
I/O Standard
Capacitive Load
Unit
LVTTL
0
pF
LVCMOS
0
pF
2.5 V
0
pF
1.8 V
0
pF
1.5 V
0
pF
PCI
10
pF
PCI-X
10
pF
SSTL-2 Class I
0
pF
5–52
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–71. Default Loading of Different I/O Standards for Stratix II (Part 2
of 2)
I/O Standard
SSTL-2 Class II
Altera Corporation
April 2011
Capacitive Load
Unit
0
pF
SSTL-18 Class I
0
pF
SSTL-18 Class II
0
pF
1.5-V HSTL Class I
0
pF
1.5-V HSTL Class II
0
pF
1.8-V HSTL Class I
0
pF
1.8-V HSTL Class II
0
pF
1.2-V HSTL with OCT
0
pF
Differential SSTL-2 Class I
0
pF
Differential SSTL-2 Class II
0
pF
Differential SSTL-18 Class I
0
pF
Differential SSTL-18 Class II
0
pF
1.5-V Differential HSTL Class I
0
pF
1.5-V Differential HSTL Class II
0
pF
1.8-V Differential HSTL Class I
0
pF
1.8-V Differential HSTL Class II
0
pF
LVDS
0
pF
HyperTransport
0
pF
LVPECL
0
pF
5–53
Stratix II Device Handbook, Volume 1
Timing Model
I/O Delays
See Tables 5–72 through 5–76 for I/O delays.
Table 5–72. I/O Delay Parameters
Symbol
Parameter
tD I P
Delay from I/O datain to output pad
tO P
Delay from I/O output register to output pad
tP C O U T
Delay from input pad to I/O dataout to core
tP I
Delay from input pad to I/O input register
Table 5–73. Stratix II I/O Input Delay for Column Pins (Part 1 of 3)
Minimum Timing
I/O Standard
Parameter
Industrial
LVTTL
2.5 V
1.8 V
1.5 V
LVCMOS
SSTL-2 Class I
SSTL-2 Class II
SSTL-18 Class I
SSTL-18 Class II
1.5-V HSTL
Class I
-3 Speed -3 Speed
-4 Speed -5 Speed
Grade
Grade
Grade
Grade
Commercial
(2)
(3)
Unit
tP I
674
707
1223
1282
1405
1637
ps
tP C O U T
408
428
787
825
904
1054
ps
tP I
684
717
1210
1269
1390
1619
ps
tP C O U T
418
438
774
812
889
1036
ps
tP I
747
783
1366
1433
1570
1829
ps
tP C O U T
481
504
930
976
1069
1246
ps
tP I
749
786
1436
1506
1650
1922
ps
tP C O U T
483
507
1000
1049
1149
1339
ps
tP I
674
707
1223
1282
1405
1637
ps
tP C O U T
408
428
787
825
904
1054
ps
tP I
507
530
818
857
939
1094
ps
tP C O U T
241
251
382
400
438
511
ps
tP I
507
530
818
857
939
1094
ps
tP C O U T
241
251
382
400
438
511
ps
tP I
543
569
898
941
1031
1201
ps
tP C O U T
277
290
462
484
530
618
ps
tP I
543
569
898
941
1031
1201
ps
tP C O U T
277
290
462
484
530
618
ps
tP I
560
587
993
1041
1141
1329
ps
tP C O U T
294
308
557
584
640
746
ps
5–54
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–73. Stratix II I/O Input Delay for Column Pins (Part 2 of 3)
Minimum Timing
I/O Standard
Parameter
Industrial
1.5-V HSTL
Class II
1.8-V HSTL
Class I
1.8-V HSTL
Class II
PCI
PCI-X
Differential
SSTL-2 Class I
(1)
Differential
SSTL-2 Class II
(1)
Differential
SSTL-18 Class I
(1)
Differential
SSTL-18 Class II
(1)
1.8-V Differential
HSTL Class I (1)
1.8-V Differential
HSTL Class II (1)
1.5-V Differential
HSTL Class I (1)
1.5-V Differential
HSTL Class II (1)
Altera Corporation
April 2011
tP I
560
-3 Speed -3 Speed
-4 Speed -5 Speed
Grade
Grade
Grade
Grade
Commercial
(2)
(3)
587
993
1041
1141
Unit
1329
ps
tP C O U T
294
308
557
584
640
746
ps
tP I
543
569
898
941
1031
1201
ps
tP C O U T
277
290
462
484
530
618
ps
tP I
543
569
898
941
1031
1201
ps
tP C O U T
277
290
462
484
530
618
ps
tP I
679
712
1214
1273
1395
1625
ps
tP C O U T
413
433
778
816
894
1042
ps
tP I
679
712
1214
1273
1395
1625
ps
tP C O U T
413
433
778
816
894
1042
ps
tP I
507
530
818
857
939
1094
ps
tP C O U T
241
251
382
400
438
511
ps
tP I
507
530
818
857
939
1094
ps
tP C O U T
241
251
382
400
438
511
ps
tP I
543
569
898
941
1031
1201
ps
tP C O U T
277
290
462
484
530
618
ps
tP I
543
569
898
941
1031
1201
ps
tP C O U T
277
290
462
484
530
618
ps
tP I
543
569
898
941
1031
1201
ps
tP C O U T
277
290
462
484
530
618
ps
tP I
543
569
898
941
1031
1201
ps
tP C O U T
277
290
462
484
530
618
ps
tP I
560
587
993
1041
1141
1329
ps
tP C O U T
294
308
557
584
640
746
ps
tP I
560
587
993
1041
1141
1329
ps
tP C O U T
294
308
557
584
640
746
ps
5–55
Stratix II Device Handbook, Volume 1
Timing Model
Table 5–73. Stratix II I/O Input Delay for Column Pins (Part 3 of 3)
Minimum Timing
I/O Standard
Parameter
Industrial
1.2-V HSTL
-3 Speed -3 Speed
-4 Speed -5 Speed
Grade
Grade
Grade
Grade
Commercial
(2)
(3)
Unit
tP I
645
677
1194
1252
-
-
ps
tP C O U T
379
398
758
795
-
-
ps
Notes for Table 5–73:
(1)
(2)
(3)
These I/O standards are only supported on DQS pins.
These numbers apply to -3 speed grade EP2S15, EP2S30, EP2S60, and EP2S90 devices.
These numbers apply to -3 speed grade EP2S130 and EP2S180 devices.
Table 5–74. Stratix II I/O Input Delay for Row Pins (Part 1 of 2)
Minimum Timing
I/O Standard
Parameter
Industrial
LVTTL
2.5 V
1.8 V
1.5 V
-3 Speed -3 Speed
-4 Speed -5 Speed
Grade
Grade
Grade
Grade
Commercial
(1)
(2)
Unit
tP I
715
749
1287
1350
1477
1723
ps
tP C O U T
391
410
760
798
873
1018
ps
tP I
726
761
1273
1335
1461
1704
ps
tP C O U T
402
422
746
783
857
999
ps
tP I
788
827
1427
1497
1639
1911
ps
tP C O U T
464
488
900
945
1035
1206
ps
tP I
792
830
1498
1571
1720
2006
ps
tP C O U T
468
491
971
1019
1116
1301
ps
LVCMOS
tP I
715
749
1287
1350
1477
1723
ps
tP C O U T
391
410
760
798
873
1018
ps
SSTL-2 Class I
tP I
547
573
879
921
1008
1176
ps
tP C O U T
223
234
352
369
404
471
ps
tP I
547
573
879
921
1008
1176
ps
SSTL-2 Class II
SSTL-18 Class I
SSTL-18 Class II
1.5-V HSTL
Class I
tP C O U T
223
234
352
369
404
471
ps
tP I
577
605
960
1006
1101
1285
ps
tP C O U T
253
266
433
454
497
580
ps
tP I
577
605
960
1006
1101
1285
ps
tP C O U T
253
266
433
454
497
580
ps
tP I
602
631
1056
1107
1212
1413
ps
tP C O U T
278
292
529
555
608
708
ps
5–56
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–74. Stratix II I/O Input Delay for Row Pins (Part 2 of 2)
Minimum Timing
I/O Standard
Parameter
Industrial
1.5-V HSTL
Class II
tP I
1.8-V HSTL
Class I
1.8-V HSTL
Class II
-3 Speed -3 Speed
-4 Speed -5 Speed
Grade
Grade
Grade
Grade
Commercial
(1)
(2)
602
631
1056
1107
1212
Unit
1413
ps
tP C O U T
278
292
529
555
608
708
ps
tP I
577
605
960
1006
1101
1285
ps
tP C O U T
253
266
433
454
497
580
ps
tP I
577
605
960
1006
1101
1285
ps
tP C O U T
253
266
433
454
497
580
ps
LVDS
tP I
515
540
948
994
1088
1269
ps
tP C O U T
191
201
421
442
484
564
ps
HyperTransport
tP I
515
540
948
994
1088
1269
ps
tP C O U T
191
201
421
442
484
564
ps
Notes for Table 5–74:
(1)
(2)
These numbers apply to -3 speed grade EP2S15, EP2S30, EP2S60, and EP2S90 devices.
These numbers apply to -3 speed grade EP2S130 and EP2S180 devices.
Table 5–75. Stratix II I/O Output Delay for Column Pins (Part 1 of 8)
Minimum Timing
I/O Standard
LVTTL
Drive
Parameter
Strength
4 mA
8 mA
12 mA
16 mA
Industrial
-3
-3
-4
-5
Speed Speed
Speed Speed Unit
Commercial Grade Grade Grade Grade
(3)
(4)
tO P
1178
1236
2351
2467
2702
2820
ps
tD I P
1198
1258
2417
2537
2778
2910
ps
tO P
1041
1091
2036
2136
2340
2448
ps
tD I P
1061
1113
2102
2206
2416
2538
ps
tO P
976
1024
2036
2136
2340
2448
ps
tD I P
996
1046
2102
2206
2416
2538
ps
tO P
951
998
1893
1986
2176
2279
ps
tD I P
971
1020
1959
2056
2252
2369
ps
20 mA
tO P
931
976
1787
1875
2054
2154
ps
tD I P
951
998
1853
1945
2130
2244
ps
24 mA
(1)
tO P
924
969
1788
1876
2055
2156
ps
tD I P
944
991
1854
1946
2131
2246
ps
Altera Corporation
April 2011
5–57
Stratix II Device Handbook, Volume 1
Timing Model
Table 5–75. Stratix II I/O Output Delay for Column Pins (Part 2 of 8)
Minimum Timing
I/O Standard
LVCMOS
Drive
Parameter
Strength
4 mA
8 mA
12 mA
16 mA
tO P
1041
1091
2036
2136
2340
2448
ps
tD I P
1061
1113
2102
2206
2416
2538
ps
tO P
952
999
1786
1874
2053
2153
ps
tD I P
972
1021
1852
1944
2129
2243
ps
tO P
926
971
1720
1805
1977
2075
ps
tD I P
946
993
1786
1875
2053
2165
ps
tO P
933
978
1693
1776
1946
2043
ps
tD I P
953
1000
1759
1846
2022
2133
ps
tO P
921
965
1677
1759
1927
2025
ps
tD I P
941
987
1743
1829
2003
2115
ps
24 mA
(1)
tO P
909
954
1659
1741
1906
2003
ps
tD I P
929
976
1725
1811
1982
2093
ps
4 mA
tO P
1004
1053
2063
2165
2371
2480
ps
tD I P
1024
1075
2129
2235
2447
2570
ps
8 mA
tO P
955
1001
1841
1932
2116
2218
ps
tD I P
975
1023
1907
2002
2192
2308
ps
20 mA
2.5 V
Industrial
-3
-3
-4
-5
Speed Speed
Speed Speed Unit
Commercial Grade Grade Grade Grade
(3)
(4)
12 mA
16 mA
(1)
tO P
934
980
1742
1828
2002
2101
ps
tD I P
954
1002
1808
1898
2078
2191
ps
tO P
918
962
1679
1762
1929
2027
ps
tD I P
938
984
1745
1832
2005
2117
ps
5–58
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–75. Stratix II I/O Output Delay for Column Pins (Part 3 of 8)
Minimum Timing
I/O Standard
1.8 V
Drive
Parameter
Strength
2 mA
Industrial
-3
-3
-4
-5
Speed Speed
Speed Speed Unit
Commercial Grade Grade Grade Grade
(3)
(4)
tO P
1042
1093
2904
3048
3338
3472
ps
tD I P
1062
1115
2970
3118
3414
3562
ps
4 mA
tO P
1047
1098
2248
2359
2584
2698
ps
tD I P
1067
1120
2314
2429
2660
2788
ps
6 mA
tO P
974
1022
2024
2124
2326
2434
ps
tD I P
994
1044
2090
2194
2402
2524
ps
tO P
976
1024
1947
2043
2238
2343
ps
tD I P
996
1046
2013
2113
2314
2433
ps
tO P
933
978
1882
1975
2163
2266
ps
tD I P
953
1000
1948
2045
2239
2356
ps
12 mA
(1)
tO P
934
979
1833
1923
2107
2209
ps
tD I P
954
1001
1899
1993
2183
2299
ps
2 mA
tO P
1023
1073
2505
2629
2879
3002
ps
tD I P
1043
1095
2571
2699
2955
3092
ps
4 mA
tO P
963
1009
2023
2123
2325
2433
ps
tD I P
983
1031
2089
2193
2401
2523
ps
tO P
966
1012
1923
2018
2210
2315
ps
tD I P
986
1034
1989
2088
2286
2405
ps
tO P
926
971
1878
1970
2158
2262
ps
tD I P
946
993
1944
2040
2234
2352
ps
tO P
913
957
1715
1799
1971
2041
ps
tD I P
933
979
1781
1869
2047
2131
ps
12 mA
(1)
tO P
896
940
1672
1754
1921
1991
ps
tD I P
916
962
1738
1824
1997
2081
ps
SSTL-2 Class II 16 mA
tO P
876
918
1609
1688
1849
1918
ps
tD I P
896
940
1675
1758
1925
2008
ps
8 mA
10 mA
1.5 V
6 mA
8 mA (1)
SSTL-2 Class I 8 mA
20 mA
24 mA
(1)
Altera Corporation
April 2011
tO P
877
919
1598
1676
1836
1905
ps
tD I P
897
941
1664
1746
1912
1995
ps
tO P
872
915
1596
1674
1834
1903
ps
tD I P
892
937
1662
1744
1910
1993
ps
5–59
Stratix II Device Handbook, Volume 1
Timing Model
Table 5–75. Stratix II I/O Output Delay for Column Pins (Part 4 of 8)
Minimum Timing
I/O Standard
SSTL-18
Class I
Drive
Parameter
Strength
4 mA
tO P
909
953
1690
1773
1942
2012
ps
tD I P
929
975
1756
1843
2018
2102
ps
6 mA
tO P
914
958
1656
1737
1903
1973
ps
tD I P
934
980
1722
1807
1979
2063
ps
8 mA
tO P
894
937
1640
1721
1885
1954
ps
tD I P
914
959
1706
1791
1961
2044
ps
10 mA
SSTL-18
Class II
tO P
898
942
1638
1718
1882
1952
ps
tD I P
918
964
1704
1788
1958
2042
ps
12 mA
(1)
tO P
891
936
1626
1706
1869
1938
ps
tD I P
911
958
1692
1776
1945
2028
ps
8 mA
tO P
883
925
1597
1675
1835
1904
ps
tD I P
903
947
1663
1745
1911
1994
ps
tO P
894
937
1578
1655
1813
1882
ps
16 mA
tD I P
914
959
1644
1725
1889
1972
ps
tO P
890
933
1585
1663
1821
1890
ps
tD I P
910
955
1651
1733
1897
1980
ps
20 mA
(1)
tO P
890
933
1583
1661
1819
1888
ps
tD I P
910
955
1649
1731
1895
1978
ps
4 mA
tO P
912
956
1608
1687
1848
1943
ps
tD I P
932
978
1674
1757
1924
2033
ps
tO P
917
962
1595
1673
1833
1928
ps
tD I P
937
984
1661
1743
1909
2018
ps
tO P
896
940
1586
1664
1823
1917
ps
18 mA
1.8-V HSTL
Class I
Industrial
-3
-3
-4
-5
Speed Speed
Speed Speed Unit
Commercial Grade Grade Grade Grade
(3)
(4)
6 mA
8 mA
10 mA
12 mA
(1)
tD I P
916
962
1652
1734
1899
2007
ps
tO P
900
944
1591
1669
1828
1923
ps
tD I P
920
966
1657
1739
1904
2013
ps
tO P
892
936
1585
1663
1821
1916
ps
tD I P
912
958
1651
1733
1897
2006
ps
5–60
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–75. Stratix II I/O Output Delay for Column Pins (Part 5 of 8)
Minimum Timing
I/O Standard
1.8-V HSTL
Class II
1.5-V HSTL
Class I
Drive
Parameter
Strength
16 mA
tO P
877
919
1385
1453
1591
1680
ps
tD I P
897
941
1451
1523
1667
1770
ps
18 mA
tO P
879
921
1394
1462
1602
1691
ps
tD I P
899
943
1460
1532
1678
1781
ps
20 mA
(1)
tO P
879
921
1402
1471
1611
1700
ps
tD I P
899
943
1468
1541
1687
1790
ps
4 mA
tO P
912
956
1607
1686
1847
1942
ps
tD I P
932
978
1673
1756
1923
2032
ps
tO P
917
961
1588
1666
1825
1920
ps
tD I P
937
983
1654
1736
1901
2010
ps
tO P
899
943
1590
1668
1827
1922
ps
tD I P
919
965
1656
1738
1903
2012
ps
10 mA
tO P
900
943
1592
1670
1829
1924
ps
tD I P
920
965
1658
1740
1905
2014
ps
12 mA
(1)
tO P
893
937
1590
1668
1827
1922
ps
tD I P
913
959
1656
1738
1903
2012
ps
6 mA
8 mA
1.5-V HSTL
Class II
Industrial
-3
-3
-4
-5
Speed Speed
Speed Speed Unit
Commercial Grade Grade Grade Grade
(3)
(4)
16 mA
tO P
881
924
1431
1501
1644
1734
ps
tD I P
901
946
1497
1571
1720
1824
ps
tO P
884
927
1439
1510
1654
1744
ps
tD I P
904
949
1505
1580
1730
1834
ps
tO P
886
929
1450
1521
1666
1757
ps
tD I P
906
951
1516
1591
1742
1847
ps
1.2-V HSTL
tO P
958
1004
1602
1681
-
-
ps
tD I P
978
1026
1668
1751
-
-
ps
PCI
tO P
1028
1082
1956
2051
2244
2070
ps
tD I P
1048
1104
2022
2121
2320
2160
ps
tO P
1028
1082
1956
2051
2244
2070
ps
tD I P
1048
1104
2022
2121
2320
2160
ps
18 mA
20 mA
(1)
PCI-X
Altera Corporation
April 2011
5–61
Stratix II Device Handbook, Volume 1
Timing Model
Table 5–75. Stratix II I/O Output Delay for Column Pins (Part 6 of 8)
Minimum Timing
I/O Standard
Differential
SSTL-2 Class I
Drive
Parameter
Strength
8 mA
Industrial
-3
-3
-4
-5
Speed Speed
Speed Speed Unit
Commercial Grade Grade Grade Grade
(3)
(4)
tO P
913
957
1715
1799
1971
2041
ps
tD I P
933
979
1781
1869
2047
2131
ps
12 mA
tO P
896
940
1672
1754
1921
1991
ps
tD I P
916
962
1738
1824
1997
2081
ps
Differential
16 mA
SSTL-2 Class II
tO P
876
918
1609
1688
1849
1918
ps
tD I P
896
940
1675
1758
1925
2008
ps
20 mA
tO P
877
919
1598
1676
1836
1905
ps
tD I P
897
941
1664
1746
1912
1995
ps
tO P
872
915
1596
1674
1834
1903
ps
tD I P
892
937
1662
1744
1910
1993
ps
tO P
909
953
1690
1773
1942
2012
ps
tD I P
929
975
1756
1843
2018
2102
ps
6 mA
tO P
914
958
1656
1737
1903
1973
ps
tD I P
934
980
1722
1807
1979
2063
ps
8 mA
tO P
894
937
1640
1721
1885
1954
ps
tD I P
914
959
1706
1791
1961
2044
ps
tO P
898
942
1638
1718
1882
1952
ps
tD I P
918
964
1704
1788
1958
2042
ps
tO P
891
936
1626
1706
1869
1938
ps
tD I P
911
958
1692
1776
1945
2028
ps
tO P
883
925
1597
1675
1835
1904
ps
tD I P
903
947
1663
1745
1911
1994
ps
16 mA
tO P
894
937
1578
1655
1813
1882
ps
tD I P
914
959
1644
1725
1889
1972
ps
18 mA
tO P
890
933
1585
1663
1821
1890
ps
tD I P
910
955
1651
1733
1897
1980
ps
tO P
890
933
1583
1661
1819
1888
ps
tD I P
910
955
1649
1731
1895
1978
ps
24 mA
Differential
SSTL-18
Class I
4 mA
10 mA
12 mA
Differential
SSTL-18
Class II
8 mA
20 mA
5–62
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–75. Stratix II I/O Output Delay for Column Pins (Part 7 of 8)
Minimum Timing
I/O Standard
1.8-V
Differential
HSTL Class I
Drive
Parameter
Strength
4 mA
tO P
912
956
1608
1687
1848
1943
ps
tD I P
932
978
1674
1757
1924
2033
ps
6 mA
tO P
917
962
1595
1673
1833
1928
ps
tD I P
937
984
1661
1743
1909
2018
ps
8 mA
tO P
896
940
1586
1664
1823
1917
ps
tD I P
916
962
1652
1734
1899
2007
ps
tO P
900
944
1591
1669
1828
1923
ps
tD I P
920
966
1657
1739
1904
2013
ps
tO P
892
936
1585
1663
1821
1916
ps
tD I P
912
958
1651
1733
1897
2006
ps
tO P
877
919
1385
1453
1591
1680
ps
tD I P
897
941
1451
1523
1667
1770
ps
18 mA
tO P
879
921
1394
1462
1602
1691
ps
tD I P
899
943
1460
1532
1678
1781
ps
20 mA
tO P
879
921
1402
1471
1611
1700
ps
tD I P
899
943
1468
1541
1687
1790
ps
tO P
912
956
1607
1686
1847
1942
ps
tD I P
932
978
1673
1756
1923
2032
ps
tO P
917
961
1588
1666
1825
1920
ps
tD I P
937
983
1654
1736
1901
2010
ps
tO P
899
943
1590
1668
1827
1922
ps
tD I P
919
965
1656
1738
1903
2012
ps
tO P
900
943
1592
1670
1829
1924
ps
ps
10 mA
12 mA
1.8-V
Differential
HSTL Class II
1.5-V
Differential
HSTL Class I
Industrial
-3
-3
-4
-5
Speed Speed
Speed Speed Unit
Commercial Grade Grade Grade Grade
(3)
(4)
16 mA
4 mA
6 mA
8 mA
10 mA
12 mA
Altera Corporation
April 2011
tD I P
920
965
1658
1740
1905
2014
tO P
893
937
1590
1668
1827
1922
tD I P
913
959
1656
1738
1903
2012
5–63
Stratix II Device Handbook, Volume 1
Timing Model
Table 5–75. Stratix II I/O Output Delay for Column Pins (Part 8 of 8)
Minimum Timing
I/O Standard
1.5-V
Differential
HSTL Class II
Drive
Parameter
Strength
16 mA
18 mA
20 mA
Industrial
tO P
881
-3
-3
-4
-5
Speed Speed
Speed Speed Unit
Commercial Grade Grade Grade Grade
(3)
(4)
924
1431
1501
1644
1734
ps
tD I P
901
946
1497
1571
1720
1824
ps
tO P
884
927
1439
1510
1654
1744
tD I P
904
949
1505
1580
1730
1834
tO P
886
929
1450
1521
1666
1757
tD I P
906
951
1516
1591
1742
1847
Notes to Table 5–75:
(1)
(2)
(3)
(4)
This is the default setting in the Quartus II software.
These I/O standards are only supported on DQS pins.
These numbers apply to -3 speed grade EP2S15, EP2S30, EP2S60, and EP2S90 devices.
These numbers apply to -3 speed grade EP2S130 and EP2S180 devices.
Table 5–76. Stratix II I/O Output Delay for Row Pins (Part 1 of 3)
Minimum Timing
I/O Standard
LVTTL
Drive
Parameter
Strength
4 mA
Unit
tO P
1267
1328
2655
2786
3052
3189
ps
tD I P
1225
1285
2600
2729
2989
3116
ps
tO P
1144
1200
2113
2217
2429
2549
ps
tD I P
1102
1157
2058
2160
2366
2476
ps
12 mA
(1)
tO P
1091
1144
2081
2184
2392
2512
ps
tD I P
1049
1101
2026
2127
2329
2439
ps
4 mA
tO P
1144
1200
2113
2217
2429
2549
ps
tD I P
1102
1157
2058
2160
2366
2476
ps
8 mA (1) tO P
1044
1094
1853
1944
2130
2243
ps
tD I P
1002
1051
1798
1887
2067
2170
ps
8 mA
LVCMOS
Industrial
-3
-3
-4
-5
Speed Speed
Speed Speed
Commercial Grade Grade Grade Grade
(2)
(3)
5–64
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–76. Stratix II I/O Output Delay for Row Pins (Part 2 of 3)
Minimum Timing
I/O Standard
2.5 V
Drive
Parameter
Strength
4 mA
8 mA
12 mA
(1)
1.8 V
2 mA
tO P
1128
1183
2091
2194
2403
2523
ps
tD I P
1086
1140
2036
2137
2340
2450
ps
tO P
1030
1080
1872
1964
2152
2265
ps
tD I P
988
1037
1817
1907
2089
2192
ps
tO P
1012
1061
1775
1862
2040
2151
ps
tD I P
970
1018
1720
1805
1977
2078
ps
tO P
1196
1253
2954
3100
3396
3542
ps
1154
1210
2899
3043
3333
3469
ps
tO P
1184
1242
2294
2407
2637
2763
ps
tD I P
1142
1199
2239
2350
2574
2690
ps
tO P
1079
1131
2039
2140
2344
2462
ps
tD I P
1037
1088
1984
2083
2281
2389
ps
8 mA (1) tO P
1049
1100
1942
2038
2232
2348
ps
tD I P
1007
1057
1887
1981
2169
2275
ps
tO P
1158
1213
2530
2655
2908
3041
ps
tD I P
1116
1170
2475
2598
2845
2968
ps
tO P
1055
1106
2020
2120
2322
2440
ps
tD I P
1013
1063
1965
2063
2259
2367
ps
tO P
1002
1050
1759
1846
2022
2104
ps
tD I P
960
1007
1704
1789
1959
2031
ps
6 mA
2 mA
4 mA
SSTL-2 Class I 8 mA
SSTL-2 Class II 16 mA
(1)
SSTL-18
Class I
Unit
tD I P
4 mA
1.5 V
Industrial
-3
-3
-4
-5
Speed Speed
Speed Speed
Commercial Grade Grade Grade Grade
(2)
(3)
tO P
947
992
1581
1659
1817
1897
ps
tD I P
905
949
1526
1602
1754
1824
ps
4 mA
tO P
990
1038
1709
1793
1964
2046
ps
tD I P
948
995
1654
1736
1901
1973
ps
6 mA
tO P
994
1042
1648
1729
1894
1975
ps
tD I P
952
999
1593
1672
1831
1902
ps
tO P
970
1018
1633
1713
1877
1958
ps
tD I P
928
975
1578
1656
1814
1885
ps
tO P
974
1021
1615
1694
1856
1937
ps
tD I P
932
978
1560
1637
1793
1864
ps
8 mA
10 mA
(1)
Altera Corporation
April 2011
5–65
Stratix II Device Handbook, Volume 1
Timing Model
Table 5–76. Stratix II I/O Output Delay for Row Pins (Part 3 of 3)
Minimum Timing
I/O Standard
1.8-V HSTL
Class I
Drive
Parameter
Strength
4 mA
Unit
tO P
972
1019
1610
1689
1850
1956
ps
tD I P
930
976
1555
1632
1787
1883
ps
6 mA
tO P
975
1022
1580
1658
1816
1920
ps
tD I P
933
979
1525
1601
1753
1847
ps
8 mA
tO P
958
1004
1576
1653
1811
1916
ps
tD I P
916
961
1521
1596
1748
1843
ps
tO P
962
1008
1567
1644
1801
1905
ps
tD I P
920
965
1512
1587
1738
1832
ps
12 mA
(1)
tO P
953
999
1566
1643
1800
1904
ps
tD I P
911
956
1511
1586
1737
1831
ps
4 mA
tO P
970
1018
1591
1669
1828
1933
ps
tD I P
928
975
1536
1612
1765
1860
ps
tO P
974
1021
1579
1657
1815
1919
ps
10 mA
1.5-V HSTL
Class I
Industrial
-3
-3
-4
-5
Speed Speed
Speed Speed
Commercial Grade Grade Grade Grade
(2)
(3)
6 mA
tD I P
932
978
1524
1600
1752
1846
ps
8 mA (1) tO P
960
1006
1572
1649
1807
1911
ps
tD I P
918
963
1517
1592
1744
1838
ps
LVDS
HyperTransport
tO P
1018
1067
1723
1808
1980
2089
ps
tD I P
976
1024
1668
1751
1917
2016
ps
tO P
1005
1053
1723
1808
1980
2089
ps
tD I P
963
1010
1668
1751
1917
2016
ps
Notes to Table 5–76:
(1)
(2)
(3)
This is the default setting in the Quartus II software.
These numbers apply to -3 speed grade EP2S15, EP2S30, EP2S60, and EP2S90 devices.
These numbers apply to -3 speed grade EP2S130 and EP2S180 devices.
Maximum Input & Output Clock Toggle Rate
Maximum clock toggle rate is defined as the maximum frequency
achievable for a clock type signal at an I/O pin. The I/O pin can be a
regular I/O pin or a dedicated clock I/O pin.
5–66
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
The maximum clock toggle rate is different from the maximum data bit
rate. If the maximum clock toggle rate on a regular I/O pin is 300 MHz,
the maximum data bit rate for dual data rate (DDR) could be potentially
as high as 600 Mbps on the same I/O pin.
Table 5–77 specifies the maximum input clock toggle rates. Table 5–78
specifies the maximum output clock toggle rates at 0pF load. Table 5–79
specifies the derating factors for the output clock toggle rate for a non 0pF
load.
To calculate the output toggle rate for a non 0pF load, use this formula:
The toggle rate for a non 0pF load
= 1000 / (1000/ toggle rate at 0pF load + derating factor * load value
in pF /1000)
For example, the output toggle rate at 0pF load for SSTL-18 Class II 20mA
I/O standard is 550 MHz on a -3 device clock output pin. The derating
factor is 94ps/pF. For a 10pF load the toggle rate is calculated as:
1000 / (1000/550 + 94 × 10 /1000) = 363 (MHz)
Tables 5–77 through 5–79 show the I/O toggle rates for Stratix II
devices.
Table 5–77. Maximum Input Toggle Rate on Stratix II Devices (Part 1 of 2)
Column I/O Pins (MHz)
Row I/O Pins (MHz)
Input I/O Standard
Dedicated Clock Inputs
(MHz)
-3
-4
-5
-3
-4
-5
-3
-4
-5
LVTTL
500
500
450
500
500
450
500
500
400
2.5-V LVTTL/CMOS
500
500
450
500
500
450
500
500
400
1.8-V LVTTL/CMOS
500
500
450
500
500
450
500
500
400
1.5-V LVTTL/CMOS
500
500
450
500
500
450
500
500
400
LVCMOS
500
500
450
500
500
450
500
500
400
SSTL-2 Class I
500
500
500
500
500
500
500
500
500
SSTL-2 Class II
500
500
500
500
500
500
500
500
500
SSTL-18 Class I
500
500
500
500
500
500
500
500
500
SSTL-18 Class II
500
500
500
500
500
500
500
500
500
1.5-V HSTL Class I
500
500
500
500
500
500
500
500
500
1.5-V HSTL Class II
500
500
500
500
500
500
500
500
500
1.8-V HSTL Class I
500
500
500
500
500
500
500
500
500
Altera Corporation
April 2011
5–67
Stratix II Device Handbook, Volume 1
Timing Model
Table 5–77. Maximum Input Toggle Rate on Stratix II Devices (Part 2 of 2)
Column I/O Pins (MHz)
Row I/O Pins (MHz)
Input I/O Standard
Dedicated Clock Inputs
(MHz)
-3
-4
-5
-3
-4
-5
-3
-4
-5
1.8-V HSTL Class II
500
500
500
500
500
500
500
500
500
PCI (1)
500
500
450
-
-
-
500
500
400
PCI-X (1)
500
500
450
-
-
-
500
500
400
1.2-V HSTL (2)
280
-
-
-
-
-
280
-
-
Differential SSTL-2 Class I
(1), (3)
500
500
500
-
-
-
500
500
500
Differential SSTL-2 Class II
(1), (3)
500
500
500
-
-
-
500
500
500
Differential SSTL-18 Class I
(1), (3)
500
500
500
-
-
-
500
500
500
Differential SSTL-18 Class II
(1), (3)
500
500
500
-
-
-
500
500
500
1.8-V Differential HSTL
Class I (1), (3)
500
500
500
-
-
-
500
500
500
1.8-V Differential HSTL
Class II (1), (3)
500
500
500
-
-
-
500
500
500
1.5-V Differential HSTL
Class I (1), (3)
500
500
500
-
-
-
500
500
500
1.5-V Differential HSTL
Class II (1), (3)
500
500
500
-
-
-
500
500
500
-
-
-
520
520
420
717
717
640
HyperTransport technology
(4)
LVPECL (1)
-
-
-
-
-
-
450
450
400
LVDS (5)
-
-
-
520
520
420
717
717
640
LVDS (6)
-
-
-
-
-
-
450
450
400
Notes to Table 5–77:
(1)
(2)
(3)
(4)
(5)
(6)
Row clock inputs don’t support PCI, PCI-X, LVPECL, and differential HSTL and SSTL standards.
1.2-V HSTL is only supported on column I/O pins.
Differential HSTL and SSTL standards are only supported on column clock and DQS inputs.
HyperTransport technology is only supported on row I/O and row dedicated clock input pins.
These numbers apply to I/O pins and dedicated clock pins in the left and right I/O banks.
These numbers apply to dedicated clock pins in the top and bottom I/O banks.
5–68
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–78. Maximum Output Toggle Rate on Stratix II Devices (Part 1 of 5)
I/O Standard
3.3-V LVTTL
3.3-V LVCMOS
2.5-V
LVTTL/LVCMOS
1.8-V
LVTTL/LVCMOS
1.5-V
LVTTL/LVCMOS
SSTL-2 Class I
SSTL-2 Class II
Altera Corporation
April 2011
Drive
Strength
Column I/O Pins (MHz)
-3
-4
-5
Note (1)
Row I/O Pins (MHz)
-3
-4
-5
Clock Outputs (MHz)
-3
-4
-5
4 mA
270
225
210
270
225
210
270
225
210
8 mA
435
355
325
435
355
325
435
355
325
12 mA
580
475
420
580
475
420
580
475
420
16 mA
720
594
520
-
-
-
720
594
520
20 mA
875
700
610
-
-
-
875
700
610
24 mA
1,030
794
670
-
-
-
1,030
794
670
4 mA
290
250
230
290
250
230
290
250
230
8 mA
565
480
440
565
480
440
565
480
440
12 mA
790
710
670
-
-
-
790
710
670
16 mA
1,020
925
875
-
-
-
1,020
925
875
20 mA
1,066
985
935
-
-
-
1,066
985
24 mA
1,100
1,040
1,000
-
-
-
1,100 1,040
4 mA
230
194
180
230
194
180
230
194
180
8 mA
430
380
380
430
380
380
430
380
380
12 mA
630
575
550
630
575
550
630
575
550
16 mA
930
845
820
-
-
-
930
845
820
2 mA
120
109
104
120
109
104
120
109
104
4 mA
285
250
230
285
250
230
285
250
230
6 mA
450
390
360
450
390
360
450
390
360
8 mA
660
570
520
660
570
520
660
570
520
905
805
755
935
1,000
10 mA
905
805
755
-
-
-
12 mA
1,131
1,040
990
-
-
-
2 mA
244
200
180
244
200
180
244
200
180
4 mA
470
370
325
470
370
325
470
370
325
6 mA
550
430
375
-
-
-
550
430
375
8 mA
625
495
420
-
-
-
625
495
420
1,131 1,040
990
8 mA
400
300
300
-
-
-
400
300
300
12 mA
400
400
350
400
350
350
400
400
350
16 mA
350
350
300
350
350
300
350
350
300
20 mA
400
350
350
-
-
-
400
350
350
24 mA
400
400
350
-
-
-
400
400
350
5–69
Stratix II Device Handbook, Volume 1
Timing Model
Table 5–78. Maximum Output Toggle Rate on Stratix II Devices (Part 2 of 5)
I/O Standard
SSTL-18 Class I
SSTL-18 Class II
1.8-V HSTL
Class I
1.8-V HSTL
Class II
1.5-V HSTL
Class I
1.5-V HSTL
Class II
Differential
SSTL-2 Class I (3)
Differential
SSTL-2 Class II
(3)
Drive
Strength
Column I/O Pins (MHz)
-3
-4
-5
Note (1)
Row I/O Pins (MHz)
-3
-4
-5
Clock Outputs (MHz)
-3
-4
-5
4 mA
200
150
150
200
150
150
200
150
150
6 mA
350
250
200
350
250
200
350
250
200
8 mA
450
300
300
450
300
300
450
300
300
10 mA
500
400
400
500
400
400
500
400
400
12 mA
700
550
400
-
-
-
650
550
400
8 mA
200
200
150
-
-
-
200
200
150
16 mA
400
350
350
-
-
-
400
350
350
18 mA
450
400
400
-
-
-
450
400
400
20 mA
550
500
450
-
-
-
550
500
450
4 mA
300
300
300
300
300
300
300
300
300
6 mA
500
450
450
500
450
450
500
450
450
8 mA
650
600
600
650
600
600
650
600
600
10 mA
700
650
600
700
650
600
700
650
600
12 mA
700
700
650
700
700
650
700
700
650
16 mA
500
500
450
-
-
-
500
500
450
18 mA
550
500
500
-
-
-
550
500
500
20 mA
650
550
550
-
-
-
550
550
550
4 mA
350
300
300
350
300
300
350
300
300
6 mA
500
500
450
500
500
450
500
500
450
8 mA
700
650
600
700
650
600
700
650
600
10 mA
700
700
650
-
-
-
700
700
650
12 mA
700
700
700
-
-
-
700
700
700
16 mA
600
600
550
-
-
-
600
600
550
18 mA
650
600
600
-
-
-
650
600
600
20 mA
700
650
600
-
-
-
700
650
600
8 mA
400
300
300
400
300
300
400
300
300
12 mA
400
400
350
400
400
350
400
400
350
16 mA
350
350
300
350
350
300
350
350
300
20 mA
400
350
350
350
350
297
400
350
350
24 mA
400
400
350
-
-
-
400
400
350
5–70
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–78. Maximum Output Toggle Rate on Stratix II Devices (Part 3 of 5)
I/O Standard
Differential
SSTL-18 Class I
(3)
Differential
SSTL-18 Class II
(3)
1.8-V Differential
HSTL Class I (3)
1.8-V Differential
HSTL Class II (3)
1.5-V Differential
HSTL Class I (3)
1.5-V Differential
HSTL Class II (3)
Drive
Strength
Column I/O Pins (MHz)
Note (1)
Row I/O Pins (MHz)
Clock Outputs (MHz)
-3
-4
-5
-3
-4
-5
-3
-4
-5
4 mA
200
150
150
200
150
150
200
150
150
6 mA
350
250
200
350
250
200
350
250
200
8 mA
450
300
300
450
300
300
450
300
300
10 mA
500
400
400
500
400
400
500
400
400
12 mA
700
550
400
350
350
297
650
550
400
8 mA
200
200
150
-
-
-
200
200
150
16 mA
400
350
350
-
-
-
400
350
350
18 mA
450
400
400
-
-
-
450
400
400
20 mA
550
500
450
-
-
-
550
500
450
4 mA
300
300
300
-
-
-
300
300
300
6 mA
500
450
450
-
-
-
500
450
450
8 mA
650
600
600
-
-
-
650
600
600
10 mA
700
650
600
-
-
-
700
650
600
12 mA
700
700
650
-
-
-
700
700
650
16 mA
500
500
450
-
-
-
500
500
450
18 mA
550
500
500
-
-
-
550
500
500
20 mA
650
550
550
-
-
-
550
550
550
4 mA
350
300
300
-
-
-
350
300
300
6 mA
500
500
450
-
-
-
500
500
450
8 mA
700
650
600
-
-
-
700
650
600
10 mA
700
700
650
-
-
-
700
700
650
12 mA
700
700
700
-
-
-
700
700
700
16 mA
600
600
550
-
-
-
600
600
550
18 mA
650
600
600
-
-
-
650
600
600
700
650
600
-
-
-
700
650
600
3.3-V PCI
20 mA
1,000
790
670
-
-
-
1,000
790
670
3.3-V PCI-X
1,000
790
670
-
-
-
1,000
790
670
-
-
-
500
500
500
450
400
300
500
500
500
-
-
-
LVDS (6)
HyperTransport
technology (4), (6)
LVPECL (5)
-
-
-
-
-
-
450
400
300
3.3-V LVTTL
OCT 50 Ω
400
400
350
400
400
350
400
400
350
2.5-V LVTTL
OCT 50 Ω
350
350
300
350
350
300
350
350
300
Altera Corporation
April 2011
5–71
Stratix II Device Handbook, Volume 1
Timing Model
Table 5–78. Maximum Output Toggle Rate on Stratix II Devices (Part 4 of 5)
I/O Standard
Drive
Strength
Column I/O Pins (MHz)
-3
-4
-5
Note (1)
Row I/O Pins (MHz)
-3
-4
-5
Clock Outputs (MHz)
-3
-4
-5
1.8-V LVTTL
OCT 50 Ω
700
550
450
700
550
450
700
550
450
3.3-V LVCMOS
OCT 50 Ω
350
350
300
350
350
300
350
350
300
1.5-V LVCMOS
OCT 50 Ω
550
450
400
550
450
400
550
450
400
SSTL-2 Class I
OCT 50 Ω
600
500
500
600
500
500
600
500
500
SSTL-2 Class II
OCT 25 Ω
600
550
500
600
550
500
600
550
500
SSTL-18 Class I
OCT 50 Ω
560
400
350
590
400
350
450
400
350
SSTL-18 Class II
OCT 25 Ω
550
500
450
-
-
-
550
500
450
1.2-V HSTL (2)
OCT 50 Ω
280
-
-
-
-
-
280
-
-
1.5-V HSTL
Class I
OCT 50 Ω
600
550
500
600
550
500
600
550
500
1.8-V HSTL
Class I
OCT 50 Ω
650
600
600
650
600
600
650
600
600
1.8-V HSTL
Class II
OCT 25 Ω
500
500
450
-
-
-
500
500
450
Differential
SSTL-2 Class I
OCT 50 Ω
600
500
500
600
500
500
600
500
500
Differential
SSTL-2 Class II
OCT 25 Ω
600
550
500
600
550
500
600
550
500
Differential
SSTL-18 Class I
OCT 50 Ω
560
400
350
590
400
350
560
400
350
Differential
SSTL-18 Class II
OCT 25 Ω
550
500
450
-
-
-
550
500
450
1.8-V Differential
HSTL Class I
OCT 50 Ω
650
600
600
650
600
600
650
600
600
1.8-V Differential
HSTL Class II
OCT 25 Ω
500
500
450
-
-
-
500
500
450
1.5-V Differential
HSTL Class I
OCT 50 Ω
600
550
500
600
550
500
600
550
500
5–72
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–78. Maximum Output Toggle Rate on Stratix II Devices (Part 5 of 5)
Drive
Strength
I/O Standard
OCT 50 Ω
1.2-V Differential
HSTL
Column I/O Pins (MHz)
Note (1)
Row I/O Pins (MHz)
Clock Outputs (MHz)
-3
-4
-5
-3
-4
-5
-3
-4
-5
280
-
-
-
-
-
280
-
-
Notes to Table 5–78:
(1)
(2)
(3)
(4)
(5)
(6)
The toggle rate applies to 0-pF output load for all I/O standards except for LVDS and HyperTransport technology
on row I/O pins. For LVDS and HyperTransport technology on row I/O pins, the toggle rates apply to load from
0 to 5pF.
1.2-V HSTL is only supported on column I/O pins in I/O banks 4, 7, and 8.
Differential HSTL and SSTL is only supported on column clock and DQS outputs.
HyperTransport technology is only supported on row I/O and row dedicated clock input pins.
LVPECL is only supported on column clock pins.
Refer to Tables 5–81 through 5–91 if using SERDES block. Use the toggle rate values from the clock output column
for PLL output.
Table 5–79. Maximum Output Clock Toggle Rate Derating Factors (Part 1 of 5)
Maximum Output Clock Toggle Rate Derating Factors (ps/pF)
I/O Standard
3.3-V LVTTL
3.3-V LVCMOS
2.5-V
LVTTL/LVCMOS
Altera Corporation
April 2011
Drive
Strength
Column I/O Pins
Row I/O Pins
Dedicated Clock Outputs
-3
-4
-5
-3
-4
-5
-3
-4
-5
4 mA
478
510
510
478
510
510
466
510
510
8 mA
260
333
333
260
333
333
291
333
333
12 mA
213
247
247
213
247
247
211
247
247
16 mA
136
197
197
-
-
-
166
197
197
20 mA
138
187
187
-
-
-
154
187
187
24 mA
134
177
177
-
-
-
143
177
177
4 mA
377
391
391
377
391
391
377
391
391
8 mA
206
212
212
206
212
212
178
212
212
12 mA
141
145
145
-
-
-
115
145
145
16 mA
108
111
111
-
-
-
86
111
111
20 mA
83
88
88
-
-
-
79
88
88
24 mA
65
72
72
-
-
-
74
72
72
4 mA
387
427
427
387
427
427
391
427
427
8 mA
163
224
224
163
224
224
170
224
224
12 mA
142
203
203
142
203
203
152
203
203
16 mA
120
182
182
-
-
-
134
182
182
5–73
Stratix II Device Handbook, Volume 1
Timing Model
Table 5–79. Maximum Output Clock Toggle Rate Derating Factors (Part 2 of 5)
Maximum Output Clock Toggle Rate Derating Factors (ps/pF)
I/O Standard
1.8-V
LVTTL/LVCMOS
1.5-V
LVTTL/LVCMOS
SSTL-2 Class I
SSTL-2 Class II
SSTL-18 Class I
SSTL-18 Class II
SSTL-2 Class I
SSTL-2 Class II
Drive
Strength
Column I/O Pins
Row I/O Pins
Dedicated Clock Outputs
-3
-4
-5
-3
-4
-5
-3
-4
-5
2 mA
951
1421
1421
951
1421
1421
904
1421
1421
4 mA
405
516
516
405
516
516
393
516
516
6 mA
261
325
325
261
325
325
253
325
325
8 mA
223
274
274
223
274
274
224
274
274
10 mA
194
236
236
-
-
-
199
236
236
12 mA
174
209
209
-
-
-
180
209
209
2 mA
652
963
963
652
963
963
618
963
963
4 mA
333
347
347
333
347
347
270
347
347
6 mA
182
247
247
-
-
-
198
247
247
8 mA
135
194
194
-
-
-
155
194
194
8 mA
364
680
680
364
680
680
350
680
680
12 mA
163
207
207
163
207
207
188
207
207
16 mA
118
147
147
118
147
147
94
147
147
20 mA
99
122
122
-
-
-
87
122
122
24 mA
91
116
116
-
-
-
85
116
116
4 mA
458
570
570
458
570
570
505
570
570
6 mA
305
380
380
305
380
380
336
380
380
8 mA
225
282
282
225
282
282
248
282
282
10 mA
167
220
220
167
220
220
190
220
220
12 mA
129
175
175
-
-
-
148
175
175
8 mA
173
206
206
-
-
-
155
206
206
16 mA
150
160
160
-
-
-
140
160
160
18 mA
120
130
130
-
-
-
110
130
130
20 mA
109
127
127
-
-
-
94
127
127
8 mA
364
680
680
364
680
680
350
680
680
12 mA
163
207
207
163
207
207
188
207
207
16 mA
118
147
147
118
147
147
94
147
147
20 mA
99
122
122
-
-
-
87
122
122
24 mA
91
116
116
-
-
-
85
116
116
5–74
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–79. Maximum Output Clock Toggle Rate Derating Factors (Part 3 of 5)
Maximum Output Clock Toggle Rate Derating Factors (ps/pF)
I/O Standard
Drive
Strength
-3
-4
-5
-3
-4
-5
-3
-4
-5
SSTL-18 Class I
4 mA
458
570
570
458
570
570
505
570
570
6 mA
305
380
380
305
380
380
336
380
380
8 mA
225
282
282
225
282
282
248
282
282
10 mA
167
220
220
167
220
220
190
220
220
12 mA
129
175
175
-
-
-
148
175
175
SSTL-18 Class II
1.8-V HSTL
Class I
1.8-V HSTL
Class II
1.5-V HSTL
Class I
1.5-V HSTL
Class II
Differential
SSTL-2 Class II
(3)
Altera Corporation
April 2011
Column I/O Pins
Row I/O Pins
Dedicated Clock Outputs
8 mA
173
206
206
-
-
-
155
206
206
16 mA
150
160
160
-
-
-
140
160
160
18 mA
120
130
130
-
-
-
110
130
130
20 mA
109
127
127
-
-
-
94
127
127
4 mA
245
282
282
245
282
282
229
282
282
6 mA
164
188
188
164
188
188
153
188
188
8 mA
123
140
140
123
140
140
114
140
140
10 mA
110
124
124
110
124
124
108
124
124
12 mA
97
110
110
97
110
110
104
110
110
16 mA
101
104
104
-
-
-
99
104
104
18 mA
98
102
102
-
-
-
93
102
102
20 mA
93
99
99
-
-
-
88
99
99
4 mA
168
196
196
168
196
196
188
196
196
6 mA
112
131
131
112
131
131
125
131
131
8 mA
84
99
99
84
99
99
95
99
99
10 mA
87
98
98
-
-
-
90
98
98
12 mA
86
98
98
-
-
-
87
98
98
16 mA
95
101
101
-
-
-
96
101
101
18 mA
95
100
100
-
-
-
101
100
100
20 mA
94
101
101
-
-
-
104
101
101
8 mA
364
680
680
-
-
-
350
680
680
12 mA
163
207
207
-
-
-
188
207
207
16 mA
118
147
147
-
-
-
94
147
147
20 mA
99
122
122
-
-
-
87
122
122
24 mA
91
116
116
-
-
-
85
116
116
5–75
Stratix II Device Handbook, Volume 1
Timing Model
Table 5–79. Maximum Output Clock Toggle Rate Derating Factors (Part 4 of 5)
Maximum Output Clock Toggle Rate Derating Factors (ps/pF)
I/O Standard
Differential
SSTL-18 Class I
(3)
Differential
SSTL-18 Class II
(3)
1.8-V Differential
HSTL Class I (3)
1.8-V Differential
HSTL Class II (3)
1.5-V Differential
HSTL Class I (3)
1.5-V Differential
HSTL Class II (3)
Drive
Strength
Column I/O Pins
Row I/O Pins
Dedicated Clock Outputs
-3
-4
-5
-3
-4
-5
-3
-4
-5
4 mA
458
570
570
-
-
-
505
570
570
6 mA
305
380
380
-
-
-
336
380
380
8 mA
225
282
282
-
-
-
248
282
282
10 mA
167
220
220
-
-
-
190
220
220
12 mA
129
175
175
-
-
-
148
175
175
8 mA
173
206
206
-
-
-
155
206
206
16 mA
150
160
160
-
-
-
140
160
160
18 mA
120
130
130
-
-
-
110
130
130
20 mA
109
127
127
-
-
-
94
127
127
4 mA
245
282
282
-
-
-
229
282
282
6 mA
164
188
188
-
-
-
153
188
188
8 mA
123
140
140
-
-
-
114
140
140
10 mA
110
124
124
-
-
-
108
124
124
12 mA
97
110
110
-
-
-
104
110
110
16 mA
101
104
104
-
-
-
99
104
104
18 mA
98
102
102
-
-
-
93
102
102
20 mA
93
99
99
-
-
-
88
99
99
4 mA
168
196
196
-
-
-
188
196
196
6 mA
112
131
131
-
-
-
125
131
131
8 mA
84
99
99
-
-
-
95
99
99
10 mA
87
98
98
-
-
-
90
98
98
12 mA
86
98
98
-
-
-
87
98
98
16 mA
95
101
101
-
-
-
96
101
101
18 mA
95
100
100
-
-
-
101
100
100
20 mA
94
101
101
-
-
-
104
101
101
3.3-V PCI
134
177
177
-
-
-
143
177
177
3.3-V PCI-X
134
177
177
-
-
-
143
177
177
LVDS
-
-
-
155 (1)
155
(1)
155
(1)
134
134
134
HyperTransport
technology
-
-
-
155 (1)
155
(1)
155
(1)
-
-
-
LVPECL (4)
-
-
-
-
-
-
134
134
134
5–76
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–79. Maximum Output Clock Toggle Rate Derating Factors (Part 5 of 5)
Maximum Output Clock Toggle Rate Derating Factors (ps/pF)
I/O Standard
Drive
Strength
Column I/O Pins
Row I/O Pins
Dedicated Clock Outputs
-3
-4
-5
-3
-4
-5
-3
-4
-5
3.3-V LVTTL
OCT
50 Ω
133
152
152
133
152
152
147
152
152
2.5-V LVTTL
OCT
50 Ω
207
274
274
207
274
274
235
274
274
1.8-V LVTTL
OCT
50 Ω
151
165
165
151
165
165
153
165
165
3.3-V LVCMOS
OCT
50 Ω
300
316
316
300
316
316
263
316
316
1.5-V LVCMOS
OCT
50 Ω
157
171
171
157
171
171
174
171
171
SSTL-2 Class I
OCT
50 Ω
121
134
134
121
134
134
77
134
134
SSTL-2 Class II
OCT
25 Ω
56
101
101
56
101
101
58
101
101
SSTL-18 Class I
OCT
50 Ω
100
123
123
100
123
123
106
123
123
SSTL-18 Class II
OCT
25 Ω
61
110
110
-
-
-
59
110
110
1.2-V HSTL (2)
OCT
50 Ω
95
-
-
-
-
-
-
-
95
Notes to Table 5–79:
(1)
(2)
(3)
(4)
For LVDS and HyperTransport technology output on row I/O pins, the toggle rate derating factors apply to loads
larger than 5 pF. In the derating calculation, subtract 5 pF from the intended load value in pF for the correct result.
For a load less than or equal to 5 pF, refer to Table 5–78 for output toggle rates.
1.2-V HSTL is only supported on column I/O pins in I/O banks 4,7, and 8.
Differential HSTL and SSTL is only supported on column clock and DQS outputs.
LVPECL is only supported on column clock outputs.
Duty Cycle
Distortion
Altera Corporation
April 2011
Duty cycle distortion (DCD) describes how much the falling edge of a
clock is off from its ideal position. The ideal position is when both the
clock high time (CLKH) and the clock low time (CLKL) equal half of the
clock period (T), as shown in Figure 5–7. DCD is the deviation of the
non-ideal falling edge from the ideal falling edge, such as D1 for the
falling edge A and D2 for the falling edge B (Figure 5–7). The maximum
DCD for a clock is the larger value of D1 and D2.
5–77
Stratix II Device Handbook, Volume 1
Duty Cycle Distortion
Figure 5–7. Duty Cycle Distortion
Ideal Falling Edge
CLKH = T/2
CLKL = T/2
D1
D2
Falling Edge B
Falling Edge A
Clock Period (T)
DCD expressed in absolution derivation, for example, D1 or D2 in
Figure 5–7, is clock-period independent. DCD can also be expressed as a
percentage, and the percentage number is clock-period dependent. DCD
as a percentage is defined as
(T/2 – D1) / T (the low percentage boundary)
(T/2 + D2) / T (the high percentage boundary)
DCD Measurement Techniques
DCD is measured at an FPGA output pin driven by registers inside the
corresponding I/O element (IOE) block. When the output is a single data
rate signal (non-DDIO), only one edge of the register input clock (positive
or negative) triggers output transitions (Figure 5–8). Therefore, any DCD
present on the input clock signal or caused by the clock input buffer or
different input I/O standard does not transfer to the output signal.
Figure 5–8. DCD Measurement Technique for Non-DDIO (Single-Data Rate) Outputs
IOE
NOT
inst1
clk
INPUT
VCC
DFF
PRN
D
Q
OUTPUT
output
CLRN
inst
5–78
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
However, when the output is a double data rate input/output (DDIO)
signal, both edges of the input clock signal (positive and negative) trigger
output transitions (Figure 5–9). Therefore, any distortion on the input
clock and the input clock buffer affect the output DCD.
Figure 5–9. DCD Measurement Technique for DDIO (Double-Data Rate) Outputs
IOE
VCC
clk
DFF
PRN
D
INPUT
VCC
Q
CLRN
inst2
OUTPUT
output
DFF
PRN
GND
D
Q
NOT
inst8
CLRN
inst3
When an FPGA PLL generates the internal clock, the PLL output clocks
the IOE block. As the PLL only monitors the positive edge of the reference
clock input and internally re-creates the output clock signal, any DCD
present on the reference clock is filtered out. Therefore, the DCD for a
DDIO output with PLL in the clock path is better than the DCD for a
DDIO output without PLL in the clock path.
Tables 5–80 through 5–87 give the maximum DCD in absolution
derivation for different I/O standards on Stratix II devices. Examples are
also provided that show how to calculate DCD as a percentage.
Table 5–80. Maximum DCD for Non-DDIO Output on Row I/O Pins (Part 1
of 2)
Note (1)
Row I/O Output
Standard
Altera Corporation
April 2011
Maximum DCD for Non-DDIO Output
-3 Devices
-4 & -5 Devices
Unit
3.3-V LVTTTL
245
275
ps
3.3-V LVCMOS
125
155
ps
2.5 V
105
135
ps
5–79
Stratix II Device Handbook, Volume 1
Duty Cycle Distortion
Table 5–80. Maximum DCD for Non-DDIO Output on Row I/O Pins (Part 2
of 2)
Note (1)
Row I/O Output
Standard
Maximum DCD for Non-DDIO Output
-3 Devices
-4 & -5 Devices
Unit
1.8 V
180
180
ps
1.5-V LVCMOS
165
195
ps
SSTL-2 Class I
115
145
ps
SSTL-2 Class II
95
125
ps
SSTL-18 Class I
55
85
ps
1.8-V HSTL Class I
80
100
ps
1.5-V HSTL Class I
85
115
ps
LVDS/
HyperTransport
technology
55
80
ps
Note to Table 5–80:
(1)
The DCD specification is based on a no logic array noise condition.
Here is an example for calculating the DCD as a percentage for a
non-DDIO output on a row I/O on a -3 device:
If the non-DDIO output I/O standard is SSTL-2 Class II, the maximum
DCD is 95 ps (see Table 5–80). If the clock frequency is 267 MHz, the clock
period T is:
T = 1/ f = 1 / 267 MHz = 3.745 ns = 3745 ps
To calculate the DCD as a percentage:
(T/2 – DCD) / T = (3745ps/2 – 95ps) / 3745ps = 47.5% (for low
boundary)
(T/2 + DCD) / T = (3745ps/2 + 95ps) / 3745ps = 52.5% (for high
boundary)
5–80
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Therefore, the DCD percentage for the 267 MHz SSTL-2 Class II
non-DDIO row output clock on a –3 device ranges from 47.5% to 52.5%.
Table 5–81. Maximum DCD for Non-DDIO Output on Column I/O
Pins
Note (1)
Column I/O Output
Standard I/O
Standard
Maximum DCD for Non-DDIO Output
Unit
-3 Devices
-4 & -5 Devices
3.3-V LVTTL
190
220
ps
3.3-V LVCMOS
140
175
ps
2.5 V
125
155
ps
1.8 V
80
110
ps
1.5-V LVCMOS
185
215
ps
SSTL-2 Class I
105
135
ps
SSTL-2 Class II
100
130
ps
SSTL-18 Class I
90
115
ps
SSTL-18 Class II
70
100
ps
1.8-V HSTL
Class I
80
110
ps
1.8-V HSTL
Class II
80
110
ps
1.5-V HSTL
Class I
85
115
ps
1.5-V HSTL
Class II
50
80
ps
1.2-V HSTL (2)
170
-
ps
LVPECL
55
80
ps
Notes to Table 5–81:
(1)
(2)
Altera Corporation
April 2011
The DCD specification is based on a no logic array noise condition.
1.2-V HSTL is only supported in -3 devices.
5–81
Stratix II Device Handbook, Volume 1
Duty Cycle Distortion
Table 5–82. Maximum DCD for DDIO Output on Row I/O Pins Without PLL in the Clock Path for -3
Devices
Notes (1), (2)
Maximum DCD Based on I/O Standard of Input Feeding the DDIO Clock Port
(No PLL in Clock Path)
Row DDIO Output I/O
Standard
3.3-V LVTTL
TTL/CMOS
SSTL-2
SSTL/HSTL
LVDS/
HyperTransport
Technology
Unit
3.3 & 2.5 V
1.8 & 1.5 V
2.5 V
1.8 & 1.5 V
3.3 V
260
380
145
145
110
ps
3.3-V LVCMOS
210
330
100
100
65
ps
2.5 V
195
315
85
85
75
ps
1.8 V
150
265
85
85
120
ps
1.5-V LVCMOS
255
370
140
140
105
ps
SSTL-2 Class I
175
295
65
65
70
ps
SSTL-2 Class II
170
290
60
60
75
ps
SSTL-18 Class I
155
275
55
50
90
ps
1.8-V HSTL Class I
150
270
60
60
95
ps
1.5-V HSTL Class I
150
270
55
55
90
ps
LVDS/ HyperTransport
technology
180
180
180
180
180
ps
Notes to Table 5–82:
(1)
(2)
The information in Table 5–82 assumes the input clock has zero DCD.
The DCD specification is based on a no logic array noise condition.
Here is an example for calculating the DCD in percentage for a DDIO
output on a row I/O on a -3 device:
If the input I/O standard is SSTL-2 and the DDIO output I/O standard is
SSTL-2 Class II, the maximum DCD is 60 ps (see Table 5–82). If the clock
frequency is 267 MHz, the clock period T is:
T = 1/ f = 1 / 267 MHz = 3.745 ns = 3745 ps
Calculate the DCD as a percentage:
(T/2 – DCD) / T = (3745ps/2 – 60ps) / 3745ps = 48.4% (for low
boundary)
(T/2 + DCD) / T = (3745 ps/2 + 60 ps) / 3745ps = 51.6% (for high
boundary)
5–82
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Therefore, the DCD percentage for the 267 MHz SSTL-2 Class II DDIO
row output clock on a –3 device ranges from 48.4% to 51.6%.
Table 5–83. Maximum DCD for DDIO Output on Row I/O Pins Without PLL in the Clock Path for -4 & -5
Devices
Notes (1), (2)
Maximum DCD Based on I/O Standard of Input Feeding the DDIO Clock
Port (No PLL in the Clock Path)
Row DDIO Output I/O
Standard
3.3-V LVTTL
TTL/CMOS
SSTL-2
SSTL/HSTL
LVDS/
HyperTransport
Technology
Unit
3.3/2.5 V
1.8/1.5 V
2.5 V
1.8/1.5 V
3.3 V
440
495
170
160
105
ps
3.3-V LVCMOS
390
450
120
110
75
ps
2.5 V
375
430
105
95
90
ps
1.8 V
325
385
90
100
135
ps
1.5-V LVCMOS
430
490
160
155
100
ps
SSTL-2 Class I
355
410
85
75
85
ps
SSTL-2 Class II
350
405
80
70
90
ps
SSTL-18 Class I
335
390
65
65
105
ps
1.8-V HSTL Class I
330
385
60
70
110
ps
1.5-V HSTL Class I
330
390
60
70
105
ps
LVDS/ HyperTransport
technology
180
180
180
180
180
ps
Notes to Table 5–83:
(1)
(2)
Table 5–83 assumes the input clock has zero DCD.
The DCD specification is based on a no logic array noise condition.
Table 5–84. Maximum DCD for DDIO Output on Column I/O Pins Without PLL in the Clock Path for -3
Devices (Part 1 of 2)
Notes (1), (2)
Maximum DCD Based on I/O Standard of Input Feeding the DDIO
Clock Port (No PLL in the Clock Path)
DDIO Column Output I/O
Standard
3.3-V LVTTL
TTL/CMOS
SSTL-2
SSTL/HSTL
1.2-V
HSTL
Unit
3.3/2.5 V
1.8/1.5 V
2.5 V
1.8/1.5 V
1.2 V
260
380
145
145
145
ps
3.3-V LVCMOS
210
330
100
100
100
ps
2.5 V
195
315
85
85
85
ps
Altera Corporation
April 2011
5–83
Stratix II Device Handbook, Volume 1
Duty Cycle Distortion
Table 5–84. Maximum DCD for DDIO Output on Column I/O Pins Without PLL in the Clock Path for -3
Devices (Part 2 of 2)
Notes (1), (2)
Maximum DCD Based on I/O Standard of Input Feeding the DDIO
Clock Port (No PLL in the Clock Path)
DDIO Column Output I/O
Standard
TTL/CMOS
SSTL-2
SSTL/HSTL
1.2-V
HSTL
2.5 V
1.8/1.5 V
1.2 V
Unit
3.3/2.5 V
1.8/1.5 V
1.8 V
150
265
85
85
85
ps
1.5-V LVCMOS
255
370
140
140
140
ps
SSTL-2 Class I
175
295
65
65
65
ps
SSTL-2 Class II
170
290
60
60
60
ps
SSTL-18 Class I
155
275
55
50
50
ps
SSTL-18 Class II
140
260
70
70
70
ps
1.8-V HSTL Class I
150
270
60
60
60
ps
1.8-V HSTL Class II
150
270
60
60
60
ps
1.5-V HSTL Class I
150
270
55
55
55
ps
1.5-V HSTL Class II
125
240
85
85
85
ps
1.2-V HSTL
240
360
155
155
155
ps
LVPECL
180
180
180
180
180
ps
Notes to Table 5–84:
(1)
(2)
Table 5–84 assumes the input clock has zero DCD.
The DCD specification is based on a no logic array noise condition.
Table 5–85. Maximum DCD for DDIO Output on Column I/O Pins Without PLL in the Clock Path for -4 & -5
Devices (Part 1 of 2)
Notes (1), (2)
DDIO Column Output I/O
Standard
Maximum DCD Based on I/O Standard of Input Feeding the DDIO
Clock Port (No PLL in the Clock Path)
TTL/CMOS
SSTL-2
SSTL/HSTL
Unit
3.3/2.5 V
1.8/1.5 V
2.5 V
1.8/1.5 V
440
495
170
160
ps
3.3-V LVCMOS
390
450
120
110
ps
2.5 V
375
430
105
95
ps
1.8 V
325
385
90
100
ps
1.5-V LVCMOS
430
490
160
155
ps
SSTL-2 Class I
355
410
85
75
ps
SSTL-2 Class II
350
405
80
70
ps
3.3-V LVTTL
5–84
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–85. Maximum DCD for DDIO Output on Column I/O Pins Without PLL in the Clock Path for -4 & -5
Devices (Part 2 of 2)
Notes (1), (2)
DDIO Column Output I/O
Standard
Maximum DCD Based on I/O Standard of Input Feeding the DDIO
Clock Port (No PLL in the Clock Path)
TTL/CMOS
3.3/2.5 V
1.8/1.5 V
SSTL-2
SSTL/HSTL
2.5 V
1.8/1.5 V
Unit
SSTL-18 Class I
335
390
65
65
ps
SSTL-18 Class II
320
375
70
80
ps
1.8-V HSTL Class I
330
385
60
70
ps
1.8-V HSTL Class II
330
385
60
70
ps
1.5-V HSTL Class I
330
390
60
70
ps
1.5-V HSTL Class II
330
360
90
100
ps
1.2-V HSTL
420
470
155
165
ps
LVPECL
180
180
180
180
ps
Notes to Table 5–85:
(1)
(2)
Table 5–85 assumes the input clock has zero DCD.
The DCD specification is based on a no logic array noise condition.
Table 5–86. Maximum DCD for DDIO Output on Row I/O Pins with PLL in the
Clock Path (Part 1 of 2)
Note (1)
Row DDIO Output I/O
Standard
3.3-V LVTTL
Altera Corporation
April 2011
Maximum DCD (PLL Output Clock Feeding
DDIO Clock Port)
-3 Device
-4 & -5 Device
110
105
Unit
ps
3.3-V LVCMOS
65
75
ps
2.5V
75
90
ps
1.8V
85
100
ps
1.5-V LVCMOS
105
100
ps
SSTL-2 Class I
65
75
ps
SSTL-2 Class II
60
70
ps
SSTL-18 Class I
50
65
ps
1.8-V HSTL Class I
50
70
ps
1.5-V HSTL Class I
55
70
ps
5–85
Stratix II Device Handbook, Volume 1
Duty Cycle Distortion
Table 5–86. Maximum DCD for DDIO Output on Row I/O Pins with PLL in the
Clock Path (Part 2 of 2)
Note (1)
Row DDIO Output I/O
Standard
LVDS/ HyperTransport
technology
Maximum DCD (PLL Output Clock Feeding
DDIO Clock Port)
-3 Device
-4 & -5 Device
180
180
Unit
ps
Note to Table 5–86:
(1)
The DCD specification is based on a no logic array noise condition.
Table 5–87. Maximum DCD for DDIO Output on Column I/O with PLL in the
Clock Path
Note (1)
Column DDIO Output I/O
Standard
Maximum DCD (PLL Output Clock Feeding
DDIO Clock Port)
Unit
-3 Device
-4 & -5 Device
3.3-V LVTTL
145
160
ps
3.3-V LVCMOS
100
110
ps
2.5V
85
95
ps
1.8V
85
100
ps
1.5-V LVCMOS
140
155
ps
SSTL-2 Class I
65
75
ps
SSTL-2 Class II
60
70
ps
SSTL-18 Class I
50
65
ps
SSTL-18 Class II
70
80
ps
1.8-V HSTL Class I
60
70
ps
1.8-V HSTL Class II
60
70
ps
1.5-V HSTL Class I
55
70
ps
1.5-V HSTL Class II
85
100
ps
1.2-V HSTL
155
-
ps
LVPECL
180
180
ps
Notes to Table 5–87:
(1)
(2)
The DCD specification is based on a no logic array noise condition.
1.2-V HSTL is only supported in -3 devices.
5–86
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
High-Speed I/O
Specifications
Table 5–88 provides high-speed timing specifications definitions.
Table 5–88. High-Speed Timing Specifications & Definitions
High-Speed Timing Specifications
Definitions
tC
High-speed receiver/transmitter input and output clock period.
fH S C L K
High-speed receiver/transmitter input and output clock frequency.
J
Deserialization factor (width of parallel data bus).
W
PLL multiplication factor.
tR I S E
Low-to-high transmission time.
tF A L L
High-to-low transmission time.
Timing unit interval (TUI)
The timing budget allowed for skew, propagation delays, and data
sampling window. (TUI = 1/(Receiver Input Clock Frequency ×
Multiplication Factor) = tC /w).
fH S D R
Maximum/minimum LVDS data transfer rate (fH S D R = 1/TUI), non-DPA.
fH S D R D P A
Maximum/minimum LVDS data transfer rate (fH S D R D PA = 1/TUI), DPA.
Channel-to-channel skew (TCCS)
The timing difference between the fastest and slowest output edges,
including tC O variation and clock skew. The clock is included in the TCCS
measurement.
Sampling window (SW)
The period of time during which the data must be valid in order to capture
it correctly. The setup and hold times determine the ideal strobe position
within the sampling window.
Input jitter
Peak-to-peak input jitter on high-speed PLLs.
Output jitter
Peak-to-peak output jitter on high-speed PLLs.
tDUTY
Duty cycle on high-speed transmitter output clock.
tL O C K
Lock time for high-speed transmitter and receiver PLLs.
Table 5–89 shows the high-speed I/O timing specifications for -3 speed
grade Stratix II devices.
Table 5–89. High-Speed I/O Specifications for -3 Speed Grade (Part 1 of 2)
Notes (1), (2)
-3 Speed Grade
Symbol
Conditions
Unit
Min
fH S C L K (clock frequency)
fH S C L K = f H S D R / W
Altera Corporation
April 2011
W = 2 to 32 (LVDS, HyperTransport technology)
(3)
Typ
Max
16
520
MHz
W = 1 (SERDES bypass, LVDS only)
16
500
MHz
W = 1 (SERDES used, LVDS only)
150
717
MHz
5–87
Stratix II Device Handbook, Volume 1
High-Speed I/O Specifications
Table 5–89. High-Speed I/O Specifications for -3 Speed Grade (Part 2 of 2)
Notes (1), (2)
-3 Speed Grade
Symbol
Conditions
Unit
Min
fH S D R (data rate)
Typ
Max
J = 4 to 10 (LVDS, HyperTransport technology)
150
1,040
Mbps
J = 2 (LVDS, HyperTransport technology)
(4)
760
Mbps
J = 1 (LVDS only)
fH S D R D PA (DPA data rate) J = 4 to 10 (LVDS, HyperTransport technology)
(4)
500
Mbps
150
1,040
Mbps
200
ps
TCCS
All differential standards
-
SW
All differential standards
330
Output jitter
-
ps
190
ps
Output tR I S E
All differential I/O standards
160
ps
Output tFA L L
All differential I/O standards
180
ps
55
%
6,400
UI
tDUTY
45
DPA run length
DPA jitter tolerance
DPA lock time
Data channel peak-to-peak jitter
Standard
SPI-4
Parallel Rapid I/O
Miscellaneous
0.44
Training
Pattern
Transition
Density
0000000000
1111111111
10%
256
00001111
25%
256
10010000
50%
256
10101010
100%
256
01010101
50
UI
Number of
repetitions
256
Notes to Table 5–89:
(1)
(2)
(3)
(4)
When J = 4 to 10, the SERDES block is used.
When J = 1 or 2, the SERDES block is bypassed.
The input clock frequency and the W factor must satisfy the following fast PLL VCO specification: 150 ≤ input clock
frequency × W ≤ 1,040.
The minimum specification is dependent on the clock source (fast PLL, enhanced PLL, clock pin, and so on) and
the clock routing resource (global, regional, or local) utilized. The I/O differential buffer and input register do not
have a minimum toggle rate.
5–88
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–90 shows the high-speed I/O timing specifications for -4 speed
grade Stratix II devices.
Table 5–90. High-Speed I/O Specifications for -4 Speed Grade
Notes (1), (2)
-4 Speed Grade
Symbol
Conditions
Unit
Min
fH S C L K (clock frequency)
fH S C L K = f H S D R / W
fH S D R (data rate)
W = 2 to 32 (LVDS, HyperTransport technology)
(3)
Typ
Max
16
520
MHz
W = 1 (SERDES bypass, LVDS only)
16
500
MHz
W = 1 (SERDES used, LVDS only)
150
717
MHz
J = 4 to 10 (LVDS, HyperTransport technology)
150
1,040
Mbps
J = 2 (LVDS, HyperTransport technology)
(4)
760
Mbps
J = 1 (LVDS only)
fH S D R D PA (DPA data rate) J = 4 to 10 (LVDS, HyperTransport technology)
(4)
500
Mbps
150
1,040
Mbps
200
ps
TCCS
All differential standards
-
SW
All differential standards
330
Output jitter
-
ps
190
ps
Output tR I S E
All differential I/O standards
160
ps
Output tFA L L
All differential I/O standards
180
ps
55
%
6,400
UI
tDUTY
45
DPA run length
DPA jitter tolerance
DPA lock time
Data channel peak-to-peak jitter
0.44
Standard
Training
Pattern
Transition
Density
SPI-4
0000000000
1111111111
10%
256
Parallel Rapid I/O
00001111
25%
256
10010000
50%
256
10101010
100%
256
Miscellaneous
01010101
50
UI
Number of
repetitions
256
Notes to Table 5–90:
(1)
(2)
(3)
(4)
When J = 4 to 10, the SERDES block is used.
When J = 1 or 2, the SERDES block is bypassed.
The input clock frequency and the W factor must satisfy the following fast PLL VCO specification: 150 ≤ input clock
frequency × W ≤ 1,040.
The minimum specification is dependent on the clock source (fast PLL, enhanced PLL, clock pin, and so on) and
the clock routing resource (global, regional, or local) utilized. The I/O differential buffer and input register do not
have a minimum toggle rate.
Altera Corporation
April 2011
5–89
Stratix II Device Handbook, Volume 1
High-Speed I/O Specifications
Table 5–91 shows the high-speed I/O timing specifications for -5 speed
grade Stratix II devices.
Table 5–91. High-Speed I/O Specifications for -5 Speed Grade
Notes (1), (2)
-5 Speed Grade
Symbol
Conditions
Unit
Min
fH S C L K (clock frequency)
fH S C L K = f H S D R / W
fH S D R (data rate)
W = 2 to 32 (LVDS, HyperTransport technology)
(3)
Typ
Max
16
420
MHz
W = 1 (SERDES bypass, LVDS only)
16
500
MHz
W = 1 (SERDES used, LVDS only)
150
640
MHz
J = 4 to 10 (LVDS, HyperTransport technology)
150
840
Mbps
J = 2 (LVDS, HyperTransport technology)
(4)
700
Mbps
J = 1 (LVDS only)
fH S D R D PA (DPA data rate) J = 4 to 10 (LVDS, HyperTransport technology)
(4)
500
Mbps
150
840
Mbps
200
ps
TCCS
All differential I/O standards
-
SW
All differential I/O standards
440
Output jitter
-
ps
190
ps
Output tR I S E
All differential I/O standards
290
ps
Output tFA L L
All differential I/O standards
290
ps
55
%
6,400
UI
tDUTY
45
DPA run length
DPA jitter tolerance
DPA lock time
Data channel peak-to-peak jitter
Standard
SPI-4
Parallel Rapid I/O
Miscellaneous
0.44
Training
Pattern
Transition
Density
0000000000
1111111111
10%
256
00001111
25%
256
10010000
50%
256
10101010
100%
256
01010101
50
UI
Number of
repetitions
256
Notes to Table 5–91:
(1)
(2)
(3)
(4)
When J = 4 to 10, the SERDES block is used.
When J = 1 or 2, the SERDES block is bypassed.
The input clock frequency and the W factor must satisfy the following fast PLL VCO specification: 150 ≤ input clock
frequency × W ≤ 1,040.
The minimum specification is dependent on the clock source (fast PLL, enhanced PLL, clock pin, and so on) and
the clock routing resource (global, regional, or local) utilized. The I/O differential buffer and input register do not
have a minimum toggle rate.
5–90
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
PLL Timing
Specifications
Tables 5–92 and 5–93 describe the Stratix II PLL specifications when
operating in both the commercial junction temperature range (0 to 85 °C)
and the industrial junction temperature range (–40 to 100 °C).
Table 5–92. Enhanced PLL Specifications (Part 1 of 2)
Name
Description
Min
fI N
Input clock frequency
fI N P F D
Input frequency to the
PFD
fI N D U T Y
Input clock duty cycle
40
60
%
fE I N D U T Y
External feedback
input clock duty cycle
40
60
%
tI N J I T T E R
Input or external
feedback clock input
jitter tolerance in
terms of period jitter.
Bandwidth ≤
0.85 MHz
0.5
ns (p-p)
Input or external
feedback clock input
jitter tolerance in
terms of period jitter.
Bandwidth >
0.85 MHz
1.0
ns (p-p)
Max
Unit
2
500
MHz
2
420
MHz
250 ps for ≥ 100 MHz outclk ps or mUI
(p-p)
25 mUI for < 100 MHz outclk
tO U T J I T T E R
Dedicated clock
output period jitter
tF C O M P
External feedback
compensation time
fO U T
Output frequency for
internal global or
regional clock
1.5
(2)
tO U T D U T Y
Duty cycle for external
clock output (when set
to 50%).
45
fS C A N C L K
Scanclk frequency
tC O N F I G P L L
Time required to
reconfigure scan
chains for enhanced
PLLs
fO U T _ E X T
PLL external clock
output frequency
Altera Corporation
April 2011
Typ
50
10
ns
550.0
MHz
55
%
100
MHz
174/fS C A N C L K
1.5
(2)
ns
550.0 (1)
MHz
5–91
Stratix II Device Handbook, Volume 1
PLL Timing Specifications
Table 5–92. Enhanced PLL Specifications (Part 2 of 2)
Name
Description
Min
Typ
Max
Unit
0.03
1
ms
1
ms
500
MHz
16.90
MHz
tL O C K
Time required for the
PLL to lock from the
time it is enabled or
the end of device
configuration
tD L O C K
Time required for the
PLL to lock
dynamically after
automatic clock
switchover between
two identical clock
frequencies
fS W I T C H OV E R
Frequency range
where the clock
switchover performs
properly
fC L B W
PLL closed-loop
bandwidth
0.13
fV C O
PLL VCO operating
range for –3 and –4
speed grade devices
300
1,040
MHz
PLL VCO operating
range for –5 speed
grade devices
300
840
MHz
fS S
Spread-spectrum
modulation frequency
30
150
kHz
% spread
Percent down spread
for a given clock
frequency
0.4
0.6
%
tP L L _ P S E R R
Accuracy of PLL
phase shift
±15
ps
tA R E S E T
Minimum pulse width
on areset signal.
10
ns
tA R E S E T _ R E C O N F I G
Minimum pulse width
on the areset signal
when using PLL
reconfiguration. Reset
the PLL after
scandone goes
high.
500
ns
4
1.20
0.5
Notes to Table 5–92:
(1)
(2)
Limited by I/O fM A X . See Table 5–78 on page 5–69 for the maximum. Cannot exceed fO U T specification.
If the counter cascading feature of the PLL is utilized, there is no minimum output clock frequency.
5–92
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–93. Fast PLL Specifications
Name
fI N
Description
Min
Typ
Max
Unit
Input clock frequency (for -3 and -4 speed
grade devices)
16.08
717
MHz
Input clock frequency (for -5 speed grade
devices)
16.08
640
MHz
fI N P F D
Input frequency to the PFD
16.08
500
MHz
fI N D U T Y
Input clock duty cycle
40
60
%
tI N J I T T E R
Input clock jitter tolerance in terms of period
jitter. Bandwidth ≤ 2 MHz
0.5
ns (p-p)
Input clock jitter tolerance in terms of period
jitter. Bandwidth > 2 MHz
1.0
ns (p-p)
fV C O
fO U T
Upper VCO frequency range for –3 and –4
speed grades
300
1,040
MHz
Upper VCO frequency range for –5 speed
grades
300
840
MHz
Lower VCO frequency range for –3 and –4
speed grades
150
520
MHz
Lower VCO frequency range for –5 speed
grades
150
420
MHz
4.6875
550
MHz
150
1,040
MHz
4.6875
(1)
MHz
100
MHz
PLL output frequency to GCLK or RCLK
PLL output frequency to LVDS or DPA clock
fO U T _ I O
PLL clock output frequency to regular I/O
pin
fS C A N C L K
Scanclk frequency
tC O N F I G P L L
Time required to reconfigure scan chains
for fast PLLs
fC L B W
PLL closed-loop bandwidth
tL O C K
Time required for the PLL to lock from the
time it is enabled or the end of the device
configuration
tP L L _ P S E R R
Accuracy of PLL phase shift
tA R E S E T
75/fS C A N C L K
1.16
5.00
28.00
MHz
0.03
1.00
ms
±15
ps
10
ns
500
ns
Minimum pulse width on areset signal.
tA R E S E T _ R E C O N F I G Minimum pulse width on the areset signal
when using PLL reconfiguration. Reset the
PLL after scandone goes high.
ns
Note to Table 5–93:
(1)
Limited by I/O fM A X . See Table 5–77 on page 5–67 for the maximum.
Altera Corporation
April 2011
5–93
Stratix II Device Handbook, Volume 1
External Memory Interface Specifications
External
Memory
Interface
Specifications
Tables 5–94 through 5–101 contain Stratix II device specifications for the
dedicated circuitry used for interfacing with external memory devices.
Table 5–94. DLL Frequency Range Specifications
Frequency Mode
Frequency Range
Resolution
(Degrees)
0
100 to 175
30
1
150 to 230
22.5
2
200 to 310
30
240 to 400 (–3 speed grade)
36
240 to 350 (–4 and –5 speed grades)
36
3
Table 5–95 lists the maximum delay in the fast timing model for the
Stratix II DQS delay buffer. Multiply the number of delay buffers that you
are using in the DQS logic block to get the maximum delay achievable in
your system. For example, if you implement a 90° phase shift at 200 MHz,
you use three delay buffers in mode 2. The maximum achievable delay
from the DQS block is then 3 × .416 ps = 1.248 ns.
Table 5–95. DQS Delay Buffer Maximum Delay in Fast Timing Model
Frequency Mode
Maximum Delay Per Delay Buffer
(Fast Timing Model)
Unit
0
0.833
ns
1, 2, 3
0.416
ns
Table 5–96. DQS Period Jitter Specifications for DLL-Delayed Clock
(tDQS_JITTER)
Note (1)
Number of DQS Delay Buffer
Stages (2)
Commercial
Industrial
Unit
1
80
110
ps
2
110
130
ps
3
130
180
ps
4
160
210
ps
Notes to Table 5–96:
(1)
(2)
Peak-to-peak period jitter on the phase shifted DQS clock.
Delay stages used for requested DQS phase shift are reported in your project’s
Compilation Report in the Quartus II software.
5–94
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–97. DQS Phase Jitter Specifications for DLL-Delayed Clock
(tDQS PHASE_JITTER) Note (1)
Number of DQS Delay
Buffer Stages (2)
DQS Phase Jitter
Unit
1
30
ps
2
60
ps
3
90
ps
4
120
ps
Notes to Table 5–97:
(1)
(2)
Peak-to-peak phase jitter on the phase shifted DDS clock (digital jitter is caused
by DLL tracking).
Delay stages used for requested DQS phase shift are reported in your project’s
Compilation Report in the Quartus II software.
Table 5–98. DQS Phase-Shift Error Specifications for DLL-Delayed Clock (tDQS_PSERR)
Number of DQS Delay Buffer Stages (2) –3 Speed Grade
(1)
–4 Speed Grade
–5 Speed Grade
Unit
1
25
30
35
ps
2
50
60
70
ps
3
75
90
105
ps
4
100
120
140
ps
Notes to Table 5–98:
(1)
(2)
This error specification is the absolute maximum and minimum error. For example, skew on three delay buffer
stages in a C3 speed grade is 75 ps or ± 37.5 ps.
Delay stages used for requested DQS phase shift are reported in your project’s Compilation Report in the
Quartus II software.
Table 5–99. DQS Bus Clock Skew Adder Specifications
(tDQS_CLOCK_SKEW_ADDER)
Mode
DQS Clock Skew Adder
Unit
×4 DQ per DQS
40
ps
×9 DQ per DQS
70
ps
×18 DQ per DQS
75
ps
×36 DQ per DQS
95
ps
Note to Table 5–99:
(1)
Altera Corporation
April 2011
This skew specification is the absolute maximum and minimum skew. For
example, skew on a ×4 DQ group is 40 ps or ±20 ps.
5–95
Stratix II Device Handbook, Volume 1
JTAG Timing Specifications
Table 5–100. DQS Phase Offset Delay Per Stage
Notes (1), (2), (3)
Speed Grade
Min
Max
Unit
-3
9
14
ps
-4
9
14
ps
-5
9
15
ps
Notes to Table 5–100:
(1)
(2)
(3)
The delay settings are linear.
The valid settings for phase offset are -64 to +63 for frequency mode 0 and -32 to
+31 for frequency modes 1, 2, and 3.
The typical value equals the average of the minimum and maximum values.
Table 5–101. DDIO Outputs Half-Period Jitter
Notes (1), (2)
Name
Description
Max
Unit
tO U T H A L F J I T T E R
Half-period jitter (PLL driving DDIO outputs)
200
ps
Notes to Table 5–101:
(1)
(2)
JTAG Timing
Specifications
The worst-case half period is equal to the ideal half period subtracted by the DCD
and half-period jitter values.
The half-period jitter was characterized using a PLL driving DDIO outputs.
Figure 5–10 shows the timing requirements for the JTAG signals.
Figure 5–10. Stratix II JTAG Waveforms
TMS
TDI
t JCP
t JCH
t JCL
t JPSU
t JPH
TCK
tJPZX
t JPCO
t JPXZ
TDO
5–96
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–102 shows the JTAG timing parameters and values for Stratix II
devices.
Table 5–102. Stratix II JTAG Timing Parameters & Values
Symbol
Parameter
Min
Max
Unit
tJCP
TCK clock period
30
ns
tJCH
TCK clock high time
13
ns
tJCL
TCK clock low time
13
ns
tJPSU
JTAG port setup time
3
ns
tJPH
JTAG port hold time
5
ns
tJPCO
JTAG port clock to output
tJPZX
tJPXZ
11 (1)
ns
JTAG port high impedance to valid output
14 (1)
ns
JTAG port valid output to high impedance
14 (1)
ns
Note to Table 5–102:
(1)
Document
Revision History
A 1 ns adder is required for each VC C I O voltage step down from 3.3 V. For
example, tJPCO = 12 ns if VC C I O of the TDO I/O bank = 2.5 V, or 13 ns if it equals
1.8 V.
Table 5–103 shows the revision history for this chapter.
Table 5–103. Document Revision History (Part 1 of 3)
Date and
Document
Version
Changes Made
Summary of Changes
April 2011, v4.5
Updated Table 5–3.
Added operating junction temperature
for military use.
July 2009, v4.4
Updated Table 5–92.
Updated the spread spectrum
modulation frequency (fS S ) from
(100 kHz–500 kHz) to
(30 kHz–150 kHz).
May 2007, v4.3
●
●
●
Updated RCONF in Table 5–4.
Updated fIN (min) in Table 5–92.
Updated fIN and fINPFD in Table 5–93.
Moved the Document Revision History section to the
end of the chapter.
Altera Corporation
April 2011
—
—
5–97
Stratix II Device Handbook, Volume 1
Document Revision History
Table 5–103. Document Revision History (Part 2 of 3)
Date and
Document
Version
Changes Made
August, 2006,
v4.2
Updated Table 5–73, Table 5–75, Table 5–77,
Table 5–78, Table 5–79, Table 5–81, Table 5–85, and
Table 5–87.
April 2006, v4.1
●
●
●
●
●
●
●
●
●
●
Updated Table 5–3.
Updated Table 5–11.
Updated Figures 5–8 and 5–9.
Added parallel on-chip termination information to
“On-Chip Termination Specifications” section.
Updated Tables 5–28, 5–30,5–31, and 5–34.
Updated Table 5–78, Tables 5–81 through 5–90,
and Tables 5–92, 5–93, and 5–98.
Updated “PLL Timing Specifications” section.
Updated “External Memory Interface
Specifications” section.
Added Tables 5–95 and 5–101.
Updated “JTAG Timing Specifications” section,
including Figure 5–10 and Table 5–102.
Summary of Changes
—
●
●
●
●
●
●
●
●
December 2005,
v4.0
●
●
July 2005, v3.1
●
●
●
●
May 2005, v3.0
●
●
●
●
●
●
Changed 0.2 MHz to 2 MHz in
Table 5–93.
Added new spec for half period
jitter (Table 5–101).
Added support for PLL clock
switchover for industrial
temperature range.
Changed fI N P F D (min) spec from
4 MHz to 2 MHz in Table 5–92.
Fixed typo in tO U T J I T T E R
specification in Table 5–92.
Updated VD I F AC & DC max
specifications in Table 5–28.
Updated minimum values for tJ C H ,
tJ C L , and tJ P S U in Table 5–102.
Update maximum values for tJ P C O ,
tJ P Z X , and tJ P X Z in Table 5–102.
Updated “External Memory Interface
Specifications” section.
Updated timing numbers throughout chapter.
—
Updated HyperTransport technology information in
Table 5–13.
Updated “Timing Model” section.
Updated “PLL Timing Specifications” section.
Updated “External Memory Interface
Specifications” section.
—
Updated tables throughout chapter.
Updated “Power Consumption” section.
Added various tables.
Replaced “Maximum Input & Output Clock Rate”
section with “Maximum Input & Output Clock Toggle
Rate” section.
Added “Duty Cycle Distortion” section.
Added “External Memory Interface Specifications”
section.
—
March 2005,
v2.2
Updated tables in “Internal Timing Parameters”
section.
—
January 2005,
v2.1
Updated input rise and fall time.
—
5–98
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
DC & Switching Characteristics
Table 5–103. Document Revision History (Part 3 of 3)
Date and
Document
Version
January 2005,
v2.0
●
●
●
●
●
●
October 2004,
v1.2
●
July 2004, v1.1
●
●
●
●
●
●
●
●
●
February 2004,
v1.0
Changes Made
Summary of Changes
Updated the “Power Consumption” section.
Added the “High-Speed I/O Specifications” and
“On-Chip Termination Specifications” sections.
Removed the ESD Protection Specifications
section.
Updated Tables 5–3 through 5–13, 5–16 through
5–18, 5–21, 5–35, 5–39, and 5–40.
Updated tables in “Timing Model” section.
Added Tables 5–30 and 5–31.
—
Updated Table 5–3.
Updated introduction text in the “PLL Timing
Specifications” section.
—
Re-organized chapter.
Added typical values and CO U T F B to Table 5–32.
Added undershoot specification to Note (4) for
Tables 5–1 through 5–9.
Added Note (1) to Tables 5–5 and 5–6.
Added VI D and VI C M to Table 5–10.
Added “I/O Timing Measurement Methodology”
section.
Added Table 5–72.
Updated Tables 5–1 through 5–2 and Tables 5–24
through 5–29.
—
Added document to the Stratix II Device Handbook.
Altera Corporation
April 2011
—
5–99
Stratix II Device Handbook, Volume 1
Document Revision History
5–100
Stratix II Device Handbook, Volume 1
Altera Corporation
April 2011
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
