Pomona 1432-2 Datasheet
Pomona®
h.
co
m

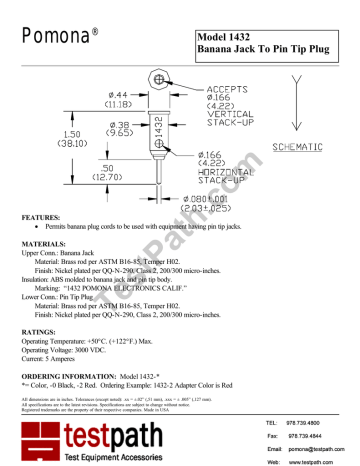

Model 1432
Banana Jack To Pin Tip Plug
Pa
t
FEATURES:
• Permits banana plug cords to be used with equipment having pin tip jacks.
Te
st
MATERIALS:
Upper Conn.: Banana Jack
Material: Brass rod per ASTM B16-85, Temper H02.
Finish: Nickel plated per QQ-N-290, Class 2, 200/300 micro-inches.
Insulation: ABS molded to banana jack and pin tip body.
Marking: “1432 POMONA ELECTRONICS CALIF.”
Lower Conn.: Pin Tip Plug
Material: Brass rod per ASTM B16-85, Temper H02.
Finish: Nickel plated per QQ-N-290, Class 2, 200/300 micro-inches.
RATINGS:
Operating Temperature: +50°C. (+122°F.) Max.
Operating Voltage: 3000 VDC.
Current: 5 Amperes
ORDERING INFORMATION: Model 1432-*
*= Color, -0 Black, -2 Red. Ordering Example: 1432-2 Adapter Color is Red
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
S:\Engineering \Release\DataSheets\FlukeDataSheet\d1432_1_01.doc
PomonaACCESS 90543 (800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 1 of 1
