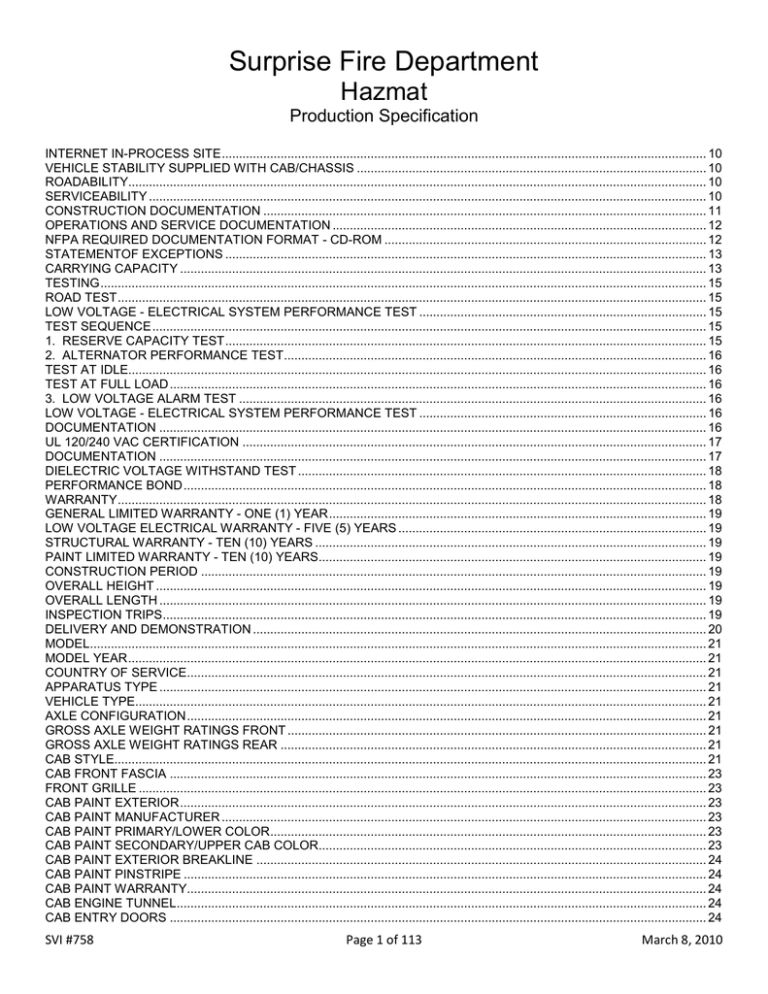

Surprise Fire Department Hazmat Production Specification

Surprise Fire Department Hazmat Production Specification

Surprise Fire Department

Hazmat

Production Specification

INTERNET IN-PROCESS SITE ............................................................................................................................................ 10

VEHICLE STABILITY SUPPLIED WITH CAB/CHASSIS ..................................................................................................... 10

ROADABILITY....................................................................................................................................................................... 10

SERVICEABILITY ................................................................................................................................................................. 10

CONSTRUCTION DOCUMENTATION ................................................................................................................................ 11

OPERATIONS AND SERVICE DOCUMENTATION ............................................................................................................ 12

NFPA REQUIRED DOCUMENTATION FORMAT - CD-ROM ............................................................................................. 12

STATEMENTOF EXCEPTIONS ........................................................................................................................................... 13

CARRYING CAPACITY ........................................................................................................................................................ 13

TESTING ............................................................................................................................................................................... 15

ROAD TEST .......................................................................................................................................................................... 15

LOW VOLTAGE - ELECTRICAL SYSTEM PERFORMANCE TEST ................................................................................... 15

TEST SEQUENCE ................................................................................................................................................................ 15

1. RESERVE CAPACITY TEST ........................................................................................................................................... 15

2. ALTERNATOR PERFORMANCE TEST .......................................................................................................................... 16

TEST AT IDLE....................................................................................................................................................................... 16

TEST AT FULL LOAD ........................................................................................................................................................... 16

3. LOW VOLTAGE ALARM TEST ....................................................................................................................................... 16

LOW VOLTAGE - ELECTRICAL SYSTEM PERFORMANCE TEST ................................................................................... 16

DOCUMENTATION .............................................................................................................................................................. 16

UL 120/240 VAC CERTIFICATION ...................................................................................................................................... 17

DOCUMENTATION .............................................................................................................................................................. 17

DIELECTRIC VOLTAGE WITHSTAND TEST ...................................................................................................................... 18

PERFORMANCE BOND ....................................................................................................................................................... 18

WARRANTY .......................................................................................................................................................................... 18

GENERAL LIMITED WARRANTY - ONE (1) YEAR ............................................................................................................. 19

LOW VOLTAGE ELECTRICAL WARRANTY - FIVE (5) YEARS ......................................................................................... 19

STRUCTURAL WARRANTY - TEN (10) YEARS ................................................................................................................. 19

PAINT LIMITED WARRANTY - TEN (10) YEARS ................................................................................................................ 19

CONSTRUCTION PERIOD .................................................................................................................................................. 19

OVERALL HEIGHT ............................................................................................................................................................... 19

OVERALL LENGTH .............................................................................................................................................................. 19

INSPECTION TRIPS ............................................................................................................................................................. 19

DELIVERY AND DEMONSTRATION ................................................................................................................................... 20

MODEL .................................................................................................................................................................................. 21

MODEL YEAR ....................................................................................................................................................................... 21

COUNTRY OF SERVICE ...................................................................................................................................................... 21

APPARATUS TYPE .............................................................................................................................................................. 21

VEHICLE TYPE..................................................................................................................................................................... 21

AXLE CONFIGURATION ...................................................................................................................................................... 21

GROSS AXLE WEIGHT RATINGS FRONT ......................................................................................................................... 21

GROSS AXLE WEIGHT RATINGS REAR ........................................................................................................................... 21

CAB STYLE........................................................................................................................................................................... 21

CAB FRONT FASCIA ........................................................................................................................................................... 23

FRONT GRILLE .................................................................................................................................................................... 23

CAB PAINT EXTERIOR ........................................................................................................................................................ 23

CAB PAINT MANUFACTURER ............................................................................................................................................ 23

CAB PAINT PRIMARY/LOWER COLOR .............................................................................................................................. 23

CAB PAINT SECONDARY/UPPER CAB COLOR ................................................................................................................ 23

CAB PAINT EXTERIOR BREAKLINE .................................................................................................................................. 24

CAB PAINT PINSTRIPE ....................................................................................................................................................... 24

CAB PAINT WARRANTY ...................................................................................................................................................... 24

CAB ENGINE TUNNEL ......................................................................................................................................................... 24

CAB ENTRY DOORS ........................................................................................................................................................... 24

SVI #758 Page 1 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

CAB ENTRY DOOR TYPE ................................................................................................................................................... 24

LH EXTERIOR REAR COMPARTMENT .............................................................................................................................. 25

LH EXTERIOR REAR COMPARTMENT LIGHTING ............................................................................................................ 25

LH EXTERIOR COMPARTMENT INTERIOR FINISH .......................................................................................................... 25

RH EXTERIOR REAR COMPARTMENT ............................................................................................................................. 25

RH EXTERIOR REAR COMPARTMENT LIGHTING ........................................................................................................... 25

RH EXTERIOR COMPARTMENT INTERIOR FINISH ......................................................................................................... 25

CAB STRUCTURAL WARRANTY ........................................................................................................................................ 25

CAB TEST INFORMATION .................................................................................................................................................. 26

ELECTRICAL SYSTEM ........................................................................................................................................................ 26

APPARATUS WIRING PROVISION ..................................................................................................................................... 26

MULTIPLEX DISPLAY .......................................................................................................................................................... 26

DATA RECORDING SYSTEM .............................................................................................................................................. 27

POWER & GROUND STUD ................................................................................................................................................. 27

EXTERIOR ELECTRICAL TERMINAL COATING ................................................................................................................ 27

ENGINE ................................................................................................................................................................................. 27

DIESEL PARTICULATE FILTER CONTROLS ..................................................................................................................... 28

ENGINE PROGRAMMING HIGH IDLE SPEED ................................................................................................................... 28

ENGINE HIGH IDLE CONTROL ........................................................................................................................................... 28

ENGINE PROGRAMMING ROAD SPEED GOVERNOR .................................................................................................... 28

AUXILIARY ENGINE BRAKE ............................................................................................................................................... 28

AUXILIARY ENGINE BRAKE CONTROL ............................................................................................................................. 28

FLUID FILLS ......................................................................................................................................................................... 28

ELECTRONIC ENGINE OIL LEVEL INDICATOR ................................................................................................................ 28

ENGINE WARRANTY ........................................................................................................................................................... 28

ENGINE PROGRAMMING REMOTE THROTTLE ............................................................................................................... 29

ENGINE PROGRAMMING IDLE SPEED ............................................................................................................................. 29

ENGINE FAN DRIVE ............................................................................................................................................................ 29

ENGINE COOLING SYSTEM ............................................................................................................................................... 29

ENGINE COOLANT .............................................................................................................................................................. 30

ENGINE COOLANT FILTER ................................................................................................................................................. 30

ELECTRONIC COOLANT LEVEL INDICATOR ................................................................................................................... 30

COOLANT HOSES ............................................................................................................................................................... 30

ENGINE AIR INTAKE ........................................................................................................................................................... 30

ENGINE EXHAUST SYSTEM ............................................................................................................................................... 31

ENGINE EXHAUST ACCESSORIES ................................................................................................................................... 31

TRANSMISSION ................................................................................................................................................................... 31

TRANSMISSION MODE PROGRAMMING .......................................................................................................................... 31

TRANSMISSION FEATURE PROGRAMMING .................................................................................................................... 32

ELECTRONIC TRANSMISSION OIL LEVEL INDICATOR .................................................................................................. 32

TRANSMISSION SHIFT SELECTOR ................................................................................................................................... 32

TRANSMISSION PRE-SELECT WITH AUXILIARY BRAKE ................................................................................................ 32

TRANSMISSION COOLING SYSTEM ................................................................................................................................. 32

TRANSMISSION WARRANTY ............................................................................................................................................. 32

DRIVELINE ........................................................................................................................................................................... 32

FUEL FILTER/WATER SEPARATOR .................................................................................................................................. 33

FUEL LINES .......................................................................................................................................................................... 33

FUEL SHUTOFF VALVE ...................................................................................................................................................... 33

FUEL COOLER ..................................................................................................................................................................... 33

FUEL TANK ........................................................................................................................................................................... 33

FUEL TANK FILL PORT ....................................................................................................................................................... 33

FUEL TANK SERVICEABILTY PROVISIONS ...................................................................................................................... 33

FRONT AXLE ........................................................................................................................................................................ 34

FRONT AXLE WARRANTY .................................................................................................................................................. 34

SVI #758 Page 2 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

FRONT WHEEL BEARING LUBRICATION ......................................................................................................................... 34

FRONT SHOCK ABSORBERS ............................................................................................................................................. 34

FRONT SUSPENSION ......................................................................................................................................................... 34

STEERING COLUMN/ WHEEL ............................................................................................................................................ 34

POWER STEERING PUMP .................................................................................................................................................. 34

ELECTRONIC POWER STEERING FLUID LEVEL INDICATOR ........................................................................................ 35

FRONT AXLE CRAMP ANGLE ............................................................................................................................................ 35

POWER STEERING GEAR .................................................................................................................................................. 35

CHASSIS ALIGNMENT ........................................................................................................................................................ 35

REAR AXLE .......................................................................................................................................................................... 35

REAR AXLE DIFFERENTIAL LUBRICATION ...................................................................................................................... 35

REAR AXLE WARRANTY .................................................................................................................................................... 35

REAR WHEEL BEARING LUBRICATION ............................................................................................................................ 35

VEHICLE TOP SPEED ......................................................................................................................................................... 35

REAR SUSPENSION ............................................................................................................................................................ 36

REAR SHOCK ABSORBERS ............................................................................................................................................... 36

FRONT TIRE ......................................................................................................................................................................... 36

REAR TIRE ........................................................................................................................................................................... 36

TIRE PRESSURE INDICATOR ............................................................................................................................................ 36

FRONT WHEEL .................................................................................................................................................................... 36

REAR WHEEL....................................................................................................................................................................... 37

BALANCE WHEELS AND TIRES ......................................................................................................................................... 37

BRAKE SYSTEM .................................................................................................................................................................. 37

FRONT BRAKES .................................................................................................................................................................. 37

REAR BRAKES ..................................................................................................................................................................... 38

PARK BRAKE ....................................................................................................................................................................... 38

PARK BRAKE CONTROL ..................................................................................................................................................... 38

REAR BRAKE SLACK ADJUSTERS .................................................................................................................................... 38

AIR DRYER ........................................................................................................................................................................... 38

FRONT BRAKE CHAMBERS ............................................................................................................................................... 38

REAR BRAKE CHAMBERS .................................................................................................................................................. 38

AIR COMPRESSOR ............................................................................................................................................................. 38

AIR GOVERNOR .................................................................................................................................................................. 39

MOISTURE EJECTORS ....................................................................................................................................................... 39

AIR SUPPLY LINES .............................................................................................................................................................. 39

AIR OUTLET CONNECTION ................................................................................................................................................ 39

PLUMBING AIR OUTLET CONNECTION ............................................................................................................................ 39

AIR INLET/ OUTLET FITTING TYPE ................................................................................................................................... 39

WHEELBASE ........................................................................................................................................................................ 39

REAR OVERHANG ............................................................................................................................................................... 39

FRAME .................................................................................................................................................................................. 40

FRAME WARRANTY ............................................................................................................................................................ 40

FRAME PAINT ...................................................................................................................................................................... 40

FRONT BUMPER ................................................................................................................................................................. 41

FRONT BUMPER EXTENSION LENGTH ............................................................................................................................ 41

FRONT BUMPER EXTENSION WIDTH ............................................................................................................................... 41

FRONT BUMPER APRON .................................................................................................................................................... 41

MECHANICAL SIREN ........................................................................................................................................................... 41

MECHANICAL SIREN LOCATION ....................................................................................................................................... 41

MECHANICAL SIREN ACCESSORIES ............................................................................................................................... 41

AIR HORN ............................................................................................................................................................................. 41

AIR HORN LOCATION ......................................................................................................................................................... 41

AIR HORN RESERVOIR ...................................................................................................................................................... 42

ELECTRONIC SIREN SPEAKER ......................................................................................................................................... 42

SVI #758 Page 3 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

ELECTRONIC SIREN SPEAKER LOCATION ..................................................................................................................... 42

FRONT BUMPER TOW HOOKS .......................................................................................................................................... 42

CAB TILT SYSTEM ............................................................................................................................................................... 42

CAB TILT LIMIT SWITCH ..................................................................................................................................................... 42

CAB TILT CONTROL RECEPTACLE ................................................................................................................................... 42

CAB WINDSHIELD ............................................................................................................................................................... 43

GLASS FRONT DOOR ......................................................................................................................................................... 43

GLASS TINT FRONT DOOR ................................................................................................................................................ 43

GLASS REAR DOOR RH ..................................................................................................................................................... 43

GLASS TINT REAR DOOR RH ............................................................................................................................................ 43

GLASS REAR DOOR LH ...................................................................................................................................................... 43

GLASS TINT REAR DOOR LH ............................................................................................................................................. 43

GLASS SIDE MID RH ........................................................................................................................................................... 44

GLASS TINT SIDE MID RH .................................................................................................................................................. 44

GLASS UPPER SIDE FRONT .............................................................................................................................................. 44

GLASS UPPER SIDE MID .................................................................................................................................................... 44

GLASS UPPER SIDE REAR DOOR..................................................................................................................................... 44

CLIMATE CONTROL ............................................................................................................................................................ 44

CLIMATE CONTROL ACTIVATION ..................................................................................................................................... 44

A/C CONDENSER LOCATION ............................................................................................................................................. 44

A/C COMPRESSOR ............................................................................................................................................................. 45

CAB INSULATION ................................................................................................................................................................ 45

UNDER CAB INSULATION .................................................................................................................................................. 45

INTERIOR TRIM FLOOR ...................................................................................................................................................... 45

INTERIOR FLOOR MAT COLOR ......................................................................................................................................... 45

INTERIOR TRIM VINYL ........................................................................................................................................................ 45

INTERIOR TRIM VINYL COLOR .......................................................................................................................................... 45

INTERIOR ABS TRIM COLOR ............................................................................................................................................. 45

HEADER TRIM...................................................................................................................................................................... 46

INTERIOR TRIM SUNVISOR ............................................................................................................................................... 46

TRIM CENTER DASH ........................................................................................................................................................... 46

TRIM LH DASH ..................................................................................................................................................................... 46

TRIM RH DASH .................................................................................................................................................................... 46

CAB PAINT INTERIOR ......................................................................................................................................................... 46

ENGINE TUNNEL TRIM ....................................................................................................................................................... 46

ENGINE TUNNEL ACCESSORIES ...................................................................................................................................... 46

STEP TRIM ........................................................................................................................................................................... 46

INTERIOR DOOR TRIM ....................................................................................................................................................... 47

DOOR TRIM CUSTOMER NAMEPLATE ............................................................................................................................. 47

CAB DOOR TRIM REFLECTIVE .......................................................................................................................................... 47

INTERIOR GRAB HANDLE "A" PILLAR ............................................................................................................................... 47

INTERIOR GRAB HANDLE FRONT DOOR ......................................................................................................................... 47

INTERIOR GRAB HANDLE REAR DOOR ........................................................................................................................... 47

DASH PANEL GROUP ......................................................................................................................................................... 47

SWITCHES CENTER PANEL ............................................................................................................................................... 47

SWITCHES LEFT PANEL ..................................................................................................................................................... 47

SWITCHES RIGHT PANEL .................................................................................................................................................. 48

SWITCH PANEL IGNITION .................................................................................................................................................. 48

SEAT BELT WARNING ........................................................................................................................................................ 48

SEAT MATERIAL .................................................................................................................................................................. 48

SEAT COLOR ....................................................................................................................................................................... 48

SEAT BACK LOGO ............................................................................................................................................................... 48

SEAT DRIVER ...................................................................................................................................................................... 48

SEAT BACK DRIVER ........................................................................................................................................................... 49

SVI #758 Page 4 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

SEAT OFFICER .................................................................................................................................................................... 49

SEAT BACK OFFICER ......................................................................................................................................................... 49

POWER SEAT WIRING ........................................................................................................................................................ 49

SEAT BELT ORIENTATION CREW ..................................................................................................................................... 49

SEAT FORWARD FACING OUTER LOCATION ................................................................................................................. 49

SEAT CREW FORWARD FACING OUTER ......................................................................................................................... 50

SEAT BACK FORWARD FACING OUTER .......................................................................................................................... 50

SEAT MOUNTING FORWARD FACING OUTER ................................................................................................................ 50

CAB FRONT UNDERSEAT STORAGE ACCESS................................................................................................................ 50

SEAT COMPARTMENT DOOR FINISH ............................................................................................................................... 50

WINDSHIELD WIPER SYSTEM ........................................................................................................................................... 50

ELECTRONIC WINDSHIELD FLUID LEVEL INDICATOR ................................................................................................... 50

CAB DOOR HARDWARE ..................................................................................................................................................... 51

DOOR LOCKS ...................................................................................................................................................................... 51

DOOR LOCK LH REAR CAB COMPARTMENT .................................................................................................................. 51

DOOR LOCK RH REAR CAB COMPARTMENT .................................................................................................................. 51

POWER DOOR LOCK COMPARTMENT ACTIVATION ...................................................................................................... 51

GRAB HANDLES .................................................................................................................................................................. 51

REARVIEW MIRRORS ......................................................................................................................................................... 51

CAB FENDER ....................................................................................................................................................................... 52

MUD FLAPS FRONT ............................................................................................................................................................ 52

CAB EXTERIOR MODEL NAMEPLATE ............................................................................................................................... 52

CAB EXTERIOR FRONT & SIDE EMBLEMS ...................................................................................................................... 52

IGNITION .............................................................................................................................................................................. 52

BATTERY .............................................................................................................................................................................. 52

BATTERY TRAY ................................................................................................................................................................... 52

BATTERY CABLE ................................................................................................................................................................. 52

BATTERY JUMPER STUD ................................................................................................................................................... 53

ALTERNATOR ...................................................................................................................................................................... 53

HEADLIGHTS ....................................................................................................................................................................... 53

FRONT TURN SIGNALS ...................................................................................................................................................... 53

HEADLIGHT LOCATION ...................................................................................................................................................... 53

SIDE TURN/MARKER LIGHTS ............................................................................................................................................ 53

MARKER AND ICC LIGHTS ................................................................................................................................................. 53

GROUND LIGHTS ................................................................................................................................................................ 53

STEP LIGHTS ....................................................................................................................................................................... 53

ENGINE COMPARTMENT LIGHT........................................................................................................................................ 54

SIDE SCENE LIGHTS .......................................................................................................................................................... 54

SIDE SCENE LIGHT LOCATION ......................................................................................................................................... 54

SIDE SCENE ACTIVATION .................................................................................................................................................. 54

INTERIOR OVERHEAD LIGHTING ...................................................................................................................................... 54

MAP LIGHTS......................................................................................................................................................................... 54

CAB SPOTLIGHTS ............................................................................................................................................................... 54

DO NOT MOVE APPARATUS LIGHT .................................................................................................................................. 54

MASTER WARNING SWITCH .............................................................................................................................................. 55

HEADLIGHT FLASHER ........................................................................................................................................................ 55

ALTERNATING HEADLIGHT SWITCH ................................................................................................................................ 55

INBOARD FRONT WARNING LIGHTS ................................................................................................................................ 55

INBOARD FRONT WARNING LIGHTS COLOR .................................................................................................................. 55

FRONT WARNING SWITCH ................................................................................................................................................ 55

INTERSECTION WARNING LIGHTS ................................................................................................................................... 55

INTERSECTION WARNING LIGHTS COLOR ..................................................................................................................... 55

INTERSECTION WARNING LIGHTS LOCATION ............................................................................................................... 55

SIDE WARNING LIGHTS ..................................................................................................................................................... 55

SVI #758 Page 5 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

SIDE WARNING LIGHTS COLOR........................................................................................................................................ 56

SIDE WARNING LIGHTS LOCATION .................................................................................................................................. 56

AUXILIARY SIDE WARNING LIGHTS ................................................................................................................................. 56

AUXILIARY SIDE WARNING LIGHTS COLOR .................................................................................................................... 56

AUXILIARY SIDE WARNING LIGHTS LOCATION .............................................................................................................. 56

SIDE AND INTERSECTION WARNING SWITCH ................................................................................................................ 56

AIR HORN ACTIVATION ...................................................................................................................................................... 56

MECHANICAL SIREN ACTIVATION .................................................................................................................................... 56

ELECTRONIC SIREN AUXILIARY ACTIVATION ................................................................................................................ 56

BACK-UP ALARM ................................................................................................................................................................. 56

INSTRUMENTATION ............................................................................................................................................................ 57

RADIO ................................................................................................................................................................................... 59

RADIO ANTENNA ................................................................................................................................................................. 59

CAMERA ............................................................................................................................................................................... 60

CAB EXTERIOR PROTECTION ........................................................................................................................................... 60

FIRE EXTINGUISHER .......................................................................................................................................................... 60

DOOR KEYS ......................................................................................................................................................................... 60

AS BUILT WIRING DIAGRAMS............................................................................................................................................ 60

WARRANTY - CAB AND CHASSIS ..................................................................................................................................... 60

OPERATORS AND PARTS LIST MANUAL ......................................................................................................................... 60

ENGINE AND TRANSMISSION OPERATION MANUALS .................................................................................................. 60

CAB/CHASSIS PREPAYMENT ............................................................................................................................................ 60

CHASSIS MODIFICATIONS ................................................................................................................................................. 61

LUBRICATION AND TIRE DATA PLATE ............................................................................................................................. 61

VEHICLE DATA PLATE ........................................................................................................................................................ 61

OVERALL HEIGHT, LENGTH DATA PLATE ....................................................................................................................... 61

ACCIDENT PREVENTION ................................................................................................................................................... 62

PERSONNEL CAPACITY ..................................................................................................................................................... 62

ACCIDENT PREVENTION ................................................................................................................................................... 62

WEARING HELMET WARNING ........................................................................................................................................... 62

FRONT BUMPER ................................................................................................................................................................. 62

BUMPER GRAVELSHIELD .................................................................................................................................................. 62

AIR HORN(S) ........................................................................................................................................................................ 62

FRONT TOW PROVISIONS ................................................................................................................................................. 62

FRONT TOW PROVISIONS ................................................................................................................................................. 62

EXHAUST ............................................................................................................................................................................. 62

MOTOROLA RADIO INSTALLATION .................................................................................................................................. 63

40A BATTERY POWER PROVISION .................................................................................................................................. 63

FIVE (5) ANTENNAS - RAIL MOUNTED CAB ROOF .......................................................................................................... 63

HUB AND NUT COVERS ..................................................................................................................................................... 63

MUDFLAPS ........................................................................................................................................................................... 63

ROAD EMERGENCY SAFETY KIT ...................................................................................................................................... 63

REAR CAB AREA LAYOUT .................................................................................................................................................. 64

REAR CAB DESK - "L" SHAPED ......................................................................................................................................... 64

DESKTOP COMPONENT CONSOLE .................................................................................................................................. 64

CAB INTERIOR CABINET - OVERHEAD STREETSIDE ..................................................................................................... 64

OVERHEAD RADIO MOUNTING CONSOLE ...................................................................................................................... 65

CAB COMMAND 120V INTERIOR LIGHT(S) ....................................................................................................................... 65

2-DRAWER FILING CABINET .............................................................................................................................................. 65

INTERIOR PEDESTAL SEAT ............................................................................................................................................... 65

MAGNETIC WHITEBOARD .................................................................................................................................................. 65

MAP LIGHT ........................................................................................................................................................................... 65

120VAC OULET(S) ............................................................................................................................................................... 66

CAB COMMAND NETWORK SYSTEM ............................................................................................................................... 66

SVI #758 Page 6 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

AIR CONDITIONER - HEATER ............................................................................................................................................ 66

FUEL FILL ............................................................................................................................................................................. 66

BODY DESIGN ..................................................................................................................................................................... 67

EXTERIOR ALUMINUM BODY ............................................................................................................................................ 67

ROOF CONSTRUCTION ...................................................................................................................................................... 68

BODY SUBFRAME ............................................................................................................................................................... 68

BODY MOUNTING ............................................................................................................................................................... 68

17" REAR STEP BUMPER ................................................................................................................................................... 68

REAR TOW EYES ................................................................................................................................................................ 68

GROUND LIGHTS ................................................................................................................................................................ 68

WHEEL WELL EXTERIOR PANEL ...................................................................................................................................... 69

DIEFORMED BEADED EDGE BODY FENDERS ................................................................................................................ 69

WHEEL WELL LINERS ......................................................................................................................................................... 69

SCBA BOTTLE COMPARTMENTS ...................................................................................................................................... 69

ALUMINUM BODY PAINT SPECIFICATIONS ..................................................................................................................... 69

BODY PAINT PREPARATION .............................................................................................................................................. 69

PAINT PROCESS ................................................................................................................................................................. 70

MACHINE POLISHED .......................................................................................................................................................... 70

PAINT - ENVIRONMENTAL IMPACT ................................................................................................................................... 70

PAINT FINISH - SINGLE COLOR......................................................................................................................................... 70

BODY UNDERCOATING ...................................................................................................................................................... 70

UNDERCOAT WARRANTY .................................................................................................................................................. 71

PAINT WARRANTY .............................................................................................................................................................. 71

COMPARTMENT INTERIOR FINISH ................................................................................................................................... 71

GRAPHICS PACKAGE ......................................................................................................................................................... 71

EXTERIOR COMPARTMENT DOORS ................................................................................................................................ 72

ROLL-UP DOOR CONSTRUCTION - ROBINSON (ROM) .................................................................................................. 72

EXTERIOR ROLL-UP DOOR FINISH - PAINTED ................................................................................................................ 72

BODY HEIGHT MEASUREMENTS ...................................................................................................................................... 73

FIVE (5) UPPER BODY COMPARTMENTS ........................................................................................................................ 74

UPPER BODY WALKWAY ................................................................................................................................................... 74

WALKWAY LIGHTS .............................................................................................................................................................. 74

ROOF ACCESS STAIRWAY ................................................................................................................................................ 74

STAIRWAY HANDRAILS ...................................................................................................................................................... 74

WALKWAY LIGHTS .............................................................................................................................................................. 75

STEP COMPARTMENT - UPPER ........................................................................................................................................ 75

FOLD-DOWN STEP .............................................................................................................................................................. 75

REAR BODY HANDRAILS ................................................................................................................................................... 75

BODY WIDTH DIMENSIONS ............................................................................................................................................... 76

STREETSIDE COMPARTMENT - FRONT (S1) ................................................................................................................... 77

STREETSIDE COMPARTMENT - AHEAD OF REAR WHEELS (S2) ................................................................................. 78

STREETSIDE COMPARTMENT - ABOVE REAR WHEELS (S3) ....................................................................................... 79

STREETSIDE COMPARTMENT - REAR (S4) ..................................................................................................................... 80

CURBSIDE COMPARTMENT - FRONT (C1) ....................................................................................................................... 81

CURBSIDE COMPARTMENT - AHEAD OF REAR WHEEL (C2) ........................................................................................ 82

CURBSIDE COMPARTMENT - ABOVE REAR WHEEL (C3) .............................................................................................. 83

CURBSIDE COMPARTMENT - REAR (C4) ......................................................................................................................... 84

ROOF ACCESS STAIRWAY ................................................................................................................................................ 85

ROLL-OUT AWNING STREETSIDE .................................................................................................................................... 85

AWNING HOUSING .............................................................................................................................................................. 85

ROLL-OUT AWNING CURBSIDE......................................................................................................................................... 85

AWNING HOUSING .............................................................................................................................................................. 86

COMPARTMENT COMPONENTS DESCRIPTIONS ........................................................................................................... 86

ADJUSTABLE SHELVING HARDWARE .............................................................................................................................. 86

SVI #758 Page 7 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

ADJUSTABLE SHELF/SHELVES ......................................................................................................................................... 86

SLIDE-OUT EQUIPMENT TRAY - (400 LB CAPACITY) ...................................................................................................... 86

HEAVY DUTY 100% EXTENSION EQUIPMENT SLIDE - (750 LB. CAPACITY) ............................................................... 87

HEAVY DUTY 70% EXTENSION EQUIPMENT SLIDE TRANSVERSE (1,000 LBS. CAPACITY) .................................... 87

HEAVY DUTY EQUIPMENT TRAYS - SLIDE OUT AND DOWN ( 150 LBS. CAPACITY) ................................................. 87

COMPARTMENT PARTITIONS ........................................................................................................................................... 87

WALKAWAY SCBA BRACKET ............................................................................................................................................. 88

COMPARTMENT LIGHTING ................................................................................................................................................ 88

ELECTRIC CORD REEL ...................................................................................................................................................... 88

STEP / GROUND LIGHTS .................................................................................................................................................... 89

LOW VOLTAGE ELECTRICAL SYSTEM- 12 VDC .............................................................................................................. 90

12 VOLT MULTIPLEX CONTROL CENTER ........................................................................................................................ 92

BATTERY SYSTEM .............................................................................................................................................................. 92

BATTERY SWITCH .............................................................................................................................................................. 93

BATTERY SOLENOID .......................................................................................................................................................... 93

BATTERY CONDITIONER ................................................................................................................................................... 93

CHASSIS AIR SHORE PUMP .............................................................................................................................................. 93

BATTERY CHARGE INDICATOR ........................................................................................................................................ 93

SHORE POWER INLET ........................................................................................................................................................ 94

ENGINE COMPARTMENT LIGHT........................................................................................................................................ 94

CAB DOME LIGHTS ............................................................................................................................................................. 94

CAB DOME LIGHTS ............................................................................................................................................................. 94

CAB HAZARD WARNING LIGHT ......................................................................................................................................... 94

BACK-UP ALARM ................................................................................................................................................................. 94

REAR VIEW CAMERA .......................................................................................................................................................... 94

TAIL LIGHTS ......................................................................................................................................................................... 95

MIDSHIP MARKER/TURN SIGNAL ..................................................................................................................................... 95

MARKER LIGHTS ................................................................................................................................................................. 95

LICENSE PLATE MOUNTING BRACKET ............................................................................................................................ 95

ELECTRONIC SIREN ........................................................................................................................................................... 95

SIREN SPEAKER ................................................................................................................................................................. 95

SIDE SCENE LIGHTS .......................................................................................................................................................... 96

REAR SCENE LIGHTS ......................................................................................................................................................... 96

DAVID CLARK INTERCOM SYSTEM .................................................................................................................................. 96

WARNING LIGHT PACKAGE ............................................................................................................................................... 97

UPPER LEVEL OPTICAL WARNING DEVICES .................................................................................................................. 98

3M OPTICOM........................................................................................................................................................................ 98

LOWER LEVEL OPTICAL WARNING DEVICES ................................................................................................................. 99

LINE VOLTAGE ELECTRICAL SYSTEM ........................................................................................................................... 101

DIESEL GENERATOR ........................................................................................................................................................ 101

FUEL SYSTEM ................................................................................................................................................................... 101

EXHAUST SYSTEM ........................................................................................................................................................... 102

GENERATOR MOUNTING ................................................................................................................................................. 102

FUEL SYSTEM ................................................................................................................................................................... 102

STARTING SYSTEM .......................................................................................................................................................... 102

COOLING ............................................................................................................................................................................ 102

EXHAUST SYSTEM ........................................................................................................................................................... 102

MANUALS AND SCHEMATICS.......................................................................................................................................... 102

GENERATOR COMPARTMENT INSULATION ................................................................................................................. 103

GENERATOR INSTRUMENTS AND CONTROLS ............................................................................................................. 103

GENERATOR CONTROLS ................................................................................................................................................ 103

LOADCENTER .................................................................................................................................................................... 103

SHORE POWER INLET - SPECIFIED CIRCUITS ............................................................................................................. 104

OUTLETS AND CIRCUITS ................................................................................................................................................. 104

SVI #758 Page 8 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

INVERTER .......................................................................................................................................................................... 105

BATTERY CHARGE INDICATOR ...................................................................................................................................... 105

INVERTER BATTERY SUPPLY ......................................................................................................................................... 105

INVERTER BATTERY SUPPLY - VSR .............................................................................................................................. 105

GENERAL REQUIREMENTS ............................................................................................................................................. 106

120/240 VAC SCENE LIGHTING ....................................................................................................................................... 111

SIDE UPPER RECESSED SCENE LIGHTS ...................................................................................................................... 111

MIDDLE ATLANTIC 16U DATA RACK ............................................................................................................................... 112

PRINTER AND FAX PROVISIONS .................................................................................................................................... 112

PRE-WIRE LCD MONITORS .............................................................................................................................................. 112

PRE-WIRE WEATHERPAK WEATHER STATION ............................................................................................................ 112

PRE-WIRE FUTURE MAST AND PELCO CAMERA ......................................................................................................... 112

EQUIPMENT ....................................................................................................................................................................... 113

SVI #758 Page 9 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

INTERNET IN-PROCESS SITE

The Bidder shall post and maintain a website where the Surprise Fire Department will be able to view digital images of their apparatus as its being manufactured. The digital images shall be posted once a week starting when the body begins production or when the cab/chassis arrives and shall continue until the final completion of the apparatus.

VEHICLE STABILITY SUPPLIED WITH CAB/CHASSIS

The cab/chassis shall be equipped with a stability control system. The system shall have, at a minimum, a steering wheel position sensor, a vehicle yaw sensor, a lateral accelerometer, and individual wheel brake controls.

ROADABILITY

The apparatus, when loaded to its estimated in-service weight, shall be capable of the following performance while on dry, paved roads that are in good condition:

(1) From a standing start, the apparatus shall be able to attain a speed of 35 mph (55 km/hr) within 25 seconds on a level road.

(2) The apparatus shall be able to attain a minimum top speed of 50 mph (80 km/hr) on a level road.

(3) The apparatus shall be able to maintain a speed of at least 20 mph (32 km/hr) on any grade up to and including 6 percent.

The maximum top speed of fire apparatus with a GVWR over 26,000 lb (11,800 kg) shall not exceed either 68 mph (105 km/hr) or the manufacturer’s maximum fire service speed rating for the tires installed on the apparatus, whichever is lower.

If the combined water tank and foam agent tank capacities on the fire apparatus exceed 1250 gal (4732 L), or the GVWR of the vehicle is over 50,000 lb (22,680 kg), the maximum top speed of the apparatus shall not exceed either 60 mph (85 km/ hr) or the manufacturer’s maximum fire service speed rating for the tires installed on the apparatus, whichever is lower.

SERVICEABILITY

The fire apparatus shall be designed so that all the manufacturer’s recommended routine maintenance checks of lubricant and fluid levels can be performed by the operator without lifting the cab of a tilt-cab apparatus or without the need for hand tools.

Where special tools are required for routine service on any component of the apparatus, such tools shall be provided with the apparatus.

Apparatus components that interfere with repair or removal of other major components shall be attached with fasteners, such as cap screws and nuts, so that the components can be removed and installed with ordinary hand tools. These components shall not be welded or otherwise permanently secured into place.

SVI #758 Page 10 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

CONSTRUCTION DOCUMENTATION

The contractor shall supply, at the time of delivery, at least one (1) copy of the following documents:

(1) The manufacturers record of apparatus construction details, including the following information:

(a) Owner’s name and address

(b) Apparatus manufacturer, model, and serial number

(c) Chassis make, model, and serial number

(d) GAWR of front and rear axles and GVWR

(e) Front tire size and total rated capacity in pounds (kilograms)

(f) Rear tire size and total rated capacity in pounds (kilograms)

(g) Chassis weight distribution in pounds (kilograms) with water and manufacturer-mounted equipment (front and rear)

(h) Engine make, model, serial number, rated horsepower and related speed, and governed speed; and if so equipped, engine transmission PTO(s) make, model, and gear ratio

(i) Type of fuel and fuel tank capacity

(j) Electrical system voltage and alternator output in amps

(k) Battery make, model, and capacity in cold cranking amps (CCA)

(l) Chassis transmission make, model, and serial number; and if so equipped, chassis transmission PTO(s) make, model, and gear ratio

(m) Ratios of all driving axles

(n) Maximum governed road speed

(o) Pump make, model, rated capacity in gallons per minute (liters per minute where applicable), and serial number

(p) Pump transmission make, model, serial number, and gear ratio

(q) Auxiliary pump make, model, rated capacity in gallons per minute (liters per minute where applicable), and serial number

(r) Water and Foam tank certified capacity in gallons or liters

(s) Paint manufacturer and paint number(s)

(t) Company name and signature of responsible company representative

(u) Weight documents from a certified scale showing actual loading on the front axle, rear axle(s), and overall fire apparatus (with the water tank full but without personnel, equipment, and hose)

(2) Certification of compliance of the optical warning system

(3) Siren manufacturer’s certification of the siren

(4) Written load analysis and results of the electrical system performance tests

(5) Certification of slip resistance of all stepping, standing, and walking surfaces

(6) If the apparatus has a fire pump, the pump manufacturer’s certification of suction capability

(7) If the apparatus is equipped with a fire pump and special conditions are specified by the purchaser, the pump manufacturer’s certification of suction capacity under the special conditions

(8) If the apparatus has a fire pump, a copy of the apparatus manufacturer’s approval for stationary pumping applications

(9) If the apparatus has a fire pump, the engine manufacturer’s certified brake horsepower curve for the engine furnished, showing the maximum governed speed

(10) If the apparatus has a fire pump, the pump manufacturer’s certification of the hydrostatic test

(11) If the apparatus has a fire pump, the certification of inspection and test for the fire pump

(12) If the apparatus is equipped with an auxiliary pump, the apparatus manufacturer’s certification of the hydrostatic test

(13) When the apparatus is equipped with a water tank, the certification of water tank capacity

(14) If the apparatus has an aerial device, the certification of inspection and test for the aerial device

(15) If the apparatus has a foam proportioning system, the foam proportioning system manufacturer’s certification of accuracy and the final installer’s certification the foam proportioning system meets this standard

(16) If the system has a CAFS, the documentation of the manufacturer’s pre delivery tests

(17) If the apparatus has a line voltage power source, the certification of the test for the power source

SVI #758 Page 11 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

(18) If the apparatus is equipped with an air system, air tank certificates, the SCBA fill station certification (see

24.9.7), and the results of the testing of the air system installation

(19) Any other required manufacturer test data or reports

OPERATIONS AND SERVICE DOCUMENTATION

The contractor shall deliver with the fire apparatus at least two (2) sets of complete operation and service documentation covering the completed apparatus as delivered and accepted.

The documentation shall address at least the inspection, service, and operations of the fire apparatus and all major components thereof.

The contractor shall also deliver with the fire apparatus the following documentation for the entire apparatus and each major operating system or major component of the apparatus:

(1) Manufacturer’s name and address

(2) Country of manufacture

(3) Source for service and technical information

(4) Parts replacement information

(5) Descriptions, specifications, and ratings of the chassis, pump (if applicable), and aerial device (if applicable)

(6) Wiring diagrams for low voltage and line voltage systems to include the following information:

(a) Pictorial representations of circuit logic for all electrical components and wiring

(b) Circuit identification

(c) Connector pin identification

(d) Zone location of electrical components

(e) Safety interlocks

(f) Alternator–battery power distribution circuits

(g) Input/output assignment sheets or equivalent circuit logic implemented in multiplexing systems

(7) Lubrication charts

(8) Operating instructions for the chassis, any major components such as a pump or aerial device, and any auxiliary systems

(9) Precautions related to multiple configurations of aerial devices, if applicable

(10) Instructions regarding the frequency and procedure for recommended maintenance

(11) Overall apparatus operating instructions

(12) Safety considerations

(13) Limitations of use

(14) Inspection procedures

(15) Recommended service procedures

(16) Troubleshooting guide

(17) Apparatus body, chassis, and other component manufacturer’s warranties

(18) Special data required by this standard

(19) A material safety data sheet (MSDS) for any fluid that is specified for use on the apparatus

The contractor shall deliver with the apparatus all manufacturers’ operations and service documents supplied with components and equipment that are installed or supplied by the contractor.

NFPA REQUIRED DOCUMENTATION FORMAT - CD-ROM

The vehicle construction details and the operations and service documentation as required per NFPA 1901 latest edition shall be provided on a CD-ROM. These manuals shall be divided into sections for ease of reference. There shall be two

(2) copies of the CD-ROM provided with the completed vehicle.

SVI #758 Page 12 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

STATEMENTOF EXCEPTIONS

The contractor shall deliver with the fire apparatus either a certification that the apparatus fully complies with all requirements of this standard or, alternatively, a Statement of Exceptions specifically describing each aspect of the completed apparatus that is not fully compliant with the requirements of this standard at the time of delivery.

The Statement of Exceptions shall contain, for each noncompliant aspect of the apparatus or missing required item, the following information:

(1) A separate specification of the section of the applicable standard for which compliance is lacking

(2) A description of the particular aspect of the apparatus that is not in compliance therewith or required equipment that is missing

(3) A description of the further changes or modifications to the delivered apparatus that must be completed to achieve full compliance

(4) Identification of the entity that will be responsible for making the necessary post delivery changes or modifications or for supplying and installing any missing required equipment to the apparatus to achieve full compliance with this standard

Prior to, or at the time of, delivery of the apparatus, the Statement of Exceptions shall be signed by an authorized agent of the entity responsible for final assembly of the apparatus and by an authorized agent of the purchasing entity, indicating mutual understanding and agreement between the parties regarding the substance thereof.

An apparatus that is delivered subject to a Statement of Exceptions other than a certification of full compliance shall not be placed in emergency service until the apparatus has been modified as necessary to accomplish full compliance with this standard.

CARRYING CAPACITY

The GAWR and the GCWR or GVWR of the chassis shall be adequate to carry the weight of the completed vehicle when loaded to its estimated in-service weight. The Body Manufacturer shall establish the estimated in service weight during the design of the vehicle

The estimated in-service weight shall include the following:

(1) The chassis, body, and tank(s)

(2) Full fuel, lubricant, and other chassis or component fluid tanks or reservoirs

(3) Full water and other agent tanks

(4) *250 lb (114 kg) in each seating position

(5) Fixed equipment such as pumps, aerial devices, generators, reels, and air systems as installed

(6) Ground ladders, suction hose, designed hose load in their hose beds and on their reels

(7) An allowance for miscellaneous equipment that is the greatest of the values for type of vehicle per NFPA

1901, a Purchaser provided list of equipment to be carried with weights, or a Purchaser specified miscellaneous equipment allowance.

The Body Manufacturer shall engineer and design the vehicle such that the completed unit, when loaded to it's estimated in-service weight, with all movable weights distributed as close as is practical to their intended in-service configuration, does not exceed the GVWR.

SVI #758 Page 13 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

A final Body Manufacturer’s certification of the GVWR or GCWR, along with a certification of each GAWR, shall be supplied on a label affixed to the vehicle.

Apparatus Type Equipt. Storage Area Apparatus Size

Equipment Allowance

lb. kg.

910 Special Service Fire

Apparatus

Minimum of 120 cu ft

(3.4 cu mt) of enclosed compartmentation.

10,000 lb to 15,000 lb

(4,500 kg to 7,000 kg)

2,000

GVWR

15,001 lb to 20,000 lb

(7,001 kg to 9,000 kg)

2,500

GVWR

3,000 20,001 lb to 30,000 lb

(9,001 kg to 14,000 kg)

GVWR

30,001 lb to 40,000 lb 4,000

(14,001 kg to 18,000 kg)

GVWR

40,001 lb to 50,000 lb

(18,001 kg to 23,000 kg)

GVWR

50,001 lb to 60,000 lb

(23,001 kg to 27,000 kg)

GVWR

60,001 lb and up

(27,001 kg)

GVWR

6,000

8,000

10,000

1,135

1,350

1,800

2,700

3.600

4,500

SVI #758 Page 14 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

TESTING

ROAD TEST

Road test shall be conducted in accordance with this section to verify that the completed apparatus is capable of compliance with Roadability Section.

The tests shall be conducted at a location and in a manner that does not violate local, state or provincial, or federal traffic laws.

The tests shall be conducted on dry, level, paved roads that are in good condition. The apparatus shall be loaded to its estimated in service weight.

The engine shall not operate in excess of the maximum governed speed. Acceleration tests shall consist of two runs in opposite directions over the same route. The fire apparatus shall attain a speed of 35 mph (55 km/hr) from a standing start within 25 seconds. The fire apparatus shall attain a minimum top speed of 50 mph (80 km/hr).

If the apparatus is equipped with an auxiliary braking system, the manufacturer shall road test the system to confirm that the system is functioning as intended by the auxiliary braking system manufacturer.

If the apparatus is equipped with an air brake system, the service brakes shall bring the apparatus, when loaded to it's

GVWR, to a complete stop from an initial speed of 20 mph (32.2 km/hr) in a distance not exceeding 35 ft (10.7 m) by actual measurement on a paved, level, dry surface road that is free of loose material, oil, or grease.

If the apparatus is equipped with a hydraulic brake system, the service brakes shall bring the apparatus, when loaded to its GVWR, to a complete stop from an initial speed of 30 mph (48.2 km/hr) in a distance not exceeding 88 ft (26.8 m) by actual measurement on a paved, level, dry surface road that is free of loose material, oil, or grease.

LOW VOLTAGE - ELECTRICAL SYSTEM PERFORMANCE TEST

The vehicles low voltage electrical system shall be tested and certified by the manufacturer. The certified test results shall be delivered with the completed vehicle. Tests shall be performed when the air temperature is between 0°F and 110°F (–

18°C and 43°C).

TEST SEQUENCE

The following three (3) tests shall be performed in the order in which they appear below. Before each test, the batteries shall be fully charged until the voltage stabilizes at the voltage regulator set point and the lowest charge current is maintained for 10 minutes. Failure of any of these tests shall require a repeat of the sequence.

1. RESERVE CAPACITY TEST

The engine shall be started and kept running until the engine and engine compartment temperatures are stabilized at normal operating temperatures and the battery system is fully charged. The engine shall be shut off, and the minimum continuous electrical load shall be activated for 10 minutes.

All electrical loads shall be turned off prior to attempting to restart the engine. The battery system shall then be capable of restarting the engine. Failure to restart the engine shall be considered a test failure of the battery system.

SVI #758 Page 15 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

2. ALTERNATOR PERFORMANCE TEST

TEST AT IDLE

The minimum continuous electrical load shall be activated with the engine running at idle speed. The engine temperature shall be stabilized at normal operating temperature. The battery system shall be tested to detect the presence of battery discharge current. The detection of battery discharge current shall be considered a test failure.

TEST AT FULL LOAD

The total continuous electrical load shall be activated with the engine running up to the engine manufacturer’s governed speed. The test duration shall be a minimum of 2 hours. Activation of the load management system shall be permitted during this test.

An alarm sounded by excessive battery discharge, as detected by the warning system required in 13.3.4, or a system voltage of less than 11.8 V dc for a 12 V nominal system, 23.6 V dc for a 24 V nominal system, or 35.4 V dc for a 42 V nominal system for more than 120 seconds shall be considered a test failure.

3. LOW VOLTAGE ALARM TEST

The following test shall be started with the engine off and the battery voltage at or above 12 V for a 12 V nominal system,

24 V for a 24 V nominal system, or 36 V for a 42 V nominal system.

With the engine shut off, the total continuous electrical load shall be activated and shall continue to be applied until the excessive battery discharge alarm activates. The battery voltage shall be measured at the battery terminals.

The test shall be considered a failure if the alarm does not sound in less than 140 seconds after the voltage drops to

11.70 V for a 12 V nominal system, 23.4 V dc for a 24 V nominal system, or 35.1 V for a 42 V nominal system.

The battery system shall then be able to restart the engine. Failure to restart the engine shall be considered a test failure.

LOW VOLTAGE - ELECTRICAL SYSTEM PERFORMANCE TEST

DOCUMENTATION

The manufacturer shall deliver the following with the fire apparatus:

(1) Documentation of the electrical system performance tests

(2) A written electrical load analysis, including the following:

(a) The nameplate rating of the alternator

(b) The alternator rating

(c) Each of the component loads specified that make up the minimum continuous electrical load

(d) Additional electrical loads that, when added to the minimum continuous electrical load, determine the total continuous electrical load

(e) Each individual intermittent electrical load.

SVI #758 Page 16 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

UL 120/240 VAC CERTIFICATION

The 120/240 volt electrical system shall be tested and certified by Underwriters Laboratories, to perform as listed below;

The prime mover shall be started from a cold start condition, and the unloaded voltage and frequency shall be recorded.

The line voltage electrical system shall be loaded to at least 100 % of the continuous rated wattage stated on the power source specification label. Testing with a resistive load bank shall be permitted.

The power source shall be operated in the manner specified by the apparatus manufacturer as documented on instruction plates or in operation manuals. The power source shall be operated at a minimum of 100 % of the continuous rated wattage as stated on the power source specification label for a minimum of 2 hours.

The load shall be adjusted to maintain the output wattage at or above the continuous rated wattage during the entire 2hour test.

The following conditions shall be recorded at least every 1/2 hour during the test:

(1) The power source output voltage, frequency, and amperes

(2) The prime mover’s oil pressure, water temperature, and transmission temperature, if applicable

(3) The power source hydraulic fluid temperature, if applicable

(4) The ambient temperature and power source air inlet temperature

The following conditions shall be recorded once during the test for power sources driven by dedicated auxiliary internal combustion engines:

(1) Altitude

(2) Barometric pressure

(3) Relative humidity

If the generator is driven by the chassis engine and the generator allows for operation at variable speeds, the chassis engine speed shall be reduced to the lowest rpm allowed for generator operation and the voltage and frequency shall be recorded.

The load shall be removed, and the unloaded voltage and frequency shall be recorded.

Voltage shall be maintained within ±10 % of the voltage stated on the power source specification label during the entire test. Frequency shall be maintained within ±3 Hz of the frequency stated on the power source specification label during the entire test.

The total continuous electrical loads, excluding those loads associated with the equipment defined in NFPA

22.15.7.3.11.2, shall be applied during the testing unless an auxiliary engine drives the power source.

If the apparatus is equipped with a fire pump, the 2-hour certification test of the power source shall be completed with the fire pump pumping at 100 % capacity at 150 psi (1000 kPa) net pump pressure. The test shall be permitted to be run concurrently with the pump certification test.

DOCUMENTATION

The manufacturer shall deliver the following with the fire apparatus:

(1) The results of each test shall be recorded on an appropriate form and provided with the delivery of the fire apparatus.

SVI #758 Page 17 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

DIELECTRIC VOLTAGE WITHSTAND TEST

The line voltage wiring and permanently connected devices and equipment shall be subjected to a dielectric voltage withstand test of 900 volts for 1 minute. The testing shall be performed after all body work has been completed.

The test shall be conducted as follows:

(1) Isolate the power source from the panel board and disconnect any solid state low voltage components.

(2) Connect one lead of the dielectric tester to all the hot and neutral buses tied together.

(3) Connect the other lead to the fire apparatus frame or body.

(4) Close any switches and circuit breakers in the circuit(s).

(5) Apply the dielectric voltage for 1 minute in accordance with the testing equipment manufacturer’s instructions.

The electrical polarity of all permanently wired equipment, cord reels, and receptacles shall be tested to verify that wiring connections have been properly made.

Electrical continuity shall be verified from the chassis or body to all line voltage electrical enclosures, light housings, motor housings, light poles, switch boxes, and receptacle ground connections that are accessible to fire fighters in normal operations.

If the apparatus is equipped with a transfer switch, it shall be tested to verify operation and that all non grounded conductors are switched.

Electrical light towers, floodlights, motors, fixed appliances, and portable generators shall be operated at their full rating or capacity for 30 minutes to ensure proper operation.

PERFORMANCE BOND

The successful Bidder will be required to provide a 100% performance bond in the amount equivalent to the total amount of its bid including any additional options that may have been given. Performance bond shall be provided within two (2) weeks after notice of award.

If the Bidder to whom the contract is awarded, refuses or neglects to execute, or fails to furnish the required 100% performance bond within two (2) weeks after notice, the amount of his deposit may be forfeited and retained by the

Surprise Fire Department as liquidated damages.

The terms of the performance bond shallcontinue one (1) year after completion and delivery of the apparatus.

Fees: Tax/Import

WARRANTY

The City of Surprise shall be authorized to perform approved warranty work on the apparatus at the local shop rate. Prior to work being performed, the City shall contact SVI Trucks to receive approval and to arrange for any parts that need to be supplied to the City.

A full statement shall be provided of the warranties for the vehicle(s) being bid. Warranties should clearly describe the terms under which the vehicle manufacturer accepts responsibility for the cost to repair defects caused by faulty design, quality of work or material, and for the applicable period of time after delivery.

Cost of repairs refers to all costs related thereto including, but not limited to, the cost of materials, and the cost of labor.

SVI Trucks shall warrant all materials and accessories used on the vehicle(s), whether fabricated by manufacturer or purchased from an outside source, and will deal directly with the Surprise Fire Department on all warranty work.

SVI #758 Page 18 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

GENERAL LIMITED WARRANTY - ONE (1) YEAR

The vehicle shall be free of defects in material and workmanship for a period of one (1) year or 12,000 miles, whichever occurs first starting thirty (30) days after the original invoice date.

The contractor must be the "single source" coordinator of all warranties on the vehicle.

LOW VOLTAGE ELECTRICAL WARRANTY - FIVE (5) YEARS

The vehicle low voltage electrical system shall be free of defects in material and workmanship for a period of five (5) years or 60,000 miles, whichever occurs first, starting thirty (30) days after the original invoice date.

STRUCTURAL WARRANTY - TEN (10) YEARS

The body shall be free of structural or design failure or workmanship for a period of ten (10) years, or 100,000 miles whichever occurs first, starting thirty (30) days after the original invoice date.

PAINT LIMITED WARRANTY - TEN (10) YEARS

The body shall be free of bubbling, or peeling as a result of a defect in the method of manufacture for a period of ten (10) years, or 100,000 miles whichever occurs first, starting thirty (30) days after the original invoice date.

CONSTRUCTION PERIOD

The completed vehicle shall be delivered within three hundred sixty (360) days after receipt of a purchase order, or contract. SVI Trucks will make every effort to complete the apparatus earlier than this stated timeframe to allow for delivery to the Surprise Fire Department prior to September 1, 2010 to meet grant deadlines.

Contractor shall not be held liable for delays of chassis delivery due to accidents, strikes, floods or other events not subject to their control. Contractor shall provide immediate written notice to Surprise Fire Department as to delays and to what extent these delays have in completing vehicle within the stated construction time period.

OVERALL HEIGHT

The overall height (OAH) of the vehicle shall be approximately 136" (11' - 4") from the ground. This measurement shall be taken on flat ground with the tires properly inflated, in the unloaded condition, at that highest point of the vehicle.

OVERALL LENGTH

The overall length (OAL) of the vehicle shall be approximately 430" (35' 10").

INSPECTION TRIPS

The Bidder shall provide two (2) individual inspection trips to the factory, one for a pre-construction meeting and one for the final inspection. There will be four (4)) representative form the Surprise Fire Department for each trip. Each trip will last three days/two nights. The cost of transportation, food, and lodging shall be borne by the Bidder.

If the Surprise Fire Department is more than 250 miles from factory than the transportation shall be by commercial airline.

The description of these factory trips must be included in Bid. If nothing is described or mentioned in the Bid pertaining to inspection trips, then it is assumed that the Bidder is taking exception to inspection trips required, and bid shall be rejected.

SVI #758 Page 19 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

DELIVERY AND DEMONSTRATION

The contractor shall be responsible for the delivery of the completed unit to the Surprise Fire Departments location. On initial delivery of the apparatus, the contractor shall supply a qualified representative to demonstrate the apparatus and provide initial instruction to representatives of the Surprise Fire Department regarding the operation, care, and maintenance of the apparatus and equipment supplied at the Surprise Fire Departments location.

The delivery engineer shall set delivery and instruction schedule with the person appointed by Surprise Fire Department.

After delivery of the apparatus, the Surprise Fire Department shall be responsible for ongoing training of its personnel to proficiency regarding the proper and safe use of the apparatus and associated equipment as defined in NFPA 1002,

Standard for Fire Apparatus Driver/Operator Professional Qualifications, and NFPA 1500, Standard on Fire Department

Occupational Safety and Health Program.

SVI #758 Page 20 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

MODEL

The chassis shall be a Gladiator model. The cab and chassis shall include design considerations for multiple emergency vehicle applications, rapid transit and maneuverability. The chassis shall be manufactured for heavy duty service with the strength and capacity to support a fully laden apparatus, one hundred (100) percent of the time.

MODEL YEAR

The chassis shall have a vehicle identification number that reflects a 2009 model year.

COUNTRY OF SERVICE

The chassis shall be put in service in the country of United States of America (USA).

APPARATUS TYPE

The apparatus shall be a rescue vehicle designed for emergency service use which shall include the functions of a multipurpose vehicle which primarily provides support services at emergency scenes.

VEHICLE TYPE

The chassis shall be manufactured for use as a straight truck type vehicle and designed for the installation of a permanently mounted apparatus behind the cab. The apparatus of the vehicle shall be supplied and installed by the apparatus manufacturer.

AXLE CONFIGURATION

The chassis shall feature a 4 X 2 axle configuration consisting of a single rear drive axle with a single front steer axle.

GROSS AXLE WEIGHT RATINGS FRONT

The front gross axle weight rating (GAWR) of the chassis shall be 20,000 pounds.

This front gross axle weight rating shall be adequate to carry the weight of the completed apparatus including all equipment and personnel.

GROSS AXLE WEIGHT RATINGS REAR

The rear gross axle weight rating (GAWR) of the chassis shall be 27,000 pounds.

This rear gross axle weight rating shall be adequate to carry the weight of the completed apparatus including all equipment and personnel.

CAB STYLE

The cab shall be a custom, enclosed model, built specifically for the fire service by a company specializing in cab and chassis design for all fire service applications.

The cab shall be manufactured for heavy-duty service utilizing adequate strength and capacity for the application of protecting firefighters. The cab shall be of a modular design offering improved strength, durability and reduced weight.

The modular design shall allow for faster, less costly replacement of components. Per pound, sheet panel aluminum extrusions offer a higher tensile strength, 45,000 PSI, and yield strength, 40,000 PSI, than that of lower grade sheet such as 3003-H13. For this reason, the cab shall be of aluminum extrusion construction, which shall offer superior strength and the truest, flattest surface ensuring less expensive paint repairs if needed.

SVI #758 Page 21 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

The method of cab construction shall use a process incorporating techniques outlined in accordance with the American

Welding Society D1.1-96 requirements for structural steel welding. All aluminum welding shall be completed to the

American Welding Society and ANSI D1.2-96 requirements for structural welding of aluminum.

To provide a superior finish by reducing welds that fatigue cab metal; the roof, the rear wall and side panels shall be assembled using proven industrial adhesives, designed specifically for aluminum fabrication, which exceed the strength of a weld, for construction.

All interior and exterior seams shall be sealed for optimum noise reduction in addition to the most favorable efficiency for heating and cooling retention.

The cab shall be constructed of 5052-H32 Marine Grade, one hundred percent primary aluminum plate. A single formed, one (1) piece extrusion, manufactured from 6061-T6 100 percent primary one- quarter inch thick aluminum shall be used for the “A” pillar adding strength and rigidity to the cab as well as additional roll-over protection. The cab side wall skins and shall be 0.125 inch thick, the rear wall and roof skin shall be 0.19 inch thick, the front skin shall be 0.125 inch thick.

The cab shall incorporate tongue and groove fitted 6061-T6 0.25 inch thick aluminum extrusions for extreme duty situations. The cab shall include multi-layer composite insulation for improved cab heating and cooling in addition to noise reduction.

Proposals offering products built with anything less than the alloy-temper mentioned or from any other material, other than aluminum, shall not be considered. Additionally, any cabs utilizing recycled or recovered aluminum plate or extrusion products shall not be considered due impurities in the composition leading to a lack of strength.

The cab shall incorporate a fully enclosed design, allowing for a spacious cab area with no partition between the front and rear sections of the cab. The walls of the vehicle shall include roof supports allowing for an open design. The outside dimension of the cab shall be 96.00 inches wide with a minimum interior width of 90.00 inches.

The cab overall length shall be 150.38 inches in length with 74.00 inches from the centerline of the front of the axle to the back of the cab. The cab shall offer an interior height of 58.00 inches from the front floor to the headliner and a rear floor to headliner height of 79.00 inches in the crew area, at a minimum. All interior measurements shall include the area within the interior trimmed surfaces and not to any unfinished surface.

In order to offer the optimum amount of cab space to occupants, there shall be no consideration given for any cab unable to comply with the minimum measurements for interior cab space as listed.

The cab shall include a driver and officer area with two (2) cab door openings. The front door opening shall offer a clear door opening of 43.00 inches wide X 56.00 inches high. The rear door opening shall offer a clear door opening of 38.00 inches wide X 88.00 inches high. This style of cab shall also include a crew area offering up to ten (10) seating positions.

The cab shall incorporate a two (2) step configuration from the ground to the cab floor for each door opening. The lower step shall be constructed of heavy duty safety grating which meets or exceeds Federal Specification RRG-1602-latest revision and performs under dry, greasy, muddy, soapy and icy conditions and offers open drainage.

The first step for the driver and officer area shall measure 11.44 inches deep X 31.13 inches wide. The intermediate step shall measure 8.75 inches deep X 33.00 inches wide. The height from the first step to the intermediate step and the intermediate step to the cab floor shall not exceed 11.00 inches.

The first step for the crew area shall measure 12.13 inches deep X 20.44 inches wide. The intermediate step shall measure 10.50 inches deep X 23.00 inches wide. The height from the first step to the intermediate step and the intermediate step to the cab floor shall not exceed 12.50 inches.

SVI #758 Page 22 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

CAB FRONT FASCIA

The front cab fascia shall be constructed of 5052-H32 Marine Grade, 0.090 of an inch thick, one hundred percent primary aluminum plate which shall be an integral part of the cab.

The cab fascia will encompass the entire front of the aluminum cab structure from the bottom of the windshield to the bottom of the cab and shall be the “Classic” design.

The front cab fascia shall include two (2) molded plastic modules on each side accommodating a total of up to four (4)

Hi/Low beam headlights and two (2) turn signal lights or up to four (4) warning lights. A chrome plated molded plastic bezel shall be provided on each side around each set of four lamps.

FRONT GRILLE

The front cab fascia shall include a classic box style polished stainless steel front grille with a Spartan logo. The grille shall measure 44.50 inches wide at the top of tapering to 38.00 inches wide at the bottom X 33.00 inches high X 1.50 inches deep.

The grille shall include a minimum free air intake of 632.90 square inches shall be installed on the front of the cab.

The upper portion of the grille shall be hinged at the bottom so it can be opened to allow easy access for examination of the windshield wiper motor, linkage and other options mounted within that area. The upper portion of the grille shall be secured with two (2) flush push button latches.

CAB PAINT EXTERIOR

The cab shall be painted prior to the installation of glass accessories and all other cab trim to ensure complete paint coverage and the maximum in corrosion protection of all metal surfaces.

All metal surfaces on the entire cab shall be ground by disc to remove any surface oxidation or surface debris which may hinder the paint adhesion. Once the surface is machine ground a high quality acid etching of base primer shall be applied. Upon the application of body fillers and their preparation, the cab shall be primed with a coating designed for corrosion resistance and surface paint adhesion. The maximum thickness of the primer coat shall be 2.00 mils.

The entire cab shall then be coated with an intermediate solid or epoxy surfacing agent that is designed to fill any minor surface defects, provide an adhesive bond between the primer and the paint and improve the color and gloss retention of the color. The finish to this procedure shall be a sanding of the cab with 360 grit paper, the seams shall be sealed with

SEM brand seam sealer and painted with two (2) to four (4) coats of an acrylic urethane type system designed to retain color and resist acid rain and most atmospheric chemicals found on the fire ground or emergency scene.

The cab shall then be painted with the upper and lower colors specifically designated by the customer with a minimum thickness of two 2.00 mils of paint, followed by a clear top coat not to exceed 2.00 mils.

CAB PAINT MANUFACTURER

The cab shall be painted with PPG Industries paint.

CAB PAINT PRIMARY/LOWER COLOR

The lower paint color shall be PPG FBCH 71663 Red.

CAB PAINT SECONDARY/UPPER CAB COLOR

The upper paint color shall be PPG FBCH 911645 White.

SVI #758 Page 23 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

CAB PAINT EXTERIOR BREAKLINE

The upper and lower paint shall meet at a breakline on the cab which shall be located approximately 1.00 inch below the door windows on each side of the cab. The breakline shall curve down at the front cab corners to approximately 5.00 inches below the windshields on the front of the cab.

CAB PAINT PINSTRIPE

A 0.50 inch gold reflective tape with black borders shall be applied on the break line between the two different colored surfaces.

CAB PAINT WARRANTY

The cab and chassis shall be covered by a limited manufacturer paint warranty which shall be in effect for ten (10) years from the first owners date of purchase or in service or the first 100,000 actual miles, whichever occurs first.

CAB ENGINE TUNNEL

The cab interior shall include an integrated engine tunnel constructed of 5052-H32 Marine Grade, .190 of an inch thick, aluminum alloy plate. The tunnel shall be a maximum of 41.50 inches wide X 23.00 inches high.

CAB ENTRY DOORS

The cab shall include three (3) entry doors, two (2) front doors and one (1) crew on the officer side of the cab as high as possible for ease of entering and egress when outfitted with an SCBA. The doors shall be full height and constructed of extruded aluminum with a nominal thickness of .125 inch. The exterior skins shall be constructed of .125 inch aluminum plate.

All cab and crew doors shall be of substantial weight for the optimum strength and rigidity for the best performance in all cab crash testing. Any cab with front and crew doors manufactured of less than the material thickness of .125 inch in both the extrusion and exterior skin shall not be considered.

The doors shall include a double rolled style automotive rubber seal around the perimeter of each door frame and door edge which ensures a weather tight fit.

All door hinges shall be hidden within flush mounted cab doors for a pleasing smooth appearance and perfect fit along each side of the cab. Each door hinge shall be piano style with a 0.38 inch pin and shall be constructed of stainless steel.

The piano style hinge and hidden flush mounted door is the most favorable construction keeping dirt and debris out of the hinge allowing for optimum operation throughout the lifetime of the door.

Proposals offering door hinge thickness any less than stated shall not be considered.

Proposals including doors that do not comply with the flush mounting as described or those including exposed hinges shall not be considered.

CAB ENTRY DOOR TYPE

All cab entry doors shall be full length in design to fully enclose the lower cab steps.

SVI #758 Page 24 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

LH EXTERIOR REAR COMPARTMENT

The cab shall offer an exterior compartment on the left side of the cab behind the rear door. The compartment opening shall be 17.00 inches wide X 21.19 inches high. The compartment size shall be 17.34 inches wide X 21.19 inches high X

21.19 inches deep. The compartment shall have a 16.63 inch wide, 32.00 inch high and 1.50 inch thick hinged box pan style flush mount door with a bright aluminum tread plate inner panel and a bent D-ring slam latch. There shall be a switch to activate a light inside the compartment and the open compartment warning light in the cab in the event the door is left ajar.

LH EXTERIOR REAR COMPARTMENT LIGHTING

There shall be one (1) SoundOff Signal brand LED strip light installed to illuminate the exterior rear compartment on the left side of the cab. The strip light shall be 10” long and shall include three (3) bright white Gen3 LEDs for long life and low amp draw.

LH EXTERIOR COMPARTMENT INTERIOR FINISH

The interior of the left hand exterior compartment shall have a DA sanded finish.

RH EXTERIOR REAR COMPARTMENT

The cab shall offer an exterior compartment on the right side of the cab behind the rear door. The compartment opening shall be 17.00 inches wide X 21.19 inches high. The compartment size shall be 17.34 inches wide X 21.19 inches high X

21.19 inches deep. The compartment shall have a 16.63 inch wide, 32.00 inch high and 1.50 inch thick hinged box pan style flush mount door with a bright aluminum tread plate inner panel and a bent D-ring slam latch. There shall be a switch to activate a light inside the compartment and the open compartment warning light in the cab in the event the door is left ajar.

RH EXTERIOR REAR COMPARTMENT LIGHTING

There shall be one (1) SoundOff Signal brand LED strip light installed to illuminate the exterior rear compartment on the right side of the cab. The strip light shall be 10” long and shall include three (3) bright white Gen3 LEDs for long life and low amp draw.

RH EXTERIOR COMPARTMENT INTERIOR FINISH

The interior of the right hand exterior compartment shall have a DA sanded finish.

CAB STRUCTURAL WARRANTY

The cab structure shall be warranted for a period of ten (10) years or one hundred thousand (100,000) miles which ever may occur first. Warranty conditions may apply and shall be listed in the detailed warranty document that shall be provided upon request.

SVI #758 Page 25 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

CAB TEST INFORMATION

The cab shall have successfully achieved survival of the International crash test ECE-29, Addendum 28, Revision 1 as indicated below.

As part of the ECE regulation 29 test, the frontal area of the cab is struck by a 3,700 pound pendulum weight. The weight is brought back to a sixty degree angle and then the weight is released and allowed to swing forward, imparting some

32,600 lbs/ft of force to the cab front face.

The cab shall be so constructed that after the test, there will be minimal intrusion of the cab structure into the passenger area. The doors shall remain usable for both entry and exit. Also, as part of the test the cab roof must withstand a static load bearing test. The cab shall withstand a weight of over 60,000 pounds without permanent damage or collapse.

The above tests shall be witnessed by and attested to by an independent third party. The test results shall be recorded on/by cameras, high speed imagers, accelerometers and strain gauges. Documentation of the testing shall be provided upon request.

ELECTRICAL SYSTEM

The chassis shall include a single starting electrical system which shall include a 12 volt direct current Weldon brand of multiplexing system, suppressed per SAE J551. The wiring shall be appropriate gauge cross link with 311 degree

Fahrenheit insulation. All SAE wires in the chassis shall be color coded and shall include the circuit number and function where possible. The wiring shall be protected by 275 degree Fahrenheit minimum high temperature flame retardant loom.

All nodes and sealed Deutsch connectors shall be waterproof.

APPARATUS WIRING PROVISION

An apparatus wiring panel shall be installed on the officer side bulkhead below the dash which shall include eight (8) open circuits consisting of three (3) 20 amp, one (1) 30 amp, three (3) 10 amp, and one (1) 15 amp circuit, with relays and breakers with trigger wires which shall be routed to the rocker switch panel.

MULTIPLEX DISPLAY

The multiplex electrical system shall include two (2) Weldon Vista III Touchscreen displays which shall be located one (1) on the left side dash in the switch panel and one (1) on the right side of the dash in the switch panel. The Touchscreen displays shall feature full color LCD display screens. The display shall include a message bar displaying the time of day, and important messages requiring acknowledgement by the user. There shall be virtual controls for the auto climate control and on-board diagnostics. The display screens shall be video ready for back- up cameras, thermal cameras, and

DVD. A DIN type input connector ready for GPS interfacing shall be incorporated into the back of the display.

The Touchscreen displays shall measure approximately 6.25 inches wide x 3.38 inches in height. The displays shall offer varying fonts and background colors. The display shall be fully programmable to the needs of the customer and shall offer virtually infinite flexibility for screen configuration options.

SVI #758 Page 26 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

DATA RECORDING SYSTEM

The chassis shall have a Weldon Vehicle Data Recorder system installed. The system shall be designed to meet NFPA

1901 and shall be integrated with the Weldon Multiplex electrical system. The following information shall be recorded:

Vehicle Speed

Acceleration

Deceleration

Engine Speed

Engine Throttle Position

ABS Event

Seat Occupied Status

Seat Belt Status

Master Optical Warning Device Switch Position

Time

Date

Each portion of the data shall be recorded at the specified intervals and stored for the specified length of time to meet

NFPA 1901 guidelines and shall be retrievable by connecting a laptop computer to the VDR system.

POWER & GROUND STUD

A 40 amp battery direct power and ground stud shall be provided and installed in the electrical distribution panel. The stud shall be size #10 and protected with a 40 amp circuit breaker.

EXTERIOR ELECTRICAL TERMINAL COATING

All terminals exposed to the elements will be sprayed with a yellow protective rubberized coating to prevent corrosion.

ENGINE

The power plant for the vehicle shall offer a high pressure performance, turbo charged engine which shall feature a high pressure common rail fuel system. This system shall be coupled with a proven Holset turbo which delivers outstanding performance at ratings up to 425 HP. The Cummins ISL engine shall include replaceable mid-stop cylinder liners plus heavy duty roller followers, targeted piston cooling and 30% more efficient oil cooling for improved durability and reliability.

The heavy duty design shall also feature stronger braking capacity.

The engine shall be EPA certified to meet the 2007 emissions standards without compromising performance, reliability or durability. The Cummins ISL 425 engine shall feature an air charge cooled engine which consists of an in line six (6) cylinder, four cycle diesel powered engine. The engine shall offer a rating of 425 horse power at 2100 RPM and shall be governed at 2200 RPM. The torque rating shall feature 1200 foot pounds of torque at 1300 RPM with 543 cubic inches of displacement. The Cummins ISL 425 engine shall feature an electronic governor.

A wiring harness shall be supplied ending at the back of the cab. The harness shall include a connector which shall allow an optional harness for the pump panel. The included circuits shall be provided for a tachometer, oil pressure, engine temperature, hand throttle, high idle and a PSG system. A circuit for J1939 data link shall also be provided at the back of the cab.

The engine shall include an engine mounted combination full flow/by-pass oil filter with replaceable spin on cartridge for use with the engine lubrication system. The engine shall include Citgo brand Citgard 500, or equivalent SAE 15W40 CJ4 low ash engine oil which shall be utilized for proper engine lubrication.

SVI #758 Page 27 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

DIESEL PARTICULATE FILTER CONTROLS

There shall be two (2) controls for the diesel particulate filter. One (1) control shall be for regeneration and one (1) control shall be for regeneration inhibit.

ENGINE PROGRAMMING HIGH IDLE SPEED

The engine high idle control shall maintain the engine idle at approximately 1250 RPM when engaged.

ENGINE HIGH IDLE CONTROL

The vehicle shall be equipped with an automatic high-idle speed control. It shall be pre-set so when activated, it will operate the engine at the appropriate RPM to increase alternator output. This device shall operate only when the master switch is activated and the transmission is in neutral with the parking brake set. The device shall disengage when the operator depresses the brake pedal, or the transmission is placed in gear, and shall be available to manually or automatically re-engage when the brake is released, or when the transmission is placed in neutral. There shall be an indication on the Vista screen for the high idle speed control.

ENGINE PROGRAMMING ROAD SPEED GOVERNOR

The engine shall include programming which will govern the top speed of the vehicle.

AUXILIARY ENGINE BRAKE

A Jacobs engine compression brake, for the six (6) cylinder engine shall be provided. The engine compression brake shall actuate the vehicles brake lights when engaged. A cutout relay shall be installed to disable the compression brake when in pump mode or when an ABS event occurs. The engine brake shall activate upon 0% accelerator when in operation mode.

AUXILIARY ENGINE BRAKE CONTROL

An engine compression brake control device shall be included. The electronic control device shall monitor various conditions and shall activate the engine brake only if all of the following conditions are simultaneously detected:

A valid gear ratio is detected.

The driver has requested or enabled engine compression brake operation.

The throttle is at a minimum engine speed position.

The electronic controller is not presently attempting to execute an electronically controlled final drive gear shift.

The compression brake shall be controlled via an off/low/high virtual button through the Vista display.

FLUID FILLS

The front of the chassis shall accommodate fluid fills for the engine oil, the windshield washer fluid and the power steering fluid through the grille. This area shall also accommodate checks for the engine oil, and power steering fluid.

ELECTRONIC ENGINE OIL LEVEL INDICATOR

The engine oil shall be monitored electronically and shall send a signal to activate a warning in the instrument panel when levels fall below normal. The warning shall activate in a low oil situation upon turning on the master battery and ignition switches without the engine running.

ENGINE WARRANTY

The Cummins engine shall be warranted for a period of five (5) years or 100,000 miles, whichever occurs first.

SVI #758 Page 28 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

ENGINE PROGRAMMING REMOTE THROTTLE

The engine ECM (Electronic Control Module) discreet wire remote throttle circuit shall be turned off for use with a J1939 based pump controller or when the discreet wire remote throttle controls are not required.

ENGINE PROGRAMMING IDLE SPEED

The engine low idle speed will be programmed at 700 rpm.

ENGINE FAN DRIVE

The engine cooling system fan shall incorporate a thermostatically controlled, Horton clutched type fan drive.

When the clutched fan is disengaged it shall facilitate improved vehicle performance, cab heating in cold climates, and fuel economy. The fan clutch design shall be fail safe so that if the clutch drive fails the fan shall engage to prevent engine overheating due to the fan clutch failure.

ENGINE COOLING SYSTEM

There shall be a heavy-duty aluminum cooling system designed to meet the demands of the fire industry. The cooling system shall have the capacity to keep the engine properly cooled under all conditions of road and pumping operations.

The cooling system shall be designed and tested to meet or exceed the requirements specified by the engine and transmission manufacturer and all EPA requirements. The complete cooling system shall utilize heavy-duty welds and be mounted to isolate the entire system from vibration or stress. The individual cores of the cooling system shall be mounted in a manner to allow expansion and contraction at various rates without inducing stress into the adjoining cores.

The cooling system shall be comprised of a stacked, single depth package that provides the maximum cooling capacity for the specified engine as well as offers excellent serviceability. The main components shall include a surge tank, a charge air cooler, a recirculation shield, and a radiator.

Proposals unable to offer a stacked single depth cooling package shall not be considered.

There shall be a single depth core that allows greater efficiency, enhanced serviceability, and lighter weight with a higher ambient capability.

The cooling package core shall not protrude below the frame of the vehicle by more than 1.1 inch. This feature shall improve the angle of approach thereby reducing possible damage.

The radiator shall be a cross-flow design constructed completely of aluminum with welded side tanks. The radiator shall include a minimum of a 627 square inch core and shall be bolted to the bottom of the charge air cooler to allow a single depth core, thus allowing a more efficient and serviceable cooling system. The radiator shall be equipped with a drain cock to drain the coolant for serviceability.

The cooling system shall include a one piece injected molded Polymer fan blade designed to provide long life in harsh environments. Polymer fans provide a significant weight reduction over metal fans providing longer life for fan clutch linings and bearings along with increased fan belt life.

The cooling system shall be equipped with a surge tank that is capable of removing entrained air from the system. The surge tank shall be equipped with a low coolant probe and sight glass to monitor the level of the coolant. The surge tank shall have a cap that meets the engine manufactures pressure requirements as well as the system design requirements.

SVI #758 Page 29 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

All radiator tubes shall be formed from aluminized steel tubing. Recirculation shields shall be installed where required to prevent heated air from reentering the cooling package and affecting performance. When a center bumper compartment is installed an additional shield may be required to redirect the airflow into the coolers.

The charge air cooler shall be a cross-flow design constructed completely of aluminum with welded side tanks. The charge air cooler shall have a minimum of a 390 square inch core and be bolted to the top of the radiator to allow a single depth core, thus allowing a more efficient and serviceable cooling system.

All charge air cooler tubes shall be formed from aluminized steel tubing and installed with silicone hump hoses and stainless steel “constant torque” style clamps meeting the engine manufactures requirements.

ENGINE COOLANT

The cooling package shall include Extended Life Coolant (ELC). The use of ELC provides longer intervals between coolant changes over standard coolants providing improved performance. The coolant shall contain a 50/50 mix of ethylene glycol and de-ionized water to keep the coolant from freezing to a temperature of -34 degrees F.

Proposals offering supplemental coolant additives (SCA) shall not be considered, as this is part of the extended life coolant makeup.

ENGINE COOLANT FILTER

An engine coolant filter with a shut-off valve for the inlet and outlet shall be installed on the chassis. The location of the filter shall allow for easy maintenance.

Proposals offering engines equipped with coolant filters shall be supplied with standard non-chemical type particulate filters.

ELECTRONIC COOLANT LEVEL INDICATOR

The instrument panel shall feature a low engine coolant indicator light which shall be located in the center of the instrument panel. An audible tone alarm shall also be provided to warn of a low coolant incident.

COOLANT HOSES

The cooling systems hose shall be formed silicone hose and formed aluminized steel tubing and include stainless steel constant torque band clamps.

ENGINE AIR INTAKE

The engine air intake system shall include an ember separator air intake filter which shall be located in the front of the cab behind the officer side fascia. This filter shall protect the downstream air filter from embers using a combination of unique flat and crimped metal screens constructed into a galvanized steel frame. This multilayered screen shall be designed to trap embers or allow them to burn out before passing through the pack, while creating only minimal air flow restriction through the system. Periodic cleaning or replacement of the screen shall be all that is required after installation.

The engine shall also include an air intake filter which shall be bolted to the frame and located under the front of the cab on the officer side. The dry type filter shall ensure dust and debris safely contained inside the disposable housing, eliminating the chance of contaminating the air intake system during air filter service via a leak-tight seal.

The air flow distribution and dust loading shall be uniform throughout the high-performance filter cone pack, which shall result in pressure differential for improved horsepower and fuel economy. The air intake shall be mounted within easy access via a hinged panel behind the headlight module. The air intake system shall include a restriction indicator light in the warning light cluster on the instrument panel, which shall activate when the air cleaner element requires replacement.

SVI #758 Page 30 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

ENGINE EXHAUST SYSTEM

The exhaust system shall include a diesel particulate filter and a diesel oxidation catalyst to meet current EPA standards.

The system shall utilize 0.065 inch thick stainless steel exhaust tubing between the engine turbo and the diesel particulate filter. This section of the exhaust system shall be wrapped with a thermal cover in order to retain the necessary heat for system regeneration. Zero leak clamps seal all system joints between the turbo and diesel particulate filter.

From the diesel particulate filter to the end of the tailpipe the system shall be plumbed with 0.065 inch thick aluminized steel tubing connected with overlapping band style clamps. The discharge shall terminate horizontally on the officer side of the vehicle ahead of the rear tires.

The exhaust system shall be mounted below the frame in the inboard position maximizing space for the body compartments.

ENGINE EXHAUST ACCESSORIES

An exhaust temperature mitigation device shall be shipped loose for installation by the body manufacturer on the vehicle.

The temperature mitigation device shall lower the temperature of the exhaust by combining ambient air with the exhaust gasses at the exhaust outlet.

TRANSMISSION

The drive train shall include an Allison Gen IV-E model EVS 3000 torque converting, automatic transmission which shall include electronic controls. The transmission shall feature two (2) 10-bolt PTO pads located on the converter housing.

The transmission shall include two (2) internal oil filters and Castrol TranSynd™ synthetic TES 295 transmission fluid which shall be utilized in the lubrication of the EVS transmission. An electronic oil level sensor shall be included with the readout located in the shift selector.

The Gen IV-E transmission shall include prognostic diagnostic capabilities. These capabilities shall include the monitoring of the fluid life, filter change indication, and transmission clutch maintenance.

The transmission gear ratios shall be:

1st 3.49:1

2nd 1.86:1

3rd 1.41:1

4th 1.00:1

5th 0.75:1

6th 0.65:1 (if applicable)

Rev 5.03:1

TRANSMISSION MODE PROGRAMMING

The transmission, upon start-up, will select the fifth speed operation without the need to press the mode button.

SVI #758 Page 31 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

TRANSMISSION FEATURE PROGRAMMING

The EVS group package number 127 shall contain the 199 vocational package in consideration of the duty of this apparatus for rescue. This package shall incorporate an automatic neutral with selector override. This feature commands the transmission to neutral when the park brake is applied, regardless of drive range requested on the shift selector. This requires re-selecting drive range to shift out of neutral for the override.

An eight (8) pin Delphi connector will be provided next to the steering column connector. This will contain the following input/output circuits to the transmission control module.

Function ID Description Wire assignment

C

F

G

S

PTO Request

Neutral Indicator for PTO

Aux. Function Range Inhibit (Special)

PTO Enable Output (See Input Function C)

143

101/142

130

145

Signal Return

ELECTRONIC TRANSMISSION OIL LEVEL INDICATOR

103

The transmission fluid shall be monitored electronically and shall send a signal to activate a warning in the instrument panel when levels fall below normal.

TRANSMISSION SHIFT SELECTOR

An Allison pressure sensitive range selector touch pad shall be provided and located to the right of the driver within clear view and easy reach. The shift selector shall provide a prognostic indicator (wrench symbol) on the digital display between the selected and attained indicators. The prognostics monitor various operating parameters to determine and shall alert you when a specific maintenance function is required.

TRANSMISSION PRE-SELECT WITH AUXILIARY BRAKE

When the auxiliary brake is engaged, the transmission shall automatically shift to second gear to decrease the rate of speed assisting the secondary braking system and slowing the vehicle.

TRANSMISSION COOLING SYSTEM

The transmission shall include an air to oil cooler integrated into the lower portion of cooling package. The transmission cooling system shall meet all transmission manufacturer requirements. The cooling system shall feature a circuit provision located within the hydraulic transmission oil which shall provide for rapid warm up to the optimum transmission operating temperature.

TRANSMISSION WARRANTY

The Allison EVS series transmission shall be warranted for a period of five (5) years with unlimited mileage. Parts and labor shall be included in the warranty.

DRIVELINE

All drivelines shall be heavy duty metal tube and equipped with Spicer 1710 series universal joints. The shafts shall be dynamically balanced prior to installation to alleviate future vibration. In areas of the driveline where a slip shaft is required, the splined slip joint shall be coated with Glide Coat®.

SVI #758 Page 32 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

FUEL FILTER/WATER SEPARATOR

The fuel system shall have a Racor S3201T fuel filter/water separator as a primary filter. The fuel filter shall have a drain valve and a see through cover to allow visual inspection of fuel and filter condition.

A secondary fuel filter shall be included as approved by the engine manufacturer.

An instrument panel lamp and audible alarm which indicates when water is present in the fuel-water separator shall also be included.

FUEL LINES

The fuel system lines shall be brown reinforced nylon tubing rated for diesel fuel with brass fittings installed from the tank to engine including the return.

FUEL SHUTOFF VALVE

A fuel shutoff valve shall be installed in the fuel draw line, near the fuel tank to allow maintenance to be performed with minimal loss of fuel.

FUEL COOLER

An aluminum cross flow air to fuel cooler shall be provided to lower fuel temperature allowing the vehicle to operate at higher ambient temperatures. The fuel cooler shall be located behind the rear axle.

FUEL TANK

The fuel tank shall have a capacity of sixty-eight (68) gallons and shall measure 35.00 inches in width X 17.00 inches in height X 29.00 inches in length. The baffled tank shall be made of 14 gauge aluminized steel. The exterior of the tank shall be painted with a PRP Corsol™ black anti-corrosive exterior metal treatment finish. This results in a tank which offers the internal and external corrosion resistance.

The tank shall have a vent port to facilitate venting to the top of the fill neck for rapid filling without "blow-back" and a roll over ball check vent for temperature related fuel expansion and draw.

The tank is designed with dual draw tubes and sender flanges. The tank shall have 2.00 inch NPT fill ports for right or left hand fill. A 0.50 inch NPT drain plug shall be centered in the bottom of the tank.

The fuel tank shall be mounted below the frame, behind the rear axle. Two (2) three-piece strap hanger assemblies with

“U” straps bolted midway on the fuel tank front and rear shall be utilized to allow the tank to be easily lowered and removed for service purposes. Rubber isolating pads shall be provided between the tank and the hanger strap assemblies. Strap mounting studs through the rail, hidden behind the body shall not be acceptable.

FUEL TANK FILL PORT

The fuel tank fill ports shall be provided with the right fill port located in the middle position and the left fill ports located one (1) in the forward position and one (1) in the middle position of the fuel tank.

FUEL TANK SERVICEABILTY PROVISIONS

The chassis fuel lines shall have additional length provided so the tank can be easily lowered and removed for service purposes. The additional 8 ft. of length shall be located above the fuel tank and shall be coiled and secured. The fuel line fittings shall be pointed towards the right side (curbside) of the chassis.

SVI #758 Page 33 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

FRONT AXLE

The front axle shall be a Meritor Easy Steer Non drive front axle, model number MFS-20. The axle shall include a 3.74 inch drop and a 71.00 inch king pin intersection (KPI). The axle shall include a conventional style hub with a standard knuckle.

FRONT AXLE WARRANTY

The front axle shall be warranted by Meritor for two (2) years with unlimited miles under the heavy service application.

Details of the Meritor warranty are provided on the PDF document attached to this option.

FRONT WHEEL BEARING LUBRICATION

The front axle wheel bearings shall be lubricated with oil. The oil level can be visually checked via clear inspection windows in the front axle hubs.

FRONT SHOCK ABSORBERS

Two (2) Bilstein inert, nitrogen gas filled shock absorbers shall be provided and installed as part of the front suspension system. The shocks shall be a monotubular design and fabricated using a special extrusion method, utilizing a single blank of steel without a welded seam, achieving an extremely tight peak-to-valley tolerance and maintains consistent wall thickness. The monotubular design shall provide superior strength while maximizing heat dissipation and shock life.

The ride afforded through the use of a gas shock is more consistent and shall not deteriorate with heat, the same way a conventional oil filled hydraulic shock would.

The Bilstein front shocks shall include a digressive working piston assembly allowing independent tuning of the compression and rebound damping forces to provide optimum ride and comfort without compromise. The working piston design shall feature fewer parts than most conventional twin tube and “road sensing” shock designs and shall contribute to the durability and long life of the Bilstein shock absorbers.

Proposals offering the use of conventional twin tube or “road sensing” designed shocks shall not be considered.

FRONT SUSPENSION

The front suspension shall include a nine (9) leaf spring pack in which the longest leaf measures 54.00 inch long and 4.00 inches wide and shall include a military double wrapped front eye. Both spring eyes shall have a case hardened threaded bushing installed with lubrication counter bore and lubrication land off cross bore with grease fitting. The spring capacity shall be rated at 21,500 pounds.

STEERING COLUMN/ WHEEL

The cab shall include a Douglas Autotech steering column shall be a seven (7) position tilt and 2.25 inch telescopic type with an 18.00 inch steering wheel located on the left side of the cab designating the drivers position. The steering wheel shall be covered with black absorbite padding.

The steering column shall contain a horn button, self-canceling turn signal switch, four-way hazard switch and headlamp dimmer switch.

POWER STEERING PUMP

The hydraulic power steering pump shall be a TRW PS and shall be gear driven from the engine. The pump shall be a balanced, positive displacement, sliding vane type.

SVI #758 Page 34 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

ELECTRONIC POWER STEERING FLUID LEVEL INDICATOR

The power steering fluid shall be monitored electronically and shall send a signal to activate an audible alarm and visual warning in the instrument panel when fluid level falls below normal.

FRONT AXLE CRAMP ANGLE

The chassis shall have a front axle cramp angle of 48 degrees to the left and 44 degrees to the right.

POWER STEERING GEAR

The power steering gear shall be a TRW model TAS 65 with an assist cylinder.

CHASSIS ALIGNMENT

The chassis frame rails shall be measured to insure the length is correct and cross checked to make sure they run parallel and are square to each other. The front and rear axles shall be laser aligned. The front tires and wheels shall be aligned and toe-in set on the front tires by the chassis manufacturer.

The completed apparatus shall be rechecked for proper alignment once the chassis has been fully loaded and before being placed in service.

REAR AXLE

The rear axle shall be a Meritor model RS-25-160. The axle shall be built of superior construction and quality components to provide the rugged dependability needed to stand up to the industrys demands. The axle shall include rectangular shaped, hot-formed housings for extra strength and rigidity. The axles shall also include torsion flow axle shafts that feature a surface hardness which resists fatigue and a resilient core which absorbs shock. There shall be unitized pinion seals within the axle helping to prevent leakage and harmful road contaminants from entering the axle components. The axle shall include a rigid differential case for high axle strength and reduced maintenance.

The axle shall include single reduction gearing and shall have a rated capacity of 27,000 pounds.

REAR AXLE DIFFERENTIAL LUBRICATION

The rear axle differential shall be lubricated with oil.

REAR AXLE WARRANTY

The rear axle shall be warranted by Meritor for (2) years with unlimited miles under the heavy service application. Details of the Meritor warranty are provided on the PDF document attached to this option.

REAR WHEEL BEARING LUBRICATION

The rear axle wheel bearings shall be lubricated with oil.

VEHICLE TOP SPEED

The top speed of the vehicle shall be approximately 68 MPH +/-2 MPH at governed engine RPM.

SVI #758 Page 35 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

REAR SUSPENSION

The single rear axle suspension shall feature a Neway AD-127 air suspension. The suspension shall include optimized air springs mounted to the equalizing beams and integral transverse beam. An adjustable torque rod and adjustable track bar shall also be included.

Dual air height control valves shall be installed to ensure equal frame height on both sides of the vehicle regardless of the load. The rear suspension is run flat capable at reduced speeds.

The rear suspension capacity shall be rated at 24,000 to 27,000 pounds.

REAR SHOCK ABSORBERS

Shock absorbers shall be supplied by the suspension manufacturer and installed on the rear axle suspension.

FRONT TIRE

The front tires shall be Michelin 365/70R-22.5 20PR "L" tubeless radial XZA highway tread.

The front tire stamped load capacity shall be 21,000 pounds per axle with a speed capacity of 75 miles per hour when properly inflated to 125 pounds per square inch.

The front tire US Fire Service Intermittent Usage load capacity shall be 22,500 pounds per axle with a speed capacity of

75 miles per hour when properly inflated to 130 pounds per square.

REAR TIRE

The rear tires shall be Michelin 12R-22.5 16PR "H" tubeless radial XDN2 all weather tread.

The rear tire stamped load capacity shall be 27,120 pounds per axle with a speed capacity of 75 miles per hour when properly inflated to 120 pounds per square inch.

The rear tire US Fire Service Intermittent Usage load capacity shall be 28,880 pounds per axle with a speed capacity of

75 miles per hour when properly inflated to 120 pounds per square inch.

TIRE PRESSURE INDICATOR

There shall be a voucher provided with the chassis for a pop up style tire pressure indicator at each tire valve stem. The indicator shall provide visual indication of pressure in the specific tire.

The tire pressure indicators shall be redeemed upon the vehicle manufacturers receipt of the voucher for installation by the customer.

FRONT WHEEL

The front wheels shall be Alcoa hub piloted, 22.50 inch X 10.50 inch polished aluminum wheels. The hub piloted mounting system shall provide easy installation and shall include two-piece flange nuts. The wheels shall feature onepiece forged strength and shall include Alcoas Dura-Bright® finish with XBR technology as an integral part of the wheel surface. Alcoa Dura-Bright® wheels keep their shine without polishing. Brake dust, grime and road debris are easily removed by simply cleaning the wheels with soap and water.

SVI #758 Page 36 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

REAR WHEEL

The rear wheels shall be Alcoa hub piloted, 22.50 inch X 8.25 inch LvL One™ aluminum wheels with a polished outer surface and Alcoa Dura-Bright® wheel treatment with XBR® technology as an integral part of the wheel. The hub piloted mounting system shall provide easy installation and shall include two-piece flange nuts.

BALANCE WHEELS AND TIRES

All of the wheels and tires, including any spare wheels and tire assemblies, shall be dynamically balanced.

BRAKE SYSTEM

A rapid build-up air brake system shall be provided. The air brakes shall include a two (2) air tank, three (3) reservoir system with a total of 4152 cubic inch of air capacity. A floor mounted treadle valve shall be mounted inside the cab for graduated control of applying and releasing the brakes. An inversion valve shall be installed to provide a service brake application in the unlikely event of primary air supply loss.

The rear axle spring brakes shall automatically apply in any situation when the air pressure falls below 25 PSI and shall include a mechanical means for releasing the spring brakes when necessary. An audible alarm shall designate when the system air pressure is below 60 PSI.

A four (4) sensor, four (4) modulator anti-lock braking system (ABS) shall be installed on the front and rear axles in order to prevent the brakes from locking or skidding while braking during hard stops or on icy or wet surfaces. This in turn shall allow the driver to maintain steering control under heavy braking and in most instances, shorten the braking distance. The electronic monitoring system shall incorporate diagonal circuitry which shall monitor wheel speed during braking through a sensor and tone ring on each wheel. A dash mounted ABS lamp shall be provided to notify the driver of a system malfunction. The ABS system shall automatically disengage the auxiliary braking system device when required. The speedometer screen shall be capable of reporting all active defaults using PID/SID and FMI standards.

Automatic traction control which shall be installed on the single rear axle. The automatic traction control system shall apply the anti-lock braking system when the drive wheels loose traction. The system shall scale the electronic engine throttle back to prevent wheel spin while accelerating on ice or wet surfaces.

Additional handling capabilities shall include roll stability control which shall monitor the vehicles rollover threshold based on the lateral acceleration. The system shall activate a computerized device which shall slow the vehicle when the threshold is exceeded in either direction. Normal vehicle operation shall resume once the problematic conditions cease.

Roll stability control shall be integral with the ABS and ATC systems.

A virtual style switch shall be provided and properly labeled “mud/snow”. When the switch is pressed once, the system shall allow a momentary wheel slip to obtain traction under extreme mud and snow conditions. During this condition the

ATC light shall blink continuously notifying the driver of activation. Pressing the switch again shall deactivate the mud/snow feature.

The electronic stability control unit (ESC) is a functional extension of the electronic braking system. It is able to detect any skidding of the vehicle about its vertical axis as well as any rollover tendency. The control unit comprises an angularspeed sensor that measures the vehicles motion about the vertical axis, caused, for instance, by cornering or by skidding on a slippery road surface. An acceleration sensor measures the vehicles lateral acceleration. The CAN bus provides information on the steering angle. On the basis of lateral acceleration and steering angle, an integrated microcontroller calculates a theoretical angular speed for the stable vehicle condition.

FRONT BRAKES

The front brakes shall be Meritor EX225 Disc Plus disc brakes with 17" vented rotors.

SVI #758 Page 37 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

REAR BRAKES

The rear brakes shall be Meritor 16.50 inch X 7.00 inch S-cam drum type.

PARK BRAKE

Upon application of the push-pull valve in the cab, the rear brakes will engage via mechanical spring force. This is accomplished by dual chamber rear brakes, satisfying the FMVSS parking brake requirements.

PARK BRAKE CONTROL

A Meritor-Wabco manual hand control push-pull style valve shall operate the parking brake system. The control shall be yellow in color.

The parking brake actuation valve shall be mounted on the left hand dash to the right of the steering column within easy reach of the driver.

REAR BRAKE SLACK ADJUSTERS

The rear brakes shall include Meritor automatic slack adjusters shall be installed on the chassis which features a simple, durable design offering reduced weight. The automatic slack adjusters shall feature a manual adjusting nut which cannot inadvertently be backed off and threaded grease fittings for easy serviceability.

AIR DRYER

The brake system shall include a Wabco System Saver 1200 air dryer with an integral 100 watt heater with a Metri-Pack sealed connector. The air dryer incorporates an internal turbo cutoff valve that closes the path between the air compressor and air dryer purge valve during the compressor "unload" cycle. The turbo cutoff valve allows purging of moisture and contaminants without the loss of turbo boost pressure. The air dryer shall be located on the right hand frame rail forward of the front wheel behind the right hand cab step.

FRONT BRAKE CHAMBERS

The front brakes shall be provided with MGM type 24 long stroke brake chambers.

REAR BRAKE CHAMBERS

The rear axle shall include TSE 30/30 H.O.T. (High Output Technology) brake chambers shall convert the energy of compressed air into mechanical force and motion. This shall actuate the brake camshaft, which in turn shall operate the foundational brake mechanism forcing the brake shoes against the brake drum. The TSE 30/30 H.O.T. chambers are designed to provide the same performance as 30/36 chambers in a smaller package.

AIR COMPRESSOR

The air compressor provided for the engine shall be a Wabco® SS318 single cylinder pass-through drive type compressor which shall be capable of producing 18.7 CFM at 1200 engine RPMs. The air compressor shall feature a higher delivery efficiency translating to more air delivery per horsepower absorbed. The compressor shall include an aluminum cylinder head which shall improve cooling, reduce weight and decrease carbon formation. Superior piston and bore finishing technology shall reduce oil consumption and significantly increasing the system component life.

SVI #758 Page 38 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

AIR GOVERNOR

An air governor shall be provided to control the cut-in and cut-out pressures of the engine mounted air compressor. The governor shall be calibrated to meet FMVSS requirements. The air governor shall be located on the air cleaner bracket on the right frame rail behind the officer step.

MOISTURE EJECTORS

Automatic moisture ejectors with a manual pet-cock type drain provision shall be installed on all reservoirs of the air supply system.

AIR SUPPLY LINES

A dual air system plumbed with color coded reinforced nylon tubing air lines shall be installed on the chassis. The primary

(rear) brake line shall be green, the secondary (front) brake line red, the parking brake line orange and the auxiliary

(outlet) will be blue.

Brass compression type fittings shall be used on the nylon tubing. All drop hoses shall include fiber reinforced neoprene covered hoses.

AIR OUTLET CONNECTION

A quick release air outlet female connector shall be installed in the left lower cab step towards the front of the cab for the use of auxiliary air tools. The air outlet connector shall be compatible with a Milton 787, Parker Hannifin B13 or Meyers

54-410 connector.

PLUMBING AIR OUTLET CONNECTION

The cab mounted air outlet connection shall be plumbed to the chassis auxiliary air system reservoir.

AIR INLET/ OUTLET FITTING TYPE

The air connector supplied shall be a 0.25 inch size Tru-Flate Interchange style manual connection which is compatible with Milton T style, Myers 0.25 inch Automotive style and Parker 0.25 inch 10 Series connectors.

WHEELBASE

The chassis wheelbase shall be 222.00 inches.

REAR OVERHANG

The chassis rear overhang shall be 86.00 inches.

SVI #758 Page 39 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

FRAME

The frame shall consist of double channel side rails and cross members forming a ladder style frame. The sides of the rails shall be formed in the shape of a "C" channel, 10.25 inches high X 3.50 inches deep upper and lower flanges X .38 inches thick with an inner channel of 9.44 inches high X 3.13 inches deep and .38 inches thick. The high strength low alloy steel shall have a Tensile Elastic Limit of 110,000 psi. Each double rail shall be rated by a Resistance Bending

Moment (RBM) minimum of 3,213,100 inch pounds and have a minimum section modulus of 29.21 cubic inches. The frame shall measure 35.00 inches in width.

Proposals calculating the frame strength using the “box method” shall not be considered.

Proposals including heat treated rails shall not be considered. Heat treating frame rails produces rails that are not uniform in their mechanical properties throughout the length of the rail. Rails made of high strength, low alloy steel are already at the required yield strength prior to forming the rail.

A minimum of seven (7) fully gusseted 0.25 inch thick cross members shall be installed. The inclusion of the body mounting, or bumper mounting shall not be considered as a cross member. The cross members shall be attached using zinc coated grade 8 fasteners. The head bolts shall be flanged type with distorted threads, held in place by flanged lock nuts. Each cross member shall be mounted to the frame rails utilizing a minimum of 0.25 inch thick gusset reinforcement plates at all corners balancing the area of force throughout the entire frame.

.

Any proposals not including additional reinforcement for each cross member shall not be considered.

Frame rails will be manufactured such that bolt attachment holes are specific for each component and shall not include any unnecessary holes.

All relief areas shall be cut in with a minimum 2.00 inch radius at intersection points with the edges ground to a smooth finish to prevent a stress concentration point.

The frame and cross members shall carry a lifetime warranty to the original purchaser. A copy of the frame warranty shall be made available upon request.

Proposals offering warranties for frames not including cross members shall not be considered.

FRAME WARRANTY

The frame and cross members shall carry a limited lifetime warranty to the original purchaser. The warranty shall include conditional items listed in the detailed warranty document which shall be provided upon request.

FRAME PAINT

The frame shall be powder coated black prior to any attachment of components.

All powder coatings, primers and paint shall be compatible with all metals, pretreatments and primers used. The cross hatch adhesion test per ASTM D3359 shall not have a fail of more than ten (10) squares. The pencil hardness test per

ASTM D3363 shall have a final post-curved pencil hardness of H-2H. The direct impact resistance test per ASTM D2794 shall have an impact resistance of 120.00 inches per pound at 2 mils. The salt spray resistance per ASTM B-117-97 shall pass 500 hours of salt spray test. The applied process shall allow the application of other products over it and still maintain or exceed the 500 hours salt spray test.

Any proposals offering painted frame with variations from the above process shall not be accepted. The film thickness of vendor supplied parts shall also be sufficient to meet the performance standards as stated above.

SVI #758 Page 40 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

FRONT BUMPER

A one piece, two (2) rib wrap-around style, polished stainless steel front bumper shall be provided. The material shall be

10 gauge 304 stainless steel, 12" high and 101" wide.

FRONT BUMPER EXTENSION LENGTH

The front bumper shall be extended approximately 12.50 inches ahead of the cab.

FRONT BUMPER EXTENSION WIDTH

The front bumper extension splayed frame rails shall include an overall width of 44.75 inches.

FRONT BUMPER APRON

The 12.50 inch extended front bumper shall include an apron constructed of 0.19 inch thick embossed aluminum tread plate.

The apron shall be installed between the bumper and the front face of the cab affixed using stainless steel bolts attaching the apron to the top bumper flange.

MECHANICAL SIREN

The front bumper shall include an electro mechanical Federal Q2B™ siren, which shall be streamlined, chrome-plated and shall produce 123.00 decibels of sound at 10.00 feet. The Q2B™ siren produces a distinctive warning sound that is recognizable at long distances. A unique clutch design provides a longer coast down sound while reducing the amp draw requirements to 100 amps. The siren shall measure 10.50 inches wide X 10.00 inches high X 14.00 inches deep.

MECHANICAL SIREN LOCATION

The siren shall be recess mounted in the center on the front fascia of the bumper between the frame rails.

MECHANICAL SIREN ACCESSORIES

The front of the siren shall include (2) stainless steel flat bars approximately 1.00 inch wide by 19.00 inches long. Each bar shall be placed vertically on the right and left side of the siren face wrapping around towards the back of the siren into the bumper extension offering protection to the Q2B siren.

AIR HORN

The front bumper shall include two (2) Hadley brand E-Tone air horns which shall measure 21.00 inches long with a 6.00 inch round flare. The air horn shall be a trumpet style and shall include a chrome finish on the inside and a black painted finish on the outside of the trumpet.

AIR HORN LOCATION

The air horns shall be recess mounted in the front bumper face, one (1) on the driver side of the bumper in the inboard position relative to the left hand frame rail and one (1) on the officer side of the bumper in the inboard position relative to the right hand frame rail.

SVI #758 Page 41 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

AIR HORN RESERVOIR

One (1) air tank, with a 2084 cubic inch reservoir, shall be installed on the chassis to act as a supply tank for operating air horns. The reservoir shall be isolated with a 90 PSI pressure protection valve on the reservoir supply side to prevent depletion of the air to the air brake system.

ELECTRONIC SIREN SPEAKER

The bumper shall include two (2) Cast Products Inc. model SA4301, 100 watt speaker which shall be recess mounted within the bumper fascia. The speaker shall include a flat mounting flange and be chrome in color.

ELECTRONIC SIREN SPEAKER LOCATION

The two (2) electronic siren speakers shall be located on the front bumper face in the center positions between the frame rails.

FRONT BUMPER TOW HOOKS

Two (2) heavy duty chrome plated tow hooks shall be installed in a rearward position out of the approach angle area, bolted directly to the outside of each chassis frame rail with grade 8.00 bolts.

CAB TILT SYSTEM

The entire cab shall be capable of tilting 45.00 degrees to allow for easy maintenance of the engine and transmission.

The electric-over-hydraulic lift system shall include an ignition interlock and red cab lock down indicator lamp on the tilt control which shall illuminate when holding the “Down” button to indicate safe road operation.

It shall be necessary to activate the master battery switch and set the parking brake in order to tilt the cab. As a third precaution the ignition switch must be turned off to complete the cab tilt interlock safety circuit.

Two (2) spring-loaded hydraulic hold down hooks located outboard of the frame shall be installed to hold the cab securely to the frame. Once the hold-down hooks are set in place, it shall take the application of pressure from the hydraulic cab tilt lift pump to release the hooks.

Two (2) cab tilt cylinders shall be provided with velocity fuses in each cylinder port. The cab tilt pivots shall be 1.90 inch ball and be anchored to frame brackets with 1.25 inch diameter studs.

A steel safety channel assembly shall be installed on the right side cab lift cylinder to prevent accidental cab lowering.

The safety channel assembly shall fall over the lift cylinder when the cab is in the fully tilted position. A cable release system shall also be provided to retract the safety channel assembly from the lift cylinder to allow the lowering of the cab.

CAB TILT LIMIT SWITCH

A cab tilt limit switch shall be installed. The switch will effectively limit cab's travel when being tilted. The final adjustment of the switch shall be performed by the apparatus manufacturer to prevent damage to the cab or any bumper mounted option mounted in the cab tilt arc.

CAB TILT CONTROL RECEPTACLE

A 6-pin Deutsch connector that includes a cap shall be installed in the front bumper tail on the right hand side to provide a place to plug in the cab tilt remote control pendant. The remote control pendant shall also include 20.00 feet of cable and shall include a mating connector.

SVI #758 Page 42 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

CAB WINDSHIELD

The cab windshield shall have a surface area of 2884.00 square inches and be of a two (2) piece wraparound design for maximum visibility.

The distance from the driver and officer to the windshield shall be a minimum of 42.00 inches at the furthest seated position. This distance shall ensure the safety of the driver and officer from intruding objects in the unlikely event of a head on collision.

The glass utilized for the windshield a standard automotive tint. The left and right windshield shall be fully interchangeable thereby minimizing stocking and maintenance costs. All proposals offering windshields not in compliance with the minimum measurement of surface area stated above and are not fully interchangeable shall not be considered.

GLASS FRONT DOOR

The front cab doors shall include a window which is 27.00 inches in width X 26.00 inches in height. These windows shall have the capability to roll down completely into the door housing. This shall be accomplished manually utilizing a crank style handle on the inside of the door. A reinforced window regulator assembly shall be provided for severe duty use.

There shall be an irregular shaped fixed window which shall measure 2.50 inches wide at the top, 8.00 inches wide at the bottom X 26.00 inches in height, more commonly known as “cozy glass” ahead of the front door roll down windows.

The windows shall be mounted within the frame of the front doors trimmed with a black anodized ring on the exterior.

GLASS TINT FRONT DOOR

The windows located in the left and right front doors shall include a dark gray automotive tint which shall allow forty-five percent (45%) light transmittance. The dark tint shall aid in cab cooling and help protect passengers from radiant solar energy.

GLASS REAR DOOR RH

The rear right hand side door shall include a window which is 27.00 inches in width X 26.00 inches in height. This window shall roll up and down manually utilizing a crank style handle on the inside of the door. A reinforced window regulator assembly shall be provided for severe duty use.

GLASS TINT REAR DOOR RH

The window located in the right hand side rear window shall include a dark gray automotive tint which shall allow forty-five percent (45%) light transmittance. The dark tint shall aid in cab cooling and help protect passengers from radiant solar energy.

GLASS REAR DOOR LH

The left hand side of the cab where the middle side window and rear door would normally be shall include a window which is 50.00 inches in width X 26.00 inches in height. The window shall be a fixed type window. The window shall be mounted using self-locking window rubber.

GLASS TINT REAR DOOR LH

The window located in the left hand side rear door shall include a dark gray automotive tint which shall allow forty-five percent (45%) light transmittance. The dark tint shall aid in cab cooling and help protect passengers from radiant solar energy.

SVI #758 Page 43 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

GLASS SIDE MID RH

The cab shall include a window on the officers side behind the front and ahead of the crew doors which shall measure

16.00 inches wide X 26.00 inches high. This window shall be fixed within this space and shall be rectangular in shape.

The window shall be mounted using self locking window rubber. The glass utilized for this window shall include a green automotive tint unless otherwise noted.

GLASS TINT SIDE MID RH

The window located on the right hand side of the cab between the front and rear doors shall include a dark gray automotive tint which shall allow forty-five percent (45%) light transmittance. The dark tint shall aid in cab cooling and help protect passengers from radiant solar energy.

GLASS UPPER SIDE FRONT

The triangular shaped 14.00 inch wide X 14.00 inch high windows shall be omitted from the left and right sides of the raised roof.

GLASS UPPER SIDE MID

The 16.00 inch wide X 14.00 inch high window located in the middle of the raised section of the cab shall be omitted from the left and right sides of the cab.

GLASS UPPER SIDE REAR DOOR

The two (2) 27.00 inch wide X 14.00 inch high windows shall be omitted from the upper portion of the left and right rear doors of the raised roof cab.

CLIMATE CONTROL

The cab shall be equipped with a ceiling mounted combination defrost / heating and air-conditioning system mounted above the engine tunnel in a central location.

The system shall offer sixteen (16) adjustable louvers. Six (6) of the louvers shall face forward towards the windshield, offering 45,000 BTU of heat at 320 CFM for defrosting. The system shall include six (6) rearward facing louvers to direct air for the crew area and four (4) for driver and officer comfort. When in "Cabin Mode" the system shall be designed to produce 60,000 BTU of heat and 32,000 BTU of cooling. The HVAC cover shall be made of ABS plastic.

All defrost/heating systems shall be plumbed with one (1) seasonal shut-off valve at the front corner on the right side of the cab.

The air conditioner lines shall be a mixture of custom bent zinc coated steel fittings and Aero-quip GH 134 flexible hose with Aero-Quip EZ-Clip fittings.

CLIMATE CONTROL ACTIVATION

The heating controls, and air conditioning if included, shall be located on the Vista screen.

A/C CONDENSER LOCATION

A roof mounted A/C condenser shall be installed centered on cab forward of raised roof against the slope rise.

SVI #758 Page 44 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

A/C COMPRESSOR

The air-conditioning compressor shall be a belt driven, engine mounted, open type compressor that shall be capable of producing a minimum of 32000 BTU at 1500 engine RPMs. The compressor shall utilize R-134A refrigerant and PAG oil.

CAB INSULATION

The cab ceiling and walls shall include 1.00 inch thick foam insulation. The insulation shall act as a barrier absorbing noise as well as assisting in sustaining the desired climate within the cab interior.

UNDER CAB INSULATION

The underside of the cab tunnel surrounding the engine and the underside of the entire cab floor shall be lined with multilayer foam insulation, engineered for application inside diesel engine compartments.

The insulation shall act as a noise barrier, absorbing noise thus keeping the decibel level in the cab well within NFPA recommendations. As an additional benefit, the insulation shall assist in sustaining the desired temperature within the cab interior.

The insulation shall measure .56 inch thick including a 1.0#/sf PVC barrier and a moisture and heat reflective foil backing, reinforced with fiberglass strands. The foil surface acts as protection against moisture and other contaminants. The insulation shall meet or exceed MVSS 302 flammability test.

The insulation shall be cut precisely to fit each section and sealed for additional heat and sound deflection. The insulation shall be held in place by 3 mils of acrylic pressure sensitive adhesive and aluminum pins with hard hat, hold in place fastening heads. In addition the insulation shall have an expanded aluminum overlay installed to assist in retaining the insulation tight against the engine tunnel surfaces and the underside of the cab floor.

INTERIOR TRIM FLOOR

The floor of the cab shall be covered with a multi-layer mat consisting of 0.25 inch thick sound absorbing closed cell foam with a 0.06 inch thick non-slip vinyl surface with a pebble grain finish. The covering shall be held in place by a pressure sensitive adhesive and aluminum trim molding. All exposed seams shall be sealed with silicone caulk matching the color of the floor mat to reduce the chance of moisture and debris retention.

INTERIOR FLOOR MAT COLOR

The cab interior floor mat shall be black in color.

INTERIOR TRIM VINYL

The cab interior shall include trim on the front and rear crew ceiling, the cab walls and the rear wall of the cab. The trim shall be constructed of insulated vinyl over a hard board backing. The trim shall be securely fastened to the interior of the cab utilizing snap style fasteners with a decorative cover for a more appealing appearance.

INTERIOR TRIM VINYL COLOR

The cab interior vinyl trim surfaces shall be black in color.

INTERIOR ABS TRIM COLOR

The cab interior vacuum formed ABS composite trim surfaces shall be gray in color.

SVI #758 Page 45 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

HEADER TRIM

The cab interior shall include a header over the driver and officer dash which shall be vacuum formed ABS composite panel with robust styling grooves providing structural integrity. The header shall include (2) vents within the header which are directed at the windshield. Also included will be a drop down panel for access behind the header for service of electronic components, if necessary. The header shall include (2) cut outs, (1) over the driver and (1) over the officer to accommodate speakers and molded areas to accommodate the sun visors.

INTERIOR TRIM SUNVISOR

The header shall include two (2) sun visors, one each side forward of the driver and officer seating positions above the windshield. Each sun visor shall be constructed of Masonite and covered with padded vinyl trim.

TRIM CENTER DASH

The main center dash area shall be constructed of durable vacuum formed ABS composite.

TRIM LH DASH

The left hand dash shall be a one (1) piece durable vacuum formed ABS composite housing which shall be custom molded for a perfect fit around the instrument panel and the lower control panels to the left and right of the steering column.

TRIM RH DASH

The right hand dash trim shall consist of a vacuum formed ABS composite module, which contains a glove compartment with a hinged locking door and a Mobile Data Terminal (MDT) provision. The glove compartment size shall be 13.50 inches wide X 6.25 inches high X 5.50 inches deep. The MDT provision shall be provided above the glove compartment, recessed approximately 3.35 inches below the surface of the dash and measure 13.70 inches wide X 9.70 inches deep.

CAB PAINT INTERIOR

The interior metal surfaces of the cab shall be finish painted the same color as the exterior color or the lower exterior color with a two-tone.

ENGINE TUNNEL TRIM

The cab engine tunnel shall be covered with .44 of an inch thick multi-layer mat consisting of .25 inch closed cell foam, .13 of an inch thick PVC acoustical barrier and .06 inch thick non-slip pebble grain. The engine tunnel mat shall be trimmed with anodized aluminum stair nosing trim for an aesthetically pleasing appearance.

ENGINE TUNNEL ACCESSORIES

The engine tunnel shall include a mounting shelf for accessories such as brackets for flashlights, etc. The tunnel shall include a level surface installed over the top and include a cup holder in each corner.

STEP TRIM

Each cab entry door shall include a three step entry. The first step closest to the ground shall be constructed of 14 gauge

304 stainless steel with indented perforations. The perforations shall allow water and other debris to flow through rather than becoming trapped within the stepping surface. The stainless steel material shall have a number 7 mirror finish. The lower step shall be mounted to a frame which is integral with the construction of the cab for rigidity and strength. The middle step shall be integral with the cab construction and shall be trimmed in .084 inch thick 3003-H22 embossed aluminum tread plate.

SVI #758 Page 46 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

INTERIOR DOOR TRIM

The inner door panels shall include a vacuum formed ABS panel with robust styling grooves which provide structural integrity to the panel. The door panel shall include a partial aluminum reinforcement structure behind the panel for added strength. The door panels shall include multiple recesses for optional features.

DOOR TRIM CUSTOMER NAMEPLATE

The interior door trim on the front doors shall include a customer nameplate which states the vehicle was custom built for their Department.

CAB DOOR TRIM REFLECTIVE

The interior of each door shall include high visibility reflective tape. A white reflective tape that measures 1.00 inch in width shall be provided vertically along the rear outer edge of the door. The lowest portion of each door skin shall include a reflective tape chevron with red and white stripes and a Spartan logo. The chevron tape shall measure 6.00 inches in height.

INTERIOR GRAB HANDLE "A" PILLAR

A rubber covered 11.00 inch grab handle shall be provided on the inside of the cab on the hinge post at the driver and officer doors. The handle shall assist personnel in exiting and entering the cab.

INTERIOR GRAB HANDLE FRONT DOOR

Each front door shall include one (1) horizontal 13.00 inch cast aluminum grab handle, mounted on the interior ABS door panels. Each handle shall feature a textured black powder coat finish to assist personnel entering and exiting the cab.

INTERIOR GRAB HANDLE REAR DOOR

A black powder coated cast aluminum assist handle shall be provided on the inside of each rear crew door. A 30.00 inch long handle shall extend horizontally the width of the window just above the window sill. The handle shall assist personnel in exiting and entering the cab.

DASH PANEL GROUP

The main center dash area shall include three (3) removable panels located one (1) to the right of the driver position, one

(1) in the center of the dash and one (1) to the left of the officer position. The center panel shall be within comfortable reach of both the driver and officer.

SWITCHES CENTER PANEL

The center dash panel shall include six (6) switch positions in the upper left portion of the panel.

A rocker switch with a blank legend installed directly above shall be provided for any position without a switch and legend designated by a specific option. The non-specified switches shall be two-position, black switches with a green indicator light. Each blank switch legend can be custom engraved by the body manufacturer. All switch legends shall have red backlighting provided.

SWITCHES LEFT PANEL

The left dash panel shall include one (1) windshield wiper/washer control switch located in the left hand side of the panel.

The switch shall have red backlighting provided.

SVI #758 Page 47 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

SWITCHES RIGHT PANEL

The right dash panel shall include no rocker switches or legends.

SWITCH PANEL IGNITION

The vehicle shall be equipped with a keyless ignition and master, with an “Off/ On” and a two switch for “Off/ Start”.

SEAT BELT WARNING

A Weldon seat belt warning system, integrated with the Vehicle Data Recorder system, shall be installed for each seat within the cab. The system shall provide visual and audible warning when any seat is occupied (sixty pounds minimum), the corresponding seat belt remains unfastened, and the park brake is released.

Once activated, the visual and audible indicators shall remain active until all occupied seats have the seat belts fastened.

The dash shall include a display on the Weldon Vista screen(s) indicating the occupancy of each seat.

SEAT MATERIAL

The seats shall include a covering of high strength, wear resistant fabric made of durable ballistic polyester. A PVC coating shall be bonded to the back side of the material to help protect the seats from UV rays and from being saturated or contaminated by fluids. Common trade names for this material are Imperial 1200 and Durawear.

SEAT COLOR

All seats supplied with the chassis shall be black in color. All seats shall include red seat belts.

SEAT BACK LOGO

The seat backs shall include the logo for SVI. The logo shall be centered on the standard headrest of the seat back and on the left side of a split headrest.

SEAT DRIVER

The driver's seat shall be an H.O. Bostrom Firefighter Sierra model seat. The seat shall feature eight-way electric positioning. The eight positions shall include up and down, fore and aft with 8.00 inches of travel, back angle adjustment and seat rake adjustment. The seat shall feature integral springs to isolate shock.

The seat shall feature an all belts to seat (ABTS) style of safety restraint. The ABTS feature shall include a three-point shoulder harness with the lap belt, automatic retractor and buckle as an integral part of the seat assembly.

The minimum vertical dimension from the seat H-point to the ceiling for this belted seating position shall be 35.00 inches measured with the seat height adjusted to the lowest position of travel.

This model of seat shall have successfully completed the static load tests set forth by FMVSS 207, 209, and 210 in effect at the time of manufacture. This testing shall include a simultaneous forward load of 3000 pounds each on the lap and shoulder belts and twenty (20) times the weight through the center of gravity.

The materials used in construction of the seat shall also have successfully completed testing with regard to the flammability of materials used in the occupant compartments of motor vehicles as outlined in FMVSS 302, of which dictates the allowable burning rate of materials in the occupant compartments of motor vehicles.

SVI #758 Page 48 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

SEAT BACK DRIVER

The drivers seat shall include a standard seat back incorporating the all belts to seat feature (ABTS). The seat back shall feature a contoured head rest.

SEAT OFFICER

The officer's seat shall be an H.O. Bostrom Firefighter model seat. The seat shall feature eight (8) way electric positioning. The eight (8) positions shall include up and down, fore and aft and front and rear tilt. The seat shall also feature integral springs to isolate shock.

The seat shall feature an all belts to seat (ABTS) style of safety restraint. The ABTS feature shall include a three-point shoulder harness with the lap belt, automatic retractor and buckle as an integral part of the seat assembly.

The minimum vertical dimension from the seat H-point to the ceiling for this belted seating position shall be 35.00 inches measured with the seat height adjusted to the lowest position of travel.

This model of seat shall have successfully completed the static load tests by FMVSS 207, 209, 210 and 302 in effect at the time of manufacture. This testing shall include a simultaneous forward load of 3000 pounds each on the lap and shoulder belts and twenty (20) times the weight through the center of gravity. The model of seats shall also have successfully completed the flammability of materials used in the occupant compartments of motor vehicles as outlined in

FMVSS 302, of which decides the burning rate of materials in the occupant compartments of motor vehicles.

SEAT BACK OFFICER

The officers seat shall include a standard seat back incorporating the all belts to seat feature (ABTS). The seat back shall feature a contoured head rest.

POWER SEAT WIRING

The power seat or seats installed in the cab shall be wired directly to battery power.

SEAT BELT ORIENTATION CREW

The crew position seat belts shall follow the standard orientation which extends from the outboard shoulder extending to the inboard hip.

SEAT FORWARD FACING OUTER LOCATION

The crew area shall include one (1) forward facing outboard seat located directly behind the engine tunnel on the officer side of the cab.

SVI #758 Page 49 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

SEAT CREW FORWARD FACING OUTER

The crew area shall include a seat in the forward facing outer position which shall be a theatre style series. The seat shall feature a padded seat, and cushion which shall be hinged and attached to the wall providing optimum space savings. The seat shall remain in the stored position until occupied.

The minimum vertical dimension from the seat H-point to the ceiling for each belted seating position shall be 35.00 inches.

This model of seat shall have successfully completed the static load tests by FMVSS 207/210. This testing shall include a simultaneous forward load of 3000 pounds each on the lap and shoulder belts and twenty (20) times the weight through the center of gravity. This model of seat installed in the cab model, as specified, shall have successfully completed the dynamic sled testing using FMVSS 208 as a guide with the following accommodations. In order to reflect the larger size outfitted firefighters, the test dummy used shall be a 95th percentile hybrid III male weighing 225 pounds rather than the

50th percentile male dummy weighing 165 pounds as referenced in FMVSS 208. The model of seats shall also have successfully completed the flammability of materials used in the occupant compartments of motor vehicles as outlined in

FMVSS 302, of which decides the burning rate of materials in the occupant compartments of motor vehicles.

SEAT BACK FORWARD FACING OUTER

The crew area shall include a seat in the forward facing outer position which shall be a theatre style seat. The rear wall padded trim shall act as the backrest for each seat.

There shall be a red, three-point shoulder harness with lap belt and an automatic retractor attached to the cab and available to the seat. The buckle portion of the seat belt shall be mounted on a rigid or semi-rigid stalk such that the buckle remains positioned in an accessible location. The seat belt assembly anchorages shall conform to the Federal

Safety Standard (FMVSS) No. 210, “Seat belt assembly anchorages”.

SEAT MOUNTING FORWARD FACING OUTER

The forward facing outer seat shall be mounted in the furthest outboard position facing the front of the cab.

CAB FRONT UNDERSEAT STORAGE ACCESS

The left and right under seat storage areas shall have a solid aluminum hinged door with non-locking latch.

SEAT COMPARTMENT DOOR FINISH

All underseat storage compartment doors shall be painted interior cab color.

WINDSHIELD WIPER SYSTEM

The cab shall include a dual arm wiper system which shall clear the windshield of water, ice and debris. There shall be two (2) windshield wipers which shall be affixed to a radial wet arm. The system shall include a single motor which shall initiate the arm in which both the left hand and right hand windshield wipers are attached, initiating a back and forth motion for each wiper. The wiper motor shall be activated by an intermittent wiper control located within easy reach of the drivers position.

ELECTRONIC WINDSHIELD FLUID LEVEL INDICATOR

The windshield washer fluid level shall be monitored electronically. When the washer fluid level becomes low the yellow

“Check Message Center” indicator light on the instrument panel shall illuminate and the message center in the speedometer shall display a “Check Washer Fluid Level” message.

SVI #758 Page 50 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

CAB DOOR HARDWARE

The cab entry doors shall be equipped with exterior pull handles, suitable for use while wearing firefighter gloves. The handles shall be aluminum with a polished chrome plated finish. The exterior pull handles shall include a scuff plate behind the handle constructed of polished stainless steel. All doors shall be keyed alike and designed to prevent accidental lockout.

The interior latches shall be black flush paddle type, which are incorporated into an upper door panel.

DOOR LOCKS

The doors shall include a CAN based electronic door lock system which shall include two (2) external keypads, one (1) located on the left side next to the front grab handle and one (1) on the right side next to the front grab handle. There shall be one (1) red rocker switch provided on the inside of each front cab entry door to actuate the door locks. The rear cab entry doors shall be provided with a red manual knob on the interior paddle handle to actuate the door lock on the respective door. The electronic door lock system shall include four (4) key fobs for actuation with buttons for cab entry door locks and for compartment door locks.

Wiring shall also be provided for up to four (4) exterior cab compartments and up to four (4) body compartments.

DOOR LOCK LH REAR CAB COMPARTMENT

The driver side rear compartment shall feature a power door lock actuator.

DOOR LOCK RH REAR CAB COMPARTMENT

The officer side rear compartment shall feature a power door lock actuator.

POWER DOOR LOCK COMPARTMENT ACTIVATION

The power door lock feature shall include activation for exterior compartment door locks through the key fob, keypads and through a virtual switch on the multiplex display.

GRAB HANDLES

The cab shall include one (1) 18.00 inch knurled, anti-slip, one-piece exterior assist handle behind each cab door. The grab handle shall be made of 14 gauge 304- stainless steel and be 1.25 inch diameter to enable non-slip assistance with a gloved hand.

REARVIEW MIRRORS

Ramco model 6015-CCR bus style mirrors shall be provided. The mirror heads shall be polished cast aluminum and shall measure 9.75 inches wide X 13.00 inches high. The mirrors shall be mounted one (1) on each front cab corner radius below the windshield with 15.00 inch long polished cast aluminum arms.

The mirrors shall feature an upper remote controlled flat glass and a lower manually adjustable convex glass. The mirror control switches shall be located within easy reach of the driver. The mirrors shall be manufactured using the finest quality non-glare glass and shall feature a rigid mounting thereby reducing vibration. The mirrors shall be corrosion free under all weather conditions.

SVI #758 Page 51 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

CAB FENDER

Full width wheel well liners shall be installed on the extruded cab to limit road splash and enable easier cleaning. The twopiece liners shall consist of an inner liner 16.00 inches wide made of vacuum formed ABS composite and an outer fenderette 3.50 inches wide made of 14 gauge 304 polished stainless steel.

MUD FLAPS FRONT

The front wheel wells shall have mud flaps installed on them.

CAB EXTERIOR MODEL NAMEPLATE

The cab shall include custom “Gladiator” nameplates on the front driver and officer side doors.

CAB EXTERIOR FRONT & SIDE EMBLEMS

The cab shall include three (3) Spartan emblems. There shall be one (1) installed on the front air intake grille and one (1) installed on each side of the cab exterior above the wheel well.

IGNITION

A master battery system with a keyless start ignition system shall be provided. Each system shall be controlled by a ¼ turn Cole Hersee switch, both of which shall be mounted to the left of the steering wheel on the dash. A chrome push type starter button shall be provided adjacent to the master battery and ignition switches.

Each switch shall illuminate a green LED indicator light on the dash when the respective switch is placed in the “ON” position.

The starter button shall only operate when both the master battery and ignition switches are in the “ON” position.

BATTERY

The single start electrical system shall include (6) Harris BCI 31 950 CCA batteries with a 210 minute reserve capacity and 4/0 welding type dual path starter cables per SAE J541. The cables shall have encapsulated ends with heat shrink and sealant.

BATTERY TRAY

The batteries shall be installed within two (2) steel battery trays located on the left side and right side of the chassis, securely bolted to the frame rails. The battery trays shall be coated with the same material as the frame.

The battery trays shall include drain holes in the bottom for sufficient drainage of water. A durable, non-conducting, interlocking mat made by Dri-Dek shall be installed in the bottom of the trays to allow for air flow and help prevent moisture build up. The batteries shall be held in place by non-conducting phenolic resin hold down boards.

BATTERY CABLE

The starting system shall include cables which shall be protected by 275 degree F. minimum high temperature flame retardant loom, sealed and encapsulated at the ends with heat shrink and sealant.

SVI #758 Page 52 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

BATTERY JUMPER STUD

The starting system shall include battery jumper studs. These studs shall be located in the forward most portion of the driver's side lower step. The studs shall allow the vehicle to be jump started, charged, or the cab to be raised in an emergency in the event of battery failure.

ALTERNATOR

The starting system shall include a 300 amp Niehoff 12 volt alternator. The alternator shall include an ignition excited external regulator.

HEADLIGHTS

The cab front shall include (4) rectangular halogen headlamps with separate high and low beams mounted in bright chrome bezels. The headlamps shall be equipped with the "Daytime Running" light feature, which shall illuminate the headlights to 80% brilliance when the ignition switch is in the "On" position and the parking brake is released.

The headlights shall be controlled via a virtual button on the Vista display.

FRONT TURN SIGNALS

The front fascia shall include two (2) Whelen model 600 4.00 inch X 6.00 inch LED programmable amber turn signals which shall be installed in the outboard position.

HEADLIGHT LOCATION

The headlights shall be located on the front fascia of the cab directly below the front warning lights.

SIDE TURN/MARKER LIGHTS

The sides of the cab shall include (2) LED round side marker lights which shall be provided just behind the front cab radius corners.

MARKER AND ICC LIGHTS

In accordance with FMVSS, there shall be five (5) cab LED marker lamps designating identification, center and clearance provided. These lights shall be installed on the face of the cab within full view of other vehicles from ground level.

GROUND LIGHTS

Each door shall include an LED NFPA compliant ground light mounted to the under side of the cab step below each door.

The lights shall include a polycarbonate lens, a housing which is vibration welded and LEDs which shall be shock mounted for extended life. The ground lighting shall be activated by the opening of the door on the respective cab side, when the parking brake is set and through the Vista screen.

STEP LIGHTS

The middle step located at each door shall include a NFPA compliant 4.00” round incandescent light which shall activate with the opening of the respective door.

Each light shall produce 21 candle power of illumination and draw 1.5 amps.

SVI #758 Page 53 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

ENGINE COMPARTMENT LIGHT

There shall be an incandescent NFPA compliant light mounted under the engine tunnel for area work lighting on the engine. The light shall include a polycarbonate lens, a housing which is vibration welded and a bulb which shall be shock mounted for extended life.

SIDE SCENE LIGHTS

The side of the cab shall include two (2) Whelen model 810 scene lights, one (1) each side which shall be surface mounted. The Whelen lights shall offer halogen lighting with 8 to 32-degree internal optics.

SIDE SCENE LIGHT LOCATION

The scene lighting located on the left and right sides of the cab shall be mounted rearward of the cab “B” pillar in the

20.00 inch raised roof portion of the cab between the front and rear crew doors.

SIDE SCENE ACTIVATION

The left and right side scene lights shall be activated by opening the respective side door and by individual virtual buttons on the MUX display(s) in the cab.

INTERIOR OVERHEAD LIGHTING

The cab shall include a two-section incandescent dome lamp with a red and white lens located over each door. The dome lamps shall be rectangular in shape and shall measure approximately 9.50 inches in length X 5.00 inches in width with a black colored bezel. The white portion of each lamp shall be activated by opening the respective door and via the multiplex display and both the red and white portion can be activated by individual switches on each lamp.

An additional two-section incandescent red and white lamp shall be provided over the engine tunnel which can be activated by individual switches on the lamp.

MAP LIGHTS

A Sunnex swivel map light shall be provided. The light shall have a clear lens and a control switch on the base. The light shall be mounted on the overhead HVAC cover on the right hand side.

CAB SPOTLIGHTS

The cab shall include two (2) Unity 325 series spotlights. The spotlights shall be mounted one (1) on each side of the cab just above the outer end of the windshield. The spotlights shall feature a 12 volt, 50 watt halogen lamp with 160,000 candle power output in a 6.00 inch diameter chrome plated plastic head and a rubber grip control handle.

DO NOT MOVE APPARATUS LIGHT

The front headliner of the cab shall include a red flashing light, located in the center for greatest visibility. The light shall be 6.00 inches long X 2.50 inches wide X 1.75 inches high and shall be clearly labeled "Do Not Move Apparatus". In addition to the flashing red light, a n audible alarm shall be included which shall sound when a door is open and the parking brake is released.

The light and alarm shall be interlocked for activation when a cab door is not firmly closed, an apparatus cabinet door is not closed and the parking brake is released.

SVI #758 Page 54 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

MASTER WARNING SWITCH

A master switch shall be included, as a button on the MUX display screen and be labeled “E Master” for identification. The switch shall feature control over all devices wired thought it. Any warning device switches left in the “ON” position when the master switch is activated shall automatically power up.

HEADLIGHT FLASHER

An alternating high beam headlamp flashing system shall be installed into the high beam headlamp circuit which shall allow the high beams to flash alternately from left to right.

Deliberate operator selection of high beams will override the flashing function until low beams are again selected. Per

NFPA, these clear flashing lights will also be disabled “On Scene” when the park brake is applied.

ALTERNATING HEADLIGHT SWITCH

The flashing headlights shall be activated through a virtual button on the MUX display.

INBOARD FRONT WARNING LIGHTS

The cab front fascia shall include dual Whelen series 600 Super LED warning lights which shall offer multiple flash patterns including steady burn for solid colors and multiple flash patterns for split colors. The lights shall be surface mounted to the front fascia of the cab within a chrome bezel in the inboard position.

INBOARD FRONT WARNING LIGHTS COLOR

The front warning lights mounted on the fascia in the inboard positions shall include one (1) blue light on the left hand side and one (1) red on the right hand side.

FRONT WARNING SWITCH

The front warning lights shall be controlled through a virtual control on the MUX display. This switch shall be clearly labeled for identification.

INTERSECTION WARNING LIGHTS

The chassis shall include two (2) Whelen series 600 Super LED 4.00 inch X 6.00 inch intersection warning lights, one (1) each side, which shall offer multiple flash patterns including steady burn for solid colors and multiple flash patterns for split colors.

INTERSECTION WARNING LIGHTS COLOR

The intersection lights shall be red/ blue with a clear lens.

INTERSECTION WARNING LIGHTS LOCATION

The intersection lights shall be mounted in the rear position on the side of the bumper.

SIDE WARNING LIGHTS

The cab sides shall include a Whelen series 900 Super LED 7.00 inch X 9.00 inch warning light, one (1) each side, which shall offer multiple flash patterns including steady burn.

SVI #758 Page 55 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

SIDE WARNING LIGHTS COLOR

The warning lights located on the side of the chassis shall be blue/blue on the driver side and red/red on the officer side.

SIDE WARNING LIGHTS LOCATION

The warning lights on the side of the cab shall be mounted above the B pillar in the highest available position.

AUXILIARY SIDE WARNING LIGHTS

The cab side shall include an auxiliary set of Whelen series 600 Super LED warning lights, one (1) each side, which shall offer 14 flash patterns plus a steady burn for solid colors and 20 flash patters plus a steady burn for split colors. The lights shall be surface mounted within a chrome bezel.

AUXILIARY SIDE WARNING LIGHTS COLOR

The warning lights located on the left hand side of the chassis shall be red, the warning lights located on the right hand side of the chassis shall be blue.

AUXILIARY SIDE WARNING LIGHTS LOCATION

The auxiliary warning lights on the side of the cab shall be mounted behind the rear crew door in the lowest available position.

SIDE AND INTERSECTION WARNING SWITCH

The side warning lights shall be controlled through a virtual control on the MUX display. This switch shall be clearly labeled for identification.

AIR HORN ACTIVATION

The air horn actuation shall be accomplished by a driver side mounted Linemaster model SP491-S81 foot switch and a black push button on the switch panel. An air horn activation circuit shall be provided to the chassis harness pump panel harness connector.

MECHANICAL SIREN ACTIVATION

The mechanical siren shall be actuated by a black push button in the switch panel on the dash. A black push button siren brake control shall be provided in the switch panel on the dash.

The siren shall only be active when master warning switch is on to prevent accidental engagement.

ELECTRONIC SIREN AUXILIARY ACTIVATION

Pre-wiring shall be provided for an electronic siren which shall include 12 volt activation through a left hand side foot switch and a black push button located on the switch panel.

BACK-UP ALARM

An ECCO model 575 backup alarm shall be installed at the rear of the chassis with an output level of not less than 107 dB. The alarm shall automatically activate when the transmission is placed in reverse.

SVI #758 Page 56 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

INSTRUMENTATION

An ergonomically designed instrument panel shall be provided. The gauges shall be backlit with red LED lamps. All gauges shall be driven by stepper motor movements. The instrumentation system shall be multiplexed and shall receive engine and transmission information over the J1939 data bus to reduce redundant sensors.

The instrument panel shall contain the following gauges:

One (1) electronic tachometer shall be included. The scale on the tachometer shall read from 0 to 3000 RPM.

One (1) electronic speedometer with an integral LCD odometer/ trip odometer and hour meter shall be included. The speedometer shall have a dual scale with miles per hour (MPH) as the dominant scale and kilometers per hour (KPH) on the minor scale. The speedometer scale shall read from 0 to 90 MPH (0 to 140 KPH). The odometer shall display up to

9,999,999.9 miles. The trip odometer shall display up to 9,999.9 miles. The LCD screen shall also be capable of displaying certain diagnostic functions. The hour meter shall display engine hours of operation.

One (1) three function gauge with primary system, secondary system and fuel level shall be included. The scale on the air pressure gauges shall read from 0 to 140 pounds per square inch (PSI). The air pressure scales shall be non-linear to expand the scales in the region of normal operation. A red indictor light in the gauge shall indicate a low air pressure.

The scale on the fuel level gauge shall read from empty to full. A yellow indicator light shall indicate low fuel at the quarter tank level.

One (1) four function gauge with engine oil pressure, coolant temperature, transmission oil temperature and a voltmeter shall be included. The scale on the engine oil pressure gauge shall read from 0 to 140 pounds per square inch (PSI).

The engine oil pressure scale shall be non-linear to expand the scale in the region of normal operation. A red indicator light in the gauge shall indicate low engine oil pressure. The scale on the coolant temperature gauge shall read from 160 to 250 degrees Fahrenheit (F). A red indicator light in the gauge shall indicate high coolant temperature. The scale on the transmission oil temperature gauge shall read from 100 to 300 degrees Fahrenheit (F). A red indicator light in the gauge shall indicate high transmission oil temperature. The scale on the voltmeter shall read from 8 to 16 volts. A red indicator light shall indicate high or low system voltage.

The instrument panel shall contain an Enunciator Module that contains the following indicator lights. All indicator lights shall contain LED lamps.

RED LAMPS

Stop Engine - indicates critical engine fault. (5)

Park Brake - indicates park brake is set.

Volts - indicates high or low system voltage. (4)

Low Oil Press - indicates low engine oil pressure. (4)

High Coolant Temp - indicates excessive engine coolant temperature. (4)

High Trans Temp - indicates excessive transmission oil temperature. (4)

Low Air - indicates low air pressure in either system one or system two. (4)

Low Coolant Level - indicates low engine coolant level. (1) (5)

Air Filter - indicates excessive engine air intake restriction. (5)

Brake System Fault indicates a failure in the brake system (hydraulic brake systems only). (5)

Seat Belt Indicator indicates when a seat is occupied and corresponding seat belt remains unfastened.

SVI #758 Page 57 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

YELLOW LAMPS

Check Engine - indicates engine fault. (5)

Check Trans - indicates transmission fault. (5)

Wait to Start - indicates active engine air preheat cycle. (2) (5)

ABS - indicates anti-lock brake system fault. (5)

Water in Fuel - indicates presence of water in fuel filter. (1) (5)

Check Message Center indicates there is a fault message present in the LCD digital display.

SRS indicates a problem in the RollTek supplemental restraint system. (1) (5)

DPF indicates a restriction of the diesel particulate filter. (3) (5)

HEST indicates a high exhaust system temperature. (3) (5)

MIL indicates an engine emission control system fault. (3) (5)

Low Fuel indicates low fuel. (4)

GREEN LAMPS

Left and Right turn signal indicators.

Aux Brake Active - indicates secondary braking device is active. (1)

High Idle - indicates engine high idle is active. (1)

ATC indicates low wheel traction for automatic tractions control equipped vehicles, also indicates mud/snow mode is active for ATC system. (1) (5)

OK to Pump indicates the pump engage conditions have been met. (1)

Pump Engaged indicates the pump is currently in use. (1)

BLUE LAMPS

High beam indicator.

The instrumentation system shall provide a constant audible alarm for the following situations:

Low air pressure.

Low engine oil pressure.

High engine coolant temperature.

High transmission oil temperature.

Low coolant level. (1)

High or low system voltage

Critical engine fault (Stop Engine).

The Check Message Center icon will illuminate and a message will be displayed in the LCD screen for the following situations:

Cab Ajar

Low Oil Level

Door Ajar

Engine Communication Error

Transmission Communication Error

ABS Communication Error

High Coolant Temp

Turn Signal Reminder (turn signal left on for more than one (1) mile)

Low Fuel

Low Oil Pressure

Low Coolant Level

Low Battery Voltage

High Battery Voltage

Low Primary Air Pressure

Low Secondary Air Pressure

High Trans Temp

SVI #758 Page 58 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

The instrumentation system will provide a continuous alarm for the following situations:

Stop Engine

Low Coolant Level (1)

Brake System Fault

Check Trans

Check Engine

ABS

Engine Communications Error

Transmission Communications Error

ABS Communications Error

Low Fuel

Low Primary Air Pressure

Low Secondary Air Pressure

Low or High Battery Voltage

High Trans Temp

Low Oil Pressure

High Coolant Temp

The instrumentation system will provide a 160 millisecond second alarm every 880 milliseconds for the following situations:

Seat Belt

Air Filter

Water in Fuel (1)

Cab Ajar

Low Oil Level

Door Ajar

The instrumentation system will provide a 160 millisecond second alarm every 5 seconds for the following situation:

Turn Signal Reminder (turn signal left on for more than one (1) mile)

(1) Feature only available when optionally equipped.

(2) Feature only available on engines with pre-heat capability.

(3) Feature only on vehicles with diesel particulate filter (DPF).

(4) Warning light is present in gauge.

(5) A message in the LCD screen will also be displayed.

RADIO

A Panasonic compact disc player with AM/FM stereo receiver, weather band and four (4) speakers shall be installed in the cab. The receiver shall be installed above the officer position. The speakers shall also be installed inside the cab with two (2) speakers recessed within the headliner of the front of the cab just behind the windshield and two (2) speakers in the upper rear corners of the cab.

RADIO ANTENNA

A small antenna shall be located on the officer side of the cab roof for AM/FM and weather band reception.

SVI #758 Page 59 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

CAMERA

An Audiovox Voyager heavy duty rearview camera system shall be supplied. The system shall include one (1) box shaped camera shall be shipped loose for OEM installation in the body to afford the driver a clear view of the rear of the vehicle and one (1) teardrop shaped camera with a chrome plated plastic housing shall be mounted on the officer side of the cab below windshield ahead of the front door at approximately the same level as the cab door handle. The cameras shall be wired to dual Weldon Vista displays which shall be located on the driver and officer sides of the dash. The rear camera shall activate when the transmission is placed in reverse and the right camera shall activate with the right side turn signal. Each camera shall also be activated by a button on the Vista displays.

CAB EXTERIOR PROTECTION

The cab face shall have a removable plastic film installed over the painted surfaces to protect the paint finish during transport to the body manufacturer.

FIRE EXTINGUISHER

A 2.50 pound D.O.T approved fire extinguisher with BC rating shall be shipped loose with the cab.

DOOR KEYS

The cab and chassis shall include a total of four (4) door keys for the manual door locks.

AS BUILT WIRING DIAGRAMS

The cab and chassis shall include one (1) complete set of wiring schematics and option wiring diagrams.

WARRANTY - CAB AND CHASSIS

The chassis manufacturer shall provide a limited parts and labor warranty to the original purchaser of the custom built cab and chassis for a period of twelve (12) months, or the first 24,000 miles, whichever occurs first. The warranty period shall commence on the date the vehicle is delivered to the end user. The warranty shall include conditional items listed in the detailed warranty document which shall be provided upon request.

OPERATORS AND PARTS LIST MANUAL

There shall be one (1) chassis operator's manual which includes a parts list. Also, wiring and air plumbing diagrams shall be provided as well as a list of any parts or equipment that is shipped loose with the vehicle. All standard wiring and plumbing diagrams shall be created specifically to the chassis model.

ENGINE AND TRANSMISSION OPERATION MANUALS

There shall be one (1) set of engine operation and maintenance manuals and one (1) set of transmission operation manuals specific to the models ordered included with the final vehicle in the ship loose items.

CAB/CHASSIS PREPAYMENT

The specified cab/chassis shall be prepaid by Surprise Fire Department within 30 days of invoice. Surprise Fire

Department understands that if payment is made after 30 days, additional interest charges may apply.

SVI #758 Page 60 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

CHASSIS MODIFICATIONS

LUBRICATION AND TIRE DATA PLATE

A permanent label in the driving compartment shall specify the quantity and type of the following fluids used in the vehicle and tire information:

 Engine oil

 Engine coolant

 Chassis transmission fluid

 Pump transmission lubrication fluid . . (if applicable)

 Pump priming system fluid, if applicable . . (if applicable)

 Drive axle(s) lubrication fluid

 Air conditioning refrigerant . . (if applicable)

 Air conditioning lubrication oil . . (if applicable)

 Power steering fluid

 Cab tilt mechanism fluid . . (if applicable)

 Transfer case fluid . . (if applicable)

 Equipment rack fluid (if applicable)

 CAFS air compressor system lubricant . . (if applicable)

 Generator system lubricant . . (if applicable)

 Front tire cold pressure

 Rear tire cold pressure

 Maximum tire speed ratings

VEHICLE DATA PLATE

A permanent label in the driving compartment which indicates the following:

 Filter part numbers for the

- Engine

- Transmission

- Air

- Fuel

 Serial numbers for the

- Engine

- Transmission

 Delivered Weights of the Front and Rear Axles

 Paint Brand and Code(s)

 Sales Order Number

OVERALL HEIGHT, LENGTH DATA PLATE

The fire apparatus manufacturer shall permanently affix a high-visibility label in a location visible to the driver while seated.

The label shall show the height of the completed fire apparatus in feet and inches or in meters, the length of the completed fire apparatus in feet and inches or in meters, and the GVWR in tons or metric tons.

Wording on the label shall indicate that the information shown was current when the apparatus was manufactured and that, if the overall height changes while the vehicle is in service, the fire department must revise that dimension on the plate.

SVI #758 Page 61 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

ACCIDENT PREVENTION

There shall be a placard in the cab seating area which reads, "ALL OCCUPANTS MUST BE SEATED AND BELTED

WHEN THE APPARATUS IS IN MOTION".

PERSONNEL CAPACITY

A label that states the number of personnel the vehicle is designed to carry shall be located in an area visible to the driver.

ACCIDENT PREVENTION

If the rear bumper is 8" deep or more, there shall be a placard on the rear face of the body, in clear sight from the ground, which reads, "WARNING - DO NOT RIDE ON STEPS OR DECK AREAS WHILE THE APPARATUS IS IN MOTION.

DEATH OR SERIOUS INJURY MAY RESULT".

WEARING HELMET WARNING

A label stating “DO NOT WEAR HELMET WHILE SEATED” shall be visible from each seating location.

FRONT BUMPER

The front bumper shall be as provided by the cab/chassis manufacturer. No other alternation or modifications are required.

BUMPER GRAVELSHIELD

The bumper extension gravel shield shall be provided by the cab/chassis manufacturer.

AIR HORN(S)

The air horn(s) shall be supplied and installed by the cab/chassis manufacturer.

FRONT TOW PROVISIONS

The front tow provisions shall be supplied and installed by the cab/chassis manufacturer.

FRONT TOW PROVISIONS

The front tow provisions shall be supplied and installed by the cab/chassis manufacturer.

EXHAUST

The existing exhaust tailpipe shall be extended to ahead of the rear axle on the streetside.

The exhaust piping and discharge outlet shall be located or shielded so as not to expose any portion of the apparatus or equipment to excessive heating.

Exhaust pipe discharge shall be directed away from any operator’s position.

Where parts of the exhaust system are exposed so that they are likely to cause injury to operating personnel, protective guards shall be provided.

SVI #758 Page 62 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

MOTOROLA RADIO INSTALLATION

There shall be two (2) OEM supplied Motorola CDM1250 WHF 40-watt mobile radios installed in the cab/chassis. Each radio shall be installed per manufacturers requirements and wired for proper 12 volt power and ground. One (1) radio shall be located in the upper left hand quadrant of the center dash panel, and one (1) radio shall be located in the desktop radio console of the forward facing command desk.

40A BATTERY POWER PROVISION

There shall be one (1) 12 volt terminal block(s) installed on the rear of the engine tunnel to provide 12 VDC power for equipment supplied by the Surprise Fire Department. The terminal block shall be powered from the Spartan supplied 40A battery direct power provision located behind the center dash panel.

FIVE (5) ANTENNAS - RAIL MOUNTED CAB ROOF

There shall be one (1), radio antenna rail(s) provided and installed on the roof of the cab/chassis. The rails shall be constructed of aluminum, forming a two piece box design. The top section shall be removable for easy access to the individual antenna wiring. Total of five (5), antenna bases shall be provided and installed in each rail. The bases shall include a minimum of 20' of LMR195 cable. The antenna wiring shall enter the cab roof at a single point under the end of the rail. The end of each radio antenna shall be routed to following locations:

One (1) antenna lead shall terminate at the center dash panel

One (1) antenna lead shall terminate at the command desktop console

Three (3) antennas leads shall terminate at the command area data rack

Due to multiple configurations of antenna whips, the Manufacturer shall provide the antenna base, and Surprise Fire

Department shall provide the whip.

HUB AND NUT COVERS

Front and rear wheels shall be provided with stainless steel hub caps and wheel nut covers.

MUDFLAPS

There shall be rubber mudflaps furnished and installed behind each set of tires.

ROAD EMERGENCY SAFETY KIT

One (1) set of three dual faced triangular warning flares with fold away base complete with storage case per DOT requirements shall be provided with the completed apparatus.

One (1) 2.5 lb. ABC type vehicle fire extinguisher with bracket shall be provided and mounted in the cab or the front streetside compartment.

SVI #758 Page 63 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

REAR CAB AREA LAYOUT

REAR CAB DESK - "L" SHAPED

The rear portion of cab shall be provided with an "L" shaped desk extending from the curbside to streetside directly behind the driver and officer and extending to the rear wall of the cab on the streetside.

The section directly behind the driver and officer shall be approximately 26" deep and located 30" from the floor. The streetside extension shall be approximately 18" deep and located 30" from the floor. The front edge of desk shall be reinforced with 2" x 2" tubing in order to support a person sitting on the edge of the desk.

The desk top surface shall be fabricated of 3/16" smooth finish aluminum with a 2" vertical downward edge along the front to cover the 2" x 2" reinforcement. There shall be 2-1/2" diameter holes with plastic edge grommets provided at each rear corner for wiring of future equipment located on the desk top. The desk top shall be painted dark gray with a hammer tone powder coat paint finish for a hard and durable surface.

 There shall be three (3) data port(s) provided below the streetside leg of the desktop.

 There shall be two (2) 12V outlet(s) provided below the streetside leg of the desktop.

DESKTOP COMPONENT CONSOLE

There shall be a console at top rear of the desk for optional component mounting. The console shall be fabricated from

1/8" aluminum approximately 6" high x 9" deep with a 6" sloping component mounting face. The console shall be painted dark gray with a hammer tone powder coat paint finish for a hard and durable surface.

The sloped component mounting surface shall be a one-piece hinged cover to allow access to optional components, and wiring and held closed with knurled thumb type latch in each corner.

 There shall be one (1) radio(s) mounted in the front face of the component console

 There shall be three (3) data port(s) provided in the front face of the component console.

 There shall be two (2) 12V outlet(s) provided in the front face of the component console.

CAB INTERIOR CABINET - OVERHEAD STREETSIDE

There shall be two (2) overhead cabinet(s) provided on interior. Cabinet(s) shall be constructed of 1/8" smooth finish aluminum, and painted with a dark gray hammer tone powder coat paint finish for a hard durable surface. One (1) cabinet shall be approximately 34" wide x 14" high x 14" deep, the other cabinet will be 26" wide x 14" high x 14" deep.

The above cabinet(s) shall have lift-up type door(s) with dry-erase outer surface.

SVI #758 Page 64 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

OVERHEAD RADIO MOUNTING CONSOLE

There shall be one (1) overhead radio mounting console provided in the cab command interior. The radio cabinet shall provide mounting area for the radios specified and shall be approximately 26" wide by 14" deep by 4" high. The surface shall be painted dark gray with a hammer tone powder coat paint finish for a hard and durable surface.

The radio cabinet shall be constructed of 1/8" smooth finish aluminum and front of the cabinet shall have standard bolt-on

8-1/2" x 4" black radio trim mounting plates. A hinged 3/16" aluminum drop down access cover shall be provided on the bottom to access equipment mounting and wiring with 1/4 turn knobs to secure cover closed. Ventilation louvers shall be provided for proper ventilation of radio equipment.

 There shall be two (2) data port(s) provided in the front face of the overhead radio console(s).

CAB COMMAND 120V INTERIOR LIGHT(S)

There shall be two (2) 120 volt, interior light fixture(s) installed above the desk/deck area under the overhead cabinet(s).

Fixture shall be provided with single bulb and switch on fixture. Exact location to be determined at the preconstruction meeting.

2-DRAWER FILING CABINET

One (1) Hon 2-drawer Efficiency Pedestal cabinet(s) with "K" type pull handle shall be installed in the cab command area.

Each cabinet shall have a keyed lock and shall be painted charcoal. Each filing cabinet shall be approximately 15" wide x

27" high x 20" deep. Both drawers of the cabinet shall be capable of storing 8-1/2" x 11" file folders.

The cabinet will be located under the street side desk towards the front of the cab.

INTERIOR PEDESTAL SEAT

Two (2) Bostrom Sierra high back Duraware fabric pedestal type seat(s) with 6" fore/aft adjustment shall be provided on the completed apparatus. Each seat shall be mounted on a swivel style pedestal base and securely bolted to the reinforced floor structure. The seat shall closely match the driver and officer seat colors.

The seat(s) shall be provided with an automotive type lap seat belt. The seat belt(s) shall be secured to the attachment point provided on the seat and shall be red.

MAGNETIC WHITEBOARD

There shall be two (2) magnetic whiteboard surface(s), approximately 72" wide x 36" tall located on the rear cab wall in the cab command area.

MAP LIGHT

There shall be two (2) 24" goose neck 12 volt map light(s) furnished and installed in the cab. The map light(s) shall be located atop of the forward facing desk top console, one (1) at each end.

SVI #758 Page 65 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

120VAC OULET(S)

There shall be two (2) 120 VAC, 20 amp duplex, straight-blade receptacle(s) (NEMA 5-20R) located one (1) under each leg of the 'L' shaped desk. Each outlet shall be wired to the specified inverter.

- There shall be one (1) 120 volt outlet strip(s) approximately 2' long with straight blade household type outlets provided with the forward facing under desk outlet.

- There shall be one (1) 120 volt outlet strip(s) approximately 4' long with straight blade household type outlets provided with the streetside under desk outlet.

CAB COMMAND NETWORK SYSTEM

The following network system components shall be provided in the cab command area:

• One (1) Quest Technologies NPP-1024 24 Port Patch panel

• One (1) 3Com 3CRBSG2893-US 24 Port Switch

• One (1) 3Com 3CR87095US Office Connect Secure Router

• One (1) 3Com 3CRWE776075-US a/b/g Wireless Access Point

• One (1) Airlink Raven X EVDO Cellular Modem for Verizon Wireless

• One (1) Wilison 301104 NMO Cellular Antenna

• One (1) Willison 811201 Cellular AMP

• Two (2) ViewSonic VT2430 Multifunction LCD TV’s

• Two (2) Dell Optiplex 780 Computer’s

• Two (2) Ram Mounts RAM-D-101U246 Vesa Mount’s

• One (1) Maxrad MLPV1700 1.7Ghz-2.5Ghz 4Dbi Gain Low Profile Antenna

AIR CONDITIONER - HEATER

One (1) Dometic Penguin low profile, 120 VAC, 60 cycle, single phase air conditioner(s) shall be provided and installed on the cab roof. The unit shall be a roof top contemporary contoured integral evaporator/condenser type with built-in heating elements.

Each unit shall be rated at minimum of 13,500 BTU cooling capacity with a heating element rated at 5,600 BTU.

A three-speed fan shall supply a maximum/minimum of 335/250 cfm air flow capacity.

The roof mounted air conditioner shall be approximately 9.5" high x 29" wide x 40" long and weigh approximately 96 pounds. The opening in roof shall be properly reinforced to support the air conditioner and shall be supplied with a 1" rise to minimize moisture condensation under the unit.

There will be a gutter type edging on the front and both side of the a/c unit to direct condensation to the rear of the cab area. The gutter will not be high enough to allow for rain water to enter around the a/c unit and enter the cab.

FUEL FILL

There shall be one (1) Cast Products fuel fill door located in the streetside exterior wheel well panel, behind the rear axle.

The fill door shall have a spring-loaded hinged door and a permanent label with the text "DIESEL FUEL ONLY".

SVI #758 Page 66 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

BODY DESIGN

The importance of public safety associated with emergency vehicles requires that the construction of this vehicle meet the following specifications. These specifications are written to establish the minimum level of quality and design. All Bidders shall be required to meet these minimum requirements.

It is the intent of these specifications to fully describe the requirements for a custom built emergency type vehicle. In order to extend the expected service life of this vehicle, the body module shall be removable from the chassis frame and be capable of being installed on a new chassis.

The sheet metal material requirements, including alloy and material thickness, throughout the specifications are considered to be a minimum. Since such materials are available to all Manufacturers, the material specifications shall be strictly adhered to.

The fabrication of the body shall be formed sheet metal. Formed components shall allow the Surprise Fire Department to have the body repaired locally in the case where any object has struck the body and caused damage. The use of proprietary extrusions will prevent the Surprise Fire Department from such repair and shall NOT be used.

Following construction of the subframe, which supports the apparatus body, the sheet metal portion of the body shall be built directly on the subframe. The joining of the subframe and body shall be of a welded integral construction.

The sheet metal fabrication of the body shall be performed using inert gas continuous feed welders only. The entire body shall be welded construction. The use of pop rivets in any portion of structural construction may allow premature failure of the body structure. Therefore, pop rivets shall NOT be used in the construction of the structural portions of the body. This includes side body sheets, inner panels of compartment doors, and any other structural portions of the body.

EXTERIOR ALUMINUM BODY

The fabrication of the body shall be constructed from aluminum 3003H-14 alloy smooth plate. This shall include compartment front panel, vertical side sheets, side upper rollover panels, rear panels and compartment door frames.

The body compartment floors and exterior panels shall be constructed with not less than 3/16" (.187) aluminum 3003H-14 smooth plate. Interior compartment dividing walls shall be constructed with not less than 1/8" (.125) aluminum 3003H-14 smooth plate. Lighter gauge sheet metal will not be acceptable in these areas.

The door side frame openings shall be formed "C" channel design. An electrical wiring conduit raceway running the full length of exterior compartments shall be provided. This raceway shall contain all 12 volt wiring running to the rear of the apparatus, permitting easy accessibility to wiring.

Individual compartment modules, with dead air space voids between compartments, will not be an acceptable method of compartment construction.

The compartments shall be an integral part of the body construction. Compartment floors from front of body to ahead of rear axle, also from rear axle to rear of body shall be single one-piece sections. Compartment floors shall be preformed, then positioned in body and welded into final position.

Compartment floors shall have a "sweep-out" design with door opening threshold positioned lower than compartment floor, permitting easy cleaning of compartments. Angles, lips, or door moldings are not acceptable in the base of compartment door opening. One-way rubber drain valves shall be provided in compartment floors so that a water hose may be used to flush-out compartment area.

All exterior seams in sheet metal below frame, and around the rear wheel well area shall be welded continuous to prevent moisture from entering compartments. All other interior seams and corners shall be sealed with silicone based caulk prior to painting.

SVI #758 Page 67 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

Only stainless steel bolts, nuts, and sheet metal screws shall be used in mounting exterior trim, hardware and equipment.

Exterior compartments shall have louvers in lower back wall of compartment for ventilation.

ROOF CONSTRUCTION

The roof shall be integral with the body and shall be all welded construction. The roof shall be reinforced with 2" x 2" tubing running the full width of the body. All seams in the roof area shall be welded prior to paint to prevent entry of moisture.

BODY SUBFRAME

To assure proper body alignment and clearance, the body subframe shall be constructed directly on the chassis.

The chassis frame rails shall be fitted with 1/4" custom extruded UHMW polyethylene rail cap to isolate the body frame members from direct contact with chassis frame rails.

The body subframe shall be constructed from 6061T6 aluminum alloy tubing. Subframe shall consist of two (2) 2" x 6" x

1/4" aluminum tubes, the same width as the chassis frame rails, NO EXCEPTION. Welded to this tubing shall be crossmembers of 2" x 6" x 1/4" aluminum. These crossmembers shall extend the full width of the body to support the compartments. Crossmembers shall be located at front and rear of the body, below compartment divider walls, and in front and rear of wheel well opening. Additional aluminum crossmembers shall be located as necessary to support walkway or heavy equipment.

To form the frame, the tubing shall be beveled and welded at each joint using 5356 aluminum alloy welding wire.

BODY MOUNTING

The body subframe shall be fastened to the chassis frame with a minimum of six (6) spring loaded body mounts. Each mount shall be configured using a two-piece encapsulated slide bracket. The two (2) brackets shall be fabricated of heavy duty 1/4" thick steel and shall have a powder coat finish to prevent any corrosion. Each mounting assembly shall utilizing two (2) 3/4" diameter x 6" long grade 8 bolts and two (2) heavy duty springs. The assembly design shall allow the body and subframe to act as one (1) component, separate from the chassis. As the chassis frame twists under driving conditions, the spring mounting system shall eliminate any stress from being transferred into the body. The spring loaded body mounts shall also prevent frame side rail or body damage caused by unevenly distributed stress and strains due to load and chassis movement.

Body mountings that do not allow relief from chassis movement will not be acceptable.

17" REAR STEP BUMPER

The full width rear bumper shall be constructed from 2" x 2" x 1/4" aluminum tubing frame and covered with 3/16" NFPA compliant aluminum tread plate. The bumper shall extend from the rear vertical body panel 18" and provide a rear step with a minimum of 1/2" space at body for water drainage.

REAR TOW EYES

There shall be two (2) heavy duty rear mounted tow eyes securely attached to the body subframe, below the apparatus body. The tow eyes shall be fabricated from 3/4" thick steel plate and shall have a black powder coat finish.

GROUND LIGHTS

Two (2) OnScene Solutions 9" LED Nightstik ground lights shall be mounted below the rear bumper.

SVI #758 Page 68 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

WHEEL WELL EXTERIOR PANEL

The exterior panel of the body wheel well enclosure shall be constructed from 3/16" smooth aluminum panels.

DIEFORMED BEADED EDGE BODY FENDERS

A die formed beaded edge shall be provided along the radius of the wheel well opening for a finished appearance.

WHEEL WELL LINERS

The wheel wells shall be provided with an easily removable polymer, circular inner fender liner. The inner liner shall be bolted to the wheel well with stainless steel bolts and spaced away from the wheel well so the liner will not accumulate dirt or water.

SCBA BOTTLE COMPARTMENTS

There shall be three (3) SCBA compartments located adjacent to the rear wheels. There shall be two (2) on the curbside and one (1) on the streetside of the apparatus body. Each compartment shall have a Cast Products aluminum door assembly with a positive catch latch. The compartment shall allow the storage of SCBA bottles up to 7-3/4" in diameter.

The door shall activate the "Hazard Warning Light" in the cab when not in the closed position.

ALUMINUM BODY PAINT SPECIFICATIONS

BODY PAINT PREPARATION

After the body and components have been fabricated they shall be disassembled prior to painting so when the vehicle is complete there shall be finish paint beneath the removable components. The body shall be totally removed from chassis during the pain process to insure the entire unit is covered. The body and components shall be metal finished as follows to provide a superior substrate for painting.

The exterior body shall undergo a thorough cleaning process starting with a biodegradable phosphoric acid solution to begin the etching process followed by a complete clear water rinse. The next step shall consist of a chemical conversion coating applied to seal the metal substrate and become part of the metal surface for greater film adhesion. If the compartment interior is to be painted the interior shall be acid etched as described above then primed with an epoxy primer and all seams caulked.

All bright metal fittings, if unavailable in stainless steel or polished aluminum, shall be chrome plated. Iron fittings shall be copper under plated prior to chrome plating.

SVI #758 Page 69 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

PAINT PROCESS

The paint process shall follow the strict standards set forth by PPG Industries guidelines. Painters applying PPG products will be PPG Certified Commercial Technicians, and re-certified every two (2) years.

The body shall go through an eight-stage paint process;

1. Clean bare metal using a solvent base wax & grease remover.

2. Finish all exterior body seams as necessary, followed by a thorough sanding of all bare metal to be painted.

3. Re-clean bare metal using a solvent base wax & grease remover.

4. Bare Metal Epoxy Primer Coat - PPG Delfleet® Evolution corrosion resistance epoxy primer to be applied at 1.0-2.0 mills DFT over clean abraded bare metal.

5. Primer Filler Coat - PPG Delfleet® Evolution urethane build primer to achieve total thickness of 3.0-6.0 mils DFT after sanding.

6. Basecoat (Color) - PPG Delfleet® Evolution High Solids Polyurethane Basecoat. Apply 1.0-3.0 mils DFT of basecoat color to achieve full hiding.

7. Clearcoat PPG Delfleet® Evolution polyurethane premium quality clearcoat with improved mar resistant finish. The clearcoat shall be applied to achieve a total dry film thickness of 2.0-3.0 mils.

8. Curing process of the painted body shall go through a force dry/bake cycle process. The painted components shall be baked 180 degrees for 2 hours to achieve a complete coating cure on the finished product.

MACHINE POLISHED

After the force dry/bake cycle and ample cool down time, the coated surface shall be sanded using 1,000, 1,500, and or

3,000 grit sandpaper to remove surface defects. In the final step, the surface shall be buffed then polished to an extra high gloss smooth finish. Total dry film thickness of paint will average between 8.0-12.0 mils.

PAINT - ENVIRONMENTAL IMPACT

The contractor shall meet or exceed all current State (his) regulations concerning paint operations. Pollution control shall include measures to protect the atmosphere, water and soil. PPG Delfleet® Evolution paint shall be free of all heavy metal

(lead & chromate) components. Paint emissions from sanding and painting shall be filtered and collected. All paint wastes shall be disposed of in an environmentally safe manner. Solvents used in cleanup operations shall be collected, sent offsite for distillation and returned for reuse.

PAINT FINISH - SINGLE COLOR

The body shall be painted with a single color of PPG Delfleet® Evolution paint as described above.

Prior to the assembly and reinstallation of exterior components; i.e. warning and DOT lights, handrails, steps, door hardware, and miscellaneous items, an isolation tape, or gasket shall be used to prevent damage to the finish painted surfaces. These components shall be fastened to body using either a plastic insert into body metal with stainless steel screws or zinc coated nutserts into body surface using stainless steel bolts to prevent corrosion from dissimilar metals.

Touch-up paint shall be provided with completed vehicle.

 Paint Color: RED

 Paint Number: Sikkens 3225

BODY UNDERCOATING

The entire underside of apparatus body shall be sprayed with black automotive undercoating. Undercoating shall cover all areas to retard corrosion under the apparatus.

SVI #758 Page 70 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

UNDERCOAT WARRANTY

The undercoating shall be provided with a warranty by its manufacturer for the lifetime of the vehicle. The re-spray warranty shall be transferable between vehicle owners. Should the coating applied to the underside of the body and wheel wells of the vehicle ever flake off, peel, chip or crack due to drying out, the damaged area shall be re-sprayed without charge to the vehicle owner.

PAINT WARRANTY

The vehicle shall be provided with a ten (10) year non-prorated warranty to the original owner. Warranty is provided by

PPG Inc. A warranty sheet with all conditions and maintenance procedures shall be provided with the delivered vehicle.

COMPARTMENT INTERIOR FINISH

The interior of all exterior body compartments shall be a "Maintenance Free" smooth unpainted finish. All body seams shall be finished with a caulk sealant for both appearance and moisture protection.

GRAPHICS PACKAGE

There shall be a graphics package provided and installed as shown in the Surprise Fire Department approved Graphics

Layout as provided by SVI Graphics.

All retroreflective materials shall conform to the requirements of ASTM D 4956, Standard Specification for Retroreflective

Sheeting for Traffic Control, Section 6.1.1 for Type I Sheeting.

All retroreflective materials used that are colors not listed in ASTM D 4956, Section 6.1.1, shall have a minimum coefficient of retroreflection of 10 with observation angle of 0.2 degrees and entrance angle of -4 degrees.

Any printed or processed retroreflective film construction used shall conform to the standards required of an integral colored film as specified in ASTM D 4956, Section 6.1.1.

SVI #758 Page 71 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

EXTERIOR COMPARTMENT DOORS

ROLL-UP DOOR CONSTRUCTION - ROBINSON (ROM)

The apparatus shall be equipped with Robinson Series III roll-up exterior compartment doors. Robinson roll-up doors shall be complete with the following features;

 Doors shall be front roll with drum positioned at upper front portion of compartment to afford maximum clearances and head room for mounting equipment to ceiling of compartment

 There shall be a non-abrasive side brush seals

 Magnetic door ajar system must be integrated in lift bar handle and the retainer block to signal open door. No mechanical switches or switches interior to the compartment shall be used

 Every slat must have interlocking end shoes to prevent slat from moving side-to-side and binding the door

 Between each slat must be a co-extruded PVC inner seal to prevent metal-to-metal contact and to repel moisture.

This inner seal is not visible to detract from appearance of door

 Slats are to have interlocking joints with a folding locking flange to provide security and prevent penetration by sharp objects

 Slats to be double-wall extrusion 1.366" high by .315" thick. Exterior surface to be flat and interior surface to be concave to prevent loose equipment from interfering with door operation

 Latch system to be a full width one piece lift bar operable by one (1) hand

 A 2" wide finger pull integrated into the bottom rail extrusion for easy one (1) hand opening and closing

 Clip system that connects the curtain slats to the operator drum which allows for easy tension adjustment without tools

 Each roll-up door shall have a 4" diameter counterbalance operator drum to assist in lifting the door.

 Track shall be one-piece aluminum that has an attaching flange and finishing flange incorporated into its design

 Drip rail will have specially designed seal that prevents the seal from scratching the door

 Bottom rail extrusion must have smooth back to prevent loose equipment from jamming the door

 Bottom rail to have "V" shaped double seal to prevent water and debris from entering the compartment

 Standard replacement parts to be shipped from the United States and available in as little as 48 hours

Each shutter door shall decrease the compartment door frame opening approximately 2.00" in width and approximately

4.50" in height for the bottom section of door assembly.

EXTERIOR ROLL-UP DOOR FINISH - PAINTED

The roll-up compartment doors shall be painted with a wet type paint application. The color choice shall be the same as the primary color specified for the body. The paint finish on the doors shall be an exact match in color and gloss.

The specified retroreflective stripe material shall be applied on the roll-up compartment doors. The stripe shall be precision machine cut for each door slat of the roll-up doors. Under no circumstance will the stripe material be cut on rollup door surface.

SVI #758 Page 72 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

BODY HEIGHT MEASUREMENTS

The vertical body dimensions shall be as follows:

B

C

AHEAD OF REAR AXLE

A

Description

Bottom of Subframe to Top of Body

Bottom of Subframe to Bottom of Body

Vertical Door Opening

-with roll-up door

-with hinged door

Dimension

84.0"

25.0"

67.5"

71.5"

ABOVE REAR AXLE

D

Description

Vertical Door Opening - Above Rear Wheel

Dimension

-with roll-up door

-with hinged door

BEHIND REAR AXLE

34.0"

37.0"

E

F

Description

Bottom of Subframe to Bottom of Body

Vertical Door Opening

-with roll-up door

-with hinged door

GENERAL

Description

Dimension

20.0"

62.0"

66.0"

Dimension

G Bottom of Drip Rail to Top of Body

(Dimensions are generic and subject to change during the actual design process)

28.5"

SVI #758 Page 73 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

FIVE (5) UPPER BODY COMPARTMENTS

The forward transverse compartment shall be 92.0" long x 27.0" wide x 28.5" deep. There shall be four (4) compartments parallel to the sides of the body, two (2) on each side. Each of these compartments shall be 87.0" long x 28.0" wide x

28.5" deep. The side compartments shall be open under each door sill to allow for long equipment. Each compartment shall be integral with the body construction, and will not be bolted or add-on modules. The outside walls of each compartment will be double walled to prevent equipment from denting the outside painted surface.

Each compartment shall have a lift-up type compartment door hinged on the outboard side. Each door shall be fabricated from 3/16" aluminum tread plate. Each door shall have two (2) pneumatic type cylinders, one (1) at each end, attached to cast aluminum brackets mounted to the interior surface of the door to hold the door in both the opened and closed positions. Each door shall be mounted using 16" long, equally spaced, 14 gauge stainless steel hinges, with 1/4" stainless steel pin. A polyester barrier film gasket shall be placed between stainless steel hinge and the body mounting surface as necessary to prevent corrosion caused by dissimilar metals.

Each compartment door shall overlap a 2" vertical lip on the body roof to prevent entry of moisture and sealed with automotive type rubber molding to provide a weather resistant seal.

Each compartment shall have a horizontally mounted OnScene Solutions LED Night Stik on the underside of the door.

The light will be automatically activated by a gravity-driven, sealed, ball-style tilt switch mounted to one of the cast aluminum pneumatic cylinder mounting brackets and also wired to the NFPA required hazard warning light in cab.

The hinged door(s) shall have an automotive tailgate style lift-up locking handle. A gasket shall be placed between the handle and the compartment exterior wall. Door latches shall be a single point, double-catch latch, mounted on the interior wall of the compartment panel.

UPPER BODY WALKWAY

A recessed walkway shall be provided recessed at the center of the roof area. The walkway shall be finished with NFPA compliant 3/16" aluminum tread plate with continuously welded seams to prevent moisture penetration into apparatus body. Drains shall be installed in the walkway to allow moisture to drain to the ground through flexible drain hose.

WALKWAY LIGHTS

There shall be Two (2) OnScene Solutions 9" LED Night Stik lights provided to illuminate the upper body walkway area.

The lights shall be activated when the parking brake is set.

Each light shall be mounted in a polished cast aluminum housing to protect against damage from personnel or equipment.

ROOF ACCESS STAIRWAY

The rear of the body shall be provided with a recessed center stairway approximately 34" wide. Stairs treads shall be formed 3/16" NFPA compliant aluminum tread plate with reinforcement as necessary.

STAIRWAY HANDRAILS

There shall be two (2) handrails provided, one (1) on each side wall of recessed center stairway. The handrails shall be angled for optimum use during ingress or egress of the upper walkway area.

Handrails shall be NFPA compliant 1-1/4" extruded aluminum tubing with chrome plated end stanchions.

SVI #758 Page 74 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

WALKWAY LIGHTS

There shall be Two (2) OnScene Solutions 9" LED Night Stik lights provided to illuminate the upper body walkway area.

The lights shall be activated when the parking brake is set.

Each light shall be mounted in a polished cast aluminum housing to protect against damage from personnel or equipment.

STEP COMPARTMENT - UPPER

There shall be one (1) upper compartment located in the roof access stairway area. The compartment shall have a horizontally hinged door with a D-ring handle. The compartment shall be manufactured to prevent road debris, dirt and moisture from entering the enclosure. The compartment shall be approximately 26" wide x 8" high x depth of equipment.

Each Compartment shall have an OnScene Solutions LED Night Stik that will be automatically activated when the door is opened and wired to the NFPA required hazard warning light provided in the cab.

Devices to secure equipment, compartment dividers, or UHMW plastic angles, or sheeting will be used for storage of specified equipment as required to prevent damage to equipment.

The compartment will be designed to store the following equipment:

 One (1) 24' 2-section ladder(s). Manufacturer, model number and size of the ladder(s) shall be provided during the pre-construction meeting.

 One (1) 14' roof ladder(s). Manufacturer, model number and size of the ladder(s) shall be provided during the preconstruction meeting.

 One (1) 10' folding ladder(s). Manufacturer, model number and size of the ladder(s) shall be provided during the preconstruction meeting.

 Two (2) pike pole(s). Manufacturer, model number and length of pike pole(s) to be provided during the preconstruction meeting.

FOLD-DOWN STEP

There shall be one (1) fold-down step located at the bottom of the roof access stairway to reduce the distance from the ground to the first step. The step shall manually fold up into the stairway during travel. The step shall activate the

"Hazard Warning Light" in the cab when not in the stowed position.

REAR BODY HANDRAILS

There shall be two (2) vertical handrails on the rear of the body. Handrails shall be NFPA compliant 1-1/4" extruded aluminum tubing with chrome plated end stanchions.

SVI #758 Page 75 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

BODY WIDTH DIMENSIONS

The body shall be 100.0" wide, not including drip rail or non-permanent fixtures. Interior compartment depth dimensions shall be:

Area Description

Transverse Area:

- Above Top of Subframe

Compartment Depth:

- Below Top of Subframe

- Ahead of Rear Axle

Dimension

95.5"

24.5"

Compartment Depth:

- Below Top of Subframe

- Behind the Rear Axle

23.5"

(Eng. Note)

(Dimensions are generic and subject to change during the actual design process)

SVI #758 Page 76 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

STREETSIDE COMPARTMENT - FRONT (S1)

The interior useable compartment width shall be approximately 56.0" wide.

The compartment door opening shall be approximately 49.0" wide.

This compartment shall have a Robinson roll-up door with the exterior aluminum slats painted the same color as the primary exterior body color.

- A keyed cylinder lock shall be provided in the bottom portion of the roll-up door.

- One (1) nylon strap shall be provided to assist in closing the door. The strap shall be fastened to the left side of the lower inside door sill. The strap shall extend from the left side of the lower inside door sill to a footman loop attached to the center of the left side of the door frame.

- One (1) aluminum drip pan/door finish guard shall be provided with the rollup door.

Compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.

COMPARTMENT COMPONENTS

 There shall be vertically mounted shelf trac for shelving installation.

 There shall be one (1) 1,000 lbs. slide-out tray(s) with an OnScene Solutions base approximately 70" deep and as wide as the compartment layout or door opening permits located above the level of the chassis frame rails.

 The floor of the compartment above the frame rails shall be extended to the interior edge of the door. The floor shall have a 2" vertical lip and a 1" return to increase strength.

 Two (2) vertically mounted OnScene Solutions LED Nightstiks.

 The 12 volt electrical distribution panel shall be located in the streetside front lower compartment.

SVI #758 Page 77 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

STREETSIDE COMPARTMENT - AHEAD OF REAR WHEELS (S2)

The interior useable compartment width shall be approximately 56.0" wide.

The compartment door opening shall be approximately 49.0" wide.

This compartment shall have a Robinson roll-up door with the exterior aluminum slats painted the same color as the primary exterior body color.

- A keyed cylinder lock shall be provided in the bottom portion of the roll-up door.

- One (1) nylon strap shall be provided to assist in closing the door. The strap shall be fastened to the left side of the lower inside door sill. The strap shall extend from the left side of the lower inside door sill to a footman loop attached to the center of the left side of the door frame.

- One (1) aluminum drip pan/door finish guard shall be provided with the rollup door.

Compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.

COMPARTMENT COMPONENTS

 There shall be vertically mounted shelf trac for shelving installation.

 There shall be one (1) 1,000 lbs. slide-out tray(s) with an OnScene Solutions base approximately 94" deep and as wide as the compartment layout or door opening permits, capable of extending out either side of the body located above the level of the chassis frame rails.

 There shall be one (1) 150 lbs. slide out and down tray(s) with an OnScene Solutions base approximately 46" deep and as wide as the compartment layout or door opening permits. It shall be located above the level of the chassis frame rails and shall be vertically adjustable in height.

 The floor of the compartment above the frame rails shall be extended to the interior edge of the door. The floor shall have a 2" vertical lip and a 1" return to increase strength.

 Two (2) vertically mounted OnScene Solutions LED Nightstiks.

 Two (2) 3-1/2" x 3-1/2" black plastic louvered vents shall be provided in lower compartment.

SVI #758 Page 78 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

STREETSIDE COMPARTMENT - ABOVE REAR WHEELS (S3)

The interior useable compartment width shall be approximately 59.0" wide.

The compartment door opening shall be approximately 52.0" wide.

This compartment shall have a Robinson roll-up door with the exterior aluminum slats painted the same color as the primary exterior body color.

- A keyed cylinder lock shall be provided in the bottom portion of the roll-up door.

- One (1) nylon strap shall be provided to assist in closing the door. The strap shall be fastened to the left side of the lower inside door sill. The strap shall extend from the left side of the lower inside door sill to a footman loop attached to the center of the left side of the door frame.

- One (1) aluminum drip pan/door finish guard shall be provided with the rollup door.

Compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.

COMPARTMENT COMPONENTS

 There shall be vertically mounted shelf trac for shelving installation.

 There shall be one (1) 1,000 lbs. slide-out tray(s) with an OnScene Solutions base approximately 94" deep and as wide as the compartment layout or door opening permits, capable of extending out either side of the body located above the level of the chassis frame rails.

 There shall be one (1) 150 lbs. slide out and down tray(s) with an OnScene Solutions base approximately 46" deep and as wide as the compartment layout or door opening permits. It shall be located above the level of the chassis frame rails and shall be vertically adjustable in height.

 Two (2) vertically mounted OnScene Solutions LED Nightstiks.

SVI #758 Page 79 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

STREETSIDE COMPARTMENT - REAR (S4)

The interior useable compartment width shall be approximately 64.0" wide.

The compartment door opening shall be approximately 57.0" wide.

This compartment shall have a Robinson roll-up door with the exterior aluminum slats painted the same color as the primary exterior body color.

- A keyed cylinder lock shall be provided in the bottom portion of the roll-up door.

- One (1) nylon strap shall be provided to assist in closing the door. The strap shall be fastened to the left side of the lower inside door sill. The strap shall extend from the left side of the lower inside door sill to a footman loop attached to the center of the left side of the door frame.

- One (1) aluminum drip pan/door finish guard shall be provided with the rollup door.

Compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.

COMPARTMENT COMPONENTS

 There shall be vertically mounted shelf trac for shelving installation.

 The floor of the compartment above the frame rails shall be extended to the interior edge of the door. The floor shall have a 2" vertical lip and a 1" return to increase strength.

 One (1) Hannay ECR1618-17-18 cable reel(s) capable of storing 200' of 10/3 electric cable. The rewind switch for each reel shall be located adjacent to the reel it controls.

- The cable reel shall equipped with 200' of 10/3 SEOOW yellow cable, a molded plastic ball clamp, and a single heavy duty L5-30 twist-lock female plug at the end.

- One (1) Akron model EJB, cast aluminum electrical power distribution box with yellow powder coat painted finish shall be provided. The power distribution box shall include:

- A 12" pigtail that terminates in an L5-30 configuration to match the cable on the cord reel. The outlet configuration shall include:

- One (1) L5-20 single twist lock receptacle

- One (1) L5-20 single twist lock receptacle

- One (1) L5-20 single twist lock receptacle

- One (1) L5-20 single twist lock receptacle

- One (1) EJB vertical apparatus mounting bracket - treadplate

 Two (2) vertically mounted OnScene Solutions LED Nightstiks.

 Two (2) 3-1/2" x 3-1/2" black plastic louvered vents shall be provided in lower compartment.

SVI #758 Page 80 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

CURBSIDE COMPARTMENT - FRONT (C1)

The interior useable compartment width shall be approximately 56.0" wide.

The compartment door opening shall be approximately 49.0" wide.

This compartment shall have a Robinson roll-up door with the exterior aluminum slats painted the same color as the primary exterior body color.

- A keyed cylinder lock shall be provided in the bottom portion of the roll-up door.

- One (1) nylon strap shall be provided to assist in closing the door. The strap shall be fastened to the left side of the lower inside door sill. The strap shall extend from the left side of the lower inside door sill to a footman loop attached to the center of the left side of the door frame.

- One (1) aluminum drip pan/door finish guard shall be provided with the rollup door.

Compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.

COMPARTMENT COMPONENTS

 There shall be vertically mounted shelf trac for shelving installation. The shelf trac will start approximately 20" from the compartment floor and run full height in the compartment.

 There shall be two (2) adjustable shelf/shelves approximately 24" deep.

 There shall be one (1) 150 lbs. slide out and down tray with an OnScene Solutions base approximately 24" deep and as wide as the compartment layout or door opening permits. It shall be located above the level of the chassis frame rails and shall be vertically adjustable in height.

 There shall be one (1) vertical compartment partition located at the rear of the compartment. The partition shall be designed to Seperate the compartment from S1 and all other areas of the body. The partition shall be welded in place and sealed with silicon caulking to restrict air flow between areas as much as possible.

 The floor of the compartment above the frame rails shall cover the area directly above the frame rails ONLY (nonextended floor).

 Two (2) vertically mounted OnScene Solutions LED Nightstiks.

 Two (2) 120 VAC, 20 amp duplex, straight-blade receptacle (NEMA 5-20R). The outlet(s) shall be wired to the specified inverter.

 Two (2) 120 VAC outlet strips approximately 4' long with straight blade household type outlets. They will be vertically mounted, one on the foward wall and one the aft wall.

SVI #758 Page 81 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

CURBSIDE COMPARTMENT - AHEAD OF REAR WHEEL (C2)

The interior useable compartment width shall be approximately 56.0" wide.

The compartment door opening shall be approximately 49.0" wide.

This compartment shall have a Robinson roll-up door with the exterior aluminum slats painted the same color as the primary exterior body color.

- A keyed cylinder lock shall be provided in the bottom portion of the roll-up door.

- One (1) nylon strap shall be provided to assist in closing the door. The strap shall be fastened to the left side of the lower inside door sill. The strap shall extend from the left side of the lower inside door sill to a footman loop attached to the center of the left side of the door frame.

- One (1) aluminum drip pan/door finish guard shall be provided with the rollup door.

Compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.

COMPARTMENT COMPONENTS

 There shall be vertically mounted shelf trac for shelving installation.

 There shall be one (1) 400 lbs. slide-out tray(s) approximately 16" deep x 24" wide designed to hold the specified inverter batteries.

 There shall be one (1) 1,000 lbs. slide-out tray(s) with an OnScene Solutions base approximately 94" deep, capable of extending out either side of the body located above the level of the chassis frame rails. (Specified in opposite side compartment.)

 There shall be one (1) 150 lbs. slide out and down tray(s) with an OnScene Solutions base approximately 46" deep and as wide as the compartment layout or door opening permits. It shall be located above the level of the chassis frame rails and shall be vertically adjustable in height.

 The floor of the compartment above the frame rails shall be extended to the interior edge of the door. The floor shall have a 2" vertical lip and a 1" return to increase strength.

 Pre-wire provisions for one (1) Surprise Fire Department supplied Norcold, model DE0752SS/DE0751, 12 VDC/120

VAC, refrigerator/freezer located aft of the specified 120/240V load center.

 Two (2) vertically mounted OnScene Solutions LED Nightstiks.

 Location for specified inverter and deep cycle batteries. The batteries shall be mounted on the specified 400 lbs. tray with a stainless steel pan with hold down provisions for mobile application.

 One (1) 120/240 VAC load center.

 The FRC FROG-D generator gauge panel.

 Two (2) 3-1/2" x 3-1/2" black plastic louvered vents shall be provided in lower compartment.

SVI #758 Page 82 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

CURBSIDE COMPARTMENT - ABOVE REAR WHEEL (C3)

The interior useable compartment width shall be approximately 59.0" wide.

The compartment door opening shall be approximately 52.0" wide.

This compartment shall have a Robinson roll-up door with the exterior aluminum slats painted the same color as the primary exterior body color.

- A keyed cylinder lock shall be provided in the bottom portion of the roll-up door.

- One (1) nylon strap shall be provided to assist in closing the door. The strap shall be fastened to the left side of the lower inside door sill. The strap shall extend from the left side of the lower inside door sill to a footman loop attached to the center of the left side of the door frame.

- One (1) aluminum drip pan/door finish guard shall be provided with the rollup door.

Compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.

COMPARTMENT COMPONENTS

 There shall be vertically mounted shelf trac for shelving installation.

 There shall be one (1) 1,000 lbs. slide-out tray(s) with an OnScene Solutions base approximately 94" deep, capable of extending out either side of the body located above the level of the chassis frame rails.

 There shall be one (1) 150 lbs. slide out and down tray(s) with an OnScene Solutions base approximately 46" deep and as wide as the compartment layout or door opening permits. It shall be located above the level of the chassis frame rails and shall be vertically adjustable in height.

 Two (2) vertically mounted OnScene Solutions LED Nightstiks.

SVI #758 Page 83 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

CURBSIDE COMPARTMENT - REAR (C4)

The interior useable compartment width shall be approximately 64.0" wide.

The compartment door opening shall be approximately 57.0" wide.

This compartment shall have a Robinson roll-up door with the exterior aluminum slats painted the same color as the primary exterior body color.

- A keyed cylinder lock shall be provided in the bottom portion of the roll-up door.

- One (1) nylon strap shall be provided to assist in closing the door. The strap shall be fastened to the left side of the lower inside door sill. The strap shall extend from the left side of the lower inside door sill to a footman loop attached to the center of the left side of the door frame.

- One (1) aluminum drip pan/door finish guard shall be provided with the rollup door.

Compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.

COMPARTMENT COMPONENTS

 There shall be vertically mounted shelf trac for shelving installation.

 There shall be one (1) 750 lbs. slide-out tray with an OnScene Solutions base approximately 63" deep and as wide as the compartment layout or door opening permits located above the level of the chassis frame rails. The tray will have a vertical wall to allow for the mounting of six (6) SCBA packs in brackets and two (2) spare SCBA bottles in brackets.

 There shall be one (1) vertical compartment partition dividing compartment into left and right sides located in compartment.

 There shall be one (1) SCBA cylinder storage module for 8" OD PVC tubing. The storage module include a base

(with mounting provisions) large enough to secure a three (3) gallon water cooler located to the front of the compartment. Exact layout shall be per the approved sales drawing.

- The SCBA cylinder module shall be capable of storing two (2) SCBA cylinders up to 7.5" diameter.

 There shall be six (6) Zico ULLH walkaway type SCBA air pack bracket(s) provided with strap assembly. The SCBA bracket(s) shall be located to allow for two additional brackets to be installed on the rear of the tool board after delivery of the completed apparatus.

- One (1) Lista Cabinet model CL0900-0704NANR. Cabinet shall be 22" wide x 22.5" deep x 39" high. The cabinet shall have seven (7) drawers, two (2) 2-1/8" deep, two (2) 3-1/8" deep, two (2) 5-1/8" deep and one (1) 9" deep. The cabinet shall be red in color.

 The floor of the compartment above the frame rails shall be extended under the pull-out tray to the interior edge of the door. The floor shall have a 2" vertical lip and a 1" return to increase strength.

 Two (2) vertically mounted OnScene Solutions LED Nightstiks.

 Two (2) 3-1/2" x 3-1/2" black plastic louvered vents shall be provided in lower compartment.

SVI #758 Page 84 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

ROOF ACCESS STAIRWAY

The rear of the body shall be provided with a recessed center stairway approximately 34" wide.

ROLL-OUT AWNING STREETSIDE

A Carefree Mirage, 110 Volt AC powered, Lateral Arm Acrylic Patio Awning with Direct Response Electronics shall be installed on the apparatus body. The Direct Response Electronics includes easy-to-use controls and a Motion Detection

System. The awning shall have a system to detect canopy motion, the most important element to prevent wind/weather damage. The awning shall automatically retract when the canopy reaches a certain level of movement - you determine the movement level on the control panel.

The awning controls shall be located on the lower front wall of compartment S1.

The awning shall activate the door ajar warning system in the cab when not in the stowed position.

The 110V motor shall be completely sealed and UL approved. The awning pitch shall be adjusted to up to 30"

The awning shall be 19' wide with a 10' projection. (Size refers to box length, actual fabric length will be 8" shorter.)

The Mirage shall be covered by a "Two and Four" Limited Warranty - Two years 100% parts, labor, & freight on canopy, four years 100% parts, labor, and freight on motor, electronics, roller & hardware. Warranty covers manufacturer's defects only. Wind and rain damage are not covered.

AWNING HOUSING

The case color will be the standard, Polar White and re-painted to match body color.

 The awning fabric shall be Firesist HUV, Crimson Red (88003).

ROLL-OUT AWNING CURBSIDE

A Carefree Mirage, 110 Volt AC powered, Lateral Arm Acrylic Patio Awning with Direct Response Electronics shall be installed on the apparatus body. The Direct Response Electronics includes easy-to-use controls and a Motion Detection

System. The awning shall have a system to detect canopy motion, the most important element to prevent wind/weather damage. The awning shall automatically retract when the canopy reaches a certain level of movement - you determine the movement level on the control panel.

The awning controls shall be located on the lower front wall of compartment C1.

The awning shall activate the door ajar warning system in the cab when not in the stowed position.

The 110V motor shall be completely sealed and UL approved. The awning pitch shall be adjusted to up to 30"

The awning shall be 19' wide with a 10' projection. (Size refers to box length, actual fabric length will be 8" shorter.)

The Mirage shall be covered by a "Two and Four" Limited Warranty - Two years 100% parts, labor, & freight on canopy, four years 100% parts, labor, and freight on motor, electronics, roller & hardware. Warranty covers manufacturer's defects only. Wind and rain damage are not covered.

SVI #758 Page 85 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

AWNING HOUSING

The case color will be the standard, Polar White and re-painted to match body color.

 The awning fabric shall be Firesist HUV, Crimson Red (88003).

COMPARTMENT COMPONENTS DESCRIPTIONS

All interior compartment components shall be fabricated as follows:

ADJUSTABLE SHELVING HARDWARE

Adjustable shelving hardware shall be provided indicated in the numbered compartment list.

The shelving hardware shall include a minimum of four (4) aluminum shelf tracs mounted vertically on compartment side walls or vertical partitions. There shall be one (1) cast aluminum shelf bracket per vertical shelf trac to mount each shelf, tray, or adjustable storage module. Shelving hardware shall be of heavy duty quality with unlimited vertical adjustment settings.

ADJUSTABLE SHELF/SHELVES

Adjustable shelf/shelves shall be provided in exterior compartment as indicated in the numbered compartment list.

Shelves shall be fabricated from 3/16" (.188) aluminum 3003H-14 alloy smooth plate with a 2" vertical flange along the front and rear edges. Shelves shall be designed to be used with flanges either in the upward position to hold various equipment on shelf, or in the downward position for sweep-out shelf surface.

All shelves shall be fully adjustable, from top to bottom of the compartment. There shall be at least four (4) vertical mounting channels and shelving hardware, two (2) each side of compartment. Shelving hardware shall be of heavy duty quality with unlimited vertical adjustment settings.

SLIDE-OUT EQUIPMENT TRAY - (400 LB CAPACITY)

Slide-out equipment tray(s) shall be provided in exterior compartment, as indicated in the numbered compartment list.

Trays shall be fabricated from 3/16" (.188) aluminum 3003H-14 alloy smooth plate. Trays shall be built with a 3" vertical lip, with welded corners, to form a box type tray surface. Sliding tracks shall be Accuride 502 series. The length shall be per numbered compartment list and the extension shall be 100% of the slide length. Slides shall be constructed of formed steel with ball bearings mounted in triple track rails. The tray shall be rated for a maximum 400 lbs. evenly distributed load.

Tray(s) shall utilize a pneumatic cylinder mounted on underside to hold the tray in both the extended and closed positions.

SVI #758 Page 86 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

HEAVY DUTY 100% EXTENSION EQUIPMENT SLIDE - (750 LB. CAPACITY)

Heavy duty slide-out equipment tray(s) shall be provided in exterior compartment as indicated in the numbered compartment list.

Trays shall be fabricated from 3/16" (.188) aluminum 3003H-14 alloy smooth plate. Trays shall be built with a 4" high vertical lip with welded corners to form a box type tray surface. The tray shall be mounted on a OnScene Solutions slide frame constructed of anodized aluminum extrusion(s). The frame shall be assembled using stainless steel fasteners (no welds). Each slide shall use a three extrusion rail design utilizing twelve to sixteen (12 - 16) urethane rollers. Each roller shall contain two (2) precision roller bearings mounted in an aluminum hub with a molded on urethane cover. The rollers shall not lose contact with the rail extrusion during operation of the slide unit.

Each slide shall have a cable operated, spring loaded latch complimented by a large hand opening and red pull handle

(Pull to Release). The slide shall lock in the closed and full extension positions. The slide shall be rated for a maximum evenly distributed load of 750 lbs.

HEAVY DUTY 70% EXTENSION EQUIPMENT SLIDE TRANSVERSE (1,000 LBS. CAPACITY)

Heavy duty slide-out equipment tray(s) shall be provided in exterior compartment as indicated in the numbered compartment list.

Trays shall be fabricated from 3/16" (.188) aluminum 3003H-14 alloy smooth plate. Each tray shall be built with a 4" high vertical lip with welded corners to form a box type tray surface. The tray shall be mounted on a OnScene Solutions slide frame constructed of anodized aluminum extrusion(s). The frame shall be assembled using stainless steel fasteners (no welds). Each slide shall use a two extrusion rail design utilizing twenty (20) urethane rollers. Each roller shall contain two

(2) precision roller bearings mounted in an aluminum hub with a molded on urethane cover.

Each slide shall have two (2) cable operated, spring loaded latches operated by two (2) large hand openings with red pull handles (Pull to Release). The slide shall lock in the closed and full extension position in two (2) directions. The slide shall be rated for a maximum distributed load of 1,000 lbs.

HEAVY DUTY EQUIPMENT TRAYS - SLIDE OUT AND DOWN ( 150 LBS. CAPACITY)

Heavy duty slide-out equipment tray(s) shall be provided in exterior compartment as indicated in the numbered compartment list.

Trays shall be fabricated from 3/16" (.188) aluminum 3003H-14 alloy smooth plate. Each tray shall be built with a 4" high vertical lip with welded corners to form a box type tray surface. The tray shall be mounted on a OnScene Solutions slide frame constructed of anodized aluminum extrusion(s). The frame shall be assembled using stainless steel fasteners (no welds). Each slide shall use a two extrusion rail design utilizing four (4) urethane rollers. Each roller shall contain two (2) precision roller bearings mounted in an aluminum hub with molded on urethane cover. The roller shall not lose contact with the rail extrusion during operation of the slide unit.

Each slide shall have a cable operated, spring loaded latch complimented by a large hand opening and red pull handle

(Pull to Release). The slide shall lock in the closed position. The slide shall be rated for a maximum evenly distributed load of 150 lbs.

COMPARTMENT PARTITIONS

Vertical compartment partitions shall be provided as indicated in the numbered compartment list. Partitions shall be fabricated of 3/16" thick (.188) smooth aluminum with 1" "L" outer edge. Bolted angles shall be provided at top and bottom of partition to secure partition in place, but allow future removal without cutting of partition.

SVI #758 Page 87 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

WALKAWAY SCBA BRACKET

Ziamatic walkaway type SCBA air pack bracket(s) shall be provided and located per the numbered compartment list.

SCBA brackets shall be Ziamatic ULLH type "Load & Lock" type walkaway brackets complying with the current NFPA

1901standard. Bracket shall consist of backplate, short footplate, two (2) non-mar double-coated seats, and our "Load &

Lock" adjustable strap assembly. The backplate and footplate are black thermoplastic coated for years of trouble-free service. One size fits all U.S. made 30 to 60 minute rated self-contained breathing apparatus.

COMPARTMENT LIGHTING

Each enclosed equipment compartment greater than 4 ft3 (0.1 m3) in volume and having an opening greater than 144 in.2

(92,900 mm2) shall have sufficient compartment lighting to provide a minimum of 2 fc (20 lx) at any location on the floor of the compartment without any shelves, dividers, or equipment in the compartment.

Compartments such as ladder tunnels, pike pole storage tubes, or underbody compartments designed around the volumetric requirements of specific equipment that can be removed without the use of article illumination shall not be required to have compartment lighting.

All compartments shall be equipped with OnScene Nightstik LED lights with the following minimum light requirements;

 Full Height Compartments, 63” Section (42 LED's)

 Wheel well Compartments, 36” Section (24 LED's)

 Rear Rescue Compartment, 63” Section (42 LED's)

 Low Compartments, 18" Section (12 LED's), Vertical

 Low Compartments, 36" Section (24 LED's), Horizontal

The OnScene Nightstik lights shall be rated at 100,000 hours of service and shall be provided with a 5 year free replacement warranty.

ELECTRIC CORD REEL

Electric cord reel(s) shall be provided in exterior compartment as indicated in the numbered compartment list.

The 120 volt cord reel(s) shall be Hannay with electric rewind, equipped with fully enclosed 45 amp, three (3) conductor collector rings.

The 12 volt reel rewind system shall be directly wired to the chassis battery system with heavy duty stranded copper wire, with guarded finger type rewind button located within easy reach of the operator.

Each reel shall have a Hannay 4-way roller assembly to permit cable to feed directly off the reel and away from compartment. Plastic roller assemblies are not acceptable.

The wiring from the generator system shall be through Carflex electrical weatherproof conduit, with stranded copper wiring. The wiring shall terminate in a sealed conduit box at the reel with mechanical type connectors for quick removal of wiring.

SVI #758 Page 88 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

Cord Reel General Requirements

All permanently mounted cord reels shall be rated for continuous duty and installed to be accessible for removal, cord access, maintenance, and servicing.

The power rewind cord reel spool area shall be visible to the operator during the rewind operation, or the reel spool shall be encapsulated to prevent cord from spooling off the reel.

Rollers or guides shall be provided, where required, to prevent damage to the cord at reel spools or compartment openings.

Rewind Provision

Power rewind type reels shall have the control in a position where the operator can observe the rewinding operation. If a reel is in an enclosure or out of direct view, the cord entry point to the enclosure shall be visible to the operator of the reel control.

The rewind control or crank shall not be more than 72 in. (1830 mm) above the operator’s standing position. The rewind control shall be marked with a label indicating its function and shall be guarded to prevent accidental operation.

Cord

The reel shall be designed to hold 110 percent of the capacity needed for the intended cord length.

The wire size shall be in accordance with NFPA 70, Table 400.5(A), but in no case shall it be smaller than 12AWG.

Electrical cord shall be Type SEOOW, Type SOOW, or Type STOOW.

A label that indicates the following information shall be provided in a visible location adjacent to any permanently connected reel:

(1) Current rating

(2) Current type

(3) Phase

(4) Voltage

(5) Total cord length

STEP / GROUND LIGHTS

Step and ground lights shall be OnScene Solutions 9" LED Nightstik and be placed at any entry door and step where personnel climb on or descend from the apparatus to ground level. OnScene LED lights shall have 6 LED lights per 9” light, and shall be rated at 100,000 hours of service. On Scene Solutions LED lights shall be have a 5 year free replacement warranty.

All of the required step and ground lights shall be activated when the parking brake is set.

SVI #758 Page 89 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

LOW VOLTAGE ELECTRICAL SYSTEM- 12 VDC

General

Any low voltage electrical systems or warning devices installed on the fire apparatus shall be appropriate for the mounting location and intended electrical load.

Where wire passes through sheet metal, grommets shall be used to protect wire and wire looms. Electrical connections shall be with double crimp water-tight heat shrink connectors.

All 12 VDC wiring running from front to back of vehicle body shall be run in full length electrical wiring raceway down each side of body.

Wiring

All electrical circuit feeder wiring supplied and installed by the fire apparatus manufacturer shall meet the requirements of

NFPA Chapter 13.

The circuit feeder wire shall be stranded copper or copper alloy conductors of a gauge rated to carry 125 % of the maximum current for which the circuit is protected. Voltage drops in all wiring from the power source to the using device shall not exceed 10 %. The use of star washers for circuit ground connections shall not be permitted.

All circuits shall otherwise be wired in conformance with SAE J1292, Automobile, Truck, Truck-Tractor, Trailer, and Motor

Coach Wiring.

Wiring and Wire Harness Construction

All insulated wire and cable shall conform to SAE J1127, Low Voltage Battery Cable, or SAE J1128, Low Voltage Primary

Cable, type SXL, GXL, or TXL.

All conductors shall be constructed in accordance with SAE J1127 or SAE J1128, except where good engineering practice dictates special strand construction. Conductor materials and stranding, other than copper, shall be permitted if all applicable requirements for physical, electrical, and environmental conditions are met as dictated by the end application. Physical and dimensional values of conductor insulation shall be in conformance with the requirements of

SAE J1127 or SAE J1128, except where good engineering practice dictates special conductor insulation. The overall covering of conductors shall be moisture-resistant loom or braid that has a minimum continuous rating of 194°F (90°C) except where good engineering practice dictates special consideration for loom installations exposed to higher temperatures. The overall covering of jacketed cables shall be moisture resistant and have a minimum continuous temperature rating of 194°F (90°C), except where good engineering practice dictates special consideration for cable installations exposed to higher temperatures.

All wiring connections and terminations shall use a method that provides a positive mechanical and electrical connection.

The wiring connections and terminations shall be installed in accordance with the device manufacturer’s instructions. All ungrounded electrical terminals shall have protective covers or be in enclosures. Wire nut, insulation displacement, and insulation piercing connections shall not be used.

Wiring shall be restrained to prevent damage caused by chafing or ice buildup and protected against heat, liquid contaminants, or other environmental factors.

Wiring shall be uniquely identified at least every 2 ft (0.6 m) by color coding or permanent marking with a circuit function code. The identification shall reference a wiring diagram.

SVI #758 Page 90 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

Circuits shall be provided with properly rated low voltage overcurrent protective devices. Such devices shall be readily accessible and protected against heat in excess of the overcurrent device’s design range, mechanical damage, and water spray. Circuit protection shall be accomplished by utilizing fuses, circuit breakers, fusible links, or solid state equivalent devices.

If a mechanical-type device is used, it shall conform to one of the following SAE standards:

(1) SAE J156, Fusible Links

(2) SAE J553, Circuit Breakers

(3) SAE J554, Electric Fuses (Cartridge Type)

(4) SAE J1888, High Current Time Lag Electric Fuses

(5) SAE J2077, Miniature Blade Type Electrical Fuses

Switches, relays, terminals, and connectors shall have a direct current (dc) rating of 125 % of maximum current for which the circuit is protected.

Power Supply

A 12 V or greater electrical alternator shall be provided. The alternator shall have a minimum output at idle to meet the minimum continuous electrical load of the vehicle, at 200°F (93°C) ambient temperature within the engine compartment, and shall be provided with full automatic regulation.

Minimum Continuous Electrical Load

The minimum continuous electrical load shall consist of the total amperage required to simultaneously operate the following in a stationary mode during emergency operations:

(1) The propulsion engine and transmission

(2) All legally required clearance and marker lights, headlights, and other electrical devices except windshield wipers and four-way hazard flashers

(3) The radio(s) at a duty cycle of 10 percent transmit and 90 % receive (for calculation and testing purposes, a default value of 5 A continuous)

(4) The lighting necessary to produce 2 fc (20 lx) of illumination on all walking surfaces on the apparatus and on the ground at all egress points onto and off the apparatus, 5 fc (50 lx) of illumination on all control and instrument panels, and 50 percent of the total compartment lighting loads

(5) The minimum optical warning system, where the apparatus is blocking the right-of way

(6) The continuous electrical current required to simultaneously operate any fire pumps, aerial devices, and hydraulic pumps

(7) Other warning devices and electrical loads defined by the purchaser as critical to the mission of the apparatus

If the apparatus is equipped to tow a trailer, an additional 45 A shall be added to the minimum continuous electrical load to provide electrical power for the federally required clearance and marker lighting and the optical warning devices mounted on the trailer.

The condition of the low voltage electrical system shall be monitored by a warning system that provides both an audible and a visual signal to persons on, in, or near the apparatus of an impending electrical system failure caused by the excessive discharge of the battery set.

The charge status of the battery shall be determined either by direct measurement of the battery charge or indirectly by monitoring the electrical system voltage.

If electrical system voltage is monitored, the alarm shall sound if the system voltage at the battery or at the master load disconnect switch drops below 11.8 V for 12 V nominal systems, 23.6 V for 24 V nominal systems, or 35.4 V for 42 V nominal systems for more than 120 seconds.

SVI #758 Page 91 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

A voltmeter shall be mounted on the driver’s instrument panel to allow direct observation of the system voltage.

Electromagnetic Interference

Electromagnetic interference suppression shall be provided, as required, to satisfy the radiation limits specified in SAE

J551/1, Performance Levels and Methods of Measurement of Electromagnetic Compatibility of Vehicles, Boats (up to 15

m), and Machines (16.6 Hz to 18 GHz).

Wiring Diagram

A complete electrical wiring schematic of actual system shall be provided with finished apparatus. Similar or generic type electrical schematics shall NOT BE ACCEPTABLE.

Low Voltage Electrical System Performance Test

A low voltage electrical system test certification shall be provided with delivered apparatus.

12 VOLT MULTIPLEX CONTROL CENTER

The apparatus shall have a multiplexed 12 volt electrical system that will provide complete diagnostic capability. The system shall have the capability of delivering multiple signals via a CAN bus, utilizing specifications set forth by SAE

J1939. The system shall be node based to maximize stability so that failure of one node does not affect the operation of the other nodes. The system shall use shielded twisted-pair wire for transmission of system function signals. The shielded wire shall provide protection against EMI and RFI noise interruptions.

The multiplex system shall be responsible for providing power management functions as well as load shedding. The warning light system shall be controlled by the multiplex system. The system shall be capable of displaying text and/or graphic messages on a display module. The system shall be based on solid-state technology and shall include selfcontained diagnostic indicators.

BATTERY SYSTEM

The battery connectors shall be heavy duty type with cables terminating in heat shrink loom. Heavy duty battery cables shall provide maximum power to the electrical system. Where required, the cables shall be shielded from exhaust tubing and the muffler. Large rubber grommets shall be provided where cables enter the battery compartment.

Batteries shall be of the high-cycle type. With the engine off, the battery system shall be able to provide the minimum continuous electrical load for 10 minutes without discharging more than 50 percent of the reserve capacity and then to restart the engine. The battery system cold cranking amps (CCA) rating shall meet or exceed the minimum CCA recommendations of the engine manufacturer. The batteries shall be mounted to prevent movement during fire apparatus operation and shall be protected against accumulations of road spray, snow, and road debris. The batteries shall be readily accessible for examination, testing, and maintenance.

A means shall be provided for jump-starting the engine if the batteries are not accessible without lifting the cab of a tilt-cab apparatus.

Where an enclosed battery compartment is provided, it shall be ventilated to the exterior to prevent the buildup of heat and explosive fumes. The batteries shall be protected against vibration and temperatures that exceed the battery manufacturer’s recommendation.

A master load disconnect switch shall be provided between the starter solenoid(s) and the remainder of the electrical loads on the apparatus. The starter solenoids shall be connected directly to the batteries.

SVI #758 Page 92 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

Electronic control systems and similar devices shall be permitted to be otherwise connected if so specified by their manufacturer.

The alternator shall be wired directly to the batteries through the ammeter shunt(s), if one is provided, and not through the master load disconnect switch.

A green “battery on” pilot light that is visible from the driver’s position shall be provided.

A sequential switching device shall be permitted to energize the optical warning devices and other high current devices required in minimum continuous electrical load, provided the switching device shall first energize the electrical devices required in minimum continuous electrical load within five (5) seconds.

BATTERY SWITCH

One (1) battery "On/Off" switch in cab located within easy reach of Driver with green "BATTERY ON" pilot light that is visible from the driver’s position shall be provided. The switch and pilot light shall be supplied and installed by the cab/chassis manufacturer.

BATTERY SOLENOID

Battery switch shall consist of a minimum 200 ampere, constant duty solenoid to feed from positive side of battery.

BATTERY CONDITIONER

One (1) Xantrex model XC5012 battery conditioner, with 120 VAC input, and 50 amp 12 VDC output shall be provided.

This system shall have a multiplex charging mode which employs the 3-stage charging algorithm: Bulk, Absorption, and

Float. During the Bulk stage the battery is accepting high current. In the Absorption stage the battery voltage is held constant and the current declines. Finally, in the Float stage, the charger continues to provide voltage at a lower level to maintain the battery in a fully charged state. If there is no load on the battery, it will typically draw very little current. The charger, however, is able to provide current to its full rating to power DC loads on the battery. In float, if batteries are very new or a battery is on the low end of the size range and if it is fully charged to the point where it will not accept any more current, then the charger will enter an adaptive float/no float behavior where it shall alternate between float charging (flo) and resting the battery (rdy).

A remote bar graph type indicator panel shall be provided for showing status of battery charger.

The charger shall have a EMC FCC Class B Approval, NO EXCEPTIONS.

CHASSIS AIR SHORE PUMP

One (1) Kussmaul Auto-Pump 12 volt, 80 psi air compressor shall be provided and installed to maintain air pressure in chassis air brake system.

BATTERY CHARGE INDICATOR

A Kussmaul 091-94-12E charge indicator display shall be provided and located in the window directly behind the drivers door. This single battery system indicator is a suppressed zero bar graph voltage display which may be installed in any 12 volt system.

SVI #758 Page 93 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

SHORE POWER INLET

One (1) Kussmaul 120 VAC, 30 amp Super Auto-Eject shore power inlet(s) shall be provided. The shore power connection shall automatically disengage from vehicle when chassis ignition is engaged.

The protective ground from the shoreline inlet shall be bonded to the vehicle frame.

 The outlet cover shall be red.

The shore power plug shall be located on the left hand side of cab over the wheel well .

ENGINE COMPARTMENT LIGHT

Engine compartment light(s) shall be supplied and installed by the cab chassis manufacturer.

CAB DOME LIGHTS

There shall be two (2) Truck-Lite model #80354, 7" diameter halogen dome lights with red lens provided above each pedestal seat. The light(s) shall be switched at the door for cab 12 VDC interior lighting.

CAB DOME LIGHTS

There shall be three (3) Truck-Lite model #80354, 7" diameter halogen dome lights with clear lens provided above each pedestal seat and centered over the specified white board. The light(s) shall be switched at the door for cab 12 VDC interior lighting.

CAB HAZARD WARNING LIGHT

A red "HAZARD" warning light shall be supplied and installed by the cab/chassis manufacturer. Light shall illuminate automatically to warn the Driver of the following when the apparatus parking brake is not fully engaged:

 Any passenger or compartment door is open

 Equipment rack is not in stowed position

 Light tower is extended

The light shall be labeled "DO NOT MOVE APPARATUS WHEN LIGHT IS ON".

BACK-UP ALARM

An electronic back-up alarm shall be supplied and installed by the cab/chassis manufacturer. The back-up alarm shall actuate automatically when the transmission gear selector is placed in reverse.

REAR VIEW CAMERA

The cab chassis provided rear view camera shall be installed on the rear of the body.

SVI #758 Page 94 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

TAIL LIGHTS

Rear body tail lights shall be vertically mounted per Federal Motor Vehicle Safety Standards. The following lights shall be furnished:

 Two (2) Whelen amber LED 600 Series 60A00TAR turn signal lights

 Two (2) Whelen red LED 600 Series 60R00XRR stop/tail lights

 Two (2) Whelen halogen 600 Series 60J000CR back-up lights with clear lens

 Two (2) Whelen warning lights as detailed in the warning light section

Two (2) Whelen CAST-4V, 4-light polished aluminum bezels shall be provided, one (1) each side vertically mounted on the rear of the apparatus body for the above tail lights.

MIDSHIP MARKER/TURN SIGNAL

Two (2) Whelen LED midship body clearance marker/turn signal lights (T0A00MAR) shall be installed. There shall be one

(1) light on each side of the body, in the wheel well, ahead of the rear axle. Both lights shall have an amber lens and operate with the chassis clearance marker and turn signals.

MARKER LIGHTS

The apparatus body shall be equipped with all necessary clearance lights and reflectors in accordance with Federal Motor

Vehicle Safety Standards (FMVSS) regulations. All body clearance lights shall be LED to reduce the need for maintenance and lower the amp draw. Clearance lights shall be wired to the headlight circuit of the chassis.

LICENSE PLATE MOUNTING BRACKET

There shall be one (1) Cast Products aluminum license plate mounting with chrome shielded license plate light mounted on the rear of the body.

ELECTRONIC SIREN

One (1) Federal /Unitrol Omega 5000 siren controller shall be provided in the cab within easy reach of the Driver. An

Omega model 90 remote mounted universal 100/200 watt siren/PA amplifier shall also be provided. The siren control shall include the following positions:

Position #1: Rear (amber) warning lights only

Position #2: All warning lights including lightbar

Position #3: All warning lights including lightbar, clear warning, Opticom, and power for audible warning devices

A Unitrol noise canceling type microphone shall be provided for the PA system.

SIREN SPEAKER

The siren speaker(s) shall be supplied and installed by the cab/chassis manufacturer.

SVI #758 Page 95 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

SIDE SCENE LIGHTS

There shall be four (4) Whelen 810 series (10" x 8") surface mounted Opti-Scene halogen lights (810CA0ZR) provided on the upper body. Each light will have a 8-32 degree lens and chrome flange. They will be equally divided between the curbside and streetside.

Two (2) switches shall be provided, one (1) for the streetside scene lights, and one (1) for the curbside scene lights.

The lights shall be switched at the Vista display in the cab.

REAR SCENE LIGHTS

Two (2) Whelen 810 series (10" x 8") surface mounted Opti-Scene halogen lights (810CA0ZR) shall be provided on the upper rear body to light the work area immediately behind the vehicle to a level of at least 3 fc (30 lx) within a 10 ft × 10 ft

(3 m × 3 m) square. Each light will have a 8-32 degree lens and chrome flange.

The lights shall be switched at the Vista display in the cab.

The rear scene lights shall also be activated when the apparatus is in reverse.

DAVID CLARK INTERCOM SYSTEM

The following David Clark intercom system shall be provided and installed to improve the safety of firefighters and rescue professionals through enhanced communication and hearing protection. the system will have six (6) headset stations. The

Driver, Officer and two (2) rear pedestal seat positions will have PTT capabilities. The rear fold down theater style seat will have two (2) intercom only positions. This system will allow for connection to two (2) FD supplied Radios, exact make and model of radios will be determined at the pre construction meeting.

System shall have the following major components as minimum;

1. One (1) U3800

2. One (1) U3803

3. Two (2) U3810

4. Two (2) U3815

Master Station

Junction System Station

Radio Interface Station

Radio Headset Station

Head Sets dual ear with mic-on/off button 5. Six (6) H3332

SVI #758 Page 96 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

WARNING LIGHT PACKAGE

Each apparatus shall have a system of optical warning devices that meets or exceeds the requirements of this section.

The optical warning system shall consist of an upper and a lower warning level. The requirements for each level shall be met by the warning devices in that particular level without consideration of the warning devices in the other level.

For the purposes of defining and measuring the required optical performance, the upper and lower warning levels shall be divided into four warning zones. The four zones shall be determined by lines drawn through the geometric center of the apparatus at 45 degrees to a line drawn lengthwise through the geometric center of the apparatus. The four zones shall be designated A, B, C, and D in a clockwise direction, with zone A to the front of the apparatus.

Each optical warning device shall be installed on the apparatus and connected to the apparatus’s electrical system in accordance with the requirements of this standard and the requirements of the manufacturer of the device.

A master optical warning system switch that energizes all the optical warning devices shall be provided.

The optical warning system on the fire apparatus shall be capable of two separate signaling modes during emergency operations. One mode shall signal to drivers and pedestrians that the apparatus is responding to an emergency and is calling for the right-of-way. One mode shall signal that the apparatus is stopped and is blocking the right-of-way. The use of some or all of the same warning lights shall be permitted for both modes provided the other requirements of this chapter are met.

A switching system shall be provided that senses the position of the parking brake or the park position of an automatic transmission. When the master optical warning system switch is closed and the parking brake is released or the automatic transmission is not in park, the warning devices signaling the call for the right-of-way shall be energized. When the master optical warning system switch is closed and the parking brake is on or the automatic transmission is in park, the warning devices signaling the blockage of the right-of-way shall be energized. The system shall be permitted to have a method of modifying the two signaling modes.

The optical warning devices shall be constructed or arranged so as to avoid the projection of light, either directly or through mirrors, into any driving or crew compartment(s). The front optical warning devices shall be placed so as to maintain the maximum possible separation from the headlights.

SVI #758 Page 97 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

UPPER LEVEL OPTICAL WARNING DEVICES

The upper-level optical warning devices shall be mounted as high and as close to the corner points of the apparatus as is practical to define the clearance lines of the apparatus. The upper-level optical warning devices shall not be mounted above the maximum height, specified by the device manufacturer.

ZONE A - FRONT WARNING LIGHTS

There shall be one (1) Whelen Edge FN72QLED CUSTOM LED 72" lightbar permanently mounted to the cab roof.

The lightbar configuration (streetside to curbside) shall be:

SECTION INTERNAL COMPONENTS LENS COLOR

3

4

1

2

5

6

7 & 8

9

Red Linear LED - Side Facing

Red Corner LED

Blue Linear LED

Red Linear LED

Blue Linear LED

Red Linear LED

OPTI-COM

Blue Linear LED

Clear

Clear

Clear

Clear

Clear

Clear

Clear

Clear

10

11

12

13

Red Linear LED

Blue Linear LED

Red Linear LED

Blue Corner LED

Clear

Clear

Clear

Clear

14 Blue Linear LED - Side Facing Clear

All clear lights shall shut down when the parking brake is set to comply with "Blocking" mode requirements as outlined in

NFPA 1901.

The lightbar shall be separately switched at the vista display in the cab.

3M OPTICOM

One (1) 3M Opticom emitter light shall be installed either inside specified light bar, or on cab roof. The Opticom shall be activated with light bar and de-activated when the park brake is set and the vehicle is in blocking mode.

ZONES B AND D - SIDE WARNING LIGHTS

UPPER REAR CORNER WARNING LIGHTS

There shall be two (2) Whelen 900 series (9" x 7") Linear Super-LED lights provided. The streetside light will be red in color with a red lens and the curbside light will be blue in color with a blue lens. Each light shall have a chrome flange.

SVI #758 Page 98 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

UPPER FORWARD CORNER WARNING LIGHTS

There shall be two (2) Whelen 900 series (9" x 7") Linear Super-LED lights provided. The streetside light will be blue in color with a blue lens and the curbside light will be red in color with a red lens. Each light shall have a chrome flange.

ZONE C - REAR WARNING LIGHTS

There shall be two (2) Whelen 900 series (9" x 7") Amber Linear Super-LED lights (90AA5FAR) provided, one (1) each side positioned above the specified red/blue warning lights. Each light shall have an amber lens and chrome flange.

The lights shall be switched at the Vista display in the cab. Lights will be programmed to be controlled independently of other warning lights.

There shall be two (2) Whelen 900 series (9" x 7") Linear Super-LED lights provided. The streetside light will be blue in color with a blue lens and the curbside light will be red in color with a red lens. Each light shall have a chrome flange.

LOWER LEVEL OPTICAL WARNING DEVICES

To define the clearance lines of the apparatus, the optical center of the lower-level optical warning devices in the front of the vehicle shall be mounted on or forward of the front axle centerline and as close to the front corner points of the apparatus as is practical.

The optical center of the lower-level optical warning devices at the rear of the vehicle shall be mounted on or behind the rear axle centerline and as close to the rear corners of the apparatus as is practical. The optical center of any lower-level device shall be between 18 in. and 62 in. (460 mm and 1600 mm) above level ground for large apparatus, and 18 in. and

48 in. (460 mm and 1220 mm) above level ground for small apparatus.

A midship optical warning device shall be mounted right and the left sides of the apparatus if the distance between the front and rear lower-level optical devices exceeds 25 ft (7.6 m) at the optical center. Additional midship optical warning devices shall be required, where necessary, to maintain a horizontal distance between the centers of adjacent lower-level optical warning devices of 25 ft (7.6 m) or less. The optical center of any midship mounted optical warning device shall be between 18 in. and 62 in. (460 mm and 1600 mm) above level ground.

ZONE A - FRONT WARNING LIGHTS

The warning lights shall be supplied and installed by the cab/chassis manufacturer. They shall be Whelen lights to complete an NFPA compliant lower level warning light system.

The lights shall be switched at the Vista display in the cab.

ZONES B AND D - CAB INTERSECTOR LIGHT (CAB FRONT CORNERS)

The warning lights shall be supplied and installed by the cab/chassis manufacturer. They shall be Whelen lights to complete an NFPA compliant lower level warning light system.

The lights shall be switched at the Vista display in the cab.

ZONES B AND D - BODY INTERSECTOR LIGHT (BODY WHEELWELL AREA)

There shall be two (2) Whelen 500 series (5" x 2") TIR6 Super-LED lights provided. The streetside light will be blue in color with a blue lens and the curbside light will be red in color with a red lens. Each light shall have a red lens and chrome finished flange.

The lights shall be switched at the Vista display in the cab.

SVI #758 Page 99 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

ZONES B AND D - BODY INTERSECTOR LIGHT (BODY REAR CORNERS)

There shall be two (2) Whelen 600 series (6" x 4") blue Linear Super-LED lights (60B02FBR) provided. The streetside light will be blue in color with a blue lens and the curbside light will be red in color with a red lens. Each light shall have a chrome flange.

The lights shall be switched at the Vista display in the cab.

ZONE C - REAR WARNING LIGHTS (LOWER REAR CORNERS)

There shall be two (2) Whelen 600 series (6" x 4") red Linear Super-LED lights (60R02FCR) provided. The streetside light will be red in color with a red lens and the curbside light will be blue in color with a blue lens. Each light shall have a chrome flange.

The lights shall be switched at the Vista display in the cab.

SVI #758 Page 100 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

LINE VOLTAGE ELECTRICAL SYSTEM

DIESEL GENERATOR

An Onan model 10HDKAG, diesel driven generator shall be installed on the apparatus. The generator shall be installed so that fumes, vapors, heat, and vibrations do not enter the driving or crew compartment. The generator shall be rated at

10,000 watts at 120/240 VAC, 83.3/41.7 amps, single phase. Current frequency shall be stable at 60 hertz.

Generator features shall include:

 3-cylinder diesel engine

 Brush type AC alternator

 Integral enclosed muffler

 USDA approved spark arrestor

 Internal radiator

 Sound attenuated housing

 Intake silencer

 Heavy-duty air cleaner

 Maintenance-free electronic governor

 Digital voltage regulation

 Regulated-voltage 15 A battery charging

 Hourmeter

 Waterproof connector for remote operation

 Electric fuel pump

 Fuel filter

 Full flow oil filter

 Automatic timed glow plugs for quick easy start

 Overvoltage, low oil pressure, overtemp, overspeed, overload, and AC alternator overtemp safeties

Overall size of generator shall 42" L x 21" W x 27" H and weigh 520 lbs.

Generator Shall be equipped with a high temperature automatic shutdown system and a low oil (pressure or level) automatic shutdown system. The generator shall be installed in accordance with the generator manufacturer’s requirements for ventilation and service accessibility.

If the generator is installed in a compartment and the compartment doors must be open during its operation, the generator shall be equipped with an interlock system to prevent its operation if the doors are not open, or the compartment shall be equipped with a high temperature alarm.

Permanently installed generators shall have readily accessible engine oil drain provisions and piping to a location under the body for oil changing. The drain line shall be labeled as to function.

If the generator is located in a position on the apparatus where the operator cannot see the instrumentation and operate the controls while standing at ground level or positioned at a specifically designated operator station, an operating panel with the required instrumentation, start and stop controls, and other controls necessary for safe operation shall be provided at a remote operator’s panel.

FUEL SYSTEM

Fuel lines shall be protected from chafing at all wear points. If the fuel source is shared with the apparatus engine, a separate fuel pickup system shall be provided that is arranged to ensure that the generator cannot utilize more than 75 percent of the fuel tank’s capacity.

SVI #758 Page 101 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

EXHAUST SYSTEM

The exhaust piping and discharge shall be located or shielded to prevent thermal damage to the apparatus or equipment.

The exhaust shall be piped to the exterior of the vehicle and discharged at a location away from any operator’s position.

Where parts of the exhaust system are exposed so that they can cause injury to operating personnel, protective guards shall be provided.

Silencing devices shall be provided and shall not create exhaust backpressure that exceeds the limits specified by the engine manufacturer.

GENERATOR MOUNTING

The generator shall be mounted in an upper roof compartment on rubber vibration isolators. The compartment shall be reinforced where necessary to hold weight of generator. A valve shall be provided on the generator oil drain outlet and piped to underside of generator compartment with flexible hose and plug. The drain shall be located where easily accessible for generator service.

FUEL SYSTEM

The generator fuel system shall be plumbed to the chassis main fuel tank. A separate fuel line shall be installed directly from the tank, not connected to the truck engine fuel line system. The generator fuel line shall be properly protected and secured inside of chassis frame. A shut-off valve shall be provided between the generator and fuel line as it enters the compartment.

STARTING SYSTEM

The generator starting system shall be powered by chassis battery system with heavy duty stranded copper cables. The starter line shall by-pass the chassis master switch to permit generator operation when the apparatus engine is not running. This starter line shall be of sufficient size for the generator, adequately protected and supported inside the chassis frame area.

COOLING

Since the generator is radiator cooled, the ventilation of the generator is crucial. The installation shall permit operation of the unit both while the apparatus is stationary or while it is in motion.

The cooling air flow shall be through screened panels in the compartment doors. Two dual Flex-a-lite fans will be installed to help direct the air flow through the compartment, one fan will push the air into the compartment while the other fan pulls the air out.

The additional fans shall provide adequate air flow for operation of the generator in stationary or moving, with the compartment doors in the closed position.

EXHAUST SYSTEM

The generator exhaust system shall be equipped with a residential type muffler for maximum quieting, and black iron rigid pipe to link the generator to the muffler. The exhaust pipe shall be securely supported and shall be shielded or insulated to prevent excessive heating of the compartment.

MANUALS AND SCHEMATICS

Two (2) complete manuals on parts list, maintenance, wiring schematics, hydraulic schematics, circuit boards, voltage regulator board and other components shall be provided on delivery.

SVI #758 Page 102 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

GENERATOR COMPARTMENT INSULATION

The generator compartment shall be provided with heavy duty sound insulation applied to walls and ceiling. Insulation shall have a high temperatures rating with a foil facing and attached to walls with a positive type fasteners, glue type adhesive shall not be acceptable.

GENERATOR INSTRUMENTS AND CONTROLS

To properly monitor the generator performance and load demand during operation, a metering panel shall be provided on the apparatus. This panel shall be located near the circuit breaker panel.

The installation shall be equipped with the following instruments:

 Voltmeter

 Ammeter (per line)

 Hourmeter (accumulated run time)

 Frequency meter

GENERATOR CONTROLS

In addition to generator controls provided at the generator, there shall be controls provided in the Vista display of the cab.

The following controls shall be provided:

 One (1) pre-heat switch (if generator is diesel).

 One (1) start/stop switch.

 One (1) generator running indicator light.

LOADCENTER

The loadcenter shall be a Cutler Hammer, BR Series, specifically designed for protection and distribution of 120/240 volt

AC, such as lighting and small motor branch circuits. The loadcenter enclosure shall be made of 16 gauge galvanized sheet steel. The galvanized coating provides corrosion protection and as such does not require paint. All trims used on the BR Loadcenter shall be chromate sealed and finished with electro disposition epoxy paint (ASA61) which exceeds requirements for outdoor and indoor applications. A combination surface/flush cover with integral door shall be supplied.

The loadcenter shall be UL/CSA listed, NO EXCEPTIONS will be allowed.

SVI #758 Page 103 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

SHORE POWER INLET - SPECIFIED CIRCUITS

One (1) Kussmaul 30 amp Super Auto-Eject shore power inlet shall be provided and wired to specified circuits below.

The shore power connection shall automatically disengage from vehicle when chassis ignition is engaged. The shore power inlet shall provide an external power source for apparatus electrical circuits. A matching 30 ampere plug shall be shipped with the apparatus for Surprise Fire Department supplied external power source wiring.

A transfer switch shall be required to isolate one power source from the other where a circuit(s) is intended to be supplied from more than one power source. To protect both the generator and external power source from back feed, two (2) 120 volt, 30 ampere, 4PST auxiliary contact with safety interlock relay shall be installed. Relay shall cut-off the connection between the generator supply circuit and device circuits when shore power is connected.

Transfer equipment, including transfer switches, shall operate such that all ungrounded conductors of one power source are disconnected before any ungrounded conductors of the second power source are connected. The neutral conductor shall be switched through the transfer switch. The apparatus shall have a label permanently affixed at the power inlet that indicates the line voltage, and amperage.

 The outlet cover shall be white.

 The shore power plug shall be located near the Driver door area.

Shore power inlet shall be wired to the following specified 120 VAC circuits;

 Shore power shall be wired to all primary 120 VAC, 20 ampere electrical outlets on apparatus (maximum of two (2) circuits). Circuits shall be provided with circuit breaker protection with either generator or shore power providing power.

 Shore power shall be wired to all primary interior 120 VAC, lights on apparatus (maximum of two (2) circuits). Circuits shall be provided with circuit breaker protection with either generator or shore power providing power.

 Shore power shall be wired to the specified 120 VAC air conditioning unit(s), (maximum of two (2) units).

OUTLETS AND CIRCUITS

The generator shall supply the electrical equipment and outlets outlined below. Proper circuit protection shall be installed as noted:

 Two (2) 120 volt exterior outlets, both located on streetside rear of body.

- The outlet receptacle shall be 20 amp, twist-lock (NEMA L5-20R).

SVI #758 Page 104 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

INVERTER

The apparatus shall be equipped with a Xantrex model Prosine 3.0 inverter that provides 3,000 watt inverter, 50 A surge capability, 120 VAC, 60 cycle output from 12 VDC.

The alternator and/or battery system shall be adequate to provide power for continuous operation for a minimum of 2 hours at full output.

Prosine 3.0

 Power factor corrected multistage charger

 True sine wave output (crystal controlled)

 Built-in 30 A transfer switch automatically transfers between inverter power and incoming AC power

 Equalization mode conditions batteries for longer life

 Power sharing prevents tripping of shore power breaker

 Compact, lightweight, and easy to install

 Includes remote panel and battery temperature sensor

 Two year warranty

Protection Features

 Over voltage and under voltage protection

 Over temperature protection and automatic overload protection

 Short circuit AC backfeed protection

Prosine 3.0 (ACS) Remote Panel (Included)

 Independent inverter and charger on/off controls

 Push button control of power sharing, equalizing, battery set-up

 Easy to read backlit digital display

 Single at-a -glance display of AC and DC system information

 Text message fault diagnostics

BATTERY CHARGE INDICATOR

A Kussmaul 091-94-12E charge indicator display shall be provided and located near drivers door area. This single battery system indicator is a suppressed zero bar graph voltage display which may be installed in any 12 volt system.

INVERTER BATTERY SUPPLY

There shall be three (3) deep cycle batteries provided as the 12volt power source for the onboard inverter. The batteries shall incorporate Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance. The batteries shall be mounted in a stainless steel pan with hold down provisions for mobile application.

INVERTER BATTERY SUPPLY - VSR

There shall be one (1) Voltage Sensitive Relay (VSR) provided with the deep cycle batteries. The VSR allows two batteries to be charged at the same time. When the engine is started and the start battery reaches 13.7 volts, the VSR engages, allowing two battery banks (start and inverter supply) to be charged simultaneously. When the voltage drops below 12.8 volts (e.g. the engine is stopped), the VSR disengages, separating the batteries. This system eliminates the possibility of draining the wrong battery and protects sensitive electronic equipment powered from the house battery from harmful engine start up spikes.

SVI #758 Page 105 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

GENERAL REQUIREMENTS

Stability

Any fixed line voltage power source producing alternating current (ac) shall produce electric power at 60 Hz, ±3 Hz when producing power at all levels between no load and full rated power. Any fixed line voltage power source shall produce electric power at the rated voltage ±10 percent when producing power at all levels between no load and full rated power.

The maximum voltage supplied to portable equipment shall not exceed 275 volts to ground. Higher voltage shall be permitted only when used to operate fixed wired, permanently mounted equipment on the apparatus.

Conformance with National Electrical Code

All components, equipment, and installation procedures shall conform to NFPA 70, National Electrical Code, except where superseded by the requirements of this chapter. Where the requirements of this chapter differ from those in NFPA 70, the requirements in this chapter shall apply.

Where available, line voltage electrical system equipment and materials included on the apparatus shall be listed and used only in the manner for which they have been listed. All equipment and materials shall be installed in accordance with the manufacturer’s instructions.

Location Ratings

Any equipment used in a dry location shall be listed for dry locations. Any equipment used in a wet location shall be listed for wet locations.

Any equipment, except a PTO-driven generator, used in an underbody or under chassis location that is subject to road spray shall be either listed as Type 4 or mounted in an enclosure that is listed as Type 4.

If a PTO-driven generator is located in an underbody or under chassis location, the installation shall include a shield to prevent road spray from splashing directly on the generator.

Grounding

Grounding shall be in accordance with 250.34(A) and 250.34(B) of NFPA 70. Ungrounded systems shall not be used.

Only stranded or braided copper conductors shall be used for grounding and bonding.

The grounded current-carrying conductor (neutral) shall be insulated from the equipment-grounding conductors and from the equipment enclosures and other grounded parts.

The neutral conductor shall be colored white or gray in accordance with 200.6, “Means of Identifying Grounded

Conductors,” of NFPA 70.

Any bonding screws, straps, or buses in the distribution panelboard or in other system components between the neutral and equipment-grounding conductor shall be removed and discarded.

SVI #758 Page 106 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

Bonding

The neutral conductor of the power source shall be bonded to the vehicle frame. The neutral bonding connection shall occur only at the power source. In addition to the bonding required for the low voltage return current, each body and each driving or crew compartment enclosure shall be bonded to the vehicle frame by a copper conductor.

The conductor shall have a minimum amperage rating, as defined in 310.15, “Ampacities for Conductors Rated 0–2000

Volts,” of NFPA 70, of 115 percent of the rated amperage on the power source specification label.

A single conductor that is sized to meet the low voltage and line voltage requirements shall be permitted to be used.

Ground Fault Circuit Interrupters

In special service vehicles incorporating a lavatory, sink, toilet, shower, or tub, 120 V, 15 or 20 A receptacles within 6 ft

(1.8 m) of these fixtures shall have ground fault circuit interrupter (GFCI) protection. GFCIs integrated into outlets or circuit breakers or as stand-alone devices shall be permitted to be used in situations.

Power Source General Requirements

All power source system mechanical and electrical components shall be sized to support the continuous duty nameplate rating of the power source.

The power source shall be shielded from contamination that would prevent the power source from operating within its design specifications.

Power Source Rating

For power sources of 8 kW or larger, the power source manufacturer shall declare the continuous duty rating that the power source can provide when installed on fire apparatus according to the manufacturer’s instructions and run at 120°F

(49°C) air intake temperature at 2000 ft (600 m) above sea level.

The rating on the power source specification label shall not exceed the declared rating from the power source manufacturer.

Access shall be provided to permit both routine maintenance and removal of the power source for major servicing. The power source shall be located such that neither it nor its mounting brackets interfere with the routine maintenance of the fire apparatus.

Instrumentation

If the power source is rated at less than 3 kW, a “Power On” indicator shall be provided. If the power source is rated at 3 kW or more but less than 8 kW, a voltmeter shall be provided.

If the power source is rated at 8 kW or more, the following instrumentation shall be provided at an operator’s panel:

(1) Voltmeter

(2) Current meters for each ungrounded leg

(3) Frequency (Hz) meter

(4) Power source hour meter

The instrumentation shall be permanently mounted at an operator’s panel. The instruments shall be located in a plane facing the operator. Gauges, switches, or other instruments on this panel shall each have a label to indicate their function.

SVI #758 Page 107 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

The instruments and other line voltage equipment and controls shall be protected from mechanical damage and not obstructed by tool mounting or equipment storage.

An instruction plate(s) that provides the operator with the essential power source operating instructions, including the power-up and power-down sequence, shall be permanently attached to the apparatus at any point where such operations can take place.

Operation

Provisions shall be made for placing the generator drive system in operation using controls and switches that are identified and within convenient reach of the operator.

Where the generator is driven by the chassis engine and engine compression brakes or engine exhaust brakes are furnished, they shall be automatically disengaged for generator operations.

Any control device used in the generator system power train between the engine and the generator shall be equipped with a means to prevent unintentional movement of the control device from its set position in the power generation mode.

If there is permanent wiring on the apparatus that is designed to be connected to the power source, a power source specification label that is permanently attached to the apparatus at the operator’s control station shall provide the operator with the information required.

The power source, at any load, shall not produce a noise level that exceeds 90 dBA in any driving compartment, crew compartment, or onboard command area with windows and doors closed or at any operator’s station on the apparatus.

Power Supply Assembly

The conductors used in the power supply assembly between the output terminals of the power source and the main overcurrent protection device shall not exceed 12 ft (4 m) in length.

All power supply assembly conductors, including neutral and grounding conductors, shall have an equivalent amperage rating and shall be sized to carry not less than 115 percent of the amperage of the nameplate current rating of the power source.

If the power supply assembly connects to the vibrating part of a generator (not a connection on the base), the conductors shall be flexible cord or other fine-stranded conductors enclosed in metallic or nonmetallic liquid tight flexible conduit rated for wet locations and temperatures not less than 194°F (90°C).

Overcurrent Protection

Manually resettable overcurrent devices shall be installed to protect the line voltage electrical system components.

Power Source Protection

A main overcurrent protection device shall be provided that is either incorporated in the power source or connected to the power source by a power supply assembly.

The size of the main overcurrent protection device shall not exceed 100 percent of the rated amperage stated on the power source specification label or the rating of the next larger available size overcurrent protection device, where so recommended by the power source manufacturer.

If the main overcurrent protection device is subject to road spray, the unit shall be housed in a Type 4–rated enclosure.

SVI #758 Page 108 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

Branch Circuit Overcurrent Protection

Overcurrent protection devices shall be provided for each individual circuit and shall be sized at not less than 15 amps in accordance with 240.4, “Protection of Conductors,” of NFPA 70.

Any panelboard shall have a main breaker where the panel has six or more individual branch circuits or the power source is rated 8 kW or larger.

Each overcurrent protection device shall be marked with a label to identify the function of the circuit it protects.

Dedicated circuits shall be provided for any large appliance or device (air conditioning units, large motors, etc.) that requires 60 percent or more of the rated capacity of the circuit to which it is connected, and that circuit shall serve no other purpose.

Panelboards

All fixed power sources shall be hardwired to a permanently mounted panelboard unless one of the following conditions exists:

(1) All line voltage power connections are made through receptacles on the power source and the receptacles are protected by integrated overcurrent devices.

(2) Only one circuit is hardwired to the power source, which is protected by an integrated overcurrent device.

The panel shall be visible and located so that there is unimpeded access to the panelboard controls. All panelboards shall be designed for use in their intended location. The panel(s) shall be protected from mechanical damage, tool mounting, and equipment storage.

Where the power source is 120/240 V and 120 V loads are connected, the apparatus manufacturer or line voltage system installer shall consider load balancing to the extent that it is possible.

Wiring Methods

Fixed wiring systems shall be limited to the following:

(1) Metallic or nonmetallic liquid tight flexible conduit rated at temperatures not less than 194°F (90°C) with stranded copper wire rated for wet locations and temperatures not less than 194°F (90°C)

(2) Type SOW, SOOW, SEOW, or SEOOW flexible cord rated at 600 V and at temperatures not less than 194°F (90°C)

Electrical cord or conduit shall not be attached to chassis suspension components, water or fuel lines, air or air brake lines, fire pump piping, hydraulic lines, exhaust system components, or low voltage wiring and shall be arranged as follows:

(1) Separated by a minimum distance of 12 in. (300 mm) from exhaust piping or shielded from such piping

(2) Separated from fuel lines by a minimum distance of 6 in. (150 mm)

A means shall be provided to allow “flexing” between the driving and crew compartment, the body, and other areas or equipment whose movement would stress the wiring.

Electrical cord or conduit shall be supported within 6 in. (150 mm) of any junction box and at a minimum of every 24 in.

(600 mm) of run.

Supports shall be made of nonmetallic materials or of corrosion-resistant or corrosion-protected metal. All supports shall be of a design that does not cut or abrade the conduit or cord and shall be mechanically fastened to the apparatus.

SVI #758 Page 109 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

Only fittings and components listed for the type of cord or conduit being installed shall be used.

Splices shall be made only in a listed junction box.

Additional Requirements for Flexible Cord Installations

Where flexible cord is used in any location where it could be damaged, it shall be protected by installation in conduit, enclosures, or guards.

Where flexible cord penetrates a metal surface, rubber or plastic grommets or bushings shall be installed.

Wiring Identification

Each line voltage circuit originating from the main panelboard shall be identified.

The wire or circuit identification either shall reference a wiring diagram or wire list or shall indicate the final termination point of the circuit.

Where prewiring for future power sources or devices exists, the un-terminated ends shall be marked with a label showing their wire size and intended function.

Wiring System Components

Only stranded copper conductors with an insulation rated for temperatures of at least 194°F (90°C) and wet locations shall be used. Conductors in flexible cord shall be sized in accordance with Table 400.5(A) of NFPA 70. Conductors used in conduit shall be sized in accordance with 310.15, “Ampacities for Conductors Rated 0–2000 Volts,” of NFPA 70.

Aluminum or copper-clad aluminum conductors shall not be used.

All boxes shall conform to and be mounted in accordance with Article 314, “Outlet, Device, Pull, and Junction Boxes;

Conduit Bodies; Fittings; and Manholes,” of NFPA 70. All boxes shall be accessible using ordinary hand tools. Boxes shall not be permitted behind welded or pop-riveted panels.

The maximum number of conductors permitted in any box shall be in accordance with 314.16, “Number of Conductors in

Outlet, Device, and Junction Boxes, and Conduit Bodies,” of NFPA 70.

All wiring connections and terminations shall provide a positive mechanical and electrical connection. Connectors shall be installed in accordance with the manufacturer’s instructions. Wire nuts or insulation displacement and insulation piercing connectors shall not be used.

Each switch shall indicate the position of its contact points (i.e., open or closed) and shall be rated for the continuous operation of the load being controlled. All switches shall be marked with a label indicating the function of the switch.

Circuit breakers used as switches shall be “switch rated” (SWD) or better. Switches shall simultaneously open all associated line voltage conductors. Switching of the neutral conductor alone shall not be permitted.

Line voltage circuits controlled by low voltage circuits shall be wired through properly rated relays in listed enclosures that control all non-grounded current-carrying conductors.

Receptacles and Inlet Devices

Wet and Dry Locations

All wet location receptacle outlets and inlet devices, including those on hardwired, remote power distribution boxes, shall be of the grounding type, provided with a wet location cover, and installed in accordance with Section 406.8, “Receptacles in Damp or Wet Locations,” of NFPA 70.

SVI #758 Page 110 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

All receptacles located in a wet location shall be not less than 24 in. (600 mm) from the ground. Receptacles on off road fire apparatus shall be a minimum of 30 in. (750 mm) from the ground. All receptacles located in a dry location shall be of the grounding type and shall be at least 12 in. (300 mm) above the interior floor height. No receptacle shall be installed in a face-up position.

The face of any wet location receptacle shall be installed in a plane from vertical to not more than 45 degrees off vertical.

Receptacle Label

Each receptacle shall be marked with a label indicating the nominal line voltage (120 volts or 240 volts) and the current rating in amps of the circuit. If the receptacle is DC or other than single phase, that information shall also be marked on the label.

All receptacles and electrical inlet devices shall be listed to UL 498, Standard for Safety Attachment Plugs and

Receptacles, or other recognized performance standards.

Receptacles used for DC voltages shall be rated for DC service.

Wiring Schematics

An "As-Built" Wiring diagrams for line voltage systems shall be provided to include the following information;

(a) Pictorial representations of circuit logic for all electrical components and wiring

(b) Circuit identification

(c) Connector pin identification

(d) Zone location of electrical components

(e) Safety interlocks

(f) Alternator–battery power distribution circuits

(g) Input/output assignment sheets or equivalent circuit logic implemented in multiplexing systems

120/240 VAC SCENE LIGHTING

SIDE UPPER RECESSED SCENE LIGHTS

Four (4) Fire Research Focus, model FCA200-S50, recessed light(s) shall be installed. They shall be equally divided between the curbside and streetside. The housing shall incorporate internal heat-dissipating fins and have cutout dimensions not to exceed 2" deep by 4 1/4" high by 9 3/4" wide. The lamphead shall protrude no more than 1 1/2" from the housing flange. Wiring shall extend from the bottom of the recessed housing.

The lamp head shall have one (1) quartz halogen 500 watt 120 volt bulb. The bulb shall draw 4.2 amps and generate

10,500 lumens. The bulb shall be accessible through the front. The lamphead shall direct 50 percent of the light onto the action area while providing 50 percent to illuminate the working area. Lamphead and housing shall be powder coated white. The floodlight shall be UL listed as a scene light for fire service use.

Scene lights shall be provided with a lens or a means for preventing damage from water spray and shall be listed for wet location usage.

 The above lights shall be controlled by two (2) switch(es) in the lower portion of compartment S1.

SVI #758 Page 111 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

MIDDLE ATLANTIC 16U DATA RACK

Slide-out equipment rack shall be Middle Atlantic Products model # SRS4-16.

Overall dimensions of rack shall be 19.06” W x 29.875” H x 18.88” D with 16 useable rack spaces and 250 lb. weight capacity. Useable frame depth for installed components shall be 18.25”, rack shall pull out 19” on integrated ball bearing slides for equipment servicing. Rackrail shall be 11-gauge steel with tapped 10-32 holes in universal EIA spacing. Rack rail shall be finished in black e-coat with marked rack spaces. SRS rough-in pan shall be 14-gauge steel. Finish on SRS assembly shall be durable flat black powder coat. Trim/locking panel shall lock SRS in closed position and be 11-gauge aluminum with brushed black anodized finish.

The PD-920R-NS rackmount power distribution unit is equipped with 8 circuit breaker protected rear outlets (NEMA 5-

20R), and one front outlet (NEMA 5-15R). An illuminated combination power switch/circuit breaker is located on the front panel. UL listed in the US and Canada. Occupies one rackspace.

PRINTER AND FAX PROVISIONS

There shall be wiring and provisions for one (1) customer supplied and installed printer/fax machine. The wiring provisions will allow for the printer to be wired for network connectivity and power.

The printer shall be located on the front streetside corner of the cab 'L' shaped desk.

PRE-WIRE LCD MONITORS

Wiring for Three (3) customer installed LCD monitors shall be provided at the rear cab work desk area.

The pre-wiring will including all miscellaneous coax cable, 120 volt AC wiring, and cable connections.

The monitor pre-wires shall be located at the following positions:

 One (1) in front of each pedestal seating location

 One (1) in the corner of the 'L' shaped cab desk, high on the streetside wall, below the overhead cabinets

 Three (3) Ram Mount monitor mounting system will be installed at the rear cab work desk as located on the drawing.

The mounts will consists of a heavy duty universal assembly that will attach a flat surface to another flat surface.

Includes a universal base piece to mount heavy devices to a flat surface and a 4.75" x 4.75" face plate recommended for mounting heavy devices such as monitors and flat screen electronics. Features a hole pattern for 100mm and

75mm VESA standards.

PRE-WIRE WEATHERPAK WEATHER STATION

Pre-wiring for a future fire department supplied WEATHERPAK® TRx 2 will be provided. The wiring will run from a mount located in the at the driver side rear upper roof walk-way area and terminate in the rear cab work area data rack.

PRE-WIRE FUTURE MAST AND PELCO CAMERA

Pre-wiring for a future fire department supplied Wilburt mast and a Pelco camera will be provided. The wiring will run from curbside rear step area and terminate in the rear cab work area data rack.

SVI #758 Page 112 of 113 March 8, 2010

Surprise Fire Department

Hazmat

Production Specification

EQUIPMENT

The following equipment shall be furnished with the completed Special Service vehicle;

 One (1) container of assorted stainless steel nuts, bolts, screws and washers used in the construction of the apparatus shall be provided with the completed apparatus.

 There shall be two (2) NFPA approved aluminum wheel chocks provided for 44" diameter tires that together will hold the vehicle when loaded to its GVWR or GCWR, on a hard surface with a 20 % grade, with the transmission in neutral, and the parking brake released.

- The wheel chock(s) shall be mounted on the apparatus, location as per the Surprise Fire Department.

 Two (2) Streamlight LiteBox Vehicle Mounting Systems shall be provided. Each flashlight shall be orange in color.

Each flashlight shall have a 12 volt DC charger and vehicle mount kit. Each flashlight shall have a 20 watt spotlight style bulb and reflector. The flashlights shall be wired to batter direct unless otherwise specified by the customer.

- The flashlight(s) shall be mounted on the completed unit in compartment S4 on the aft wall.

SVI #758 Page 113 of 113 March 8, 2010
