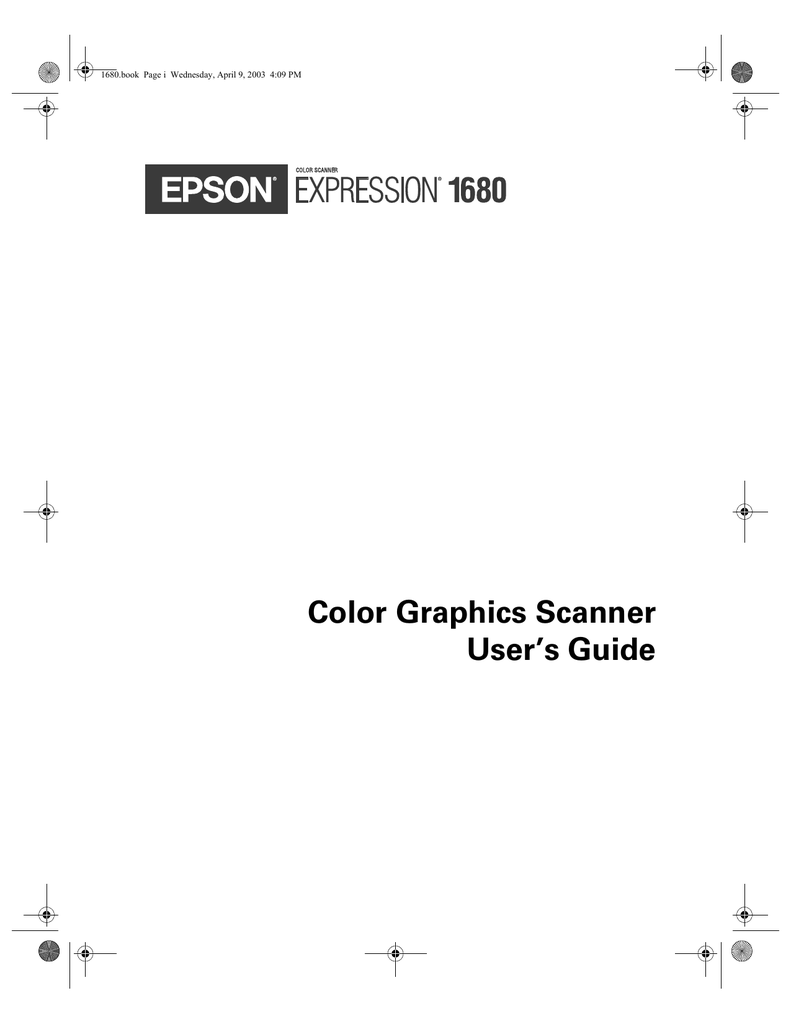

Color Graphics Scanner
User’s Guide
1680.book Page ii Wednesday, April 9, 2003 4:09 PM
Copyright Notice
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of SEIKO EPSON CORPORATION. The information contained herein is designed only for
use with this EPSON scanner. EPSON is not responsible for any use of this information as applied to other
scanners.
Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of this product or third
parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse,
or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the
U.S.) failure to strictly comply with SEIKO EPSON CORPORATION’s operating and maintenance instructions.
SEIKO EPSON CORPORATION shall not be liable for any damages or problems arising from the use of any
options or any consumable products other than those designated as Original EPSON Products or EPSON
Approved Products by SEIKO EPSON CORPORATION.
A Note Concerning Responsible Use of Copyrighted Materials
Ink jet printers, digital cameras and scanners, like photocopiers and conventional cameras, can be misused by
improper copying and printing of copyrighted material. While some countries’ laws permit limited copying of
copyrighted material in certain circumstances, those circumstances may not be as broad as some people assume.
EPSON encourages each user to be responsible and respectful of the copyright laws when using digital cameras and
scanners.
Trademarks
EPSON is a registered trademark, and Matrix CCD is a trademark of SEIKO EPSON CORPORATION.
Micro Step Drive is a trademark, EPSON Expression and ColorTrue are registered trademarks, and EPSON Store
is a service mark of Epson America, Inc.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of
their respective owners. EPSON disclaims any and all rights in those marks.
Copyright © 2003 by Epson America, Inc.
Printed on recycled paper
ii
CPD-15926
4/03
1680.book Page iii Wednesday, April 9, 2003 4:09 PM
Contents
WELCOME
About Your Scanner
Getting More Information
Warnings, Cautions, Notes, and Tips
Viewing Your Electronic User’s Guide
1
1
2
2
3
Chapter 1
5
HOW TO SCAN
Placing Your Original Document
Using EPSON Scan
Starting Your Scan and Choosing a Mode
Scanning With EPSON Scan in Home Mode
Scanning With EPSON Scan in Office Mode
Scanning With EPSON Scan in Professional Mode
Selecting the Scanning Area in the Preview Window
Scanning Tips
Selecting Resolution
Scaling (Resizing) Images
Scanning Color Images
5
6
7
8
10
12
16
17
17
18
18
Chapter 2
19
USING OPTIONAL EQUIPMENT
Transparency Unit
Unpacking the Transparency Unit
Removing the Shipping Screw
Installing the Transparency Unit
Using the Film Guides
Scanning Reflective Documents
20
20
21
21
23
27
iii
1680.book Page iv Wednesday, April 9, 2003 4:09 PM
Automatic Document Feeder
Unpacking the Automatic Document Feeder
Installing the Automatic Document Feeder
Loading Paper in the Automatic Document Feeder
Fixing Paper Jams
IEEE 1394 FireWire Scanner Interface Card
Installing the Card in Your Scanner
Connecting the Scanner to Your Computer
28
28
29
31
32
33
33
34
Chapter 3
35
MAINTENANCE
Transporting the Scanner
Transporting the Transparency Unit
Cleaning the Scanner
35
36
37
Chapter 4
39
SOLVING PROBLEMS
Diagnosing Scanner Problems
Checking the Scanner’s Lights
Problems and Solutions
Scanner Problems
Software Problems
Quality Problems
Uninstalling and Reinstalling EPSON Scan
Where To Get Help
EPSON Technical Support
Software Technical Support
iv
Contents
40
40
41
41
43
44
49
51
51
52
1680.book Page v Wednesday, April 9, 2003 4:09 PM
Appendix A SPECIFICATIONS
53
Appendix B REQUIREMENTS AND NOTICES
57
System Requirements
Windows
Macintosh
Important Safety Instructions
Declaration of Conformity
FCC Compliance Statement
57
57
58
58
59
60
ENERGY STAR Compliance
Warranty
61
61
INDEX
63
Contents
v
1680.book Page vi Wednesday, April 9, 2003 4:09 PM
vi
Contents
1680.book Page 1 Wednesday, April 9, 2003 4:09 PM
Welcome
The EPSON Expression® 1680 is a 48-bit color, professional scanner designed to
meet the needs of graphic arts professionals and business graphics users. Using
EPSON’s ColorTrue® II Imaging System, the scanner reproduces images with
amazingly accurate detail and color. Your scanner can achieve up to 1600 × 3200 dpi
hardware resolution with EPSON’s proprietary Micro Step Drive™ technology, and is
one of the fastest scanners in its class.
About Your Scanner
Your EPSON Expression 1680 scanner comes with these features:
■
Superior image quality with remarkable 1600 × 3200 dpi hardware resolution
■
48-bit color and 3.6 Dmax optical density
■
Easy-to-use scanner software with three scanning modes offering progressive levels
of control over the scanned image
■
Optional transparency unit, automatic document feeder, and IEEE 1394
FireWire® scanner interface card
Note: The transparency unit comes with the Professional and Professional
FireWire models of the Expression 1680. The IEEE 1394 FireWire scanner
interface card is preinstalled on the Professional FireWire model.
1
1680.book Page 2 Wednesday, April 9, 2003 4:09 PM
Getting More Information
There are several ways to learn more about your EPSON Expression 1680 scanner. In
addition to the printed materials, help utilities and electronic manuals are available.
Here’s where to look for help:
■
EPSON Expression 1680 User’s Guide
Provides instructions on using EPSON Scan, including maintenance information
and troubleshooting tips. You installed an HTML version of this manual on your
computer when you installed the scanner software. See page 3 for instructions on
viewing the on-screen manual.
■
On-Screen Help
For more information about your EPSON Scan software, click the Help button.
If you have the Professional or Professional FireWire model, most of the
applications that come with your scanner include on-screen help.
■
Electronic Documents
For Professional or Professional FireWire models, LaserSoft Imaging™ SilverFast,®
Adobe® Photoshop Elements,® and MonacoEZcolor® include electronic manuals
in Adobe Acrobat PDF format.
If none of these sources answers your questions, please see “Where To Get Help” on
page 51.
Warnings, Cautions, Notes, and Tips
Please follow these guidelines as you read this manual:
Warning: Warnings must be followed carefully to avoid bodily injury.
Caution: Cautions must be observed to avoid damage to your equipment.
Note: Notes contain important information about your scanner.
Tip: Tips contain additional hints for great scanning.
2
Welcome
1680.book Page 3 Wednesday, April 9, 2003 4:09 PM
Viewing Your Electronic User’s Guide
An electronic version of this EPSON Expression 1680 User’s Guide was installed on
your computer when you installed the scanner software. You must have a web browser
(Netscape Navigator® or Microsoft® Internet Explorer, versions 3.0 or later) to
view it.
To open the manual, double-click the Exp1680 User’s Guide shortcut icon on your
desktop.
Your browser opens and you see this window:
Click a page
icon to view
its topic
Click on one of the page icons on the left side of the screen to move to that topic in
the manual.
Welcome
3
1680.book Page 4 Wednesday, April 9, 2003 4:09 PM
4
Welcome
1680.book Page 5 Wednesday, April 9, 2003 4:09 PM
Chapter 1
How To Scan
This chapter gives you step-by-step instructions for scanning with EPSON Scan.
Follow the instructions here for:
■
Placing your document on the scanner’s document table
■
Starting EPSON Scan
■
Scanning with each of the three scanning modes
■
Using the preview window to select the area of your image that you want to scan
■
Selecting resolution, resizing images, and scanning color images
Placing Your Original Document
This section explains how to position a photo or single-page document for scanning.
If you’re scanning film or slides, see “Using the Film Guides” on page 23 for
instructions on placing your transparencies (you must have the transparency unit
installed). If you’re scanning a multi-page document using the optional automatic
document feeder, see “Loading Paper in the Automatic Document Feeder” on
page 31.
Note: If you have a Professional or Professional FireWire model of the EPSON
Expression 1680, the transparency unit came with your scanner. Or you can order
the transparency unit and automatic document feeder from EPSON. See page 19
for ordering information.
5
1680.book Page 6 Wednesday, April 9, 2003 4:09 PM
1. Raise the scanner cover and place your document face down on the document
table. Align it with the scales along the upper right corner of the document table.
2. Close the document cover slowly. Be careful not to move the document.
Tip: If the edges of your document don’t scan properly, move it in one-quarter
inch from the edges of the document table.
You can remove the document cover if you need to scan a thick item—such as a
photo in an album—that doesn’t fit under the cover. Simply lift the back of the
cover straight up. When you reattach the cover, line the rods up with the
positioning holes and lower the cover into place.
Using EPSON Scan
EPSON Scan provides three scanning modes to give you progressive levels of control
over your scanned image:
6
■
Home Mode: Makes scanning quick and easy. It includes a simple interface,
automatic image adjustments, and preset configurations for various types of scans.
■
Office Mode: Includes a basic interface with practical scan settings designed for
documents. Choose either this mode or Professional Mode to scan multi-page
documents on the optional automatic document feeder (see page 28). You cannot
use this mode to scan film or slides, and it is not recommended for photos.
■
Professional Mode: Lets you manually configure advanced image settings,
including the histogram setting, tone, color depth, balance, saturation, brightness,
and contrast.
How To Scan
1680.book Page 7 Wednesday, April 9, 2003 4:09 PM
Starting Your Scan and Choosing a Mode
You can use the import or acquire function of a TWAIN-compliant application such
as Adobe® Photoshop® to scan images directly into your application. Or you can scan
to your hard drive by starting EPSON Scan from the Windows® Start menu, or the
Macintosh® Apple® menu or Applications folder. You would then open the file in
another application to print it or modify it for the screen or World Wide Web.
Follow these steps to start EPSON Scan and choose a scanning mode:
1. Choose the Import (or Acquire) option in your application and choose EPSON
Expression 1680, or open EPSON Scan as follows:
■
In Windows, click Start > Programs or All Programs > EPSON Scan >
EPSON Scan.
■
In Mac OS X, double-click the EPSON Scan icon in your Applications
folder.
■
In Mac OS 8.6 to 9.x, click EPSON Scan in the Apple menu.
Note: If you have multiple scanners installed, you are prompted to choose your
scanner. Click EPSON Expression 1680 and click OK.
2. Choose a mode from the Mode list at the top of the EPSON
Scan dialog box.
If you choose Home Mode, a preview scan opens
automatically. (This is the default. If you don’t want an
automatic preview, deselect Auto Preview on the EPSON Scan dialog box.)
3. Continue with the instructions for your mode:
■
“Scanning With EPSON Scan in Home Mode” on page 8
■
“Scanning With EPSON Scan in Office Mode” on page 10
■
“Scanning With EPSON Scan in Professional Mode” on page 12
How To Scan
7
1680.book Page 8 Wednesday, April 9, 2003 4:09 PM
Scanning With EPSON Scan in Home Mode
1. Start EPSON Scan and choose Home Mode from the Mode menu (see page 7).
You see this dialog box:
Select Home Mode
2. If you don’t see an automatic preview of your scan, click Preview.
3. Click the
Auto Detect button in the preview window to automatically select
your entire photo or document, or click and drag to create a scanning selection
area (marquee). For more information on using marquees, see page 16.
Note: If the scanned image in the preview window has a blue box around it,
you’re previewing in thumbnail mode and won’t be able to create a marquee.
Click the arrow beside the Preview button in the EPSON Scan dialog box and
select Normal from the pull-down menu. Then click the Preview button to
preview in normal mode.
8
How To Scan
1680.book Page 9 Wednesday, April 9, 2003 4:09 PM
4. Choose a Document Type from the list.
Note: If you’re scanning film, choose Color Negative Film, B&W Negative Film,
or Positive Film. If you’re scanning slides, choose Positive Film.
5. Choose an Image Type:
■
Color for color photos or documents with color
■
Grayscale for black-and-white photos or documents with grayscale images
■
Black&White for plain text documents
6. Choose a Destination setting:
■
Printer if you’re printing the image
■
Screen/Web if you will only view your image on the screen
■
Other if you’re shrinking or enlarging your image. Then choose the Target
Size for your final scanned image.
7. Select a Target Size if you want to specify any size other than that of the original
document.
8. Adjust the Brightness and Contrast settings, if necessary.
9. If you’re scanning printed materials, select Descreening Filter to reduce the
moiré patterns in the image.
10. Click Scan.
■
If you’re scanning from an application, the image opens in your application
window. Click Close to close the EPSON Scan window.
■
If you’re scanning to your hard drive, you
see a File Save Settings window. Type a
name for your file in the Prefix field, then
choose an image type and click OK. (For
more details, see the EPSON Scan
on-screen Help.)
How To Scan
9
1680.book Page 10 Wednesday, April 9, 2003 4:09 PM
Scanning With EPSON Scan in Office Mode
1. Start EPSON Scan and choose Office Mode from the Mode menu (see page 7).
You see this dialog box:
Select Office Mode
2. Click Preview to see a preview of your scan.
3. Click the
Auto Detect button in the preview window to automatically select
your entire document, or click and drag in the preview window to create a
scanning selection area (marquee). For more information on using marquees, see
page 16.
4. Choose an Image Type:
10
■
Color for documents with color
■
Grayscale for documents with grayscale images
■
Black&White for plain text documents
How To Scan
1680.book Page 11 Wednesday, April 9, 2003 4:09 PM
5. Choose the Document Source:
■
Document Table for documents placed on the scanner’s document table (See
page 5.)
■
ADF for documents loaded in the optional automatic document feeder (You
must have the automatic document feeder installed to see this option; see
page 28.)
■
Auto Detect to allow the scanner to automatically detect whether your
document is on the document table or loaded in the automatic document
feeder (You must have the automatic document feeder installed to see this
option; see page 28.)
6. Select the Size of your document, or select Auto Detect in the Size list to let the
scanner automatically detect the document size.
Note: The Orientation option is not functional for the Expression 1680.
7. Make any of these adjustments, as necessary:
■
Select a resolution
■
Adjust the Brightness and Contrast settings for your image
■
If you’re scanning printed materials, select Descreening Filter to reduce the
moiré patterns in the image
■
To sharpen the image, select Unsharp Mask Filter
8. Click Scan.
■
If you’re scanning from an application,
the image opens in your application
window. Click Close to close the EPSON
Scan window.
■
If you’re scanning to your hard drive, you
see a File Save Settings window. Type a
name for your file in the Prefix field, then
choose an image type. (For more details,
see the EPSON Scan on-screen Help.)
How To Scan
11
1680.book Page 12 Wednesday, April 9, 2003 4:09 PM
Scanning With EPSON Scan in Professional Mode
1. Start EPSON Scan and choose Professional Mode from the Mode menu (see
page 7). You see this dialog box:
Select Professional
Mode
2. Click Preview to see a preview of your scan.
3. Click the
Auto Detect button in the preview window to automatically select
your entire document, or click and drag in the preview window to create a
scanning selection area (marquee). For more information on using marquees, see
page 16.
4. Choose the Document Type:
12
■
Reflective for a photo or printed document
■
Transparency for film or slides (You must have the transparency unit
installed to see this option; see page 20.) If you choose this option, go to
step 6.
How To Scan
1680.book Page 13 Wednesday, April 9, 2003 4:09 PM
Note: The Document Type you select determines which options appear in the
EPSON Scan dialog box.
5. If you chose Reflective as the Document Type, do the following:
■
Choose the Document Source: Document Table, or ADF for documents
loaded in the optional automatic document feeder (see page 28).
■
Choose the Auto Exposure Type: Photo to optimize exposure for photos, or
Document to optimize exposure for printed material.
6. If you chose Transparency as the Document Type, choose the Film Type:
Positive Film (for slides and some film), Color Negative Film, or B&W
Negative Film.
7. Either click Scan to complete your scan, or continue with the instructions in the
next section to fine-tune it.
Using Professional Mode To Customize Your Scan
1. Choose a color depth setting from the Image Type menu:
■
48-bit Color
■ 24-bit Color
■ Color Smoothing
■
16-bit Grayscale
■ 8-bit Grayscale
■ Halftone
■ Black & White
Note: If you choose 48-bit Color, make sure your application supports 48-bit
image files.
Click to see more options, then choose Best or Draft for the Scanning Quality
setting.
2. Choose a resolution setting (50 to 12800 dpi).
3. If you want to specify a Target Size for
your scanned image other than the
original size, select a size from the
pull-down menu. You can also click to
see more options, then type in the width
and height, or scale the image with a
percentage. If Trimming is set to On, your image is cropped to fit your specified
size. If it is Off, your image is sized to fit you specified size as closely as possible.
How To Scan
13
1680.book Page 14 Wednesday, April 9, 2003 4:09 PM
4. Use the Adjustment settings to modify your image as necessary. (You may have to
use the scroll bar to see these options.)
Auto Adjust – Click this button to let the software detect and analyze the
image with the document settings you’ve specified to determine the optimum
settings for your scan.
Histogram Adjustment – Click this button to adjust the highlight, shadow,
and gamma input levels.
Tone Correction – Click this button to choose a preset tone curve for specific
effects or to change the tone curve manually.
Image Adjustment – Click this button to adjust the color balance, saturation,
brightness, and contrast settings.
For any of the setting windows above, you can click Reset to go back to the
default settings for your image. See the EPSON Scan on-screen help for more
information about the Adjustment options.
5. If you want to sharpen the image, select
the Unsharp Mask Filter option. Click
to see more options, then choose a Level to
reduce or increase the effect.
6. Select the Descreening Filter option to reduce the moiré patterns in the image.
To specify the source image you are scanning, click to see more options, then
choose the closest option to your source document in the Screen Ruling menu.
(You may have to use the scroll bar to see this menu.)
14
How To Scan
1680.book Page 15 Wednesday, April 9, 2003 4:09 PM
7. Click Scan.
■
If you’re scanning from an application,
the image opens in your application
window. Click Close to close the
EPSON Scan window.
■
If you’re scanning to your hard drive,
you see a File Save Settings window.
Type a name for your file in the Prefix
field, then choose an image type. (For
more details, see the EPSON Scan
on-screen Help.)
How To Scan
15
1680.book Page 16 Wednesday, April 9, 2003 4:09 PM
Selecting the Scanning Area in the Preview Window
The preview window lets you select the area of your image that you want to scan with
a marquee (a frame that you draw around the previewed image). You can create up to
50 marquees at one time. The currently selected marquee has a moving, dotted line.
EPSON Scan adjusts the image quality settings to optimize each selected area.
Duplicate button
Delete button
Auto Detect button
Number of
marquees
Focus - click to
change the
scanner’s
focus setting
Densitometer - click to
view a pixel-level preview
of the image
16
Currently selected
marquee
■
To automatically create a marquee around the entire image (and cut out the
document table area) click the
Auto Detect button.
■
To select the area to scan, click and drag in the preview window. A marquee
appears around the selection.
■
To move the marquee, move the cursor to its center. When the cursor turns to a
hand symbol, click and drag the marquee to a new position.
■
To resize the marquee, move the cursor to an edge or corner of the dotted line.
When the cursor turns into an arrow symbol, click and drag to resize the
selection area.
How To Scan
1680.book Page 17 Wednesday, April 9, 2003 4:09 PM
■
To zoom to the selected area, click the
Zoom button. If you have multiple
marquees, the currently selected one appears in the Zoom preview.
■
To erase a marquee, click the marquee and click the
■
To create multiple marquees of the same dimensions, select one marquee, then
click the
Duplicate button.
■
To scan all marquees at once, click the All button.
Delete button.
Scanning Tips
Getting the best scan possible depends on several factors, including the quality of your
original and the resolution you select. The better your original is, the better your scan
will be. To get the best possible scan, keep the document table clean, and make sure
the document is flat against the glass surface. You can make many corrections in your
scanning software (EPSON Scan, or LaserSoft SilverFast if you have the Professional
or Professional FireWire model of the scanner). For additional photo retouching, use
an image editing program such as Adobe Photoshop Elements.
Selecting Resolution
Resolution refers to how many dots per inch (dpi) or dots per centimeter (dpcm) your
image contains. The best resolution for a scanned image depends on the type of image
you’re scanning and your final output device.
For most images, use a scanning resolution that is approximately one third of your
output resolution. For example, use a scanning resolution of 200 dpi if you want to
print at 600 dpi. If you’re scanning an image to view on-screen, choose a resolution
of 96 dpi.
How To Scan
17
1680.book Page 18 Wednesday, April 9, 2003 4:09 PM
Follow the guidelines in this table for selecting a resolution:
Type of scan
Resolution
Photograph
300 dpi
Text with images
400 dpi
Film or slides
300 to 3200 dpi
Line art
300 to 3200 dpi
Image for web
96 to 150 dpi
Text for OCR
400 dpi
Newspaper
400 dpi
Magazine
300 dpi
Scaling (Resizing) Images
If you plan to enlarge your image, it’s better to enlarge it by scanning at a higher
resolution. If you change the image resolution or size in an application, you lose image
quality. Keep this in mind when scanning small photos or film that you plan to
enlarge.
Scanning Color Images
If the colors in your scanned image don’t match those in your original document, try
experimenting with the Document Type/Image Type settings and Image Adjustment
settings to adjust the colors. Also, try selecting just the area that you want to scan with
a marquee (see page 16). This will let the scanner software choose the optimum color
and exposure settings for that part of the image. If there is a border around your image
or if the document cover is in the scanning area, this may adjust the exposure and
colors in your scan.
18
How To Scan
1680.book Page 19 Wednesday, April 9, 2003 4:09 PM
Chapter 2
Using Optional Equipment
There are three options available for the EPSON Expression 1680 color scanner:
■
Transparency unit (B813182)
■
Automatic document feeder (B813162)
■
IEEE 1394 FireWire scanner interface card (B808342)
Note: If you have the Professional or Professional FireWire model of the EPSON
Expression 1680, the transparency unit came with your scanner. If you have the
Professional FireWire model, the IEEE 1394 FireWire scanner interface card was
preinstalled in your scanner.
You can purchase supplies and accessories from the EPSON Store™ at
(800) 873-7766, or visit www.epsonstore.com (U.S. sales only). In Canada, please
call (800) 463-7766 for dealer referral.
Follow the instructions in this chapter for:
■
Unpacking and installing the transparency unit
■
Using the film guides
■
Scanning reflective documents when the transparency unit is installed
■
Unpacking and installing the automatic document feeder
■
Loading paper in the automatic document feeder
■
Fixing paper jams in the automatic document feeder
■
Installing the IEEE 1394 FireWire scanner interface card
19
1680.book Page 20 Wednesday, April 9, 2003 4:09 PM
Transparency Unit
The transparency unit (B813182) allows you to scan transparent materials—35 mm
slides, filmstrips, and film up to 8.5 × 11.7 inches (216 × 297 mm) in size. To switch
between scanning transparent materials and normal reflective (paper) documents,
simply insert or remove the reflective document mat that came with the scanner. For
instructions on using the reflective document mat, see page 27.
Unpacking the Transparency Unit
Make sure that all of the following items are included in the transparency unit box. If
any items are missing or damaged, contact your EPSON dealer, or contact EPSON at
(562) 276-4382 (in the United States) or (905) 709-3839 (in Canada). Keep all the
packing materials so you can use them for storage when you are not scanning
transparencies.
Storage slot
Transparency unit
Screws
Reflective document mat
Flm holders
Note: Use the transparency unit’s storage slot to store the reflective document
mat. Don’t store anything else in the storage slot.
20
Using Optional Equipment
1680.book Page 21 Wednesday, April 9, 2003 4:09 PM
Removing the Shipping Screw
To prevent damage during shipping, a shipping screw is attached to the transparency
unit to secure its lamp assembly. You must remove this screw before using the
transparency unit.
1. Turn the transparency unit so the glass side faces up.
2. Use a Phillips (cross
head) screwdriver to
remove the shipping
screw from the hole
labeled CLAMP, as
shown at right.
3. Install the screw in the
storage hole labeled
STOCK.
Caution: Before transporting the transparency unit, follow the procedures on
page 36 to protect it from damage.
Installing the Transparency Unit
1. Make sure the scanner is turned off.
2. Remove the document cover by
grasping the back of the document
cover and easing the cover up.
3. Make sure the document table is
clean and dust free.
4. Position the slots on the transparency
unit’s mounting bracket over the
heads of the two mounting screws
located at the back of the scanner.
Using Optional Equipment
21
1680.book Page 22 Wednesday, April 9, 2003 4:09 PM
5. Slide the transparency unit forward slightly until the two holes in front of these
slots are aligned with the screw holes at the back of the scanner.
6. Insert the two installation screws that came with the transparency unit into the
screw holes, then tighten the screws with a coin.
7. Gently close the transparency unit.
8. Connect the transparency unit
cable to the OPTION connector at
the back of the scanner. Tighten
the attached screws.
See “Using EPSON Scan” on page 6
for scanning instructions.
22
Using Optional Equipment
1680.book Page 23 Wednesday, April 9, 2003 4:09 PM
Using the Film Guides
You can use the four film guides that came with the transparency unit to scan 35mm
slides, strips of 35mm negative or positive film, 120-size or 220-size format film, and
4 × 5-inch film.
If the reflective document mat is installed (see page 27), be sure to remove it before
scanning film or slides. Keep it in the transparency unit’s storage slot when not in use.
Note: Make sure the transparency unit is completely closed before you scan, or
an error will occur and you will be unable to scan.
Loading 35mm film
Follow these steps to load 35mm positive or negative film:
1. Place the 35mm filmstrip guide on a flat surface and remove the cover from one
of the strip holders.
2. Insert a filmstrip in the holder with the shiny side
face down and the film emulsion layer face up.
Line up the sprocket holes on the filmstrip with
the guide posts on the holder.
61 004L
3. Replace the film cover and press down until it
clicks.
4. Repeat steps 1 through 3 for all the film strips
you scan.
Using Optional Equipment
23
1680.book Page 24 Wednesday, April 9, 2003 4:09 PM
5. Place the 35mm filmstrip
guide on the document table,
and align it with the ruled edges of
the document table.
6. Close the TPU and begin
scanning.
If you’re using EPSON Scan,
follow these guidelines:
■
Choose either Home Mode or Professional Mode.
■
In Home Mode, choose the correct Document Type (Color Negative Film,
B&W Negative Film, or Positive Film).
■
In Professional Mode, select Transparency as your Document Type, then
select the correct Film Type.
Loading 35mm slides
Follow these steps to load 35mm slides:
1. Load slides in the 35mm slide holder as shown.
Make sure the glossy side of each slide faces down,
and the film emulsion layer faces up.
2. Position the slide holder on
the document table. Align the slide
holder with the ruled edges of the
document table.
3. Close the TPU and begin your scan.
If you’re using EPSON Scan, follow
these guidelines:
24
■
Choose either Home Mode or
Professional Mode.
■
In Home Mode, choose Positive Film as your Document Type.
■
In Professional Mode, choose Transparency as your Document Type and
Positive Film the Film Type.
Using Optional Equipment
1680.book Page 25 Wednesday, April 9, 2003 4:09 PM
Loading 4 × 5-inch film
Follow these steps to load 4 × 5-inch film:
1. Place the 4 × 5-inch film guide on a flat
surface and remove the cover from one of
the film holders.
2. Insert the film in the film holder, making
sure the glossy (smooth) side of the film
faces down and the film emulsion layer
faces up. Then close the cover.
Note: Make sure that the film cover is
completely closed, and that it holds the film
taut without bowing. Bowing can cause
distortions in the scanned image.
3. Repeat steps 1 and 2 for all the film you scan.
4. Place the 4 × 5-inch film guide on
the document table. Align it with the
ruled edges of the document table as
shown.
5. Close the TPU and begin your scan.
If you’re using EPSON Scan, follow
these guidelines:
■
Choose either Home Mode or Professional Mode.
■
In Home Mode, choose the correct Document Type (Positive Film, Color
Negative Film, or B&W Negative Film).
■
In Professional Mode, select Transparency as your Document Type, then
select the correct Film Type.
Using Optional Equipment
25
1680.book Page 26 Wednesday, April 9, 2003 4:09 PM
Loading 120-size or 220-size (medium format) film
Follow these steps to load 120-size or
220-size format film:
1. Place the 120/220-size film guide on a
flat surface and open the cover for one
of the film holders.
2. Insert the film in the film holder,
making sure the glossy (smooth) side of
the film faces down, and the film
emulsion layer faces up. Then close the
cover.
Note: Make sure that the film cover is completely closed, and that it holds the
film taut without bowing. Bowing can cause distortions in the scanned image.
3. Repeat steps 1 and 2 for all the film you scan.
4. Place the film guide on the
document table. Align it with the
ruled edges of the document table,
as shown.
5. Close the TPU and begin your scan.
If you’re using EPSON Scan, follow
these guidelines:
26
■
Choose either Home Mode or Professional Mode.
■
In Home Mode, choose either Positive Film, Color Negative Film or B&W
Negative Film as the Document Type.
■
In Professional Mode, select Transparency as your Document Type, then
select either Positive Film, Color Negative Film or B&W Negative Film as
the Film Type.
Using Optional Equipment
1680.book Page 27 Wednesday, April 9, 2003 4:09 PM
Scanning Reflective Documents
To scan reflective documents with the transparency unit installed, insert the reflective
document mat included with the transparency unit.
1. If you’ve previously stored the reflective document mat, remove it from the
transparency unit’s storage slot.
2. Open the transparency unit. If there’s a film guide on the document table,
remove it.
3. Slide the mat into place, taking care to insert the
tabs into the slots on the transparency unit.
Storage slot
4. Place your document face down on the
document table and close the transparency unit.
5. Scan your document.
If you’re using EPSON Scan, follow these
guidelines:
■
If you’re scanning in Home Mode, choose
the correct Document Type.
■
In Professional Mode, select Reflective as
your Document Type.
To remove the reflective document mat, slide it up and out of the slots on the
transparency unit. For safe keeping, always store it in the transparency unit’s storage
slot.
Using Optional Equipment
27
1680.book Page 28 Wednesday, April 9, 2003 4:09 PM
Automatic Document Feeder
The automatic document feeder (B813162) allows you to load and scan documents of
up to 30 pages.
Unpacking the Automatic Document Feeder
When you unpack your automatic document feeder, make sure you have the parts
shown below. If any items are missing or damaged, contact your EPSON dealer, or
call EPSON at (562) 276-4382 (in the United States) or (905) 709-3839 (in
Canada).
Screws
Automatic document feeder
Caution: Don’t remove the protective foam block from the automatic document
feeder’s mounting bracket until you’ve finished installing the unit.
Protective foam block
28
Using Optional Equipment
1680.book Page 29 Wednesday, April 9, 2003 4:09 PM
Installing the Automatic Document Feeder
Caution: Because the automatic document feeder is heavy, you may want to
have someone help you with this procedure.
1. Make sure your scanner is turned off.
2. Remove your scanner’s document cover by
grasping the back of the cover as shown
and easing it straight up.
3. Make sure the document table is clean and
dust free.
4. Position the automatic
document feeder’s mounting
slots over the two mounting
screws located at the back of
the scanner.
Don’t remove the foam
block until you’re done
installing the unit.
5. Slide the automatic document
feeder forward slightly until
the two holes in front of these
slots are aligned with the screw
holes at the back of the
scanner.
Using Optional Equipment
29
1680.book Page 30 Wednesday, April 9, 2003 4:09 PM
6. Insert the two installation
screws that came with the
automatic document feeder into
the screw holes, then tighten the
screws with a coin.
Remove the foam block
after tightening the
installation screws.
7. Remove the protective foam
block from the automatic
document feeder’s mounting
bracket, and then gently close
the automatic document feeder.
8. Attach the automatic document
feeder’s cable to the scanner’s
OPTION connector. Tighten the screws.
9. Close the automatic document feeder.
30
Using Optional Equipment
1680.book Page 31 Wednesday, April 9, 2003 4:09 PM
Loading Paper in the Automatic Document Feeder
Your automatic document feeder can load up to 30 sheets of the following
paper sizes: Letter, Legal, Checks (3.3 × 5 inches), A4 (8.27 × 11.7 inches), and B5
(7.17 × 10.1 inches).
Follow these steps to load paper:
1. Slide the automatic document feeder’s left
edge guide all the way to the left.
2. Insert your document face up in the
automatic document feeder’s tray.
Note: Don’t push the paper into the feed
path or the paper may jam.
3. Move the right edge guide so it touches
the right edge of your paper.
4. Scan your document. If you’re using EPSON Scan, follow these guidelines:
■
Select either Office Mode or Professional Mode in the Mode box.
■
Select ADF as the Document Source.
■
If you want to scan only part of the document page, load the first page only.
Click the Preview button. The first page is ejected. Adjust the marquee in the
Preview area, then load your entire document. When you click Scan, the
scanner scans the area defined by the marquee on each page.
Note: You can still load documents manually, if you want. Just lift the automatic
document feeder and place the first sheet of your document face down on the
document table. If you scan documents individually on the document table, select
Document Table as the Document Source in EPSON Scan. Be sure to close the
automatic document feeder before scanning. If you open it while scanning, you’ll
get an error.
Using Optional Equipment
31
1680.book Page 32 Wednesday, April 9, 2003 4:09 PM
Fixing Paper Jams
If a paper jam occurs, follow these steps to clear it:
1. Open the automatic document feeder’s
cover to determine where the paper
jam occurred.
2. Pull forward on the jam-release lever,
and slowly pull the jammed paper out of
the feeder mechanism. Be careful not to
tear the paper.
3. After removing the jammed paper, close
the document feeder cover. Make sure
the ERROR light is off and the READY
light isn’t flashing before trying to scan.
4. If the error isn’t cleared, turn your
scanner off and then on again. Also,
close EPSON Scan. Don’t restart
EPSON Scan until the green READY light stops flashing.
Note: If you attempt to preview or scan before the scanner is ready, EPSON Scan
may stop responding. If this happens, restart your computer.
32
Using Optional Equipment
1680.book Page 33 Wednesday, April 9, 2003 4:09 PM
IEEE 1394 FireWire Scanner Interface Card
To use the IEEE 1394 FireWire scanner interface card (B808342), your system must
have the following:
■
Built-in IEEE 1394 FireWire port or IEEE 1394 FireWire PCI card
(OHCI-compliant)
■
Macintosh: OS 8.6 or later with FireWire Update 2.1 or later
■
Windows: pre-installed version of Windows XP, 2000, or Me
This section explains how to install the IEEE 1394 FireWire scanner interface card in
your scanner, and how to connect the scanner to your computer.
Note: If you have the Professional FireWire model of the Expression 1680, the
card was preinstalled in your scanner.
Installing the Card in Your Scanner
Before you begin, turn off the scanner and disconnect the power cord and any cables.
Caution: Static electricity can damage electronic components like the IEEE 1394
FireWire scanner interface card. To discharge static electricity, touch the
scanner’s metal frame before handling the card.
1. Remove the two screws securing the shield plate to the scanner’s optional interface
slot, and then remove the plate. Put the screws and shield plate in a safe place in
case you want to reinstall the shield plate later.
Using Optional Equipment
33
1680.book Page 34 Wednesday, April 9, 2003 4:09 PM
2. Turn the card over so that the component
side is facing down, and insert it in the
optional interface slot.
3. Push gently until the card is firmly seated.
4. Tighten the retaining screws and reconnect
the scanner’s cables.
Now you’re ready to connect the scanner to
your computer.
Connecting the Scanner to Your Computer
Plug one end of the IEEE 1394 cable into the
IEEE 1394 port on the card, and the other end
into an IEEE 1394 (FireWire) port on your
computer.
34
Using Optional Equipment
1680.book Page 35 Wednesday, April 9, 2003 4:09 PM
Chapter 3
Maintenance
To protect your scanner and ensure optimum performance, follow the instructions in these
sections:
■
Transporting the scanner
■
Transporting the transparency unit
■
Cleaning the scanner
Transporting the Scanner
Always secure the carriage when you transport the scanner a long distance or store it for an
extended time.
1. Make sure the transportation lock
on the back of the scanner is in the UNLOCK
position.
Home position
2. If you’re using a transparency unit or automatic
document feeder, remove it and replace the
scanner cover.
3. Turn on the scanner and wait until the carriage
moves to the home position, as shown. Then
turn off the scanner.
Note: If the carriage doesn’t automatically return
to the home position, slowly raise the front of the
scanner and let the carriage slide to the home
position. The carriage won’t move automatically to the home position if you have a
transparency unit installed; you must remove the transparency unit first.
35
1680.book Page 36 Wednesday, April 9, 2003 4:09 PM
4. Slide the transportation lock at
the back of the scanner to the
LOCK position.
5. Tape the cover to the scanner.
6. Use the scanner’s original box, or
a similar box with enough
packaging material to prevent
movement inside the box.
Locked position
Transporting the Transparency Unit
If you have a transparency unit, prepare it for
shipping as follows:
1. Slowly raise the front of the transparency unit to
allow the lamp assembly to slide to the back of
the unit. Wait until the lamp assembly comes
to rest.
2. Reinstall the transparency unit’s shipping screw
in the hole marked CLAMP.
3. Pack the transparency unit in its original box, or use a similar box with enough
packaging material to prevent any movement inside the box.
36
Maintenance
1680.book Page 37 Wednesday, April 9, 2003 4:09 PM
Cleaning the Scanner
To keep your scanner operating at its best, clean it periodically.
1. Press the P power button to turn the scanner off, and unplug the power cord.
2. Use a soft, damp cloth and mild detergent to clean the outer case.
Caution: Don’t let water get into the scanner.
3. Clean dust and smudges from the document table glass with a soft, dry cloth (a
microfiber glass cleaning cloth is recommended). You can also use compressed air
dust remover sprays. Dust on the glass can cause white spots to appear in your
scanned image.
To remove grease, use pretreated lens/scanner wipes, or a small amount of glass
cleaner on a soft cloth. Dry the document table glass afterwards.
4. Use a soft, dry cloth to remove dust from the narrow section of glass above the
scanner’s document table. If you’re using a transparency unit, this area is used for
white calibration before each scan.
Caution: Always unplug the scanner before cleaning.
Never use a harsh or abrasive brush or cleaning product to clean the document
table. A damaged glass surface can decrease the scanning quality.
Never use alcohol, thinner, or corrosive solvent to clean the scanner. These
chemicals can damage the scanner components as well as the case.
Be careful not to spill liquid into the scanner mechanism or electronic
components. This could permanently damage them.
Don’t spray lubricants inside the scanner.
Never open the scanner case. If you think repairs or adjustments are necessary,
consult your dealer or contact EPSON.
Unplug the scanner and refer servicing to qualified service personnel if the power
cord or plug is damaged, if liquid has entered the scanner, if the scanner has been
dropped or the case damaged, or if the scanner does not operate normally or
exhibits a distinct change in performance.
Maintenance
37
1680.book Page 38 Wednesday, April 9, 2003 4:09 PM
38
Maintenance
1680.book Page 39 Wednesday, April 9, 2003 4:09 PM
Chapter 4
Solving Problems
This chapter explains how to interpret the signals from your scanner’s lights, and gives
you the basics for diagnosing and solving scanner problems. It also tells you how to
uninstall your software and how to contact EPSON.
See “Diagnosing Scanner Problems” in the next section to determine what the cause
of your scanner problem might be. Then see these sections for solutions:
■
Scanner Problems
■
Software Problems
■
Quality Problems
■
Uninstalling and Reinstalling EPSON Scan
■
Where To Get Help
Tip: It’s a good idea to check EPSON’s support web site periodically for possible
updates to your scanner software. Visit http://support.epson.com and check the
Drivers & Support section for your product to see if there is new software
available, free of charge, for downloading to your computer. Download
instructions are posted for your convenience.
39
1680.book Page 40 Wednesday, April 9, 2003 4:09 PM
Diagnosing Scanner Problems
You can diagnose some problems by checking the scanner’s lights, as described in this
section. If you don’t find the answer here, see “Problems and Solutions” on page 41.
Checking the Scanner’s Lights
Follow the guidelines below when you check your scanner’s lights:
Light
Scanner Status
READY light is on or
The green READY light is on when the scanner is ready to
scan. It flashes when scanning is in progress.
flashing.
ERROR light is flashing;
READY light is off.
There’s a problem with your cable connection. Reconnect
the cable to both the scanner and your computer, and then
restart your computer. If this doesn’t work, try using a
different cable. If you have a USB connection, use the USB
cable that came with your scanner. If you have a SCSI
connection, always restart your computer after changing or
reconnecting the cable.
ERROR and READY
lights are both on.
The scanner has received an incorrect command from your
scanning software. Try rescanning the document.
ERROR and READY
lights are both off.
Make sure your scanner is connected to a working outlet,
then press the P power button. Restart your computer.
If the green READY light doesn’t come on, there may be a
problem with either the transparency unit or automatic
document feeder. Make sure your unit lies flat against the
scanner. Then reconnect it to the OPTION connector on the
back of the scanner. If you have a transparency unit, make
sure you removed the shipping screw from the hole
labeled CLAMP. Make sure your automatic document
feeder has paper and there’s no paper jam.
ERROR and READY
lights are both flashing.
40
Solving Problems
Check that the transportation lock on the back of the
scanner is set to UNLOCK. If not, unlock the scanner, then
turn it off and back on again. Restart your computer. If this
doesn’t solve the problem, contact EPSON as described on
page 51.
1680.book Page 41 Wednesday, April 9, 2003 4:09 PM
Problems and Solutions
Here are some troubleshooting tips if you’re having trouble setting up your scanner,
scanning, or getting the quality you want from your scans.
Scanner Problems
■
The READY light doesn’t come on
or flashes.
Make sure your automatic
document feeder isn’t out of paper
and doesn’t have a paper jam.
■
Make sure you removed the
shipping screw from the hole labeled
CLAMP in your transparency unit.
■
Make sure the SCSI ID is set
between 1 and 6. If you reset the
SCSI ID switch on the back of the
scanner, turn the scanner off and
then on again. Then restart your
computer.
■
■
The READY light flashes when
scanning is in progress. If you are
scanning a large file, wait for
scanning to finish.
Make sure the scanner power cord
is securely plugged into the
scanner and the power outlet, and
that the scanner is on. If the
scanner was unplugged or off,
restart your computer before trying
to scan.
■
Check that the power outlet is
working and provides sufficient
power for the scanner.
■
If you’re using a transparency unit
or automatic document feeder and
both the READY and ERROR
lights are off, make sure your
installed option is closed (lying flat
against the scanner). Reconnect
your unit to the OPTION
connector on the back of the
scanner.
You see an error message that there is
no response from the scanner, or that
you can’t start EPSON Scan.
■
Check your cable connections. If
your cable is securely connected to
both the scanner and computer, try
another cable, then restart your
computer.
■
Make sure your scanner is on. If it
was off, turn the scanner on first,
then restart your computer before
you try to scan.
Solving Problems
41
1680.book Page 42 Wednesday, April 9, 2003 4:09 PM
■
If you have a USB connection, use
the cable that came with the
scanner. If your scanner is
connected to a USB hub, connect
it directly to the computer’s USB
port.
■
If you have a SCSI connection,
turn off both your scanner and
computer. Then turn on your
scanner before you turn on the
computer.
■
■
■
■
42
If you have a SCSI connection,
make sure your SCSI board is
installed correctly. For Windows,
check the Device Manager to make
sure the SCSI board is listed.
If the SCSI board is found, but not
the scanner, check the terminator
switch and SCSI ID switch on the
back of the scanner. Make sure the
SCSI ID doesn’t conflict with
another SCSI device. Unless the
scanner is in the middle of a SCSI
chain, the terminator switch
should be set to ON.
If you’ve replaced your SCSI board
or changed the SCSI ID, you may
need to uninstall and reinstall your
scanner software. See the
instructions beginning on page 49.
Check for IRQ conflicts with
built-in options.
Solving Problems
■
Mac OS 8.6 to 9.x users: if you
have an IEEE 1394 FireWire
connection, make sure the
following Extensions are enabled
in the Extensions Manager:
EPSON FW Scanner Enabler,
EPSON FW Scanner Expert,
and EPSON FW ScannerLib.
■
If you purchased the IEEE 1394
scanner interface card as an option,
make sure that it is installed
correctly. (See page 33.)
■
If all else fails, uninstall and
reinstall your software. See the
instructions for uninstalling
software beginning on page 49.
The scanner doesn’t scan your
image.
■
Make sure the scanner is ready to
scan. Wait until the READY light
stops flashing and remains on.
If you attempt to preview or
scan before the scanner is ready,
EPSON Scan may stop
responding. If this happens,
restart your computer.
■
Make sure the scanner’s
transportation lock is in the
UNLOCK position.
■
Windows users: check the Device
Manager in the Windows Control
Panel. If there is an Unknown
Device icon, select it and click
Remove.
1680.book Page 43 Wednesday, April 9, 2003 4:09 PM
■
■
■
■
If you’re using photo-editing
software like Adobe Photoshop or
Photoshop Elements, make sure
you select File > Import >
EPSON Expression 1680 as your
source. If you’re using the
SilverFast Plug-in with a program
like Photoshop, select File >
■
Import > SilverFast (Epson
Expr 1680).
When previewing a scan, you see a
message that the document could
not be located.
Make sure the SCSI ID switch on
the back of the scanner is not set to
the asterisk (*), and that it’s set to a
number that doesn’t conflict with
any other SCSI devices. If you
reset the SCSI ID switch, turn the
scanner off and then on again.
Then restart your computer.
Make sure you have enough
memory to scan your image. If
you’re scanning a large image or
scanning at a high resolution,
close any unnecessary programs.
For Mac OS 8.6 to 9.x, try
increasing the memory of the host
application. If your computer still
doesn’t have enough memory to
process the image, try scanning at a
lower resolution, or select part of
the image to scan. If you still
cannot scan, you may need to
upgrade your RAM.
If you have a ZIP drive, it may be
interfering with your scanner.
Disconnect your ZIP drive, restart
your computer, then try scanning.
If you’re using the optional
automatic document feeder, run
EPSON Scan in Office Mode or
Professional Mode, and select ADF
as the Document Source. Also,
make sure the original document is
inserted face up.
Make sure you’ve selected the correct
Document Type in EPSON Scan.
Software Problems
EPSON Scan doesn’t work properly.
■
Make sure the system
requirements are correct for your
software. See the requirements
beginning on page 57.
■
Check your computer’s memory.
If you’re running other software at
the same time, using RAM
resident programs, or have many
device drivers, the computer may
not have enough memory. (See
your software and computer
manuals.) If you’re scanning a
large image or scanning at a high
resolution, your computer may not
have enough memory to process
the image.
Solving Problems
43
1680.book Page 44 Wednesday, April 9, 2003 4:09 PM
■
Check your software installation.
Make sure that your software is
correctly installed and set up. If all
else fails, uninstall your software,
then reinstall it.
Quality Problems
You can’t select ADF as the
Document Source (Office Mode or
Professional Mode).
Make sure the optional automatic
document feeder is installed correctly
and securely connected to the
OPTION connector on the back of the
scanner. If you need to reinstall or
reconnect it, restart your computer
afterward.
You can’t select the correct
Document Type for your film or
slides.
Make sure the transparency unit is
installed correctly and securely
connected to the OPTION connector
on the back of the scanner. If you need
to reinstall or reconnect it, restart your
computer afterward.
44
Solving Problems
The file size is too big.
Adjust your scan settings. Try setting
at a lower resolution (dpi), or scan
only part of the image.
1680.book Page 45 Wednesday, April 9, 2003 4:09 PM
Your scanned image is faint or has
gaps.
Your scanned image is blurred or
distorted.
■
Check the brightness. Decrease the
software or driver’s brightness
setting.
■
■
Select Professional Mode and
experiment with the
Adjustment setting.
■
Check the condition of your
original. If the document is
damaged, dirty, or wrinkled, these
imperfections will show up in your
scan.
Check the position and condition
of your document. Make sure the
document is placed flat against the
scanner’s document table glass. If
only part of the image is blurred,
part of your document may be
wrinkled or warped.
■
Make sure the document table
glass is clean.
■
Make sure the scanner is on a flat,
stable surface.
■
Make sure the document is placed
flat against the document table.
Solving Problems
45
1680.book Page 46 Wednesday, April 9, 2003 4:09 PM
The edges of the document aren’t
scanned.
46
■
Don’t place your document right
up against the edges of the
document table. Allow a little
space (about 2 mm).
■
If colors are patchy or distorted at
the edges of the image, the
document may be too thick, or
there may be outside light
interfering with the scan.
Solving Problems
Your image scans at an angle.
Check the position of your document.
It may be placed at an angle on the
document table. Align it so the
horizontal and vertical edges are
carefully aligned with the scales on the
top and side of the document table.
Straight lines in the image come out
jagged.
Make sure the document is aligned
with the scales on the top and side of
the document table.
1680.book Page 47 Wednesday, April 9, 2003 4:09 PM
A line of dots is missing from the
image.
■
■
When a line of dots is missing
from the scanned image on your
screen, the scanner sensor has
malfunctioned. Contact your
EPSON dealer.
When a line of dots is missing
from your printouts, your printer
has malfunctioned. See your
printer manual.
The colors in your scanned image
look different than the colors in the
original document.
■
Experiment with the Unsharp
Mask Filter setting in EPSON
Scan (not available in Home
Mode).
■
Make sure the Image Type setting
is correct.
■
Try different combinations of
gamma and color settings in
EPSON Scan. Click the
Configuration button at the
bottom of the window, then make
any changes on the Color tab.
Moiré (cross-hatch) patterns appear
in the image when you perform
halftone scanning.
■
Make the image size slightly
smaller.
■
In EPSON Scan, select the
Descreening Filter checkbox in
Home Mode or the Unsharp
Mask checkbox in Professional or
Office Mode.
■
Use a transparent sheet between
the document and the document
table to defocus the image.
■
Reposition the document on
the document table. Try
positioning the document at a
slight angle.
The printed image is larger or
smaller than the original.
You can’t judge the size of the printed
image by what you see on your screen.
The image size settings in your scanner
software determine the size of the
printed image.
You can’t print scanned images, or
the printed image looks garbled.
■
Make sure your printer is securely
connected to your computer and
that you’re using the correct cable.
■
Make sure the correct printer is
selected in your printer software.
Solving Problems
47
1680.book Page 48 Wednesday, April 9, 2003 4:09 PM
The image doesn’t scan, or you can
only scan a few dots.
■
Make sure the document is face
down on the document table.
■
If you’re using an automatic
document feeder, make sure the
original document is inserted
face up.
You’re using a transparency unit,
and the colors of your negative film
preview look strange.
■
48
Make sure you’ve selected the
correct Document Type in
EPSON Scan.
Solving Problems
■
The scanner perceives the film
guide’s frame as white, which alters
the exposure of the scanning area
and makes the preview appear
darker. To see the correct colors,
do a zoom preview on an area
toward the center of an image.
■
If you see light vertical lines on the
scanned image, the TPU
calibration area (the small
rectangle of glass above the
document table) may contain dirt
or dust. Clean the calibration area
with a lint-free cloth.
1680.book Page 49 Wednesday, April 9, 2003 4:09 PM
Uninstalling and Reinstalling EPSON Scan
If you’ve tried every other solution and your system still doesn’t recognize your
scanner, try uninstalling and reinstalling the scanner software.
Follow the procedure below for uninstalling EPSON Scan on your system.
Windows
1. Double-click the Add or Remove Programs utility in the Windows Control Panel.
2. Select EPSON Scan, and click the Change/Remove (or Add/Remove) button.
3. Follow the on-screen instructions to remove the software.
See the Start Here sheet to reinstall your software.
Macintosh
1. Insert the EPSON Expression 1680 CD-ROM in your drive. If necessary,
double-click the CD-ROM icon to open the EPSON window.
2. Double-click
. You see this screen:
Make sure EPSON Scan
is selected and deselect
Scanner User’s Guide
3. Make sure that EPSON Scan is selected. If you don’t want to uninstall the User’s
Guide, deselect the Scanner User’s Guide checkbox.
4. Click Install.
Solving Problems
49
1680.book Page 50 Wednesday, April 9, 2003 4:09 PM
5. If you’re running OS X, enter your Administrator’s name and password, if
prompted.
6. When you see the license agreement, click Accept. You see this screen:
Select Uninstall
7. Select Uninstall from the Easy Install list. Then click Uninstall.
8. Follow the on-screen instructions to uninstall the software. When you’re done,
click Quit to close the EPSON Scan Installer screen.
See the Start Here sheet to reinstall your software.
50
Solving Problems
1680.book Page 51 Wednesday, April 9, 2003 4:09 PM
Where To Get Help
If you are having problems with EPSON Scan or your scanner, see the contact
information in the section below. If you have the Professional or Professional
FireWire model of the scanner and are having problems with your bonus software, see
page 52.
EPSON Technical Support
EPSON provides technical assistance 24 hours a day through the electronic support
services and automated telephone services listed in the following table:
Service
Access
World Wide Web
From the Internet, you can reach EPSON Support at
http://support.epson.com. At this site, you can download drivers and
other files, look at product documentation, access troubleshooting
information, and receive technical advice through e-mail.
Automated
Telephone
Services
A variety of automated help services are available 24 hours a day,
seven days a week. To use these services, you must have a touch
SM
tone telephone and call (800) 922-8911. Your EPSON SoundAdvice
Express Code is 68720. Use it to select your scanner in SoundAdvice.
To speak to a technical support representative, dial (562) 276-4382 (U.S.) or
(905) 709-3839 (Canada), 6 AM to 6 PM, Pacific Time, Monday through Friday. Toll
or long distance charges may apply.
Before you call, please have the following information ready:
■
Product name (EPSON Expression 1680)
■
Product serial number (located on the back of scanner)
■
Proof of purchase (such as a store receipt) and date of purchase
■
Computer configuration
■
Description of the problem
You can purchase supplies and accessories from the EPSON Store at (800) 873-7766,
or visit www.epsonstore.com (U.S. sales only). In Canada, please call (800) 463-7766
for dealer referral.
Solving Problems
51
1680.book Page 52 Wednesday, April 9, 2003 4:09 PM
Software Technical Support
If you have the Professional or Professional FireWire model, use the resources listed in
the following table for help with your bonus software:
Software
Telephone
Fax
Online and E-mail
Adobe
Photoshop
Elements
(206) 675-6126
—
www.adobe.com/support
LaserSoft
Imaging
SilverFast
(941) 383-7496
Monaco
Systems™
MonacoEZcolor
(978) 749-9944
ArcSoft™
Software Suite
52
Solving Problems
6:00 AM to 5:00 PM,
Pacific Time, Monday
through Friday (pay support)
9:00 AM to 5:30 PM, Eastern
Time, Monday through
Friday (pay support)
[email protected]
(941)
387-7574
www.SilverFast.com
—
www.monacosys.com/
support.html
9:00 AM to 5:00 PM,
Eastern Time,
Monday through Friday
(510) 440-9901
8:30 AM to 5:30 PM,
Pacific Time,
Monday through Friday
[email protected]
[email protected]
—
www.arcsoft.com/
techmain.htm
[email protected]
1680.book Page 53 Wednesday, April 9, 2003 4:09 PM
Appendix A
Specifications
Scanner
General
Scanner type
Flatbed, color
Photoelectric device
Color MatrixCCD™ line sensor
Effective pixels
13600 × 18720 pixels (1600 dpi)
Optical density
3.6 Dmax
Color depth
48-bit internal/48-bit external
Grayscale depth
16-bit internal/16-bit external
Maximum document size
8.5 × 11.7 inches (216 × 297 mm)
A4 or Letter (the reading area can be
specified from your software)
Resolution
1600 dpi (optical)
Maximum hardware resolution*
1600 dpi (main scan)
3200 dpi with Micro Step Drive
(sub scan)
* The maximum hardware resolution of
1600 × 3200 dpi is achieved using
EPSON’s Micro Step Drive technology
Speed (1600 dpi, draft mode)
Color:
9.2 msec/line (approx.)
Grayscale: 3.1 msec/line (approx.)
Line Art: 3.1 msec/line (approx.)
Color separation
RGB color filters on CCD
Reading sequence
Monochrome: One-pass scanning
Color byte sequence: One-pass scanning
(R, G, B)
Color line sequence: One-pass scanning
(R, G, B)
Zoom
50 to 200% in 1% increments
Command level
ESC/I-B8
FS
Pixel depth
16 bits per pixel (16 bits per pixel
input, 1 to 16 bits per pixel output)
Brightness
7 levels
Line art settings
Fixed threshold
TET (Text Enhancement Technology,
enable/disable selectable)
Maximum interpolated resolution
12800 × 12800 dpi
53
1680.book Page 54 Wednesday, April 9, 2003 4:09 PM
Digital halftoning
AAS (Auto Area Segmentation,
enable/disable selectable)
3 error diffusion modes (A, B, and C)
4 dither patterns (A, B, C, and D) for
bi-level and quad-level data
(2 downloadable dither patterns)
Gamma correction
2 types for CRT display
3 types for printer
1 type user-defined
Color correction
1 type for CRT display
3 types for printer (available in color
byte sequence mode and color line
sequence mode)
1 type user-defined
Interfaces
SCSI 2 (micro DB 50-pin connectors)
USB (Type B receptacle connector)
IEEE 1394 (FireWire), optional
Light source
Xenon gas cold cathode fluorescent
lamp
Reliability
100,000 cycles of carriage movement
(main unit MCBF)
Dimensions
Width:
13 inches (332 mm)
Depth:
22.1 inches (562 mm)
Height:
5.3 inches (133 mm)
Weight
Approximately 18.7 lb (8.5 kg)
Electrical
Input voltage range
100 to 120 VAC:
220 to 240 VAC:
54
Specifications
90 to 132 VAC
198 to 264 VAC
Rated frequency
50 to 60 Hz
Rated current
100 to 120 VAC: 0.8 A
220 to 240 VAC: 0.4 A
Power consumption
Operating: Approximately 30 W
Approximately 50 W
with TPU or ADF unit
Standby: Approximately 10 W
Environmental
Temperature
Operating: 41 to 95 °F (5 to 35 °C)
50 to 89 °F (10 to 32 °C
when using ADF)
Storage:
–13 to 140 °F
(–25 to 60 °C)
Humidity (without condensation)
Operating: 10 to 80%
Standby: 10 to 85%
Operating conditions
Ordinary office or home conditions.
Avoid dust, direct sunlight, and
proximity to strong light sources.
Safety Approvals
120 V model
Safety:
UL 1950
CSA C22.2 No. 950
EMC FCC part 15
subpart B class B
CSA C108.8 class B
230 V model
Safety:
EN 60950
EMC:
EN 550022
(CISPR Pub 22) class B
AS/NZS 3548 class B
1680.book Page 55 Wednesday, April 9, 2003 4:09 PM
SCSI Interface
Interface type
ANSI X3T9.2/375R Revision 10L
(SCSI 2)
Logic level
TTL-compatible
ID setting
Selectable from 1 to 6
Terminator
Internal terminator (enable/disable
selectable)
Connector type
Two micro DB 50-pin connectors
USB Interface
Interface type
Universal Serial Bus Specification
Revision 1.1
Electrical standard
Full speed mode (12Mb) of Universal
Serial Bus Specification Revision 1.1
Connector type
One receptacle (Type B)
IEEE 1394 FireWire
Interface type
IEEE 1394-1995 compatible
Data transfer method
Half-duplex Data/Strobe differential
serial
Synchronization method
Clock synchronization with DS-Link
Encoding/decoding
DS-Link
Logic level
3.3 V
Compatible connectors
IEEE 1394-1995 compatible
Power class
Power class code 100
No power supply from external sources
Fitted with a repeat function with bus
power
Environmental
Temperature
Operating: 41 to 95 °F
(5 to 35 °C)
Standby: –13 to 140 °F
(–25 to 60 °C)
Humidity (without condensation)
Operating: 10 to 80%
Standby: 10 to 85%
Option Interface Connector
Interface type
For use with the optional automatic
document feeder (B813162) and
transparency unit (B813182)
Output voltage
21.6 to 26.4 VDC
4.75 to 5.25 VDC
Output current
0.6 A (24 V)
0.3 A (5 V)
Initialization Methods
SCSI interface
Hardware: Initialized when the scanner
is turned on or the scanner
receives a SCSI Reset signal
from the SCSI interface
Software: Initialized when the
software sends the Esc @
(initialize the scanner
command), or the scanner
receives a SCSI Bus Device
message
Specifications
55
1680.book Page 56 Wednesday, April 9, 2003 4:09 PM
USB interface
Hardware: Initialized when the scanner
is turned on or the USB
cable is plugged into the
USB port on the scanner
Software: Initialized when the
software sends the Esc @
command or the scanner
receives a Bus Reset from
the USB interface
Transparency Unit
(B813182)
General
Reliability
MCBF 100,000 cycles
Readable area
8.5 × 11.7 inches (216 × 297 mm)
Dimensions
Width:
12.8 inches (324 mm)
Depth:
21.3 inches (540 mm)
Height:
3.6 inches (92 mm)
Weight
Approximately 11 lb (6 kg)
Electrical
Input voltage
21.6 to 26.4 VDC
4.7 to 5.25 VDC
Rated current
1.6 A
0.1 A
Environmental
Temperature
Operating: 41 to 95 °F (5 to 35 °C)
Standby: –14 to 140 °F
(–20 to 60 °C)
56
Specifications
Humidity (without condensation)
Operating: 10 to 80%
Standby: 10 to 85%
Automatic Document
Feeder (B813162)
General
Paper input/output
Load face up; eject face down
Paper quantity
30 pages (55 g/m2 paper, maximum total
thickness under 0.24 inches [6 mm])
Reliability
100,000 sheets (load/eject MCBF)
Dimensions
Width:
12.2 inches (310 mm)
Depth:
20.9 inches (528 mm)
Height:
3.6 inches (92 mm)
Weight
Approximately 9.9 lb (4.5 kg)
Electrical
Input voltage
22.8 to 25.2 VDC
4.75 to 5.25 VDC
Input current
24 V: 0.6 A
5 V: 0.3 A
Environmental
Temperature
Operating: 50 to 89 °F (10 to 32 °C)
Standby: – 4 to 140 °F
(–20 to 60 °C)
Humidity (without condensation)
Operating: 20 to 80%
Standby: 95% or less
1680.book Page 57 Wednesday, April 9, 2003 4:09 PM
Appendix B
Requirements and Notices
System Requirements
The minimum system requirements for Windows and Macintosh are listed below. For optimum
performance, a faster processor and more memory are recommended. If you’re scanning high
resolution images, you need more than the minimum available hard disk space.
Note: Color and tone reproduction are subject to the display capability of your computer
system, including the video card, monitor, and software. See the documentation for these
products for details.
Windows
■
A Microsoft® Windows-compatible PC with a Pentium®-equivalent processor, 233 MHz or faster
recommended
■
Preinstalled Windows XP, 98, Me, or 2000
■
SCSI, USB, or FireWire IEEE 1394 (Windows XP, Me, or 2000 only) port; FireWire card must
be OHCI-compliant
■
128MB RAM (256MB RAM recommended for all systems)
■
300MB available hard disk space
■
CD-ROM drive
■
VGA color monitor with 640 × 480 resolution (a color monitor with a resolution of 800 × 600 or
higher recommended)
■
16-bit, 65K-color display adapter card (24-bit display adapter card with millions of colors
recommended)
57
1680.book Page 58 Wednesday, April 9, 2003 4:09 PM
Macintosh
■
Macintosh OS 8.6 to 9.x, or OS 10.1.2 to 10.2.x
Note: Check the Apple® web site for any updates to your operating system.
■
Macintosh standard (built-in) SCSI or compatible PCI SCSI/SCSI 2 card, or USB interface; for
IEEE 1394 FireWire connections, either a built-in IEEE 1394 FireWire port or an IEEE 1394
FireWire PCI card (FireWire card must be OHCI-compliant)
■
128MB RAM (256MB RAM recommended)
■
300MB available hard disk space
■
CD-ROM drive
■
VGA color monitor with 640 × 480 screen resolution (a color monitor with a resolution of
800 × 600 or higher recommended)
■
16-bit 65K-color display adapter card (24-bit display adapter card with millions of colors
recommended)
Important Safety Instructions
Read all of these instructions and save them for later reference. Follow all warnings and instructions
marked on the scanner.
58
■
Unplug the scanner before cleaning. Clean with a damp cloth only. Don’t spill liquid on the
scanner. Use a soft, dry cloth or a compressed air spray designed for cleaning electronic equipment
to clean dust from the document table glass.
■
Do not place the scanner on an unstable surface or near a radiator or heat source.
■
Use only the type of power source indicated on the scanner’s label.
■
Connect all equipment to properly grounded power outlets. Avoid using outlets on the same
circuit as photocopiers or air control systems that regularly switch on and off.
■
Do not let the power cord become damaged or frayed.
■
If you use an extension cord, make sure the total ampere rating of the devices plugged into the
extension cord doesn’t exceed the cord’s ampere rating. Also, make sure the total ampere rating of
all devices plugged into the wall outlet doesn’t exceed the wall outlet’s ampere rating.
■
Do not attempt to service the scanner yourself.
■
Unplug the scanner and refer servicing to qualified service personnel under the following
conditions: if the power cord or plug is damaged; if liquid has entered the scanner; if the scanner
has been dropped or the cabinet damaged; if the scanner does not operate normally or exhibits a
distinct change in performance. Do not adjust controls that are not covered by the operating
instructions.
Requirements and Notices
1680.book Page 59 Wednesday, April 9, 2003 4:09 PM
Declaration of Conformity
According to 47CFR, Part 2 and 15 for Class B Personal Computers and Peripherals; and/or CPU
Boards and Power Supplies used with Class B Personal Computers:
We:
EPSON AMERICA, INC.
Located at:
MS 3-13
3840 Kilroy Airport Way
Long Beach, CA 90806-2469
Telephone: (562) 290-5254
Declare under sole responsibility that the product identified herein complies with 47CFR Part 2 and
15 of the FCC rules as a Class B digital device. Each product marketed is identical to the representative
unit tested and found to be compliant with the standards. Records maintained continue to reflect the
equipment being produced can be expected to be within the variation accepted, due to quantity
production and testing on a statistical basis as required by 47CFR §2.909. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
Trade Name:
Type of Product:
Model:
Product:
EPSON
Image Scanner
G780B
EPSON Expression 1680
Requirements and Notices
59
1680.book Page 60 Wednesday, April 9, 2003 4:09 PM
FCC Compliance Statement
For United States Users
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio or television reception. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause interference to radio
and television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures.
■
Reorient or relocate the receiving antenna.
■
Increase the separation between the equipment and receiver.
■
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
■
Consult the dealer or an experienced radio/TV technician for help.
Warning
The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC
Certification of this device and may cause interference levels which exceed the limits established by the
FCC for this equipment. It is the responsibility of the user to obtain and use a shielded equipment
interface cable with this device. If this equipment has more than one interface connector, do not leave
cables connected to unused interfaces. Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
For Canadian Users
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le materiel brouilleur du
Canada.
60
Requirements and Notices
1680.book Page 61 Wednesday, April 9, 2003 4:09 PM
ENERGY STAR Compliance
As an ENERGY STAR Partner, EPSON has determined that this product meets the ENERGY STAR
guidelines for energy efficiency.
The EPA ENERGY STAR Office Equipment Program is a voluntary
partnership with the computer and office equipment industry to promote the
introduction of energy-efficient personal computers, monitors, printers, fax
machines, copiers, and scanners, in an effort to reduce air pollution caused by
power generation.
Warranty
Epson America, Inc. Limited Warranty
What Is Covered: Epson America, Inc. (“EPSON”) warrants to the first end user customer of the
EPSON product enclosed with this limited warranty statement that the product, if purchased and used
in the United States or Canada, conforms to the manufacturer’s specifications and will be free from
defects in workmanship and materials for a period of one year from the date of original purchase.
EPSON warrants that the EPSON product is manufactured from new components and parts, or if you
have purchased a refurbished product, like-new components and parts which perform like new and
meet the EPSON standard of quality. For warranty service, you must provide proof of the date of
original purchase.
What EPSON Will Do To Correct Problems: Should your EPSON product prove defective during the
warranty period, please bring the product securely packaged in its original container or an equivalent to
your EPSON Dealer or EPSON Customer Care Center. You are responsible for all costs (shipping,
insurance, travel time) in getting the product to the service location. EPSON will, at its option, repair
or replace on an exchange basis the defective unit, without charge for parts or labor. When warranty
service involves the exchange of the product or of a part, the item replaced becomes EPSON property.
The replacement unit may be new or refurbished to the Epson standard of quality, and at Epson’s
option, the replacement may be another model of like kind and quality. Epson’s liability for
replacement of the covered product will not exceed the original retail selling price of the covered
product. Exchange or replacement products or parts assume the remaining warranty period of the
product covered by this limited warranty.
What This Warranty Does Not Cover: This warranty covers only normal use in the United States and
Canada. This warranty does not cover damage to the EPSON product caused by parts or supplies not
manufactured, distributed or certified by EPSON. This warranty does not cover third party parts,
components or peripheral devices added to the EPSON product after its shipment from EPSON, e.g.,
dealer-added boards, chips or drives. This warranty is not transferable and will not apply to products
Requirements and Notices
61
1680.book Page 62 Wednesday, April 9, 2003 4:09 PM
purchased from an end user. EPSON is not responsible for warranty service should the EPSON label
or logo or the rating label or serial number be removed or should the product fail to be properly
maintained or fail to function properly as a result of misuse, abuse, improper installation, neglect,
improper shipping, damage caused by disasters such as fire, flood, and lightning, improper electrical
current, software problems, interaction with non-EPSON products, or service other than by an
EPSON Authorized Servicer. If a claimed defect cannot be identified or reproduced in service, you will
be held responsible for costs incurred.
THE WARRANTY AND REMEDY PROVIDED ABOVE ARE EXCLUSIVE AND IN LIEU OF
ALL OTHER EXPRESS OR IMPLIED WARRANTIES INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. SOME LAWS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES.
IF THESE LAWS APPLY, THEN ALL EXPRESS AND IMPLIED WARRANTIES ARE LIMITED
TO THE WARRANTY PERIOD IDENTIFIED ABOVE. UNLESS STATED HEREIN, ANY
STATEMENTS OR REPRESENTATIONS MADE BY ANY OTHER PERSON OR FIRM ARE
VOID. IN THE EVENT THE REMEDIES ABOVE FAIL, EPSON’S ENTIRE LIABILITY SHALL
BE LIMITED TO A REFUND OF THE PRICE PAID FOR THE EPSON PRODUCT
COVERED BY THIS LIMITED WARRANTY. EXCEPT AS PROVIDED IN THIS WRITTEN
WARRANTY, NEITHER EPSON AMERICA, INC. NOR ITS AFFILIATES SHALL BE LIABLE
FOR ANY LOSS, INCONVENIENCE, OR DAMAGE, INCLUDING DIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES, RESULTING FROM THE USE OR
INABILITY TO USE THE EPSON PRODUCT, WHETHER RESULTING FROM BREACH OF
WARRANTY OR ANY OTHER LEGAL THEORY.
In Canada, warranties include both warranties and conditions.
Some jurisdictions do not allow limitations on how long an implied warranty lasts and some
jurisdictions do not allow certain exclusions or limitations on damages, so the above limitations and
exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have
other rights which vary from jurisdiction to jurisdiction.
To locate the EPSON Authorized Reseller or EPSON Customer Care Center nearest you call:
(800) 922-8911 or write to: Epson America, Inc., P.O. Box 93012, Long Beach, CA 90809-3012.
62
Requirements and Notices
1680.book Page 5 Wednesday, April 9, 2003 4:09 PM
Index
Numerics
D
48-bit color images, 13
Descreening Filter setting, 9, 11, 14
Document position, 5 to 6, 46
Document Source setting, 11, 13
Document Type setting, 9, 12
Documentation, 2 to 3
A
Accessories, 19, 51
Adobe Photoshop Elements, 52
ArcSoft software, 52
Auto Exposure Type setting, 13
Automatic document feeder
Document Source setting, 11, 13, 31
fixing paper jams, 32
installing, 29 to 30
loading paper, 31
problems, 40, 44
purchasing, 19, 51
specifications, 56
unpacking, 28
using, 31
B
Blurred image, 45
Brightness setting, 9, 11, 14, 45
C
Cleaning the scanner, 37
Color depth, selecting, 13
Colors, problems, 47 to 48
Contrast setting, 9, 11, 14
E
Electrical requirements, 54
Environmental requirements, 54
EPSON
help, 51 to 52
Store, 19, 51
EPSON Scan
Home Mode, 6 to 9
Office Mode, 6 to 7, 10 to 11
previewing scans, 7, 8, 10, 12, 16 to 17, 43
problems, 43 to 44
Professional Mode, 6 to 7, 12 to 15
starting, 7
F
Faint image, 45
FCC compliance statement, 60
File size, 44
Film guides, using, 23 to 26
Film Type setting, 13
Film, scanning, 23 to 26
FireWire
installing the scanner card, 33 to 34
scanner card specifications, 55
system requirements, 33
5
1680.book Page 6 Wednesday, April 9, 2003 4:09 PM
G
O
Gamma adjustment, 14, 47
Office Mode
description, 6
selecting, 7
using, 10 to 11
Optional equipment, see Automatic document
feeder, FireWire, Transparency unit
H
Help
bonus software, 52
EPSON, 51 to 52
Histogram adjustment, 14
Home Mode
description, 6
selecting, 7
using, 8 to 9
I
IEEE 1394, see FireWire
Image quality problems, 44 to 48
Image Type setting, 9, 10, 13
Installing
automatic document feeder, 29 to 30
FireWire scanner interface card, 33 to 34
transparency unit, 21 to 22
L
LaserSoft SilverFast, 2, 52
Lights, 40
Loading paper
automatic document feeder, 31
single sheet, 5 to 6
Lock, transportation, 35 to 36
M
Macintosh, system requirements, 58
Maintenance, 35 to 37
MonacoEZcolor, 2, 52
Moving
scanner, 35 to 36
transparency unit, 36
6
Index
P
PanoramaMaker, 52
Paper jams, fixing, 32
PhotoBase, 52
Photoshop Elements, 52
PhotoStudio, 52
Preview window, 16
Problems
automatic document feeder, 32, 40, 44
image quality, 44 to 48
previewing scan, 43
scanner, 41 to 43
software, 43 to 44
transparency unit, 40, 44, 48
Professional Mode
description, 6
selecting, 7
using, 12 to 15
R
Requirements
electrical, 54
environmental, 54
system, 33, 57 to 58
Resizing images, 18
Resolution
choosing, 11, 13, 17 to 18
maximum, 53
1680.book Page 7 Wednesday, April 9, 2003 4:09 PM
S
Safety instructions, 58
Scaling images, 18
Scanner
cleaning, 37
moving, 35 to 36
problems, 41 to 43
Scanning
color images, 18
film, 23 to 26
into an application, 7, 9, 11, 15
previewing scans, 7, 8, 10, 12, 16 to 17, 43
reflective documents, 27
slides, 24
to your hard drive, 7, 9, 11, 15
Scanning Quality setting, 13
SCSI
interface specifications, 55
problems, 42
Service, 51 to 52
SilverFast, LaserSoft, 2, 52
Slides, scanning, 24
Software
problems, 43 to 44
uninstalling, 49 to 50
Specifications
automatic document feeder, 56
electrical, 54
environmental, 54
FireWire card, 55
scanner, 53 to 56
transparency unit, 56
Support, 51 to 52
System requirements, 33, 57 to 58
T
Transparency unit
installing, 21 to 22
moving, 36
problems, 40, 44, 48
scanning film, 9, 12 to 13, 23 to 26
scanning reflective document, 27
specifications, 56
unpacking, 20
using film guides, 23 to 26
Transportation lock, 35 to 36, 42
Transporting
scanner, 35 to 36
transparency unit, 36
Troubleshooting
automatic document feeder, 40, 44
image quality, 44 to 48
scanner, 41 to 43
software, 43 to 44
transparency unit, 40, 44, 48
U
Uninstalling software, 49 to 50
Unpacking
automatic document feeder, 28
transparency unit, 20
Unsharp Mask Filter, 11, 14
USB
interface specifications, 55
requirements, 57, 58
User’s Guide, viewing, 3
W
Warranty, 61 to 62
Windows, system requirements, 57
Target Size setting, 9, 13
Technical support, 51 to 52
Tone correction, 14
Index
7
1680.book Page 8 Wednesday, April 9, 2003 4:09 PM
8
Index

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
