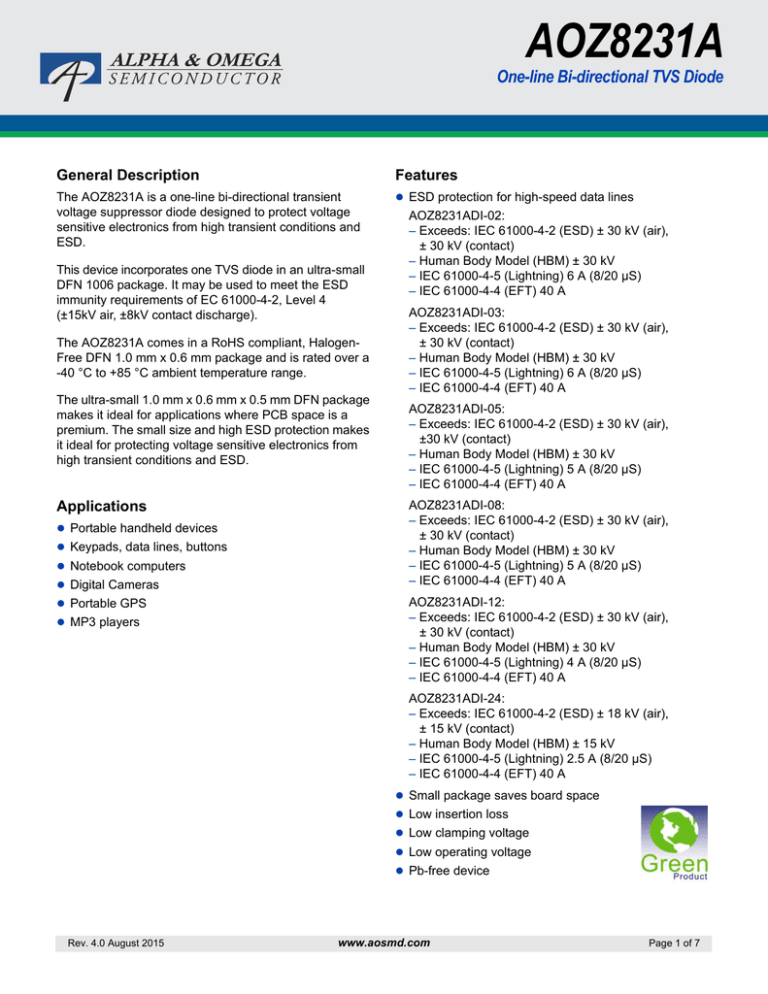

AOZ8231A
One-line Bi-directional TVS Diode
General Description
Features
The AOZ8231A is a one-line bi-directional transient
voltage suppressor diode designed to protect voltage
sensitive electronics from high transient conditions and
ESD.
 ESD protection for high-speed data lines
This device incorporates one TVS diode in an ultra-small
DFN 1006 package. It may be used to meet the ESD
immunity requirements of EC 61000-4-2, Level 4
(±15kV air, ±8kV contact discharge).
The AOZ8231A comes in a RoHS compliant, HalogenFree DFN 1.0 mm x 0.6 mm package and is rated over a
-40 °C to +85 °C ambient temperature range.
The ultra-small 1.0 mm x 0.6 mm x 0.5 mm DFN package
makes it ideal for applications where PCB space is a
premium. The small size and high ESD protection makes
it ideal for protecting voltage sensitive electronics from
high transient conditions and ESD.
Applications
 Portable handheld devices
 Keypads, data lines, buttons
 Notebook computers
 Digital Cameras
 Portable GPS
 MP3 players
AOZ8231ADI-02:
– Exceeds: IEC 61000-4-2 (ESD) ± 30 kV (air),
± 30 kV (contact)
– Human Body Model (HBM) ± 30 kV
– IEC 61000-4-5 (Lightning) 6 A (8/20 μS)
– IEC 61000-4-4 (EFT) 40 A
AOZ8231ADI-03:
– Exceeds: IEC 61000-4-2 (ESD) ± 30 kV (air),
± 30 kV (contact)
– Human Body Model (HBM) ± 30 kV
– IEC 61000-4-5 (Lightning) 6 A (8/20 μS)
– IEC 61000-4-4 (EFT) 40 A
AOZ8231ADI-05:
– Exceeds: IEC 61000-4-2 (ESD) ± 30 kV (air),
±30 kV (contact)
– Human Body Model (HBM) ± 30 kV
– IEC 61000-4-5 (Lightning) 5 A (8/20 µS)
– IEC 61000-4-4 (EFT) 40 A
AOZ8231ADI-08:
– Exceeds: IEC 61000-4-2 (ESD) ± 30 kV (air),
± 30 kV (contact)
– Human Body Model (HBM) ± 30 kV
– IEC 61000-4-5 (Lightning) 5 A (8/20 µS)
– IEC 61000-4-4 (EFT) 40 A
AOZ8231ADI-12:
– Exceeds: IEC 61000-4-2 (ESD) ± 30 kV (air),
± 30 kV (contact)
– Human Body Model (HBM) ± 30 kV
– IEC 61000-4-5 (Lightning) 4 A (8/20 µS)
– IEC 61000-4-4 (EFT) 40 A
AOZ8231ADI-24:
– Exceeds: IEC 61000-4-2 (ESD) ± 18 kV (air),
± 15 kV (contact)
– Human Body Model (HBM) ± 15 kV
– IEC 61000-4-5 (Lightning) 2.5 A (8/20 µS)
– IEC 61000-4-4 (EFT) 40 A
 Small package saves board space
 Low insertion loss
 Low clamping voltage
 Low operating voltage
 Pb-free device
Rev. 4.0 August 2015
www.aosmd.com
Page 1 of 7
AOZ8231A
Typical Application
Pin Configuration
Signal Line
Bidirection Protection of Single Line
Ordering Information
Part Number
Ambient Temperature Range
Package
Environmental
-40 °C to +85 °C
DFN 1.0 x 0.6
Green Product
AOZ8231ADI-02
AOZ8231ADI-03
AOZ8231ADI-05
AOZ8231ADI-08
AOZ8231ADI-12
AOZ8231ADI-24
AOS Green Products use reduced levels of Halogens, and are also RoHS compliant.
Please visit www.aosmd.com/media/AOSGreenPolicy.pdf for additional information.
Absolute Maximum Ratings
Exceeding the Absolute Maximum ratings may damage the device.
Rating for AOZ8231ADI
Parameter
VP – VN
Peak Pulse Current, tP = 8/20 µs
-02
-03
-05
-08
-12
-24
2.5 V
3.3 V
5V
8V
12 V
24 V
6A
6A
5A
5A
4A
2.5 A
Storage Temperature (TS)
ESD Rating per IEC61000-4-2,
-65 °C to +150 °C
Contact(1)
ESD Rating per IEC61000-4-2, Air(1)
(2)
ESD Rating per Human Body Model
± 30 kV
± 30 kV
± 30 kV
± 30 kV
± 30 kV
± 15 kV
± 30 kV
± 30 kV
± 30 kV
± 30 kV
± 30 kV
±18 kV
± 30 kV
± 30 kV
± 30 kV
± 30 kV
± 30 kV
± 15 kV
Notes:
1. IEC 61000-4-2 discharge with CDischarge = 150 pF, RDischarge = 330 Ω.
2. Human Body Discharge per MIL-STD-883, Method 3015 CDischarge = 100 pF, RDischarge = 1.5 kΩ.
Maximum Operating Ratings
Parameter
Junction Temperature (TJ)
Rev. 4.0 August 2015
Rating
-40 °C to +125 °C
www.aosmd.com
Page 2 of 7
AOZ8231A
Electrical Characteristics
TA = 25 °C unless otherwise specified.
Symbol
Parameter
Diagram
IPP
Reverse Peak Pulse Current, (tperiod = 100 ns, tr = 1 ns)
VCL
Clamping Voltage @ IPP
VRWM
IR
VBR
CJ
I
IPP
Working Peak Reverse Voltage
Maximum Reverse Leakage Current
Breakdown Voltage
VCL VBR VRWM
IR
IT
Capacitance @ VR = 0 and f = 1 MHz
VCL VBR VRWM
V
IPP
VCL Max.(3)
IR (µA)
Max. IPP = 1 A IPP = 5 A IPP = 12 A
Device
Device
Marking
VRWM (V)
Max.
VBR (V)
Min. @
1mA
AOZ8231ADI-02
P
2.5
3.0
0.1
AOZ8231ADI-03
D
3.3
3.7
AOZ8231ADI-05
E
5.0
5.5
AOZ8231ADI-08
Y
8.0
AOZ8231ADI-12
F
AOZ8231ADI-24
R
12.5
CJ (pF)(3)
Min.
Typ.
Max.
4.4
5.5
7.0
6.5
9.0
0.1
7.5
10.0
13.5
4.4
5.5
7.0
0.1
10.5
13.5
15.5
10.4
13.0
14.0
9.5
0.1
15.0
18.0
22.5
19.0
23.0
27.0
12.0
13.0
0.1
20.0
23.0
26.0
10.4
13.0
14.0
24.0
27.0
0.1
35.0
38.0
39.0
9.6
12.0
15.0
Note:
3. Guaranteed by design and characterization.
Rev. 4.0 August 2015
www.aosmd.com
Page 3 of 7
AOZ8231A
Typical Performance Characteristics
Clamping Voltage vs. Peak Pulse Current
(tperiod = 100 ns, tr = 1 ns)
45
Clamping Voltage, VCL (V)
40
24V
35
30
12V
25
8V
20
15
5V
3.3V
10
2.5V
5
0
0
2
4
6
8
10
12
Peak Pulse Current, IPP (A)
Typical Variation of CIN vs. VR
(f = 1 MHz, T = 25 °C)
Normalized Capacitance (pF)
1.2
1.0
2.5V
3.3V
0.8
0.6
5V
24V
0.4
12V
0.2
0
0
2
4
6
8
10
12
14
16
18
20
22
24
Input Voltage (V)
Rev. 4.0 August 2015
www.aosmd.com
Page 4 of 7
AOZ8231A
Package Dimensions, DFN 1.0 x 0.6
5 Index Area
(E/4xD)
2x
aaa C
3
e
A
aaa C 2x
D
ddd
C AB
B
E
Pin#1 ID
0.125x45°
2x b
L2
ddd
C AB
BOTTOM VIEW
TOP VIEW
6
A
Seating Plane
2x
7
ccc C
A1
C
SIDE VIEW
RECOMMENDED LAND PATTERN
1.00
0.30
0.55
0.40
0.125 x 45°
Dimensions in millimeters
Symbols
A
A1
b
D
E
e
L
aaa
ccc
ddd
Min.
0.47
0.00
0.45
Nom.
0.51
0.02
0.50
0.60 BSC
1.00 BSC
0.65 BSC
0.20
0.25
0.05
0.03
0.10
Max.
0.55
0.05
0.55
0.30
Dimensions in inches
Symbols
A
A1
b
D
E
e
L
aaa
ccc
ddd
Min.
0.019
0.000
0.018
0.008
Nom.
0.020
0.001
0.020
0.024
0.039
0.026
0.010
0.002
0.001
0.004
Max.
0.022
0.002
0.022
0.012
0.30
UNIT: mm
Notes:
1. Dimensions and tolerancing conform to ASME Y14.5-2009.
2. All dimensions are in milliteters.
3. “e” represents the terminal grid pitch.
4. N isthe total number of terminals.
5. A visual index feature must be located within the hatched area. Typical index feature (chamfer) must be located on the edge
of the Pin#1 feature.
6. This dimension includes stand-off height “A1” and packaged body thickness, but does not include attached feature e.g. external
heatsink or chip capacitors, an internal heatslug is not considered as attached feature.
7. Dimension “A1” is primarily terminal plating, and does not include small metal protrusions.
Rev. 4.0 August 2015
www.aosmd.com
Page 5 of 7
AOZ8231A
Tape and Reel Dimensions, DFN 1.0 x 0.6
Carrier Tape
P1
P2
T
D1
E1
E2
E
B0
K0
P0
D0
A0
UNIT: mm
Option
A
Package
B0
A0
K0
DFN 1.0x0.6/ 0.69 1.19
0.66
DFN 1.0x0.6A ±0.05 ±0.05 ±0.05
(8 mm)
D0
0.40
±0.05
D1
E
E1
1.50
8.00
1.75
±0.10 +0.3/-0.1 ±0.10
E2
3.50
±0.05
P0
2.00
±0.05
P1
4.00
±0.10
T
P2
0.23
2.00
±0.05 ±0.02
B
0.61
DFN 1.0x0.6/ 0.65 1.05
DFN 1.0x0.6A ±0.04 ±0.04 ±0.04
(8 mm)
0.40
±0.05
1.50
8.00
1.75
±0.10 +0.3/-0.1 ±0.10
3.50
±0.05
2.00
±0.10
4.00
±0.10
2.00
0.20
±0.05 ±0.05
Reel
W1
S
G
N
M
K
V
R
H
W
UNIT: mm
Tape Size Reel Size
8mm
ø178
M
ø178
±0.5
N
ø55
±1
W
8.4
+1.5/-0
W1
Max.
14.4
H
ø13.0
±0.5
K
Max.
10.1
S
2.0
±0.5
G
N/A
R
N/A
V
N/A
Leader / Trailer & Orientation
TVS
Unit Per Reel:
10000pcs
Trailer Tape
300mm Min.
Rev. 4.0 August 2015
Components Tape
Orientation in Pocket
www.aosmd.com
Leader Tape
500mm Min.
Page 6 of 7
AOZ8231A
Part Marking
Product Number Code
AOZ8231ADI_02 = P
AOZ8231ADI_03 = D
AOZ8231ADI_05 = E
AOZ8231ADI_08 = Y
AOZ8231ADI_12 = F
AOZ8231ADI_24 = R
Date Code
LEGAL DISCLAIMER
Alpha and Omega Semiconductor makes no representations or warranties with respect to the accuracy or
completeness of the information provided herein and takes no liabilities for the consequences of use of such
information or any product described herein. Alpha and Omega Semiconductor reserves the right to make changes to
such information at any time without further notice. This document does not constitute the grant of any intellectual
property rights or representation of non-infringement of any third party’s intellectual property rights.
LIFE SUPPORT POLICY
ALPHA AND OMEGA SEMICONDUCTOR PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL
COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS.
As used herein:
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical implant into
the body or (b) support or sustain life, and (c) whose
failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be
reasonably expected to result in a significant injury of
the user.
Rev. 4.0 August 2015
2. A critical component in any component of a life
support, device, or system whose failure to perform can
be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or
effectiveness.
www.aosmd.com
Page 7 of 7
