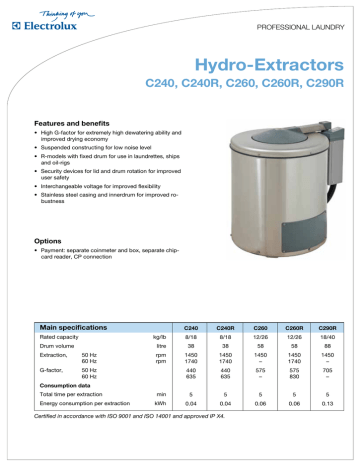

PROFESSIONAL LAUNDRY
Hydro-Extractors
C240, C240R, C260, C260R, C290R
Features and benefits
• High G-factor for extremely high dewatering ability and
improved drying economy
• Suspended constructing for low noise level
• R-models with fixed drum for use in laundrettes, ships
and oil-rigs
• Security devices for lid and drum rotation for improved
user safety
• Interchangeable voltage for improved flexibility
• Stainless steel casing and innerdrum for improved robustness
Options
• Payment: separate coinmeter and box, separate chipcard reader, CP connection
Main specifications
C240
C240R
C260
C260R
C290R
Rated capacity kg/lb
8/18
8/18
12/26
12/26
18/40
Drum volume
litre
38
38
58
58
88
Extraction,
50 Hz
60 Hz
rpm
rpm
1450
1740
1450
1740
1450
–
1450
1740
1450
–
G-factor,
50 Hz
60 Hz
440
635
440
635
575
–
575
830
705
–
Consumption data
Total time per extraction
min
5
5
5
5
5
Energy consumption per extraction
kWh
0.04
0.04
0.06
0.06
0.13
Certified in accordance with ISO 9001 and ISO 14001 and approved IP X4.
Electrical
connections
C240
Voltage
Motor
230V 3AC 50 Hz
kW(A)
208-240V 3AC 60 Hz kW(A)
400-415V 3N AC 50 HzkW(A)
440V 3AC 60 Hz
kW(A)
C240R
C260
C260R
C290R
0.33(10)
0.33(10)
0.33(10)
0.33(10)
0.33(10)
0.33(10)
0.33(10)
0.33(10)
0.33(10)
N/A
0.33(10)
N/A
0.55(10)
0.55(10)
0.55(10)
0.55(10)
0.65(16)
N/A
0.65(16)
N/A
25
1.0±0.10
25
1.0±0.25
25
1.4±0.15
25
1.9±0.4
25
3.0±0.6
<70
<70
<70
<70
<70
67
74
112
0.5
0.79
91
101
130
1.47
1.47
98
109
166
0.73
0.88
126
140
220
0.8
0.88
171
190
265
1.2
1.38
515
660
850
780
340
320
250
500
515
660
910
840
400
390
250
500
640
785
870
800
360
330
250
500
640
785
980
910
480
420
250
500
770
910
1050
990
550
470
250
500
Floor requirements
Frequency
of the dynamic force Hz
Max
floor load at extraction at 50 Hz kN
Sound level
Airborne
sound level dB(A)
Shipping data
net, kg
crated, kg
boxed, kg
Shipping
volume crated, m3
boxed, m3
Dimensions in mm
A
Width
B
Depth C
Height
D
E
F
G
H
1
Control panel 2 Electrical connection
3 Drain ø75
4 Drum opening ø220 (C240/R),
ø300 (C260/R), ø355 (C290/R)
A
B
1
H
2
3
4
C
E
G
6104
www.electrolux.com/laundrysystems
Share more of our thinking at www.electrolux.com
Right side
Top view
Art. No. 438908511/2010.03.15
Rear side
We reserve the right to alter specifications without notice.
F
D
