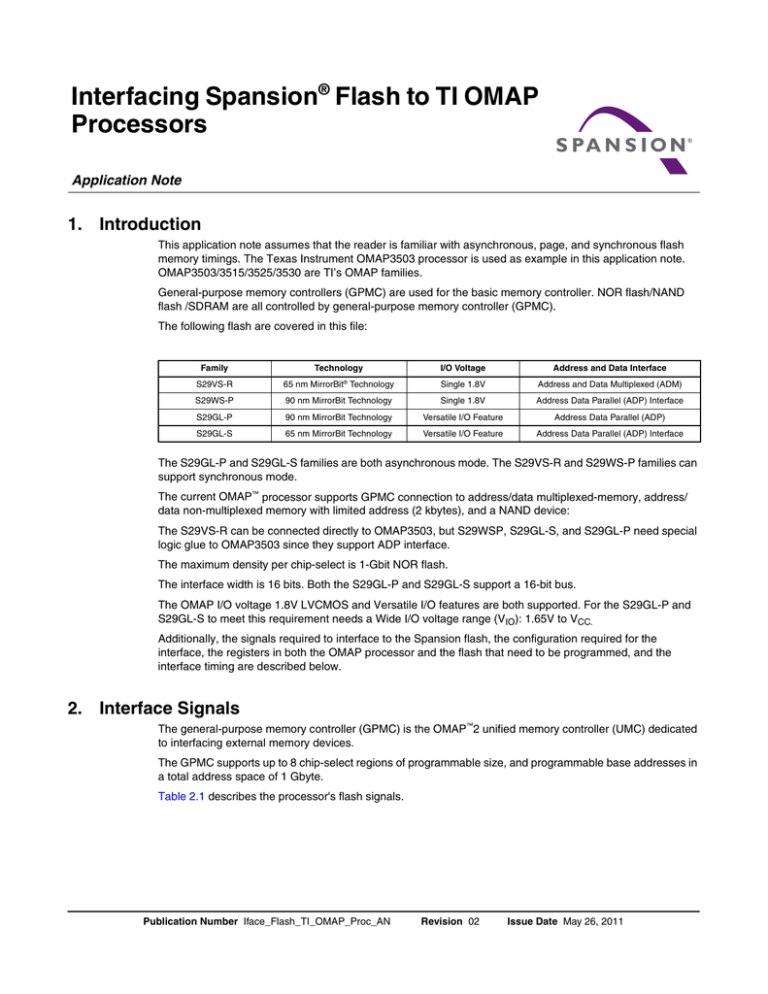

Interfacing Spansion® Flash to TI OMAP
Processors
Application Note
1. Introduction
This application note assumes that the reader is familiar with asynchronous, page, and synchronous flash
memory timings. The Texas Instrument OMAP3503 processor is used as example in this application note.
OMAP3503/3515/3525/3530 are TI’s OMAP families.
General-purpose memory controllers (GPMC) are used for the basic memory controller. NOR flash/NAND
flash /SDRAM are all controlled by general-purpose memory controller (GPMC).
The following flash are covered in this file:
Family
Technology
I/O Voltage
Address and Data Interface
S29VS-R
65 nm MirrorBit® Technology
Single 1.8V
Address and Data Multiplexed (ADM)
S29WS-P
90 nm MirrorBit Technology
Single 1.8V
Address Data Parallel (ADP) Interface
S29GL-P
90 nm MirrorBit Technology
Versatile I/O Feature
Address Data Parallel (ADP)
S29GL-S
65 nm MirrorBit Technology
Versatile I/O Feature
Address Data Parallel (ADP) Interface
The S29GL-P and S29GL-S families are both asynchronous mode. The S29VS-R and S29WS-P families can
support synchronous mode.
The current OMAP™ processor supports GPMC connection to address/data multiplexed-memory, address/
data non-multiplexed memory with limited address (2 kbytes), and a NAND device:
The S29VS-R can be connected directly to OMAP3503, but S29WSP, S29GL-S, and S29GL-P need special
logic glue to OMAP3503 since they support ADP interface.
The maximum density per chip-select is 1-Gbit NOR flash.
The interface width is 16 bits. Both the S29GL-P and S29GL-S support a 16-bit bus.
The OMAP I/O voltage 1.8V LVCMOS and Versatile I/O features are both supported. For the S29GL-P and
S29GL-S to meet this requirement needs a Wide I/O voltage range (VIO): 1.65V to VCC.
Additionally, the signals required to interface to the Spansion flash, the configuration required for the
interface, the registers in both the OMAP processor and the flash that need to be programmed, and the
interface timing are described below.
2. Interface Signals
The general-purpose memory controller (GPMC) is the OMAP™2 unified memory controller (UMC) dedicated
to interfacing external memory devices.
The GPMC supports up to 8 chip-select regions of programmable size, and programmable base addresses in
a total address space of 1 Gbyte.
Table 2.1 describes the processor's flash signals.
Publication Number Iface_Flash_TI_OMAP_Proc_AN
Revision 02
Issue Date May 26, 2011
A pplication
Note
Table 2.1 Flash Signals
Signal Name
I/O
Description
gpmc_clk
I/O
External clock provided to the external device for synchronous operations
gpmc_a[10: 1]
O
Address a[26:17]
gpmc_d[15: 0]
I/O
Data-multiplexed with addresses A[16:1] on memory side
gpmc_ncs[7:0]
O
Chip-select
gpmc_nadv_ale
O
Address Valid or Address Latch
gpmc_noe_nre
O
Output enable (read access only)
gpmc_nwe
O
Write enable (write access only)
gpmc_wait[3:0]
I
Ready signal from memory device. Indicates when valid burst data is ready to be read
gpmc_nbe0_cle
O
Lower Byte Enable. Also used for Command Latch Enable.
gpmc_nbe1
O
Upper Byte Enable
gpmc_nwp
O
Flash Write Protect
gpmc_wait[3:0]
I
External indication of wait
Reset values of the timing control parameters are defined to cope with direct boot on address and data
multiplexed NOR flash devices, on non-multiplexed NOR flash devices, or on any asynchronous device with
large timing margins assuming a low GPMC_FCLK frequency (for example, 19.2 MHz) at boot time.
3. Configuration Overview
The GPMC is the OMAP2 16-bit external memory controller. The GPMC data access engine provides a
flexible programming model for communication with all standard memories. The GPMC supports various
accesses.
The GPMC supports the following interface protocols when communicating with external Nor flash memory:
 Asynchronous read/write access
 Synchronous read/burst read
 Synchronous read burst access without wrap capability (4-8-16 Word16)
 Synchronous read burst access with wrap capability (4-8-16 Word16)
3.1
GPMC I/O Configuration Setting
The address/data non-multiplexed device, which is limited to a 2 kbyte address range:
 GPMC.GPMC_CONFIG1_i[11:10] DEVICETYPE field = 0x00
 GPMC.GPMC_CONFIG1_i[9] MUXADDDATA bit = 0
 GPMC.GPMC_CONFIG[1] LIMITEDADDRESS bit = 1
To select the address/data-multiplexed device, program the following register fields:
 GPMC.GPMC_CONFIG1_i[11:10] DEVICETYPE field = 0b00
 GPMC.GPMC_CONFIG1_i[9] MUXADDDATA bit = 1
3.2
Asynchronous and Synchronous Access
Read access can be specified as either asynchronous or synchronous access:
 GPMC.GPMC_CONFIG1_i[29] READTYPE bit (i = 0 to 7)
2
Iface_Flash_TI_OMAP_Proc_AN_02
May 26, 2011
App l ic atio n
3.3
No t e
Page and Burst Support
Read accesses can be configured through the GPMC_CONFIG1_i[30] READMULTIPLE
The maximum length that can be issued is defined per CS by the GPMC.GPMC_CONFIG1_i[24:23]
ATTACHEDDEVICEPAGELENGTH field (i= 0 to7).
16 Word16-length-wrapping burst capability (critical word access first), the
ATTACHEDDEVICEPAGELENGTH parameter must be set to 16 words and the
GPMC.GPMC_CONFIG1_i[31] WRAPBURST bit (i = 0 to 7) must be set to 1.
4. Asynchronous Access Example
In asynchronous operations:
 GPMC_CLK is not provided outside the GPMC
 GPMC_CLK is kept low
Page mode is only available in non-muxed mode. The non-muxed mode is very limited (address space
limited to 2 kbytes). So only muxed mode are covered here.
4.1
Asynchronous Single Read
Asynchronous single read operation on an address/data-multiplexed device.
When the GPMC generates a read access to an address/data-multiplexed device, it drives the address bus
until nOE assertion time.
 GPMC.GPMC_CONFIG1_i register settings (i = 0 to 7):
– READMULTIPLE bit at 0 (read single access)
– READTYPE bit at 0 (read asynchronous)
– MUXADDDATA bit at 1 (address/data-multiplexed device)
Address bits ([16:1] from a GPMC perspective, [15:0] from an external device perspective) are placed on the
address/data bus, and the remaining address bits [25:16] are placed on the address bus. The address phase
ends at nOE assertion, when the DIR signal goes from OUT to IN.
 Chip-select signal nCS:
– nCS assertion time is controlled by the GPMC_CONFIG2_i[3:0] CSOnTime field. It controls the
address setup time to nCS assertion.
– nCS deassertion time is controlled by the GPMC_CONFIG2_i[12:8] CSRdOffTime field. It controls the
address hold time from nCS deassertion.
 Address valid signal nADV:
– nADV assertion time is controlled by the GPMC_CONFIG3_i[3:0] ADVOnTime field.
– nADV deassertion time is controlled by the GPMC_CONFIG3_i[12:8] ADVRdOffTime field.
 Output enable signal nOE:
– nOE assertion indicates a read cycle.
– nOE assertion time is controlled by the GPMC_CONFIG4_i[3:0] OEOnTime field.
– nOE deassertion time is controlled by the GPMC_CONFIG4_i[12:8] OEOffTime field.
 Read data is latched when RdAccessTime completes. Access time is defined in the
GPMC.GPMC_CONFIG5_i[20:16] RdAcessTime field.
 The end of the access is defined by the RdCycleTime parameter. The read cycle time is defined in the
GPMC.GPMC_CONFIG5_i[4:0] RdCycleTime field.
 Direction signal DIR: DIR goes from OUT to IN at the same time that nOE is asserted.
May 26, 2011
Iface_Flash_TI_OMAP_Proc_AN_02
3
A pplication
4.2
Note
Asynchronous Single Write
Asynchronous single write operation on an address/data-multiplexed device.
When the GPMC generates a write access to an address/data-multiplexed device, it drives the address on
the address/data muxed bus until WRDATAONADMUXBUS time, and then it drives the data.
 GPMC.GPMC_CONFIG1_i register settings (i = 0 to 7):
– WRITEMULTIPLE bit at 0 (write single access)
– WRITETYPE bit at 0 (write asynchronous)
– MUXADDDATA bit at 1 (address/data-multiplexed device)
Address bits [16:1] are placed on the address/data bus at the start of cycle time, and the remaining address
bits [26:17] are placed on the address bus.
 Chip-select signal nCS:
– nCS assertion time is controlled by the GPMC.GPMC_CONFIG2_i[3:0] CSOnTime field and ensures
address setup time to nCS assertion.
– nCS deassertion time is controlled by the GPMC.GPMC_CONFIG2_i[20:16] CSWrOffTime field and
ensures address hold time to nCS deassertion.
 Address valid signal nADV:
– nADV assertion time is controlled by the GPMC.GPMC_CONFIG3_i[3:0] ADVOnTime field.
– nADV deassertion time is controlled by the GPMC.GPMC_CONFIG3_i[20:16] ADVWrOffTime field.
Address and data are driven on their corresponding buses at start-of-cycle time.
 Write enable signal nWE:
– nWE assertion indicates a write cycle.
– nWE assertion time is controlled by the GPMC.GPMC_CONFIG4_i[19:16] WEOnTime field.
– nWE deassertion time is controlled by the GPMC.GPMC_CONFIG4_i[28:24] WEOffTime field.
 Direction signal DIR:
DIR signal is OUT during the entire access.
 The end of the access is defined by the WRCYCLETIME parameter. This write-cycle time is defined in the
GPMC.GPMC_CONFIG5_i[12:8] WrCycleTimefield.
5. Synchronous Access Example
In synchronous operations:
 The GPMC_CLK clock is provided outside the GPMC when accessing the memory device.
 The GPMC_CLK clock is derived from the GPMC_FCLK clock using the GPMC.GPMC_CONFIG1_i[1:0]
GpmcFCLKDivider field (where i = 0 to 7).
 The GPMC.GPMC_CONFIG1_i[26:25] ClkActivationTime field specifies that the GPMC_CLK is provided
outside the GPMC 0, 1, or 2 GPMC_FCLK cycles after start access time until CycleTime completes.
 When the GPMC is configured for synchronous mode, the GPMC_CLK signal (which is an output) must
also be set as an input (CONTROL.CONTROL_PADCONF_GPMC_NCS7[24] INPUTENABLE1 =1).
GPMC_CLK is looped back through the output and input buffers of the corresponding GPMC_CLK pad at
OMAP boundary. The looped-back clock is used to synchronize the sampling of the memory signals.
4
Iface_Flash_TI_OMAP_Proc_AN_02
May 26, 2011
App l ic atio n
5.1
No t e
Register Setting for S29VS-R
Table 5.1 Configuration Register
CR BIt
Function
CR.15
Device Read Mode
CR.14
CR.13
CR.12
Programmable
Read Wait States
CR.11
CR.10
RDY Polarity
CR.9
Reserved
CR.8
RDY Timing
CR.7
Output Drive Strength
CR.6
Reserved
CR.5
Reserved
CR.4
Reserved
CR.3
Reserved
CR.2
CR.1
Burst Length
CR.0
5.2
Settings (Binary)
0 = Synchronous Read Mode
1 = Asynchronous Read Mode (Default)
0000 =
Reserved
0001 =
3rd
Initial data is valid on the
0010 =
4th
0011 =
5th
..
.
rising CLK edge after
addresses are latched
..
.
1011 =
13th (Default)
1100 = Reserved
1101 = Reserved
1110 = Reserved
1111 = Reserved
0 = RDY signal is active low
1 = RDY signal is active high (Default)
0 = Reserved
1 = Reserved (Default)
0 = RDY active one clock cycle before data
1 = RDY active with data (Default)
0 = Full Drive= Current Driver Strength (Default)
1 = Half Drive
0 = Reserved
1 = Reserved (Default)
0 = Reserved (Default)
1 = Reserved
0 = Reserved (Default)
1 = Reserved
0 = Reserved
1 = Reserved (Default)
000 = Continuous (Default)
010 = 8-word (16-byte) Linear Burst with wrap around
011 = 16-word (32-byte) Linear Burst with wrap around
(All other bit settings are reserved)
Synchronous Multiple Read (Burst)
Synchronous multiple read operation with GpmcFCLKDivider equal to 0 and 1, respectively.
 GPMC.GPMC_CONFIG1_i register settings:
– READMULTIPLE bit at 1 (read multiple access)
– READTYPE bit at 1 (read synchronous)
– MUXADDDATA bit at 0 (nonaddress/data-multiplexed device)
When RDACCESSTIME completes, control-signal timings are frozen during the multiple data transactions,
corresponding to PageBurstAccessTime multiplied by the number of remaining data transactions.
 Chip-select signal nCS:
– nCS assertion time is controlled by the GPMC.GPMC_CONFIG2_i[3:0] CSOnTime field and ensures
address setup time to nCS assertion.
– nCS deassertion time is controlled by the GPMC.GPMC_CONFIG2_i[12:8] CSRdOffTime field and
ensures address hold time to nCS deassertion.
 Address valid signal nADV:
– nADV assertion time is controlled by the GPMC.GPMC_CONFIG3_i[3:0] ADVOnTime field.
– nADV deassertion time is controlled by the GPMC.GPMC_CONFIG3_i[12:8] ADVRdOffTime field.
May 26, 2011
Iface_Flash_TI_OMAP_Proc_AN_02
5
A pplication
Note
 Output enable signal nOE:
– nOE assertion indicates a read cycle.
– nOE assertion time is controlled by the GPMC.GPMC_CONFIG4_i[3:0] OEOnTime field.
– nOE deassertion time is controlled by the GPMC.GPMC_CONFIG4_i[12:8] OEOffTime field.
 Initial latency for the first read data is controlled by GPMC.GPMC_CONFIG5_i[20:16] RdAccessTime or by
monitoring the WAIT signal.
 Successive read data are provided by the memory device each one or two GPMC_CLK cycles. The
PageBurstAccessTime parameter must be set accordingly with GpmcFCLKDivider and the memory-device
internal configuration.
Depending on the device page length, the GPMC can control device page crossing during a new burst
request and purposely insert initial latency.
 Total access time (RdCycleTime) corresponds to RdAccessTime plus the address hold time from nCS
deassertion, plus the time from RdAccessTime to CSRdOffTime.
– RdCycleTime is defined in the GPMC.GPMC_CONFIG5_i register.
 Direction signal DIR:
DIR goes from OUT to IN at the same time as nOE assertion. After a read operation, if no other access (read
or write) is pending, the data bus is driven with the previous read value.
 Burst wraparound
The GPMC.GPMC_CONFIG1_i[31] WRAPBURST bit allows a 4-, 8-, or 16-word16 linear burst access to
wrap within its burst-length boundary.
6. Reference
 OMAP3515/03 Applications Processor data sheet
SPRS505F–FEBRUARY 2008–REVISED SEPTEMBER 2009
 OMAP3530/25 Applications Processor data sheet
SPRS507F–FEBRUARY 2008–REVISED OCTOBER 2009
 OMAP35x Applications Processor Technical Reference Manual
SPRUF98M–April 2010–Revised December 2010
 S29VS/XS-R MirrorBit Flash Family data sheet
Publication Number S29VS_XS-R_00 Revision 04 Issue Date March 10, 2009
 S29GL-P MirrorBit Flash Family data sheet
Publication Number S29GL-P_00 Revision A Amendment 8 Issue Date November 28, 2007
 S29GL-S MirrorBit Eclipse Flash Family data sheet
Publication Number S29GL_128S_01GS_00 Revision 01 Issue Date February 11, 2011
 S29WS-P MirrorBit Flash Family data sheet
Publication Number S29WS-P_00 Revision A Amendment 12 Issue Date January 28, 2008
OMAP35x devices integrate the Cortex™-A8 core and TI's C64x+ DSP into four applications processors:
OMAP3503, OMAP3515, OMAP3525, and OMAP3530.
6
Iface_Flash_TI_OMAP_Proc_AN_02
May 26, 2011
App l ic atio n
No t e
7. Revision History
Section
Description
Revision 01 (July 5, 2005)
Initial release
Revision 02 (May 26, 2011)
Global
May 26, 2011
Complete rewrite
Iface_Flash_TI_OMAP_Proc_AN_02
7
A pplication
Note
Colophon
The products described in this document are designed, developed and manufactured as contemplated for general use, including without
limitation, ordinary industrial use, general office use, personal use, and household use, but are not designed, developed and manufactured as
contemplated (1) for any use that includes fatal risks or dangers that, unless extremely high safety is secured, could have a serious effect to the
public, and could lead directly to death, personal injury, severe physical damage or other loss (i.e., nuclear reaction control in nuclear facility,
aircraft flight control, air traffic control, mass transport control, medical life support system, missile launch control in weapon system), or (2) for
any use where chance of failure is intolerable (i.e., submersible repeater and artificial satellite). Please note that Spansion will not be liable to
you and/or any third party for any claims or damages arising in connection with above-mentioned uses of the products. Any semiconductor
devices have an inherent chance of failure. You must protect against injury, damage or loss from such failures by incorporating safety design
measures into your facility and equipment such as redundancy, fire protection, and prevention of over-current levels and other abnormal
operating conditions. If any products described in this document represent goods or technologies subject to certain restrictions on export under
the Foreign Exchange and Foreign Trade Law of Japan, the US Export Administration Regulations or the applicable laws of any other country,
the prior authorization by the respective government entity will be required for export of those products.
Trademarks and Notice
The contents of this document are subject to change without notice. This document may contain information on a Spansion product under
development by Spansion. Spansion reserves the right to change or discontinue work on any product without notice. The information in this
document is provided as is without warranty or guarantee of any kind as to its accuracy, completeness, operability, fitness for particular purpose,
merchantability, non-infringement of third-party rights, or any other warranty, express, implied, or statutory. Spansion assumes no liability for any
damages of any kind arising out of the use of the information in this document.
Copyright © 2005-2011 Spansion Inc. All rights reserved. Spansion®, the Spansion logo, MirrorBit®, MirrorBit® Eclipse™, ORNAND™, EcoRAM™
and combinations thereof, are trademarks and registered trademarks of Spansion LLC in the United States and other countries. Other names
used are for informational purposes only and may be trademarks of their respective owners.
8
Iface_Flash_TI_OMAP_Proc_AN_02
May 26, 2011
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
