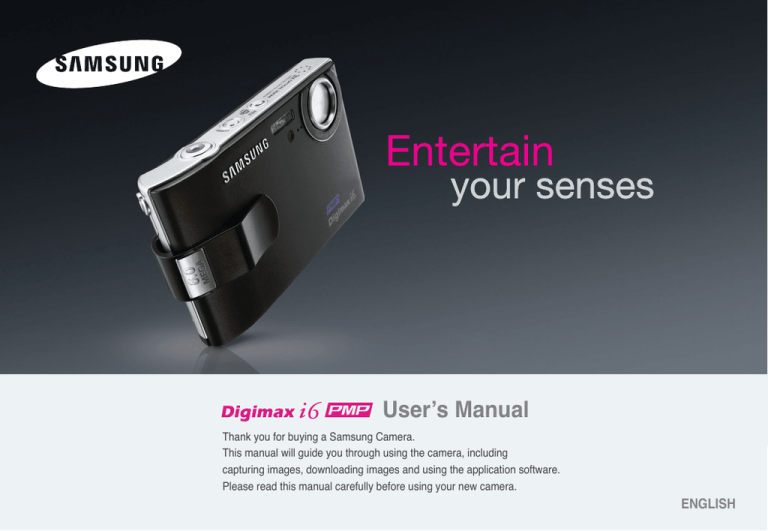

User’s Manual
Thank you for buying a Samsung Camera.
This manual will guide you through using the camera, including
capturing images, downloading images and using the application software.
Please read this manual carefully before using your new camera.
ENGLISH
Instructions
Getting to know your camera
ƈ Use this camera in the following order
Set up the camera driver
Take a picture
Insert the USB cable
Before connecting the camera to a PC, via
the USB cable, you will need to set up the
camera driver. Install the camera driver
that is contained in Application software
CD-ROM. (p.75)
Take a picture. (p.14)
Insert the supplied USB cable into the
PC’s USB port and the camera’s USB
connection terminal. (p.78)
Check the camera’s power
Check the camera’s power. If the power is
turned off, press the camera button to turn
it on. (p.17)
Check [Removable Disk]
Open WindowŖs EXPLORER and search
for [Removable Disk]. (p.78)
Thank you for buying a Samsung Digital Camera.
ƃ Prior to using this camera, please read the user manual thoroughly.
ƃ When you require After Sales service, please bring the camera and the cause of
the camera malfunction (such as battery, Memory card etc.) to the A/S centre.
ƃ Please check that the camera is operating properly prior to when you intend to
use it (e.g. for a trip or an important event) to avoid disappointment. Samsung
camera takes no responsibility for any loss or damages that may result from
camera malfunction.
ƃ Keep the manual in a safe place.
Ҭ Microsoft, Windows and Windows logo are registered trademarks of Microsoft
Corporation incorporated in the United States and/or other countries.
Ҭ All brand and product names appearing in this manual are registered trademarks
of their respective companies.
ƃ If you use a card reader to copy the images on the memory card to your PC, the
images could be damaged. When transferring the images taken with the camera
to your PC, be sure to use the supplied USB cable to connect the camera to
your PC. Please note that the manufacturer holds no responsibility for loss or
damage of images on the memory card due to the use of a card reader.
ŝ1Ş
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
ƈ Do not attempt to modify this camera in any way. This may result in fire, injury, electric
shock or severe damage to you or your camera. Internal inspection, maintenance and
repairs should be carried out by your dealer or Samsung Camera Service centre.
ƈ Please do not use this product in close proximity to flammable or explosive
gases, as this could increase the risk of explosion.
ƈ Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera,
and then disconnect the power source. You must contact your dealer or Samsung Camera
Service centre. Do not continue to use the camera as this may cause a fire or electric shock.
ƈ Do not insert or drop metallic or inflammable foreign objects into the camera through access
points e.g. the memory card slot and battery chamber. This may cause a fire or electric shock.
ƈ Do not operate this camera with wet hands. This could pose a risk of electric shock.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
ƈ Do not use the flash in close proximity to people or animals. Positioning the flash
too close to your subject’s eyes may cause eyesight damage.
ƈ For safety reasons keep this product and accessories out of reach of children or
animals to prevent accidents e.g.:
ҮSwallowing battery or small camera accessories. If an accident should occur,
please consult a doctor immediately.
ҮThere is the possibility of injury from the camera’s moving parts.
ƈ Battery and camera may become hot during prolonged use and it may result in camera malfunction.
Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool.
ƈ Do not leave this camera in places subject to extremely high temperatures, such as a sealed
vehicle, direct sunlight or other places of extreme variances in temperature. Exposure to extreme
temperatures may adversely affect the camera’s internal components and could cause a fire.
ƈ When in use, do not cover the camera or AC Charger. This may cause heat to build up and distort the
camera body or cause a fire. Always use the camera and its accessories in a well-ventilated area.
ŝ2Ş
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, may
result in a minor or moderate injury.
ƈ Leaking, overheating, or burst battery could result in fire or injury.
ҮUse battery with the correct specification for the camera.
ҮDo not short circuit, heat or dispose of battery in fire.
ҮDo not insert the battery with the reverse polarities.
ƈ Remove the battery when not planning to use the camera for a long period of
time. Battery may leak corrosive electrolyte and permanently damage the
camera’s components.
ƈ Do not fire the flash while it is in contact with hands or objects. Do not touch the
flash after using it continuously. It may cause burns.
ƈ Do not move the camera while it is switched on, if you are using the AC Charger.
After use, always switch off the camera before unplugging the cable from the
wall socket. Then make sure that any connector cords or cables to other devices
are disconnected before moving the camera. Failure to do so may damage the
cords or cables and cause a fire or electric shock.
ƈ Take care not to touch the lens and where the lens cover is to avoid taking an
unclear image and possibly causing camera malfunction.
ƈ Avoid obstructing the lens or the flash when you capture an image.
ƈ Low temperatures can affect the performance of the LCD monitor and you may
experience followings. This will usually recover at normal temperatures and is
perfectly normal.
- The time of power on can be delayed and the colour of LCD monitor can be
changed slightly.
- Fast moving, when you point the camera towards the subject, can make the
after-image of the LCD monitor.
ƈ Credit cards may be demagnetized if left near case. Avoid leaving magnetic strip
cards near the case.
Contents
READY
ƃSystem chart
ƃIdentification of features
ƈFront & Top
ƈBack
ƈBottom/ 5-function button
ƈCradle (optional)
ƈTripod Adaptor
ƈSelf-timer lamp
ƈCamera Status Lamp
ƈMode icon
ƃConnecting to a Power Source
ƈUsing the AC Charger
ƃInstructions on how to use the
memory card
ƃInserting the memory card
ƃWhen Using the Camera for the
First Time
5
6
6
6
7
7
7
8
8
8
8
9
10
11
12
RECORDING
ƃLCD monitor indicator
ƃChanging the recording mode
ƈSelecting the [MODE] menu
ƃStarting the recording mode
ƈHow to use the Auto mode
ƈHow to use the Movie clip mode
ƈRecording the movie clip without
voice
13
14
14
15
15
15
15
ƈPausing while recording a movie clip
(Successive Recording)
15
ƈHow to use the Program mode 16
ƈHow to use the Scene modes
16
ƈHow to use the ASR (Advanced
Shake Reduction) mode
16
ƈHow to use the VOICE
RECORDING mode
16
ƈPausing while recording a voice
recording
16
ƃThings to Watch Out for When
Taking Pictures
17
ƃUsing the camera buttons to adjust
the camera
17
ƈPOWER button
17
ƈSHUTTER button
17
ƈZOOM W/ T button
17
ƈVoice recording / Voice memo /
UP button
18
ƈMacro/ Down button
19
ƈFocus lock
20
ƈFlash / Left button
20
ƈSelf-timer / Right button
22
ƈMENU/ OK button
22
ƈM (Mode) button
22
ƈASR button
23
ƈ+/- button
23
ƈE (Effect) button
26
ƈColour
26
ƈPreset focus frames
27
ƈComposite shooting
28
ƈPhoto Frame
ƈMovie Clip frame stabiliser
ƃUsing the LCD monitor to adjust
the camera settings
ƈHow to use the menu
ƈMode
ƈMode Set
ƈSize
ƈQuality/ Frame rate
ƈMetering
ƈContinuous shot
ƈSharpness
ƈOSD(On Screen Display)
information
29
29
30
31
31
32
32
33
33
34
34
34
PLAY
35
ƃStarting play mode
ƈPlaying back a still image
35
ƈPlaying back a movie clip
35
ƈ Movie clip capture function
35
ƈOn camera movie trimming
36
ƈPlaying back a recorded voice
36
ƃLCD monitor indicator
37
ƃUsing the camera buttons to adjust
the camera
37
ƈPlay mode button
37
ƈThumbnail / Enlargement button/
Volume button
38
ƈVoice memo/ Up button
39
ƈPlay & Pause / Down button
40
ƈLeft/ Right/ Menu/ OK button
ƈE (Effect) button
ƈDelete button
ƈPrinter button
ƃSetting up the play back function
using the LCD monitor
ƈStarting the slide show
ƈProtecting images
ƈDeleting images
ƈResize
ƈRotating an image
ƈDPOF
ƈDPOF : STANDARD
ƈDPOF : Index
ƈDPOF : Print size
ƈOn Screen Display information
ƈCopy To Card
ƈPictBridge
ƈPictBridge : Picture Selection
ƈPictBridge : Print Setting
ƈPictBridge : RESET
40
40
41
41
42
44
45
45
46
46
47
47
47
48
48
49
49
50
51
52
SETUP
ƃSetup menu
ƈFile name
ƈAuto power off
ƈLanguage
ƈFormat
ƈSetting up the Date/ Time/ Date type
ƈImprinting the recording date
52
53
54
54
55
55
55
ŝ3Ş
Contents
ƈSound
ƈConnecting an External Device
(USB)
ƈAuto Focus lamp
ƈLCD brightness
ƈSelecting Video out type
ƈQuick view
ƈInitialisation
ƃSetting up the Mycam menu
ƈStart up image
ƈStart up sound
ƈShutter sound
56
56
56
56
57
57
57
58
58
58
58
65
ƈDelete all
ƈSetting slide show interval
66
ƈPlaying back the slide show
66
ƈFrame search
66
ƈDisplay setting
66
ƈSetting up the recording function in
the MP3 mode
67
ƃImportant notes
67
ƃWarning indicator
69
ƃBefore contacting a service centre 69
ƃSpecification
71
SOFTWARE
MP3/ PMP MODE
ƃMP3 / PMP MODE.
ƃDownloading files
ƃStarting the MP3/ PMP mode
ƃLCD monitor indicator for MP3/PMP mode
ƃUsing the camera buttons to
adjust the camera
ƈVolume button
ƈPlay & Pause/ Control button
ƈDelete button
ƈHold button
ƈPlaylist button
ƃSetting up the play back function
using the LCD monitor
ƈResume
ƈPlay mode
ƈSkin of MP3 player
ŝ4Ş
59
59
60
62
62
62
62
63
63
63
64
64
65
65
ƃSoftware Notes
ƃSystem Requirements
ƃAbout the software
ƃSetting up the application software
ƃStarting PC mode
ƃRemoving the removable disk
ƃSetting up the USB Driver for MAC
ƃUsing the USB Driver for MAC
ƃRemoving the USB Driver for
Windows 98SE
ƃDigimax Converter
ƃDigimax Master
ƃDigimax Reader
ƃFAQ
74
74
74
75
78
79
80
80
80
81
82
84
85
System chart
Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your
nearest Samsung dealer or Samsung service centre.
< Included items >
Camera case
DPOF compatible
printer (see p.47)
User manual,
Product warranty
Camera strap
Software CD
(see p.74, 75)
SD memory card/MMC
(see p.10)
AC Charger
Tripod Adaptor
Computer
PictBridge compatible
printer(see p.49)
USB cable
AV cable
Earphones
USB cable for
recharging the battery
Rechargeable
battery (SLB-0837)
Cradle
External monitor
(see p.57)
ŝ5Ş
Identification of features
Front & Top
Back
Power button
Shutter button
Zoom/ Thumbnail/ Volume button
LCD monitor
ASR mode button/ Hold button
M(Mode) button
Microphone
Speaker
Camera status lamp
E (Effect) button
Camera strap
Earphones Jack
Flash
Self-timer lamp/
Auto Focus lamp
Play mode button/ Printer button
+/- button, DELETE button
Optical 3X zoom lens/ Lens cover
ŝ6Ş
5 function button
Identification of features
Bottom/ 5-function button
Cradle (optional)
ƈ You can recharge your rechargeable battery, transfer a captured image to print,
and download images with the cradle. (Refer to page 9, 49 and 78)
Memory card slot
Battery holder
Battery chamber
Battery chamber cover
DC connection terminal
Camera connection terminal
USB port
AV connection terminal
Tripod Adaptor
ƈ You can attach the camera on a tripod with this adaptor.
ƃ Attaching the camera
Voice memo / Voice Recording / UP button
MENU/ OK button
1
2
SELF-TIMER/
RIGHT button
FLASH/
LEFT button
ƃ Removing the camera
3
Macro/ DOWN button,
Play & Pause button
1
2
2
ŝ7Ş
Identification of features
Connecting to a Power Source
ƈ Self-timer lamp
Icon
Status
Blinking
Description
For the 2 seconds, the lamp blinks quickly at 0.25-second intervals.
For the first 8 seconds, the lamp blinks at 1 second intervals.
For the final 2 seconds, the lamp blinks quickly at
0.25-second intervals.
A picture will be taken after about 10 seconds and 2
seconds later a second picture will be taken.
ƈ You should use the rechargeable battery (SLB-0837) supplied with the camera.
Be sure to charge the battery before using the camera.
ƈ Camera Status Lamp
ƈ Insert the battery as shown
- If the camera does not turn on after you have
inserted battery, please check whether the battery
is inserted with the correct polarity (+/-).
- To avoid damaging the camera, do not use
unnecessary force while the battery chamber cover
is open.
Status
Power on
ƈ Number of images and battery life
Blinking
Blinking
After taking a picture
USB cable is connected to a PC
Transmitting Data to a PC
USB cable is connected to a printer
When the printer is printing
Description
The lamp turns on; when the camera is ready to take a picture the lamp turns off.
The lamp blinks while saving the image data and then turns
off when the camera is ready to take a picture
The lamp lights up (LCD monitor turns off after initializing the device)
The lamp blinks (LCD monitor turns off)
The lamp lights up
The lamp blinks
Battery life/ Number of images
Based on the following shooting conditions
Still image
Approx. 100 MIN/
About 210 shots
Using the fully charged battery, Auto mode, 6M image
size, Fine image quality, Shot to shot interval : 30Sec.
Changing the zoom position between the Wide and
the Tele after every shot. Using the flash on every
second shot.
Using the camera for 5 minutes and then Powering it
off for 1 minute.
Movie
Approx. 105 MIN
Using the fully charged battery
640X480 image size/30fps frame rate
MP3
Approx. 240 MIN
Using the fully charged battery
LCD Off.
PMP
Approx. 130 MIN
Using the fully charged battery
ƈ Mode icon : Refer to page 14 for more information about the camera mode setting.
MODE VOICE RECORDING MP3
PMP
MOVIE AUTO PROGRAM
ASR
PLAY
Icon
MODE
SCENE
NIGHT PORTRAIT CHILDREN LANDSCAPE CLOSE UP
TEXT
Icon
MODE SUNSET
Icon
ŝ8Ş
DAWN
BACKLIGHT FIREWORKS BEACH&SNOW
ſ These figures are measured under Samsung’s standard conditions and shooting
conditions and may vary depending on the user's methods.
Connecting to a Power Source
ƈ There are 4 indicators for battery condition that are displayed on the LCD monitor.
Battery indicator
Battery status
Fully charged
ƈ How to charge the rechargeable battery (SLB-0837) with the AC Charger
ƃ Charging with the cradle
Low capacity
Low capacity
Low capacity
(recharge or use (recharge or use (recharge or use
spare battery)
spare battery)
spare battery)
INFORMATION
ƃ When the camera is not used, turn off the camera power.
ƃ Low temperatures (belowŰ) can affect the performance of the battery and
you may experience reduced battery life.
ƃ Battery will usually recover at normal temperatures.
ƃ During extended use of the camera, the camera body may become warm.
This is perfectly normal.
ƃ Charging with the camera
Charging LED
Using the AC Charger
Before turning on the camera power with an AC Charger, insert the rechargeable
battery that was charged for over 10 minutes with turning off the camera.
If you have access to a mains supply, using an AC Charger allows the camera to
be used for long periods of time.
DANGER
ƃ Ensure that neither the camera nor Charger comes into contact with water
or metallic materials as this may cause damage to camera and AC charger.
ƃ Please ensure that you use an AC Charger with the correct specification for
the camera. Failure to do so may affect your warranty.
CAUTION
ƃ If the charging LED of the AC Charger does not turn on or blink after
inserting the rechargeable battery, please check whether the battery is
inserted correctly.
ƃ If you charge the battery with the camera power on, the battery can't charge
fully. Turn the camera off while charging the battery.
ŝ9Ş
Connecting to a Power Source
ƈ Charging LED of the AC Adapter
Being Charged
Charging is complete
Charging error
Charging LED
Red LED is on
Green LED is on
Red LED is off or blinking
ƃ A USB cable for transmitting data can’t be used for charging the rechargeable
battery.
ƃ A USB cable for recharging the battery is optional.
- When the USB cable for recharging the battery is inserted into the connection
terminal of the camera, you can charge the battery and transmit data at the
same time.
- When the USB cable for recharging the battery is inserted into the DC
connection terminal of the cradle, you can charge the battery.
When the USB cable for recharging the battery is inserted into the USB port of
the cradle, you can transmit data.
ƈ Charging time (When the camera is turned off)
- Using the cradle : About 150MIN
- Using the AC Charger : About 150MIN
INFORMATION
ƃ If you insert the fully discharged battery to charge it, do not turn on the camera
at the same time. The camera may not be turned on because of the low
battery capacity. Charge the battery for over 10 minutes to use the camera.
ƃ Do not use the flash frequently or take a movie clip with the fully discharged
battery charged for a short time. Even if the charger is inserted, the camera
power may be turned off because the rechargeable battery is discharged again.
ŝ10Ş
Instructions on how to use the memory card
ƃ Repeated use of the memory card will eventually reduce the memory card’s
performance. Should this be the case, you will need to purchase a new memory
card. Wear and tear on the memory card is not covered by the Samsung
warranty.
ƃ The memory card is an electronic precision device. Do not bend, drop or knock
the memory card.
ƃ Do not store the memory card in an environment with strong electronic or
magnetic fields, e.g. near loud speakers or TV receivers.
ƃ Please do not use or store in an environment where there are extremes in
temperature.
ƃ Do not allow the memory card to become dirty or to come into contact with any
liquid. Should this happen, clean the memory card with a soft cloth.
ƃ Please keep the memory card in its case when not in use.
ƃ During and after periods of extended use, you may notice that the memory card
is warm. This is perfectly normal.
ƃ Before using a memory card from another digital camera, it must be re-formatted
in this camera before use.
ƃ If the memory card is used incorrectly, or if the power is switched off or the card
is removed while recording, the existing data may become corrupted.
ƃ Samsung cannot be held responsible for lost data.
Instructions on how to use the memory card
ƈ The camera can use SD Memory Cards and MMC (Multi Media Cards).
Some cards are not compatible according to the memory card manufacturer and
memory card type.
Card pins
Write protect
switch
Label
[SD (Secure Digital) memory card]
The SD memory card has a write protect switch
that prevents image files from being deleted or
formatted. By sliding the switch to the bottom of
the SD memory card, the data will be
protected.By sliding the switch to the top of the
SD memory card, the data protection will be
cancelled. Slide the switch to the top of the SD
memory card before taking a picture. Please
consult the enclosed manual for using the MMC
Cards.
Inserting the memory card
ƈ Insert the memory card as shown.
ƈ When using a 64MB MMC memory, the specified shooting capacity will be as
follows.
Recorded image size
30FPS
15FPS
6M(2816x2112) Approx. 18
S. Fine
Approx. 35 Approx. 52
Fine
Normal
-
-
5M(2592x1944) Approx. 22
Approx. 42 Approx. 61
-
-
4M(2272x1704) Approx. 27
Approx. 54 Approx. 79
-
-
-
-
-
-
1M(1024x768) Approx. 139 Approx. 197 Approx. 250
-
-
VGA(640x480) Approx. 289 Approx. 341 Approx. 417
-
-
Still
3M(2048x1536) Approx. 35 Approx. 65 Approx. 93
2M(1600x1200) Approx. 57 Approx. 101 Approx. 139
* 640(640X480)
Movie 320(320X240)
clip 160(160X128)
About 4’ 10’’ About 8’ 10’’
-
-
-
-
-
-
About 9’ 10’’ About 17’ 10’’
-
-
-
About 19’ 10’’ About 33’ 30’’
ſ These figures are approximate as image capacities can be affected by variables
such as subject matter and memory card type.
ſ The zoom buttons are not pressed during the movie clip recording.
The recording times can be changed by the zoom operation.
- Turn off the camera’s power before inserting the
memory card.
- Have the front of the memory card facing toward
the front of the camera (lens) and the card pins
toward the back of the camera (LCD monitor).
- Do not insert the memory card the wrong way
round. Doing so may damage the memory card slot.
ŝ11Ş
When Using the Camera for the First Time
ƈ When the camera is turned on for the first time, a menu will be displayed to set
date, time and language in the LCD monitor. This menu will not be displayed
again after setting up the date, time and language. Set up the date, time and
language before using this camera.
ƃ Setting up the date, time and date type
1. Select the [Date&Time] menu by pressing the
SETUP
UP/DOWN button and press the RIGHT button.
Date&Time
06/01/10
Language
2. Select the desired sub menu by pressing the
13:00
UP/ DOWN/ LEFT/ RIGHT button.
yy/mm/dd
RIGHT button : selects YEAR/ MONTH/ DAY/
Back:
Set:OK
HOUR/ MINUTE/ DATE TYPE
LEFT button : Moves the cursor to the [Date&Time] main menu if the cursor is
at the first item of the date and time setup. In all other instances,
the cursor will be shifted to the left of its current position.
UP/ DOWN button : changes the value of each item.
ŝ12Ş
ƃ Setting up the language
1. Select the [Language] menu by pressing the
UP/DOWN button and press the RIGHT button.
2. Select the desired sub menu by pressing the UP/
DOWN button and press the OK button.
When the settings are complete, press the MENU
button twice to exit the menu screen.
SETUP
Date&Time
Language
ENGLISH
FRANÇAIS
DEUTSCH
ESPAÑOL
Back:
Set:OK
INFORMATION
ƃ You can select 22 languages. These are listed below :
- English, Korean, French, German, Spanish, Italian, S.Chinese, T.Chinese,
Japanese, Russian, Portuguese, Dutch, Danish, Swedish, Finnish, Thai,
BAHASA(MALAY/ INDONESIAN), Arabic, Hungarian, Czech, Polish and
Turkish.
ƃ Even if the camera is restarted, the language setting will be maintained.
LCD monitor indicator
ƈ The LCD monitor displays information about the shooting functions and selections.
21
20
1
19
2
18
3
17
4
16
5
15
6
14
7
13
8
12
9
10
No.
11
12
13
14
15
16
17
Description
Date/ Time
Exposure compensation
White Balance
ISO
RGB
Sharpness
Image quality/ Frame rate
18
Image size
19
20
11
21
No.
Description
1
Icons
Recording mode
p.8
2
3
4
5
6
7
8
9
10
Battery
Continuous shot
Flash
Self-timer
Macro
Metering
Card inserted indicator
Auto focus frame
Camera shake warning
p.8
p.34
p.20
p.22
p.19
p.33
p.17
Number of available shots
remaining
Remaining time
(Movie clip/ Voice recording)
Voice memo/ Mic. off
Optical/ Digital Zoom bar/
Digital Zoom rate
Icons
2006/01/10 01:00 PM
RGB
Page
p.55
p.25
p.24
p.24
p.23
p.34
p.33
p.32
38
p.11
00:01:30/ 01:00:00
p.18
p.18
Page
ŝ13Ş
Changing the recording mode
ƈ You can select the desired working mode using the M (Mode) button located on
the back of the camera and the [MODE], [MODE SET] menu. Refer to page 59
for more information about the MP3, PMP mode.
ƃ Selecting the [MODE] menu
1. As this camera has a 45MB internal memory, you do
MODE
not need to insert the memory card. If a memory
Still/ Movie/ PMP
card is not inserted, images will be stored in the
Full
internal memory. If a memory card is inserted,
images will be stored on the memory card.
2. Press the menu button and a menu will display.
3. Use the UP/DOWN button to select the [Mode] menu.
4. Select [Still/ Movie/ PMP] or [Full] sub menu by pressing the UP/ DOWN button.
- [Still/ Movie/ PMP] : A still image mode that was selected in the [MODE
SET] menu and movie clip mode can be selected.
- [Full]
: Auto, Program, Movie clip and scene modes can be
selected.
ŝ14Ş
ƃ Changing the recording mode : If the [Still/ Movie/ PMP] menu was selected
1. The previously used recording mode will appear in the display.
2. Press the M (Mode) button located on the back of the camera and the
recording mode will change to the movie clip mode.
3. Press the M (Mode) button twice and a still image mode selected on the
[MODE SET] menu will be selected.
Pressing the M (Mode) button
[AUTO mode]
[MOVIE CLIP mode]
ƃ Changing the recording mode : If the [Full] menu was selected
1. The previously used recording mode will appear in the
display.
2. Press the M (Mode) button located on the back of the
camera and the mode selection menu will display.
AUTO
3. To select the Auto, Program, Movie clip, MP3, PMP or
Confirm : Mode / OK
Scene modes, press the Left/ Right button. To move
between the Auto, Program, Movie clip menu line and
Scene menu line, press the Up/ Down button.
4. Press the M (Mode) button and the mode selection menu will disappear.
Starting the recording mode
ƈ How to use the Auto mode
Please select this mode for quick and easy picture taking
with minimal user interaction.
1. Point the camera towards the subject and compose
the image by using the LCD monitor.
2. Press the shutter button to capture an image.
ƈ Recording the movie clip without voice
You can record the movie clip without voice.
1. Press the Up button and the (
) icon will display on
the LCD monitor.
2. Press the shutter button and movie clip is recorded for
as long as the available recording time without voice.
3. To stop the recording, press the shutter button again.
INFORMATION
ƃ If the auto focus frame turns to red when you press the shutter button down
half way, it means that the camera cannot focus on the subject.
ƈ How to use the Movie clip mode
A movie clip can be recorded for as long as the available recording time of the
memory capacity allows.
1. Point the camera towards the subject and compose
the image by using the LCD monitor.
2. Press the shutter button once and movie clips are
recorded for as long as the available recording time
allows. Movie clips will still be recorded if the shutter
button is released.
If you wish to stop recording, press the shutter button again.
ƈ Pausing while recording a movie clip (Successive Recording)
This camera allows you to temporarily stop recording during unwanted scenes.
By using this function, you can compile your favourite scenes into a movie clip
without having to create multiple movie clips.
1. Press the Pause button (
) to pause recording.
2. Press the Pause button (
) again to resume the
recording.
3. If you wish to stop recording, press the shutter button
again.
00:00:04
[Successive recording of a movie clip]
ſ Image size and type are listed below.
- Image size
: 640X480, 320X240, 160X128 (user selectable)
- Movie clip file type : AVI (MPEG-4)
ŝ15Ş
Starting the recording mode
ƈ How to use the Program mode
Selecting the automatic mode will configure the camera with optimal settings.
You can still manually configure all functions except the aperture value and
shutter speed.
1. Point the camera towards the subject and compose
the image by using the LCD monitor.
2. Press the shutter button to capture an image.
ƈ How to use the Scene modes
Use the menu to easily configure the most suitable settings for a variety of
shooting situations.
1. Point the camera towards the subject and compose
the image by using the LCD monitor.
2. Press the shutter button to capture an image.
Refer to page 32 for more information about the Scene
modes.
ƈ How to use the ASR (Advanced Shake Reduction) mode
In poor indoor light conditions, ASR mode will help you get a good image without
using flash. Some children are sensitive to flash photography, making the ASR
mode a desirable alternative.
1. Press the ASR mode button.
2. Press the shutter button to capture an image.
ſ Refer to page 23 for more information about
the ASR function.
ŝ16Ş
ƈ How to use the VOICE RECORDING mode
A voice recording can be recorded for as long as the memory capacity allows.
(Max: 1 hour).
1. In any mode with the exception of Movie clip mode,
select the VOICE RECORDING mode by pressing
the Voice recording button twice.
2. Press the shutter button to record a voice.
- Press the shutter button once and voice is recorded
for as long as the available recording time
(Max : 1 hour) allows. Voice will still be recorded if
the shutter button is released.
- If you wish to stop recording, press the shutter button again.
- File type : *.wav
ƃ Pausing while recording a voice
Using this function, you can record your favorite voice clips into a voice recording
file without having to create multiple voice recording files.
1. Press the Pause button (
) to pause recording.
2. Press the Pause button (
) again to resume the
recording.
3. If you wish to stop recording, press the shutter button
again.
00:00:03
[Pausing the voice recording]
INFORMATION
ƃ A distance of 40cm between you and the camera (microphone) is the best
distance to record sound.
ƃ If the camera power is turned off while the voice recording is paused, the
voice recording is cancelled.
Things to Watch Out for When Taking Pictures
ƈ Pressing the shutter button down half way
Lightly press the shutter button to confirm focus and flash battery charge.
Press the shutter button all way down to take the picture.
Using the camera buttons to adjust the camera
ƈ The recording mode function can be set up by using the camera buttons.
POWER button
[ Lightly press the shutter button ]
[ Press the shutter button ]
ƈ The available recording time may vary depending on shooting conditions and
camera settings.
ƈ When the Flash Off or Slow synchro mode is selected in a low lighting condition,
the camera shake warning indicator (
) may appear on the LCD monitor.
In this case, support the camera on a solid surface or change the flash mode to
flash shot mode.
ƈ Backlight compensated shots : When taking an outdoor shot, avoid facing the
sun, as the image may be dark because of the strong backlight. To take a picture
against the sun, please use the [Backlight] in the scene shooting mode (see page
32), Fill-in flash (see page 20), Spot metering (see page 33), or Exposure
compensation (see page 25).
ƈ Under certain conditions the auto focus system may not perform as expected.
- When photographing a subject that has little contrast.
- If the subject is highly reflective or shiny.
- If the subject is moving at high speed.
- When there is strong reflected light, or when the background is very bright.
- When the subject matter has only horizontal lines or the subject is very narrow
(such as a stick or flagpole).
- When the surroundings are dark
ƃ Used for turning the camera’s power on/ off.
ƃ If there is no operation during the specified time, the
camera's power will be turned off automatically to
save battery life. Refer to page 54 for more
information about the auto power off function.
SHUTTER button
ƃ Used for taking an image or recording voice in the
recording mode.
ZOOM W/ T button
ƃ If the menu is not displayed, this button works as the
OPTICAL ZOOM or DIGITAL ZOOM button.
ŝ17Ş
ZOOM W/ T button
Voice recording (
ƃ How to use the zoom button
Optical zoom
- This camera has a 3X optical zoom and a
5X digital zoom function. Using both will offer
a total zoom ratio of 15X.
- Press the ZOOM T button. This will zoom into
the subject i.e. the subject will appear nearer.
Digital zoom
- Press the ZOOM W button.
This will zoom out from the subject i.e. the subject will appear further away.
- Digital zoom is not optical magnification but software magnification.
)/ Voice memo (
ƈ While the menu is showing, the UP button operates as a direction button.
When the menu is not displayed on the LCD monitor, the UP button operates as
the voice recording or voice memo button. You can add your voice-over to a stored
still image. Refer to page 16 for more information about the voice recording.
ƃ Recording a voice memo
1. Press the VOICE MEMO ( ) button. If the voice memo indicator is
displayed on the LCD monitor, the setting is completed.
[Preparing for Voice Memo]
[Wide]
[Tele]
[Digital zoom 5X]
INFORMATION
ƃ Images taken using the digital zoom may take a little longer for the camera
to process. Allow time for this to take place.
ƃ The digital zoom cannot be used in movie clip shots.
ƃ If the Zoom buttons are being pressed during the Movie clip shots, the voice
will not recorded.
ƃ You may notice a decrease in image quality when using the digital zoom.
ƃ To view a clearer digital zoom image, press the shutter button halfway at the
maximum (3X) optical zoom position and press the zoom T button again.
ƃ The digital zoom can’t be activated in the [Night], [Children], [Close up],
[Text] and [Fireworks] scene modes.
ŝ18Ş
)/ UP button
[Recording Voice Memo]
2. Press the shutter button and take a picture. The picture is stored on the
memory card.
3. Voice memo will be recorded for ten seconds from the moment the picture is
stored. In the middle of the sound recording, pressing the shutter button will
stop the voice memo.
INFORMATION
ƃ A distance of 40cm between you and the camera (microphone) is the best
distance to record sound.
Macro (
)/ Down button
ƈ While the menu is showing, the DOWN button operates
as a direction button. When the menu is not showing,
you can use the MACRO/ DOWN button to take macro
pictures. The distance ranges are shown below.
Press the Macro button until the desired macro mode
indicator displays on the LCD monitor.
INFORMATION
[Auto focus - No icon]
ƃWhen the macro mode is selected, be particularly careful to avoid camera
shake.
ƃWhen you take a picture within 20cm (Wide zoom) or 30cm (Tele zoom) in
the Macro mode, select the FLASH OFF mode.
ƃWhen you take a picture within the 5cm Super macro range, the auto-focus
on the camera will take longer to set the correct focus distance.
ƈ Available focusing method, by recording mode
( O: Selectable , X: Not selectable, ū: Infinity focus range)
[Auto macro (
)]
[Super Macro (
)]
[Macro (
ƈ Types of focus modes and focus ranges (W: Wide, T: Tele)
Mode
Focus Type
Focus range
Mode
Focus Type
Focus range
Mode
Focus Type
Focus range
Super macro(
W : 1~5
(Wide only)
)
Super macro(
-
(Unit : cm)
Mode
Auto macro
Super macro
Macro
Normal
X
X
O
O
O
O
X
O
)
Normal
W : 50~Infinity
T : 50~Infinity
)
W : 50~Infinity
T : 50~Infinity
)
W : 5~50
T : 25~50
ASR mode(
)
Auto Macro(
)
W : 5~Infinity
T : 50~Infinity
W : 50~Infinity
T : 50~Infinity
Auto macro
Super macro
Macro
Normal
X
O
O
O
O
X
X
O
SCENE
Mode
W : 5~Infinity
T : 50~Infinity
Program(
)
Macro(
)
W : 1~5
(Wide only)
Super macro(
Auto(
)
Auto macro(
)]
X
X
X
O
X
X
X
O
X
X
X
O
X
X
X
ū
X
X
O
X
O
X
X
X
X
X
X
ū
X
X
X
ū
X
X
X
O
X
X
X
ū
X
X
X
O
Normal
Normal
ŝ19Ş
Focus lock
Flash (
ƈ To focus on a subject positioned outside of the centre of the viewfinder, use the
focus lock function.
ƃ Using the Focus Lock
1. Frame the subject in the centre of the auto-focus frame.
2. Press the SHUTTER button halfway. When the green auto focus frame lights
up, it means the camera is focused on the subject. Be careful not to press the
SHUTTER button all the way down to avoid taking an unwanted picture.
3. With the SHUTTER button still pressed down only halfway, move the camera
to recompose your picture as desired, and then press the SHUTTER button
completely to take the picture. If you release your finger from the SHUTTER
button, the focus lock function will be cancelled.
)/ Left button
ƈ When the menu is displayed on the LCD monitor,
pressing the LEFT button makes the cursor shift to the
left tab.
ƈ When the menu is not displayed on the LCD monitor,
the LEFT button operates as the FLASH button.
[Selecting the Auto flash]
ƃ Selecting the flash mode
1. Press the Flash button until the desired flash mode
indicator displays on the LCD monitor.
2. A flash mode indicator will be displayed on the LCD monitor.
Use the correct flash to suit the environment.
ƃ Flash range
ISO
Auto
(Unit : m)
Auto
Auto macro
Macro
WIDE
TELE
WIDE
TELE
WIDE
TELE
0.5 ~ 2.4
0.5 ~ 1.9
0.2 ~ 0.5
0.3 ~ 0.5
0.2 ~ 2.4
0.5 ~ 1.9
ſ When Super macro is selected, the flash is automatically switched off.
1. The image to be
captured.
ŝ20Ş
2. Press the SHUTTER
button halfway and
focus on the subject.
3. Recompose the picture
and fully depress the
SHUTTER button.
INFORMATION
ƃ When the flash is charging, a flash mode icon (red colour) will blink on the
LCD monitor.
ƃ Using the flash frequently will reduce the life of the battery.
ƃ Under normal operating conditions the flash will re-charge in about 4
seconds. If the battery is weak, charging time will be longer.
ƃ During the continuous shot and movie clip mode, the flash function will not operate.
ƃ Take photographs within the flash range.
ƃ The image quality is not guaranteed if the subject is too close or highly reflective.
ƃ If the subject is the Oriental people, it may be hard to reduce the Red-eye effect.
ƃ When taking an image in a poorly lit condtion with the flash, there may be a
white speck in the captured image. The speck is caused by the reflecting of
the flash light from the floating matters. It is not camera malfuction.
Flash (
)/ Left button
ƃ Flash mode indicator
Menu tab
Flash mode
Auto flash
Auto &
Red eye
reduction
ƃ Available flash mode, by recording mode
Description
If the subject or background is dark, the camera
flash will operate automatically.
If a subject or background is dark, the camera flash
will work automatically and will reduce the red-eye
effect by using the red-eye reduction function.
Fill in flash
The flash fires regardless of the available light. The
intensity of the flash will be automatically controlled
to suit the prevailing conditions.
Slow synchro
The flash operates with a slow shutter speed to
obtain a balanced correct exposure. In poor lighting
conditions the camera shake warning indicator
(
) will display on the LCD monitor.
Flash off
The flash does not fire. Select this mode when
capturing images in a place or situation where flash
photography is prohibited. When you capture an
image in a poorly lit condition, the camera shake
warning indicator (
) will display on the LCD
monitor.
Red-eye reduction
When a shot with "red eye" is detected, this mode
will reduce the red-eye effect automatically.
X
X
O
X
X
X
X
X
X
X
X
X
X
O
X
O
O
X
O
O
X
X
X
X
X
X
X
X
X
X
O
X
X
X
X
X
X
X
X
O
X
X
X
X
O
O
X
X
X
X
X
X
X
X
X
X
O
O
O
O
O
O
O
O
O
O
O
X
O
X
X
O
O
O
O
O
X
X
X
X
X
X
X
X
ŝ21Ş
Self-timer (
)/ Right button
ƈ When the menu is displayed on the LCD monitor, pressing the Right button
makes the cursor shift to the right tab. The right button can also be used to move
to a sub menu to select a different setting. When the menu is not displayed on
the LCD monitor, the RIGHT button operates as the Self-timer. This function is
used when the photographer would also like to be in the image.
ƃ Selecting the self-timer
1. Press the SELF-TIMER button until the desired mode
indicator displays on the LCD monitor.
2. When you press the SHUTTER button, the picture will
be taken after the specified time has elapsed.
MENU/ OK button
ƈ MENU button
- When you press the MENU button, a menu related to each camera mode will
be displayed on the LCD monitor. Pressing it again will return the LCD to the
initial display.
- A menu option can be displayed when the following are selected :
MOVIE CLIP and STILL IMAGE mode.
There is no menu available when the VOICE RECORDING mode is selected.
MODE SET
Pressing the MENU button
[Selecting the 2 SEC self-timer]
[Menu off]
INFORMATION
ƃ In Movie Clip mode, only the 10SEC self-timer will work.
ƃ When you select 2SEC self-timer with flash, the delay (2 second) can be
extended according to the flash charging status.
ƃ If you operate the Self-timer and Play mode button during the self-timer
operation, the self-timer function is cancelled.
ƃ Use a tripod to prevent camera shake.
Auto
Program
Movie
Nightscene
Portrait
Children
[Menu on]
ƈ OK button
- When the menu is displayed on the LCD monitor, this button is used for shifting
the cursor to the sub menu or for confirming data.
M (Mode) button
ƈ You can turn on the camera with this button. When the camera is turned on by
pressing the M button, the Start image will not display and only the still image
mode will be executed.
ƈ You can select the desired recording mode. The selectable recording modes are
different from what you selected sub menu in the [MODE] menu.
- [Still / Movie / PMP] : Still image modes, Movie clip mode
- [Full]
: Auto, Program, Movie clip, Scene modes
ſ Refer to page 14, 15 for more information about the M (Mode) button.
ŝ22Ş
ASR button
+/- button
ƈ Pressing this button will select the ASR (Advanced Shake Reduction) mode.
ƃ Things to watch out for using the ASR mode
1. The digital zoom will not operate in the ASR mode.
2. If the lighting conditions are brighter than fluorescent
lighting condition, the ASR doesn’t activate.
3. If the lighting condition is darker than in fluorescent
lighting condition, camera shake warning indicator
(
) will display. For best results only take pictures
in situations where the camera shake warning
indicator is not displayed.
4. If the subject is moving the final image captured may
be blurred.
5. Avoid moving the camera while the [Capturing!]
message is displayed to achieve a better result.
6. As the ASR uses the camera’s digital processor,
images taken using the ASR may take a little longer
for the camera to process.
ƈ You can use the +/- button to adjust the values for the RGB, ISO, white balance,
exposure compensation and Long Time shutter speed.
ƈ When the ASR mode is selected, ISO value is fixed as AUTO and Exposure value is
fixed as 0.0EV.
Main menu
RGB
ISO
Sub menu
Available camera mode
R (Red), G (Green), B (Blue)
AUTO, 50, 100, 200, 400
AUTO, DAYLIGHT, CLOUDY, FLUORESCENT H,
WHITE BALANCE
FLUORESCENT L, TUNGSTEN, CUSTOM.
Exposure compensation
-2.0 ~ 0.0 ~ +2.0 (0.5EV steps)
Shutter speed/ Aperture Value
LT
(Changed by zoom rate)
Capturing!
ƈ RGB : Allows the user to adjust the R (Red), G (Green), and B (Blue) values of
the images to be captured.
ƃ Setting RGB Values
1. Press the +/- button, and then use the UP and DOWN
buttons to select the RGB icon (
).
2. Use the UP/ DOWN/ LEFT and RIGHT buttons to
select the desired RGB value.
3. When you press the +/- button again, the value you
set will be saved and RGB setup mode will end.
ſ If the
menu is not selected in the Special Effect (Colour) menu, you can’t
select the RGB menu.
ŝ23Ş
+/- button
ƈ ISO : You can select the ISO sensitivity when taking pictures.
The speed or specific light-sensitivity of a camera is rated by ISO numbers.
ƈ White balance : The white balance control allows you to adjust the colours to
appear more natural.
ƃ Selecting an ISO Sensitivity
1. Press the +/- button, and then use the UP and DOWN
buttons to select the ISO icon (
).
2. Use the LEFT and RIGHT buttons to select the desired
ISO sensitivity value.
- AUTO
: The camera's sensitivity is
automatically changed by
variables such as lighting value or subject brightness.
- 50, 100, 200, 400 : The higher the ISO value, the higher the camera’s
sensitivity to light is and therefore the greater its capacity
to take pictures in low light. However, the noise level in
the image will increase as the ISO value increases,
making the image appear coarser.
3. When you press the +/- button again, the value you set will be saved and ISO
setup mode will end.
ƃ Selecting a White Balance
1. Press the +/- button, and then use the UP and DOWN
buttons to select the white balance icon (
).
2. Use the LEFT and RIGHT buttons to set the white
balance to the desired value.
AUTO
: The camera automatically
selects the appropriate white
balance settings, depending on the prevailing lighting
conditions.
DAYLIGHT
: For taking images outside.
CLOUDY
: For taking images under a cloudy and overcast sky.
Fluorescent H
: For shooting under daylight fluorescent lighting.
Fluorescent L
: Shooting under white fluorescent lighting.
TUNGSTEN
: For shooting under tungsten (standard light bulb) lighting.
CUSTOM
: Allows the user to set the white balance according to the
shooting condition.
Different lighting conditions may cause a colour cast on your images.
3. Press the +/- button again. The value you set will be saved and White Balance
setup mode will end.
ŝ24Ş
+/- button
ƃ Using the Custom White Balance
1. Select the CUSTOM (
) menu of the White Balance.
2. Place a sheet of white paper in front of the camera so
that the LCD monitor shows only white, and then press
the SHUTTER button.
3. Your custom white balance value is stored.
- The custom white balance value will be applied,
starting with the next picture you take.
- The user configured white balance will be remain
effective until it is overwritten.
ƈ Long Time shutter : This camera automatically adjusts the shutter speed and
aperture values to the shooting environment. However, in
NIGHT SCENE mode, you can set the shutter speed and
aperture values to your preference.
Mesure:Shutter
[ White paper ]
ƈ Exposure compensation : This camera automatically adjusts the exposure
according to the ambient lighting conditions. You can
also select the exposure value by using the +/- button.
ƃ Adjusting the shutter speed and aperture values
1. Select the [Night] scene mode.
2. Press +/- button and Long Time shutter menu (LT, For selecting shutter speed
and aperture value) will be displayed.
3. Configure the Long Time shutter value with the up/
down/ left/ right button.
4. Press the +/- button again. The value you set will be
saved and the mode will switch to NIGHT SCENE
mode.
AUTO, WIDE : F3.5 ~ F6.3,
TELE : F4.5 ~ F8.0
Aperture Value
Shutter Speed
AUTO,1~16S
ƃ Compensating Exposure
1. Press the +/- button, and then use the UP and DOWN
buttons to select the exposure compensation icon (
).
2. Use the LEFT and RIGHT buttons to set the desired
exposure compensation factor.
3. Press the +/- button again. The value you set will be
saved and the Exposure Compensation setup mode
will close. If you change the exposure value, the exposure indicator (
) will
be displayed on the bottom of the LCD monitor.
ſ A negative exposure compensation value reduces the exposure. Note that a
positive exposure compensation value increases the exposure and the LCD
monitor will appear white or you may not get good pictures.
ŝ25Ş
E (Effect) button
ƈ It is possible to add special effects to your images by using this button.
ƈ Available Effects, by recording mode (O : Selectable X : Not selectable)
Color (
)
HighLight (
)
Composite (
)
Photo Frame (
Stabilizer (
)
)
Colour
O
O
O
O
O
O
O
X
X
O
O
O
O
O
X
X
O
O
O
O
O
X
X
O
O
O
O
O
O
X
X
X
X
X
X
INFORMATION
ƃ If a special effect is selected, any previously selected special effect
(HighLight, Composite, Photo Frame) is automatically cancelled.
ƃ The digital zoom and date imprinting functions do not operate in the
[HighLight], [Composite] and [Photo Frame] special effect settings.
ƃ Even if the camera is turned off, the special effect setting will be preserved.
To cancel the special effect, select the
sub menu (Color) or
sub
menu (HighLight, Composite, Photo Frame).
ƃ When an effect is selected, pre-view image on the LCD monitor may be
shown slowly.
ŝ26Ş
ƈ By using the camera’s digital processor, it is possible to add special effects to
your images.
1. Press the E button in the available camera modes
and select the
menu.
2. Select a desired sub menu by pressing the
Up/Down button and press the OK button.
Normal
: No effect is added to the image
[Still image mode]
: Black & White
: Sepia tone
: Red tone
: Green tone
: Blue tone
: Negative image
3. Press the shutter button to capture an image.
E (Effect) button
Preset focus frames
ƈ You can make the subject stand out from its surroundings. The subject will be
sharp and in focus while making the rest out of focus.
1. Press the E button in the available camera modes
with the exception of Movie clip and Auto mode
and select the
menu.
2. Select a desired sub menu by pressing the
Up/ Down button and press the OK button.
HighLight
ƃ Moving and changing the focus frame
You can change the focus frame after selecting a Range menu.
1. Press the +/- button after selecting a preset focus
frame.
Capture:SH
Move: [The frame is activated]
2. Press the Up/ Down/ Left/ Right button to move the
focus frame position.
Capture:SH
HighLight
[Range 1]
HighLight
[Range 2]
HighLight
[Range 3]
Move: [After changing the frame position]
HighLight
[Range 4]
3. To select the focus frame position, press the +/- button
again and you can take a picture.
3. The preset focus frame will appear.
Press the shutter button to capture an image
Capture:SH
Capture:SH
Edit :+/-
Edit :+/-
ŝ27Ş
E (Effect) button
ƃ Changing a part of composite
Before taking the last composite shot, you can change a part of composite shot.
Composite shooting
ƈ You can combine 2 ~ 4 different shots in a still image.
1. Press the E button in the available camera
modes with the exception of Movie clip and Auto
mode and select the
menu.
2. Select a desired sub menu by pressing the
Up/ Down button and press the OK button.
Composite
,MT"+/-
Capture:SH
Capture:SH
[Before taking the 3rd shot]
,MT"+/-
[Moving backward to the 2nd shot]
After taking the last composite shot, you can change a part of composite shot.
Composite
Composite
Composite
Composite
3. Press the shutter button to capture an image
4. To save the composite shots, press the OK button after taking the last shot.
Save : OK
,MT"+/-
[After taking the 4th shot]
Save : OK
,MT"+/-
[Moving backward to the 2nd shot]
[Deleting the 2nd shot]
Pressing the
Shutter button
INFORMATION
ƃ You can use the flash button, self-timer button, macro button, voice memo
button and the Zoom W/T button during the composite shooting. If you
press the camera buttons (ASR button, Play mode button and M button)
during the composite shots, each mode of the camera buttons is executed.
The images captured before will be deleted.
ƃ After taking the last composite shooting, press the OK button.
And then the voice memo will start.
ŝ28Ş
Save : OK
[The final picture]
,MT"+/-
[After taking the 2nd shot again]
E (Effect) button
Photo Frame
ƈ You can select one of 9 different 'frames' to add to a still image you want to capture.
1. Press the E button in the available camera modes
with the exception of Movie clip and Auto mode
and select the
menu.
2. Select a desired sub menu by pressing the
Up/ Down button and press the OK button.
Photo Frame
Movie Clip frame stabiliser
ƈ This function helps stabilize images captured during movie recording.
You can select this menu only in the MOVIE CLIP mode. If the memory card is
not inserted, this function will not operate.
1. Press the E button in the Movie clip mode and
select the
menu.
2. Select a desired sub menu by pressing the
Up/ Down button and press the OK button.
: Movie clip frame stabilizer function is
Stabilizer
disabled.
: Prevents camera shake during movie
recording. The recording frame range will
become narrower than when you select
the
menu.
If the subject moves, the Pre-view frames
may be changed slightly.
3. The selected Photo Frame will appear. Press the shutter button to capture an
ſ Before taking a picture, you can change the frame type by pressing the +/- button.
ŝ29Ş
Using the LCD monitor to adjust the camera settings
ƈ You can use the menu on the LCD monitor to set up recording functions.
ƈ The items indicated by
are default settings.
Menu tab Main menu
MODE
MODE SET
Sub menu
Normal
-
FRAME RATE
30 FPS
15 FPS
p.33
METERING
Multi
Spot
p.33
SHOOTING
Single
Continuous
p.34
Soft
Normal
Vivid
-
Camera working mode Page
Still/ Movie/ PMP
Full
Auto
Program
Movie
Nightscene
Portrait
Children
Landscape
Close up
Text
Sunset
Dawn
Backlight
Firework
Beach&Snow
p.31
SHARPNESS
p.32
SIZE
(Movie clip)
ŝ30Ş
2272X1704 2048X1536
1600X1200
1024X768
640X480
-
640X480
320X240
160X128
-
Full
OSD
INFORMATION LCD Save
Basic
-
ſ Menus are subject to change without prior notice.
2816X2112 2592X1944
SIZE
(Still image)
Camera working mode Page
Fine
QUALITY
Menu tab Main menu
Sub menu
Super Fine
p.32
-
p.33
p.34
p.34
How to use the menu
Mode
1. Turn on the camera and press the MENU button. A menu for each camera
mode appears. However, there is no menu for Voice Recording mode (
).
2. Use the LEFT and RIGHT buttons to navigate through the menus.
MODE SET
Auto
Program
Movie
Nightscene
Portrait
Children
Press the
LEFT or
RIGHT button.
Press the
LEFT or
RIGHT button.
MODE
Still/ Movie/ PMP
Full
SIZE
2816X2112
2592X1944
2272X1704
2048X1536
1600X1200
1024X768
ƈ You can select the desired working mode using the M (Mode) button located on
the back of the camera and then the [MODE], [MODE SET] menu. Refer to page
59 for more information about the MP3, PMP mode.
[Still/ Movie/ PMP] : A still image mode that was selected
on the [MODE SET] menu and
movie clip mode can be selected.
[Full]
: Auto, Program, Movie clip and
scene modes can be selected.
MODE
Still/ Movie/ PMP
Full
3. Use the UP and DOWN buttons to select a sub menu.
MODE SET
Auto
Program
Movie
Nightscene
Portrait
Children
Press the
UP or DOWN
button.
MODE SET
Auto
Program
Movie
Nightscene
Portrait
Children
Press the
UP or DOWN
button.
MODE SET
Auto
Program
Movie
Nightscene
Portrait
Children
4. Select a sub menu, and then the value you set will be saved.
Press the MENU button and the menu will disappear.
ŝ31Ş
Mode Set
ƈ You can select the desired recording mode.
[Auto]
[Program]
: For shooting basic still image
MODE SET
: You can still manually configure all
Auto
Program
functions except the aperture value
Movie
and shutter speed.
Nightscene
Portrait
[Movie]
: For taking a movie clip
Children
[Nightscene] : Use this for shooting still images at
night or in other dark conditions.
[Portrait]
: To take a picture of a person.
[Children]
: To take a picture of fast moving objects, for example, children.
[Landscape] : To take pictures of distant scenery.
[Close up]
: Close-up shooting for small objects such as plants and insects.
[Text]
: Use this mode to shoot a document.
[Sunset]
: For taking pictures of sunsets.
[Dawn]
: Daybreak scenes.
[Backlight] : Portrait without shadows caused by backlight.
[Firework]
: Firework scenes.
[Beach & Snow] : For ocean, lake, beach and snowscape scenes.
INFORMATION
ƃ When [Nightscene], [Landscape], [Close up], [Text], [Sunset], [Dawn] and
[Firework] scene mode are selected, it is possible that camera shake will
occur.
ŝ32Ş
Size
ƈ You can select the image size appropriate for your application.
MOVIE CLIP mode
Mode
STILL IMAGE mode
Icon 6M
5M
4M 3M
2M
1M VGA 640 320 160
Size 2816X2112 2592X1944 2272X1704 2048X1536 1600X1200 1024X768 640X480 640X480 320X240 160X128
SIZE
2816X2112
2592X1944
2272X1704
2048X1536
1600X1200
1024X768
[STILL IMAGE mode]
SIZE
640X480
320X240
160X128
[MOVIE CLIP mode]
INFORMATION
ƃ High resolution images use more memory than lower resolution shots.
Therefore the higher the resolution selected the fewer will be the number of
shots available.
Quality/ Frame rate
Metering
ƈ You can select the compression ratio appropriate for your application of the
captured images. The higher the compression ratio, the lower the picture quality.
QUALITY
FRAME RATE
Super Fine
Fine
30 FPS
15 FPS
Normal
[STILL IMAGE mode]
[MOVIE CLIP mode]
INFORMATION
ƃ This file format complies with the DCF(Design rule for Camera File system).
ƈ If you cannot obtain suitable exposure conditions, you can change the metering
method to take brighter pictures.
- Multi : Exposure will be calculated based on an
METERING
average of the available light in the image
Multi
area. However, the calculation will be
Spot
biased towards the centre of the image
area. This is suitable for general use.
- Spot : Only the rectangular area in the centre of
the LCD monitor will be metered for light.
This is the preferable setting when you want the subject in the centre of
the image exposed correctly, regardless of the back lighting.
INFORMATION
ƃ If the subject is not the centre of the focus area, do not use the spot
metering as this may result in an exposure error. In this circumstance, It is
better to use exposure compensation.
ŝ33Ş
Continuous shot
ƈ Select the number of pictures in continuous shooting.
- Single
: Take one picture only
- Continuous : Images will be taken continuously
until the shutter button is released.
The shooting capacity depends on
the memory.
OSD(On Screen Display) information
SHOOTING
Single
Continuous
ſ High resolution and picture quality increases file
saving time, which increases stand-by time.
ƈ In any mode with the exception of VOICE
OSD INFORMATION
RECORDING mode, you can check the recording
Full
Basic
status in the LCD monitor.
LCD Save
ƈ Idle mode : If you select the [Save Mode] and the
camera isn't operated during the
specified time(about 30 SEC.), the
camera power will be idle (LCD monitor :
OFF, Camera status lamp : Blinking) automatically.
- To use the camera again, press any of the camera buttons except the power
button.
- If there is no operation during the specified time, the camera power will be
turned off automatically to save battery life. Refer to page 54 for more
information about the auto power off function.
Sharpness
ƈ You can adjust the sharpness of the picture you are about to take. You cannot
check the sharpness effect on the LCD monitor before you take a picture,
because this function is applied only when the captured image is stored on the
memory.
- Soft
: The edges of the image are softened.
This effect is suitable for editing images
on your PC.
- Normal : The edges of the image are sharp.
This is suitable for printing.
- Vivid
: The edges of the image are emphasized.
The edges will appear sharp, but noise
may occur in the recorded image.
ŝ34Ş
SHARPNESS
Soft
Normal
Vivid
Full OSD
Basic OSD
LCD Save
Starting play mode
ƈ Turn the camera on and select Play mode by pressing the play mode button
(
). The camera can now play back the images stored in the memory.
ƈ You can set up the PLAY mode function by using the camera buttons and LCD
monitor.
ƈ If the memory card is inserted in the camera, all the camera functions apply only
to the memory card.
ƃ Playing back a still image
1. Select the PLAY mode by pressing the
play mode button (
).
2. The last image stored on the memory is
displayed on the LCD monitor.
ƃ Playing back a movie clip
1. Select the recorded movie clip that you want to play
back by using the LEFT/RIGHT button.
2. Press the play & pause button (
) to play back a
movie clip file.
Play:Ȟ/
Capture:E
- To pause a movie clip file while playing it back,
press the play & pause button again.
- Pressing the play & pause button again will cause
the movie clip file will restart.
- To rewind the movie clip while it is playing, press
the LEFT button. To fast forward the movie clip,
press the RIGHT button.
- To stop playback of the movie clip, press the play & pause button, and then
press the LEFT or RIGHT button.
ƈ Movie clip capture function : capture still images from the movie clip.
3. Select an image that you want to view by
pressing the LEFT/ RIGHT button.
ſ Press and hold the LEFT or RIGHT
button to play back the images quickly.
INFORMATION
ƃ Manner mode : Pressing the power button for more than 3 seconds
changes the buzzer and start-up sound setting to OFF,
even though you may have set these to ON.
ƃ How to capture the movie clip
1. Press the Play/ Pause button while playing the
movie clip. Then press the E button.
2. The paused movie clip is saved in a new file name.
Trim:T
ſ The captured movie clip file has same size as the
original movie clip (640X480, 320X240, 160X128).
ſ When you press the E button at the beginning of
the movie clip, the first frame of the movie clip will
be save as a still image.
Capture:E
[Paused]
[Press the E button]
ŝ35Ş
Starting play mode
ƈ On camera movie trimming : You can extract desired frames of movie clip during
the movie clip play back.
ƃ If the running time is under 10 seconds, the movie clip can’t be trimmed.
1. Press the Pause button at the point of the movie clip
that you want to start extracting.
2. Press the T button. (The start point doesn't display on
the status bar, but the start point will be marked.)
Trim:T
Capture:E
3. Press the Play & Pause button and the extracted
range will be displayed on the status bar.
4. Press the Play & Pause button once more at the point
where you wish the extracted file to stop.
5. Press the T button and a confirmation window will
Trim:T
display.
6. Select a desired sub menu by pressing the
Left/ Right button and press the OK button.
[Yes] : The extracted frames are saved as a new
Trimming?
file name.
Yes
No
[No] : The movie trimming will cancel.
Confirm : OK
INFORMATION
ƃ When a voice is playing back, you can use the earphones.
ƃ If you want to extract the movie clip at the beginning of the frame, press the
Zoom T button before starting the movie clip.
ƃ If the time line bar passes by the start point by pressing the REW(Left)
button, the first frame of the movie clip will display.
ƃ If you don't specify the ending point of the movie clip, the trimming
confirmation window will display at the point of the last frame.
ŝ36Ş
ƃ Playing back a recorded voice
1. Select the recorded voice that you want to play back
by using the LEFT/ RIGHT button.
2. Press the play & pause button (
) to play back a
recorded voice file.
- To pause a recorded voice file, while playing it back,
press the play & pause button again.
- To resume playback of the voice file, press the play & pause button
- To rewind the voice file while it is playing, press the LEFT button. To fast
forward the voice file, press the RIGHT button.
- To stop playback of the voice file, press the play & pause button, and then
press the LEFT or RIGHT button.
- When a voice is playing back, you can use the earphones.
LCD monitor indicator
Using the camera buttons to adjust the camera
ƈ The LCD monitor displays shooting information about the displayed image.
6
1
ƈ In Play mode, you can use the buttons on the camera to conveniently set up the
Play mode functions.
Play mode button
2
ƈ If you have turned on the camera by pressing the POWER button, you can press
the PLAY MODE button once to switch to Play mode and press it again to switch
to Recording mode.
ƈ You can turn the power on with the play mode button. The camera is turned on in
play mode. Press the play mode button (Under 1 Sec.) again to turn off the camera.
ƈ Pressing the Play mode button for over 1 Sec., you can check the recording
information.
3
4
5
ISO sensitivity
No.
1
2
3
4
5
Description
Play mode
Battery
Voice Memo
Protect indicator
DPOF indicator
6
Folder name and Stored image
number
Icon
100-0009
Page
p.9
p.39
p.45
p.47
Pressing for
over 1 Sec.
[Play mode display]
ISO : 149
Av : F3.5
Tv : 1/60
Flash : Off
2816X2112
2006/01/10
[Recording information]
Aperture value
Shutter speed
Whether or not the flash is used
Size
Recording date
p.53
ŝ37Ş
Thumbnail(
)/ Enlargement(
) button/ Volume button( )
ƈ You can view multiple pictures, enlarge a selected picture, and crop and save a
selected area of an image.
ƈ When a movie clip, voice memo or voice recording file is playing back, you can
control the volume of those files using this button.
ƃ Thumbnail display
1. While an image is displayed full screen, press the
thumbnail button.
2. The thumbnail display will highlight the image that had
been showing at the time the thumbnail mode was
selected.
3. Press the 5 function button to move to a desired image.
4. To view an image separately, press the enlargement button.
Pressing the
ƃ The maximum enlargement in proportion to the image size.
button
Pressing the enlargement
button (
)
[Normal display mode]
ŝ38Ş
ƃ Image enlargement
1. Select an image that you want to enlarge and press the enlargement button.
2. Different parts of the image can be viewed by
pressing the 5 function button.
3. Pressing the thumbnail button will zoom back to the
original full sized image.
- You can tell whether the image displayed is an
enlarged view by checking the image enlargement indicator shown at the
bottom left of the LCD monitor. (If the image is not an enlarged view, the
indicator will not be displayed.) You can also check the area of enlargement.
- Movie clips and WAV files can’t be enlarged.
- If an image is enlarged, a loss of quality may occur.
[Thumbnail display mode]
Image size
2816
2592
2272
2048
1600
1024
640
Maximum
enlargement
X11.0
X10.1
X8.8
X8.0
X6.2
X4.0
X2.5
Thumbnail(
)/ Enlargement(
) button/ Volume button( )
ƃ Trimming : You can extract part of the image and save it separately.
1. Select an image that you want to enlarge and press the
enlargement button.
Trimming?
2. Different parts of the image can be viewed by pressing
Yes
No
the 5 function button.
Confirm : OK
3. Press the MENU button and a message will be
displayed as shown alongside.
4. Select a desired sub menu by pressing the UP/ DOWN button and press the
OK button.
[Yes] : The trimmed image will save as a new file name, and display on the
LCD monitor.
[No] : The trimming menu will disappear.
ſ If there is insufficient memory space to save the trimmed image, the image
can’t be trimmed.
ſ To delete the enlarged image during the trimming function, press the delete
button.
ƃ Volume control : When a movie clip, voice memo or
voice recording file is playing back, you
can control the volume using this
button.
Play:Ȟ/
Voice (
) memo/ Up button
ƈ When the menu is displayed on the LCD monitor, the UP button operates as a
direction button.
ƈ When the menu is not displayed on the LCD monitor, the UP button operates as
the voice memo button. You can add your voice to a stored still image.
ƃ Adding a Voice Memo to a Still Image
1. Press the LEFT/ RIGHT button to select an image that
you wish to add sound to.
2. Press the voice memo button (
) and the voice
memo indicator will display. The camera is now ready
to record a voice memo.
3. Press the shutter button to start recording and voice
will be recorded to the still image for 10 seconds. While
the voice is recording, the recording status window will
be displayed as shown alongside. The recording can
be stopped by pressing the shutter button again.
4. The (
) icon will be displayed on the LCD monitor
after voice memo recording has finished.
- The voice memo will be saved in * .wav format, but
has the same file name as the still image to which it
corresponds.
- If you add a new voice memo to the still image that
already has a voice memo, the existing voice memo
will be erased.
Capture:E
[Movie Clip : Stop]
[Movie Clip : Playing back]
ŝ39Ş
Play & Pause (
)/ Down button
ƈ In Play mode, the play & pause/ down button works as follows:
- If the menu is displayed
Press the DOWN button to move from the main menu to a sub menu, or to
move down the sub menu cursor.
- If a still image with a voice memo, a voice file, or a movie clip is playing
In Stop mode : Plays a still image with a voice memo, a voice file, or a movie clip.
During playback : Temporarily stops playback.
In Pause mode : Resumes playback
E (Effect) button
Colour
ƈ By using the camera’s digital processor, it is possible to add special effects to
your images.
1. Select a still image or movie clip and press the
button.
2. Select a desired sub menu and press the OK button.
: Captured images will be stored in black and white.
: Captured images will be stored in a sepia tone.
: Captured images will be stored in a red tone.
: Captured images will be stored in a green tone.
: Captured images will be stored in a blue tone.
: Save the image in negative mode.
Exit : E
Left/ Right/ Menu/ OK button
ƈ LEFT/ RIGHT/ MENU/ OK buttons activate the following.
- LEFT button
: While the menu is showing, the LEFT button operates as a
direction button. While the menu is not showing, press the
LEFT button to select the previous image.
- RIGHT button : While the menu is showing, the RIGHT button operates as a
direction button. While the menu is not showing, press the
RIGHT button to select the next image.
- MENU button : When you press the MENU button, the play mode menu will
be displayed on the LCD monitor. Pressing it again will return
the LCD to the initial display.
- OK button
: When the menu is displayed on the LCD monitor, the OK
button is used for confirming data that is changed by using
the 5 function button.
ŝ40Ş
Red eye reduction
ƈ When a shot with "red eye" is played back, pressing this button can remove the
red eye from the subject.
1. Select a still image. Press the E button and select
the
menu.
: The red-eye effect is removed
automatically.
Exit : E
Delete (
) button
Printer (
ƈ This deletes images stored on the memory card.
1. Select an image that you want to delete by pressing the LEFT/ RIGHT button
and press the DELETE( ) button.
Delete?
Yes
No
Confirm : OK
Delete?
Yes
No
Confirm : OK
2. Select the submenu values by pressing the Left/ Right button and then press
the OK button.
If [Yes] is selected : deletes the selected images.
If [No] is selected : cancels "Delete Image".
) button
ƈ If the [USB] menu is set to the [Computer], you cannot
connect a Pictbridge compatible printer to the camera
through USB cable with [Connecting Computer]
message. By pressing the Printer button, at this point,
you can connect the easy printing mode with
[Connecting Printer] message.
ˋIn some instances the camera may not connect to the printer, this will depend on
the make of the printer.
- After the connection, the Easy printing menu will
display on the LCD monitor. To display the
PictBridge menu, press the Menu button.
For more information about the PictBridge menu,
refer to page 49.
IMAGES
One Pic
All Pics
Exit:MENU
Move:
ŝ41Ş
Setting up the play back function using the LCD monitor
ƈ PLAY mode functions can be changed by using the LCD monitor. In the PLAY
mode, pressing the MENU button displays the menu on the LCD monitor. The
menus you can set up in Play mode are as follows. To capture an image after
setting up the play menu, press the PLAY mode button or shutter button.
Menu tab
Main menu
SLIDE
Sub menu
Show
Interval
Effect
PROTECT
DELETE
RESIZE
ŝ42Ş
Select
All Pics
Select
All Pics
2592X1944
2272X1704
2048X1536
1600X1200
1024X768
640X480
Start Image
MP3 Skin
Menu tab
Main menu
ROTATE
Secondary menu
Play, Repeat Play
1, 3, 5, 10sec
OFF
Page
p.44
DPOF
Unlock/ Lock
p.45
OSD
INFORMATION
-
p.45
p.46
COPY TO CARD
Sub menu
Right 90°
Left 90°
180°
Horizontal
Vertical
Standard
Index
Size
Full
Basic
OSD Off
No
Yes
Secondary menu
Select/ All Pics/ Cancel
No/ Yes
Select/ All Pics/ Cancel
-
Page
p.46
p.47
p.48
p.49
Setting up the play back function using the LCD monitor
ƈ This menu is available while the camera is connected to a PictBridge supporting
printer (direct connection to the camera, sold separately) with a USB cable.
Menu tab
Main menu
IMAGES
AUTO SET
Sub menu
One Pic
All Pics
No
Yes
Size
CUSTOM SET
Layout
Secondary menu
Auto
PostCard
Card
4X6
L
2L
Letter
A4
A3
Auto
Full
1
2
4
8
9
16
Index
Menu tab
Main menu
Sub menu
Type
Page
p.50
p.50
Quality
CUSTOM SET
Date
File Name
p.51
PRINT
DPOF PRINT
RESET
Standard
Index
No
Yes
No
Yes
Secondary menu
Auto
Plain
FastPhoto
Auto
Draft
Normal
Fine
Auto
Off
On
Auto
Off
On
-
Page
p.51
p.51
p.51
p.52
ſ Menus are subject to change without prior notice.
ŝ43Ş
Starting the slide show
ƈ Images can be displayed continuously at pre-set intervals. You can view the
slide show by connecting the camera to an external monitor.
1. Select the [Start] sub menu by pressing the
SLIDE
UP/DOWN button and press the RIGHT button.
Show
Play
2. Use the Up/Down buttons to select the desired sub
Interval
Repeat Play
Effect
menu.
[Play] selected :
Back:
Set:OK
The slide show is closed after one cycle.
[Repeat Play] selected :
The slide show is repeated until cancelled.
3. Press the OK button to start the slide show.
- Press the Pause button to pause the slide show.
- Press the Pause button (
) again to resume the slide show.
- To stop the slide show, press the play & pause button, and then press the
LEFT or RIGHT button.
ƃ Repeat setting : Setting the slide show to repeat after the first cycle.
1. Use the Up/ Down buttons to select the [Repeat]
SLIDE
menu and press the Right button.
Show
1 sec
Interval
3 sec
2. Use the Up/ Down buttons to select the desired
Effect
5 sec
sub menu.
10 sec
3. Press the OK button to save the configuration.
Back:
INFORMATION
ƃ The loading time depends on the image size and quality.
ƃ While the slide show is playing, only the first frame of a MOVIE file is
displayed.
ƃ While the slide show is playing, the voice recording file will not display.
ŝ44Ş
Set:OK
ƃ Configure slide show effects : Unique screen effects can be used for the slide
show.
1. Select the [Effect] sub menu by pressing the
SLIDE
UP/ DOWN button and press the RIGHT button.
Show
OFF
2. Use the Up/ Down Button to select the type of
Interval
Effect
effect.
: Normal display.
Back:
Set:OK
: Image is displayed slowly.
: Image is displayed slowly from the centre outwards.
: Image moves from the top left.
: The image slides diagonally from top left to bottom right.
: The image slides irregularly.
3. Press the OK button to confirm the setting.
Protecting images
Deleting images
ƈ This is used to protect specific shots from being accidentally erased (Lock).
It also unprotects images that have been previously protected (Unlock).
ƃ Protecting Images
1. Select a desired sub menu by pressing the
UP/ DOWN button and press the OK button.
[Select] : Selection window for an image to be
protected/released is displayed.
- Up/ Down/ Left/ Right : Select an image
- Zoom W/T Button : Protect/ release the image
- OK Button : Your changes will be saved and
the menu will disappear.
[All Pics] : Protect/ release all saved images
- Zoom W/T Button : Protect/ release the images
- OK Button : Your changes will be saved and
the menu will disappear.
- If you protect an image, the protect icon will be
displayed on the LCD monitor.
(An unprotected image has no indicator)
- An image in LOCK mode will be protected from the
delete function, but will NOT be protected from the
format function.
ƈ Of all the files stored in the memory card, the unprotected files in the DCIM
subfolder will be deleted. Remember that this will permanently delete
unprotected images. Important shots should be stored on a computer before
deletion takes place. The startup image and SKIN image are stored in the
camera's internal memory (i.e., not on the memory card) and it will not be
deleted even if you delete all files on the memory card.
PROTECT
Select
All Pics
Exit:MENU
WȜ
?Ȝ
Move:
Unlock
Set:OK
Unlock
Set:OK
ȞT
Ȟ<
ƃ Deleting images
1. Select a desired sub menu by pressing the
UP/ DOWN button and press the OK button.
[Select] : Selection window for an image to delete
is displayed.
- Up/ Down/ Left/ Right : Select an image
- Zoom T Button : Select the image for deletion.
(V mark)
- OK Button : Press the OK Button to display the
confirmation message. Select the
[Yes] menu and press the OK button
to delete marked images.
[All Pics] : Displays confirmation window. Select
the [Yes] menu and press the OK
button to delete all unprotected images.
If there aren’t protected images, all the
images are deleted and a [No Image!]
message will display.
2. After deletion, the screen will be changed to the
play mode screen.
DELETE
Select
All Pics
Exit:MENU
Move:
Select:T
Del:OK
Delete?
Yes
No
Confirm : OK
Del:OK
ŝ45Ş
Resize
Rotating an image
ƈ Change the resolution (size) of pictures taken. Select [User image] to save an
image to be the start-up image. The resized image will have a new file name.
1. Select a desired sub menu by pressing the
UP/ DOWN button and press the OK button.
ƈ You can rotate the stored images by various degrees. Once the playback of the
rotated picture is finished, it will switch back to the original state.
1. Select a desired sub menu by pressing the
UP/ DOWN button.
RESIZE
Exit:MENU
ROTATE
Right 90°
Left 90°
180°
Horizontal
Vertical
2592X1944
2272X1704
2048X1536
1600X1200
1024X768
Exit:MENU
Move:
Move:
ƃ Image Resize Types
Size 2592X1944 2272X1704 2048X1536 1600X1200 1024X768 640X480 Start Image MP3 Skin
6M
O
O
O
O
O
O
O
O
5M
X
O
O
O
O
O
O
O
4M
X
X
O
O
O
O
O
O
3M
X
X
X
O
O
O
O
O
2M
X
X
X
X
O
O
O
O
1M
X
X
X
X
X
O
O
O
VGA
X
X
X
X
X
X
O
O
[Before rotating the image]
[Right 90°]
[Left 90°]
[180°]
[Horizontal]
[Vertical]
INFORMATION
ƃ You can change the resolution of only those files compressed in the JPEG
4:2:2 format.
ƃ The resized image will have a new file name. The [Start Image, MP3 Skin]
image is stored not on the memory card but on the internal memory.
ƃ Only two [Start Image, MP3 Skin] images can be saved. If you save a new
[Start Image, MP3 Skin] image, the existing startup image will be deleted in
order.
ƃ If the memory capacity is insufficient to store the resized image, a [Memory
Full!] message will display on the LCD monitor and the resized image will
not be stored.
ŝ46Ş
2. Press the OK button and the rotated image will be displayed. If you display the
rotated image on the LCD monitor, empty spaces may appear to the left and
right of the image.
DPOF
DPOF : Index
ƈ DPOF (Digital Print Order Format) allows you to embed printing information on
your memory card’s MISC folder. Select the pictures to be printed and how
many prints to make.
ƈ The DPOF indicator will display on the LCD monitor when an image that has
DPOF information plays back. Images can then be printed on DPOF printers, or
at an increasing number of photo labs.
ƈ This function is not available for Movie clips and Voice recording files.
ƈ If a memory card is not inserted, the menus are still displayed in the LCD, but are
not selectable.
ƈ Images (except for movie clips and voice file) are printed as index type.
1. Select the [Index] menu by pressing the
UP/ DOWN button and press the RIGHT button.
2. Select a desired sub menu by pressing the UP/
DOWN button.
If [No] is selected : Cancel the index print setting.
If [Yes] is selected : The image will be printed in
index format.
3. Press the OK button to confirm the setting.
DPOF
Standard
Index
No
Yes
Size
Back:
Set:OK
DPOF : STANDARD
ƈ This function allows you to embed print quantity information on a stored image.
1. Select the [Standard] menu by pressing the
UP/ DOWN button and press the RIGHT button.
2. Select a desired sub menu by pressing the
UP/ DOWN button.
[Select] : Selection window for an image to print is
displayed.
- Up/ Down/ Left/ Right : Select an image to print.
- Zoom W/T Button : Select the number of prints.
[All Pics] : Configure number of prints for all pictures
except movie and voice files.
- W/T button : Select a number of prints
[Cancel] : Cancel the print setup.
3. Press the OK button to confirm the setting.
If an image carries DPOF instructions, the DPOF
indicator (
) will show.
DPOF
Standard
Index
Size
Select
All Pics
Cancel
Back:
Set:OK
WȜ
0 Prints
ȞT
Set:OK
WȜ
0 Prints
ȞT
Set:OK
ŝ47Ş
DPOF : Print size
On Screen Display information
ƈ You can specify the print size when printing images stored on the memory card.
The [Size] menu is available only for DPOF 1.1 compatible printers.
ƃ Setting the Print Size
1. Select the [Size] menu by pressing the UP/ DOWN
button and press the RIGHT button.
2. Select a desired sub menu by pressing the
UP/ DOWN button and press the OK button.
[Select] : Selection window for an image to be
changed printed size is displayed.
- Up/ Down/ Left/ Right : Select an image.
- Zoom W/T Button : Change the print size.
- OK button : Your changes will be saved and the
menu will disappear.
[All Pics] : Change print size of all saved images.
- W/ T button : Select a print size
- OK button : Confirm the changed setting.
[Cancel] : Cancel all of the print size settings.
ſ DPOF [Size] secondary menu : Cancel, 3X5, 4X6,
5X7, 8X10
ſ Depending on the manufacturer and print model,
cancelling the printing may take a little longer for
the printer to process.
ŝ48Ş
ƈ You can check shooting information about the displayed image.
1. Select a desired sub menu by pressing the
UP/ DOWN button and press the OK button.
DPOF
Standard
Index
Size
Select
All Pics
Cancel
Back:
OSD INFORMATION
Full
Basic
OSD Off
Exit:MENU
Set:OK
W
Cancel
Set:OK
ISO : 149
Av : F3.5
Tv : 1/60
Flash : Off
2592X1944
2006/01/10
T
[Full]
W
Cancel
Set:OK
T
[Basic]
[OSD Off]
Move:
Copy To Card
ƈ This enables you to copy image files, movie clips and voice recording files on the
camera's built-in internal memory to the camera's removable SD memory card.
ƃ Copying to the Memory Card
1. Select a desired sub menu by pressing the
COPY TO CARD
UP/ DOWN button and press the OK button.
No
Yes
- [No] : Cancels "Copy to Card".
- [Yes] : All images, movie clips and voice
recording files saved in the internal
Exit:MENU
Move:
memory are copied to the memory card
after the [Processing!] message is displayed. After copying has been
completed, the screen will return to play mode.
INFORMATION
ƃ When this menu is selected without inserting a memory card, you can select
the [COPY TO CARD] menu but the menu can’t be run.
ƃ If there is not enough space available in the memory card to copy saved
images in the internal memory (45MB), the [COPY TO CARD] command will
copy only some of the images and display [Memory Full!] message. Then the
system will return to the playback mode. Please be sure to delete any
unnecessary files to free up space before inserting the memory card into the
camera.
ƃ When you move images from the internal memory to the removable SD
card, they will be automatically renumbered to avoid duplication of the file
name. If the last file in the memory card is SSL20010.jpg, the copied file
names start from SSL20011.jpg. After completing [COPY TO CARD], the
last stored image of the last copied folder is displayed on the LCD monitor.
PictBridge
ƈ You can use the USB cable to connect this camera to a printer that supports
PictBridge (sold separately) and print the stored images directly. Movie clips and
voice files cannot be printed.
ƈ Setting up the camera for connection with the printer
1. In any mode with the exception of Voice Recording
SET UP
mode, press the MENU button.
Format
Computer
Printer
Date&Time
2. Press the LEFT/ RIGHT button and select
Imprint
[SETUP] menu tab.
Sound
USB
3. Select [USB] menu by pressing the UP/ DOWN
Back:
Set:OK
button and press the RIGHT button.
4. Select [Printer] menu by pressing the UP/ DOWN button and press the OK button.
ƈ Connecting the Camera to a Printer
ƃ Using the USB cable with Cradle : Connect the camera and the cradle.
Connect the cradle to a printer’s USB port
with the supplied USB cable.
ƃ Using the USB cable with Camera : Connect the camera to a printer’s USB
port with the supplied USB cable.
[Using the USB cable with Cradle]
[Using the USB cable with Camera]
ŝ49Ş
PictBridge : Picture Selection
ſ If the [USB] menu is set to the [Computer], you cannot connect a Pictbridge
compatible printer to the camera through USB cable with [Connecting Computer]
message. By pressing the Printer button, at this point, you can connect the easy
printing mode with [Connecting Printer] message. In some instances the camera
may not connect to the printer, this will depend on the make of the printer.
ƈ Easy printing
When you connect the camera to printer in the Play
back mode, you can print a picture easily.
- Pressing the Printer (
) button :
The currently displayed image will be printed with
the printer’s default setting.
- Pressing the Left/ Right button :
Selects a previous/ next image.
0
141-0001
PREV
Exit:Shutter
Ȝ
Print:
Ȟ
Menu:Ok
ƈ Select pictures to print
1. Press the Menu button.
IMAGES
2. The [Images] menu will appear.
One Pic
3. Use the UP and DOWN buttons to select the desired
All Pics
submenu value, and then press the OK button.
When [One Pic] is selected :
Exit:MENU
Move:
The PictBridge function will be applied only to the
picture currently displayed.
When [All Pics] is selected :
The PictBridge function will be applied to all pictures, excluding movie clips
and voice files.
ŝ50Ş
ƃ Setting the Number of Copies to Print
- Select [One Pic] or [All Pics]. A screen where you can set the number of copies
to print will appear as shown below.
0
NEXT
Set:OK
[When [One Pic] is selected]
Exit:Shutter
Set:OK
[When [All Pics] is selected]
- Press the Up/ Down button to select the number of prints.
- When [One Pic] is selected : Use the Left/ Right button to select another
picture. After selecting another picture, select the
number of prints for another picture.
- After setting the number of prints, press the OK button to save.
- Press the Shutter button to return to the menu without setting the number
of prints.
ƈ AUTO SET
1. Use the LEFT and RIGHT buttons to select the
[AUTO SET] menu tab.
2. Use the UP and DOWN buttons to select the
desired submenu value, and then press the OK
button.
[No] : [CUSTOM SET] values are kept.
[Yes] : All values in the [CUSTOM SET] are
automatically changed.
AUTO SET
No
Yes
Exit:MENU
Move:
PictBridge : Print Setting
ƈ Custom Set : You can select the Paper Size, Print Format, Paper Type, Print
Quality, Date Print, and File Name Print menus for printed pictures.
1. Use the LEFT and RIGHT buttons to select the
[CUSTOM SET] menu tab.
2. Use the UP and DOWN buttons to select the
desired submenu value, and then press the
RIGHT button.
3. Use the UP and DOWN buttons to select the
desired submenu value, and then press the OK button.
CUSTOM SET
Size
Layout
Type
Quality
Date
Exit:MENU
)]\W
)]\W
)]\W
)]\W
)]\W
Move:
ƈ The menus you can set up are as follows:
Menu
Function
Sub menu
Size
Auto, PostCard, Card, 4X6, L, 2L,
Set the size of the printing paper
Letter, A4, A3
Layout
Set the number of pictures to be
Auto, Full, 1, 2, 4, 8, 9, 16, Index
printed on a sheet of paper
Type
Quality
Date
Set the quality of the printing
paper
Auto, Plain, Photo, FastPhoto
Set the quality of the picture to
be printed
Auto, Draft, Normal, Fine
Set whether to print the date
Auto, Off, On
File Name Set whether to print the file name Auto, Off, On
ſ Some menu options are not supported on all printers.
If not supported, the menus are still displayed in the LCD, but are not selectable.
ſ If the setting values are not changed in the automatic/ manual setting, the setting
values are automatically kept.
ƈ Printing Pictures
1. Use the LEFT and RIGHT buttons to select the [PRINT] menu tab.
2. Use the UP and DOWN buttons to select the
PRINT
desired submenu value, and then press the OK
Standard
button.
Index
[Standard] : Print the pictures stored in the memory
card in set numbers. One picture is
Exit:MENU
printed on one piece of paper.
[Index]
: Print multiple images on one sheet of
paper.
3. The screen shown on the right will appear and the
picture will be printed. If no picture is selected, the
[No image!] message will be displayed.
Press the Menu/ OK button while printing to cancel
the printing and the [Images] menu is displayed.
Move:
Now Printing
001 / 001
Cancel:
ſ Number of pictures in an index print varies
depends on the printer used.
ƈ DPOF Print : This allows you to directly print the files with DPOF information.
1. Use the LEFT and RIGHT buttons to select the
DPOF PRINT
[DPOF PRINT] menu tab.
No
Yes
2. Use the UP and DOWN buttons to select the
desired submenu value, and then press the OK
button.
Exit:MENU
[No] : Cancel the printing
[Yes] : Directly print the file with the DPOF information
Move:
ſ Depending on the manufacturer and printer model, some menus may not be
available. When a printer does not support the DPOF, the menu is still
displayed but not available.
ŝ51Ş
PictBridge : RESET
Setup menu
ƈ Initialises user-changed configurations.
1. Use the LEFT and RIGHT buttons to select the
[RESET] menu tab.
2. Use the UP and DOWN buttons to select the desired
submenu value, and then press the OK button.
If [No] is selected : Settings will not be reset.
If [Yes] is selected : All print and image settings
will be reset.
ƈ In this mode, you can set up basic settings. You can use the setup menu in all
camera modes, except Voice Recording and MP3/PMP modes.
The items indicated by
are default settings.
RESET
No
Yes
Menu tab
Main menu
File
Exit:MENU
Move:
Power Off
Sub menu
Secondary menu
Series
Reset
1, 3, 5, 10UQV
-
ENGLISH
DEUTSCH
ſ Default print setting varies depending on the printer manufacturer. For your
printer’s default setting, refer to the user’s guide that came with your printer.
Language
P”CCK»…
DANSK
POLSKI
Format
Date&Time
Imprint
Sound
ŝ52Ş
ESPAÑOL
PORTUGUÊS
SVENSKA
BAHASA
Magyar
-
No
Yes
06/01/10 13:00
yy/mm/dd
dd/mm/yy
mm/dd/yy
Off
Off
Date
Date&Time
Off
Low
Medium
High
Page
p.53
p.54
FRANÇAIS
ITALIANO
DUTCH
SUOMI
p.54
-
p.55
p.55
p.55
p.56
Setup menu
Menu tab
Main menu
USB
AF Lamp
LCD
Video Out
Quick View
Reset
File name
Sub menu
Secondary menu
Computer
-
Printer
-
Off
-
On
-
Dark
-
Normal
-
Bright
-
NTSC
-
PAL
-
Off/ 0.5, 1, 3sec
-
No
-
Yes
-
ſ Menus are subject to change without prior notice.
Page
p.56
p.56
p.56
ƈ This function allows the user to select the file naming format.
[Series] : New files are named using numbers that
follow the previous sequence, even when
File
a new memory card is used, or after
Power Off
Language
formatting, or after deleting all pictures.
Format
Date&Time
[Reset] : After using the reset function, the next file
Back:
name will be set from 0001 even after
formatting, deleting all or inserting a new
memory card.
SETUP
Series
Reset
Set:OK
p.57
p.57
p.57
INFORMATION
ƃ The first stored folder name is 100SSCAM, and the first file name is
SSL20001.
ƃ File names are assigned sequentially from SSL20001 ƍ SSL20002 ƍ ~ ƍ
SSL29999.
ƃ The folder number is assigned sequentially from 100 to 999 as follows:
100SSCAM ƍ 101SSCAM ƍ ~ ƍ 999SSCAM.
ƃ The files used with the memory card conform to the DCF(Design rule for
Camera File systems) format.
ŝ53Ş
Auto power off
Language
ƈ There is a choice of languages that can be displayed on the LCD monitor. Even
if the battery and AC charger are removed and inserted again, the language
setting will be preserved.
ƈ This function switches the camera off after a set amount of time in order to
prevent unnecessary battery drainage.
[1, 3, 5, 10min] : The power will turn off
automatically if not used for the
period of time specified.
SETUP
File
Power Off
Language
Format
Date&Time
Back:
1 min
3 min
5 min
10 min
Set:OK
INFORMATION
ƃ Even if the battery and AC charger are removed and inserted again, the
power off setting will be preserved.
ƃ Note that the automatic power off function will not operate if the camera is;
in PC mode, slide show, playing back a voice recording, playing back a
movie clip or playing back an MP3/ PMP file.
ŝ54Ş
LANGUAGE sub menu :
English, Korean, French, German, Spanish, Italian,
S.Chinese, T.Chinese, Japanese, Russian,
Portuguese, Dutch, Danish, Swedish, Finnish, Thai,
BAHASA(MALAY/ INDONESIAN), Arabic,
Hungarian, Czech, Polish and Turkish.
SETUP
File
Power Off
Language
Format
Date&Time
Back:
ENGLISH
ጥૹ࿴
FRANÇAIS
DEUTSCH
ESPAÑOL
Set:OK
Format
Setting up the Date/ Time/ Date type
ƈ This is used for formatting the memory. If you run [Format] on the memory, all
images, including the protected images MP3 and PMP files, will be deleted.
Be sure to download important images to your PC before formatting the memory.
If [No] is selected : The memory card will not be
formatted. Press the menu
button twice and the menu
display will disappear.
If [Yes] is selected : A [Processing!] message
appears and the memory card
will be formatted. If you ran
FORMAT in Play mode, a [No
Image!] message will appear.
SETUP
File
Power Off
Language
Format
Date&Time
Back:
No
Yes
Set:OK
ƈ You can change the date and time that will be displayed on the captured images
and set up the date type.
RIGHT button : Selects the year/ month/ day/ hour/
minute date type.
LEFT button : Moves the cursor to the [Date&Time]
main menu if the cursor is at the first
item of the date and time setup. In all
other cases, the cursor will be shifted
to the left of its current position.
UP and DOWN buttons : Changes the setting value.
SETUP
File
Power Off
Language
Format
Date&Time
06/ 01/10
13:00
yy/mm/dd
Back:
Set:OK
Imprinting the recording date
INFORMATION
ƃ Be sure to run [Format] on the following types of memory card.
- A new memory card or an unformatted memory card.
- A memory card that has a file this camera can't recognise or one that has
been taken from another camera.
ƃ Always format the memory card using this camera. If you insert a memory
card that has been formatted using other cameras, memory card readers, or
PCs, you will get a [Card Error!] message.
ƈ There is an option to include DATE/ TIME on still images.
[Off]
: The DATE & TIME will not be
imprinted on the image file.
[Date]
: Only the DATE will be imprinted on
the image file.
[Date&Time] : The DATE & TIME will be imprinted
on the image file.
SETUP
Power Off
Language
Format
Date&Time
Imprint
Back:
Off
Date
Date&Time
Set:OK
ſ The Date & Time are imprinted at the bottom right side of the still image.
ſ The imprint function is applied only to still images except for the images taken
in the [Text] scene mode and photo frame effect mode.
ŝ55Ş
Sound
ƈ If you set the operation sound to on, various sounds
will be activated for camera startup, when buttons
pressed, so that you can be aware of the camera
operation status.
Auto Focus lamp
ƈ You can turn the Auto Focus lamp on or off.
SETUP
Language
Format
Date&Time
Imprint
Sound
If [Off] is selected : The AF lamp will not light up.
If [On] is selected : The AF lamp will light up.
Off
Low
Medium
High
Back:
Set:OK
Connecting an External Device (USB)
ƈ You can select an external device to which you want to connect the camera
using the USB cable.
SETUP
Date&Time
Imprint
Sound
USB
AF Lamp
Off
On
ſ If you select [Off] menu and take an image in poorly
lit conditions or select the [Night] scene mode, the
Back:
camera may not be able to focus accurately.
ſ The Auto Focus lamp will function while using the self-timer even if the
configuration is set to off.
Set:OK
LCD brightness
ƈ You can adjust the LCD brightness.
SETUP
[Computer] : Select this if you want to connect the
camera to your PC. Refer to page 77
for instructions on how to connect the
camera to your PC.
[Printer]
: Select this if you want to connect the
camera to your printer. Refer to page
49 for instructions on how to connect
the camera to your printer.
ŝ56Ş
SETUP
Format
Date&Time
Imprint
Sound
USB
Back:
Computer
Printer
Imprint
Sound
USB
AF Lamp
LCD
Back:
Set:OK
Dark
Normal
Bright
Set:OK
Selecting Video out type
ƈ The Movie output signal from the camera can be
NTSC or PAL. Your choice of output will be governed
by the type of device (monitor or TV, etc.) to which
the camera is connected. PAL mode can support
only BDGHI.
Quick view
ƈ If you enable Quick View before capturing an image, you can view the image
you just captured on the LCD monitor for the duration set in the [Quick View]
setup. Quick view is possible only with still images.
SETUP
Sound
USB
AF Lamp
LCD
Video Out
Back:
NTSC
PAL
[Off]
Set:OK
ƈ Connecting to an external monitor
: The quick view function can’t be
activated.
[0.5, 1, 3sec] : The captured image is briefly
displayed during the selected time.
SETUP
USB
AF Lamp
LCD
Video Out
Quick View
off
0.5 sec
1 sec
3 sec
Back:
Set:OK
[Using the AV cable with Cradle]
Initialisation
[Using the AV cable with Camera]
Yellow - Video
White - sound
INFORMATION
ƃ NTSC : U.S.A, Canada, Japan, South Korea, Taiwan, Mexico.
ƃ PAL : Australia, Austria, Belgium, China, Denmark, Finland, Germany, U.K.,
Holland, Italy, Kuwait, Malaysia, New Zealand, Singapore, Spain,
Sweden, Switzerland, Thailand, Norway.
ƃ When using a TV as an external monitor, you will need to select the external
or AV channel of the TV.
ƃ There will be a digital noise on the external monitor, but it is not a malfunction.
ƃ If the image is not in the centre of the screen, use the TV controls to centre it.
ƃ The menu functions are the same as those indicated on the LCD monitor.
ƈ All camera menu and function settings will be restored to their default values.
However, values for DATE/TIME, LANGUAGE, and VIDEO OUT will not be
changed.
If [No] is selected :
Settings will not be restored to their defaults.
If [Yes] is selected :
All settings will be restored to their defaults.
SETUP
AF Lamp
LCD
Video Out
Quick View
Reset
Back:
No
Yes
Set:OK
ŝ57Ş
Setting up the Mycam menu
Start up sound
ƈ You can set up a start up image, start up sound and shutter sound. Every
camera working mode (with the exception of Voice recording and MP3/PMP
modes) has the MyCAM menu.
The items indicated by
are default settings.
Menu tab
Main menu
Start Image
Start Sound
Shutter Sound
Sub menu
Off
User Image 1
Off
Sound 2
Off
Sound 2
ƈ You can select the sound that is activated whenever
the camera is turned on.
p.58
p.58
Off
Sound 1
Sound 2
Sound 3
Back:
Page
LOGO
User Image 2
Sound 1
Sound 3
Sound 1
Sound 3
MYCAM
Start Image
Start Sound
Shutter Sound
Set:OK
INFORMATION
ƃ If the start up image is set to [Off], the start up sound will not activate, even
though you may have set these to on.
p.58
ſ Menus are subject to change without prior notice.
Start up image
ƈ You can select the image that is first displayed on the
LCD monitor whenever the camera is turned on.
Shutter sound
ƈ You can select the shutter sound.
MYCAM
MYCAM
Start Image
Start Sound
Shutter Sound
Back:
Start Image
Start Sound
Shutter Sound
Set:OK
Back:
INFORMATION
ƃ Use a saved image for the start-up image with the [User Image] in the
[RESIZE] menu in the play mode.
ƃ The start-up image will not be deleted by deleting all images or [Format] menu.
ƃ The User images will be deleted by [Reset] menu.
ŝ58Ş
Off
Sound 1
Sound 2
Sound 3
Set:OK
MP3/ PMP mode
ƈ This camera has an embedded MP3 & Portable Media Player program.
You can take a picture, listen to the MP3 files and watch the movie clip (Movie
and Video clip) whenever you want. To use the PMP mode, you must convert
the multimedia file with the Digimax Converter.
Downloading files
INFORMATION
ƃ Take care of the illegal duplication of MP3 & multimedia files. It violates
various copyright laws.
ƃ This camera can only play back MP3 files in the MP3 mode and SDC files
(modified XviD MPEG4 video / MPEG Layer2 audio type) in the PMP mode.
ƃ If a file can not be played back on this camera, convert it into the supported
file format by using the Digimax Converter. (p.81)
ƃ Up to 200 files can be saved in a folder.
ƃ You can make up to 100 subfolders under the MP3 or PMP folder. You
can't make subdirectories under the subfolder.
ƈ To use MP3 & PMP functions, MP3 and multimedia files must be saved in the
internal memory or memory card of this camera.
1. Save the desired files on your PC.
2. Connect the camera to your PC with the USB cable and turn on the camera.
3. Open Window's EXPLORER and search for [Removable Disk].
4. Make a folder under the Removable Disk.
- MP3 mode : [MP3]
- PMP mode : [PMP]
5. Select desired files that you want to save and copy them to the desired folder.
ŝ59Ş
Starting the MP3/ PMP mode
ƈ You can select the MP3 or PMP mode by using the M (Mode) button located on
the back of the camera and through the [MODE] menu.
ƃSelecting the [MODE] menu
1. Insert the memory card that holds MP3 files or
MODE
Multimedia file. As this camera has a 45MB internal
Still/ Movie/ PMP
memory, you can save the files on the internal
Full
memory too.
2. Press the menu button and a menu will display.
(Except for the MP3, PMP and Voice recording
mode)
3. Select the [MODE] menu by pressing the Left/ Right button.
4. Select [Still/ Movie/ PMP] or [Full] menu by pressing the Up/ Down button.
5. Press the Menu button and the menu will disappear.
ƃ Changing the mode : If the [Still/Movie/PMP] menu was selected
1. Press the
button located on the back
of the camera.
Resume
2. A menu will display as shown.
Open
[Resume] : memorizes the latest stopped frame.
MP3 mode : plays back from the beginning of the file.
PMP mode : plays back from the latest stopped frame
[Open]
: The browsing menu will display to select a desired file
3. Select a desired file and press the OK button. And then the file will play back.
Confirm : OK
ŝ60Ş
[MP3 mode]
003/003
J-Heart - Misty.mp3
waiting for you by J He
misty by J Heart.MP3
Mode:E
[PMP mode]
Move:
0:00:03/ 0:26:28
)VQUI\QWV
+WUQK
C;,+E5W^QM[IUXTM[LK
Mode:E
MP3 misty by J He
Move:
[SDC]-Movie sample.s
Who bent my camera?
INFORMATION
ƃ When you select the [Resume] menu (p.64) in each mode, the file will play
back without displaying the browsing menu. But if the latest played file has
been deleted, the browsing menu will be displayed.
ƃ The order of play lists on the browsing menu and the order of file saved in
the memory are the same.
ƃ A title coded with unsupported language is displayed as "--------".
Starting the MP3/ PMP mode
ƃ Changing the mode : If the [Full] menu was selected
1. Press the
button located on the back of the camera.
2. Select a desired mode by pressing the Left/ Right button.
MP3
PMP
Confirm : Mode/ OK
Confirm : Mode/ OK
3. Steps 3 is the same as steps 2~3 of Changing the mode in the
[Still/ Movie/ PMP] menu.
INFORMATION
ƃ The automatic power off function will not operate if the a file is playing back.
ƃ Press the M (Mode) button or shutter button and the camera working mode
will be changed.
ƃ If there over 100 files in the memory, it takes a little longer for the camera to
process to the MP3/ PMP mode.
ƃ If there is no operation during the specified time (About 30 sec.) the LCD
monitor is turned off automatically and the camera status lamp blinks.
To use the camera, press any of the camera buttons except the Power
button.
ƃ Playing back the VBR (Variable Bit Rate) file A VBR file varies the amount
of output data in each time segment based on the complexity of the input
the data in that segment.When the VBR encoded files are played back, the
LCD will display as shown.
- The VBR icon will display instead of the Bit rate icon.
- The time line isn't displayed.
- Playing time will display but the whole running time doesn't display.
ƃ In the PMP mode, any camera buttons except for the Power button will not
be operated for 2 seconds of beginning and end of the multimedia file.
ŝ61Ş
LCD monitor indicator for MP3/PMP mode
ƈ The LCD monitor displays information about the MP3 and multimedia file.
Using the camera buttons to adjust the camera
Volume button
ƈ You can control the volume with this button.
There are 0~30 steps
MP3 mode
Battery (p.9)
Playing time
Time line
MP3 misty by J He
Play & Pause/
Control button (p.62)
Type of play back (p.65)
Bit rate (p.61)
Volume (p.62)
Title of file
[MP3 mode]
Play & Pause/
Control button(p.62)
PMP mode
Battery (p.9)
Volume (p.62)
0:00:03/ 0:26:28
[SDC]-Movie sample.s
Title of file
Playing time
Time line
Who bent my camera?
[PMP mode]
ŝ62Ş
Caption (p.66)
Play & Pause/ Control button
ƈ When a file is playing back, press the Down button to
pause the file. Pressing it again will resume playback.
ƈ MP3 mode
You can search the MP3 files by pressing the Left/ Right
button. You can’t search the MP3 file during play back.
ƈ PMP mode
You can search the Multimedia files by pressing the Left/ Right button.
And you can search a desired frame of the file during play back by pressing the
Left/ Right button.
Using the camera buttons to adjust the camera
Playlist button
,MTM\MJ]\\WV
ƈ This deletes files stored on the memory.
1. Select a desired file to delete on the browsing menu
and press the Delete button.
2. A message will display as shown
[Yes]: deletes the selected file.
[No] : cancels "Delete files" and the browsing menu
will display.
Delete?
Yes
No
Confirm : OK
ƃ While a multimedia file is playing back, you can select a desired file by using the
browsing menu.
1. While a multimedia file is playing back, press the Playlist button (
).
2. A playlist that is currently played back will be highlighted.
3. Move the cursor to a desired list by pressing the Control button.
Pressing the OK button : the selected file is played back.
Pressing the Playlist button : the selection will be cancelled.
INFORMATION
ƃ Before deleting files from the camera, take care to download files you want
to keep to your computer.
20MIZ\5Q[\aUX
_IQ\QVONWZaW]Ja20M
UQ[\aJa20MIZ\58
)VQUI\QWV
+WUQK
C;,+E5W^QM[IUXTM[LK
Mode:E
Mode:E
Move:
Move:
Hold button
Hold button
ƃ If you press the Hold button for over 1 second, the
camera buttons are locked.
- If the camera buttons are locked, the buttons can't be
operated while playing back. But Power off, Video out,
USB connection and LCD on functions can be operated.
[SDC]-Movie sample.s
MP3 misty by J He
192K
- If you press the Lock button again or turn off the camera, the camera is
unlocked.
ŝ63Ş
Setting up the play back function using the LCD monitor
ƈ MP3/ PMP mode functions can be changed by using the LCD monitor.
Press the MENU button and the menu will display on the LCD monitor.
Menu tab
MP3
Main menu
Resume
Sub menu
Resume
Page
p.64
Play mode
p.65
MP3 Skin
p.65
Delete All
p.65
Show Interval
p.66
Show Play
Resume
p.66
p.64
Seeking
p.66
Player Display
p.66
Delete All
p.65
PMP
ſMenus are subject to change without prior notice.
ŝ64Ş
ƈ You can set playing back type.
1. Press the Menu button in each mode.
2. Select a desired playing type in the [Resume] menu by pressing the Up /
Down button and press the OK button.
Resume
Resume
: When the camera is turned on/ off or camera mode is changed, this
camera will memorize the latest stopped frame.
MP3 mode : plays back from the beginning of the file.
PMP mode : plays back from the latest stopped frame
: The browsing menu will display to select a desired file
Setting up the play back function using the LCD monitor
Play mode
ƈ You can set various repeat and shuffle options.
This function is adopted only in the selected folder.
: plays a single track once.
: plays a single track repeatedly.
: plays all tracks in the folder repeatedly.
: randomly plays all tracks in the folder once.
: randomly plays all tracks in the folder repeatedly.
Delete all
ƈ All the files stored in the memory card will be deleted.
In the MP3 mode, only MP3 files are deleted. In the PMP mode, only multimedia
files are deleted.
Repeat One
Delete All
: cancels "Delete files"
: A confirmation window will display. Select [Yes]
and press the OK button. All files will be deleted.
Skin of MP3 player
Delete All
Delete?
Yes
No
Confirm : OK
ƈ You can set the skin of MP3 player
[
,
] : Default skin will be set.
[
,
] : An image created by the [MP3 Skin] menu
(p.46) will be set.
MP3 Skin
ŝ65Ş
Setting up the play back function using the LCD monitor
Setting slide show interval
Frame search
ƈ You can set the slide show play interval of MP3 mode.
- Select an interval among 2, 3, 5 second.
Show Interval
ƈ You can set the time of skip range when you search the
movie by pressing the Left/ Right button.
You can search a frame you want easily.
[
]:This will skip frame by frame whenever you press
Seeking
the Left / Right button.
[
,
,
,
,
] : This will skip a set frame
whenever you press the Left / Right button.
Playing back the slide show
ƈ While the MP3 file is playing back, captured images are
displaying on the LCD monitor continuously.
: Display the images once.
: Display the images continuously.
Display setting
Show Play
INFORMATION
ƃ When the playing back is complete, the slide show will stop.
ƃ To stop the slide show, press the Pause button and then press the Menu
button twice.
ŝ66Ş
ƈ You can set the display of the LCD.
[
] : If there is no operation during 5 seconds, Menu
bar will disappear.
[
] : Menu bar will not display on the LCD monitor.
[
] : Menu bar will display on the LCD monitor.
Player Display
INFORMATION
ƃ To see the caption, insert the caption file (.smi) by using the Digimax
Converter. (p.81)
ƃ If a multimedia file has a caption, the caption will display regardless of
display setting.
Setting up the play back function using the LCD monitor
Be sure to observe the following precautions!
Setting up the recording function in the MP3 mode.
ƈ You can take a picture and listen to the MP3 files at the
same time
1. Press the Shutter button and the MP3 stand-by icon
will display.
2. Press the Shutter button and an image will be taken.
Important notes
MP3 : E
INFORMATION
ƃ The camera settings are fixed to default setting of Auto mode
(
,
,
,
).
The settings can’t be changed.
ƃ If the memory card is not inserted, this function will not operate.
Occasionally the next file will be played back when you press the Shutter
button, even though a memory card is inserted.
ƃ If the memory card is not inserted, the Auto mode will be selected when you
press the Shutter button.
ƃ If there is no operation during 10 seconds after displaying the MP3 StandBy icon, camera mode will be changed to MP3 mode.
ƈ This unit contains precision electronic components. Do not use or store this unit in
the following locations.
- Areas exposed to severe changes in temperature and humidity.
- Areas exposed to dust and dirt.
- Areas exposed to direct sunlight or the inside of a vehicle in hot weather.
- Environments where there is high magnetism or excessive vibration.
- Areas with high explosives or highly flammable materials.
ƈ Do not leave this camera in places subject to dust, chemicals (like naphthalene
and mothball), high temperature and high humidity. Keep this camera in a
hermetically sealed box with silica gel when not planning to use it for a long
period.
ƈSand can be particularly troublesome to cameras.
- Do not let sand get inside the unit when using it on beaches, coastal dunes, or
other areas where there is lots of sand.
- Doing so may result in failure or may permanently render the unit unusable.
ƈ Handling the camera
- Never drop the camera or subject it to severe shocks or vibrations.
- Protect the large size LCD monitor from impact. When this camera is not used,
keep this camera in the camera case.
- Avoid obstructing the lens or the flash when you capture an image.
- This camera is not waterproof. To avoid dangerous electrical shocks, never hold
or operate the camera with wet hands.
- If you use this camera in wet places, such as beach or pool, do not let water or
sand get inside the camera. Doing so may result in failure or may permanently
damage the unit.
ŝ67Ş
Important notes
ƈ Extremes in temperature may cause problems.
- If the camera is transferred from a cold to a warm and humid environment,
condensation can form on the delicate electronic circuitry. If this occurs, turn the
camera off and wait for at least 1 hour until all moisture is dispersed. Moisture
build up can also occur in the memory card. If this happens, turn off the camera
and remove the memory card. Wait until the moisture has dispersed.
ƈ Caution on Using the Lens
- If the lens is subjected to direct sunlight, it could result in discoloration and
deterioration of the image sensor.
- Don't get fingerprints or foreign substances on the surface of the lens.
ƈ If the digital camera is not used for a long period, an electric discharge can occur.
It is a good idea to remove the batteries and the memory card if you do not intend
using the camera for an extended period of time.
ƈ If the camera is exposed to an electronic interference, it will turn itself off to protect
the memory card.
ƈ Camera Maintenance
- Use a soft brush (available from photo stores) to gently clean the lens and LCD
assemblies. If this does not work, lens-cleaning paper with lens cleaning fluid can
be used. Clean the camera body with a soft cloth. Do not allow this camera to
come into contact with solvent materials such as benzol, insecticide, thinners etc.
This may damage the body shell of the camera and also affect its performance.
Rough handling can damage the LCD monitor. Take care to avoid damage and
keep the camera in its protective carry case at all times when not in use.
ŝ68Ş
ƈ Do not attempt to disassemble or modify the camera.
ƈ Under certain conditions, static electricity can cause the flash unit to fire.
This is not harmful to the camera and is not a malfunction.
ƈ When images are uploaded or downloaded (when the charger and USB cable
are inserted into the cradle at the same time), the data transfer may be affected
by static electricity. In this case, disconnect and re-connect the USB cable before
trying the transfer again.
ƈ Before an important event or going on a trip, you should check the camera
condition.
- Take a picture to test the camera and always carry a spare fully charged battery.
- Samsung cannot be held responsible for camera malfunctions.
ƈ Do not use headphones/earphones while driving, cycling, or operating any
motorized vehicle. It may create a traffic hazard and can be illegal in some areas.
ƈ Avoid using headphones/earphones at high volume. Hearing experts advise
against continuously loud and extended play. If you experience a ringing in your
ears, reduce volume or discontinue use.
Warning indicator
ƈ There are several warnings that may appear on the LCD display
Card Error!
ϛMemory card error
ƍ Turn off the camera power and turn it on again
ƍ Insert the memory card again
ƍ Insert the memory card and format the memory card (p.55)
Low Light!
ϛWhen taking pictures in dark places
ƍ Take pictures in Flash Photography mode.
Out Of Number
ϛ When selecting too many printing pages in the PictBridge menu.
ƍ Select printing page within the limitation.
Card Locked!
ϛThe memory card is locked
ƍ SD memory card : Slide the write protect switch to the top of the memory card
No Card!
ϛA memory card is not inserted
ƍ Insert the memory card again
ƍ Turn off the camera power and turn it on again
No Image!
ϛThere are no images stored on the memory
ƍ Take images
ƍ Insert a memory card that is holding some images
File Error!
ϛThe red-eye effect can't be removed in the playback mode.
ƍ The red-eye reduction only applies on files that have the ratio of four to three.
ϛFile error
ƍ Format the memory card
ϛMemory card error
ƍ Contact a camera service centre
Low Battery!
ϛThere is low battery capacity
ƍ Insert charged battery
Before contacting a service centre
ƈ Please check the following
The camera doesn’t switch on
ϛThere is low battery capacity
ƍ Insert charged battery (p.9)
ϛBattery is inserted incorrectly with the polarities reversed.
ƍ Insert the battery according to the polarity marks (+, -)
ϛThe rechargeable battery is not inserted
ƍ Insert the battery and turn on the camera
The camera power ceases while in use
ϛThe battery are exhausted
ƍ Insert charged battery
ϛThe Camera is turned off automatically
ƍ Turn on the camera power again.
ŝ69Ş
Before contacting a service centre
Battery power quickly drains
ϛThe Camera is being used in low temperatures
ƍ Keep the camera in warm conditions (i.e. inside a coat or jacket) and only
remove it in order to take images
Camera does not take images when pressing the Shutter button
ϛThere is insufficient memory capacity
ƍ Delete unnecessary image files
ϛThe memory card has not been formatted
ƍ Format the memory card (p.55)
ϛThe memory card is exhausted
ƍ Insert a new memory card
ϛThe memory card is locked
ƍ Refer to [Card Locked!] error message (p.69)
ϛThe cameraŖs power is off
ƍ Turn the camera power on
ϛThe battery is exhausted
ƍ Insert charged battery (p.8).
ϛBattery is inserted incorrectly with the polarities reversed.
ƍ Insert the battery according to the polarity marks (+, -)
The camera suddenly stops working while in use
ϛThe camera stopped due to a malfunction
ƍ Remove /re-insert battery and switch the camera on
The images are unclear
ϛA picture was taken the subject without setting an appropriate macro mode
ƍ Select an appropriate macro mode to take a clear image.
ϛTaking a picture beyond the flash range
ƍ Take a picture within the flash range
ϛThe lens is smudged or dirty
ƍ Clean the lens
The flash does not fire
ϛFlash off mode has been selected
ƍ Dis-engage flash off mode
ϛThe camera mode canŖt use the flash
ƍ Refer to the FLASH instruction (p.20)
Incorrect date and time is displayed
ϛThe date and time have been set incorrectly or the camera has adopted the default settings
ƍReset the date and time correctly
The camera buttons do not operate
ϛCamera malfunction
ƍ Remove/re-insert battery and switch the camera on
A card error has occurred while the memory card is in the camera.
ϛIncorrect memory card format
ƍ Re-format the memory card
The images don't play back
ϛIncorrect file name (Violation of DCF format)
ƍ Do not change the image file name
Colour of image is different to the original scene
ϛWhite balance or effect setting is incorrect
ƍ Select appropriate White balance and effect
ŝ70Ş
Before contacting a service centre
Specification
Images are too bright
ϛExposure is excessive
ƍ Reset exposure compensation
ƈ Image Sensor
- Type : 1/2.5" CCD
- Effective Pixel : Approx. 6.0 Mega-pixel - Total Pixel : Approx. 6.1 Mega-pixel
No image on external monitor
ϛThe external monitor has not been connected properly with the camera
ƍ Check the connection cables
ϛThere are incorrect files in the memory card
ƍ Insert a memory card that has correct files
ƈ Lens
- Focal Length : SHD Lens f = 6.6 ~ 19.8mm
(35mm film equivalent : 39~117mm)
- F No. : F 3.5 ~ F 4.5
- Digital Zoom :ϛStill Image mode : 1.0X ~ 5.0X
ϛPlay mode : 1.0X ~ 11.0X (depends on image size)
ƈ LCD Monitor : 2.5" Color TFT LCD
When using the PC’s explorer, the [Removable Disk] file does not show
ϛCable connection is incorrect
ƍ Check the connection
ϛThe camera is off
ƍ Turn the camera on
ϛThe operating system is not Windows 98, 98SE, 2000, ME, XP/ Mac OS 9.0 ~
10.4. Alternatively the PC does not support USB
ƍ Install Windows 98, 98SE, 2000, ME, XP/ Mac OS 9.0 ~ 10.4 to PC that
supports USB
ϛThe camera driver is not installed
ƍ Install a [USB Storage Driver]
ƈ Focusing
- Type : TTL auto focus
- Range
Normal
Wide
Tele
50cm ~ infinity
Macro
5 ~ 50cm
25 ~ 50cm
Super Macro
1cm ~ 5cm
-
Auto Macro
5cm ~ Infinity
50cm ~ Infinity
ƈ Shutter
- Type : Mechanical and Electronic shutter
- Speed : 1 ~ 1/2,000 sec. (Night : 16 ~ 1/2,000 sec.)
ƈ Exposure
- Control : Program AE, Metering : Multi, Spot
- Compensation : ť2EV (0.5EV steps)
- ISO Equivalent : Auto, 50, 100, 200, 400
ƈ Flash
- Modes : Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off,
Red-eye reduction
- Range : Wide : 0.2m ~ 2.4m, Tele : 0.3m ~ 1.9m (ISO Auto)
- Recharging Time : Approx. 4 sec.
ŝ71Ş
Specification
ƈ Sharpness : Soft, Normal, Vivid
ƈ Effect : Normal, B&W, Sepia, Negative, Red, Green, Blue, RGB
ƈ White Balance : Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L,
Tungsten, Custom
ƈ Voice Recording : Voice Recording (max 1 hour), Voice Memo in Still Image
(max. 10 sec.)
ƈ Date Imprinting : Date, Date&Time, Off (user selectable)
ƈ Shooting
- Still Image : Modes : Auto, Program, Scene, ASR
ſ Scene : Night, Portrait, Children, Landscape, Text, Close-up,
Sunset, Dawn, Backlight, Fireworks, Beach & Snow
ϛShooting : Single, Continuous
ϛSelf-timer : 2 sec., 10 sec., Double(10 sec., 2 sec.)
- Movie Clip : With Audio (recording time : Depend on Storage size)
Size : 640x480, 320x240, 160x128
Frame rate : 30 fps, 15 fps
Movie Stabilizer (User Selectable)
Movie Editing (Embeded) : Pause during recording, Still Image Capture
Time Trimming
ƈ Storage
- Media : Internal memory: About 45MB
External memory: SD card /MMC (Up to 1GB Guaranteed)
*Internal memory capacity is subject to change without prior notice.
- File Format : Still Image : JPEG (DCF), EXIF 2.2, DPOF 1.1, PictBridge 1.0
Movie Clip : AVI(MPEG-4)
Audio : WAV
- Image Size
6M
5M
4M
3M
2M
1M
2816x2112 2592x1944 2272x1704 2048x1536 1600x1200 1024x768
- Capacity (64MB)
Super Fine
Fine
Normal
6M
18
35
52
5M
22
42
61
4M
27
54
79
3M
35
65
93
2M
57
101
139
1M
139
197
250
VGA
289
341
417
ſ These figures are measured under Samsung’s standard conditions and may
vary depending on shooting conditions and camera settings.
ƈ Image Play
- Type : Single image, Thumbnails, Slide show(with Audio), Movie Clip
- Editing : Trimming, Resizing, Rotate, Effect
ƈ Interface : Digital output connector : USB 2.0
Audio : Mono
Video output : NTSC, PAL (user selectable)
DC power input connector : 24pin Connector
ŝ72Ş
VGA
640x480
Specification
ƈ Power Source : Rechargeable battery : SLB-0837 (860mAh)
Adaptor : SAC-42
Optional Cradle
ſ Included battery type may vary depending on sales region.
ƈ Dimensions (WxHxD) : 96x61x18.5mm
ƈ Weight : 129.5g
- Operating Temperature : 0 ~ 40Ű
- Operating Humidity : 5 ~ 85%
ƈ Software
- Camera Driver : Storage Driver
(Windows98/98SE/2000/ME/XP, Mac OS 9.0 ~ 10.4)
- Application : Digimax Master, Digimax Converter*, Digimax Reader
* OS : Windows 98SE/2000/ME/XP
(Windows 2000/XP recommended)
PC with processor better than Pentium III 500MHz
(Pentium ю recommended)
ƈ Special Features
- PMP Player Function Digimax Converter S/W (No Direct Playing)
MP3 Player Function, Red-eye Correction
ASR (Advanced Shake Reduction)
3X Optical Zoom for Still & Movie.
New Charging System (Cradle (Optional))
MPEG-4 VGA 30fps Movie Clip (supporting Edit on DSC)
Powerful Effect (Colour, Highlight, Composite, Frame)
Easy Mode Change using “M” button
ſ MP3 Specification
ƈ Audio
- Frequency : 20Hz~20KHz
- Earphone Port : 3.5mm Port (Stereo Type)
- Output : Maximum Volume Left 15mW + Right 15mW(16ѳ)
- Noise Ratio : 86 dB with 20 KHz LPF
ƈ File
- File Format : MP3 (MPEG-1/2/2.5 Layer 3)
- Bit Rate : 48 ~ 320kbps (Including VBR)
ƈ Play Mode : All, Repeat One, Repeat All, Random, Random Repeat
Skipping in Play, Auto Skipping
Slide Show On/Off (User Selectable),
MP3&Capturing (Capturing Mode is Auto Default, 3M)
Auto reload function (Remember last played file)
Background skin of MP3 playback using user images
ſ PMP Specification
ƈ PMP Decoder
- Movie : Xvid MPEG4 (Using Digimax Converter S/W)
- Audio : MPEG1 Layer 2 (Using Digimax Converter S/W)
ƈ Play Mode
- Seeking in Play (Max 32X), Skipping in Play,
- Auto skipping after one file played
- Auto reload function (Remember last played frame)
- Support Full Screen in Converting S/W
ƈ Subtitle : Support SMI file (Using Digimax Converter S/W)
ſ Specifications are subject to change without prior notice.
ſ All trademarks are the property of their respective owners.
ŝ73Ş
Software Notes
About the software
Please ensure that you read the software instructions carefully before use.
ŋThe attached software is a camera driver and image editing software tool for
Windows.
ŋUnder no circumstances should all or part of either the software or the user
manual be reproduced.
ŋCopyrights for software are licensed only for use with a camera.
ŋIn the unlikely event of a manufacturing fault, we will repair or exchange your
camera. We cannot, however, be held responsible in any way for damage
caused by inappropriate use.
ŋUsing a Hand-made PC or a PC and OS that has not been guaranteed by the
manufacturer is not covered by the Samsung warranty.
ŋBefore reading these instructions, you should have a basic knowledge of
computers and O/S (Operating Systems).
System Requirements
For Windows
PC with processor better than Pentium II
450MHz (Pentium 700MHz recommended)
Windows 98/98SE/2000/ME/XP
Minimum 128MB RAM
300MB of available hard disk space
1024x768 pixels, 16-bit colour
display compatible monitor
(24-bit colour display recommended)
ҭDigimax Converter
PC with processor better than Pentium III 500MHz
(Pentium ю recommended)
Windows 98SE/2000/ME/XP
(Windows 2000/XP recommended)
ŝ74Ş
For Macintosh
Power Mac G3 or later
Mac OS 9.0 ~ 10.4
Minimum 64MB RAM
110MB of available hard-disk space
ҭFor playing back a movie clip
Mac OS 10.1~10.4
MPlayer, VLC Media Player
After inserting the CD-ROM provided with this camera into the CD-ROM drive, the
following window should automatically run.
Before connecting the camera to the PC,
you should first install the camera driver.
ƈ Camera driver : This enables images to transfer between the camera and PC.
This camera uses the USB Storage Driver as the camera driver. You can use
the camera as a USB card reader. After installing the driver and connecting this
camera to the PC, you can find [Removable Disk] in [Windows Explorer] or [My
computer]. A USB Storage Driver is provided only for Windows. A USB Driver for
MAC is not included with the Application CD. You can use the camera with Mac
OS 9.0 ~ 10.4.
ƈ XviD codec : This makes movie clips (MPEG-4) recorded with this camera
play back on a PC.
To play back a movie clip recorded with this camera, you must install the XviD
codec. If a movie clip recorded with this camera does not play well, install this
codec. This software is only compatible with Windows.
ƈ Digimax Converter : Multimedia converting program
Multimedia (Movie, Video clip, etc) files can be converted into movie clips that
can be played back on this camera. This software is only compatible with
Windows.
About the software
ƈ Digimax Master : This is the all-in-on multi media software solution.
You can download, view, edit and save your digital images and movie clips clip
with this software. This software is only compatible with Windows.
ƈ Digimax Reader : Text recognition program.
You can save an image file that was captured in the TEXT mode as a text file
with this program. This software is only compatible with Windows.
Setting up the application software
ƈ To use this camera with a PC, install the application software first.
After this has been done, the stored images in the camera can be moved to the
PC and can be edited by an image editing program.
ƈ You can visit the Samsung web-site through the internet.
http://www.samsungcamera.com : English
http://www.samsungcamera.co.kr : Korean
1. The auto run frame will display.
Click the [Install] menu in the Auto run frame.
INFORMATION
ƃ Be sure to check the system requirements before installing the driver.
ƃ You should allow 5 ~ 10 seconds for running the automatic setup program.
If the frame does not show, run the [Windows Explorer] and select
[Samsung.exe] in the CD-ROM Drive root directory.
ƃ PDF documents of user manual are included in the Software CD-ROM
supplied with this camera. Search the PDF files with Window's explorer.
Before opening the PDF files, you must install the Adobe Reader included in
the Software CD-ROM.
ƃ To install the Adobe Reader 6.0.1 correctly, Internet Explorer 5.01 or later
had to be installed. Visit "www.microsoft.com" and upgrade the Internet
Explorer.
2. Install the camera driver and DirectX by selecting a button shown on the monitor.
ŝ75Ş
Setting up the application software
3. To play back the movie clip recorded with this camera on the computer, install
the XviD codec.
ſ The XviD codec is distributed according to and under the terms and conditions of
the GNU General Public License and everyone can copy, modifiy and distribute
this codec freely, but WITHOUT ANY WARRANTY, IMPLIED OR
EXPRESSED, OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE; provided, however, that you have to follow the GNU General Public
License whenever you are distributing this codec or modification thereof.
For more information see the GNU General Publice License documents
(http://www.gnu.org/copyleft/gpl.html).
ŝ76Ş
4. Install the Digimax Converter, Digimax Master and Digimax Reader in order.
Setting up the application software
5. After restarting the computer, connect the PC to
the camera with the USB cable.
6. Turn the camera power on.
The [Found New Hardware Wizard] will open and
the computer will recognize the camera.
ſ If your OS is Windows XP, an image viewer program will open.
If the download window of Digmax Master opens after starting Digimax
Master, the camera driver was setup successfully.
INFORMATION
ƃ If you have installed the camera driver, The [Found New Hardware Wizard]
may not open.
ƃ On a Windows 98 or 98 SE system, the Found New Hardware Wizard
dialog box opens and a window asking you to select a driver file may
appear. In this case, specify "USB Driver" in the CD supplied.
ŝ77Ş
Starting PC mode
ƃ If you connect the USB cable to a USB port on your PC and then turn on the
power, the camera will automatically switch to "computer connection mode".
ƃ In this mode, you can download stored images to your PC through the USB cable.
ƃ The camera LCD monitor is always turned off in PC mode.
ƈ Downloading stored images
You can download the still images stored on the camera to your PC's hard disk
and print them or use a photo editing software to edit them.
1. Connect the camera to your PC with the USB cable.
ƈ Connecting the camera to a PC
1. In any mode with the exception of Voice
Recording mode, press the Menu button.
Format
2. Press the LEFT/ RIGHT button and select the
Date&Time
Imprint
[SETUP] menu tab.
Sound
USB
3. Select the [USB] menu by pressing the
Back:
UP/ DOWN button and press the RIGHT button.
4. Use the UP and DOWN buttons to select
[Computer], and then press the OK button.
5. Press the menu button twice and the menu will disappear.
6. Connect the PC to the camera with the USB cable.
SETUP
Computer
Printer
2. On your computer's desktop display, select [My
computer] and double click [Removable Disk ƍ
DCIM ƍ 100SSCAM].
The image files will then be displayed.
Set:OK
3. Select an image and press the right mouse
button.
INFORMATION
ƃ To save battery power, it is recommended that you use an AC adapter
when connecting the camera to a computer.
4. A pop-up menu will open.
Click the [Cut] or [Copy] menu.
- [Cut] : cuts a selected file.
- [Copy] : copies files.
5. Click a folder where you want to paste the file.
ŝ78Ş
Starting PC mode
6. Press the right mouse button and a pop-up menu
will open. Click [Paste].
7. An image file is transferred from the camera to
your PC.
Removing the removable disk
ƈ Windows 98/ 98SE
1. Check whether the camera and PC are transferring a file. If the camera status
lamp blinks, please wait until the lamp has finished blinking and is constantly on.
2. Unplug the USB cable.
ƈ Windows 2000/ ME/ XP
(The illustrations may differ from those shown depending on the Windows O/S.)
1. Check whether the camera and PC are transferring a file.
If the camera status lamp blinks, please wait until the lamp has finished
blinking and is constantly on.
2. Double-click the [Unplug or Eject Hardware]
icon on the task bar.
[Double Click!]
3. The [Unplug or Eject Hardware] window will
open. Select the [USB Mass Storage Device]
and click the [Stop] button.
CAUTION
ƃ We recommend that you should copy the images to the PC to view them.
Opening images directly from the removable disk may be subject to
unexpected disconnection.
ƃ When you upload a file that is not taken by this camera to the Removable
Disk, the [File Error!] message will be displayed on the LCD monitor in the
PLAY mode, and nothing is displayed in THUMBNAIL mode.
4. The [Stop a Hardware device] window will open.
Select the [USB Mass Storage Device] and click
the [OK] button.
5. A [Safe to Remove Hardware] window will open.
Click the [OK] button.
ŝ79Ş
Removing the removable disk
6. A [Unplug or Eject Hardware] window will open.
Click the [Close] button and the removable disk
may be removed safely.
Removing the USB Driver for Windows 98SE
ƈ To uninstall the USB driver, refer to the process shown below.
1. Connect the camera to your PC and turn them on.
2. Check whether the Removable Disk is on the [My Computer].
3. Remove the [Samsung Digital Camera] on the Device manager.
7. Unplug the USB cable.
Setting up the USB Driver for MAC
1. A USB Driver for MAC is not included with the software CD as MAC OS
supports the camera driver.
2. Check the MAC OS version during start-up.
This camera is compatible with MAC OS 9.0 ~ 10.4.
3. Connect the camera to the Macintosh and turn the camera power on.
4. A new icon will be displayed on the desktop after connecting the camera to the MAC.
Using the USB Driver for MAC
4. Disconnect the USB cable.
5. Remove the [Digimax i6 PMP] on the Add/ Remove Programs Properties.
1. Double click a new icon on the desktop and the folder in the memory will be
displayed.
2. Select an image file and copy or move it to MAC.
INFORMATION
ƃ For Mac OS 10.0 or later : First complete uploading from computer to
camera and then remove the removable disk with the Extract command.
ƃ If a movie clip can’t play back on the Mac OS, please visit the following
site(http://www.divx.com/divx/mac/) and download the codec.
Or, use a media player that supports the Xvid codec (Mplayer,
VLC(VideoLAN Client) media player).
ŝ80Ş
6. Uninstallation is complete.
Digimax Converter
INFORMATION
ƈ Multimedia (Movie, Video clip, etc) files can be converted into movie clips
that can be played back on this camera. This software is only compatible
with Windows. (Windows 2000/XP recommended)
ƈ How to use the Digimax Converter
1. Double click the Digimax Converter icon
(
) on the desktop.
2. Click the Add icon (
) and select a file
that you want to add.
3. If you want to add a caption,
check "Use subtitles from file(*.smi)".
4. Select settings that you want and click
the Convert button.
- Frame size : You can set the width and height of output movie clip.
- Frame rate : You can set fps (Frame Per Second).
- Screen size : You can set type of display.
- Split by size : You can set the file size of
output movie clip.
5. Connect the camera to the computer with the
supplied USB cable.
6. Copy the converted movie clip in the
destination folder and paste the file in the
[PMP] folder.
0:00:03/ 0:26:28
[SDC]-Movie sample.s
7. You can play back the converted movie clip in
the Play mode of the camera.
Who bent my camera?
ſ Refer to the [Help] menu in Digimax Converter for further information.
ƃ Before converting a multimedia file, check whether it plays back correctly on
the Windows Media Player.
ƃ The converted files are saved as *.sdc file type that can be played back on
the Windows Media Player.
ƃ Digimax Converter doesn't have all kind of codecs. If a multimedia file can't
play back on the Windows Media Player, install a multicodec(We
recommend Full version of latest K-Lite Codec). Install the Digimax
Converter again after installing the multi-codec.
ƃ You can select destination folder of each converted file. When the folder is not
selected, the converted files are saved on a folder where the source file is.
ƃ If you convert several files at the same time, the computer may be running slow
because of the CPU capacity. In this case, add the files in the program one by one.
ƃ Computer specification, installed code and programs are is main problem of
converting error. When a converting error happens, please check the following.
- Any condecs compatible with the files were not installed or installed
incorrectly. In this case, find a compatible codec and install it. If you do not
find any compatible codecs, install a multi-codec.
- If you installed various multi-codecs on your computer, it may cause converting
problems. In this case, remove all codecs and install a proper multi-codec.
- Install a latest Windows Media Player.
- Visit device (PC, Graphic card, Sound card) manufacturer web-site and
upgrade them with the latest version.
ƃ Some kinds of multimedia files are not converted.
If the converted media files are damaged, they may not play back on the
camera. Unusual type of files may not be converted. The sound and scenes
may not syncronise.
ƃ The expected file sizes after converting a media file may vary. It depends on
the computer system you use.
ƃ If there is no font that is compatible with the script file on your PC, the script
is shown as '
'.
ƃ Transferring the converted file to a removable disk is time consuming. , it
may take much time. The duration depends on the file size.
ƃ Do not use the PMP mode while driving. It may create a traffic hazard.
ƃ A file that does not support fast search on the Windows Media Player can't
select converting range and divide file size.
ŝ81Ş
Digimax Master
ƈ You can download, view, edit and save your images and movies with this software.
This software is only compatible with Windows (but not Windows 98.).
ƈ To start the program, click [Start ƍ Programs ƍ Digimax Master].
ƃ Downloading images
1. Connect the camera to your PC.
2. A window for downloading images will display
after connecting the camera to your PC.
- To download the captured images, select the
[Select All] button.
- Select desired folder in the window and click the
[Select All] button. You can save captured
images and selected folder.
- If you click the [Cancel] button, downloading will
be cancelled.
4. Select a destination and make a a new folder in
which to save downloaded images and folders.
- Folder names can be made in order of date and
images will be downloaded.
- Folder name will be made as you want and
images will be downloaded.
- After selecting a folder that was made before,
images will be downloaded.
5. Click [Next >] button.
6. A window will open as shown alongside.
The destination of the selected folder will be
displayed on the upper side of the window.
Click the [Start] button to download the images.
3. Click [Next >] button.
7. Downloaded images will be displayed.
ŝ82Ş
Digimax Master
ƃ Image viewer : You can view the stored images.
1
ƃ Image edit : You can edit the still image.
5
6
1
7
2
4
3
4
2
3
- Image viewer functions are listed below.
‫ ڹ‬Menu bar : You can select menus.
File, Edit, View, Tools, Change functions, Auto download, help, etc.
‫ ں‬Image selection window : You can select the desired images in this window.
‫ ڻ‬Media type selection menu : You can select image viewer, image edit and
movie edit functions in this menu.
‫ ڼ‬Preview window : You can preview an image or a movie clip and check the
multi media information.
‫ ڽ‬Zoom bar : You can change preview size.
‫ ھ‬Folder display window : You can see the folder location of the selected image.
‫ ڿ‬Image display window : Images of the selected folder are displayed.
ſ Refer to the [Help] menu in Digimax Master for further information.
- Image edit functions are listed below.
‫ ڹ‬Edit menu : You can select the following menus.
[Tools]
: You can resize or crop the selected image. See the [Help] menu.
[Adjust]
: You can modify image quality. See the [Help] menu.
[Retouch] : You can change image or insert effects on the image.
See the [Help] menu.
‫ ں‬Drawing tools : Tools for editing an image.
‫ ڻ‬Image display window : A selected image displays in this window.
‫ ڼ‬Preview window : You can preview the changed image.
ſ A still image edited with Digimax Master can’t be played back on the camera.
ſ Refer to the [Help] menu in Digimax Master for further information.
ŝ83Ş
Digimax Master
Digimax Reader
ƃMovie edit : You can get the still image, movie clip, narration, music files together
in a movie clip.
1
ƈ Digimax Reader is a Text recognition program. You can save an image file that
is captured in the Text mode, as a text file with this program. This software is
only compatible with Windows. (Windows 2000/XP recommended)
ƈ To start the program, click [Start ƍ Programs ƍ Digimax Reader].
The following screen will appear.
2
- Movie clip edit functions are listed below.
‫ ڹ‬Edit menu : You can select the following menus.
[Add Media] : You can add other media elements to a movie.
[Edit Clip] : You can change the brightness, contrast, colour and saturation.
[Effects]
: You can insert an effect.
[Set Text] : You can insert texts.
[Narrate]
: You can insert a narration.
[Produce] : You can save the edited multi media as a new file name.
* You can select AVI, Windows media (wmv), Windows media
(asf) and movie clip for this camera (avi, MPEG-4) file types.
‫ ں‬Frame display window : You can insert multi media in this window.
ſ Some movie clips that were compressed with a codec that is not compatible with
the Digimax Master can’t play back in the Digimax Master.
ſ Refer to the [Help] menu in Digimax Master for further information.
ŝ84Ş
ƈ How to use the Digimax Reader
1. Connect the camera and the PC with a USB cable and download the images
that were stored in the camera to the PC.
* Please see page 78 ~ 79 for details on Connecting a camera and PC,
Downloading images.
2. Run the Digimax Reader.
3. Click the Open(
) icon as shown
alongside.
Digimax Reader
4. Select the image you want to save as a text file.
* Only an image that was taken with a
SAMSUNG camera can be opened.
5. Click the Area Analysis (
image.
) icon to scan the
6. Part of the image you selected will be displayed
as shown.
9. Select the file type that you want.
Selectable file types : *.TXT,*.HWP,*.DOC,*.RTF
INFORMATION
ƃ To get an image that can be recognised as a text :
- Choose a distance at which the text can be clearly focused.
(700-800 Mega Pixels : 25cm, 500-600 Mega Pixels : 20cm recommended)
- The subject needs to be centered.
- Seek to avoid camera shake to get a good image.
ƃ Refer to the [Help] menu in Digimax Reader for further information.
ƃ Digimax Reader only recognises Korean, English and Russian. When this
program scan texts that don't be printed on the keyboard, the extraction rate
may be down.
FAQ
ƈ Please check the following if the USB connection malfunctions.
7. Click the Character Recognition (
) icon.
The part selected in the previous step will be
recognized as text.
Case 1
The USB cable is not connected or you are using a cable with an
incorrect specification.
ƍ Use a USB cable with the correct specification.
Case 2
The camera is not recognized by your PC. Sometimes, the camera
may appear under [Unknown Devices] in Device Manager.
ƍ Install the camera driver correctly. Turn off the camera, remove the
USB cable, plug in the USB cable again, and then turn on the camera.
Case 3
There is an unexpected error during file transfer
ƍ Turn the camera power off and on again. Transfer the file again.
8. To save the section as a text,
click the Save (
) icon. A window as shown
alongside will be displayed.
ŝ85Ş
FAQ
Case 4
When using the USB hub.
ƍ There may be a problem in connecting the camera to the PC through
a USB hub if the PC and the hub are not compatible. Wherever
possible, connect the camera directly to the PC.
Case 5
Are other USB cables connected to the PC?
ƍ The camera may malfunction when it is connected to the PC at the
same time as another USB cable. In this case, disconnect the other
USB cable, and connect only one USB cable to the camera.
Case 6
Case 7
ŝ86Ş
When I open the Device Manager (by clicking Start ƍ (Settings) ƍ
Control Panel ƍ (Performance and Maintenance) ƍ System ƍ
(Hardware) ƍ Device Manager), there areşUnknown DevicesŠ
şOther DevicesŠentries with a yellow question mark(?) beside them
or devices with an exclamation mark(!) beside them.
ƍ Double-click on the entry with the question (?) or exclamation (!)
mark, and remove them (Click the right mouse button and ‘Remove’
menu will display). Re-boot your computer and connect the computer
and the camera. In Windows 98, remove the camera driver and reboot the computer. And then connect the computer and the camera.
In some security programs (Norton Anti Virus, V3, etc.), the computer
may not recognise the camera as a removable disk.
ƍ Stop the security programs and connect the camera to the computer.
Refer to the security program instructions about how to stop the
program.
Case 8
The camera is connected to the USB port located on the front of the
computer.
ƍ When the camera is connected to the USB port located on the front of
the computer, the computer may not recognise the camera.
Connect the camera to the USB port located on the back of the
computer.
ƈ When the movie clip doesn’t play back on the PC
ſ When the movie clip recorded by the camera doesn’t play back on the PC,
the causes are mostly due to the codec installed on the PC.
ƃ When codec for play back the movie clip isn’t installed
ƍ Install the codec as listed below.
[Installing codec for Windows]
1) Insert the CD provided with the camera
2) Run the windows explorer and select [CD-ROM drive:\XviD] folder and
click the XviD-1.0.3-20122004.exe file.
ƃ When the DirectX 9.0 or later is not installed
ƍ Install the DirectX 9.0 or later
1) Insert the CD provided with the camera
2) Run the windows explorer and select the [CD-ROM drive:\ USB
Driver\DirectX 9.0] folder and click the DXSETUP.exe file.
The DirectX will be installed. Visit the following site for downloading the
DirectX.http://www.microsoft.com/directx
FAQ
MEMO
ƈ If a PC (Windows 98) is turned on for a long time and the camera is connected
repeatedly, the PC may not recognise the camera.
ƍ In this case, restart the PC.
ƈ If a PC connected with the camera stops responding while Windows is starting.
ƍ In this case, disconnect the PC and the camera and Windows will start. If the
problem happens continuously, set the Legacy USB Support to disable and
re-start the PC. The Legacy USB Support is in the BIOS setup menu.
(The BIOS setup menu differs from the PC manufacturers and some BIOS
menus don’t have Legacy USB Support) If you can’t change the menu by
yourself, contact to the PC manufacturer or BIOS manufacturer.
ƈ If the movie clip canŖt be deleted, removable disk canŖt be extracted or an error
message displays during the file transfer.
ƍ If you install only the Digimax Master, the problems mentioned above
occasionally happen.
- Close the Digimax Master program by clicking the Digimax Master icon on
the Taskbar.
- Install all the application programs included in the software CD.
(You must install the Movie clip codec)
ŝ87Ş
Correct Disposal of This Product
Correct Disposal of This Product (Waste Electrical & Electronic
Equipment)
(Applicable in the European Union and other European countries with
separate collection systems) This marking shown on the product or its
literature, indicates that it should not be disposed with other household
wastes at the end of its working life.
To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources. Household
users should contact either the retailer where they purchased this product, or their
local government office, for details of where and how they can take this item for
environmentally safe recycling. Business users should contact their supplier and
check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
FCC notice
ƈ NOTE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to pro-vide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and,
if not in-stalled and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
ƈ CAUTION :
Changes or modifications not expressly approved by the manufacturer
responsible for compliance could void the user’s authority to operate the
equipment.
ƈ Declaration of Conformity
Trade Name
: SAMSUNG TECHWIN
Model No.
: Digimax i6 PMP
Responsible Party : Samsung Opto-Electronics America, INC.
Address
: 40 Seaview Dr. Secaucus,NJ 07094
Telephone No. : 201-902-0347
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
ŝ88Ş
