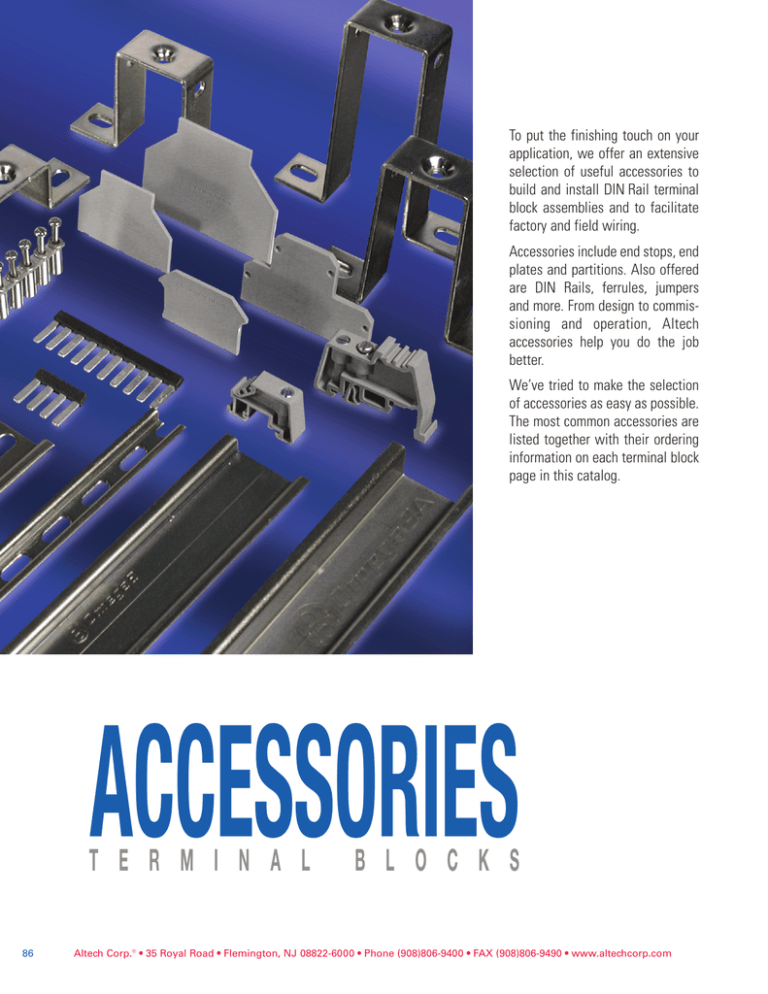

To put the finishing touch on your

To put the finishing touch on your
To put the finishing touch on your
application, we offer an extensive
selection of useful accessories to
build and install DIN Rail terminal
block assemblies and to facilitate
factory and field wiring.
Accessories include end stops, end
plates and partitions. Also offered
are DIN Rails, ferrules, jumpers
and more. From design to commissioning and operation, Altech
accessories help you do the job
better.
We’ve tried to make the selection
of accessories as easy as possible.
The most common accessories are
listed together with their ordering
information on each terminal block
page in this catalog.
ACCESSORIES
T E R M I N A L
86
B L O C K S
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
Terminal Block Accessories
MOUNTING
DIN Mounting Rails are internationally standardized and available in 35mm, 32mm and 15mm sizes, with or without perforations. These also accommodate a wide variety of control components such as circuit breakers, timers, motor starters, relays,
switches, etc. The 15mm rail with miniature blocks is used
when space is at a premium.
ACCESORIES
Altech accessories add the finishing touches to your terminal
block assemblies. End Stops prevent terminal blocks or other
components and devices from moving laterally on the rail.
End Plates close off the last terminal in a series, a vital function, since sectional terminal blocks are supplied with one side
open. Isolation partitions provide visual separation of terminal
groups, as well as electrical isolation between terminals of different potentials.
INTERCONNECTION
In addition, Altech offers a wide choice of both Internal and
External Jumpers to minimize wiring time and reduce installation cost. Available in standard 2, 3, 4 and 10 pole configurations, or custom multipole jumpers. Our internal jumpers screw
directly into terminal block busbars.
External jumpers are available in straight-comb styles. They
may be used for terminal blocks without internal jumpering provisions or in combination with internal jumpers.
MARKING TAGS
Marking Tags make DIN Rail assemblies easier to wire
and facilitate troubleshooting. Altech’s extensive terminal block marking system includes standard or custom
printed push on tags in a variety of sizes for circuit
identification.
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
87
Altech
TERMINAL BLOCK
ACCESORIES
Shorting Screw
Current Bar
Isolation Partition
Shorting Sleeve
Isolated Internal Jumper
Separator Plate
Internal Jumper
End Plate
DIN 35 mm
Mounting Rail
End Stop
DIN 35-15 mm
Mounting Rail
DIN 32 mm
Mounting Rail
88
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
End Stop
Marking Tag
Sample Terminal Block Assembly
showing all accessories
External Jumper
Support Bracket
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
89
Terminal Block Accessories
DIN Mounting Rails
DIN35
DIN35
Altech DIN Rails comply with DIN
50045, 50022 and 50035 Standards.
DIN Rails have been accepted
throughout the world, allowing the
designer to mount a wide variety of
control components, devices, terminal blocks, etc. on the same rail. The
use of DIN Rails enhances design
capabilities, saves space and reduces
labor.
Standard rails are made of steel with
zinc plating and chromate passivation
and are available in various configurations.
DIN Rails are available in 35mm (7.5
and 15mm deep), 32mm and 15mm
widths and are supplied in 1 m (3'3")
and 2 m (6’6”) lengths. Upon request
they can be cut to custom lengths and
punched with holes or perforations.
35 mm x
7.5 mm deep
Type
Cat. No.
Perforated
Steel
2511120
2511120/1M
2m
1m
Unperforated
Steel
2511110
2511110/1M
2m
1m
35 mm x
15 mm deep
Type
Cat. No.
20
40
Perforated
Steel
CA701-15/S-2M 2m
CA701-15/S
1m
10
20
20
40
Unperforated
Steel
CA701-15-2M
CA701-15
10
20
Length Std. Pk.
18
Length Std. Pk.
2m
1m
18
• 35mm, 32mm, 15mm
• Perforated or unperforated
• Rail material is steel with electrolytic zinc plating
Support Brackets
Support Brackets elevate DIN Rails
away from the panel to facilitate
component mounting and to
increase wiring access. Angled brackets tilt the rail by 35° to improve visibility. Straight brackets are available
in three heights for optimum positioning of the rail.
CA603
M6
Ø7mm (.28in)
M6
18mm
(.71in)
48mm
(1.89in)
H
Ø6mm
(.24 in.)
Slot 6x15mm
(.24x.59 in.)
52m
18mm(.71in.)
m(
60mm (2.36in)
Brackets mount with 2 screws to any
panel or flat surface and have tapped
center holes for rail mounting.
Bracket material is steel, zinc plated
yellow chromated.
90
TSTW
2.0
74m
m(
5 in
.)
2.9
74mm (2.91in)
8 in
.)
Suitable for all mounting rails
Cat. No.
Std. Pk.
CA603
25
Height
Cat. No.
Std. Pk.
1“
2”
3”
CA703
CA803
CA903
25
25
25
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
Terminal Block Accessories
DIN32
DIN15
32 mm x
15 mm deep
Type
Cat. No.
Perforated
Steel
2511160
2511160/1M
2m
1m
10
20
Unperforated
Steel
2511150
2511150/1M
2m
1m
10
20
Length Std. Pk.
15 mm x
5.5 mm deep
Type
Cat. No.
Perforated
Steel
CA601/S
Length Std. Pk.
1m
50
18
Mounting Handle
MH2.5
MH4
Mounting handle is used for mounting
10 terminal blocks on a DIN rail, thus
saving considerable time. Specially
designed pins in the mounting handle
grip the terminal blocks when pressed
against entry.
See page 8 for appropriate terminal blocks.
Cat. No.
Handle for
Std. Pk.
MH2.5
CTS2.5U-N
1
Cat. No.
MH4
Handle for
Std. Pk.
CTS4U-N
1
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
91
Terminal Block Accessories
End Stops
CA202
CA102
End Stops prevent terminal
blocks and other DIN Rail mount
components and devices from
moving laterally on the rail. They
are available in polyamide 6.6
and metal configurations for
35mm, 32mm, and 15mm DIN
rails. CA102 and CA202 are large
endstops for heavy duty applications.
The CA103 is screwless and
ergonomically snaps into place,
saving costs and labor. It utilizes
two precisionally mounted
metal inserts that grip firmly
onto the DIN rail holding any
assembly into place.
CA702
CA802
CA602
Material:
Polyamide 6.6
Material:
Polyamide 6.6
Material:
Polyamide 6.6
Material:
Polyamide 6.6
Material:
Polyamide 6.6
Dimensions
H x L x W:
46 x 50 x 9 mm
Dimensions
H x L x W:
44.5 x 50 x 9.5 mm
Dimensions
H x L x W:
34 x 44 x 9 mm
Dimensions
H x L x W:
32 x 45 x 8 mm
Dimensions
H x L x W:
20 x 28 x 8 mm
Cat. No.
Std. Pk.
Cat. No.
Std. Pk.
Cat. No.
Std. Pk.
Cat. No.
Std. Pk.
Cat. No.
Std. Pk.
CA102
50
CA202
25
CA702
50
CA802
50
CA602
50
Suitable for:
32 and 35 mm
DIN Rails
Suitable for:
35 mm
DIN Rails
Suitable for:
32 and 35 mm
DIN Rails
Suitable for:
35 mm
DIN Rails
Suitable for:
15 mm
DIN Rails
CA103
CA302
CA402
CA502
CA103
Spacer / Separator
CASP is a DIN Rail mountable
spacer generally used for circuit
separation.
DIN Rail
Mounting Foot
CMTB-35 is used to assemble
components on a DIN rail.
Comes with pre-punched holes.
Material:
Polyamide
Material:
Steel
Material:
Steel
Material:
Steel
Dimensions
H x L x W:
41 x 35 x 6 mm
Dimensions
H x L x W:
27 x 39.5 x 16 mm
Dimensions
H x L x W:
27 x 39.5 x 16 mm
Dimensions
H x L x W:
25 x 22.5 x 11.5 mm
Cat. No.
Std. Pk.
Cat. No.
Std. Pk.
Cat. No.
Std. Pk.
Cat. No.
Std. Pk.
CA103
50
CA302
50
CA402
50
CA502
50
Suitable for:
35 mm
DIN Rails
• Support bracket for DIN rail
mounting parts
Suitable for:
35x7.5mm
DIN Rails
Suitable for:
35x15 mm
DIN Rails
CMTB-35
CASP
Suitable for:
32 mm
DIN Rails
CDL4U SPACER
• Hole Qty x dia., 4x4.3mm,
2x5.5mm
Material:
Polyamide 6.6
Material:
Polyamide 6.6
Dimensions
H x L x W:
29 x 43 x 8 mm
Dimensions
H x L x W:
18 x 58 x 18 mm
Dimensions
H x L x W:
54 x 55.5 x 6 mm
Cat. No.
Std. Pk.
Cat. No.
Std. Pk.
Cat. No.
CASP
50
CMTB-35
50
CDL4USP 50
Suitable for:
All
DIN Rails
92
Material:
Polyamide 6.6
Suitable for:
Mounting Foot for
35 mm DIN rails
Std. Pk.
Suitable for:
All
DIN Rails
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
Terminal Block Accessories
Group Identification
GMH6, GMH7 & GMH8
To be mounted directly on Din Rails (GMH6 & GMH7). A marker card
needs to be inserted in the slot which is covered by a transparent
plastic sheet. (Blank marker and transparent sheet included).
Group Marker,
shown imprinted and
attached to CA 702.
Blank and custom
printing available.
Cat. No. MTG1
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
93
Terminal Block Accessories
End Plates
End plates are used to
cover the open side of sectional DIN Rail mount terminal blocks. They should
be used at the end of an
assembly of identical terminal blocks or whenever
there is a change in the
physical size of the terminal
block.
• Material: polyamide 6.6
• Standard color: gray
94
END PLATES
Cat. No.
Std.
Pk.
Dimensions
(H x L x W)
Suitable for:
EP2.5/4UN
EP6/10U
EP25U
EP35
EPCMC1-2
EPCMC2-2
EPCDL4U
EPODL4U
EP1ODL4U
EPCTL2.5U
EPCTL2.5UH
EPCMT4
EPCMB4
EPCSFL4U
EPCSFL6U
EPCAFL4U
EPDDFL4U
EPCDTTU
EPCKT4U
EPCGT4U
EPCTC4U
EPCSTSN5U
EPSTH4
EPSTH4DT
EPCSC2.5T
EPCSC4T
EPCSC6T
EPCSC10T
EPCSC16T
EPCSCP2.5T(L&R)
EPCSC2.5T1-2
EPCSC2.5T2-2
EPCSC4T1-2
EPCSC4T2-2
EPCSC6T1-2
EPAS2.5
EPAS4
EPAS6
EPASF4
EPADL2.5
EPADLG2.5
EPADL2.5
EPATL2.5H
EPATLG2.5
EPCDL4UN
EPCDLG2.5
EPCTLG2.5
EPCKT4U/4
EPCDS6U
EPUSC
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
25
25
50
50
50
50
50
50
50
50
50
50
50
50
25
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
32 x 39 x 1.5
31 x 42.5 x 1.5
40 x 48 x 2
43 x 50 x 1.5
35.5 x 46.5 x 2.5
40.5 x 65 x 2.5
43 x 55 x 2.4
49 x 68 x 5.5
24 x 68 x 3
55.5 x 84 x 1.5
55.5 x 61 x 1.5
22.5 x 27 x 1.5
27 x 27 x 7
28 x 55.5 x 1.6
42.5 x 36 x 1.5
32 x 72 x 1.5
49 x 87.6 x 3
41 x 63 x 3
30.5 x 46.5 x 2.5
40.5 x 43 x1
34.5 x 47 x 2.5
31 x 50 x 1.5
39.5 x 46 x 1.5
37.5 x 86 x 1.5
23 x 58 x 1.5
28 x 65 x 1.5
32 x 72 x 2
37.5 x 75 x 1.5
82 x 38 x 1.5
27.5 x 35 x 5
27 x 74 x 1.5
25 x 90 x 1.5
28.5 x 84.5 x 1.5
28.5 x 105 x 1.5
94 x 30 x 1.5
35 x 54 x 1.5
27.5 x 61 x 1.5
33.5 x 74 x 1.5
37 x 86 x 1.5
43.5 x 80 x 1.5
83.8 x 58 x 1.2
100 x 69.7 x 1.2
77.3 x 69.7 x 1.2
100 x 68.8 x 1.2
47.5 x 57 x 1.5
48 x 71.4 x 1.2
62.5 x 87.5 x 1.2
65 x 38.3 x 1.5
37.2 x 82 x 1.5
52 x 48.5 x 1.5
CTS2.5UN/4UN/CTT2.5UK/T/J/E
CTS6U/CTS10U
CTS25U
CTS35U
CMC1-2
CMC2-2
CDL4U/CDL4U(I.S)/ CDL4U(E) Series
ODL4U/ODL4UA(Front Side)
ODL4U/ODL4UA(Back Side)
CTL2.5U/2.5UL/2.5U(I.S)
CTL2.5UH/2.5UH(L)/2.5UH(I.S)D2
CMT4/CMT4S/CMT4SU
CMB4
CSFL4U/4U(L)/CSDL4U
CSFL6U/CSDL6U
CAFL4U/4UL/4UN
DDFL4U/4ULR/4U(E)/4U(E)LR
CDTTU/CDTTUSH
CKT4U
CGT4U
CTC4U
CSTSN4U/N5U/N6U/B4U/B5U
STH4
STH4DT / STH4DTSH
CSC2.5T/CSCG2.5T
CSC4T/CSCG4T
CSC6T/CSCG6T
CSC10T/CSCG10T
CSC16T/CSCG16T
CSCP2.5T/CSCP2.5T2
CSC2.5T1-2
CSC2.5T2-2/CSC2.5T/4(E)D3
CSC4T1-2
CSC4T2-2
CSC6T1-2
AS2.5, 2.5/3, 2.5/4, AGT2.5, 2.5/3, 2.5/4
AS4, 4/3, 4/4, AGT4, 4/3, 4/4
AS6, 6/3, AGT6, 6/3
ASF4/ASF4L
ADL2.5/ADL2.5(E)D1/D2
ADLG2.5
ATL2.5
ATL2.5H
ATLG2.5
CDL4UN/CDL4UN(I.S)
CDLG2.5
CTLG2.5
CKT4U/4
CDS6U/6UTS/6UFT/6USC
CHV4U/6U/10U
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
Terminal Block Accessories
Isolation Partitions
Isolation partitions provide
separation between terminal blocks with different
potentials. When used for
DC power applications,
voltages of up to ± 600V DC
can be used on either side
of the isolation partition.
They also provide visual
separation between groups
of blocks.
• Material: polyamide 6.6
• Standard color: gray
PARTITIONS
Cat. No.
Std.
Pk.
Dimensions
(H x L x W)
Suitable for:
PP2.5/4UN
PP6/10U
PP25U
PP25UN
PP35U
PP35UN
PPCMT4
PPCSFL4U
PPCSC2.5T
PPCSC4T
PPCSC6T
50
50
50
50
50
50
50
50
50
50
50
37 x 44 x 1.6
37.5 x 56.5 x 1.5
46.5 x 62 x 1.5
42.5 x 62 x 1
50 x 64.5 x 1.5
50 x 64.5 x 1
32.5 x 37 x 1.6
42.5 x 62 x 1.5
28 x 58.7 x 1.5
33 x 65 x 1.5
36.5 x 72 x 2
CTS2.5UN/4UN/CTT2.5UK/T/J/E
CTS6U/CTS10U
CTS25U
CTS25UN
CTS35U
CTS35UN
CMT4/CMT4S/CMT4SU
CSFL4U/4U(L)/CSDL4U
CSC2.5T/CSCG2.5T
CSC4T/CSCG4T
CSC6T/CSCG6T
Separator Plates
Used for electrical separation of adjacent jumpers.
They can be inserted after
the terminal blocks have
been assembled on DIN
rail. There is no loss of
width.
SEPARATOR PLATES
Cat. No.
Std.
Pk.
Dimensions
(H x L x W)
Suitable for:
SP2.5/4UN
SP6/10U
SPCDL4U
SPCMB4
SPCDLG2.5
100
100
100
100
100
17.5 x 17.4 x 1.4
15.4 x 16.2 x 1.5
15.4 x 16.2 x 1.6
14.5 x 12 x 1.5
11 x 10.5 x 1
CTS2.5UN/4UN/CTT2.5UK/T/J/E
CTS6U/CTS10U/16U
CDL4U/CDL4U(I.S)/ CDL4U(E) Series
CMB4
CDLG2.5
Protective Cover /
Side Holding Plates
For protection against dust and
shock, transparent protective
cover can be installed above
the terminal block assembly
with the aid of side/holding
plates. The side holding plates
can be fitted on 35 mm and 32
mm Din rails. These plates
should be backed by standard
end stops.
CTSPC
CSP1
150 mm*
Assembled Block installed
with Protective Cover
For all Rail Mounting Terminals
*Other lengths available on request.
Mounting Accessories
for CTSPC
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
95
Screw Clamp Terminal Block Accessories
Jumpering System
The jumpering systems bus potentials between terminal blocks, reducing wiring time. Adjacent blocks or
selective terminal blocks within an
assembly can be easily interconnected, leaving terminal clamps free for
wiring. Purchase complete assemblies, which are ready for installation,
or select individual components to
create custom or extra long jumpers.
Jumper ampacity is lower than the
rated current of the respective terminal blocks, therefore, applied current
must not exceed the maximum current value of the block. Internal
jumpers may be used in combination
with external jumpers to achieve
additional jumpering possibilities.
Internal Jumper Assemblies
Internal Jumper Assemblies consist of a
Current Bar, Shorting Sleeves and
screws. They install easily into the center
of the terminal block and connect to the
current bar. They are available as standard 2, 3, 4 or 10 pole assemblies and
are ready for immediate installation.
Insulated internal jumpers provide shock
protection when installed on terminal
block assemblies.
External Jumper
External Jumpers bus potentials
between terminal blocks, reducing
wiring time. Adjacent or selected
blocks within an assembly can be
easily interconnected. Jumper poles
may be removed for selective
jumpering. Jumpers are insulated
and available in 2, 3, 4 and 10 pole
versions. They are made of tin plated
brass/copper.
Current Bars
Current Bars are offered to create
custom jumper assemblies for
increased number of poles or custom
jumpers. Select the current bar with
the required number of poles, or field
cut them to the required length. They
are made of tin or nickel plated copper or brass.
Shorting Sleeves & Screws
Shorting Sleeves & Screws ensure
reliable and mechanically safe electrical connections between current
bars and the terminal block current
bars. One shorting sleeve is required
for each jumpered terminal. They are
made of nickel plated brass.
1 Internal Jumpering System not
available.
2 100 pole strip can be broken down to
any number of poles desired.
96
INTERNAL JUMPER
INSULATED INTERNAL JUMPER
Terminal Series
Poles
Cat. No.
Torque
Std. Pk.
Cat. No.
Torque
Std. Pk.
CTS2.5UN
2
3
4
10
1002
CA721/2
CA721/3
CA721/4
CA721/10
CA721/100
0.4 Nm
100
100
100
10
10
CA741/2
CA741/3
CA741/4
CA741/10
CA741/100
0.4 Nm
100
100
100
10
10
CTS4UN
CMC1-2
CMC2-2
CTS4UTM
CKT4U
CDL4UN
2
3
4
10
1002
10 (breakable)
CA722/2
CA722/3
CA722/4
CA722/10
CA722/100
0.4 Nm
100
100
100
10
10
CA742/2
CA742/3
CA742/4
CA742/10
CA742/100
0.4 Nm
100
100
100
10
10
CTS6U
CDTTU1
CDTTU-SH1
CSDL6U1
CSFL6U1
2
3
4
100
CA723/2
CA723/3
CA723/4
CA723/10
0.5 Nm
100
50
50
10
CA743/2
CA743/3
CA743/4
CA743/10
0.5 Nm
100
50
50
10
CTS10U
2
3
4
10
CA724/2
CA724/3
CA724/4
CA724/10
0.5 Nm
100
50
50
10
CA744/2
CA744/3
CA744/4
CA744/10
0.5 Nm
100
50
50
10
CTS16U
2
3
4
10
CA751/2
CA751/3
CA751/4
CA751/10
0.8 Nm
50
50
50
10
CA761/2
CA761/3
CA761/4
CA761/10
0.8 Nm
50
50
50
10
CTS25U
2
3
4
10
CA725/2
CA725/3
CA725/4
CA725/10
0.8 Nm
50
20
20
10
CA745/2
CA745/3
CA745/4
CA745/10
0.8 Nm
50
20
20
10
CTS35U
2
3
4
10
CA726/2
CA726/3
CA726/4
CA726/10
0.8 Nm
50
20
20
10
CA746/2
CA746/3
CA746/4
CA746/10
0.8 Nm
50
20
20
10
CTS35UN*
2
3
4
10
CA771/2
CA771/3
CA771/4
CA771/10
0.8 NM
50
20
20
10
CA781/2
CA781/3
CA781/4
CA781/10
0.8 NM
50
20
20
10
CMT4
CMT4S
CMB4
CDL4U
CDL4U(I.S)
ODL4U
CDL4UTM
2
3
4
10
1002
10 (breakable)
CA727/2
CA727/3
CA727/4
CA727/10
0.4 Nm
100
100
100
10
CA747/2
CA747/3
CA747/4
CA747/10
0.4 Nm
100
100
100
10
DDFL4U
DDFL4U(E)
DDDL4U
CSFL4U1
CSFL4U(L)1
CSDL4U
2
3
4
10
CA729/2
CA729/3
CA729/4
CA729/10
0.5 Nm
100
50
50
10
CA749/2
CA749/3
CA749/4
CA749/10
0.5 Nm
100
50
50
10
CAFL4U
CAFL4U(L)1
2
3
4
10
CTL2.5U
CTL2.5UH
CTL2.5UL
CTL2.5UHL
CTL2.5U(I.S)
2
3
4
10
1002
10 (breakable)
CA722/2
CA722/3
CA722/4
CA722/10
CA722/100
0.4 Nm
100
50
50
20
20
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
Screw Clamp Terminal Block Accessories
EXTERNAL JUMPER
CURRENT BAR
Cat. No.
Torque
Std. Pk.
Cat. No.
CA717/2
CA717/3
CA717/4
CA717/10
0.4 Nm
100
100
100
20
CA703/01
CA704/01
CA705/01
CA731/10
CA731/100
CA714/2
CA714/3
CA714/4
CA714/10
0.5 Nm
100
100
100
20
CA710/2
CA710/3
CA710/4
CA710/10
0.8 Nm
CA718/2
CA718/3
CA718/4
CA718/10
0.8 Nm
SHORTING SLEEVE & SCREWS
Std. Pk.
Cat. No.
Torque
Std. Pk.
100
100
100
100
10
CA707/S/Q/01
0.4 Nm
100
CA703/1
CA704/1
CA705/1
CA732/10
CA732/100
100
100
100
10
100
CA707/S/Q/01
0.4 Nm
100
100
50
50
20
CA703/2
CA704/2
CA705/2
CA733/10
100
100
100
100
CA707/S/Q/1
0.5 Nm
100
100
50
50
20
CA703/3
CA704/3
CA705/3
CA734/10
100
100
100
100
CA707/S/Q/1
0.5 Nm
100
CA703/8
CA704/8
CA705/8
CA739/10
100
100
100
100
CA707/S/Q/5
0.8 Nm
100
CA703/4
CA704/4
CA705/4
CA735/10
100
100
100
100
CA707/S/Q/2
0.8 Nm
100
CA703/5
CA704/5
CA705/5
CA736/10
100
100
100
100
CA707/S/Q/2
0.8 Nm
100
CA703/10
CA704/10
CA705/10
CA770/10
100
100
100
100
CA707/S/Q/2
0.8 Nm
100
CA714/2
CA714/3
CA714/4
CA714/10
0.5 Nm
100
100
100
20
CA703/1
CA704/1
CA705/1
CA732/10
CA732/100
CA732/10-A
100
100
100
100
10
100
CA707/S/Q
0.4 Nm
100
CA711/2
CA711/3
CA711/4
CA711/10
0.8 Nm
100
50
50
20
CA703/6
CA704/6
CA705/6
CA737/10
100
100
100
100
CA707/S/Q/3
0.5 Nm
100
CA716/2
CA716/3
CA716/4
CA716/10
0.8 Nm
50
50
50
20
CA715/2
CA715/3
CA715/4
CA715/10
0.4 Nm
100
100
100
20
CA703/1
CA704/1
CA705/1
CA732/10
CA732/100
CA732/10-A
100
100
100
100
10
100
CA707/S/Q/01
0.4 Nm
100
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
97
Screw Clamp Terminal Block Accessories
ALTERNATE JUMPER
Used for jumpering
different size blocks.
98
ADJACENT JUMPER
Terminal
Cat. No.
Std. Pk.
Cat. No.
Std. Pk.
Cat. No.
Std. Pk.
CSC2.5T
CSC4T
CSC6T
CSC10T
CSC2.5T1-2
CSC2.5T2-2
CSC4T1-2
CSC4T2-2
CSC6T1-2
CSCP2.5T
CSCP2.5T2
ADL2.5
ASF4
CA801/1-3
CA801/2-3
CA801/3-3
100
100
100
CA901/1
CA901/2
CA901/3
100
100
100
CA801/1-3
CA801/1-3
CA801/2-3
CA801/2-3
CA801/3-3
100
100
100
100
100
CA901/1
CA901/1
CA901/2
CA901/2
CA901/3
100
100
100
100
100
CA801/1-3
100
CA901/1
100
CA801/1
CA801/2
CA801/3
CA801/4
CA801/1
CA801/1
CA801/2
CA801/2
CA801/3
CA803/1
CA803/1
CA801/1
CA801/7
100
100
100
100
100
100
100
100
100
100
100
100
100
For alternate jumpering
Step Down
Jumpers
WIRE TYPE JUMPER
Wire Type Jumper
Terminal
Cat. No.
Std. Pk.
CSC6T –
CSC4T
CA901/4
100
CSC6T –
CSC2.5T
CA901/5
100
CSC4T –
CSC2.5T
CA901/6
100
For adjacent jumpering
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
Altech MOTOR DISCONNECT SWITCHES
FEATURES AND BENEFITS:
• One of the smallest 60A switches in the industry
• Advanced switch technology (use of silver
contacts ensures safe and durable operation)
•Across the line, motor starting - up to 75hp/600V
•General Use Rating - 16A to 150A/600V
•Available as rotary switches for extended or direct handle
applications
•Toggle switches
•Non-fused switch
•Short Circuit Withstand Rating of 10kA with back-up fuse
•DIN Rail and panel mount available
•Comprehensive range of accessories
•Snap on auxiliary contacts
•Enclosed switches with NEMA Type 4X rating
•Operating temperature is -20°C to +40°C
UL60947-4-1A (Formerly UL508)
Listed Manual Motor
Controllers
with Disconnecting Means
E185115
AC Motor Across-The-Line
AC General Use
POLYCARBONATE ENCLOSED
MOTOR DISCONNECT SWITCHES &
FUSED ENCLOSED
MOTOR DISCONNECT SWITCH (30A)
EXTENDED / DIRECT HANDLE
MOTOR DISCONNECT SWITCH
ALUMINUM ENCLOSED
MOTOR DISCONNECT SWITCHES
EXTENDED / DIRECT HANDLE
ACCESSORIES
SHEET METAL ENCLOSED
MOTOR DISCONNECT SWITCHES
TOGGLE HANDLE
MOTOR DISCONNECT SWITCH
STAINLESS STEEL ENCLOSED
MOTOR DISCONNECT SWITCHES
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
99
Fuses
gL/gG - Line Protection
Cylinder Fuses are typically used in
industrial applications to protect electrical devices such as motors, drives, etc.
Standard: IEC 20269-4-1
and IEC60269-1
Rated Voltage: 500V
Rated Current/
Rated Voltate
Cat. No.
Std. Pk.
0.5A
1A
2A
4A
6A
8A
10A
12A
16A
20A
25A
32A*
2620017
2620000
2620001
2620003
2620005
2620006
2620007
2620008
2620009
2620011
2620013
2620015
10
10
10
10
10
10
10
10
10
10
10
10
Rated Current/
Rated Voltate
Cat. No.
Std. Pk.
0.5A
1A
2A
4A
6A
8A
10A
12A
16A
20A
25A
32A*
2621017
2621000
2621001
2621003
2621005
2621006
2621007
2621008
2621009
2621011
2621013
2621015
10
10
10
10
10
10
10
10
10
10
10
10
They are available in four sizes with a
current range from 1 to 125 Amps.
Cylinder Fuses have metal caps at both
ends, and a porcelain fuse body.
OPERATING CLASSES
gL/gG - Line Protection
Slow, typically used for distribution circuits or resistive loads.
Typical Markings: gL/gG
aM - Motor Protection
Fast acting short circuit protection,
but slow acting overload protection.
Typical Marking: aM
10x38
*400V
aM - Motor Protection
Standard: IEC 20269-4-1
and IEC60269-1
Rated Voltage: 500V
aR - Semiconductor Protection
Partial range, short circuit protection
for devices such as diodes, SCRs. etc.
Typical Markings: Ultra Rapid™,
Sitor™, Silcu™, Protister™, Recticur™,
Ultra Quick™, aR
Note:
Other fuse sizes and fuse holders
are available. Please refer to the
Altech European Fuse catalog for
more information.
10x38
*400V
aR - Semiconductor Protection
Standard: IEC 60269-4-1
Breaking Capacity: ~200 kA
Rated Voltage: ~600V**
In
(A)
Cat. No.
6
8
10
12
16
20
25
32
2625005
2625006
2625007
2625008
2625009
2625011
2625013
2625015
Operating
I2-value
(A’s)
Power
Dissipation Std. Pk.
(W)
30
50
70
120
150
260
290
600
1.5
2
2.5
3
3.5
4.8
6
7.5
10
10
10
10
10
10
10
10
** 6-25A (700V DC/ breaking capacity ––
--- 50kA)
10x38
32A (400V DC/ breaking capacity ––
--- 50kA)
Ø10.3 mm
(0.4 in.)
10.5 mm
(0.4 in.)
6 mm
(0.24 in.)
38 mm
(1.5 in.)
10.5 mm
(0.4 in.)
100
6 mm
(0.24 in.)
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
Miniature Fuses
5 X 20
Miniature Fuses are typically
used to protect electronic
devices, laboratory and measurement instruments, stereos,
TV’s, VCR’s etc. They are available
in four sizes with a current range
of 20mA to 20 Amps. Miniature
Fuses are manufactured according to VDE 0820 part 1, VDE 0820
part 2, IEC publication 127, CEE
publication 4 and actual DIN
standards.
5 X 25
6.3 X 32 (1/4” X 1-1/4”)
The 5x20, 5x25 fuses can be used
in the CSFL4U series terminal
blocks. The 6.3x32 fuse can be
used in the CAFL4U series terminal blocks.
Operating Class:
Slow, Typical Marking: “T”
Medium, Typical Marking: “M”
Fast, Typical Marking: “F”
Voltage 250V AC/DC
DIN 41662
DIN 41571-2
IEC-127-2/III
Current
1 Not standard rating.
2 Rated Voltage 150V.
3 Rated Voltage 60V.
4 UL recognized version
available upon request.
20mA
32mA
40mA
50mA
63mA
80mA
100mA
125mA
160mA
200mA
250mA
315mA
Slow
Cat. No.
Medium
DIN 41661
IEC-127-2/II
Fast
0.02M5x20M
0.032M5x20M
Voltage 250V AC/DC
DIN 41571-2
Voltage 250V AC/DC
Cat. No.
Medium
Cat. No.
Slow
Fast
0.032M5x25M
0.04M5x25M
0.05M5x25M
0.063M5x25M
0.08M5x25M
0.1M5x25M
0.125M5x25M
0.16M5x25M
0.2M5x25M
0.25M5x25M
0.315M5x25M
0.032M6.3x32T
0.04M6.3x32T
0.05M6.3x32T4
0.063M6.3x32T4
0.08M6.3x32T4
0.1M6.3x32T4
0.125M6.3x32T4
0.16M6.3x32T4
0.2M6.3x32T4
0.25M6.3x32T4
0.315M6.3x32T4
0.05M6.3x32F
0.063M6.3x32F
0.08M6.3x32F
0.1M6.3x32F
0.125M6.3x32F
0.16M6.3x32F
0.2M6.3x32F
0.25M6.3x32F
0.315M6.3x32F
0.4M5x25M
0.5M5x25M
0.63M5x25M
0.8M5x25M
0.4M6.3x32T4
0.5M6.3x32T4
0.63M6.3x32T4
0.7M6.3x32T4
0.8M6.3x32T4
1.0M6.3x32T4
1.25M6.3x32T4
0.4M6.3x32F
0.5M6.3x32F
0.63M6.3x32F
0.7M6.3x32F
0.8M6.3x32F
1.0M6.3x32F4
1.25M6.3x32F4
1.6M6.3x32T4
2.0M6.3x32T4
2.5M6.3x32T4
1.6M6.3x32F4
2.0M6.3x32F4
2.5M6.3x32F2,4
3.15M6.3x32T4
4.0M6.3x32T4
5.0M6.3x32T4
6.3M6.3x32T4
7.0M6.3x32T4
8.0M6.3x32T4
10.0M6.3x32T4
12.5M6.3x32T4
16.0M6.3x32T4
20.0M6.3x32T4
3.15M6.3x32F2,4
4.0M6.3x32F2,4
5.0M6.3x32F3,4
6.3M6.3x32F3,4
7.0M6.3x32F3
8.0M6.3x32F3
10.0M6.3x32F3
12.5M6.3x32F3
16.0M6.3x32F3
20.0M6.3x32F3
0.05M5x20F4
0.08M5x20T4
0.1M5x20T4
0.125M5x20T4
0.16M5x20T4
0.2M5x20T4
0.25M5x20T4
0.315M5x20T4
0.05M5x20M
0.063M5x20M
0.08M5x20M
0.1M5x20M
0.125M5x20M
0.16M5x20M
0.2M5x20M
0.25M5x20M
0.315M5x20M
400mA
500mA
630mA
700mA
800mA
1.0A
1.25A
1.4A
1.6A
2.0A
2.5A
0.4M5x20T4
0.5M5x20T4
0.63M5x20T4
0.7M5x20T4
0.8M5x20T4
1.0M5x20T4
1.25M5x20T4
1.4M5x20T4
1.6M5x20T4
2.0M5x20T4
2.5M5x20T4
0.4M5x20M
0.5M5x20M
0.63M5x20M
0.7M5x20M
0.8M5x20M
1.0M5x20M
1.25M5x20M
1.4M5x20M
1.6M5x20M
2.0M5x20M
2.5M5x20M
0.4M5x20F4
0.5M5x20F4
0.63M5x20F4
0.7M5x20F4
0.8M5x20F4
1.0M5x20F4
1.25M5x20F4
1.6M5x20F4
2.0M5x20F4
2.5M5x20F4
2.0M5x25M
2.5M5x25M
3.15A
4.0A
5.0A
6.3A
7.0A
8.0A
10.0A
12.5A
16.0A
20.0A
3.15M5x20T4
4.0M5x20T4
5.0M5x20T4
6.3M5x20T4
3.15M5x20M
4.0M5x20M
5.0M5x20M
6.3M5x20M
3.15M5x20F4
4.0M5x20F4
5.0M5x20F4
6.3M5x20F4
3.15M5x25M
4.0M5x25M
5.0M5x25M
6.3M5x25M
8.0M5x20T1
10.0M5x20T1
12.5M5x20T1
16.0M5x20T1
20.0M5x20T1
8.0M5x20M
10.0M5x20M
12.5M5x20M1
16.0M5x20M1
20.0M5x20M1
8.0M5x20F1
10.0M5x20F1
12.5M5x20F1
16.0M5x20F1
20.0M5x20F1
8.0M5x25M1
10.0M5x25M1
16.0M5x25M1
0.05M5x20T4
Std. Pk. 10
0.1M5x20F4
0.125M5x20F4
0.16M5x20F4
0.2M5x20F4
0.25M5x20F4
0.315M5x20F4
1.0M5x25M
1.25M5x25M
1.6M5x25M
Std. Pk. 10
Std. Pk. 10
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
101
PCB Mounting Tracks
Narrow Mounting Track
Extrusion and Components
Mount standard or custom printed circuit
boards in Mounting Tracks which can be
conveniently DIN rail or panel mounted in
your control panel or cabinet. These are the
same tracks used for Altech interface modules. We now make them available to you to
house and protect your custom boards, etc.
Tracks are easily cut to size or can be
ordered precut to specific lengths. They are
easily assembled from standard components
and snap onto 35mm DIN rail or can be panel
mounted.
For PC Board Widths 73mm (2.9 in.)
W
Each track has two sets of printed circuit
board guides to accept two alternate board
widths.
MTGTK1
EPS
L
End Sections hold printed circuit boards
securely in place and keep out foreign
objects.
EPDR1
Panel
Mount
MOUNTING
When mounting extrusions on DIN rail, order
two or more DIN Rail mounting feet. These
feet slide into grooves on the extrusion. Then
attach two DIN Rail Mount End Sections
with help of EPS screws.
To panel mount, order two Panel Mount End
Sections (and EPS screws), each with an
integral mounting flange with a 6 x 8mm (.24
x .32 in.) hole slot.
If desired, tracks can be direct mounted
using double sided tape. Order two DIN rail
mount end sections (and EPS screws).
• Standard Lengths: 1m (3'-3") or 2m (6'-6")
• Track Material: PVC
• Temperature Limit:
Short Term - 80°C (176°F)
Continuous - 70°C (158°F)
• End Section, Foot Material: Polyamide
• Preassembled, Precut Lengths Available
• Tracks Accept Standard MT2 Marking Tags
MTGF1
Cat. No.
Mounting Track
1 meter, grey
2 meter, grey
1 meter, green*
2 meter, green*
MTGTK1/1M
MTGTK1
MTGTK1/1M/G
MTGTK1/G
DIN Rail
Mount
Std. Pk.
5
5
5
5
Accessories
DIN Rail Mount End Section, grey
DIN Rail Mount End Section, green*
EPDR1
EPDR1/G
100
100
DIN Rail Mounting Foot, grey
DIN Rail Mounting Foot, green*
MTGF1
MTGF1/G
100
100
Panel Mount End Section, grey
Panel Mount End Section, green*
EPDP1
EPDP1/G
100
100
DIN Rail / Panel Mount End Section
Screws #4x1/2”, Phillips Pan head
(2 required per end section)
EPS
200
Marking Tags
MT2
100
Sizing Information
Printed Circuit Board Width
Track Type
* Green color available on request.
Contact Altech for more information.
102
MTGTK1
MTGTK2
High Guide (HG)
73 ± 1mm (2.9 ± 0.05 in.)
110 ± 1mm (4.3 ± 0.05 in.)
Mounting Track Extrusion
"Cut-to-Size" Formula
Extrusion Length = Printed Circuit
Board Length – 4.5mm (.175 in.)
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
PCB Mounting Tracks
Wide Mounting Track
Extrusion and Components
Narrow Mounting Track
For PC Board Widths 110mm (4.9 in.)
73
2
MTGTK2
11.4
16
W
69
EPS
84
PCB MOUNTING TRACK (73 mm)
L
MTGF2
15
EPDR2
DIN Rail
Mount
15
35
82
MTGTK2
DIN RAIL MOUNTING FOOT (73mm)
Panel
Mount
Wide Mounting Track
EPDP2
Cat. No.
110
Std. Pk.
5
5
5
5
11.4
MTGTK2/1M
MTGTK2
MTGTK2/1M/G
MTGTK2/G
16
2
119
EPDR2
EPDR2/G
100
100
MTGF2
MTGF2/G
100
100
EPDP2
EPDP2/G
100
100
EPS
200
MT2
100
15
PCB MOUNTING TRACK (110 mm)
15
35
117
DIN RAIL MOUNTING FOOT (110mm)
aAlso applies for DIN Rail Mount Unit
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
103
Receptacles
PANEL MOUNT
WALL MOUNT
36.5 x 61.5 x 50
50 x 71 x 53.5
58.5 x 84 x 53.5
10 mm
10 mm
10 mm
Insulation Material
Thermoplastic
Thermoplastic
Thermoplastic
Type of Connection
3 screw clamps
3 screw clamps
3 screw clamps
E154664
E154664
E154664
Voltage Rating
125 V
125 V
125 V
Current Rating
15 A
15 A
15 A
Features:
• DIN Rail, Panel Mount
or Wall Mount
• Rating: 15A/125V AC
• Finger Protection: IP54
• Available in 3 colors.
External Dimension (HxWxL mm)
Stripping Length
DIN RAIL MOUNT
Approvals*
Cat. No.
Std. Pk.
Cat. No.
Std. Pk.
PMRBU
PMRGR
PMRBA
1
1
1
WMRBU
WMRGR
WMRBA
SEALGASK
1
Includes Sealing Gasket
Cat. No.
Std. Pk.
Complete Kit:
Blue
Gray
Black
Optional Accessory
Sealing Gasket
for Panel Mount Receptacles
1
1
1
DMRBU
DMRGR
DMRBA
1
1
1
Includes Sealing Gasket
*UL approval applies to outlet only, not enclosure or DIN rail clip.
104
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
Receptacles
PANEL MOUNT
1
Wiring of
Receptacles
WALL MOUNT
DIN RAIL MOUNT
1 Optional Sealing Gasket for wet environments.
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
105
Altech Universal Digital Multi-Timer
Altech’s AMT-Series of Universal Digital Multi-Timers comprises 4
models featuring 8 or 18 timer functions to offer highest flexibility
in controlling operations. The time range is adjustable from 0.1s to
999h. An LCD display shows current Run time information.
Features
•
•
•
•
•
•
Multifunctional Timer (8 or 18 Functions)
Universal Voltage 24~265 VAC/ DC
Wide Time Range: 0.1s ~ 999h
3 Digit LCD Display for Preset Time and Run Time
DIN Rail Mounted
17.5mm Width
LISTED
E351145
Digital Timers
Cat. No.
Output Contacts
Functions [setting mode]
AMT8-S1
1 C/O
8
AMT8-D2
2 NO
8
AMT12-S1
1 C/O
18
1) ON Delay [A]
2) Cyclic OFF/ ON [b]
3) Cyclic ON/ OFF [C]
4) Signal ON/ OFF [d]
5) Signal OFF Delay [E]
6) Interval [F]
7) Signal OFF/ ON [G]
8) One Shot Output [H]
Specifications
Supply Voltage
Power Consumption
Timing Range
Reset Time
Repeat Accuracy
Output Contact Rating
Electrical Life
Mechanical Life
AC-15 Rating
DC-13 Rating
Operating Temperature
Storage Temperature
Weight
Protection Enclosure
Protection Terminals
Torque
Terminal Wire Size
AMT12-D2
2 NO
18
1) ON Delay [0]
2) Cyclic OFF/ ON [1]
3) Cyclic ON/ OFF [2]
4) Impulse on Energizing [3]
5) Accumulative Delay on Signal [4]
6) Accumulative Delay on Inverted Signal [5]
7) Accumulative Impulse on Signal [6]
8) Signal ON Delay [7]
9) Inverted Signal ON Delay [8]
10) Signal OFF Delay [9]
11) Impulse ON/ OFF [A]
12) Signal OFF/ ON [b]
13) Leading Edge Impulse 1 [C]
14) Leading Edge Impulse 2 [d]
15) Trailing Edge Impulse 1 [E]
16) Trailing Edge Impulse 2 [F]
17) Delayed Impulse [G]
18) Inverted Signal ON Delay 2 [G]
Dimensions
24 - 265 VAC/ DC (50, 60Hz)
10 VA max.
0.1s ~ 999h
200ms max.
+-0.5%
8A @ 240 VAC/ 24 VDC (resistive)
10,000 switching cycles
2,000,000 switching cycles
Rated Voltage (Ue): 125/ 240V, Rated Current (Ie): 3/1.5A
Rated Voltage (Ue): 125/ 250V, Rated Current (Ie): 2/0.22/0.1A
-10ºC ~ +55ºC (+14ºF ~ 131ºF)
-20ºC ~ +65ºC (-4ºF ~ 149ºF)
85g (0.14lb.)
IP30
IP20
0.40 Nm (3.5 lb.in.)
0.3-2.5 mm2 (22-14 AWG)
Connection Diagrams
AMT8-S1, AMT12-S1
106
AMT8-S2, AMT12-S2
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
Altech Universal Digital Multi-Timer
Functional Diagrams for AMT12-S1 and AMT12-D2
Functional Diagrams for AMT8-S1 and AMT8-D2
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
107
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
