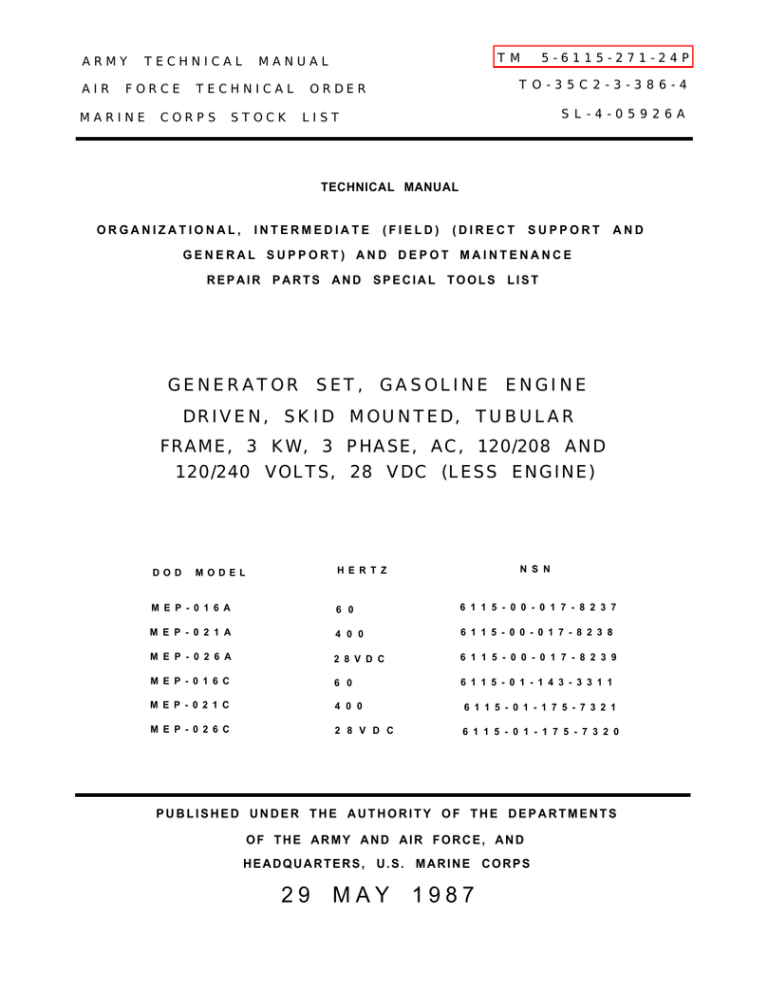

TM-5-6115-271-24P
ARMY
AIR
TECHNICAL
FORCE
MARINE
TECHNICAL
CORPS
TM
MANUAL
STOCK
5-6115-271-24P
TO-35C2-3-386-4
ORDER
SL-4-05926A
LIST
TECHNICAL MANUAL
ORGANIZATIONAL,
INTERMEDIATE
(FIELD)
(DIRECT
SUPPORT
AND
GENERAL SUPPORT) AND DEPOT MAINTENANCE
REPAIR
PARTS
AND
SPECIAL
TOOLS
LIST
GENERATOR SET, GASOLINE ENGINE
DRIVEN, SKID MOUNTED, TUBULAR
FRAME, 3 KW, 3 PHASE, AC, 120/208 AND
120/240 VOLTS, 28 VDC (LESS ENGINE)
DOD
N S N
H E R T Z
MODEL
M E P - 0 1 6 A
6 0
6 1 1 5 - 0 0 - 0 1 7 - 8 2 3 7
M E P - 0 2 1 A
4 0 0
6 1 1 5 - 0 0 - 0 1 7 - 8 2 3 8
M E P - 0 2 6 A
2 8 V D C
6 1 1 5 - 0 0 - 0 1 7 - 8 2 3 9
M E P - 0 1 6 C
6 0
6 1 1 5 - 0 1 - 1 4 3 - 3 3 1 1
M E P - 0 2 1 C
4 0 0
6 1 1 5 - 0 1 - 1 7 5 - 7 3 2 1
M E P - 0 2 6 C
2 8 V D C
6 1 1 5 - 0 1 - 1 7 5 - 7 3 2 0
PUBLISHED UNDER THE AUTHORITY OF THE DEPARTMENTS
OF THE ARMY AND AIR FORCE, AND
HEADQUARTERS, U.S. MARINE CORPS
29
MAY
1987
ARMY TM 5-6115-271-24P
AIR FORCE TO 35C28438-4
MARINE CORPS SL405926A
C3
CHANGE
HEADQUARTERS
DEPARTMENTS OF THE ARMY, AIRFORCE, NAVY
AND HEADQUARTERS U.S. MARINE CORPS
WASHINGTON, D.C., 2 December 1996
NO 3
ORGANIZATIONAL, INTERMEDIATE (FIELD) (DIRECT SUPPORT, AND GENERAL SUPPORT) MAINTENANCE
REPAIR PARTS AND SPECIAL TOOLS LIST
GENERATOR SET, GASOLINE ENGINE DRIVEN, SKID MOUNTED, TUBULAR FRAME, 3 KW, 3
PHASE, AC, 120/208 AND 120/240 VOLTS, 28 VDC (LESS ENGINE)
DOD MODELS
MEP-016A
MEP-021A
MEP-026A
MEP-016C
MEP-021C
MEP-026C
HERTZ
60
400
28 VDC
60
400
28 VDC
NSN
6115-00-017-8237
6115-00-017-8238
6115-00-017-8239
6115-01-143-3311
6115-01-175-7321
6115-01-175 75 720
DISTRIBUTION STATEMENT A: Approved for public release; distribution Is unlimited.
TM 5-6115-271-24P/TO 35C2-3-386-4/SL-4-05926A, 29 May 1987, is changed as follows:
1. Remove and insert pages as indicated below. New or changed text material is indicated by a vertical bar in the
margin. An illustration change is indicated by a miniature pointing hand.
Remove pages
i and ii
9 and 10
23 and 24
43 through 46
75 through 83/(84 Blank)
2. Retain this sheet in front of manual for reference purposes.
Insert pages
i and ii
9 and 10
23 and 24
43 through 46
75 through 86
ARMY TM 5-6115271-24P
AIR FORCE TO 35C23386-4
MARINE CORPPS SL -05926A
C3
By Order of the Secretaries of the Army and Air Force, and Navy (Including the Marine Corps):
RONALD R. FOGELMAN
General, USAF
Chief of Staff
HENRY VICCELLIO, JR.
General, USAF
Commander, Air Force Materiel Command
DISTRIBUTION:
To be distributed in accordance with DA Form 12-25-E, block no. 0881, requirements for TM 5-6115-271-24P.
ARMY TM 5-6115-271-24P
AIR FORCE TO 35C2-3-386-4
MARINE CORPS SL-4-05926A
C2
CHANGE
NO.
HEADQUARTERS
DEPARTMENTS OF THE ARMY, AIR FORCE, NAVY
AND HEADQUARTERS U.S. MARINE CROPS
WASHINGTON, D. C., 15 DECEMBER 1992
2
Organizational, Intermediate (Field) (Direct Support and General Support)
and Depot Maintenance Repair Parts and Special Tools List
GENERATOR SET, GASOLINE ENGINE DRIVEN, SKID MOUNTED,
TUBULAR FRAME, 3 kW, 3 PHASE, AC, 120/208 AND 120/240 VOLTS
28 VDC (LESS ENGINE)
DOD MODEL
MEP-016A
MEP-021A
MEP-026A
MEP-016C
MEP- 021 C
MEP-026C
HERTZ
60
400
28 VDC
60
400
28 VDC
NSN
6115-00-017-8237
6115-00-017-8238
6115-00-017-8239
6115-01-143-3311
6115-01-175-7321
6115-01-175-7320
Approved for public release; Distribution is unlimited
TM 5-6115-271–24P/TO 35C2-3–386-4/SL-4-05926A, 29 May 1987 is changed as follows:
1. Remove and insert pages as indicated below. New or changed text material is indicated by a vertical
bar in the margin. An illustration change is indicated by a miniature pointing hand.
Remove pages
Insert pages
3 and 4
19 and 20
27 and 28
39 and 40
47 through 50
59 and 60
65 and 66
69 and 70
77 and 78
81 through 83/(84 blank)
3 and 4
19 and 20
27 and 28
39 and 40
47 through 50
59 and 60
65 and 66
69 and 70
77 and 78
81 through 83/(84 blank)
2. Retain this sheet in front of manual for reference purposes.
ARMY TM 5-6115-271-24P
AIR FORCE TO 35C2-3-386-4
MARINE CORPS SL-4-05926A
C2
By Order of the Secretaries of the Army, Air Force, and Navy (Including the Marine Corps):
GORDON R. SULLIVAN
Milton H. Hamilton
General, United States Army
Chief of Staff
MILTON H. HAMILTON
Administrative Assistant to the
Secretary of the Army
03066
MERRILL A. McPEAK
General, USAF
Chief of Staff
Official:
RONALD W. YATES
General, United States Air Force
Commander, Air Force Materiel Command
DAVID E. BOTTORFF
Rear Admiral, CEC, US Navy
Commander
Navy Facilities Engineering Command
RONALD D. ELLIOTT
Executive Director
Marine Corps Systems Command
DISTRIBUTION:
To be distributed in accordance with DA Form 12-25-E, block no. 0881, requirements for
TM 5-6115-271-24P.
ARMY TECHNICAL MANUAL
AIR FORCE TECHNICAL ORDER
MARINE CORPS STOCK LIST
* TM 5-6115-271-24P
T.O 35C2386-4
SL-05926A
TECHNICAL MANUAL
HEADQUARTERS
DEPARTMENTS OF THE ARMY, AIR FORCE
AND U.S MARINE CORPS
NO 5-6115-271-24P WASHINGTON, D.C., 29 May 1987
ORGANIZATIONAL, INTERMEDIATE (FIELD) (DIRECT SUPPORT, AND GENERAL SUPPORT) MAINTENANCE
REPAIR PARTS AND SPECIAL TOOLS LIST
GENERATOR SET, GASOUNE ENGINE DRIVEN, SKID MOUNTED, TUBULAR FRAME, 3 KW, 3 PHASE, AC, 120/208
AND 120/240 VOLTS, 28 VDC (LESS ENGINE)
DOD MODELS
MEP-016A
MEP-021A
MEP-026A
MEP-016C
MEP-021C
MEP-026C
HERTZ
60
400
28 VDC
60
400
28 VDC
NSN
6115 00-017-8237
6115-00-017-8238
6115-00-017-8239
6115-01-143-3311
6115-01-175-7321
6115-01-175-7320
Current as of 15 March 1987
REPORTING ERRORS AND RECOMMENDING IMPROVEMENTS
You can help improve this manual. If you find any mistakes, or if you know of a way to improve these
procedures, please let us know.
Mail your letter or DA Form 2028 (Recommended Changes to
Publications and Blank Forms), or DA Form 2028-2 located in the back of this manual directly to:
Commander, US Army Aviation and Troop Command, ATTN: AMSAT-I-MP, 4300 Good fellow Blvd., St.
Louis, MO 63120-1798. You may also submit your recommended changes by E-mail directly to
<mpmtf*[email protected]>. A reply will be furnished directly to you. Instructions for
sending an electronic 2028 may be found at the back of this manual immediately preceding the hard copy
2028.
DISTRIBUTION STATEMENT A: Approved for public release; distribution Is unlimited.
TABLE OF CONTENTS
ILLUS/
FIGURE
Section I
PAGE
INTRODUCTION............................................................................................... 1
Section II
REPAIR PARTS LIST ....................................................................................... 13
Group 01
Upper frame and muffler ................................................................................... 12
1
Group 02
Fuel line, hose and fittings................................................................................. 14
2
Group 03
Control box assembly 60 Hz ............................................................................. 16
Control box cover, instruments and gages, 60 Hz ............................................ 18
Receptacle, fuse, capacitors and load terminals, 60 Hz ................................... 22
3
4
5
* This manual supersedes TM 5-6115-271-24P, 10 October 1975, including all changes.
Change 3
i
TM 5-6115-271-24P
T.O. 35C2-3-38-4
SL-45926A
TABLE OF CONTENTS (Continued)
PAGE
Transformer and selector switch, 60 Hz............................................................ 24
Voltage regulator and terminal board, 60 Hz..................................................... 26
Voltage regulator ............................................................................................... 28
Regulator PWB ................................................................................................. 32
ILLUS/
FIGURE
6
7
8
9
Group 04
Control box assembly, 400 Hz .......................................................................... 36
Instruments and gages, 400 Hz ........................................................................ 38
Load terminals, capacitors, and frequency converter, 400 Hz .......................... 42
Control box assembly 400 Hz ........................................................................... 44
Control box assembly 400 Hz ........................................................................... 46
10
11
12
13
14
Group 05
Control box assembly, 28 VDC ......................................................................... 48
Load terminals, capacitors, and bus bars, 28 VDC........................................... 50
Heat sink mounting and nameplate, 28 VDC .................................................... 54
Heat sink, exploded view, 28 VDC .................................................................... 56
Frequency converter and terminal board, 28 VDC............................................ 58
15
16
17
18
19
Group 06
Engine and generator mounting ........................................................................ 62
20
Group 07
Generator assembly, 60 Hz............................................................................... 64
21
Group 08
Generator assembly, 400 Hz............................................................................. 66
22
Group 09
Generator assembly, 28 VDC ........................................................................... 68
23
Group 10
Auxiliary connector ............................................................................................ 70
24
Group 11
Fuel tank and frame assembly .......................................................................... 72
25
Group 12
Bulk Material...................................................................................................... 75
Section III
NATIONAL STOCK NUMBER AND PART NUMBER INDEX .......................... 76
ii Change 3
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
SECTION I
INTRODUCTION
1. SCOPE
This joint Army, Air Force and Marine Corps manual lists repair parts and special tools required for the
performance of organizational, intermediate (field), direct and general support and depot maintenance
of the generator set. The following paragraphs are keyed to applicable users. All users should read
paragraph 4, Special Information, prior to using this manual.
2. GENERAL
This Repair Parts and Special Tools List is divided into the following sections:
a. (ALL) Repair Parts - Section II. A list of repair parts is authorized for the performance of
maintenance at the organizational, intermediate (field), direct support, general support and depot level
in figure and item number sequence.
b. National Stock Number and Reference Number Index - Section Ill. A list of National Stock Numbers in ascending numerical sequence followed by a list of reference numbers appearing in all the listings, in ascending alpha-numeric sequence, cross-referenced to the illustration figure number and items
number.
3. EXPLANATION OF COLUMNS
The following provides an explanation of columns in the tabular lists in Sections II and Ill.
a. (ALL) Illustration (Column 1) this column is divided as follows:
(1) Figure number. (Column la) indicates the figure number of the illustration on which the item is
shown.
(2) Item number. (Column 1b) indicates the number used to identify the item on the illustration.
b. (ALL) Source, Maintenance, and Recoverability Codes (SMR), (Column 2).
(1) Uniform Source Codes applicable to all Military Services.
1
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
GENERAL: Source codes are assigned to support items to indicate the manner of acquiring support
items for maintenance, repair, or overhaul of end items. Source codes are entered in the first and second
positions of the Uniform SMR Code format as follows:
Definition
Code
PA Item procured and stocked for anticipated or known usage.
PB
Item procured and stocked for insurance purposes because essentiality dictates that a minimum
quantity be available in the supply system.
PC
Item procured and stocked and which otherwise would be coded PA except that it is deteriorative in
nature.
PD
Support item, excluding support equipment, procured for initial issue or outfitting and stocked only for subsequent or additional initial issues or outfittings. Not subject to automatic replenishment.
PE
Support equipment procured and stocked for initial issue or outfittings to specified maintenance
repair activities.
PF
Support equipment which will not be stocked but which will be centrally procured on demand.
PG
Item procured and stocked to provide for sustained support for the life of the equipment. It is applied to an item peculiar to the equipment which because of probable discontinuance or shutdown
of production facilities would prove uneconomical to reproduce at a later time.
KD
An item of depot overhaul/repair kit and not purchased separately. Depot kit defined as a kit that
provides items required at the time of overhaul or repair.
KF
An item of a maintenance kit and not purchased separately. Maintenance kit is defined as a kit that
provides an item that can be replaced at organizational or intermediate levels of maintenance.
KB
Item included in both a depot overhaul/repair kit and a maintenance kit.
MO Item to be manufactured or fabricated at organizational level.
MF
Item to be manufactured or fabricated at intermediate maintenance levels.
Air Force - Intermediate (*)
Army - Direct Support (*)
Marine Corps - 3rd Echelon
MH
Item to be manufactured or fabricated at intermediate maintenance levels.
Air Force - Intermediate (*)
Army - General Support (*)
Marines Corps - 4th Echelon
2
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
MD
Item to be manufactured or fabricated at depot maintenance level.
AO
Item to be assembled at organizational level.
AF
Item to be assembled at intermediate maintenance levels.
Air Force - Intermediate (*)
Army - Direct Support (*)
Marine Corps - 3rd Echelon
AH
Item to be assembled at intermediate maintenance levels.
Air Force - Intermediate (*)
Army - General Support (*)
Marine Corps - 4th Echelon
AD
Item to be assembled at depot maintenance levels.
XA
Item is not procured or stocked because the requirements for the item will result in the replacement of the next higher assembly.
XB
Item is not procured or stocked. If not available through salvage, requisition.
XC
Installation drawings, diagram, instruction sheet, field service drawing, that is identified by manufacturer part number.
XD
A support item that is not stocked. When required, item will be procured through normal supply
channels.
(*) NOTE
For USAF and the USA Safeguard Program, only Code “F” will be used to
denote intermediate maintenance. On joint programs use of either code F
or H by the joining service will denote intermediate maintenance USAF and
the USA Safeguard program.
(2) Uniform Maintenance Codes applicable to all Military Services: GENERAL: Maintenance
Codes are assigned to indicate the levels of maintenance authorized to USE and REPAIR support items.
The maintenance codes are in the third and fourth position of the Uniform SMR Code Format.
(a) USE (THIRD POSITION): The Maintenance Code entered in the third position indicates the
lowest level of maintenance level authorized to remove, replace, and use the support item. The Maintenance Code entered in the third position indicates one of the following levels of maintenance.
3
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
Application/Explanation
Code
O Support item is removed, replaced, used at the organizational level of maintenance.
F
Support item is removed, replaced, used at the following intermediate levels:
USAF - Intermediate (*)
USA - Direct Support (*)
USMC - 3rd Echelon
H
Support item is removed, replaced, used at the following intermediate levels:
USAF - Intermediate (*)
USA - General Support (*)
USMC - 4th Echelon
(*) NOTE
For USAF and the USA Safeguard Program, only Code “F” will be used
to denote intermediate maintenance. On joint programs use of either
code For H by the joining service will denote intermediate maintenance
USAF and the USA Safeguard program.
D
Support items that are removed, replaced, used at depot only:
USAF - Depot, Mobile Depot and Specialized Repair Activity
USA - Depot, Mobile Depot and Specialized Repair Activity
USMC - Depot
(b) REPAIR (FOURTH POSITION): The Maintenance Code entered in the fourth position indicates
whether the item is to be repaired and identifies the lowest maintenance level with the capacity to perform
complete repair (i.e., all authorized maintenance functions).
Code
Application/Explanation
O The lowest maintenance level capable of complete repair of the support item is the organizational level.
F The lowest maintenance level capable of complete repair of the support item is the following intermediate level:
USAF - Intermediate (*)
USA - Direct Support (*)
USMC - 4th Echelon
4
Change 2
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
H The lowest maintenance level capable of complete repair of the support item is the following intermediate level:
USAF - Intermediate (*)
USA - General Support (*)
USMC - 4th Echelon
(*) NOTE
For USAF and the USA Safeguard Program, only Code “F” will be used to
denote intermediate maintenance. On joint programs use of either code F
or H by the joining service will denote intermediate maintenance USAF and
the USA Safeguard program.
D The lowest maintenance level capable of complete repair of the support item is the depot level.
USAF - Depot, Mobile Depot, and Specialized Repair Activity.
USA - Depot, Mobile Depot and Specialized Repair Activity
USMC - Depot
L Repair restricted to designated Specialized Repair Activity.
Z Nonreparable. No repair is authorized.
B No repair is authorized. The item may be reconditioned by adjusting, lubricating, etc., at the user
level. No parts or special tools are procured for the maintenance of this item.
(3) Uniform recoverability codes applicable to all Military Services: GENERAL: Recoverability
codes are assigned to support items to indicate the disposition action on unserviceable items. The
recoverability code is entered in the fifth position of the Uniform SMR code Format as follows:
Recoverability Codes
Definition
Z Nonreparable item. When unserviceable, condemn and dispose at the level indicated in column 3.
O Reparable item. When uneconomically reparable, condemn and dispose at organizational Ievel.
F Reparable item. When uneconomically reparable, condemn and dispose at the following intermediate levels:
USAF - Intermediate (*)
USA - Direct Support (*)
USMC - 3rd Echelon
5
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
H
Reparable item. When uneconomically reparable, condemn and dispose at the following levels:
USAF Intermediate (’)
USA - General Support (’)
USMC - 4th Echelon
(*) NOTE
For USAF and the USA Safeguard Program, only Code “F” will be used to
denote intermediate maintenance. On joint programs use of either code F
or H by the joining service will denote intermediate maintenance USAF and
the USA Safeguard program.
D
Reparable item. When beyond lower level repair capability, return to depot. Condemnation and disposal not authorized below depot level.
L
Reparable item. Repair, condemnation and disposal not authorized below depot/Specialized Repair,
Activity level.
A
Item requires special handling or condemnation procedures because of specific reasons (i.e.,
precious metal content, high-dollar value, critical material or hazardous material). Refer to appropriate manuals/directives for specific instructions.
c. (USMC) Special Stockage Indicator Code and Replacement Factor Column (3).
(1) Special Stockage Indicator Code (Column 3a). This column reflects the condition under which
certain maintenance parts, (parts assigned NSN’S and coded in the “P” series source code of the MSR
code), are stocked. The codes are explained as follows:
Code
No code
I
Description
Indicates that the part may or may not be authorized in initial allowances to using or
supporting organizations. The manner of determining initial issue allowances is explained
in paragraph (2) below.
Applied to maintenance parts for which predicted consumption would not warrant inclusion in
Mount-Out but for which a quantity of one (1) is authorized as insurance for Mount-Out using a 360day criteria. This criteria is based on the total density of equipments employed by the DIV/WING
TEAM. Mount-Out allowances, so authorized, will be stocked by the FSR or the MWSG in the case of
MARINE Wing peculiar equipment, as applicable.
D Applied to maintenance parts that are not considered critical or essential to be on hand and are,
therefore, not authorized in initial; however, these items are stocked within the Supply System and
may be requisitioned based upon usage.
T Indicates that the part is authorized in garrison operating allowances in order to comply with state
and local laws; however, the part is not authorized in Mount-Out since it is not combat essential.
6
-
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(2) Replacement Factor (column 3b). This column reflects the replacement factor assigned to each
National Stock Numbered maintenance repair part on its first appearance in the publication. The
replacement factor, expressed as a decimal, indicates the average rate at which the type of item so coded has been used by Marine Corps field units or the rate at which design engineers anticipate the item
will fail, wear out, or otherwise require replacement. All computations are based on a replacement
period of one year. Therefcre, a replacement factor of 0.08, applied to an item in this stock list, indicates
that eight out of every one hundred of such items used in the end item of equipment to which this
publication pertains, is predicted to need replacement in one year. Likewise, 0.004 reflects that four out
of every thousand in use are predicted to require replacement in one year, while 2.0 shows that every one
in use is predicted to be replaced twice during each year.
(a) Initial authorized stockage levels of consumable and salvageable items for an organization are
to be computed for predicted consumption based on the number of items employed and/or supported by
an organization within the number of days for which stockage is authorized. In computing Garrison
Operating Stock or Mount-Out, authorized levels can be determined by the requiring Marine Corps unit
by multiplying the replacement factor times the quantity used per equipment, times the number of end
items employed by the using organization, or supported by the service organization, times the authorized day level expressed in months and divided by 12. Specific formulas and examples are provided in
Marine Corps Order, MCO P4400.79.
The replacement factors used in initial stockage computations, should be revised, if warranted, after
significant usage is experienced in accordance with the guidelines of MCO 4400.32A. The following formula replacement factor, “X” represents actual usage experience (1 year), “A” represents the application per equipment, and “B” represents the number of equipments supported.
(b) Initial allowances for maintenance float items (recoverability codes “R” and “D”) for the FMF
and appropriate posts and stations are as furnished by Initial Issue Actions.
Changes to maintenance replacement rates resulting from actual usage may require recomputation
of maintenance float allowances by holding units. Any required recomputation of maintenance float
allowances will be made in accordance with MCO 4000.6.
(c) The replacement factor for same as (S/A) items is indicated upon the first appearance of the
item in the major combination, component or assembly.
d. (ALL) National Stock Number (Column 4). Indicates the National Stock Number assigned to the
item and will be used for requisitioning purposes.
7
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
e. (ALL) Description, (Column 5). Indicates the Federal item name and any additional description of
the item required. The abbreviation “w/e” used as part of the nomenclature indicates the National Stock
Number includes all armament, equipment, accessories and repair parts issued with the item. A part
number or other reference number is followed by the applicable five digit Federal Supply Code for Manufacturer. If two reference numbers and Federal Supply Codes for Manufacturer are listed, the first listing
refers to the Department of the Defense Drawing Number, the second listing refers to the actual part
manufacturer. Items that are included in kits and sets are listed below the name of the kit or set with the
quantity of each item in the kit or set indicated in the Quantity Incorporated in Unit column.
f. (All) Unit of Measure (U/M) (Column 6) indicates the standard of the basic quantity of the listed
item as used in performing the actual maintenance function. This measure is expressed by a two-character alphabetical abbreviation (e. g., ea, in, pr, etc.). When the unit of measure differs from the unit of
issue, the lowest unit of issue that will satisfy the required unit of measure will be requisitioned.
g. (ALL) Quantity Incorporated in Unit, (Column 7). Indicates the quantity of the item used in the
assembly group. A “V” appearing in this column in lieu of a quantity indicates that a definite quantity
cannot be indicated (e.g., shims, spacers, etc.).
h. (MC) Quantity per Equipment, (Column 8). Indicates the consolidated quantity of a maintenance
part used on an end item upon every appearance of the part in this publication.
4. SPECIAL INFORMATION
a. (All) Identification of the usable on codes is:
Code Used on
CKW
CKX
CKY
MEP-016A
MEP-021A
MEP-026A
DTF
DTE
DQJ
MEP-016C
MEP-021C
MEP-026C
Used with generator sets that
have military standard engines
that are equipped with breaker
less ignition.
Uncoded items are applicable to all models.
b. Army organizational maintenance personnel will extract the items which they require from Section II, 3rd or 4th position of column 2 of the direct and general support RPSTL. Parts which are manufactured or assembled at a higher level than that authorized to install the part are indicated by use of higher
level code in the source column.
c. Stockage Information.
(1) Air Force stockage information is contained in Initial Supply Support Lists issued separately
from this publication by the Sacramento Air Logistics Center in accordance with AFM 67-1, part 1,
chapter 12.
(2) Marine Corps stockage information is contained in column 3a and 3b of the tabular listing of
this publication.
8
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(3) Army stockage is demand based in accordance with AR 710-2. Repair parts listed in this
publication represent those authorized for use at indicated maintenance levels and will be requisitioned
on an as-required basis until stockage is justified in accordance with AR 710-2.
d. In the part list, some of the items are identified to show that they are a component or components
of the items under which they are indented.
5. HOW TO LOCATE REPAIR PARTS
a. (ALL) When National Stock Number or reference number is unknown:
(1) Using the table of contents, determine the functional group; i.e., batteries and related parts, exhaust and breather pipes, within which the repair part belongs. This is necessary since illustrations are
prepared for functional groups, and listings are divided into the same groups.
(2) Find the illustration covering the functional group to which the repair part belongs.
(3) Identify the repair part on the illustration and note the illustration figure and item number of
the repair part.
(4) Using the Repair Parts Listing, find the figure and item number noted on the illustration.
b. (ALL) When national stock number or reference number is known:
(1) Using the Index or National Stock Numbers and Reference Numbers, find the pertinent national stock number or reference number. This index is in ascending NSN sequence followed by a list of
reference numbers in alphanumeric sequence, cross-referenced to the illustration figure number and
item number.
(2) After finding the figure and item number, locate the figure and item number in the repair parts
list.
9
TM 5-6115-271-24P
T.O. 35C23864
SL-5926A
6.
ABBREVIATIONS
Abbreviation
Definition
AC.................................................. alternating current
AWG .............................................. American Wire Gage
DC ................................................. direct current
ea................................................... each
ft..................................................... foot (feet)
Hz .................................................. hertz
in.................................................... inch(es)
kw .................................................. kilowatt
Ig.................................................... long (length)
Ih.................................................... left hand
mtg ................................................ mounting
No .................................................. number
rh ................................................... right hand
R.P.M............................................. revolutions per minute
thd.................................................. thread(s) (ed)
v..................................................... volts
7. FEDERAL SUPPLY CODES FOR MANUFACTURERS
(Not applicable)
8. RECOMMENDATIONS FOR MAINTENANCE PUBLICATION IMPROVEMENTS
Report of errors, omissions, and recommendations for improving this publication by the individual user is encouraged.
Reports should be submitted as follows:
a. (F) Air Force - AFTO Form 22 in accordance with TO. 00-5-1, directly to: Commander, Sacramento Air Logistics
Center, ATTN: MMEDT, McClellan AFB, CA 95652.
b. (A) Army - DA Form 2028, directly to: Commander, US Army Aviation and System Command, ATTN: AMSAT-IMP, 4300 Good fellow Boulevard, St. Louis, MO 63120-1798.
c. (MC) Marine Corps - by NAVMC Form 10772 directly to: Commandant, Headquarters, US Marine Corps, ATTN:
LMA-1, Washington, DC 20380.
10 Change 3
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
Figure 1. Upper Frame and muffler.
(11 blank)/12
Change 1
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
SECTION II. REPAIR PARTS LIST
(1)
ILLUSTRATION
A
B
FIG ITEM
NO. NO.
(2)
SMR CODE
A
ARMY
B
AIR
FORCE
(3)
USMC
C
D
A
NAVY
USMC
SSI
(4)
B
NATIONAL
REPL
STOCK
FACTOR NUMBER
(5)
DESCRIPTION
(6)
USABLE
ON
CODE U/M
REF NUMBER
& MFR CODE
(7)
(8)
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
GROUP 01 UPPER FRAME AND MUFFLER
1
1
PAFZZ
PAOZZ
PAFZZ
5310-00-732-0558
NUT, PLAIN, HEXAGON FRAME MTG
MS51967-8
96906
EA
8
1
2
PAFZZ
PAOZZ
PAFZZ
5310-00-637-9541
WASHER, LOCKE FRAME MTG
MS35338-46
96906
EA
8
1
3
PAFZZ
PAOZZ
PAFZZ
5310-00-080-6004
WASHER,FLAT FRAME MTG
MS27183-14
96906
EA
6
1
4
PAFZZ
PAOZZ
PAFZZ
5305-00-269-3216
SCREW, CAP, HEXAGON HEAD FRAME MTG
MS90725-66
96906
EA
8
1
5
XBFZZ
XBOBZ
XBFZZ
6115-00-470-1297
FRAME, UPPER, GENERATOR
13208E887
97403
EA
1
1
6
PAOZZ
PAOZZ
PAOZZ
5306-00-225-8496
BOLT, MACHINE BRACKET TO ENGINE
MS90725-31
96906
EA
2
1
7
PAOZZ
PAOZZ
PAOZZ
5310-00-889-2527
WASHER, LOCKE BRACKET TO ENGINE
MS45904-72
96906
EA
2
1
8
PAOZZ
PAOZZ
PAOZZ
5305-00-632-2777
SCREW,CAP, HEXAGON HEAD BRACKET TO MUFFLER
MS35307-358
96906
EA
2
1
9
PAOZZ
PAOZZ
PAOZZ
5310-00-984-7042
WASHER,LOCK BRACKET TO MUFFLER
MS35338-141
96906
EA
2
1
10
PAOZZ
PAOZZ
PAOZZ
5310-00-773-7618
WASHER, FLAT BRACKET TO MUFFLER
MS15795-814
96906
EA
4
1
11
PAOZZ
PAOZZ
XBOZZ
2990-00-118-1590
BRACKET, MUFFLER SUPPORT
13208E5851
97403
EA
2
1
12
PAOZZ
PAOZZ
PAOZZ
2990-00-299-0638
CLAMP
13213E4143
EA
2
97403
NUT, PLAIN
MS35650-304
EA
2
96906
1
12a
PAOZZ
5310-00-934-9765
1
12b
PAOZZ
BAR, CLAMPING
13213E4144
97403
EA
1
1
12c
PAOZZ
U-BOLT
13208E5839
EA
1
97403
1
13
PAOZZ
XAOZZ
XAOZZ
2990-00-961-1177
MUFFLER,EXHAUST
13208E5839
97403
EA
2
1
14
PAOZZ
PAOZZ
PAOZZ
5305-00-068-0505
SCREW, CAP, HEXAGON HEAD PIPE MTG
MS90726-5
96906
EA
4
1
15
PAOZZ
PAOZZ
PAOZZ
5310-00-550-1130
WASHER, LOCKE PIPE MTG
MS35333-40
96906
EA
4
1
16
PAOZZ
PAOZZ
PAOZZ
2990-00-961-1183
PIPE, EXHAUST LH
13208E5844
97403
EA
1
1
16
PAOZZ
PAOZZ
PAOZZ
2990-00-961-1184
PIPE, MUFFLER RH
13208E5846
97403
EA
1
1
17
PAOZZ
PAOZZ
PAOZZ
5330-00-797-3506
GASKET, MANIFOLD, EXHAUST PIPE
9786E50-2
02978
EA
2
1
18
PAOZZ
PAOZZ
PAOZZ
5306-00-056-3536
BOLT, EYE
MS51937-2
EA
1
CHANGE 1
13
96906
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
Figure 2. Fuel Line, Hose and Fittings.
14
Change 1
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG ITEM
AIR
NO. NO.
ARMY
FORCE
(3)
USMC
C
NAVY
D
USMC
A
SSI
(4)
B
REPL
FACTOR
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
REF NUMBER
& MFR CODE
(6)
USABLE
ON
CODE
U/M
(7)
(8)
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
GROUP 02-FUEL LINE,HOSE AND FITTINGS
2
1
MFOZZ
PAOZZ
PAOZZ
HOSE ASSEMBLY FILTER TO TANK
87-500-2 30554
EA
1
2
1.1
PAFZZ
PAOZZ
PAOZZ
4720-00-857-1732
.HOSE,TEFLON,SIZE 4
MIL-M-27267 81349
FT
AR
2
1.2
PAFZZ
PAOZZ
PAOZZ
4730-00-497-4281
.ADAPTER,END FITTING
MS-27053-4C 96906
EA
2
2
2
PAOZZ
PAOZZ
PAOZZ
4710-00-925-6931
TUBE ASSEMBLY,METAL FILTER TO PUMP
13208E5906 97403
EA
1
2
3
PAOZZ
PAOZZ
PAOZZ
4730-00-189-3017
ELBOW,PIPE TO TUBE FUEL LINE TO PUMP
MS20823-3B 96906
EA
1
2
4
PAOZZ
PAOZZ
PAOZZ
4730-00-207-9260
ELBOW,PIPE TO SELECTOR VALVE
13218E0182-25 97403
EA
1
2
5
PAOZZ
PAOZZ
PAOZZ
4730-00-812-1333
CAP,TUBE FUEL SELECTOR VALVE
69-539-2 30554
EA
1
2
6
PAOZZ
PAOZZ
PAOZZ
4730-00-767-2615
ELBOW,CAP TO SELECTOR VALVE
13218E0182-23 97403
EA
1
2
7
XDOZZ
PAOZZ
PAOZZ
5310-00-761-6882
NUT,PLAIN,HEXAGON BRACKET MTG
MS51967-2 96906
EA
2
2
8
PAOZZ
PAOZZ
PAOZZ
5310-00-582-5965
WASHER,LOCK BRACKET MTG
MS35338-44 96906
EA
2
2
9
PAOZZ
PAOZZ
PAOZZ
5305-00-068-0502
SCREW,CAP,HEXAGON HEAD BRACKET MTG
MS90725-6 96906
EA
2
2
10
PAOZZ
PAOZZ
PAOZZ
5310-00-809-4058
WASHER,FLAT BRACKET MTG
MS27183-10 96906
EA
10
2
11
PAOZZ
PAOZZ
PAOZZ
5305-00-054-6658
SCREW,MACHINE BRACKET CLAMPING
MS51957-34 96906
EA
2
2
12
PAOZZ
PAOZZ
PAOZZ
5310-00-929-6395
WASHER,LOCK BRACKET CLAMPING
MS35338-136 96906
EA
2
2
13
PBOZZ
PAFZZ
PAOZZ
5340-00-445-1740
PLATE,VALVE MOUNT
13216E5869 97403
EA
1
2
14
PBOZZ
XBFZZ
XBOZZ
5340-00-184-6023
BRACKET, FUEL VALVE
13216E5868 97403
EA
1
2
15
PAOZZ
PAOZZ
PAOZZ
4820-00-925-7374
VALVE, PLUG SELECTOR
13208E5768 97403
EA
1
2
16
XDOZZ
PAOZZ
PAOZZ
EA
1
MANUFACTURER FROM:
ADAPTER,STRAIGHT,PIPE TO TUBE FUEL
LINE TO FILTER
AN816-3 88044
CHANGE 1 15
CKW
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
Figure 3. Control box ossembly, 60 Hz.
16
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG
ITEM
AIR
NO.
NO.
ARMY
FORCE
C
D
NAVY
USMC
(3)
USMC
(4)
A
NATIONAL
STOCK
NUMBER
B
REPL
SSI FACTOR
(5)
DESCRIPTION
REF NUMBER
& MFR CODE
USABLE
ON
CODE
(6)
(7)
U/M
QTY
USMC
INC
QTY
IN
PER
UNIT EQUIP
3
1
PAOZZ
PAFZZ
PAFZZ
5305-00-225-3840 SCREW,CAP, HEXAGON HEAD CONTROL BOX MTG
MS90725-7 96906
EA
4
3
2
PAOZZ
PAFZZ
PAFZZ
5310-00-889-2528 WASHER,LOCK CONTROL BOX MTG
MS45904-68 96906
EA
4
3
3
PBFHH
AFFFF
PBFFF
6110-00-133-9121 CONTROL BOX ASSEMBLY 35KW.60 HZ
13215E1944 97403
EA
1
17
(8)
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
Figure 4. Control Box Cover, Instruments and Gages, 60 Hz.
18
Change 1
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG ITEM
AIR
NO. NO.
ARMY
FORCE
4
(3)
USMC
C
D
NAVY USMC
A
SSI
(4)
B
REPL
FACTOR
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
(6)
REF NUMBER
& MFR CODE
(7)
(8)
USABLE
ON
CODE
U/M
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
PBFZZ XBFZZ
XBOZZ
6115-01-137-3006
.CONTROL BOX AND COVER ASSEMBLY
13217E1779 97403
CKW
EA
1
1
PAOZZ PAFZZ
PAFZZ
5320-00-879-6606
..RIVET TUBULAR PLATE MTG
MS16535-154 96906
CKW
EA
6
4
2
PBOZZ XBFZZ
XBFZZ
9905-00-450-1464
..PLATE INSTRUCTION OPERATING
13213E4067 97403
CKW
EA
1
4
3
PBOZZ XBFZZ
XBFZZ
9905-01-013-6086
..PLATE ELECTRICAL WIRING DIAGRAM
13215E197 97403
CKW
EA
1
4
4
PAOZZ XBFZZ
PAFZZ
5310-00-383-3658
..NUT SELF-LOCKING
13217E6402-10 97403
CKW
EA
2
4
5
PAOZZ XBFZZ
PAFZZ
5305-00-083-6645
..SCREW,ASSEMBLED WASHER
NAS1301C10-8 80205
CKW
EA
4
4
6
PAOZZ PAFZZ
PAFZZ
5320-00-582-3521
..RIVET BLIND
MS20600B4W3 96906
CRW
EA
5
4
7
PAOZZ XBFZZ
XBOZZ
6115-01-090-2791
..COVER CONTROL BOX
13217E1778 97403
CKW
EA
1
4
8
PAOZZ PAFZZ
PAFZZ
5320-00-117-6376
..RIVET SOLID
MS20426B4-4 96906
CKW
EA
5
4
9
PAOZZ XBFZZ
XBOZZ
5340-00-498-7078
.HINGE BUTT
MS35823-1A 96906
CKW
EA
1
4
10
PAOZZ PAFZZ
PAFZZ
5310-00-836-3520
.NUT ASSEMBLED WASHER AC VOLTMETER
MTG
511-041800 78189
CKW
EA
3
4
11
PAOZZ PAFZZ
PAFZZ
5305-00-983-6730
.SCREW MACHINE METER MTG
MS35206-218 96906
CKW
EA
3
4
12
PAOZZ PAFZZ
PAFZZ
6625-00-065-5301
.VOLTMETER
13211E6905
CKW
EA
1
97403
4
13
PAOZZ PAFZZ
PAFZZ
5310-00-836-3520
.NUT ASSEMBLED WASHER FREQUENCY
METER MTG
511-04-1800 78189
CKW
EA
3
4
14
PAOZZ PAFZZ
PAFZZ
5305-00-983-6730
.SCREW MACHINE METER MTG
MS35206-218 96906
CKW
EA
3
4
15
PAOZZ PAFZZ
PAFZZ
6625-00-054-2038
.METER FREQUENCY INDICATOR
13211E6992-1 97403
CKW
EA
1
4
16
PAOZZ PAFZZ
PAFZZ
5310-00-836-3520
.NUT ASSEMBLED WASHER CURRENT
INDICATOR METER MTG
511-041800 78189
CKW
EA
3
4
17
PAOZZ PAFZZ
PAFZZ
5305-00-983-6730
.SCREW MACHINE CURRENT INDICATOR
METER MTG
MS35206-218 96906
CKY
EA
3
4
18
PAOZZ PAFZZ
PAFZZ
6625-00-065-5258
.METER,CURRENT INDICATOR
13211E6919 97403
CKW
EA
1
4
19
PAOZZ PAFZZ
PAFZZ
5310-00-836-3520
.NUT ASSEMBLED WASHER TIME
TOTALIZING METER MTG
511-041800 78189
CKW
EA
1
4
20
PAOZZ PAFZZ
PAFZZ
5305-00-983-6730
.SCREW,MACHINE TOTALIZING METER MTG CKW
MS35206-218 96906
EA
3
4
21
PAOZZ PAFZZ
PAFZZ
6645-00-151-5280
.METER,TIME TOTALIZING 60 HZ
M3971-2-5 81349
EA
1
4
22
PAOZZ PAOZZ
PAOZZ
5355-00-556-0145
.KNOB
MS91528-1K2B
CKW
EA
1
96906
4
23
PBOZZ XBOZZ
XBOZZ
9905-00-450-6595
.PLATE INSTRUCTION VOLTAGE SELECTOR CKW
13213E4088 97403
EA
1
4
24
PAFZZ PAFZZ
PAFZZ
5930-00-259-4646
.SWITCH ROTARY
MS250012-2
CKW
EA
1
4
25
PAOZZ XBFZZ
PAOZZ
5355-00-556-0145
.KNOBS
MS91528-1K28
CKW
EA
1
96906
4
26
PBOZZ XBFZZ
XBOZZ
9905-00-455-9168
.PLATE,INSTRUCTION VOLTAGE ADJUSTING CKW
13208E5764 97403
EA
1
4
27
PAFZZ PAFZZ
PAFZZ
5905-00-643-5129
.RESISTOR, VARIABLE, WOUND
M22-03-0019FD 81349
CKW
EA
1
4
28
PAOZZ PAOZZ
PAOZZ
5355-00-556-0145
.KNOB
MS91528-1K28
CKW
EA
1
CHANGE 2
19
96906
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG ITEM
AIR
NO. NO.
ARMY
FORCE
(3)
USMC
C
NAVY
D
USMC
A
SSI
(4)
B
REPL
FACTOR
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
REF NUMBER
& MFR CODE
(6)
(7)
(8)
USABLE
ON
CODE U/M
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
4
29
PBOZZ
XBFZZ
XBOZZ
9905-00-509-8239 .PLATE, INSTRUCTION CURRENT SELECTOR
13213E4089 97403
CKW
EA
1
4
30
XDFZZ
PAFZZ
PAFZZ
5930-00-065-5302 .SWITCH,ROTARY CURRENT
MS25002-1 97403
CKW
EA
1
4
31
PAFZZ
PAFZZ
PAFZZ
6115-00-016-2360 .PRINTED CIRCUIT BOARD
13211E4849 97403
CKW
EA
1
4
32
PAFZZ
PAFZZ
PAFZZ
5305-00-984-4984 .SCREW, MACHINE CIRCUIT BREAKER MTG
MS35206-227 96906
CKW
EA
6
4
33
PAFZZ
PAFZZ
PAFZZ
5310-00-045-4007 .WASHER,LOCK CIRCUIT BREAKER MTG
MS35338-41 96906
CKW
EA
6
4
35
PAFZZ
PAFZZ
PAFZZ
5925-00-966-5836 .CIRCUIT BREAKER
13208E5838-1 97403
CKW
EA
1
4
34
PAFZZ
PAFZZ
PAFZZ
5310-00-082-1404 .WASHER,FLAT CIRCUIT BREAKER MTG
MS27183-6 96906
CKW
EA
1
4
36
PAOZZ
PAFZZ
PAFZZ
5305-00-984-6194 .SCREW,MACHINE PLATE MTG
MS35206-246 96906
CKW
EA
4
4
37
PAOZZ
PAFZZ
PAFZZ
5310-00-045-3299 .WASHER,LOCK PLATE MTG
MS35338-42 96906
CKW
EA
4
4
38
PAOZZ
PAFZZ
PAFZZ
5310-00-809-8544 .WASHER, FLAT PLATE MTG
MS27183-7 96906
CKW
EA
4
4
39
PBOZZ
XBFZZ
XBOZZ
5925-00-407-6520 .BASE,CIRCUIT BREAKER
13208E5848 97403
CWK
EA
4
4
40
PAOZZ
PAFZZ
PAFZZ
5305-00-253-5614 .SCREW,DRIVE NAMEPLATE MTG
MS21318-20 96906
CKW
EA
4
4
41
PBOZZ
XBFZZ
SBOZZ
9905-00-477-4131 .PLATE,IDENTIFICATION CIRCUIT BREAKER CWK
13211E6888-1 97403
EA
1
4
42
PAOZZ
5325-00-432-9796 .STUD,TURN LOCK
13208E5845 97403
*
EA
4
4
43
PAOZZ
5310-00-822-8525 .WASHER,SPLIT
13213E5162 97403
*
EA
4
4
44
PAOZZ
5310-00-845-7769 .WASHER,LOCK
13220E8321 97403
*
EA
4
4
45
PAOZZ
5325-00-282-7471 .RECEPTACLE,TURNLOCK
13213E5164 97403
*
EA
4
* USE ONLY ON GEN SETS
MANUFACTURED BEFORE
APRIL 1979.
CHANGE 1 20
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
Figure 5. Receptacle, fuse, capacitors and load terminals, 60 HZ
(21 blank)/22
TM 5-6115-271-24P
T.O. 35C23864
SL-5926A
(1)
ILLUSTRATION
a
FIG
NO.
a
(2)
(3)
SMR CODE
USMC
b
REPL
FACTOR
(4)
(5)
(6)
(7)
(8)
U/M
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
EA
4
EA
EA
1
4
EA
1
EA
EA
1
3
EA
2
EA
2
EA
2
EA
2
EA
2
EA
1
EA
4
EA
1
EA
2
EA
2
EA
2
EA
1
EA
8
DESCRIPTION
b
ITEM
NO.
ARMY
b
c
d
a
AIR
FORCE NAVY USMC SSI
NATIONAL
STOCK
NUMBER
5
1
PAFZZ
PAFZZ
PAFZZ
5305-00-984-6193
5
5
2
3
PAFZZ
PAFZZ
PAFZZ
PAFZZ
PAFZZ
PAFZZ
5310-0045-3299
5310-00-809-8544
5
4
PAFZZ
PAFZZ
PAFZZ
6115-00-940-0175
5
5
5
6
XDOZZ
PAOZZ
PAFZZ
PAFZZ
PAFZZ
PAFZZ
5310-00-761-6882
5310-00-889-2528
5
7
PAFZZ
PAFZZ
PAFZZ
5910-00-504-7418
5
8
PAFZZ
5
9
PAOZZ
PAFZZ
PAFZZ
5920-00-783-7859
5
10
PAOZZ
PAFZZ
PAFZZ
5920-00-556-0144
5
11
PAOZZ
PAOZZ
PAOZZ
5920-00-617-8418
5
12
PBOZZ
XBFZZ
XBOZZ
9905-01-096-5675
5
13
PAOZZ
PAFZZ
PAFZZ
5305-00-958-5451
5
14
PAFZZ
PAFZZ
PAFZZ
5975-00-235-4635
5
15
PAOZZ
PAFZZ
PAFZZ
5310-00-934-9747
5
16
PAOZZ
PAFZZ
PAFZZ
5310-00-445-4007
5
17
PAOZZ
PAFZZ
PAFZZ
5305-004-949
5
18
PAOZZ
PAFZZ
PAFZZ
593-00-564-1355
5
5
19
PAOZZ
PAFZZ
PAFZZ
5310-00-158-4489
5
20
PAOZZ
PAFZZ
PAFZZ
5310-00-184-8970
5
21
PAOZZ
PAFZZ
PAFZZ
5310-00-720-8394
5
22
PAOZZ
PAFZZ
PAFZZ
5940-00-958-0349
5
23
PAFZZ
PAFZZ
PAFZZ
5305-00-958-5477
5
24
PBOZZ
XBFZZ
XBOZZ
5940-00-477-9967
5
25
PAOZZ
PAFZZ
PAFZZ
5305-00-253-5614
5
26
PBOZZ
XBFZZ
XBOZZ
5
27
PAOZZ
PAFZZ
PAFZZ
5305-00-263-5614
5
28
XBOZZ
XBFZZ
XBOZZ
9905-00-254-9239
PAFZZ
REF NUMBER
& MFR CODE
USABLE
ON
CODE
• SCREW MACHIE CONVERTER MTO CKW
MS35338-42
96906
•·WASHER LOCK CONVERTER MTG CKW
• WASHER FUT CONVRTER MTG CKW
MS27183-7
96906
• CONVERTER CONTROL
CKW
13211E6901
97403
• NUT PLAIN HE ON CAPACITOR CKW
• WASHER LOCK CAPACITOR MTG CKW
MS4594-8
96906
• CAPACTOR CONTROL BOX C KW
CA36KFPW104
81349
CAPACITOR CONTROL BOX CKW
CA37FW104
97403
• SCREW CAP HEXOON HEAD CKW
CAPACITOR MTG
MS90725-6
• FUSE HOLDER
CKW
FHN20G
81349
• FUSE CARTRIDE 15AUP CKW
FOR625V1A
81349
• PLATE INFOFRITION RECEPTACEL CWK
13208E5771
97403
• SCREW MACHNE COVER MTG CWK
MS3190-239
96906
• PLATE WLL ELECTRIC
CKW
121E97
93703
• NUT PLAIN HE ON RECEPTACLE CKW
MTG
MS3549-262
96906
• WASHER LOCK RECEPTACLE MTG CKW
MS35338-41
96906
• SCREW MACHINE RECERTACLE MTG CKW
MS35206-228
96906
• CONNECTOR RECEPTABLE CKW
69-691
30554
•·NUT,PLAIN,HEXAGON TERMINAL CKW
BOARD
MS35649-2255T
96906
• WASHER LOCK TERMIAL LOAD CKW
MS35338-101
96906
• WASHER FLUT TERMI LOAD CKW
MS15795-510
96906
• TERMINL STUD
CKW
13208E5820-2
97403
• SCREW MACHIE INSULATOR CKW
M535196-254
96906
• TERMINAL BOARD
CKW
13215E942
97403
• SCREW,DRIVE TERMINAL MTG CKW
MS21318-20
96906
• NAMEPLATE LOAD TERMINAL CKW
13208E5841
97403
• SCREW,DRIVE TERNAL MTG CKW
MS21316-2
96906
• PLATE,IENTIFICATON
DTF
73-4506-21
30554
EA
EA
1
EA
4
EA
1
EA
4
EA
1
EA
4
EA
1
CHANGE 3
23
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
Figure 6. Transformer and selector switch, 60Hz
24
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG ITEM
AIR
NO. NO. ARMY
FORCE
(3)
USMC
C
D
NAVY USMC
A
SSI
(4)
B
REPL
FACTOR
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
REF NUMBER
& MFR CODE
USABLE
ON
CODE
(6)
(7)
(8)
U/M
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
6
1
PAFZZ PAFZZ
PAFZZ
5305-00-984-6193
.SCREW,MACHINE TRANSFORMER MTG CKX
MS35206-245 96906
EA
4
6
2
PAFZZ PAFZZ
PAFZZ
5310-00-045-3299
.WASHER, LOCK TRANSFORMER MTG
MS35338-42 96906
CKW
EA
4
6
3
PAFZZ PAFZZ
PAFZZ
5310-00-809-8544
.WASHER, FLAT TRANSFORMER MTG
MS27183-7 96906
CKW
EA
4
6
4
PAFZZ PAFZZ
PAFZZ
5950-01-054-4127
.TRANSFORMER ASSEMBLY CURRENT
13213E4128 97403
CKW
EA
1
6
5
PAFZZ XBFZZ
PAFZZ
5950-00-682-0743
..TRANSFORMER,CURRENT
13208E5837 97403
CKW
EA
1
6
6
PAFZZ XBFZZ
XBOZZ
5905-00-203-5400
..RESISTOR FIXED.WIRE
RWR74S2490FR 81349
CKW
EA
3
6
7
PAOZZ PAFZZ
PAFZZ
5305-00-253-5604
.SCREW,DRIVE
MS21318-2 96906
CKW
EA
4
6
8
PBOZZ PAFZZ
PAFZZ
9905-00-450-6590
.PLATE,INSTRUCTION FUEL
132087E5757 97403
CKW
EA
1
6
9
PAFZZ PAFZZ
PAFZZ
5310-00-934-9747
.NUT,PLAIN HEXAGON SWITCH MTG
MS35649-262 96906
CKW
EA
4
6
10
PAFZZ PAFZZ
PAFZZ
5310-00-809-8544
.WASHER,FLAT SWITCH MTG
MS27183-7 96906
CKW
EA
4
6
11
PAFZZ PAFZZ
PAFZZ
5305-00-889-3001
.SCREW,MACHINE SWITCH MTG
MS35206-231 96906
CKW
EA
4
6
12
PAOZZ PAFZZ
PAFZZ
5310-00-045-4007
.WASHER,LOCK SWITCH MTG
MS35338-41 96906
CKW
EA
4
6
13
PAFZZ PAFZZ
PAFZZ
5930-00-659-2672
.SWITCH,ROTARY OUTPUT SELECTOR CKW
213E4091 97403
EA
1
6
14
PAFZZ PAFZZ
PAFZZ
5305-00-984-6194
.SCREW,MACHINE BRACKET MTG
MS35206-246 96906
CKW
EA
4
6
15
PAFZZ PAFZZ
PAFZZ
5310-00-045-3299
.WASHER,LOCK BRACKET MTG
MS35338-42 96906
CKW
EA
4
6
16
PAFZZ PAFZZ
PAFZZ
5310-00-809-8544
.WASHER,FLAT BRACKET MTG
MS27183-7 96906
CKW
EA
4
6
17
PBFZZ XBFZZ
XBOZZ
5340-01-047-1900
.BRACKET,ANGLE SWITCH
13215E1938 97403
CKW
EA
1
25
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
Figure 7. Voltage regulator and terminal board, 60 Hz
26
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG
ITEM
AIR
NO.
NO.
ARMY
FORCE
(3)
USMC
(4)
A
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
(6)
(7)
USABLE
ON
CODE
(8)
U/M
QTY
USMC
INC
QTY
IN
PER
UNIT EQUIP
7
1
PAFZZ
PAFZZ
PAFZZ
5305-00-984-6199 SCREW,MACHINE TERMINAL BOARD MTG
MS35206-251 96906
CKW
EA
4
7
2
PAFZZ
PAFZZ
PAFZZ
5310-00-809-8544 WASHER,FLAT TERMINAL BOARD MTG
MS27183-7 96906
CKW
EA
4
7
3
PAFZZ
PAFZZ
PAFZZ
5940-00-983-6100 TERMINAL BOARD
39TB5 81349
CKW
EA
1
PAFZZ
PAFZZ
PAFZZ
CKW
EA
15
7
C
D
NAVY
USMC
B
REPL
SSI FACTOR
REF NUMBER
& MFR CODE
SCREW,TERMINAL
MS35206-242 96906
7
4
PAFZZ
PAFZZ
PAFZZ
5365-00-808-2527 SPACER,SLEEVE TERMINAL BOARD MTG
NAS43DD3-40 80205
CKW
EA
4
7
5
PAOZZ
PAFZZ
PAFZZ
5325-00-828-6276 GROMMET,NONMETALLIC CONTROL BOX
MS35489-68 96906
CKW
EA
2
7
6
PAFZZ
PAFZZ
PAFZZ
5305-00-063-3503 SCREW,MACHINE STRAP MTG
MS24693S50 96906
CKW
EA
2
7
7
PAFZZ
XBFZZ
XBFZZ
CKW
EA
2
7
8
PAFZZ
XBFZZ
XBFZZ
5975-00-074-2072 STRAP,CABLE WIRING HARNESS
MS3367-1-9 96906
CKW
EA
2
7
9
PAFZZ
MFFZZ
XBFZZ
6115-00-903-4147 WIRING HARNESS CONTROL BOX
13215E1941 97403
CKW
EA
1
7
10
PAOZZ
PAFZZ
PAFZZ
5305-00-984-6194 SCREW,MACHINE COVER MTG
MS35206-246 96906
CKW
EA
3
7
11
PAFZZ
PAFZZ
PAFZZ
5310-00-559-0070 WASHER,LOCK
MS35333-38 96906
CKW
EA
4
7
12
PAOFF
PAOFF
PAOFF
6110-00-764-7621 REGULATOR,VOLTAGE
13219E0883 97403
CKW,CKY
EA
1
7
13
PBFZZ
PBFZZ
PBFZZ
6110-01-141-7515 CONTROL BOX
13217E17777
CKW
EA
1
MOUNTING PAD,ELECTRICAL WIRING
13216E3909 97403
CHANGE 2
27
97403
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
Figure 8. Voltage regulator
2 8 Change 2
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG ITEM
AIR
NO. NO.
ARMY
FORCE
(3)
USMC
C
NAVY
D
USMC
A
SSI
(4)
B
REPL
FACTOR
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
(6) (7)
QTY
USABLE
INC
ON
IN
CODE U/M UNIT
REF NUMBER
& MFR CODE
8
1
PAFZZ
PAFZZ
PAFZZ
5310-00-934-9739
..NUT,PLAIN,HEXAGON
MS356492-242 96906
EA
4
8
2
PAFZZ
PAFZZ
PAFZZ
5310-00-616-3554
..WASHER,LOCK
MS3533-29 96906
EA
4
8
3
PAFZZ
PAFZZ
PAFZZ
5310-00-656-0111
..WASHER,FLAT
MS15795-703 96906
EA
4
8
4
PAFZZ
PAFZZ
PAFZZ
5305-00-889-2999
..SCREW,MACHINE 4-40X1/2
MS35206-217 96906
EA
4
8
5
PAFZZ
PAFZZ
PAFZZ
5305-00-889-3000
..SCREW,MACHINE
MS35206-230 96906
CKW
EA
2
8
6
PAFZZ
PAFZZ
PAFZZ
5310-00-045-4007
..WASHER,LOCK
MS35338-41 96906
CKW
EA
2
8
7
MFFZZ
MFFZZ
MFFZZ
..WIRING HARNESS
13219E0888 97403
EA
1
8
8
PAFZZ
PAFZZ
PAFZZ
5940-00-204-8966
...TERMINAL,LUG
MS25036-102 96906
EA
3
8
8
PAFZZ
PAFZZ
PAFZZ
5975-00-727-5153
...STRAP,TIEDOWN,ELECTRICAL
MS3367-4-9 96906
EA
3
8
8
PAFZZ
PAFZZ
PAFZZ
5935-00-755-2896
...CONNECTOR,RECEPTACLE
MS3100R20-27P 96906
EA
1
8
8
PAFZZ
PAFZZ
PAFZZ
5325-00-276-6228
...GROMMET,NONMETALLIC
MS35489-9 96906
EA
1
8
8
PAFZZ
PAFZZ
PAFZZ
...GROMMET
13219E0891
EA
1
FT
V
FT
V
FT
V
8
8
8
8
8
8
PAFZZ
PAFZZ
PAFZZ
PAFZZ
PAFZZ
PAFZZ
PAFZZ
PAFZZ
PAFZZ
6145-00-851-0897
6145-00-838-6612
6145-00-838-6613
97403
...WIRE,ELECTRICAL
MILW16878/1 TYPE B 18/BROWN
...WIRE,ELECTRICAL
MILW16878/1 TYPE B 18/RED
81349
81349
...WIRE,ELECTRICAL
MILW16878/1 TYPE B 18/ORANGE
81349
8
8
PAFZZ
PAFZZ
PAFZZ
6145-00-087-9716
...WIRE,ELECTRICAL
MILW16878/1-18-4 81349
FT
V
8
8
PAFZZ
PAFZZ
PAFZZ
6145-00-881-8177
...WIRE,ELECTRICAL
MILW16878/1-18-5 81349
FT
V
8
8
PAFZZ
PAFZZ
PAFZZ
6145-00-849-5915
...WIRE,ELECTRICAL
MILW16878/1-18-6 81349
FT
V
8
8
PAFZZ
PAFZZ
PAFZZ
6145-00-087-7691
...WIRE,ELECTRICAL
MILW16878/1-18-7 81349
FT
V
8
8
PAFZZ
PAFZZ
PAFZZ
6145-00-729-9264
...WIRE,ELECTRICAL
MILW16878/1 TYPE B 18/GRAY
FT
V
...WIRE,ELECTRICAL
MILW16878/1-18-0 81349
FT
V
6145-00-814-8127
81349
8
8
PAFZZ
PAFZZ
PAFZZ
8
8
PAFZZ
PAFZZ
PAFZZ
...WIRE,ELECTRICAL
M16878/1-18-91 81349
FT
V
8
8
PAFZZ
PAFZZ
PAFZZ
...WIRE,ELECTRICAL
M16878/1-18-92 81349
FT
V
8
8
PAFZZ
PAFZZ
PAFZZ
...WIRE,ELECTRICAL
M16878/1-18-92 81349
FT
V
8
8
PAFZZ
PAFZZ
PAFZZ
...WIRE,ELECTRICAL
M16878/1-18-93 81349
FT
V
8
8
PAFZZ
PAFZZ
PAFZZ
...WIRE,ELECTRICAL
M16878/1-18-95 81349
FT
V
8
8
PAFZZ
PAFZZ
PAZFF
...WIRE ELECTRICAL
M16878/1-18-96 81349
FT
V
8
8
PAFZZ
PAFZZ
PAFZZ
...WIRE, ELECTRICAL
MILW16878/1-TYPE B18-97
FT
V
EA
2
EA
2
8
8
PAFZZ
PAFZZ
PAFZZ
5999-00-236-1868
..HOLDER,ELECTRICAL
2500-38 07556
8
9
PAFZZ
PAFZZ
PAFZZ
5310-00-934-9757
..NUT,PLAIN,HEXAGON
MS35649-282 96906
29
81349
CKW
(8)
USMC
QTY
PER
EQUIP
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG ITEM
AIR
NO. NO. ARMY
FORCE
(3)
USMC
C
D
A
NAVY
USMC
SSI
(4)
B
REPL
FACTOR
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
USABLE
ON
CODE
REF NUMBER
& MFR CODE
(6)
(7)
(8)
U/M
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
8
10
PAFZZ
PAFZZ
PAFZZ
5310-00-596-7693
..WASHER,LOCK
MS35335-31 96906
EA
2
8
11
PAFZZ
PAFZZ
PAFZZ
5310-00-765-3197
..WASHER,FLAT
MS27183-41 96906
EA
2
8
12
PAFZZ
PAFZZ
PAFZZ
5305-01-092-8685
..SCREW,PAN HEAD 8-32X2 1/2
MS35206-355 96906
EA
2
8
13
PAFZZ
PAFZZ
PAFZZ
5950-01-104-6342
..TRANSFORMER,POWER
13219E0890 97403
EA
2
8
14
PAFZZ
PAFZZ
PAFZZ
5320-01-109-1381
..RIVET,BLIND
M24243/4-A403
EA
2
81349
8
15
PAFZZ
PAFZZ
PAFZZ
5310-00-656-0111
..WASHER,FLAT
MS15795-703 96906
EA
6
8
16
PAFZZ
PAFZZ
PAFZZ
5950-01-105-6315
..TRANSFORMER,POWER
13219E0894 97403
EA
1
8
17
PAFZZ
PAFZZ
PAFZZ
5305-00-889-3001
...SCREW,MACHINE
MS35206-231 96906
EA
2
8
18
PAFZZ
PAFZZ
PAFZZ
5310-00-765-3197
..WASHER,FLAT
MS27183-41 96906
EA
2
8
19
PAFZZ
PAFZZ
PAFZZ
5935-00-931-0382
...SOCKET,PLUG-IN ELECTRICAL
13219E0895 97403
EA
1
8
20
PAFZZ
PAFZZ
PAFZZ
5961-00-712-5578
...TRANSISTOR
13217E3700 97403
EA
1
8
21
PBOZZ
PAFZZ
PAFZZ
9905-01-135-4327
..PLATE,IDENTIFICATION
13219E1039 97403
EA
1
8
22
PBFZZ
PAFZZ
PAFZZ
9950-01-135-4328
..PLATE,INSTRUCTION
13219E1040 97403
EA
1
8
23
XAFZZ
XAFZZ
XAFZZ
..CHASSIS REGULATOR
13219E0889 97403
EA
1
30
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
Figure 9. Regulator PWB.
(31 blank)/32
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG ITEM
AIR
NO. NO. ARMY
FORCE
9
(3)
USMC
C
D
A
NAVY
USMC
SSI
XAFZZ
XBFFF
XBFFF
(4)
B
REPL
FACTOR
NATIONAL
STOCK
NUMBER
5325-00-610-6861
(5)
DESCRIPTION
(6)
USABLE
ON
CODE U/M
REF NUMBER
& MFR CODE
(7)
(8)
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
..BOARD ASSEMBLY
13219E0884 97403
EA
1
...EYELET,METALLIC
13219E0892 97403
EA
13
...BOARD, TERMINAL
13219E0893 97403
EA
1
...MICROCIRCUIT,DIGITAL
13217E3701 97403
EA
1
9
1
PAFZZ
PAFZZ
PAFZZ
9
2
XAFZZ
XAFZZ
XAFZZ
9
3
PAFZZ
PAFZZ
PAFZZ
9
4
PAFZZ
PAFZZ
PAFZZ
...CAPACITOR,FIXED
M39014/02-02-77 81349
EA
2
9
5
PAFZZ
PAFZZ
PAFZZ
...CAPACITOR
M39014/02-0267
EA
2
5962-00-890-0784
81349
9
6
PAFZZ
PAFZZ
PAFZZ
5961-00-421-3002
...SEMICONDUCTOR DEVICE
13219E1001 97403
EA
7
9
7
PAFZZ
PAFZZ
PAFZZ
5961-00-451-7492
...DIODE
IN5297 04713
EA
1
9
8
PAFZZ
PAFZZ
PAFZZ
5961-00-957-6865
...SEMINCONDUCTOR DEVICE
13219E0897 97403
EA
4
9
9
XDFZZ
PAFZZ
PAFZZ
...SEMICONDUCTOR DEVICE
13219E1000 97403
EA
1
9
10
XBFZZ
PAFZZ
PAFZZ
5940-00-718-1721
...TERMINAL STUD
MIL-T-55155/12 81349
EA
16
9
11
PAFZZ
PAFZZ
PAFZZ
5961-00-730-3284
...TRANSISTOR
13219E1002 97403
EA
1
9
12
PAFZZ
PAFZZ
PAFZZ
5905-00-110-0196
...RESISTOR,FIXED,COMPOSITION
RCR20G102JM 81349
EA
1
9
13
PAFZZ
PAFZZ
PAFZZ
5905-00-120-9152
...RESISTOR,FIXED,COMPOSITION
RCR07G474JM 81349
EA
1
9
14
PAFZZ
PAFZZ
PAFZZ
5905-00-105-7767
...RESISTOR,FIXED,COMPOSITION
RC07G474JM 81349
EA
1
9
15
PAFZZ
PAFZZ
PAFZZ
5905-01-084-9136
...RESISTOR,VARIABLE
RJ12F7504 81349
EA
1
9
16
PAFZZ
PAFZZ
PAFZZ
5905-00-111-4753
...RESISTOR,FIXED,COMPOSITION
RCR20G243JS 81349
EA
1
9
17
PAFZZ
PAFZZ
PAFZZ
5905-00-111-4738
...RESISTOR,FIXED COMPOSITION
RCR20G152JM 81349
EA
1
9
18
PAFZZ
PAFZZ
PAFZZ
5905-00-252-1673
...RESISTOR,FIXED,COMPOSITION
RCR07G624JM 81349
EA
1
9
19
PAFZZ
PAFZZ
PAFZZ
5905-00-104-8330
...RESISTOR,FIXED,COMPOSITION
RCR20G33JM 81349
EA
1
9
20
PAFZZ
PAFZZ
PAFZZ
5905-00-141-1168
...RESISTOR,FIXED COMPOSITION
RCR20G822JM 81349
EA
1
9
21
PAFZZ
PAFZZ
PAFZZ
5905-00-141-0600
...RESISTOR,FIXED COMPOSITION
RCR20G822JM 81349
EA
1
9
22
PAFZZ
PAFZZ
PAFZZ
5905-00-115-3565
...RESISTOR,FIXED,COMPOSITION
RCR32G821JS 81349
EA
1
9
23
PAFZZ
PAFZZ
PAFZZ
...RESISTOR
RC42GF102JM
CKY
EA
1
CKY
EA
2
81349
9
24
PAFZZ
PAFZZ
PAFZZ
5961-00-462-7165
...SEMICONDUCTOR DEVICE
13217E3698 97403
9
25
PAFZZ
PAFZZ
PAFZZ
5961-00-950-6577
...SEMICONDUCTOR DEVICE
JAN1N3826A 81349
EA
1
9
6
PAFZZ
PAFZZ
PAFZZ
5999-01-142-0548
...MOUNTING PAD
13217E3708 97403
EA
1
9
27
PAFZZ
PAFZZ
PAFZZ
...CLIP,SPRING TENSION
M24066-2-108 81349
EA
2
9
28
PAFZZ
PAFZZ
PAFZZ
...CLIP,SPRING TENSION
M24066-2-107 81349
EA
2
9
29
PAFZZ
PAFZZ
PAFZZ
5320-00-800-5704
...RIVET,TUBULAR
MS16535-64 96906
EA
5
9
30
PAFZZ
PAFZZ
PAFZZ
5905-00-879-3635
...RESISTOR,FIXED,WIRE
RW67V102 81349
EA
2
33
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
C
FIG ITEM
AIR
NO. NO.
ARMY
FORCE NAVY
(3)
USMC
D
USMC
9
31
PAFZZ
PAFZZ
PAFZZ
9
32
XBFZZ
XAFZZ
XAFZZ
A
SSI
(4)
B
REPL
FACTOR
NATIONAL
STOCK
NUMBER
5910-00-832-5026
34
(5)
DESCRIPTION
(6)
(7)
(8)
U/M
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
...CAPACITOR,FIXED ELECTRICAL
13219E1003 97403
EA
2
...BOARD,WIRING
13219E0885 97403
EA
1
REF NUMBER
& MFR CODE
USABLE
ON
CODE
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
Figure 10. Control Box Assembly, 400 Hz.
(35 blank)/36 Change 1
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG ITEM
AIR
NO. NO.
ARMY
FORCE
(3)
USMC
C
NAVY
D
USMC
A
SSI
(4)
B
REPL
FACTOR
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
REF NUMBER
& MFR CODE
(6)
(7)
(8)
USABLE
ON
CODE
U/M
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
GROUP 04 CONTROL BOX ASSEMBLY,400 HZ
10
XDFHH
AFFFF
PAFZZ
6110-00-946-8185
.CONTROL BOX,GENERATOR Y 3KW,400 HZ
13216E5870 97403
CKX
EA
1
10
PBFHH
XBFZZ
XBFZZ
6110-01-150-0735
..CONTROL BOX AND COVER ASSY
13218E7064 97403
CKX
EA
1
10
1
PAOZZ
PAFZZ
PAFZZ
5320-00-655-4757
..RIVET,SOLID
MS20426A3-4 96906
CKX
EA
4
10
2
PBOZZ
XBFZZ
XBFZZ
9905-00-450-1464
..PLATE,INSTRUCTION
13213E4067 97403
CKX
EA
1
10
3
PAOZZ
PAFZZ
PAFZZ
5320-00-234-8574
..RIVET,SOLID PLATE MTG
MS20470A3-5 96906
CKX
EA
4
10
4
PBOZZ
XBFZZ
XBFZZ
9905-01-071-2824
..NAMEPLATE WIRING DIAGRAM
13213E4169 97403
CKX
EA
1
10
5
PAOZZ
PAFZZ
PAFZZ
5320-00-117-6376
..RIVET,SOLID COVER MTG
MS20426B4-4 96906
CKX
EA
5
10
6
PAOZZ
PAFZZ
PAFZZ
5305-00-083-6645
..SCREW,ASSEMBLED WASHER
NAS1301C10-8 80205
CKX
EA
2
10
7
PAFZZ
XBFZZ
XBFZZ
6115-00-378-7450
..DOOR,ACCESS
13218E7063 97403
CKX
EA
1
10
8
PAOZZ
PAFZZ
PAFZZ
5320-00-582-3521
..RIVET,BLIND CONTROL BOX HINGE MTG
MS20600B4W3 96906
CKX
EA
5
10
9
PAOZZ
PAFZZ
PAFZZ
5340-00-498-7078
..HINGE,BUTT COVER
MS35823-1A 96906
CKX
EA
1
10
10
PAOZZ
PAFZZ
PAFZZ
5310-00-492-6028
..NUT,PRESS
13211E4854-3
CKX
EA
4
CKX
EA
2
10
11
PAOZZ
10
12
10
PAFZZ
PAFZZ
97403
5310-00-383-3658
..NUT,SELF-LOCKING
13217E6402-10 97403
PAOZZ
5325-00-432-9796
..STUD,TURNLOCK *
13208E5845 97403
EA
4
13
PAOZZ
5310-00-822-8525
..WASHER,SPLIT *
13213E5162 97403
EA
4
10
14
PAOZZ
5310-00-845-7769
..WASHER,LOCK *
13220E8321 97403
EA
4
10
15
PAOZZ
5325-00-282-7471
..RECEPTACLE, TURNLOCK
13213E5164 97403
EA
4
* USED ONLY ON GEN SETS
MANUFACTURED BEFORE
APRIL 1979.
37
*
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
Figure 11. Instruments and gages 400 Hz.
38
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG
ITEM
AIR
NO.
NO.
ARMY
FORCE
(3)
USMC
C
NAVY
D
USMC
A
SSI
(4)
B
NATIONAL
REPL
STOCK
FACTOR NUMBER
(5)
DESCRIPTION
REF NUMBER
& MFR CODE
(6)
(7)
(8)
USABLE
ON
CODE
U/M
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
11
1
PAOZZ
PAOZZ
PAOZZ
5355-00-556-0145
.KNOB,CONTROL SWITCHES
MS91528-1K2B 96906
CKX
EA
1
11
2
PBOZZ
XBFZZ
XBOZZ
9905-00-509-8239
.PLATE,INSTRUCTION CURRENT SELECTOR
13213E4089 97403
CKX
EA
1
11
3
PAFZZ
PAFZZ
PAFZZ
5930-00-259-4646
.SWITCH,ROTARY VOLTAGE SELECTOR
MS25002-2 96906
CKX
EA
1
11
4
PAOZZ
PAOZZ
PAOZZ
5355-00-556-0145
.KNOB
MS91528-1K2B
CKX
EA
1
96906
11
5
PBOZZ
XBFZZ
XBFZZ
9905-00-450-6595
.PLATE,INSTRUCTION VOLTAGE SELECTOR
13213E4088
97403
CKX
EA
1
11
6
PAFZZ
PAFZZ
PAFZZ
5905-00-643-5129
.RESISTOR VARIABLE
M22-03-00191FD 81349
CKX
EA
1
11
7
PAOZZ
PAOZZ
PAOZZ
5355-00-556-0145
.KNOB CONTROL SWITCHES
MS91528-1K28 96906
CKX
EA
1
11
8
PBOZZ
XBOZZ
XBOZZ
9905-00-455-9168
.PLATE,INSTRUCTION VOLTAGE ADJUSTING
13208E5764 97403
CKX
EA
1
11
9
PAFZZ
PAFZZ
PAFZZ
5930-00-538-5508
.SWITCH,ROTARY CURRENT
13211E4816 97403
CKX
EA
1
11
10
PAOZZ
PAFZZ
PAFZZ
5310-00-836-3520
.NUT,ASSEMBLED WASHER AC VOLTMETER MTG
511-041800 78189
CKX
EA
3
11
11
PAOZZ
PAFZZ
PAFZZ
5305-00-983-6730
.SCREW,MACHINE METER MTG
MS35206-218 96906
CKX
EA
3
11
12
PAOZZ
PAFZZ
PAFZZ
6625-00-065-5301
.VOLTMETER AC
13211E6905 97403
CKX
EA
1
11
13
PAOZZ
PAFZZ
PAFZZ
5310-00-836-3520
.NUT,ASSEMBLED WASHER AC VOLTMETER MTG
511-041800 78189
CKX
EA
1
11
14
PAOZZ
PAFZZ
PAFZZ
5305-00-983-6730
.SCREW,MACHINE FREQUENCY METER
INDICATOR MTG
MS35206-218 96906
CKX
EA
3
11
15
PAOZZ
PAFZZ
PAFZZ
6625-00-065-8554
.METER INDICATOR,FREQUENCY
13211E6992-2 97403
CKX
EA
1
11
16
PAOZZ
PAFZZ
PAFZZ
5310-00-836-3520
.NUT ASSEMBLED WASHER CURRENT INDICATOR
METER MTG
511-041800 78189
CKX
EA
1
11
17
PAOZZ
PAFZZ
PAFZZ
5305-00-983-6730
.SCREW,MACHINE CURRENT INDICATOR METER MTG CKX
MS35206-218 96906
EA
3
11
18
PAOZZ
PAFZZ
PAFZZ
6625-00-065-5258
.METER,CURRENT INDICATOR
13211E6919 97403
CKX
EA
1
11
19
PAFZZ
PAFZZ
PAFZZ
6115-00-016-2360
.PRINTED CIRCUIT BOARD
13211E4849 97403
CKX
EA
1
11
20
PAFZZ
PAFZZ
PAFZZ
5310-00-934-9747
.NUT,PLAIN HEXAGON METER MTG
MS35649-262 96906
CKX
EA
4
11
21
PAOZZ
PAFZZ
PAFZZ
5310-00-045-4007
.WASHER,LOCK METER MTG
MS35338-41 96906
CKX
EA
4
11
22
PAOZZ
PAFZZ
PAFZZ
5305-00-984-4988
.SCREW,MACHINE METER MTG
MS35206-228 96906
CKX
EA
4
11
23
PAOZZ
PAFZZ
PAFZZ
6645-00-762-7452
.METER,TIME TOTALIZING 400 HZ
MS28053-6 96906
CKX
EA
1
11
24
PAOZZ
PAFZZ
PAFZZ
5305-00-253-5614
.SCREW,DRIVE
MS21318-20 96906
CKX
EA
2
11
25
PBOZZ
XBFZZ
XBFZZ
9905-00-477-4131
.PLATE,IDENTIFICATION CIRCUIT BREAKER
13211E6888-1 97403
CKX
EA
1
11
26
PAFZZ
PAFZZ
PAFZZ
5305-00-984-4984
.SCREW,MACHINE CIRCUIT BREAKER MTG
MS35206-227 96906
CKX
EA
6
11
27
PAFZZ
PAFZZ
PAFZZ
5310-00-045-4007
.WASHER,LOCK BREAKER MTG
MS35338-41 96906
CKX
EA
6
11
28
PAFZZ
PAFZZ
PAFZZ
5310-00-082-1404
.WASHER,FLAT CIRCUIT BREAKER MTG
MS27183-6 96906
CKX
EA
6
11
29
PAFZZ
PAFZZ
PAFZZ
5925-00-682-0742
.CIRCUIT BREAKER
72-170-1MG6 74193
CKX
EA
1
CHANGE 39
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
C
D
FIG ITEM
AIR
NO. NO.
ARMY
FORCE NAVY USMC
(3)
USMC
A
SSI
(4)
B
NATIONAL
REPL
STOCK
FACTOR NUMBER
(5)
DESCRIPTION
REF NUMBER
& MFR CODE
(6)
(7)
(8)
USABLE
ON
CODE U/M
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
11
30
PAFZZ
PAFZZ
PAFZZ
5305-00-984-6194
.SCREW,MACHINE PLATE MTG
MS35206-246 96906
CKX
EA
4
11
31
PAFZZ
PAFZZ
PAFZZ
5310-00-045-3299
.WASHER,LOCK PLATE MTG
MS35338-42 96906
CKX
EA
4
11
32
PAFZZ
PAFZZ
PAFZZ
5310-00-809-8544
.WASHER,FLAT PLATE MTG
MS27183-7 96906
CKX
EA
4
11
33
PBOZZ
XBFZZ
XBFZZ
5925-00-407-6520
.BASE,CIRUIT BREAKER
13208E5848 97403
CKX
EA
1
40
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
Figure 12. Load terminals, capacitors and frequency converter, 400Hz
(41 blank)/42
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG
ITEM
AIR
NO.
NO.
ARMY
FORCE
(3)
USMC
(4)
A
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
(6)
(7)
USABLE
ON
CODE
(8)
U/M
QTY
USMC
INC
QTY
IN
PER
UNIT EQUIP
12
1
PAFZZ
PAFZZ
PAFZZ
5305-00-984-6193 SCREW,MACHINE CONVERTER MTG
MS35206-245 96906
CKX
EA
4
12
2
PAFZZ
PAFZZ
PAFZZ
5310-00-045-3299 WASHER,LOCK TERMINAL MTG
MS35338-42 96906
CKX
EA
4
12
3
PAFZZ
PAFZZ
PAFZZ
5310-00-809-8544 WASHER,FLAT CONVER MTG
MS27183-7 96906
CKX
EA
4
12
4
PAFZZ
PAFZZ
PAFZZ
6115-00-659-2786 CONVERTER,FREQUENCY
13212E8933 97403
CKX
EA
1
12
5
XDOZZ
PAFZZ
PAFZZ
5310-00-761-6882 NUT,PLAIN,HEXAGON CAPACITOR MTG
MS51967-2 96906
CKX
EA
2
12
6
PAOZZ
PAFZZ
PAFZZ
5310-00-889-2528 WASHER,LOCK CAPACITOR MTG
MS45904-68 96906
CKX
EA
2
12
7
PAOZZ
PAFZZ
PAFZZ
5910-00-882-0556 CAPACITOR,FIXED CONTROL PANEL
CA37KFW104 81349
CKX
EA
2
12
8
PAOZZ
PAFZZ
PAFZZ
5910-00-504-7418 CAPACITOR,FIXED,CONTROL PANEL
CA36KFW104 81349
CKX
EA
2
12
9
PAOZZ
PAFZZ
PAFZZ
5305-00-988-1724 SCREW,MACHINE CAPACITOR MTG
MS35206-280 96906
CKX
EA
2
12
10
PAOZZ
PAFZZ
PAFZZ
5310-00-158-4489 NUT,PLAIN,HEXAGON TERMINAL POST
MS35649-2255T 96909
CKX
EA
8
12
11
PAOZZ
PAFZZ
PAFZZ
5310-00-184-8970 WASHER,LOCK TERMINAL POST
MS35338-101 96906
CKX
EA
4
12
12
PAOZZ
PAFZZ
PAFZZ
5310-00-720-8394 WASHER,FLAT TERMINAL POST
MS15795-510 6906
CKX
EA
8
12
13
PAOZZ
PAFZZ
PAFZZ
5940-00-958-0349 TERMINAL,STUD POST LOAD
13208E5820-2 97403
CKX
EA
4
12
14
PAOZZ
PAFZZ
PAFZZ
5305-00-059-4568 SCREW,MACHINE TERMINAL STUD MTG
MS35190-253 96906
CKX
EA
4
12
15
PAOZZ
XBFZZ
XBFZZ
5940-00-477-9967 TERMINAL BOARD
13215E1942 97403
CKX
EA
1
12
16
PAOZZ
PAFZZ
PAFZZ
5305-00-253-5614 SCREW,DRIVE
MS21318-20 96906
CKX
EA
4
12
17
PAOZZ
XBFZZ
XBFZZ
CKX
EA
1
C
D
NAVY
USMC
B
REPL
SSI FACTOR
REF NUMBER
& MFR CODE
NAMEPLATE
13208E5841
97403
12
18
PAOZZ
PAFZZ
PAFZZ
5305-00-253-5614 SCREW,DRIVE
MS21318-20 96906
CKX
EA
4
12
19
PAOZZ
XBFZZ
XBFZZ
9905-01-150-2937 PLATE,IDENTIFICATION
73-0506-9 30554
CKX
EA
1
43
TN5-6115-271-24P
T.0.35C2-3-386-4
SL-4-05926A
Figure 13. Control Box Assembly, 400Hz
44
Change 3
TN5-6115-271-24P
T.0.35C2-3-386-4
SL-4-05926A
(1)
ILLUSTRATION
a
FIG
NO.
a
(2)
(3)
SMR CODE
USMC
b
REPL
FACTOR
(4)
(5)
(6)
(7)
(8)
U/M
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
EA
4
EA
4
EA
4
EA
1
EA
1
EA
3
EA
4
EA
1
EA
4
EA
4
EA
4
CKW
EA
EA
1
EA
4
EA
4
EA
4
EA
1
DESCRIPTION
b
ITEM
NO.
ARMY
b
c
d
a
AIR
FORCE NAVY USMC SSI
NATIONAL
STOCK
NUMBER
13
1
PAFZZ
PAFZZ
PAFZZ
5305-00-984-6193
13
2
PAFZZ
PAFZZ
PAFZZ
5310-00-045-1399
13
3
PAFZZ
PAFZZ
PAFZZ
5310-00-809-8544
13
4
PAFZZ
PAFZZ
PAFZZ
13
5
PAFZZ
XBFZZ
PAFZZ
5950-00682-0743
13
6
PAFZZ
XBFZZ
XBOZZ
5905-00-203-5400
13
7
PAOZZ
PAFZZ
PAFZZ
5305-00-253-5604
13
8
PBOZZ
PAFZZ
PAFZZ
9905-00450-6590
13
9
PAFZZ
PAFZZ
PAFZZ
5310-00-934-9747
13
10
PAFZZ
PAFZZ
PAFZZ
5310-00-809-8544
13
11
PAFZZ
PAFZZ
PAFZZ
5305-00-889-3001
13
12
PAOZZ
PAFZZ
PAFZZ
5310-00-445-4007
13
13
PAFZZ
PAFZZ
PAFZZ
5930-00-659-2672
13
14
PAFZZ
PAFZZ
PAFZZ
5305-00-984-6194
13
15
PAFZZ
PAFZZ
PAFZZ
5310-00-045-3299
13
16
PAFZZ
PAFZZ
PAFZZ
5310-00-809-8544
13
17
PBFZZ
XBFZZ
XBOZZ
5340-01-047-1900
REF NUMBER
& MFR CODE
USABLE
ON
CODE
• SCREW MACHNE TRANSORMER
CKX
MTG
MS35338-42
96906
• WASHER LOCK TRANSFORMER MTG CKW
MS35338-42
96906
• WASHER FLAT TRANSFORMER MTG CKW
MS27183-7
96906
• TRANSFORMER ASSEMBLY CURRENT CKW
13213E4128
97403
• TRANSFORMER CURRENT
CKW
13208E5837
97403
• RESISTOR FIXED WIRE
CKW
RWR74S2490FR
81349
• SCREW DRIVE
CKW
MS2131-2
96906
• PLAINE INSTRUCTION FUEL
CKW
13208E5757
97403
• NUT PLAN HEXAGON SWITCH MTG
CKW
MS349-262
96906
• WASHER FLAT SWITCH MTG
CKW
MS2716-7
96906
• SCREW MACHINE SWITCH UT
CKW
MS5206-231
96906
• WASHER LOCK SWITCH MTO
MS35338-41
96906
• SWITCH ROTARY OUUT SELECTOR
CKW
213E4091
97403
• SCREW MACHINE BRACKET MT
CKW
MS35206-246
96906
• WASHER LOCK BRACET UT
CKW
MS3338-42
96906
• WASHER LOCK BRACKET MTG
CKW
MS35338-42
96906
• BRACKET ANGLE SWITCH
CKW
13215E1938
97403
4
Change 3 45
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
Figure 14. Control box assembly, 400 Hz
46
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG ITEM
AIR
NO. NO.
ARMY
FORCE
(3)
USMC
C
NAVY
D
USMC
A
SSI
(4)
B
REPL
FACTOR
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
REF NUMBER
& MFR CODE
(6)
(7)
(8)
USABLE
ON
CODE
U/M
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
14
1
PAFZZ
PAFZZ
PAFZZ
5305-00-984-6199
.SCREW,MACHINE TERMINAL BOARD MTG
MS35206-251 96906
CKX
EA
4
14
2
PAFZZ
PAFZZ
PAFZZ
5310-00-045-3299
.WASHER,LOCK TERMINAL BOARD MTG
MS35338-42 96906
CKX
EA
4
14
3
PAFZZ
PAFZZ
PAFZZ
5310-00-809-8544
.WASHER,FLAT BOARD MTG
MS27183-7. 96906
CKX
EA
4
14
4
PAFZZ
PAFZZ
PAFZZ
5940-00-983-6100
.TERMINAL BOARD
39TB5 81349
CKX
EA
1
14
5
PAFZZ
XBFZZ
XBFZZ
5365-00-808-2527
.SPACER,SLEEVE TERMINAL BOARD MTG
NAS43DD3-40 80205
CKX
EA
4
14
6
PAFZZ
PAFZZ
PAFZZ
5325-00-828-6276
.GROMMET.NONMETALLIC CONTROL BOX
MS35489-68 96906
CKX
EA
2
14
7
PAFZZ
PAFZZ
PAFZZ
5305-00-063-3503
.SCREW,MACHINE STRAP MTG
MS24693S50 96906
CKX
EA
2
14
8
PAFZZ
PAFZZ
PAFZZ
5999-01-194-6870
.MOUNTING PAD
13216E3909 97403
CKX
EA
2
14
9
PAFZZ
PAFZZ
PAFZZ
5975-00-497-2158
.STRAP,TIEDOWN
MS17821-1-9 96906
CKX
EA
2
14
10
PAFZZ
PAFZZ
PAFZZ
2920-00-459-6685
.WIRING HARNESS
13216E5872 97403
CKX
EA
1
14
11
PBFZZ
XBFZZ
XBFZZ
6110-01-152-4608
.CONTROL BOX
13218E7065 97403
CKX
EA
1
14
12
XBFZZ
MFFZZ
XBFZZ
.LEAD ELECTRICAL
13213E4230-6 97403
CKX
EA
1
14
13
XBFZZ
MFFZZ
XBFZZ
.LEAD ELECTRICAL
13213E4230-1 97403
CKX
EA
1
14
14
XBFZZ
MFFZZ
XBFZZ
.LEAD ELECTRICAL
13213E4230-2 97403
CKX
EA
1
14
15
XBFZZ
MFFZZ
XBFZZ
.LEAD ELECTRICAL
13213E4230-3 97403
CKX
EA
1
14
16
XBFZZ
MFFZZ
XBFZZ
.LEAD ELECTRICAL
13213E4230-4 97403
CKX
EA
1
14
17
XBFZZ
MFFZZ
XBFZZ
.LEAD ELECTRICAL
13213E4230-7 97403
CKX
EA
1
14
18
XBFZZ
MFFZZ
XBFZZ
.LEAD ELECTRICAL
13213E4230-12 97403
CKX
EA
1
14
19
XBFZZM MFFZZ
XBFZZ
.LEAD ELECTRICAL
13213E4230-13 97403
CKX
EA
1
14
20
XBFZZ
XBFZZ
.LEAD ELECTRICAL
13213E4230-17 97403
CKX
EA
4
MFFZZ
47
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
Figure 15. Control Box Assembly, 28 VDC.
48 Change 2
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG ITEM
AIR
NO. NO.
ARMY FORCE
(3)
USMC
C
D
A
NAVY
USMC
SSI
(4)
B
NATIONAL
REPL
STOCK
FACTOR NUMBER
(5)
DESCRIPTION
USABLE
ON
CODE
REF NUMBER
& MFR CODE
(6) (7)
(8)
QTY
INC
IN
U/M UNIT
USMC
QTY
PER
EQUIP
GROUP 05 CONTROL BOX ASSEMBLY,28 VDC
15
PAFZZ
PAFZZ
15
XBFZZ
XBFZZ
15
PAFZZ
PAFZZ
6115-00-984-4728
CONTROL BOX ASSEMBLY
EA
1
CONTROL BOX AND COVER
13217E1782 97403
CKY
EA
1
5320-00-879-6606
..RIVET,TUBULAR
MS16535-154 96906
CKY
EA
6
15
2
XBFZZ
XBFZZ
9905-00-450-1464
..PLATE,INSTRUCTION OPERATING
INFORMATION
13213E4067 97403
CKY
EA
1
15
3
XBFZZ
XBFZZ
9905-01-013-6804
..PLATE,ELECTRICAL WIRE DIAGRAM
13213E4235 97403
CKY
EA
1
15
4
PAFZZ
PAFZZ
5320-00-117-6376
..RIVET,SOLID
MS20426B4-4 96906
CKY
EA
5
15
5
PAFZZ
PAFZZ
5305-00-083-6645
..SCREW,ASSEMBLED
NAS1301C10-8 80205
CKY
EA
2
15
6
XBFZZ
XBFZZ
5310-00-184-8970
..COVER,CONTROL BOX
13217E1781 97403
CKY
EA
1
15
7
PAFZZ
PAFZZ
5320-00-582-3521
..RIVET,BLIND
MS2060084W3 96906
CKY
EA
5
15
8
PAFZZ
PAFZZ
5340-00-498-7078
..HINGE BUTT
MS35823-1A
CKY
EA
1
15
9
PAOZZ
PAOZZ
5355-00-556-0145
.KNOB,RESISTOR
MS91528-1K2B 96906
CKY
EA
1
15
10
XBFZZ
XBOZZ
9905-00-455-9168
.PLATE,INSTRUCTION ADJUSTING
13208E5764 97403
CKY
EA
1
15
11
PAOZZ
PAFZZ
5905-00-643-5129
.RESISTOR VARIABLE
M22-03-00191FD 81349
CKY
EA
1
15
12
PAFZZ
PAFZZ
5310-00-836-3520
.NUT ASSEMBLED WASHER VOLTMETER
MTG
511-041800 78189
CKY
EA
3
15
13
PAFZZ
PAFZZ
5305-00-983-6730
.SCREW,MACHINE
MS35206-218 96906
CKY
EA
3
15
14
PAFZZ
PAFZZ
6625-00-078-6377
.VOLTMETER, DC
13208E8535 97403
CKY
EA
1
15
15
PAFZZ
PAFZZ
5310-00-836-3520
.NUT,ASSEMBLED WASHER CURRENT
511-041800 78189
CKY
EA
3
15
16
PAFZZ
PAFZZ
5305-00-983-6730
.SCREW,MACHINE METER MTG
MS35206-218 96906
CKY
EA
3
16
17
PAFZZ
PAFZZ
6625-00-068-0562
.METER,INDICATOR CURRENT
13208E8534 97403
CKY
EA
1
15
18
PAFZZ
PAFZZ
5310-00-836-3520
.NUT,ASSEMBLED WASHER RPM METER MTG
511-041800 78189
CKY
EA
1
15
19
PAFZZ
PAFZZ
5305-00-983-6730
.SCREW,MACHINE METER MTG
MS35206-218 96906
CKY
EA
3
15
20
PAFZZ
PAFZZ
6680-00-984-4745
.METER,RPM
13211E5004
CKY
EA
1
97403
15
21
PAFZZ
PAFZZ
5310-00-836-3520
.NUT,ASSEMBLED WASHER TIME
TOTALIZING METER MTG
511-041800 78189
CKY
EA
1
15
22
PAFFZ
PAFZZ
5305-00-983-6730
.SCREW,MACHINE TOTALIZING METER MTG
MS35206-218 96906
CKY
EA
3
15
23
PAFZZ
PAFFZ
6645-00-089-8842
.METER TIME TOTALIZING 28 VDC
M3971/1-5 81349
CKY
EA
1
15
24
PAFZZ
PAFFZ
5305-00-984-4988
.SCREW,MACHINE CIRCUIT BREAKER MTG
MS35206-228 96906
CKY
EA
4
15
25
PAFZZ
PAFFZ
5310-00-045-4007
.WASHER, LOCK CIRCUIT BREAKER MTG
MS35338-41 96906
CKY
EA
4
15
26
PAFZZ
PAFZZ
5310-00-082-1404
.WASHER,FLAT CIRCUIT BREAKER MTG
MS27183-6 96906
CKY
EA
4
15
27
PAFZZ
PAFZZ
5925-00-961-1202
.CIRCUIT BREAKER
13208E5845 97403
CKY
EA
1
15
28
PAOZZ
5325-00-432-9796
..STUD,TURNLOCK*
13208E5845 97403
*
EA
4
CHANGE 49
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG ITEM
AIR
NO. NO.
ARMY FORCE
(3)
USMC
C
D
A
NAVY USMC SSI
(4)
B
REPL
FACTOR
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
REF NUMBER
& MFR CODE
(6)
USABLE
ON
CODE
U/M
(7)
(8)
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
15
29
PAOZZ
5310-00-822-8525
..WASHER,SPLIT *
13213E5162 97403
·
EA
4
15
30
PAOZZ
5310-00-845-7769
..WASHER, LOCK *
13220E8321 97403
·
EA
4
15
31
PAOZZ
5325-00-282-7841
..RECEPTACLE, TURNLOCK *
13213E5164 97403
EA
4
* USED ONLY ON GEN SETS
MANUFACTURED BEFORE
APRIL, 1979.
CHANGE 1
50
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG ITEM
AIR
NO. NO.
ARMY
FORCE
(3)
USMC
C
NAVY
D
USMC
A
SSI
(4)
B
REPL
FACTOR
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
REF NUMBER
& MFR CODE
(6)
(7)
(8)
USABLE
ON
CODE
U/M
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
16
1
XDOZZ
PAOZZ
PAFZZ
5310-00-761-6882
.NUT,PLAIN,HEXAGON CAPACITOR MTG
MS51967-2 96906
CKY
EA
1
16
2
PAOZZ
PAOZZ
PAFZZ
5310-00-889-2528
.WASHER,LOCK TERMINAL BOARD MTG
MS45904 96906
CKY
EA
3
16
3
PAOZZ
PAOZZ
PAFZZ
5305-00-068-0502
.SCREW,CAP HEXAGON CAPACITOR MTG
MS90725-6 96906
CKY
EA
1
16
4
PAOZZ
PAOZZ
PAFZZ
5310-00-809-4058
.WASHER,FLAT OR MTG
MS275183-10 96906
CKY
EA
1
16
5
PAOZZ
PAOZZ
PAFZZ
5305-00-637-1124
.SCREW,MACHINE CAPACITOR TERMINAL
MS35214-40 96906
CKY
EA
2
16
6
PAOZZ
PAOZZ
PAFZZ
5310-00-019-0670
.WASHER,LOCK CAPACITOR TERMINAL
MS35333-106 96906
CKY
EA
2
16
7
PAOZZ
PAOZZ
PAFZZ
5910-00-280-9988
.CAPACITOR,RADIO SUPPRESSION
CA32KFB504 81349
CKY
EA
1
16
8
PAOZZ
PAOZZ
PAFZZ
5910-00-280-9988
.CAPACITOR,RADIO SUPPRESSION
CA32KFB504 81349
CKY
EA
1
16
9
PAOZZ
PAFZZ
PAFZZ
5310-00-913-5474
.NUT,PLAIN,HEXAGON TERMINAL STUD
MS51969-5 96906
CKY
EA
4
16
10
PAOZZ
PAFZZ
PAFZZ
5310-00-577-5354
.WASHER,LOCK TERMINAL STUD
MS35338-105 96906
CKY
EA
2
16
11
PAOZZ
PAFZZ
PAFZZ
5310-00-982-6600
.WASHER FLAT,TERMINAL STUD
MS15795-518 96906
CKY
EA
4
16
12
PAFZZ
PAFZZ
PAFZZ
6150-00-479-8773
.BUS,CONDUCTOR NEGATIVE TERMINAL TO CKY
CIRCUIT BREAKER
13213E4233 97403
EA
1
16
13
PAFZZ
XBFZZ
PAFZZ
6150-01-095-4581
.BUS BAR POSITIVE TERMINAL TO
CIRCUIT BREAKER
13213E4248 97403
CKY
EA
1
16
14
PAOZZ
PAFZZ
PAFZZ
5940-00-113-8185
.TERMINAL,LUG TERMINAL STUD
MS25036-151 96906
CKY
EA
2
16
15
PAOZZ
PAFZZ
PAFZZ
5310-00-042-4229
.WASHER,LOCK TERMINAL STUD
MS35333-113 96906
CKY
EA
2
16
16
PAOZZ
PAFZZ
PAFZZ
5940-00-958-1214
.TERMINAL,STUD
12308E820-1 97403
CKY
EA
2
16
17
PAOZZ
PAFZZ
PAFZZ
5305-00-984-4992
.SCREW MACHINE STUD INSULATOR MTG
MS35206-232 96906
CKY
EA
1
16
18
PAOZZ
PAFZZ
PAFZZ
5970-00-929-5627
.INSULATOR,PLATE
13216E3987 97403
CKY
EA
1
16
19
PAOZZ
PAFZZ
PAFZZ
5310-00-934-9747
.NUT,PLAN HEXAGON CAPACITOR
CLAMP MOUNTING
MS35649-262 96906
CKY
EA
1
16
20
PAOZZ
PAFZZ
PAFZZ
5310-00-045-4007
.WASHER,LOCK OR CLAMP MTG
MS35338-41 96906
CKY
EA
1
16
21
PAOZZ
PAFZZ
PAFZZ
5310-00-082-1404
.WASHER,FLAT OR CLAMP MTG
MS27183-6 96906
CKY
EA
1
16
22
PAOZZ
XBFZZ
PAFZZ
5340-00-964-2555
.CLAMP,LOOP MTR
NAS1397P6N 80205
CKY
EA
2
16
23
PAOZZ
PAFZZ
PAFZZ
5910-00-175-4633
.CAPACITOR,FIZED CONTROL PANEL
MS9006/01-3072
CKY
EA
1
16
24
PAOZZ
PAFZZ
PAFZZ
5303-00-958-5477
.SCREW,MACHINE INSULATOR MTG
MS35190-254 96906
CKY
EA
4
16
25
PAFZZ
PAFZZ
PAFZZ
6150-00-489-0529
.BUS,CONDUCTOR SHUNT TO CIRCUIT
BREAKER
13213E4250 97403
CKY
EA
1
16
26
PAFZZ
PAFZZ
PAFZZ
5305-00-984-6194
.SCREW,MACHINE SHUNT MTG
MS35206-246 96906
CKY
EA
2
16
27
PAFZZ
PAFZZ
PAFZZ
5310-00-045-3294
.WASHER,LOCK SHUNT
MS35338-42 96906
CKY
EA
2
16
28
PAFZZ
PAFZZ
PAFZZ
5310-00-809-8544
.WASHER,FLAT SHUNT MTG
MS27183-7 96906
CKY
EA
2
16
29
PAFZZ
PAFZZ
PAFZZ
6625-00-055-9760
.SHUNT,INSTRUMENT
13213E4264 96403
CKY
EA
1
CHANGE 1
51
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(50.1 blank)/ 50.2
Change 1
Figure 16.
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG
ITEM
AIR
NO.
NO.
ARMY
FORCE
(3)
USMC
(4)
A
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
(6)
(7)
USABLE
ON
CODE
(8)
U/M
QTY
USMC
INC
QTY
IN
PER
UNIT EQUIP
16
1
XDOZZ
PAOZZ
PAFZZ
5310-00-761-6882 NUT,PLAIN,HEXAGON CAPACITOR MTG
MS51967-2 96906
CKY
EA
1
16
2
PAOZZ
PAOZZ
PAFZZ
5310-00-889-2528 WASHER,LOCK TERMINAL BOARD MTG
MS45904 96906
CKY
EA
3
16
3
PAOZZ
PAOZZ
PAFZZ
5305-00-068-0502 SCREW,CAP HEXAGON CAPACITOR MTG
MS90725-6 96906
CKY
EA
1
16
4
PAOZZ
PAOZZ
PAFZZ
5310-00-809-4058 WASHER,FLAT OR MTG
MS275183-10 96906
CKY
EA
1
16
5
PAOZZ
PAOZZ
PAFZZ
5305-00-637-1124 SCREW,MACHINE CAPACITOR TERMINAL
MS35214-40 96906
CKY
EA
2
16
6
PAOZZ
PAOZZ
PAFZZ
5310-00-019-0670 WASHER,LOCK CAPACITOR TERMINAL
MS35333-106 96906
CKY
EA
2
16
7
PAOZZ
PAOZZ
PAFZZ
5910-00-280-9988 CAPACITOR,RADIO SUPPRESSION
CA32KFB504 81349
CKY
EA
1
16
8
PAOZZ
PAOZZ
PAFZZ
5910-00-280-9988 CAPACITOR,RADIO SUPPRESSION
CA32KFB504 81349
CKY
EA
1
16
9
PAOZZ
PAFZZ
PAFZZ
5310-00-913-5474 NUT,PLAIN,HEXAGON TERMINAL STUD
MS51969-5 96906
CKY
EA
4
16
10
PAOZZ
PAFZZ
PAFZZ
5310-00-577-5354 WASHER,LOCK TERMINAL STUD
MS35338-105 96906
CKY
EA
2
16
11
PAOZZ
PAFZZ
PAFZZ
5310-00-982-6600 WASHER FLAT,TERMINAL STUD
MS15795-518 96906
CKY
EA
4
16
12
PAFZZ
PAFZZ
PAFZZ
6150-00-479-8773 BUS,CONDUCTOR NEGATIVE TERMINAL TO
CIRCUIT BREAKER
13213E4233 97403
CKY
EA
1
16
13
PAFZZ
XBFZZ
PAFZZ
6150-01-095-4581 BUS BAR POSITIVE TERMINAL TO
CIRCUIT BREAKER
13213E4248 97403
CKY
EA
1
16
14
PAOZZ
PAFZZ
PAFZZ
5940-00-113-8185 TERMINAL,LUG TERMINAL STUD
MS25036-151 96906
CKY
EA
2
16
15
PAOZZ
PAFZZ
PAFZZ
5310-00-042-4229 WASHER,LOCK TERMINAL STUD
MS35333-113 96906
CKY
EA
2
16
16
PAOZZ
PAFZZ
PAFZZ
5940-00-958-1214 TERMINAL,STUD
12308E820-1 97403
CKY
EA
2
16
17
PAOZZ
PAFZZ
PAFZZ
5305-00-984-4992 SCREW MACHINE STUD INSULATOR MTG
MS35206-232 96906
CKY
EA
1
16
18
PAOZZ
PAFZZ
PAFZZ
5970-00-929-5627 INSULATOR,PLATE
13216E3987 97403
CKY
EA
1
16
19
PAOZZ
PAFZZ
PAFZZ
5310-00-934-9747 NUT,PLAN HEXAGON CAPACITOR
CLAMP MOUNTING
MS35649-262 96906
CKY
EA
1
16
20
PAOZZ
PAFZZ
PAFZZ
5310-00-045-4007 WASHER,LOCK OR CLAMP MTG
MS35338-41 96906
CKY
EA
1
16
21
PAOZZ
PAFZZ
PAFZZ
5310-00-082-1404 WASHER,FLAT OR CLAMP MTG
MS27183-6 96906
CKY
EA
1
16
22
PAOZZ
XBFZZ
PAFZZ
5340-00-964-2555 CLAMP,LOOP MTR
NAS1397P6N 80205
CKY
EA
2
16
23
PAOZZ
PAFZZ
PAFZZ
5910-00-175-4633 CAPACITOR,FIZED CONTROL PANEL
MS9006/01-3072
CKY
EA
1
16
24
PAOZZ
PAFZZ
PAFZZ
5303-00-958-5477 SCREW,MACHINE INSULATOR MTG
MS35190-254 96906
CKY
EA
4
16
25
PAFZZ
PAFZZ
PAFZZ
6150-00-489-0529 BUS,CONDUCTOR SHUNT TO CIRCUIT
BREAKER
13213E4250 97403
CKY
EA
1
16
26
PAFZZ
PAFZZ
PAFZZ
5305-00-984-6194 SCREW,MACHINE SHUNT MTG
MS35206-246 96906
CKY
EA
2
16
27
PAFZZ
PAFZZ
PAFZZ
5310-00-045-3294 WASHER,LOCK SHUNT
MS35338-42 96906
CKY
EA
2
16
28
PAFZZ
PAFZZ
PAFZZ
5310-00-809-8544 WASHER,FLAT SHUNT MTG
MS27183-7 96906
CKY
EA
2
16
29
PAFZZ
PAFZZ
PAFZZ
6625-00-055-9760 SHUNT,INSTRUMENT
13213E4264 96403
CKY
EA
1
C
D
NAVY
USMC
B
REPL
SSI FACTOR
CHANGE 1
51
REF NUMBER
& MFR CODE
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG ITEM
AIR
NO. NO. ARMY
FORCE
(3)
USMC
C
NAVY
D
USMC
A
SSI
(4)
B
REPL
FACTOR
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
(6)
REF NUMBER
& MFR CODE
(7)
(8)
USABLE
ON
CODE
U/M
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
16
30
PAFZZ PAFZZ
PAFZZ
5310-00-934-9757
.NUT,PLAIN HEXAGON INSULATOR MTG
MS35649-282 96906
CKY
EA
4
16
31
PAFZZ PAFZZ
PAFZZ
5310-00-045-3299
.WASHER LOCK INSULATOR MTG
MS35338-42 96906
CKY
EA
4
16
32
PAFZZ PAFZZ
PAFZZ
5310-00-809-8544
.WASHER,FLAT INSULATOR MTG
MS2718-7 96906
CKY
EA
4
16
33
PAOZZ PAOZZ
PAOZZ
5910-01-060-9517
.CAPACITOR
MS39006-09-8403
CKY
EA
1
CHANGE 1
52
81349
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(53 blank)/54
Figure 17. Heat sink mounting and nameplate, 28 VDC
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG ITEM
AIR
NO. NO.
ARMY
FORCE
(3)
USMC
C
NAVY
D
USMC
A
SSI
(4)
B
REPL
FACTOR
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
REF NUMBER
& MFR CODE
(6)
(7)
(8)
USABLE
ON
CODE
U/M
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
17
1
PAOZZ
PAFZZ
PAFZZ
5305-00-840-5938
.SCREW,DRIVE PLATE MTG
MS21318-19 96906
CKY
EA
4
17
2
PBOZZ
XBFZZ
PAFZZ
9905-00-450-6590
.PLATE,INSTRUCTION FUEL
73208E5757 97403
CKY
EA
1
17
3
PAOZZ
PAFZZ
PAFZZ
5305-00-840-5938
.SCREW,DRIVE NAMEPLATE MTG
MS21318-19 96906
CKY
EA
2
17
4
PBOZZ
XBFZZ
PAFZZ
9905-00-477-4131
.PLATE,IDENTIFICATION CIRCUIT BREAKER CKY
13211E6888-1 97403
EA
1
17
5
PAOZZ
PAFZZ
PAFZZ
5305-00-840-5938
.SCREW,DRIVE NAMEPLATE MTG
MS21318-19 96906
CKY
EA
4
17
6
PAOZZ
PAFZZ
PAFZZ
9905-01-145-4518
.PLATE,IDENTIFICATION
73-0506-8 30554
CKY
EA
1
17
7
PAOZZ
PAFZZ
PAFZZ
5305-00-840-5938
.SCREW,DRIVE NAMEPLATE MTG
MS21318-19 96906
CKY
EA
2
17
8
PBOZZ
XBFZZ
PAFZZ
9905-00-197-1214
.PLATE IDENTIFICATION TERMINAL
13208E5795 97403
CKY
EA
1
17
9
PAFZZ
PAFZZ
PAFZZ
5325-00-171-4688
.GROMMET NONMETALLIC CONTROL
PANEL BOTTOM
MS35489-44 96906
CKY
EA
2
17
10
PAFZZ
XBFZZ
XAFZZ
5325-00-958-4293
.STUD,TURNLOCK FASTENER
82-11-140-17 94222
CKY
EA
2
17
11
PAFZZ
XBFZZ
XAFZZ
5307-00-453-9006
.STUD,BALL MTG
13208E5791 97403
CKY
EA
2
17
12
PAFZZ
PAFZZ
PAFZZ
5310-00-492-6028
..NUT,SELF-LOCKING PLATE MTG
13211E4854-3 97403
CKY
EA
2
17
13
MFFZZ
XBFZZ
XBFZZ
9390-01-494-6868
..NONMETALLIC CHANNEL PLATE
13213E4265 97403
CKY
EA
4
17
13A
MFFZZ
..CHANNEL,RUBBER PLATE
13213E4266 97403
CKY
EA
1
17
14
PAFZZ
XBFZZ
XBFZZ
6115-01-135-3413
.PLATE,COVER RH
13213E4262 97403
CKY
EA
1
17
15
PAFZZ
PAFZZ
PAFZZ
5305-00-068-0502
.SCREW,CAP HEXAGON HEAT SINK MOUNTING CKY
MS90725-6 96906
EA
9
17
18
PAFZZ
PAFZZ
PAFZZ
5310-00-582-5965
.WASHER,LOCK HEAT SINK MTG
MS35338-44 96906
CKY
EA
8
17
17
PAFZZ
PAFZZ
PAFZZ
5310-00-809-4058
.WASHER,FLAT,MTG
MS27183-10 96906
CKY
EA
8
17
18
PAFZZ
PAFZZ
PAFZZ
5970-00-177-1756
.INSULATOR,PLATE HEAT SINK MTG
13213E4263 97403
CKY
EA
2
17
19
PBFZZ
XBFZZ
PBFZZ
5999-01-126-4660
.MOUNTING PAD ELECTRIC RH
13213E4239 97403
CKY
EA
1
55
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
56
Figure 18. Heat sink, (exploded view) 28 VDC
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG
ITEM
AIR
NO.
NO. ARMY
FORCE
(3)
USMC
C
NAVY
D
USMC
A
SSI
(4)
B
REPL
FACTOR
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
REF NUMBER
& MFR CODE
(6)
(7)
(8)
USABLE
ON
CODE
U/M
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
18
1
XDFZZ
PAFZZ
PAFZZ
5310-00-761-6882
..NUT,PLAIN HEXAGON PLATE LH
MS51967-2 96906
CKY
EA
8
18
2
PAFZZ
PAFZZ
PAFZZ
5310-00-682-5930
..WASHER,LOCK PLATE TO HEAT SINK
MS35340-44 96906
CKY
EA
8
18
3
PAFZZ
PAFZZ
PAFZZ
5305-00-071-2510
..SCREW CAP HEXAGON
MS90725-13 96906
CKY
EA
8
18
4
PBFZZ
XBFZZ
PBFZZ
5999-01-477-0566
..SPACER,SLEEVE PLATE TO HEAT SINK CKY
13208ES798 97403
EA
8
18
5
PBFZZ
XBFZZ
PBFZZ
5970-01-112-8692
..PLATE,MOUNTING HEAT SINK
13208E5935 97403
CKY
EA
2
18
6
PAFZZ
PAFZZ
PAFZZ
5961-00-069-4247
..SEMICONDUCTOR DEVICE
1N3086 07688
CKY
EA
3
18
6
PAFZZ
PAFZZ
PAFZZ
5961-00-901-5812
..SEMICONDUCTOR DEVICE
1N3086R 80131
CKY
EA
3
18
7
PAFZZ
PAFZZ
PAFZZ
5305-00-984-6196
..SCREW MACHINE TERMINAL BOARD MTG CKY
MS35206-248 96906
EA
8
18
8
PAFZZ
PAFZZ
PAFZZ
5310-00-045-3299
..WASHER,LOCK TERMINAL BOARD MTG
MS35338-42 96906
CKY
EA
8
18
9
PAFZZ
PAFZZ
PAFZZ
5310-00-809-8544
..WASHER,FLAT TERMINAL BOARD MTG
MS27183-7 96906
CKY
EA
8
18
10
PAFZZ
XBFZZ
XBFZZ
5940-00-191-3207
..TERMINAL BOARD HEAT SINK
13208E5868 97403
CKY
EA
2
18
11
PAFZZ
XBFZZ
XBFZZ
5940-00-936-2259
..MARKER STRIP,TERMINAL BOARD
13213E4114 97403
CKY
EA
2
18
12
PBFZZ
XBFZZ
XBFZZ
5999-01-112-0482
.HEAT SINK
13213E4238
CKY
EA
2
57
97403
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
Figure 19. Frequency converter, Voltage regulator,
and terminal board, 28 VDC.
58
Change 1
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG ITEM
AIR
NO. NO. ARMY
FORCE
()
USMC
C
NAVY
D
USMC
A
SSI
(4)
B
REPL
FACTOR
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
REF NUMBER
& MFR CODE
(6)
(7)
(8)
USABLE
ON
CODE
U/M
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
19
1
PAFZZ
PAFZZ
PAFZZ
5305-00-984-6193
.SCREW,MACHINE CONVERTER
MS35206-245 96906
CKY
EA
4
19
2
PAFZZ
PAFZZ
PAFZZ
5310-00-045-3299
.WASHER,LOCK CONVERTER MTG
MS35338-42
CKY
EA
4
19
3
PAFZZ
PAFZZ
PAFZZ
5310-00-809-8544
.WASHER FLAT CONVERTER MTG
MS27183-7 96906
CKY
EA
4
19
4
PAOZZ
PAFZZ
PAFZZ
6125-00-659-2935
.FREQUENCY CONVERTER
13213E4237 97403
XKY
EA
1
19
5
MFFZZ
XBFZZ
XBFZZ
.CHANNEL,RUBBER PLATE
13213E4124-3 97403
CKY
EA
2
19
5
MFFZZ
XBFZZ
ZBFZZ
.CHANNEL,RUBBER PLATE
13213E4266 97403
CKY
EA
2
19
6
PAFZZ
XBFZZ
XAFZZ
5307-00-453-9006
.RETAINER STUD PLATE MTG
13208E5791 97403
CKY
EA
4
19
7
PAFZZ
PAFZZ
XAFZZ
5325-00-958-4293
.STUD,TURNLOCK FASTENER PLATE MTG
82-11-140-17 94222
CKY
EA
2
19
8
PBFZZ
XBFZZ
XAFZZ
.PLATE,COVER LH
1321E4261 97403
CKY
EA
1
19
9
PAFZZ
PAFZZ
PAFZZ
5325-00-828-6276
.GROMMET,NONMETALLIC THRU BOX
MS35489-68 96906
CKY
EA
1
19
10
PAFZZ
PAFZZ
PAFZZ
5310-00-934-9757
.NUT,PLAIN HEXAGON TERMINAL BOARD MTG CKY
MS35649-282 96906
EA
4
19
11
PAFZZ
PAFZZ
PAFZZ
5310-00-045-3299
.WASHER LOCK
MS35338-42 96906
CKY
EA
4
19
12
PAFZZ
PAFZZ
PAFZZ
5310-00-809-8544
.WASHER,FLAT TERMINAL BOARD MTG
MS27183-7 96906
CKY
EA
4
19
13
PAFZZ
PAFZZ
PAFZZ
5305-00-245-9662
.SCREW,MACHINE TERMINAL BOARD MTG
MS35190-256 96906
CKY
EA
4
19
14
PAFZZ
PAFZZ
PAFZZ
5940-00-191-3207
.TERMINAL BOARD CONTROL BOX
13208E5868 97430
CKY
EA
1
19
15
PAFZZ
XBFZZ
PAFZZ
5940-00-936-2259
.MARKER STRIP,TERMINAL BOARD
13213E4114 97403
CKY
EA
1
19
16
PBFFF
XBFZZ
XAFZZ
6110-01-144-7988
.CONTROL BOX
13217E1780 97403
CKY
EA
1
19
XBFZZ
MFFZZ
XBFZZ
.LEAD,ELECTRICAL
13213E4259-5 97403
CKY
EA
1
19
XBFZZ
MFFZZ
XBFZZ
.LEAD,ELECTRICAL
13213E4259-4 97403
CKY
EA
1
19
XBFZZ
MFFZZ
XBFZZ
.LEAD,ELECTRICAL
CKY
EA
1
13213E4259-5
97403
19
XBFZZ
MFFZZ
XBFZZ
.LEAD,ELECTRICAL
13213E4259-1
CKY
EA
1
19
XBFZZ
MFFZZ
XBFZZ
.LEAD,ELECTRICAL
13213E4259-2 97403
CKY
EA
1
19
PAFZZ
PAFZZ
PAFZZ
6115-00-984-4740
.WIRING HARNESS CONTROL PANEL
13213E4254 97403
CKY
EA
1
19
PAOZZ
XBFZZ
PAFZZ
5975-00-074-2072
..STRAP,NYLON
MS3367-1-9 96906
CKY
EA
14
19
PAOZZ
PAFZZ
PAFZZ
5940-00-114-1305
..TERMINAL,LUG
MS25036-116 96906
CKY
EA
6
19
PAOZZ
PAFZZ
PAFZZ
5940-00-557-4344
EA
2
PAOZZ
PAFZZ
PAFZZ
5940-00-113-8184
..TERMINAL,LUG
MDS25036-120 96906
..TERMINAL,LUG
MS25036-150 96906
CKY
19
CKY
EA
16
19
PAOZZ
PAFZZ
PAFZZ
5940-00-557-1629
..TERMINAL,LUG
MS25036-149 96906
CKY
EA
2
19
PAOZZ
PAFZZ
PAFZZ
5940-00-813-0698
..TERMINAL,LUG
MS25036-101 96906
CKY
EA
10
CHANGE 2
59
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG ITEM
AIR
NO. NO.
ARMY
FORCE
(3)
USMC
C
NAVY
D
USMC
A
SSI
(4)
B
REPL
FACTOR
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
REF NUMBER
& MFR CODE
USABLE
ON
CODE
(6) (7)
(8)
QTY
INC
IN
U/M UNIT
USMC
QTY
PER
EQUIP
19
PAFZZ
PAFZZ
PAFZZ
6115-00-984-4744
.CABLE ASSEMBLY CONTROL PANEL CKY
13213E4257 97403
EA
1
19
PAOZZ
XBFZZ
XBFZZ
5975-00-074-2072
..STRAP ADJUSTING
MS3367-19 96906
CKY
EA
2
19
PAOZZ
PAFZZ
PAFZZ
5940-00-114-1305
..TERMINAL,LUG
MS25036-116 96906
CKY
EA
6
19
17
PAOFF
PAOFF
PAOFF
6110-00-764-7621
REGULATOR, VOLTAGE
13219E0883 97403
CKY
EA
1
19
18
PAOZZ
PAFZZ
PAFZZ
5305-00-984-6194
SCREW,MACHINE COVER MTG
MS35206-246 96906
CKY
EA
3
19
19
PAFZZ
PAFZZ
PAFZZ
5310-00-559-0070
WASHER,LOCK
MS35333-38 96906
CKY
EA
4
CHANGE 1
60
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(61 blank)62 Change 1
Figure 20. Engine and Generator Mounting
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG
ITEM
AIR
NO.
NO.
ARMY
FORCE
(3)
USMC
C
NAVY
D
USMC
A
SSI
(4)
B
REPL
FACTOR
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
REF NUMBER
& MFR CODE
(6)
USABLE
ON
CODE
U/M
(7)
(8)
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
GROUP 06 ENGINE AND GENERATOR MOUNTING
20
PAFHH
PAOZZ
PAOZZ
2805-00-068-7512
ENGINE, GASOLINE
13206E0000 97403
1
EA
1
20
1
PAOZZ
PAOZZ
PAOZZ
2805-01-045-9735
EXTENSION, OIL DRAIN
13219E3810 97403
20
2
PAOZZ
PAOZZ
PAOZZ
5310-00-788-0444
WASHER, ROLLED
13206E1425 97403
EA
1
20
3
PAFZZ
PAFZZ
PAFZZ
5310-00-880-7744
NUT, PLAIN HEXAGON ENGINE MTG
MS51967-5 96906
EA
2
20
4
PAFZZ
PAFZZ
PAFZZ
5310-00-889-2527
WASHER, LOCK ENGINE MTG
MS45904-72 96906
EA
4
20
5
PAFZZ
PAFZZ
PAFZZ
5306-00-225-8504
BOLT, MACHINE ENGINE MTG
MS90725-40 96906
EA
2
20
6
PAFZZ
PAFZZ
PAFZZ
5306-01-021-0607
BOLT, MACHINE SHROUD MTG
13216ES875 97403
EA
3
20
7
PAFZZ
PAFZZ
PAFZZ
5310-00-167-0721
WASHER, LOCK MTG
MS35333-41 96906
EA
3
20
8
PBFZZ
PBFZZ
PAFZZ
2990-00-118-1589
SHROUD, WARM AIR
13208E5889 97403
EA
1
20
9
PAFZZ
PAFZZ
PAFZZ
5305-00-978-9395
SCREW, CAP SOCKET HEAD: GENERATOR
TO ENGINE
MS16997-100 96906
EA
8
20
10
PAFZZ
PAFZZ
PAFZZ
5310-00-595-7237
WASHER, LOCK GENERATOR TO ENGINE
MS35333-42 96906
EA
8
20
11
PAFZZ
PAFZZ
PAFZZ
5305-00-269-3214
SCREW, CAP HEXAGON GENERATOR MTG
MS90725-64 96906
EA
4
20
12
PAFZZ
PAFZZ
PAFZZ
5310-00-061-1258
WASHER, LOCK GENERATOR MTG
MS45904-76 96906
EA
4
CHANGE 1
63
CKW
EA
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
Figure 21. Generator Assembly, 60 Hz.
64 Change 1
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG ITEM
AIR
NO. NO.
ARMY
FORCE
21
PBFDD
PBFDD
(3)
USMC
C
NAVY
D
USMC
A
SSI
(4)
B
REPL
FACTOR
PAFZZ
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
(6)
USABLE
ON
CODE
U/M
REF NUMBER
& MFR CODE
(7)
(8)
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
GROUP 07 GENERATOR ASSEMBLY .60 HZ
CKW
6115-00-999-5675
GENERATOR ASSEMBLY 3KW.60HZ
13213E4062 97403
CKW
EA
1
6115-00-758-9239
.HOUSING ASSEMBLY
13213E4168 97403
CKW
EA
1
21
1
PAFDD
21
2
PAFZZ
PAFZZ
PAFZZ
5305-00-984-6191
..SCREW,MACHINE SPRING MTG
MS35206-243 96906
CKW
EA
1
21
3
PAFZZ
PAFZZ
PAFZZ
5310-00-045-3299
..WASHER LOCK SPRING MTG
MS35338-42 96906
CKW
EA
1
21
4
PAFZZ
PAFZZ
PAFZZ
5340-00-930-3386
..CLIP SPRING TENSION
13213E4228 97403
CKW
EA
2
21
5
XADDD
PBFFF
PBFZZ
..HOUSING
13213E4073
CKW
EA
1
97403
21
6
PAFZZ
PAFZZ
PAOZZ
5305-00-175-3230
..SCREW,DRIVE PLATE MTG
MS21318-14 96906
CKW
EA
4
21
7
PBOZZ
XBFZZ
PBOZZ
9905-01-038-7439
..PLATE,IDENTIFICATION GENERATOR
13214E6027 97403
CKW
EA
1
21
8
XAFDD
.STATOR ASSY EXCITER
13213E4080 97403
CKW
EA
1
21
8A
PAFZZ
...LUG,TERMINAL
MS25036-156 96106
CKW
EA
6
21
9
XAFDD
..STATOR ASSY GEN.
13213E4079 97403
CKW
EA
1
21
9A
PAFZZ
...LUG,TERMINAL
MS25036-101 96906
CKW
EA
2
21
10
PAFDD
PAFFF
PAFHH
6115-00-299-0635
..ROTOR,ASSY,GEN.
13213E4076 97403
CKW
EA
1
21
11
PAFZZ
PAFZZ
PAFZZ
5305-00-068-0502
...SCREW CAP HEXAGON COUPLING TO FAN CKW
MS90725-6 96906
EA
8
21
12
PAFZZ
PAFZZ
PAFZZ
5310-00-550-1130
...WASHER,LOCK COUPLING TO FAN
CKW
EA
8
21
13
PBFZZ
XBFZZ
XBFZZ
6115-00-859-2410
...PLATE COUPLING
13213E4097 97403
CKW
EA
1
21
14
PAFZZ
PAFZZ
PAFZZ
5365-00-804-7653
...RING,RETAINING BEARING
MS16624-1078 96906
CKW
EA
1
21
15
PAFZZ
PAFZZ
PAFZZ
3110-00-458-8243
...BEARING,BALL ANNULAR
13214E6024 97403
CKW
EA
1
21
16
PAFZZ
PAFZZ
PAFZZ
5691-00-724-5970
...SEMICONDUCTOR DEVICE
JAN1N1204A 81346
CKW
EA
3
21
17
XAFFF
XAFFF
XAFFF
EA
1
21
18
PAFDD
21
19
PAFZZ
PAFZZ
PAFZZ
21
20
PAFZZ
PAFZZ
21
21
PAFZZ
21
22
21
23
...ROTOR
13213E4074
97403
...ROTOR ASSY
13213E4222 97403
CKW
EA
1
5306-00-225-8496
...BOLT MACHINE COUPLING TO MOTOR
MS90725-31 96906
CKW
EA
4
PAFZZ
5310-00-407-9566
...WASHER,LOCK COUPLING PLATE TO ROTOCKW
MS35338-45 96906
EA
4
PAFZZ
PAFZZ
5306-00-283-0453
...BOLT MACHINE: FAN MTG
MS51906-334 97403
CKW
EA
4
PAFZZ
PAFZZ
PAFZZ
5310-00-167-0721
...WASHER, LOCK FAN MTG
MS35333-41 96906
CKW
EA
4
PAFZZ
PAFZZ
PAFZZ
6115-00-949-7814
...IMPELLER, FAN AXIAL
13213E4078 97403
CKW
EA
1
CHANGE 2
65
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
Figure 22. Generator Assembly, 400 Hz.
6 6 Change 1
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG ITEM
AIR
NO. NO.
ARMY
FORCE
(3)
USMC
C
NAVY
D
USMC
A
SSI
(4)
B
REPL
FACTOR
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
(6)
(7)
(8)
USABLE
ON
CODE
U/M
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
GENERATOR, ASSEMBLY 3KW.400HZ
13213E4099 97403
CKW
EA
1
.HOUSING ASSEMBLY, GENARATOR
13213E4101 97403
CKX
EA
1
REF NUMBER
& MFR CODE
GROUP 08 GENERATOR ASSEMBLY.400HZ
22
PAFDD PBFDD
PAFZZ
6115-00-658-0519
22
1
PAFDD
22
2
PAFZZ PAFZZ
PAFZZ
5305-00-984-6191
.SCREW, MACHINE SPRING MTG
MS35206-243 96906
CKX
EA
1
22
3
PAFZZ PAFZZ
PAFZZ
5310-00-045-3299
.WASHER, LOCK SPRING MTG
MS35338-42 96906
CKX
EA
1
22
4
PAFZZ PAFZZ
PAFZZ
5340-00-930-3386
.CLIP, SPRING TENSION
13213E4228 97403
CKX
EA
1
22
5
XADDD PBFFF
PAFZZ
6115-00-949-0604
.HOUSING
13213E4073
CKX
EA
1
97403
22
6
PAOZZ PAOZZ
PAOZZ
5305-00-175-3230
.SCREW, DRIVE MTG
MS21318-14 96906
CKX
EA
4
22
7
PAOZZ XBFZZ
PBOZZ
5305-01-066-3081
.PLATE,IDENTIFICATION: GENERATOR
13214E9580 97403
CKX
EA
1
22
8
XAFDD
..STATOR ASSY, EXCITER
13213E4080 97403
CKX
EA
1
22
9
PAFZZ
...LUG, TERMINAL
MS25036-101 96906
CKX
EA
2
22
10
XAFDD
..STATOR ASSY,GENERATOR
13213E4148
CKX
EA
1
22
11
PAFZZ
...LUG, TERMINAL
CKX
EA
6
22
12
PAFDD PAFFF
PAFHH
6115-00-658-0491
.ROTOR ASSY,GENERATOR
13213E4102 97403
CKX
EA
1
22
13
PAFZZ PAFZZ
PAFZZ
5305-00-068-0502
..SCREW, CAP HEXAGON COUPLING TO FAN CKX
MS90725-6 96906
EA
8
22
14
PAFZZ PAFZZ
PAFZZ
5310-00-582-5965
..WASHER, LOCK COUPLING TO FAN
MS35338-44 96906
CKX
EA
8
22
15
PBFZZ XBFZZ
XBFZZ
6115-00-859-2410
..PLATE, COUPLING
13213E4097 97403
CKX
EA
1
22
16
PAFZZ PAFZZ
PAFZZ
5365-00-804-7653
..RING, RETAINING BEARING
MS16624-1073 96906
CKX
EA
1
22
17
PAFZZ PAFZZ
PAFZZ
3110-00-158-8243
..BEARING, BALL ANNULAR
13214E6024 97403
CKX
EA
1
22
18
PAFZZ PAFZZ
PAFZZ
5961-00-724-5970
..SEMICONDUCTOR DEVICE
JAN1N1204A 81349
CKX
EA
3
22
19
XAHZZ XAFZZ
XAHZZ
..ROTOR ASSEMBLER
13213E4074 97403
CKX
EA
1
22
20
XADDD
..ROTOR EXCITER
13213E4170 97403
CKX
EA
1
22
21
XDFZZ PAFZZ
PAFZZ
5306-00-226-4823
..BOLT, MACHINE COUPLING TO ROTOR
MS90725-29 96906
CKX
EA
4
22
22
PAFZZ PAFZZ
PAFZZ
5310-00-407-9566
..WASHER, LOCK COUPLING TO ROTOR
MS35338-45 96906
CKX
EA
4
22
23
PAFZZ PAFZZ
PAFZZ
5306-01-034-2581
..BOLT, MACHINE FAN MTG
MS51096-334 96906
CKX
EA
4
22
24
PAFZZ PAFZZ
PAFZZ
5310-00-167-0721
MS35333-41 96906
..WASHER, LOCK FAN MTG
CKX
EA
4
22
25
PAFZZ PAFZZ
PAFZZ
6115-00-949-7814
..FAN ROTOR
13213E4078 97403
CKX
EA
1
CHANGE 1
67
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
Figure 23. Generator Assembly, 28 VDC.
68 Change 1.
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG ITEM
AIR
NO. NO.
ARMY
FORCE
(3)
USMC
C
NAVY
D
USMC
A
SSI
(4)
B
REPL
FACTOR
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
(6)
(7)
(8)
USABLE
ON
CODE
U/M
QTY
INC
IN
UNIT
USMC
QTY
PER
EQUIP
GENERATOR ASSEMBLY .3KW,28VDC
13213E4106 97403
CKY
EA
1
..HOUSING ASSEMBLY
13213E4107 97403
CKY
EA
1
REF NUMBER
& MFR CODE
GROUP 09 GENERATOR ASSEMBLY.28 VDC
23
AFFDD
PBFDD
PAFZZ
6115-00-937-2059
23
1
PAFDD
23
2
PAFZZ
PAFZZ
PAFZZ
5305-00-984-6191
.SCREW, MACHINE SPRING MTG
MS35206-243 96906
CKY
EA
1
23
3
PAFZZ
PAFZZ
PAFZZ
5310-00-045-3299
.WASHER, LOCK SPRING MTG
MS35338-42 96906
CKY
EA
1
23
4
PAFZZ
PAFZZ
PAFZZ
5340-00-930-3386
.CLIP, SPRING TENSION
13213E4228 97403
CKY
EA
1
23
5
PAOZZ
PAOZZ
PAOZZ
5305-00-175-3230
.SCREW, DRIVE PLATE MTG
MS21318-14 96906
CKY
EA
1
23
6
PBOZZ
XBOZZ
PBOZZ
9905-00-623-7387
.PLATE,IDENTIFICATION GENERATOR
13214E6032 97403
CKY
EA
1
23
7
XADDD
PAEDD
PBFZZ
6115-00-997-9769
.HOUSING, GENERATOR
13213E4249 97403
CKY
EA
1
23
8
XAFDD
..STATOR ASSEMBLY,EXCITER
13213E4080 97403
CKY
EA
1
23
9
PAFZZ
...LUG, TERMINAL
MS25036-101 96906
CKY
EA
6
23
10
XAFDD
..STATOR ASSEMBLY, GENERATOR
13213E4108 97403
CKY
EA
1
23
11
PAFZZ
...LUG, TERMINAL
MS25036-120 96906
CKY
EA
8
23
12
PAFDD
PAFFF
PAFZZ
6115-00-299-0635
.ROTOR, ASSY,GEN:3KW,8VDC
13213E4076 97403
CKY
EA
1
23
13
PAFZZ
PAFZZ
PAFZZ
5303-00-068-0502
..SCREW, CAP HEXAGONAL
MS90725-6 96906
CKY
EA
8
23
14
PAFZZ
PAFZZ
PAFZZ
5310-00-550-1130
..WASHER, LOCK
MS35333-40 96906
CKY
EA
8
23
15
PBFZZ
XBFZZ
XBFZZ
6115-00-859-2410
..PLATE COUPLING
13213E4097 97403
CKY
EA
1
23
16
PAFZZ
PAFZZ
PAFZZ
5961-00-724-5970
..SEMICONDUCTOR DEVICE STUD MTG
JAN1N1204A 81349
CKY
EA
3
23
17
PAFZZ
PAFZZ
PAFZZ
5365-00-804-7653
..RING, RETAINING
13214E6024 97403
CKY
EA
1
23
18
PAFZZ
PAFZZ
PAFZZ
3110-00-158-8243
..BEARING, BALL ANNULAR
CKY
EA
1
23
19
PADZZ
..ROTOR ASSY
13213E4222 97403
CKY
EA
1
23
20
XADDD
..ROTOR
13213E4074
CKY
EA
1
XAFFF
XAFFF
97403
23
21
PAFZZ
PAFZZ
PAFZZ
5306-00-225-8496
..BOLT, MACHINE COUPLING TO ROTOR
MS90725-31 96906
CKY
EA
4
23
22
PAFZZ
PAFZZ
PAFZZ
5310-00-167-0721
..WASHER, LOCK COUPLING TO ROTOR
13213E4097 97403
CKY
EA
4
23
23
PAFZZ
PAFZZ
PAFZZ
5306-01-034-2581
..BOLT, MACHINE
MS51096-334 96906
CKY
EA
1
23
24
PAFZZ
PAFZZ
PAFZZ
5310-00-167-0721
..WASHER, LOCK FAN MTG
MS35333-41 96906
CKY
EA
4
23
25
PAFZZ
PAFZZ
PAFZZ
6115-00-949-7814
..IMPELLER, FAN AXIAL
13213E4078 97403
CKY
EA
1
CHANGE 2
69
TM 5-6115-271-24P
T.0. 35C2-3-386-4
SL-4-05926A
Figure 24. Auxiliary connector.
70
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG
ITEM
AIR
NO.
NO. ARMY
FORCE
C
D
NAVY
USMC
(3)
USMC
(4)
A
NATIONAL
STOCK
NUMBER
B
REPL
SSI FACTOR
(5)
DESCRIPTION
REF NUMBER
& MFR CODE
(6) (7)
(8)
USABLE
ON
CODE
QTY
INC
IN
U/M UNIT
USMC
QTY
PER
EQUIP
GROUP 10 AUXILIARY CONNECTOR
24
1
XDOFF
PAOZZ
PAOZZ
5310-00-761-6882
NUT, PLAIN HEXAGON CONNECTOR MTG
MS51967-2 96906
CKY
EA
4
24
2
PAOZZ
PAOZZ
PAOZZ
5310-00-582-5965
WASHER, LOCK CONNECTOR MTG
MS35338-44 96906
CKY
EA
4
24
3
PAOZZ
PAOZZ
PAOZZ
5310-00-809-4058
WASHER, FLAT CONNECTOR MTG
MS27183-10
CKY
EA
4
24
4
PAOZZ
PAOZZ
PAOZZ
5305-00-225-3839
SCREW, CAP HEXAGON CONNECTOR MTG
MS90725-8 96906
CKY
EA
4
24
5
PAOZZ
PAOZZ
PAOZZ
5935-00-105-9807
CONNECTOR, BATTERY
13213E4260 97403
CKY
EA
1
24
6
PAOZZ
PAOZZ
PAOZZ
5305-00-068-0502
SCREW, CAP HEXAGON BRACKET MTG
MS90725-6 96906
CKY
EA
2
24
7
PAOZZ
PAOZZ
PAOZZ
5310-00-582-5965
WASHER, LOCK
MS35338-44 96906
CKY
EA
2
24
8
XAOZZ
XBOZZ
XBOZZ
6115-00-418-4754
BRACKET RECEPTACLE CONNECTOR MTG
13213E4256 97403
CKY
EA
1
71
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
72
Figure 25.
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG
ITEM
AIR
NO.
NO.
ARMY
FORCE
C
D
NAVY
USMC
(3)
USMC
(4)
A
NATIONAL
STOCK
NUMBER
B
REPL
SSI FACTOR
(5)
DESCRIPTION
USABLE
ON
CODE
REF NUMBER
& MFR CODE
(6)
(7)
U/M
QTY
USMC
INC
QTY
IN
PER
UNIT EQUIP
GROUP 11 TANK AND FRAME ASSEMBLY
25
1
XDOZZ
PAOZZ
PAOZZ
5310-00-761-6882 NUT,PLAIN HEXAGON TANK MTG
MS51967-2 96906
EA
4
25
2
PAOZZ
PAOZZ
PAOZZ
5310-00-582-5965 WASHER,LOCK TANK MTG
MS35338-44 96906
EA
4
25
3
PAOZZ
PAOZZ
PAOZZ
5310-00-809-4058 WASHER,FLAT TANK MTG
MS27183-44 96906
EA
4
25
4
PAOZZ
PAOZZ
PAOZZ
5340-00-947-3738 BAND,RETAINING TANK MTG
13208E5823-1 97403
EA
2
25
5
PAOZZ
PAOZZ
PAOZZ
2910-00-904-2645 CAP,FILLER OPENING FUEL TANK
13214E0115 97403
EA
1
25
6
PAOZZ
PAOZZ
PAOZZ
2910-00-065-6793 STRAINER ELEMENT
13208E5834 97403
EA
1
25
7
PBOZZ
XBFZZ
XBOZZ
2910-01-030-8874 HEAD,FUEL TANK
13216E3904 97403
EA
1
25
8
PAOZZ
PAOZZ
PAOZZ
4730-00-034-1402 PLUG,PIPE TANK DRAIN
MS20913-1K 96906
EA
1
25
9
PAOZZ
PAFZZ
PAOZZ
2910-00-482-2373 TANK,FUEL ENGINE
13216E3903 97403
EA
1
25
10
XDOZZ
PAOZZ
PAOZZ
5310-00-761-6882 NUT,PLAIN HEXAGON GRD TERMINAL STUD
MS51967-2 96906
EA
4
25
11
PAOZZ
PAOZZ
PAOZZ
5310-00-889-2528 WASHER,LOCK TERMINAL STUD
MS45904-68 96906
EA
1
25
12
PAOZZ
PAOZZ
PAOZZ
5940-00-952-2827 TERMINAL,STUD GROUND
13208E5820-3 97403
EA
1
25
13
PAOZZ
PAOZZ
PAOZZ
5305-00-175-3230 SCREW,DRIVE NAMEPLATE MTG
MS21318-14 96906
EA
2
25
14
PBOZZ
XBOZZ
PAOZZ
9905-00-477-4137 PLATE,IDENTIFICATION GROUND
13211E6730 97403
EA
1
25
15
PAOZZ
PAOZZ
PAOZZ
5305-00-253-5614 SCREW,DRIVE PLATE MTG
MS21318-20 96906
CKY
EA
2
25
16
PBOZZ
PAOZZ
PAOZZ
9905-00-197-1231 PLATE,IDENTIFICATION
13208E5799 97403
CKY
EA
1
25
17
PAOZZ
PAFZZ
PAOZZ
5310-00-768-0318 NUT,PLAIN HEXAGON
MS51967-14 96906
EA
8
25
18
PAOZZ
PAFZZ
PAOZZ
5310-00-584-5272 WASHER LOCK
MS35338-48 96906
EA
8
25
19
PAOZZ
PAOZZ
PAOZZ
5340-00-958-0357 MOUNT RESILIENT
13208E5847 97403
EA
4
25
20
XDFZZ
XBFFF
XAFZZ
6115-00-179-8326 FRAME INNER 28 VOLT
13213E4258 97403
CKY
EA
1
25
20
XBFZZ
XBFZZ
XBFZZ
PAOZZ
PAOZZ
XAFZZ
5340-00-994-1632 INSERT,SCREW THREAD
MS35914-109 96906
CKW,CKX
EA
4
25
CKX
FRAME,INNER,ASSEMBLY INNER
13213E4072 80205
25
21
PAOZZ
PAOZZ
PAOZZ
5310-00-934-9758 NUT,PLAIN HEXAGON
MS35649-202 96906
EA
1
25
22
PAOZZ
PAOZZ
PAOZZ
5310-00-080-9786 WASHER,LOCK
MS45904 96906
EA
2
25
23
PAOZZ
PAOZZ
PAOZZ
5303-00-984-6212 SCREW,MACHINE
MS35206-265 96906
EA
1
25
24
PAOZZ
PAOZZ
PAOZZ
6150-00-957-7722 STRAP
13208E5853-1
EA
1
97403
25
25
PAFZZ
PAFZZ
PAFZZ
5310-00-732-0558 NUT,PLAIN HEXAGON
MS51967-8 96906
EA
8
25
26
PAFZZ
PAFZZ
PAFZZ
5310-00-637-9541 WASHER,LOCK
MS35338-46 96906
EA
8
25
27
PAFZZ
PAFZZ
PAFZZ
5310-00-725-8267 WASHER,BEVEL
NAS1099-6 80205
EA
8
CHANGE 1
73
(8)
TM5-6115-271-24P
T.O. 35C2-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG
ITEM
AIR
NO.
NO.
ARMY
FORCE
(3)
USMC
(4)
A
NATIONAL
STOCK
NUMBER
(5)
DESCRIPTION
(6)
(7)
(8)
U/M
QTY
USMC
INC
QTY
IN
PER
UNIT EQUIP
25
28
PAFZZ
PAFZZ
PAFZZ
5305-00-269-3214 SCREW,CAP HEXAGON
MS90725-64 96906
EA
12
25
29
PAFZZ
PAFZZ
PAFZZ
5310-00-080-6004 WASHER,FLAT
MS27183-14 96906
EA
8
25
30
XBFZZ
XBFZZ
XAFZZ
5340-00-489-8107 BRACKET,ANGLE MTG
13208E5821 97403
EA
2
25
31
XBFZZ
XBFZZ
XAFZZ
5340-00-224-7570 BRACKET,ANGLE,FRAME MTG
EA
2
25
32
XBFZZ
XBFZZ
XAFZZ
EA
1
C
D
NAVY
USMC
B
REPL
SSI FACTOR
REF NUMBER
& MFR CODE
FRAME ASSY,OUTER
13208E5886 97403
74
USABLE
ON
CODE
TM5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
(1)
(2)
ILLUSSMR CODE
TRATION
A
B
A
B
FIG
ITEM
AIR
NO.
NO.
ARMY
FORCE
C
D
NAVY
USMC
(3)
USMC
(4)
A
NATIONAL
STOCK
NUMBER
B
REPL
SSI FACTOR
(5)
DESCRIPTION
USABLE
ON
CODE
REF NUMBER
& MFR CODE
GROUP 12
(6)
(7)
U/M
QTY
USMC
INC
QTY
IN
PER
UNIT EQUIP
BULK MATERIAL
PAFZZ
PAFZZ
PAFZZ
6145-00-038-6613 WIRE, ELECTRICAL
FT
V
PAFZZ
PAFZZ
PAFZZ
6145-00-087-7691 WIRE, ELECTRICAL
FT
V
PAFZZ
PAFZZ
PAFZZ
6145-00-087-9716 WIRE, ELECTRICAL
FT
V
PAOZZ
PAOZZ
PAOZZ
4720-00-540-1962 HOSE, NONMETALLIC
FT
V
PAFZZ
PAFZZ
PAFZZ
6145-00-729-9264 WIRE, ELECTRICAL
FT
V
PAFZZ
PAFZZ
PAFZZ
6145-00-814-8127 WIRE, ELECTRICAL
FT
V
PAFZZ
PAFZZ
PAFZZ
6145-00-838-6612 WIRE, ELECTRICAL
FT
V
PAFZZ
PAFZZ
PAFZZ
6145-00-849-5915 WIRE, ELECTRICAL
FT
V
PAFZZ
PAFZZ
PAFZZ
6145-00-851-0897 WIRE, ELECTRICAL
FT
V
PAFZZ
PAFZZ
PAFZZ
6145-00-881-8177 WIRE, ELECTRICAL
FT
V
PAFZZ
PAFZZ
PAFZZ
WIRE, ELECTRICAL
M16878/1-18-91 81349
FT
V
PAFZZ
PAFZZ
PAFZZ
WIRE, ELECTRICAL
M16878/1-18-92 81349
FT
V
PAFZZ
PAFZZ
PAFZZ
WIRE, ELECTRICAL
M16878/1-18-93 81349
FT
V
PAFZZ
PAFZZ
PAFZZ
WIRE, ELECTRICAL
M16878/1-18-94 81349
FT
V
PAFZZ
PAFZZ
PAFZZ
WIRE, ELECTRICAL
M16878/1-18-95 81349
FT
V
PAFZZ
PAFZZ
PAFZZ
WIRE, ELECTRICAL
M16878/1-18-96 81349
FT
V
PAFZZ
PAFZZ
PAFZZ
WIRE, ELECTRICAL
M16878/1-TYPE B 18-97
FT
V
75
81349
(8)
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-5926A
SECTION III. NATIONAL STOCK NUMBER AND REFERENCE NUMBER INDEX
STOCK NUMBER
FIG.
ITEM
STOCK NUMBER
FIG.
6115-00-016-2360
6115-0-016-2360
5310-00019-0670
4730-00-034-1402
5310-00-042-4229
5310-00-045-1399
5310-00-045-3299
5310-00-045-3299
5310-004045-3299
5310-00-045-3299
5310-00-045-3299
5310-00-045-3299
5310-00-045-3299
5310-00-045-3299
5310-00-045-3299
5310-00-045-3299
5310-00-045-3299
5310-00-045-3299
5310-00.045-3299
5310-00-045-4007
5310-00-045-4007
5310-00-045-4007
5310-00045-4007
5310-00-045-4007
5310-00-045-4007
5310-00-045-4007
5310-00-045-4007
5310-00-045-4007
662500-054-2038
5305-00-054-6658
5950-00-054-4127
6625-004055-9760
5306-00-056-3536
5305-00-059-4568
5310-00-061-1258
5305-00-063-3503
5305-00-063-3503
6625-00-065-5258
6625-00-065-5258
6625-00-065-5301
6625-00-065-5301
5930-00-065-5302
2910-00-065-6793
6625-00-065-8554
5305-00-068-0502
5305-00068-0502
5305-00-068-0502
5305-00468-0502
5305-00-068-0502
5305-00-068-0502
5305-00468-0502
5305-00-068-0505
2805-00-068-7512
5305-00-071-2510
5975-00-074-2072
5975-00-074-2072
5975-00-074-2072
6625-00078-6377
76 Change 3
4
11
16
25
16
13
4
5
6
6
11
12
13
14
16
18
19
22
23
4
5
6
8
11
11
13
15
16
4
2
13
16
1
12
20
7
14
4
11
4
11
4
25
11
2
5
16
17
21
22
24
1
20
18
7
19
19
15
31
19
6
8
15
2
37
2
2
15
31
2
15
2
31
8
2
2
2
33
16
12
7
21
27
12
25
20
15
11
4
29
18
14
12
6
7
18
18
12
12
30
6
15
9
9
3
15
8
8
6
14
3
8
14
5310-00-080-6004
5310-00-080-6004
5310-004080-9766
5310-00-082-1404
5310-00-082-1404
5310-004082-1404
5310-00-082-1404
5305-00-083-6645
5305-004083-6645
5305-00-083-6645
6145-00-087-7691
5920-01-087-9254
6145-004087-9716
6645-00089-8842
5905-00-104-8330
5905-00-105-7767
5935-00-105-9807
5905-00-1104 196
5905-00-111-4738
5905-00-111-4756
5940-00-113-8184
5940-00-113-8185
5940-00-114-1305
5940-00-114-1305
5905-00-115-3565
5320-00-117-6376
5320-00-117-6376
5320-00-117-6376
2990-00-118-1589
2900-00-118-1590
5905-00-120-9152
611040-133-9121
5905-00-141-0600
5905-00-141-1168
6645-00-151-5280
5310-00-158-4489
5310-00-158-4489
3110-00-158-8243
3110-00-158-8243
3110-00-158-8243
5310-00-167-0721
5310-00-167-0721
5310-00-167-0721
5310-00-167-0721
5310-00-167-0721
5325-00-171-4688
5305-00-175-3230
5305-00-175-3230
5305-00-175-3230
5305-00-175-3230
5910-00-175-4633
5970-00-177-1756
6115-00-179-8326
5340-00-184-6023
5310-00-184-8970
5310-00-184-8970
5310-00-184-8970
4730-00-189-3017
1
25
25
4
11
15
16
4
10
15
8
8
5
8
8
15
9
9
24
9
9
9
19
16
19
19
9
4
10
15
20
1
9
3
9
9
4
5
12
21
22
23
20
21
22
23
23
17
21
22
23
25
16
12
15
2
ITEM
3
29
22
34
28
26
21
5
6
6
B
11
8
23
19
14
5
12
17
16
14
22
8
5
4
8
11
13
3
21
20
21
19
10
17
17
17
7
11
11
11
14
9
5
5
5
13
23
18
20
14
20
11
6
3
TM 5-6115-271-24P
T.O. 35C23-386-4
SL-4-05926A
SECTION III. NATIONAL STOCK NUMBER AND REFERENCE NUMBER INDEX
STOCK NUMBER
FIG.
ITEM
STOCK NUMBER
FIG.
ITEM
5940-00-191-3207
5940-00-181-3207
9905-00-197-1214
9905-00-197-1231
5905-00-203-5400
5905-00-203-5400
5940-00-204-8966
4730-00-207-9260
5340-00-224-7570
5305-00-225-3839
5305-00-225-3840
5306-00-225-8496
5306-00-225-8496
5306-00-225-8496
5306-00-225-8504
530-00-226-4823
5320-00-234-8574
5975-00-235-4635
5999-00-236-1868
5305-00-245-9662
5905-00-252-1673
5305-00-253-5604
5305-00-253-5604
5305-00-253-5614
5305-00-253-5614
5305-00-253-5614
5305-00-253-5614
530500-253-5614
5305-00-253-5614
5305-00-253-5614
9905-00-254-9239
5930-00-259-4646
5930-00-259-4646
5305-00-269-3214
5305-00-269-3214
5305-00-269-3216
5325-00-276-6228
5325-00-276-6228
5910-00-280-9988
5910-00-280-9988
5325-00-282-7471
5325-00-282-7471
5325-00-282-7841
6115-00-299-0635
6115-00-299-0635
5306-00-299-0638
6115-00-378-7450
5310-00-383-3658
5310-00-383-3658
5925-00-407-6520
5925-00-407-6520
5310-00-407-9566
5310-00-407-9566
6115-00-418-4754
5961-00-421-3002
5325-00-432-9796
5325-00-432-9796
5325-00-432-9796
18
19
17
25
6
13
8
2
25
24
3
1
21
23
20
22
10
5
8
19
9
6
13
4
5
5
11
12
12
25
5
4
11
20
25
1
8
8
16
16
4
10
15
21
23
1
10
4
10
4
11
21
22
24
9
4
10
15
10
14
8
16
6
6
8
4
31
4
1
6
13
13
5
13
3
14
8
13
18
7
7
40
25
27
24
16
18
15
28
24
3
11
28
4
8
8
7
8
45
15
31
7
7
12
7
4
11
39
33
14
14
8
6
42
12
28
5340-00-445-1740
9905-00-450-1464
9905-40-450-1464
9905-00-450-1464
9905-00-450-590
9905-00-450-6590
9905-0-450-6590
9905-00-4506595
5961-00-451-7492
5307-00-453-9006
5307-00-453-9006
6115-00-454-7510
9905-00-455-9168
9905-00-455-9168
9905-00-455-9168
2920-00-459-6685
5961-00-462-7165
6115-00-470-1297
9905-00-477-4131
9905-00-477-4131
9905-00-477-4131
9905-0-477-4137
5940-00-477-9967
5940-00-477-9967
6150-00-479-8773
2910-00-82-2373
61504-00489-0529
53404-089-8107
5310400-492-028
5310-00-492-028
5975-00-497-2158
4730-00-497-4281
5340-00-498-7078
5340-00-498-7078
5340-00-498-7078
5910-00-504-7418
5910400-504-7418
9905-00-509-8239
9905-00-509-8239
5930-00-538-5508
4720-00-540-1962
53100-550-1130
5310-00-550-1130
5920-00-556-0144
5355-00-556-0145
5355-00-5564-0145
5355-00-5564-0145
5355-00-556-0145
5355-00-5564-0145
5355-00-5564-0145
5355-00-5564-0145
594000-557-1629
5940)00-5574344
5310-00-559-0070
5935-00-564-1355
5310-00-577-5354
5320-00-582-3521
5320-00-582-3521
13
2
2
2
8
8
2
23
7
11
6
6
4
8
10
10
24
5
41
25
4
14
24
15
12
9
25
30
10
12
9
1
9
9
8
7
8
29
9
9
1
15
9
10
4
4
4
11
11
11
15
11
18
10
6
8
2
4
10
15
6
13
17
4
9
17
19
25
26
11
15
14
9
1
4
11
17
25
5
12
16
25
16
25
10
17
14
2
4
10
15
5
12
4
11
11
2
1
21
5
22
25
28
1
4
7
9
19
19
7
5
16
4
10
Change 3 77
TM 5-6115-271-24P
T.O. 35C23--386-4
SL-4-05926A
SECTION III. NATIONAL STOCK NUMBER AND REFERENCE NUMBER INDEX
STOCK NUMBER
FIG.
ITEM
STOCK NUMBER
FIG.
5320-00-582-3521
5310-00-582-5965
5310-00-582-5965
5310-00-582-5965
5310-00-582-5965
5310-00-582-5965
5310-00-584-5272
5310-00-595-7237
5310-00-596-7693
5310-00-616-3554
5920-00-617-8418
9905-00-623-7387
5305-00-632-2777
5305-00-637-1124
5310-00-637-9541
5310-00-637-9541
5905-00-643-5129
5905-00-643-5129
5905-00-643-5129
5320-00-655-4757
5310-00-656-0111
5310-00-456-0111
6115-00-658-0491
6115-00-658-0519
5930-00-659-2672
5930-00-659-2672
5310-00-809-8544
5115-00-659-2786
5125-00-659-2935
5925-00-682-0742
5950-00-682-9743
5950-00-682-9743
5310-00-682-5930
5961-00-712-5578
5940-00-718-1721
5310-00-720-8394
5310-00-720-8394
5961-00-724-5970
5961-00-724-5970
5961-00-724-5970
5310-00-725-8267
5975-00-725-5153
6145-00-729-9264
5961-00-730-3284
5310-00-732-0558
5310-00-732-0558
5935-00-755-2896
6115-00-758-9239
5310-00-761-6882
5310-00-761-6882
5310-00-761-6882
5310-00-761-6882
5310-00-761-6882
5310-00-761-6882
5310-00-761-6882
5310-00-761-6882
5645-00-762-7452
5110-00-764-7621
5310-00-765-3197
78 Change 3
7
8
16
22
2
2
18
10
10
2
5
6
8
5
2
26
4
11
15
10
8
8
22
22
6
13
13
12
19
11
6
13
18
8
9
5
12
21
22
23
25
8
8
9
1
25
8
21
2
5
12
16
18
24
25
25
11
7
8
15
2
17
9
24
25
25
20
8
8
11
23
1
16
1
25
25
6
11
1
3
15
7
13
13
10
4
4
29
5
5
2
20
10
21
12
18
18
18
27
8
8
11
1
25
8
1
7
5
5
1
1
1
1
10
23
12
11
ITEM
5310-00-765-3197
4730-00-767-2615
5310-00-768-0318
5310-00-773-7618
5310-00-788-0444
5330-00-797-3506
5320-00-800-5704
5365-00-804-7653
5365-00-804-7653
5365-00-804-7653
5365-00-808-2527
5365-00-808-2527
5310-00-809-4058
5310-00-809-4058
531040-809-4058
5310-00-809-4058
531000-809-4058
5310-00-809-8544
5310-00-809-8544
5310-00-809-8544
5310-00-809-8544
5310-00-809-8544
5310-00-809-8544
5310-00-809-86544
5310-00-809-8544
5310-00-809-8544
8
2
25
1
20
1
9
21
22
23
7
14
2
16
17
24
25
4
5
6
6
6
7
11
12
13
18
6
17
10
2
17
29
16
16
16
4
5
10
4
17
3
3
38
3
3
10
16
2
32
3
3
531060-809-8544
531000-809-8544
5310-00-809-8544
5310-00-809-8544
5310-00-809-8544
5310-00-809-8544
4730-0-812-1333
5940-00-813-0698
6145-00814-8127
5310-00-822-8525
5310-00-822-8525
5310-00-822-8525
5325-00-8286276
5325-00-8286276
5325-00-828-6276
5910-0-832-5026
5310-00-836520
5310-00-838-3520
5310-00-436-3520
5310-00-836-3520
5310-00-836-3520
5310-0-836-3520
5310-00-836-3520
5310-00-836-3520
5310-00-36-3520
5310-00-836-3520
5310-0-836-3520
6145-00-838-6612
6145-00-8386613
5305-00-840-5938
5305-00-40-5938
5305-00-840-5938
13
14
16
18
19
19
2
19
8
4
10
15
7
14
19
9
4
4
4
4
11
11
11
15
15
15
15
8
8
17
17
17
16
3
28
9
3
12
5
8
43
13
29
5
6
9
31
10
13
16
19
10
13
16
12
15
18
21
8
8
1
3
5
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
SECTION III. NATIONAL STOCK NUMBER AND REFERENCE NUMBER INDEX
STOCK NUMBER
FIG.
ITEM
STOCK NUMBER
FIG.
ITEM
5305-00-840-5938
5310-00-845-7769
5310-00-845-7769
5310-00-845-7769
6145-00-849-5915
6145-00-851-0897
4720-00-857-1732
6115-00-859-2410
6115-00-859-2410
6115-00-859-2410
5905-00-879-3635
5320-00-879-6606
5320-00-879-6606
5310-00-880-7744
6145-00-881-8177
5910-00-882-0556
5310-00-889-2527
5310-00o-88-2527
5310-00-889-2528
5310-00-889-2528
5310-00-889-2528
5310-00-889-2528
5303-00-889-2999
5305-00-889-3000
5305-00-889-3001
5305-00-889-3001
5305-00-889-3001
5962-00-890-0784
5961-00-901-5812
6115-00-903-4147
2910-00-904-2645
5310-00-913-5474
4710-00-925-6931
4820-00-925-7374
5970-00-929-5627
5310-00-929-6395
5340-00-930-3386
5340-00-930-3386
5340-00-930-3386
5340-00-931-0382
5310-00-934-9739
5310-00-934-9739
5310-00-934-9747
5310-00-934-9747
5310-00-934-9747
5310-00-934-9747
5310-00-934-9747
5310-00-934-9757
5310-00-934-9757
5310-00-934-9758
5940-00-936-2259
5940-00-936-2259
6115-00-937-2059
6115-00-940-0175
6110-00-946-8185
5340-00-974-3738
6115-00-949-0604
17
4
10
15
8
8
2
21
22
23
9
4
15
20
8
12
1
20
3
5
12
25
8
8
6
8
13
9
18
7
25
16
2
2
16
2
21
22
23
8
8
5
6
11
13
16
8
16
19
25
18
19
23
5
10
25
22
7
44
14
30
8
8
11
15
15
15
30
1
1
3
8
7
7
4
2
6
6
11
4
6
11
17
11
3
6
9
5
9
2
15
18
12
3
3
3
19
1
15
9
20
9
19
9
30
10
21
11
15
4
4
4
6115-00-949-7814
6115-00-949-7814
6115-00-949-7814
5961-00-950-6577
5940-00-952-2827
5961-00-957-4865
6150-00-957-7722
5940-00-958-0349
5940-00-958-0349
5340-00-958-0357
5940-00-958-1214
5325-00-958-4293
5325-00-958-4293
5305-00-958-5451
5305-00-958-5477
5305-00-958-5477
2990-40-961-1177
2990-00-981-1183
2990-00-961-1184
5925-00-961-1202
5340-00-964-2555
5925-00-966-5836
5305-00-978-9395
5310-00-9826600
5940-40-983-6100
5940-00-983-6100
5305-00-983-730
5305-00-983-6730
5305-00-983-6730
5305-00-983-6730
5305-00-983-6730
5305-00-983-6730
5305-00-983-6730
5305-00-983-6730
5305-00-983-6730
5305-00-983-6730
5305-00-983-6730
6115-00-984-4740
6115-00-984-4744
6680-00-984-4745
5305-00-984-4984
5305-00-984-4984
5305-00-984-4988
5305-00-984-4968
5305-00-984-4988
5305-00-984-4992
5305-00-984-6191
5305-00-984-6191
5305-00-984-6191
5305-00-984-6191
5305-00-984-6193
S305-00-984-6193
5305-00-984-6193
5305-00-984-6193
5305-00-984-6193
5305-00-984-6194
5305-00-984-6194
21
22
23
9
25
9
25
5
12
25
16
17
19
5
5
18
1
1
1
15
18
4
20
16
7
14
4
4
4
4
11
11
11
15
15
15
15
19
19
15
4
11
5
11
15
16
21
21
22
23
5
6
12
13
19
4
6
12
12
12
25
12
8
24
22
13
19
16
10
7
13
23
24
13
16
16
27
22
35
9
11
3
4
20
11
14
17
11
14
17
13
16
19
22
20
32
26
17
22
24
17
1
2
1
1
1
1
1
1
1
36
14
Change 3 79
TM 5-6115-271-24P
T.O. 35C2-3386-4
SL-4-5926A
SECTION III. NATIONAL STOCK NUMBER AND REFERENCE NUMBER INDEX
STOCK NUMBER
5305-00-964-6194
5305-00-984-6194
5305-00-984-6194
5305-00-984-6194
5305-00-984-6196
5305-00-984-6199
5305-00-984-6199
5305-00-984-6212
5310-00-984-7042
5305-00-988-1724
5340-00-994-1632
6115-00-997-9769
6115-00-999-5675
9905-00-013-6084
9905-01-013-6086
5306-01-021-0607
2910-01-030-8874
5306-01-034-2581
5306-01-034-2581
9905-01-038-7439
2805-01-045-9735
5340-01-047-1900
5340-01-047-1900
5950-00-054-4127
5910-01-060-9517
80 Change 3
FIG.
7
11
13
16
18
7
14
25
1
12
25
23
21
15
4
20
25
22
23
21
20
7
13
6
16
ITEM
10
30
14
26
7
1
1
23
9
9
7
3
3
6
7
10
10
6
1
17
17
4
33
STOCK NUMBER
9905-01-066-3081
9905-01-071-2824
5905-01-084-9136
6115-01-090-2791
5305-01092-8685
6150-01-095-4581
9905-01-096-5675
5950-01-1044342
5950-01-105-4315
5320-01-109-1381
5999-01-112-0482
5970-01-112-8692
5999-01-126-4660
6115-01-135-3413
9905-01-135-4327
6115-01-107-3006
6110-01-141-7515
5999-01-1420548
6110-01-144-7988
9905-01-145-4518
6110-01-150-0735
9905-01-150-2937
6110-01-152-4608
FIG.
ITEM
22
10
9
4
8
16
5
8
8
8
18
18
17
17
8
4
7
9
19
17
10
12
14
6
4
15
7
12
13
12
13
16
14
12
5
19
14
21
13
26
16
6
19
11
PART
NUMBER
AN816-3
CA32KFB504
CA32KFB504
CA36KFW104
CA36KFW104
CA37KFW104
CA37KFW104
FHN20G
F06R250V15A
G54-4
JAN1N1204A
JAN1N1204A
JAN1N1204A
JAN1N3826A
MIL-M-27267
MIL-T-55155/12
MILW16878/1 TYPE 818/ORANGE
MILW1687&1 -TYPEB 18-97
MILW168781-18MILW16878/1-18-4
MILW1687&118-5
MILW16878/1-18MILW16878/1-18-7
MILW16878/1TYPEB1 18BROWN
MILW16878/1TYPEB/GRAY
MILW16878/1 TYPEB1 8/RED
MS15795-510
MS15795-510
MS15795-518
MS15795-703
MS15795-703
MS15795-814
MS16535-154
MS 16535-154
MS16535-64
MS16624-1078
MS16624-1078
MS16624-1078
MS 1687/1-18-91
MS16997-100
MS17821-1-9
MS20426A3-4
MS20426B3-4
MS2042684-4
MS2042684-4
MS20470A4-5
MS20600B4W3
MS20600B4W3
MS20600B4W3
MS20823-3B
MS20913-1K
MS21318-14
MS21318-14
MS21318-14
MS21318-14
MS21318-19
MS21318-19
MS21318-19
lMS21318-19
FSCM
88044
81349
81349
81349
81349
81349
97403
81349
81349
57771
81349
81349
81349
81349
75377
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
FIG.
NO.
2
16
16
5
12
12
5
5
5
9
21
22
23
9
2
9
8
8
8
8
8
8
8
8
8
8
5
12
16
8
8
1
4
15
9
21
22
23
8
20
14
10
4
10
15
10
4
10
15
2
25
21
22
23
25
17
17
17
17
ITEM
NO.
15
7
8
7
8
7
8
10
11
1
16
18
18
25
11
10
8
8
8
8
8
8
8
8
8
8
21
12
11
3
15
10
1
1
29
14
16
16
8
9
9
1
8
5
4
3
6
8
7
3
8
6
6
5
13
1
3
5
7
PART
NUMBER
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
FIG. ITEM
FSCM
NO.
NO.
MS21318-2
MS21318-2
MS21318-20
MS21318-20
MS21318-20
MS21318-20
MS21318-20
MS21318-20
MS21318-20
96906
96906
96906
96906
96906
96906
96906
96906
96906
6
13
4
5
5
11
12
12
25
7
7
40
25
27
24
16
18
15
MS24693S50
MS24693S50
MS25002-1
MS25002-2
MS25002-2
MS25036-101
MS25036-101
MS25036-101
MS25036-101
MS25036-102
MS25036-116
MS25036-116
MS25036-120
MS25036-120
MS25036-149
MS25036-150
MS25036-151
MS25036-156
MS27053
MS27183-10
MS27183-10
MS27183-10
MS27183-10
MS27183-14
MS27183-14
MS27183-41
MS27183-41
MS27183-6
MS27183-6
MS27183-6
MS27183-6
MS27183-7
MS27183-7
MS27183-7
MS27183-7
MS27183-7
MS27183-7
MS27183-7
MS27183-7
MS27183-7
MS27183-7
MS27183-7
MS27183-7
MS27183-7
MS27183-7
MS27183-7
MS28053-6
MS3100R20-27P
MS3367-1-9
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96908
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96908
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
7
14
14
4
11
19
21
22
23
8
19
19
19
23
19
19
16
21
2
16
17
24
25
1
25
8
8
4
11
15
16
4
5
6
6
6
7
11
12
13
13
14
16
18
19
19
11
8
7
6
7
30
24
3
9A
9
9
8
11
14
9
12
4
17
3
3
3
29
11
18
34
28
26
21
38
3
3
10
16
2
32
3
3
10
3
28
9
3
12
23
8
8
Change 3 81
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
PART
NUMBER
MS3367-1-9
MS3367-1-9
MS3367-4-9
MS35190-239
MS35190-253
MS35190-254
MS35190-254
MS35190-254
MS35190-256
MS35206-217
MS35206-218
MS35206-218
MS35206-218
MS35206-218
MS35206-218
MS35206-218
MS35206-218
MS35206-218
MS35206-218
MS35206-218
MS35206-218
MS35206-227
MS35206-227
MS35206-228
MS35206-228
MS35206-228
MS35206-230
MS35206-231
IS35206-231
dS35206-231
MS35206-232
MS35206-242
MS35206-243
MS35206-243
MS35206-243
MS35206-243
MS35206-245
MS35206-245
MS35206-245
MS35206-245
MS35206-246
MS35206-246
MS35206-248
MS35206-246
MS35206-246
MS35206-246
MS35206-248
MS35206-251
MS35206-251
MS35206-265
MS35206-280
MS35206-455
MS35214-4 96906
MS35307-358
MS35333-106
MS35333-113
MS35333-38
MS35333-4
82
Change 3
FSCM
FIG.
NO.
ITEM
NO.
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
19
19
8
5
12
12
5
16
19
8
4
4
4
4
11
11
11
15
15
15
15
4
11
5
11
15
8
6
8
13
16
8
13
14
14
23
24
13
4
20
11
14
17
11
14
17
13
13
19
22
32
26
17
22
24
6
11
17
11
17
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
21
21
22
23
6
12
13
19
4
6
7
11
16
13
18
7
14
25
12
8
16
1
16
16
7
1
1
2
2
1
1
1
1
1
36
14
10
30
26
14
7
1
1
23
9
12
5
8
6
15
11
15
96906
96906
96906
96906
96906
PART
NUMBER
MS35333-40
MS35333-40
MS35333-41
MS35333-41
MS35333-41
MS35333-41
MS35333-41
MS35333-42
MS35335-29
MS35335-31
MS35338-101
MS3533-101
MS35338-105
MS35338136
MS35338-141
MS35338-41
MS35338-41
MS35338-41
MS35338-41
MS3533F41
MS35338-41
MS35338-41
MS35338-41
MS35338-41
MS3533842
MS35338-42
MSs353342
MS35338-42
MS3533-42
MS35338-42
MS35338-42
MS35338-42
MS35338-42
MS35338-42
MS3533842
MS35338-42
MS35338-42
MS35338-42
MS35338-42
MS35338-42
MS35338-44
MS3533844
MS35338-44
MS35338-44
MS35338-44
MS35338-45
MS35338-45
MS35338-46
MS3533846
MS35338-48
MS35340-44
MS35340-44
MS35489-68
MS35489-68
MS35448-68
MS35489-9
MS35489-9
MS35649-202
MS35649-225T
FSCM
FIG.
NO.
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96908
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
21
23
20
21
22
23
23
20
8
8
5
12
16
2
1
4
5
6
8
11
11
13
15
16
4
5
6
6
11
12
13
14
168
18
19
21
22
23
13
13
2
17
22
24
25
21
22
1
25
25
18
17
7
14
19
8
8
25
5
ITEM
NO.
9
14
7
22
24
24
24
10
2
10
20
11
10
12
9
33
16
12
7
21
27
12
25
20
37
2
2
15
31
2
2
2
31
8
2
4
3
3
15
16
8
18
14
2
2
20
22
2
26
18
2
9
5
6
9
8
8
21
19
TM 5-6115-271-24P
T.O. 35C2-3-3864
SL-4-05926A
PART
NUMBER
MS35649-2255T
MS35649-242
MS35649-262
MS35649-262
MS35649-262
MS35649-262
MS35649-262
MS35649-282
MS35649-282
MS35649-282
MS35650-304
MS35823-1A
MS35823-1A
MS35823-1A
MS35914-109
MS45904-0
MS45904-68
MS45904-68
MS4590448
MS45904-68
MS45904-72
MS45904-72
MS45904-76
MS51096-334
MS51096-334
MS51096-334
MS51937-2
MS51957-34
MS51967-14
MS51967-2
MS51967-2
MS51967-2
MS51967-2
MS51967-2
MS51967-2
MS51967-2
MS51967-2
MS51967-5
MS51967-8
MS35969-5
MS90725-5
MS907256
MS90725-6
MS907256
MS90725MS907256
MS90725-6
MS90725-6
MS90725-6
MS90725-13
MS90725-29
MS90725-31
MS90725-31
MS90725-31
MS90725-40
MS90725-4
MS90725-64
FSCM
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
FIG.
NO.
ITEM
NO.
12
8
5
6
11
13
16
8
16
19
1
4
10
15
25
25
3
3
12
25
1
20
20
22
23
21
1
2
25
2
5
12
16
18
24
25
25
20
1
25
16
2
5
16
17
21
22
23
24
18
22
1
21
23
20
20
25
10
1
15
9
20
9
19
9
30
10
12A
9
9
8
22
2
6
6
11
7
4
12
23
23
10
18
11
17
7
5
5
1
1
1
1
10
3
1
25
3
9
9
3
15
11
13
13
6
3
21
6
19
21
5
11
28
PART
NUMBER
MS90725-66
MS90725-7
MS90725-8
MS90726-5
MS91528-1K2B
MS91528-1K2B
MS91528-1K2B
MS91528-1lK2B
MS91528-1K2B
MS91528-1 K2B
MS91528-1K2B
M16878/1-18-92
M168781-18-93
M16878/1-18-94
M1687&1-18-95
M16878/1-18-96
M22-03-00191FD
M22-03-00191FD
M22-03-00191FD
MS24066-1-107
MS240661-1-08
M24243/4-A403
M39006)01-3072
M39006-9-8403
M39014/0242-77
M39014/02-0267
M3971-2-5
M3971/1-5
NAS1099-6
NAS1301C10-8
NAS1301C10-8
NAS1301C10-8
NAS1397P6N
NAS43DD3-40
NAS43DD3-40
RCR07G274JM
RCR07G474JM
RCR07G624JM
RCR20G102JM
RCR20G1 52JM
RCR20G222JM
RCR20G243JS
RCR20G333JM
RCR20G822JM
RCR32G821JS
RC42GF102JM
RJ12FY504
RWR74S2490FR
RWR74S2490FR
RW67V102
IN3086
IN3086R
IN5297
13206E0000
13206E1425
13208E75757
FSCM
FIG.
NO.
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
80205
80205
80205
80205
80205
80205
80205
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
07688
80131
04713
97403
97403
97403
1
3
24
1
4
4
4
11
11
11
15
8
8
8
8
8
4
11
15
9
9
8
16
16
9
9
4
15
25
4
10
15
16
7
14
9
9
9
9
9
9
9
9
9
9
9
9
6
13
9
18
18
9
20
20
6
ITEM
NO.
4
1
4
14
22
25
28
1
4
7
9
8
8
8
8
8
27
6
11
28
27
14
23
33
4
5
21
23
27
5
6
5
22
4
5
13
14
18
12
17
20
16
19
21
22
23
15
6
6
30
6
6
7
2
8
Change 3 83
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
PART
NUMBER
13208E5757
13208E5757
13208E5764
13208E5764
13208E5764
13208E5768
13208E5771
13208E5791
13208E5791
13208E5795
13208E5798
13208E5799
13208E5820-1
13208E5820-2
13208E5820-2
13208E5820-3
13208E5821
13208E5822
13208E5823-1
13208E5834
13208E5837
13208E5837
13208E5838-1
13208E5839
13208E5841
13208E5841
13208E5844
13208E5845
3208E5845
s3208E5845
13208E5864
13208E5847
13208E5848
13208E5848
13208E5851
13208E5853-1
13208E5865
13208E5868
13208E5868
13208E5886
13208E5887
13208E5889
13208E5906
13208E5935
13208E8535
1321E4261
13211E4861
13211E4849
13211E4849
13211E4854-3
13211E4854-3
13211Es004
13211E6730
13211E6888-1
13211E6888-1
13211E6888-1
13211E6901
13213E4230-12
84 Change 3
FSCM
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
FIG.
NO.
13
17
4
11
15
2
5
17
19
17
18
25
16
5
12
25
25
25
25
25
6
13
4
1
5
12
1
4
10
15
1
25
4
11
1
25
15
18
19
25
1
20
2
18
15
19
11
4
11
10
17
15
25
4
11
17
5
14
ITEM
NO.
8
2
26
8
10
15
12
11
6
8
4
16
16
22
13
12
30
31
4
6
5
5
35
13
26
17
16
42
12
28
16
19
39
33
11
24
27
10
14
32
5
8
2
5
14
8
9
31
19
10
12
20
14
41
25
4
4
18
PART
NUMBER
13211E6905
13211E6905
13211E6919
13211E6919
13211E6992-1
13211E6992-2
13212E8933
13212E9780
13213E4062
13213E4067
13213E4067
13213E4067
13213E4072
13213E4073
13213E4073
13213E4074
13213E4074
13213E4074
13213E4076
13213E4076
13213E4078
13213E4078
13213E4078
13213E4079
13213E4080
13213E4080
13213E4088
13213E4088
13213E4089
13213E4089
13213E4091
13213E4097
13213E4097
13213E4097
13213E4099
13213E4101
13213E4102
13213E4106
13213E4107
13213E4108
13213E4114
13213E4114
13213E4124-3
13213E4128
13213E4128
13213E4143
13213E4144
13213E4145
13213E4148
13213E4169
13213E4170
13213E4222
13213E4222
13213E4228
13213E4228
13213E4228
13213E4230-1
FSCM
FIG.
NO.
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
4
11
4
11
4
11
12
5
21
4
10
15
25
21
22
21
22
21
21
23
21
22
23
21
22
23
4
11
4
11
6
21
22
23
22
22
22
23
23
23
18
19
19
6
13
1
1
1
23
10
22
21
23
21
22
23
14
ITEM
NO.
12
12
18
18
15
15
4
14
2
2
2
20
5
6
17
19
10
10
7
23
25
12
23
8
8
23
5
29
2
13
15
15
15
1
12
1
10
11
15
5
4
4
12
12b
12c
10
4
18
20
20
4
4
3
13
TM 5-6115271-24P
T.O. 35C23--386-4
SL-4-05926A
PART
NUMBER
13213E4230-13
13213E4230-17
13213E4230-2
13213E4230-3
13213E4230-4
13213E4230-6
13213E4230-7
13213E4233
13213E4235
13213E4237
13213E4238
13213E4239
13213E4248
13213E4249
13213E4250
13213E4254
13213E4256
13213E4257
13213E4258
13213E4259-1
13213E4259-2
13213E4259-3
13213E4259-4
13213E4259-5
13213E4260
13213E4262
13213E4263
13213E4264
13213E4265
13213E4266
13213E4266
13213E5162
13213E5162
13213E5162
13213E5164
13213E5164
13213E5164
13214E0115
13214E6023
13214E6024
13214E6024
13214E6024
13214E6027
13214E9580
13214E1937
13214E1938
13214E1938
13214E1941
13214E1942
13214E1942
13216E1944
13216E3903
13216E3904
13216E3909
13216E3909
13216E3987
13216E5868
FSCM
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
FIG.
NO.
ITEM
NO.
14
14
14
14
14
14
14
16
15
19
18
17
16
23
16
19
24
19
25
19
19
19
19
19
24
17
17
16
17
17
19
4
10
15
4
10
15
25
23
21
22
23
21
22
4
6
13
7
5
12
3
25
25
7
14
16
2
19
20
14
15
16
12
17
12
3
4
12
19
13
7
25
8
20
5
14
18
29
13
13A
5
43
13
29
45
15
31
5
6
15
17
17
7
7
8
17
17
9
24
15
3
9
7
7
8
18
14
PART
NUMBER
13216E5869
13216E5869
13216E5870
13216E5872
13216E5875
13217E1777
13217E1778
13217E1779
13217E1780
13217E1781
13217E1782
13217E3698
13217E3700
13217E3701
13217E3708
13217E6402-10
13217E6402-10
13218E0182-23
13218E0182-25
13218E7063
13218E7064
13218E7065
13219E0883
13219E0884
13219E0885
13219E0888
13219E0888
13219E0889
13219E0890
13219E0891
13219E0893
13219E0893
13219E0894
13219E0895
13219E0897
13219E1000
13219E1001
13219E1002
13219E1003
13219E1039
13219E3810
13220E8321
13220E8321
13220E8321
213E4091
2500-38
39135
391B5
41015
51144-1800
511-04-1800
511-04-1800
511-04-1800
511-04-1800
511-04-1800
511-04-1800
51104-1800
FSCM
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
07556
81349
81349
75015
78189
78189
78189
78189
78189
78189
78189
78189
FIG.
NO.
2
2
10
14
20
7
4
19
15
15
9
8
9
9
4
10
2
2
10
10
14
7
9
8
8
8
8
8
8
9
8
8
9
9
9
9
9
8
20
4
10
15
13
8
14
7
5
4
4
4
11
11
15
15
15
ITEM
NO.
13
13
10
6
13
7
4
16
6
24
20
3
26
4
11
6
4
7
11
12
9
32
5
8
23
13
8
16
2
16
19
8
9
6
11
31
21
1
44
14
30
13
8
4
3
11
10
18
19
10
18
12
15
18
Change 3 85
TM 5-6115-271-24P
T.O. 35C2-3386-4
SL-405926A
PART
NUMBER
511-04-1800
511-04-1800
69-539
69-691
72-170-1RMG
73-0506-7
86 Change 3
FSCM
78189
78189
30554
30554
74193
30554
FIG.
NO.
15
11
2
5
11
5
ITEM
NO.
21
13
5
18
29
28
PART
NUMBER
73-0506-8
73-506-9
73-0506-21
82-11-140-17
82-11-140-17
87-500-2
9786E50-2
FSCM
FIG.
NO.
30554
30554
30554
94222
94222
30554
02978
17
12
5
17
19
2
1
ITEM
NO.
6
19
28
10
7
1
17
TM 5-6115-271-24P
T.O. 35C2-3-386-4
SL-4-05926A
By Order of the Secretaries of the Army,and the Air Force:
Official:
JOHN A. WICKHAM, JR.
General, United States Army
Chief of Staff
R. L. DILWORTH
Brigadier General, United States Army
The Adjutant General
Official:
EARL T. O’LOUGHLIN
General, USAF, Commander, Air Force
Logistics Command
GEORGE B. CRIST
Lieutenant General, USMC
Deputy Chief of Staff for Installations and Logistics
CHARLES A. GABRIEL, General USAF
Chief of Staff
025151-000
This fine document...
Was brought to you by me:
Liberated Manuals -- free army and government manuals
Why do I do it? I am tired of sleazy CD-ROM sellers, who take publicly
available information, slap “watermarks” and other junk on it, and sell it.
Those masters of search engine manipulation make sure that their sites that
sell free information, come up first in search engines. They did not create it...
They did not even scan it... Why should they get your money? Why are not
letting you give those free manuals to your friends?
I am setting this document FREE. This document was made by the US
Government and is NOT protected by Copyright. Feel free to share,
republish, sell and so on.
I am not asking you for donations, fees or handouts. If you can, please
provide a link to liberatedmanuals.com, so that free manuals come up first in
search engines:
<A HREF=http://www.liberatedmanuals.com/>Free Military and Government Manuals</A>
– Sincerely
Igor Chudov
http://igor.chudov.com/
– Chicago Machinery Movers
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
