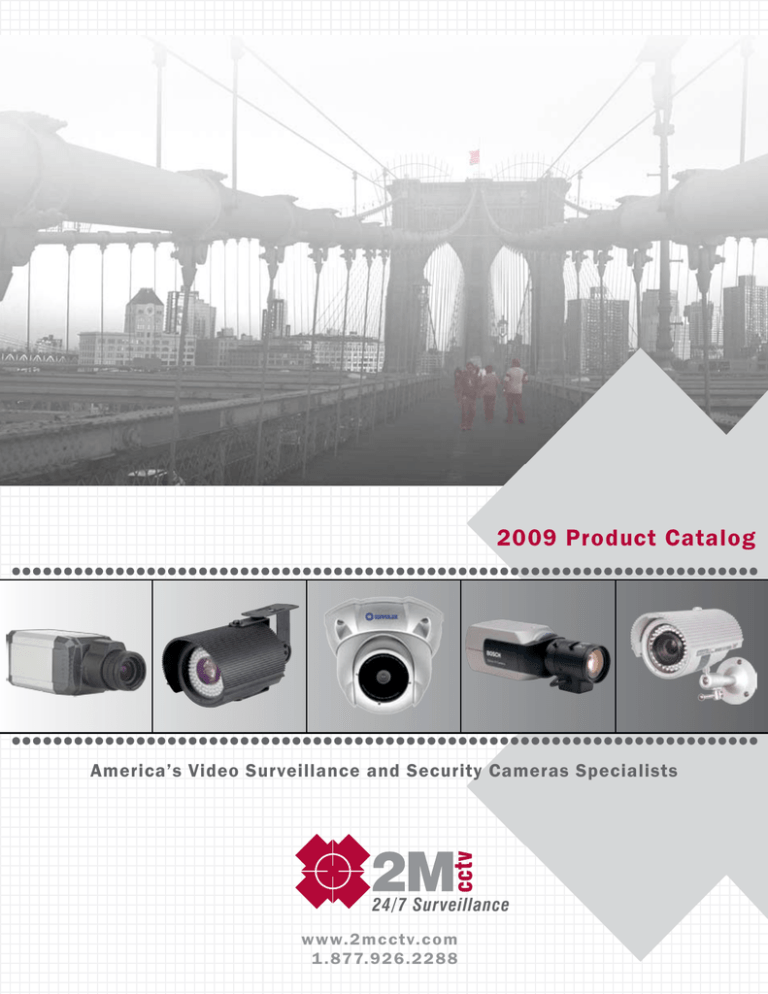

2009 Product Catalog
America’s Video Surveillance and Security Cameras Specialists
24/7 Surveillance
www.2mcctv.com
1 .877.926.2288
Consider The Importance of Video Surveillance
Let’s face it, video surveillance has become commonplace in
today’s society. We’ve all seen the videos on TV of stores being
robbed, internally or externally. While video cameras do offer a
deterrent to crime they also aid in prosecution. Sadly, theft doesn’t
come only from outsiders but from insiders as well. In fact, theft
by employees is six times greater than that of shoplifters.
Surveillance, however, is no longer just about catching “the
bad guy”, it is also an extension of management, allowing a
business owner to be in more than one place at a given time, to
provide an extra pair of eyes, so to speak. Video cameras allow
business owners to watch employees, monitor a production
process or track product movements, all from a remote location.
The cost of a surveillance system is easily offset by the
savings you could incur from reduction through shrinkage (loss
from theft, breakage, employee, error, etc), not to mention travel
time and transportation costs if you have more than one business
site. Adding cameras can reduce the cost of doing business as has
been proven many times over.
Table of Contents
Quality Products from
Industry Leaders
4-Cam CCTV Packages........................................3
8-Cam CCTV Packages........................................4
8 / 16-Cam CCTV Packages................................5
Surveilux Brand System Packages.....................6
Customize Your Own Stand Alone System.........7
Get Your Own PC-Based System.........................8
Color Cameras .....................................................9
Color Day / Night Cameras...............................12
Day / Night Infrared Cameras ..........................15
Day / Night Infrared Dome................................17
About Us.............................................................18
Dome Cameras..................................................19
Vandal Proof Dome Cameras ...........................22
Vandal Proof Infrared Dome Cameras.............24
Black & White Cameras....................................25
Bullet Cameras..................................................26
IP Security Cameras..........................................29
Megapixel IP Security Cameras........................31
Zoom Cameras..................................................35
Pre-Packaged Cameras ....................................35
Hidden Cameras................................................36
Board / Mini Cameras.......................................37
Dummy Cameras...............................................37
Explosion Protected Cameras...........................38
License Plate Cameras......................................39
Wireless Cameras..............................................40
MECC ..................................................................40
Explosion Proof PTZ Cameras ...........................41
Extreme Environment Cameras ........................41
Pan / Tilt / Zoom Cameras................................41
Network / IP Cameras .......................................48
IP Cameras.........................................................49
Digital Recorder - Standalone ...........................51
PTZ Controller.....................................................57
Video & Power Cable .........................................58
Monitor & Display Mounts.................................59
Mounts, Housing, & Enclosures........................64
Infrared Illuminators..........................................68
DVR & VCR Lock Box .........................................68
Audio Microphones............................................69
Audio Surveillance Kits .....................................70
Multiplexers & Switches.....................................71
Power Supplies ..................................................73
Monitors & Display.............................................77
Lenses ................................................................81
Complete Do-it-Yourself Video Surveillance Systems:
Complete Do-it-Yourself Video Surveillance Systems:
Amazing Quality at a Great Value!
Amazing Quality at a Great Value!
Easy to use Video Surveillance PC recorder with local & remote monitoring, playback & recording
1) Dell Desktop DVR
1) 17” Flat Monitor
4) Color Cameras
4) Power Supplies
1) 500ft. Cable
1) Dell Desktop DVR
1) 17” Flat Monitor
4) Color Dome Cameras
4) Power Supplies
1) 500ft. Cable
1) Dell Desktop DVR
1) 17” Flat Monitor
4) Color Dome Cameras
4) Power Supply
1) 500ft. Cable
Part No.
CP4S
PC Description
Dell desktop server, Pentium D Processor, CD Writer, built in Digital Video recorder, 512MB
Ram, Built-in Multi-channel video surveillance system that utilizes the most advance digital
video compression technologies to bring you the highest picture and video quality
performance. Featuring: intelligent Video Audio recording and playback, webcam remote
surveillance, Smart search & ease playback, email alert notifications, real time display &
recording and more.
Cameras
CP4DC
1) Dell Desktop DVR
1) 17” Flat Monitor
4) Color Day/Night Cameras
4) Varifocal Auto/Iris Lense
1) 500ft. Cable
CP4D
4) (530TVL)
4) Hi-Res 420 TVL
Samsung SDC-313NA 2M-42 (1/3" SONY
Color Cameras
SuperHAD Color
CCD Camera)
DVR Capture Card
4) Hi-Res 550 TVL
Surveilux SVD-54
(1/3" SONY
SuperHAD CCD)
CP4SC
4) X-treme Hi-Res
(540 TVL)
Surveilux SVS-54DN
GV-600-04 (30fps) included
GV-650-04 (60fps)
GV-800-04 (120fps)
Hard Drive Capacity
Lens
3.5-8.0mm Auto-Iris
Varifocal Lens, 82-35
Degree Angle
Standard Lens
f3.6mm / F2.0
Power
Vitek VT-24VAC-20
Power Supplies
4 Vitek VT-12VDC-500 4 Vitek VT-12VDC-500
Power Supply
Power Supply
4 Vitek VT-12VDC-1
Power Supplies
Brackets
4x) Ceiling / Wall
Mounts
Surface or Flush
Mountable
4x) Ceiling / Wall
Mounts
Built-In Fixed Lens
(f=3.8mm)
Surface or Flush
Mountable
3.5-8.0mm Auto-Iris
Varifocal Lens, 82-35
Degree Angle
Cables & Connectors
500 ft. Siamese coaxial cable with power, includes BNC twist-on connectors
Upgrade Your System
Upgrading to XP Professional enables remote desktop connection
PC Description
Dell desktop server, Pentium D Processor, CD Writer, built in Digital Video recorder, 512MB
Ram, Built-in Multi-channel video surveillance system that utilizes the most advance digital
video compression technologies to bring you the highest picture and video quality
performance. Featuring: intelligent Video Audio recording and playback, webcam remote
surveillance, Smart search & ease playback, email alert notifications, real time display &
recording and more.
Cameras
8) Hi-Res 550 TVL
6) (530TVL)
4) Hi-Res 380 TVL
Samsung SDC-313NA Surveilux SVD-38IR24 Surveilux SVD-54
Color Cameras
2) X-treme Hi-Res 550 (1/3" SONY
SuperHAD CCD)
TVL (SVS-C55)
CP6BD2
DVR Capture Card
Lens
Brackets
Upgrade Your System
CP8D
CP8S
8) (530TVL)
Samsung SDC-313NA
Color Cameras
GV-600-08 (30fps) included
GV-650-08 (60fps)
GV-800-08 (120fps)
GV-1120-08 (120fps)
GV-1240-08 (240fps)
160 GB included (30 days of recording)
300 GB (45 days of recording)
500 GB (65 days of recording)
1 Terabyte (95 days of recording)
17 inch flat panel (upgradeable)
3.5-8.0mm Auto-Iris
Varifocal Lens, 82-35
Degree Angle
Power
Cables & Connectors
Glossary of terms: FPS: Frames Per Second, PTZ: Pan/Tilt/Zoom, DVR: Digital
Video Recorder, TVL: TV Lines, More Package Options Available Online
3
CP6S
Monitor
17 inch flat panel
1) Dell Desktop DVR
1) 17” Flat Monitor
8) Color Dome Cameras
1) Power Supply
1) 1000ft. Cable
1) Dell Desktop DVR
1) 17” Flat Monitor
8) Hi-Res Color Cameras
1) Power Supply
8) Varifocal Lens
8) Brackets
1) 1000ft. Cable
Part No.
Hard Drive Capacity
160 GB included (30 days of recording)
300 GB (45 days of recording)
500 GB (65 days of recording)
1 Terabyte (95 days of recording)
Monitor
1) Dell Desktop DVR
1) 17” Flat Monitor
4) Dome Cameras
2) Color Cameras
1) Power Supply
1) 500ft. Cable
1) Dell Desktop DVR
1) 17” Flat Monitor
6) Color Indoor Cameras
1) Power Supply
6) Brackets
1) 500ft. Cable
Surveilux SVD-38IR24 Built-In Fixed Lens
(Built-In Fixed f=3.8mm) (f=3.8mm)
Surveilux SVS-C55
(3.5-8.0mm Auto-Iris
Varifocal Lens, 82-35
Degree Angle)
3.5-8.0mm Auto-Iris
Varifocal Lens, 82-35
Degree Angle
8-CAM CCTV PACKAGES
4-CAM CCTV PACKAGES
Easy to use Video Surveillance PC recorder with local & remote monitoring, playback & recording
8 output central power supply 24VAC
6x) Ceiling / Wall
Mounts
2x) Ceiling / Wall
Mounts
500 ft. Siamese coaxial cable with power,
includes BNC twist-on connectors
Surface or Flush
Mountable
8x) Ceiling / Wall
Mounts
1000 ft. Siamese coaxial cable with power,
includes BNC twist-on connectors
Upgrading to XP Professional enables remote desktop connection
4
Real-Time DVR
SVR Series
Page 55
Complete Do-it-Yourself Video Surveillance Systems:
SVS-C55
Page 11
SVV-54DNL49
Page 20
SVB-54IR28L49
Page 12
•1/3” SONY SuperHAD
CCD, 540TVL
•12VDC
•Vandal Proof
•1/3” SONY SuperHAD
CCD, 540TVL
•True Day & Night w/ IR Cut Filter
•28 Units Infrared LED
SVV-54IRC40L49D
Page 16
Siamese
CCTV Cable
Page 31
Amazing Quality at a Great Value!
8/16-CAM CCTV PACKAGES
1) Dell Desktop DVR
1) 17” Flat Monitor
16) Infrared Day / Night
Cameras
1) Central Power Supply
1) 1000ft. Cable
1) Dell Desktop DVR
1) 17” Flat Monitor
16) Hi-Res Color Cameras
1) Central Power Supply
1) 1000ft. Cable
1) Dell Desktop DVR
1) 17” Flat Monitor
32) Color Dome Cameras
2) Power Supply
2) DVR Card
2) 1000ft. Cable
•1/3” SONY SuperHAD CCD, 550TVL
•Lens Included; Varifocal 3.5~9mm
•0.03 Lux
•12VDC / 24VAC Dual Voltage
Part No.
CP16I
PC Description
Dell desktop server, Pentium D Processor, CD Writer, built in Digital Video Recorder, 512MG Ram, Built-in multi-channel
video surveillance system that utilizes the Most Advanced digital video compression technologies to bring you the
highest picture and video quality performance. Featuring: Intelligent Video Audio recording and playback, webcam
remote surveillance, Smart search & ease playback, email alert notifications, real time display & recording and more.
Cameras
16) Surveilux SVB-48IR12
480TV Lines (SONY HQ-1
DSP Built-In)
DVR
Capture Card
Hard Drive
Capacity
CP16S
GV-600-16 (30fps)(Included)
GV-800-16 (120fps)
GV-1120-16 (120fps)
GV-1240-16 (240fps)
GV-1480-16 (480fps)
16) (530TVL)
Samsung SDC-313NA
Color Cameras
GV-600-16 (30fps)(Included)
GV-800-16 (120fps)
GV-1120-16 (120fps)
GV-1240-16 (240fps)
GV-1480-16 (480fps)
160 GB included (10 days of recording)
300 GB (20 days of recording)
500 GB (35 days of recording)
1 Terabyte (65 days of recording)
Monitor
Lens
CPA32D
32) Survielux SVD-38
380TV Lines
(1/3" SONY SuperHAD CCD
Color Dome Cameras)
2) Avermedia NV6480-Exp
DVR Card (480/400fps)
16 Video Feed Per System
CPA32VDCIRD
16) Surveilux SVB-42IR28L49
X-treme Hi-Res (540 TVL)
12) Surveilux SVB-38IR24
Hi-Res (380 TVL)
4) Surveilux SVS-56CDNRD
Hi-Res (560 TVL)
2) Avermedia NV6480-Exp
DVR Card (480/400fps)
16 Video Feed Per System
}Based on 30 fps DVR
17 inch flat panel (upgradeable)
Built-In Fixed Lens
(f=4.3mm)
3.5-8.0mm Auto-Iris
Varifocal Lens, 82-35 Degree
Angle
Built-In Fixed Lens
(f=3.8mm)
SVB-38IR24 (Lens 3.8mm)
SVB-42IR28L49 (4~9mm DC
IR Lens)
SVS-56CDNRD (3.5-8.0mm
Auto-Iris Varifocal Lens)
Power
16 Output Central Power
Supply 12VDC
16 Output Central Power
Supply 12VDC
16 Output Central Power
Supply 12VDC
16 Output Central Power
Supply 12VDC
Brackets
Surface or Flush
Mountable
16) Ceiling / Wall Mounts
Surface or Flush
Mountable
16) Ceiling / Wall Mounts
Upgrade
Your System
•1/3” SONY SuperHAD
CCD, True Day & Night
•X-Treme Hi-Res 540TVL
•DC Auto Iris Lens (4~9mm)
The Surveilux family of CCTV products will provide you the utmost in cost effective surveillance security. Provided below is a
listing of pre-composed packages that will satisfy most surveillance needs in an economical manner. Simply choose the package
that best fits your needs and let one of our representatives take care of the rest. It really can’t get much easier than this.
4 Channel
SVS-C55
Package Number
/ Qty
Cables &
Connectors
SVV-54DNL49 SVB-54IR28L49 SVV-54IRC40L49D DVR / GB Cable / Feet
/ Qty
/ Qty
/ Qty
SVRE-4200
SVP4-D
-
-
-
4
SVP-5
4
-
-
-
SVP4-B
-
4
-
-
SVP4-SD
2
-
-
2
SVP4-SB
2
2
-
-
SVP4-DB
-
2
-
2
SVP4-DBIR
-
-
2
2
8 Channel
SVS-C55
Package Number
/ Qty
SVP8-D
-
SVP8-S
500
SVV-54DNL49 SVB-54IR28L49 SVV-54IRC40L49D DVR / GB Cable / Feet
/ Qty
/ Qty
/ Qty
SVRE-4200
-
-
8
8
-
-
-
SVP8-B
-
8
-
-
SVP8-SD
4
-
-
4
SVP8-SB
4
4
-
-
SVP8-DB
4
-
4
-
SVP8-DBIR
-
-
4
4
16 Channel
SVS-C55
Package Number
/ Qty
200HDD
200HDD
500
SVV-54DNL49 SVB-54IR28L49 SVV-54IRC40L49D DVR / GB Cable / Feet
/ Qty
/ Qty
/ Qty
SVRE-4200
SVP16-D
-
-
-
16
SVP16-S
16
-
-
-
SVP16-BIR
-
-
16
-
SVP16-BD
-
8
-
8
SVP16-SBD
4
6
-
6
200HDD
1000
All System Packages include appropriate Power Box and FREE Ground Shipping within the Continental United States.
1000 ft. Siamese coaxial cable with power, includes BNC twist-on connectors
Upgrading to XP Professional enables remote desktop connection
Glossary of terms: FPS: Frames Per Second, PTZ: Pan/Tilt/Zoom, DVR: Digital
Video Recorder, TVL: TV Lines, More Package Options Available Online
5
1) Dell Desktop DVR
1) 17” Flat Monitor
12) Hi-Res Dome Cameras
16) Hi-Res Bullet Cameras
4) Color Day/Night Cameras
2) Power Supply
2) 1000ft. Cable
•MPEG-4 Video Compression
•Pentaplex
•Live, Search, P/T/Z/F Network
Functions
OPTION:
19 inch flat-screen
LCD Monitor with VGA inputs.
SURVEILUX BRAND SYSTEM PACKAGES
Easy to use Video Surveillance PC recorder with local & remote monitoring, playback & recording
6
CUSTOMIZE YOUR OWN STAND ALONE SYSTEM
Select Your DVR
Model Number
SVRP-4200
Gigabytes
Features
200
SVRP-4400
400
SVRP-4600
600
SVRP-4800
800
SVRP-8200
200
SVRP-8400
400
SVRP-8600
600
SVRP-8800
800
SVRP-16200
200
SVRP-16400
400
SVRP-16600
600
SVRP-16800
800
Surveilux DVR Premium Series
Select Your PC DVR
Model Number
4 Channel Pentaplex Stand Alone DVR with 120
frames per second, Display Speed and 240 fps
Recording Speed, Built-in DVD-RW with Mouse
Controllable Interface
8 Channel Pentaplex Stand Alone DVR with 240
frames per second, Display Speed and 240 fps
Recording Speed, Built-in DVD-RW with Mouse
Controllable Interface
16 Channel Pentaplex Stand Alone DVR with
480 frames per second
Display Speed and 240 fps Recording Speed,
Built-in DVD-RW with Mouse Controllable Interface
Select Your Cameras
•MPEG-4 Video Compression
•Pentaplex (Live, Recording, Playback,
Networking, Backup)
•Powerful Networking, DDNS
•Live, Search, P/T/Z/F Network Functions
•4 Channels Audio Recording
•USB-Type Mouse, Front Key Panel, IR Remote
Controller, via Network
•IR Type remote control and front keys
•RS-232 Console Control, RS-485 Camera Control
•4 Alarm Inputs, 1 Output
•Motion Detection, Sensor, Schedule, Variable
Compression Rate
•Built-in DVD-RW or CD-RW, USB Memory
Sticks, External USB HDD, CD-RW
Frame Rate
Channels
Features
Professional Dell Desktop Featuring: Operating
System: Windows XP: 512MG RAM / Pentium 4
Processor / 160GB Hard drive / Second
additional hard drive option available / Version
8.05 GeoVision Software Suite / Installed and
tested Geovision DVR Capture Board / Mpeg
4 / Wavelet compression technology / Motion
detection, around the clock, and pre-schedule
recording mode / Alarm to E-mail / Embedded
I/O devices control / Embedded PTZ control
panel / Build-in web server / Digital watermark
authentication /Multi level passwords
protection / Full screen display / Support
dynamic IP address / Video lost detection / On
screen video lost message / Support dual screen
display / Video lost detection / Video auto gain
controller / Video scaling filter/ Use Microsoft
Remote Desktop to control another GV-System /
Mini-View display / AVI repair utility
CD250-4
15fps
4
CD600-4
30fps
4
CD800-4
120fps
4
CD600-8
30fps
8
CD800-8
120fps
8
CD1120-8
120/480fps
8
CD1240-8
240/480fps
8
CD600-16
30fps
16
CD800-16
120fps
16
CD1120-16
120/240fps
16
CD1240-16
240/480fps
16
CD1480-16
480fps
16
KPC-DN5000NH
Page 20
SSC-DC593
Page 12
SVD-54DNL49
Page 16
LTC 0455/21
Page 10
CD-SD
Page 16
Model No.
Quantity
X
Unit Price
=$
Model No.
Quantity
X
Unit Price
=$
Model No.
Quantity
X
Unit Price
SVD-38IR24
Page 19
PC DVR
Model No.
SVS-C55IR
Page 11
Price $
=$
Monitor
Model No.
Price $
Model No.
VTM-21CF
Page 43
VTM-LCD193
Page 43
Quantity
X
VTM-LCD173P
Page 43
Unit Price
KPC-DN5000NH
Page 20
SSC-DC593
Page 12
SVD-54DNL49
Page 16
LTC 0455/21
Page 10
CD-SD
Page 16
SVD-38IR24
Page 19
Cable
Sub Total
KPC-N800NH
Page 24
PIH-60
Page 8
VTC-LED697HRCB
Page 19
CC3701H-2
Page 20
WV-BP330
Page 17
IK-6200A
Page 19
Model No.
Quantity
X
Unit Price
=$
Model No.
Quantity
X
Unit Price
=$
Model No.
Quantity
X
Unit Price
=$
Model No.
Quantity
X
Unit Price
=$
SVB-54IR90L550
Page 23
Select Your Cable Page 31
Price $
=$
Total
Select Your Cable
500 ft. Roll - Quantity
X
$120.25
=$
1000 ft. Roll - Quantity
X
$228.35
=$
See Page 31 to select your PTZ
controller if needed.
Price $
Camera
Sub Total
Select Your Monitor
SAM-21M
Page 45
17 inch monitor included
Select Your Cameras
DVR
Model No.
Price $
SVS-C55IR
Page 11
Dell Desktop DVR
Dell and GeoVision DVR and PC Based
System, Various Capture Card Frame
Rates (20-120 FPS), 160GB Hard drive
included, Optional CD-RW Drive
Upgrade Available
All System Packages include appropriate Power Box and FREE Ground Shipping within the
Continental United States. Product substitutions are welcome. Please feel free to select from
any of the products in our catalog to truly customize your system. Any questions about
products can be answered by our 2M representatives. Just give us a call.
500 ft. Roll - Quantity
X
$120.25
=$
1000 ft. Roll - Quantity
X
$228.35
=$
Controller
Model No.
Price $
Camera
Sub Total
Price $
Cable
Sub Total
Price $
Total
Price $
Price $
All System Packages include appropriate Power Box and Free Ground
Shipping within the Continental United States.
CREATE YOUR OWN PC-BASED SYSTEM
7
Use the table below to pick and choose from an assortment of products to create your own System
for a true custom fit to satisfy your particular needs.
8
SCC-131B
KPC-4000NH
•Hi-Res Over 550 TVL
•Digital Day & Night (On/Off)
•On Board OSD
•1.0 Lux @ F2.0
SDC-313NA
•Ultra Hi-Res of 530 TVL
•0.3 Lux @ F1.2 (Color) / 0.002 Lux (Sens-Up Mode)
•Removed Noise
•Ghosting Effect with SSNR
KPC-650CHQ
•1/3" SONY ExView HAD CCD w/ HQ1 Chipset
•550 TVL (Hi-Res)
•0.05 Lux @ Faceplate
•Lens Not Included:
C/CS Mount Lenses
SOC-4030N
•Day & Night Built-In Camera
•1/3" SONY SuperHAD Color CCD
•Built-In 3x (3~9mm) Varifocal Lens with Auto-Iris
•Ultra Hi-Res of 530 TVL
•0.3 Lux (Color) / 0.002 Lux
(Sens-Up Mode)
KPC-5000NH
•Built-In Auto-Iris Varifocal Lens (f3.8~9.5mm)
•Hi-Res Over 550 TVL
•Digital Day & Night (On/Off)
•1.0 Lux @ F2.0
•1/3” Image Format CCD Color Camera
•330TVL Standard Resolution
•0.39 Lux Sensitivity
•Dual Voltage
•Auto Detection of Lens Type
•Advanced Digital Signal Processing
CCC1380H-6
•1/3" Format CCD Imager
•Digital Signal Processing
•480 TVL of Resolution
•0.7 Lux Sensitivity
•1/3˝ Image Format Digital Color CCD Cameras
•480 TVL Hi-Res
•0.3 Lux Sensitivity
•Back Light Compensation
•Extended Sensitivity with Night Sense
•Dual Voltage
C10CH-6
VCC-3944
•Compact Body Style
•1/3" Format CCD Imager
•540 TV Lines
•0.4 Lux Sensitivity
•1/4" Color CCD DSP High Performance
Color Camera
•360 TVL Standard Resolution
•0.3 Lux Sensitivity
•2 Types of Back Light Compensation
•Dual Voltage
NOTE:
High Performance Cameras
LTC 0435
LTC 0455/21
The Dual Voltage LTC Series High Performance 1/2-inch Digital CCD
Day / Night Camera ensures the highest image quality possible at any
time. Depending on the available light the camera will automatically
switch from color to monochrome.
Unless otherwise stated, cameras
do not come with lenses or mounts.
Those must be ordered separately.
It is advised that you speak with
one of our representatives to select
a lens and mount that best meet
your needs.
VCC-5884
CC3701H-2
•1.3” IT Digital ‘Cube’ Color Camera, 520TVL
•1.4 Lux Sensitivity
•Compact Size
•Backlight Compensation Enabled
•Dual Voltage, 24VAC / 12VDC
•Line Lock with Phase Adjustment
•Automatic Gain Control (AGC)
•Back Light Compensation
•Electronic Iris
VCC-6584
CCC1380UH-6
•1/3” Image Sensor Color CCD Camera
•520TVL Super Hi-Res
•0.5 Lux Sensitivity
•Multi-Sport & Center-Zone Photometry Systems
for Back Light Compensation
•Dual Voltage
•1/3" Format CCD Imager
•Ultra Hi-Res
•540 TVL
•Compact Body Style
VTC-C661
PIH-60
•Power Supply 24VAC
•Compact Design for Discreet Applications
•Special Circuit to Avoid Color Rolling
•Standard Resolution
•0.08 or 0.1 Lux
•Options Available
9
The VTC-C661 color video camera employs a solid
state 1/4" CCD designed for long life and reliability. This economical camera offers excellent image
reproduction with low lag and high burn resistance,
and is not subject to distortion from magnetic fields.
Audio Monitoring warning sticker included for
compliance with federal regulations.
•1/4" Color CCD with 380 TVL
•Back Light Compensation
•D/D & Video Auto-Iris Support
•Minimum Illumination of 0.51 Lux (F1.2)
•Built-In Microphone
•Built-in Auto Electronic Shutter
•Signal-To-Noise Ratio of 48dB
•12 VDC Power Input
COLOR CAMERAS
COLOR CAMERAS
•1/3” Interline Transfer (IT) SuperHAD Color Camera
•520 TVL Super Hi-Res
•0.3 Lux
•Back Light Compensation Circuitry
•Switch Programmable DSP Camera
•Dual Voltage: 12VDC/24VAC
•VBS 1.0 Vp-p Lens Divice
Type AI (Video/DC)
The LTC 0455 Dinion Color Camera is a 1/3-inch
CCD digital color netork camera designed to ensure
the highest possible image quality at all times. The
LTC 0455 is ideal for all security surveillance needs.
This BOSCH security camera is easy to install and
setup and is perfect for indoor, outdoor, and
day-night security surveillance use, for your home
or business.
VCC-5984
1/3" CCD Image Sensor Color Camera • 520
TVL Super Hi-Res • 0.6 Lux Sensitivity •
Intelligent Back Light Compensation with
Multi-Zone Analysis • 24VAC
VCC-6594
520TVL • High Sensitivity - 0.3 lux • Smart
Multi-Zone Weighted BLC • ExView TM
CCD Technology • DC & Video Auto-Iris
Lens Compatibility • 24VAC
Sanyo VCC-6594 1/3" Super High Resolution, High Sensitivity DSP
Color Camera, 520TVL, ExviewTM CCD Technology, 0.6 Lux Sensitivity,
24VAC, Intelligent Backlight Compensation with Multi-Zone Analysis,
Smart Multi-zone Weighted BLC.
10
CC3610H-6
COLOR CAMERAS
•1/3" SONY ExView HAD CCD Camera
•480 TVL Hi-Res
•0.4 Lux Sensitivity
•Selectable Back Light Compensation
•Dual Voltage
WAT-250D
•1/3” Image Sensor CCD Color Camera
•450 TVL Hi-Res
•Min. Illumination 0.2 Lux
•Selectable Back Light Compensation
•Optional 12VDC
WAT-231S
•1/3” Interline Transfer CCD Image Sensor
CCD Color Camera
•480 TVL Hi-Res
•Min. Illumination 1.0 Lux
•Great Backlight Compensation
•12VDC
SSC-DC83
•Super Sensitivity of -0.4 Lux F1.2
•Automatic White Balance (ATW/ATW PRO)
•Auto-Iris Lens Controlled By Video Signal or
DC Power Supply
•Private Mask Function for Hiding an Area that
should not be Displayed on the Screen
11
CC3751H-2
•Horizontal Resolution of 480 TVL
•For Use with Direct Drive & Auto-Iris Lenses or
Fixed / Manual Iris Lenses
•Removable Top / Bottom Mount
•Back Light Compensation
LTC 0485
•1/3" Interline Transfer CCD Color Camera
•480 TVL Hi-Res
•0.4 / 0.15 Minimum Lux
•Backlight Compensation
•Dual Voltage
LTC 0610
•1/3" Image Sensor CCD Color Camera
•450 TVL Hi-Res
•Min. Illumination 0.2 Lux
•Selectable Back Light Compensation
•Optional 12VDC
2M-G1815NF
•1/3" SONY SuperHAD CCD; Day & Night (ICR)
•2x Digital Zoom (On/Off)
•Super Digital Noise Reduction (SDNR);
Auto White Balance
•Dual Voltage; X-treme High Res.
2M-GN605
•1/3" SONY SuperHAD CCD
•High Resolution (480 TV Lines)
•WDR (Wide Dynamic Range)
•Day & Night (ICR)
PIH-80
SVS-WC48
•1/3" SONY Double Scan CCD
•Hi-Res 480 TVL
•Wide Dynamic Range
•Built-In IR Cut Filter
•Dual Voltage 12VDC/24VAC
SVS-56DNRD
•High Resolution of 560TV Lines
•1/3" SONY SuperHAD CCD
•Day & Night, Privacy Function
•Electronic Iris, DNR (Digital Noise Reduction)
SVS-56CDNRD
•1/3" SONY SuperHAD CCD
•High Resolution of 560TV Lines
•True Day & Night
(ICR Type-IR Cut Filter Removable)
•Dual Voltage
LTC 0620
•1/2" Interline Transfer Digital CCD
Color Security Camera
•540 TVL Super Hi-Res
•1.4 Lux Sensitivity
•Advanced Digital Signal Processing
•Back Light Compensation
•15-Bit DSP Technology
•Dual Voltage
WVCL920A
•1/2" CCD Color & B/W Switchable 120VAC
•480-Line Horizontal Resolution in Color Mode, &
570-Line in B/W Mode
•Built-In Digital Motion Detector
•Built-In 16 Alphanumeric Character Display
•ELC Function Enables the Use of Fixed Iris Lens
for Indoor Applications
SSC-DC593
SVS-54WDNRD
•1/3" Type Interline Transfer CCD
•480 TVL Hi-Res
•0.8 Lux Color Mode Sensitivity
•0.07 Lux B/W Mode Sensitivity
•Dual Voltage
•Pixim 1/3" DPS Orca Ship Sensor
•High Resolution (Up to 540 HTVL)
•Best WDR (Wide Dynamic Range)
•EDNR (Electronic Digital Noise Reduction)
•SONY 1/3" SuperHAD CCD Sensor
•OSD Menu Setup
•Auto Color & Mono Switching
•Built-In Highly Sensitive Capacitive Microphone
•Up to 8 Privacy Masking Zones
•IR Cut Filter Mechanism
PIH-8176N
•480 TVL 0.005 Lux
•OSD Menu Setup
•Up to 8 Privacy Masking Zones
•Dual Voltage
PIH-8196N
WV-CP254H
•1/3" CCD Color Image Sensor
•480 TVL Color (Hi-Res)
•570 TVL in B&W (Super Hi-Res)
•1.0 Lux Sensitivity Color Mode
PIH-8086N
•1/3" SONY ExView HAD CCD
•IR Cut Filter Mechanism
•Built-In Highly Sensitive Capacitive Microphone
•Auto Color & Mono Switching
•Powerful White Balance
PIH-8156N
SSC-E473
•1/3" IT Super ExWave CCD Color Camera
•540 TVL Super Hi-Res
•0.55 Lux Color
•0.05 Lux B/W
•Back Light Compensation On/Off Selectable
•Auto / Manual Selectable Day / Night Function
•Dual Voltage
•1/3" SONY SuperHAD CCD
•Option Available for SONY SuperHAD
CCD Sensor 480 TVL
•IR Cut Filter Mechanism
•Built-In Highly Sensitive Capacitive Microphone
•Auto Color & Mono Switching
•Powerful White Balance
COLOR DAY/NIGHT CAMERAS
For home or business, 2Mcctv offers a wide range of surveillance products that fit a myriad of needs and applications.
Whether your surveillance needs are indoor or outdoor, we can provide the name-brand products that you need. Changes
in technology over the past few years have produced better quality products with improved imagery. We no longer have
to settle for grainy black and white images on tape that deteriorates over time. Images are now in color and at high
resolution that provide the viewer with a cleaner, more accurate representation of captured events, and are recorded on
computer hard drives with no loss of image integrity over time. Whether new to surveillance products or due an upgrade
of your surveillance system, 2Mcctv can provide the quality products you need.
WVCW374
•Outdoor Day / Night Camera w/ SDII Technology
•8x Varifocal Lens
•SONY 1/3" ExView HAD CCD Sensor
•OSD Menu Setup Up to 8 Privacy Masking Zones
•IR Cut Filter Mechanism
•Auto Color & Mono Switching
•Built-In Highly Sensitive Capacitive Microphone
12
SCC-B2315
COLOR DAY/NIGHT CAMERAS
SDN-520
SDN-550
•1/3” SONY SuperHAD Color CCD Camera
•480 TVL Color (Hi-Res)
•550 TVL B/W (Super Hi-Res)
•0.01 Lux in B/W
•0.5 Lux in Color
•Back Light Compensation
•Dual Voltage
•Ultra Hi-Res of 530 TVL
•(Color) / 570 TVL (B/W) Day & Night Capability
with Removable IR Cut Filter (ICR)
•Removable Noise
•Ghosting Effect with SSNR
•0.3 Lux @ F1.2 (Color)
•0.01 Lux (B/W)
•0.02 Lux (Sens-Up)
SHC-721A
•1/3" SONY SuperHAD Color CCD Camera
•500 TVL Color (Super Hi-Res)
•550 TVL B/W (Super Hi-Res)
•Color: 0.2 Lux at F1.2
•Monochrome: 0.01 Lux at F1.2
•Motion Detection & Powerful Dynamic Range
•Very High Sensitivity
•Back Light Compensation
•Dual Voltage
SHC-740N
•Removed Noise & Ghost Images with SSNR
•Day & Night with ICR (Infrared Cut Filter Removal)
•Hi-Res of 530 TVL (Color) 570 TVL (B/W)
•0.08 Lux at F1.2 (Normal Color Mode)
0.01 Lux at F1.2 (B/W)
•Dual Voltage:
24VAC & 12VDC (N/P)
TK-WD310U
JVC TK-WD310U Wide Dynamic Range Series
Camera. Extremely wide dynamic range and
advanced 14-bit digital processing give this
camera a distinct advantage in situations where
scenes have very high contrast.
13
SHC-730N
•1/3" Double Scan Color CCD Camera
•520 TVL in Color (Super Hi-Res)
•570 TVL in B&W (Super Hi-Res)
•0.05 Lux at F1.2 in Normal Color Mode
•0.0004 Lux at F1.2 in
Harsh Back Light Conditions
•Back Light Compensation
•Dual Voltage
SHC-735
•Resolution of 560 TVL for Color & 700 TVL for Black
& White
•Realising Clean, Clear Images with S/N 52db
•Further 128x Improved WDR by
Pixel Unit Image Processing
SHC-721N
•1/3” SONY Double Scan CCD Color / B&W Camera
•550 TVL Super Hi-Res
•0.01 Lux Sensitivity
•Dual Voltage
SDC-415
•1/3" SONY SuperHAD Color CCD Camera
•530 TVL Super Hi-Res
•0.0002 Lux Sensitivity
•24VAC Voltage
•Back Light Compensation
•Motion Detection
•Privacy Masking
•ID Setting
CC3770H-6
•1/3" Format CCD Imager
•480 TVL Color (Hi-Res)
•530 TVL B&W (Super Hi-Res)
•0.7 Lux (Color Mode) /
0.09 Lux (B&W Mode) Sensitivity
•Back Light Compensation
•24VAC
•1/3" High Resolution Pixel Device
•Built-In Innovative 14-Bit Digital Processing
•Performs High-Speed ExDr (Wide Dynamic Range
Correction) with Automatic 5-Level Exposure
Control for Each Pixel
•480 TVL Hi-Res
•Built-In Programmable Menu with Joystick Operation
•White Balance: Automatic (ATW)/One Push/Manual
•Sync System: INT/LL Switchable
•AGC: On/Off Switchable
•Camera Title Possible: Up to 12 Letters
•DC/Video Iris Lens Possible
•Ultra-Compact Camera Body
•24VAC / 12VAC Power Supply
TK-C920UA
•1/3” CCD Color Video Camera
•540 TVL Super Hi-Res
•0.7 Lux F1.2 in Color Mode
•0.48 Lux F1.2 in B&W Mode
•Dual Voltage
IK-65WDA
•1/3” Interline Transfer CCD Color Camera
•520 TVL Super Hi-Res
•0.001 Lux Min. Illumination
•Dual Voltage
IK-64DNA
•1/3” IR Sensitive CCD Camera
•480 TVL Color (Hi-Res)
•570 TVL B/W (Super Hi-Res)
•0.1 Lux Color
•0.003 Lux B/W
•Dual Voltage
IK-6210A
IK-6410A
•350 TVL Standard Resolution
•0.2 Lux Min. Illumination, Dual Voltage
•Back Light Compensation
•10-Bit DSP Technology
•1/3" Interline Transfer CCD Color Camera
•480 TVL Hi-Res
•0.2 Lux Min. Illumination
•Dual Voltage
•Back Light Compensation
•10-Bit DSP Technology
VCC-4794
•1/3” Interline Transfer CCD Camera
•520 TVL Super Hi-Res
•0.01 Lux Black & White
•0.45 Lux Color
•Intelligent Multi-Zone Weighted BLC
•Back Light Compensation (On/Off)
LTC 0495
VCC-WD8574
•1/3" Digital CCD Day / Night Camera
•480 TVL Min. Resolution (Hi-Res)
•0.24 Lux Min. Illumination
•Back Light Compensation, Motion Detection
•Wide Dynamic View
•AC/DC Voltage
•1/3” Interline Transfer CCD Camera
•480 TVL Hi-Res
•0.5 Lux Color
•0.025 Lux B/W
•Backlight Compensation (On/Off) Feature
•Dual Voltage
KPC-DN4000NH
•550 TVL
•Mechanical Day & Night from CCD
•0.5 Lux @ F2.0
•Optional Available: 0.05 Lux @ Faceplate
(ExView CCD)
•On Board OSD
KPC-DN6000NH
•Offers Wide Dynamic Range for Maximum
Performances in High Contrast Lighting
•Mechanical Day & Night from CCD
•Digital Slow Shutter
•Color 0.004 Lux, B/W 0.001 Lux
AGC Max, DSS Max
VCC-4344
•350 TVL of Resolution
•Super High Sensitivity
•Smart Multi-Zone Weighted BLC
•Automatic Switching Between Color
& B/W Modes
KPC-WDR4200NH
•SONY SS3 Chipset
•550 TV Lines
•Auto Senses Light Contrast To Turn WDR (On/Off)
•DSS For Extremely Low Light Area (0.001 Lux)
KPC-DN5000NH
•Built-In Mechanical Day & Night Auto Iris
•Varifocal Lens (f3.8~9.5mm)
•Hi-Res Over 550 TVL
•Digital Day & Night (On/Off)
•0.5 Lux @ F2.0
COLOR DAY/NIGHT CAMERAS
The SCC-B2315 is a high performance, high resolution
color camera equipped with 1/3 Super HAD Progressive
scan CCD which delivers excellent Wide Dynamic
Range. It produces sharp images even in harsh lighting
conditions that have large contrasts between lightness
and darkness.
•1/3” SuperHAD Progressive CCD
•True Day & Night Cut Filter
•Hi-Res - Color: 540 TVL, B/W: 570 TVL
•Digital Noise Reduction
•Illumination: Color-0.0005 Lux,
B/W-0.00005 Lux @ 15 IRE, Sense Up 256x
•Wide Dynamic Range
•24 Privacy Zones
•Motion Detection
•2x D-Zoom
•OSD (On Screen Display)
•RS-485 Remote Control
•24VAC / 12VDC Dual
TK-C750U
•1/2" Standard Resolution Interline Transfer (IT)
CCD Color Camera
•330 TVL Standard Resolution
•0.28 Lux Sensitivity
•Back Light Compensation
•24VAC Power Operation
14
DAY/NIGHT INFRARED CAMERAS
SVB-42IR66L49
•1/3" SONY SuperHAD CCD
•420 TV Lines
•Day & Night Function
•Back Light Compensation
SVB-54IR54
(540 TVL)
VTC-IRLED24H
•1/3” SONY SuperHAD CCD
•540TV Lines
•Min. Illumination: 0.3 Lux
•X-treme Low Lux 0.00 when IR LED On
•Day & Night Function
•480 TVL & 12VDC 1/3" High Resolution
Color CCD Image Sensor
•1 Lux / F2.0
•0 Lux (IR On)
•Water Resistance: IP 67; 24 Infrared LEDs
VTC-IR600/550
VTC-IRLED30HD
•1/3” Color CCD with 480 TVL of Resolution
•Heavy Duty Weather / Vandal Resistant
Aluminum Construction
•Sunshield & Mounting Bracket Included
KPC-EX35NV
SVB-48IR24
SVB-42IR24
•1/3” SONY SuperHAD CCD
•480TV Lines
•Min. Illumination: 0.3 Lux
•X-treme Low Lux 0.00 when IR LED On
•Back Light Compensation
•Day & Night Function
•1/3” SONY SuperHAD CCD
•420TV Lines - 24 Units IR Lens
•Day & Night Function
•Indoor: 25m / Outdoor: 15m
•Min. Illumination: 0.3 Lux
SVB-54IRC90L550
•1/3" SONY SuperHAD CCD Over 540 TV Lines
•True Day & Night (ICR-IR Cut Filter Removable)
•Mirror Function (Option)
•1/3” SONY ExView CCD
•420 TVL B/W (Standard Resolution)
•380 TVL Color (Standard Resolution)
•0.05 Lux / F2.0
•3.6mm Lens
•6 High Density LEDs
•30ft Working Distance
•X-treme Low Lux 0.0 when IR is On
•Weatherproof
•12VDC
KPC-N700NH
KPC-S53CNV
KPC-TW670NH
•SONY 1/3" SuperHAD CCD Camera
•380 TVL of Standard Resolution
•Sensitivity of 0 Lux
•Lens Options: f3.6mm / f6mm (Standard) /
f8mm Board Lens
•X-treme Low Lux 0.0 when IR is On
•12 IR LEDs
•12VDC
•Dual Camera CCDs for Prevention
of Focus Shift During Night Mode
•Low Current Consumption for Easy Installation & Maintenance
•Weatherproof (IP-67) B&W, 420 TVL / Color, 550 TVL
•Mounting Bracket Included
•120ft IR Shooting Distance
•Lens & Power Supplies Options Available
•X-treme Low Lux 0.00 when IR LED On
•Built-In Heater Protects the Camera from Low
Temperature
•External Zoom & Focus Adjustable
•IR Lens Separated Win Cap for Prevention
of IR Reflection
•Cable Concealed
Mounting Bracket
•1/3" Interline Transfer Color CCD
•480 TVL Hi-Res
•160 Infrared LEDs
•0.5 Lux (F1.3) / 0.00 Lux (IR LED On)
•Varifocal DC Auto-Iris IR Lens 5~50mm F1.4
•Heavy Duty Weather / Vandal Resistant Aluminum
Construction
•Dual Voltage
VTC-IR600/4215
•1/3" Interline Transfer Color CCD
•480 TVL Hi-Res
•60 Infrared LEDs
•0.5 Lux (F1.3) / 0.00 Lux (IR LED On)
•Varifocal DC Auto-Iris IR Lens 4.2-15.5mm F1.4
•Heavy Duty Weather / Vandal Resistant
Aluminum Construction
•X-treme Low Lux 0.00 when IR LED On
•Dual Voltage
SVS-56CDNRDIR
•560 TVL Xtreme Hi-Res.; 0.1 Lux Sensitivity
•Xteme Low Lux 0.00 When IR LED On
•Dual Voltage 12VDC/24VAC Voltage
•Auto Iris Varifocal 6~60mm Lens
SVC-42IR8
•1/3" SONY SuperHAD CCD
•Day & Night Function; 420TVL
•Waterproof (Certify IP-67) World Best Wide View 120°
•Mirror Function; 8 Units IR LEDs
PRH-5480
•Infrared Illuminator Housing
•With Rugged IP 66 Rated Aluminum Housing
•17 High Power LEDs 20,000 Hrs. Avg. Operation
2M-B1750N
•1/3" SONY SuperHAD CCD
•380 TV Lines
•Weather Proof Housing
•12 Built-in Units Infrared LED;
1 Sensor Unit
15
SVB-54IRC28L49
1/3" SONY SuperHAD CCD • 540TV
Lines • Built-in DC Varifocal Lens
(f=4~9mm) • Day & Night
(IRC-IR Cut Filter Removable)
SVB-54IRC52L550
1/3" SONY SuperHAD CCD • High
Resolution Over 540TV Lines
(SONY HQ-1 DSP) • True Day & Night
(ICR-IR Cut Filter Removable)
• Power 12VDC
2M-B2310N
•1/3” SONY SuperHAD CCD
•550 TVL Lines
•Weather Proof Housing
•34 Units Infrared LED
KPC-N600NHDC10
12VDC
KPC-N600NHAC10
24VAC
•1/3” SONY SuperHAD CCD w/ HQ1 Chipset
•550 TVL (Color)
•0 Lux (IR LED On)
•18 High Density LEDs
KPC-N800NH
SVB-54IRC66L49
•1/3” SONY SuperHAD CCD
•540TVL
•Built-In DC Varifocal Lens (4~9mm)
•True Day & Night (ICR-IR Cut Filter Removable)
2M-IR120
•1/3” SONY SuperHAD CCD
•550 TVL Super Hi-Res
•0.03 Lux F1.4 (0 Lux with IR)
•4-9mm Varifocal Auto-Iris
•X-treme Low Lux 0.00 when IR LED On
•28 LED's
•82' Distance
•Dual Voltage
•1/3" SONY CCD
•550 TVL
•5~50mm Varifocal Lens
•102 ea. IR LED, Max 70m
•Built-In Heater, 24VAC / 12VDC
KPC-N630NH
•1/3" SONY SuperHAD CCD w/HQ1 Chipset
•550 TVL High Resolution
•0 Lux (IR LED On)
NVCC-W28IR12N
•1/3” SONY SuperHAD CCD
•380 TVL Standard Resolution
•0.1 Lux (Day Light)
•X-treme Low Lux 0.0 when IR is On
•12VDC
•4mm Fixed Lens
•12 IR LEDs
•30ft IR Distance
•Weatherproof
DAY/NIGHT INFRARED CAMERAS
An Infrared outdoor camera is the perfect application
to cover small, completely dark areas. The glowing IR
LEDs warn off potential threats and the invisible light
they push out provide for a discreet way to view
intruders in a clear B/W picture. With Vandal
Resistant construction and weatherproof housings,
they are perfect for almost all outdoor conditions.
Perfect for exterior perimeter surveillance, infrared
cameras integrate seamlessly with IR illuminators
to cover large areas, like parking lots. An IR camera
should be the foundation of your outdoor installations.
CB-SD21N-L
•550 TV Lines
•2.8~10mm Varifocal; DC Auto Iris
Lens
•Mechanical IR Cut Filter
•36 IR LEDs
16
PIH-0012N3.6
•1/3" 410K Pixels; SuperHAD Color CCD
•High-Performance IR LEDs
(Ensures 4 Times Higher Brightness)
•Day & Night (ICR)
•High-Resolution of 570 TVL
CBHD2NL
•1/3” SONY SuperHAD CCD
•480TV Lines
•2.9mm Fixed Lens
•23 IR LEDs
ABOUT US
DAY/NIGHT INFRARED CAMERAS
•Adopt "Special Optical Low Pass Filter"
•High Efficiency IR LED; Radiant Distance 18M
•Automatically Activates LED: Below 10 Lux
•Aluminum Housing with IP 68 Rating
SIR-4150
PIH-0
•1/3” ExView HAD CCD Sensor
•380 / 480 TVL Hi-Res
•0.05 Lux at F1.8, X-treme Low Lux 0.0 when IR is On
•24VAC
•Lens Options: 6, 8
•Day & Night
•Radiant Distance 25m+
PIH-0384XSN
•High Effeciency IR LED: Radiant Distance 50-60M
•Cable Managed Housing & Bracket
•Day & Night Aspherical & ED Glass Varifocal Lens
•Monochrome Image at Night,
No Color Noise
DAY/NIGHT
INFRARED DOME
CD45AIR-35
•Snail 360° Ceiling Mount Camera
•Electronic Shutter Up to 1/100.000 sec
•X-treme Low Lux 0.00 when IR LED On
•Scanning System: 2:1 Interlace
•12VDC 250mA
420 TVL
2M-48IR21
480 TVL
•High Sensitivity in the Dark Environment
•High Resolution Camera
•Day & Night Features For 24 Hour
Surveillance
•Excellent Image Quality
VTC-IRHCM1
PIH-05
•Color 1/3" SuperHAD CCD Image Sensor
•Available in 380 TVL (Standard Resolution)
or 480 TVL (Hi-Res)
•0.5 Lux at F1.8
•X-treme Low Lux 0.0 when IR LED On
•12VDC
•Lens Options: 3.6, 6.0
•Note It Comes with Only
1 Year Warranty
2M-42IR21
•0 Lux Min. Illumination
•24 Hour Monitoring with
Day & Night (ICR)
•Built-in Varifocal Lens (3.8~9.5mm)
•High Power Black IR LEDs
•1/3" Color CCD
•480 TVL Hi-Res
•0 Lux (IR On) /
0.5 Lux @ f2.0 (IR Off)
•4mm Std. Fixed Lens
•18 IR LEDs
•60ft IR Distance
•X-treme Low Lux 0.00 when IR LED On
•Vandal Resistant
•Upgradable Lenses
•12VDC
2M-D2000NIR
2M-D2310NIR
•1/3" SONY SuperHAD CCD
•380 TV Lines
•Built-in IR LED & Sensor
•Min. Illumination: 0.00 Lux (IR LED On)
•1/3" SONY SuperHAD CCD
•550 TV Lines
•Built-in IR LED & Sensor
•Min. Illumination: 0.00 Lux (IR LED On)
SIR-4250
PIH-0022
•1/3” SuperHAD CCD Image Sensor
•380 TVL Standard Resolution
•0.2 Lux at F1.8
•Lens Options: 3.6, 6.0
•Day & Night
•Radiant Distance 16m
•X-treme Low Lux 0.0 when IR is On
•12VDC
17
2mcctv has come a long way, since we first began in 2004. With each new day
that passes, we are making progress updating our system and our operations to
ensure you our customer are getting the best service possible. We are also
increasing the number of employees, so we can stay on top of things and keep
operations running smooth and easy. We are blessed with a very diverse group of
individuals, and although we may speak in different tongues and come from
different places we are all one family with one goal in mind helping you our value
customers. We appreciate your business and hope you could continue to be our
clients for many years to come. Thank you, from everyone here at 2mcctv.
KPC-S601D
2M-D1750N
2M-D1710N
•1/3” SONY SuperHAD CCD
•380 TV Lines
•Built-in Fixed Lens (f=3.8mm)
•MIn. Illumination: 0.3 Lux
•1/3” SONY SuperHAD CCD
•480 TV Lines
•Built-in Fixed Lens (f=3.8mm)
•MIn. Illumination: 0.3 Lux
•1/3” SONY SuperHAD CCD
•Built-in Fixed Lens (f=3.8mm)
•550 TV Lines
•Min. Illumination: 0.3 Lux
3.6mm Lens 4.75" Diameter • Standard Resolution 420
TVL • 0.1 Lux • Dimensions 106" x 86" (WxH)
• Attractive Design • 12VDC
2M-42S
3.6mm Lens 4.75" Diameter • Standard Resolution 420
TVL • 0.1 Lux • Dimensions 106" x 86" (WxH)
• Attractive Design • 12VDC
2M-48
3.6mm Lens 4.75" Diameter • Standard Resolution 420
TVL • 1 Lux • 12VDC • Standard Lens f3.6mm / F2.0
• CCD Chipset • Attractive Design
Sharp SuperHAD
DOME CAMERAS
•1/3” SONY SuperHAD Chipset
•Standard Resolution 420 TVL
•1 Lux
•Standard Lens f3.6mm / F2.0
•CCD Chipset
•Attractive Design
•12VDC
2M-D2315NVD
•1/3” SONY SuperHAD 540 TVL
•Built-in DC Auto Iris Varifocal Lens (f=4~9mm)
•Low Lux 0.3; Dual Voltage 12VDC/24VAC
•Back Light Compensation On/Off Switch
VTD-C14
•1/4” Color Panasonic CCD Image Sensor
•380 TVL Standard Resolution
•1.0 Lux Sensitivity
•Attractive & Compact in Design
•12VDC
VTD-C410
The VTD-C410 high resolution color dome camera is
a small, attractive camera ideal for use in commercial
or residential applications. It measures less than 5 in
diameter and comes in dual voltage 24 Volt AC/12
Volt DC power input for easy integration with
standard cameras and power systems.
19
•1/3” SONY CCD
•380 TVL Standard Resolution
•0.5 Lux @ F2.0
•Bracket Include (Wall Mount)
SSC-CD43V
•1/4" SuperHAD CCD
•480 TVL Hi-Res
•0.8 Lux Min. Illumination
•3.0-8.0mm Varifocal Auto-Iris Lens
•Back Light Compensation
•Built-In CS Mount, Auto-Iris, Varifocal Lens
•Auto Sensing Dual Voltage
•Dual Voltage
IS110CH Series
IS110 Series
•Camclosure & Environmental
•Indoor & Outdoor Applications
•Tamper-Resistant Hardware
•Fixed Lens Options: 3/3.6/6/12mm
•1/4” IT CCD, 480TVL
•2.8-5.8mm Varifocal Lens
•0.2 Lux Min. illumination
•Dual Voltage
•Back Light Compensation
SVD-54DNL49
1/3” SONY SuperHAD CCD • High Resolution
Over 540TV Lines (SONY HQ-1 DSP) • Day &
Night Function • Mirror Function
SVD-56CDNRL210
1/3” SONY SuperHAD CCD • High Resolution
Of 560TV Lines • True Day & Night (LENs ICR
Type-IR Cut Filter Removable) • Privacy
Function • DNR (Digital Noise Reduction
CD-D4N-D
•1/3” SONY CCD Image Sensor
•380 TVL Standard Resolution
•0.3 Lux (Color), 0.05 Lux (B/W)
•4.0mm Fixed Lens
•Supply Available in Ivory or Black Housing
•14 IR LEDs (Option)
•12VDC Power Supply
CD-SD21N
•1/3” CCD Sensor
•High Resolution - 550 TV Lines (Color)
•Day/Night Function with ICR
•12VDC/24VAC Dual Voltage
CD-SD
CV-Z10
•1/3” CCD Sensor
•550 TVL Super Hi-Res
•0.1 Lux (Color)
•0.03 Lux (B/W)
•Dual Voltage 24VAC / 12VDC
•Multiple Lens Options
(2.6~6mm, 3.8~9.5mm)
•IR Cut Filter
•Ivory or Black Housing
•Day/Night
•1/4" Interline Transfer CCD
•550 TVL Super Hi-Res
•0.7 Lux (Color w/ Normal Mode)
•0.02 Lux (B/W)
•12VDC/24VAC Dual Voltage
•10x Optical Zoom
•Day/Night
•IR Cut Filter
•1/3" Color CCD Image Sensor
•Effective Pixels 768 x 494
•480 TVL Hi-Res
•0.7 Lux at f1.2 (AGC On) Min. Illumination
•S/N Ratio More Than 48db (AGC Off)
•Electronic Shutter 1/60~1/100,000 Sec.
•Standard Lens 3.6mm Included
(2.9 / 6.0 /8.0 / 16mm Optional)
•Video Output Composite: 1.0 Vp-p / 75 Ohm
•Power Source Dual Voltage 12VDC / 24VAC
•Dimensions 4.73" x 2.96" / 120mm x 75mm (WxH)
•DSP Controls For Superior Back Light,
White Balance, & Gain Control
KPC-SD110NN
•1/3” SONY SuperHAD CCD
•Clear & Crisp Picture
•0.5 Lux
•380 TV Line
SVD-48WCL39
•1/3” SONY Double Scan CCD
•TDN (ICR) 3x Digital Zoom (On/Off)
•Built-In Fixed Lens (f=2.9mm~10mm)
•480 TVL
PIH-24
•1/3" Interline Transfer
CCD Image Sensor
•Mini Dome Camera
•380/480 TVL
•0.2/0.5 Lux at F1.8
•2.2W
•3.6/6mm Lens
•Options Available
SVMD-42
SVD-54
•1/3” SONY SuperHAD CCD
•420TV Lines
•Built-In DC Standard Lens (f=3.8mm)
•Min. Illumination: 0.1 Lux
•1/3" SONY SuperHAD CCD
•Built-In Fixed Lens (f=3.8mm)
•540TV Lines
•Min. Illumination: 0.3Lux
DOME CAMERAS
2M-42
SONY SuperHAD
2M-CD35
KPC-S520DC
2M-D1310N
•1/3” SuperHAD CCD
•420 TVL Standard Resolution
•0.05 Low Lux
•Built-In Auto Electronic Shutter 1/50~1/100,000 sec
•12VDC
•Options Available
PIH-21
PIH-26
PIH-25
•1/3" Interline Transfer CCD Image Sensor
•Metal Mini Dome Camera
•480 TVL Hi-Res
•0.5 Lux at F1.8
•12VDC
•Lens Options: 3.6mm & 6mm
•1/60 (1/50)S~1/100
•000 S (Auto)
•1/3” Interline Transfer
CCD Image Sensor
•380 (Standard Resolution) /
480 TVL (Hi-Res)
•0.2/0.5 Lux at F1.8 & 0.1/0.18 Lux at F1.4
•Options Available
•1/3" Interline Transfer CCD Image Sensor
•Options Available for 380/480 TVL
•0.1 / 0.18 Lux at F1.4
•24VAC / 12VDC Dual Voltage Input for Flexible Installation
•Extra Video Connector for Easy Adjustment On Site
•Varifocal Lens 3-9mm
•Optically Perfect Impact & Dust Resistant Polycarbonate Dome Cover
•Screw-On Design Dome Cover for Easy & Secure Installation
20
SID-42CN
SCC-B5352
•1/3" IT SuperHAD CCD
•540 TVL Resolution
•Electronic Day / Night
•DSP (Digital Signal Processing)
KPC-D570NHB
•1/4" SuperHAD Color CCD
•Built-In 10x Zoom Lens with
Auto Focus (f=3.8~38mm)
•Wall Mountable with 3-Axis Rotating
Camera Construction
•Hi-Res Color Mini Vandal Resistant Dome
•Dimension: 80(D) x 60.50(H) mm
•Auto White Balance Control
•Total Pixels: 811(H) x 508(V)
•Effective Pixels: 768(H) x 494(V)
•Resolution: 480 TVL
•Weatherproof
SID-45CN
1/3" SuperHAD Color CCD • Horizontal
Resolution of 530 TVL • Day & Night
Capability • High Sensitivity of 0.3 Lux @
F1.2 / 0.002 Lux @ F1.2 (Sens-Up)
SID-46CN
1/3” SuperHAD Color CCD • Horizontal
Resolution of 530 TVL • High Sensitivity of
0.3 Lux @ F1.2 / 0.002 Lux @ F1.2 (Sens-Up)
• Built-In Fixed Lens (SID-45C, f=3.7mm /
SID-46C, 8mm) • S/N 50db
SID-452CVAN
DOME CAMERAS
•1/3” SuperHAD CCD
•530 TVL Super Hi-Res
•0.3 Lux Min. Illumination
•24VAC / 12VDC
•Built-In Lens 4mm to 9mm Auto-Iris
•Back Light Compensation
•Day/Night Capability
SVD4600N
•560TVL & 3.8~9.5mm Varifocal Lens;
Dual Voltage
•128x WDR Back Light Compensation
•Ultra Low Light Imaging at 0.3Lux
•Built-In 2.5x Variable Focus Lens &
3-Axis Rotation Dome
TK-C205U
•1/4" Hi-Res IT CCD with 380
•000 Effective Pixels
•540 TVL Super Hi-Res
•2.4 Lux F1.2 with Smoke Perspex
•0.9 Lux at F1.2 AGC On
•Dual Voltage
•Built-In Variable Focal Length Auto-Iris Lens
(f=2.66.0mm)
PIH-23
SID-500N
VCC-P7574
1/4" Interline Transfer Method CCD
• 520 TVL Super Hi-Res • 1.9 Lux (F1.9)
• Dual Voltage
VCC-9684VA
540 TVL Resolution • Built-in Varifocal Type
Auto-Iris Lens: (F0.95 to 1.7, f=2.8 to 8.0mm)
• Mounts Easily on Both Walls & Ceilings
• Simplified Settings
FlexiDome
LTC 141
•High Sensitivity
•0.5 Lux
•Lens Options: 2.1mm, 3mm or 6mm
•24VAC
FlexiDome II
LTC 142
•1/3” Format Interline Transfer CCD Camera
•470 TVL Hi-Res
•Back Light Compensation
•Lens Options: 2.1mm or 3mm or 6mm
•24VAC
•1/3" Interline Transfer CCD
Image Sensor
•380 (Standard Resolution) /
480 TVL (Hi-Res)
•0.1 / 0.18 Lux at F1.4
•3.8~9.5mm Varifocal Lens
•12VDC / 24VAC
VTD-MVH
•Lens Options Include: 2.9-10mm & 9-22mm
•Option for True Day / Night Available
•Infinity Ball Mount for Any Viewing Angle
•Fully Gasketed IP-68 Rated Weatherproof
Design
VTD-MVX
•Lens Options Include: 2.9-10mm & 9-22mm
•Option for True Day / Night Available
•Infinity Ball Mount for Any Viewing Angle
•Fully Gasketed IP-68 Rated Weatherproof
Design
21
•1/3” Interline Transfer CCD Image Sensor
•380 (Standard Resolution) 480 TVL (Hi-Res)
•0.2 / 0.5 Lux at F1.8
•12VDC / 24VAC
VDC-455V0-20
•1/3" Format CCD Imager
•Low-Impact & Impact-Resistant Models
•540 TVL Color Resolution
•12VDC / 24VAC 60Hz
SVV-55L39
SVV-48WCL39
•1/3" SONY SuperHAD CCD
•480 TVL
•Built-In Fixed Lens (f=3.8~9.5mm) True Day &
Night (ICR)
•X-treme Hi-Res
•1/3" SONY SuperHAD 550 TVL
•Built-In DC Auto-Iris Varifocal Lens (f=3.8~9.5mm)
•Low Lux 0.3
•X-treme Hi-Res
SVV-54CDNL49D
1/3” SONY SuperHAD CCD • High Resolution Over 540TV Lines (SONY HQ-1 DSP)
• True Day & Night (ICR-IR Cut Filter Removable)
• Dual Power 12VDC / 24VAC
SVV-56CDNRL210D
1/3” SONY SuperHAD CCD • High Resolution Over 560TV Lines
• True Day & Night (ICR-IR Cut Filter Removable) • Privacy Function
SVV-54WDNL210D
Pixim 1/3" DPS ORCA Chip Sensor • Best WDR (Wide Dynamic Range)
• Digital Day & Night 6 Privacy Masking Zones
• Dual Power (12VDC-150mA / 24VAC-80mA)
KPC-D571NHB
•Hi-Res Color Mini Vandal Resistant Dome
•Dimensions: 80(D) x 60.50(H) mm
•Auto White Balance Control
•Total Pixels: 768(H) x 494(V)
•Resolution: 480TVL
•Weatherproof
SVV-54CDNL210D
•1/3” SONY SuperHAD CCD
•High Resolution Over 540TV Lines (SONY HQ-1 DSP)
•True Day & Night (ICR-IR Cut Filter Removable)
•Dual Power 12VDC / 24VAC
KPC-VPD480C
1/3”SONY CCD • 480 TVL
Hi-Res • 0.5 Lux @ F2.0 • Lens
Options: 3.6mm Board Lens:
3.8-9.5mm & 2.6-6.0mm
Varifocal Lens • Dual Power
KPC-VPD480C-ExView
1/3" SONY ExView CCD • 480
TVL Hi-Res • 0.5 Lux @ F2.0
• Dual Power • Lens Option
Available
IK-DF01A
•1/4” IT CCD, 480TVL
•2.8-5.8mm Varifocal Lens
•0.2 Lux Min. illumination
•Dual Voltage
•Back Light Compensation
PIH-22
VANDAL PROOF DOME CAMERAS
•1/3” SuperHAD CCD
•480 TVL Hi-Res
•0.7 Lux Min. Illumination
•Manual Lens 3.7mm
•Back Light Compensation
•Black Lens
•Built-In Flickerless
•Manual Iris
•12VDC Operation
22
VANDAL PROOF DOME CAMERAS
•Hi-Res SONY 1/3" SuperHAD CCD with
SONY's HQ1 Chipset
•550 TVL
•Mechanical Day & Night
•12VDC
2M-CD358D-VP
•1/3” CCD Image Sensor
•480 TVL Hi-Res
•3.5-8mm Auto-Iris
•0.1 Lux Minimum Illumination
•Attractive & Compact in Design
•12VDC
CV-SD
•Hi-Res Color Mini Vandal Resistant Dome
•Dimensions: 80(D) x 60.50(H) mm
•Auto White Balance Control
•Total Pixels: 811(H) x 508(V)
•Effective Pixels: 768(H) x 494(V)
•Resolution: 480TVL
•Weatherproof
•1/3" CCD Image Sensor
•550 TVL Super High Resolution
•0.1 Lux (Color)
•0.3 Lux (B/W)
•12VDC / 24VAC Dual Voltage
•Lens Options (2.6~6mm / 3.8~9.5mm)
•Weatherproof
VDC-D1184VA
•1/4" Color CCD Image Sensor
•520 TVL Super Hi-Res
•0.6 Lux B/W
•Dual Voltage
•2.8-5.8mm Varifocal Auto-Iris Lens
•Weatherproof
•1/4" Interline Transfer Method CCD
•520 TVL Super Hi-Res
•1.2 Lux (F1.9 Color Mode) & 0.06 Lux (F1.9 B/W Mode)
•Dual Power Operation
•IP-66 Rated Enclosure
•Remote Camera Setting By VAC-70
•Weatherproof
2M-D116
2M-CD45EX-VPW
•1/3" SONY SuperHAD Color
•Rugged & Vandal-Proof
•Built-in Board Lens
•470 TVL
(Option Available for 550 TVL)
2M-CD5VPW
•1/3" SONY CCD Image Sensor
•520 TVL Super Hi-Res
•0.01 Lux Minimum Illumination
•12VDC
•Lens 4~9mm F1.2 Auto-Iris
•1/3" SONY Color CCD
•480 TVL Hi-Res
•Minimum Illumination of 0.1 Lux
•Varifocal AI/2.5~9mm AI/CD50VP
•Dual Power
TK-C205VPU
•1/4" Hi-Res IT CCD with 380
•000 Effective Pixels
•535 TVL Super Hi-Res
•1.0 Lux Minimum Illumination (F1.2 AGC On 25%)
•24VAC / 12VDC Power Supply
•Built-In 2.6mm-6mm Variable Focal lens
•Back Light Compensation-Manual / Auto Switch
23
VDC-DP7584
TK-C215VP4U
•1/4" Interline Transfer CCD with 380
•000 Effective Pixels
•540 TVL
•Built-In Auto Iris Varifocal Lens 2.8 to 10mm
•IP-66 Rating Vandal Proof
•Various Installation Possible with Triple
Axis Rotation Mechanism
•Easy Day / Night Function
SVD-4300N
SVD-4120
•1/4" SuperHAD Color CCD
•High Performance A/F 10x Optical Zoom
•High Impact
•Vandal Resistant with Die-Casting Dome and Aluminum Body
•Protection Against Rain & Wind (IP-66)
•Day & Night Capability with Removable IR Cut Filter (ICR)
•Hi-Res of 500 TVL (Color) / 570 TVL (B/W)
•0.7 Lux @ F1.8 (Color)
•1/3" Interline Transfer CCD
•480 TVL Hi-Res
•0.3 Lux Color
•Dual Voltage 24VAC / 12VDC
•Day/Night
•Back Light Compensation
•Wide Dynamic Range
•Dual Voltage
SCC-CD73V
•1/4" Interline Transfer SuperHAD CCD
•480 TVL Hi-Res
•0.9 Lux Color
•0.2 Lux B/W
•Dual Voltage
•3-8mm Varifocal Auto-Iris Lens
•Weatherproof
SCC-B539
•1/3" IT SuperHAD CCD
•540 Lines Resolution
•True Day & Night with Moveable Cut Filter
•Built-In Ground Fault Isolation Transformer
SVD-54IRC40L49
•1/3" SONY SuperHAD CCD
•540 TV Lines
•True Day & Night (ICR-IR Cut Filter Removable)
•3-Axis Gimbal
•Dwell Time Setting (Default 20 Sec.)
•External Control: Focus/Distance/DC Level/
LED Level/Flickerless (Option)
•Back Light Compensation
•High Resolution: Vivid Sharp Picture
•Indoor: 45m / Outdoor: 25m Night View Distance
•40 Units Infrared IR LED
•Rainproof (IP 65) / Dampproof
•12VDC
SVV-54IRC40L210
•1/3" SONY SuperHAD CCD
•High Resolution Over 540 TV Lines (SONY HQ1
DSP Built-in)
•True Day & Night (ICR-IR Cut Filter Removable)
•3-Axis Gimbals
•Dwell Time Setting (Default 20 Sec.)
•Back Light Compensation
•High Resolution: Vivid Sharp Picture
•Indoor: 40m / Outdoor: 20m
•40 Units Infrared LED
•Aspherical 2.8~10mm DC Auto Iris Lens
•Rainproof (IP 65) / Dampproof
•12VDC
KPC-IRVPD470C
IR-VTD-MV
•1/3" SONY SuperHAD CCD w/ HQ1 Chipset
•520 TVL Super Hi-Res
•0 Lux (IR On)
•Electronic Shutter: 1/60~1/100,000 Sec.
•Power Supply Options: 12VDC
•18 High Density 850nm IR LEDs / Shooting
Distance 60'+
•Lens Option: IR Board Lens: 3.7mm or Varifocal
Lens: 4-8mm w/ Auto-Iris
•X-treme Low Lux 0.00 when IR LED On
•35 IR LED's with 90' Range
•480 & 550 TVL Versions
•Flush or Surface Mount
•UTP Interface, IP Integration, & Heater / Blower
Options Available
•Dual Voltage 12VDC/24VAC
•Infinity Ball Mount for Any Viewing Angle
•Fully Gasketed IP-68 Rated Weatherproof Design
•Lens Options Include: 2.9-10mm & 9-22mm
•Available in Off White or Black Color
SVV-55IR24
•1/3" SONY SuperHAD CCD
•550 TV Lines, Day & Night
•Built-In Fixed Lens (f=3.8)
•Built-In IR LED & Sensor
•Min. Illumination: 0.001 Lux (IR LED On)
•Automatic White Balance, Gain Control
•Flickerless, On/Off
•Back Light Compensation
•12VDC
•100mm Dome Size
•Vandal Proof
•3-Axis Bracket for PTZ
VANDAL PROOF INFRARED DOME CAMERAS
KPC-VPD470CAV10
KPC-D570NHB
24
VCB-3454
VCB-3384
•1/3" CCD Image Sensor
•570 TVL Super Hi-Res
•0.07 Lux @ F1.2
•24VAC / 12VDC
LTC 0335/20
•1/3" Format CCD Imager
•380 TVL Standard Resolution
•Dual Voltage
•DC & Video Auto-Iris Lens Compatible
•Line Lock Synch
WAT-902H3
•1/3" High Sensitivity IT CCD Security Camera
•570 TVL Super Hi-Res
•0.0002 Lux
•Supports Video or
DC Driven Auto Iris Lens
•12VDC
•Remote Controller with Auto Pan/Tilt
•Brightness & Negative Image
•It Comes in 5' & 115'
•For HD (Hi-Res 3x Digital Zoom) Series Cameras
KA-15
•Brightness & Negative Image
•It Comes in 5' & 115'
•For Zoom Cameras
•1/3” SONY SuperHAD CCD
•420 TVL Hi-Res
•0.05 Lux
•12VDC
•Standard Lens: 3.6mm
•Optional Lenses: 2.97 / 6 / 8 / 12mm
LTC 0356/20
•1/3" Format CCD Imager with IR Cut FIlter
•570 TVL Super Hi-Res
•0.05 Lux
•DC & Video Auto-Iris Lens Compatible
•Line Lock Synch
•Dual Voltage
MC3710H
•1/3" SONY ExView HAD CCD Camera
•570 TVL Super Hi-Res
•0.07 Lux Sensitivity
•Auto Senses DC & Video Auto-Iris Lens
•Selectable Back Light Compensation
•Dual Voltage
KPC-SLL650BH
•C/CS Mount (Options Available)
•SLL (Super Low Luminance)
•0.0001 Lux Sensitivity without
DSS or IR
•12VDC
•1/3" IT ExWave HAD CCD
•570 TVL Super Hi-Res
•0.07 Lux Minimum Illumination
•DC / Video Auto-Iris Lens Compatible
•Automatic Back Light Compensation
•Dual Voltage
KPC-S230HL
KA-08AS/L
KPC-S190SWX
1/3” SONY SuperHAD CCD • 480 TVL B/W (Hi-Res) • 0.05 Lux @ F2.0 (B/W)
• Lens Options: Standard f3.6mm Board Lens, Optional 6.0/8.0 & 12mm, Pinhole
Lenses f3.4mm / 4.3mm also available
KPC-S190SHWX
1/3” SONY SuperHAD CCD Camera • 600 TVL Super Hi-Res • 0.05 Lux
KPC-S230CWX
1/3” SONY Super HAD CCD • 380 TVL Standard Resolution • 0.05 Lux @ F1.2
• 12VDC • f3.6mm Board Lens
LTC 0385/20
•1/3" Digital CCD Monochrome Camera
•570 TVL Super Hi-Res
•0.031 Lux Minimum Illumination
•Back Light Compensation
•DC & Video Auto-Iris Lens Compatible
•Line Lock Synch
•24VDC
LTC 0510/20
•1/2" IT CCD Camera
•570 TVL Super Hi-Res
•0.021 Lux Minimum Illumination
•24VDC
•Back Light Compensation
•DC & Video Auto-Iris Lens Compatible
•Line Lock Synch
MCC1380H-6
•1/3" Format CCD Imager
•570 TVL Super Hi-Res
•0.1 Lux Sensitivity
•Auto Senses DC & Video Auto-Iris Lens
•Selectable Back Light Compensation
•Dual Voltage
MC3651H-2
WAT-902H2
WV-BP330
•1/2" High Sensitivity IT CCD Camera
•570 TVL Super Hi-Res
•0.00015 Lux
•Accepts Both Video &
DC Auto Iris Lens
•12VDC
•1/3" CCD B/W DSP Cameras
•570 TVL
•Outstanding 50 dB Signal-To-Noise Ratio
•Minimum Scene Illumination Of 0.008 Fx (0.08 Lux)
At F1.4
•Gen-Lock Capability For System Expandability
MC3610H
•1/3" B/W IT CCD Cameras
•570 TVL Super Hi-Res
•0.06 Lux Min. Illumination
•Advanced Electronic Light Control
•Produces Crispy Images Using 2H Enhancement
Technology
•Wide Dynamic Range
•24VAC
•1/3" SONY ExView HAD CCD
•570 TVL Super Hi-Res
•0.07 Lux, 1/60 Second Shutter Speed or 0.003 Lux,
1/2 Second Shutter Speed f1.2
•Dual Voltage
•Selectable Back Light Compensation
•Auto Senses DC & Video Auto-Iris Lens
•Compact Body Style
•Built On Low Light Technology
KPC-EX230HL
•1/3” SONY SuperHAD CCD
•420 TVL Hi-Res
•0.003 Lux
•12VDC
KPC-S230CHL
•1/3” SONY SuperHAD CCD Chipset
•380 TVL Standard Resolution
•0.5 Lux
•f3.6 / 6 / 8mm Board Lens
•12VDC
2M-CM15
VTC-EB25C
•1/4" Color Panasonic CCD Image Sensor
•380 TVL Standard Resolution
•Min. Illumination 2 Lux @ F2.0
•12VDC
•1/4" Interline Transfer CCD
•350 TVL Standard Resolution
•Minimum 1 Lux
•12VDC
•Lens 3.5mm f1.4
KPC-EXH190SWX
•SONY 1/3" ExView CCD
•Water Resistance / Lens Exchangeable
•H. Resolution 600 TVL
2M-CM25W1.7
BULLET CAMERAS
BLACK & WHITE CAMERAS
•1/3" CCD Image Sensor
•400 TVL Hi-Res
•0.05 Lux @ f1.2
•24VAC
SSC-M383
•1/4" SONY CCD Image Sensor
•420 TVL Standard Resolution
•0.1 Lux
•12VDC
•Fish Eye 1.7mm Lens
WV-BP334
•1/3" SONY ExView
HAD CCD Camera
•570 TVL Super Hi-Res
•0.04 Lux Sensitivity
•Auto Senses DC & Video Auto-Iris Lens
•Selectable Back Light Compensation
•Dual Voltage
25
26
2M-CM25H
NVCC-W27N
•1/3” SONY Color CCD
•480 TVL Hi-Res
•0.1 Lux
•12VDC
•3.6mm f2.0 Lens
•Also Available in White
•1/3" SONY SuperHAD CCD Camera
•380 TVL Standard Resolution
•0.1 Lux of Sensitivity
•12VDC
•Weatherproof
SVB-48
•1/3" SONY SuperHAD CCD
•480 TVL
•Weatherproof
•Back Light Compensation
KPC-EX230CHL
•1/3" SONY Color ExView CCD Chipset
•380 TVL Standard Resolution
•0.05 Lux @ Faceplate
•12VDC
KPC-HD230CWX
•1/3” SONY SuperHAD CCD Camera
•520 TVL Super Hi-Res
•0.5 Lux @ F2.0
•Power Supply 12VDC
•Weatherproof
KPC-HD230CP4
•SONY CCD Camera
•520 TVL Super Hi-Res
•3.7mm Lens
•3x Zoom Security Camera
27
KPC-VF325NH
•SONY HQ1 Chipsets for Hi-Res
(550 TVL) Picture Quality
•Built-In Externally Adjustable Varifocal
(f4-9mm) Lens, Sunshield, Mounting Bracket
•IP-67, Waterproof
Facility Management
Using the 2mcctv advanced Video Security System, a store manager can maintain constant and easy access to their
facility. You can instantly monitor store entrances and exits, indoor and outdoor areas, parking lots, storage areas, and
cash registers.
Retail Store Safety Measures
VTC-EBV49/24
•1/3" Color with 540 TV Lines Resolution
•Built-in 4~9mm Varifocal Auto Iris Lens
•Attractive & Compact Design
•Superior Backlight Function
Your store personnel and customer's safety goal is simply to provide the safest possible environment at your facility.
That goal involves addressing specific issues including reducing vandalism and theft, controlling access to buildings
during the day, keep unwanted intruders out at night, and detecting and responding to fire threats immediately.
Retail Store Safety Measures
Your store personnel and customer's safety goal is simply to provide the safest possible environment at your facility.
That goal involves addressing specific issues including reducing vandalism and theft, controlling access to buildings
during the day, keep unwanted intruders out at night, and detecting and responding to fire threats immediately.
Video Surveillance
KPC-HD353CWX
•1/3" SONY SuperHAD CCD Camera
•520 TVL Super Hi-Res
•12VDC Power Supply
•4-8mm Varifocal Security Camera
•Weatherproof
KPC-WDRW600NH
•1/3" SONY CCD WDR Bullet Camera
•480 TVL
•1 Lux / F2.0
•Lens Options: (f9~22mm) or (f2.8~11mm)
w/ Auto-Iris
•DSS
•OSD
Ideal for the efficient monitoring of points of sales and other sensitive areas, a modern digital surveillance system can
deter employee misconduct, such as the incorrect entering of prices, cash variation and special benefits to friends. It
enables you to offer reliable protection to your staff, especially during the lonely hours of the night shift at a gas
station or 24-hour convenience store.
2Mcctv Total View
BULLET CAMERAS
Total View Video Security Systems for Retail Stores
2mcctv delivers modern, state-of-the-art video surveillance systems that significantly reduced shrinkage, improved
staff security and optimized store management. 2mcctv provides video security surveillance applications to retail
stores that allow store managers to instantly monitor their facility and record 24x7 and with motion detection. Fast,
secure, and on-demand security video solutions are the core business of 2mcctv and our systems are designed to allow
retail managers to have a total view of their store from their office desktop or at a remote location.
BOX DAY/NIGHT IP CAMERAS
DOME IP CAMERAS
AXIS-209FD-R 0275-004
AXIS-223M 0247-004
AXIS-221 0221-004
IP SECURITY CAMERAS
•640x480 Resolution @ 45fps
•Power Over Ethernet
•Simultaneous MPEG-4 & Motion JPEG
•High-Quality Pentax Lens
•Auto Day/Night Mode
•Up to 1600x1200 Resoluton
•Video Motion Detection & I/O
for Alarm/Event Handling
•Two-Way Audio Including
Audio Detection Alarm
AXIS-230 0177-014
•Up to D1 Resolution at 30 Fps Frame Rate. MPEG-2
•I/O for Alarm / Event Handling
•Includes Adjustable Stand & Power
AXIS-207W 0241-004
•10/100 Network Connection & Compact Size
(2.17" x 1.34" x 3.35")
•Resolution Up to 640x480 at 30fps
•Works in Low Light, Down to 4 Lux
AXIS-207 0235-004
AXIS-207MW 0264-004
AXIS-210 0197-004
AXIS-210A 0233-004
•Connects Both Over Wireless LAN
(IEEE 802.11g) & Wired Ethernet
•Resolution Up to 1280x1024, Motion JPEG &
MPEG-4
•Compact Design
•Up to VGA 640x480 Resolution at Full 30 fps Frame Rate
•Support For Video Motion Detection
•I/O & Advanced Event Handling
•Includes Fixed Iris Lens
for Indoor Use
•Up to VGA 640x480 Resolution at 30 fps
•Motion JPEG & MPEG-4
•Video Motion Detection & I/O
for Alarm/Event Handling
•True Bandwidth-Efficient MPEG-4
•Up to VGA 640x480 Resolution at 30 fps Frame Rate
•Audio AAC with Built-In Microphone
•Connects Both Over Wireless LAN (IEEE 802.11g)
& Wired Ethernet
•Motion JPEG & MPEG-4 Network Camera
•True Bandwidth-Efficient MPEG-4,
Down to 1 Lux
AXIS-213 0220-004
AXIS-212 0257-004
AXIS-214 0246-004
•Up to VGA Resolution at 30fps Frame Rate
•Simultaneous MPEG-4 & Motion JPEG
•I/O for Alarm/Event Handling
•Up to 4CIF Resolution at 30fps Frame Rate
•Simultaneous MPEG-4 & Motion JPEG
•I/O for Alarm/Event Handling
AXIS-231D+ 0251-001
•1/4" Progressive Scan CCD
•Down to 0.3 Lux Continous 360
Rotation 0 to -90 Tilt Range
•I/O for Alarm/Event Handling
•Auto Focus Lens & IR Mode for Night-time
Conditions (Up to 9.8ft NM=870)
•Delivers Superior Image Quality in Simultaneous
MPEG-4 & Motion JPEG Streams
AXIS-232D+ 0253-001
AXIS-233D 0226-001
•1/4" Progressive Scan CCD
•Down to 0.3 Lux in Color
•Auto Day/Night Mode
•Up to 4CIF Resolution at 30fps Frame Rate
•Auto Day/Night Mode Down to
0.5 Lux in Color & 0.008 in Night Mode
•Continuous 360 Rotation & 180 Tilt with E-Flip
•Progressive Scan 4CIF Resolution at
30/25fps in MPEG-4 or Motion JP
VANDAL PROOF DOME IP CAMERAS
AXIS-216FD-V 0268-004
AXIS-211 0198-004
AXIS-211A 0223-004
•Ideal for Professional Indoor & Outdoor Monitoring
•Has Built-In Power Over Ethernet
•Motion Detection & Delivers Superior Image
Quality in Simultaneous MPEG-4 & Motion JPEG
•Delivers Superior Image Quality at Up to 30fps in
VGA 640x480 Resolution. Provides Two-Way Audio
•Power Over Ethernet (IEEE802.3 af) & Motion
Detection. Supports Simultaneous MPEG-4\
The TCP/IP camera is a cutting edge solution for both small and large business needs. Problems with wireless
transmission are solved with WLAN access. Power is centralized with the ability for a POE solution. And networking your
CCTV System could not be easier than with each camera’s individual IP Address.
IP Cameras have taken out the need for a DVR and replaced multiple cables with one connection. With the
integration of an IP camera into an existing or new system you will instantly tell the difference between functionality,
clarity, and ability. Consider an IP camera if you are using remote locations, have a need for mobility, or for buildings
already wired for network capability.
Please take note of the PTZ cameras and note the one cable solution and ability to access the features of the
camera directly over an internet connection without a need for a controller to be placed between you and your camera.
Intelligent camera technology has arrived for your CCTV needs.
29
•1/4" High-Quality Progressive-Scan CMOS Sensor
•Up to VGA 640x480 Resolution at
30 Frames Per Second
•Simultaneous Motion JPEG
& MPEG-4
PAN/TILT ZOOM IP CAMERAS
BOX IP CAMERAS
AXIS-206 0199-004
AXIS-216FD 0240-004
•Up to VGA 640x480 Resolution at
30 Frames Per Second
•Simultaneous Motion JPEG & MPEG-4
•Video Motion Detection
•Vandal-Resistant & Compact Design
•Two-Way Audio Support
•Power Over Ethernet
•1/4" High-Quality Progressive-Scan CMOS Sensor
AXIS-225FD 0243-004
•Auto Day / Night Mode
•Fixed Dome with Discreet, Vandal-Resistant Outdoor
Proof IP-66 Casing with Built-In Heater & Fan
•Up to VGA 640x480 Resolution at 30fps Frame
IP SECURITY CAMERAS
•Flat, Discreet & Tamper-Resistant Casing
•Up to VGA 640x480 Resolution at
30 Frames Per Second
•Progressive Scan
•Vibration, Humidity & Dust Resistant
•Tampering Alarm
•Power Over Ethernet
•1/4” High-Quality Progressive-Scan CMOS Sensor
BOX DAY/NIGHT MEGAPIXEL IP CAMERAS
MEGAPIXEL IP SECURITY CAMERAS
•30IPS Display of 1080p Full HD Video
•Up to 4 Megapixels Resolution
•Dual Codec For Full HD with H.264 / 2288 x 1712 with JPEG
•No Focus Adjustment Required with
Built-in 10x AF Zoom Lens
81-13MBC-D01
•1.3 Megapixel SONY Progressive Scan CCD
•Dual Codec Support MJPEG & MPEG-4
•Two Way Audio
•Day/Night Camera
AV2105DN
AV3105DN
AV5105DN
•With Day/Night Motorized IR Cut Filter (Single Sensor)
•High Sensitivity 2 Megapixel CMOS Sensor with
1/2" Optical Format
•H.264 (MPEG4; Part 10) Compliant
•Bit Rate Control For Full View; Multi View; & Archiving
•With Day/Night Motorized IR Cut Filter (Single Sensor)
•High Sensitivity 3 Megapixel CMOS Sensor with
1/2" Optical Format
•H.264 (MPEG4; Part 10) Compliant
•Maintain Full Real Time Video Frame Rates
•With Day/Night Motorized IR Cut Filter (Single Sensor)
•H.264 (MPEG4; Part 10) Compliant
Arecont Vision
•Bit Rate Control For Full View; Multi View; & Archiving
•21 Levels of Compression Quality For Optimal Viewing &
Archiving
Arecont Vision
Arecont Vision
AV3100DN
IQ752
IQ753
IQ755
•Frame Rate 22fps @ Resolution 1920x1080
•2040(H) x 1530(V) Pixel Array
•1/2" Optical Format
•3.2 Pixel Pitch
•Motion JPEG with 22 Levels of Quality
•Day/Night Camera with
Automatic IR Cut Filter
•Multi User Digital Pan/Tilt/Zoom with
Resolution-On-Demand
•Simultaneous High Resolution & Low Bandwidth Steams
•2.0 MPix Day/Night @ Up to 20 Images/Second
•64 Independent Video Streams with IQCameo
•Multi User Digital Pan/Tilt/Zoom with
Resolution-On-Demand
•Simultaneous High Resolution & Low Bandwidth Steams
•3.1 MPix Day/Night @ Up to 12 Images/Second; 0.3Lux
•64 Independent Video Streams with IQCameo
•Multi User Digital Pan/Tilt/Zoom with
Resolution-On-Demand
•Simultaneous High Resolution & Low Bandwidth Steams
•5.0 MPix @ Up to 10 Images/Second; 0.3Lux
•64 Independent Video Streams with IQCameo
Model #
11MP-HD-PRO-C
Features
11MP-HD-PRO-M
Unsurpassed Image Quality, 5 Images Per Second at Full Resolution &
15 Images Per Second at 4008x480, 66 db True Dynamic Range,
0.01 Lux Minimum Illumination
Arecont Vision
16MP-HD-PRO-C
AV3130M
•Frame Rate 20fps @ Resolution 1920x1200
•Auto Day/Night Switch from Monochrome to Color
•Auto Exposure (AE) & Gain Control (AGC) >120db
•Electronic Zoom
•Pan & Tilt (PTZ) Electronic Image Rotation - Up-Side
Down Image Turn (Mirror)
Arecont Vision
AV5100DN
•Frame Rate 15fps @ Resolution 2560x1600
•5 Megapixel CMOS Image Sensor
•2592(H) x 1944(V) Pixel Array
•1/2" Optical Format
•Maximum SNR 41 db
•Day/Night Camera with
Automatic IR Cut Filter
16MP-HD-PRO-M
Unsurpassed Image Quality, 5 Images Per Second at Full Resolution &
15 Images Per Second at 4008x480, 66 db True Dynamic Range,
0.1 Lux Minimum Illumination
Unsurpassed Image Quality, 3 Images Per Second at Full Resolution &
10 Images Per Second at 4872x480, 65 db True Dynamic Range,
0.01 Lux Minimum Illumination
Unsurpassed Image Quality, 30 Images Per Second at Full Resolution,
60 db True Dynamic Range, 0.1 Lux Minimum Illumination
2.0MP-HD-PRO-M
Unsurpassed Image Quality, 30 Images Per Second at Full Resolution,
60 db True Dynamic Range, 0.01 Lux Minimum Illumination
4.2MP-HD-PRO-C
Unsurpassed Image Quality, 15 Images Per Second at Full Resolution
& 25 Images Per Second at 920x1080, 60 db True Dynamic Range,
0.1 Lux Minimum Illumination
4.2MP-HD-PRO-M
BOX MEGAPIXEL IP CAMERAS
Unsurpassed Image Quality, 3 Images Per Second at Full Resolution &
10 Images Per Second at 4872x480, 65 db True Dynamic Range,
0.1 Lux Minimum Illumination
2.0MP-HD-PRO-C
Arecont Vision
Unsurpassed Image Quality, 15 Images Per Second at Full Resolution
& 25 Images Per Second at 920x1080, 60 db True Dynamic Range,
0.1 Lux Minimum Illumination
AV1300DN
AV2100DN
AV1305DN
•Frame Rate 30fps @ Resolution 1280x1024
•Motion JPEG with 22 Levels of Quality
•Auto Exposure (AE) & Gain Control (AGC) >120db
•Auto Back Light Compensation
•Auto Multi-Matrix White Balance
•Day/Night Camera with
Automatic IR Cut Filter
•Frame Rate 24fps @ Resolution 1600x1200
•2 Megapixel CMOS Image Sensor
•1600(H) x 1200(V) Pixel Array
•1/2" Optical Format 4.2 Pixel Pitch
•Day/Night IP-Camera with
Automatic IR Cut Filter
•1.3 Megapixel Utilizing a 1/2" CMOS Sensor
•H.264 (MPEG4; Part 10) Compliant
•Bit Rate Control For Full View; Multi View; & Archiving
•With Day / Night Motorized IR Cut Filter (Single Sensor)
Arecont Vision
31
•1.3 Megapixel SONY Progressive Scan CCD
•Dual Codec Support MJPEG & MPEG-4
•Two Way Audio
•Day/Night Camera with Built-in Lens
(F=3.3~12mm)
Arecont Vision
Arecont Vision
Model #
1.0MP-HD-C
Features
2.0MP-HD-C
Unsurpassed Image Quality, 18 Images Per Second at Full Resolution & 39 Images Per Second at 1280x720,
61 db True Dynamic Range, 0.2 Lux Minimum Illumination
3.0MP-HD-C
Unsurpassed Image Quality, 12 Images Per Second at Full Resolution & 39 Images Per Second at 1280x720,
61 db True Dynamic Range, 0.2 Lux Minimum Illumination
5.0MP-HD-C
Unsurpassed Image Quality, 12 Images Per Second at Full Resolution & 30 Images Per second at
1920x1080, 70 db True Dynamic Range, 0.3 Lux Minimum Illumination
AV2105
•High Sensitivity 2 Megapixel CMOS Sensor
•1/2" Optical Format
•Multi-Streaming Support of Up to 8 Non-Identical
Concurrent Streams
•H.264 (MPEG4; Part 10) Compliant
Unsurpassed Image Quality, 39 Images Per Second at Full Resolution, 61 db True Dynamic Range, 0.2 Lux
Minimum Illumination
AV1300M
AV3105
•High Sensitivity 3 Megapixel CMOS Sensor
•1/2" Optical Format
•H.264 (MPEG4; Part 10) Compliant
•Maintain Full Real Time Video Frame Rates
Arecont Vision
•1.3 Megapixels Utilizing a 1/2" CMOS Sensor
•H.264 (MPEG4; Part 10) Compliant
•Bit Rate Control For Full View; Multi View;
& Archiving
•Selectable From 100 KBPS to 10 MBPS For Each
Independent Stream
Arecont Vision
•Frame Rate 30fps @ Resolution 1280x1024
•Motion JPEG with 22 Levels of Quality
•Auto Exposure (AE) & Gain Control (AGC) >120db
•Auto Back Light Compensation
•Auto Multi-Matrix White Balance
Arecont Vision
AV5105
AV1305
•H.264 (MPEG4; Part 10) Compliant
•21 Levels of Compression Quality For Optimal
Viewing & Archiving
•Precision Motion Detection with a Minimum of 64
Detection Zones
•Selectable From 100 Kbps to 10 Mbps For Each
Independent Stream
Arecont Vision
MEGAPIXEL IP SECURITY CAMERAS
81-13MVC-D01
VCC-HD4000
Arecont Vision
AV3100M
•Frame Rate 22 fps @ Resolution 1920x1080
•2040(H) x 1530(V) Pixel Array
•1/2" Optical Format
•3.2 Pixel Pitch
•Motion JPEG with 22 Levels of Quality
Arecont Vision
32
DOME MEGAPIXEL IP CAMERAS
•Frame Rate 30fps @ Resolution 1280x1024
•Motion JPEG with 22 Levels of Quality
•Auto Exposure (AE) & Gain Control (AGC) >120db
•Auto Back Light Compensation
•Auto Multi-Matrix White Balance
•IP-Camera w/ Auto-Iris
AV2100AI
•Frame Rate 24fps @ Resolution 1600x1200
•2 Megapixel CMOS Image Sensor
•1600(H) x 1200(V) Pixel Array
•1/2" Optical Format
•4.2 Pixel Pitch
•Frame Rate 24fps @ Resolution 1600x1200
•2 Megapixel CMOS Image Sensor
•1600(H) x 1200(V) Pixel Array
•1/2" Optical Format / 4.2 Pixel Pitch
•IP-Camera w/ Auto-Iris
Arecont Vision
Arecont Vision
Arecont Vision
AV8180
•8 Megapixel 180° Panoramic Camera
•4 x 1600(H) x 1200(V) RGB Color
•22fps @ 1600(H) x 1200(V)
•0.2 Lux @ F2.0
Arecont Vision
AV8360
•8 Megapixel 360°
•Panoramic Camera 4 x 1600(H) x 1200(V) RGB Color
•22fps @ 1600(H) x 1200(V)
•0.2 Lux @ F2.0
Arecont Vision
VANDAL PROOF DOME MEGAPIXEL IP CAMERAS
IQA Series
AV3100AI
•Frame Rate 22 fps @ Resolution 1920x1080
•2040(H) x 1530(V) Pixel Array
•1/2" Optical Format
•3.2 Pixel Pitch
•Motion JPEG with 22 Levels of Quality
•IP-Camera w/ Auto-Iris
Arecont Vision
•Frame Rate 15 fps @ Resolution 2560x1600
•5 Megapixel CMOS Image Sensor
•2592(H) x 1944(V) Pixel Array
•1/2" Optical Format
•Maximum SNR 41 db
Arecont Vision
81-13MVC-C01
•1/3 - Type Interline Transfer CCD Image Sensor
•Sensitivity of 1.5 Lux at F1.4 Optional Lens
•Built-in SD Memory Card Slot For FTP Backup
•Automatic Electronic Sensitivity Enhancement
•1.3 Megapixel SONY Progressive Scan CCD
•Dual Codec Support MJPEG & MPEG-4
•Two Way Audio
•Color Camera with Built-in Lens
(f=3.3~12mm)
•Resolution-On-Demand Up to 1.3 Megapixel Resolution
•Improved Low-Light Performance
•Available with Optional IP 65 /
NEMA 4 Outdoor Housing
•IQFocus Utility Simplifies Installation
IQ702
•Multi User Digital
Pan/Tilt/Zoom with Resolution-On-Demand
•Simultaneous High Resolution
& Low Bandwidth Streams
•2.0 MPix @ Up to 20 Images/Second
•64 Independent Video Streams with IQCameo
IQ511B1NPDV
AV5100AI
AV5100M
WV-NP244
IQ511
33
AV2100M
•Frame Rate 15 fps @ Resolution 2560x1600
•5 Megapixel CMOS Image Sensor
•2592(H) x 1944(V) Pixel Array
•1/2" Optical Format
•Maximum SNR 41 db
•IP-Camera w/ Auto-Iris
Arecont Vision
81-13MBC-C01
•1.3 Megapixel SONY Progressive Scan CCD
•Dual Codec Support MJPEG & MPEG-4
•Two Way Audio
•Color Camera
81-13MVD-C01
•1.3 megapixel SONY progressive scan CCD
•Dual streaming support MJPEG and MPEG4
•Two way audio
•Digital I/O: 1 IN, 1 OUT
• Supports both 12V DC and PoE
• Intelligent technology to lower bandwidth usage
• 3GPP/ISMA mobile application
• Privacy Mask
• Visual Automation
• Perfect for both Outdoor and Indoor Aplication
•With Built-in Lens f = 3.3~12 mm
•Vandal Dome 4"-1.3 MP Camera
•Interior/Exterior Vandal dome
•0.2 lux, Wide Varifocal Lens
•Improved Low-Light Performance
•IQfocus™ Utility simplifies installation
•30 images/second @ D1 (704 x 480)
•20 images/second @ HDTV (1280 x 720)
•15 images/second @ full resolution (1280 x 1024)
•LIGHTGRABBER™ 0.2 lux low light performance
•User-selectable exposure window
•Low power, AC/DC or IEEE 802.3af
Power-Over-Ethernet
•Digital Pan/Tilt/Zoom with no moving parts
•Less than 2.5 watts of power
•Multi Zone Motion detection
•Image cropping
•Privacy zones
•Advanced bandwidth management tools
•Proven network reliability
81-13MVD-D01
IQ705
•Multi User Digital
Pan/Tilt/Zoom with Resolution-On-Demand
•Simultaneous High Resolution
& Low Bandwidth Streams
•5.0 MPix @ Up to 10 Images/Second; 0.3 Lux
•64 Independent Video Streams with IQCameo
IQ711
•Multi User Digital
Pan/Tilt/Zoom with Resolution-On-Demand
•Simultaneous High Resolution
& Low Bandwidth Streams
•1.3 MPix @ Up to 30 Images/Second
•64 Independent Video Streams with IQCameo
•Light Grabber II Day/Night Low Light Performance
•IEEE 802.3 AF Power-Over-Ethernet
IQ703
•Multi User Digital
Pan/Tilt/Zoom with Resolution-On-Demand
•Simultaneous High Resolution
& Low Bandwidth Streams
•3.1 MPix @ Up to 12 Images/Second; 0.3 Lux
•64 Independent Video Streams with IQCameo
•CF Slot For Backup or
Zero Bandwidth On-Camera Recording
•Public View Port Analog Output
•Include/Exclude Exposure Window For
Back Light Compensation
•Privacy Zones
•Digital Image Cropping
•Wide Temperature Range
•Alarm I/O
•Low Power, AC or DC with Captive Screws
•Fits in Standard CCTV Outdoor Housings
•1.3 megapixel SONY progressive scan CCD
•Dual streaming support MJPEG and MPEG4
•Two way audio
•Digital I/O: 1 IN, 1 OUT
•Supports both 12V DC and PoE
•Intelligent technology to lower bandwidth usage
•3GPP/ISMA mobile application
•Privacy Mask
•Visual Automation
•Perfect for both Outdoor and Indoor Aplication
•With Built-in Lens f = 3.3~12 mm
MEGAPIXEL IP SECURITY CAMERAS
MEGAPIXEL IP SECURITY CAMERAS
AV1300AI
•Four 2 Megapixel CMOS Image Sensors
•1600(H) x 1200(V) Pixel Array Each Sensor
•1/2 Optical Format
•2.2 Aµm Pixel Pitch
•Bayer Mosaic RGB Filter
•Sensitivity 1 Lux @ F2.0
•Dynamic Range 60dB
•Maximum SNR 45dB
•Auto Exposure (AE) & Gain Control (AGC) > 120dB
•Auto Back Light Compensation
•Full 3-Axis Gimbal
•Optional H.264 with Audio
•Vandal-Resistant;
Low-Profile Surface Mount Housing
•64 Independent Video Streams with IQCameo
•Analog Video Out For Installation/Setup
•Secondary full-time analog video for public view
monitor
•SD Card Slot For On-Camera Storage
•VGA resolution @ 30 fps
•1.2 MP resolution @ 15 fps
•2.0 MP resolution @ 15 fps
•3.0 MP resolution @ 12 fps
•5.0 MP resolution @ 10 fps
•Pivoting, hinged lens shroud
•Exclusive, multi-megapixel rated lens
•LIGHTGRABBER II low-light feature
•IEEE 802.3af - Power-Over-Ethernet
•Low 2.5 watts power consumption
•Privacy Zones, Digital Image Cropping
•Adjustable Exclusion zones for harsh lighting
conditions
•0.2 lux
34
KPC-301CZHB
•1 Lux (30 IRE)
•22x Optical Zoom
•1/4" SONY SuperHAD CCD
•380 TVL Standard Resolution
•Manual Focus
•RS-485 Control (Via Pelco-D Protocol)
•Auto-Iris
•Digital Day & Night (On/Off)
•12VDC
•480 TVL Hi-Res
•1/4" Double Density CCD
•1 Lux (30 IRE)
•27x Optical
•10x Digital Zoom
•Optional Remote Controller Available
•Auto-Focus
•Auto-Iris
•12VDC
KPC-ZA880NH
•On Board OSD
•RS-485 Control (Via Pelco-D Protocol)
•Optional Remote Controller for Zoom &
OSD Control KA-08CL (118ft)
BKCAM2
2M-FS35
•1/4" SONY CCD
•420 TVL
•0.1 Lux
•1/3" DSP Color CCD Image Sensor
•420 TVL Standard Resolution (B/W)
•380 TVL Standard Resolution (Color)
•0.05 Lux B/W
•0.5 Lux Color
SDZ-330N
SCC-C4301
•1/4" SuperHAD CCD Camera
•480 TVL Hi-Res
•Motion Detection with Alarm Outputs
•0.02 Lux Min. Illumination
•IP Remote Access
•Dual Voltage
•520 TVL Color
•570 TVL B/W
•30x Optical Zoom Lens
•8x Digital Zoom
•Wide Dynamic Range (WDR)
•SSNR
•Line Lock
•ICR Day/Night
•Motion Detection
VCC-ZM300A
VCC-ZM400
•Super High Resolution 520 TV Lines of Resolution
•22x Optical Removal Day/Night Function
•Includes Intelligent Motion Detection
•Day/Night Function with IR Cut Filter
Removal System
•1/4" CCD Type
•520 TVL Super Hi-Res
•Color CCD Camera with NTSC System
•2.0 Lux @ F1.6
•0.04 Lux @ F1.6
•32x
•Dual Voltage
VT-PIRC2
C2000
•1/3" Color CCD Image Sensor
•420 TVL Standard Resolution
•1.0 Lux Min. Illumination
•12VDC
•3.8mm Standard Pinhole Lens
•Working 100 Degrees Motion
Detection using 58 Beams Covering
35' by 35' Area
•Options Available
•1/3" DSP Color CCD Image Sensor
1/4" DSP B/W
•380 Lines of Resolutions Color
•420 Lines B/W
•0.5 Lux Color, 0.05 B/W 12VDC Power
SCC-C4335
•1/4" ExView HAD CCD; 540 TVL
•32x Optical Zoom & 16x Digital Zoom Lens
•Digital Image Stabilization
•Digital Day/Night WDR Camera
When circumstances dictate that you must be
able to view a large expansive area, such as
malls or sports arenas, or that close-up detail
off faces or movement, such as hands, be
captured unobtrusively, a quality zoom camera
from 2Mcctv could be your best option. Coupled
with the proper controller, a zoom camera can
be a major deterrent to loss through theft.
Zooms are particularly helpful where ever there
is a lot of people traffic or gathering of crowds
C1390
•1/3" DSP Color CCD Image Sensor
DSP B/W
•380 TVL Color Standard Resolution
•420 TVL B/W Standard Resolution
•0.5 Lux Color
•0.05 Lux B/W
•3.6mm Auto-Iris Lens
•12VDC Power Supply
•92 Degrees Field of View
•Audio Not Available
C13641
•1/3" DSP Color CCD Image Sensor
1/4" DSP B/W
•420 TVL B/W (Standard Resolution)
•380 TVL Color (Standard Resolution)
•0.05 Lux B/W
•0.5 Lux Color
•12VDC
•3.6mm Auto-Iris Lens
•92 Degrees Field of View
•Audio Not Available
TB300
•Options Available
•1/3" DSP Color CCD Image Sensor
1/4" DSP B/W
•380 Lines of Resolutions Color
•420 Lines B/W
•92 Degree Field of View
C1175
•1/4" CCD 450 TVL with 0.2 Lux
•Color with 4.3mm Lens
•80 Degree Field of View
PRE-PACKAGED CAMERAS
KBN-455V
•Auto Iris Varifocal Lens
Option 2.8~10mm or 5~50mm Lens
•Nightsense For Low Light
•Camera & Lens Are Pre-Wired Into a Bosch Housing
•Indoor Color Pre-Packaged Camera
KBN-485V
35
•Auto Iris Varifocal Lens
Option 2.8~10mm or 5~50mm Lens
•Extended Sensitivity with Nightsense
•Camera & Lens Are Pre-Wired Into a Bosch Housing
•Indoor Color Pre-Packaged Camera with XF-Dynamic & WDR
HIDDEN CAMERAS
ZOOM CAMERAS
KPC-Z220NN
KBE-455V
•Auto Iris Varifocal Lens
Option 2.8~10mm or 5~50mm Lens
•Nightsense For Low Light
•Camera & Lens Are Pre-Wired Into a Bosch Housing
•Outdoor Color Pre-Packaged Camera
KBE-485V
•Auto Iris Varifocal Lens
Option 2.8~10mm or 5~50mm Lens
•Extended Sensitivity with Nightsense
•Camera & Lens Are Pre-Wired Into a Bosch Housing
•Outdoor Color Pre-Packaged Camera with XF-Dynamic & WDR
C6000
EX-300
C1230
•1/3" DSP Color CCD Image Sensor
1/4" DSP B/W
•380 TVL Color & 420 TVL B/W
Standard Resolution
•420 TVL B/W Standard Resolution
•0.5 Lux Color
•0.05 Lux B/W
•92 Degrees Field of View
•3.6mm Auto-Iris Lens
•Audio Not Available
•1/3" DSP Color CCD Image Sensor
1/4" DSP B/W
•350 TVL Color
•Standard Resolution
•420TVL B/W Standard Resolution
•0.5 Lux Color
•0.05 Lux B/W
•12VDC Power Supply
•3.6mm Auto-Iris Lens
•92 Degrees Field of View
•Audio Not Available
C4000
•1/3" Color or 1/4" B&W DSP CCD
Image Sensor
•380 TVL Standard Resolution (Color) /
420 TVL Standard Resolution (B/W)
•0.5 Lux (Color) / 0.05 Lux (B/W)
•12VDC Power Supply
•3.6mm Auto-Iris Lens
•92 Degrees Field of View
•Audio Not Available
•1/4" Color CCD Image Sensor
•350 Resolution TVL
•0.5 Lux
•Clear Lenses Available
36
BOARD/MINI CAMERAS
VTC-C63P
KPC-S20EX
•1/3" Color Image Sensor
•380 Lines of Resolution
•Ultra Compact Design
•Standard 3.6mm Lens (Optional 2.9, 6
& 8mm
•1/3" CCD Image Sensor
•380 Lines of Resolution
•Ultra Compact Design
•Pinhole 3.7mm Lens Included
•0.0003 Lux @ Faceplate
•420 TV Lines
•510(H) x 492(V)
•SONY 1/3" ExView CCD
KPC-S20BH
•1/3" SONY SuperHAD CCD (B/W)
•600 TVL Super Hi-Res
•0.02 Lux @ F2.0
•12VDC
•f3.6mm Lens
ACE-S115CH
•1/3" SONY SuperHAD CCD
•480 TVL Hi-Res
•0.5 Lux F1.2
•12VDC
KPC-S700C
•1/3" SONY SuperHAD CCD
•380 Color TVL Standard Resolution
•Sensitivity 0.5 Lux / F1.2
•12VDC
•Lens Options: f2.45 / f2.97 / f3.6 / f6 /f8 / f12 /
f16mm Board Lens
•Ultra Compact Size
30x30mm
•1/3" SONY SuperHAD CCD
•420 TV Lines
•Back Light Compensation
•Vivid Sharp Picture
37
•1/3" SONY SuperHAD CCD
•Back Light Compensation
•Vivid Sharp Picture
•3.6mm Board Lens; Options Available
•1/3" SONY SuperHAD CCD
•420 (B/W) TVL Standard Resolution
•Sensitivity 0.05 Lux / F2.0 (B/W)
•Standard 3.6mm Board Lens & Optional
f2.45 / 2.97 / 4.3 / 6.0 / 8.0 / 12mm, Pinhole
Lenses f3.4mm / 3.7mm / 4.3mm
Also Available
•Ultra Compact Size
30x30mm
WAT-902HB2S
•1/2" Interline Transfer CCD Image Sensor
•570 TVL Super Hi-Res
•0.0003 Lux @ f1.4 (AGC High)
•Power Supply: DC +9.0~15V (12V +/- 15%)
•Back Light Compensation: On
DQ-T0813
DQ-T0813AC
•Simulated Camera
•Mounting Block for Ceiling or Wall
Mounting
•Cables & Connectors
•12VDC Wall Plug Operated LED
OH-11NO LED
OH-11-WALL PLUG
•Kits Include: Metal Bracket
•Aluminum Housing & Sunshield
•Liquid Tight Cable Pass
•Battery or 12VDC Plug for LED Models
EX70
EX52
•Different CCD Types Available: C3 / C7 / CX6 / M4 /
MX4 / S3 / SX4
•Multiple Lens Options Available: 3.6 / 4.3 / 6.0 / 8.0 /
12 / 16mm Micro Lens
•CSA / UL Rated Housing
•7" Length
•With 3 Entry Plugs (Camera Not Included)
•Different CCD Types Available: C3 / C7 / M4 / MX4 /
S3 / SX4 / SX8
•Multiple Lens Options Available:
VA358: 1/3" 3.5-8mm, Auto-Iris /
VA612: 1/3" 6-12mm, Auto-Iris /
VA550: 1/3" 5-50mm, Auto-Iris /
VA8551: 1/2" 8.5-51mm, Auto-Iris
•Different CCD Types Available: C3 / C7 / CX6 / M4 /
MX4 / S3 / SX4
•Multiple Lens Options Available: 3.6 / 4.3 / 6.0 / 8.0 /
12 / 16mm Micro Lens &
V408: Varifocal 4-8mm, Fixed Iris
•Extremely Low Current Consumption of
Only 90mA
•Runs Much Cooler Then Other Board Cameras
•Low Light Sensitivity of 0.2 Lux
•Simulated Camera
•Mounting Block for Ceiling or Wall
Mounting
•Cables & Connectors
•12VDC Wall Plug
•Aluminum Housing & Sunshield
•Liquid Tight Cable Pass
•Battery or 12VDC Plug for LED
Models
EX50
ACE-VMN320NH
DUMMY CAMERAS
•Identical Physical Dimensions As
Fixed Domes
DQ-T0813BAT
•1/4" SONY Color SuperHAD CCD
•380 TVL Standard Resolution
•0.5 Lux
•Board Lens f3.7mm &
f4.3mm
•Ultra Compact Size
SVM-48
SVM-42PF
VTD-VHBB/VTD-VHBC
•Simulated Camera
•Mounting Block for Ceiling or Wall
Mounting
•12VDC Wall Plug
•Requires 2 "C" Cell Batteries for LED
KPC-S20C
KPC-S500
OH-11-BAT
•All Kits Include: Metal Bracket
Aluminum Housing & Sunshield
•Liquid Tight Cable Pass
EXPLOSION PROTECTED CAMERAS
VTC-C63
EX63
EX62
•Different CCD Types Available: C3 / C7 / M4 / MX4 /
S3 / SX4 / SX8
•Multiple Lens Options Available:
VA358: 1/3" 3.5-8mm, Auto-Iris /
VA612: 1/3" 6-12mm, Auto-Iris /
VA550: 1/3" 5-50mm, Auto-Iris /
VA8551: 1/2" 8.5-51mm, Auto-Iris
•CSA / UL Rated Housing
•14" Length
•With 4 Entry Plugs (Camera Not Included)
EX70N/EX70NX
•2 CCD Types Available: EX70N: 1/3" SONY
SuperHAD, 600 TVL & EX70NX: 1/3" LXR CCD,
420 TVL
•Multiple Lens Options Available: 3.6 / 4.3 / 6.0 / 8.0 /
12mm Micro-Lens
•12VDC or 24VAC
•LED Wavelength: 850nm
•24 LEDs
•Different CCD Types Available: C3 / C7 / M4 / MX4 /
S3 / SX3 / SX4 / SX8
•Multiple Lens Options Available:
VA358: 1/3" 3.5-8mm, Auto-Iris /
VA612: 1/3" 6-12mm, Auto-Iris /
VA550: 1/3" 5-50mm, Auto-Iris /
VA8551: 1/2" 8.5-51mm, Auto-Iris
•CSA / UL Rated Housing
•20" Length
•With 4 Entry Plugs (Camera Not Included)
EX72LED
EX60LED
EX72
•12VDC or 24VAC
•LED Type: 850nm 60° Wide / 30° Medium Beam &
940nm 60° Wide / 30° Medium Beam
•100 LEDs
•12VDC or 24VAC
•LED Type: 850nm 60° Wide / 30° Medium Beam &
940nm 60° Wide / 30° Medium Beam
•100 LEDs
•U-Bracket & Stainless Steel Straps Included
•Construction: Aluminum, Extended, Copper-Free,
3/8" Tempered View Window
•Different CCD Types Available: SX4: 1/3" LXR CCD,
SX6: 1/3" LXR CCD, FMZ300: 1/4" LXR CCD Image
Sensor
•Lens: VA615: 6 to 15mm Varifocal Auto-Iris Lens
(Only Available with SX4 & SX6)
•12VDC / 24VAC
38
WVCL924A
•1/2" CCD Color & B/W Switchable 120VAC
•ELC Function Enables the Use of Fixed Iris
Lens for Indoor Applications
•Built-In Digital Motion Detector
•Built-In 16 Alphanumeric Character Display
•480-Line Horizontal Resolution in Color
Mode, & 570-Line in B/W Mode
•1/2" CCD Color & B/W Switchable 24VAC/12VDC
•ELC Function Enables the Use of Fixed Iris Lens
for Indoor Applications
•Built-In Digital Motion Detector
•Gen-Lock Capability for Large System Application
39
REG-L1
REG-WG016
•1/2" Interline LXR CCD
•600 TVL Super Hi-Res
•Zero Lux - Works in Total Darkness
•12VDC, 3.0A or 24VAC, 15A
•Lens Options: 16mm / 25mm / 35mm / 50mm /
75mm Monochromes Lens
•Mount Not Included (Options Available)
•1/2" LXR CCD
•600 TVL Super Hi-Res
•15VAC
•License Plate Reader
•Ceiling Mount
•16mm Lens
•5 Meter Range
•PSU Not Included
REG-M1
•1/2" Interline LXR CCD
•600 TVL Super Hi-Res
•Zero Lux - Works in Total Darkness
•12VDC
•Lens Options: 16mm / 25mm / 35mm / 50mm
Monochromes Lens
2M-CHZ45IR-24V
•1/4" SONY CCD Image Sensor
•520 TV Lines Resolution
•0 Lux with 84 IR LEDs
•External Housing with Brackets
•Infrared LEDs, Switched On/Off By Cell
•Pelco-D Compatible
•24VAC
•OSD Setup
•Heater Blower Outdoor Camera w/ Housing
•Wireless Remote Control
•22x Optical Zoom Auto Focus Day & Night
SCR510HB-HN2
•1/3" Type ExView CCD
•540/600 TV Lines (Day/Night Mode)
•Digital Noise Reduction (DNR)
•Remote Control RS-485 Via PELCO P/D
•1/2" SONY CCD with 600 TV Lines
•96 PCS LEDs; Metaphase-Type LEDs;
High-Efficient Array
•Remote Control RS-485 Via PELCO P/D
•24VAC; 45W with Heater & Blower
GV-IRCAM10
GV-IRCAM20
•Built-in Powerful IR LED Illuminator
•Built-in Always-On Blower
•20M (Object of View Reflecting IR Light)
•12 High Efficiency Reflex LED
•Lens Focal Length 5~50mm; 10x
•Built-in Powerful IR LED Illuminator
•Built-in Always-On Blower
•30M (Object of View Reflecting IR Light)
•24 High Efficiency Reflex LED
•Lens Focal Length 10~120mm; 12x
•Easy to Install & Operate "Plug & Play"
•NTSC & PAL Models Available
•8 User Selectable Channels
•No Interference From 2.4GHz 802.11 B/G Data
Network
•Hi-Res Day/Night Color Camera
•Rugged All-Weather IP-66 Rated Metal Case Design
•Universe Wall or Ceiling Mounting Bracket
•Ideal For Surveillance or Monitoring Applications
•One Year Limited Warranty
ZX-520SR100
•Easy to Install & Operate "Plug & Play"
•8 User Selectable Channels
•No Interference from 2.4GHz 802.11 B/G Data
Networks
•Hi-Res Day/Night Color Camera
•Rugged All-Weather IP-66 Rated Metal Case Design
•Universal Wall or Ceiling Mounting Bracket
•Ideal For Surveillance or Montioring Applications
•One Year Limited Warranty
REG-D1
•1/2" Interline LXR CCD
•600 TVL Super Hi-Res
•Zero Lux - Works in Total Darkness
•12VDC, 3.0A or 24VAC, 1.5A
•Lens Options: 16mm / 25mm / 35mm / 50mm
Monochromes Lens
MECC
SCB265i-HN5
SCR515HB-HN2
ZX-480SR40
•1/3" SONY CCD with 540 TVL
•Real Day/Night Functionality
•Intelligent "Traffic" Modes For License Plate Capture
•Auto White Balance
IP200 Series
EX27NXP
EX26NX
•Monochrome 1/3" LXR CCD
•500 TVL
•0 Lux - Operates in Complete Dark
•Power Supply: 12VDC or 24VAC
•Lenses: 4.3mm/6mm/8mm/12mm & 16mm
Micro-Mount Lenses
•24 LEDs
•850nm IR Wavelength or (940nm Optional)
•Modular "MECC" Versatility
•No Plug. Just Play.
•I/O Ports For Power In & Video Out
•Video-Out Port For LCD Positioning
•Completely Wireless Arrangement Possible
•MECC I/O Ports For Versatility
•IP-68 Weatherpoor Connectors
•Exxtreme Environment Connector Cable
•Detachable Antenna On MECC RF Module
•Monochrome 1/3" LXR CCD
•500 TVL
•0 Lux - Operates in Complete Dark
•Power Supply: 12VDC / 24VDC or 24VAC Selectable
•Lenses: 4.3mm/6mm/8mm/12mm &
Micro-Mount Lenses
•Infrared Type: 24 LEDs
•850nm IR Wavelength or (940nm Optional)
•"Perpetual CCTV Wire Free" is Achievable through
MECC Versatility, Design Efficiency & Simple
Connection to Solar Kit
•Power-Efficient Solar Kit Allows Total Power
Autonomy
•No External Power Requirements
•Wireless Operation Through Integration with
MECC RF
•No Need to Plug into Power or Cabling Connections
•24/7 Day/Night Surveillance with Award-Winning
IR Illumination
WIRELESS CAMERAS
LICENSE PLATE CAMERAS
WVCL920A
•Resolution: 30 FPS @ 352 x 240; 10 FPS @ 704 x 480
•Power Supply: 12VDC or 24VAC
•Video Type: Motion - JPEG
•Instant Web Accessible Digital Video From
Standard NTSC or PAL Cameras
•Up to 30 Frames Per Second of Digital Video Output
•Integrated Web Server
•Connect to Extreme Cameras Through
BNC Connector
•Trigger On Motion Detect
•Email or FTP Snapshots On Trigger or
Regular Schedule
•Powered By 12VDC / 24VAC
•Designed to NEMA 4 Compliance
•Password Protection
•Control Settings For Network Bandwidth Usage
•Remote Configuration
•PTZ Support For Major Protocols
•Integrates with Other IP Video Management
Software
40
SVEX-W125
SVEX-YT
•Housing & Pan/Tilt Integrated Together
•Different Cameras Inside to Choose
•Indoor & Outdoor Installation
For All Weather Use
•Bracket or Base Mount
41
•Indoor & Outdoor For All Weather Use
•Pan / Tilt w/ Camera Housing
•Multiple Protocol For Multi-Control System
SVEX-YT2
•Housing, Pan / Tilt, Decoder & Camera Integrated
•Multi-Control Protocols For Different Control
System
•350° Max Horizontal Turning
•Indoor & Outdoor Installation For All-Weather Use
•1/4" SONY SuperHAD CCD
•10x Optical Zoom
•Maximum 200° / Sec On Preset Vandalproof
•Password Protection
•12VDC
Model #
Features
SVP-AT18X
1/4" Color CCD, 480 TVL, Motion Auto Tracking, Intelligent
Surveillance with Alarm Function, 360° Continuous Pan, 18x Optical
Zoom, Option: Inceiling, Outdoor & Surface Mount
SVP-ATDN18X
1/4" Color CCD, 480 TVL, Motion Auto Tracking, Intelligent
Surveillance with Alarm Function, 360° Continuous Pan, 18x Optical
Zoom, Day & Night, Option: Inceiling, Outdoor & Surface Mount
SVP-ATDN26X
1/4" Color CCD, 480 TVL, Motion Auto Tracking, Intelligent
Surveillance with Alarm Function, 360° Continous Pan, 26x Optical
Zoom, Day & Night, Option: Inceiling, Outdoor & Surface Mount
SVP-ATDN36X
1/4" Color CCD, 480 TVL, Motion Auto Tracking, Intelligent
Surveillance with Alarm Function, 360° Continous Pan, 36x Optical
Zoom, Day & Night, Option: Inceiling, Outdoor & Surface Mount
SVP-F18X
1/4" SONY SuperHAD CCD, 480 TVL Hi-Res, 360° Continuous Pan,
18x Optical Zoom, Option: Inceiling, Outdoor & Surface Mount
SVP-FDN18X
1/4" SONY SuperHAD CCD, 480 TVL Hi-Res, Sensitivity & Chroma
Luminance, Day & Night (IR Cut Filter), 18x Optical Zoom, Option:
Inceiling, Outdoor & Surface Mount
SVP-FDN26X
1/4" SONY SuperHAD CCD, 480 TVL, Day & Night (IR Cut Filter),
360° Continous Pan, 26x Optical Zoom, Option: Inceiling, Outdoor &
Surface Mount
VCC-P9574S
SVP-FDN36X
•1/4" CCD Type Color Camera
•520 TVL Super Hi-Res
•1.9 Lux (F1.9)
•Dual Voltage
•w/UTP & RS-485 / Coaxial Control
1/4" SONY SuperHAD CCD, 480 TVL, Day & Night (IR Cut Filter),
360° Continous Pan, 36x Optical Zoom, Option: Inceiling, Outdoor &
Surface Mount
SVP-M18X
1/4" SONY SuperHAD CCD, 480 TVL Hi-Res, Sensitivity & Chroma
Luminance, 18x Optical Zoom, Option: Inceiling, Outdoor & Surface
Mount
SVP-54DNR30X
•1/4" SONY
SuperHAD CCD Camera
•30x Optical Zoom with 10x Digital Magnifier
•Open Shutter & IR Cut Filter to Capture Images in
Very Low Light
•Continuous Auto Focus &
One Shot Focus
SVP-54WDN23X
SVEX-W125-5
SVEX-Q15
SVEX-W1253
•Preset Positioning & Auto-Tour Monitoring
•Housing & Pan/Tilt Decoder & Washer Integrated
•Indoor & Outdoor For All Weather Use
•Advanced Intelligent Ex-Proof Camera
•High Definition Camera & Wide Zoom Lens
•Indoor & Outdoor For All Weather Use
•Special Wash System Housing, Pan / Tilt, Decoder
& Washer Integrated
•Indoor & Outdoor For All Weather Use
•Preset Positioning & Auto-Tour Monitoring
EXTREME
ENVIRONMENT CAMERAS
•1/4" SONY Interline CCD Camera
with DSP 6 (Hitachi)
•23x Optical Zoom with 10x
Digital Magnifier (230x Total Zoom)
•WDR (Wide Dynamic Range) Technology
•Open Shutter to Capture
Images in Very Low Light
IK-DP01A
•480 TVL
•Auto Focus with Manual Over-Ride
•18x Optical / 12x Digital Zoom
•360° Pan Rotation Security Camera
•Up to 255 Domes Can Be
Connected in One System
Model # Features
CD55
•1/4" SuperHAD SONY CCD
•520 TVL Super Hi-Res
•0.5 Lux
•18x Optical
•12x Digital Security Camera
•24VAC
•IP-66 Weather Resistant
CD55NV
•1/4" SuperHAD SONY CCD
•520 TVL Super Hi-Res
•Day 0.7 Lux & Night 0.01 Lux
•18x Optical / 12x Digital Security
Camera
•24VAC
CD52W
•1/4" SuperHAD CCD
•470 TVL Hi-Res
•22x Zoom
•1.0 Lux
•24VAC
•IP-66 Weather Resistant Rating
IK-DP30A
EX10
EX14N
•Different CCD Types Available: C3 / C7 / CX6 / S3 /
SX3
•Multiple Lens Options Available: 3.6 / 4.3 / 6.0 /8.0 /
12mm Mirco Lens
•Available In Black or White
•12VDC / 24VAC
•Different CCD Types Available: EX14N / EX14NX /
EX14MN / EX14MNS
•Multiple Lens Options Available: 3.6 / 4.3 / 6.0 /8.0 /
12mm Mirco Lens & 4-8mm Varifocal Lens
•Available In Black or White
•12VDC / 24VAC
EX14
•Different CCD Types Available: C7 / CX6 / M4 /
MX4 / SX3
•Multiple Lens Options Available: 3.6 / 4.3 / 6.0 /8.0 /
12mm Mirco Lens & 4-8mm Varifocal Lens
•Available In Black or White
•12VDC / 24VAC
•1/4" IT CCD
•480 TVL Hi-Res
•0.01 Lux
•360° Continuous Pan Rotation
•Variable Speed Scans
•92° Tilt
•216x Zoom (18x Optical / 12x Digital)
•DVR-Friendly 50db Signal-To-Noise Ratio
•IR Sensitive
PAN/TILT/ZOOM CAMERAS
EXPLOSION PROOF PTZ CAMERAS
SVP-54CDN10X
42
VDC-DP9584S
KPT-HD038DCB
KPT-SPD201FHEV
•Programmable AE
(D/N, White Balance, Shutter Speed etc) Per Preset
•Optical 22x / Digital 10x Zoom /
480 TVL / 0.001 Lux (DSS)
•Vandalproof / Weather Resistant
(IP-66) / Built-In Fan & Heater
•Standard Wall Mount
•Programmable AE
(D/N, White Balance, Shutter Speed etc) Per Preset
•Optical 10x / Digital 10x Zoom
•520 (Color) / 570 (B/W) TVL / 0.02 Lux
(DSS/ICR) / Super Noise Reduction
•Vandalproof / Weather Resistant
(IP-66) / Built-In Fan & Heater
KPT-SPD301FHEC
•1/4" SuperHAD CCD
•480 TVL Hi-Res
•Min. Illumination of 1 Lux (30 IRE) /
0.01 Lux with Electronic Sensitivity Up
•24VAC / 1.5 A (Without Fan & Heater)
•24VAC / 2A (With Fan & Heater)
•Blower / Heater Included
•Mechanical Day / Night
•Removable IR Filter
KPT-SPD360FHEV
CD65HZD
•Programmable AE
(D/N, White Balance, Shutter Speed etc) Per Preset
•Optical 36x / Digital 12x Zoom / 520 TVL /
0.01 Lux (ICR)
•Vandalproof / Weather Resistant
(IP-66) / Built-In Fan & Heater
•Standard Wall Mount
•1/4" Color CCD
•525 TVL Super Hi-Res
•0.5 Lux Min. Illumination
•12VDC
SPD-1000
•1/4" SuperHAD Color CCD; 10x Optical; 10x Digital
Zoom High-Resolution Image of 520 TVL (Color)
Ultra Low Light Sensitivity of 0.005 Lux
•1/4" SuperHAD CCD
•450 TVL Hi-Res
•1 Lux (30 IRE) / 0.01 Lux with Electronic
Sensitivity Up
•24VAC / 1.5A (Without Fan & Heater)
•24VAC / 2A (With Fan & Heater)
•Back Light Compensation:
WDR On / Off / Auto
43
VCC-9500
•520 TVL Super Hi-Res
•Up to 32x Senstitivity Boost
•30x Optical Zoom & 16x Digital Zoom (480x Total)
•32 Rectangular Privacy Masking Areas of Arbitrary Size
•In-Ceiling & Outdoor Versions
•Surface
VCC-9600
•30x Optical Zoom &
16x Digital Zoom (480x Total)
•520 TVL Super Hi-Res
•Up to 32x Sensitivity Boost
•32 Rectangular Privacy Masking Areas of Arbitrary Size
•Surface
•In-Ceiling & Outdoor Versions
•1/4" SuperHAD CCD Color Camera
•480 TVL Hi-Res
•Illumination of 0.1 Lux
•24VAC
•Lens: f=3.9~63mm
•High IR Range
•1/4" SuperHAD Interline CCD
•Hi-Res of 520 TVL (Color)
•570 TVL (B/W)
•Day&Night Color Speed Dome Camera
•230x Zoom Capability with Optical 23x
(f3.84~88.4mm) & Digital 10x Zoom
SPD-3000N
•1/4" SuperHAD Interline CCD
•Hi-Res of 520 TVL (Color)
•570 TVL (B/W)
•Day&Night Color Speed Dome Camera
•Powerful 30x Optical Zoom (f3.3~99mm)
& 10x Digital Zoom
•Programmable 128 Preset Positions / Optimized
Function Setting for Each Position
•1/4" SuperHAD CCD
•480 TVL Color Hi-Res
•0.3 Lux Sensitivity
•24VAC Power Supply
•12VDC Input
•Back Light Compensation
VT-PTZ
•1/4" Interline Transfer CCD
•480 TVL Hi-Res
•Power: 18~30 VAC / Surge
Protection 24VAC / 40VA or 24VDC / 3A
•0.7 Lux 50 IRE Min. Illumination
•Lens: F1.4 (f=4.1~73.8mm Optical)
•Programmable Speed Up to 380 Degrees Per Second
•Privacy Zone Masking
•Proportional Pan & Tilt
G3ACPW6CW
•1/4" ExView HAD CCD
•470 TVL Hi-Res
•26x or 18x Optical Zoom Range
•12x Digital Zoom
•24VAC
SD53TC
VCC-9800
•520 TVL
•1/4" CCD
•36x Zoom
•1.0 Lux (High Gain Mode)
•RS-485, SSP, 256 Preset Position Settings
•Image Stabilization
•Automatic Tracking
•Surface
•In-Ceiling & Outdoor Versions
•24VAC
•1/4" Interline Transfer CCD
•570 TVL Mono Super Hi-Res
•480 TVL Color Hi-Res
•0.01 Lux Sensitivity
•Equipped with a 25x Optical Zoom Lens
•Automatically Switch From Hi-Res Color to High
Monochrome when Light Drops Below 3 Lux
•Retractable IR Filter
•24VAC
SD5318
•1/4" Interline Transfer CCD
•470 TVL Hi-Res
•0.05 Lux at 1/2 Sec
•24VAC
•Lens: F1.4 (f=4~64mm Optical)
•1/4" Interline Transfer CCD
•480 TVL Hi-Res
•0.05 Lux at 1/2 Sec
•24VAC
•F1.4 (f=4~64mm Optical)
SD53C22
•1/4" ExView HAD CCD
•470 TVL Hi-Res
•0.02 Lux at 1/2 Sec Shutter
•24VAC
SPD-3300
ASH65NV
•1/4" SuperHAD CCD
•480 TVL Hi-Res
•Illumination of 0.1 Lux
•15VAC Power Supply
•RS-485 Multi-Protocol Control Way
PIH-7000NL
•1/4" SONY SuperHAD CCD
•480 TVL Hi-Res
•1.0 Lux
•Back Light Compensation:
WDR On/Off
SPD-2300N
•1/4" Color CCD
•520 TVL Super Hi-Res
•1.2 Lux (F1.9, Color Mode)
•0.06 Lux (F1.9, B/W Mode)
•w/UTP & RS-485 / Coaxial Control
•IR Cut Filter Removal for Both Day
& Night Function
•Dual Voltage
PIH-7625DW
KPT-SD301FH
CD56NV-IR
•6" High Color Speed Dome
•32x Hi-Res (Day&Night)
•480 TVL
•Wall / Ceiling Mount Included
•Heater / Blower Built-In
KPT-SPD301FHES
KPT-SPD101NH
•Smallest Mini Speed Dome
(4.92" Diameter x 5" Height)
•Auto Focus 100x Zoom (10x Optical / 10x Digital)
•f=3.8~38mm)
•Ultimate PT Speed
(0.05~400 Deg/Sec Pan or Tilt Speed)
CD55NV35S
PAN/TILT/ZOOM CAMERAS
PAN/TILT/ZOOM CAMERAS
•1/3" SONY Hi-Res SuperHAD CCD
•0.5 Lux / F1.2
•1.0 Lux / F2.0
•12VDC
•4-8mm Varifocal Lens
KPT-SPD101FHEV
CD55H
•520 TVL Super Hi-Res
•1.0 Lux
•IP-66 Weather Resistant
•Suitable For Providing Ultra Hi-Res
•Easy Installation
•24VAC
•1/4" Double Scan ExView Color CCD
•520 TVL Super Hi-Res
•0.4 Lux Color
•0.08 Lux B/W
•Wide Dynamic Range Function
•30x Optical Zoom
•24VAC
ENVC2460W
SD5318-PSGEO
•1/4" ExView CCD
•470 TVL Hi-Res
•24VAC
•1/4" Interline Transfer CCD
•470 TVL Hi-Res
•24VAC
SD53CBW
•1/4" Interline Transfer CCD
•470 TVL Hi-Res
•24VAC
44
NOTE: To configure a Pelco dome, chose your desired options and fill in the appropriate
blanks to determine the model number
NOTE: To configure a Pelco dome, chose your desired options and fill in the appropriate
blanks to determine the model number
SPECTRA III SE
SERIES
Spectra III Series
PAN/TILT/ZOOM CAMERAS
•Five back box configurations and three auto focus, high-resolution dome drives
•Programmable software
•Built-in back box memory
•Window blanking, on-screen compass and tilt display
•Multi-language on-screen menus
•Freeze frame during presets
•RJ-45 data port for software update and setup
C22
22x Color
0
Smoked Dome
M22
22x Day/Night
1
Clear Dome
PG
-
E __
-
16x Color
18
18x Day/Night
-
For PAL and CCIR models add “X” suffix to part number.
Example: SD53C22-PG-EQ-X)
SE Series
Pendant Standard
CBW
0
Smoked Dome
1
Clear Dome
•Auto Focus, Hi-Res Integrated Low Light Color Camera / Optics Package
•RJ-45 Data port for software Upgrades
•On-screen compass and tilt display
•5.9 acrylic bubble
•Built-in surge and limited lightning protection
F __
Black In-Ceiling Back Box
Spectra III Series
Pendant Standard
0
Smoked Dome
1
Clear Dome
2
Chrome Dome
3
Gold Dome
0
Smoked Dome
1
Clear Dome
The Spectra III Series Dome System is a cost-effective alternative to Pelco’s popular
Spectra III SE Series Dome Series. The Integrated Dome System consists of a back box,
dome drive, and lower dome. Components may be ordered as a complete system or
separately. This flexibility allows for future system upgrades.
Spectra III Series
Surface Mount
0
C22
CBW
23x Day/Night
M22
C22
22x Color
2
Chrome Dome
TC
16x Color
2
Chrome Dome
TC
M22
22x Day/Night
3
Gold Dome
18
18x Day/Night
3
Gold Dome
18
SD53 __
-
F __
Black In-Ceiling Back Box
SD53 __
__
__
-
__
Black Back Box
PB
Black Back Box
Chrome Dome
PB
Gray Back Box
PB
Gray Back Box
For PAL and CCIR models add “X” suffix to part number.
Example: SD53C22-PG-EQ-X)
Gold Dome
0
Smoked Dome
1
Clear Dome
C22
22x Color
2
Chrome Dome
M22
22x Day/Night
3
Gold Dome
SM__
W
B
-
__
SE Series
In-Ceiling, Environmental
CBW
23x Day/Night
C22
22x Color
M22
22x Day/Night
SD53 __
White Housing
Black Housing
-
Black In-Ceiling Back Box
Back Box Type
Environmental Pendant,
Pressurized
Environmental Pendant,
Pressurized fiber Optic
Feedthrough,
Single-Mode
Environmental Pendant,
Pressurized fiber Optic
Feedthrough,
Multi-Mode
SD53 __
Spectra III Series
Pendant Environmental
TC
16x Color
0
Smoked Dome
18
18x Day/Night
1
Clear Dome
PG
-
E __
-
Smoked Dome
1
Clear Dome
16x Color
2
Chrome Dome
18x Day/Night
3
Gold Dome
-
SM__
-
__
W
White Housing
B
Black Housing
TC
16x Color
18
18x Day/Night
SD53 __
-
F E __
Black In-Ceiling Back Box
Gray Back Box
0
Smoked Dome
Clear Dome
For PAL and CCIR models add “X” suffix to part number.
Example: SD53C22-PG-EQ-X)
Spectra III Series
In-Ceiling, Environmental
SD53 __
1
Surface Mount
For PAL and CCIR models add “X” suffix to part number.
Example: SD53C22-PG-EQ-X)
F E __
For PAL and CCIR models add “X” suffix to part number.
Example: SD53C22-PG-EQ-X)
•Pressurized to 8 psig
•Solid State Sensors
•On-Screen Programmable
Menus
•Built-in Back Box Memory
•2 Auxillary Outputs and
7 Alarm Inputs
-
PB
23x Day/Night
Surface Mount
-
Clear Dome
SE Series
Surface Mount
-
__
1
3
SD53 __
-
Smoked Dome
2
CBW
SD53 __
0
Spectra III Series, Pressurized
45
TC
SD53 __
Gray Back Box
Spectra III SE’s back box options include an environmental in-ceiling model that is
ideal for outdoor soffits, an indoor surface mount, indoor in-ceiling model, and
pendant styles for standard and environmental installations. Each back box model
features built-in memory to store camera and location-specific dome settings,
including labels, presets, patterns and zones. These setting are automatically
downloaded if a new dome drive is installed.
SE Series
In-Ceiling, Indoor
23x Day/Night
SD53 __
Dome Systems
Spectra III Series
In-Ceiling, Indoor
CBW
For PAL and CCIR models add “X” suffix to part number.
Example: SD53C22-PG-EQ-X)
0
Smoked Dome
1
Clear Dome
Environmental dome systems include a heater, fan and the
environmental pendant also includes a sun shield.
PAN/TILT/ZOOM CAMERAS
SE Series
Pendant Environmental
Heavy Duty Spectra III Series
Lower
Dome
16x Color
SPECTRA III
18x Day/Night
23x Day/Night
SPECTRA III SE
22x Color
22x B/W
Smoked
SD53TC-PRE0
SD5318-PRE0
SD53CBW-PRE0
SD53C22-PRE0
SD53M22-PRE0
Clear
SD53TC-PRE1
SD5318-PRE1
SD53CBW-PRE1
SD53C22-PRE1
SD53M22-PRE1
Smoked
SD53TC-PRSE0
SD5318-PRSE0
SD53CBW-PRSE0
SD53C22-PRSE0
SD53M22-PRSE0
Clear
SD53TC-PRSE1
SD5318-PRSE1
SD53CBW-PRSE1
SD53C22-PRSE1
SD53M22-PRSE1
Smoked
SD53TC-PRME0
SD5318-PRME0
SD53CBW-PRME0
SD53C22-PRME0
SD53M22-PRME0
Clear
SD53TC-PRME1
SD5318-PRME1
SD53CBW-PRME1
SD53C22-PRME1
SD53M22-PRME1
Pelco’s Heavy Duty Spectra III
is ideal for installations where
structural integrity and resistance to
vandalism are a priority. Dual wall
construction, added thickness, and a
geometric design enhance the overall
durability of the enclosure.
Back Box
Type
Lower
Dome
Cage
In-Ceiling
Clear
SPECTRA III
SPECTRA III SE
16x Color
18x Day/Night
23x Day/Night
22x Color
22x B/W
No
SD53TC-HF1
SD5318-PRE0
SD53CBW-PRE0
SD53C22-PRE0
SD53M22-PRE0
Yes
SD53TC-HCF1
SD5318-PRE1
SD53CBW-PRE1
SD53C22-PRE1
SD53M22-PRE1
Elndoor
Pendant
No
SD53TC-HP1
SD5318-PRSE0
SD53CBW-PRSE0
SD53C22-PRSE0
SD53M22-PRSE0
Yes
SD53TC-HCP1
SD5318-PRSE1
SD53CBW-PRSE1
SD53C22-PRSE1
SD53M22-PRSE1
Environmental
Pendant
No
SD53TC-HPE1
SD5318-PRME0
SD53CBW-PRME0
SD53C22-PRME0
SD53M22-PRME0
Yes
SD53TC-HCPE1
SD5318-PRME1
SD53CBW-PRME1
SD53C22-PRME1
SD53M22-PRME1
46
NOTE: To configure a Bosch dome, chose your desired options and fill in the
appropriate blanks to determine the model number
VCC-WB4000
G3 Autodome
VC202
18x zoom Monochrome–
M
18x zoom Color–
C
18x zoom Day/Night–
D
Clear–
C
P
–Pipe
25x zoom Day/Night–
T
Tint–
T
W
–Wall
(AutoDome)
120 VAC, 60Hz NTSC–
230 VAC, 50Hz PAL–
EnviroDome
S
5
Standard–
PW
6
AutoTrack–
T
Fiber–
F
Fiber w/Auto Track–
1
Model of Bosch Dome
2
M - 18x zoom Monochrome
Note: This option is available only in the Americas.
C - 18x zoom Color
D - 18x zoom Day / Night
E - 26x zoom Day / Night
W - Wall
R - Roof³
Note: This option is available only in the Americas.
•1/3" Interline Transfer CCD
•480 TVL Hi-Res
•0.3 Lux B/W
•0.6 Lux @ F1.2 (Color) &
0.03 Lux @ F1.2 (Black & White)
•JPEG2000 Video Compression
•Intelligent Motion Detection
•Dual Voltage
•"Flexibility to Move Camera to Any AC Outlet at
Any Time
•Hi-Res Up to VGA 640x480 as well as CIF
•User Friendly Administration Utility Using
Standard Web Interface
FT
(EnviroDome)
W
– Wall
– 18x zoom Monochrome
R
– Roof
C
– 18x zoom Color
M
– Mast (Pole)
D
– 18x zoom Day/Night
C
– Corner
T
– 25x zoom Day/Night
P
– Pipe
SNC-P1
ENV
120 VAC, 60Hz NTSC–
120
Standard–
230 VAC, 50Hz PAL–
230
AutoTrack–
T
24 VAC, 60Hz NTSC–
2460
Fiber–
F
24 VAC, 50Hz PAL–
2450
Fiber w/Auto Track–
•1/4" Progressive Scan CCD
•Built-In Wide Angle lens - 3.8mm F2.0
•Built-In Microphone
•Composite Analog Video Output Via Mini-Jack
FT
IQ510
•Global Shutter; 0.4 Lux Low Light Performance
•Wide Dynamic Range; Up to 100dB
•Wide VGA Resolution (752 x 480)
•Light Grabber IITM Day/Night Low Light Performance
SNC-CS3N
WV-NP1004
M
M - Mast
•Dual MPEG4 & JPEG Digital Signal Output For
Simultaneous Live Monitoring & High Resolution
Recording
•Built-in Network Interface (10Base-T/100Base-TX) For
Remote Monitoring By PC
•1/3" Type Progressive Transfer CCD Image Sensor
•600 TV Lines Horizontal Resolution in Color Mode,
& 780 TV Lines Horizontal Resolution in B/W Mode
•Built-in SD Memory Card Slot For FTP Backup
•Multi Screen Display (4 Screens x 2 Groups)
•Built-in Digital Noise Reduction Function
•Privacy Zone Masking Function
•Built-in 5x Electronic Zoom Function
•VD2 Sync Capability with Panasonic Systems
Product
Sony's new SNC-CS3N CS mount, fixed network color camera
is the latest addition to Sony's growing line up of network
cameras which are ideally suited for surveillance, remote
monitoring, and web-casting applications. Designed
specifically to meet the demand for a high-quality and
affordable network camera, the SNC-CS3N combines high
performance with many value added features such as built-in
activity detection, all in a compact body.
•1/3" IT CCD with ExWave HAD Technology
•480 TVL Hi-Res
•0.5 Lux @ F1.0
•High Sensitivity
•Up to 30 Frames Per Second VGA Quality
•24VAC / 12VDC Power Capability
C - Corner
P - Pipe
4
_ - Standard
T - AutoTrack4
F - Fiber²
PressureDome
18x zoom Monochrome–
M
18x zoom Color–
C
18x zoom Day/Night–
D
W
– Wall
25x zoom Day/Night–
T
P
– Pipe
FT - Fiber w/ AutoTrack²’4
5
120 - 120 VAC, 60Hz NTSC
230 - 230 VAC, 50Hz PAL
2460 - 24 VAC, 60Hz NTSC¹
2450 - 24 VAC, 50Hz PAL¹
1. No transformer included. Customer must supply 24 VAC,
50 W transformer (ENV-PSU or equivalent). Not available with
fiber optic option.
2. Fiber option only available in kits with transformers. For kits
without transformers, an LTC 4628 may be used with standard
EMV kit. Each fiber kit requires an LTC 4629 at the system.
3. Roof mount mounts to vertical parapet. For flat roof
installations, you must also order the LTC 9230/01 Flat Roof
Adapter Plate
4. Tracker not available on Monochrome models.
The Rugged Bubble option is ordered separately, as a
replacement component, available in Clear or Tinted.
47
VueCAM is an IP camera which transmits real-time,
high quality digital video over any existing AC wiring
in commercial and residential buildings. It employs
simple "Plug in and Play" functionality, utilizing
innovative new technology called Powerline data
communications based on HomePlug 1.0 protocols.
It has been designed to operate without the need for
further cabling, therefore reducing the cost, complexity
and time for installation.
G3A
3
COLOR DAY/NIGHT IP CAMERA
(PressureDome)
(Pressurized Housing)
120 VAC, NTSC–
1
230 VAC, PAL–
2
24 VAC, NTSC–
3
24 VAC, NTSC–
4
NETWORK/IP CAMERAS
PAN/TILT/ZOOM CAMERAS
STANDARD COLOR IP CAMERA
NWC-0455
SVSIP-56CDNR
•Hybrid IP camera — concurrent analog and Ethernet
operation with built-in IP and BNC connections that
bridge existing and new technology
•Superior digital image quality with IP connectivity
- DVD-quality of 30 IPS at 4CIF
- MPEG-4 and JPEG compression modes simultaneously
•15-bit digital signal processing* and XF-Dynamic
for outstanding image quality and exceptional
dynamic range
•Power Over Ethernet (PoE), IEEE 802.3af Compliant
•1/3" SONY SuperHAD CCD Color 560 TV Lines
•DNR (Digial Noise Reduction) Technology Resulting
in a Clear & Sharp Image
•Display Even in the Dark
•Intelligent Motion Detection & Alarm Triggering
DSR-C10080
•Digital to Digital Performance from the CCD to the
Hard Disk Super High-Quality Images
•SXGA Color Resolution at Approximately 900 TVL
•Pre-Alarm Looping, Post-Alarm & Suspicion
Recording Modes
•Easy Connection to PC Via a USB
•Composite Video Output Supports NTSC or PAL
Media Output
•Includes a CF-Type Expansion Slot
WV-NP472
New from Panasonic, the WV-NP472 directly
connects to either digital or analogue devices. Simply
set an IP address and connect it to an Ethernet
terminal for monitoring and control from a personal
computer. Or use the analogue video out to connect
to conventional monitoring systems using coaxial
cable. The WV-NP472 camera utilizes Panasonic’s
Super Dynamic II function to capture natural images
at entryways, near windows, and in other locations
with harsh contrasts between light and dark. It
automatically stores images in repose to inputs from
motion detectors and external sensor alarms and can
send images automatically as e-mail attachments.
•1/3" Interline Transfer CCD Image Sensor
•480 TVL Hi-Res in Color Mode
•570 TVL Super Hi-Res in
Black & White Mode
•0.8 Lux (Color) & 0.1 Lux in (Black & White)
•12VDC
NWC-0495
The NWC-0495 Dinion IP is a high-performance 1/3-inch CCD
Day/Night network camera, designed to ensure the highest
possible image quality at all times. This ultracompact camera
provides DVD-like quality MPEG-4 video at up to 25 and 30
images per second (for PAL and NTSC respectively). Dinion IP
is a true hybrid camera with both Ethernet and BNC
connections capable of providing direct network connection
while simultaneously supporting existing analog equipment.
•540 TVL Super Hi-Res
•0.24 Lux (Color)
•0.038 Lux (Night Mode)
•15Bit DSP Technology with XF-Dynamic
Extended Dynamic Range
•24VAC / 12VDC
48
IP DOME CAMERA
VCC-P7574N
SNC-DF80N
•1/3" Type CCD with
Super ExWave Technology
•Extremely High Sensitivity Levels &
Delivers Exceptionally Clear Images
in 24x7 Operation with Day/Night
Function
•Vandal & Weather Resistant
•High Horizontal Resolution of
540 TVL
AXIS-213CM 22581
WV-NW484S
•Progressive Output with Motion Adaptive Interlace/
Progressive Conversion
•Built-in MPEG-4 & JPEG Digital Signal Output (VGA)
at Up to 30IPS
•PoE (Without Optional Heater)
•Day/Night Switching For Optimal Clarity in
Any Lighting Condition
•Analog Video Out
(For Ceiling Mounted Camera)
•Provides Two Way, Full Duplex Audio
Functionally
•2 Alarm Inputs & 3 Outputs for the
AXIS 213 PTZ
AXIS-233D 0266-001
AXIS 233D Network Dome Camera provides exceptional
features such as progressive scan, 35x optical zoom, and fast
and precise pan/tilt mechanics, for superb performance and
image quality. AXIS 233D is designed for use in demanding
security installations such as airports, casinos, stadiums and
ports.
•Auto Day/Night Mode Down to 0.5 Lux in
Color & 0.008 in Night Mode
•Continuous 360° Rotation & 180° Tilt with E-Flip
•Progressive Scan 4CIF Resolution at 30/25FPS
in MPEG-4 or Motion JP
SVPIP-54DN23X-O
•1/4" Type SONY HAD CCD
•More Than 520 TV Lines
•Sensor Trigger / Motion Detection / Alarm Notification
•23x Optical Zoom Lens Integrated Web Speed Dome
Camera
VDC-DP7584N
VN-C215V4U
•VGA Resolution at
30FPS (Max) Using High Quality
Motion JPEG Compression
•Built-In 3.6x Varifocal Lens (f=2.8 to 10mm)
•Various Installation Possible with Triple Axis
Rotation Mechanism
•One CAT5 Cable for Data Transmission &
Power Supply Thanks to PoE Compliance
•1/4" Color CCD
•520 TVL Super Hi-Res
•1.2 Lux (F1.9 - Color Mode) &
0.06 Lux (F1.9 - B/W Mode)
•24VAC & 12VDC
•Easy Installation
•Easy Adjustment & Easy Set-Up
•Vandal-Resistant Dome
IQ510B1NPDV
•Interior/Exterior Vandal Dome
•Wide Varifocal Lens
•Light Grabber IITM Day/Night Low
Light Performance
•0.4 Lux Low Light Performance
VN-C625U
•1/4" CCD
•Compact & Un-Obtrusive
•Memory Card Slot
•Web & FTP Server Functions
•12VDC
VN-C655U
•1/4" Interline Transfer
•24VAC
•25x Optical Zoom Lens &
10x Electronic Zoom
•Built-In Web Server
•360° Endless Rotation
SVPIP-54DN23X-I
•520 TV Lines; 23x Optical Zoom
•High Resolution Image Can Be Remotely Sent
•Day & Night; Minimum Illumination 0.01 Lux
•Dynamic IP Supported
DAY / NIGHT INFRARED IP CAMERA
WVNF284
•3.6x Variable Focal Lens (2.8~10mm)
•Built-In SD Memory Card Slot For FTP Backup
•Progressive Scan Type CCD Image Sensor
•Built-in Digital Motion Detector
VDC-DP9584
SVVIP-56CDNRL210D
•1/3" SONY SuperHAD CCD; Color 560 TV Lines
•Aspherical 2.8~10mm DC Auto Iris Lens;
Dual Voltage
•50 Concurrent Access
•Event Based Automatic or Manual Control of
Relay Output
IP CAMERAS
IP CAMERAS
•1/4" Interline Transfer Method CCD
•520 TVL Super Hi-Res
•Built-In x2.6 Motorized Zoom Pan-Focus Lens,
f=2.8-7.3mm (F=1.9-3.0)
•No Focus Adjustments Required
•Preconfigured Versions for SSP or Network Control
•Dual Voltage
PTZ IP SECURITY CAMERA
VANDAL PROOF IP CAMERA
•1/3" SONY SuperHAD CCD; 560 TVL
•True Day & Night Lens
(ICR Type-IR Cut Filter Removable)
•DNR Technology Resulting in a Clear & Sharp Image
•Aspherical 2.8~10mm DC Auto Iris Lens; 12VDC
•1/4" Color CCD
•520 TVL Super Hi-Res
•1.2 Lux (F1.9 - Color Mode) &
0.06 Lux (F1.9 - B/W Mode)
•No Focus Adjustment Required
•IR Cut Filter Removal for Both Day &
Night Function
•Dual Power Operation
SVBIP-56IRC40L650D
WV-NS202A
SVBIP-56IRC40L210
VCC-P9574N
PIH-7000IP
•1/4" Color CCD
•520 TVL Super Hi-Res
•1.9 Lux (F1.8)
•12VDC & 24VAC
•No Focus Adjustment Required
The Li-Lin IP Fast Dome is a combination of Fast Dome
Camera and integrated web server for network, making it an
ideal choice for remote surveillance applications. Features
include remote monitoring of live video and full PTZ control
via web browsers, 4 alarm inputs and a local alarm output
which are configurable to NO or NC two different alarm
response modes are motion detection function triggered for
images transmitted
WV-NS324
SNC-RZ30N
•Auto Focus Lens Mechanism
•Alarm Input / Output Terminal Connectors
•Built-in Digital Motion Detector
•Built-in Alphanumeric Character Display
Combining network functionality with Pan/Tilt/Zoom
capability, the SNC-RZ30N camera takes remote
monitoring and general IT applications to the next
step by offering the flexibility to see almost anything
within the camera's range and field-of-view over an
ordinary TCP/IP network.
VANDAL PROOF INFRARED IP DOME CAMERA
SVVIP-56IRC40L210
•1/3" SONY SuperHAD CCD;
560 TV Lines
•True Day & Night Lens
(ICR Type-IR Cut Filter
Removable)
•Intelligent Motion Detection
& Alarm Triggering
•6~50mm DC Auto Iris Lens;
Dual Voltage
SVVIP-56IRC40L650D
•1/3" SONY SuperHAD CCD
•Multi-Level User ID & Password
•Intelligent Motion Detection & Alarm Triggering
•6~50mm DC Auto Iris Lens; Dual Voltage
49
SVVIP-56CDNRL650D
•1/3" SONY SuperHAD CCD; Color 560 TV Lines
•6~50mm DC Auto Iris Lens; Dual Voltage
•DNR Technology Resulting in a Clear
& Sharp Image
•Intelligent Motion Detection & Alarm Triggering
•1/3" SONY SuperHAD CCD; 560 TV Lines
•6~50mm DC Auto Iris Lens; Dual Voltage
•Various Softwares For PC; PDA & Mobile Phone
•50 Concurrent Access
•Up to 32x Automatic Electronic
Sensitivity Enhancement
•22x Zoom Lens with 10x Digital Zoom Enabling
220x Zoom
•Simple Day-Night Function
(No IR Cut Filter Moving)
•Built-in MPEG-4 & JPEG Digital Signal Output at
VGA Image Size with Up to 30 IPS
50
SINGLE CHANNEL DVRS
DVR1A1081
DVR1C1161
•Uninterrupted Recording For One Week or Longer
•Remote Viewing of Recordings & Live Pictures Via
Web Browser
•Superior Image Quality Through Digital Recording
•Quick Search By Date/Time, Alarm Events &
Recording List
DIGITAL RECORDER - STANDALONE
The DVR1A1081 digital video recorder is an ideal, logical and
very cost-effective replacement for analog video recorders in
CCTV systems. There is no need for costly and frequent
maintenance, nor are there any videotapes to change and store.
And, being digital, it offers many advanced recording and
playback features, as well as continuous or time-lapse
recording for up to a week or longer.
D4A 4CD-80GB
•Up to 720x480 Recording
•4 Loop Through Outputs
•MAC Compatible Remote Viewing
•Compression Format Providing Crystal Clear Images
with Real Time Performance
•Allows Live Display, Record, Playback, Backup &
Network at the Same Time
NVDV3-4
•250GB Hard Drive Upgradeable to 1000GB
•MPEG-4 Video Compression
•Built-In Ethernet Connection
•Automatic E-mail Notification During Failure
•Embedded Linux
•Guadruplex
•RS-422/485
•Fullplex Recorder (Recording / Playback /
Network at the same Time)
•60fps in Full D1 Recording Rate for 4
Channel (15fps D1 per Channel Recording)
•CCTV or VGA/LCD Monitor
•1 Channel Audio Input/Output
•Video Compression: MPEG4
•Sensor Trigger Recording
•I/O Control for Sensor & Relay
•Hard Drive Options Available
51
The Sanyo DSR-M810H is a single channel, single input digital
video recorder that takes up only ? standard rack space. Its
economical size was designed for use in environments where
large numbers of units would be needed such as in surveillance
centers for casinos and other large high-security situations.
The unit records in real time with selectable image resolution
from standard to very finely detailed. Total recording duration is
divided among the amount of input devices.
•30FPS
•Upgradable 120/240/300/600GB HDD Options Available
300/600GB Hard Drive Options Available •
MPEG-2 Compression • Ethernet Output
• Composite Video Input/Output • 4 Audio
Inputs • Alarm Recording
DSR-2004H
•4 Audio & Video Input
•Live Capture Allows Still Image Output of Live
Images
•IR Remote Control (Included) Of Up To Nine DVRs
80; 160 or 300 GB Storage Capacity
3-4 CHANNEL DVRS
2M-MXDVR4
EB1304 NET
DSR-M814H
2M-TRH04
2M-4CHDVR
•H.264 Video Compression
•Real Time Live Display
•4 Channel DVR: 120fps Half-D1 Recording
•Live Display, Record, Backup, Playback
& network access at the same time
•MJPEG Video Compression
•Max 120 Images Per Second Recording
•Quad & Each Record Image Size
•Various Recording Modes of Manual, Schedule &
Motion Detection
•1 (Up to 750GB) Hard Drive Support
PDR-400IP
PDR-400
•4 Channel stand Alone Digital Video Recorder
•Upgrade Available up to 500GB HDD
•Total Display at 120fps with 720x480 Resolution
•Record Speed at 30fps
•Remote Viewer
•Direct Internet Access
•2 Levels User Authentication
•Easy 640x480 JPEG SD Card Backup
•Upgrade Available
•4 Channel Stand Alone Digital Video Recorder
•Total Display at 120fps with 720x480 Resolution
•Record Speed at 30fps
•Remote Viewer
•160GB HD (IDE)
PDR-6040A
PDR-6040S
Built-In VGA with Intellectual Motion Adoptive
Refinement & Vivid Image Enchancement • HTTP
Web-Based Interface Including DVR Configuration,
PTZ Control, Playback & Live Monitoring • Extra
Spot Output With Quad & OSD Support • 4 Channel
Audio Inputs & 1 Audo output • 160GB Hard Drive
Built-In VGA with Intellectual Motion Adoptive
Refinement & Vivid Image Enchancement • HTTP
Web-Based Interface Including DVR Configuration,
PTZ Control, Playback & Live Monitoring • Extra
Spot Output With Quad & OSD Support • 4 Channel
Audio Inputs & 1 Audo output • 160GB Hard Drive
Upgradeable up to 500GB
PDRL-4PE
•Linux-Based DVR - 4CH Real Time
Display & D120 / R120fps Record
•1/4 Split-Screen Views
•Up to 500GB Storage with Raid 5 System (Included)
•Hue, Saturation, Brightness, & Contrast
D4A 4RSCD
60fps • 80GB Hard Drive • PPP •
Ethernet with Built-In CD-RW •
Simultaneously Record, Playback &
Archiving • Remote Viewing & Remote
Playback
SHR-2042
•Compression Type: Improved MPEG-4
•Display Speed: Real Time
•Recording Speed: 120fps
•Audio Recording: 4 Channel
•Motion Detection
•PTZ Control
•SSC-2000 Keyboard Controller
•Ethernet 10/100 Base T
60PPS • Available in 80/160/300GB
Hard Drive • PPP • Ethernet Available
with Built-In CD-RW • Simultaneous
Record, Playback & Archiving •
Remote Viewing & Remote Playback
DX4004
KVR-J400AN
•120 (4CH) FPS Display/60 Recording
•Record, MJPEG / Remote, MPEG4
•Triplex (Simultaneously Records, Search, & Backup)
•Hard Drive Options Available
DVR5104DVD
KVR-M400AN
GV-DVR1042
•PTZ Control Via RS-485
•120 Fps Live / 120 Fps Recording
•Record: MPEG4 Hardware Compression
•Triplex (Record; View Live; Playback Simultaneouly)
•Web Browser
•120 Fps Live / 120 Fps Recording
•Record: MPEG4 Hardware Compression
•Triplex (Record; View Live;
Playback Simultaneouly)
•Endura Enabled DVR
•4 Camera Inputs
•Hard Drive Available (250GB to 1500GB)
Internal Storage
•MPEG4 Compression
•Hard Drive Available 160GB/250GB/500GB
•Front Panel USB
•Fully Functional Remote Agent
•Web Browser For Live View
•Options Available
6 CHANNEL DVRS
EB1704 HYBRID
•Supports Central Mangement System, CM3000
•4 Channel Standalone Security Digital Video
Recorder with Network Access
•CCTV or VGA/LCD Monitor Outputs
•4 Channel Audio Recording
•Video Compression: MPEG4
•Hard Drive Options Available
VT-ST420
•Dynamic IP Support
•Built-In DVD/CD Burner
•Multi-Site Remote Monitoring
•Keyboard & Mouse Control & Expandable External
Storage Offering an Additional 20 Terabytes
The New Digital Sprite 2 provides
true flexibility for professional CCTV
security solutions. An intuitive interface
allows easy local user operation while
IP connectivity provides remote
monitoring and system configuration
via Dedicated Micros ‘NetVu Connected’
software. High quality recordings are
accessible locally to the user at the
touch of a button or via powerful
GOTO and event recall facilities.
DS2P-6
Remote operators can utilize the latest
MPEG-4 compression technology to
view images via NetVu ObserVer or
embedded DV-IP Decoders.
The DS2 includes built-in coaxial &
twisted pair ports for telemetry to
enhance the range of DS2 applications.
DS2AD-6
DIGITAL RECORDER - STANDALONE
The DVR1C1161 digital video recorder is the ideal and logical
replacement for analog video recorders in CCTV systems. The
DVR1C can connect directly to a single camera, or to multiple
camera inputs routed via a multiplexer. It is compatible with
Bosch and many other brands of multiplexers. The DVR1C
allows the recording of both video and audio signals.
DSR M810H
•120PPS
•Available in 160, 320 or 600GB Hard Drive
•PPP
•Ethernet Available with Built-In CD-RW
•Simultaneous Record, Playback & Archiving
•Remote Viewing & Remote Playback
•60PPS
•Available in 80, 160 or 320GB
•PPP
•Ethernet Available with Built-In CD-RW
•Simultaneous Record, Playback & Archiving
52
8-10 CHANNEL DVRS
VT-ST820
VT-XL840
ECO9
NVDV3-8
DIGITAL RECORDER - STANDALONE
•MPEG-4 Compression with
Non-Conditional Refresh
•Up to 3.0 Terabytes Internal Storage
•Built-In DVD/RW Drive
•Embedded Linux OS
•60PPS
•Available in 160 or 300GB Hard Drive
•PPP
•Ethernet with Built-In CD-RW
•Simultaneous Record, Playback, Archiving
•Remote Viewing & Remote Playback
•Multiple Video Outputs
•1 Audio Channel
•Automatic E-Mail System Failure Notification
•Various PTZ Protocols Supported
•Multiple Recording Modes
•MPEG-4 Video Compression
•8 Levels of Resolution Adjustment
DS2AD-9
DS2P-9
60FPS • Networking • Audio • Optional
160/320/600GB Hard Drive & CD-RW
Upgrades Available • Alarm E-Mail
Notification
Optional 16/320/600GB Hard Drive
Upgrades Available • 120 FPS •
Networking • Audio • E-mail Alarm
Notification • Digital Signatures on
Recorded Images • Powerful Data Search
53
•Hard Drive Upgradable to 1200GB
•Wavelet Video Compression
•Built-In Ethernet Connection
•Automatic E-mail Notification During Failure
PDR-6080A
•Built-In VGA with Intellectual Motion Adoptive
Refinement & Vivid Image Enchancement
•HTTP Web-Based Interface Including DVR Configuration,
PTZ Control, Playback & Live Monitoring
•Extra Spot Output with Quad & OSD Support
•250GB Hard Drive
DX7008
WJ-HD309A
•High Density 60FPS Recording Rate
•Various Disk Partitioning Modes
•Advance Video Motion Detection
•Instant Search & Playback Functions
•RAID 5 Capable
•Multiple Camera Displays for Live Viewing or
Playback While Recording
•Continuous, Motion Detection, Alarm, Pre-Alarm &
Scheduled
•Recording Modes
•High-Speed Searching (Date, Time & Alarm)
SHR-4081
•8 CH
•MPEG-4 Compression
•240 IPS Record
•Real Time Viewing
•Triplex
•2 USB Ports
•4 CH Audio
•160G HDD
•IEEE-1394 Port
DVR5108DVD
•Endura Enabled DVR
•8 Camera Inputs
•Hard Drive Available (250GB to 1500GB)
Internal storage with Endurastor" Optimization
Technology
DX8108
•Hard Drive Available (250GB to 3000GB) Storage
•Multicasting
•NTP Time Server Compatible
•Standard DVD-R Burner Writes to CD-R & DVD-R
Media
SVR-950DH
•Real-Time (270fps) Video Display/Recording
•MPEG-4 Compression
•Hi-Res Image (720x480)
•Easy Back Up with 3 USB Ports & Built In DVD+RW
•Various Input Controllers Including Remote
Control & Keyboard
•User-Friendly GUI Menu
SDVR-10
•Available in 40/80/160/320
•600GB Hard Drive Storage Capacities
•Built-In CD-RW & Ethernet Connection
VR-609U
2M-TRH08
DSR-3709
•H.264 Video Compression
•Real Time Live Display
•Triplex (Record; View Live; Playback Simultaneously
•Built-in Web Server (Access From Internet Explorer)
•160/320/600GB HDD Upgrade Options Available
•LAN/WAN/Internet Compatible
•CF Slot
•CD-RW Compatible
•Audio Recording
•240GB DVR - High Def Recording of 60 IPS
•IR Remote Control Unit
•Wavelet Compression
•Digital Audio Recording
•Remote Surveillance Via Network
•JVC's Pan/Tilt/Zoom Dome Camera Control
16 CHANNEL DVRS
SD08
SD12
8 Video Inputs • Embedded Operating
System on Non-Volatile Flash Memory •
Easily Selected Recording Configurations for
30 or 60 Days of Storage • Up to 60PPS Total •
Storage Options up to 500 GB HDD
12 Video Inputs • Embedded Operating
System on Non-Volatile Flash memory •
Easily Selected Recording Configurations for
30 or 60 Days of Storage • Up to 90PPS Total •
Storage Options up to 750GB HDD
SHR-5082
•Video Recording Up to 120 IPS
•4 Channel Audio Recording
•Dual Codec to Enhance Recording & Network
Transmission
•Exclusive Enhanced Video Processor For Improved
Image Quality
PDR-2160
HTTP Web-Based Interface Including Remote PTZ, Playback, & Live Monitoring • Up
to 120 CIF Playback Speed • 4 Matrix Spot Outputs (PDR-2160A) with OSD Support
• Matrix Outputs with 250GB/500GB HD (Options Available)
PDR-6160A
Built-In VGA with Intellectual Motion Adoptive Refinement & Vivid Image
Enhancement • HTTP Web-Based Interface Including DVR Configuration, PTZ
Control, Playback & Live Monitoring • Extra Spot Output with Quad & OSD Support
• 250GB hard Drive
PDR-3160
KVR-J800AN
•240 (8Ch) FPS Display / 60 Recording
•Record, MJPEG / Remote, MPEG-4
•Triplex (Simultaneously Records,
Search, & Back up)
•Hard Drive Options Available
NVDV4-8
KVR-M900AN
•270 Fps Live / 120 Fps Recording
•Record: MPEG4 Hardware Compression
•Triplex (Record; View Live;
Playback Simultaneously
•Built-in Web Server
(Access From Internet Explorer)
PDRL-8PE
•Linux-Based DVR - 8Ch Real Time Display &
D240 / R120 fps Record
•1,4,9
•Split-Screen Views
•Hue, Saturation, Brightness & Contrast
•Up to 500GB Storage with Raid 5 System (Included)
•16-Channel Stand-Along Digital Video Recorder
•Two Hot Swappable HDDs
•External DIO/Motion Detection Triggering Recording
•Schedule Recording
•32Bits RISC Processor
•208 MKz
•Hard Drive Options Available
•HD Playback
•Remote Control
PDRL-16PE
•Linux-Based DVR - 16CH Real Time Display &
D480 / R120fps Record
•1,4,9,16 Split-Screen Views
•Hue, Saturation, Brightness & Contrast
•Up to 500GB Storage with Raid 5 System (Included)
SDVR-16
DIGITAL RECORDER - STANDALONE
•Dynamic IP Support
•Built-In DVD/CD Burner
•Multi-Site Remote Monitoring
•Keyboard & Mouse Control &
Expandable External Storage Offering
an Additional 20 Terabytes
•40/80/160/320/600GB HDD Options Available
•Built-In CD-RW & Ethernet Port
•Alarm E-mail Notification
•Single Channel Audio Recording
•Various Image Quality Modes
•30FPS Recording Rate
•Wavelet Video Compression
•Up to 10 Simultaneous Remote Connections
54
SHR-4160
SVR-1640DH
SHR-5162
DIGITAL RECORDER - STANDALONE
SVR-1620N
•Optional 500GB Hard Drive
•480FPS Live Display Rate
•60FPS Recording Speed
•Multi-Area Built-In Motion Detection
•1 Channel Audio Recording
•Powerful Event Search
•Ethernet Connectivity
BX2-CA
•Available Hard Drive Capacities 600GB
•Remote Networking
•Built-In CD-RW
•120FPS Recording Rate
•E-Mail Alarm Notification
•Signature On All Digital Images
•Single Channel Audio Recording
VR-616U
•240GB DVR - High Def Recording of 60IPS
•Wireless IR Remote Controller
•Multiple Languages
•Remote Surveillance via Network
•JVC Dome Camera Control
55
•Optional Hard Drive Upgrade Available
•480FPS Live Display Rate
•240FPS Recording Rate
•Built-In Ethernet Connection
•Powerful Search Functions
DVR5116DVD
•Endura Enabled DVR
•16 Camera Inputs
•Hard Drive Available (250GB to 1500GB) Internal
Storage with Endurastor" Optimization Technology
SVR-1650DH
•250GB HDD Internal / 4 HDD Bay External
•Optional Hard Drive Upgrade Available
•480FPS Live Display Rate / Recording Rate
•ATM/POS Transaction Data Recording & Search
•Audio 4 in/2 out, Sensor Port 16 in/4 out
DS2AD-16
DS2P-16
80/160/320/500GB HDD Options Available •
Built-In Ethernet Port • E-Mail Alarm Notification
• Digital Signature On Recorded Images • Remote
Support Capable • High Quality Images • 60FPS
Recording Rate
250/500/750GB/1 Terabyte / 1.5 Terabyte HDD
Options Available • Built-In Ethernet Port • Email
Alarm Notification • Digital Signature on Recorded
Images • Remote Support Capable • High Quality
Images • 120FPS Recording Rate
DX7116
DX8116
•Hard Drive Available (250GB to 3000GB) Storage
•Raid Option with DX9200 HDDI
•Increased Frame Rate for 2CIF & 4CIF Recording
WJ-HD316A
DX-TL4516U
•Pristine Real Time Live Images Displayed at
960 Pictures Per Second
•High Density Recording is Possible at a Rate of
120 Pictures Per Second
SD16
•16 Video Inputs
•Embedded Operating System On Non-Volatile Flash
Memory
•Easily Selected Recording Configurations For 30 or
60 Days of Storage
•Storage Options Up to 1 TB HDD
KVR-M1600AN
•480 Fps Display / 120 Fps Recording
•Record: MPEG4 Hardware Compression
•Triplex (Record; View Live; Playback Simultaneously)
•Central Monitoring Software (CMS) Up to 64 Ch / 64 Locations
VT-XL1680
•Dynamic IP Support
•Built-In DVD/CD Burner
•Multi-Site Remote Monitoring
•Keyboard & Mouse Control & Expandable External
Storage Offering an Additional 20 Terabytes
•1.5/3.0/5.0 TeraByte HDD Options Available
•60FPS Recording Rate
•Built-In Network Interface
•Instant Search & Playback
•Various HDD Partioning Modes
•Advanced Video Motion Detection
VT-ST1620
•Performance Such as MPEG-4 Compression
•Dynamic IP Support
•Built-In DVD/CD Burner
•Multi-Site Remote Monitoring
•Keyboard & Mouse Control & Expandable External
Storage Offering an Additional 1.5 Terabytes
•Hard Drive Options Available
2M-TRH16
•H.264 Video Compression
•Real Time Display
•16 Channel DVR: 240 Fps CIF Recording
•Live Display; Record; Backup; Playback & Network Access
at the Same Time
NVDV4-16
•Hard Drive Upgradable to 1500GB
•Wavelet Video Compression
•Built-In Ethernet Connection
•Automatic E-Mail Notification During Failure
DSR-2016H160
ECO16
•60PPS
•Available in 160x300GB Hard Drive
•PPP
•Ethernet Available with Built-In CD-RW
•Simultaneous Record, Playback,
Archiving
•Remote Viewing & Remote Playback
•120/240/360/480GB Hard Drive Options Available
•Pan/Tilt/Zoom Via RS-422
•High Speed Search Capability
•Various Playing Modes
•Up to 10 Motion Detection Areas Per Camera
BX2
•Available Hard Drive Capacities 640 or 1200GB
•Remote Networking
•120FPS Recording Rate
•E-Mail Alarm Notification
DSR-3716H
•80/160/300/600GB HDD Options Available
•Included LAN/WAN Card
•520TVL
•Various Recording Modes
•Mono Channel Audio Recording
•960FPS Live Picture Display
•60FPS Recording Rate
160GB to 1TB (One Terabyte) Storage Capacity
(Options Available) • Recording Speed up to
240IPS • Camera Recording Rates are
Individually Adjustable from 1 to 30 IPS • Up to
720x480 Recording Resolution
32 CHANNEL DVRS
AVerDiGi SA6000E PRO
AVerDiGi SA6416
•Built-In DVD/RW Drive
•Mega Pixel IP Camera Support
•Jog Shuttle for Easy Playback Control
•Dual Monitor Display Output
•500GB Hard Drive Included
•16 Channel Embedded Standalone
Video Surveillance Device
•Complete Turn Key Solution
•Windows XP Embedded RTOS
•Video Encryption Built-In Scramble
Video Channels for Remote Access
SD32
•32 Video Inputs
•Embedded Operating System On Non-Volatile
Flash Memory
•Easily Selected Recording Configurations for 30 or
60 Days of Storage
•Storage Options up to 1 TB HDD
DX8132250
•Hard Drive Available (250GB to 3000GB) Storage
•Increased Frame Rate for 2CIF & 4CIF Recording
•Standard Analog Output
DIGITAL RECORDER - STANDALONE
•Video Recording Up to 120 IPS & 4 Channel Audio Recording
•Dual Codec to Enhance Recording & Network Transmission
•Exclusive Enhanced Video Processor For Improved Image
Quality
•Supports VGA; S-Video & Composite Outputs
•16CH
•MPEG-4 Compression
•360 IPS Record
•Real Time Viewing
•Triplex
•2 USB Ports
•8 Ch Audio
•160G HDD
•IEE-1394 Port
EVR32-480-120 GB
•Up to 16 Channels of Audio
•Large Storage Capacities (Over 2 TB)
•Continous
•Motion & Alarm Recording Modes
56
Video Coax Cable
CXJ30
SIAMESE-100-BLK
AU30
•Auto Scanning or Manual (Switchable)
•Limited Switch: Externally Adjustable
•Construction: Aluminum & Plastic
•Power Source: 24/120/230VAC (Optional)
•Power Consumption: 5W
•Dimensions (LxWxH): 40x130x185mm
PTZ CONTROLLER
•Dome Camera & DVR Control
•4.3" TFT Color LCD Touch Panel
•OSD (On Screen Display)
•3D Joystick (Pan/Tilt/Zoom Control)
WVCU161C
•Preset Control: 64 Positions Function,
Focus, Zoom Ratio, Rotation Mode, Etc
•Lens Control: Zoom Ratio, Focus, Iris
•Receiver Control: Wiper, Defroster,
AUX 1-2
•Camera Control: Home Position,
Camera Setting, Patrol Function
•Preset Control Interlocked to Alarm
Signal
•Built-In Alarm Recover Input/Reset
Output
•Built-In RS-485 Terminal
•Built-In Joystick Positioner
•Preset Data: Up/Download Function,
Maximum 8 Cameras
AU40E
Multiple Pan / Tilt / Lens Controller
Mini Economical Pan/Tilt PTZ Controller for
Multi Protocol Pan/Tilt/Zoom Cameras
• Controls up 32 PTZ Dome Cameras.
SSC-1000
•Long Distance Controlling of Up to
1.2Km Based on RS-485 Communication
•Smart Dome Camera (SCC-641)
•Specific Controller
WVCU650
•Total System Control for Panasonic
DVRs, Cameras & Switchers
•Intuitive Layout for Easy Operation
•Detachable Joystick
•Integrated System Control
AU40M
AU40Z
•5" LCD Screen
•OSD Menu
•Multi-Protocol 2400~19200 BPS
•RS-232 / RS-485 Output
•3D Keyboard Controller for PTZ
Cameras
•With Zoom Function From the Joystick
SSC-2000
•Touch Screen Graphic LCD Panel
•3-Axis Joystick
•Auto Sequence
•Half or Full Duplex
•RS-485
2M-SIAM-100-PM
SSC-3100A
•Controls Up to 255 DVRs
•3D Joystick for PTZ
•16 Alarm Input
•1 Alarm Output
•64 Preset Locations
WVCU950
KBD4002
•Detached Joystick Controls Pan/Tilt &
Zoom Allowing Seamless Tracking
•Larger Numeric Keypad Provides
Direct Access to Cameras
•Economical Full-Feature Keyboard
•Preset Position & Pattern Control
•Main & Spot Monitor Control
•BNC M On Both Ends
•DC Cord M-F
•UL Certified
•UL Certified
SIAMESE
500-BLK
•This Cable is a Single Pull for Each Camera
•UL Certified
SIAMESE
1000-BLK
•RG59 & 18-2 Siamese Cable Makes for Easier CCCTV Camera Installation
•The Coax & Power Cable Combined Together
•UL Certified
SIAMESE
500-WHT
•The Coax & Power Cable Combined Together
•This Cable is a Single Pull for Each Camera
•UL Certified
SIAMESE
1000-WHT
•RG59 & 18-2 Siamese Cable Makes for Easier CCCTV Camera Installation
•The Coax & Power Cable Combined Together
•UL Certified
SIAMESE
500-PLM
•White & Black
•Siamese Plenum Cable Makes for an Easier CCCTV Camera Installation
•UL Certified
SIAMESE
1000-PLM
•Pre-Made Cable
•White & Black
•Pre-Made Siamese Plenum Cable Makes for an Easier Camera Installation
•The Coax & Power Cable Combined Together with Connectors
•UL Certified
RG59U-500-WHT
RG59U-1000-WHT
RG59U-1000-BLK
RG6U-1000ALUM
RG6U-1000ALUMWT
RG59U-500-95%-PLM
RG59U-1000-95%-PLM
RG6U-1000-95%
SIAMESE-1526DB-BLK
•The Coax & Power Cable
Combine Together
•UL Certified
•RG-59 & 18-2 Siamese
Cable Makes For an Easier
CCTV Camera Installation
Wires and Cables are an essential part of any security equipment. We carry all the important tools you will ever need for your security surveillance
system. Power Cables include shielded plenum 6 cond power cables, 18 AWG power wires, 18/2 AWG 2 cond shielded cables, and twisted 22
AWG 2 cond jacketed wires for your security surveillance system. All your CCTV and security surveillance equipment needs!
Cat-5
Control Cable
Power Cable
SVK-64
•Controller For The Remote Control of
CCTV Devices: Power; Pan/Tilt/Zoom
Lens; AUX
•Preset Control: 64 Positions Memory
Set For Each Camera
•Can Be Connected with Up to
8 Sub-Keyboards
VT-KBD1
The Vitek VT-KBD1 Xpress Keyboard
Controls up to 254 Devices including
Xpress Domes and Vitek Saga Series
Digital Video Recorders.
KBD4000
•Push Button Control Keypad with
3-Axis Vari-Speed Joystick
•Digital Zoom Control on Main Monitor
•Auxiliary Operation
CAT-5E-500
CAT-5E-1000
•UL Certified
4-COND-18/4-500
4-COND-18/4-1000
4-COND-22/4-1000
•UL Certified
The WV-CU360C System Controller is
designed to control Panasonic dome
cameras through the WJ-MP204C
Data Multiplex Unit or the WJ-FS309/
WJ-FS316/WJ-FS409/WJ-FS416 Video
Multiplexers. The WV-CU306C System
Controller enables control of the
camera lenses, electronic zoom, auto
focus and pan/tilt heads. It also enables
selection of the camera by numeric
buttons through the WJ-MP204C Data
Multiplex Unit.
CL2R 14/2-500-GRY
CL2R 16/2-500-GRY
CL2R 14/2-1000-GRY
CL2R 16/2-1000-GRY
•UL Listed CL2R/CMR
(Riser & General Purpose) High Strand
•Bare Copper Conductors
•PVC Insulation; PVC Jacket
WVCU360C
57
2M-150-PM
•White Only
•Pre-Made Cable RG59U & 18/2 Siamese Cable Makes for an Easier CCCTV
Camera Installation
•The Coax & Power Cable Combined Together with Connectors
•UL Certified
CAT5-SHIELD-1000FT
GV KEYBOARD
The Geovision GV-Keyboard is used
to program, operate, and control
GeoVision systems. Through RS-485
configuration, it can control up to 16
additional GV-systems.
KBS-3
Multiple Pan / Tilt / Lens Controller
The add-on keyboard enables multiple system
control of up to 16 BX2s and 16 keyboards.
In-built dome protocols and an integrated
multi-directional joystick delivers swift,
seamless control of leading manufacturers
domes.
VIDEO & POWER CABLE
SSC-5000
•3ft Long, Kit of 16
•RG59 & 18-2 Siamese Cable Makes for An Easier CCCTV Camera Installation
•The Coax & Power Cable Combined Together with Connectors
•UL Certified
•4-Pair Shielded Twisted Pair Cable
•24AWG Solid Bare Copper Conductor
•Meets or Exceeds Cat5e Specifications
•Rated to 350Mhz to Provide Additional
Performance & Bandwidth Over and Above
the Basic
CAT-5DB0-1000
•UL Certified
•UL Certified
2M-1000-PTZ-WHT
•PTZ Control Cable
•1000' FT Length
•2 Pair UTP/16-2
•UL Certified
18/2-500-GRY
18/2-500-WHT
18/2-500-SHLD
18/2-1000-GRY
18/2-1000-PLM
18/2-1000-WHT
18/2-1000-SHLD
22/2-1000-TWSTD
2COND-18/2DB-1000
2COND-16/2DB-1000
2COND-14/2DB-1000
•Cable Jackets are Sunlight Resistant
•UL Certified
•Sunlight & Moisture Resistant PVC Jacket
22/6-1000-SHLDP
•UL Certified
58
FLAT PANEL DISPLAY MOUNTS
COMMERCIAL MOUNTING SYSTEMS
Security Mounts
Large Mounts
Projector Mounts
VMP024
Large Television Ceiling Mount
VMP042
LCD-FT
Universal LCD Monitor Flush Mount with Tilt
PDM-C
LCD-CM2
•Mast Telescopes 18" - 30" from Ceiling
•Holds Most 37" - 50" Plasma Displays
•Load Capacity - 130lbs
Dual LCD Monitor Ceiling Mount
Universal LCD Monitor Table/Desk Mount
•Holds Most 10" - 21" LCD Monitors
•Load Capacity 25lbs
•Silver Powder Coat Finish
PDM-F
•Holds All 42" - 50" Plasma Displays
•Load Capacity - 130lbs
•Silver Powder Coat Finish
Universal LCD Monitor Ceiling Mount
•Holds Most 25" - 37" LCD Monitors
•Rotates 360° & Has Adjustable -5° +30° Tilt
•Load Capacity 50lbs
PDM-FT
Universal Plasma Monitor Flush Mount with Tilt
•Modified with 2 Mounting Points for Camera Bracket
•Rotates 360° / Adjustable -5° +30° Tilt
•Mast Telescopes 18" to 30" from Ceiling
LCD-1
Universal LCD Monitor Wall Multi-Configurable Mount
•Holds Most 10" - 21" LCD Monitors
•Adjustable -5° to +30° Tilt
•Load Capacity 25lbs
Universal LCD Monitor Ceiling Mount
•Holds Most 10" - 21" LCD Monitors
•Mast Telescopes 17" - 27" From the Ceiling
•Load Capacity 25lbs
•Rotates 260°
•Adjustable 0° - 30° Tilt
•Opens from 8" - 14" (Left to Right)
•Load Capacity - 60lbs
Mega Mounts
PMC
VMP046
•Rotates 360°
•Mast Extends 17" - 27" from Ceiling
•Opens from 12.5" - 19.75" (Left to Right)
•Opens from 17.25" - 19.75" (Top to Bottom)
•Holds Most 13" - 20" Monitors
•Load Capacity - 75lbs
•Black Powder Coat Finish
•Holds Most 37" - 63" Plasma Monitors
•Load Capacity - 180lbs
•Mounting Rails Adjust from 4" - 32" (Left to Right)
Projector Enclosure for PM-2 &
PM-3 Mount
VMP036
Mega Television Ceiling Mount
•Lift Off Lid for Installation &
Easy Access Hinge for Maintenance
•Adjustable Front Security Bars for Lens Placement
•Temper Proof Security Screws Included
•Rotates 360°
•Opens from 26.75" - 40.5" (Left to Right)
•Load Capacity - 300lbs
PM-3
Universal Yokeless Projector Mount
VMP048
LCD-PV
Monitor Public View Mount Kit
Universal Small Projector Mount
•Opens from 7" - 14" (Left to Right)
•Opens from 3" - 5.75" (Top to Bottom)
•8 Point Clamping Mechanisms Adjust
from 6.5" - 10" (Front to Back)
Small CCTV Monitor Ceiling Mount
Large CCTV Monitor Ceiling Mount
Universal Mid-Size LCD Monitor Flush Mount
LCD-2537C
VMP044
PM-2
Universal Plasma Wall Flush Mount
LCD-MID-F
•Holds Most 27" - 42" LCD Monitors
•Mounting Rails Adjust from 2.25" - 16" (L to R) & Accommodate
•Monitors with Mounting Holes Up to VESA 400x200
Large Television Wall Mount
•Rotates 260°
•Opens from 17" - 32" (Left to Right)
•Load Capacity - 165lbs
Universal Plasma Ceiling Mount
•Adapts an LCD-1C to Accommodate Two LCD Monitors
•Accommodates Monitors with 75 or 100mm VESA Standards
•Holds Most 10" - 23" LCD Monitors
LCD-2
•Rotates 360°
•Adjustable 0° - 30° Tilt
•Opens from 8" - 14" (Left to Right)
•Load Capacity - 60lbs
•Opens from 10" - 24" (Left to Right)
•Opens from 4.5" - 7.75" (Top to Bottom)
•8 Point Clamping Mechanisms Adjust from
8" - 11.75" (Front to Back)
VMP014
•Holds Most 10" - 23" LCD Montiors
•Accommodates Monitors with 75 or 100mm VESA Standards
•Load Capacity - 25lbs
LCD-C1
59
Plasma Mounts
Universal Projector Mount
•Adjustable Tilt - ±20°
•Adjustable Pitch - ±15°
•Load Capacity 75lbs
Large CCTV Monitor Ceiling Mount
PDM-W
Universal Plasma Articulating Wall Mount
•Holds Most 37" - 63" Plasma Displays
•Mounting Rails Adjust from 8" - 39" /
Mounting Rail Length - 18.5"
•Load Capacity - 180lbs
•Rotates 260°
•Adjustable 0° - 30° Tilt
•Maximum Depth 21"
•Load Capacity - 75lbs
VMP038
MONITOR & DISPLAY MOUNTS
MONITOR & DISPLAY MOUNTS
Small CCTV Monitor Ceiling Mount
LCD Monitor Mounts
•Rotates 360°
•Holds Most TVs / Monitors 20" - 29"
•Load Capacity - 165lbs
PM-1
Mega Television Ceiling Mount
•Rotates 360°
•Opens from 26.75" - 40.5" (Left to Right)
•Load Capacity - 300lbs
Tray Mounts
LCD-UC1
Universal LCD Under Cabinet Mount
•Holds Most 10" - 17" LCD TVs
•Accommodates Monitors with 75 or
100mm VESA Standards
•Can Be Flipped Up to Store LCD When
Not in Use
•360 Degree Swivel For Optimum
Viewing
PV-1
Public View Monitor Mount Kit
•Ak-1 & CP-1
•Universal Camera Bracket
•BNC to BNC Jumper Cable
VMP001
Single Arm Television Wall
Mount
•Adjustable 0° - 15° Tilt
•Rotates 160° at Wall
•Tray Opens 12" - 17"
VMP003B
Double Arm Television Wall
Mount
•Rotates 240° at Elbow Joint
•Depth (Arm Fully Extended) 28.75"
•Load Capacity 60lbs
VMP006B
Heavy Duty Double Arm
Television Wall Mount
•Tray Opens 20" - 30"
•Holds Most Monitors 19" - 23"
•Depth (Arm Fully Extended) 32"
60
VISIONARY SERIES-RESIDENTIAL
VMP
Wall Mounts
Component Holder
Hidden Cable Management Through Inside of Support
SS-1
W13B
Rotates 260° at Base • Tray Width 15" • Tray Depth 11"
• Holds Most TVs 9" - 13" • Load Capacity 60lbs
W20B
Tray Width 19.75" • Tray Depth 12.75" • Holds Most
TVs 19" - 21" • Load Capacity 75lbs
W27B
Tray Width 24" • Tray Depth 13.75" • Holds Most TVs
25" - 27" • Load Capacity 125lbs
Small Wall Mount
Medium Wall Mount
to Adapt to Nearly Every Speaker • Heavy Die Cast Base
• Includes Adjustable Spikes for Carpet & Rubber Feet
for Hard Floors
Hidden Cable Management Through Inside of Support
SS-2
Surround Sound Speaker
Stand-Frosted Glass Base
SS-1 SS-2
VH-003
SS-3
Column • Includes 2 Universal Speaker Mounting Plates
to Adapt to Nearly Every Speaker • Heavy Die Cast Base
• Includes Adjustable Spikes for Carpet & Rubber Feet
for Hard Floors
Hidden Cable Management Through Inside of Support
SS-3
•Mounting Ring "Tray" Extends 12" From the Wall
•Load Capacity 25lbs
Surround Sound Speaker
Stand-Wiged Foot Base
Ceiling Mounts
Column • Includes 3 Universal Speaker Mounting Plates
to Adapt to Nearly Every Speaker • Includes Adjustable
Spikes for Carpet & Rubber Feet for Hard Floors
Equipment Racks
C20B
Medium Ceiling Mount
C27B
Large Ceiling Mount
Tray Width 19.75" • Tray Depth 12.75" •
Holds Most TVs 19" - 21"
ER-RS1032-50
Rack Screws
ER-RS1032-100
Rack Screws
Tray Width 24" • Tray Depth 13.75" • Holds
Most TVs 25" - 27" • Load Capacity 125lbs
ER-1B
Single Space (1 3/4") Rack Filler •
Tempered 16 Ga. Steel
ER-2B
Space Blank Panel
2 Space (3 1/2) Rack Filler • Tempered 16
Ga. Steel
ER-RS1032-100
0.75" Long with 10-32 Threads
Space Back Panel
•0.75" Long with 10-32 Threads
Rack Screws
ER-S1
Turntables
Universal Rack Shelf
TT13
Platform Width 15" • Platform Depth 12"
• Load Capacity 60lbs
TT20
Platform Width 20" • Platform Depth 15"
• Load Capacity 75lbs
TT27
Platform Width 26" • Platform Depth 16"
• Load Capacity 125lbs Small Television Turntable
Medium Television Turntable
Large Television Turntable
•Tray Depth - 12"
•Load Capacity - 40lbs
ER-HWB1
Hinged Wall
Bracket-1 Space
ER-HWB2
Hinged Wall
Bracket-2 Space
VMP
EQUIPMENT, RACK, SPEAKER MOUNTS
Speaker Mounts
SP010
•Swivels 180°
•Twist 180°
•Load Capacity - 12lbs
•Swivels 90° & Has Adjustable 0° - 20° Tilt
•Load Capacity - 20lbs
Speaker Wall/Ceiling Mount
SP002
Mini Speaker Wall / Ceiling Mount
•Swivels 180°
•Twist 180°
•Load Capacity - 12lbs
Speaker Wall Mount
•Swivels 180°
•Plate Size 6" x 6"
•Load Capacity 12lbs
Adjustable Speaker Wall Mount
Speaker Wall Mount
VH-001
•Top Clamp Adjusts From 3" - 5.375" (Top to Bottom)
•Overall Height is 5.875" (Inside to Inside)
•For Use with All VMP Mounting Systems Including
Security Monitor Mounts & Visionary Series Mounts
•Adapts Mounts so They can be Use with Standard 1"
N.P.T. Plumbing Pipe
•Use in Conjunction with the VMP-CP1 Ceiling Plate
ER-DRCM1
•Includes 10-32 & 12-24 Mounting Screws
ER-DRCM2
SP-200W
ER-S2U
•Full Range of Tilt
•Twist & Swivel
•Wall or Ceiling Mount
•Mounts On Back of Speaker
•Load Capacity - 12lbs Universal LCD Monitor Rack Mount
•Accommodates Monitors with 75 &
100mm VESA Standards
•Holds Most 10" to 17" Monitors / Invents to also
Hold up to 23" Monitors
•Recesses Monitor into Rack / 9 Space Racking Height
•This Adapter Shall Allow the Mount to Accept
Standard 1 1/2" N.P.T. Plumbing Pipe
•Use in Conjunction with the VMP-CP1 Ceiling Plate
•Swivels 135° & Has Adjustable 0° - 20° Tilt
•Plate Size 6" x 6"
•Load Capacity - 20lbs
Multi Configurable Speaker Mount
Depth - 4" • Includes
10-32 & 12-24 Mounting
Screws
ER-LCD1017
AK-1
D-Ring Cable Manager-1 Space
VMP SP013
Depth - 4" • Includes
10-32 & 12-24 Mounting
Screws
Accessories
AK-2
SP001
SP007
D-Ring Cable Manager-2 Space
•Includes 10-32 & 12-24 Mounting Screws
VH-002
•Allows a Second Device (DVD Player / VCR /
Satellite Receiver / Digital Cable Boxes) to be
Attached to the VH-001
STRAP
Safty/Security Strap
•Sturdy Woven Nylon Blend Construction
•Saw Tooth Cinching Buckle
Universal 2 Space Rack Shelf
•14.75" Tray Depth
•Load Capacity - 50lbs
•Tempered 16 Ga. Steel
ER-S2CM
Vented 2 Space Center Mount Rack Shelf
•Vented 2 Space Center Mount Rack Shelf
•Load Capacity - 50lbs
•Tempered 16 Ga. Steel
61
Column • Includes 3 Universal Speaker Mounting Plates
MONITOR & DISPLAY MOUNTS
MONITOR & DISPLAY MOUNTS
Large Wall Mount
Surround Sound Speaker
Stand-Round Base
ER-1
Headend Equipment Rack
•71" Height
•Mounts Up to 40 Devices
•Standard 10 - 32 Threading
•Includes 32 Rack Screws
ER-72
Steel Open Frame 19" Rack
•38 Rack Spaces
•Self Squaring Design
•Standard 10 - 32 Threading
•Includes 32 Rack Screws
ER-84
Steel Open Frame 19" Rack
•45 Rack Spaces
•Self Squaring Design
•Standard 10 - 32 Threading
•Includes 32 Rack Screws
62
Outdoor Housing Mounts
CCHM8
Adjustable Mini head Solid steel construction Attractive styling Available in 3", 6" stem length
•Chip Housing Wall Mount with Mini H/M Head
•Light to Medium Duty, Easily Installed Mount
•Maximum Balanced Load is 20lbs
ON
IA
Chip Camera Housing Pedestal Mount
Available in 3" or 6" stem length Adjustable Mini
head Solid steel construction Attractive styling
IM
ST
TE
PTZ Corner Mount Adapter
•Designed for Outdoor Use
•Aluminum & Steel Construction
•Light Gray Polyester Finish
VT-PTPLMT
PTZ Pole Mount Adapter
"
ER
SVEX-M15
Camera Mounting Bracket
ScannerMount
•Stainless Steel
•Indoor & Outdoor Use
•Designed for SVEX-Q15 Camera
For Use With: VTS-R03 Dimensions: 4" x 4" x 11.5"
(W x H x L)
VT-HMT8
SVEX-M125
Enclosure Wall Mount
•Designed For Integrated Camera
•Stainless Steel
•Indoor & Outdoor Used
"
Heavy-Duty Aluminum Construction Tamper
Resistant Allen Screws Adjustable P/T Head
Dimensions: 8.8"L x 2.9"W x 4.5"H
B075
SVM-VP
Outdoor Mount
Wall Mount Bracket
B090
Surveilux SVM-VP Wall Mount bracket for
vandal proof dome camera
Mounting Bracket for CD90W
SVM-CORNER
"
ac
he
Lightweight, 9" camera wall mount,
mini pan tilt head
CCHPM6
•Special Designed for Pan/Tilt wall
Mounting with Load 100kg
•Indoor & Outdoor Use
•Stainless Steel
OM
ST
he
In n se
lp
t
fu cou ern arc
l.
nt et hin
2m r , 2
g
cc ep mc fo
h
r
tv
a c
is s a tv k low
on lw ee c
a
p o
e
of ys s p st,
b
o hi
th
e een pp gh
fe
i
w cou ng qua
u
l
re
r
lia teo p a ity
bl us s a pr
o
e
ve an sou du
nd d v rc cts
or er e.
sI y
us
e.
W
e
th
y
Lightweight Camera Mount
Chip housing wall mount with mini H/M head
Mounting Bracket
"
M
EM1
Housing Wall Mount
SVEX-M25
er
om
st
o es
cu !
t
is ere rk ric
h o
p
at
th ne r w nd
o
ny d rro ts a
c
pa n e
m fou ent du
o
co e
a av ipm r pr
h sh ei
d
h
fin u
yo f a d t
u
yo ed t o an e.
c
at ur en r,
th ss ev late rien
e
ty t a e
ie es th ys xp
oc ut r , in da g e
t
s
ss
n
y' e-b ail -no pi
p
da bl m ly
to lia o e te sho
in d re d t dia ve
e
i
n
te an on m sit
of st esp im po
r m
ot ne
a
s n ho tly le or
It' d, mp rob ks f
p n
se ro
cu p he ha
fo ey ct t t. T
Th rre rea
co e g
ar
"
CU
CCHM6
VT-PTCNMT
fir
A
li
th st.
ey Th ttle
pr e s un
su
om ta
is ff a re o
ed t 2
. O m f bu
n cct yin
m v
m g
y
fo ad the
ur
s
e
th it e ty
a
p
or
de ple es
r n asa of
ow nt pro
. C ex du
om per cts
pl ien fro
et
el ce a m t
y
sa nd he i
fe de nt
an liv er
n
d
e
se red et a
t
cu
re wh
at
.
"
"
on
Housing Wall Mount
BSDCORNERW
Outdoor Corner Bracket for High Speed Dome
SVM-POLE
SADT-100WM
Wall Mount Adaptor Indoor or Outdoor
Application
PA101
SHG-220
Pole Mount Adapter
Outdoor Housing
•Mount Pole Adapter for EM1400/PM14/MM1000
Mounts
•Minimum Pole Diameter 1.50 Inches
•Mounting Straps Included
•Supports Up to 97lbs (44kg)
•Can Be Used with SADT-100WM or
SADT-100CM
•Metal Case
•IP-67
•Indoor or Outdoor Applications
•Supports up to 70 Pounds (32kg)
•Designed to Use M10 Anchor Bolts or Nuts
•Rugged Construction
•Aluminum Body
MOUNTS, HOUSING, & ENCLOSURES
L
"
Chip Camera Housing Pedestal Mount
l
g.
ca
ni din
ch tan ry
te
s
ve
t
e
ot ou nd
s
a
m
re rt i ee
r
e
po le f .
th
p
so su ass rk
o, he
h wo
ic
t
as net
ex u
M yo n w e
in tell tio h th
d
la g
l
n
le
al I ca sta rou
st
n
h
in nd, d i ly t
be
A
an te
to ial. up mo
t re
t
d
se
ha sen
s em one
em e
t
st
as ys s d
sy t w e s . It'
e
r
t
h
Th po ll t fas
p A
su
WHAT PEOPLE ARE SAYING ABOUT US
CCHMP3
64
Indoor Housing Mounts
Outdoor Dome Housing
Indoor Dome Housing
STH-160PI
VT-MITB
Indoor Housing for Speed Dome (SPD-2200)
Economical Indoor Mount Adjustable For Ceiling or Wall Applications Ball
Socket Head For Any Angle Includes T-Bar Adaptor For 2 x 2 Drop Ceiling
Applications Extends From 2.5" To 5" In Length
JK-PHO
Outdoor Pendant Housing
Wall Mount Bracket for Nuvico Easy View
Dome Cameras
STH-330PI
•Aluminum
•Color Options: Ivory or Black
VT-6MT
Indoor Housing for Speed Dome (SPD-3300)
Indoor Wall / Ceiling Light Duty Camera Mount
Use For Ceiling or Wall Applications Easy to install Support up to 11lbs load
capacity Adjustable swivel head Accommodates small CCTV cameras Low
cost wall mount High-impact plastic construction
Available in Black or Beige
Monitor / Television Mounts
EG12BW-F-HB
PIH-5004
Aluminum Camera Bracket with Adjustment Head
A standard wall mounting bracket for the Li-Lin housing range. An adjustable
head allows for rotation and tilt of the camera. Cast aluminium construction and
light grey powder coat finish wiht a 3-point mounting plate. Fixing screws and
plastic wall plugs are included
12" Environmental
Globe
EG12BW-M
12" Environmental
Dome Bronze
EG12BW-M-HB
12" Environmental
Globe
PIH-5004L
•Bronze Dome
•White Upper For Fixed
Camera
Indoor / Outdoor Wall / Ceiling Light Duty Camera Mount
•Bronze Dome
•White Upper For Multiple
Camera Bracket
•With Heater/Blower
Use For Ceiling or Wall Applications, Easy to install Support, Aluminum Camera
bracket with Adjustable head, Accommodates CCTV cameras Low cost mount
•Supports Up to 70 Pounds (32kg)
•Metal Case
Monitor Swivel Wall Mount. Designed for 15-23
/ Vesa Mountable LCD Monitors
•Tilt: Up/Down, Left/Right
•Swivel: Rotates Left or Right
•Supports Monitors Up To 33lbs
•Heavy-Duty Steel Construction
LCD Monitor Pedestal Ceiling Mount
STH-33PO
STH-128PE
Embeded Mount PTZ Dome Housing for
SPD-2200
Indoor Housing for Speed Dome (SPD-3300)
•With Heater & Blower
•24VACt
•For Indoor Applications
•Poly Carbonate Dome Cover
STB-270PW
•PTZ Dome Wall Bracket
•For Indoor Applications
•Can Be Used With STH-160PI & STH-330PI Indoor
Housing; STH-160PO & STH-330PO Outdoor
Housing
Indoor Dome Housing
VT-LCD/CMT LCD
Surface Mount Bracket for SPD-330
•Attachment for Easier Installation
•For Indoor Applications
•Rugged Aluminum
SHG-120
VT-LCD/WMT
STB-330PC
2M-AS75W
Protocol Driven Pan Tilt Head Device
•ID Switchable 10 Built-In Protocols (Including
Pelco D) Controls AH75W for Motorized Zoom
•Intelligent Pan & Tilt Scanner for AHWP
(AH75SW)
65
•Aluminum Diecasting
•IP-67
•Poly Carbonate Dome Cover
CV-WM
PPFD9C
Pressurized Dome Camera Housing
VT-LCD/PMT
MOUNTS, HOUSING, & ENCLOSURES
MOUNTS, HOUSING & ENCLOSURES
Miniature Camera Mount w/T-Bar Adaptor
LCD Monitor Swivel Pole Mount Designed for
15-23 / Vesa Mountable LCD Monitors
•Tilt: Up/Down, Left/Right
•Swivel: Rotates Left or Right
•Supports Monitors Up To 33lbs
•Heavy-Duty Steel Construction
•For the WV-CS954, WV-CS574 & WV-NS324
•Multi-Pin Sealed Connector
•50W Heater Turns On at 600F (150C) & Off at 800F
(270C)
•Power & Video Surge Protector
66
Outdoor Weatherproof Housing
MOUNTS, HOUSING & ENCLOSURES
CCSH-10ST
Chip Camera Security Housing
Indoor or outdoor 1/2" cable pass 20 gauge all
steel construction Tamper resistant security screw
includes tamper wrench L W H 12 7/8" x 4" x 4 3/4"
Detention Grade 10gauge steel model available
(CCSH-10ST-D)
CCSH-7AL
Aluminum Chip Camera Housing
Lightweight aluminum construction Locking
tamper screw White enamel texture DIM:
7-1/4" x 3"x 2-5/8" ID LWH, 1/2"" ID cable pass
CCSH-10MAG
"Mini Mag" Indoor/Outdoor Housing Sleek
•Lightweight
•Camera Tray 13 3/4" L x 5 3/4" H
•Mount & Heater Blower Options Available
PRH-5480
Outdoor Aluminum Silver Housing
•Infrared Illuminator Housing with Rugged IP-66
Rated Aluminum Housing
•17 High Power LEDs 20
•000 Hrs Avg. Operation
•30° Radiant Angle
•300ft Illumination
•Unique Ring Design Separates Glass Panes for
Enhanced Heat Dissipation
•Enclosure Wall Mount Optional
•Ideal For Harsh Weather Environments
•Heater / Blower Available
•Environmental Housing Sleek
•Lightweight & Durable Design
•Constructed of High Impact Magnum 941 Polymer
Plastic
•Optional Blower/Heater Kit
•50' IR Range with 56° Beam Spread
•48 LED Light Source for Extended Life
•24VAC Operation
•Wall Mount Available (VT-IRMT)
•50' IR Range with 56° Beam Spread
•48 LED Light Source for Extended Life
•12VDC Operation
•Wall Mount Available (VT-IRMT)
VT-IR2-110
•200' Range with 65° Beam Spread
•Built-In Fan with Ventilation
•Wall Mount Available (VT-IR2/110MT)
PIH-5040S
•Indoor/Outdoor Housing, Lift Top
•Bottom Mounting
•Aluminum Construction
VT-EH10
Outdoor Camera Enclosure Weatherproof
Mount Included
The VT-EH10 is an economical environmental
enclosure with rugged construction and attractive
design. A forward hinged cover enables easy access
to camera for installation and servicing. 24 vac
heater and blower kits are available to protect your
camera from the harshest environment
Outdoor Camera Enclosure Weatherproof Mount
Included
The 2M-OH/M mount is an economical environmental
enclosure with rugged construction and attractive
design. A forward hinged cover enables easy access to
camera for installation and servicing
•Weatherproof Sealed Mount Optional
•Infrared Illuminator Housing with
Rugged IP-67 High Efficiency Infrared LED
•Radiant Distance - 59ft
•Infrared Illuminator Housing with Rugged IP-67
High Efficiency Infrared LED
•Radiant Distance - 131ft
•24VAC
SVEX-HSF
•2 Cable Outlets at the Rear of Housing
•Indoor & Outdoor Mounting for All Weather
•Compressed Air to Form Wind Curtain & Keep
Window Clean
Outdoor Camera Enclosure Small
Contemporary Design
Housing w/ 24VAC Heater & Blower
PRH-5218
Liquid Cooling Dustproof Housing
EH35
VT-EH10/BH24
PRH-5440
•Die Cast & Extruded Aluminum Construction
•Forward Opening Hinged Lid
•Rear Link-Lock Latch
•Models Available with Optional Factory Installed
Low Power Heater
•Blower & Defroster
•Mount Option Available
•Available in 12 & 15 Inches
DVR & VCR LOCK BOX
DVRLB
•18x18x15
•Includes AC Fan 2/Power Cord
•Washable Filter
•16 Gauge Steel
•Optional Mounting Brackets Available
VCRDVRLB
•21x21x18
•Includes Fan w/Power Cord
•Washable Filter
•16 Gauge Steel
•Optional Mounting Brackets Available
PPH14
DQ-21-24-8
•Outdoor
•All Aluminum Construction
•Durable White Powder Coat Exterior Finish
•Heater Included as Standard Feature
•21x24x8
•Includes Fan w/Power Cord
•Washable Filter
•16 Gauge Steel
•Optional Mounting Brackets Available
Pressurized Housing
67
VT-IR1-12
2M-OH/M
CCEVH-14
"Magnum" Environmental Housing
VT-IR1-24
INFRARED ILLUMINATORS
2M-OH/MS
LB2000
DVR Lockbox with cooling fan: Made of super
strong 16 guage steel with removable lid for easy
access, locking front door with cam lock and 2 keys,
air vents, cooling fan and power cord for superior
cooling, rubber bumpers and durable textured
powdercoat finish.
•Have Two AC Duplex Outlets
(One Internal, One External)
•Internally Fused for Accessories
The LB2000 is a vertical lock box designed to
provide security protection for “tower type”
computer disk drives or other vertically standing
devices. The LB2000 also has a smoked acrylic
viewing window and forward-opening front panel
with tamper-resistant lock for convenient access.
68
Verifact A
Verifact D-VR
•ABS Dome
•Pick-Up Pattern is Apprx. 15'
•Model A Microphone is Compatible with All Louroe
Base Stations
•Model D-VR is Designed for Correctional Facilities
•Microphone Can Pick Up Normal Sounds 15' Away
•May Be Located Up to 1000' from Base Station
•Omni-Directional
•Picks Up Normal Sounds 15' Away
•May be Located up to 1
•000' from the Base Station
•Weather Resistant for Outdoor Use
•Surface Mount Only
Verifact C
Verifact L-DT
•Low Impedance
•Compatible With All Louroe Base stations
•Two Opposing Built-In Microphones
•ABS Housing for Long Endurances
•May Be Located Up to 1000' from Base Station
•Provides Listening Capabilities Between the Area of
Coverage & the Base Station
•Designed for Wall or Ceiling Mounting
•Compatible with All Louroe Base Stations
•Model K Microphone is Compatible with All Louroe
Base Stations
•Mounts to a Ceiling or Flat Surface
•Microphone can Pick Up Normal Sounds 12' Away
May be Located up to 1000' from the Base station
SM1-WP
•Low Noise MOSFET Pre-Amplifer
•Power: 12VDC @ 10mA
•Weather Proof Microphone for Hostile Environments
(Board Ships Rooms That are Washed Down Daily)
•Durable Electret Element Can Withstand Direct
Exposure (High Pressure Water & Submersion)
SM1-LE
Surface Mount Omni-Directional
Microphone
SM2
•25" Range in All Directions
•Surface Mount Applications Only
•Power: 12VDC @ 10mA
Powers a microphone and distributes its audio output
to an RCA jack for connection to equipment with
un-balanced line level inputs. Power: 12VDC @ 10ma.
Reverse polarity protected and fused.
SM1-SS
Omni-Directional Microphone
•Low Noise MOSFET Pre-Amplifier
•Power: 12VDC @ 10mA
SM1-U
Single Channel Interface Adapter
SMI4
4 Channel Interface Adapter
Powers 4 microphones and distributes their audio
outputs to RCA jacks. 12VDC AC adapter. Power:
12VDC @ 40mA.
Uni-Directional Microphone
•Reduced (-20db) Sensitivity on All
Sides
•Power: 12VDC @ 10mA
Includes: SM 1 Microphone, SM 2
Interface Box, Single zone audio
surveillance system designed to
connect directly to an audio recorder,
video recorder, CCTV monitor (with
a built in speaker), remote monitoring
equipment, etc.
STW 1 Microphone / Speaker, STW 2
Base Station Single zone 2 way audio
surveillance system. Can be used
independently for monitoring live
audio or with tape recorders for
recording and playback. Single zone
2 way audio surveillance system. Can
be used independently for monitoring
live audio or with tape recorders for
recording and playback.
Vertifact K
SM1
Omni-Directional Microphone
SM9KIT
Vertifact E
•It is Housed in a High Impact ABS Dome Designed
for High Ceiling Applications
•Normal Pick Up Pattern is Approximately 15' from
the Microphone Location
•All Directions or Within 30' Diameter Circle
Vertifact D
STW3KIT
SMI8
•Standard RCA or 3.5mm Jacks for Connection to Tape
Recorders
•Easy Cable Run Terminations
•LED Power Indicator
SM15KIT
Includes 4 SM 1 Microphones, SM 14
Interface Box 4 zone audio
surveillance kit designed to connect to
audio recorders, CCTV monitors (with
built-in speakers), video recorders,
remote monitoring equipment etc.
SM17KIT
16 SM 1 Microphones, SM 16 Switcher
/ Mixer / amplifier Complete 16 zone,
manual switching, audio surveillance
system with built in speaker.
Two modes of operation: Switcher
(Select one of eight zones) or mixer
(select any combination of zones).
8 SM 1 Microphones, SM 8 Switcher
/ mixer / amplifier Complete 8 zone,
manual switching, audio surveillance
system with built in speaker. Can be
used independently for monitoring
live audio or with tape recorders for
recording and playback. Two modes of
operation: Switcher (select one of eight
zones) or mixer (select any
combination of zones).
AUDIO SURVEILLANCE KITS
AUDIO MICROPHONE
Verifact B
SM5KIT
KPA-1
External MIC
•Audio, RCA Female Power,
DC Female KPA-1
69
70
4 CAMERA MULTIPLEXER
CS-18
8x1 RS-232 Controlled Video Switcher
•Color
•Duplex 4-Channel
•NTSC / 120VAC
•Looping Inputs
•Four-Camera (Quad) Display
•High Quality Color Video
•5 Year Warranty
Color Splitter
•High Resolution
•Industrial Grade Specifications
DSP-2000
Time Based Correcting Screen Splitter
•High Resolution
•Industrial Grade Specifications
9 CAMERA MULTIPLEXER
MX4009CD
Color • Duplex 9-Channel • NTSC / 120VAC
• Full Duplex Operation
MX4009CS
Color • Simplex 9-Channel • NTSC / 120VAC
• Efficient Recording of Up to 9 Cameras on
1 VCR
MX4009MD
Black & White • Duplex 9-Channel • EIA / 12V
• Looping Inputs
WJ-FS409
•High Picture Quality
•On-Screen Setup Menu
•Playback Image Can Be Displayed in Multi or Full Screen
DSP-4000
Time Based Correcting Screen Splitter
•High Resolution
•Industrial Grade Specifications
PIP-200
2 Input Splitter w/ Movable PIP Screen
•High Resolution
•Industrial Grade Specifications
CS-1600
16x1 RS-232 Video Switcher
•High Quality Color Video
•5 Year Warranty
16 CAMERA MULTIPLEXER
MX4016CD
LTC2642
•User-Friendly Controls
•High Quality Video Image
•Timed Events Feature
MX4016CS
WJSX150A
WJ-SX150
Matrix Switcher
Mini-Matrix Switcher
MX4016CDPLUS21
Black & White • Duplex 16-Channel • EIA /
120VAC • Looping Inputs
MX4016MD
•PC Screen Display for Simple Set Up
•Character Displays Show Date
•Time
•Camera Number
•Camera Title
•Event Information
WJSX650
Mid-Range Analog Matrix Switcher
•Supports Up to 256 Cameras
(Using 8 Video Input boards)
•Front Access for Main Board & Power Supply
Maintenance
•16 Camera Maximum
•Single Coax Control
•All Sequence & Alarm Modes Can Be Adjusted
As Needed
•User Management Features Include Operator
Number
•Output Supports up to 4 Monitors
•Password
•Level & Priority
SWITCHES
SDQ-420
CM6700
CTS-2
VTS-W08
8-Input Automatic Sequential Switcher
•Low Cost
•8 Inputs 2 Outputs
•3 Position Slide Switches
•Terminating
•Sequential Video Switcher
•High Quality Video
•High Quality Construction
Matrix Switcher / Controller
CTS-4
•Terminating Sequential Video Switcher
CLS-4
4 Position Terminating Sequential Switcher
CTS-8
DES-3010PA
•5.6 Gbps Switching Capacity
•Bandwidth Control Down to 64k
•PoE Power Management
•Secure Management Through SSH; SSL;
TACACS + Authentication; & Radius
71
DSP-1200
•Terminating
•Sequential Video Switcher
•High Quality Video Performance
•Compact Size
•Listed Power Supply
•16 Video Inputs, 2 or 4 Video Outputs
•20-Character Camera Title
•Time (24-Hour or AM/PM Formats),
Date (4 Formats)
•Alarm Display Call Up from 18 Direct-Connect
Alarm Inputs
MULTIPLEXERS & SWITCHES
MULTIPLEXERS & SWITCHES
MX4004CD
•Two Page Quad Switching
(8 Channel Camera Input)
•High Resolution Image
(720x480 /NTSC , 720x576 / PAL)
•Enhanced Record & Playback with 2x Digital Zoom
•Automatic / Manual Pan & Tilt Controlling
•Mutiple Displays & Action on Alarm
CLS-8
8 Position Sequential Looping Switcher
•High Quality Video Performance
•Compact Size
CS-14
4x1 RS-232 Controlled Video Switcher
•High Quality Color Video
•5 Year Warranty
72
12 VDC Central Supply
12 VDC Plug In
VT-12VDC-500S
2M-12V1810
2M-12V95
9 Port Security Camera Power Distribution Box
•Heavy-Duty Metal Case
•9 Output Port
•Power Input: 110~115V
•Output Power: 12VDC 5Amp
•Fuse Protection Each Output
•LED Indicators Each Output
18 Port Security Camera Power Distribution
Box
•Heavy-Duty Metal Case
•18 Output Port
•Power Input: 110~115V
•Output Power: 12VDC 10Amps
•Fuse Protection Each Output
•LED Indicators Each Output
SV-PS1295
Power Supply
•Input Voltage AC 100~120V AC220~240V
•Output Current 9x 500mA Fused Outlets (7.5A Max)
•Output Power 60W
•UL
•Slim Case 12VDC Transformer
500mA
•Full 1 Year Manufacturers Warranty
12VDC-1.5
VT-12VDC-1000S
•Power Supply 12V 1.5Amp UL
Listed Regulated Switchable
•1Amp
•Slim Case 12VDC Plug-in Transformer
24 VAC 32 Output Central Supply
DCR 4-4-2
4 Output • 4Amps Circuit Breaker Units
Central Power Supply
DCR 8-4-1
8 Output • 4Amps Fused Units Central
Power Supply
DCR 8-4-2
8 Output • 4Amps Central Power Supply
DCR 8-8-1
8 Output • 8Amps Fused Units Central
Power Supply
DCR 8-8-2
8 Output • 8Amps Circuit Breaker Units
Central Power Supply
DCR 16-8-1
16 Output • 8Amps Fused Units Central
Power Supply
DCR 16-8-2
16 Output • 8Amps Circuit Breaker Units
Central Power Supply
DCR 8-12-1
8 Output • 12Amps Fused Units Central
Power Supply
DCR 8-12-2
8 Output • 12Amps Ciruit Breaker Units
Central Power Supply
DCR 16-12-1
16 Output • 12Amps Fused Units Central
Power Supply
DCR 16-12-2
16 Output • 12Amps Circuit Breaker Units
DCR 4-12-1
4 Output • 12Amps Central Power Supply
DCR 4-12-2
4 Output • 12Amps
DCR 32-12-1
32 Output • 12Amps Fused Unit Central
Power Supply
DCR 32-12-2
32 Output • 12Amps Circuit Breaker Unit
Central Power Supply (PTC)
SV-PS121810
Power Supply
•Input Voltage AC 100~120V AC220~240V
•Output Current 18 x 500mA Fused Outlets (12A Max)
•Output Power 145W
•UL
ALTV2432600CB
SV-PS2495
•24VAC or 28VAC Selectable Output
•Thirty-Two (32) PTC Protected Outputs
•Surge Suppression
•Unit Maintains Camera Synchronization
•Input Voltage 100~120VAC
•Output Current 9x500mA Fused Outlets (6A Max)
•Output Power 145W
•UL
ALTV2432300UL
SV-PS241810
•24VAC or 28VAC Selectable Output
•Thirty-Two (32) Fuse Protected Outputs
•Surge Suppression
•Input Voltage 100~120VAC
•Output Current 18x500mA Fused Outlets (12A Max)
•Output Power 288W
•UL
SV-PS12916
Power Supply
HPTV2404-2
•12VDC; 16Amps
•Input Voltage 100~120VAC / 220~240VAC
•Output Current 9 x 500mA Fused Outlets (7.5A Max)
•Output Power 60W
•12VDC output 10 amp Four (4) fuse protected outputs Central Power Supply
SMP10PM12P4CB
HONEYWELL
•Four Fuse Protected Outputs (Output Fuses are Rated at 5A)
•Input & Output are Surge & Transient Protected
•Transformer with Built-In Thermal Protection
HPTV2404
•Input 115VAC 60Hz 0.9A
•4.0A 100VA Supply Current
•AC Power LED Indicator
SV-PS12924
Power Supply
•12VDC; 24Amps
•Input Voltage 100~120VAC / 220~240VAC
•Output Current 9 x 500mA Fused Outlets (7.5A Max)
•Output Power 60W
HPTV2408
•Input 115VAC 60Hz 0.9A
•4.0A 100VA Supply Current
•Eight Electronically Regulated Outputs
•Fuses Are Rated 3.0A
HPTV2416-E
•Input 115VAC 60Hz 2.0A
•8A 200VA Supply Current
•Sixteen Fused Output Ciruits
HPTV2408-E
•Input, 115VAC, 60Hz, 1A
•Supply Current: 4.0A, 100VA
•Eight Outputs
SV-PS121816
SMP10PM12P4
24 VAC Central Supply
Power Supply
•12VDC; 16Amps
•Input Voltage 100~120VAC / 220~240VAC
•Output Current 18 x 500mA Fused Outlets (12A Max)
•Output Power 145W
HPTV2404UL
•Input, 15VAC, 60Hz, 0.9A
•Supply Current: 4.0A, 100VA
•Transformer Features Built-In Thermal Protection
•AC Power LED Indicator
Model SMP10PM12P4CB power supply converts a 115VAC 50/60Hz input, to a 12VDC @
10 amp of continuous supply current distributed via four (4) PTC protected outputs
HPTV2408-1CB
POWER SUPPLIES
POWER SUPPLIES
DCR 4-4-1
4 Output • 4Amps Fused Unit Central
Power Supply
VR1T
•Lifetime Warranty
•1Amp of Continous Supply Current Output
•Built-In Overload Protection
•Input 115VAC 60Hz 1.8A
•8A 200VA Supply Current
•Eight Electronically Regulated Outputs,
PTC Circuit Breakers Are Rated 2.5A
SMP10PM12P16
Model SMP10PM12P16 power supply converts a 115VAC 50/60Hz input, to a 12VDC @ 10
amp of continuous supply current distributed via sixteen (16) fuse protected outputs
SMP10PM12P16CB
Model SMP10PM12P16CB power supply converts a 115VAC 50/60Hz input, to a 12VDC
@ 10 amp of continuous supply current distributed via sixteen (16) PTC protected outputs
73
SV-PS121824
Power Supply
•12VDC; 24Amps
•Input Voltage 100~120VAC / 220~240VAC
•Output Current 18 x 500mA Fused Outlets (12A Max)
•Output Power 145W
HPTV2416UL
•Input, 115VAC, 60Hz, 1.8A
•Supply Current: 8.0A, 200VA
•Sixteen Individually Fused Outputs Rated
at 1.0A Each (Fast Blow 5x20mm)
HPTV2416
•Input 115VAC 60Hz 1.8A
•8A 200VA Supply Current
•Sixteen Electronically Regulated Outputs
HP1224ACDC
•Input 115VAC 60Hz 2A
•Input Terminal Block w/ Fuse Disconnect
•16 Individually Fused Outputs, Each Fused at 3A
74
24 VAC Plug In
2M-24V1812
•4 Output
•100 VA Fused Unit Central
Supply
AC 4-1-2
•100 VA
•24VAC Circuit Breaker Units
Central Supply
AC 8-1-1
•24VAC Central Supply
ALTV244175CB
AC 8-2-2
•8 Output
•200VA Central Power Supply
AC 12-1-1
•12 Output
•100VA Fused Unit Central Supply
•24VAC
•Four (4) PTC Protected Outputs
•Surge Suppression
•Unit Maintains Camera Synchronization
AC 12-1-2
•12 Output
•100VA Circuit Breaker Unit
Central Supply
AC 16-2-1
•16 Output
•200VA Fused Unit Central Supply
AC 16-2-2
•16 Output
•200VA Circuit Breaker Units
Central Supply
•16 Output
•300VA Circuit Breaker Units
Central Supply
VT-24VAC-40
•Plug In
•20VA
•40VA
24 VDC Central Supply
AC 4-1-1
AC 16-3-1
2M-24VAC-60
VT-24VAC-20
DCR 32-6-1
•16 Output
•6Amp Fused Units
HP1224ACDC
AC/DC Dual Output Power Supply
VDC 16-6-7
DCR 32-6-2
•16 Output
•6Amp Central Supply
•32 Output
•6Amp Circuit
Breaker Units
•Input, 115VAC 60Hz, 2A
•Input Terminal Block with Fuse Disconnect
•16 Individually Fused Outputs, Each Fused at 3A
ALTV2416300UCBM
•24VAC or 28VAC Selectable Output
•Surge Suppression
•Unit Maintains Camera Synchronization
ALTV2416-600
•16 Output
•@28 Amp Central Supply
HP312CX
Access Control Power Supply
•Switch Selectable 6VDC / 12VDC / 24VDC
•At 6VDC or 12VDC, the Output is 2.5A Total, at
24VDC, the Output is 1.0A Total
HP512CX
Access Control Power Supply
ALTV1224DC
ALTV244
•8 Output
•4Amp Central Supply
•4Amp @ 24VAC or 3.5Amp @ 28VAC
•Surge Suppression
•Unit Maintains Camera Synchronization
•Lifetime Warranty
ALTV2416
•Surge Suppression
•AC Power LED Indicator
•Unit Maintains Camera Synchronization
ALTV2416UL
•16 Output
•7Amp Power Supply
ALTV2432600
•32 Output
•25Amp Central Supply
•Switch Selectable 6VDC / 12VDC / 24VDC
•At 6VDC or 12VDC, the Output is 4.0A Total, at
24VDC, the Output is 2.5A Total
POWER SUPPLIES
POWER SUPPLIES
•4 Output
•7.25Amps UL Listed High Current
CCTV Cameras & Accessory
•24VAC @ 8Amp 9 PTC Output
•110VAC 60Hz 3.0Amp Input
•Power Cord Included
•24VAC @ 12Amp 18 PTC Output
•100VAC 60Hz 3.0Amp Input
•Power Cord Included
75
ALTV244-175UL
2M-24V98
ALTV244UL
•3.5A Central Supply
•24VAC Output
•AC Power LED Indicator
•Surge Protected Outputs
•Unit Maintains Camera Synchronizaation
ALTV248
•8 Output
•4Amp Central Supply
•24VAC or 28VAC Selectable Output
•Surge Suppression
•Power On/Off Switch
•Unit Maintains Camera Synchronization
76
Color Monitors
LCD Monitors
SAM-21M
VTM-LCD351
•Pixel Resolution 480x234
•Input Signal 1.0 Vp-p Composite
•75ohm Video Input BNC Connection
•Power Consumption
•3.8W
LTC 2813/90
LTC 2910/90
•36cm (14") Screen Size
•400 TVL Resolution
•Provides 300 TV Lines of
Resolution
•Auto-Sensing of PAL &
NTSC Signals
•Wide Range Power Supply
•Front Panel Controls
LTC 2814/90
•Metal Case
•Automatic Termination
•Audio Capabilities
•Wide Range Power Supply
LTC 2821/91
•On-Screen Display (OSD)
•550 TV Lines Resolution
•Wide Range Power Supply
LTC 2919/90
TCM-1901
LTC 2915/91
•True 800 TV Lines of Resolution
•Audio Inputs/Loop Through
Outputs
•Video Inputs/Loop Through
Outputs
•On-Screen Menu
•700 TV Lines Resolution
•Wide Range Power Supply
•Resolution of More than 520 TV Lines at Center on a
21" Diagonal Flat Screen CRT
•Attractive Black Metal Cabinet with Recessed
Handles for Portability
•Digital Front Panel Controls
•2-Channel Looping Video Inputs
•Hi-Res 1024x768
•Thin Cross Section - Less Than 2.5" Deep Panel
•16.2 Million Colors for True Color Rendition
•VGA/S-Video/Component Video In/Out
•Resolution Up to 1024x768
•Front Panel Controls
•OSD Menu Programming VESA 75
•Contrast Ratio of 300:1
WDL-1040TCF
•Touch Screen Monitor
•Active Screen Size - 10.4" Diagonal
•Bright Picture Display - 400 cd/m2
•262,144 Colors, 6Bit
VTM-LCD191
•Resolution up to 1280x1024
•Integrated Speakers
•VGA
•Composite
•S-Video & RGB Component Video Inputs
WDL-1700MR
•Heavy Duty 19" Rack Mount Housing
•16.2 Million Colors for True Color Rendition
•Composite Video, S-Video, & VGA PC Input
LTC 2917/91
•Auto-Sensing of PAL &
NTSC Signals
WDL-4600M
Allow us at 2Mcctv to help
•On-Screen Menus
•700 TVL Resolution
•Wide Range Power Supply
VTM-21CF
WDL-1500M
VTM-LCD143
you choose the size and
resolution of monitor that
best fits your particular needs.
WDL-3200M
•High Resolution 1366x768 Pixels
•16,777,216 Colors
•Wide Viewing Angle - H:170° x V:170°
•Bright Picture Display - 450 cd/m2
WDL-3500M
•Miniature Size Color Monitor For
Compact Applications
•Selectable Mirror-Image Mode
•Active Matrix For Absolute Picture Clarity
•Weatherproof High Resolution TFT LCD Monitor
WDL-5001M
VTM-17C-H
•Attractive Black Metal Cabinet
•17" Color Monitor with 600 TVL w/Audio
•Digital Front Panel Controls
VTM-143C
•450 TV Lines
•Attractive Black Metal Cabinet
•Looping Video Inputs & Dual Audio In/Out
•Miniature Size Color Monitor For
Compact Applications
•Selectable Mirror-Image Mode
•Active Matrix For Absolute Picture Clarity
•Weatherproof High Resolution TFT LCD Monitor
TLM-1503
•Video & Computer LCD Monitor
•1024x768 Resolution
•1 S-Video In & 1 S-Video Out
•XGA Input
•1 Composite Video Input & 1 Out
•2 Audio Inputs
•High Resolution 1366 x 768 Pixels
•16,777,216 Colors
•Wide Viewing Angle - H:178 x V:178
•Bright Picture Display - 500cd/mA
TLM-1705
•Power Supply: 100-240VAC
•Viewable Size: 338mm (H) x 270mm (V)
•1 S-Video Input/Output
•1RCA Input Composite Video Input
•1 VGA Input
MONITORS & DISPLAYS
MONITORS & DISPLAYS
•21" Color Monitor
•Microphone & Speaker Built-In for One-Way Audio
•VCR Connect for VCR Record & Play
(On-Screen Available)
•Horizontal Resolution 450 TV Lines
•Plastic Case
•Free Voltage (90~260VAC, 50/60Hz)
•NSTC/PAL
SMT-1721
WDL-7001M
WV-CK1420
•370 TV Lines Horizontal Resolution
•Manual Controls for Adjustment
77
WV-CK2020
•550 TV Lines Horizontal Resolution
•Manual Controls for Adjustment of Picture &
Audio Level
TM-A210GU
•Which Succeeds the TM-2100PN
•On-Screen Menu
•120V
•220~240VAC Voltage Supplies for Use Worldwide
•Miniature Size Color Monitor For
Compact Applications
•Selectable Mirror-Image Mode
•Active Matrix For Absolute Picture Clarity
•Weatherproof High Resolution TFT LCD Monitor
STM-17LV
•1280x1024 @ 75Hz Resolution
•700:1 High Contrast Ratio
•300 cd/m2 High Brightness
•8ms Response Time
•RGB Inputs
•Built-In Speakers
•Super Slim Narrow Design
•Multi Video System
•1280x1024 Native Resolution
•1Ch S-Video & VGA Input
•Dual Hinge Design
(VESA Mount Compliant: 75mm x 75mm)
78
Plasma TV Monitors
42PFP5332D/37
SMT-1921
•1280x1024 Resolution
•1000:1 High Contrast Ratio
•BNC Loop Through, S-Video, VGA Inputs
•Built-In Speakers
LM-17GU
•Bright Images 280 cd/m
•Universal Video Usage 100V/240V
•High Resolution LCD Panel (1280x1024)
•High Contrast Ratio (1000:1)
•Wide Viewing Angle
(178" Horizontal & Vertical)
LT37E488
•Digital 5-Point Color Management
•ATSC/QAM Tuner
•16:9 Aspect Ratio
•1500:1 Contrast Ratio
•500 cd/m2
•Integrated HDTV Cable Ready
•Pixel Plus 3 HD
•Virtual Dolby Surround for a Cinema-Like Audio
Experience
•Brightness: 1200 cd/m2
•Loudspeakers Built-In Speakers: 2
•Panel Resolution: 1024x768
TH58PH10UK
•Remote Control Transmitter
•2x Fixing Bands
•Dimensions 33.2" Height x 55.1" Width x 3.9" Depth
•Input Voltage Range 120VAC
•Speakers 2 x 18W
•Audio Decoding Stereo
HD56FH97
•True 1080p 2 Million Pixel Structure
3-Chip DILA System (1920x1080)
•150 MHz Digital Super Detail
•3D Y/C Comb Filter
•16:9 Widescreen Aspect Ratio
•New Digital 5 Point Color
Management
50PFP5332D/37
2M-MC3.5H-BP
•3.5 TFT / LCD High
Resolution
•Color Monitor with Battery
Pack Included
•300mA 12VDC
•Straps Included
2M-MC07FM
•Supports Up to 1024 x 768 Resolution UML-150-90
•Maximum Brightness of 250 to 300 Cd/m2
•Maximum Contrast Ratio of 450:1 to 1000:1 For
Excellent Color Accuracy & Consistency
•Minimum Response Time of Five to Twelve MS
Reduces Smearing & Ghosting
PPM42M6H
MON152CL
MON171CL
UML-170-90
•Bright Picture of 300 cd/m
•Universal Video Usage 100V/240V
•Provides 500 TV Lines Resolution
•Analog VGA Input
•50 Percent Less Power Consumptional CRT Monitors
•Bright Images 350 cd/m
•Universal Video Usage 100V/240V
•500 TV Lines Resolution
•Y/C (S-Video) & Analog VGA Input
•On-Screen Display (OSD) for Setup & Adjustment
•Supports Up to 1024 x 768 Resolution UML-170-90
•Maximum Brightness of 250 to 300 Cd/m2
•Looping Composite & Y/C (S-Video) Inputs
•VGA Input For DVR or PC Applications
MON152CL30
•Bright Image 300 cd/m
•Universal Video Usage 100V/240V
•Provides 500 TV Lines Resolution
•Analog VGA Input
•50 Percent Less Power Consumptional CRT Monitors
52HL167
•52" Widescreen HDTV (16:9 Aspect Ratio)
•Cine Speed LCD Panel (1920 x 1080 Pixels)
•8-Milli Second Pixel Response Time
•176 x 176 Viewing Angle
•3 HDMI v1.3 Digital Audio / Video Inputs
79
UML-150-90
•Pixel Plus 3 HD
•Integrated HDTV Cable Ready
•Stunning Design That will Complement Your
Interior
•Share Music & Photos Via the Built-In USB
•Panel Resolution: 1366x768
•Latest Plasma Technology
•Native Resolution: 1024x768
•Brightness (Typical): 1300 cd/m2
•Viewing Angle (H/V): 160/160 Degrees
•Special Features: S-Video, RGB, DVI-D, RS-323
•Pixel Pitch: 0.912x0.693 (mm)
•Interface: Dual
TH37PG9U
•Effective Display Area
(WxH) 32.2" x 18.1" (818x461mm)
•Industry's Highest Level of Image Quality
•Resolution (HxV) 1852x480 Pixels
•Modern Design with Speakers Mounted Under
Panel
TH-65PF9UK
•60,000 Hours Life
•Multi-Screen Technology
•16-Bit Signal Processing to Produce Vividly Rich
Details
•Aspect Ratio 16:9
•Speakers 2x10W
VTM-PV22
•22" 16:9 Widescreen Public View LCD Display
•8ms Response Time
•Built-In JPEG Slideshow &
AVI Players with Infinite Loop Feature
•Independent Music Player
•Content Can Be Played From a SD Flash Card
•Built-In PIR Motion Sensor
WDL-20
•True Wide Dynamic Range High Resolution
Camera
•Integrated Memory Card For Storing Messages;
Logos or Advertising (WDL-2020PVM Only)
•Built-In Motion Sensor (WDL-2020PVM)
•IR Remote Control & On-Screen Display
Black & White Monitors
LCD-562 KIT
MON201CL
•500 TVL Resolution
•Universal Power Source
•Loop-Through Composite Video
•Analog VGA Input 800x600 Max
•Software Scalable to 1024x768
MDT402S
•Size: 40" Monitor
•Resolution: Native 1366 x 768
•Contrast Ratio: 1000 : 1
•Brightness: 500 cd/m2
•Maximum Resolution 1600 x 1200
•Broadcast Quality Display
•Ideal for Trouble Shooting System
Set-Up/Fault Location
•Space Saving Design
•Tilts 90° in the Rack for Optimum
Viewing
LDT321V
•32" LCD Display
•Analog/Digital
•Maximum Resolution 1366x768
•Brightness: 500 cd/m2
•Scanning Frequency (H) 15:62-91kHz (V) 50-85Hz
VTM-12
VTM-20
LTC 2009/90
•12" Diagonal Screen
•Hi-Resolution of 1000 Lines
•Looping Input
•Attractive Black Metal Cabinet
•20" Diagonal Screen
•Hi-Res of 1000 Lines at Center
•Looping Input
•Attractive Black Metal Cabinet
•High Quality Pictures
•9" Monitor
•Auto-Termination
LTC 2017/90
•17" (43cm) Monitors
•High Quality Pictures
•Auto-Termination
•Supply 120/230 VAC with Selectable Selection
Between EIA & CCIR Formats
MONITORS & DISPLAYS
MONITORS & DISPLAYS
Public View Monitors
LTC 2919/90
•19" (48.3cm) Screen Size
•Provides 700 TV Lines of Resolution
•Auto-Sensing of PAL & NTSC Signals
•Switchable Composite Video & Y/C Signal Inputs
80
Varifocal Manual-Iris
Monofocal Manual-Iris
VTL-BL6
6mm Standard Board Varifocal Security Camera Lens
VTL-BL8
8mm Semi-Telephoto Board Varifocal Security Camera Lens
VTL-BL12
12mm Telephoto Board Varifocal Security Camera Lens
VTL-BL3.6
3.6mm Super Wide Board Security Camera Lens
KLB0800
8mm Board Lens 40' / 8.0mm Varifocal Security Camera Lens
VTL-BL2.9
2.9mm Super Wide Board Varifocal Security Camera Lens
13FM28IR
1) M816
Monofocal lenses are an economical choice providing fixed focal lengths
from super wide angle to telephoto depending on the camera format and
intended application. All are C-Mount, comprised of all glass optics, come
with locking setscrews and a durable metal barrel and mount.
2) T0812CS
Monofocal manual iris lenses are an economical choice providing fixed focal
lengths and a very simple and compact design. CS-Mount, comprised of all
glass optics, they come with locking setscrews and a durable metal barrel
and mount.
3) T10Z0513CS
Computar varifocal manual iris lenses offer maximum flexibility in camera
installations requiring a wide range of focal lengths. Focal length adjustments can be made with a turn of the dial, virtually eliminating the cost
and inventory problems associated with improper monofocal lens selection.
All lenses are CS-Mount, comprised of all glass optics, come with locking
setscrews and a durable metal barrel and mount.
2/3" 8mm f1.6 Monofocal w/o
Iris (C Mount)
1/3" 8mm f1.2 Monofocal,
Manual Iris (CS Mount)
2)
1/3" 5-50mm f1.3 Varifocal,
Manual Iris (CS Mount)
4) T2Z1816CS
3)
1/3" 1.8-3.6mm f1.6 Varifocal,
Manual Iris (CS Mount)
4)
5) T6Z5710AIDC
1/3" 5.7-34.2mm f1.0 6X
Manual Zoom, DC Auto Iris w/4pin mini connector (CS Mount)
YF4A-2
•1/3" Image Format
•8mm Focal Length
•F1.2 - C Iris Range
•1/3" Image Format
•4mm Focal Length
•F1.2 - C Iris Range
YF8A-SA2LB
YF4A-SA2LB
•1/3" Image Format
•8mm Focal Length
•F1.2 - T360 Iris Range
•1/3" Image Format
•4mm Focal Length
•F1.2 - T360 Iris Range
1)
2)
3)
1)
T2Z3514CS
Computar varifocal manual iris lenses offer maximum flexibility in camera installations
requiring a wide range of focal lengths. Focal length adjustments can be made with a turn of the
dial, virtually eliminating the cost and inventory problems associated with improper monofocal
lens selection. All lenses are CS-Mount, comprised of all glass optics, come with locking setscrews
and a durable metal barrel and mount
T3Z2910CS
The Computar Ganz T3Z2910CS is a fixed security camera lens distinguished security surveillance equipment ideal for all security surveillance needs. This Computar T3Z2910 CS security
camera lens is a varifocal manual lens and is easy to install and setup.
1/3" 3.5-8mm f1.4 Varifocal,
Manual Iris (CS Mount)
Computar Manual Zoom Lenses provide manual adjustment of focal length,
iris and focus. For use where a variable angle of view is required. Main applications for this lens include inspection, machine vision and robotics.
3)
2)
{
HG1814AFCS 1
H4514FICS
HG4514FCS
HG2616FCS
H2616FICS
1/3" Manual Iris Lens
3 x 2.9mm - 8.2mm F1.0 For 1/3" Type Cameras; Vari-focal Manual Iris CS-Mount
5)
HG2610FCS
YV2.4x2.5A-2
•With Wide Aperture of F1.4
•Optimizing The Performance At
Low Lighting Intensity
•Wide Range of 2.5-6mm
•High Accuracy Aspheric Lens Adopted
•Achieving The High Quality Image
1/2" 2.6mm f1.0 Aspherical,
Video Auto Iris (CS Mount)
YV10x5R4A-2
•With Wide Aperture of F1.6
•Optimizing The Performance At Low
Light Lighting Intensity
•Wide Range of f=5~50mm
•High Accuracy Aspheric Lens Adopted
•Achieving The High Quality Image
Computar's auto-iris aspherical lens series are designed for exceptional low light performance for
B&W or Color cameras. With a maximum iris aperture f1.0, aspherical lens technology will
enhance your camera's low light performance by more than 50%, providing a usable video
picture even in dimly lit environments.
LENSES
LENSES
1)
YF8A-2
YV5x2.7R4B-2
•Compatible with A Wide Range - 1/3"
& 1/4" - Cameras
•2.7-13.5mm Focal Length
•Wide Aperture of F1.3
•Optimizing The Performance At Low
Lighting Intensity
DV10x7B-2
•Compatible with a Wide Range - 1/2";
1/3" & 1/4" - Cameras
•7~70mm Focal Length
•High Accuracy Aspheric Lens Adopted
•Advanced Design Engineering &
Special Optic Glass Adopted
YV2.7x2.9LA-2
•1/3" Image Format
•2.9~8mm Focal Length
•2.7x Zoom Ratio
•F0.95 - C Iris Range
81
2)
1/3" 8mm f1.2 Monofocal,
Manual Iris (CS Mount)
12VM412ASIR
13VA2812AS-SQ
13VG2811ASIR-SQ
13VM286
13VM308ASIR
13VM20100AS
13VM2811ASIR
2) H1214FICS
1/2" 12mm f1.4 Monofocal,
Manual Iris (CS Mount)
3) H0614FICS
1/2" 6mm f1.4 Monofocal,
Manual Iris (CS Mount)
4) T0412CS
1)
3)
1) T0812FICS
DV5x3.6R4B-2
•Compatible with A Wide Range - 1/2";
1/3" & 1/4" - Cameras
•3.6-18mm Focal Length
•High Accuracy Aspheric Lens Adopted
•Achieving The High Quality Image
1)
1/3" 4mm f1.2 Monofocal, w/o
Iris (CS Mount)
4)
Monofocal manual iris lenses are
an economical choice providing
fixed focal lengths and a very
simple and compact design.
CS-Mount, comprised of all glass
optics, they come with locking
setscrews and a durable metal
barrel and mount.
5)
3)
2)
4)
1) TG2314AFCS
Auto iris supporting video
controlled cameras.
2) HG0614FCS
Auto iris supporting video
controlled cameras.
3) HG1214AFCS
Auto iris supporting video
controlled cameras.
4) TG2616AFCS
Auto iris supporting video
controlled cameras.
5) TG2616FCS
Auto iris supporting DC
controlled cameras
1/3" 2.3mm f1.4 Video Auto Iris (CS Mount)
1/2" 6mm f1.4 Video Auto Iris (CS Mount)
1/2" 12mm f1.4 Video Auto Iris (CS Mount)
1/3" 2.6mm f1.6 Video Auto Iris (CS Mount)
1/3" 2.6mm f1.6 DC Auto Iris w/4-pin mini
connector short cable (CS Mount)
82
Monofocal Auto-Iris
Varifocal Auto-Iris
•Focal Length 8mm
•Iris Range F/1.2 - 360
•Iris Operation Auto-Iris (DC)
1) VTL-1634AN
2) VT-2812
3) VT-5582AN
13FG08IR-SQ
13FG28IR-SQ
Varifocal Auto-Iris
1)
2)
3)
DV5x3.6R4B-SA2L
1)
2)
3)
4)
5)
6)
•Compatible With a Wide Range - 1/2"; 1/3"
& 1/4" - Cameras
•3.6~18mm Focal Length
•High Accuracy Aspheric Lens Adopted
•Built-in ND Filter of T360
•Supporting Super Sensitive Cameras
YV2.7x2.9LA-SA2L
1) 2M-3580AN
2) 2M-2812A
3) 2M-1431A
4) 2M-0660A
5) 2M-5100A
6) 2M-0308A
YV10x5R4A-SA2L
•With Wide Aperture of F1.6
•Optimizing The Performance at
Low Lighting Intensity
•Wide Range of f=5~50mm
•Built-in ND Filter of T360
•Supporting Super Sensitive Cameras
LENSES
LENSES
•1/3" Image Format
•2.9~8mm Focal Length
•2.7x Zoom Ratio
•F0.95 - T360 Iris Range
DV10x7B-SA2L
1)
2)
3)
1) TG2Z3514FCS
2) TG2Z1816FCS
3) TG3Z3510FCS
4) T3Z3510CS
5) TG3Z2910FCS
5)
YV5x2.7R4B-SA2L
•With Wide Aperture of F1.3
•Built-in ND Filter of T360
•Supporting Super Sensitive Cameras
•Wide Range of f=2.7~13.5mm
12VG412ASIR-SQ
12VA412ASIR-SQ
13VG20100AS-SQ
H2Z4516CS
12VA1040ASIR-SQ
83
4)
•Compatible With a Wide Range - 1/2"; 1/3"
& 1/4" - Cameras
•7~70mm Focal Length
•High Accuracy Aspheric Lens Adopted
•Built-in ND Filter of T360
•Supporting Super Sensitive Cameras
YV2.4x2.5A-SA2L
•With Wide Aperture of F1.4
•Optimizing The Performance at Low
Lighting Intensity
•Wide Range of 2.5~6mm
•Built-in ND Filter of T360
•Supporting Super Sensitive Cameras
84
Mega Pixel Lenses
M13VG246
Focal Length 2.4-6mm • Iris Range F/1.2 - 360
• Iris Operation Auto-Iris • Focus Operation Manual w/Lock
M13VG308
Focal Length 3.0-8mm • Iris Range F/1.0 - 360
• Iris Operation Auto-Iris (DC) • Focus Operation Manual w/ Lock
M13VM308
Focal Length 3.0-8mm • Iris Range F/1.0 - Close
• Iris Operation Manual w/Lock • Focus Operation Manual w/Lock
FE185C046HA-1
FE185C057HA-1
FE185C086HA-1
•Designed With The F-Theta System
•Most Suited For Uniform
Displaying of Images
•Camera Format 5 Megapixels
Zoom Lenses
1)
LENSES
2)
85
3)
12PZA10x8C
Focal Length 8-80mm • Iris Range F/1.8 - 360
• Iris Operation Auto-Iris (Video)
• Focus Operation Motorized
13PZA10x6C
Focal Length 6-60mm • Iris Range F/1.4 - 360
• Iris Operation Auto-Iris (Video)
• Focus Operation Motorized
13ZD Series
1/3" Format Motorized Zoom Auto Iris (Direct Drive)
Spot Filter • F1.4 - 360 • CS-Mount
13ZM Series
1/3" Format Motorized Zoom • Motorized Manual Iris
& Focus Out Spot Filter • F1.4 Closed • CS-Mount
5)
4)
1)
WVLZ802
•1/2 AI Manual Zoom 6-12mm
•For 1/3" & 1/2" CCD Cameras
•Auto Iris
2)
WVLZ816A
•1/2" Motorized Zoom 6x 8.5-51mm AI
•Offers Full Motorized Zoom & Focus Control
•Compatible With C or CS Type Cameras
3)
WVLZ8110
•1/2" Motorized Zoom 10x 8.5-85mm
•Auto Iris
•Compatible With 1/2" or 1/3" CCD Cameras
4)
WVLZA622
•Varifocal
•For WV-NP1004 Network Camera
5)
WVLZ6115
•1/3" Motorized Zoom
•15x 6-9mm AI
•CS-Mount
Y12x6A-SE2
Y12x6A-YE2
•Standard Zoom Lens With The
Excellent Cost Performance
•Mutiple Power Supply (6V; +/6V; 12V; +/- 12V) Supported
•Enabling The Use of Existing
Control Systems
•Built-in ND Filter of T400
•Supporting Super Sensitive
Cameras
•Standard Zoom Lens With The
Excellent Cost Performance
•Mutiple Power Supply (6V; +/6V; +/- 12V) Supported
•Enabling The Use of Existing
Control Systems
•Built-in Potentio Meter
•Supporting The Preset Enabled Specification
Questions to ask yourself when
considering a surveillance system...
Which System is Right for Me? The first step is to carefully
consider your surveillance needs. While one camera connected
to a monitor could help, it is unlikely, in most situations, to be
enough. Most places of business require more than one camera.
In some situations a moveable camera to cover a large area may
be required. Secondly, what is it that I am trying to monitor? Are
you just wanting to track the comings and goings of people, track
merchandise, or capture faces? Do you need wide sweeping views
or detailed close ups? All of this will affect the equipment you
choose. What type of picture quality do I require? Two parts of
the equation are resolution and frame rate. A slower frame rate
and lower resolution captured on a video cassette recorder will
produce a grainier, jerkier image, but will allow you to record for
longer periods of time. The higher the resolution and the faster the
frame rate, the costlier the equipment. How long will I store the
video? With the advent of DVRs (digital video recorders) images
can be stored indefinitely, (as opposed to tape) and allow one to
easily transmit images by way of a network or the internet. They
also allow instant playback as well as record and display at the
same time. Again, the higher the frame rate and resolution, the
more costly the DVR. Do I need a professional installer? Although
we have systems you can install yourself, it may be advantageous
to you to work with a professional installer. Security professionals
are familiar with a variety of available systems and their benefits,
they can integrate multiple components and ensure proper
adjustments and functionality. Most importantly, a professional
installer can insure your system continues to perform properly
and can even help with enhancements and upgrades.
www.2mcctv.com
24/7 Surveillance
2985 S. State Hwy 360, Suite 130
Grand Prairie, Texas 75052
www.2mcctv.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
