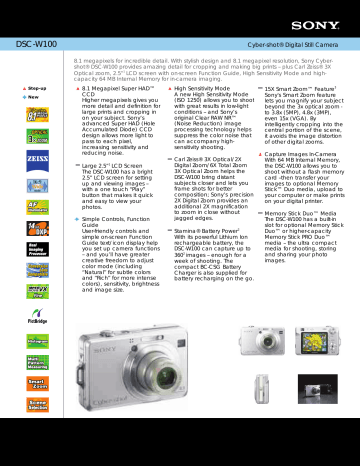

DSC-W100
Cyber-shot® Digital Still Camera
8.1 megapixels for incredible detail. With stylish design and 8.1 megapixel resolution, Sony Cybershot® DSC-W100 provides amazing detail for cropping and making big prints -- plus Carl Zeiss® 3X
Optical zoom, 2.5”1 LCD screen with on-screen Function Guide, High Sensitivity Mode and highcapacity 64 MB Internal Memory for in-camera imaging.
Step-up
New
8.1 Megapixel Super HAD™
CCD
Higher megapixels gives you
more detail and definition for
large prints and cropping in
on your subject. Sony’s
advanced Super HAD (Hole
Accumulated Diode) CCD
design allows more light to
pass to each pixel,
increasing sensitivity and
reducing noise.
Large 2.5”1 LCD Screen
The DSC-W100 has a bright
2.5” LCD screen for setting
up and viewing images -with a one touch “Play”
button that makes it quick
and easy to view your
photos.
Simple Controls, Function
Guide
User-friendly controls and
simple on-screen Function
Guide text/icon display help
you set up camera functions
-- and you’ll have greater
creative freedom to adjust
color mode (including
“Natural” for subtle colors
and “Rich” for more intense
colors), sensitivity, brightness
and image size.
High Sensitivity Mode
A new High Sensitivity Mode
(ISO 1250) allows you to shoot
with great results in low-light
conditions -- and Sony’s
original Clear RAW NR™
(Noise Reduction) image
processing technology helps
suppress the color noise that
can accompany highsensitivity shooting.
Carl Zeiss® 3X Optical/2X
Digital Zoom/6X Total Zoom
3X Optical Zoom helps the
DSC-W100 bring distant
subjects closer and lets you
frame shots for better
composition; Sony’s precision
2X Digital Zoom provides an
additional 2X magnification
to zoom in close without
jagged edges.
Stamina® Battery Power2
With its powerful Lithium Ion
rechargeable battery, the
DSC-W100 can capture up to
3602 images -- enough for a
week of shooting. The
compact BC-CSG Battery
Charger is also supplied for
battery recharging on the go.
15X Smart Zoom™ Feature3
Sony's Smart Zoom feature
lets you magnify your subject
beyond the 3x optical zoom to 3.8x (5MP), 4.8x (3MP),
even 15x (VGA). By
intelligently cropping into the
central portion of the scene,
it avoids the image distortion
of other digital zooms.
Capture Images In-Camera
With 64 MB Internal Memory,
the DSC-W100 allows you to
shoot without a flash memory
card --then transfer your
images to optional Memory
Stick™ Duo media, upload to
your computer or make prints
on your digital printer.
Memory Stick Duo™ Media
The DSC-W100 has a built-in
slot for optional Memory Stick
Duo™ or higher-capacity
Memory Stick PRO Duo™
media -- the ultra compact
media for shooting, storing
and sharing your photo
images.
DSC-W100
Specifications
General
Megapixel: 8.1 MP
Imaging Device: 1/1.8" Super HAD™ CCD
Recording Media: 64MB internal Flash
Memory, optional Memory Stick™ DUO
Media, optional Memory Stick DUO PRO™
Media
Convenience
Cyber-shot® Digital Still Camera
Shutter Speed: 1/8-1/2000 sec. (Auto), 11/2000 sec. (Program Auto), 30" - 1/1000
(Manual)
Exposure Compensation: ±2.0 EV, 1/3 EV
Step Increments
ISO: Auto, 80, 100, 200, 400, 800, 1250
Filter Diameter: N/A
Smart Zoom® Technology: Up to 3.8X (5MP),
4.8X (3MP), 6X (2MP), 15X (VGA
3
Resolution)
White Balance: Automatic, Cloudy, Daylight,
Fluorescent, Incandescent, Flash
Digital Zoom: 0-2.0X (Precision)
Self Timer: Yes (10 seconds, 2 seconds, Off)
Macro Mode: Yes
Memory Stick PRO™ Media Compatibility:
Tested to support up to 4GB Memory Stick
DUO PROTM media capacity; does not
support Access Control security function.
Total Zoom: 6X
Still Image Mode(s): Burst, JPEG
(Fine/Standard), Multi-Burst
Optical Zoom: 3X
Minimum Focus Distance: 19.7" (50cm)
Normal, 2-3/8" (6cm) Macro
Power
Battery Type: Lithium-Ion NP-BG1
Red-Eye Reduction: Yes (On/Off, all modes)
Battery Capacity: 3.6V, 960 mAh
Burst Mode: 4 Shot at 1.0 fps (8.1 MP JPEG
fine), 100 Shot VGA at 1.3 fps (JPEG std.)
Software
Erase/Protect: Yes/Yes
Supplied Software: Cyber-shot® Viewer Vers
1.0 + USB Driver, (Windows®)
Date/Time Stamp: No/ No
Color Mode(s): Black & White, Natural,
Sepia, Vivid
Operating System Compatibility: Microsoft®
2000 Professional, Me, XP Home and
Professional; Macintosh® OS 9.1/9.2/OS X
(10.0-10.4)
Convenience Features
Dimensions
Real Imaging Processor™ Technology: Yes
Weight: 5.9 oz (161 g) Body; 7.0 oz. (192 g)
including Battery and optional Memory
Stick™ DUO Media
Media/Battery Indicator: Yes/Yes
AF Illuminator Light: Yes
PictBridge Compatible: Yes
Multi-Pattern Measuring: Yes, 49-segment
Measurements: 3 11/16" x 2 3/8" x 1" (94.2 x
60.6 x 24.8 mm)
SteadyShot® Image Stabilization: N/A
Service and Warranty Information
Clear RAW NR: Yes
Limited Warranty Term: 1 Year Parts & Labor
Scene Mode(s): Beach, High Sensitivity,
Landscape, Soft Snap, Twilight, Twilight
Portrait
Supplied Accessories
Movie Mode(s): MPEG VX Fine with Audio
(640x480 at 30fps) (MPEG VX Fine requires
Memory Stick DUO PRO™ media), MPEG
VX Standard with Audio (640x480 at 16fps),
Video Mail with Audio (160x112 at 8fps).
BC-CSG battery charger
Power Save Mode: Yes (after approx. 3 min.
of inactivity)
Inputs and Outputs
Accessory Terminal: N/A
NP-BG1 rechargeable battery
A/V and USB multi-connector cables
Wrist strap
Software CD-ROM
Note: No Memory Stick® DUO media or
adaptors are included.
Optional Accessories
Accessory Kit (ACC-CLG)
Audio/Video Output(s): Yes via Mutli-Use
Connector
Rechargeable Lithium-Ion Battery (NP-BG1)
USB Port(s): Yes (Supports USB 2.04 )
Travel Charger (BC-TRG)
Hardware
1
AC Power adaptor (AC-LS5K)
Soft Carrying Case (LCS-WE)
LCD: 2.5" (115K Pixels TFT LCD Screen)
Soft Carrying Case (LCS-WF)
Viewfinder: Optical
Wide Angle Conversion Lens (VCL-DH0730)
Lens Construction: 7 Elements in 5 Groups, 3
Aspheric Elements
Telephoto Conversion Lens (VCL-DH1730)
Microphone/Speaker: Yes/ Yes
Super Telephoto Conversion Lens (VCLDH2630)
Lens Type: Carl Zeiss® Vario-Tessar®
Polarizing Kit Filter (VF-30CPKS)
Docking Station: N/A
External Slave Flash w/Bracket (HVL-FSL1B)
Operating Conditions
Memory Stick Duo PRO™ (MSX-M512S)
Flash Effective Range: ISO Auto: 6” to 19'
5" (0.2-6.0m), ISO 1250: 3' 3" to 36’ (1 10.5m)
Memory Stick Duo PRO™ (MSX-M1GN)
Flash Mode(s): Auto, Forced On, Forced
Off, Slow Synch, Daylight Fill
Optics/Lens
Focal Length: 7.9 - 23.7 mm
Memory Stick Duo PRO™ (MSX-M2GN/GS)
Memory Stick Duo PRO™ (MSX-M4GS)
Memory Stick Duo Adaptor (MSAC-M2)
Memory Stick Duo PRO™ (MSX-M8GS)
Memory Stick Duo USB Adptr (MSAC-US40)
35mm Equivalent: 38 - 114 mm
Color: Silver
Focus: 5 Area Multi-Point AF, Center AF
UPC Code: 027242686175
Focal Distance: 4-3/4" (12 cm) (W), 193/4" (50cm) (T)
Aperture Range: f2.8-5.6 (W), f5.2-10 (T)
1: Viewable area, measured diagonally
2: Under average conditions; when fully charged, actual results may vary based on camera settings
and conditions of use.
3: Smart Zoom® feature will not work at highest resolution setting.
4: Not all products with USB connectors may communicate with each other due to chip-set variations
5. A portion of the memory is used for data management purposes.
Sony, Cyber-shot, Handycam, Memory Stick, Memory Stick PRO, Memory Stick PRO Duo, , Super HAD,
Clear RAW, Smart Zoom, Stamina, Trinitron and Walkman are trademarks of Sony. All other
trademarks are trademarks of their respective owners.
Please visit the Dealer Network for more information at
www.sony.com/dn
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1-800-222-7669 •www.sony.com
Last Updated: 03/11/2009
