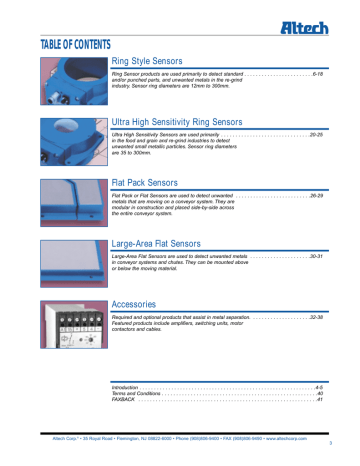

TABLE OF CONTENTS
Ring Style Sensors
Ring Sensor products are used primarily to detect standard . . . . . . . . . . . . . . . . . . . . . . . .6-18
and/or punched parts, and unwanted metals in the re-grind
industry. Sensor ring diameters are 12mm to 300mm.
Ultra High Sensitivity Ring Sensors
Ultra High Sensitivity Sensors are used primarily . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-25
in the food and grain and re-grind industries to detect
unwanted small metallic particles. Sensor ring diameters
are 35 to 300mm.
Flat Pack Sensors
Flat Pack or Flat Sensors are used to detect unwanted . . . . . . . . . . . . . . . . . . . . . . . . . .26-29
metals that are moving on a conveyor system. They are
modular in construction and placed side-by-side across
the entire conveyor system.
Large-Area Flat Sensors
Large-Area Flat Sensors are used to detect unwanted metals . . . . . . . . . . . . . . . . . . . . .30-31
in conveyor systems and chutes. They can be mounted above
or below the moving material.
Accessories
Required and optional products that assist in metal separation. . . . . . . . . . . . . . . . . . . . .32-38
Featured products include amplifiers, switching units, motor
contactors and cables.
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
Terms and Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
FAXBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
3
Introduction
APPLICATIONS
Altech metal separation systems are Inductive
Proximity Ring and Flat Sensors, that are used to
detect punched or stamped parts, and unwanted
metals. They are used in a wide range of industries
that require metal parts to be detected, counted,
and in many cases to be separated from bulk
materials like food and grain. This product offering
represents one of the largest selections in the
industry.
Both ring and flat sensors are solid-state devices
that generate an output signal when metal objects
are either inside or entering into the sensing area
from any direction. No physical contact is required
or desired. These sensors work best with ferrous
metals but will also operate with non-ferrous metals
at reduced sensitivity. The sensitivity of our metal
detection systems is specified in terms of a steel
ball minimum diameter for detection. For
non-ferrous metals, the metal diameter must be
increased. Please see below:
Operating Sensitivity Factors
Type of Metal
St. 37
Correction
Factor
1.0
Special steel* (general)
1.0 to 2.0
1.4034 - magnetic special steel
Appx. 1.0
1.4301 - non-magnetic special steel
Appx. 1.6
Non-ferrous metals** (general)
1.2 to 1.8
* Depending on the alloy concerned.
** Depending on the type of metal
Altech metal detection systems have no moving
parts, are extremely reliable, and require no
maintenance. They typically interface with
Programmable Logic Controllers (PLC), process
and personnel computers with appropriate
hardware and software. They can control relays,
solenoids, valves, etc., up to their maximum output
current.
These sensors are manufactured in Germany by
Pulsotronic, a well-known and respected quality
manufacturer. Sensors are ISO 9001 certified and all
products carry the CE mark. Altech is Pulsotronic’s
North American marketing partner.
RING SENSORS
Mini and Normal Sensitivity Ring Sensors are used
to detect stamped or punched metal parts, or larger
size unwanted metal parts. Altech offers a wide
range of these rings from 12 mm to 300 mm in
diameter. High sensitivity rings are also used for the
same applications, except they can detect much
smaller metal parts. Altech’s Ultra High Sensitivity
Ring Sensors are used primarily for the detection of
very small particles in bulk materials.
Typical Industries include:
• Stamping operations
• Punching operations
• Counting operations
• Detection of broken wires or cables
• Detection of metal in plastic regrind
• Detection of metals in rubber regrind
• Detection of metal in wood grinding
• Food and animal feed
• Pharmaceutical products
• Granulated polymer materials
• Detection of metal needles in knitting industry
• Detection of metal in commercial bakeries
• Semi-finished and finished products
FLAT SENSORS
Flat Sensors are used on conveyor belts and chutes
to detect metallic impurities in the material being
handled. These sensors are available in different
sizes which can be put together to create the
required width of detection. Special amplifiers are
required to evaluate the signal from flat sensors.
These sensors can be installed above and below
the material being handled. Higher sensitivity can
be achieved in this manner.
Typical applications includes:
• Food and grain
• Baking industry
• Plastic and rubber regrind
• Wood grinding
• Semi-finished and finished products
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
4
Principles of Operation
Ring and flat sensors consist of a coil with a ferrite core, an oscillator, a demodulator, a signal analyzer,
and a switching amplifier. Please see below:
Coil with a
Ferrite Core
Oscillator
Demodulator
The oscillator generates a high frequency
electromagnetic alternating field in the coil. The
ferrite core and the housing ensure that the field
lines of this alternating signal are concentrated in
the middle of the ring, or adjacent to the top of the
flat sensor. When a metal particle passes through
this field, eddy currents are induced and the field
losses energy, thus damping the oscillator. The
extent of the damping reflects the size of the metal
Signal
Analyzer
Switching
Amplifier
particle. The reduced signal is registered by the
signal analyzer, and when a dampening threshold
is reached, the switching amplifier provides an
output signal. Ring sensors with normal sensitivities
deliver a stable output while the target is in the ring
or within range of the flat sensor. High sensitivity,
ultra high sensitivity rings and flat sensors deliver a
short output pulse when metal is detected.
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
5
Ring Style
Sensors
• Mini
• Normal Sensitivity
• High Sensitivity
• Analog
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
6
RING STYLE INDUCTiVE
PROXIMITY SENSORS
Altech Ring Sensors are used for a
variety of applications including
punching and stamping operations
to detect small metal parts and for
the identification of metallic
contamination in bulk materials.
The sensitivity of all Altech Ring
Sensors is given in terms of a steel
metal ball diameter. This is the
minimum diameter steel ball that the
sensor will detect. Non-ferrous
materials will require larger diameter
parts for correct sensor detection.
Please see page 4 for rated
operating distance correction
factors.
Operating Voltages – Ring Style
Mini Ring
10 - 30V DC
Standard Ring
10 - 30V DC
High Sensitivity RIng
20 - 30V DC
Analog Ring
18 - 30V DC
Operating Current– Ring Style
Mini Ring
200/400 mA
Standard Ring
80 mA
High Sensitivity Ring
50 mA
Analog Ring
5 mA
Sensor Wiring Systems – Ring Style
Mini Ring
3 Wire
Standard Ring
4-Wire
High Sensitivity Ring
OUTPUT CONNECTION
Mini Ring – Normally Open (NO)
Standard Ring – Complementary
High Sensitivity – Complementary
Analog – 1-9 Volt Analog.
RING SENSOR MOUNTING
When high sensitivity ring sensors
are mounted in or near non-target
metal objects, care must be
exercised in accordance with the
recommendations on the diagram.
See Figure 1.
4-Wire (must connect to PULSO® 8102-0900 Amplifier)
Analog Ring
3-Wire
Figure 1
RING SENSOR INSTALLATION
Ring Sensors installation in metal environment (min. permissible values)
Inside Diameter
SENSOR = A
20
35
51
51
71
100
202
294
SENSOR
9702-0259
9713-0059
9701-0259
9701-0759
9711-0059
9700-0159
9703-0159
9704-0159
Metal Plate
hole dia. = B*
30
60
85
85
120
180
260
400
Side Distances
d1
d2
10
0
40
0
60
0
50
0
65
0
100
30
150
0
200
0
* Metal plate must not move
A
d2
d1
d1
d2
D
B
C
D = C is permissible
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
7
DC RING SENSORS (Mini, Normal, High Sensitivity & Analog) – SELECTION GUIDE
Size
(mm)
Series
Mini Ring
10-30V DC, 200 mA
• Static Output
• Detect unwanted metal
• Detect and count parts
Ø12
Normal Sensitivity
Standard Series
10-30V DC, 80 mA
• Static Output
• Large ring diameters
• Complementary Output
Ø50
0.5
0.8
1.0
1.1
Sensitivity - Minimum Steel Ball Dia. in mm
1.6 2.5 3.0 5.0
6.0 8.0 9.0
12
15
20
•
•
Ø20
•
Ø43
•
•
Ø100
•
Ø100
•
Ø200
•
Ø300
High Sensitivity
Standard Series
20-30V DC, 50 mA
• Dynamic Output
• Large ring diameters
• Complementary Output
Ø20
Ø35
Ø50
Ø50
Ø70
Ø100
Ø200
Ø300
130 x 130
•
•
•
•
•
•
•
•
•
•
245 x 290
Analog Ring
18-30V DC, 5 mA
• Analog Output
proportional to target size
Ø20
Ø43
•
•
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
8
30
PNP
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Function
NPN
NO
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
NC
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Mounting
Connection
See Instructions Cable 59*
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
No. of
Wires
Housing
Material
No. of
LED's
Page
3
ABS
1
call
3
ABS
1
18
3
ABS
1
18
4
Aluminum
1
12
4
Aluminum
1
12
4
Aluminum
1
12
4
Aluminum
1
13
4
Aluminum
1
13
4
Aluminum
1
14
4
Aluminum
1
14
4
Aluminum
1
15
4
Aluminum
1
15
4
Aluminum
1
16
4
Aluminum
1
16
4
Aluminum
1
17
4
Aluminum
1
17
4
Aluminum
1
18
4
Aluminum
1
18
3
ABS
0
19
3
ABS
0
19
* For more information on Connector 59 (Altech 9512-0200), please see accessories page 38.
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
9
DC - 3 WIRE
MINI RING SENSORS
Plastic Housing,
10-30V DC 200mA/400mA,
1 LED for Output Energized
Ring Diameter
Sensitivity (min. dia. steel ball)
• Applications include
detection and counting parts
in punching/pressing systems
• Detection of unwanted meta
in grinding operations
• Static Output
• Carries
mark
• IEC(529) IP67 (NEMA 1, 3, 4, 6, 12, 13)
Protection
• Short Circuit Protection
• Reverse Polarity Protection
• Temperature Range: -25 to 70°C
(-13 to 158°F)
12mm (.47 in.)
20mm (.79 in.)
43mm (1.69 in.)
9mm (.35 in.)
2.5mm (.1 in.)
6mm (.24 in.)
Cable or Connector Style Cat. No.
Cable
Cable
Cable
Normally Open
9702-0400
9702-0500
9705-0500
PNP
NPN
Normally Closed
Normally Open
Normally Closed
Ripple Voltage
≤10%
≤10%
≤10%
Voltage Range
10V - 30V
10V - 30V
10V - 30V
Supply Current
≤10 mA
≤10 mA
≤10 mA
Max. Load Current
400 mA
200 mA
200 mA
Voltage Drop Across Sensor
≤2.4V
≤2.4V
≤2.4V
Max. Leakage Current
≤10 µA
≤10 µA
≤10 µA
Switching Frequency
800 Hz
1000 Hz
500 Hz
PBTP (GV 30)
ABS
ABS
Housing Material
26
6
24
10
6
,5
.5
10
43
20
18
18
12
24
73
8
28
47 .5
58
58
73
Wiring Diagrams
Note: Wire colors are applicable on cable
purchased from Altech
26.5
20 39
Fixed Cable
PVC 2m (6 ft. 6 in.).
For 5m (16 ft. 5 in.) cable length,
change the last two digits of the
part number to 02. For other
cable lengths and/or PUR cable,
please consult Altech.
35
Note: Sensor dimensions in mm.
Metric/in. Conversion Table
PNP
Fixed Cable
BR +
BK
LOAD
•
BL –
Normally Open
8.0 mm
12.0 mm
18.0 mm
20.0 mm
24.0 mm
26.0 mm
26.5 mm
28.5 mm
= .31 in.
= .47 in.
= .70 in.
= .78 in.
= .94 in.
= 1.02 in.
= 1.04 in.
= 1.12 in.
35.0 mm
39.0 mm
43.0 mm
47.0 mm
58.0 mm
73.5 mm
106.0 mm
=
=
=
=
=
=
=
1.37 in.
1.53 in.
1.69 in.
1.85 in.
2.32 in.
2.89 in.
4.17 in.
This table
converts millimeters
to inches in reference
to the illustrations
included on these
pages
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
10
Contact us for
our other
Sensor Catalogs
INDUCTIVE PROXIMITY SENSORS
Altech offers one of the largest selections of proximity
sensors to fulfill all of your application requirements.
✹
✹
✹
✹
Over 500 ISO 9001 sensor products
Cylindrical, Limit, Block and Ring sensors
CE certified
Most feature a lifetime warranty
OEM SERIES
PROXIMITY SENSORS
Altech's new superior performance Inductive
Proximity Sensor series is suited for OEM and
enhanced specification applications.
✹ Attractive pricing at larger volumes
✹ Quicker sensing response
✹ Extended switching distance
✹ 360° LED visibility
✹ 200mA, 10-30V
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
11
DC - 4 WIRE RING SENSORS
ALUMINUM HOUSING
10-30V DC, 80mA
1 LED for Output Energized
Ring Diameter
Sensitivity (min. dia. steel ball)
• IEC(529) IP67 (NEMA 1, 3, 4, 6, 12, 13)
• Applications include the
detection and counting of parts
Protection
in punching/pressing operations • Temperature Range: -25 to 70°C
• Detection of unwanted metal
(-13 to 158°F)
in grinding operations
• Complementary outputs available
• Static Output
• Carries
mark
50mm (1.97 in.)
100mm (3.94 in.)
100mm (3.94 in.)
3mm (.12 in.)
8mm (.31 in.)
6mm (.24 in.)
59
59
59
Cable or Connector Style Cat. No.
PNP
(Complementary NO/NC)
9705-0659
9708-0559
9708-0659
NPN
(Complementary NO/NC)
9705-0259
9708-0059
9708-0159
Ripple Voltage
≤10%
≤10%
≤10%
Voltage Range
10-30V
≤25 mA
10-30V
≤25 mA
10-30V
≤25 mA
Supply Current
Max. Load Current
Voltage Drop Across Sensor
80 mA
80 mA
80 mA
≤0.5V NPN
≤0.5V NPN
≤0.5V NPN
≤1.5V PNP
≤1.5V PNP
≤1.5V PNP
Max. Leakage Current
≤10µA
≤10µA
≤10µA
Switching Frequency
500Hz
500Hz
500Hz
10
0
45
10
0
50
80
59 Style Connector
4-pin, Metal, 19mm
(.75 in.) device
2
7
6.
7
40
11
5
80
36
8
12
0
16
6
0
12
90
8
16
6
19
0
48
36
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
12
Metric/in. Conversion Table
6.2 mm
7.0 mm
8.0 mm
8.5 mm
36.0 mm
40.0 mm
45.0 mm
48.0 mm
50.0 mm
= .24 in.
= .27 in.
= .31 in
= .33 in.
=1.41 in.
=1.57 in.
=1.77 in.
=1.89 in.
=1.96 in.
80.0 mm = 3.15 in.
90.0 mm = 3.58 in.
100.0mm = 3.93 in
115.0mm = 4.52 in.
120.0mm = 4.72 in.
160.0mm = 6.29 in.
162.0mm = 6.37 in.
166.0 mm= 6.52 in.
190.0 mm= 7.47 in.
Accessories
2 meter (6 ft. 6 in.) DC Cable Assemblies
for Quick Disconnect Sensors
202.0mm = 7.94 in.
260.0mm = 10.23 in
290.0mm = 11.41 in.
294.0mm = 11.20 in.
305.0mm = 12.00 in.
340.0mm = 13.40 in.
382.0mm = 15.03 in.
397.0mm = 15.62 in.
200mm (7.87 in.)
300mm (11.81 in.)
15mm (.59 in.)
30mm (1.18 in.)
59
59
9706-0659
9707-0659
9706-0159
9707-0159
≤10%
≤10%
10-30V
≤25 mA
10-30V
≤25 mA
80 mA
80 mA
≤0.5V NPN
≤0.5V NPN
≤1.5V PNP
≤1.5V PNP
≤10µA
≤10µA
300Hz
300Hz
This table converts
millimeters to
inches in reference
to the illustrations
included in this
catalog
Note: Sensor dimensions in mm.
59 Connector
9512-0200 PVC, Straight
Change last digit of connector number to 2
for 5 meter cable
Wiring Diagrams
Note: Wire colors are applicable to cable
purchased from Altech
NPN
29
4
20
2
PNP
RED
3
4
160
162
1
BLK
LOAD
•
•–
+
2 LOAD
N/C
BLK
–
BL
8.
39
7
5
5
8.
38 34
2 0
BL
LOAD
•
WHT
N/O
WHT
2
N/C
RED
•
3
LOAD
4
N/O
1
26
0
29
30 0
5
+
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
13
DC - 4 WIRE HIGH SENSITIVITY
RING SENSORS
ALUMINUM HOUSING
20-30V DC, 50mA
1 LED for Output Energized
• Applications include the
detection and counting of parts
in punching/pressing operations
• Detection of unwanted metal
in grinding operations
• Complementary outputs available
• Dynamic output – must be
operated with 8102-0900 Unit
• Carries
mark
Ring Diameter
• IEC(529) IP67 (NEMA 1, 3, 4, 6, 12, 13)
Protection
• Short Circuit Protection
• Reverse Polarity Protection
• Temperature Range: -25 to 70°C
(-13 to 158°F)
20mm (.79 in.)
35mm (1.38 in.)
.5mm (.02 in.)
.5mm (.02 in.)
59
59
9702-0259
9713-0059
Ripple Voltage
≤10%
≤10%
Voltage Range
Supply Current
20-30V
≤35 mA
20-30V
≤35 mA
Max. Load Current
50 mA
50 mA
Sensitivity (min. dia. steel ball)
Cable or Connector Style Cat. No.
PNP
(Complementary NO/NC)
NPN
(Complementary NO/NC)
≤1V at 10 mA
≤1V at 10 mA
≤3.5V at 50 mA
≤3.5V at 50 mA
Max. Leakage Current
≤500µA
≤500µA
Switching Frequency
100Hz
100Hz
Voltage Drop Across Sensor
35
80
6.
2
7
45
20
59 Style Connector
4-pin, Metal, 19mm (.75 in.)
device
40
11
5
80
12
0
16
6
19
0
48
36
8
90
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
14
Accessories
Metric/in. Conversion Table
6.2 mm
7.0 mm
8.0 mm
20.0 mm
35.0 mm
36.0 mm
40.0 mm
45.0 mm
48.0 mm
50.0 mm
= .24 in.
= .27 in.
= .31 in.
= 0.79 in.
= 1.37 in.
= 1.41 in.
= 1.57 in.
= 1.77 in.
= 1.89 in.
= 1.96 in.
2 meter (6 ft. 6 in.) DC Cable Assemblies
for Quick Disconnect Sensors
80.0 mm = 3.15 in.
90.0 mm = 3.58 in.
115.0mm = 4.52 in.
120.0mm = 4.72 in.
166.0 mm= 6.52 in.
190.0 mm= 7.47 in.
This table converts
millimeters to
inches in reference
to the illustrations
included in this
catalog
50mm (1.97 in.)
50mm (1.97 in.)
.8mm (.03 in.)
1.0mm (.04 in.)
59
59
9701-0759
9701-0259
≤10%
≤10%
20-30V
≤35 mA
20-30V
≤35 mA
50 mA
50 mA
≤1V at 10 mA
≤1V at 10 mA
≤3.5V at 50 mA
≤3.5V at 50 mA
≤500µA
≤500µA
100Hz
100Hz
59 Connector
9512-0200 PVC, Straight
Change last digit of connector number to 2
for 5 meter cable
Notes:
High Sensitivity Ring Sensors have a
dynamic output – a short output pulse
(10 m/sec) is released during metal detection.
The 8102-0900 switching unit must be utilized
for proper operation. Please see accessories
page 34 for more information.
Note: Sensor dimensions in mm.
Wiring Diagrams
Note: Wire colors are applicable on cables
purchased from Altech
80
45
50
50
NPN
6.
2
7
40
4
3 RED
1
2
11
5
80
WHT
19
0
48
36
8
BLK
to
8102-0900
switching
unit
0
12
16
6
90
BL
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
15
DC - 4 WIRE HIGH SENSITIVITY
RING SENSORS
ALUMINUM HOUSING
20-30V DC, 50mA
1 LED for Output Energized
• Applications include the
detection and counting of parts
in punching/pressing operations
• Detection of unwanted metal
in grinding operations
• Complementary outputs available
• Dynamic output – must be
operated with 8102-0900 Unit
• Carries
mark
• IEC(529) IP67 (NEMA 1, 3, 4, 6, 12, 13)
Protection
• Short Circuit Protection
• Reverse Polarity Protection
• Temperature Range: -25 to 70°C
(-13 to 158°F)
Ring Diameter
70mm (2.76 in.)
100mm (3.94)
Sensitivity (min. dia. steel ball)
1.1mm (.039 in.)
1.6mm (.059 in.)
59
59
9711-0059
9700-0159
PNP
(Complementary NO/NC)
NPN
(Complementary NO/NC)
Ripple Voltage
≤10%
≤10%
Voltage Range
20-30V
≤35 mA
20-30V
≤35 mA
Supply Current
Max. Load Current
Voltage Drop Across Sensor
50 mA
50 mA
≤1V at 10 mA
≤1V at 10 mA
≤3.5V at 50 mA
≤500µA
≤500µA
Switching Frequency
100Hz
100Hz
10
0
70
≤3.5V at 50 mA
Max. Leakage Current
7
59 Style Connector
4-pin, Metal, 19mm (.75 in.)
device
7
80
80
36
36
16
6
8
12
0
16
6
8
12
0
Cable or Connector Style Cat. No.
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
16
Accessories
Metric/in. Conversion Table
7.0 mm = .27 in.
8.0 mm = .31 in.
8.5 mm = .33 in.
36.0 mm = 1.41 in.
70.0 mm = 2.75 in.
80.0 mm = 3.15 in.
100.0mm = 3.93 in.
120.0mm = 5.50 in.
160.0mm = 6.29 in.
162.0mm = 6.37 in.
166.0 mm= 6.52 in.
202.0mm = 7.94 in.
260.0mm =10.23 in.
290.0mm =11.41 in.
2 meter (6 ft. 6 in.) DC Cable Assemblies
for Quick Disconnect Sensors
294.0mm = 11.20 in.
305.0mm = 12.00 in.
340.0mm = 13.81 in. This table converts
382.0mm = 15.03 in. millimeters to
397.0mm = 15.62 in. inches in reference
59 Connector
Change last digit of connector number to 2
for 5 meter cable
to the illustrations
included in this
catalog
200mm (7.87 in.)
300mm (11.81 in.)
3.0mm (.118 in.)
5.0mm (.196 in.)
59
59
9703-0159
9704-0159
≤10%
≤10%
20-30V
≤35 mA
20-30V
≤35 mA
50 mA
50 mA
≤1V at 10 mA
≤1V at 10 mA
≤3.5V at 50 mA
≤3.5V at 50 mA
≤500µA
≤500µA
100Hz
100Hz
9512-0200 PVC, Straight
Notes:
High Sensitivity Ring Sensors have a
dynamic output – a short output pulse
(10 m/sec) is released during metal
detection. The 8102-0900 switching unit
must be utilized for proper operation.
Please see accessories page 34 for more
information.
Note: Sensor dimensions in mm.
Wiring Diagrams
NPN
29
4
20
2
Note: Wire colors are applicable on cables
purchased from Altech
162
4
3 RED
1
2
160
WHT
BLK
to
8102-0900
switching
unit
7
39
5
8.
5
8.
30
5
26
29 0
0
34
38 0
2
BL
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
17
DC - 4 WIRE HIGH SENSITIVITY
RING SENSORS
ALUMINUM HOUSING
20-30V DC, 50mA
1 LED for Output Energized
Ring Diameter
• Applications include the
detection and counting of parts
in punching/pressing operations
• Detection of unwanted metal
in grinding operations
• Complementary outputs available
• Dynamic output – must be
operated with 8102-0900 Unit
• Carries
mark
• IEC(529) IP67 (NEMA 1, 3, 4, 6,12,13)
Protection
• Short Circuit Protection
• Reverse Polarity Protection
• Temperature Range: -25 to 70°C
(-13 to 158°F)
130 x 130mm (5.12 x 5.12 in.)
245 x 290mm (9.65 x 11.42 in.)
5mm (.196 in.)
12mm (.472 in.)
59
59
9709-0359
9709-0259
Ripple Voltage
≤10%
≤10%
Voltage Range
Supply Current
20-30V
≤35 mA
20-30V
≤35 mA
Max. Load Current
50 mA
50 mA
Sensitivity (min.. dia. steel ball)
Cable or Connector Style Cat. No.
PNP (Complementary NO/NC)
NPN (Complementary NO/NC)
≤1V at 10 mA
≤1V at 10 mA
≤3.5V at 50 mA
≤3.5V at 50 mA
Max. Leakage Current
≤500µA
≤500µA
Switching Frequency
100Hz
100Hz
Voltage Drop Across Sensor
Note: Sensor dimensions in mm.
29
0
29
31
31
0
13
13
0
5
16
0
7
24
0
19
59 Style Connector
4-pin, Metal, 19mm (.75 in.)
device
108
72
2 meter (6 ft. 6 in.) DC Cable Assemblies
for Quick Disconnect Sensors
Note: Wire colors are applicable on cables
purchased from Altech
Metric/in. Conversion Table
NPN
4
3 RED
WHT
2
9512-0200 PVC, Straight
BL
Change last digit of connector number to 2
for 5 meter cable
34
Wiring Diagrams
1
59 Connector
9
3
32 8
34
Accessories
2
31
7
18
8
7
Notes:
High Sensitivity Ring Sensors have a dynamic
output – a short output pulse (10 m/sec) is
released during metal detection.
The 8102-0900 switching unit must be utilized
for proper operation. Please see accessories
page 34 for more information.
BLK
to
8102-0900
switching
unit
7.0 mm = .27 in.
9.0 mm = .35 in.
31.0 mm = 1.22 in.
72.0 mm = 2.83 in.
108.0 mm= 4.24 in.
130.0 mm= 5.11 in.
160.0 mm= 6.29 in.
188.0 mm
190.0 mm
245.0 mm
290.0 mm
297.0 mm
317.0 mm
323.0 mm
342.0 mm
348.0 mm
= 7.39 in.
= 7.43 in.
= 9.63 in.
=11.42 in.
=11.67 in.
=12.45 in.
=12.72 in.
=13.44 in.
=13.70 in.
This table converts
millimeters to
inches in reference
to the illustrations
included in this
catalog
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
18
DC - 3 WIRE ANALOG
RING SENSORS
18-30V DC, 5mA
1-9 Volt Analog Output
• Analog output voltage
proportional to metal target size
• Carries
mark
Metric/in. Conversion Table
• IEC(529) IP67 (NEMA 1, 3, 4, 6, 12, 13)
Protection
• Short Circuit Protection
• Overload Protection
• Temperature Range: -25 to 70°C (-13 to 158°F)
18.0 mm
20.0 mm
24.0 mm
26.0 mm
35.0 mm
= .70 in.
= .78 in.
= .94 in.
= 1.02 in.
= 1.37 in.
43.0 mm =
58.0 mm =
73.5 mm =
106.0mm =
1.7 in.
2.3 in.
2.9 in.
4.2 in.
This table converts millimeters to inches in reference
to the illustrations included on these pages
Accessories
Ring Diameter
20mm (.79 in.)
43mm (1.69 in.)
Sensitivity (steel ball dia.)
Ø0.5mm - Ø6mm
Ø1mm - Ø20mm
Cable or Connector Style Cat. No.
Cable
Cable
9714-2000
9714-4300
Voltage Range
18-30V DC
18-30V DC
Supply Current
≤10 mA
≤10 mA
Maximum Load Current
5mA
5 mA
Switching Frequency
50Hz
50Hz
Temperature Drift
±0.4V
±0.4V
Repeatability
≤1%
≤1%
Housing Material
ABS
ABS
1-9V DC
1-9V DC
Output Voltage Range
The analog output voltage can be
digitized by the 8100-2100 switching
unit and 8100-2400/2500 modules.
Please see accessories pages 36 & 37
for more information.
Note: Sensor dimensions in mm.
Wiring Diagrams
26
24
10
6
10
6
24
+
43
18
20
18
Fixed Cable
BR
58
58
BLK
Analog
BL
• –
.5
73
.5
73
Fixed Cable
PVC 2m (6 ft. 6 in.).
For 5m (16 ft. 5 in.)
cable length, change
the last two digits of
the part number to 02.
For other cable
lengths and/or PUR
cable, please consult
Altech.
35
Note: Wire colors are applicable to cable
purchased from Altech
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
19
Ultra High
Sensitivity Ring
Sensors
OUTPUT CONNECTION
Output connections are available in the external
electronics control unit. The electronics control unit
features self-testing, digital signal processing, and a
variety of features.
MOUNTING
Shown below is the recommended mounting for various
ring sensors. There must be a metal free area (MFA),
above and below the sensor opening, which is 1.5 times
the diameter of the sensor opening.
Ultra High Sensitivity Rings
35 mm
50 mm
70 mm
100 mm
200 mm
300 mm
52.5 mm
75 mm
105 mm
150 mm
300 mm
450 mm
Smallest Detectable
Fe Particle
0.15
0.25
0.40
0.50
1.00
2.00
mm
mm
mm
mm
mm
mm
MFA= Metal-free area
Distance from ring housing may be reduced in individual
cases after inspection of the installed position.
The size of the MFA depends on the width of the passage.
The values are shown in the table above.
D
Downpipe
1.5 x D = MFA
These sensors operate with an external
control unit, which is included with the
sensors. The control unit operates with
power at 230VAC or can be ordered to
operate at 115VAC. When used for detecting
metal in bulk materials, the speed and
volume of the bulk material must be
controlled within specifications. The
minimum rate of fall is 3cm per second, and
maximum is specified by the maximum
height the bulk material can be dropped,
600mm. The maximum throughput is a
function of the speed and the ring opening
sizes.
MFA
Side view
of pipe
1.5 x D = MFA
Altech Ultra-High Sensitivity Ring Sensors
can detect metal targets that are as little as
0.15mm in diameter. They are used primarily
in applications for detecting small metal
particles in bulk food and animal feed, but
can also be used in many other applications.
The output signals can be processed and
used for open or closed loop control, and for
evaluation of a variety of processes.
Free Passage
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
20
ULTRA HIGH SENSITIVITY RING SENSORS- SELECTION GUIDE
Size
(mm)
0.15
Ø35.5
Ø51.5
Ø71.5
Ø101.5
Ø201.5
Ø301.5
Ø301.5 x Ø301.5
Sensitivity- Minimum Steel Ball Dia.
0.25
0.40
0.5
1.0
2.0
Housing
Material
Page
•
•
Aluminum
Aluminum
Aluminum
Aluminum
Aluminum
Aluminum
Aluminum
22
22
23
23
24
24
25
•
•
•
•
•
Electronics Control Unit
The Electronics Control Unit supplied with
each Ultra High Sensitivity Ring Sensor is
available at 115 VAC or 230 VAC input and
performs all of the necessary functions for the
metal detector system. The ring sensor can be
ordered with the control unit attached to the
sensor or wall mounted. The control unit is
410x210x380 mm and meets IP65 protection
standards. An operating and installation
manual is provided with Ultra High Sensitivity
Sensors.
Electronics Control Unit
Note: All dimensions in mm.
210
max. 570
410
380
380
320
210
Animal Feed
Feed Shoot
The Electronics Control Unit is parameterized via
four push-buttons.
The functions are displayed on the LC
(liquid crystal) display by repeatedly pressing.
Metallic Particle
Hopper
Ring Sensor
Mounting Area
The value of the displayed parameter is
increased or decreased by repeated pressing.
Cable which leads to
Electronics Control Unit
supplied with sensor
✚
Please note: The above Ultra High Sensitivity Ring Sensor diagram is an artist’s rendition of the sensor detecting metal in animal feed. The
metallic particles have been enlarged for demonstration purposes. Please see appropriate sensor type for actual sensitivity measurements.
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
21
RING SENSORS
Ultra High Sensitivity
Dynamic Output
• Applications include the detection
and counting of parts in punching/
pressing operations
• Detection of unwanted small metal in
grinding operations, food & bulk
materials
• Especially useful in detecting metals in
animal feed and grain products
• Carries
mark
Cat. No.
Clear Passage
Switching Time
Smallest Detectable Fe Particle (steel ball)
Max. Throughput
(dependent upon material density)
Operating Voltage
Power Consumption
Max. Fall Height of Bulk Material
Min. Fall Rate
Bulk Material Properties
Metal-free Area
Floating Contacts
9715-1000
51.5 mm
set via display
0.25 mm (diameter)
600 l/h
230VAC/ 50 Hz or 115VAC/ 60 Hz
150 VA
600 mm
3 cm/ sec.
non-conductive
see page 20
2 changeover contacts for metal
detection (230V/ 6A)
2 changeover contacts for fault
message (230V/ 6A)
yes
yes
yes
yes
yes
in separate housing (see page 21)
IP 54
cast aluminum
8219-0100
0 to 50°C
1600 l/h
230VAC/ 50 Hz or 115VAC/ 60 Hz
150 VA
600 mm
3 cm/ sec.
non-conductive
see page 20
2 changeover contacts for metal
detection (230V/ 6A)
2 changeover contacts for fault
message (230V/ 6A)
yes
yes
yes
yes
yes
in separate housing (see page 21)
IP 54
cast aluminum
8219-0100
0 to 50°C
35
50
Self-test
Digital Signal Processor
Digital Interference Signal Filter
4-key Operation
Log Capability
Electronic Control
Ring Protection
Ring Housing
Logging Printer
Temperature
9715-5000
35.5 mm
set via display
0.15 mm (diameter)
7
7
80
80
36
8
36
12
0
16
6
0
12
16
6
8
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
22
Metric/in. Conversion Table
7.0 mm
8.0 mm
35.0 mm
36.0 mm
50.0 mm
70.0 mm
= 0.28 in.
= 0.31 in.
= 1.37 in.
= 1.41 in.
= 1.96 in.
= 2.78 in.
80.0 mm
100.0 mm
120.0 mm
166.0 mm
=
=
=
=
Accessories
3.18 in.
3.94 in.
4.76 in.
6.52 in.
This table converts
millimeters to
inches in reference
to the illustrations
included in this
catalog
9715-2000
71.5 mm
set via display
0.40 mm (diameter)
9715-3000
101.5 mm
set via display
0.50 mm (diameter)
3300 l/h
230VAC/ 50 Hz or 115VAC/ 60 Hz
150 VA
600 mm
3 cm/ sec.
non-conductive
see page 20
2 changeover contacts for metal
detection (230V/ 6A)
2 changeover contacts for fault
message (230V/ 6A)
yes
yes
yes
yes
yes
in separate housing (see page 21)
IP 54
cast aluminum
8219-0100
0 to 50°C
6900 l/h
230VAC/ 50 Hz or 115VAC/ 60 Hz
150 VA
600 mm
3 cm/ sec.
non-conductive
see page 20
2 changeover contacts for metal
detection (230V/ 6A)
2 changeover contacts for fault
message (230V/ 6A)
yes
yes
yes
yes
yes
in separate housing (see page 21)
IP 54
cast aluminum
8219-0100
0 to 50°C
All Ultra High Sensitivity Sensors include
Electronics Control Units and connecting
cables.
70
10
0
Note: Sensor dimensions in mm.
7
7
80
80
36
8
36
0
12
16
6
0
12
16
6
8
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
23
RING SENSORS
Ultra High Sensitivity
Dynamic Output
• Applications include the detection
and counting of parts in punching/
pressing operations
• Detection of unwanted small metal in
grinding operations, food & bulk
materials
• Especially useful in detecting metals in
animal feed and grain products
• Carries
mark
Cat. No.
9715-4000
Clear Passage
201.5 mm
Switching Time
can be set via display
Smallest Detectable Fe Particle (Steel ball)
1.0 mm
Maximum Throughput
(dependent upon material density)
27,600 l/h
Operating Voltage
230VAC/ 50 Hz or 115VAC/ 60 Hz
Power Consumption
150 VA
Max. Fall Height of Bulk Material
600 mm
Min. Fall Rate
3 cm/sec.
Bulk Material Properties
non-conductive
Metal-free Area
see page 20
Floating Contacts
2 changeover contacts for metal
detection (230V/ 6A)
2 changeover contacts for fault
message (230V/ 6A)
Self-test
yes
Digital Sensor Processor
yes
Digital Interference Signal Filter
yes
4-key Operation
yes
Log Capability
yes
Electronic Control
separate housing (see page 21)
Ring Protection
IP 54
Ring Housing
cast aluminum
Logging Printer
8219-0100
Temperature
0 to 50°C
9715-5000
301.5 mm
Can be set via display
2.0 mm
29
4
20
2
62,100 l/h
230VAC/ 50 Hz or 115VAC/ 60 Hz
150 VA
600 mm
3 cm/ sec.
non-conductive
see page 20
2 changeover contacts for metal
detection (230V/ 6A)
2 changeover contacts for fault
message (230V/ 6A)
yes
yes
yes
yes
yes
separate housing (see page 21)
IP 54
cast aluminum
8219-0100
0 to 50°C
160
7
34
38 0
2
39
5
8.
30
5
5
8.
26
29 0
0
162
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
24
Accessories
Metric/in. Conversion Table
7.0 mm
8.5 mm
31.0 mm
72.0 mm
160.0 mm
162.0 mm
202.0 mm
260.0 mm
290.0 mm
=
=
=
=
=
=
=
=
=
0.28 in.
0.34 in.
1.23 in.
1.85 in.
6.35 in.
6.43 in.
8.02 in.
10.32 in.
11.51 in.
294.0 mm
300.0 mm
305.0 mm
330.0 mm
340.0 mm
358.0 mm
360.0 mm
382.0 mm
397.0 mm
=
=
=
=
=
=
=
=
=
11.67 in.
11.91 in.
12.11 in.
13.10 in.
13.39 in.
14.21 in.
14.29 in.
15.17 in.
15.76 in.
This table converts
millimeters to
inches in reference
to the illustrations
included in this
catalog
All Ultra High Sensitivity Sensors include
control units and connecting cables.
9716-5000
301.5 mm
can be set via display
2.0 mm
62,100 l/h
230VAC/ 50 Hz or 115VAC/ 60 Hz
150 VA
600mm
3 cm/ sec.
non-conductive
see page 20
2 changeover contacts for metal
detection (230V/ 6A)
2 changeover contacts for fault
message (230V/ 6A)
yes
yes
yes
yes
yes
separate housing (see page 21)
IP 54
cast aluminum
8219-0100
0 to 50°C
31
0
30
30
0
0
36
33
0
Note: Sensor dimensions in mm.
72
35
8
7
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
25
Flat Pack Sensors
thus limiting the maximum width to 750 mm. Size 95
modules should always have different frequency
numbers in a sandwich construction.
b) Only wide sensors are used for the
upper layer and only narrow sensors for
the bottom layer, or vice versa.
In this case, the sensors can be lined up over any width.
However, it must be noted that a distance of at least 600
mm must be maintained between identical sensors 2.x.
Modules 1F1 to 1F4 can be used.
Flat sensors are flat metal detectors used on
conveyor belts and chutes to detect metallic
impurities in the material being handled.
Flexible System
Flat sensors are available in three different sizes, all
of which can be lined up with one another. This
makes it a simple matter to create the required
detector width from three standard elements. The
width can also be changed at a later date when
using this system. Switching amplifiers are used to
evaluate the signal from flat sensors.
Sandwich
Flat sensors can also be installed above and below
the material being handled. Higher sensitivity can
be achieved in this way.
Form
Flat sensors are designed to engage with the
neighboring modules. This ensures that all the
modules lined up in series have the same sensitivity.
Rules for Lining Up Adjacent Flat Sensors
The following points must be noted in order to avoid
faults due to combining identical flat sensors:
a) A distance of at least 300 mm must be
maintained between sensors with the same
module number.
b) Flat sensors of different types can be lined up
regardless of frequency.
c) In sandwich constructions, a minimum height of
40 mm must be maintained between the upper
and lower sensors.
Rules for Sandwich Construction
a) Flat sensors of the same housing type are
always used in pairs. The same module number
cannot be re-used within such a construction,
Possible Combinations
Sensor Surface
Flat Sensors
Width (mm)
Required Width (mm)
95
140
150-160*
240
250-260*
295-300*
340
350-360*
395-400*
440
450-460*
495-500*
540
550-560*
595-600*
640
650-660*
695-700*
740
750-760*
795-800*
840
850-860*
895-900*
940
950-960*
995-1000*
1040
95
140
95-95
240
95-140-95
95-240
140-240
95-240-95
95-140-240
240-240
95-140-240-95
95-240-240
140-240-240
95-240-240-95
95-140-240-240
240-240-240
95-140-240-240-95
95-240-240-240
140-240-240-240
95-240-240-240-95
95-140-240-240-240
240-240-240-240
95-140-240-240-240-95
95-240-240-240-240
140-240-240-240-240
95-240-240-240-240-95
95-140-240-240-240-240
240-240-240-240-240
* The gap between a size 95 module and its neighboring
element must not exceed 5 mm, otherwise the sensitivity will
be impaired. The overall width can be increased accordingly
in this way.
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
26
Figure 1
300 mm
Module 4F1
Module 1F1
Module 2F1
Module 3F1
Module 2F1
300 mm
Module 1F3
Module 1F1
Module 1F2
Module 2F1
Module 1F1
300 mm
300 mm
Figure 2
Module 2F1-2F4
Module 1F1-1F4
Figure 3
Modules
3F1
1F1
1F2
Module 4F1-4F2
2F1
2F2
3F4
>40 mm
Modules
3F3
1F3
1F4
2F3
2F4
4F2
Max. width 750 mm
2F2
600 mm
2F3
Figure 4
Modules
2F1
2F4
2F1
... etc.
>40 mm
Modules
1F1
1F2
1F3
1F4
1F1
1F2
1F3
1F4
1F1
Sensitivity
Distance
Fe Plate 30 x 30 x 1 mm
Fe Plate 12 x 12 x 1 mm
Nut M 6
Fe Ball dia. 7 mm
Nut M 4
V-washer for M 4
V-washer for M 3
Nut M 2.5
Fe Ball dia. 4.5 mm
Fe Ball dia. 3.0 mm
Fe Ball dia. 2.5 mm
Fe Ball dia. 2.0 mm
Flat Pack Sensor Application
1F2
... etc.
Metal Particle
In mm
75
55
45
35
35
29
26
26
24
15
10
5
The output signal is dynamic. A switching amplifier 8100-1900 or
8100-4000 is required to process the signal. Please see
accessories pages 32 & 33.
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
27
FLAT SENSORS
DC Range
Add-on
Operated via Switching Device
Dynamic Output
• Applications include the detection
of unwanted metals on conveyor belts
and chutes
• Modular construction accommodates
any width
• Carries
mark
Module 1
Module 2
Frequency F1
9869-1000
9869-1100
Frequency F2
9869-1030
9869-1130
Frequency F3
9869-1031
9869-1131
Frequency F4
9869-1032
9869-1132
Cat. No.
Installation
Width
Height
Speed of Material
Flush
140 mm
240 mm
28 mm
28 mm
See switching device
See switching device
Type of Protection
Connection
Housing Material
IP 67
IP 67
2 m, PVC
2 m, PVC
Aluminum
Aluminum
-10° C to 60°C
-10° C to 60°C
9869 Series can only be operated with
8100-1930 or 8100-4030 Series (115VAC)
or
8100-1900 or 8100-4030 Series (220VAC)
9869 Series can only be operated with
8100-1930 or 8100-4030 Series (115VAC)
or
8100-1900 or 8100-4030 Series (220VAC)
Ambient Temperature
Switching Amplifier
Flush
140
240
100
70
40
70
40
7
205
192
178
178
205
192
7
45°
40
30
20
45°
40
30
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
28
20
Metric/in. Conversion Table
7.0
16.0
20.0
25.0
30.0
40.0
70.0
mm
mm
mm
mm
mm
mm
mm
=
=
=
=
=
=
=
0.27
0.63
0.79
0.98
1.18
1.58
2.76
in.
in.
in.
in.
in.
in.
in.
95.0
100.0
140.0
178.0
192.0
205.0
240.0
Switching Devices
mm
mm
mm
mm
mm
mm
mm
=
=
=
=
=
=
=
3.74
3.94
5.51
7.01
7.56
8.07
9.45
in.
in.
in.
in.
in.
in.
in.
This table converts
millimeters to
inches in reference
to the illustrations
included in this
catalog
115 VAC Switching Devices:
Series
8100-4030
8100-1930
Flat Sensor
Capacity 5
Capacity 1
220 VAC Switching Devices:
Series
8100-4000
8100-1900
Module 3
Module 4
Flat Sensor
Capacity 5
Capacity 1
Please see accessories pages 32 & 33
for more information.
9869-0900
9869-0930
9869-0931
9869-0932
Flush
Flush
95 mm
95 mm
28 mm
28 mm
See switching device
See switching device
IP 67
IP 67
2 m, PVC
2 m, PVC
Aluminum
Aluminum
-10° C to 60°C
-10° C to 60°C
9869 Series can only be operated with
8100-1930 or 8100-4030 Series (115VAC)
or
8100-1900 or 8100-4030 Series (220VAC)
9869 Series can only be operated with
8100-1930 or 8100-4030 Series (115VAC)
or
8100-1900 or 8100-4030 Series (220VAC)
Note: Sensor dimensions in mm.
95
95
25
25
40
205
192
178
45°
192
178
205
7
45°
7
25
20
40
16
25
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
29
Lar ge-Ar ea Sensors
Large-Area DC Sensors
9869-0000/ 9869-0030
Large-Area are flat metal detectors. They are used on
conveyor belts and chutes to detect metallic impurities in
the material being handled. Damage, further along in the
process, to machines can be avoided this way. The
output signal is dynamic. A switching amplifier 81001930 or 8100-4030 is required to process the signal. The
large-area sensors 9869-0300 and 9869-0030 differ with
regard to their working frequency.
Dimensions
Fe ball dia. 2 mm
Fe ball dia. 3 mm
Fe ball dia. 3.5 mm
Fe ball dia. 4 mm
Washer for M4
Nut M6
Steel Plates
12 x 12 mm
30 x 30 mm
220 x 330 mm
Rated Switch Gap
(mm)
6
12
15
18
24
40
Possible Combinations
Side-by-side
9869-0000
9869-0030
9869-0000
700 mm
50
70
150
9869-0000
9869-0030
9869-0000
9869-0030
1000 mm
Installation
One Above the Other
Large-Area sensors can be installed in metal surroundings
so that they are flush with their surrounding. In other
words:
Metal may reach up to the sensor housing from the sides
and from below, but it must not protrude beyond the
surface of the sensor.
9869-0000
at least 20 mm
9869-0030
9869-0000
9869-0030
9869-0000
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
30
• Applications include the
LARGE-AREA SENSORS
detection of unwanted metals
DC Range
Operated via Switching Device on conveyor belts and chutes
• Modular construction
Dynamic Output
accommodates any width
• Carries
Metric/in. Conversion Table
4.0 mm =
7.0 mm =
10.0 mm =
23.0 mm =
162.0 mm =
0.16 in.
0.28 in.
0.40 in.
0.91 in.
6.37 in.
178.0
194.0
280.0
350.0
mm
mm
mm
mm
=
=
=
=
7.00
7.62
11.00
13.76
in.
in.
in.
in.
This table converts
millimeters to
inches in reference
to the illustrations
included in this
catalog
mark
Cat. No.
Frequency F1
9869-1000
Frequency F2
9869-0030
Installation
Width
Height
Parts to be Detected
Flush
Flush
350 mm
350 mm
23 mm
23 mm
0.1 m/s to 10 m/s
0.1 m/s to 10 m/s
Speed of Material
See switching device
See switching device
Rated Sensing Distance (Sn)
See table on page 30
See table on page 30
Type of Protection
IP 67
IP 67
Connection
2 m cable
2 m cable
Housing Material
Aluminum
Aluminum
Ambient Temperature
-10° C to 70° C
Note:
-10° C to 70° C
9869 Series can only be operated
with 8100-1930 or 8100-4030
Series switching devices.
Please see pages 32, 33
9869 Series can only be operated
with 8100-1930 or 8100-4030
Series switching devices.
Please see pages 32, 33
Note: Sensor dimensions in mm.
7
red
white
162
178
blue
194
4
10
10
280
350
162
178
194
7
280
350
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
31
Accessories
SWITCHING DEVICES
5 Add-on Flat Sensors
5 Large-area Sensors
• Operates with up to 5 Flat Pack
Sensors or 5 Large-area Sensors
• Models available in 115 or 220 VAC
• Carries
mark
This switching unit is especially suitable for
applications in which Flat Packs or Large
Area Sensors detect material to be conveyed
for foreign metal matters. The following
performance
range
is
achieved:
• conveyor stop, if metal is detected
• conveyor return motion, after metal
detection (in connection with motor
starting contactor)
• conveyor return time adjustable from
1 sec to 240 sec
• adjustable sensitivity
• manual or automatic restart of conveyor
• optical signal (LED) if metal is identified
Cat. No.
Metric/in. Conversion Table
5.0
7.0
13.5
23.5
46.0
60.0
mm =
mm =
mm =
mm =
mm =
mm =
0.20 in.
0.76 in.
0.53 in.
0.93 in.
1.81 in.
2.36 in.
124.5 mm =
135.0 mm =
160.0 mm =
187.0 mm =
283.0 mm =
8100-4000
4.89 in.
5.31 in.
6.29 in.
7.35 in.
11.12in.
This table converts
millimeters to
inches in reference
to the illustrations
included in this
catalog
8100-4030
Supply Voltage:
220VAC
115VAC
Operating Frequency:
50/60Hz
50/60Hz
Temperature Range:
-10°C to 50°C (32 - 130°F)
-10°C to 50°C (32 - 130°F)
IP 44
IP 44
250VAC/ 5A/ 1250 VA
115VAC/ 5A/ 575 VA
1 x NO belt reverse
1 x NO belt forward
250VAC/ 5A/ 1250 VA
115VAC/ 5A/ 575 VA
1 x NO belt reverse
1 x NO belt forward
Protection:
Relay Outputs:
Alarm Contacts:
Inputs for Sensors:
Detection Speed:
1 x NO, 1 x NC
1 x NO, 1 x NC
5 (one for each sensor)
5 (one for each sensor)
1 m to 13 m/ min.
Additional speeds upon request
1 m to 13 m/ min.
Additional speeds upon request
For >5A current or three-phase conveyor belt
operation it is required to operate this
switching unit by means of the 81004100/8100-4130 motor starting contactor.
Please see accessories page 35 for more
information.
Note: Dimensions in mm.
283
60
135
187
124.5
23.5
7
5
6 x 28
160
46
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
32
Accessories
SWITCHING DEVICES
1 Add-on Flat Sensor
1 Large-area Sensor
• Operates with 1 Flat Pack
Sensor or 1 Large-area Sensor
• Models available in 115 or 220 VAC
• Carries
mark
This DIN Rail mountable switching
device is designed specifically for Flat
Pack or Large-Area Sensors.
Switching device contains:
• a solid short circuit protected power
supply
• a control unit with adjustable pulse
duration of 10 ms - 10 sec. The
output signal can be re-triggered.
• a transistor output and relay SPDT
contact
mm =
mm =
mm =
mm =
0.19
1.38
1.97
2.36
8100-1900
in. 75.0 mm = 2.95 in.
in. 90.0 mm = 3.53 in.
in. 110.0 mm = 4.33 in.
in.
This table converts
millimeters to
inches in reference
to the illustrations
included in this
catalog
8100-1930
Supply Voltage:
230VAC
115VAC
Operating Frequency:
50/60Hz
50/60Hz
Temperature Range:
-10°C to 50°C (32 - 130°F)
-10°C to 50°C (32 - 130°F)
Output Voltage:
(to supply sensor)
15V DC, short circuit proof
15V DC, short circuit proof
Transistor Output:
NO, pnp
NO, pnp
Max. Load Current:
Residual Current:
Relay Output:
30 mA
30 mA
≤ 10 mA
≤ 10 mA
1 changeover, floating
1 changeover, floating
Max. Switching Voltage:
250VAC
250VAC
Max. Switching Current:
5 A (ohmic load)
5 A (ohmic load)
1 m to 13 m/ min.
Additional speeds upon request
1 m to 13 min.
Additional speeds upon request
Detection Speed:
Note: Dimensions in mm.
110
The sensitivity of the Flat Pack Sensor
can be adjusted by way of the
potentiometer. The switching mode is
indicated by an LED with the help of
outside acoustic/optic warning signals
and the conveyor belt can be stopped.
Cat. No.
Metric/in. Conversion Table
ø4.8
35.0
50.0
60.0
60
75
35
50
Ø4.8
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
33
Accessories
SWITCHING DEVICES
For High Sensitivity Ring
Sensors
The amplifier is intended to evaluate the
dynamic outputs of high sensitivity rings. It is
also used as a time relay for NPN Sensors.
Amplifier contains:
• a stabilized short-circuit protected
power supply
• circuitry for adjustable pulse duration
of output signal
• a transistor output and relay output
Cat. No.
Metric/in. Conversion Table
ø.48 mm = 0.19 in. 60.0 mm = 2.36 in.
35.0 mm = 1.38 in. 75.0 mm = 2.95 in.
50.0 mm = 1.97 in. 110.0 mm = 4.32 in.
8102-0900
8102-0930
230VAC
115VAC
Supply Voltage:
This table converts
millimeters to
inches in reference
to the illustrations
included in this
catalog
Operating Frequency:
50/60Hz
50/60Hz
Temperature Range:
-10°C to 50°C (32 - 130°F)
-10°C to 50°C (32 - 130°F)
Output Voltage:
(to supply sensor)
24V DC, short circuit proof
24V DC, short circuit proof
Max. Load Current:
80 mA
80 mA
Residual Current:
10 mA
10 mA
1 changeover, floating
1 changeover, floating
Relay Output:
Max. Switching Voltage:
250VAC
250VAC
Max. Switching Current:
5 A (ohmic load)
5 A (ohmic load)
1100 VA
1100 VA
Permissible Switching
Capacity:
Note: Dimensions in mm.
110
Features:
• adjustable pulse duration of output
signal from 10 ms to 18 sec.
• indication of output signal by LED
• output signal can be retriggered
• Adjustable Pulse Duration of
the output signal
• Short circuit protection
• Transistor and relay output
• LED for energized output
• Adjustable output timing
delays from 10 msec to
18 seconds
60
75
35
50
Ø4.8
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
34
Accessories
SWITCHING DEVICES
Motor Contactor
• Switches three phase power for
conveyor motors
Motor starting contactor is be used in
connection with the five-fold Switching Unit
8100-4000/4030, when:
• the current of load (conveyor belt) is
greater than 5 A
• the conveyor is operated by a threephase mains
• the conveyor return motion is to be
realized (possible with three-phase
conveyors only)
Metric/in. Conversion Table
ø4.8 mm = 0.11 in. 100.0 mm = 3.93 in.
70.0 mm = 2.75 in. 115.0 mm = 4.52 in.
Cat. No.
8100-4100
8100-4130
230VAC/ 1ø
400VAC/ 3ø
115VAC/ 1ø
190VAC/ 3ø
440V/ 3000 VA/ 3ø
240V/ 1500 VA/ 3ø
200V/ 1500 VA/ 3ø
115V/ 750 VA/ 3ø
440V/ 3000 VA/ 3ø
240V/ 1500 VA/ 3ø
200V/ 1500 VA/ 3ø
115V/ 750 VA/ 3ø
-10°C to 40°C (32 - 120°F)
-10°C to 40°C (32 - 120°F)
IP 50 (housing)
IP 20 (terminals)
IP 50 (housing)
IP 20 (terminals)
Plastic
Plastic
Input Voltage:
Contact Loading:
Temperature Range:
Protection:
This table converts
millimeters to
inches in reference
to the illustrations
included in this
catalog
Housing Material:
115
Note: Dimensions in mm.
Ø4.8
100
70
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
35
Accessories
8100-2400/8100-2500
Analog Input Multi-Function
Switching Unit
The Multi-Function Amplifier Types 81002400 and 8100-2500 operate in
conjunction with either one of the Analog
sensors 9914-0800, 9914-1000, 99141133, 9814-2133, 9714-2000 or 97144300. It operates with customer supplied
DC voltage, 18-30V DC, and converts the
analog signal to three (3) different outputs
for the 8100-2400. The 8100-2500 has
one output, an 8 bit digital output.
The 8100-2500, 8-bit digital output divides
the analog voltage into 256 individual
increments which results in a resolution of
10µm/bit (.0004 in./bit). All outputs are
protected against short circuits, and the
unit is protected from Polarity reversal.
• 8100-2400 has choice of 3 outputs
– Analog Voltage
– Analog Current
– 4 Bit Digital
• 8100-2500 has an 8 bit digital output
• Output protected against short
circuits and polarity reversal
Cat. No.
8100-2400
Supply Voltage:
18-30VDC
18-30VDC
0 to 60°C (32 to140°F)
0 to 60°C (32 to140°F)
Analog Voltage Output:
0 to 10V
–
Analog Current Output:
0 to 20mA or
4 to 20mA (jumper)
–
4 bit open collector, PNP
8 bit open collector, PNP
Temperature Range:
Digital Output 1:
Max. load current:
Voltage drop:
Max. Switching Voltage:
Digital Output 2:
8100-2500
20mA
20mA
≤3.5V at 20mA
≤3.5V at 20mA
30V
30V
–
8 bit TTL output
VQH
–
≤4.5V
IQH
–
≤2mAV
VQL
–
≤0.3V
IQL
–
≤6mA
8100-2400
8100-2500
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
36
Accessories
• Provides 24V DC for Sensors
• Choice of 4 Outputs
Metric/in. Conversion Table
ø4.8 mm = 0.11 in. 100.0 mm = 3.93 in.
70.0 mm = 2.75 in. 115.0 mm = 4.52 in.
– Analog Voltage
– Analog Current
– 4 Bit Digital
– Relays (3) with LED indicators
• Compatible with all Altech
Analog Sensors
The Multi-Function Amplifier Types 81002100/2130 operates in conjunction with
either one of the analog sensors 9914-0800,
9414-0800, 9414-0900, 9914-1000, 98141133, 9814-2133, 9714-2000 or 9714-4300.
It contains a power supply for the sensor
voltage (24V DC) and converts the analog
signal of the sensors to four different outputs.
1. Analog voltage output:
0-10V DC, max 5mA.
2. Analog current output:
0-20mA, max. load resistance 500Ω.
3. Digital Output:
four bit, open collector, NPN,
"active low".
4. Relay Output:
3 relays for triggering point are built in
(change over contact, SPDT).
Load voltage: 220V AC
Load current: 5A (resistive)
Switching capacity: 1100VA
The switching point of each relay can
be adjusted by a potentiometer and is
indicated by individual LED's.
Settings:
Three Relays with switching thresholds
can be chosen by means of three
integrated
potentiometers.
When
reaching the switching threshold, the
corresponding LED will light up.
In addition to Units 8100-2100 and 81002130, there are two Analog Modules
available to be mounted onto DIN/EN
mounting rails.
• Module 8100-2400 with:
-Analog voltage output
-Analog current output
-4-bit digital output
• Module 8100-2500 with:
-8-bit digital output
Modules 8100-2400 and 8100-2500 are
described on page 36.
Cat. No.
8100-2100
This table converts
millimeters to
inches in reference
to the illustrations
included in this
catalog
8100-2130
Supply Voltage:
220VAC
110VAC
Operating Frequency:
50/60Hz
50/60Hz
Temperature Range:
-10°C up to +60°C (32 - 140°F)
-10°C up to +60°C (32 - 140°F)
24V
24V
Supply Voltage for
Analog Sensor
Note: Dimensions in mm.
115
8100-2100/2130
Power & Switching Units
for Analog Sensors
70
100
Ø4.8
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
37
Accessories
8300-0100/0500
Power & Switching Units
for NPN and PNP Sensors
Metric/in. Conversion Table
• Short circuit protection
• Temperature range:
– -10 to 50°C (14 - 122°C)
• Type 8300-0100: 230V
• Type 8300-0500: 110V
• LED for output energized
Cat. No.
8300-0100
This table converts
millimeters to
inches in reference
to the illustrations
included in this
catalog
8300/0500
Supply Voltage:
230VAC
110VAC
Operating Frequency:
50/60Hz
50/60Hz
Temperature Range:
-10°C up to +50°C
-10°C up to +50°C
Output Voltage:
(for sensor supply)
24V, stabilized and
short circuit-proof
24V, stabilized and
short circuit-proof
Max. Load Current:
120mA
120mA
Relay Output:
SPDT
SPDT
Max. Switching Voltage:
250VAC
250VAC
Max. Switching Current:
5A (ohmic load)
5A (ohmic load)
Max. Switching Capacity:
1100VA
1100VA
110
The Universal Power and Switching Unit
is used to supply power for sensors and
provide a relay output of the sensor
status. The unit is DIN Rail mountable
and can supply power for one NPN or
PNP sensor.
ø4.8 mm = 0.19 in. 60.0 mm = 2.36 in.
35.0 mm = 1.38 in. 75.0 mm = 2.95 in.
50.0 mm = 1.97 in. 110.0 mm = 4.32 in.
60
75
35
50
Ø4.8
Note: Dimensions in mm.
Cable Assembly
9512-0200
2m (6 ft.) straight 4 pin metal plug & cable for connector 59
Pin 3
Red
Pin 4
Blue
Ø.748
(19)
1.77
(45)
Pin 2
White
Pin 1
Black
Note: Dimensions in inches (mm).
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
38
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
