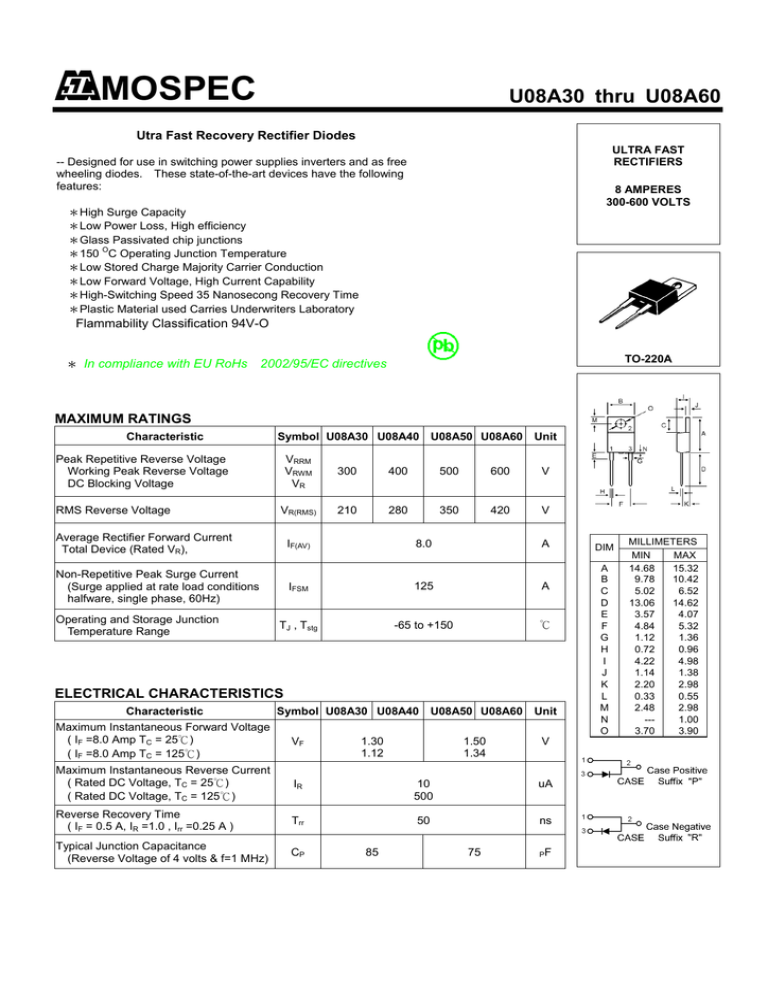

MOSPEC
U08A30 thru U08A60
Utra Fast Recovery Rectifier Diodes
ULTRA FAST
RECTIFIERS
-- Designed for use in switching power supplies inverters and as free
wheeling diodes. These state-of-the-art devices have the following
features:
8 AMPERES
300-600 VOLTS
High Surge Capacity
Low Power Loss, High efficiency
Glass Passivated chip junctions
150 OC Operating Junction Temperature
Low Stored Charge Majority Carrier Conduction
Low Forward Voltage, High Current Capability
High-Switching Speed 35 Nanosecong Recovery Time
Plastic Material used Carries Underwriters Laboratory
Flammability Classification 94V-O
TO-220A
In compliance with EU RoHs 2002/95/EC directives
MAXIMUM RATINGS
Characteristic
Symbol U08A30 U08A40 U08A50 U08A60 Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
VRRM
VRWM
VR
300
400
500
600
V
VR(RMS)
210
280
350
420
V
Average Rectifier Forward Current
Total Device (Rated VR),
Non-Repetitive Peak Surge Current
(Surge applied at rate load conditions
halfware, single phase, 60Hz)
Operating and Storage Junction
Temperature Range
8.0
IF(AV)
IFSM
125
TJ , Tstg
-65 to +150
A
A
ELECTRICAL CHARACTERISTICS
Characteristic
Symbol U08A30 U08A40 U08A50 U08A60 Unit
Maximum Instantaneous Forward Voltage
( IF =8.0 Amp TC = 25 )
V
VF
1.30
1.50
1.12
1.34
( IF =8.0 Amp TC = 125 )
Maximum Instantaneous Reverse Current
( Rated DC Voltage, TC = 25 )
( Rated DC Voltage, TC = 125 )
IR
10
500
uA
Reverse Recovery Time
( IF = 0.5 A, IR =1.0 , Irr =0.25 A )
Trr
50
ns
Typical Junction Capacitance
(Reverse Voltage of 4 volts & f=1 MHz)
CP
85
75
PF
DIM
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
MILLIMETERS
MIN
MAX
14.68
15.32
9.78
10.42
5.02
6.52
13.06
14.62
3.57
4.07
4.84
5.32
1.12
1.36
0.72
0.96
4.22
4.98
1.14
1.38
2.20
2.98
0.33
0.55
2.48
2.98
--1.00
3.70
3.90
U08A30 Thru UF08A60
FIG-3 FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD RECTIFIED CURRENT (Amp.)
AVERAGE FORWARD RECTIFIED CURRENT (Amp.)
FIG-1 TYPICAL FORWARD CHARACTERISITICS
U08A30-40
U08A50-60
LEAD TEMPERATURE ( )
FIG-4TYPICAL JUNCTION CAPACITANCE
U08A30-40
U08A50-60
U08A50-60
REVERSE VOLTAGE (Volts.)
FIG-5 PEAK FORWARD SURGE CURRENT
U08A30-40
PERCENT OF PEAK REVERSE VOLTAGE ( )
PEAK FORWARD SURGE CURRENT (Amp.)
INSTANTANEOUS REVERSE CURRENT (uA.)
FIG-2 TYPICAL REVERSE CHARACTERISTICS
JUNCTION CAPACITANCE (PF)
FORWARD VOLTAGE (Volts)
NUMBER OF CYCLES AT 60 Hz
Set time base for 10/20 ns/cm
FIG-6 Reverse Recovery Time Characteristic and Test Circuit Diagram
