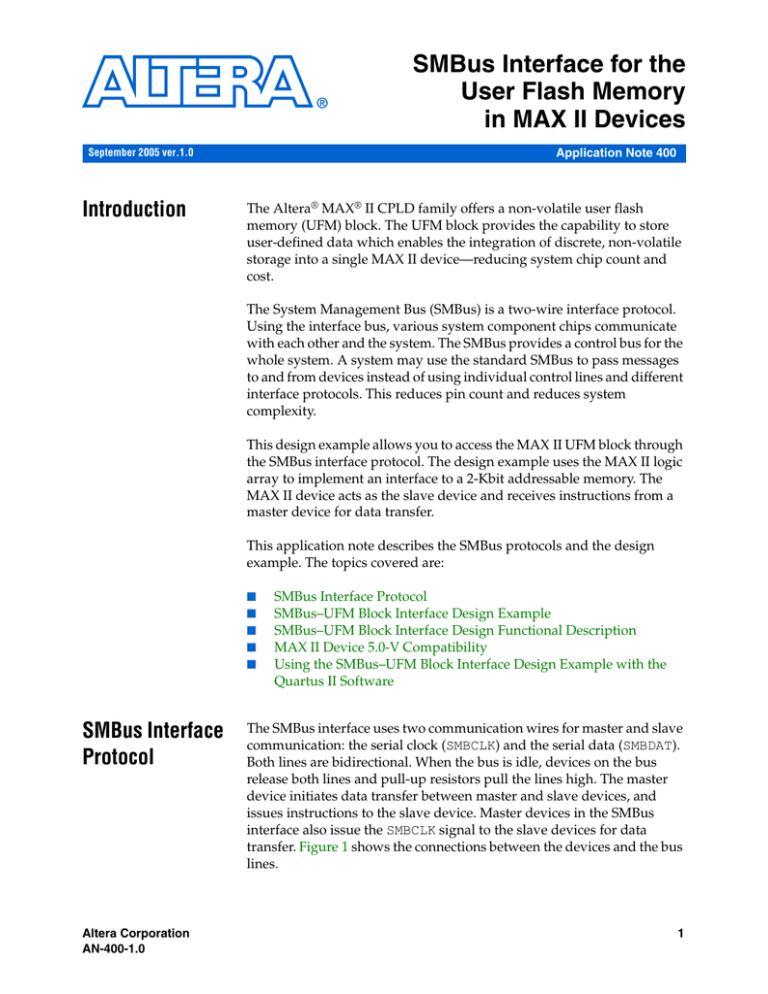

SMBus Interface for the
User Flash Memory
in MAX II Devices
Application Note 400
September 2005 ver.1.0
Introduction
The Altera® MAX® II CPLD family offers a non-volatile user flash
memory (UFM) block. The UFM block provides the capability to store
user-defined data which enables the integration of discrete, non-volatile
storage into a single MAX II device—reducing system chip count and
cost.
The System Management Bus (SMBus) is a two-wire interface protocol.
Using the interface bus, various system component chips communicate
with each other and the system. The SMBus provides a control bus for the
whole system. A system may use the standard SMBus to pass messages
to and from devices instead of using individual control lines and different
interface protocols. This reduces pin count and reduces system
complexity.
This design example allows you to access the MAX II UFM block through
the SMBus interface protocol. The design example uses the MAX II logic
array to implement an interface to a 2-Kbit addressable memory. The
MAX II device acts as the slave device and receives instructions from a
master device for data transfer.
This application note describes the SMBus protocols and the design
example. The topics covered are:
■
■
■
■
■
SMBus Interface
Protocol
Altera Corporation
AN-400-1.0
SMBus Interface Protocol
SMBus–UFM Block Interface Design Example
SMBus–UFM Block Interface Design Functional Description
MAX II Device 5.0-V Compatibility
Using the SMBus–UFM Block Interface Design Example with the
Quartus II Software
The SMBus interface uses two communication wires for master and slave
communication: the serial clock (SMBCLK) and the serial data (SMBDAT).
Both lines are bidirectional. When the bus is idle, devices on the bus
release both lines and pull-up resistors pull the lines high. The master
device initiates data transfer between master and slave devices, and
issues instructions to the slave device. Master devices in the SMBus
interface also issue the SMBCLK signal to the slave devices for data
transfer. Figure 1 shows the connections between the devices and the bus
lines.
1
Preliminary
SMBus Interface for the User Flash Memory in MAX II Devices
Figure 1. The SMBus Line Connections
VDD = 5.0 V
Ro
SMBus
device
SMBus
device
SMBCLK
SMBDAT
The data length in the SMBus interface is an 8-bit long byte transfer with
the most significant bit (MSB) transferred first. No restrictions exist on the
number of bytes transferred. However, an acknowledge bit must follow
every transfer byte. If the slave device is too busy to receive or transmit
data, it can force the master device into the wait state by holding the clock
line SMBCLK low. The data reception and transmission resumes when the
slave device releases the SMBCLK clock line. Figure 2 shows a typical data
transfer in the SMBus.
Figure 2. A Typical Data Transfer
S
Slave Address
(1010110)
Wr
(0)
From Master to Slave
A
Data Byte
A
P
From Slave to Master
The following are the protocol definitions for the SMBus interface.
Bus Lines Are Free
Both SMBCLK and SMBDAT high indicate that the bus lines are free. A
master device can initiate a new data transfer when the bus lines are free.
Data Validity
Changes to the SMBDAT line while the SMBCLK line is high, indicate a
special condition, such as a Start, Stop, or Repeated Start condition.
Figure 3 shows the data validity.
2
Preliminary
Altera Corporation
SMBus Interface Protocol
Figure 3. Data Validity
SMBDAT
SMBCLK
Data Line
Stable;
Data Valid
Change
of Data
Allowed
Start Condition (S)
A high-to-low transition on the SMBDAT line, while SMBCLK remains high,
indicates a Start condition. A master device issues a Start condition to
initiate a data transfer. When an SMBus-compatible device receives a
Start condition, the device must reset its bus logic to anticipate the
addressing from the master device for new communication.
Stop Condition (P)
A low-to-high transition on the SMBDAT line, while SMBCLK remains high,
indicates a Stop condition. A master device issues a Stop condition to end
a communication or data transfer and to free the bus line. A device cannot
issue a Stop condition immediately after a Start or Repeat Start condition.
Figure 4 shows the Start and Stop conditions.
Figure 4. Start & Stop Conditions
SMBCLK
S
Start Condition
P
Stop Condition
Repeat Start (Sr)
The Repeat Start condition is identical to the Start condition. The master
device uses Repeat Start between a Start and Stop condition to continue
holding the bus busy while it initiates a new communication with other
Altera Corporation
3
Preliminary
SMBus Interface for the User Flash Memory in MAX II Devices
devices. When an SMBus-compatible device receives a Repeat Start
condition, the device must reset its bus logic to anticipate the addressing
from the master device for new communication.
Device Addressing
When a master device issues the Start or Repeat Start condition, it starts
with the first seven-bit transfer for device addressing. Device addressing
tells an SMBus-compatible device that the master device has selected it
for communication.
Read or Write (Rd/Wr)
The read or write is the eighth bit sent after the 7-bit device addressing. A
value of 1 indicates a read operation, and a value of 0 indicates a write
operation.
Memory Addressing
Memory addressing allows you to access a specific UFM block address.
Specify an 8-bit address in order to write to or read from that address in
the UFM block sector 0.
Acknowledge (A)
Immediately after receiving the entire 8 bits of data transferred by the
transmitting device, the receiving device issues an Acknowledge bit. The
receiving device pulls the SMBDAT line low when the SMBCLK clock
pulses high to acknowledge the data transfer. Either the master or slave
device can issue the Acknowledge bit, depending on the direction of the
data transfer. To indicate Not-Acknowledge, the receiving device pulls
the SMBDAT line high during the SMBCLK clock pulse.
If the master device does not receive the Acknowledge bit, or the slave
device issued Not-Acknowledge after transferring a byte, the master
device must generate a Stop condition to abort the transfer, or generate a
Repeat Start condition to start a new transfer. If the slave device does not
receive an Acknowledge bit after transferring a byte, the slave device
terminates the data transfer and goes back to stand-by mode. However,
at the last byte of transfer, if the master device does not generate an
Acknowledge bit, it generates a Stop condition to indicate the end of a
transfer.
4
Preliminary
Altera Corporation
SMBus–UFM Block Interface Design Example
SMBus–UFM
Block Interface
Design Example
For this design example, the MAX II device becomes a slave device for the
SMBus interface. The master device generates clock signals on the
SMBCLK line for communication on the SMBus interface. The SMBCLK
signal is always an input for the SMBus interface design in the MAX II
device. The master device transfers data to the MAX II slave device on the
SMBDAT line at the positive clock edge of the SMBCLK clock. The slave
device transfers data to the master device on the SMBDAT line at the
negative clock edge of the SMBCLK clock.
Figure 5 shows the interface between the MAX II UFM block and the
SMBus through the design example. Figure 6 shows the circuit diagram
for the SMBus interface design.
Figure 5. Interface between the MAX II UFM Block and the SMBus
MAX II
SMBus to
UFM Logic
Interface
UFM
SMBCLK
SMBus
Altera Corporation
SMBDAT
5
Preliminary
SMBus Interface for the User Flash Memory in MAX II Devices
Figure 6. Circuit Diagram for SMBus Interface Design
SMBCLK
SMBDAT
MAX II CPLD
Start/Stop
Detection
SMBus
Interface
Control
Logic
Read, Write,
Erase State
Machine
Address &
Data
Registers
SMBus–UFM
Block Interface
Design
Functional
Description
Program
Erase
OSC Enable
ARSHFT
ARCLK
ARDin
DRSHFT
DRCLK
DRDin
UFM
Block
DRDout
Busy
OSC
RTPBusy
The SMBus interface design allows access to all 256 addresses in sector 0
of the UFM block. However, you can access only the upper byte [15..8]
of each address. This emulates a 2-Kbit serial EEPROM memory. The
design does not overwrite data stored in the lower byte [7..0] of each
address unless you perform the erase operation to erase a sector of the
UFM block.
By default, the MAX II device uses the slave address of 1010110X, where
“X” is slave address bit[0]. This bit is used to indicate a read or write
operation. The first 7 bits 1010110 indicate the UFM block slave device.
Other devices in the same bus should not use the same address. You can
modify the Verilog HDL source code to change the slave address value.
The Interface Operations
This SMBus-UFM block interface design example allows four operations:
■
■
■
■
Single-Byte Read Operation
Page Read Operation
Write Operation
Erase Operation
Single-Byte Read Operation
The single-byte read operation allows you to read the data byte from a
specific UFM block address. The master device issues a Repeat Start for
the transfer and does not need to issue an Acknowledge bit after receiving
6
Preliminary
Altera Corporation
SMBus–UFM Block Interface Design Functional Description
the data byte from the slave device. The master device ends the
transmission by issuing a Stop condition after receiving the data. Figure 7
shows the interface protocol for the single-byte read operation.
Figure 7. Single-Byte Read Operation
S
Slave Address
(1010110)
Wr
(0)
A
UFM Address
[7..0]
From Master to Slave
A
Sr
Slave Address
(1010101)
Rd
(1)
A
Data
Byte
P
From Slave to Master
The following describes the single-byte read operation sequence.
1.
The master device transmits the first byte, where the first 7 bits
(1010 110) are for slave device addressing. The eighth bit is for
read or write commands, and it has the value of 0 to indicate a write
operation.
2.
The slave device issues a 1-bit Acknowledge signal.
3.
The master device transmits a second byte for memory addressing
in the UFM block. These are bits [7..0] of the UFM block address.
4.
The slave device issues a 1-bit Acknowledge signal.
5.
The master device issues a Repeat Start condition.
6.
The master device transmits the third byte, where the first 7 bits
(1010 110) are for device addressing. The eighth bit is for read or
write commands, and it has the value of 1 to indicate a read
operation.
7.
The slave device issues a 1-bit Acknowledge signal.
8.
The slave device transmits one data byte.
9.
The master device issues a Stop condition.
Page Read Operation
This operation allows you to read the upper-data byte from all addresses
in sector 0 of the UFM block. The master device sends an Acknowledge
bit after receiving each data byte from the slave device, except for the last
byte. The master device ends the transmission by issuing a Stop signal
after receiving the last data byte. Figure 8 shows the interface protocol for
the page read operation.
Altera Corporation
7
Preliminary
SMBus Interface for the User Flash Memory in MAX II Devices
Figure 8. Page Read Operation
S
Slave Address
(1010110)
First
Data Byte
Wr
(0)
A
A
UFM Address
[7..0]
Second
Data Byte
From Master to Slave
A
A
Sr
...
Rd
(1)
Slave Address
(1010101)
Last
Data Byte
A
P
From Slave to Master
The following describes the page read operation sequence.
1.
The master device transmits the first byte, where the first 7 bits
(1010 110) are for slave device addressing. The eighth bit is for
read or write commands, and it has the value of 0 to indicate a write
operation.
2.
The slave device issues a 1-bit Acknowledge signal.
3.
The master device transmits a second byte for memory addressing
in the UFM block. These are bits [7..0] of the UFM block address.
4.
The slave device issues a 1-bit Acknowledge signal.
5.
The master device issues a Repeat Start condition.
6.
The master device transmits the third byte, where the first 7 bits
(1010 110) are for device addressing. The eighth bit is for read or
write commands, and it has the value of 1 to indicate read
operation.
7.
The slave device issues a 1-bit Acknowledge signal.
8.
The slave device transmits the first data byte.
9.
The master device issues a 1-bit Acknowledge signal.
10. The slave device transmits the next data byte.
11. Repeat Steps 9 and 10 until the last data byte.
12. The master device issues a Stop condition.
8
Preliminary
Altera Corporation
SMBus–UFM Block Interface Design Functional Description
Write Operation
The write operation allows you to write one data byte to the upper byte
of a specific address in the UFM block sector 0. Figure 9 shows the
interface protocol for the write operation.
Figure 9. Write Operation
S
Slave Address
(1010110)
Wr
(0)
A
UFM Address
[7..0]
From Master to Slave
A
Data Byte
A
P
From Slave to Master
The following describes the write operation sequence.
1.
The master device transmits the first byte, where the first seven bits
(1010 110) are for device addressing. The eighth bit is for read or
write commands, and it has the value of 0 to indicate a write
operation.
2.
The slave device issues a 1-bit Acknowledge signal.
3.
The master device transmits a second byte for memory addressing
in the UFM block. These are bits [7..0] of the UFM block address.
4.
The slave device issues a 1-bit Acknowledge signal.
5.
The master device transmits a third byte as data.
6.
The slave device issues a 1-bit Acknowledge signal.
7.
The master device issues a Stop condition.
Erase Operation
The erase operation allows you to erase the UFM block sector 0. There are
two ways to start the erase operation:
Write 8 bits of 1 (0xFF) to Address 0x00 of the UFM Block
Writing 8 bits of 1 to the first address of sector 0 starts the erase. Figure 10
shows the interface protocol for the erase operation.
Altera Corporation
9
Preliminary
SMBus Interface for the User Flash Memory in MAX II Devices
Figure 10. Erase Operation (Writing 8 bits of 1 to Address 0x00)
S
Slave Address
(1010110)
Wr
(0)
A
UFM Address
(00000000)
From Master to Slave
A
Data Byte
(11111111)
A
P
From Slave to Master
The following describes the erase operation sequence.
1.
The master device transmits the first byte, where the first seven bits
(1010 110) are for device addressing. The eighth bit is for read or
write commands, and it has the value of 0 to indicate a write
operation.
2.
The slave device issues a 1-bit Acknowledge signal.
3.
The master device transmits a second byte for memory addressing
in the UFM block. These are bits [7..0] of the UFM block address.
For the erase operation, this should be 8 bits of 0.
4.
The slave device issues a 1-bit Acknowledge signal.
5.
The master device transmits a third byte as data. For the erase
operation, this should be 8 bits of 1.
6.
The slave device issues a 1-bit Acknowledge signal.
7.
The master device issues a Stop condition.
Issue Slave Address of 10101010 (0xAA)
Issuing a slave address of 10101010 to the device can also start an erase.
When you use this address for the erase purpose, other slave devices on
the same bus cannot use this address. Also, you cannot have more than
one SMBus slave device that uses the same erase trigger, unless you
change the trigger address. Figure 11 shows the interface protocol for the
erase operation.
Figure 11. Erase Operation (Writing 8 bits of 1 to address 0x00)
S
Slave Address
(1010101)
From Master to Slave
10
Preliminary
Wr
(0)
A
P
From Slave to Master
Altera Corporation
MAX II Device 5.0-V Compatibility
The following describes the erase operation sequence.
1.
The master device transmits the first byte, where the first seven bits
(1010 101) are for device addressing for the erase purpose. The
eighth bit is for read or write commands, and it has the value of 0 to
indicate a write operation.
2.
The slave device issues a 1-bit Acknowledge signal.
3.
The master device issues a Stop condition.
SMBus–UFM Block Interface Design Usage Guidelines
There are two separate design examples that can be used for the SMBus
interface. The first design example supports all three operations: read,
write and erase. The resource usage for this design example is around 250
logic elements (LE) and fits into a EPM570, EPM1270, or EPM2210 device.
The second design example supports the read operation only with an LE
count of approximately 200. You can implement this design example in all
MAX II devices.
You can easily modify and further optimize the design example to fit your
project needs.
Write or Erase During ISP
Make sure that all the UFM block erase or write operations are completed
before starting any in-system programming (ISP) session (including
stand-alone verify, examine, setting security bit, and reading the UFM
block contents). You should never start an ISP session when any UFM
block erase or write operation is on going as this may put the device in an
unrecoverable state; however, this does not apply to the UFM block read
operation.
To ensure that no UFM block erase or write operation is in progress (just
prior to programming a MAX II device) you should use the real-time ISP
feature to program the device. With real-time ISP, the RTP_BUSY signal
goes high and programming starts 400 ms after the RTP_BUSY signal is
high. The design example monitors this signal and ensures that no erase
or write operation is in progress when the RTP_BUSY signal is high.
MAX II Device
5.0-V
Compatibility
Altera Corporation
MAX II devices feature MultiVolt™ I/O operation, allowing interfaces
between devices with different I/O voltages. MAX II devices support
3.0-V, 2.5-V, 1.8-V and 1.5-V I/O voltages. The SMBus protocol allows the
bus lines to operate up to 5.0 V. The MAX II device requires some
modifications to operate up to 5.0 V.
11
Preliminary
SMBus Interface for the User Flash Memory in MAX II Devices
The SMBDAT pin is a bidirectional I/O pin and the SMBCLK pin is an input
pin. Assign the SMBDAT pin as an open-drain I/O pin. The banks of the
I/O pins assigned for SMBDAT and SMBCLK need to be operating at 3.3-V
VCCIO.
An external weak pull-up resistor is required to pull the SMBDAT and
SMBCLK bus lines up to 5.0 V. When determining the pull-up resistor
value, consider two main factors:
■
■
The resistor value should be large enough so that the IOL does not
exceed the maximum IOL value of the device when the bus is low.
The resistor value should be small enough so the voltage level does
not exceed the maximum VIL when the bus is low.
Enable the internal PCI clamping diode to protect the MAX II I/O pins.
The internal PCI clamping diode capability is available in bank 3 of the
EPM1270 and EPM2210 devices. For other I/O banks in EPM1270 and
EPM2210 devices and for all I/O banks in EPM240 and EPM570 devices,
use an external diode.
For more information on the MAX II device 5.0-V compatibility, refer to
the Using MAX II Devices In Multi-Voltage System chapter of the MAX II
Device Handbook.
Using the
SMBus–UFM
Block Interface
Design Example
with the Quartus
II Software
This section covers the steps of using the design example with the
Quartus® II software. The processes are:
■
■
■
■
Initializing the UFM Block Contents
Creating the UFM Block Megafunction
Creating and Compiling The Project
Verifying the Design
Initializing the UFM Block Contents
This design example allows you to initialize the UFM block contents. You
can program user data into the UFM block at the same time as you
program the design into the device. This allows you initialize the UFM
block with data and use the read only design. You can overwrite the data
in the UFM block using the erase and write operations. To initialize the
UFM block contents, create a memory initialization file (.mif) or a
hexadecimal file (.hex) and specify the file contents. Create an
altufm_none megafunction and initialize the UFM block with the .mif
or .hex file contents.
12
Preliminary
Altera Corporation
Using the SMBus–UFM Block Interface Design Example with the Quartus II Software
Creating the MIF or HEX Files in Quartus II
In the Quartus II software, you can create either a .mif or .hex file to
initialize the UFM block contents.
1.
Select New (File menu).
2.
Select Hexadecimal (Intel Format) File or Memory Initialization
File under the Other Files tab in the New window. Click OK.
Figure 12. The Other Files Tab of the New Window
3.
Altera Corporation
The number of words (address) must be 512, although you can only
read from or write to the 256 addresses in sector 0 of the UFM block.
Set the word size to 16. The design only allows you to access the
upper byte, [15..8], of the 256 addresses in the UFM block sector
0. Your initialization data must be specified for the first 256
addresses and the most significant byte for each 16-bit word. Click
OK.
13
Preliminary
SMBus Interface for the User Flash Memory in MAX II Devices
Figure 13. Number of Words & Word Size
512
16
4.
A .mif or .hex file displays. Enter values to store in the UFM block
and save the file. It isn’t necessary to enter the value for addresses in
sector 1 or the lower byte value for addresses in sector 0.
Figure 14. MIF File
14
Preliminary
Altera Corporation
Using the SMBus–UFM Block Interface Design Example with the Quartus II Software
Creating the UFM Block Megafunction
Use the MegaWizard® Plug-In Manager to:
Altera Corporation
■
■
■
Create an altufm_none megafunction
Use the UFM block
Initialize the UFM block contents
1.
Select MegaWizard Plug-In Manager (Tools menu).
2.
Select Create a new custom megafunction variation. Click Next.
3.
Select MAX II from the Which device family will you be using?
list.
4.
Expand the Memory compiler folder and select Flash Memory.
5.
From the Which type of output file do you want to create? option,
choose a file type.
6.
For the What name do you want for the output file? field, click
Browse to locate your project directory. Type in the file name and
click Save. Page 2 displays (Figure 15).
15
Preliminary
SMBus Interface for the User Flash Memory in MAX II Devices
Figure 15. MegaWizard Plug-In Manager
7.
16
Preliminary
Click Next. Page 3 displays (Figure 16).
Altera Corporation
Using the SMBus–UFM Block Interface Design Example with the Quartus II Software
8.
From the What is the interface protocol? option, choose None.
Figure 16. Specifying the Interface Protocol
ufm_none
9.
Altera Corporation
Click Next. Page 4 displays (Figure 17).
17
Preliminary
SMBus Interface for the User Flash Memory in MAX II Devices
Figure 17. Specifying the MIF File
10. From the Do you want to specify the initial content of the
memory? option, choose Yes, use this file for the memory content
data.
11. Click Browse to locate the .mif or .hex file that you created. Select
the file and click Open.
12. Click Next. Page 5 displays (Figure 18).
13. Select the Quartus symbol file and click Finish.
18
Preliminary
Altera Corporation
Using the SMBus–UFM Block Interface Design Example with the Quartus II Software
Figure 18. Creating Additional Files
Creating and Compiling The Project
Create a project using the Block Diagram/Schematic File as the top-level
entity. Verify that the .bdf file of the design example and the UFM block
megafunction are in the project directory. Make the necessary pin
assignments and compile your project to obtain the Programmer Object
File (.pof). Figure 19 shows the top-level block diagram file of the design.
Figure 19. Top Level File
BIDIP
smbdat
VCC
smbclk
INPUT
VCC
smbclk_out smbdat
program
busy
erase
osc
drdout
oscena
rtpbusy
arclk
arshft
ardin
drclk
drshft
drdin
inst 1
ufm_none
program
erase
oscena
arclk
arshft
ardin
drclk
drshft
drdin
busy
osc
drdout
rtpbusy
Interface type: NONE
inst
Altera Corporation
19
Preliminary
SMBus Interface for the User Flash Memory in MAX II Devices
Verifying the Design
The design example is hardware verified to ensure that it can work
properly for the read or write, page-read, write, and erase operations.
You can verify and simulate the design using the Quartus II Simulator.
The design example passes timing simulation to ensure that it can work
properly for the read, write, and erase operations. Figure 20 shows the
UFM block write and read or write operations. Data 1010 1100 is first
written to address 1101 0011 (0xD3). Then, another data transfer is
initiated to read-out the data from the same address.
Figure 20. Write and Read Operation
Conclusion
101 Innovation Drive
San Jose, CA 95134
(408) 544-7000
www.altera.com
Applications Hotline:
(800) 800-EPLD
Literature Services:
[email protected]
20
Preliminary
With an 8-Kbit UFM block, the MAX II device can replace small density
serial EEPROMs. The SMBus to UFM block design example allows you to
read, write, or erase the MAX II UFM block contents through the SMBus
interface. With this design example, the MAX II device is the slave device
and receives instructions from any master device in the bus for data
transfer.
Copyright © 2005 Altera Corporation. All rights reserved. Altera, The Programmable Solutions Company,
the stylized Altera logo, specific device designations, and all other words and logos that are identified as
trademarks and/or service marks are, unless noted otherwise, the trademarks and service marks of Altera
Corporation in the U.S. and other countries. All other product or service names are the property of their respective holders. Altera products are protected under numerous U.S. and foreign patents and pending
applications, maskwork rights, and copyrights. Altera warrants performance of its semiconductor products
to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability
arising out of the application or use of any information, product, or service described
herein except as expressly agreed to in writing by Altera Corporation. Altera customers
are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.
Altera Corporation
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
