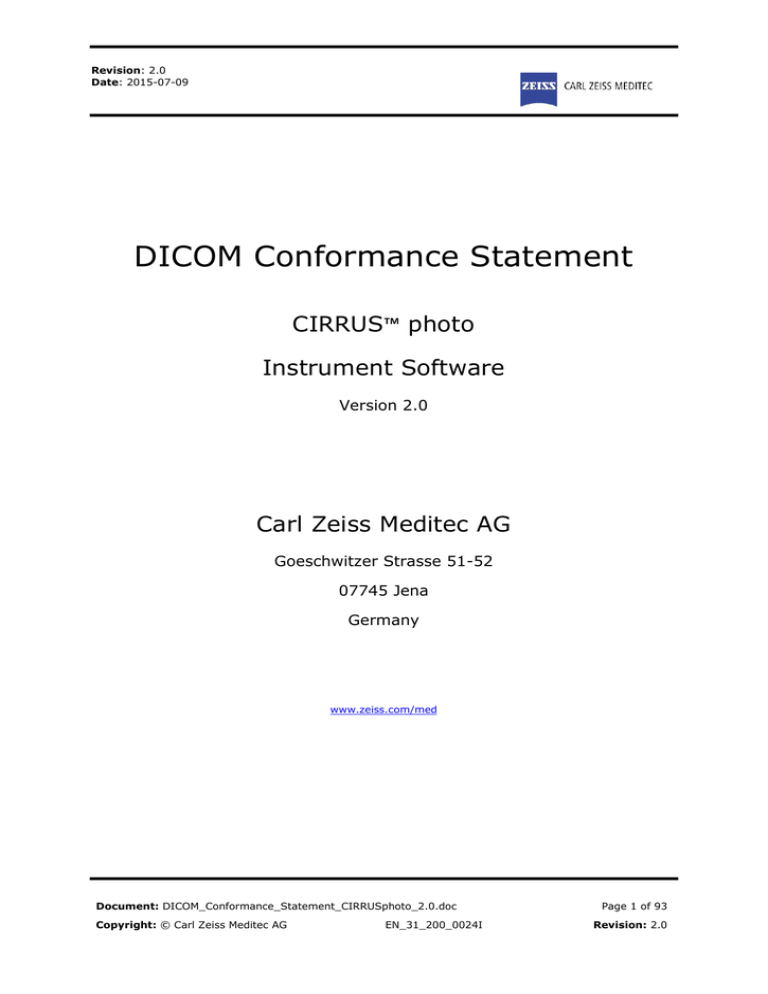

CIRRUS photo Instrument Software Version 2.0

CIRRUS photo Instrument Software Version 2.0
Revision: 2.0
Date: 2015-07-09
DICOM Conformance Statement
CIRRUS™ photo
Instrument Software
Version 2.0
Carl Zeiss Meditec AG
Goeschwitzer Strasse 51-52
07745 Jena
Germany
www.zeiss.com/med
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Copyright: © Carl Zeiss Meditec AG
EN_31_200_0024I
Page 1 of 93
Revision: 2.0
1 Conformance Statement Overview
The CIRRUS photo is a non-contact, high-resolution tomographic and biomicroscopic imaging device that
incorporates a digital camera which is suitable for photographing, displaying and storing the data of the retina
and surrounding parts of the eye to be examined under mydriatic and non-mydriatic conditions.
The CIRRUS photo allows the fundus of the eye to be viewed and documented as well as the anterior segment
of the eye in plain view (classic image capture) or as an optical section (OCT scan), with the pupil in a naturally
or medicinally-induced dilated state. Easy-to-use operation of CIRRUS photo ensures quick results. The device
is particularly suitable for routine use. The fundus is evaluated on the basis of a flash photograph or the OCT
scan image. Image capture and display is fully digital.
The CIRRUS photo includes an intuitive software interface for database supported patient and image data
administration. Images and scans can be displayed, printed and exported and patient data created and adapted
with no difficulty at any time. There are special analysis modules which can be used to aid rapid interpretation
of OCT scan data. The normative databases and algorithms provided by Carl Zeiss Meditec represent the basis
for these modules.
The CIRRUS photo implements one single DICOM Application Entity which allows to:

query modality worklist

query for patients and data

archive images, scan data and analysis data

archive evidence reports

retrieve images, scan data and analysis data
This document is structured as suggested in the DICOM Standard (PS 3.2 Conformance).
User of Service
(SCU)
Provider of
Service (SCP)
Encapsulated PDF Storage
Yes
No
Raw Data Storage
Yes
Yes
Multi-frame True Color Secondary Capture Image Storage
Yes
Yes
Ophthalmic Photography 8 Bit Image Storage
Yes
Yes
Yes
No
Yes
No
Study Root Query/Retrieve Information Model – FIND
Yes
No
Study Root Query/Retrieve Information Model – MOVE
Yes
No
Patient Root Query/Retrieve Information Model – FIND
Yes
No
Patient Root Query/Retrieve Information Model – MOVE
Yes
No
SOP Classes
Transfer
Workflow Management
Modality Worklist Information Model - FIND
Storage Commitment Push Model
Query / Retrieve
The CIRRUS photo does not support Media Interchange.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Copyright: © Carl Zeiss Meditec AG
EN_31_200_0024I
Page 2 of 93
Revision: 2.0
2 Table of Contents
1 Conformance Statement Overview ........................................................................................................ 2
2 Table of Contents ................................................................................................................................ 3
3 Introduction ....................................................................................................................................... 5
3.1 Revision History ........................................................................................................................... 5
3.2 Audience..................................................................................................................................... 5
3.3 Remarks ..................................................................................................................................... 5
3.4 Definitions and Terms ................................................................................................................... 5
3.5 Abbreviations .............................................................................................................................. 7
3.6 References .................................................................................................................................. 8
4 Networking ........................................................................................................................................ 9
4.1 Implementation Model .................................................................................................................. 9
4.1.1 Application Data Flow ............................................................................................................ 9
4.1.2 Functional Definition of AEs .................................................................................................. 10
4.1.2.1 Functional Definition of CIRRUS photo ............................................................................ 10
4.1.3 Sequencing of Real-World Activities....................................................................................... 11
4.1.3.1 CIRRUS photo activities ................................................................................................ 11
4.1.3.2 Scheduled case ............................................................................................................ 13
4.1.3.3 Unscheduled case ........................................................................................................ 13
4.2 AE Specifications........................................................................................................................ 15
4.2.1 CIRRUS photo Acquisition Modality AE Specification ................................................................ 15
4.2.1.1 SOP Classes ................................................................................................................ 15
4.2.1.2 Associations Policies ..................................................................................................... 15
4.2.1.2.1 General................................................................................................................ 15
4.2.1.2.2 Number of Associations .......................................................................................... 15
4.2.1.2.3 Asynchronous Nature............................................................................................. 16
4.2.1.2.4 Implementation Identifying Information ................................................................... 16
4.2.1.3 Association Initiation Policy ........................................................................................... 16
4.2.1.3.1 Activity – Verify DICOM Communication ................................................................... 16
4.2.1.3.2 Activity – Query Modality Worklist ........................................................................... 17
4.2.1.3.3 Activity - Query remote AE for patients and data....................................................... 23
4.2.1.3.4 Activity – Retrieve scans, images and analyses from remote AE .................................. 30
4.2.1.3.5 Activity – Acquire scans and images ........................................................................ 32
4.2.1.3.6 Activity – Analyze scans and images ........................................................................ 32
4.2.1.3.7 Activity – Create reports ........................................................................................ 33
4.2.1.3.8 Activity – Store scans, images, analyses and reports to remote AE .............................. 33
4.2.1.4 Association Acceptance Policy ........................................................................................ 36
4.2.1.4.1 Activity – Verify Communication.............................................................................. 36
4.2.1.4.2 Activity - Retrieve scans, images and analyses from remote AE .................................. 37
4.2.1.4.3 Activity – Store scans, images, analyses and reports to remote AE .............................. 37
4.3 Network Interfaces..................................................................................................................... 39
4.3.1 Physical Network Interface ................................................................................................... 39
4.3.2 Additional Protocols ............................................................................................................. 39
4.3.3 IPv4 and IPv6 Support ......................................................................................................... 39
4.4 Configuration ............................................................................................................................ 40
4.4.1 AE Title/Presentation Address Mapping .................................................................................. 40
4.4.1.1 Local AE Titles ............................................................................................................. 40
4.4.1.2 Remote AE Titles.......................................................................................................... 40
4.4.2 Parameters ........................................................................................................................ 40
4.4.2.1 General Parameters...................................................................................................... 40
4.4.2.2 AE Specific Parameters ................................................................................................. 41
5 Media Interchange ............................................................................................................................ 43
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Copyright: © Carl Zeiss Meditec AG
EN_31_200_0024I
Page 3 of 93
Revision: 2.0
6 Support Of Character Sets ................................................................................................................. 44
7 Security ........................................................................................................................................... 45
8 Annexes .......................................................................................................................................... 46
8.1 IOD Contents ............................................................................................................................ 46
8.1.1 Created SOP Instance(s) ...................................................................................................... 46
8.1.1.1 Encapsulated PDF IOD .................................................................................................. 47
8.1.1.2 Ophthalmic Photography 8 Bit Information Object Definition .............................................. 54
8.1.1.3 Multi-frame True Color Secondary Capture Information Object Defintion ............................. 70
8.1.1.4 Raw Data Information Object Definition .......................................................................... 79
8.1.2 Usage of Attributes from Received IOD’s ................................................................................ 87
8.1.3 Attribute Mapping ............................................................................................................... 87
8.1.4 Coerced/Modified Files ......................................................................................................... 88
8.2 Data Dictionary of Private Attributes............................................................................................. 88
8.3 Coded Terminology and Templates ............................................................................................... 88
8.4 Greyscale Image Consistency ...................................................................................................... 91
8.5 Standard Extended / Specialized/ Private SOP Classes .................................................................... 92
8.6 Private Transfer Syntaxes ........................................................................................................... 92
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Copyright: © Carl Zeiss Meditec AG
EN_31_200_0024I
Page 4 of 93
Revision: 2.0
3 Introduction
3.1 Revision History
Document
Version
Author
Changes
Date
1.0
Patrick A. Nast
2013-03-21
Initial document
1.1
Patrick A. Nast
2013-12-16
Product version 1.5.3
2.0
Patrick A. Nast
2015-07-09
-
Query Keys for 4.2.1.3.3 Activity Query remote AE for patients and
data changed
-
DICOM UID root changed
-
New software version info
Product version 2.0.0
-
New activity “Offline media file based
export / import of images and
reports”
-
New Implementation Version Name
-
New Software Version info
3.2 Audience
This document is written for the people that need to understand how CIRRUS photo will integrate into their
healthcare facility. This includes both those responsible for overall imaging network policy and architecture, as
well as integrators who need to have a detailed understanding of the DICOM features of the product. This
document contains some basic DICOM definitions so that any reader may understand how this product
implements DICOM features. However, integrators are expected to fully understand all the DICOM terminology,
how the tables in this document relate to the product's functionality, and how that functionality integrates with
other devices that support compatible DICOM features.
3.3 Remarks
The scope of this DICOM Conformance Statement is to facilitate integration between CIRRUS photo and other
DICOM products. The Conformance Statement should be read and understood in conjunction with the DICOM
Standard. DICOM by itself does not guarantee interoperability. The Conformance Statement does, however,
facilitate a first-level comparison for interoperability between different applications supporting compatible
DICOM functionality.
This Conformance Statement is not supposed to replace validation with other DICOM equipment to ensure
proper exchange of intended information. In fact, the user should be aware of the following important issues:

The comparison of different Conformance Statements is just the first step towards assessing
interconnectivity and interoperability between the product and other DICOM conformant equipment.

Test procedures should be defined and executed to validate the required level of interoperability with
specific compatible DICOM equipment, as established by the healthcare facility.
3.4 Definitions and Terms
Informal definitions are provided for the following terms used in this Conformance Statement.
The DICOM Standard is the authoritative source for formal definitions of these terms.
Abstract Syntax
the information agreed to be exchanged between applications, generally equivalent to a
Service/Object Pair (SOP) Class.
Examples: Verification SOP Class, Modality Worklist Information Model Find SOP Class,
Computed Radiography Image Storage SOP Class.
Application Entity (AE)
an end point of a DICOM information exchange, including the DICOM network or media
interface software; i.e., the software that sends or receives DICOM information objects or
messages. A single device may have multiple Application Entities.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Copyright: © Carl Zeiss Meditec AG
EN_31_200_0024I
Page 5 of 93
Revision: 2.0
Application Entity Title
the externally known name of an Application Entity, used to identify a DICOM application to
other DICOM applications on the network.
Application Context
the specification of the type of communication used between Application Entities.
Example: DICOM network protocol.
Association
a network communication channel set up between Application Entities.
Attribute
a unit of information in an object definition; a data element identified by a tag. The
information may be a complex data structure (Sequence), itself composed of lower level data
elements.
Examples: Patient ID (0010,0020), Accession Number (0008,0050), Photometric
Interpretation (0028,0004), Procedure Code Sequence (0008,1032).
Information Object Definition (IOD)
the specified set of Attributes that comprise a type of data object; does not represent a
specific instance of the data object, but rather a class of similar data objects that have the
same properties. The Attributes may be specified as Mandatory (Type 1), Required but
possibly unknown (Type 2), or Optional (Type 3), and there may be conditions associated
with the use of an Attribute (Types 1C and 2C).
Examples: MR Image IOD, CT Image IOD, Print Job IOD.
Joint Photographic Experts Group (JPEG)
a set of standardized image compression techniques, available for use by DICOM applications.
Media Application Profile
the specification of DICOM information objects and encoding exchanged on removable media
(e.g., CDs)
Module
a set of Attributes within an Information Object Definition that are logically related to each
other.
Example: Patient Module includes Patient Name, Patient ID, Patient Birth Date, and Patient
Sex.
Negotiation
first phase of Association establishment that allows Application Entities to agree on the types
of data to be exchanged and how that data will be encoded.
Presentation Context
the set of DICOM network services used over an Association, as negotiated between
Application Entities; includes Abstract Syntaxes and Transfer Syntaxes.
Protocol Data Unit (PDU)
a packet (piece) of a DICOM message sent across the network. Devices must specify the
maximum size packet they can receive for DICOM messages.
Query Key
A input value for a query process. Query Keys denote the set of DICOM tags that are sent
from the SCU to SCP and thus control the query result.
Security Profile
a set of mechanisms, such as encryption, user authentication, or digital signatures, used by
an Application Entity to ensure confidentiality, integrity, and/or availability of exchanged
DICOM data
Service Class Provider (SCP)
role of an Application Entity that provides a DICOM network service; typically, a server that
performs operations requested by another Application Entity (Service Class User).
Examples: Picture Archiving and Communication System (image storage SCP, and image
query/retrieve SCP), Radiology Information System (modality worklist SCP).
Service Class User (SCU)
role of an Application Entity that uses a DICOM network service; typically, a client.
Examples: imaging modality (image storage SCU, and modality worklist SCU), imaging
workstation (image query/retrieve SCU)
Service/Object Pair (SOP) Class
the specification of the network or media transfer (service) of a particular type of data
(object); the fundamental unit of DICOM interoperability specification.
Examples: Ultrasound Image Storage Service, Basic Grayscale Print Management.
Service/Object Pair (SOP) Instance
an information object; a specific occurrence of information exchanged in a SOP Class.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Copyright: © Carl Zeiss Meditec AG
EN_31_200_0024I
Page 6 of 93
Revision: 2.0
Examples: a specific x-ray image.
Tag
a 32-bit identifier for a data element, represented as a pair of four digit hexadecimal
numbers, the “group” and the “element”. If the “group” number is odd, the tag is for a private
(manufacturer-specific) data element.
Examples: (0010,0020) [Patient ID], (07FE,0010) [Pixel Data], (0019,0210) [private data
element]
Transfer Syntax
the encoding used for exchange of DICOM information objects and messages.
Examples: JPEG compressed (images), little endian explicit value representation.
Unique Identifier (UID)
a globally unique “dotted decimal” string that identifies a specific object or a class of objects;
an ISO-8824 Object Identifier.
Examples: Study Instance UID, SOP Class UID, SOP Instance UID.
Value Representation (VR)
the format type of an individual DICOM data element, such as text, an integer, a person’s
name, or a code. DICOM information objects can be transmitted with either explicit
identification of the type of each data element (Explicit VR), or without explicit identification
(Implicit VR); with Implicit VR, the receiving application must use a DICOM data dictionary to
look up the format of each data element.
3.5 Abbreviations
Table 3-1 Abbreviations used in this document
Abbreviation
Definition
AE
Application Entity
AET
Application Entity Title
DICOM
Digital Imaging and Communications in
Medicine
ILE
Implicit Little Endian
ELE
Explicit Little Endian
IM
Information Model
IOD
Information Object Definition
JPG-1
JPEG Coding Process 1 transfer syntax; JPEG
Baseline; ISO 10918-1
J2K
JPEG 2000 Image Compression
J2K-LL
JPEG 2000 Image Compression
(Lossless Only)
MWL
Modality Worklist
MPG2
Motion Picture Expert Group 2; Abbreviation
and synonym for video encoding and
compression transfer syntax.
OD
Oculus Dexter, the right eye
OP
Ophthalmic Photography
OPT
Ophthalmic Tomography
OS
Oculus Sinister, the left eye
OU
Oculus Uterque, both eyes
SCP
Service Class Provider
SCU
Service Class User
SOP
Service Object Pair, union of a specific DICOM
service and related IOD.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Copyright: © Carl Zeiss Meditec AG
EN_31_200_0024I
Page 7 of 93
Revision: 2.0
TCP/IP
Transmission Control Protocol / Internet
Protocol
UID
Unique Identifier
UI
User Interface
3.6 References
NEMA PS3 / ISO 12052, Digital Imaging and Communications in Medicine (DICOM) Standard, National Electrical
Manufacturers Association, Rosslyn, VA, USA (available free at http://medical.nema.org/)
Integrating the Healthcare Enterprise (IHE) EYECARE Technical Framework, rev 3.7, 2010 (available free at
http://www.ihe.net/Technical_Framework/index.cfm
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Copyright: © Carl Zeiss Meditec AG
EN_31_200_0024I
Page 8 of 93
Revision: 2.0
4 Networking
4.1 Implementation Model
4.1.1 Application Data Flow
Verify DICOM communication
Remote AE verifies communication
Query Modality Worklist
Remote AE provides
Modality Worklist
Query remote AE for patients and data
Remote AE provides
Patient Root Query IM
Acquire scans and images
Remote AE provides
Study Root Query IM
Analyze scans and images
CIRRUS photo
Application Entity
Remote AE provides
storage of scans, images, analyses and
reports
Create reports
Remote AE provides
retrieval of scans, images and analyses
Store scans, images, analyses and
reports to remote AE
Remote AE provides
Storage Commitment Push Model
Retrieve scans, images and analyses
from remote AE
Offline media file based export / import
of images and reports
Figure 4-1 CIRRUS photo Application Software as Acquisition Modality
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Copyright: © Carl Zeiss Meditec AG
EN_31_200_0024I
Page 9 of 93
Revision: 2.0
4.1.2 Functional Definition of AEs
4.1.2.1 Functional Definition of CIRRUS photo
The CIRRUS photo is a non-contact, high-resolution tomographic and biomicroscopic imaging device that
incorporates a digital camera which is suitable for photographing, displaying and storing the data of the retina
and surrounding parts of the eye to be examined under mydriatic and non-mydriatic conditions.
The CIRRUS photo allows the fundus of the eye to be viewed and documented as well as the anterior segment
of the eye in plain view (classic image capture) or as an optical section (OCT scan), with the pupil in a naturally
or medicinally-induced dilated state. Easy-to-use operation of CIRRUS photo ensures quick results. The device
is particularly suitable for routine use. The fundus is evaluated on the basis of a flash photograph or the OCT
scan image. Image capture and display is fully digital.
The CIRRUS photo includes an intuitive software interface for database supported patient and image data
administration. Images and scans can be displayed, printed and exported and patient data created and adapted
with no difficulty at any time. There are special analysis modules which can be used to aid rapid interpretation
of OCT scan data. The normative databases and algorithms provided by Carl Zeiss Meditec represent the basis
for these modules.
The CIRRUS photo application’s DICOM functionality allows to:

query modality worklist

query for patients and data

archive images, scan data and analysis data

archive evidence reports

retrieve images, scan data and analysis data

offline media file based export / import of images and reports
CIRRUS photo AE implements a Service Class User (SCU) for the following DICOM Services:

Verification

Modality Worklist Information Model – FIND

Study Root Query/Retrieve Information Model – FIND

Study Root Query/Retrieve Information Model – MOVE

Patient Root Query/Retrieve Information Model – FIND

Patient Root Query/Retrieve Information Model – MOVE

Encapsulated PDF Storage

Raw Data Storage

Multi-frame True Color Secondary Capture Image Storage

Ophthalmic Photography 8 Bit Image Storage

Storage Commitment Push Model
CIRRUS photo AE implements a Service Class Provider (SCP) for the following DICOM Services:

Verification

Raw Data Storage

Multi-frame True Color Secondary Capture Image Storage

Ophthalmic Photography 8 Bit Image Storage
All DICOM functionalities have been integrated into the application user interface and will not require any
manual invoking of DICOM specific user interface.
The CIRRUS photo software allows performing a verification of the configured AEs. The result of this verification
contains information about the supported SOP Classes and Transfer Syntaxes of the remote AEs.
The CIRRUS photo Software logs extensive information about the DICOM operations to its log file.
In addition to network based DICOM services the CIRRUS photo AE offers an offline DICOM file based media
storage service which provides the possibility of writing and reading single DICOM files for selected images and
reports to local, removable or network drives.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 10 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
4.1.3 Sequencing of Real-World Activities
To realize the real world activities, the different entities work together. The sequence diagrams shall depict the
intended workflow.
The diagrams use slightly modified UML symbols. The asynchronous call is not depicted as suggested in UML.
Some objects do have more than one dashed line. It symbolizes more than one thread.
4.1.3.1 CIRRUS photo activities
Query Modality Worklist
When the patient arrives at the CIRRUS photo, the operator queries the worklist. This can be
done by simply opening the "Today's Patients" screen which lists all worklist items scheduled
for today’s date and the current CIRRUS photo (identified by the instrument’s AE Title) or by
using the “Search worklist” dialog which allows to enter search criteria to get matching items
back from modality worklist.
In either way the operator can select the correct item from the result list to proceed with data
acquisition. According to the transferred data CIRRUS photo creates an entry in the local
database.
Note: “Today’s Patients” screen also lists non-scheduled patients, which already have a
performed series for today and match any additionally entered search criteria. These patients
are received by querying a remote AE.
Query remote AE for patients and data
With this activity the operator can search patients and data stored at a remote AE. This can
be done by opening the “Find Patient” screen and entering search criteria for either patient
demographics or stored data specifics. Any matching results will be listed in patient list, visit
list and exam list accordingly. Only data supported by CIRRUS photo will be listed.
This activity can be used to get patient demographics in cases when Modality Worklist service
provider is not available or can’t be reached.
This activity generates an unscheduled case.
The operator can then select the patient for data acquisition or analysis.
Note: Also “Today’s Patients” screen lists patients received by querying a remote AE. See
‘Query Modality Worklist’ for details.
Acquire scans and images
The operator selects a patient from either “Today’s Patients” or “Find Patient” screen and
switches to “Acquire Data” screen. There he/she can select an appropriate acquisition protocol
and performs then the scan/image capture on patient’s eye. The Application Software allows
the user to review the acquired data before permanently saving.
This activity creates scan data, images and machine generated analysis data. This data is
pushed to archive automatically whenever “Acquire Data” screen is left and the user is not in
the “Review Image” mode.
Analyze scans and images
The operator can trigger this activity from either “Review Image” or “Analyze” screen by
selecting a specific image manipulation or analysis protocol. Applicable analyses depend on
the available and selected scan data and images. The user can adjust parameters to optimize
the analysis result.
The operator can invoke the creation of an evidence report by using the “Electronic report”
feature (see Activity “Create reports”) at any time within the analysis activity.
Any analysis data or manipulated image created within the analysis activity is pushed to
archive automatically.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 11 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Create reports
The operator can invoke the creation of an evidence report by using the “Electronic report”
feature at any time within the activity “Analyze scans and images”. Thus he or she can export
several evidence reports during the analysis activity.
Any evidence reports created within this activity is pushed to archive automatically.
Store scans, images, analyses and reports to remote AE
This activity is a background activity which cannot be triggered manually by the operator but
will always be triggered automatically by the application in case of new data has been created
by other activities. During this activity acquired data, analysis data and evidence reports are
transferred to the configured Storage Provider.
This activity will pause for benefit of high priority activities (e.g. “Acquire scans and images”)
and resume after such activities has been finished.
After a configurable amount of time, the Application Software asks the configured Storage
Commitment Provider to take over responsibility on data persistence for the data previously
transferred by the “Archive data” activity. When storage is committed the operator is allowed
to enable removal of this data from the modality. This will typically be done in the shutdown
routine.
Retrieve scans, images and analyses from remote AE
With this activity the operator can retrieve data from the remote AE. Retrieval can be
triggered by selecting an item from either “Today’s Patients” or “Find Patient” result list for
which data is available at the remote AE. Only data supported by the Application Software will
be retrieved, which includes data generated by “CIRRUS photo” Application Software itself
and data generated by the Carl Zeiss Meditec VISUCAM family (when available as Ophthalmic
Photography IOD).
Evidence reports cannot be retrieved.
Offline media file based export / import of images and reports
With this activity the operator can select a patient, a visit or single images or reports for
being stored to the file system at either a local, removable or shared network drive. The AE
will store the selected items accordingly as DICOM files. Only fundus images, B-Scan images
and reports are subject of DICOM file based export. To trigger this activity the operator can
use the “FileFile export” or the “ToolsFile mass export” dialog.
It’s also possible to import existing DICOM files to the AE. After selecting the files the
application software reads the content and stores the data accordingly to the local database.
Only fundus images, B-Scan images and reports are subject of DICOM file based import. To
trigger this activity the operator can use the “FileFile import” or the “ToolsFile mass
import” dialog.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 12 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
4.1.3.2 Scheduled case
The normal case is that the patient arrives at the front desk. There could be two possibilities at this point:

The examination can be scheduled for the instrument.

The examination was scheduled in advance.
In either case all patient and study related information is available at the day the examination takes place This
information can then be used to take the examination. The operator can trigger all activities listed below. An
activity can be triggered if no other activity is currently active. The shown order of the activities is the
recommended order. Details on DIMSE level will be explained in chapters after this.
CIRRUS photo AE
Modality Worklist
AE
Query AE
Retrieve AE
Storage AE
Storage
Commitment AE
Query Modality Worklist
opt Query for patients
[Query Provider is available]
Query for patients (Patient Root – Series Level [Series Date = Today])
Select Patient
opt Get data for patient
[Query Provider is available]
Query for patient data (Study Root – Image Level)
Retrieve data
Acquire scans and images
Store scans and images
opt Perform analysis / rev iew images
Analyze scans
Store analyses
Review images
Store review results
Create reports
Store reports
Request for commitment of data persistence
Figure 4-2 Scheduled case
4.1.3.3 Unscheduled case
In the unscheduled case the patient arrives immediately at the instrument, so that the patient was not
registered at the front desk and examination is not scheduled in the Modality Worklist. Patient demographics,
study information and scheduling information has to be generated at the point of origin or can be queried from
the remote Query AE.
The situation is akin to the case if the Modality Worklist AE could not be reached due to network issues.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 13 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
CIRRUS photo AE
Query AE
Retrieve AE
Storage AE
Storage
Commitment AE
File system
alt Add new patient
Create new patient
alt Query patients
Query for patients (Patient Root - Series Level [Series Date = Today])
Select Patient
opt Get data for patient
[Query Provider is available]
Query for data (Study Root - Image level)
Retrieve data
Acquire scans and images
Store scans and images
opt Perform analysis / rev iew images
Analyze scans and images
Store analyses
Review images
Store review results
Create reports
Store reports
Request for commitment of data persistence
opt Offline media file export
Export images and reports
Write single DICOM files
opt Offline media file import
Import images and reports
Read single DICOM files
Figure 4-3 Unscheduled case
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 14 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
4.2 AE Specifications
4.2.1 CIRRUS photo Acquisition Modality AE Specification
4.2.1.1 SOP Classes
SOP Class Name
SOP Class UID
SCU
SCP
Verification
1.2.840.10008.1.1
Yes
Yes
Storage Commitment
Push Model SOP Class
1.2.840.10008.1.20.1
Yes
No
Encapsulated PDF Storage
1.2.840.10008.5.1.4.1.1.104.1
Yes
No
Raw Data Storage
1.2.840.10008.5.1.4.1.1.66
Yes
Yes
Study Root Query/Retrieve
1.2.840.10008.5.1.4.1.2.2.1
Yes
No
Patient Root Query/Retrieve
Information Model - FIND
1.2.840.10008.5.1.4.1.2.1.1
Yes
No
Modality Worklist
1.2.840.10008.5.1.4.31
Yes
No
1.2.840.10008.5.1.4.1.2.2.2
Yes
No
Ophthalmic Photography 8 Bit Image
Storage
1.2.840.10008.5.1.4.1.1.77.1.5.1
Yes
Yes
Multi-frame True Color Secondary
Capture Image Storage
1.2.840.10008.5.1.4.1.1.7.4
Yes
Yes
Information Model – FIND
Information Model - FIND
Study Root Query/Retrieve
Information Model – MOVE
Note 1: The networking interface proposes more presentation contexts than actually supported by the
application. All lines in grey are not supported by Cirrus Photo.
4.2.1.2 Associations Policies
4.2.1.2.1 General
The DICOM standard Application Context Name for DICOM 3.0 is always proposed:
Application Context Name
1.2.840.10008.3.1.1.1
4.2.1.2.2 Number of Associations
The number of simultaneous associations depends on the usage profile. At a certain point of time there might
be active simultaneously:

1 association for Verification

1 association for Storage

1 association for Storage Commitment

1 association for Query/Retrieve - MOVE

n associations for Modality Worklist - FIND, depending on whether search criteria are changed while a
previous query is still active (no response yet)

n associations for Query/Retrieve - FIND, depending on whether search criteria are changed while a
previous query is still active (no response yet)
The maximum number of simultaneous associations is limited:
Maximum number of simultaneous associations
50
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 15 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
4.2.1.2.3 Asynchronous Nature
CIRRUS photo Application Software does not support asynchronous communication (multiple outstanding
transactions over a single Association).
4.2.1.2.4 Implementation Identifying Information
Implementation Class UID
1.2.276.0.75.2.5.20
Implementation Version Name
NIM-2.6.2
4.2.1.3 Association Initiation Policy
4.2.1.3.1 Activity – Verify DICOM Communication
4.2.1.3.1.1 Description and Sequencing of Activities
This activity is available during the configuration phase. It facilitates the setup and management of the DICOM
Application Entities. Furthermore this activity is triggered automatically in a configurable interval to reexamine
all configured connections. This automatic verification does not need any user interaction and comes without
any graphical UI features.
The user can test the application level communication between instrument’s software Application Entity and its
peer DICOM Application Entities. During one test call, all peer DICOM Application Entities are contacted.
In the association request CIRRUS photo Application Software proposes not only Verification SOP Class, but also
all other SOP Classes as supported by CIRRUS photo Application Software.
The association is established when the peer DICOM entity accepts the verification related presentation context.
In a sub-sequent step a C-ECHO message is exchanged.
The results of the “Verify DICOM Communication” activity are shown to the user as success or failure. For e. g.
a Storage Provider not only the Verification information is evaluated, but also the acceptance of the proposed
presentation context comprising the respective Storage SOP Classes.
4.2.1.3.1.2 Proposed Presentation Contexts
Following presentation contexts are offered for each initiated association. During this activity the Application
Software uses only

"Verification" with Transfer Syntax ILE as SCU
Presentation Context Table
Abstract Syntax
Transfer Syntax
Role
Ext.
Neg.
1.2
BOTH
No
ILE
1.2
SCU
No
5.1.4.1.2.2.1
ILE
1.2
SCU
Yes1
Study Root Query/Retrieve
Information Model - MOVE
5.1.4.1.2.2.2
ILE
1.2
SCU
No
Patient Root Query/Retrieve
Information Model – FIND
5.1.4.1.2.1.1
ILE
1.2
SCU
Yes1
Modality Performed Procedure
Step
3.1.2.3.3
ILE
1.2
SCU
No
Modality Performed Procedure
Step Notification
3.1.2.3.5
ILE
1.2
SCU
No
Encapsulated PDF Storage
5.1.4.1.1.104.1
ILE
1.2
BOTH
No
ELE
1.2.1
BOTH
No
Raw Data Storage
5.1.4.1.1.66
ILE
1.2
BOTH
No
Name
UID
1.2.840.10008. ...
Name List
UID List
1.2.840.10008. ...
Verification
1.1
ILE
Modality Worklist Information
Model - FIND
5.1.4.31
Study Root Query/Retrieve
Information Model - FIND
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 16 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
ELE
1.2.1
BOTH
No
OP 8 Bit Image Storage
5.1.4.1.1.77.1.5.1
JPG-1
1.2.4.50
BOTH
No
Multi-frame True Color Secondary
Capture Image Storage
5.1.4.1.1.7.4
JPG-1
1.2.4.50
BOTH
No
Storage Commitment Push Model
1.20.1
ILE
1.2
SCU
No
1
C-FIND extended negotiation is offered. Relational-query support is required by the SCP.
4.2.1.3.1.3 SOP Specific Conformance for Verification SOP Class
The CIRRUS photo Application Software provides standard conformance.
4.2.1.3.2 Activity – Query Modality Worklist
An operator has two options to perform this activity.
4.2.1.3.2.1 Description and Sequencing of Activities
Option “Today’s Patients - One-click query”
In this case, the Application Software performs a query with predefined query keys. The operator cannot
change the query key values. The applied query keys are:
Tag
Attribute Name
Description
(0040,0100)
Scheduled Procedure Step Sequence
>(0040,0001)
Scheduled Station Application Entity Title
Uses the value as configured for the instrument.
>(0040,0002)
Scheduled procedure Step Start Date
Uses the date of today.
All matching worklist items are subject to be displayed in the GUI and - once selected by the operator - to be
imported into the local database.
This default query can be manually triggered by simply opening the applications "Today's Patients" screen or by
pressing the “Refresh” button therein. This default query is also triggered automatically in a configurable
interval to keep the list of "Today's Patients" up to date.
To prevent the Application Software from triggering a request too often, a caching time can be
configured. If so, the application won’t issue new requests even if manually triggered but presents the
cached results to the operator.
The “Today’s Patients” screen also offers a ‘Quick search’ field, which allows to enter filter criteria for
the presented list. This does not trigger a new query request.
Note: “Today’s Patients” screen also lists non-scheduled patients, which already have a performed
series for today and match any additionally entered search criteria. These patients are received by
querying a remote AE. See chapter 4.2.1.3.3 Activity - Query remote AE for patients and data for
details.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 17 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Option “Search in Worklist - Interactive query”
CIRRUS photo AE
Modality Worklist
AE
Operator
Trigger "Query Modality Worklist"
Edit or modify query keys
loop in a configurable interv al
Trigger query
C-FIND
Response
Update pick-list
Select item from pick-list
opt
Activate detailed view
Save selected item
Figure 4-4 Option "Search in Worklist - Interactive query"
Trigger “Query Modality Worklist”
The activity “Query Modality Worklist” can be triggered by the operator at any time by
pressing the “Search in Worklist” button. It is meaningful to perform the query when the
patient arrives at the modality. Then the worklist contains latest information.
Edit or modify query keys
The Modality Worklist query offers a GUI for interactive query. The operator can change or fill
in search criteria in the shown dialog. For instance, the patient name or the patient ID can be
used. For more details on supported query keys see Table 4-3 Modality Worklist query key
details.
Trigger query
The operator triggers the search after he or she filled in search criteria by either pressing the
“Enter” key or by not typing any key for 3 seconds. The Application Software sends a DICOM
C-FIND request, which contains the search criteria. The Application Software waits for the
response from the partner Application Entity. Application Software will accept up to a
configurable number of matches. If the number of matches oversteps this limit, the
Application Software shows an information about truncated search results and a request to
apply more specific query keys. Despite this warning, the operator gets results in the pick-list.
After receiving the response, the pick-list is updated. The pick-list provides the most
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 18 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
important information for a quick overview (see Table 4-2 Attributes involved in Modality
Worklist C-FIND request and response).
The operator can start over, redefine query keys and trigger the query again. This can be
performed as often as required, until he or she finds the correct worklist item.
Select item in pick-list
The operator can select one worklist item in the pick-list. The selected item becomes subject
for a detailed view or it can be imported into the Application Software.
Activate detailed view
The detailed view allows a closer look to the currently selected worklist item. Thus the
operator can see more information about patient information and schedule information. This
can be triggered by pressing the “Show worklist details” button in the dialog.
Save selected item
The operator can take over the selected item at any time by pressing the “Plan For Today”
button. The data is stored in the list of today’s patients.
After saving the selected item, the operator can start over. By repeating this process the
operator can take over several worklist items into the local database.
After all that, the operator can start the examination of the patient and acquire scan data.
Leave dialog
The operator finally finishes the worklist query by leaving the dialog.
4.2.1.3.2.2 Proposed Presentation Contexts
Following presentation contexts are offered for each initiated association. During this activity the Application
Software uses only

"Modality Worklist IM - FIND" with Transfer Syntax ILE as SCU
Presentation Context Table
Abstract Syntax
Transfer Syntax
Role
Ext.
Neg.
1.2
BOTH
No
ILE
1.2
SCU
No
5.1.4.1.2.2.1
ILE
1.2
SCU
Yes1
Study Root Query/Retrieve
Information Model - MOVE
5.1.4.1.2.2.2
ILE
1.2
SCU
No
Patient Root Query/Retrieve
Information Model – FIND
5.1.4.1.2.1.1
ILE
1.2
SCU
Yes1
Modality Performed Procedure
Step
3.1.2.3.3
ILE
1.2
SCU
No
Modality Performed Procedure
Step Notification
3.1.2.3.5
ILE
1.2
SCU
No
Encapsulated PDF Storage
5.1.4.1.1.104.1
ILE
1.2
BOTH
No
ELE
1.2.1
BOTH
No
Raw Data Storage
5.1.4.1.1.66
ILE
1.2
BOTH
No
ELE
1.2.1
BOTH
No
OP 8 Bit Image Storage
5.1.4.1.1.77.1.5.1
JPG-1
1.2.4.50
BOTH
No
Multi-frame True Color Secondary
Capture Image Storage
5.1.4.1.1.7.4
JPG-1
1.2.4.50
BOTH
No
Storage Commitment Push Model
1.20.1
ILE
1.2
SCU
No
Name
UID
1.2.840.10008. ...
Name List
UID List
1.2.840.10008. ...
Verification
1.1
ILE
Modality Worklist Information
Model - FIND
5.1.4.31
Study Root Query/Retrieve
Information Model - FIND
1
C-FIND extended negotiation is offered. Relational-query support is required by the SCP.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 19 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
4.2.1.3.2.3 SOP Specific Conformance for Modality Worklist SOP Class
Table 4-1 Modality Worklist C-FIND Response Status Handling Behavior
Further
Meaning
Service Status
Error Code
Behavior
Success
Matching is
complete
0000
The Software Application stops receiving
worklist items. It finally updates the pick list.
Pending
Matches are
continuing
FF00, FF01
The Application Software checks whether the
number of received worklist items overstepped
the configurable limit. If the number of
received worklist items overstepped the limit,
then the Application Software sends an ARELEASE-RQ to the service provider.
Failure
Too Many
Results
C001
If there more results than the configured limit
the application software throws an error
message to the user.
*
*
Any other
status code
The user gets an error message.
Modifiable
Displayed
Imported
Tag Name
Query Key
Tag
SOP Instance
Table 4-2 Attributes involved in Modality Worklist C-FIND request and response
(0040,0100)
Scheduled Procedure Step (SPS)
Scheduled Procedure Step Sequence
X
>(0040,0001)
Scheduled Station Application Entity Title
X
PLD
>(0040,0003)
Scheduled Procedure Step Start Time
X
PLD
>(0040,0002)
Scheduled Procedure Step Start Date
OQ, IQ,
DEF
X
PL, PLD
>(0008,0060)
Modality
IQ, DEF
X
PLD
>(0040,0006)
Scheduled Performing Physicians Name
X
>(0040,0007)
Scheduled Procedure Step Description
V
>(0040,0010)
Scheduled Station Name
X
>(0040,0011)
Scheduled Procedure Step Location
X
>(0040,0008)
Scheduled Protocol Code Sequence
X
X
>>(0008,0100)
Code Value
V
X
>>(0008,0102)
Coding Scheme Designator
V
X
>>(0008,0103)
Coding Scheme Version
V
>>(0008,0104)
Code Meaning
V
>(0040,0012)
Pre-Medication
X
>(0040,0009)
Scheduled Procedure Step ID
V
>(0032,1070)
X
(0040,1001)
Requested Contrast Agent
Requested Procedure
Requested Procedure ID
IQ
V
PL, PLD
X
(0032,1060)
Requested Procedure Description
V
PLD
X
(0032,1064)
Requested Procedure Code Sequence
X
X
>(0008,0100)
Code Value
V
X
>(0008,0102)
Coding Scheme Designator
V
X
>(0008,0103)
Coding Scheme Version
V
>(0008,0104)
Code Meaning
V
(0020,000D)
Study Instance UID
V
OQ, IQ,
DEF
PL, PLD
X
X
PLD
X
X
X
PLD
X
X
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 20 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
(0008,1110)
Referenced Study Sequence
X
X
>(0008,1150)
Referenced SOP Class UID
V
X
>(0008,1155)
Referenced SOP Instance UID
V
X
(0040,1003)
Requested Procedure Priority
X
(0040,1004)
Patient Transport Arrangements
X
(0040,1400)
Requested Procedure Comments
V
PLD
X
(0008,0050)
Accession Number
V1
PL, PLD
X
(0032,1032)
Requesting Physician
X
(0008,0090)
V
PLD
X
(0008,1120)
Referring Physicians Name
Visit Identification
Admission ID
Visit Status
Current Patient Location
Visit Relationship
Referenced Patient Sequence
>(0008,1150)
Referenced SOP Class UID
X
>(0008,1155)
X
(0010,0010)
Referenced SOP Instance UID
Patient Identification
Patient’s Name
IQ
V
PL, PLD,
APP
X
(0010,0020)
Patient ID
V
PL, PLD,
APP
X
(0010,0021)
Issuer of Patient ID
(0010,1000)
Other Patient IDs
(0038,0010)
(0038,0300)
IQ
IQ
X
X
X
V
X
V
X
Patient Demographic
(0010,0030)
Patient’s Birth Date
V
PLD, APP
X
(0010,0040)
Patient’s Sex
V
PLD, APP
X
(0010,1030)
Patient’s Weight
X
(0040,3001)
Confidentiality Constraint on Patient
Data Description
X
(0010,2160)
Ethnic Group
X
(0010,4000)
Patient’s Comments
V
X
PL
X
Patient Medical
(0038,0500)
Patient State
X
(0010,21C0)
Pregnancy Status
X
(0010,2000)
Medical Alerts
X
(0038,0050)
Special Needs
X
Values of column “Query Key”:
OQ
IQ
A tag that is marked with OQ is used as query key in the “One-click Query” mode as provided
by “Today’s Patients” screen.
A tag that is marked with IQ is used as query key in the “Interactive Query” mode as
provided by the “Search in Worklist” dialog.
DEF
A tag that is marked with DEF has a value assigned when the interactive Modality Worklist
Query Dialog is shown the first time or when the Reset button is pushed.
Default value for Scheduled Station AET equals to Local Application Entity Title as set in
instrument’s DICOM configuration
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 21 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Values of column “Imported”:
X
V
The value gets imported in the application. Thus this value may have influence in Information
Objects which will be created as a result of the performed examination.
The value is validated according to DICOM VR definition before getting imported. In case of
validation fails the application software does not import the respective worklist record.
1
Note:
Values for (0008,0050) Accession Number will only pass validation if containing characters of
ASCII character set. Otherwise application software does not import the respective worklist
record.
Values of column “Displayed”:
PL
Values of this tag are instantly visible in the pick list.
PLD
Values of this tag are visible in the details dialog of the current selected pick list item.
APP
Values of this tag are visible in the other portions of main application, e.g. in the patient
information banner.
Values of column “Modifiable”:
X
A value which has been imported to the application might be modified inside the application.
Values of column SOP Instance:
X
Values of marked tags will be stored in created SOP Instances. See also table “mapping of
attributes” in 8.1.3 Attribute Mapping.
Following set of tags can be used as query key in the “Search in worklist” dialog.
Table 4-3 Modality Worklist query key details
Tag
(0010,0010)
Tag Name
Patient’s
Name
Description
The CIRRUS photo Application Software supports family
name only.
The operator can use ‘*’ or ‘?’ as wild cards.
Note:
All other name components will be set automatically to “*”,
thus the actual query key will be “<search_pattern>^*”.
(0010,0020)
Patient ID
The operator can enter a string which conforms to the Value
Representation LO.
(0008,0050)
Accession
Number
The operator can enter a string which conforms to the Value
Representation SH.
(0040,1001)
Requested
Procedure ID
The operator can enter a string which conforms to the Value
Representation SH.
(0040,0100)
Scheduled
Procedure
Step
Sequence
This attribute is the container for the tags as listed below.
The sequence contains one item.
>(0040,0002)
Scheduled
Procedure
Step Start
Date
The default value is “All dates”.
Modality
The default value is “OP”.
>(0008,0060)
The operator can change the value and can even enter date
ranges.
The operator can change the value and select one value of a
predefined set of values including an empty string. Possible
values are “OAM”, “OP”, “OPM”, “OPR”, “OPT”, “OPV”, and
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 22 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
“All”.
>(0040,0001)
Scheduled
Station AE
Title
The default value is set by configuration.
The operator can enter the AE Title of another device or
leave the field empty.
4.2.1.3.3 Activity - Query remote AE for patients and data
4.2.1.3.3.1 Description and Sequencing of Activities
Option “Today’s Patients - One-click query”
In this case, the Application Software performs a relational Patient Root based DICOM C-FIND request with
predefined query keys at Series Level. The operator cannot change the query key values. The applied query
keys are:
Tag
(0008,0021)
Attribute Name
Series Date
Description
Uses the date of today.
All matching query response items are subject to be displayed in the GUI along with the results from 4.2.1.3.2
Activity – Query Modality Worklist and - once selected by the operator - to be imported into the local database.
This default query can be manually triggered by simply opening the applications "Today's Patients" screen or by
pressing the “Refresh” button therein. This default query is also triggered automatically in a configurable
interval to keep the list of "Today's Patients" up to date.
To prevent the Application Software from triggering a request too often, a caching time can be
configured. If so, the application won’t issue new requests even if manually triggered but presents the
cached results to the operator.
The “Today’s Patients” screen also offers a ‘Quick search’ field, which allows to enter filter criteria for
the presented list. This does not trigger a new query request.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 23 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Option “Find Patient - Interactive query”
CIRRUS photo AE
Query AE
Operator
Trigger "Query remote AE for patients and data"
Edit or modify query keys
Trigger query
C-FIND (Patient Root, Search criteria)
Response
Update patient list
Select patient from patient list
C-FIND (Study Root, Patient
ID, Issuer Of PatientID,
Patient's Name, Patient's
Birth Date, Patient's Sex)
Response
Update visit list
Update instance list (placeholder thumbnails)
Figure 4-5 Option “Find Patient - Interactive query”
Trigger “Query remote AE for patients and data”
The activity “Query remote AE for patients and data” can be triggered by the operator at any
time by activating the “Find Patient” screen.
Edit or modify query keys
The “Find Patient” screen offers a GUI for interactive query. The operator can change or fill in
search criteria in the shown search fields.
The top-most search field in the “Find Patient” screen acts as a Quick Search field. Any value
entered herein is applied to

(0010,0010)
Patient’s Name – Family Name

(0010,0010)
Patient’s Name – Given Name

(0010,0020)
Patient ID
and issued as three separate requests. The entered value is automatically wild carded to fulfill
the ‘contains’ condition.
For more details on supported query keys see Table 4-6 Query key details.
Trigger query
The operator triggers the search after he or she filled in search criteria by either pressing the
“Enter” key or by not typing any key for 3 seconds. The Application Software sends a Patient
Root based DICOM C-FIND request which contains the entered search criteria. The Application
Software waits for the response from the Query AE and accepts up to a configurable number
of matches. If the number of matches exceeds this limit, the Application Software shows an
information about truncated search results and a request to apply more specific query keys.
Despite this warning, the operator gets results in the pick-list.
After receiving the response, the patient pick-list is updated. The patient pick-list provides the
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 24 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
most important information for a quick overview (see Table 4-5 Attributes involved in Query
C-FIND request and response).
The operator can start over, redefine query keys and trigger the query again. This can be
performed as often as required, until he or she finds the correct patient entry.
Important note: For this activity it is required that the SCP supports the Relational query
model since Application Software does not use the Hierarchical model.
Select patient from patient list
The operator can select one patient entry from the patient list. Once the item is selected the
Application Software sends a DICOM C-FIND request on Instance Level using Study Root
Query SOP Class with the following query keys

(0010,0020)
Patient ID

(0010,0021)
Issuer of Patient ID

(0010,0010)
Patient’s Name

(0010,0030)
Patient’s Birth Date

(0010,0040)
Patient’s Sex
The Application Software filters the response from the Query AE for supported instances and
uses the data gathered by these filters to update a “Visit list” and an “Exam list”. The "Visit
list" shows a list of dates for which instances were provided in the Query response while the
"Exam list" shows thumbnails for any instances available for a selected visit. In the first place
these thumbnails are placeholders indicating that the actual instance is not retrieved yet to
the CIRRUS photo Application Entity.
The operator can select another entry from the patient list even when an active request is still
in progress. In this case another request will be started in parallel and the results from the
previous request will get finished.
Important note: For this activity it is required that the SCP supports the Relational query
model since Application Software does not use the Hierarchical model.
Immediately after updating both lists the Application Software automatically starts the activity
“Retrieve scans, images and analyses from remote AE”.
4.2.1.3.3.2 Proposed Presentation Contexts
Following presentation contexts are offered for each initiated association. During this activity the Application
Software uses only

"Patient Root Query/Retrieve Information Model - FIND" with Transfer Syntax ILE as SCU

"Study Root Query/Retrieve Information Model - FIND" with Transfer Syntax ILE as SCU
Important note: For this activity it is required that the SCP supports the Relational query model
since Application Software does not use the Hierarchical model.
Presentation Context Table
Abstract Syntax
Transfer Syntax
Role
Ext.
Neg.
1.2
BOTH
No
ILE
1.2
SCU
No
5.1.4.1.2.2.1
ILE
1.2
SCU
Yes1
Study Root Query/Retrieve
Information Model - MOVE
5.1.4.1.2.2.2
ILE
1.2
SCU
No
Patient Root Query/Retrieve
Information Model – FIND
5.1.4.1.2.1.1
ILE
1.2
SCU
Yes1
Modality Performed Procedure
3.1.2.3.3
ILE
1.2
SCU
No
Name
UID
1.2.840.10008. ...
Name List
UID List
1.2.840.10008. ...
Verification
1.1
ILE
Modality Worklist Information
Model - FIND
5.1.4.31
Study Root Query/Retrieve
Information Model - FIND
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 25 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Step
Modality Performed Procedure
Step Notification
3.1.2.3.5
Encapsulated PDF Storage
5.1.4.1.1.104.1
Raw Data Storage
5.1.4.1.1.66
OP 8 Bit Image Storage
ILE
1.2
SCU
No
ILE
1.2
BOTH
No
ELE
1.2.1
BOTH
No
ILE
1.2
BOTH
No
ELE
1.2.1
BOTH
No
5.1.4.1.1.77.1.5.1
JPG-1
1.2.4.50
BOTH
No
Multi-frame True Color Secondary
Capture Image Storage
5.1.4.1.1.7.4
JPG-1
1.2.4.50
BOTH
No
Storage Commitment Push Model
1.20.1
ILE
1.2
SCU
No
1
C-FIND extended negotiation is offered. Relational-query support is required by the SCP.
4.2.1.3.3.3 SOP Specific Conformance for Patient Root and Study Root Query/Retrieve
SOP Class as SCU
Table 4-4 Query C-FIND Response Status Handling Behavior
Further
Meaning
Service Status
Success
Matching is
complete
Error Code
Behavior
0000
The Application Software finishes receiving
query results. It finally updates the pick list.
No final
Identifier is
supplied.
Pending
Matches are
continuing
FF00, FF01
The Application Software checks whether the
number of received responses overstepped the
configurable limit. If the number of received
responses overstepped the limit, then the
Application Software sends an A-RELEASE-RQ
to the service provider.
Refused
Out of Resources
A700
Failure
Identifier does
not match SOP
Class
A900
An error message is shown to the operator.
The Application Software logs this event and
gives up. The pick-list is then empty.
Failure
Unable to
process
C000 - CFFF
Cancel
Matching
terminated due
to Cancel
request
FE00
*
*
Any other
status code
The following table lists attributes, which are in use during this activity. The table also explains how the
attributes are involved.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 26 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Displayed
in details
(0010,0010)
Patient’s Name
X, AUTO
X
X
(0010,0020)
Patient ID
X, AUTO
X
X
(0010,0021)
Issuer of Patient ID
AUTO
X
X
(0010,0030)
Patient’s Birth Date
X, RNG, AUTO
X
X
(0010,0040)
Patient’s Sex
X, SEL, AUTO
X
X
(0008,0020)
Study Date
X, RNG
X
(0008,0050)
Accession Number
X
X
(0020,0010)
Study ID
X
X
(0008,0090)
Referring Physician’s Name
X
X
(0008,0060)
Modality
X, SEL
X
(0020,0011)
Series Number
X
(0040,1001)
Requested Procedure ID
X
X
(0040,0009)
Scheduled Procedure Step ID
X
X
(0040,0244)
Performed Procedure Step Start Date
X, RNG
X
(0008,0021)
Series Date
X, RNG
(0020,0013)
Instance Number
Tag
Query Key
Displayed
in pick-list
Table 4-5 Attributes involved in Query C-FIND request and response
Tag Name
Study
Series
Instance
X
X
Values for column “Query key”:
X
The attribute is used as query key. The operator can assign values to that attribute. When the
operator triggers the query, the values of the query keys are transferred to the Query Service
Provider. How the Query Service Provider interprets the given value is out of scope of this
document.
AUTO
The CIRRUS photo application assigns automatically values to that attribute according to the
current operator selection.
RNG
The operator can apply a range as value for the query key.
SEL
The operator can select a value from a given list of values.
Values for column “Displayed in pick-list”:
X
After receiving query results, the value of this attribute is shown in the pick-list.
Values for column “Displayed in detail dialog”:
X
The value of this attribute becomes visible in the detail dialog. The detail dialog shows
attributes of the current selected item in the pick-list.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 27 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Table 4-6 Query key details
Tag
Tag Name
Description
Patient
(0010,0010)
Patient’s Name
The default value is empty string.
Only family name, middle name and given
name can be used as query keys. The
operator can use '*' or '?' as wild cards.
This is a DICOM Standard query key on
Patient level.
Note:
In case, only family name component is filled
by user all other name components will be set
automatically to “*”, thus the actual query
key will be “<search_pattern>^*”.
(0010,0020)
Patient ID
The default value is empty string.
The operator can enter each value that
conforms to the Value Representation LO.
This is a DICOM Standard query key on
Patient level.
(0010,0021)
Issuer of Patient ID
This attribute is used as query key
automatically when the operator selects a
patient from the patient list and the
application starts querying the remote AE for
“Visits” and “Exams”.
The value assigned conforms to the value
gathered from the previous Patient root
Query.
This is a DICOM Optional query key on Patient
level, thus the effect of this query key on the
query depends on Service Provider
implementation.
(0010,0030)
Patient’s Birth Date
The default value is empty date.
The operator can enter a specific value that
conforms to the Value Representation DA. The
operator can also select from a range of dates
that might represent either a range of ages
(“Age”) or a range of years of birth (“Year”).
This is a DICOM Optional query key on Patient
level, thus the effect of this query key on the
query depends on Service Provider
implementation.
(0010,0040)
Patient’s Sex
The default value is empty string.
The operator can select from a list of predefined values and the application software
will convert the selection to a value that
conforms to the Value Representation CS.
This is a DICOM Optional query key on Patient
level, thus the effect of this query key on the
query depends on Service Provider
implementation.
Study
(0008,0050)
Accession Number
The default value is empty string.
The operator can enter each value that
conforms to the Value Representation SH.
This is a DICOM Standard query key on Study
level.
(0008,0020)
Study Date
The default value is empty date.
The operator can select from a range of dates.
This is a DICOM Standard query key on Study
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 28 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
level.
(0020,0010)
Study ID
The default value is empty string.
The operator can enter each value that
conforms to the Value Representation SH.
This is a DICOM Standard query key on Study
level.
(0008,0090)
Referring Physician’s Name
The default value is empty string.
Only family name can be used as query key.
This is a DICOM Optional query key on Study
level, thus the effect of this query key on the
query depends on Service Provider
implementation.
Series
(0008,0060)
Modality
The default value is empty string.
The operator can select from a list of predefined values and the application software
will convert the selection to a value that
conforms to the Value Representation CS.
This is a DICOM Standard query key on Series
level.
(0020,0011)
Series Number
The default value is empty string.
The operator can enter each value that
conforms to the Value Representation IS.
This is a DICOM Standard query key on Series
level.
(0040,1001)
Requested Procedure ID
The default value is empty string.
The operator can enter each value that
conforms to the Value Representation SH.
This is a DICOM Optional query key on Series
level, thus the effect of this query key on the
query depends on Service Provider
implementation.
(0040,0009)
Scheduled Procedure Step ID
The default value is empty string.
The operator can enter each value that
conforms to the Value Representation SH.
This is a DICOM Optional query key on Series
level, thus the effect of this query key on the
query depends on Service Provider
implementation.
(0040,0244)
Performed Procedure Step Start Date
The default value is empty date.
The operator can select from a range of dates.
This is a DICOM Optional query key on Series
level, thus the effect of this query key on the
query depends on Service Provider
implementation.
(0008,0021)
Series Date
This attribute is denoted as “Visit Date” in the
application software’s UI.
The default value is empty date.
The operator can select from a range of dates.
This is a DICOM Optional query key on Series
level, thus the effect of this query key on the
query depends on Service Provider
implementation.
Instance
(0020,0013)
Instance Number
The default value is empty string.
The operator can enter each value that
conforms to the Value Representation IS.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 29 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
This is a DICOM Standard query key on
Instance level.
4.2.1.3.4 Activity – Retrieve scans, images and analyses from remote AE
4.2.1.3.4.1 Description and Sequencing of Activities
This activity is indirectly triggered whenever the operator selects one item from the patient pick-list presented
within either activity “Query Modality Worklist” (“Today’s Patients” screen) or activity “Query remote AE for
patients and data” (“Find Patient” screen).
CIRRUS photo AE
Query AE
Retrieve AE
Operator
Select patient from patient list
C-FIND (Study Root, Patient ID, Issuer Of PatientID,
Patient's Name, Patient's Birth Date, Patient's Sex)
Response
Update visit list
Update instance list (placeholder thumbnails)
loop For each instance passing internal filtering
C-MOVE (Study Instance UID, Series Instance UID,
SOP Instance UID
C-STORE
Update instance list (real thumbnails)
Select patient from patient list
The operator can select one patient entry from the patient pick-list list. Once the item is
selected the Application Software sends a DICOM C-FIND request on Instance Level using
Study Root Query SOP Class with the following query keys

(0010,0020)
Patient ID

(0010,0021)
Issuer of Patient ID

(0010,0010)
Patient’s Name

(0010,0030)
Patient’s Birth Date

(0010,0040)
Patient’s Sex
The Application Software filters the response from the Query AE for supported instances. The
following elements of a response item are evaluated and filtered:

(0008,0060) Modality

(0008,1090) Manufacturer's Model Name

(0008,0008) Image Type

(0008,0016) SOP Class UID

(0405,xx01) Pattern Type
Only instances fulfilling the following conditions will be accepted:

Manufacturers Model Name must always contain either ‘CIRRUS photo’ or ‘VISUCAM’

Raw Data instances must be of Modality ‘OPT’ and must contain supported scan or
analysis data
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 30 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I

Multi-Frame True Color Secondary Capture instances must contain the Image Type ‘B
SCAN’

Ophthalmic Photography 8 Bit instances must be of Modality ‘OP’
All instances passing the applied filters are presented to the user in a “Visit list” and an “Exam
list”. The "Visit list" shows a list of dates for which instances were provided in the Query
response while the "Exam list" shows thumbnails for any instances available for a selected
visit. In the first place these thumbnails are placeholders indicating that the actual instance is
not retrieved yet to the CIRRUS photo Application Entity.
Immediately after updating both lists the Application Software automatically starts to initiate
a C-MOVE request for each instance that passed the filtering. The retrieval of instances is
ordered by series date and starts with most recent instances.
4.2.1.3.4.2 Proposed Presentation Contexts
Following presentation contexts are offered for each initiated association. During this activity the Application
Software uses only

"Study Root Query/Retrieve Information Model - MOVE" with Transfer Syntax ILE as SCU

“Raw Data Storage” with Transfer Syntax ELE or ILE as SCP

“OP 8 Bit Image Storage” with Transfer Syntax JPG-1 as SCP

“Multi-frame True Color Secondary Capture Image Storage” with Transfer Syntax JPG-1 as SCP
Presentation Context Table
Abstract Syntax
Transfer Syntax
Role
Ext.
Neg.
1.2
BOTH
No
ILE
1.2
SCU
No
5.1.4.1.2.2.1
ILE
1.2
SCU
Yes1
Study Root Query/Retrieve
Information Model - MOVE
5.1.4.1.2.2.2
ILE
1.2
SCU
No
Patient Root Query/Retrieve
Information Model – FIND
5.1.4.1.2.1.1
ILE
1.2
SCU
Yes1
Modality Performed Procedure
Step
3.1.2.3.3
ILE
1.2
SCU
No
Modality Performed Procedure
Step Notification
3.1.2.3.5
ILE
1.2
SCU
No
Encapsulated PDF Storage
5.1.4.1.1.104.1
ILE
1.2
BOTH
No
ELE
1.2.1
BOTH
No
Raw Data Storage
5.1.4.1.1.66
ILE
1.2
BOTH
No
ELE
1.2.1
BOTH
No
OP 8 Bit Image Storage
5.1.4.1.1.77.1.5.1
JPG-1
1.2.4.50
BOTH
No
Multi-frame True Color Secondary
Capture Image Storage
5.1.4.1.1.7.4
JPG-1
1.2.4.50
BOTH
No
Storage Commitment Push Model
1.20.1
ILE
1.2
SCU
No
Name
UID
1.2.840.10008. ...
Name List
UID List
1.2.840.10008. ...
Verification
1.1
ILE
Modality Worklist Information
Model - FIND
5.1.4.31
Study Root Query/Retrieve
Information Model - FIND
1
C-FIND extended negotiation is offered. Relational-query support is required by the SCP.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 31 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
4.2.1.3.4.3 SOP Specific Conformance for Study Root Query/Retrieve SOP Class as SCU
Table 4-7 Retrieve C-MOVE Response Status Handling Behavior
Further
Meaning
Service Status
Success
Sub-operations
Complete
Error Code
Behavior
0000
The Application Software returns from this
activity.
No Failures
Pending
Sub-operations
are continuing
FF00
This is not expected since the Application
Software calls C-MOVE instance by instance.
Refused
Out of Resources
A701
An error message is shown to the operator.
The Application Software logs this event and
continues with processing next C-MOVE
operation.
Unable to
calculate number
of matches
Refused
Out of Resources
A702
Unable to
perform suboperations
Refused
Move Destination
unknown
A801
Failure
Identifier does
not match SOP
Class
A900
Failure
Unable to
process
C000 - CFFF
Success
Sub-operations
Complete
B000
One or more
Failures
Cancel
Sub-operations
terminated due
to Cancel
Indication
FE00
*
*
Any other
status code
4.2.1.3.5 Activity – Acquire scans and images
Operator can trigger “Acquire scans and images” at any time if no other activity is in progress.
This activity has no direct relation to DICOM messaging.
During this activity, the Application Software creates scan and image data. It also creates default parameters
for an analysis.
The created data is subject to be archived within next “Store scans, images, analyses and reports to remote
AE”-activity call.
During this activity the activities

“Query Modality Worklist”

“Query remote AE for patients and data”

“Retrieve scans and images”

“Store scan, images, analyses and reports”
will be paused.
4.2.1.3.6 Activity – Analyze scans and images
Operator can trigger “Analyze scans and images” at any time if no other activity is in progress.
This activity has no direct relation to DICOM messaging.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 32 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
During this activity, the Application Software creates new parameter data sets for an analysis and/or new
images.
The created data is subject to be archived within next “Store scans, images, analyses and reports to remote
AE”-activity call.
During this activity the “Store scan, images, analyses and reports” activity will be paused.
4.2.1.3.7 Activity – Create reports
Operator can trigger “Create reports” within either “Review Image” or “Analyze OCT” screen.
This activity has no direct relation to DICOM messaging.
During this activity, the Application Software creates new parameter data sets for an analysis and/or new
images.
The created data is subject to be archived within next “Store scans, images, analyses and reports to remote
AE”-activity call.
4.2.1.3.8 Activity – Store scans, images, analyses and reports to remote AE
This activity cannot be triggered manually by the operator but is triggered automatically in the background
whenever new data has been created and neither “Acquire scans and images” nor “Analyze scans and images”
is active.
This activity will pause for benefit of high priority activities (e.g. “Acquire scans and images”) and resume after
such activities has been finished.
After a configurable amount of time, the Application Software asks the configured Storage Commitment
Provider to take over responsibility on data persistence for the data previously transferred by the “Archive data”
activity. When storage is committed the operator is allowed to enable removal of this data from the modality.
This will typically done in the shutdown routine.
4.2.1.3.8.1 Description and Sequencing of Activities
CIRRUS photo AE
Storage AE
Storage
Commitment AE
Operator
Trigger creation of new data
Add new data to list of storage candidate
Trigger "Store scans, images, analyses and reports to remote AE"
loop For each item in list of storage candidates
C-STORE (SOP instance)
[System has been idle for configurable time]:
StorageCommitment interval elapsed
Request commitment for stored but uncommitted instances
N-ACTION (SOP Instance UIDs)
N-EVENT-REPORT
Trigger “Store scans, images, analyses and reports to remote AE”
This activity cannot be triggered manually by the operator but is triggered automatically in
the background whenever new data has been created and neither “Acquire scans and images”
nor “Analyze scans and images” is active.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 33 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Furthermore the application software triggers this activity automatically after a configurable
interval has been elapsed and there’s new data available that has not been stored.
Once triggered, the application software transfers all data that has been stored locally but has
not yet transferred to the configured Storage AE . It also re-transfers data for which archiving
has failed in a previous attempt or where the storage commitment has not been negotiated
successfully.
The operator can pause this activity when triggering either “Acquire scans and images” or
“Analyze scans and images”. Once these activities are finished, storing is resumed.
To verify that the data has been archived, the Application Software can be set up to ask the
configured Storage Commitment AE in a configurable interval to commit storage of instances.
Data that has been successfully archived (stored and commitment of storage) is subject to be
deleted at shutdown.
4.2.1.3.8.2 Proposed Presentation Contexts
Following presentation contexts are offered for each initiated association. During this activity the Application
Software uses only

Encapsulated PDF with Transfer Syntax ELE (Transfer Syntax ILE as fallback) as SCU

Raw Data Storage with Transfer Syntax ELE (Transfer Syntax ILE as fallback) as SCU

OP 8Bit Image Storage with Transfer Syntax JPG-1 as SCU

Multi-frame True Color SC Image Storage with Transfer Syntax JPG-1 as SCU

Storage Commitment Push Model with Transfer Syntax ILE as SCU
Presentation Context Table
Abstract Syntax
Transfer Syntax
Role
Ext.
Neg.
1.2
BOTH
No
ILE
1.2
SCU
No
5.1.4.1.2.2.1
ILE
1.2
SCU
Yes1
Study Root Query/Retrieve
Information Model - MOVE
5.1.4.1.2.2.2
ILE
1.2
SCU
No
Patient Root Query/Retrieve
Information Model – FIND
5.1.4.1.2.1.1
ILE
1.2
SCU
Yes1
Modality Performed Procedure
Step
3.1.2.3.3
ILE
1.2
SCU
No
Modality Performed Procedure
Step Notification
3.1.2.3.5
ILE
1.2
SCU
No
Encapsulated PDF Storage
5.1.4.1.1.104.1
ILE
1.2
BOTH
No
ELE
1.2.1
BOTH
No
Raw Data Storage
5.1.4.1.1.66
ILE
1.2
BOTH
No
ELE
1.2.1
BOTH
No
OP 8 Bit Image Storage
5.1.4.1.1.77.1.5.1
JPG-1
1.2.4.50
BOTH
No
Multi-frame True Color Secondary
Capture Image Storage
5.1.4.1.1.7.4
JPG-1
1.2.4.50
BOTH
No
Storage Commitment Push Model
1.20.1
ILE
1.2
SCU
No
Name
UID
1.2.840.10008. ...
Name List
UID List
1.2.840.10008. ...
Verification
1.1
ILE
Modality Worklist Information
Model - FIND
5.1.4.31
Study Root Query/Retrieve
Information Model - FIND
1
C-FIND extended negotiation is offered. Relational-query support is required by the SCP.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 34 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
4.2.1.3.8.3 SOP Specific Conformance for Storage SOP Classes
Table 4-8 Storage C-STORE Response Status Handling Behavior
Further
Meaning
Service Status
Status Code
Behavior
Success
Success
0000
The Application Software continues storing
next instance if there is at least one instance
left in the set of instances.
Warning
Coercion of Data
Elements
B000
Warning
Data Set does
not match SOP
Class
B007
The Application Software logs this event and
continues storing next instance if there is at
least one instance left in the set of instances.
Warning
Elements
Discarded
B006
Refused
Out of Resources
A700 – A7FF
The Application Software continues storing
next instance if there is at least one instance
left in the set of instances.
Afterwards application software performs a
configurable number of retrials to store the
failed instance.
If all retrials fail, an error message is shown to
the operator, the Application Software logs
this event and gives up for this instance.
Error
Data Set does
not match SOP
Class
A900 – A9FF
Error
Cannot
Understand
C000 – CFFF
*
*
Any other
status value
An error message is shown to the operator.
The Application Software logs this event and
gives up for this instance. Application software
continues storing next instance if there is at
least one instance left in the set of instances.
4.2.1.3.8.4 SOP Specific Conformance for Storage Commitment SOP Class
4.2.1.3.8.4.1 Storage Commitment Operations (N-ACTION)
The Application Software will request storage commitment for instances of the Raw Data (scan and analysis
data), Ophthalmic Photography, Multi-frame True Color Secondary Capture and Encapsulated PDF Image
Storage if the Remote AE is configured as Storage Commitment Provider and a presentation context for the
Storage Commitment Push Model has been accepted.
The Storage Commitment Request addresses at least one SOP Instance and at maximum 500 SOP instances.
The behavior of the Application Software when encountering status codes in a N-ACTION response is
summarized in the table below:
Table 4-9 Storage Commitment N-ACTION Response Status Handling Behavior
Service Status
Further
Meaning
Status Code
Failure
Processing
failure
0110
Failure
Resource
limitation
0213
Behavior
The SOP Instance is considered as not being
committed. For a configurable amount of retrials the SOP Instance is subject of a future
Storage Commitment service request. It will
be included again within next call of these
activities.
In case of failure occurs repeatedly a warning
message is shown to the operator.
Failure
No such
argument
0114
The SOP Instance is considered as not being
committed. For a configurable amount of re-
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 35 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
trials the SOP Instance is subject of a future
Storage Commitment service request. It will
be included again within next call of these
activities.
Failure
Invalid argument
value
0115
Failure
Invalid object
instance
0117
Failure
No such SOP
class
0118
Refused
SOP class not
supported
0122
Failure
No such action
type
0123
Failure
Unrecognized
operation
0211
Failure
Mistyped
argument
0212
Success
Success
0000
The Application Software will wait for an
incoming N-EVENT-REPORT within a
configurable time.
*
*
Any other
status value
The SOP Instance is considered as not being
committed. For a configurable amount of retrials the SOP Instance is subject of a future
Storage Commitment service request. It will
be included again within next call of these
activities.
An error message is shown to the operator.
4.2.1.3.8.4.2 Storage Commitment Communication Failure Behavior
If the Application Software runs in a timeout or if the association is aborted by the provider or network layer, or
if waiting duration for Storage Commitment N-EVENT-REPORT oversteps a configurable time limit then the
related SOP Instance is considered as not being committed. Then the SOP Instance is subject of a future
Storage Commitment service call. It will be included again within next call of this activity.
In addition to that, the Application Software writes the SOP Instance UID to the log file, together with the
failure reason.
4.2.1.4 Association Acceptance Policy
4.2.1.4.1 Activity – Verify Communication
The activity can be performed at any time. The service is available as soon as the Application Software has
been started.
4.2.1.4.1.1 Description and Sequencing of Activities
The Software AE responds to verification requests made by remote AEs.
4.2.1.4.1.2 Accepted Presentation Contexts
Presentation Context Table
Abstract Syntax
Transfer Syntax
Name
UID
1.2.840.10008. ...
Name List
UID List
1.2.840.10008. ...
Verification
1.1
ILE
1.2
Role
Ext.
Neg.
BOTH
No
4.2.1.4.1.3 SOP Specific Conformance for Verification SOP Class as SCP
The Application Software AE provides standard conformance.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 36 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
4.2.1.4.2 Activity - Retrieve scans, images and analyses from remote AE
This chapter describes the aspect of association acceptance of the activity “Retrieve scans, images and analyses
from remote AE”. The activity retrieves images, scan data and analysis data belonging to a selected patient.
4.2.1.4.2.1 Description and Sequencing of Activities
The description and sequencing of activities is covered by chapter “4.2.1.3.4 Activity – Retrieve scans, images
and analyses from remote AE”.
4.2.1.4.2.2 Accepted Presentation Contexts
Presentation Context Table
Abstract Syntax
Transfer Syntax
Role
Ext.
Neg.
1.2
BOTH
No
ILE
1.2
BOTH
No
ELE
1.2.1
BOTH
No
ILE
1.2
BOTH
No
ELE
1.2.1
BOTH
No
5.1.4.1.1.77.1.5.1
JPG-1
1.2.4.50
BOTH
No
5.1.4.1.1.7.4
JPG-1
1.2.4.50
BOTH
No
Name
UID
1.2.840.10008. ...
Name List
UID List
1.2.840.10008. ...
Verification
1.1
ILE
Encapsulated PDF Storage
5.1.4.1.1.104.1
Raw Data Storage
5.1.4.1.1.66
OP 8 Bit Image Storage
Multi-frame True Color Secondary
Capture Image Storage
4.2.1.4.2.3 SOP Specific Conformance for Storage SOP Class as SCP
The Application Software AE provides standard conformance.
4.2.1.4.3 Activity – Store scans, images, analyses and reports to remote AE
This chapter describes the aspect of association acceptance of the activity “Store scans, images, analyses and
reports to remote AE”. The activity stores images, reports, scan data and analysis data created at the modality
and requests a storage commitment afterwards.
4.2.1.4.3.1 Description and Sequencing of Activities
The description and sequencing of activities is covered by chapter “4.2.1.3.8 Activity – Store scans, images,
analyses and reports to remote AE”.
4.2.1.4.3.2 Accepted Presentation Contexts
Presentation Context Table
Abstract Syntax
Transfer Syntax
Role
Ext.
Neg.
1.2
BOTH
No
ILE
1.2
BOTH
No
ELE
1.2.1
BOTH
No
ILE
1.2
BOTH
No
ELE
1.2.1
BOTH
No
Name
UID
1.2.840.10008. ...
Name List
UID List
1.2.840.10008. ...
Verification
1.1
ILE
Encapsulated PDF Storage
5.1.4.1.1.104.1
Raw Data Storage
5.1.4.1.1.66
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 37 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
OP 8 Bit Image Storage
5.1.4.1.1.77.1.5.1
JPG-1
1.2.4.50
BOTH
No
Multi-frame True Color Secondary
Capture Image Storage
5.1.4.1.1.7.4
JPG-1
1.2.4.50
BOTH
No
Storage Commitment Push Model
1.20.1
ILE
1.2
SCU
No
4.2.1.4.3.3 SOP Specific Conformance for Storage SOP Class as SCP
The Application Software AE provides standard conformance.
4.2.1.4.3.4 SOP Specific Conformance for Storage Commitment SOP Class
4.2.1.4.3.4.1 Storage Commitment Operations (N-EVENT-REPORT)
The Application Software is capable of receiving an N-EVENT-REPORT notification if it has successfully
negotiated a Presentation Context for the Storage Commitment Push
The behavior of Application Software when receiving Event Types within the N-EVENT-REPORT is summarized in
the table below.
Table 4-10 Storage Commitment N-EVENT-REPORT Request Failure Reasons
Meaning
Failure
Reason
Processing failure
0110
No such object instance
0112
Resource limitation
0213
Behavior
The SOP Instance is considered as not being
archived and will be subject of a future Storage
activity.
The SOP Instance is also considered as not
being committed. For a configurable amount of
re-trials the SOP Instance is subject of a future
Storage Commitment service request. It will be
included again within next call of these
activities.
In addition, the application software writes the
SOP Instance UID to the log file with the failure
reason.
Referenced SOP Class not
supported
0122
Class / Instance conflict
0119
Duplicate transaction UID
0131
The SOP Instance is considered as not being
committed. No additional re-trials will be
performed.
The application software writes the SOP
Instance UID to the log file with the failure
reason.
The SOP Instance is considered as not being
committed. For a configurable amount of retrials the SOP Instance is subject of a future
Storage Commitment service request. It will be
included again within next call of these
activities.
In addition, the application software writes the
SOP Instance UID to the log file with the failure
reason.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 38 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
4.3 Network Interfaces
4.3.1 Physical Network Interface
The physical network interface is not visible for the instrument application. The instrument application uses the
communication stack as offered by the Operating System.
4.3.2 Additional Protocols
No additional protocols are supported.
4.3.3 IPv4 and IPv6 Support
Application software does only support IPv4 and does not support any IPv6 features.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 39 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
4.4 Configuration
Local application entity and remote application entity information can be configured with the DICOM
Configuration Tool accessible through the menu “Tools/Settings/Network/DICOM”. There is only one single
Application Entity Title used for the instrument Software Application.
It is also possible to configure intervals, timeouts, institution settings, and worklist item limit parameters via
Application Software, configuration tool and configuration file.
4.4.1 AE Title/Presentation Address Mapping
The mapping from AE Title to TCP/IP addresses and ports is configurable and set at the time of installation by
Installation Personnel.
4.4.1.1 Local AE Titles
The IP is not configurable by the Configuration Tool. The IP is administrated by the Operating System. If the
Application Software is running on a host with more than one network connection, the user should select the
loopback adapter from the list of IP addresses. The Application Entity Title as well as the port number is
configurable. The default port number is 11112.
4.4.1.2 Remote AE Titles
The mapping of external AE Titles to TCP/IP addresses and ports is configurable. The CIRRUS photo Application
Software allows setting up a remote Application Entity for each service. For all Application Entities, the host
name or IP, the Port and the Application Entity Title must be known.
The DICOM Configuration tool allows to deactivate connection to a certain Application Entity by leaving its
configuration fields for host name or IP, the Port and the Application Entity Title blank.
4.4.2 Parameters
4.4.2.1 General Parameters
The general parameters are shared for associations to any of the configured AE.
Table 4-11 Configuration General Parameters Table
Parameter
Configurable (Yes/No)
General Parameters
DIMSE RSP Timeout
Yes (10 – 60 sec.)

Network Timeout
Max. Association Idle Time
(0008,0080) Institution Name
Tools/Settings/Device
Yes

(0008,1070) Operator’s Name
Tools/Settings/Device
Yes

(0008,1010) Station Name
Tools/Settings/Device
Yes

(0008,0081) Institution Address
30 sec
Tools/Settings/Network/DICOM
Yes

(0008,1040) Institutional Department Name
20 sec.
Tools/Settings/Network/DICOM
Yes (10 – 60 sec.)

20 sec.
Tools/Settings/Network/DICOM
Yes (5-20 sec.)

Default Value
Tools/Settings/Device
Yes

Tools/Settings/User
Management
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 40 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
4.4.2.2 AE Specific Parameters
The AE specific parameters are only used for associations to the named AE.
Parameter
Configurable (Yes/No)
Verification SCU Parameters
Verification Refresh (C-ECHO) Interval
Yes (0 [=off] – 720 min.)
Default Value
60 min.
 userconfig.xml
Modality Worklist SCU Parameters
Today’s Patient List Refresh Rate (Modality
Worklist Polling Interval)
Yes (1 min. – 60 min.)
Maximum Query Responses (Modality
Worklist Information Model)
Yes (10 – 999)
10 min.
 Tools/Settings/Patient
Management
100
 Tools/Settings/Network/DICOM
Patient Root Q/R and Study Root Q/R SCU Parameters
Maximum Query Responses (Patient Root
Query/Retrieve Information Model and
Study Root Query/Retrieve Information
Model)
Yes (10 – 999)
Allow unconstraint query
Yes (On/Off)
100
 Tools/Settings/Network/DICOM
On
 userconfig.xml
Extended Negotiation – relational query
support negotiation
Yes (On/Off)
On
 Tools/Settings/Network/DICOM
(Patient Root Query/Retrieve Information
Model and Study Root Query/Retrieve
Information Model)
Query Response Caching Time (Today’s
Patients)
Yes (1 min. – 60 min.)
3 min.
 userconfig.xml
(Patient Root Query/Retrieve Information
Model)
Query Response Caching Time (Find
Patients)
Yes (1 min. – 60 min.)
5 min.
 userconfig.xml
(Patient Root Query/Retrieve Information
Model)
Storage SCU Parameters
Number of retrials on error
Yes (0 – 10)
2
 userconfig.xml
Interval of automatic storage of nonarchived instances
Yes (1 min. – 720 min.)
Required idle time before automatic storage
of non-archived instances
Yes (1 min. – 720 min.)
10 min.
 userconfig.xml
5 min.
 userconfig.xml
Storage Commitment SCU Parameters
Storage Commitment enable/disable
Yes (On/Off)
On
 userconfig.xml
Number of retrials on error
Yes (0 – 10)
2
 userconfig.xml
Interval of storage commitment requests for
non-committed instances
Yes (1 min. – 720 min.)
Required idle time before storage
Yes (1 min. – 720 min.)
15 min.
 userconfig.xml
5 min.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 41 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
commitment requested for non-committed
instances
 userconfig.xml
Storage SCP Parameters
No specific configuration required
The configuration of port number and Application Entity Title are part of the Local Application Entity
setup (see 4.4.1.1 Local AE Titles).
Verification SCP Parameters
No specific configuration required
The configuration of port number and Application Entity Title are part of the Local Application Entity
setup (see 4.4.1.1 Local AE Titles).
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 42 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
5 Media Interchange
Media Interchange is not scope of this document since Media Interchange is not supported by CIRRUS photo
Application Software.
For further information on “Offline media file based export / import of images and reports” see chapter 4.1
Implementation Model.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 43 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
6 Support Of Character Sets
All application entities described in the previous chapters support UTF-8 character set.
Supported Specific Character Set
Character Set Description
UTF-8 encoded Unicode
Defined Term
ISO_IR 192
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 44 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
7 Security
The DICOM capabilities of the CIRRUS photo Application Software do not support any specific security
measures.
It is assumed that CIRRUS photo Application Software is used within a secured environment. It is assumed that
a secured environment includes at a minimum:

Firewall or router protections to ensure that only approved external hosts have network access to
CIRRUS photo Application Software.

Firewall or router protections to ensure that CIRRUS photo Application Software only has network
access to approved external hosts and services.

Any communication with external hosts and services outside the locally secured environment use
appropriate secure network channels (e.g. such as a Virtual Private Network (VPN))
Other network security procedures such as automated intrusion detection may be appropriate in some
environments. Additional security features may be established by the local security policy and are beyond the
scope of this conformance statement.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 45 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
8 Annexes
8.1 IOD Contents
8.1.1 Created SOP Instance(s)
Abbreviations used for presence of values (PoV):
VNAP
Value Not Always Present (attribute sent zero length if no value is present) – Applicable for Type 2, 2C.
ANAP
Attribute is not always present – Applicable for Type 3
ALWAYS
Attribute is always present with a value – Applicable for Type 1
EMPTY
Attribute is sent without a value – Applicable for Type 2
Abbreviations used for sources of data:
USER
Attribute value is generated from user input.
AUTO
Attribute value is generated automatically.
MWL, MPPS, etc.
Attribute value is the same as the value received using a DICOM service such as Modality Worklist,
Modality Performed Procedure Step, etc.
SRQ
Attribute value is the same as the value received using a DICOM service such as Study Root Query.
CONFIG
Attribute value is a configurable parameter.
ACQUISITION
Attribute value is generated by data acquisition process. Includes image and data related to image.
ANALYSIS
Attribute value is generated by application or by user when images are reviewed or OCT scans are
analysed.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 46 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
8.1.1.1 Encapsulated PDF IOD
IE
Module
Usage
Patient
Patient
ALWAYS
General Study
ALWAYS
Study
Series
Encapsulated Document Series
ALWAYS
Equipment
General Equipment
ALWAYS
SC Equipment
ALWAYS
Czm Encapsulated Pdf Series
Extension
ALWAYS
Encapsulated Document
Encapsulated Document
ALWAYS
SOP Common
ALWAYS
Table 8-1 Encapsulated PDF IOD - Module “Patient”
Tag
Type
VR
Name
Description
PoV
Source
(0010,0010)
2
PN
Patient's Name
Patient's full name.
ALWAYS
MWL, SRQ,
USER
(0010,0020)
2
LO
Patient ID
Primary hospital identification number
or code for the patient.
ALWAYS
MWL, SRQ,
USER
(0010,0021)
3
LO
Issuer of
Patient ID
Identifier of the Assigning Authority
that issued the Patient ID.
ANAP
MWL, SRQ,
AUTO
(0010,0030)
2
DA
Patient's Birth
Date
Birth date of the patient.
ALWAYS
MWL, SRQ,
USER
(0010,0040)
2
CS
Patient's Sex
Enumerated Values: M = male F =
female O = other
ALWAYS
MWL, SRQ,
USER
(0010,1000)
3
LO
Other Patient
IDs
Other identification numbers or codes
used to identify the patient.
ANAP
MWL, SRQ
(0010,2160)
3
SH
Ethnic Group
Ethnic group or race of the patient.
ANAP
SRQ
(0010,4000)
3
LT
Patient
Comments
User-defined additional information
about the patient.
ANAP
MWL, SRQ,
USER
Sex of the named patient.
Table 8-2 Encapsulated PDF IOD - Module “General Study”
Tag
Type
VR
Name
Description
PoV
Source
(0020,000D)
1
UI
Study Instance
UID
Unique identifier for the Study
ALWAYS
MWL,
SRQ,
AUTO
(0008,0020)
2
DA
Study Date
Date, when procedure step
was started.
ALWAYS
AUTO
(0008,0030)
2
TM
Study Time
Time the Study started.
ALWAYS
AUTO
Date the Study started.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 47 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Time, when procedure step
was started.
(0008,0090)
2
PN
Referring
Physician's
Name
Name of the patient's referring
physician.
VNAP
MWL
ALWAYS
MWL,
SRQ,
AUTO
VNAP
MWL
VNAP
MWL,
SRQ
User or equipment generated
Study identifier.
(0020,0010)
2
SH
Study ID
In scheduled case the source
attribute for this value is
Requested Procedure ID
In unscheduled case the value
is a Equipment generated
Study identifier
(0008,0050)
2
SH
Accession
Number
A RIS generated number that
identifies the order for the
Study.
Value does not exist in
unscheduled case.
Institution-generated
description or classification of
the Study (component)
performed.
(0008,1030)
3
LO
Study
Description
In scheduled case the source
attribute for this value is
Requested Procedure
Description.
Value does not exist in
unscheduled case.
A sequence that provides
reference to a Study SOP
Class/Instance pair. The
sequence may have zero or
more Items.
ANAP
MWL
(0008,1110)
3
SQ
Referenced
Study
Sequence
>(0008,1150)
1
UI
Referenced SOP
Class UID
Uniquely identifies the
referenced SOP Class.
ALWAYS
MWL
>(0008,1155)
1
UI
Referenced SOP
Instance UID
Uniquely identifies the
referenced SOP Instance.
ALWAYS
MWL
Procedure Code
Sequence
A Sequence that conveys the
type of procedure performed.
One or more Items may be
included in this Sequence.
ANAP
MWL
(0008,1032)
3
SQ
Attribute does not exist in
unscheduled case.
>(0008,0100)
1
SH
Code Value
See NEMA PS3.3 Section 8.1.
ALWAYS
MWL
>(0008,0102)
1
SH
Coding Scheme
Designator
See NEMA PS3.3 Section 8.2.
ALWAYS
MWL
VNAP
MWL
ALWAYS
MWL
>(0008,0103)
1C
SH
Coding Scheme
Version
Required if the value of Coding
Scheme Designator
(0008,0102) is not sufficient to
identify the Code Value
(0008,0100) unambiguously.
See chapter “8.3 Coded
Terminology and Templates”
>(0008,0104)
1
LO
Code Meaning
See NEMA PS3.3 Section 8.3.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 48 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Table 8-3 Encapsulated PDF IOD - Module “Encapsulated Document Series”
Tag
(0008,0060)
Type VR
1
CS
Name
Description
The modality appropriate for the
encapsulated document. This Type
definition shall override the definition in
the SC Equipment Module.
Modality
PoV
Source
ALWAYS
AUTO
“1.2.276.0.75.2.1.51.2.2” extended by
machine identifier and time information
ALWAYS
AUTO
A number that identifies the Series.
ALWAYS
AUTO
ANAP
MWL
ALWAYS
MWL
Value can be OP or OPT:
OCT Analysis report = OPT
Image Review report = OP
(0020,000E)
1
UI
Series Instance
UID
(0020,0011)
1
IS
Series Number
(0040,0275)
3
Unique identifier of the Series.
Sequence that contains attributes from
the Imaging Service Request. The
sequence may have one or more Items.
Request
SQ Attributes
Sequence
The Request Attributes Sequence is only
included in Scheduled Case. In
unscheduled case it will not be included.
>(0040,1001)
1C
SH
Requested
Procedure ID
Identifier that identifies the Requested
Procedure in the Imaging Service
Request. Required if procedure was
scheduled. May be present otherwise.
Note: The condition is to allow the
contents of this macro to be present
(e.g., to convey the reason for the
procedure, such as whether a
mammogram is for screening or
diagnostic purposes) even when the
procedure was not formally scheduled
and a value for this identifier is
unknown, rather than making up a
dummy value.
>(0032,1060)
3
LO
Requested
Procedure
Description
Institution-generated administrative
description or classification of
Requested Procedure.
VNAP
MWL
ALWAYS
MWL
>(0040,0009)
1C
SH
Scheduled
Procedure Step
ID
Identifier that identifies the Scheduled
Procedure Step. Required if procedure
was scheduled. Note: The condition is
to allow the contents of this macro to
be present (e.g., to convey the reason
for the procedure, such as whether a
mammogram is for screening or
diagnostic purposes) even when the
procedure step was not formally
scheduled and a value for this identifier
is unknown, rather than making up a
dummy value.
>(0040,0007)
3
LO
Scheduled
Procedure Step
Description
Institution-generated description or
classification of the Scheduled
Procedure Step to be performed.
VNAP
MWL
>(0040,0008)
3
Scheduled
SQ Protocol Code
Sequence
Sequence describing the Scheduled
Protocol following a specific coding
scheme. This sequence contains one or
more Items.
ANAP
MWL
>>(0008,0100)
1
SH
Code Value
See NEMA PS3.3 Section 8.1.
ALWAYS
MWL
>>(0008,0102)
1
SH
Coding Scheme
See NEMA PS3.3 Section 8.2.
ALWAYS
MWL
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 49 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Designator
>>(0008,0103)
1C
SH
Coding Scheme
Version
See NEMA PS3.3 Section 8.2. Required
if the value of Coding Scheme
Designator (0008,0102) is not sufficient
VNAP
to identify the Code Value (0008,0100)
unambiguously. May be present
otherwise.
>>(0008,0104)
1
LO
Code Meaning
See NEMA PS3.3 Section 8.3.
ALWAYS
MWL
(0040,0253)
3
SH
Performed
Procedure Step
ID
User or equipment generated identifier
of that part of a Procedure that has
been carried out within this step.
ALWAYS
AUTO
(0040,0244)
3
Performed
DA Procedure Step
Start Date
Date on which the Performed Procedure
Step started.
ALWAYS
AUTO
(0040,0245)
3
Performed
TM Procedure Step
Start Time
Time on which the Performed Procedure
ALWAYS
Step started.
AUTO
(0040,0254)
3
LO
Performed
Procedure Step
Description
MWL
Institution-generated description or
classification of the Procedure Step that
was performed.
In unscheduled case the attribute value
= “Report”.
ANAP
AUTO
In scheduled case the attribute has the
same value as for Requested Procedure
Description (0032,1060)
Table 8-4 Encapsulated PDF IOD - Module “General Equipment”
Tag
(0008,0070)
Type
2
VR
LO
Name
Description
PoV
Source
Manufacturer
Manufacturer of the equipment that
produced the composite instances
ALWAYS
AUTO
“Carl Zeiss Meditec”
(0008,0080)
3
LO
Institution
Name
Institution where the equipment that
produced the composite instances is
located.
VNAP
CONFIG
(0008,0081)
3
ST
Institution
Address
Mailing address of the institution where
the equipment that produced the
composite instances is located.
ANAP
CONFIG
(0008,1010)
3
SH
Station Name
User defined name identifying the
machine that produced the composite
instances.
VNAP
CONFIG
(0008,1040)
3
LO
Institutional
Department
Name
Department in the institution where the
equipment that produced the composite
instances is located.
ANAP
CONFIG
ALWAYS
AUTO
ALWAYS
AUTO
(0008,1090)
3
LO
Manufacturer's
Model Name
Manufacturer’s model name of the
equipment that produced the composite
instances.
“CIRRUS photo 600” or
“CIRRUS photo 800”
(0018,1000)
3
LO
Device Serial
Number
Manufacturer’s serial number of the
equipment that produced the composite
instances. Note: This identifier
corresponds to the device that actually
created the images, such as a CR plate
reader or a CT console, and may not be
sufficient to identify all of the equipment
in the imaging chain, such as the
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 50 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
generator or gantry or plate.
(0018,1020)
3
Software
Version(s)
LO
Manufacturer’s designation of software
version of the equipment that produced
the composite instances.
“2.0.0.38309” and higher versions
“2.0.x.y” where x denotes a patch version
and y denotes a build version
ALWAYS
AUTO
PoV
Source
ALWAYS
AUTO
Table 8-5 Encapsulated PDF IOD - Module “SC Equipment”
Tag
Type
(0008,0064)
1
VR
Name
Description
Conversion
Type
CS
Describes the kind of image conversion.
Defined Terms : DV = Digitized Video DI =
Digital Interface DF = Digitized Film WSD =
Workstation SD = Scanned Document SI =
Scanned Image DRW = Drawing SYN =
Synthetic Image
Always “SYN” for Synthetic Image
Table 8-6 Encapsulated PDF IOD - Module “Czm Encapsulated Pdf Series Extension”
Tag
(0020,0060)
Type
3
VR
CS
Name
Laterality
Description
PoV
Source
Laterality of (paired) body part
examined. Enumerated Values: R =
right, L = left, B = both
ALWAYS
ACQUSITION,
ANALYSIS
Table 8-7 Encapsulated PDF IOD - Module “Encapsulated Document”
Tag
(0020,0013)
Type
1
VR
IS
Name
Instance
Number
Description
PoV
Source
A number that identifies this SOP
Instance. The value shall be
unique within a series.
ALWAYS
AUTO
Always “1” since there is always
only one instance per series.
(0008,0023)
2
DA
Content
Date
The date the document content
creation was started.
ALWAYS
AUTO
(0008,0033)
2
TM
Content
Time
The time the document content
creation was started.
ALWAYS
AUTO
(0008,002A)
2
DT
Acquisition
Datetime
The date and time that the
original generation of the data in
the document started.
ALWAYS
AUTO
ALWAYS
AUTO
ALWAYS
ANALYSIS
(0028,0301)
1
CS
Burned In
Annotation
Indicates whether or not the
encapsulated document contains
sufficient burned in annotation to
identify the patient and date the
data was acquired. Enumerated
Values: YES NO Identification of
patient and date as text in an
encapsulated document (e.g., in
an XML attribute or element) is
equivalent to “burned in
annotation”. A de-identified
document may use the value NO.
Always “YES” (since there is
enough information to identify the
patient)
(0042,0013)
1C
SQ
Source
Instance
Sequence
A sequence that identifies the set
of Instances that were used to
derive the encapsulated
document. One or more Items
may be included in this Sequence.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 51 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Required if derived from one or
more DICOM Instances. May be
present otherwise.
>(0008,1150)
1
UI
Referenced
SOP Class
UID
Uniquely identifies the referenced
SOP Class.
ALWAYS
ANALYSIS
>(0008,1155)
1
UI
Referenced
SOP
Instance UID
Uniquely identifies the referenced
SOP Instance.
ALWAYS
ANALYSIS
ALWAYS
AUTO
EMPTY
AUTO
The title of the document. Note:
In the case of a PDF encapsulated
document, this may be the value
of the “Title” entry in the
“Document Information Directory”
as encoded in the PDF data.
1.) For OCT analysis reports of
type
ANALYSIS_OU_ONH_AND_RNFL
or
ANALYSIS_OU_RNFL_THICKNESS:
“Cirrus_” + <eye site> + ”_”
+ <analysis name>
where
- <eye site> = “OD”, “OS”, or
“OU”
- <analysis name> = “RFNL
Thickness OU Analysis” or
“ONH and RNFL OU Analysis”
2.) For all other OCT analysis
reports:
(0042,0010)
2
ST
Document
Title
<eye site>+ “ “ + <analysis
name>
where
- <eye site> = “OD”, “OS”, or
“OU”
- <analysis name> =
“Advanced Visualization” ,
“Anterior Segment Analysis”,
“High Definition Images”,
“Macular Thickness Analysis”,
“Guided Progression Analysis”,
“Macular Change Analysis”,
“3D Visualization”, “Single Eye
Summary”, “Ganglion Cell OU
Analysis”, “Advanced RPE
Analysis”
3.) For Image Review reports:
<eye site>+ “ “ + <review
name>
where
- <eye site> = “OD”, “OS”, or
“OU”
- <analysis name> =
“Magnify”, “Compare”, “Grid”,
“MultiMode Navigator”
(0040,A043)
2
SQ
Concept
Name Code
Sequence
A coded representation of the
document title. Zero or one item
may be present.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 52 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Always zero items
(0042,0012)
(0042,0011)
1
MIME Type
of
Encapsulated
Document
LO
1
OB
Encapsulated
Document
The type of the encapsulated
document stream described using
the MIME Media Type (see RFC
2046).
ALWAYS
AUTO
ALWAYS
AUTO
Always “application/pdf”
Encapsulated Document stream,
containing a document encoded
according to the MIME Type.
Table 8-8 Encapsulated PDF IOD - Module “SOP Common”
Tag
(0008,0016)
Type
1
VR
UI
Name
Description
PoV
Source
SOP Class
UID
Uniquely identifies the SOP Class. See
C.12.1.1.1 for further explanation. See
also PS 3.4.
ALWAYS
AUTO
ALWAYS
AUTO
ALWAYS
AUTO
“1.2.840.10008.5.1.4.1.1.104.1”
(0008,0018)
(0008,0005)
1
1C
UI
CS
SOP
Instance
UID
Specific
Character
Set
Uniquely identifies the SOP Instance. See
C.12.1.1.1 for further explanation. See
also PS 3.4.
“1.2.276.0.75.2.1.51.2.” constant prefix
for generated UIDs
Character Set that expands or replaces
the Basic Graphic Set. Required if an
expanded or replacement character set is
used. See C.12.1.1.2 for Defined Terms.
Always “ISO_IR 192” for UTF-8 encoded
Unicode
(0008,0012)
3
DA
Instance
Creation
Date
Date the SOP Instance was created.
ALWAYS
AUTO
(0008,0013)
3
TM
Instance
Creation
Time
Time the SOP Instance was created.
ALWAYS
AUTO
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 53 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
8.1.1.2 Ophthalmic Photography 8 Bit Information Object Definition
IE
Module
Usage
Patient
Patient
ALWAYS
General Study
ALWAYS
Study
Series
General Series
ALWAYS
Ophthalmic Photography Series
ALWAYS
Frame Of Reference
Synchronization
ALWAYS
Equipment
General Equipment
ALWAYS
General Image
ALWAYS
Image Pixel
ALWAYS
Enhanced Contrast Bolus
CONDITIONAL
Cine
CONDITIONAL
Multi Frame
ALWAYS
Acquisition Context
ALWAYS
Ophthalmic Photography Image
ALWAYS
Ocular Region Imaged
ALWAYS
Ophthalmic Photography Acquisition
Parameters
ALWAYS
Ophthalmic Photographic Parameters
ALWAYS
SOP Common
ALWAYS
Frame Extraction
CONDITIONAL
Czm Ophthalmic Photography Image
Extension
CONDITIONAL
Table 8-9 Ophthalmic Photography IOD - Module “Patient”
Tag
Type
VR
Name
Description
PoV
Source
(0010,0010)
2
PN
Patient's Name
Patient's full name.
ALWAYS
MWL, SRQ,
USER
(0010,0020)
2
LO
Patient ID
Primary hospital identification number
or code for the patient.
ALWAYS
MWL, SRQ,
USER
(0010,0021)
3
LO
Issuer of
Patient ID
Identifier of the Assigning Authority
that issued the Patient ID.
ANAP
MWL, SRQ,
AUTO
(0010,0030)
2
DA
Patient's Birth
Date
Birth date of the patient.
ALWAYS
MWL, SRQ,
USER
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 54 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Sex of the named patient.
ALWAYS
MWL, SRQ,
USER
Other identification numbers or codes
used to identify the patient.
ANAP
MWL, SRQ
Ethnic Group
Ethnic group or race of the patient.
ANAP
SRQ
Patient
Comments
User-defined additional information
about the patient.
ANAP
MWL, SRQ,
USER
(0010,0040)
2
CS
Patient's Sex
Enumerated Values: M = male F =
female O = other
(0010,1000)
3
LO
Other Patient
IDs
(0010,2160)
3
SH
(0010,4000)
3
LT
Table 8-10 Ophthalmic Photography IOD - Module “General Study”
Tag
Type
VR
Name
Description
PoV
Source
(0020,000D)
1
UI
Study
Instance UID
Unique identifier for the Study
ALWAYS
MWL,
SRQ,
AUTO
(0008,0020)
2
DA
Study Date
ALWAYS
AUTO
(0008,0030)
2
TM
Study Time
ALWAYS
AUTO
(0008,0090)
2
PN
Referring
Physician's
Name
VNAP
MWL
ALWAYS
MWL,
SRQ,
AUTO
VNAP
MWL
Date the Study started.
Date, when procedure step was
started.
Time the Study started.
Time, when procedure step was
started.
Name of the patient's referring
physician.
User or equipment generated Study
identifier.
(0020,0010)
2
SH
In scheduled case the source
attribute for this value is Requested
Procedure ID
Study ID
In unscheduled case the value is an
Equipment generated Study identifier
A RIS generated number that
identifies the order for the Study.
(0008,0050)
2
SH
Accession
Number
(0008,1030)
3
LO
Study
Description
Institution-generated description or
classification of the Study
(component) performed.
VNAP
MWL,
SRQ
A sequence that provides reference
to a Study SOP Class/Instance pair.
The sequence may have zero or more
Items.
ANAP
MWL
Value does not exist in unscheduled
case.
(0008,1110)
3
SQ
Referenced
Study
Sequence
>(0008,1150)
1
UI
Referenced
SOP Class UID
Uniquely identifies the referenced
SOP Class.
ALWAYS
MWL
>(0008,1155)
1
UI
Referenced
SOP Instance
UID
Uniquely identifies the referenced
SOP Instance.
ALWAYS
MWL
A Sequence that conveys the type of
procedure performed. One or more
Items may be included in this
Sequence.
ANAP
MWL
(0008,1032)
3
SQ
Procedure
Code
Sequence
>(0008,0100)
1
SH
Code Value
See chapter “8.3 Coded Terminology
and Templates”
ALWAYS
MWL
>(0008,0102)
1
SH
Coding
Scheme
Designator
See chapter “8.3 Coded Terminology
and Templates”
ALWAYS
MWL
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 55 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
>(0008,0103)
>(0008,0104)
1C
1
SH
LO
Required if the value of Coding
Scheme Designator (0008,0102) is
not sufficient to identify the Code
Value (0008,0100) unambiguously.
Coding
Scheme
Version
VNAP
MWL
ALWAYS
MWL
See chapter “8.3 Coded Terminology
and Templates”
See chapter “8.3 Coded Terminology
and Templates”
Code Meaning
Table 8-11 Ophthalmic Photography IOD - Module “General Series”
Tag
Type VR
Name
Description
PoV
Source
Unique identifier of the Series.
(0020,000E)
1
UI
Series Instance
UID
(0020,0011)
2
IS
Series Number
A number that identifies this Series.
ALWAYS
AUTO
ALWAYS
ACQUISIT
ION,
ANALYSIS
“1.2.276.0.75.2.1.51.2.2” extended
by machine identifier and time
information
ALWAYS
AUTO
(0020,0060)
2C
CS
Laterality
Laterality of (paired) body part
examined. Required if the body part
examined is a paired structure and
Image Laterality (0020,0062) or
Frame Laterality (0020,9072) are not
sent. Enumerated Values: R = right L
= left Note: Some IODs support
Image Laterality (0020,0062) at the
Image level or Frame
Laterality(0020,9072) at the Frame
level in the Frame Anatomy functional
group macro, which can provide a
more comprehensive mechanism for
specifying the laterality of the body
part(s) being examined.
(0008,0021)
3
DA
Series Date
Date the Series started.
ALWAYS
AUTO
(0008,0031)
3
TM
Series Time
Time the Series started.
ALWAYS
AUTO
ANAP
MWL,
AUTO
(0018,1030)
3
LO
Protocol Name
User-defined description of the
conditions under which the Series was
performed. Note: This attribute
conveys series-specific protocol
identification and may or may not be
identical to the one presented in the
Performed Protocol Code Sequence
(0040,0260).
In scheduled case: Same value as for
Requested Procedure Description
(0032,1060).
In unscheduled case: Always
“FundusImage”
(0008,1070)
(0018,0015)
3
3
PN
CS
Operators'
Name
Name(s) of the operator(s) supporting
ANAP
the Series.
CONFIG
Body Part
Examined
Text description of the part of the
body examined. See PS 3.16 Annexes
on Correspondence of Anatomic
Region Codes and Body Part Examined
for Humans and for Animals for
ALWAYS
Defined Terms Note: Some IODs
support the Anatomic Region
Sequence (0008,2218), which can
provide a more comprehensive
mechanism for specifying the body
AUTO
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 56 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
part being examined.
Always “HEAD”
(0040,0275)
3
SQ
Sequence that contains attributes
from the Imaging Service Request.
The sequence may have one or more
Items.
Request
Attributes
Sequence
The Request Attributes Sequence is
only included in Scheduled Case. In
unscheduled case it will not be
included.
ANAP
MWL
>(0040,1001)
1C
SH
Requested
Procedure ID
Identifier that identifies the Requested
Procedure in the Imaging Service
Request. Required if procedure was
scheduled. May be present otherwise.
Note: The condition is to allow the
contents of this macro to be present
(e.g., to convey the reason for the
ALWAYS
procedure, such as whether a
mammogram is for screening or
diagnostic purposes) even when the
procedure was not formally scheduled
and a value for this identifier is
unknown, rather than making up a
dummy value.
>(0032,1060)
3
LO
Requested
Procedure
Description
Institution-generated administrative
description or classification of
Requested Procedure.
MWL
VNAP
MWL
MWL
>(0040,0009)
1C
SH
Scheduled
Procedure Step
ID
Identifier that identifies the Scheduled
Procedure Step. Required if procedure
was scheduled. Note: The condition is
to allow the contents of this macro to
be present (e.g., to convey the reason
for the procedure, such as whether a
ALWAYS
mammogram is for screening or
diagnostic purposes) even when the
procedure step was not formally
scheduled and a value for this
identifier is unknown, rather than
making up a dummy value.
>(0040,0007)
3
LO
Scheduled
Procedure Step
Description
Institution-generated description or
classification of the Scheduled
Procedure Step to be performed.
VNAP
MWL
Sequence describing the Scheduled
Protocol following a specific coding
scheme. This sequence contains one
or more Items.
ANAP
MWL
>(0040,0008)
3
SQ
Scheduled
Protocol Code
Sequence
>>(0008,0100)
1
SH
Code Value
See NEMA PS3.3 Section 8.1.
ALWAYS
MWL
>>(0008,0102)
1
SH
Coding Scheme
Designator
See NEMA PS3.3 Section 8.2.
ALWAYS
MWL
VNAP
MWL
ALWAYS
MWL
>>(0008,0103)
1C
SH
Coding Scheme
Version
See NEMA PS3.3 Section 8.2.
Required if the value of Coding
Scheme Designator (0008,0102) is
not sufficient to identify the Code
Value (0008,0100) unambiguously.
May be present otherwise.
>>(0008,0104)
1
LO
Code Meaning
See NEMA PS3.3 Section 8.3.
(0040,0253)
3
SH
Performed
Procedure Step
User or equipment generated identifier ALWAYS
of that part of a Procedure that has
AUTO
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 57 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
ID
been carried out within this step.
(0040,0244)
3
DA
Performed
Procedure Step
Start Date
Date on which the Performed
Procedure Step started.
ALWAYS
AUTO
(0040,0245)
3
TM
Performed
Procedure Step
Start Time
Time on which the Performed
Procedure Step started.
ALWAYS
AUTO
ALWAYS
AUTO
(0040,0254)
3
Performed
Procedure Step
Description
LO
Institution-generated description or
classification of the Procedure Step
that was performed.
In unscheduled case the attribute
value = "FundusImage".
In scheduled case the attribute has
the same value as for Requested
Procedure Description (0032,1060)
Table 8-12 Ophthalmic Photography IOD - Module “Ophthalmic Photography Series”
Tag
Type VR
Name
Description
PoV
Source equipment that produced the Ophthalmic
CS Modality Photography Series. Enumerated Value: OP
Always “OP”
(0008,0060) 1
Source
ALWAYS AUTO
Table 8-13 Ophthalmic Photography IOD - Module “Synchronization”
Tag
Type VR
(0020,0200) 1
(0018,106A) 1
Name
Synchronization
UI Frame of
Reference UID
CS
Synchronization
Trigger
Description
PoV
UID of common synchronization environment.
See C.7.4.2.1.1.
Source
ALWAYS AUTO
Data acquisition synchronization with external
equipment Enumerated Values: SOURCE - this
equipment provides synchronization channel or
trigger to other equipment EXTERNAL - this
equipment receives synchronization channel or
trigger from other equipment PASSTHRU - this
equipment receives synchronization channel or
trigger and forwards it NO TRIGGER - data
acquisition not synchronized by common channel
or trigger
ALWAYS AUTO
Always “NO TRIGGER”
(0018,1800) 1
Acquisition Time
CS
Synchronized
Acquisition DateTime (0008,002A) synchronized
with external time reference. Enumerated
Values: Y, N See C.7.4.2.1.4
ALWAYS AUTO
Always “N”
Table 8-14 Ophthalmic Photography IOD - Module “General Equipment”
Tag
(0008,0070)
Type
2
VR
LO
Name
Description
PoV
Source
Manufacturer
Manufacturer of the equipment that
produced the composite instances
ALWAYS
AUTO
“Carl Zeiss Meditec”
(0008,0080)
3
LO
Institution
Name
Institution where the equipment that
produced the composite instances is
located.
VNAP
CONFIG
(0008,0081)
3
ST
Institution
Address
Mailing address of the institution where
the equipment that produced the
composite instances is located.
ANAP
CONFIG
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 58 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
(0008,1010)
3
SH
Station Name
User defined name identifying the
machine that produced the composite
instances.
VNAP
CONFIG
(0008,1040)
3
LO
Institutional
Department
Name
Department in the institution where the
equipment that produced the composite
instances is located.
ANAP
CONFIG
ALWAYS
AUTO
ALWAYS
AUTO
ALWAYS
AUTO
(0008,1090)
3
LO
Manufacturer's
Model Name
Manufacturer’s model name of the
equipment that produced the composite
instances.
“CIRRUS photo 600” or
“CIRRUS photo 800”
(0018,1000)
(0018,1020)
3
LO
3
LO
Device Serial
Number
Software
Version(s)
Manufacturer’s serial number of the
equipment that produced the composite
instances. Note: This identifier
corresponds to the device that actually
created the images, such as a CR plate
reader or a CT console, and may not be
sufficient to identify all of the equipment
in the imaging chain, such as the
generator or gantry or plate.
Manufacturer’s designation of software
version of the equipment that produced
the composite instances.
“2.0.0.38309” and higher versions
“2.0.x.y” where x denotes a patch
version and y denotes a build version
Table 8-15 Ophthalmic Photography IOD - Module “General Image"
Tag
(0020,0020)
Type VR
2C
CS
Name
Patient
Orientation
Description
PoV
Source
Patient direction of the rows and columns of the
image. Required if image does not require Image
Orientation (Patient) (0020,0037) and Image
Position (Patient) (0020,0032). May be present
otherwise. See C.7.6.1.1.1 for further explanation.
ALWAYS AUTO
Note: IOD’s may have attributes other than
Patient Orientation, Image Orientation, or Image
Position (Patient) to describe orientation in which
case this attribute will be zero length.
Always “L\F”
(0008,0022)
3
DA
Acquisition
Date
The date the acquisition of data that resulted in
this image started
ALWAYS AUTO
(0008,0032)
3
TM
Acquisition
Time
The time the acquisition of data that resulted in
this image started
ALWAYS AUTO
(0008,9215)
3
Derivation
SQ Code
Sequence
A coded description of how this image was
derived. See C.7.6.1.1.3 for further explanation.
One or more Items may be included in this
Sequence. More than one Item indicates that
successive derivation steps have been applied.
ANAP
AUTO
See chapter “8.3 Coded Terminology and
Templates”
>(0008,0100)
1
SH Code Value
See chapter “8.3 Coded Terminology and
Templates”
ALWAYS AUTO
>(0008,0102)
1
Coding
SH Scheme
Designator
See chapter “8.3 Coded Terminology and
Templates”
ALWAYS AUTO
>(0008,0103)
1C
SH Coding
Scheme
See NEMA PS3.3 Section 8.2. Required if the value ALWAYS AUTO
of Coding Scheme Designator (0008,0102) is not
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 59 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Version
sufficient to identify the Code Value (0008,0100)
unambiguously. May be present otherwise.
See chapter “8.3 Coded Terminology and
Templates”
>(0008,0104)
(0008,114A)
1
LO
Code
Meaning
Referenced
SQ Instance
Sequence
3
See chapter “8.3 Coded Terminology and
Templates”
ALWAYS AUTO
Non-image composite SOP Instances that are
significantly related to this Image, including
waveforms that may or may not be temporally
synchronized with this image. One or more Items
may be included in this sequence.
Included for referenced instances which are
ANAP
AUTO
- simultaneously acquired
- source images for image processing operation
- source images for montage
>(0008,1150)
1
UI
Referenced
SOP Class
UID
>(0008,1155)
1
UI
Referenced
SOP Instance Uniquely identifies the referenced SOP Instance.
UID
1
Purpose of
Reference
SQ
Code
Sequence
>(0040,A170)
Uniquely identifies the referenced SOP Class.
Code describing the purpose of the reference to
the Instance(s). Only a single Item shall be
permitted in this sequence.
ALWAYS AUTO
ALWAYS AUTO
ALWAYS AUTO
See NEMA PS3.3 Section 8.1.
>>(0008,0100) 1
SH Code Value
"121329" for sources of image montage
ALWAYS AUTO
"121322" for sources of image processing
"122400" for instances simultaneously acquired
>>(0008,0102) 1
Coding
SH Scheme
Designator
>>(0008,0103) 1C
Coding
SH Scheme
Version
>>(0008,0104) 1
Code
LO
Meaning
(0020,4000)
LT
See NEMA PS3.3 Section 8.2.
ALWAYS AUTO
Always "DCM"
See NEMA PS3.3 Section 8.2. Required if the value
of Coding Scheme Designator (0008,0102) is not
ALWAYS AUTO
sufficient to identify the Code Value (0008,0100)
unambiguously. May be present otherwise.
See NEMA PS3.3 Section 8.3.
3
Comments
"Source image for montage", "Source image for
image processing operation", “Simultaneously
Acquired”
ALWAYS AUTO
User-defined comments about the image
ANAP
USER
Table 8-16 Ophthalmic Photography IOD - Module “Image Pixel”
Tag
Type
VR
Name
Description
PoV
Source
(0028,0010) 1
US
Rows
Number of rows in the image.
ALWAYS AUTO
(0028,0011) 1
US
Columns
Number of columns in the image
ALWAYS AUTO
Bits
Allocated
Number of bits allocated for each pixel
sample. Each sample shall have the same
number of bits allocated. See PS 3.5 for
further explanation.
(0028,0100) 1
US
ALWAYS AUTO
Always “8”
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 60 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
(0028,0101) 1
Bits
Stored
US
Number of bits stored for each pixel
sample. Each sample shall have the same
number of bits stored. See PS 3.5 for
further explanation.
ALWAYS AUTO
Always “8”
(0028,0102) 1
US
High Bit
Most significant bit for pixel sample data.
Each sample shall have the same high bit.
See PS 3.5 for further explanation.
ALWAYS AUTO
Always “7”
(7FE0,0010) 1C
OB|OW
A data stream of the pixel samples that
comprise the Image. See C.7.6.3.1.4 for
further explanation. Required if Pixel Data
Provider URL (0028,7FE0) is not present.
Pixel
Data
ALWAYS
ACQUISITION,
ANALYSIS
Table 8-17 Ophthalmic Photography IOD - Module “Enhanced Contrast Bolus"
Tag
(0018,0012)
Type VR
1
SQ
Name
Contrast/Bolus
Agent Sequence
Description
Sequence that identifies one or more
contrast agents administered prior to or
during the acquisition. Shall contain one or
more Items.
PoV
ANAP
Source
AUTO
Included for angiographic images (capture
modes FA and ICGA)
See NEMA PS3.3 Section 8.1.
>(0008,0100)
1
SH Code Value
“C-B02CC” for FA images
ALWAYS AUTO
“C-B0156” for ICGA images
>(0008,0102)
>(0008,0103)
1
1C
SH
SH
Coding Scheme
Designator
Coding Scheme
Version
See NEMA PS3.3 Section 8.2.
Always “SRT”
ALWAYS AUTO
See NEMA PS3.3 Section 8.2. Required if the
value of Coding Scheme Designator
(0008,0102) is not sufficient to identify the
ALWAYS AUTO
Code Value (0008,0100) unambiguously.
May be present otherwise.
Always “20040921”
See NEMA PS3.3 Section 8.3.
>(0008,0104)
1
LO Code Meaning
For FA images: “Fluorescein”
ALWAYS AUTO
For ICGA images: “Indocyanine green”
Contrast/Bolus
Agent Number
>(0018,9337)
1
US
>(0018,0014)
1
Contrast/Bolus
SQ Administration
Route Sequence
Identifying number, unique within this SOP
Instance, of the agent administered. Used to
reference this particular agent from the
ALWAYS AUTO
Contrast/Bolus Functional Group Macro. The
number shall be 1 for the first Item and
increase by 1 for each subsequent Item.
Sequence that identifies the route of
administration of contrast agent. Shall
contain exactly one Item.
See NEMA PS3.3 Section 8.1.
ALWAYS AUTO
>>(0008,0100) 1
SH Code Value
>>(0008,0102) 1
SH
Coding Scheme
Designator
See NEMA PS3.3 Section 8.2.
>>(0008,0103) 1C
SH
Coding Scheme
Version
See NEMA PS3.3 Section 8.2. Required if the
ALWAYS AUTO
value of Coding Scheme Designator
(0008,0102) is not sufficient to identify the
Always “G-D101”
Always “SRT”
ALWAYS AUTO
ALWAYS AUTO
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 61 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Code Value (0008,0100) unambiguously.
May be present otherwise.
Always “20020904”
>>(0008,0104) 1
LO Code Meaning
>(0018,9338)
Contrast/Bolus
SQ Ingredient Code
Sequence
2
See NEMA PS3.3 Section 8.3.
ALWAYS AUTO
Always “Intravenous route”
Active ingredient of agent. Zero or more
Items may be included in the Sequence.
EMPTY
AUTO
Total volume administered in milliliters of
diluted contrast agent.
EMPTY
AUTO
EMPTY
AUTO
Always zero items
Contrast/Bolus
Volume
>(0018,1041)
2
DS
>(0018,1049)
2
Contrast/Bolus
DS Ingredient
Concentration
Milligrams of active ingredient per milliliter
of agent.
>(0018,9340)
3
Contrast
SQ Administration
Profile Sequence
Sequence that describes one or more phases
of contrast administered. If present, shall
ALWAYS AUTO
contain one or more Items.
>>(0018,1041) 2
DS
Contrast/Bolus
Volume
Volume administered during this phase in
milliliters of diluted contrast agent.
EMPTY
AUTO
>>(0018,1042) 3
TM
Contrast/Bolus
Start Time
Time of start of administration.
ALWAYS
USER,
AUTO
Table 8-18 Ophthalmic Photography IOD - Module “Cine”
Tag
Type VR
(0018,1063) 1C
DS
Name
Frame
Time
Description
PoV
Nominal time (in msec) per individual frame. See
C.7.6.5.1.1 for further explanation. Required if Frame
Increment Pointer (0028,0009) points to Frame Time.
Source
ALWAYS AUTO
Always “0”
Table 8-19 Ophthalmic Photography IOD - Module “Multiframe”
Tag
Type VR
(0028,0008) 1
IS
Name
Number of
Frames
Frame
AT Increment
Pointer
(0028,0009) 1
Description
PoV
Number of frames in a Multi-frame Image. See
C.7.6.6.1.1 for further explanation.
Source
ALWAYS AUTO
Always “1”
Contains the Data Element Tag of the attribute that is
used as the frame increment in Multi-frame pixel
ALWAYS AUTO
data. See C.7.6.6.1.1 for further explanation.
Always “00000018\00001063” for Frame Time
Table 8-20 Ophthalmic Photography IOD - Module “Acquisition Context”
Tag
(0040,0555)
Type VR
2
Name
Acquisition
SQ Context
Sequence
Description
A sequence of Items that describes the
conditions present during the
acquisition of the data of the SOP
Instance. Zero or more items may be
included in this sequence.
PoV
Source
ALWAYS AUTO
See chapter “8.3 Coded Terminology
and Templates”
>(0040,A043)
1
Concept Name A concept that constrains the meaning
of (i.e. defines the role of) the
SQ Code
Observation Value. The "Name"
Sequence
component of a Name/Value pair. This
ALWAYS AUTO
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 62 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
sequence shall contain exactly one item.
>>(0008,0100) 1
SH Code Value
See chapter “8.3 Coded Terminology
and Templates”
ALWAYS AUTO
>>(0008,0102) 1
Coding
SH Scheme
Designator
See chapter “8.3 Coded Terminology
and Templates”
ALWAYS AUTO
>>(0008,0103) 1C
Coding
SH Scheme
Version
See NEMA PS3.3 Section 8.2. Required
if the value of Coding Scheme
Designator (0008,0102) is not sufficient
to identify the Code Value (0008,0100)
unambiguously. May be present
otherwise.
ANAP
AUTO
See chapter “8.3 Coded Terminology
and Templates”
See chapter “8.3 Coded Terminology
and Templates”
>>(0008,0104) 1
LO Code Meaning
>(0040,A30A)
1C
This is the Value component of a
Name/Value pair when the Concept
implied by Concept Name Code
Sequence (0040,A043) is a set of one
or more numeric values. Required if the
DS Numeric Value
value that Concept Name Code
Sequence (0040,A043) requires
(implies) is a set of one or more
integers or real numbers. Shall not be
present otherwise.
1C
Measurement
SQ Units Code
Sequence
>>(0008,0100) 1
>>(0008,0102) 1
>(0040,08EA)
>>(0008,0103) 1C
ALWAYS AUTO
ANAP
ACQUISITION,
USER, AUTO
Units of measurement. Only a single
Item shall be permitted in this
Sequence. Required if Numeric Value
(0040,A30A) is sent. Shall not be
present otherwise.
ANAP
AUTO
SH Code Value
See chapter “8.3 Coded Terminology
and Templates”
ALWAYS AUTO
Coding
SH Scheme
Designator
See chapter “8.3 Coded Terminology
and Templates”
ALWAYS AUTO
Coding
SH Scheme
Version
See NEMA PS3.3 Section 8.2. Required
if the value of Coding Scheme
Designator (0008,0102) is not sufficient
to identify the Code Value (0008,0100)
unambiguously. May be present
otherwise.
ANAP
AUTO
See chapter “8.3 Coded Terminology
and Templates”
>>(0008,0104) 1
>(0040,A168)
1C
LO Code Meaning
SQ
Concept Code
Sequence
See chapter “8.3 Coded Terminology
and Templates”
ALWAYS AUTO
This is the Value component of a
Name/Value pair when the Concept
implied by Concept Name Code
Sequence (0040,A043) is a Coded
Value. This sequence shall contain
ANAP
exactly one item. Required if Date
(0040,A121), Time (0040,A122), Person
Name (0040,A123), Text Value
(0040,A160), and the pair of Numeric
Value (0040,A30A) and Measurement
Units Code Sequence (0040,08EA) are
AUTO
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 63 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
not present.
>>(0008,0100) 1
SH Code Value
See chapter “8.3 Coded Terminology
and Templates”
ALWAYS AUTO
>>(0008,0102) 1
Coding
SH Scheme
Designator
See chapter “8.3 Coded Terminology
and Templates”
ALWAYS AUTO
>>(0008,0103) 1C
Coding
SH Scheme
Version
See NEMA PS3.3 Section 8.2. Required
if the value of Coding Scheme
Designator (0008,0102) is not sufficient
to identify the Code Value (0008,0100)
unambiguously. May be present
otherwise.
ANAP
AUTO
See chapter “8.3 Coded Terminology
and Templates”
>>(0008,0104) 1
LO Code Meaning
See chapter “8.3 Coded Terminology
and Templates”
ALWAYS AUTO
Table 8-21 Ophthalmic Photography IOD - Module “Ophthalmic Photography Image”
Tag
Type VR
Name
Description
PoV
Source
Image identification characteristics. See
C.8.17.2.1.4 for specialization.
Multi-value attribute containing 4 values:
1) Pixel Data Characteristics

“ORIGINAL” for original acquired images

“DERIVED” for any derived image
2) Patient Examination Characteristics
(0008,0008)
1
CS Image Type

always “PRIMARY”
ALWAYS AUTO
3) Modality Specific Characteristics

“MONTAGE” for panorama images

empty otherwise
4) Implementation specific identifiers

(0020,0013)
(0028,0002)
1
1
IS
US
Instance
Number
Samples per
Pixel
“COLOR”, “REDFREE”, “RED”, “BLUE”,
“FA”, “AF” or “ICG” according to selected
capture mode
A number that identifies this image.
ALWAYS AUTO
Number of samples (planes) in this image.
Enumerated values: 1 or 3. See C.8.17.2.1.2
for further explanation.
ALWAYS AUTO
“1” for greyscale images
“3” for color images
(0028,0004)
1
CS
Photometric
Interpretation
Specifies the intended interpretation of the
pixel data. See NEMA PS3.3 Section
C.8.17.2.1.3
“MONOCHROME2” for greyscale images
ALWAYS AUTO
“YBR_FULL_422” for color images
(0028,0103)
1
US
Pixel
Representation
Data representation of the pixel samples.
Each sample shall have the same pixel
representation. Enumerated Values:0000 =
unsigned integer.0001 = 2's complement
ALWAYS AUTO
Always “0”
(0028,0006)
1C
US Planar
Indicates whether the pixel data are sent
color-by-plane or color-by-pixel. Required if
ALWAYS AUTO
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 64 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Configuration
Samples per Pixel (0028,0002) has a value
greater than 1. Enumerated value shall be 0
(color-by-pixel).
Always “0”
(0028,0030)
1C
DS Pixel Spacing
Nominal physical distance at the focal plane
(in the retina) between the center of each
pixel, specified by a numeric pair - adjacent
row spacing (delimiter) adjacent column
spacing in mm. See 10.7.1.3 for further
explanation of the value order. Note: These
values are specified as nominal because the
physical distance may vary across the field of
the images and the lens correction is likely to
be imperfect. Required when Acquisition
Device Type Code Sequence (0022,0015)
contains an item with the value (SRT, R1021A,"Fundus Camera"). May be present
otherwise.
ALWAYS AUTO
Multi-value attribute containing 2 values:
1) adjacent row spacing in mm
2) adjacent column spacing in mm
(0008,0033)
1
TM Content Time
The time the image pixel data creation
started.
ALWAYS AUTO
(0008,0023)
1
DA Content Date
The date the image pixel data creation
started.
ALWAYS AUTO
(0008,002A)
(0008,2112)
1C
2C
DT
SQ
Acquisition
Datetime
Source Image
Sequence
The date and time that the acquisition of data
started. Note: The synchronization of this
time with an external clock is specified in the
synchronization Module in Acquisition Time
ALWAYS AUTO
Synchronized (0018,1800). Required if Image
Type (0008,0008) Value 1 is ORIGINAL. May
be present otherwise.
A Sequence that identifies the Images that
were used to derive this Image. Required if
Image Type Value 1 is DERIVED. Zero or
more items may be present in the sequence.
See C.7.6.1.1.4 for further explanation.
Included for derived images which are result
images of
ANAP
AUTO
- a montage from source images
- a image processing operation
>(0008,1150)
1
UI
Referenced SOP
Class UID
Uniquely identifies the referenced SOP Class.
ALWAYS AUTO
>(0008,1155)
1
UI
Referenced SOP
Instance UID
Uniquely identifies the referenced SOP
Instance.
ALWAYS AUTO
1
Purpose of
SQ Reference Code
Sequence
>(0040,A170)
Describes the purpose for which the reference
is made, that is what role the source image or
frame(s) played in the derivation of this
ALWAYS AUTO
image. Only a single Item shall be permitted
in this sequence.
See NEMA PS3.3 Section 8.1.
>>(0008,0100) 1
SH Code Value
“121329” for sources of image montage
ALWAYS AUTO
“121322” for sources of image processing
>>(0008,0102) 1
SH
Coding Scheme
Designator
See NEMA PS3.3 Section 8.2.
Always “DCM”
ALWAYS AUTO
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 65 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
>>(0008,0103) 1C
SH
Coding Scheme
Version
See NEMA PS3.3 Section 8.2. Required if the
value of Coding Scheme Designator
(0008,0102) is not sufficient to identify the
Code Value (0008,0100) unambiguously. May
be present otherwise.
ALWAYS AUTO
Always “20051101”
See NEMA PS3.3 Section 8.3.
>>(0008,0104) 1
(0028,2110)
1
LO Code Meaning
CS
Lossy Image
Compression
“Source image for montage” or
“Source image for image processing
operation”
ALWAYS AUTO
Specifies whether an Image has undergone
lossy compression. Enumerated Values: 00 =
Image has NOT been subjected to lossy
compression. 01 = Image has been subjected ALWAYS AUTO
to lossy compression. See C.7.6.1.1.5
“01” if image is compressed
“00” otherwise
(0028,2112)
(0028,2114)
1C
1C
Lossy Image
DS Compression
Ratio
Lossy Image
CS Compression
Method
Describes the approximate lossy compression
ratio(s) that have been applied to this image.
See C.7.6.1.1.5 for further explanation. May
be multivalued if successive lossy
compression steps have been applied. Notes:
1. For example, a compression ratio of 30:1
would be described in this Attribute with a
single value of 30. 2. For historical reasons,
the lossy compression ratio should also be
described in Derivation Description
(0008,2111) Required if Lossy Image
Compression (0028,2110) has a value of
"01".
ANAP
A label for the lossy compression method(s)
that have been applied to this image. See
C.7.6.1.1.5 for further explanation. May be
multivalued if successive lossy compression
steps have been applied; the value order shall
correspond to the values of Lossy Image
Compression Ratio (0028,2112). Required if
ANAP
Lossy Image Compression (0028,2110) has a
value of "01". Note: For historical reasons,
the lossy compression method should also be
described in Derivation Description
(0008,2111).
AUTO
AUTO
“ISO_10918_1” if image is compressed
(2050,0020)
1C
CS
Presentation
LUT Shape
Specifies an identity transformation for the
Presentation LUT, such that the output of all
grayscale transformations defined in the IOD
containing this Module are defined to be PValues. Enumerated Values: IDENTITY output is in P-Values. Required if Photometric
Interpretation (0028,0004) is
MONOCHROME2
ANAP
AUTO
“IDENTITY” for grayscale images
(0028,0301)
1
CS
Burned In
Annotation
Indicates whether or not image contains
sufficient burned in annotation to identify the
patient and date the image was acquired.
Enumerated Value: YES NO
ALWAYS CONFIG
“YES” if any identification info is burned in
“NO” otherwise
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 66 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Table 8-22 Ophthalmic Photography IOD - Module “Ocular Region Imaged”
Tag
Type VR
(0020,0062)
(0008,2218)
Name
Laterality
1
CS
1
Anatomic
SQ Region
Sequence
>(0008,0100) 1
SH Code Value
>(0008,0102) 1
Coding
SH Scheme
Designator
>(0008,0104) 1
LO
Code
Meaning
Description
PoV
Source
Laterality of object imaged (as described in Anatomic
Region Sequence (0008,2218)) examined.
Enumerated Values: R = right eye L = left eye B =
both left and right eye Shall be consistent with any
laterality information contained in Primary Anatomic
Structure Modifier Sequence (0008,2230), if present. ALWAYS AUTO
Note: Laterality (0020,0060) is a Series level
Attribute and must be the same for all Images in the
Series. Since most Ophthalmic Photographic Image
studies contain images of both eyes, the series level
attribute will rarely be present.
Sequence that identifies the anatomic region of
interest in this Instance (i.e. external anatomy,
surface anatomy, or general region of the body).
Only a single Item shall be permitted in this
sequence.
See NEMA PS3.3 Section 8.1.
Always “T-AA000”
See NEMA PS3.3 Section 8.2.
Always “SRT”
See NEMA PS3.3 Section 8.3.
Always “Eye”
ALWAYS AUTO
ALWAYS AUTO
ALWAYS AUTO
ALWAYS AUTO
Table 8-23 Ophthalmic Photography IOD - Module “Ophthalmic Photography Acquisition
Parameters”
Tag
Type VR
Name
Patient Eye
CS Movement
Commanded
(0022,0005) 2
(0022,001B) 2
SQ
Refractive State
Sequence
Description
Enumerated Values: YES NO
The refractive state of the imaged eye at the time
of acquisition. Zero or one Item shall be present.
Zero length means the refractive state was not
measured.
PoV
Source
EMPTY AUTO
EMPTY AUTO
Always zero items
(0022,000A) 2
FL
Emmetropic
Magnification
Emmetropic magnification value (dimensionless).
Zero length means the emmetropic magnification
was not measured.
EMPTY AUTO
(0022,000B) 2
FL
Intra Ocular
Pressure
Value of intraocular pressure in mmHg. Zero
length means the pressure was not measured
EMPTY AUTO
(0022,000D) 2
CS Pupil Dilated
Enumerated Values: YES NO If this tag is empty,
no information is available.
EMPTY AUTO
Table 8-24 Ophthalmic Photography IOD - Module “Ophthalmic Photographic Parameters”
Tag
(0022,0015)
Type VR
1
>(0008,0100) 1
Name
Acquisition Device
SQ Type Code
Sequence
SH Code Value
Description
Describes the type of acquisition device. A
single item shall be present in the sequence.
See NEMA PS3.3 Section 8.1.
Always “R-1021A”
PoV
Source
ALWAYS AUTO
ALWAYS AUTO
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 67 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
SH
>(0008,0104) 1
LO Code Meaning
(0022,0016)
2
SQ
(0022,0017)
2
Light Path Filter
SQ Type Stack Code
Sequence
(0022,0018)
2
(0022,0019)
2
See NEMA PS3.3 Section 8.2.
Coding Scheme
Designator
>(0008,0102) 1
ALWAYS AUTO
Always “SRT”
See NEMA PS3.3 Section 8.3.
ALWAYS AUTO
Always “Fundus Camera”
Illumination Type
Code Sequence
Coded value for illumination. Zero or one item
shall be present in the sequence.
EMPTY
Always zero items
Filters used in the light source path. Zero or
more items may be present in the sequence.
AUTO
EMPTY
AUTO
EMPTY
AUTO
EMPTY
AUTO
VNAP
AUTO
Description
PoV
Source
Uniquely identifies the SOP Class. See C.12.1.1.1 for
further explanation. See also PS 3.4.
ALWAYS AUTO
Always zero items
Image Path Filter
SQ Type Stack Code
Sequence
Lenses Code
SQ
Sequence
Describes stack of filters used in image path.
Zero or more items may be present in the
sequence.
Always zero items
Lenses that were used during the image
acquisition. Zero or more items may be
present in the sequence.
Always zero items
(0018,7004)
2
CS Detector Type
Type of detector used for creating this image.
Defined terms: CCD = Charge Coupled
Devices CMOS = Complementary Metal Oxide
Semiconductor
“CCD” if image is acquired with CIRRUS photo
Empty otherwise
Table 8-25 Ophthalmic Photography IOD - Module “SOP Common”
Tag
Type VR Name
(0008,0016) 1
UI
SOP Class
UID
SOP
Instance
UID
(0008,0018) 1
UI
(0008,0005) 1C
Specific
CS Character
Set
“1.2.840.10008.5.1.4.1.1.77.1.5.1”
Uniquely identifies the SOP Instance. See C.12.1.1.1
for further explanation. See also PS 3.4.
“1.2.276.0.75.2.1.51.2.” constant prefix for generated
UIDs
Character Set that expands or replaces the Basic
Graphic Set. Required if an expanded or replacement
character set is used. See C.12.1.1.2 for Defined
Terms.
ALWAYS AUTO
ALWAYS AUTO
Always “ISO_IR 192” for UTF-8 encoded Unicode
(0008,0012) 3
Instance
DA Creation
Date
Date the SOP Instance was created.
ALWAYS AUTO
(0008,0013) 3
Instance
TM Creation
Time
Time the SOP Instance was created.
ALWAYS AUTO
Table 8-26 Ophthalmic Photography IOD - Module “Czm Ophthalmic Photography Image Extension”
Tag
Type VR
(0022,000C) 3
FL
Name
Horizontal Field
of View
Description
Horizontal field of view in degrees of the
Fundus Camera.
PoV
Source
ANAP ACQUISITION
Attribute not present for derived montage
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 68 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
images and imported images
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 69 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
8.1.1.3 Multi-frame True Color Secondary Capture Information Object Defintion
IE
Module
Usage
Patient
Patient
ALWAYS
General Study
ALWAYS
General Series
ALWAYS
General Equipment
ALWAYS
SC Equipment
ALWAYS
General Image
ALWAYS
Image Pixel
ALWAYS
Study
Series
Equipment
Multi Frame Functional Groups ALWAYS
SC Multi Frame Image
ALWAYS
SOP Common
ALWAYS
Table 8-27 Multi-frame True Color Secondary Capture IOD - Module “Patient”
Tag
Type
VR
Name
Description
PoV
Source
(0010,0010)
2
PN
Patient's Name
Patient's full name.
ALWAYS
MWL, SRQ,
USER
(0010,0020)
2
LO
Patient ID
Primary hospital identification number
or code for the patient.
ALWAYS
MWL, SRQ,
USER
(0010,0021)
3
LO
Issuer of
Patient ID
Identifier of the Assigning Authority
that issued the Patient ID.
ANAP
MWL, SRQ,
AUTO
(0010,0030)
2
DA
Patient's Birth
Date
Birth date of the patient.
ALWAYS
MWL, SRQ,
USER
(0010,0040)
2
CS
Patient's Sex
Enumerated Values: M = male F =
female O = other
ALWAYS
MWL, SRQ,
USER
(0010,1000)
3
LO
Other Patient
IDs
Other identification numbers or codes
used to identify the patient.
ANAP
MWL, SRQ
(0010,2160)
3
SH
Ethnic Group
Ethnic group or race of the patient.
ANAP
SRQ
(0010,4000)
3
LT
Patient
Comments
User-defined additional information
about the patient.
ANAP
MWL, SRQ,
USER
Sex of the named patient.
Table 8-28 Multi-frame True Color Secondary Capture IOD - Module “General Study”
Tag
Type
VR
Name
Description
PoV
Source
(0020,000D)
1
UI
Study
Instance UID
Unique identifier for the Study
ALWAYS
MWL,
SRQ,
AUTO
(0008,0020)
2
DA
Study Date
ALWAYS
AUTO
Date the Study started.
Date, when procedure step was started.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 70 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
(0008,0030)
2
TM
Study Time
(0008,0090)
2
PN
Referring
Physician's
Name
Time the Study started.
Time, when procedure step was started.
Name of the patient's referring physician.
ALWAYS
AUTO
VNAP
MWL
ALWAYS
MWL,
SRQ,
AUTO
VNAP
MWL
User or equipment generated Study
identifier.
(0020,0010)
2
SH
In scheduled case the source attribute
for this value is Requested Procedure ID
Study ID
In unscheduled case the value is a
Equipment generated Study identifier
A RIS generated number that identifies
the order for the Study.
(0008,0050)
2
SH
Accession
Number
(0008,1030)
3
LO
Study
Description
Institution-generated description or
classification of the Study (component)
performed.
VNAP
MWL,
SRQ
(0008,1110)
3
SQ
Referenced
Study
Sequence
A sequence that provides reference to a
Study SOP Class/Instance pair. The
sequence may have zero or more Items.
ANAP
MWL
>(0008,1150)
1
UI
Referenced
SOP Class
UID
Uniquely identifies the referenced SOP
Class.
ALWAYS
MWL
>(0008,1155)
1
UI
Referenced
SOP Instance
UID
Uniquely identifies the referenced SOP
Instance.
ALWAYS
MWL
(0008,1032)
3
SQ
Procedure
Code
Sequence
A Sequence that conveys the type of
procedure performed. One or more
Items may be included in this Sequence.
ANAP
MWL
>(0008,0100)
1
SH
Code Value
See NEMA PS3.3 Section 8.1.
ALWAYS
MWL
>(0008,0102)
1
SH
Coding
Scheme
Designator
See NEMA PS3.3 Section 8.2.
ALWAYS
MWL
See NEMA PS3.3 Section 8.2. Required if
the value of Coding Scheme Designator
(0008,0102) is not sufficient to identify
the Code Value (0008,0100)
unambiguously.
VNAP
MWL
See NEMA PS3.3 Section 8.3.
ALWAYS
MWL
Value does not exist in unscheduled
case.
>(0008,0103)
1C
SH
Coding
Scheme
Version
>(0008,0104)
1
LO
Code Meaning
Table 8-29 Multi-frame True Color Secondary Capture IOD - Module “General Series”
Tag
Type VR
Name
(0020,000E)
1
UI
Series
Instance
UID
(0020,0011)
2
IS
Series
Number
(0020,0060)
2C
CS Laterality
Description
PoV
Source
Unique identifier of the Series.
"1.2.276.0.75.2.1.51.2.2" extended by machine
identifier and time information
ALWAYS AUTO
A number that identifies this Series.
ALWAYS AUTO
Laterality of (paired) body part examined.
Required if the body part examined is a paired
structure and Image Laterality (0020,0062) or
ALWAYS AUTO
Frame Laterality (0020,9072) are not sent.
Enumerated Values: R = right L = left Note:
Some IODs support Image Laterality (0020,0062)
at the Image level or Frame
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 71 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Laterality(0020,9072) at the Frame level in the
Frame Anatomy functional group macro, which
can provide a more comprehensive mechanism
for specifying the laterality of the body part(s)
being examined.
(0008,0021)
3
DA Series Date
Date the Series started.
ALWAYS AUTO
(0008,0031)
3
TM Series Time
Time the Series started.
ALWAYS AUTO
(0018,1030)
3
LO
Protocol
Name
User-defined description of the conditions under
which the Series was performed. Note: This
attribute conveys series-specific protocol
identification and may or may not be identical to
the one presented in the Performed Protocol Code ANAP
Sequence (0040,0260).
MWL,
AUTO
In scheduled case: Same value as for Requested
Procedure Description (0032,1060).
In unscheduled case: Always "CPImage"
(0008,1070)
(0018,0015)
3
3
PN
CS
Operators'
Name
Body Part
Examined
Name(s) of the operator(s) supporting the Series. ANAP
CONFIG
Text description of the part of the body examined.
See PS 3.16 Annexes on Correspondence of
Anatomic Region Codes and Body Part Examined
for Humans and for Animals for Defined Terms
Note: Some IODs support the Anatomic Region
ALWAYS AUTO
Sequence (0008,2218), which can provide a more
comprehensive mechanism for specifying the
body part being examined.
Always “HEAD”
(0040,0275)
3
Request
SQ Attributes
Sequence
Sequence that contains attributes from the
Imaging Service Request. The sequence may
have one or more Items.
The Request Attributes Sequence is only included
in Scheduled Case. In unscheduled case it will not
be included.
ANAP
MWL
>(0040,1001)
1C
Requested
SH Procedure
ID
Identifier that identifies the Requested Procedure
in the Imaging Service Request. Required if
procedure was scheduled. May be present
otherwise. Note: The condition is to allow the
contents of this macro to be present (e.g., to
convey the reason for the procedure, such as
whether a mammogram is for screening or
diagnostic purposes) even when the procedure
was not formally scheduled and a value for this
identifier is unknown, rather than making up a
dummy value.
>(0032,1060)
3
Requested
LO Procedure
Description
Institution-generated administrative description
or classification of Requested Procedure.
VNAP
ALWAYS MWL
VNAP
>(0040,0009)
1C
Scheduled
SH Procedure
Step ID
Identifier that identifies the Scheduled Procedure
Step. Required if procedure was scheduled. Note:
The condition is to allow the contents of this
macro to be present (e.g., to convey the reason
for the procedure, such as whether a
mammogram is for screening or diagnostic
purposes) even when the procedure step was not
formally scheduled and a value for this identifier
is unknown, rather than making up a dummy
value.
>(0040,0007)
3
LO Scheduled
Institution-generated description or classification
ALWAYS MWL
MWL
MWL
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 72 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Procedure
Step
Description
of the Scheduled Procedure Step to be performed.
Scheduled
Protocol
SQ
Code
Sequence
Sequence describing the Scheduled Protocol
following a specific coding scheme. This sequence
contains one or more Items.
ANAP
>>(0008,0100) 1
SH Code Value
See NEMA PS3.3 Section 8.1.
ALWAYS MWL
>>(0008,0102) 1
Coding
SH Scheme
Designator
See NEMA PS3.3 Section 8.2.
ALWAYS MWL
>>(0008,0103) 1C
Coding
SH Scheme
Version
See NEMA PS3.3 Section 8.2. Required if the
value of Coding Scheme Designator (0008,0102)
is not sufficient to identify the Code Value
(0008,0100) unambiguously. May be present
otherwise.
VNAP
>>(0008,0104) 1
LO
See NEMA PS3.3 Section 8.3.
ALWAYS MWL
(0040,0253)
3
Performed
SH Procedure
Step ID
User or equipment generated identifier of that
part of a Procedure that has been carried out
within this step.
ALWAYS AUTO
3
Performed
Procedure
DA
Step Start
Date
Date on which the Performed Procedure Step
started.
ALWAYS AUTO
3
Performed
Procedure
TM
Step Start
Time
Time on which the Performed Procedure Step
started.
ALWAYS AUTO
>(0040,0008)
3
(0040,0244)
(0040,0245)
(0040,0254)
3
Code
Meaning
Performed
Procedure
LO
Step
Description
MWL
MWL
Institution-generated description or classification
of the Procedure Step that was performed.
In unscheduled case the attribute value =
"CPImage".
ALWAYS AUTO
In scheduled case the attribute has the same
value as for Requested Procedure Description
(0032,1060)
Table 8-30 Multi-frame True Color Secondary Capture IOD - Module “General Equipment”
Tag
(0008,0070)
Type
2
VR
LO
Name
Description
PoV
Source
Manufacturer
Manufacturer of the equipment that
produced the composite instances
ALWAYS
AUTO
“Carl Zeiss Meditec”
(0008,0080)
3
LO
Institution
Name
Institution where the equipment that
produced the composite instances is
located.
VNAP
CONFIG
(0008,0081)
3
ST
Institution
Address
Mailing address of the institution where
the equipment that produced the
composite instances is located.
ANAP
CONFIG
(0008,1010)
3
SH
Station Name
User defined name identifying the
machine that produced the composite
instances.
VNAP
CONFIG
(0008,1040)
3
LO
Institutional
Department
Name
Department in the institution where the
equipment that produced the composite
instances is located.
ANAP
CONFIG
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 73 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
(0008,1090)
3
LO
Manufacturer's
Model Name
Manufacturer’s model name of the
equipment that produced the composite
instances.
“CIRRUS photo 600” or
ALWAYS
AUTO
ALWAYS
AUTO
ALWAYS
AUTO
“CIRRUS photo 800”
(0018,1000)
3
(0018,1020)
LO
3
LO
Device Serial
Number
Manufacturer’s serial number of the
equipment that produced the composite
instances. Note: This identifier
corresponds to the device that actually
created the images, such as a CR plate
reader or a CT console, and may not be
sufficient to identify all of the equipment
in the imaging chain, such as the
generator or gantry or plate.
Manufacturer’s designation of software
version of the equipment that produced
the composite instances.
Software
Version(s)
“2.0.0.38309” and higher versions
“2.0.x.y” where x denotes a patch
version and y denotes a build version
Table 8-31 Multi-frame True Color Secondary Capture IOD - Module “SC Equipment”
Tag
Type VR
(0008,0064) 1
CS
Name
Conversion
Type
Description
PoV
Source
Describes the kind of image conversion. Defined Terms
: DV = Digitized Video DI = Digital Interface DF =
Digitized Film WSD = Workstation SD = Scanned
Document SI = Scanned Image DRW = Drawing SYN = ALWAYS AUTO
Synthetic Image
Always “SYN” for Synthetic Image
(0008,0060) 3
CS Modality
Source equipment for the image. This type definition
shall override the definition in the General Series
Module. See C.7.3.1.1.1 for Defined Terms.
ALWAYS AUTO
Always “OPT”
Table 8-32 Multi-frame True Color Secondary Capture IOD - Module "General Image"
Tag
(0020,0020)
Type VR
2C
CS
Name
Patient
Orientation
Description
PoV
Source
Patient direction of the rows and columns of the
image. Required if image does not require Image
Orientation (Patient) (0020,0037) and Image
Position (Patient) (0020,0032). May be present
otherwise. See C.7.6.1.1.1 for further explanation.
Note: IOD’s may have attributes other than Patient ALWAYS AUTO
Orientation, Image Orientation, or Image Position
(Patient) to describe orientation in which case this
attribute will be zero length.
Always “L\F”
Image identification characteristics. See
C.7.6.1.1.2 for Defined Terms and further
explanation.
Multi-value attribute containing 4 values:
(0008,0008)
3
CS Image Type
1) Pixel Data Characteristics

always “DERIVED”
ALWAYS AUTO
2) Patient Examination Characteristics

always “PRIMARY”
3) Modality Specific Characteristics

always empty
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 74 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
4) Implementation specific identifiers

“ANTERIOR B SCAN” for anterior B-scan
images

“POSTERIOR B SCAN” for posterior B-scan
images

“OCT B SCAN” for any other B-scan images
(0008,0022)
3
DA
Acquisition
Date
The date the acquisition of data that resulted in
this image started
ALWAYS AUTO
(0008,0032)
3
TM
Acquisition
Time
The time the acquisition of data that resulted in
this image started
ALWAYS AUTO
Acquisition
Datetime
The date and time that the acquisition of data that
resulted in this image started. Note: The
synchronization of this time with an external clock
is specified in the Synchronization Module in
Acquisition Time Synchronized (0018,1800).
ALWAYS AUTO
(0008,002A)
(0008,9215)
3
3
DT
Derivation
SQ Code
Sequence
A coded description of how this image was derived.
See C.7.6.1.1.3 for further explanation. One or
more Items may be included in this Sequence.
More than one Item indicates that successive
ANAP
derivation steps have been applied.
AUTO
See chapter “8.3 Coded Terminology and
Templates”
>(0008,0100)
1
SH Code Value
See chapter “8.3 Coded Terminology and
Templates”
ALWAYS AUTO
>(0008,0102)
1
Coding
SH Scheme
Designator
See chapter “8.3 Coded Terminology and
Templates”
ALWAYS AUTO
>(0008,0103)
>(0008,0104)
(0008,114A)
1C
1
3
Coding
SH Scheme
Version
LO
Code
Meaning
Referenced
SQ Instance
Sequence
See NEMA PS3.3 Section 8.2. Required if the value
of Coding Scheme Designator (0008,0102) is not
sufficient to identify the Code Value (0008,0100)
unambiguously. May be present otherwise.
ALWAYS AUTO
See chapter “8.3 Coded Terminology and
Templates”
See chapter “8.3 Coded Terminology and
Templates”
Non-image composite SOP Instances that are
significantly related to this Image, including
waveforms that may or may not be temporally
synchronized with this image. One or more Items
may be included in this sequence.
ALWAYS AUTO
ALWAYS AUTO
Included for referenced instances which are
- source instances for the secondary capture
>(0008,1150)
1
UI
Referenced
SOP Class
UID
Uniquely identifies the referenced SOP Class.
1
UI
Referenced
SOP
Instance
UID
Uniquely identifies the referenced SOP Instance.
>(0008,1155)
>(0040,A170)
1
SQ
Purpose of
Reference
Code
Sequence
>>(0008,0100) 1
SH Code Value
Always "1.2.840.10008.5.1.4.1.1.66"
References the Instance_UID of the RAW
acquisition data
ALWAYS AUTO
ALWAYS AUTO
Code describing the purpose of the reference to the
Instance(s). Only a single Item shall be permitted
ALWAYS AUTO
in this sequence.
See NEMA PS3.3 Section 8.1.
ALWAYS AUTO
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 75 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Always “SRC_INSTANCE”
>>(0008,0102) 1
Coding
SH Scheme
Designator
>>(0008,0103) 1C
Coding
SH Scheme
Version
See NEMA PS3.3 Section 8.2.
Always “99CZM”
See NEMA PS3.3 Section 8.2. Required if the value
of Coding Scheme Designator (0008,0102) is not
sufficient to identify the Code Value (0008,0100)
unambiguously. May be present otherwise.
ALWAYS AUTO
ALWAYS AUTO
Always “20120401”
>>(0008,0104) 1
LO
Code
Meaning
(0020,4000)
LT
Comments
3
See NEMA PS3.3 Section 8.3.
Always “Source instance used to create this
instance”
ALWAYS AUTO
User-defined comments about the image
ANAP
USER
Table 8-33 Multi-frame True Color Secondary Capture IOD - Module “Image Pixel”
Tag
Type
(0028,0002) 1
(0028,0004) 1
VR
US
CS
Name
Samples per
Pixel
Photometric
Interpretation
Description
Number of samples (planes) in this image.
See C.7.6.3.1.1 for further explanation.
PoV
Source
ALWAYS AUTO
Always “3”
Specifies the intended interpretation of the
pixel data. See C.7.6.3.1.2 for further
explanation.
ALWAYS AUTO
Always “YBR_FULL_422”
(0028,0010) 1
US
Rows
Number of rows in the image.
ALWAYS AUTO
(0028,0011) 1
US
Columns
Number of columns in the image
ALWAYS AUTO
(0028,0100) 1
US
Bits Allocated
Number of bits allocated for each pixel
sample. Each sample shall have the same
number of bits allocated. See PS 3.5 for
further explanation.
ALWAYS AUTO
Always “8”
(0028,0101) 1
US
Bits Stored
Number of bits stored for each pixel sample.
Each sample shall have the same number of
bits stored. See PS 3.5 for further
explanation.
ALWAYS AUTO
Always “8”
(0028,0102) 1
US
High Bit
Most significant bit for pixel sample data.
Each sample shall have the same high bit.
See PS 3.5 for further explanation.
ALWAYS AUTO
Always “7”
(0028,0103) 1
US
Pixel
Representation
Data representation of the pixel samples.
Each sample shall have the same pixel
representation. Enumerated Values:0000 =
unsigned integer.0001 = 2's complement
ALWAYS AUTO
Always “0”
(7FE0,0010) 1C
OB|OW Pixel Data
(0028,0006) 1C
US
Planar
Configuration
A data stream of the pixel samples that
comprise the Image. See C.7.6.3.1.4 for
further explanation. Required if Pixel Data
Provider URL (0028,7FE0) is not present.
ALWAYS AUTO
Indicates whether the pixel data are sent
color-by-plane or color-by-pixel. Required if
Samples per Pixel (0028,0002) has a value
ALWAYS AUTO
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 76 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
greater than 1. See C.7.6.3.1.3 for further
explanation.
Always “0”
Table 8-34 Multi-frame True Color Secondary Capture IOD - Module “Multi Frame Functional
Groups”
Tag
Type VR
(5200,9229) 2
Name
Shared
Functional
SQ
Groups
Sequence
Description
Sequence that contains the Functional Group Macros
that are shared for all frames in this SOP Instance
and Concatenation. Note: The contents of this
sequence are the same in all SOP Instances that
comprise a Concatenation. Zero or one Item may be
included in this sequence. See NEMA PS3.3 Section
C.7.6.16.1.1 for further explanation.
PoV
EMPTY
Source
AUTO
Always zero items
(5200,9230) 1
Per-frame
Functional
SQ
Groups
Sequence
Sequence that contains the Functional Group Macros
corresponding to each frame of the Multi-frame
Image. The first Item corresponds with the first
frame, and so on. Each Item shall contain the same
set of Functional Group Macros. This Sequence shall
contain the same number of Items as the number of
frames in the Multi-frame image. See NEMA PS3.3
Section C.7.6.16.1.2 for further explanation.
ALWAYS AUTO
Always with one empty item
Instance
Number
A number that identifies this instance. The value shall
be the same for all SOP Instances of a Concatenation,
and different for each separate Concatenation and for ALWAYS AUTO
each SOP Instance not within a Concatenation in a
series.
(0020,0013) 1
IS
(0008,0023) 1
The date the data creation was started. Note: For
DA Content Date instance, this is the date the pixel data is created, not ALWAYS AUTO
the date the data is acquired.
(0008,0033) 1
TM
Content
Time
(0028,0008) 1
IS
Number of
Frames
The time the data creation was started. Note: For
instance, this is the time the pixel data is created, not ALWAYS AUTO
the time the data is acquired.
Number of frames in a multi-frame image. See
C.7.6.6.1.1 for further explanation.
ALWAYS AUTO
Always “1”
Table 8-35 Multi-frame True Color Secondary Capture IOD - Module “SC Multi Frame Image"
Tag
Type VR
(0028,0301) 1
CS
Name
Burned In
Annotation
Description
Indicates whether or not image contains sufficient
burned in annotation to identify the patient and date
the image was acquired. Enumerated Value: YES NO
“YES” if any identification info is burned in
PoV
Source
ALWAYS CONFIG
“NO” otherwise
(0028,0030) 1C
DS
Pixel
Spacing
Physical distance in the patient between the center of
each pixel, specified by a numeric pair - adjacent row
spacing (delimiter) adjacent column spacing in mm.
See 10.7.1.1 and 10.7.1.3. Required if the image has
ALWAYS AUTO
been calibrated. May be present otherwise.
Multi-value attribute containing 2 values:
1) adjacent row spacing in mm
2) adjacent column spacing in mm
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 77 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Table 8-36 Multi-frame True Color Secondary Capture IOD - Module “SOP Common”
Tag
Type VR
(0008,0016) 1
UI
Name
SOP Class
UID
SOP
Instance
UID
(0008,0018) 1
UI
(0008,0005) 1C
Specific
CS Character
Set
Description
Uniquely identifies the SOP Class. See C.12.1.1.1 for
further explanation. See also PS 3.4.
PoV
Source
ALWAYS AUTO
“1.2.840.10008.5.1.4.1.1.7.4”
Uniquely identifies the SOP Instance. See C.12.1.1.1
for further explanation. See also PS 3.4.
“1.2.276.0.75.2.1.51.2.” constant prefix for generated
UIDs
Character Set that expands or replaces the Basic
Graphic Set. Required if an expanded or replacement
character set is used. See C.12.1.1.2 for Defined
Terms.
ALWAYS AUTO
ALWAYS AUTO
Always “ISO_IR 192” for UTF-8 encoded Unicode
(0008,0012) 3
Instance
DA Creation
Date
Date the SOP Instance was created.
ALWAYS AUTO
(0008,0013) 3
Instance
TM Creation
Time
Time the SOP Instance was created.
ALWAYS AUTO
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 78 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
8.1.1.4 Raw Data Information Object Definition
IE
Module
Usage
Patient
Patient
ALWAYS
Czm Patient Extended Data
ALWAYS
General Study
ALWAYS
General Series
ALWAYS
Study
Series
Equipment
General Equipment
ALWAYS
Czm Equipment Extended Data
ALWAYS
Raw Data
Acquisition Context
ALWAYS
Raw Data
ALWAYS
SOP Common
ALWAYS
Table 8-37 Raw Data IOD - Module “Patient”
Tag
Type
VR
Name
Description
PoV
Source
(0010,0010)
2
PN
Patient's Name
Patient's full name.
ALWAYS
MWL, SRQ,
USER
(0010,0020)
2
LO
Patient ID
Primary hospital identification number
or code for the patient.
ALWAYS
MWL, SRQ,
USER
(0010,0021)
3
LO
Issuer of
Patient ID
Identifier of the Assigning Authority
that issued the Patient ID.
ANAP
MWL, SRQ,
AUTO
(0010,0030)
2
DA
Patient's Birth
Date
Birth date of the patient.
ALWAYS
MWL, SRQ,
USER
(0010,0040)
2
CS
Patient's Sex
Enumerated Values: M = male F =
female O = other
ALWAYS
MWL, SRQ,
USER
(0010,1000)
3
LO
Other Patient
IDs
Other identification numbers or codes
used to identify the patient.
ANAP
MWL, SRQ
(0010,2160)
3
SH
Ethnic Group
Ethnic group or race of the patient.
ANAP
SRQ
(0010,4000)
3
LT
Patient
Comments
User-defined additional information
about the patient.
ANAP
MWL, SRQ,
USER
Sex of the named patient.
Table 8-38 Raw Data IOD - Module “Czm Patient Extended Data”
Tag
(0405,xx52)
Type VR
3
CS
Name
Normative
Database
Description
Ethnically diverse normative data tables
associated with patient. Defined terms:
NONE
DEFAULT
ASIAN
CHINESE
JAPANESE
PoV
Source
ANAP
AUTO
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 79 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Table 8-39 Raw Data IOD - Module “General Study”
Tag
Type
VR
Name
(0020,000D)
1
UI
Study
Instance UID
(0008,0020)
2
DA
Study Date
(0008,0030)
2
TM
Study Time
(0008,0090)
2
PN
Referring
Physician's
Name
Description
Unique identifier for the Study
Date the Study started.
Date, when procedure step was started.
Time the Study started.
Time, when procedure step was started.
Name of the patient's referring physician.
PoV
ALWAYS
ALWAYS
AUTO
ALWAYS
AUTO
VNAP
MWL
ALWAYS
MWL,
SRQ,
AUTO
VNAP
MWL
User or equipment generated Study
identifier.
(0020,0010)
2
SH
Study ID
In scheduled case the source attribute for
this value is Requested Procedure ID
In unscheduled case the value is a
Equipment generated Study identifier
(0008,0050)
2
SH
Accession
Number
A RIS generated number that identifies
the order for the Study.
Source
MWL,
SRQ,
AUTO
Value does not exist in unscheduled case.
(0008,1030)
3
LO
Study
Description
Institution-generated description or
classification of the Study (component)
performed.
VNAP
MWL,
SRQ
(0008,1110)
3
SQ
Referenced
Study
Sequence
A sequence that provides reference to a
Study SOP Class/Instance pair. The
sequence may have zero or more Items.
ANAP
MWL
>(0008,1150)
1
UI
Referenced
SOP Class
UID
Uniquely identifies the referenced SOP
Class.
ALWAYS
MWL
>(0008,1155)
1
UI
Referenced
SOP Instance
UID
Uniquely identifies the referenced SOP
Instance.
ALWAYS
MWL
ALWAYS
MWL,
AUTO
A Sequence that conveys the type of
procedure performed. One or more Items
may be included in this Sequence.
(0008,1032)
3
SQ
Procedure
Code
Sequence
>(0008,0100)
1
SH
Code Value
See chapter “8.3 Coded Terminology and
Templates”
ALWAYS
MWL
>(0008,0102)
1
SH
Coding
Scheme
Designator
See chapter “8.3 Coded Terminology and
Templates”
ALWAYS
MWL
>(0008,0103)
1C
SH
Coding
Scheme
Version
See chapter “8.3 Coded Terminology and
Templates”
ALWAYS
MWL
>(0008,0104)
1
LO
Code
Meaning
See chapter “8.3 Coded Terminology and
Templates”
ALWAYS
MWL
This sequence always contains an
equipment generated item (see chapter
“8.3 Coded Terminology and Templates”)
and, if available, any MWL provided item
of the Requested Procedure Code
Sequence.
Table 8-40 Raw Data IOD - Module “General Series”
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 80 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Tag
(0008,0060)
Type
1
VR
CS
Name
Description
Type of equipment that originally
acquired the data used to create the
images in this Series. See C.7.3.1.1.1
for Defined Terms.
Modality
PoV
Source
ALWAYS AUTO
Always “OPT”
(0020,000E)
1
UI
Series
Instance UID
(0020,0011)
2
IS
Unique identifier of the Series.
"1.2.276.0.75.2.1.51.2.2" extended by
machine identifier and time information
ALWAYS AUTO
Series
Number
A number that identifies this Series.
ALWAYS AUTO
(0020,0060)
2C
CS
Laterality
Laterality of (paired) body part
examined. Required if the body part
examined is a paired structure and
Image Laterality (0020,0062) or Frame
Laterality (0020,9072) are not sent.
Enumerated Values: R = right L = left
Note: Some IODs support Image
ALWAYS AUTO
Laterality (0020,0062) at the Image
level or Frame Laterality(0020,9072) at
the Frame level in the Frame Anatomy
functional group macro, which can
provide a more comprehensive
mechanism for specifying the laterality
of the body part(s) being examined.
(0008,0021)
3
DA
Series Date
Date the Series started.
ALWAYS AUTO
(0008,0031)
3
TM
Series Time
Time the Series started.
ALWAYS AUTO
(0018,1030)
3
LO
User-defined description of the
conditions under which the Series was
performed. Note: This attribute conveys
series-specific protocol identification
and may or may not be identical to the
one presented in the Performed
Protocol Code Sequence (0040,0260).
ANAP
In scheduled case: Same value as for
Requested Procedure Description
(0032,1060).
Protocol
Name
MWL,
AUTO
In unscheduled case: Always "OCT" for
OCT Scan Data, “OctAnalysis” for OCT
Analysis Data
(0008,103E)
3
LO
Series
Description
(0008,1070)
3
PN
Operators'
Name
(0018,0015)
3
CS
Body Part
Examined
Description of the Series.
Same value as for Performed Protocol
Code Sequence – Code Meaning.
Name(s) of the operator(s) supporting
the Series.
ALWAYS AUTO
ANAP
CONFIG
Text description of the part of the body
examined. See PS 3.16 Annexes on
Correspondence of Anatomic Region
Codes and Body Part Examined for
Humans and for Animals for Defined
Terms Note: Some IODs support the
ALWAYS AUTO
Anatomic Region Sequence
(0008,2218), which can provide a more
comprehensive mechanism for
specifying the body part being
examined.
Always “HEAD”
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 81 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
(0040,0275)
3
SQ
Sequence that contains attributes from
the Imaging Service Request. The
sequence may have one or more Items.
Request
Attributes
Sequence
The Request Attributes Sequence is
only included in Scheduled Case. In
unscheduled case it will not be
included.
ANAP
MWL
>(0040,1001)
1C
SH
Requested
Procedure ID
Identifier that identifies the Requested
Procedure in the Imaging Service
Request. Required if procedure was
scheduled. May be present otherwise.
Note: The condition is to allow the
contents of this macro to be present
(e.g., to convey the reason for the
procedure, such as whether a
mammogram is for screening or
diagnostic purposes) even when the
procedure was not formally scheduled
and a value for this identifier is
unknown, rather than making up a
dummy value.
>(0032,1060)
3
LO
Requested
Procedure
Description
Institution-generated administrative
description or classification of
Requested Procedure.
VNAP
SH
Scheduled
Procedure
Step ID
Identifier that identifies the Scheduled
Procedure Step. Required if procedure
was scheduled. Note: The condition is
to allow the contents of this macro to
be present (e.g., to convey the reason
for the procedure, such as whether a
mammogram is for screening or
diagnostic purposes) even when the
procedure step was not formally
scheduled and a value for this identifier
is unknown, rather than making up a
dummy value.
ALWAYS MWL
LO
Scheduled
Procedure
Step
Description
Institution-generated description or
classification of the Scheduled
Procedure Step to be performed.
VNAP
MWL
ANAP
MWL
>(0040,0009)
>(0040,0007)
1C
3
ALWAYS MWL
MWL
>(0040,0008)
3
SQ
Sequence describing the Scheduled
Scheduled
Protocol following a specific coding
Protocol Code
scheme. This sequence contains one or
Sequence
more Items.
>>(0008,0100)
1
SH
Code Value
See NEMA PS3.3 Section 8.1.
ALWAYS MWL
>>(0008,0102)
1
SH
Coding
Scheme
Designator
See NEMA PS3.3 Section 8.2.
ALWAYS MWL
>>(0008,0103)
1C
SH
Coding
Scheme
Version
See NEMA PS3.3 Section 8.2. Required
if the value of Coding Scheme
Designator (0008,0102) is not sufficient
VNAP
to identify the Code Value (0008,0100)
unambiguously. May be present
otherwise.
>>(0008,0104)
1
LO
Code
Meaning
See NEMA PS3.3 Section 8.3.
ALWAYS MWL
(0040,0253)
3
SH
Performed
Procedure
User or equipment generated identifier
of that part of a Procedure that has
ALWAYS AUTO
MWL
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 82 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Step ID
been carried out within this step.
(0040,0244)
3
DA
Performed
Procedure
Step Start
Date
Date on which the Performed Procedure
ALWAYS AUTO
Step started.
(0040,0245)
3
TM
Performed
Procedure
Step Start
Time
Time on which the Performed Procedure
ALWAYS AUTO
Step started.
(0040,0254)
3
LO
Performed
Procedure
Step
Description
Institution-generated description or
classification of the Procedure Step that
was performed.
In unscheduled case the attribute value
= "OCT" for OCT Scan Data and
“OctAnalysis” for OCT Analysis Data.
ALWAYS AUTO
In scheduled case the attribute has the
same value as for Requested Procedure
Description (0032,1060)
Sequence describing the Protocol
performed for this Procedure Step. One
or more Items may be included in this
Sequence.
(0040,0260)
3
SQ
Performed
Protocol Code Contains information on the scan
Sequence
protocols used during acquisition resp.
analysis protocol used during analysis.
ALWAYS AUTO
See chapter “8.3 Coded Terminology
and Templates”
>(0008,0100)
1
SH
Code Value
See chapter “8.3 Coded Terminology
and Templates”
ALWAYS AUTO
>(0008,0102)
1
SH
Coding
Scheme
Designator
See chapter “8.3 Coded Terminology
and Templates”
ALWAYS AUTO
>(0008,0103)
1C
SH
Coding
Scheme
Version
See chapter “8.3 Coded Terminology
and Templates”
ALWAYS AUTO
>(0008,0104)
1
LO
Code
Meaning
See chapter “8.3 Coded Terminology
and Templates”
ALWAYS AUTO
Table 8-41 Raw Data IOD – Module “General Equipment”
Tag
(0008,0070)
Type
2
VR
LO
Name
Description
PoV
Source
Manufacturer
Manufacturer of the equipment that
produced the composite instances
ALWAYS
AUTO
“Carl Zeiss Meditec”
(0008,0080)
3
LO
Institution
Name
Institution where the equipment that
produced the composite instances is
located.
VNAP
CONFIG
(0008,0081)
3
ST
Institution
Address
Mailing address of the institution where
the equipment that produced the
composite instances is located.
ANAP
CONFIG
(0008,1010)
3
SH
Station Name
User defined name identifying the
machine that produced the composite
instances.
VNAP
CONFIG
(0008,1040)
3
LO
Institutional
Department
Name
Department in the institution where the
equipment that produced the composite
instances is located.
ANAP
CONFIG
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 83 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
(0008,1090)
3
Manufacturer's
Model Name
LO
Manufacturer’s model name of the
equipment that produced the composite
instances.
“CIRRUS photo 600” or
ALWAYS
AUTO
ALWAYS
AUTO
ALWAYS
AUTO
“CIRRUS photo 800”
(0018,1000)
(0018,1020)
3
Device Serial
Number
LO
3
Manufacturer’s serial number of the
equipment that produced the composite
instances. Note: This identifier
corresponds to the device that actually
created the images, such as a CR plate
reader or a CT console, and may not be
sufficient to identify all of the equipment
in the imaging chain, such as the
generator or gantry or plate.
Manufacturer’s designation of software
version of the equipment that produced
the composite instances.
Software
Version(s)
LO
“2.0.0.38309” and higher versions
“2.0.x.y” where x denotes a patch version
and y denotes a build version
Table 8-42 Raw Data IOD – Module “Czm Equipment Extended Data”
Tag
Type
VR
Name
Description
PoV
Source
(0405, xx44)
1
LO
Hardware ID
Instrument’s ID, Max 32 char
ALWAYS
AUTO
(0405, xx45)
1
LO
Hardware
Version
Instrument’s version, Max 32 char
ALWAYS
AUTO
Table 8-43 Raw Data IOD – Module “Acquisition Context”
Tag
(0040,0555)
Type VR
2
Name
Acquisition
SQ Context
Sequence
Description
PoV
Source
A sequence of Items that describes the conditions
present during the acquisition of the data of the
SOP Instance. Zero or more items may be included
in this sequence.
Used to identify several software
versions/algorithm versions in use when creating
the Raw Data instance
ALWAYS AUTO
See chapter “8.3 Coded Terminology and
Templates”
>(0040,A043)
1
Concept
SQ Name Code
Sequence
A concept that constrains the meaning of (i.e.
defines the role of) the Observation Value. The
"Name" component of a Name/Value pair. This
sequence shall contain exactly one item.
ALWAYS AUTO
See chapter “8.3 Coded Terminology and
Templates”
>>(0008,0100) 1
>>(0008,0102) 1
SH Code Value
Coding
SH Scheme
Designator

“APPLICATION”, “NIM” code items are stored
for any Raw Data instance

“ACQUISITION”, “NOISE” code items are
stored for any Acquisition Raw Data instance

“MOTION” code item is stored for any Cube
Acquisition Raw Data instance

“AVERAGING” code item is stored for any HD
raster Acquisition Raw Data instance

“RNFLTT”, “ONH” code items are stored for any
Optic Disc Analysis Raw Data instance
See chapter “8.3 Coded Terminology and
Templates”.
ALWAYS AUTO
ALWAYS AUTO
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 84 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Always “99CZM_OCTVER”
>>(0008,0103) 1C
Coding
SH Scheme
Version
See NEMA PS3.3 Section 8.2. Required if the value
of Coding Scheme Designator (0008,0102) is not
sufficient to identify the Code Value (0008,0100)
unambiguously. May be present otherwise.
See chapter “8.3 Coded Terminology and
Templates”
ALWAYS AUTO
Always “20120419”
>>(0008,0104) 1
>(0040,A160)
1C
LO
Code
Meaning
UT Text Value
See chapter “8.3 Coded Terminology and
Templates”
This is the Value component of a Name/Value pair
when the Concept implied by Concept Name Code
Sequence (0040,A043) is a Text Observation
Value. Required if Date (0040,A121), Time
(0040,A122), and Person Name (0040,A123) do
not fully describe the concept specified by Concept
Name Code Sequence (0040,A043). Shall not be
present otherwise.
ALWAYS AUTO
ALWAYS AUTO
The software/algorithm version
Table 8-44 Raw Data IOD – Module “Raw Data”
Tag
Type VR
Name
Description
A number that identifies this raw data. The value
shall be unique within a series.
PoV
Source
(0020,0013)
2
IS
Instance
Number
(0008,0023)
1
DA
Content
Date
The date the raw data creation was started.
ALWAYS AUTO
(0008,0033)
1
TM
Content
Time
The time the raw data creation was started.
ALWAYS AUTO
Acquisition
Datetime
The date and time that the acquisition of data
started. Note: The synchronization of this time
with an external clock is specified in the
synchronization Module in Acquisition Time
synchronized (0018,1800).
ALWAYS AUTO
(0008,002A)
3
DT
Always “1” since there is always only one
instance per series.
ALWAYS AUTO
Unique identification of the equipment and
version of the software that has created the Raw
Data information. The UID allows one to avoid
attempting to interpret raw data with an
unknown format.
(0008,9123)
1
UI
CreatorVersion
UID
Always
“1.2.276.0.75.2.1.51.2.6.1.5.<patch>.<build>”
where

<patch> is the software version patch
number

<build> is the software version build
number
ALWAYS AUTO
of the Application Software
(0008,114A)
3
Other Instances significantly related to this
Referenced Instance. One or more Items may be included in
this Sequence.
SQ Instance
Sequence
Analysis Raw Data instances refer to the
according Acquisition Raw Data instance
ANAP
AUTO
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 85 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
>(0008,1150)
>(0008,1155)
>(0040,A170)
UI
Referenced Uniquely identifies the referenced SOP Class.
SOP Class
Always “1.2.840.10008.5.1.4.1.1.66”
UID
ALWAYS AUTO
1
UI
Referenced
SOP
Uniquely identifies the referenced SOP Instance.
Instance
UID
ALWAYS AUTO
1
Purpose of
Reference
SQ
Code
Sequence
1
Describes the purpose for which the reference is
made. Only a single Item shall be permitted in
this sequence. See C.7.6.16.2.5.1.
ALWAYS AUTO
The scan protocol used during acquisition. See
chapter “8.3 Coded Terminology and Templates”
>>(0008,0100) 1
SH Code Value
See chapter “8.3 Coded Terminology and
Templates”
ALWAYS AUTO
>>(0008,0102) 1
Coding
SH Scheme
Designator
See chapter “8.3 Coded Terminology and
Templates”
ALWAYS AUTO
>>(0008,0103) 1C
Coding
SH Scheme
Version
See NEMA PS3.3 Section 8.2. Required if the
value of Coding Scheme Designator (0008,0102)
is not sufficient to identify the Code Value
(0008,0100) unambiguously. May be present
ALWAYS AUTO
otherwise.
See chapter “8.3 Coded Terminology and
Templates”
>>(0008,0104) 1
LO
Code
Meaning
See chapter “8.3 Coded Terminology and
Templates”
ALWAYS AUTO
Table 8-45 Raw Data IOD - Module “Sop Common”
Tag
Type VR
(0008,0016) 1
UI
Name
SOP Class
UID
SOP
Instance
UID
(0008,0018) 1
UI
(0008,0005) 1C
Specific
CS Character
Set
Description
Uniquely identifies the SOP Class. See C.12.1.1.1 for
further explanation. See also PS 3.4.
PoV
Source
ALWAYS AUTO
“1.2.840.10008.5.1.4.1.1.66”
Uniquely identifies the SOP Instance. See C.12.1.1.1
for further explanation. See also PS 3.4.
“1.2.276.0.75.2.1.51.2.” constant prefix for generated
UIDs
Character Set that expands or replaces the Basic
Graphic Set. Required if an expanded or replacement
character set is used. See C.12.1.1.2 for Defined
Terms.
ALWAYS AUTO
ALWAYS AUTO
Always “ISO_IR 192” for UTF-8 encoded Unicode
(0008,0012) 3
Instance
DA Creation
Date
Date the SOP Instance was created.
ALWAYS AUTO
(0008,0013) 3
Instance
TM Creation
Time
Time the SOP Instance was created.
ALWAYS AUTO
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 86 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
8.1.2 Usage of Attributes from Received IOD’s
The usage of attributes of Modality Worklist IODs is described in chapter 4.2.1.3.2 Activity – Query Modality
Worklist.
The case of patient data collision is outlined in chapter of Study Root Query/Retrieve SOP Class.
8.1.3 Attribute Mapping
In scheduled case, the following attributes are mapped from Modality Worklist to instances of

Encapsulated PDF IOD

Raw Data IOD

Multi-frame True Color Secondary Capture Image IOD

Ophthalmic Photography 8 Bit Image IOD
Modality Worklist
Instance IOD
(0010,0010)
Patient's Name
(0010,0010)
Patient's Name
No
(0010,0020)
Patient ID
(0010,0020)
Patient ID
No
(0010,0021)
Issuer of Patient ID
(0010,0021)
Issuer of Patient ID
No
(0010,1000)
Other Patient IDs
(0010,1000)
Other Patient IDs
No
(0010,0030)
Patient's Birth Date
(0010,0030)
Patient's Birth Date
No
(0010,0040)
Patient's Sex
(0010,0040)
Patient's Sex
No
(0010,2160)
Ethnic Group
(0010,2160)
Ethnic Group
No
(0010,4000)
Patient Comments
(0010,4000)
Patient Comments
No
(0008,0050)
Accession Number
(0008,0050)
Accession Number
No
(0008,0090)
Referring Physicians Name
(0008,0090)
Referring Physicians Name
No
(0020,0010)
Study ID
No
(0040,1001)
Requested Procedure ID
(0040,1001)
(0008,1030)
Editable
Request Attributes Sequence
> Requested Procedure ID
Study Description
No
No
Request Attributes Sequence
(0032,1060)
Requested Procedure
Description
(0032,1060)
> Requested Procedure
Description
No
(0018,1030)
Protocol Name
No
(0040,0254)
Performed Procedure Step
Description
No
(0032,1064)
Requested Procedure Code
Sequence
(0008,1032)
Procedure Code Sequence
No
>(0008,0100)
Code Value
>(0008,0100)
Code Value
No
>(0008,0102)
Coding Scheme Designator
>(0008,0102)
Coding Scheme Designator
No
>(0008,0103)
Coding Scheme Version
>(0008,0103)
Coding Scheme Version
No
>(0008,0104)
Code Meaning
>(0008,0104)
Code Meaning
No
(0020,000D)
Study Instance UID
(0020,000D)
Study Instance UID
No
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 87 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
(0008,1110)
Referenced Study Sequence
(0008,1110)
Referenced Study Sequence
No
>(0008,1150)
Referenced Sop Class UID
>(0008,1150)
Referenced Sop Class UID
No
>(0008,1155)
Referenced Sop Instance UID
>(0008,1155)
Referenced Sop Instance UID
No
(0040,1400)
Requested Procedure
Comments
(0040,1400)
(0040,0100)
Scheduled Procedure Step
Sequence
>(0040,0007)
Scheduled Procedure Step
Description
(0040,0007)
>(0040,0008)
Scheduled Protocol Code
Sequence
(0040,0008)
> Scheduled Protocol Code
Sequence
No
>>(0008,0100) Code Value
>(0008,0100)
Code Value
No
>>(0008,0102) Coding Scheme Designator
>(0008,0102)
Coding Scheme Designator
No
>>(0008,0103) Coding Scheme Version
>(0008,0103)
Coding Scheme Version
No
>>(0008,0104) Code Meaning
>(0008,0104)
Code Meaning
No
>(0040,0009)
(0040,0009)
Request Attributes Sequence
No
> Requested Procedure
Comments
No
Request Attributes Sequence
> Scheduled Procedure Step
Description
No
Request Attributes Sequence
Request Attributes Sequence
Scheduled Procedure Step ID
> Scheduled Procedure Step
ID
No
8.1.4 Coerced/Modified Files
Those tags are listed in chapter 4.2.1.3.2 Activity – Query Modality Worklist.
Other attributes get lost and are not available in the CIRRUS photo Application Software.
8.2 Data Dictionary of Private Attributes
The Application Software AE does not define Private Attributes of interest.
8.3 Coded Terminology and Templates
The application software uses (0008,9215) Derivation Code Sequence with following codes to specify how an
image was derived from an original image.
Occurs in: Ophthalmic Photography 8 Bit SOP Instance, Multi-frame True Color Secondary Capture SOP
Instance
Code Value
Coding Scheme
Designator
Coding Scheme
Version
Code Meaning / Comments
PLAIN_COPY
99CZM_ DERIVATION
20120628
Image is a plain copy of an original
BURNT_IN_OVERLAY
99CZM_ DERIVATION
20120628
Image has burnt in annotations
and overlays
CROPPED
99CZM_ DERIVATION
20120628
Image has been cropped
The application software uses (0008,114A) Referenced Instance Sequence with following codes to specify the
source image of a secondary capture B-scan.
Occurs in: Multi-frame True Color Secondary Capture SOP Instance
Code Value
Coding Scheme
Designator
Coding Scheme
Version
Code Meaning / Comments
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 88 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
SRC_INSTANCE
99CZM
20120401
Source instance used to create this
instance
For more detailed information on fundus image acquisition conditions, a few additional parameters, not defined
in the Ophthalmic Photography IOD, are used. These parameters are stored in the Acquisition Context
Sequence as defined below.
Coding Scheme Designator: “99CZM”
Coding Scheme Version: n/a
Occurs in: Ophthalmic Photography 8 Bit SOP Instance
Coding
Name
Coding Type
Values
Measurement Units
Code (and
meaning)
Code Meaning /
Comments
Sensor
Coded Concept
“AVT F504C”
n/a
Type of sensor
Aperture
Numeric Value
Always “1”
AutoFocus
Numeric Value
[0..1]
none
(Value 1 means:
Aperture was used)
none
(Value 1 means: Auto
focus was active)
Mechanical aperture
was used
Auto focus active or
inactive
Coding Scheme Designator: “99HIKO”
Coding Scheme Version: “VP4.0“
Occurs in: Ophthalmic Photography 8 Bit SOP Instance
Measurement Units
Code (and
meaning)
Coding
Name
Coding Type
Flash
Numeric Value
Sensor Gain
Numeric Value
[n] as selected in
Acquisition settings
Gamma
Numeric Value
[n] as selected in
Acquisition settings
Fixation
point
Numeric Value
[1..max number of
fixation points]
Fixation
point X
Numeric Value
[0..186]
Fixation
point Y
Numeric Value
[0..110]
Max fix
points
Values
[1..16] for color images
[1..24] otherwise
Flash units
(Flash of the
funduscamera)
Sensor Gain Unit
(Gain of digital
Camera)
none
(Gamma value of the
image)
none
(none)
none
(in display
coordinates)
none
Numeric Value
(in display
coordinates)
according to selected
Fixation protocol
(Position)
[1] for “Single field”
[n] for “n fields”
none
(none)
Code Meaning /
Comments
Flash level of the
funduscamera
Total gain of the sensor
funduscamera system
Gamma value of the
Number of fixation
point within a field
method
X-Coordinate of the fix
point
Y-Coordinate of the fix
point
Maximum number of
fixation point within a
field method
[9] for “Custom”
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 89 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
[name]
where [name] is one of
"Standard",
"Center",
"OpticDisc",
Protocol
Name
Coded Concept
"Mouse",
"TwoFields",
Name of fixation points
protocol
n/a
"ThreeFields",
"FiveFields",
"SevenField",
"SevenETDRS",
"Custom"
none
Focus aid
Numeric Value
[0..1]
Focus
position
Numeric Value
[0..700]
Eye section
Numeric Value
[0..1]
(Value 1 means:
Focussing aid was
ON)
Focus aid on or off
none
(Position value of the
focus)
Focus position
none
(0: Anterior, 1:
Posterior)
Eye section
For exact information on algorithm versions, a few additional parameters, not defined in the Raw Data IOD, are
used. These parameters are stored in the Acquisition Context Sequence as defined below.
Coding Scheme Designator: “99CZM_OCTVER”
Coding Scheme Version: “20120419”
Occurs in: Raw Data SOP Instance
Coding Name
Coding Type
Meas. Units Code
/ Values
Code Meaning / Comments
APPLICATION
Text Value
<version string>
Application version for IOD
creation.
ACQUISITION
Text Value
<version string>
Application version for acquisition
of instance.
DATASET
Text Value
<version string>
Dataset configuration schema
version.
NIM
Text Value
<version string>
NIM version at time of creation.
MOTION
Text Value
<version string>
Motion correction algorithm.
AVERAGING
Text Value
<version string>
Line averaging algorithm.
NOISE
Text Value
<version string>
Noise reduction algorithm.
RECONSTRUCTION
Text Value
<version string>
Reconstruction algorithm.
ENFACE
Text Value
<version string>
Enface algorithm.
ND
Text Value
<version string>
Normative database supported by
this dataset.
MACSEG
Text Value
<version string>
Macular segmentation algorithm
for ILM, RPE and RPEFit.
RNFLTT
Text Value
<version string>
Tomtec segmentation for RNFL
and ILM.
ONH
Text Value
<version string>
Optic Nerve Head segmentation for
ILM, RPE and RPEFit.
GANGLION
Text Value
<version string>
Ganglion Cell segmentation for
GCL and IPL.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 90 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
DRUSEN
Text Value
<version string>
Drusen analysis algorithm.
ILMRPE
Text Value
<version string>
ILM / RPE segmentation algorithm
for macular scans.
RPEFIT
Text Value
<version string>
RPEFit segmentation algorithm for
macular scans.
ETDRS
Text Value
<version string>
ETDRS wagon wheel algorithm.
RPE
Text Value
<version string>
Advanced RPE algorithm.
FOVEA
Text Value
<version string>
Fovea detection algorithm.
ONHCONTOUR
Text Value
<version string>
Optic Nerve Head contour
algorithm.
MACREG
Text Value
<version string>
Registration for Macular Change.
GPAREG
Text Value
<version string>
Registration for GPA.
FUNDUSREG
Text Value
<version string>
Registration for external fundus
image to dataset.
The Application Software AE uses custom coded terminology to describe the procedure and protocol used during
acquisition.
Occurs in: Raw Data SOP Instance
Code Value
Coding Scheme
Designator
Coding Scheme
Version
Code Meaning / Comments
SD-E1
99CZM
1.0
ALL SCANS
SD-S1
99CZM
1.0
Macular Cube 200X200
SD-S2
99CZM
1.0
Macular Cube 512x128
SD-S3
99CZM
1.0
5 Line Raster
SD-S10
99CZM
1.0
Optic Disc Cube 200x200
SD-S21
99CZM
1.0
Anterior Segment 5 Line Raster
SD-S22
99CZM
1.0
Anterior Segment Cube 512x128
SD-S51
99CZM
1.0
HD 5 Line Raster
SD-AIA
99CZM
1.0
Advanced Visualization
SD-MTA
99CZM
1.0
Macular Thickness
SD-HDIA
99CZM
1.0
High Definition Images
SD-ACHDIA
99CZM
1.0
Anterior Segment High Definition
Images
SD-ACA
99CZM
1.0
Anterior Segment Analysis
SD-MCA
99CZM
1.0
Macular Change Analysis
SD-GPA
99CZM
1.0
Guided Progression Analysis
SD-ONH
99CZM
1.0
ONH and RNFL OU Analysis
SD-3D
99CZM
1.0
Single Eye Summary
SD-GOUA
99CZM
1.0
Glaucoma OU Analysis
SD-SES
99CZM
1.0
Single Eye Summary
8.4 Greyscale Image Consistency
Not applicable.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 91 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
8.5 Standard Extended / Specialized/ Private SOP
Classes
The following standard extensions are used in the IODs described in chapter 8.1.1 Created SOP Instance(s).
Table 8-6 Encapsulated PDF IOD - Module “Czm Encapsulated Pdf Series Extension”
Table 8-26 Ophthalmic Photography IOD - Module “Czm Ophthalmic Photography Image Extension”
Table 8-38 Raw Data IOD - Module “Czm Patient Extended Data”
Table 8-42 Raw Data IOD – Module “Czm Equipment Extended Data”
8.6 Private Transfer Syntaxes
No Private Transfer Syntax is supported.
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 92 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
The product meets the essential requirements stipulated in Annex I of the 93/42/EEC Directive governing
medical devices. The product is labeled with:
Carl Zeiss Meditec AG
Goeschwitzer Strasse 51-52
07745 Jena
Germany
www.zeiss.com/cirrusphoto
www.zeiss.com/dicom
www.zeiss.com/med
Document: DICOM_Conformance_Statement_CIRRUSphoto_2.0.doc
Page 93 of 93
Copyright: © Carl Zeiss Meditec AG
Revision: 2.0
EN_31_200_0024I
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
