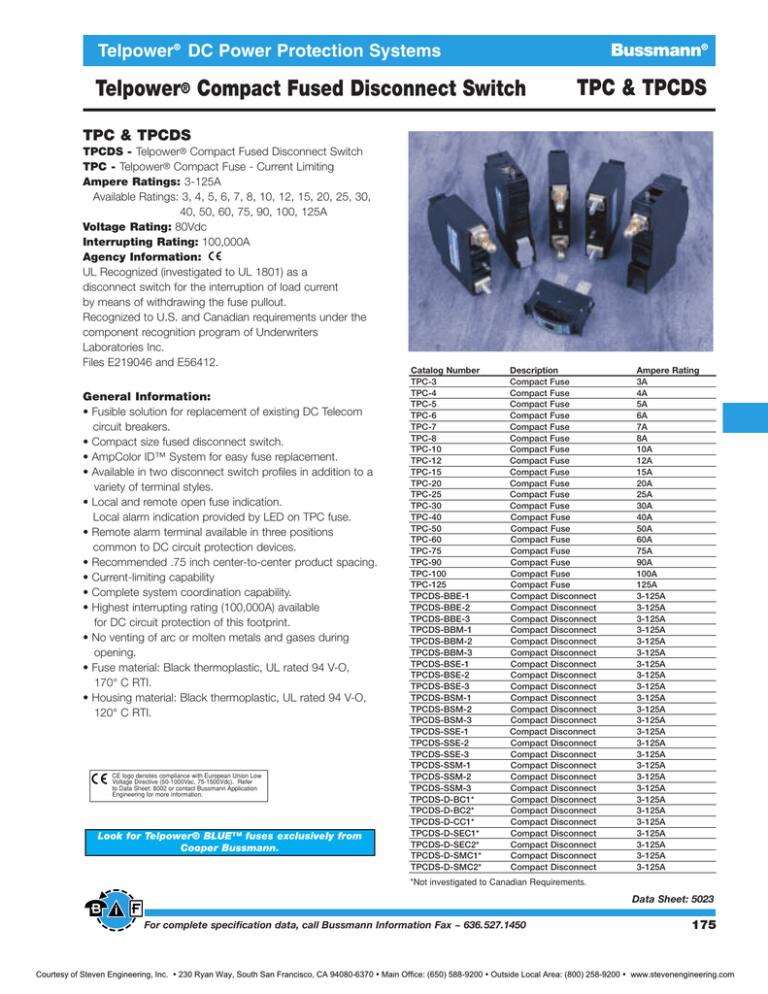

Bussmann®
Telpower® DC Power Protection Systems
Telpower® Compact Fused Disconnect Switch
TPC & TPCDS
TPC & TPCDS
TPCDS - Telpower® Compact Fused Disconnect Switch
TPC - Telpower® Compact Fuse - Current Limiting
Ampere Ratings: 3-125A
Available Ratings: 3, 4, 5, 6, 7, 8, 10, 12, 15, 20, 25, 30,
40, 50, 60, 75, 90, 100, 125A
Voltage Rating: 80Vdc
Interrupting Rating: 100,000A
Agency Information:
UL Recognized (investigated to UL 1801) as a
disconnect switch for the interruption of load current
by means of withdrawing the fuse pullout.
Recognized to U.S. and Canadian requirements under the
component recognition program of Underwriters
Laboratories Inc.
Files E219046 and E56412.
General Information:
• Fusible solution for replacement of existing DC Telecom
circuit breakers.
• Compact size fused disconnect switch.
• AmpColor ID™ System for easy fuse replacement.
• Available in two disconnect switch profiles in addition to a
variety of terminal styles.
• Local and remote open fuse indication.
Local alarm indication provided by LED on TPC fuse.
• Remote alarm terminal available in three positions
common to DC circuit protection devices.
• Recommended .75 inch center-to-center product spacing.
• Current-limiting capability
• Complete system coordination capability.
• Highest interrupting rating (100,000A) available
for DC circuit protection of this footprint.
• No venting of arc or molten metals and gases during
opening.
• Fuse material: Black thermoplastic, UL rated 94 V-O,
170° C RTI.
• Housing material: Black thermoplastic, UL rated 94 V-O,
120° C RTI.
CE logo denotes compliance with European Union Low
Voltage Directive (50-1000Vac, 75-1500Vdc). Refer
to Data Sheet: 8002 or contact Bussmann Application
Engineering for more information.
Look for Telpower® BLUE™ fuses exclusively from
Cooper Bussmann.
Catalog Number
TPC-3
TPC-4
TPC-5
TPC-6
TPC-7
TPC-8
TPC-10
TPC-12
TPC-15
TPC-20
TPC-25
TPC-30
TPC-40
TPC-50
TPC-60
TPC-75
TPC-90
TPC-100
TPC-125
TPCDS-BBE-1
TPCDS-BBE-2
TPCDS-BBE-3
TPCDS-BBM-1
TPCDS-BBM-2
TPCDS-BBM-3
TPCDS-BSE-1
TPCDS-BSE-2
TPCDS-BSE-3
TPCDS-BSM-1
TPCDS-BSM-2
TPCDS-BSM-3
TPCDS-SSE-1
TPCDS-SSE-2
TPCDS-SSE-3
TPCDS-SSM-1
TPCDS-SSM-2
TPCDS-SSM-3
TPCDS-D-BC1*
TPCDS-D-BC2*
TPCDS-D-CC1*
TPCDS-D-SEC1*
TPCDS-D-SEC2*
TPCDS-D-SMC1*
TPCDS-D-SMC2*
Description
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Ampere Rating
3A
4A
5A
6A
7A
8A
10A
12A
15A
20A
25A
30A
40A
50A
60A
75A
90A
100A
125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
*Not investigated to Canadian Requirements.
Data Sheet: 5023
For complete specification data, call Bussmann Information Fax ~ 636.527.1450
175
Courtesy of Steven Engineering, Inc. ! 230 Ryan Way, South San Francisco, CA 94080-6370 ! Main Office: (650) 588-9200 ! Outside Local Area: (800) 258-9200 ! www.stevenengineering.com
Bussmann®
Telpower® DC Power Protection Systems
Telpower® Miniature Fused Disconnect Switch
TPM & TPMDS
TPM & TPMDS
General Information:
TPMDS - Telpower® Miniature Fused Disconnect Switch
TPM - Telpower® Miniature Fuse - Current Limiting
Ampere Ratings: 3-30A
Voltage Rating: 80Vdc
Interrupting Rating: 20,000A
Agency Information:
UL Recognized (investigated to UL 1801) as a
disconnect switch for the interruption of load current
by means of withdrawing the fuse pullout.
Recognized to U.S. and Canadian requirements under the
component recognition program of Underwriters
Laboratories Inc.
Files E219046 and E56412.
• Smallest and most versatile fused disconnect
switch available.
• Small size allows for assembly into 1 U (1.75 inch /
44.5 mm) panel.
• AmpColor ID™ System for easy fuse replacement.
• Switch design provides for easy panel mounting by single
captive 4-40 (M3) nut and panel notch integral to switch
footprint.
• Local and remote open fuse indication. Local alarm
indication provided by LED on TPM fuse.
• Current-limiting capability
• Complete system coordination capability
• Load connection: 1/4 inch quick-connect or bolted
connection with 10-32 (M5) captive nut.
• Line connection: 1/4 inch quick-connect or screw
connection with clearance hole for #10 (M5) bolt.
• Maximum alarm circuit current: 20 mA
• Materials:
Fuse housing - black thermoplastic, UL 94 V-0, 170ºC RTI
Switch housing - black thermoplastic, UL 94 V-0, 140ºC RTI
Catalog Number
TPM-3
TPM-4
TPM-5
TPM-6
TPM-7
TPM-8
TPM-10
TPM-12
TPM-15
TPM-20
TPM-25
TPM-30
TPMDS-E
TPMDS-M
Description
Miniature Fuse
Miniature Fuse
Miniature Fuse
Miniature Fuse
Miniature Fuse
Miniature Fuse
Miniature Fuse
Miniature Fuse
Miniature Fuse
Miniature Fuse
Miniature Fuse
Miniature Fuse
Miniature Disconnect, English
Miniature Disconnect, Metric
Ampere Rating
3A
4A
5A
6A
7A
8A
10A
12A
15A
20A
25A
30A
3-30A
3-30A
CE logo denotes compliance with European Union Low
Voltage Directive (50-1000Vac, 75-1500Vdc). Refer
to Data Sheet: 8002 or contact Bussmann Application
Engineering for more information.
TPM Alarm Schematic
NOTES:
1. The resistance, R, must be provided by the end-user
to limit the alarm output current to a maximum of
20 mA. The value, R, should be calculated using the
system voltage value.
If remote alarm functionality is not required,
the END-USER CIRCUITRY must still be supplied
to provide a resistive path to the return for the
local alarm to properly function.
2. The fuse is polarized to maintain proper orientation with
the switch housing. The line and load terminals are
identified on the switch housing.
•
Look for Telpower® BLUE™ fuses exclusively from Cooper Bussmann.
Data Sheet: 5022
176
For complete specification data, call Bussmann Information Fax ~ 636.527.1450
Courtesy of Steven Engineering, Inc. ! 230 Ryan Way, South San Francisco, CA 94080-6370 ! Main Office: (650) 588-9200 ! Outside Local Area: (800) 258-9200 ! www.stevenengineering.com
Bussmann®
Telecommunications Protection
Fused Disconnect Switch
TP15914
4 Pole Disconnect Switch and TPA Series Fuses
Ampere Rating: 50A per pole
Voltage Rating: 145Vdc
Agency Information:
UL recognized as a disconnect switch for interruption of
load current by means of withdrawing the fuse carrier.
UL recognized as a component for telecommunication
power distribution equipment (UL category QPQYZ).
UL recognized fuses for branch circuit protection.
CSA component acceptance for the system.
Material: UL rated 94V-0, 140°C rated
Fuse
Fuse Type
Current
Voltage
Interrupting
TPA
3, 5, 10, 15, 20, 25, 30, 40, 50
170Vdc
100 kA
• Front access load and line connection standard—double
lug load connections 8 AWG wire.
• Recognized branch circuit protection device.
• Modular design—4 poles per module up to four modules
banked together.
• Ease of installation—Connection directly to bus bar.
• Reduces external wiring—per pole.
• LED alarm signaling (LED current 30mA max.).
• Blown fuse indication.
• Alarm test probe point, to allow on-site checking of alarm
circuitry.
• Snap into alarm bus.
• Bi-polar LED provides capability for both –48V DC
and +24V DC applications.
• Fuse presence indication.
• Fuse orientation rejection feature.
• Totally enclosed module.
• Spare fuseholders: Part No. 5TPH and TPSFH-A
• Remote alarm.
• Contact Bussmann for options on standard module
(Hardware, Color, Front line connection, Mounting bezel).
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
TPA-B
20, 25
65Vdc
20 kA
UL Recognized, Guide JFHR2, File E56412
CSA Certified, Class 1422-30, File 53787
Dimensional Data
MM
Inches
76.07
3.0
TOP
Data Sheet: 5011
For complete specification data, call Bussmann Information Fax ~ 636.527.1450
177
Courtesy of Steven Engineering, Inc. ! 230 Ryan Way, South San Francisco, CA 94080-6370 ! Main Office: (650) 588-9200 ! Outside Local Area: (800) 258-9200 ! www.stevenengineering.com
Telpower® DC Power Protection Systems
Bussmann®
Fused Disconnect Switch & TPA Fuses
TP15900-4
4-Pole Disconnect Switch
For use with Telpower fuses Type TPA & TPA-B.
Electrical Ratings: 40A per pole at 145Vdc
50A per pole at 80Vdc
Agency Information:
UL Recognized as a disconnect switch for interruption of
load current by means of withdrawing the fuse carrier.
UL Recognized as a component for telecommunication
power distribution equipment (UL category QPQY2).
UL Recognized fuses for branch circuit protection.
CSA Component Acceptance for the system.
General Information:
• Ease of installation - connection directly to bus bar.
• Reduces external wiring per pole.
• LED alarm signaling (LED current 30mA max.).
• Local and remote open-fuse indication.
• Alarm test probe point, to allow on-site checking of alarm
circuitry.
• Fuse presence indication.
• Fuse orientation rejection feature.
• Rear accessibility for line and load terminations.
Material: UL rated 94V-0, 140°C rated
®
Catalog Numbers
TP15900-4
TP15900-41
DC Power Distribution Indicating Fuses
Ampere Rating: TPA: 3, 5, 10, 15, 20, 25, 30, 40, 50
TPA-B: 20, 25, 30
Voltage Rating: TPA, 170 Vdc; TPA-B, 65 Vdc
Interrupting Rating: TPA, 100 kA; TPA-B, 20 kA
Agency Information:
UL Recognized, Guide JFHR2, File E56412
CSA Certified, Class 1422-30, File 53787
Construction:
• Silver-plated brass ferrules and indicator pin on TPA 3-15
and TPA-B. Tin-plated brass on TPA 20-50 on indicator
end.
• Glass melamine tube.
• Spare fuseholders: 5 position holder; 5TPH;
6 position holder; TPSFH-AS
Dimensional Data
mm
inches
Split Alarm, Split Line
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
Data Sheet: 5001
TPA & TPA-B
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
Data Sheet: 5012
Dimensional Data
178
For complete specification data, call Bussmann Information Fax ~ 636.527.1450
Courtesy of Steven Engineering, Inc. ! 230 Ryan Way, South San Francisco, CA 94080-6370 ! Main Office: (650) 588-9200 ! Outside Local Area: (800) 258-9200 ! www.stevenengineering.com
Telpower® DC Power Protection Systems
Bussmann®
Fused Disconnect Switch
TPS
Ampere Ratings: 1 to 70A.
Voltage Rating: 170Vdc
Agency Information:
UL Recognized, Guide JFHR2, File E56412
Catalog Numbers
15800
Fused Disconnect Switch
Ampere Ratings: 3 to 70A.
Voltage Rating: 60Vdc
Agency Information:
UL Recognized, Guide QPQY2, File E97649
UL Withstand Rating: 100,000A,
Catalog Numbers
15800-R-200
Rear Access Panel Mounting
15800-F-200
Front Access Panel Mounting
• For use with the following fuses only:
Main: Telpower® TPS 3 to 70 Amp
Alarm: Bussmann GMT-A only (page 183).
Recommend GMT-X Cover (page 183).
• Alarm output with wire wrap terminal or connection to .063”
thick common alarm bus.
• Thermoplastic housing material U.L. rated
94V-0, 150°C.
• Spare alarm and power fuse compartment.
• Mounting hardware included.
• Spare fuseholders:
for TPS fuses (TPSFH-AS);
for GMT fuses (TPSFH-T), see page 196.
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
Dimensional Data
15800-R-200
TPS-1
TPS-1L
TPS-2
TPS-2L
TPS-3
TPS-3L
TPS-5
TPS-5L
TPS-6
TPS-6L
TPS-10
TPS-10L
TPS-15
TPS-15L
TPS-20
TPS-20L
TPS-25
TPS-25L
TPS-30
TPS-30L
TPS-35
TPS-35L
TPS-40
TPS-40L
TPS-40V
TPS-50
TPS-50L
TPS-50V
TPS-60
TPS-60L
TPS-70
TPS-70L
TPS-70LB
—
—
—
Dimensional Data
• TELPOWER fuse line is the first to be specifically designed
to meet the unique needs of DC Power Distribution
Systems.
• The UL Recognized ratings of 170Vdc and 100,000A
interrupting rating along with the fuse’s current limiting
capability make this fuse ideal for cable protection on exist
ing DC Distribution Systems.
• A unique BLUE label is used on all TELPOWER fuses to
designate their DC capability.
• Circuit board applications available.
• Silver-plated brass ferrules.
• Glass melamine tube.
• For use with Bussmann Fused Disconnect Switch 15800.
• Spare Fuseholder: TPSFH-AS, see page 198.
• Printed circuit board variations available.
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
Data Sheet: 5002
For complete specification data, call Bussmann Information Fax ~ 636.527.1450
Data Sheet: 5009
179
Courtesy of Steven Engineering, Inc. ! 230 Ryan Way, South San Francisco, CA 94080-6370 ! Main Office: (650) 588-9200 ! Outside Local Area: (800) 258-9200 ! www.stevenengineering.com
Telpower® DC Power Protection Systems
Fused Disconnect Switch
Bussmann®
TP158HC
TP158HC
Fused Disconnect Switch
For use with Telpower® Fuses Type TPL-B.
Ampere Ratings: 70-250A
Voltage Rating: 80Vdc
UL Withstand Rating: 100,000A
Agency Information:
UL Recognized (investigated to UL 1801) as a
disconnect switch for the interruption of load current
by means of withdrawing the fuse pullout.
Guide QPQY2, File E97649.
Catalog Numbers:
TP158HC: Rear Access, Panel Mounting, English
TP158HC: Rear Access, Panel Mounting, Metric
General Information:
• High amp version of Bussmann 15800 series
Fused Disconnect Switch.
• Similar profile, mounting method, and backplane
configuration as 15800 Series. The TP158HC
can be installed into existing 15800 Series panels
using the space of two 15800 disconnects.
• Innovative new fuse pullout design eliminates
need for tools to replace the Telpower® type
TPL-B fuse.
• For use with the following fuses only:
Main: Telpower® TPL-B 70-250 Amperes.
Alarm: Bussmann GMT-A only.
• Alarm output with wire wrap terminal or connection to
.063” thick common alarm bus.
• Hardware included:
Load: washer, split lockwasher, and 5/16 _ 18 nut.
Easy Fuse Replacement
• Thermoplastic housing material UL rated 94V-0, 150°C.
• Spare fuseholders:
for TPL-B fuses (TPSFH-LB), see page 14;
for GMT fuses (TPSFH-T), see page 14.
• Application Note: The line connection uses a 1/4-20 bolt
(metric – M6X1) that threads into the line terminal. The line
terminal is designed with a float of ±.02 in. (± .50mm) to
allow for variation in the distance between the TP158HC
mounting flange and the line bus bar (see dimensional
data). Equipment should be designed to eliminate any relative movement between the TP158HC mounting flange
and the line bus bar.
• Application Note: The alarm circuit is not intended for
precharging of capacitive circuits. Alarm circuit current
1A maximum.
Data Sheet: 5021
180
For complete specification data, call Bussmann Information Fax ~ 636.527.1450
Courtesy of Steven Engineering, Inc. ! 230 Ryan Way, South San Francisco, CA 94080-6370 ! Main Office: (650) 588-9200 ! Outside Local Area: (800) 258-9200 ! www.stevenengineering.com
Bussmann®
Telpower® DC Power Protection Systems
Fused Disconnect Switches
15100
15200
Fused Disconnect
System
For use with Telpower®
Fuses Type TPL.
Ampere Ratings: 70-800A.
Voltage Rating: 60Vdc
UL Withstand Rating: 100,000A
Agency Information:
UL Recognized, Guide QPQY2, File E97649
Ampere Ratings: 70-800A
Voltage Rating: 60Vdc
UL Withstand Rating: 100,000A
Agency Information:
UL Recognized, Guide QPQY2, File E97649
Catalog Numbers
15100-401
15100-601
Fused Disconnect
System
For use with Telpower®
Fuses Type TPL.
For Use With TPL series fuses
For Use With TPL series fuses
70-400A
300-800A
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
Dimensional Data 15100-401
Catalog Numbers
15200-602
For Use With TPL 70 to 800A
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
Dimensional Data 15200-602
6.75"
(171.45mm)
3"
1"
(76.2mm)
(25.4mm)
3"
4"
(76.2mm)
(101.6mm)
5.86"
(149.22mm)
8.69"
(220.66mm)
0.27" (6.75mm) Dia. Hole with 0.5" (12.7mm)
Dia. x 0.16" (3.97mm) Deep C'bore (4 Holes)
5.75"
(146.05mm)
2"
0.88"
(50.8mm)
(22.22mm)
#14 Thd.
1.88"
(47.62mm)
7.25"
(184.15mm)
3.63"
(92.07mm)
0.31" (7.93mm) #18 Tap x 0.5" (12.7mm) Deep (4 Holes)
2.75"
(69.85mm)
7.13"
(181.10mm)
6.75"
5"
(127.0mm) (171.45mm)
0.5"
11"
(12.7mm)
(279.4mm)
1.31"
(33.33mm)
12"
2.63"
(304.8mm)
(66.67mm)
5.25"
(133.35mm)
Data Sheet: 5003
For complete specification data, call Bussmann Information Fax ~ 636.527.1450
Data Sheet: 5004
181
Courtesy of Steven Engineering, Inc. ! 230 Ryan Way, South San Francisco, CA 94080-6370 ! Main Office: (650) 588-9200 ! Outside Local Area: (800) 258-9200 ! www.stevenengineering.com
Telpower® DC Power Protection Systems
Bussmann®
Telpower® High Current Switch
TPHCS-Dimensional Data
mm
(in)
Ø 7.62
(0.300)
Typ. 4
▲
▲
41.02
(1.615)
▲
66.4
(2.62)
▲
22.2
(0.88)
▲
▲
▲
▲ ▲
▲
▲
▲
▲
122.43
(4.820)
▲
25.9
(1.02)
8.8
(0.34)
▲
▲
12.7
(0.50)
17.3
(0.68)
▲
▲
▲
▲
▲
100.5 REF
(3.96)
74.6
(2.94)
▲
▲
▲
Threaded Insert, 4 Places
M8x1.25 (-M Series) 5/16-18 (-E Series)
Recommended Torque 15N • m (11 Ft-lb)
▲
NOTES:
1. TPHCS250 and
TPHCS800
pullouts and bases
24.8 REF
are the same with
(0.98)
exception to the
▲
type of fuse, TPL-B,
TPL-C or TPH the
▲
pullout will carry.
2. Plastic rated UL94
16.76
V-0, 140°C RTI.
(0.660)
▲
105.2
(4.14)
139.7
(5.50)
Tin Plated
Copper
Terminals
Catalog Numbers-Switches (Pullout and Base)
TPHCS250-M
High Current Switch, Metric
TPHCS250-E
High Current Switch, English
TPHCS250-ML High Current Switch, Metric, LED
TPHCS250-EL
High Current Switch, English, LED
TPHCS250-MAV High Current Switch, Metric, Alarm
TPHCS250-EAV High Current Switch, English, Alarm
TPHCS800-M
High Current Switch, Metric
TPHCS800-E
High Current Switch, Englis
TPHCS800-ML High Current Switch, Metric, LED
TPHCS800-EL High Current Switch, English, LED
TPHCS800-MAV High Current Switch, Metric, Alarm
TPHCS800-EAV High Current Switch, English, Alarm
Series Fuse
TPL-B
TPL-B
TPL-B
TPL-B
TPL-B
TPL-B
TPL-C or TPH
TPL-C or TPH
TPL-C or TPH
TPL-C or TPH
TPL-C or TPH
TPL-C or TPH
Ampere Rating
70 to 250A
70 to 250A
70 to 25 A
70 to 250A
70 to 250A
70 to 25 A
300 to 800A
300 to 800A
300 to 800A
300 to 800A
300 to 800A
300 to 800A
Catalog Numbers – Components
TPHCS250-P
Pullout only – 250 A
TPHCS800-P
Pullout only – 800 A
TPHCS-B-M
Base only, Metric
TPHCS-B-E
Base only, English
TPHCS-B-ML
Base only, Metric, LED
TPHCS-B-EL
Base only, English, LED
TPHCS-B-MAV Base only, Metric, Alarm
TPHCS-B-EAV
Base only, English, Alarm
Series Fuse Ampere Rating
TPL-B
70 to 250A
TPL-C or TPH 300 to 800A
—
800A Max.
—
800A Max.
—
800A Max.
—
800A Max.
—
800A Max.
—
800A Max.
▲
▲
▲
▲
▲
39.2 REF
(1.54)
61.47
(2.420)
▲
General Information:
• Innovative new design eliminates need for tools to
replace the Telpower® type TPL-B, TPL-C or
TPH fuse.
• Easy to install–captive fasteners allow for direct
busbar mounting (bolts not included).
• Optional new electronic alarm provides both local
and remote open-fuse indications.
—Bipolar alarm designed for both Central Office and
Radio applications.
—Local LED alarm indication for ease-of-viewing.
—Standard ⁄Ω¢∑ male quick-connect terminal for
effortless remote alarm connection (Maximum
remote alarm current: 20mA).
—Eliminates need for parallel indicating fuses.
• Fuse presence window allows for easy viewing of
installed fuse ampere rating.
• Compact design for today’s high power, high-density
cabinets.
• Available as complete switch or pullout and base
may be purchased separately.
See table for part
number format
▲
Telpower® High Current Switch
For use with Telpower® Fuses Type TPL-B, TPL-C
and TPH.
Ampere Ratings: 70 to 800A
Voltage Rating: 80Vdc
UL Withstand Rating: 100,000A
Agency Information:
UL Recognized (investigated to UL 1801) as a
disconnect switch for the interruption of load current
by means of withdrawing the fuse carrier.
UL Recognized to meet the requirements for Canadian
Standards.
▲
TPHCS
13.2
(0.52)
▲
TPHCS800-MAV (shown)
Data Sheet: 5020
182
For complete specification data, call Bussmann Information Fax ~ 636.527.1450
Courtesy of Steven Engineering, Inc. ! 230 Ryan Way, South San Francisco, CA 94080-6370 ! Main Office: (650) 588-9200 ! Outside Local Area: (800) 258-9200 ! www.stevenengineering.com
Telpower® DC Power Protection Systems
Bussmann®
Telpower® Fuses, 70-600 Amps, 170 Volts DC
Dimensional Data
2.66"
(67.5mm)
2.19"
(55.6mm)
1.91"
(48.4mm)
1.0"
1.16"
(25.4mm)
(29.4mm)
BUSS
.75"
(19.1mm)
TPL–BL
.33"
.19"
(8.3mm)
(4.8mm)
TPL-BA, TPL-BD, TPL-BF, TPL-BH, TPL-BK, AND TPL-BL
TPL
3.50"
(88.9mm)
2.44"
DC Power Distribution Fuses
Ampere Ratings: 70-800A
Voltage Rating: 170Vdc
Current Limiting
Interrupting Rating: 100,000A
Construction: Silver-Plated Terminals
Agency Information:
UL Recognized Guide JFHR2, File E56412
Bellcore
(61.9mm)
1.50"
1.25"
(38.1mm)
(31.8mm)
BUSS
1.00"
(25.4mm)
TPL–CZ
.41"
(10.3mm)
.25"
(6.4mm)
TPL-CN, TPL-CR, TPL-CV, AND TPL-CZ
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to BIF document #8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
Ordering Information:
TPL Telpower® (170Vdc)
Catalog
Number
Ampere
Rating
Weight*
Carton
Qty.
Lbs.
Kg.
TPL-BA
70
5
.93
.42
TPL-BB
80
5
.93
.42
TPL-BC
90
5
.93
.42
TPL-BD
100
5
.93
.42
TPL-BE
125
5
.93
.42
TPL-BF
150
5
.93
.42
TPL-BG
175
5
.93
.42
TPL-BH
200
5
.93
.42
TPL-BK
225
5
.93
.42
TPL-BL
250
5
.93
.42
TPL-CN
300
1
.49
.22
TPL-CO
350
1
.49
.22
TPL-CR
400
1
.49
.22
TPL-CU
450
1
.49
.22
TPL-CV
500
1
.49
.22
TPL-CZ
600
1
.49
.22
TPL-CZH
800
1
.49
.22
•
•
•
•
•
Designed for DC power distribution systems.
Recognized branch circuit protection.
Current-limiting capability.
Complete system coordination capability.
Energy savings with low watts loss, low operating temperatures, and minimum I2t levels.
• Use with Telpower 15100, 15200, TP158HC and TPHCS
disconnect systems.
• For replacement of Bussmann’s UBO fuses a TPL-TA adaptor kit is necessary.
• Spare fuseholders:
TPSFH-LB (for TPL-B fuses)
TPSFH-LC (for TPL-C fuses)
*Weight per carton.
Data Sheet: 5005
For complete specification data, call Bussmann Information Fax ~ 636.527.1450
183
Courtesy of Steven Engineering, Inc. ! 230 Ryan Way, South San Francisco, CA 94080-6370 ! Main Office: (650) 588-9200 ! Outside Local Area: (800) 258-9200 ! www.stevenengineering.com
Telpower® DC Power Protection Systems
Bussmann®
Telpower® Fuses, 1-600 Amps, 170 Volts DC
0.56"
(14.3mm)
2"
(50.8mm)
1A to 30A
0.81"
(20.6mm)
3"
(76.2mm)
35A to 60A
5.88"
(149.2mm)
1.00"
TPN
(25.4mm)
Current Limiting
DC Power Distribution Fuses
Ampere Ratings: 1-600A
Voltage Rating: 170Vdc
Interrupting Rating: 100,000A
Construction: Silver-Plated Terminals
Agency Information:
UL Recognized, Guide JFHR2, File E56412
70A to 100A
7.13"
(181.0mm)
1.50"
(38.1mm)
110A to 200A
8.63"
(219.1mm)
2.00"
(50.8mm)
225A to 400A
10.38"
(263.5mm)
Catalog Numbers
TPN-1
TPN-45
TPN-200
TPN-3
TPN-50
TPN-225
TPN-5
TPN-60
TPN-250
TPN-6
TPN-70
TPN-300
TPN-10
TPN-80
TPN-350
TPN-15
TPN-90
TPN-400
TPN-20
TPN-100
TPN-450
TPN-25
TPN-110
TPN-500
TPN-30
TPN-125
TPN-600
TPN-35
TPN-150
TPN-40
TPN-175
Carton
Qty.
450A to 600A
Recommended Class R Fuseblocks
Amps
1 to 30
35 to 60
Carton Quantity and Weight
TPN Telpower (170Vdc)
Catalog
Number
2.50"
(63.5mm)
70 to 100
Weight*
Lbs.
Kg.
110 to 200
Poles
Catalog
Number
1
R25030-1CR
2
R25030-2CR
3
R25030-3CR
1
R25060-1CR
2
R25060-2CR
3
R25060-3CR
1
R25100-1CR
2
R25100-2CR
3
R25100-3CR
1
R25200-1CR
3
R25200-3CR
1-30
10
0.45
0.204
35-60
10
1.82
0.824
225 to 400
1
R25400-1CR
70-100
5
1.85
0.838
450 to 600
1
R25600-1CR
110-200
1
1.05
0.476
225-400
1
2.38
1.078
450-600
1
3.50
1.587
*Weight per carton.
• Designed for DC power distribution systems.
• The TPN series of fuses are dimensionally similar to Class R
fuses.
• Recognized branch circuit protection.
• Current-limiting capability.
• Complete system coordination capability.
• Energy savings with low watts loss, low operating temperatures, and minimum I2t levels.
• Spare fuseholders:
TPSFH-N30 (for TPN 1-30)
TPSFH-N60 (for TPN 35-60)
Data Sheet: 5006
184
For complete specification data, call Bussmann Information Fax ~ 636.527.1450
Courtesy of Steven Engineering, Inc. ! 230 Ryan Way, South San Francisco, CA 94080-6370 ! Main Office: (650) 588-9200 ! Outside Local Area: (800) 258-9200 ! www.stevenengineering.com
Bussmann®
Telpower® DC Power Protection Systems
Indicating Fuse & Holder
70 Series
15087 Fuseholder
Indicating Type Fuse
Voltage Rating: 125Vac; 300Vdc
Agency Information:
UL Recognized, Guide JDYX2, File E19180
Bellcore
For 70 Series Fuses
Ampere Ratings: 12A
Voltage Rating: 300Vdc
Agency Information:
UL Recognized, Guide IZLT2, File E14853
Construction:
Body: Thermoplastic, UL 94VO flammability rating
Terminals: Copper alloy, tin plating
Screws: 3-24 ≈ ‹Ω•∑ steel, zinc plated
70 Series Telpower (125Vac, 300Vdc)
Catalog
Number
Ampere
Rating
70P-⁄Ω¡º A*
70R-⁄fiΩ¡ººA*
70E-⁄°Ω¡ºº A*
70X-¤Ω¡º A
70F-⁄Ω¢ A*
70K-⁄Ω¢ A*
70G-⁄Ω™ A*
70H-‹Ω¢ A*
70I-1A
70A-1-⁄Ω£ A*
70B-2A*
70C-3A*
70J-3⁄Ω™ A
70D-5A*
70L-6A
70M-8A
70N-10A
GKB-10A
72A
Plastic Case
72B
Blister Pack
⁄Ω¡º
⁄fiΩ¡ºº
⁄°Ω¡ºº
¤Ω¡º
⁄Ω¢
⁄Ω¢
⁄Ω™
‹Ω¢
1
1⁄Ω£
2
3
3⁄Ω™
5
6
8
10
10
Voltage Rating
AC
DC
Color
Code
Lucent
Comcode
Ref. No.
Code/
List No.
Gray/Wh
Red/Wh
Yellow
Black
Violet
Violet/Wh
Red
Brown
Pink
White
Orange
Blue
Black/Wh
Grn/Blk
Grn/Wh
Brown/Wh
Violet/Yel
Violet/Yel
100203413
101384550
100203363
—
100203371
100203405
100203389
100203397
—
100203322
100203330
100203348
—
100203355
—
—
—
—
KS23751-L10
KS23751-L11
KS23751-L5
—
KS23751-L6
KS23751-L9
KS23751-L7
KS23751-L8
—
KS23751-L1
KS23751-L2
KS23751-L3
—
KS23751-L4
—
—
—
—
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
125V
300V
300V
300V
300V
300V
300V
300V
300V
300V
300V
300V
300V
300V
300V
300V
300V
300V
300V
Dummy
—
—
—
100203421
—
Dummy
—
—
—
103757977
—
*Product designed to comply with Bellcore Technical Reference TR-TSY-000799 Issue 1,
December 1988.
• Panel mount fuseholder for 70 Type fuses supplied with
two screws.
• Remote alarm capability.
Optional Color Code Eyelets (order separately)
Catalog
Symbol
1A1706-01
1A1706-02
1A1706-03
1A1706-04
1A1706-05
1A1706-06
1A1706-07
1A1706-08
1A1706-09
Amp
Rating
Ref.
⁄°Ω¡ºº
¤Ω¡º
⁄Ω¢
⁄Ω¢
⁄Ω™
‹Ω¢
1
1⁄Ω£
2
Color
Code
Yellow
Black
Violet
Violet/White
Red
Brown
Pink
White
Orange
Catalog
Symbol
Amp
Rating
Ref.
1A1706-10
1A1706-11
1A1706-12
1A1706-13
1A1706-14
1A1706-15
1A1706-16
1A1706-17
—
3
5
6
8
10
⁄Ω¡º
3⁄Ω™
⁄fiΩ¡ºº
—
Color
Code
Blue
Green/Black
Green/White
Brown/White
Violet/Yellow
Gray/White
Black/White
Red/White
—
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
Data Sheet: 5007
For complete specification data, call Bussmann Information Fax ~ 636.527.1450
Data Sheet: 5007
185
Courtesy of Steven Engineering, Inc. ! 230 Ryan Way, South San Francisco, CA 94080-6370 ! Main Office: (650) 588-9200 ! Outside Local Area: (800) 258-9200 ! www.stevenengineering.com
Telpower® DC Power Protection Systems
Bussmann®
Indicating Fuses & Holders
GMT - Dummy
GMT - A (Alarm)
GMT
HLS, HLT, PCT
Fast Acting Fuses
Voltage Rating: 60Vdc; 125Vac
Interrupting Rating: 450A, 60Vdc;
300A, 125Vac
Agency Information:
UL Recognized, Guide JFHR2, File E56412
Materials:
Body: Thermoplastic, UL 94VO flammability rating
Terminals: Tin-plated Beryllium copper
Carton Qty. and Weight: 100 Fuses per carton;
0.33 lbs. (150g)
Fuseholders: Catalog No. HLT, HLS, and PCT
Spare Fuseholder: TPSFH-T
Fuseholders for GMT Type Indicating Fuses
Voltage Rating: 60Vdc; 125Vac
Agency Information:
UL Recognized, Guide IZLT2, File E14853, 15A (60Vdc)
Materials:
Body: Thermoplastic, UL 94VO flammability rating
Terminals: Tin-plated copper
Catalog Numbers
Catalog
Symbol
GMT-⁄°Ω¡ººA
GMT-⁄Ω¢A
GMT-‹Ω•A
GMT-⁄Ω™A
GMT-flfiΩ¡ººA
GMT-‹Ω¢A
GMT-1A
GMT-1⁄Ω£A
GMT-1⁄Ω™A
GMT-2A
Color
Code
Yellow
Violet
White/Gray
Red
Black
Brown
Gray
White
White/Yellow
Orange
Catalog
Symbol
GMT-3A
GMT-3⁄Ω™A
GMT-4A
GMT-5A
GMT-7⁄Ω™A
GMT-10A
GMT-12A
GMT-15A
GMT-Dummy
GMT-X
Color
Code
Blue
White/Blue
White/Brown
Green
Black/White
Red/White
Yellow/Green
Red/Blue
Gray Body
Clear Cover
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
Some GMT sizes may be sold in bulk pack only.
GMT-A
•The GMT-A is designed specifically for use in the Telpower®
series 15800 Fused Disconnect Switch (page 177).
• The GMT-A has the same ratings and agency approvals
as the standard GMT fuses as shown above.
Catalog Symbol
GMT-A
Data Sheet: 5008
186
Color Code
Yellow
Multiple Fuseholders with bus bars
Ordering Information— Catalog No.
Body Style HLT
HLS (No flanges)
Termination Location
No. of Poles 01 thru 25
(Min. of 2 poles required for bus bars)
L
R
(Left only)
(Right only)
B
Type of bus bars used***
B1*, B2, B3,
B4, B5, SL** (Short Leads .135")
ML** (Medium Leads .250")
(Both ends)
** Not available with bus bars
Bus Bar Position
B1
(Angle Bar Only)*
B4
(Angle & “L” Bars)
B2
(“L” Bar Only)
B3
(“U” Bar Only)
P1†
(Inside—
Both Sides)
P2
(Outside—
Both Sides)
P3
(Outside—
Right Only)
P4
(Outside—
Left Only)
B5
(“L” & “U” Bars)
*Angle Bar mounts on common or center terminals only.
** SL Version is not available with bus bars.
†Minimum of 4 Poles Required.
***.38 max. leads if not specified.
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
Data Sheet: 5010
For complete specification data, call Bussmann Information Fax ~ 636.527.1450
Courtesy of Steven Engineering, Inc. ! 230 Ryan Way, South San Francisco, CA 94080-6370 ! Main Office: (650) 588-9200 ! Outside Local Area: (800) 258-9200 ! www.stevenengineering.com
Telecommunications
Protection Systems
Telpower® DC Power Protection
Bussmann®
Telpower® Specialty Fuses
Dimensional Data
Dimensional Data
A
4.093"
2.685"
(68.20mm)
.280"
(7.11mm)
81 Type
7 Type
Description: Cylindrical, fast acting, non-indicating high
current companion to the 80 Type. UL Recognized, Guide
JDYX2, File E19180.
Description: Fiber tube, threaded ends. Typically used
on wall type main distribution frames and central battery
substations.
Catalog Data
Catalog Data
Catalog
Symbol
81B-7⁄Ω™
Ampere
Rating
7.5
Voltage Rating
ac
dc
Color
Code
Lucent Comcode
Ref. No.
Code/
List No.
Catalog
Symbol
Ampere
Rating
Lucent Comcode
Ref. No.
Dimension
A Length
250V
65V
Gray
103828141
KS23824-L12
7 Type
81A-10
10
250V
65V
Yellow
103752176
KS23824-L11
7A-7
7
100863737
4.562
81C-12
12
250V
65V
Lt Blue
104391842
KS23824-L13
7T-7
7
100202753
4.828
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
Dimensional Data
1.406"
.938"
A
Dimensional Data
A .375"
4.625"
4.062"
24 and WER Type
Description: Flat, nonindicating visible link element mounted
on 1 inch centers using either No. 6 or No. 10 screws.
Catalog Data
Catalog
Ampere
Symbol
Rating
WER-⁄Ω¢
⁄Ω¢
24E-⁄Ω™*
⁄Ω™
24D-‹Ω¢*
‹Ω¢
WER-1
1
24G-1⁄Ω£*
1⁄Ω£
24C-2*
2
24B-3*
3
WER-3⁄Ω™
3⁄Ω™
24B-4*
4
24F-5*
5
WER-8
8
WER-10
10
64A-Dummy
—
dc
Volt.
32V
60V
60V
32V
60V
60V
60V
32V
60V
60V
32V
32V
—
Color
Code
—
Red
Black
—
White
Orange
Blue
—
Yellow
Green
—
—
—
Lucent Comcode
Ref. No.
—
100202894
100202886
—
100202910
100202878
100202852
—
100202860
100202902
—
—
100203280
Dimension
A Length
—
.200
.150
—
.200
.200
.150
—
.150
.150
—
—
—
11 Type
Description: Fiber tube, threaded ends, identical to 7 Type
except for vent slots in fiber tube.
Catalog Data
Catalog
Symbol
Ampere
Rating
Lucent Comcode
Ref. No.
Dimension
A Length
100863745
—
11 Type
11C-7
7
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
*Designed to comply with Bellcore Technical Reference TR-TSY-000799 Issue 1, Dec. 1988.
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
For
For complete
complete specification
specification data,
data, call
call Bussmann
Bussmann Information
Information Fax
Fax ~~ 636.527.1450
636.527.1450
187
Courtesy of Steven Engineering, Inc. ! 230 Ryan Way, South San Francisco, CA 94080-6370 ! Main Office: (650) 588-9200 ! Outside Local Area: (800) 258-9200 ! www.stevenengineering.com
Bussmann®
Telecommunications Protection
Telpower® Specialty Fuses
Dimensional Data
Dimensional Data
.620"
(15.75mm)
— —A
BUSS
1.25"
.325"
(8.26mm)
.281"
(31.75mm)
(7.14mm)
74 Type
.190"
Description: .281∑ ≈ 1.25∑ cylindrical fuse, fast acting.
Designed to comply with Lucent specification KS23753.
High current companion to 70 Type Fuse.
Catalog Data
(4.83mm)
.800"
75 Type
Description: Cylindrical with leads, designed to provide
protection against currents resulting from the application of
foreign voltages. Application for data sets and telephones.
Catalog
Symbol
Ampere
Rating
Voltage Rating
DC
Lucent Comcode
Ref. No.
Code/
List No.
74A-1⁄Ω¢
1⁄Ω¢
60V
102630290
KS23753-L1
Catalog Data
Catalog
Symbol
74G-2
2
60V
103064952
KS23753-L7
74B-3
3
60V
102630308
KS23753-L2
74H-4
4
60V
103264669
KS23753-L8
74C-5
5
60V
102630316
KS23753-L3
7⁄Ω™
60V
103228425
KS23753-L9
60V
102630324
KS23753-L4
74J-7⁄Ω™
74D-10
10
74E-15
15
60V
102630332
KS23753-L5
74F-20
20
60V
102630340
KS23753-L6
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
(20.32mm)
Ampere
Rating
Voltage Rating
AC
DC
Lucent Comcode
Ref. No.
Code/
List No.
KS23825-L3
75C
.007
135V
440V
103260816
75F
.063
135V
220V
104172861
KS23825-L6
75B
.115
135V
220V
102732112
KS23825-L2
75D
.129
135V
220V
104013180
KS23825-L4
75A
.200
135V
220V
102660008
KS23825-L1
75E
.230
135V
220V
104015292
KS23825-L5
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
Dimensional Data
.445"
.830"
(11.30mm)
(21.08mm)
Dimensional Data
BUSS
— —A
2.685"
(68.20mm)
.280"
(7.11mm)
80 Type
.320"
(8.13mm)
1.125"
(28.58mm)
76 Type
Description: Cylindrical with leads, designed to provide
protection against currents resulting from the application of
foreign voltages. Application for data sets and telephones.
Catalog Data
Catalog
Symbol
Ampere
Rating
Voltage Rating
AC
DC
76D
.012
135V
76B
.191
76A
76C
Catalog Data
Catalog
Symbol
Voltage Rating
AC
DC
Color
Code
.50
250V
—
1.33
250V
—
2
250V
80C-3
3
80D-5
5
Lucent Comcode
Ref. No.
Code/
List No.
440V
103798245
KS23825-L10
80M-1⁄Ω£
135V
440V
102965688
KS23825-L8
80B-2
.231
135V
440V
102810181
KS23825-L7
.412
135V
440V
103656625
KS23825-L9
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
188
Description: A fuse designed for high reliability applications
where high ambient temperatures, low circuit voltages, low
power dissipation and low contact resistance are prime considerations. The 80 Type is a visual indicating fuse with remote
electrical alarm capability. UL Recognized, Guide JDYX2,
File E19180.
80G-⁄Ω™
Ampere
Rating
Lucent Comcode
Ref. No.
Code/
List No.
Red
103839916
KS23824-L6
White
408078657
KS23824-L8
—
Orange
103752150
KS23824-L2
250V
—
Blue
103752168
KS23824-L3
250V
—
Green
103800637
KS23824-L4
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
For complete specification data, call Bussmann Information Fax ~ 636.527.1450
Courtesy of Steven Engineering, Inc. ! 230 Ryan Way, South San Francisco, CA 94080-6370 ! Main Office: (650) 588-9200 ! Outside Local Area: (800) 258-9200 ! www.stevenengineering.com
Pg 189
Do not Print
Courtesy of Steven Engineering, Inc. ! 230 Ryan Way, South San Francisco, CA 94080-6370 ! Main Office: (650) 588-9200 ! Outside Local Area: (800) 258-9200 ! www.stevenengineering.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
