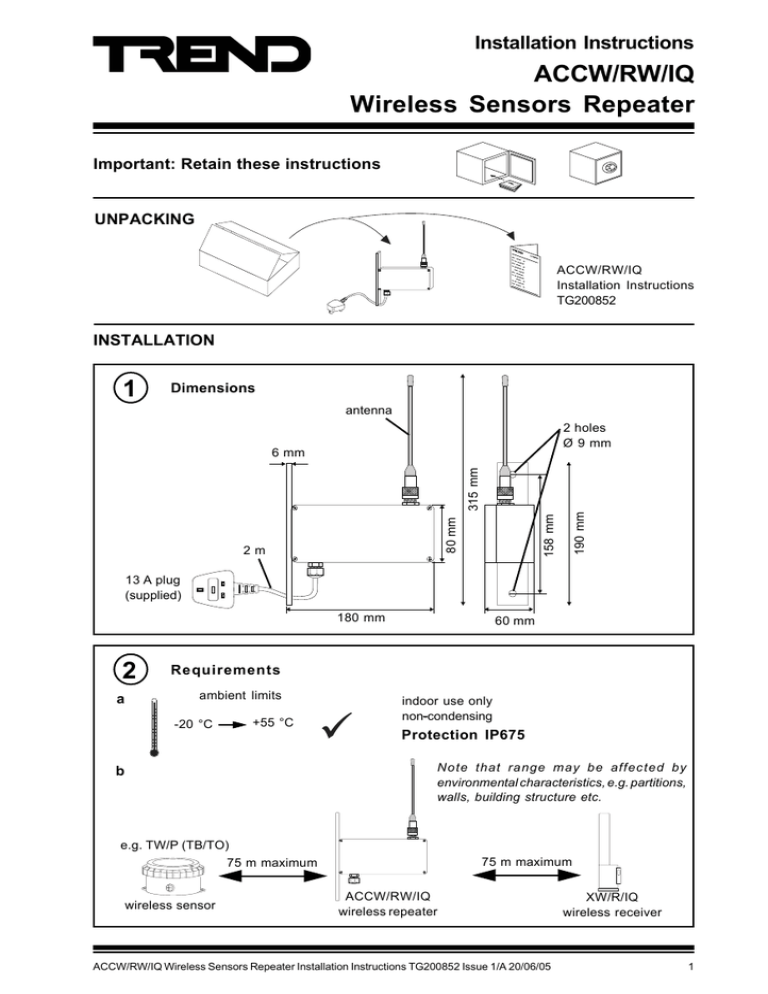

Installation Instructions
ACCW/RW/IQ
Wireless Sensors Repeater
Important: Retain these instructions
UNPACKING
ACCW/RW/IQ
Installation Instructions
TG200852
INSTALLATION
1
Dimensions
antenna
2 holes
Ø 9 mm
158 mm
80 mm
2m
190 mm
315 mm
6 mm
13 A plug
(supplied)
180 mm
2
a
60 mm
Requirements
ambient limits
+55 °C
-20 °C
indoor use only
non-condensing
Protection IP675
Note that range may be affected by
environmental characteristics, e.g. partitions,
walls, building structure etc.
b
e.g. TW/P (TB/TO)
75 m maximum
75 m maximum
wireless sensor
ACCW/RW/IQ
wireless repeater
ACCW/RW/IQ Wireless Sensors Repeater Installation Instructions TG200852 Issue 1/A 20/06/05
XW/R/IQ
wireless receiver
1
ACCW/RW/IQ
Installation Instructions
INSTALLATION (continued)
2
Requirements (continued)
c
•
The only certain way of determining performance in a specific location is to conduct a range
test and RF spectrum scan for other potential users.
•
Both the path survey and spectrum scan are normally conducted prior to installing. However,
as by its nature the 434 MHz AMR system is intended for short-range applications, in practice
interference is extremely rare, and the FR capture effect prevails, (nearest signal wins). This,
in most cases, obviates the need for a spectrum survey, leaving only the path survey.
•
If a confidence scan is required, both the desired and adjacent channels should be checked
for signals. As transmissions may be intermittent it is important to take time with the scan,
stopping for as long as possible on each channel and looking for at least 15 minutes on the
final chosen band.
•
In white walled buildings (rooms thermally insulated with foam and aluminium; food industry)
best performance may be found by mounting the repeater in the loft space above the white
walled area. There will always be a degree of leakage in a white wall building, and once out
of a room, propagation is much easier in a loft space compared to between white walled rooms.
3
4
Mount unit
Connect Power
158 mm
230 Vac 50 Hz 1 W maximum
!
2
2 holes Ø 9 mm
Ensure antenna is vertical
Either use 13 A UK style fused plug provided
or wire to a fused spur (fuse: 1 A 250 V HRC
20 mm)
ACCW/RW/IQ Wireless Sensors Repeater Installation Instructions TG200852 Issue 1/A 20/06/05
Installation Instructions
ACCW/RW/IQ
INSTALLATION (continued)
5
Install Sensor and Receiver
6
Switch On
0
I
TW/S Installation Instructions TG200781
TW/P Installation Instructions TG200782
PCW/.. Installation Instructions TG200784
XW/R/IQ Installation Instructions TG200783
7
Test System
ΔT
e.g. TB/TI/..
XW/R/IQ
1 min.
IQ
ACCW/RW/IQ
ACCW/RW/IQ Wireless Sensors Repeater Installation Instructions TG200852 Issue 1/A 20/06/05
3
ACCW/RW/IQ
Installation Instructions
DISPOSAL
WEEE Directive :
At the end of their useful life the packaging,
product, and batteries should be disposed
of via a suitable recycling centre.
Do not dispose of with normal household waste.
Do not burn.
