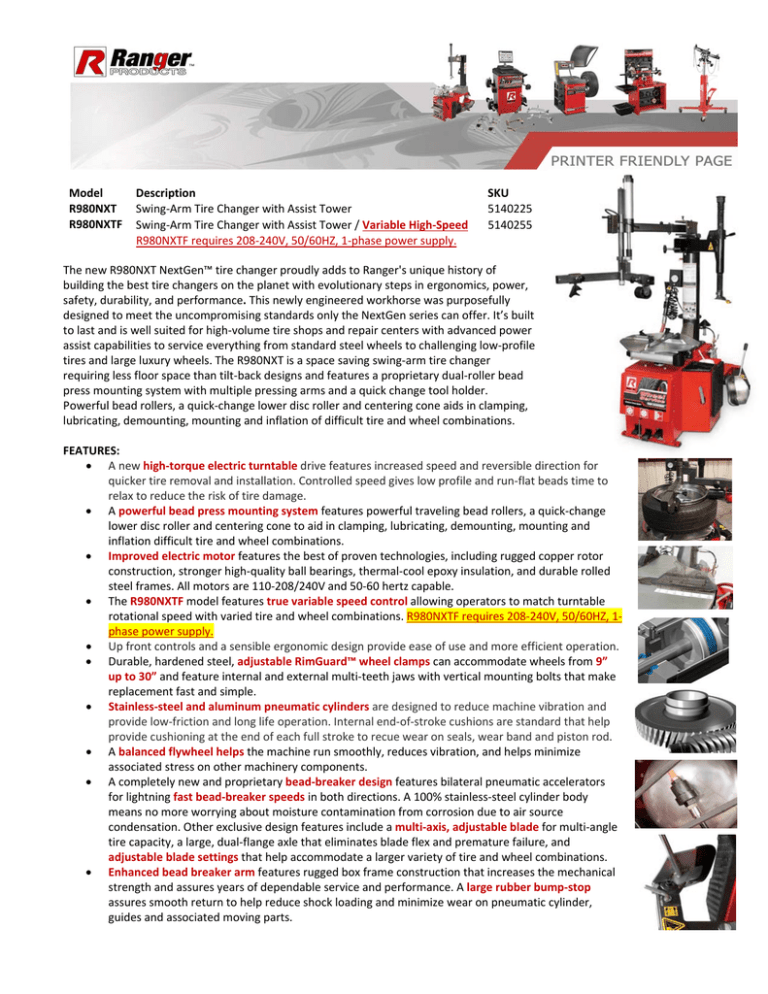

 Model Description R980NXT Swing‐Arm Tire Changer with Assist Tower R980NXTF Swing‐Arm Tire Changer with Assist Tower / Variable High‐Speed R980NXTF requires 208‐240V, 50/60HZ, 1‐phase power supply. SKU 5140225 5140255 The new R980NXT NextGen™ tire changer proudly adds to Ranger's unique history of building the best tire changers on the planet with evolutionary steps in ergonomics, power, safety, durability, and performance. This newly engineered workhorse was purposefully designed to meet the uncompromising standards only the NextGen series can offer. It’s built to last and is well suited for high‐volume tire shops and repair centers with advanced power assist capabilities to service everything from standard steel wheels to challenging low‐profile tires and large luxury wheels. The R980NXT is a space saving swing‐arm tire changer requiring less floor space than tilt‐back designs and features a proprietary dual‐roller bead press mounting system with multiple pressing arms and a quick change tool holder. Powerful bead rollers, a quick‐change lower disc roller and centering cone aids in clamping, lubricating, demounting, mounting and inflation of difficult tire and wheel combinations. FEATURES:  A new high‐torque electric turntable drive features increased speed and reversible direction for quicker tire removal and installation. Controlled speed gives low profile and run‐flat beads time to relax to reduce the risk of tire damage.  A powerful bead press mounting system features powerful traveling bead rollers, a quick‐change lower disc roller and centering cone to aid in clamping, lubricating, demounting, mounting and inflation difficult tire and wheel combinations.  Improved electric motor features the best of proven technologies, including rugged copper rotor construction, stronger high‐quality ball bearings, thermal‐cool epoxy insulation, and durable rolled steel frames. All motors are 110‐208/240V and 50‐60 hertz capable.  The R980NXTF model features true variable speed control allowing operators to match turntable rotational speed with varied tire and wheel combinations. R980NXTF requires 208‐240V, 50/60HZ, 1‐
phase power supply.  Up front controls and a sensible ergonomic design provide ease of use and more efficient operation.  Durable, hardened steel, adjustable RimGuard™ wheel clamps can accommodate wheels from 9” up to 30” and feature internal and external multi‐teeth jaws with vertical mounting bolts that make replacement fast and simple.  Stainless‐steel and aluminum pneumatic cylinders are designed to reduce machine vibration and provide low‐friction and long life operation. Internal end‐of‐stroke cushions are standard that help provide cushioning at the end of each full stroke to recue wear on seals, wear band and piston rod.  A balanced flywheel helps the machine run smoothly, reduces vibration, and helps minimize associated stress on other machinery components.  A completely new and proprietary bead‐breaker design features bilateral pneumatic accelerators for lightning fast bead‐breaker speeds in both directions. A 100% stainless‐steel cylinder body means no more worrying about moisture contamination from corrosion due to air source condensation. Other exclusive design features include a multi‐axis, adjustable blade for multi‐angle tire capacity, a large, dual‐flange axle that eliminates blade flex and premature failure, and adjustable blade settings that help accommodate a larger variety of tire and wheel combinations.  Enhanced bead breaker arm features rugged box frame construction that increases the mechanical strength and assures years of dependable service and performance. A large rubber bump‐stop assures smooth return to help reduce shock loading and minimize wear on pneumatic cylinder, guides and associated moving parts. 
















A hardened alloy steel mount and demount head has a unique equidimensional shape with micro‐smooth tool head surface that glides tire beads effortlessly during mounting and demounting procedures. In addition to the standard alloy‐steel mount and demount head we also include a rugged polymer mount/demount head with adapter that protects fragile tires and rims from metal‐
to‐metal contact damage. Industrial‐grade, 45‐micron, pneumatic control valves feature die cast and machined bodies constructed from zinc and aluminum. High‐performance polyurethane seals and self‐
lubricating, Teflon® piston guides provide increased service life and performance at the highest level possible within almost every imaginable working condition. Valve plungers feature muffled extrication ports that direct any dirt or contamination accumulated on the outside perimeter of the spool to be automatically blown away each time the valve goes into the release position. Durable, hardened steel, adjustable RimGuard™ wheel clamps can accommodate wheels from 9” up to 30” and feature internal and external multi‐teeth jaws with vertical mounting bolts that make replacement fast and simple. A geometric tabletop provides for easier bead lubrication and allows operators to make visual inspections of the lower bead during mounting and inflation procedures. Durable forged steel (instead of cast iron) foot pedal levers will stand up to everyday use and abuse in high‐volume tire centers. Snap action spring return means precise and controlled operation. Foot pedal control valves feature multi‐link rod connections for non‐binding plunger movement and precise bilateral control. Ranger Next Generation™ tire changers feature high pressure polyurethane pneumatic tubing with mirror smooth seamless bore for exceptional flow rates, high abrasion resistance, high burst tolerance and maximum kink resistance. Ranger tire changers feature the renowned TurboBlast™ bead seating system* that blasts a powerful air burst between the tire and rim to help seat stubborn beads fast. A durable, non‐
marring nylon discharge barrel features a contoured tab that locks securely on the edge of the rim for better control during air discharge between the tire and wheel. A welded‐steel, eight‐
gallon surge tank is larger than competitive models for all the inflation power you need, when you need it. A newly designed, maintenance‐free gearbox features a large oil and grease reservoir that helps provide efficient heat dissipation and improved lubrication for longer service life. Internal baffles and a constant seating stress flange gasket assure positive, leak‐free venting. The rugged gearbox enclosure is precision milled for precise alignment of horizontal and vertical bases and features precision helical gears that operate much more smoothly and quietly than typical spur gear transmissions. Important wheel service accessories come standard like a large soap bucket with brush and a multi‐piece plastic wheel protector kit that includes turntable jaw covers, bead‐breaker blade boots and specialized mount / demount head covers to help protect delicate wheels. We throw in a hardened steel tire iron and bead lever tool to assist during all tire mounting and demounting operations. All main‐lead electrical terminals, auxiliary switches, and motor enclosures are sealed for air‐
tight, dust‐free and contamination‐proof protection of terminal leads. Specially engineered drive‐belt features convex sidewalls to distribute wear evenly while providing proper belt support for improved service life. Flex‐bonded cords and flex‐weave covers resist the effects of oil, heat, ozone, weather and aging. A rigid 45mm spring assist hexagonal vertical tool shaft combined with a hardened‐steel horizontal outrigger support arm maintains perfect position of the mount‐demount tool head during all tire service procedures to reduce the chance of expensive wheels getting damaged. A simple to use tire inflator features foot‐pedal operation and inflation hose with a sure‐grip clip‐on valve chuck enabling hands‐free operation. Integrated air pressure dump valve enables you to lower tire pressure with a simple push of a button. Optional motorcycle turntable clamps add a whole extra level of versatility. Expand your capabilities, clientele and your bottom line. FEATURES / SPECIFICATIONS FEATURES / SPECIFICATIONS MODEL R980NXT MODEL R980NXT Electric / Air Electric / Air / Variable High Speed 2 HP (110/208‐240V, 50‐60 HZ) 2 HP (208‐240V, 50‐60 HZ, 1‐Phase Only) 140‐165 PSI (10‐11 BAR) 140‐165 PSI (10‐11 BAR) 4 Clamps ‐ Internal / External 4 Clamps ‐ Internal / External Dual Pneumatic Cylinders Dual Pneumatic Cylinders Pneumatic Blade / Dual Settings Pneumatic Blade / Dual Settings Standard Standard Manual Lock Manual Lock Inflation Gauge With Integrated Air Dump Valve Standard Standard Inflation Pressure Regulator/Limiter Standard Standard Water Filter Standard Standard Oiler / Lubricator Standard Standard Air Regulator Standard Standard Breaker Bar Standard Standard Large Soap / Lubricator Bucket Standard Standard Brush Standard Standard Combi Assist Tower / Swing Arm Combi Assist Tower / Swing Arm Single Lifting Roller Single Lifting Roller Alloy‐Steel Mount/Demount Head Standard Standard Plastic‐Polymer Mount/Demount Head Standard Standard Upper Bead Assist Roller Standard Standard Traveling Drop‐Center Hold Down Device Standard Standard Inflation Restraint Device Standard Standard Turbo Blast / Bead Seating Turbo Blast / Bead Seating Tool Tray / Bin Storage Standard Standard Motorcycle Turntable Clamps Optional Optional Internal Rim Clamping Capacity 10" – 30” ( 254 mm ‐ 762 mm) 10" – 30” ( 254 mm ‐ 762 mm) External Rim Clamping Capacity 9" – 28" (229 mm ‐ 711 mm) 9" – 28" (229 mm ‐ 711 mm) Turntable Tire Width Capacity (Mounting) 4" – 18" (102 mm – 457 mm) 4" – 18" (102 mm – 457 mm) Bead Breaker Tire Width Capacity (Demounting) 1.5" – 16" (38 mm – 406 mm) 1.5" – 16" (38 mm – 406 mm) 50" (1270 mm) 50" (1270 mm) 868 lbs. (394 Kg) 877 lbs. (398 Kg) Type of Drive System Motor Air Requirement Wheel Clamping Method (Adjustable Clamps) Table Clamping System Bead Breaking System Combi Assist Tower Vertical Hex Shaft Holder ‐ Restraint Tower Design Bead Lifting Roller(s) Bead Seating System Maximum Tire Diameter Shipping Weight
