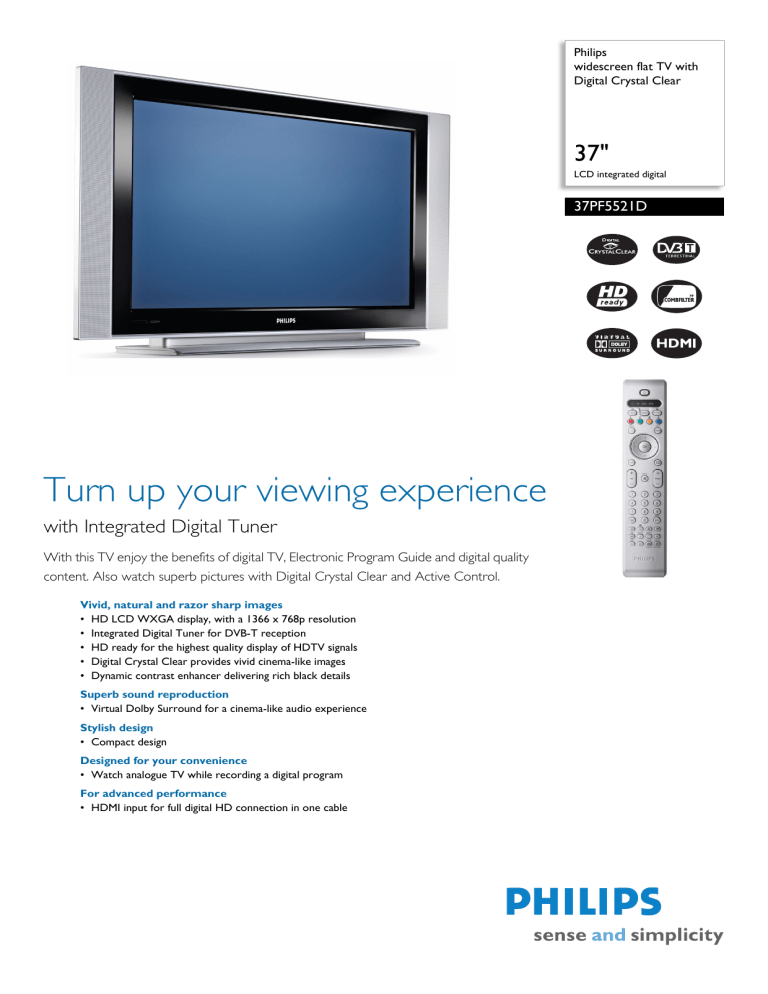

Philips
widescreen flat TV with
Digital Crystal Clear
37"
LCD integrated digital
37PF5521D
Turn up your viewing experience
with Integrated Digital Tuner
With this TV enjoy the benefits of digital TV, Electronic Program Guide and digital quality
content. Also watch superb pictures with Digital Crystal Clear and Active Control.
Vivid, natural and razor sharp images
• HD LCD WXGA display, with a 1366 x 768p resolution
• Integrated Digital Tuner for DVB-T reception
• HD ready for the highest quality display of HDTV signals
• Digital Crystal Clear provides vivid cinema-like images
• Dynamic contrast enhancer delivering rich black details
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
Stylish design
• Compact design
Designed for your convenience
• Watch analogue TV while recording a digital program
For advanced performance
• HDMI input for full digital HD connection in one cable
37PF5521D/10
Widescreen flat TV with Digital Crystal Clear
37" LCD integrated digital
Specifications
Picture/Display
•
•
•
•
•
•
•
•
Aspect ratio: 16:9
Brightness: 500 cd/m²
Contrast ratio (typical): 800:1
Dynamic screen contrast: 1600:1
Response time (typical): 8 ms
Viewing angle: 176º (H) / 176º (V)
Diagonal screen size: 37 inch / 94 cm
Display screen type: LCD WXGA Active Matrix
TFT
• Panel resolution: 1366 x 768p
• Picture enhancement: 3/2 - 2/2 motion pull down,
3D Combfilter, Active Control, Colour
Temperature Adjustment, Contrast Plus, Digital
Crystal Clear, Digital Noise Reduction, Jagged
Line Suppression, Progressive Scan, Pulse Killer
Chip, Sharpness Adjustment
• Screen enhancement: Anti-Reflection coated
screen
Supported Display Resolution
• Computer formats
Resolution
Refresh rate
640 x 480
60, 67, 72, 75Hz
720 x 400
70Hz
800 x 600
56, 60, 72, 75Hz
1024 x 768
60, 70, 75Hz
• Video Formats
Resolution
Refresh rate
640 x 480i
1Fh
640 x 480p
2Fh
720 x 576i
1Fh
720 x 576p
2Fh
1280 x 720p
3Fh
1920 x 1080i
2Fh
Sound
•
•
•
•
Equalizer: 5-bands
Output power (RMS): 2 x 15W
Sound Enhancement: Dynamic Bass Enhancement
Sound System: Stereo, Virtual Dolby Surround
Loudspeakers
• Built-in speakers: 2
Tuner/Reception/Transmission
•
•
•
•
•
•
•
Aerial Input: 75 ohm coaxial (IEC75)
TV system: PAL, SECAM
DVB: DVB Terrestrial *
Tuner bands: Hyperband, S-Channel, UHF, VHF
Number of Preset Channels: 100
Tuner Display: PLL
Video Playback: NTSC, PAL, SECAM
Connectivity
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Ext 2 Scart: Audio L/R, CVBS in/out, RGB out, S-
video in
Number of Scarts: 2
Ext 4: YPbPr
Ext 5: HDMI
Ext 6: HDMI
Front / Side connections: Audio L/R in, CVBS in,
Headphone out, S-video in
• Other connections: Antenna IEC75, S/PDIF out
(coaxial), Common Interface
•
•
•
•
•
Convenience
• Clock: Sleep Timer, Wake up Clock
• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic
Tuning System (ATS), Autostore, Fine Tuning,
Plug & Play, Program Name, Sorting
• Ease of Use: Auto Volume Leveller (AVL), Easy
toggle Dig/Analogue modes, Program List, Side
Control, Smart Picture Control, Smart Sound
Control, Watch analogue/record digital
• Picture in Picture: Picture in graphics
• Remote Control: TV, Aux, DVD
• Remote control type: RC4343/01
• Screen Format Adjustments: 4:3, Movie expand
14:9, Movie expand 16:9, Subtitle Zoom, Super
Zoom, Widescreen
• Teletext: 500 page Smart Text
• Teletext enhancements: Program information
Line, 4 favourite pages
Accessories
• Included Accessories: Table top stand, Power
cord, Quick start guide, User Manual, Registration
card, Warranty certificate, Remote Control,
Batteries for remote control
• Optional accessories: Floor stand
Dimensions
• Set dimensions (W x H x D):
1100 x 609 x 120.5 mm
• Dimensions (with base) (W x H x D):
964 x 657 x 240 mm
• Dimensions (without base) (H x D):
609 x 120.5 mm
• Weight incl. Packaging: 31.5 kg
• Product weight: 25.1 kg
• Box dimensions (W x H x D):
1191 x 821 x 330 mm
• Colour cabinet: Bicolour Gloss Black and Silver
Frost
• VESA wall mount compatible: 800 x 400 mm
Power
•
•
•
•
•
•
Ambient temperature: 5 °C to 40 °C
Mains power: AC 220 - 240 V +/- 10%
Power consumption: 150-205 W
Power supply: AC 90-240
Standby power consumption: < 2 W
Widescreen flat TV with Digital Crystal Clear
37" LCD integrated digital
37PF5521D/10
Product highlights
LCD WXGA display, 1366 x 768p
This WXGA display with state-of-the-art LCD screen
technology gives you widescreen HD resolution of 1366
x 768p pixels. It produces brilliant flicker-free progressive
scan pictures with optimum brightness and superb
colours. This vibrant and sharp image will provide you
with an enhanced viewing experience.
Integrated Digital DVB-T tuner
The integrated DVB-T tuner lets you receive Digital
Terrestrial TV to watch or record. This means you do not
need an additional set top box and also the additional
cables.
HD Ready
Enjoy the exceptional picture quality of a true High
Definition TV signal and be fully prepared for HD sources
like HDTV broadcast, Blu-ray DVD or HD-DVD. HD
ready is a protected label that offers picture quality
beyond that of progressive scan. It conforms to strict
standards laid out by EICTA to offer a HD screen that
displays the benefits of resolution and picture quality of a
High Definition TV signal. It has a universal connection for
both analogue YPbPr and uncompressed Digital
connection of DVI or HDMI, supporting HDCP. It can
display 720p, and 1080i signals at 50 and 60Hz.
Digital Crystal Clear
Digital Crystal Clear is a package of picture innovations
that digitally adjusts and optimises picture quality to
optimal contrast, colour and sharpness levels. It's like
watching vivid cinema-like images.
Dynamic contrast enhancer
You want the LCD flat display with the highest contrast
and most vibrant images even at wide viewing angles. The
Philips dynamic contrast enhancer uses video processing
and unique dimming backlight technology. This delivers
deep rich black levels with increased detail. The dimming
backlight increases the contrast up to 5 times*, and at
the same time improves the viewing angle. It gives a
bright, lifelike picture with high contrast and vibrant
colours, (* factor between 2 and 5, screen type and
picture content dependant).
Virtual Dolby Surround
Virtual Dolby Surround is a processing technology for
enhancing surround sound effects. It will create the
sensation of Dolby Pro Logic without the necessity of
additional rear speakers. You become totally immersed in
your television experience.
Watch analogue, record digital
HDMI input
HDMI makes an uncompressed digital RGB connection
from the source to the screen. By eliminating conversion
to an analogue signal, it delivers an unblemished image.
The non-degraded signal reduces flicker and leads to a
clearer picture. HDMI intelligently communicates the
highest output resolution with the source device. The
HDMI input is fully backward compatible with DVI
sources but includes digital audio. HDMI uses HDCP
copy protection.
Issue date 2007-12-28
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 6.0.15
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 23238
EAN: 87 10895 94522 6
