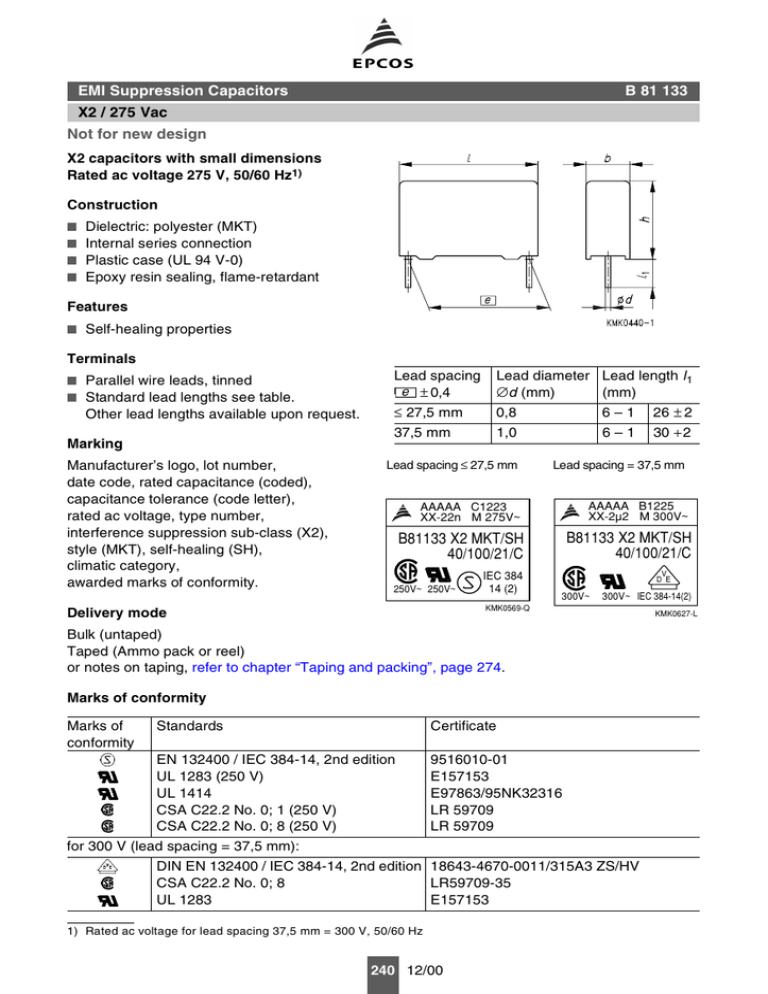

EMI Suppression Capacitors
B 81 133
X2 / 275 Vac
Not for new design
X2 capacitors with small dimensions
Rated ac voltage 275 V, 50/60 Hz1)
Construction
■
■
■
■
Dielectric: polyester (MKT)
Internal series connection
Plastic case (UL 94 V-0)
Epoxy resin sealing, flame-retardant
Features
■ Self-healing properties
Terminals
■ Parallel wire leads, tinned
■ Standard lead lengths see table.
Other lead lengths available upon request.
Marking
Manufacturer’s logo, lot number,
date code, rated capacitance (coded),
capacitance tolerance (code letter),
rated ac voltage, type number,
interference suppression sub-class (X2),
style (MKT), self-healing (SH),
climatic category,
awarded marks of conformity.
Lead spacing
± 0,4
Lead diameter Lead length l1
∅d (mm)
(mm)
≤ 27,5 mm
0,8
6–1
26 ± 2
37,5 mm
1,0
6–1
30 + 2
Lead spacing ≤ 27,5 mm
Lead spacing = 37,5 mm
AAAAA C1223
XX-22n M 275V~
AAAAA B1225
XX-2µ2 M 300V~
B81133 X2 MKT/SH
40/100/21/C
B81133 X2 MKT/SH
40/100/21/C
250V~ 250V~
IEC 384
14 (2)
V
D E
300V~
300V~ IEC 384-14(2)
KMK0569-Q
Delivery mode
Bulk (untaped)
Taped (Ammo pack or reel)
or notes on taping, refer to chapter “Taping and packing”, page 274.
Marks of conformity
Marks of
conformity
Standards
Certificate
EN 132400 / IEC 384-14, 2nd edition
UL 1283 (250 V)
UL 1414
CSA C22.2 No. 0; 1 (250 V)
CSA C22.2 No. 0; 8 (250 V)
9516010-01
E157153
E97863/95NK32316
LR 59709
LR 59709
for 300 V (lead spacing = 37,5 mm):
DIN EN 132400 / IEC 384-14, 2nd edition 18643-4670-0011/315A3 ZS/HV
CSA C22.2 No. 0; 8
LR59709-35
UL 1283
E157153
1) Rated ac voltage for lead spacing 37,5 mm = 300 V, 50/60 Hz
240 12/00
KMK0627-L
B 81 133
X2
275 Vac
Not for new design
Ordering codes and packing units
Maximum
dimensions
b×h×l
(mm)
Ordering code1)
Packing units (pcs)
Ammo Reel
Untaped
pack
Lead length
6 mm
26 mm
Lead
spacing
± 0,4
mm
CR
15
22 nF
33 nF
47 nF
68 nF
0,10 µF
0,15 µF
22,5
0,10 µF 6,0 × 15,0 × 26,5
0,15 µF 7,0 × 16,0 × 26,5
0,22 µF 8,5 × 16,5 × 26,5
0,33 µF 10,5 × 16,5 × 26,5
0,47 µF 11,0 × 20,5 × 26,5
B81133-C1104-M***
B81133-C1154-M***
B81133-C1224-M***
B81133-D1334-M***
B81133-D1474-M***
27,5
0,33 µF
0,47 µF
0,68 µF
1,0 µF
1,5 µF
B81133-C1334-M***
B81133-C1474-M***
B81133-C1684-M***
B81133-C1105-M***
B81133-C1155-M***
37,52)
2,2 µF 18,0 × 32,5 × 41,5 B81133-B1225-M*** —
5,0 × 10,5 × 18,0
5,0 × 10,5 × 18,0
6,0 × 11,0 × 18,0
7,0 × 12,5 × 18,0
8,5 × 14,5 × 18,0
8,5 × 14,5 × 18,0
11,0 × 21,0 × 31,5
11,0 × 21,0 × 31,5
12,5 × 21,5 × 31,5
14,0 × 24,5 × 31,5
18,0 × 27,5 × 31,5
B81133-C1223-M*** 1170
B81133-C1333-M*** 1170
B81133-C1473-M*** 960
B81133-C1683-M*** 830
B81133-D1104-M*** 680
B81133-D1154-M*** 680
680
580
480
390
370
—
—
—
—
—
Capacitance tolerance: ± 20 % =ˆ M (closer tolerances upon request)
1) Replace the *** by the code number for the required lead length or packing.
000 = lead length 6 mm (untaped)
026 = lead length 26 mm (untaped)
289 = taped, Ammo pack
189 = taped, reel
2) Rated ac voltage for lead spacing 37,5 mm = 300 V, 50/60 Hz
241 12/00
1300
1300
1100
900
700
700
1000
1000
1000
1000
500
500
1000
1000
1000
800
500
500
700
600
500
400
350
720
630
510
540
510
500
500
450
350
300
350
350
300
250
—
320
320
280
260
200
200
200
200
150
100
90
70
—
X2
B 81 133
275 Vac
Not for new design
Technical data
Climatic category
in accordance with IEC 60068-1
40/100/21
Lower category temperature Tmin
Upper category temperature Tmax
− 40 °C
+ 100 °C
Passive flammability category
in acc. with IEC 40 (CO) 752
C
Damp heat test
21 days/40 °C/93 % relative humidity
Limit values after damp
heat test
Capacitance change |∆C/C|
Dissipation factor change ∆ tan δ
Insulation resistance Ris
or time constant τ = C R ⋅ Ris
Permissible
continuous ac voltage
275 V (50/60 Hz)
≤5%
≤ 5 ⋅ 10−3 (at 1 kHz)
≥ 50 % of minimum
as-delivered values
Permissible continuous dc voltage 630 V
DC test voltage
Dissipation factor tan δ (in 10−3)
at 20 °C
(upper limit values)
Insulation resistance R is
or time constant τ = CR ⋅ R is
at 20 °C, rel. humidity ≤ 65 %
(minimum as-delivered values)
1800 V, 2 s
at
CR ≤ 0,1 µF 0,1 µF < CR ≤ 1 µF
1 kHz 8
8
10 kHz 15
15
100 kHz 30
–
CR ≤ 0,33 µF
30 000 MΩ
C R > 0,33 µF
10 000 s
Impedance Z
versus frequency f
(typical values)
242 12/00
C R > 1 µF
10
–
–
B 81 133
X2
275 Vac
Not for new design
Pulse handling capability
Maximum permissible voltage change per unit of time for non-sinusoidal voltages (pulse, sawtooth).
VR
275 Vac
Max. rate of voltage rise V pp/τ in V/µs (for V pp = V̂R)
Lead spacing
15 mm
22,5 mm
27,5 mm
37,5 mm
60
30
20
8
For V pp < V̂R, the permissible voltage rise rate Vpp/τ may be multiplied by the factor V̂R/V pp.
Also refer to the calculation example in chapter “General technical information”, page 302.
VR
275 Vac
Pulse characteristic k 0 in V2/µs (for V pp ≤ V̂R)
Lead spacing
15 mm
22,5 mm
27,5 mm
37,5 mm
45 000
20 000
12 000
55 000
243 12/00
