g7L630-b1

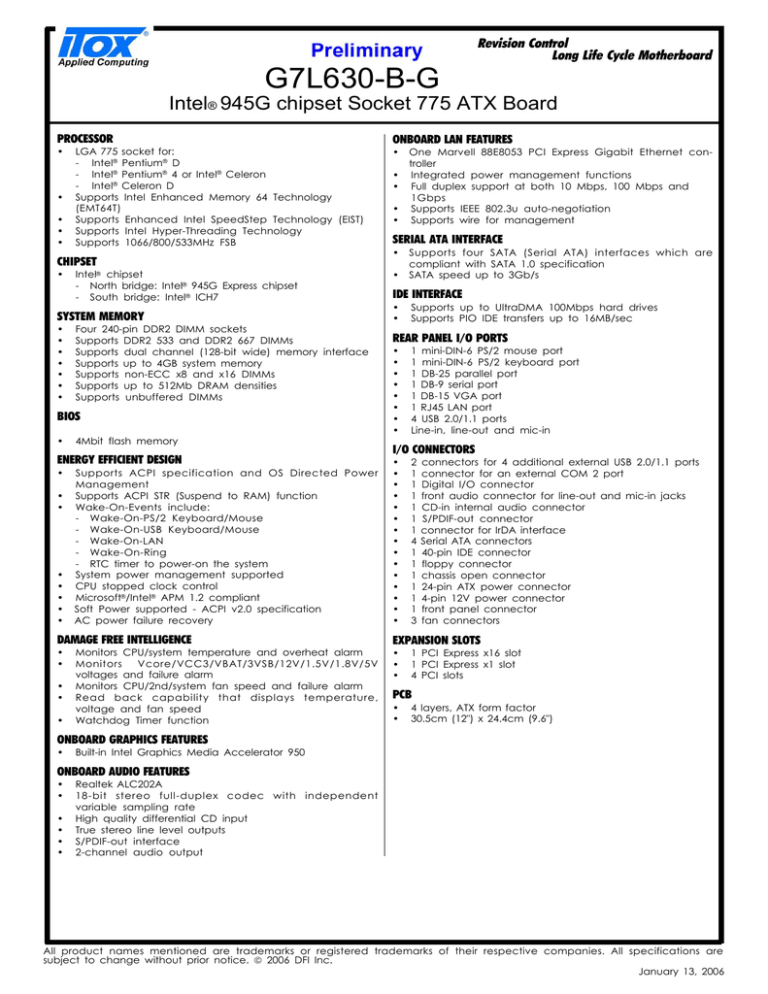

G7L630-B-G
Revision Control
Long Life Cycle Motherboard
Intel® 945G chipset Socket 775 ATX Board
PROCESSOR
•
•
•
•
•
LGA 775 socket for:
- Intel® Pentium® D
- Intel® Pentium® 4 or Intel® Celeron
- Intel® Celeron D
Supports Intel Enhanced Memory 64 Technology
(EMT64T)
Supports Enhanced Intel SpeedStep Technology (EIST)
Supports Intel Hyper-Threading Technology
Supports 1066/800/533MHz FSB
CHIPSET
•
Intel chipset
- North bridge: Intel® 945G Express chipset
- South bridge: Intel® ICH7
®
SYSTEM MEMORY
•
•
•
•
•
•
•
Four 240-pin DDR2 DIMM sockets
Supports DDR2 533 and DDR2 667 DIMMs
Supports dual channel (128-bit wide) memory interface
Supports up to 4GB system memory
Supports non-ECC x8 and x16 DIMMs
Supports up to 512Mb DRAM densities
Supports unbuffered DIMMs
BIOS
•
4Mbit flash memory
ENERGY EFFICIENT DESIGN
•
•
•
•
•
•
•
•
Supports ACPI specification and OS Directed Power
Management
Supports ACPI STR (Suspend to RAM) function
Wake-On-Events include:
- Wake-On-PS/2 Keyboard/Mouse
- Wake-On-USB Keyboard/Mouse
- Wake-On-LAN
- Wake-On-Ring
- RTC timer to power-on the system
System power management supported
CPU stopped clock control
Microsoft®/Intel® APM 1.2 compliant
Soft Power supported - ACPI v2.0 specification
AC power failure recovery
DAMAGE FREE INTELLIGENCE
•
•
•
•
•
Monitors CPU/system temperature and overheat alarm
Monitors
Vcore/VCC3/VBAT/3VSB/12V/1.5V/1.8V/5V
voltages and failure alarm
Monitors CPU/2nd/system fan speed and failure alarm
Read back capability that displays temperature,
voltage and fan speed
Watchdog Timer function
ONBOARD LAN FEATURES
•
•
•
•
•
One Marvell 88E8053 PCI Express Gigabit Ethernet controller
Integrated power management functions
Full duplex support at both 10 Mbps, 100 Mbps and
1Gbps
Supports IEEE 802.3u auto-negotiation
Supports wire for management
SERIAL ATA INTERFACE
•
•
Supports four SATA (Serial ATA) interfaces which are
compliant with SATA 1.0 specification
SATA speed up to 3Gb/s
IDE INTERFACE
•
•
Supports up to UltraDMA 100Mbps hard drives
Supports PIO IDE transfers up to 16MB/sec
REAR PANEL I/O PORTS
•
•
•
•
•
•
•
•
1 mini-DIN-6 PS/2 mouse port
1 mini-DIN-6 PS/2 keyboard port
1 DB-25 parallel port
1 DB-9 serial port
1 DB-15 VGA port
1 RJ45 LAN port
4 USB 2.0/1.1 ports
Line-in, line-out and mic-in
I/O CONNECTORS
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
2
1
1
1
1
1
1
4
1
1
1
1
1
1
3
connectors for 4 additional external USB 2.0/1.1 ports
connector for an external COM 2 port
Digital I/O connector
front audio connector for line-out and mic-in jacks
CD-in internal audio connector
S/PDIF-out connector
connector for IrDA interface
Serial ATA connectors
40-pin IDE connector
floppy connector
chassis open connector
24-pin ATX power connector
4-pin 12V power connector
front panel connector
fan connectors
EXPANSION SLOTS
•
•
•
1 PCI Express x16 slot
1 PCI Express x1 slot
4 PCI slots
PCB
•
•
4 layers, ATX form factor
30.5cm (12") x 24.4cm (9.6")
ONBOARD GRAPHICS FEATURES
•
Built-in Intel Graphics Media Accelerator 950
ONBOARD AUDIO FEATURES
•
•
•
•
•
•
Realtek ALC202A
18-bit stereo full-duplex codec with independent
variable sampling rate
High quality differential CD input
True stereo line level outputs
S/PDIF-out interface
2-channel audio output
All product names mentioned are trademarks or registered trademarks of their respective companies. All specifications are
subject to change without prior notice. © 2006 DFI Inc.
January 13, 2006
Revision Control
Long Life Cycle Motherboard
Intel
®
G5M100-N
855GME Socket 479 Mini Board
PROCESSOR
LFP (Local Flat Panel) LVDS INTERFACE
•
•
•
Intel® Pentium® M / Celeron® M processor (478-pin)
- 400MHz system bus
- Supports 64-bit host data bus and 32-bit addressing
Processor socket: mPGA479M
CHIPSET
•
Intel® 855GME chipset
- Intel ® 855GME Graphics Memory Controller Hub
(GMCH)
- Intel® 82801DB I/O Controller Hub (ICH4)
•
Single- or dual-channel LVDS panel support up to UXGA
panel resolution with frequency range from 25MHz to
112MHz (single/dual channel)
Integrated PWM interface for LCD backlight inverter
control
ONBOARD AUDIO FEATURES
•
•
Realtek ALC202A
18-bit stereo full-duplex codec with independent
variable sampling rate
High quality differential CD input
True stereo line level outputs
S/PDIF-out interface
2-channel audio output
SYSTEM MEMORY
•
•
•
•
•
ONBOARD LAN FEATURES
•
•
Two 184-pin DDR SDRAM DIMM sockets
2.5V unbuffered PC1600 (DDR200), PC2100 (DDR266) or
PC2700 (DDR333) DDR SDRAM DIMM with ECC support
Supports 128Mbit, 256Mbit and 512Mbit technologies providing maximum capacity of 1GB with x16 devices and
up to 2GB with high density 512Mbit technology
•
BIOS
•
•
Award BIOS
4Mbit flash memory
ENERGY EFFICIENT DESIGN
•
•
•
•
•
•
•
•
•
Supports ACPI specification and OS Directed Power
Management
Supports ACPI STR (Suspend to RAM) function
Wake-On-Events include:
- Wake-On-PS/2 Keyboard/Mouse
- Wake-On-USB Keyboard
- Wake-On-LAN
- Wake-On-Ring
- RTC timer to power-on the system
System power management supported
CPU stopped clock control
Hardware supports SMI green mode
Microsoft®/Intel® APM 1.2 compliant
Soft Power supported - ACPI v1.0a specification
AC power failure recovery
•
Intel 82562EM fast ethernet controller
- Basic 10/100 Client Connection
- IEEE 802.3, 10BASE-T/100BASE-TX compliant physical
layer interface
- IEEE 802.3u Auto-Negotiation
- 48-pin SSOP, 3.3V device
Intel 82551QM fast ethernet controller
- Integrated IEEE 802.3, 10BASE-T and 100BASE-TX compatible PHY
- Glueless 32-bit PCI master interface
- Glueless CardBus master interface
- 128 Kbyte Flash interface
- Thin BGA 15 mm2 package
IDE INTERFACE
•
•
Supports up to UltraDMA 100Mbps hard drives
PIO Mode 4 Enhanced IDE (data transfer rate up to
14MB/sec.)
REAR PANEL I/O PORTS
DAMAGE FREE INTELLIGENCE
•
•
•
•
•
•
•
•
•
I/O CONNECTORS
•
•
•
Monitors CPU/system temperature and overheat alarm
Monitors 5VSB(V)/VBAT(V)/±5V/±12V/CPU(V) voltages and
failure alarm
Monitors CPU/chassis/2nd fan speed and failure alarm
Read back capability that displays temperature,
voltage and fan speed
Watchdog timer function
ONBOARD GRAPHICS FEATURES
•
•
•
•
•
•
•
Up to 64MB of dynamic video memory allocation
Display core frequency at 133/200/250MHz
Render core frequency at 100/133/166/200/250MHz
Intel® Dual-Frequency Graphics Technology
2D graphics engine
- Optimized 128-bit BLT engine
- 32-bit Alpha Blended cursor
- 8-bit, 16-bit and 32-bit color
3D graphics engine
- Enhanced Hardware Binning Instruction Set
- Bi-Cubic Filtering
- Linear Gamma Blending for Video Mixer Rendering (VMR)
- Video Mixer Rendering (VMR)
- 3D setup and render engine
- DirectX and OpenGL pixelization rules
- 266-MegaTexel/s peak performance
- 16- and 24-bit Z-buffering; 16- and 24-bit W-buffering
- Optimal 3D resolution
- Double and triple render buffer
Graphics Power Management
- Dynamic Frequency Switching
- Memory Self-Refresh During C3
- Intel® Display Power Saving Technology
•
•
•
•
•
•
•
•
•
•
•
•
•
•
4 USB 2.0/1.1 ports
2 RJ45 LAN ports
3 DB-9 serial ports
1 DB-15 VGA port
1 mini-DIN-6 PS/2 mouse port
1 mini-DIN-6 PS/2 keyboard port
Line-out, line-in and mic-in
1
1
1
1
1
1
1
1
1
1
1
1
1
3
connector for 2 additional external USB 2.0/1.1 ports
connector for LCD brightness control
connector for LVDS LCD panel
connector for LCD power
front audio connector for line-out and mic-in jacks
CD-in internal audio connector
S/PDIF-out connector
connector for IrDA interface
40-pin IDE 1 connector for 3.5" HDD
44-pin IDE 2 connector for 2.5" HDD (2.0 pitch)
floppy connector (FPC type)
ATX power supply connector
Wake-On-LAN connector
fan connectors
EXPANSION SLOTS
•
•
1 PCI slot for PCI expansion card or customized riser
card for 1, 2 or 3 PCI slots expansion (for low profile PCI
card only)
1 mini PCI socket (124-pin)
COMPATIBILITY
• PCI 2.2 and AC ’97 compliant
PCB
•
•
6 layers, mini board (Mini-ITX compatible)
17cm (6.7") x 17cm (6.7")
DISPLAY
•
•
Dedicated LFP (Local Flat Panel) interface
- Supports data format up to 24-bpp
Analog display
- 350MHz integrated 24-bit RAMDAC
- Pixel resolution up to 1600x1200 at 85Hz and up to
2048x1536 at 75Hz
All product names mentioned are trademarks or registered trademarks of their respective companies. All specifications are
subject to change without prior notice.  2005 DFI Inc.
January 25, 2005
