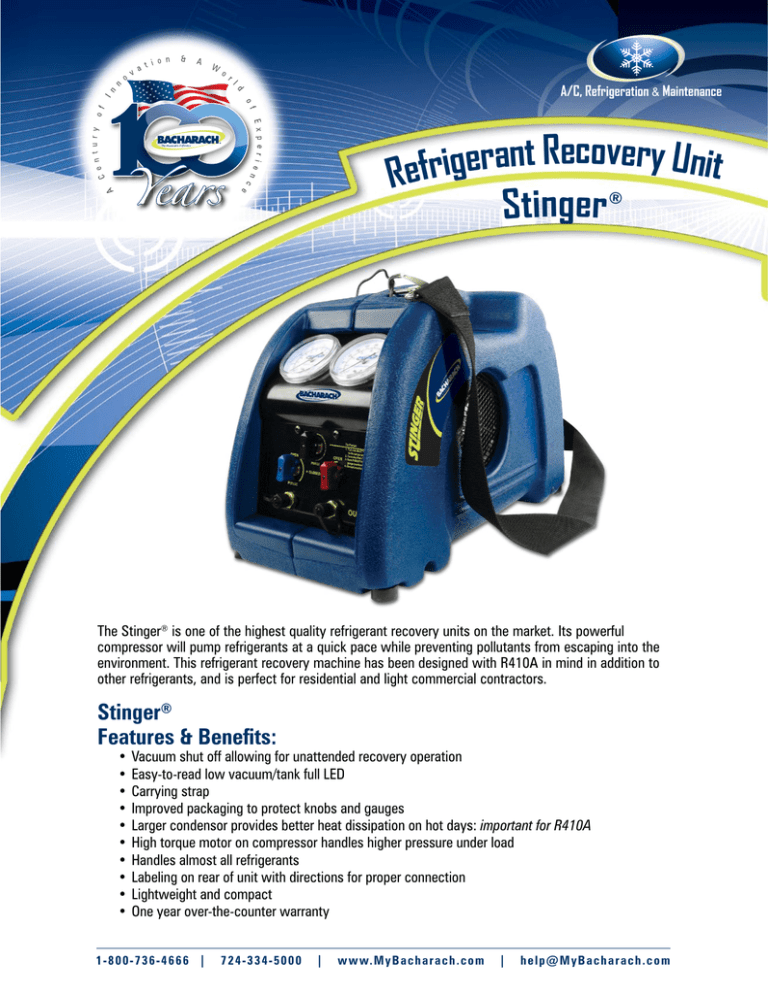

S tin g e r ®
The Stinger® is one of the highest quality refrigerant recovery units on the market. Its powerful
compressor will pump refrigerants at a quick pace while preventing pollutants from escaping into the
environment. This refrigerant recovery machine has been designed with R410A in mind in addition to
other refrigerants, and is perfect for residential and light commercial contractors.
Stinger®
Features & Benefits:
•Vacuum shut off allowing for unattended recovery operation
•Easy-to-read low vacuum/tank full LED
•Carrying strap
•Improved packaging to protect knobs and gauges
•Larger condensor provides better heat dissipation on hot days: important for R410A
•High torque motor on compressor handles higher pressure under load
•Handles almost all refrigerants
•Labeling on rear of unit with directions for proper connection
•Lightweight and compact
•One year over-the-counter warranty
1-800-736-4666 |
724-334-5000
|
w w w. M y B a c h a r a c h . c o m
|
[email protected]
Stinger® Specifications
“The Stinger has earned the trusted AHRI Performance
Certified™ seal, an assurance of the product’s
performance in accordance with ARI Standard 740.”
The new Stinger comes equipped
with the new vacuum shut off
allowing for unattended recovery
operation, an easy-to-read low
vacuum/tank full LED, carrying
strap, and improved packaging
to protect knobs and gauges.
Providing you with new safety
and reliability, the upgraded
Stinger® is capable of recovering
all commonly used* CFC, HFC
and HCFC refrigerants, including
R410A (Puron™). The unit is
easy to operate and is ideal for
evacuating both residential and
light commercial systems. A
simple purge system prevents
cross contamination of refrigerants
without changing a hose.
®
*Not for use with R11, R113 or R123
Refrigerants:
R12, R22, R114, R134A, R401A, R401B, R401C, R402A, R402B, R404A, R406A, R407A, R407B, R-07C, R407D, R408A, R409A, R410A, R411A, R411B, R412A, R500A, R502B, R507, R509
Compressor Type:
3/4 HP High Performance Oil-less
Vacuum Rating:
15” Hg+
High Pressure Limit:
550 PSI (37.9 bar)
R22 Recovery Rates:
Vapor Recovery Rate: 0.24 lbs./min. (0.11 kg/min.)
Liquid Recovery Rate: 4.36 lbs./min. (1.98 kg/min.) Liquid Push / Pull: 13.45 lbs./min. (6.10 kg/min.)
Refrigerant 134A:
Vapor Recovery Rate: 0.24 lbs./min. (0.11 kg/min.) Liquid Recovery Rate: 3.44 lbs./min. (1.57 kg/min.) Liquid Push / Pull: 10.96 lbs./min. (5.10 kg/min.)
Refrigerant 410A:
Vapor Recovery Rate: 0.31 lbs./min. (0.14 kg/min.)
Liquid Recovery Rate: 3.25 lbs./min. (1.48 kg/min.) Liquid Push / Pull: 16.29 lbs./min. (7.39 kg/min.)
Auto 80% Tank
Shut-Off:
Optional
Dimensions:
17”L x 9.5”W x 11”H (43.18cm x 24.13cm x 27.94cm)
Weight:
28 lbs (12.7 kg)
Operating Temperature
Range:
32o to 104o F (0o to 40o C)
Power:
110/120 VAC, 1 Phase, 50/60 Hz, 8 Amps
230 VAC, 1 Phase, 50/60 Hz, 5 or 10 Amps
Approvals:
Complies with UL 1963; Certified per AHRI 740-95 and 740-98
Warranty:
One year over-the-counter warranty
Stinger® Ordering Information
2006-3800 Stinger® Domestic 120V
2006-3801 Stinger® Domestic 120V w/80% Shut-off Kit
2006-3820 Stinger® European 220-230V with CEE 7/7 plug
2006-3821Stinger® European 220-230V with NEMA 5-15 plug
2006-3811Stinger® European 220-230V with 80% Shut-off Kit (with pigtail plug only)
2006-3808 Stinger® Australian 240V with Aus. plug
2090-0091
Optional 80% Shut Off-Kit
