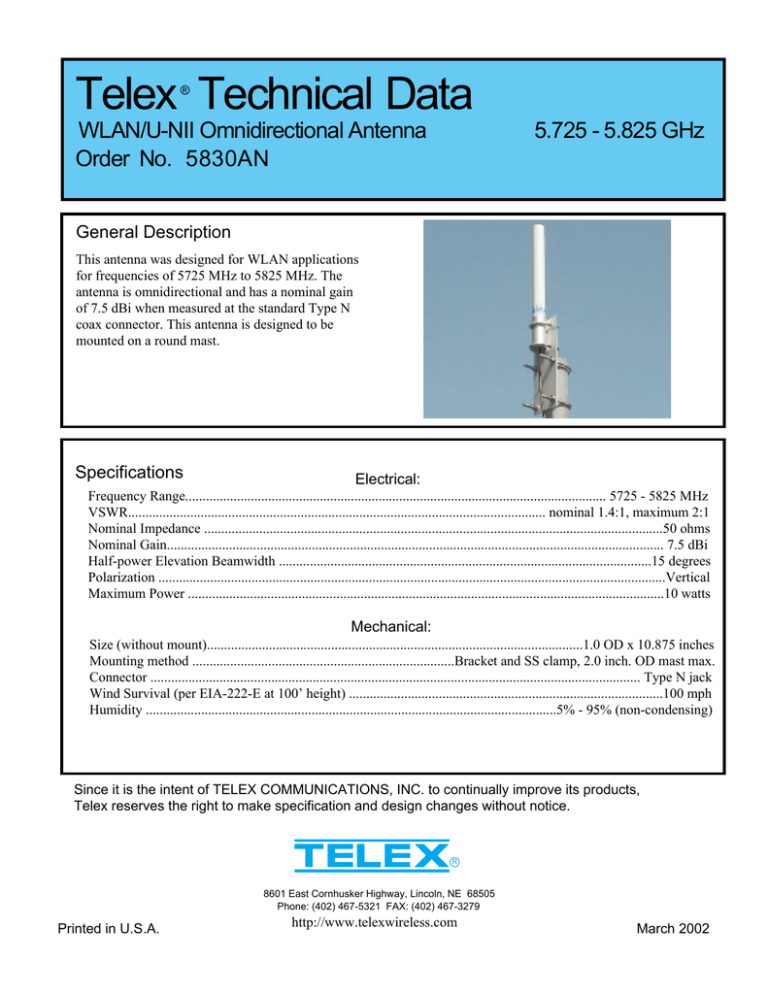

Telex Technical Data
®
WLAN/U-NII Omnidirectional Antenna
Order No. 5830AN
5.725 - 5.825 GHz
General Description
This antenna was designed for WLAN applications
for frequencies of 5725 MHz to 5825 MHz. The
antenna is omnidirectional and has a nominal gain
of 7.5 dBi when measured at the standard Type N
coax connector. This antenna is designed to be
mounted on a round mast.
Specifications
Electrical:
Frequency Range.......................................................................................................................... 5725 - 5825 MHz
VSWR......................................................................................................................... nominal 1.4:1, maximum 2:1
Nominal Impedance .....................................................................................................................................50 ohms
Nominal Gain................................................................................................................................................ 7.5 dBi
Half-power Elevation Beamwidth ............................................................................................................15 degrees
Polarization ...................................................................................................................................................Vertical
Maximum Power ..........................................................................................................................................10 watts
Mechanical:
Size (without mount).............................................................................................................1.0 OD x 10.875 inches
Mounting method ............................................................................Bracket and SS clamp, 2.0 inch. OD mast max.
Connector .............................................................................................................................................. Type N jack
Wind Survival (per EIA-222-E at 100’ height) ...........................................................................................100 mph
Humidity .......................................................................................................................5% - 95% (non-condensing)
Since it is the intent of TELEX COMMUNICATIONS, INC. to continually improve its products,
Telex reserves the right to make specification and design changes without notice.
R
8601 East Cornhusker Highway, Lincoln, NE 68505
Phone: (402) 467-5321 FAX: (402) 467-3279
Printed in U.S.A.
http://www.telexwireless.com
March 2002
