HP Compaq t5500 Thin Client

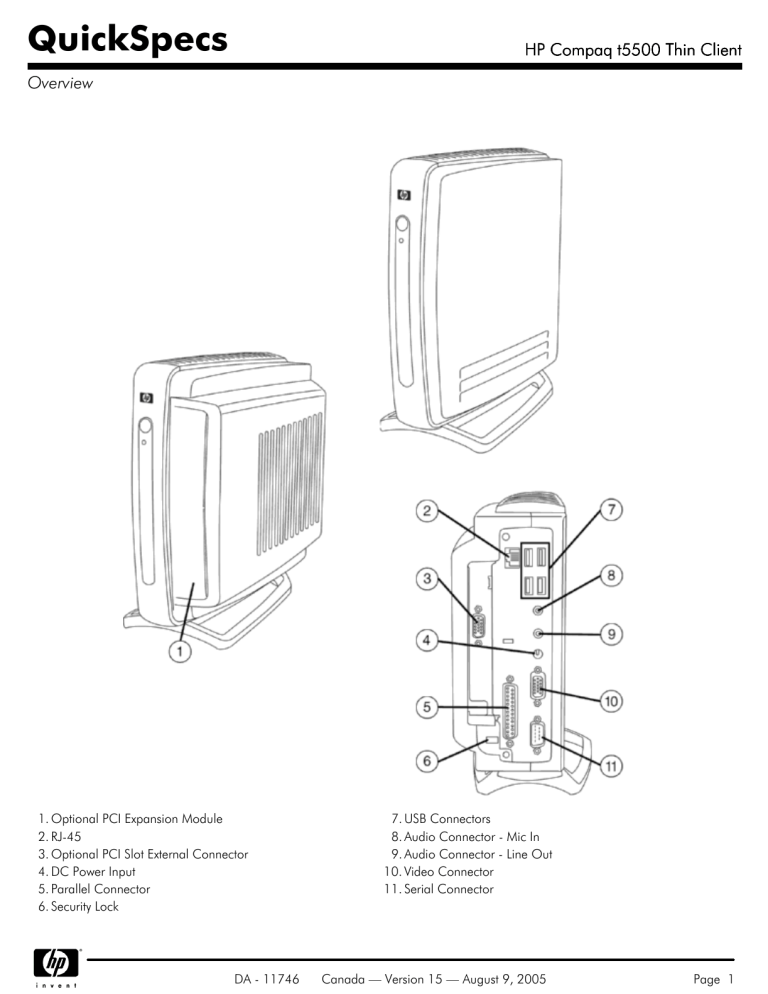

QuickSpecs
HP Compaq t5500 Thin Client
Overview
1. Optional PCI Expansion Module
2. RJ-45
3. Optional PCI Slot External Connector
4. DC Power Input
5. Parallel Connector
6. Security Lock
DA - 11746
7. USB Connectors
8. Audio Connector - Mic In
9. Audio Connector - Line Out
10. Video Connector
11. Serial Connector
Canada — Version 15 — August 9, 2005
Page 1
QuickSpecs
HP Compaq t5500 Thin Client
Overview
At A Glance
Simplified IT management for the enterprise.
Upgraded features and legacy support for mainstream corporate use
Helps lower ownership costs and increase resource efficiency for each end-user
733 MHz processor
Powerful, discrete graphics
128 MB of DDR SDRAM standard
Optional PCI Expansion Module
Broad range of support for options and peripherals
Microsoft® Windows®CE .NET operating system
Protected by Hewlett-Packard Services, including a limited three-year warranty – Certain restrictions and exclusions apply. For
details, consult the Product Information Centre at 1-888-882-6672.
DA - 11746
Canada — Version 15 — August 9, 2005
Page 2
QuickSpecs
HP Compaq t5500 Thin Client
Standard Features - Models
DC641A#ABA
Processor
Flash (ROM)
Memory
Operating System
Browser
Client Management
Software
Terminal Personalities
Standard
DA - 11746
Transmeta Crusoe TM5800 733 MHz
32 MB
128 MB DDR SDRAM (NOTE:
NOTE: 16 MB of system RAM is reserved for
processor usage.)
Microsoft Windows CE .NET v4.20
Internet Explorer 6.0
Altiris Deployment Solution
Yes
Canada — Version 15 — August 9, 2005
Page 3
QuickSpecs
HP Compaq t5500 Thin Client
Options
Monitors
Security
HP L1502 15-inch TFT Flat Panel Monitor – Analog only
HP L1702 17-inch TFT Flat Panel Monitor – Analog only
HP L1530 15-inch TFT Flat Panel Monitor – Analog/Digital & Multimedia
HP L1730 17-inch TFT Flat Panel Display – Analog/Digital & Multimedia
HP L1925 19-inch TFT Flat Panel Display – Analog/Digital
HP L2035 20-inch TFT Flat Panel Display
HP v7550 17-inch (16.0-inch vis) Flat-face CRT Monitor
HP s9500 19-inch (18.0-inch vis) CRT Monitor
HP s7500 17-inch (16.0-inch vis) CRT Monitor
HP s5500 15-inch (13.8-inch vis) CRT Monitor
HP p930 19-inch (18.0-inch vis) Performance Natural-flat CRT Monitor
3000 Series Elo Entuitive 1725C 17-inch CRT Touchmonitor (USB)
(http://www.elotouch.com)**
3000 Series Elo Entuitive 1525L 15-inch LCD Desktop Touchmonitor (USB)
(http://www.elotouch.com)**
P9617D#ABA
P9621D#ABA
P9624A#ABA
P9625A#ABA
P9626A#ABA
P9614A#ABA
P9013A#ABA
P9010A#ABA
P9008A#ABA
P9006A#ABA
P9009D#ABA
ET1725C-4UWE-3
Compaq Security Lock
294316-B21;
DC368A
BTU-200-ML5-300
Identix BioTouch USB 200 Fingerprint Scanner (http://www.identix.com)**
Storage
HP 128-MB Disk on Key
HP 256-MB Disk on Key
Compaq External MultiBay
Compaq MultiBay 1.44-MB Diskette Drive (requires External MultiBay)
Compaq MultiBay 60-GB Hard Drive (requires External MultiBay)
Compaq MultiBay 24X CD-ROM Drive (requires External MultiBay)
Communications
Connectivity
HP PCI Expansion Module with Riser Card (supports single PCI device, sold
separately)
HP WL220 Wireless PCI Adapter (requires PCI Expansion Module)
Zoom 2985 USB 56K External Modem from Zoom (http://www.zoom.com)**
HP Wireless USB Mouse and Keyboard
DA - 11746
Canada — Version 15 — August 9, 2005
ET1525L-BUWC-1
DC190B
DL973B
217388-001;
DC373A
226935-B25;
DC362A
278420-B25;
DC894A
298452-B25;
DC351A
DE961A
DC756B
2985-00-00C
300403-008
Page 4
QuickSpecs
HP Compaq t5500 Thin Client
Options
Printers
HP DeskJet 5550 (USB and parallel)
HP DeskJet 6122 (USB and parallel)
HP LaserJet 1200SE (USB and parallel)
HP DeskJet 3820 (USB and parallel)
C6487C
C8954B
C7047A
C8952A
Accessories
40-W AC Adapter
Mounting Bracket
DZ991A
DY928A
HP Care Pack Services
Pick Up & Return, CPU only, 4 yrs
Pick Up & Return, CPU only, 5 yrs
Next Day Exchange, HW Support, CPU only, 3 yrs
Next Day Onsite Response, 3 yrs
Next Day Onsite Response, 4 yrs
Next Day Onsite Response, 5 yrs
Next Business Day Onsite, HW Support, CPU Only, 4 yrs
Next Business Day Onsite, HW Support, CPU Only, 5 yrs
Next Day Exchange HW Support, CPU only, 4 yrs
Next Day Exchange HW Support, CPU only, 5 yrs
Post Warranty Service, Return to Depot, HW Support, CPU only
Post Warranty Service Next Day Exchange, HW Support, CPU only
Post Warranty Service, Return to HP
Post Warranty Service, Next Day Onsite, CPU Only
Installation for 2+ HP Desktop or Laptop; Basic, 1 yr
Installation for 1 HP Desktop or Laptop; Basic, 1 yr
**The warranties for HP or Compaq branded products are set forth in the express
limited warranty statements accompanying such products. Although these third-party
products may work effectively on HP or Compaq thin clients, HP does not support or
warrant third-party products, including the interoperability of such products with HP or
Compaq thin clients. However, third-party manufacturers and vendors may provide
their own warranties and support directly to you. Please contact the manufacturers
and vendors listed previously for support on their products.
DA - 11746
Canada — Version 15 — August 9, 2005
U9603E
U9602E
U4847E
U4849E
U7930E
U7932E
U7931E
U7933E
U7927E
U7929E
U6569PE
U4848PE
U6570PE
U4850PE
U7988E
U7987E
Page 5
QuickSpecs
HP Compaq t5500 Thin Client
Technical Specifications
Processor
Memory
Transmetta Crusoe TM5800 733 MHz
32 MB
Flash ROM
128 MB DDR SDRAM (NOTE:
NOTE: 16 MB of system RAM is reserved for
System Memory
processor usage.)
Graphics
ATI Rage XC with 8-MB SDRAM discrete graphics memory, VESA monitor support
Mode
Refresh Rates
Colour Depth
640 x 480
60, 70, 72, 75, or 80 Hz 8, 16, or 32-bit
800 x 600
60, 70, 72, 75, or 80 Hz 8, 16, or 32-bit
1024 x 768
60, 70, 72, 75, or 80 Hz 8, 16, or 32-bit
1280 x 1024
60, 70, 72, 75, or 80 Hz 8, 16, or 32-bit
1600 x 1200
60, 70, 72, or 75 Hz
8 or 16-bit
Input/Output/
Enhanced USB with Windows keys (104 keys) included
Keyboard
Peripheral Support
Scroll USB mouse included
Mouse
Local and/or network printers (RDP, ICA, LPD)
Printer
VGA-type video output (DB-15)
Video
Audio
Internal amplified speaker, 1/8-inch mini, full 16-bit stereo, 44-kHz sample
Output
rate
1/8-inch mini microphone
Input
Security
Security lock slot (cable lock sold separately)
Communications
Integrated Microsoft RDP 5.1 and Citrix ICA 6.3 for remote server access. Terminal personalities
standard
Networking
TCP/IP with DNS and DHCP support
10/100 BaseT Fast Ethernet, twisted pair (RJ-45)
Direct connection through RS-232, Point-to-Point Protocol (PPP), Point-to-Point over Ethernet (PPPoE),
Point-to-Point Tunneling Protocol (PPTP), Layer-2 Tunneling Protocol (L2TP)
Multiple master browser support on ICA
Supports Citrix load balancing on ICA
SNMP support allows configuration of terminal settings, reporting of terminal information and sending
traps
DHCP support for automatic firmware upgrades
Wake on LAN
PXE
I/O ports and connectors Four USB 1.1 ports, 1 serial, 1 parallel, RJ-45, 1 optional PCI
Resident Operating
Microsoft Windows CE .NET v4.20 with Internet Explorer 6.0
System
Server OS Compatibility/ Microsoft Windows NT Server 4.0, Windows NT Server 4.0 Terminal Services, Windows 2000 Server,
Support
Windows 2000 Server Terminal Services, Windows 2000 Advance Server, Windows 2000 Advance
Server Terminal Services, and Citrix MetaFrame (thin-client/server solution, built for Microsoft Windows
NT 4.0, Windows 2000 Server, and Windows 2000 Advanced Server Terminal Services)
DA - 11746
Canada — Version 15 — August 9, 2005
Page 6
QuickSpecs
HP Compaq t5500 Thin Client
Technical Specifications
Software Included
Microsoft Windows CE .NET v4.20 preinstalled
Microsoft Internet Explorer 6.0 preinstalled
Microsoft Windows Media Player 9.0 for CE .NET preinstalled
Altiris Deployment Solution (client agent) preinstalled. Altiris Deployment Solution (management console)
available as free download from Altiris at: http://www.altiris.com/hptc
JetCET Print Professional v3.01 preinstalled
Microsoft Windows Messenger v4.0 for CE
Terminal Emulation Software
Languages
English
Dimensions H x W x D
2.2 x 8.2 x 7.8 in (55 x 205 x 195 mm)
Without stand
(approximate)
9.2 x 4 x 7.8 in (230 x 100 x 195 mm)
With stand
3.2 x 8.2 x 8.28 in (80 x 205 x 207 mm)
With optional PCI
Expansion Module
nd without stand
9.2 x 4.2 x 8.28 in (230 x 105 x 207 mm)
With optional PCI
Expansion Module
and stand
Weight (approximate)
3.07 lb (1.39 kg)
With stand
3.29 lb (1.49 kg)
With optional PCI
Expansion Module and
stand
Environmental
32° to 104° F (0° to 40° C)
Temperature range on
-40° to 140° F (-40° to 60° C)
Temperature range off
20% to 80% condensing/10% to 95% non-condensing
Humidity
Worldwide auto-sensing 100-240 VAC, 50-60 Hz energy-saving automatic
Power
power-down
Regulatory Compliance Ergonomics
German ZH1/618; EN29241-3, approved
UL 1950, CSA 950; TÜV-GS (EN60 950) approved
Safety
FCC Class B; CE Mark; EN55022B; VCCI
RF Interference
Warranty
Three-year limited warranty
NOTE: Certain restrictions and exclusions apply. For details, consult the Product Information Centre at
1-888-882-6672.
Emulations and Terminal Emulation
Terminal ID
IDs Supported
ADDS A2
AIXTerm
ANSI BBS
AT 386
DG 410/412
HP 700-92/96
70092, 70094, 70096, 2392A, 2622A
HZ1500
IBM3151
Mod11, Mod31
IBM3270
3278-2 (24x80), 3278-3 (32x80), 3278-4 (43x80), 3278-5 (27x132),
3278-2-E (24x80), 3278-3-E (32x80), 3278-4-E (43x80), 3278-5-E
(27x132), 3279-2 (24x80), 3279-3 (32x80), 3279-4 (43x80), 3279-5
(27x132), 3287-1
IBM5250
5291-1, 5292-2, 5251-11, 3179-2, 3196-A1, 3180-2, 3477-FC
(27x132), 3477-FG (24x80), 3486-BA, 3487-HA, 3487-HC, 3812-1
DA - 11746
Canada — Version 15 — August 9, 2005
Page 7
QuickSpecs
HP Compaq t5500 Thin Client
Technical Specifications
SCO Console
TA6530
TVI910
TVI920
TVI925
TVI950
TVI955
VT52
VT100
VT500 7-bit
VT500 8-bit
VT100, VT101, VT102, VT125, VT131, VT132, M2200, VT220, VT240,
VT320, VT340, VT420, VT510, VT520, VT525
VT100, VT101, VT102, VT125, VT131, VT132, M2200, VT220, VT240,
VT320, VT340, VT420, VT510, VT520, VT525
VT100, VT101, VT102, VT125, VT131, VT132, M2200, VT220, VT240,
VT320, VT340, VT420, VT510, VT520, VT525
VT100, VT101, VT102, VT125, VT131, VT132, M2200, VT220, VT240,
VT320, VT340, VT420, VT510, VT520, VT525
VT PCTerm
Wyse PCTerm
WY50
WY50+
WY60
©Copyright 2005 Hewlett-Packard Development Company, L.P.
Microsoft, Windows, and Windows NT are trademarks and/or registered trademarks of Microsoft Corporation in the United States
and other countries.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products and services are set forth in the express limited warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 11746
Canada — Version 15 — August 9, 2005
Page 8
