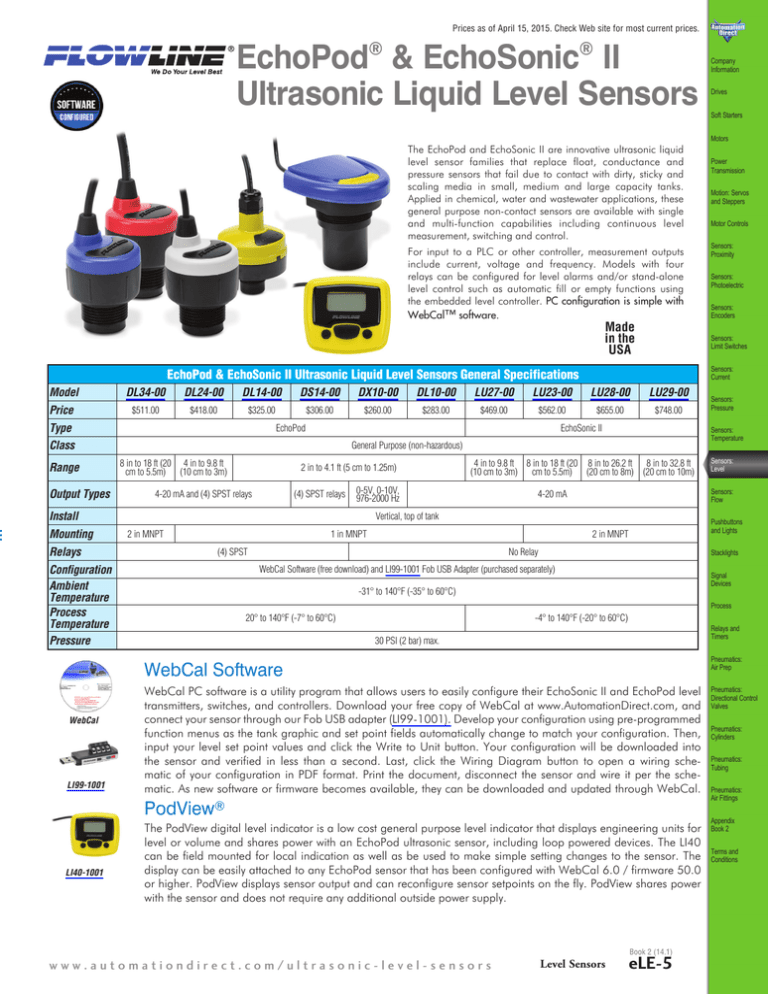

EchoPod® & EchoSonic® II
Ultrasonic Liquid Level Sensors
The EchoPod and EchoSonic II are innovative ultrasonic liquid
level sensor families that replace float, conductance and
pressure sensors that fail due to contact with dirty, sticky and
scaling media in small, medium and large capacity tanks.
Applied in chemical, water and wastewater applications, these
general purpose non-contact sensors are available with single
and multi-function capabilities including continuous level
measurement, switching and control.
For input to a PLC or other controller, measurement outputs
include current, voltage and frequency. Models with four
relays can be configured for level alarms and/or stand-alone
level control such as automatic fill or empty functions using
the embedded level controller. PC configuration is simple with
WebCal™ software.
Company
Information
Drives
Soft Starters
Motors
Power
Transmission
Motion: Servos
and Steppers
Motor Controls
Sensors:
Proximity
Sensors:
Photoelectric
Sensors:
Encoders
Sensors:
Limit Switches
Sensors:
Current
EchoPod & EchoSonic II Ultrasonic Liquid Level Sensors General Specifications
Model
DL34-00
DL24-00
DL14-00
DS14-00
DX10-00
DL10-00
LU27-00
LU23-00
LU28-00
LU29-00
Price
$511.00
$418.00
$325.00
$306.00
$260.00
$283.00
$469.00
$562.00
$655.00
$748.00
Type
EchoPod
EchoSonic II
Class
Range
Output Types
2 in to 4.1 ft (5 cm to 1.25m)
4-20 mA and (4) SPST relays
(4) SPST relays
Relays
4 in to 9.8 ft 8 in to 18 ft (20 8 in to 26.2 ft 8 in to 32.8 ft
(10 cm to 3m) cm to 5.5m) (20 cm to 8m) (20 cm to 10m)
0-5V, 0-10V,
976-2000 Hz
Install
Mounting
Sensors:
Temperature
General Purpose (non-hazardous)
8 in to 18 ft (20 4 in to 9.8 ft
cm to 5.5m) (10 cm to 3m)
1 in MNPT
Pushbuttons
and Lights
2 in MNPT
(4) SPST
Configuration
Ambient
Temperature
Process
Temperature
Pressure
No Relay
Stacklights
WebCal Software (free download) and LI99-1001 Fob USB Adapter (purchased separately)
Signal
Devices
-31° to 140°F (-35° to 60°C)
Process
20° to 140°F (-7° to 60°C)
-4° to 140°F (-20° to 60°C)
Relays and
Timers
30 PSI (2 bar) max.
Pneumatics:
Air Prep
WebCal Software
WebCal
LI99-1001
WebCal PC software is a utility program that allows users to easily configure their EchoSonic II and EchoPod level
transmitters, switches, and controllers. Download your free copy of WebCal at www.AutomationDirect.com, and
connect your sensor through our Fob USB adapter (LI99-1001). Develop your configuration using pre-programmed
function menus as the tank graphic and set point fields automatically change to match your configuration. Then,
input your level set point values and click the Write to Unit button. Your configuration will be downloaded into
the sensor and verified in less than a second. Last, click the Wiring Diagram button to open a wiring schematic of your configuration in PDF format. Print the document, disconnect the sensor and wire it per the schematic. As new software or firmware becomes available, they can be downloaded and updated through WebCal.
PodView®
LI40-1001
Sensors:
Level
Sensors:
Flow
4-20 mA
Vertical, top of tank
2 in MNPT
Sensors:
Pressure
The PodView digital level indicator is a low cost general purpose level indicator that displays engineering units for
level or volume and shares power with an EchoPod ultrasonic sensor, including loop powered devices. The LI40
can be field mounted for local indication as well as be used to make simple setting changes to the sensor. The
display can be easily attached to any EchoPod sensor that has been configured with WebCal 6.0 / firmware 50.0
or higher. PodView displays sensor output and can reconfigure sensor setpoints on the fly. PodView shares power
with the sensor and does not require any additional outside power supply.
Book 2 (14.1)
www.automationdirect.com/ultrasonic-level-sensors
Level Sensors
eLE-5
Pneumatics:
Directional Control
Valves
Pneumatics:
Cylinders
Pneumatics:
Tubing
Pneumatics:
Air Fittings
Appendix
Book 2
Terms and
Conditions
Prices as of April 15, 2015. Check Web site for most current prices.
EchoSonic II LU Series Ultrasonic
Liquid Level Transmitters
Overview
Features
• Continuous level measurement up to 9.8 ft (3m), 18 ft (5.5m), 26.2 ft
(8m) or 32.8 ft (10m)
• DSP auto adaptive filters enable plug and play operation
optimizing signal output filtering and obstacle recognition
• Configuration is fast and easy via WebCal software and USB adapter
• Narrow 2 inch or 3 inch beam width for applications with limited
measurement space
• Short 4 inch or 8 inch dead band maximizes the measurable
filling capacity of the tank
• PVDF transducer and NEMA Type 6P polycarbonate enclosure for
corrosive liquids, UV stable for outdoor use
• Automatic temperature compensation for accurate measurement
• Made in the USA
The EchoSonic II LU Series ultrasonic liquid level transmitters provide continuous level measurement up to 9.8 ft (3m),
18 ft (5.5m), 26.2 ft (8m) or 32.8 ft (10m), with a 4-20mA
signal output, and are configured via WebCal software. This
non-contact liquid level sensor is ideally suited for corrosive,
ultrapure, sticky or dirty liquids, and is broadly selected for bulk
storage, dry tank, lift station and process tank level applications.
Agency Approvals
• cFMus
Part No. LU27
Part No. LU23/28/29
LU20 Series Technical Specifications
Model
Price
Range
Accuracy
Resolution
Sensing Dead Band*
Beam Width
Configuration
Memory
Loop Supply Voltage
Consumption
Loop Resist
Signal Output
Signal Invert
Signal Fail-Safe
Process Temperature
Temp. Compensation
Ambient Temperature
Pressure
Enclosure Rating
Enclosure Material
Transducer Material
Cable Jacket Material
Cable Type
Cable Length
LU27-00
LU23-00
LU28-00
$469.00
$562.00
$655.00
LU29-00
$748.00
4 in to 9.8 ft (10 cm to 3m)
8 in to 18.0 ft (20 cm to 5.5m)
8 in to 26.2 ft (20 cm to 8m)
8 in to 32.8 ft (20 cm to 10m)
0.019 in (0.5 mm)
0.039 in (1 mm)
± 0.2% of range
0.079 in (2 mm)
4 in (10.2 cm)
8 in (20.3 cm)
2 in (5.1 cm)
3 in (7.6 cm)
WebCal Free Software and LI99-1001 Fob USB Adapter
Non-volatile
14 - 28 VDC1
0.5W
500Ω @ 24 VDC
4-20 mA, two-wire
4-20 mA or 20-4 mA
4 mA, 20 mA, 21 mA, 22 mA or hold last
-4° to 140°F (-20° to 60°C)
Automatic
-31° to 140°F (-35° to 60°C)
MWP = 30 PSI (2 bar)
NEMA Type 6P, IP67, encapsulated, corrosion resistant & submersible, UV stable
Polycarbonate
Polyvinylidene Flouride
Polyurethane
4-conductor, shielded
10 ft (3m)
Process Mount
1 in MNPT (See accessories for
installation fittings)
2 in MNPT (See accessories for installation fittings)
Mount Gasket
Viton (included, replacement part
number 200128)
Viton (included, replacement part number 200129)
Weight (lbs)
Classification
Compliance
Agency Approvals
1.4
1.8
1.8
1.8
General purpose
CE, RoHS
cFMus
* Dead band is the minimum distance the sensor must be mounted above the max liquid level.
1
If supply exceeds 28 VDC damage to the transmitter may occur.
Book 2 (14.1)
eLE-12
Level Sensors
1-800-633-0405
Prices as of April 15, 2015. Check Web site for most current prices.
EchoSonic II LU Series Ultrasonic
Liquid Level Transmitters
Dimensions
Company
Information
Drives
Soft Starters
Motors
inches [mm]
Power
Transmission
LU20 Series
Motion: Servos
and Steppers
Motor Controls
Sensors:
Proximity
Sensors:
Photoelectric
Sensors:
Encoders
Sensors:
Limit Switches
Sensors:
Current
Sensors:
Pressure
Sensors:
Temperature
Sensors:
Level
Dimensions
LU27
LU23, 28, & 29
A
B
C
D
E
F
G
2.71 [68.9] 4.00 [101.7] 4.10 [104.1] 3.10 [78.8] 2.75 [69.7] 1.70 [43.1] 1.10 [28.0]
4.31 [109.6] 4.00 [101.7] 4.10 [104.1] 3.10 [78.8] 2.75 [69.7] 3.30 [83.8] 2.70 [68.7]
Sensors:
Flow
H
1” MNPT
2” MNPT
Pushbuttons
and Lights
When installing the 1” NPT level sensors care should be used to mechanically isolate the sensor housing from the tank. This
can easily be done by using any of the Flowline mounting accessories which are designed to provide the isolation needed.
Wiring
LU27
Stacklights
LU23, LU28, LU29
Signal
Devices
Process
Power - Red
Return (4-20 mA loop output) - Black
Tx (out) - Green
Rx (in) - White
Power - Red
Return (4-20 mA loop output) - Black
Rx (in) - White
Tx (out) - Green
Relays and
Timers
Shield
Pneumatics:
Air Prep
Pneumatics:
Directional Control
Valves
Pneumatics:
Cylinders
Pneumatics:
Tubing
Configuration
Pneumatics:
Air Fittings
Appendix
Book 2
RED
GREEN
WHITE
BLACK
The settings for the the LU series
are configured with free WebCal
software (downloadable from
AutomationDirect Web site) and
an LI99-1001 Fob USB adapter
(purchased separately).
Terms and
Conditions
PART NO.: LI99-1001
See the end of the Ultrasonic Level Sensor Section for further details and Accessories
Book 2 (14.1)
www.automationdirect.com/ultrasonic-level-sensors
Level Sensors
eLE-13
Prices as of April 15, 2015. Check Web site for most current prices.
WebCal Ultrasonic Level
Sensor Software and USB Fob
Adapter
Overview
System Requirements
WebCal PC software is a utility program that allows users to
easily configure their EchoSonic II and EchoPod level transmitters, switches, and controllers. Download your free copy
of WebCal at www.AutomationDirect.com, and connect your
sensor through the Fob USB adapter (LI99-1001). Develop your
configuration using pre-programmed function menus as the tank
graphic and set point fields automatically change to match your
configuration. Then, input your level set point values and click
the Write to Unit button. Your configuration will be downloaded
into the sensor and verified in less than a second. Last, click
the Wiring Diagram button to open a wiring schematic of your
configuration in PDF format. Print the document, disconnect the
sensor and wire it per the schematic. It’s that simple.
• Windows XP, Vista, 7, 8 (WebCal 6.0 only)
®
• 32 or 64 bit system
• 1 USB 2.0 Port
®
• 10 Mb hard disk space
• 256 Mb RAM
Features
Configuration files can be named, saved, emailed, printed,
opened and used again under revision control. The advanced
feature page enables you to change the measurement signal,
output filtering and invert relay states from N.O. to N.C. As
new software or firmware becomes available, they can be
downloaded and updated through WebCal.
• 169 configurations with pull-down menu selections
• Graphical interface lets you visualize your configuration
• Applicable level set point fields appear automatically
• Installs and tests configuration in less than a second
• Available PDF wiring diagram for each configuration
• Technical help menu with FAQs, tips and glossary
• Rapidly program sensors to the same configuration
• Save configuration files for future use or reference
• Print wiring diagrams and configuration text files
• Email configuration files to other remote users
• Made in the USA
WebCal Ultrasonic Level Sensor Software and USB Adapter
Part No.
Item Photo
Description
Quantity Weight (lbs)
Price
LI99-1001
Flowline Fob USB adapter, required for use with WebCal software to configure Flowline EchoPod and
EchoSonic II ultrasonic level sensors.
1
0.1
$42.00
WEBCAL
Configuration software CD for Flowline EchoPod and EchoSonic II ultrasonic level sensors (also available
as a free download from the AutomationDirect Web site). Requires an LI99-1001 Fob USB adapter (purchased separately).
1
0.1
$9.00
EchoPod Configuration
EchoSonic II Configuration
Book 2 (14.1)
eLE-14
Level Sensors
1-800-633-0405
Prices as of April 15, 2015. Check Web site for most current prices.
Ultrasonic Liquid Level Sensor
Accessories
Ultrasonic Liquid Level Sensor Accessories
Part No.
Item Photo
Description
Quantity
Weight
Price
LI40-1001
Flowline PodView general purpose digital indicator, displays tank level or volume and sensor relay status,
6-digit LCD display with four relay status indicators, 3-button user interface, polycarbonate panel mount
enclosure with NEMA 4 (IP65) faceplate, 6-foot (1.8-meter) 22AWG 4-conductor cable, compatible with
any Flowline EchoPod series ultrasonic level sensor with firmware V50 or later
1
0.6
$181.00
LM50-1001
Flowline side mount bracket, 2 inch NPT female threads, polypropylene (PP), for use with Flowline DL34,
LU20, LU23, LU28, LU29, LU74, LU78, LU81, LU83, and LU84 series ultrasonic level sensors
1
0.4
$32.00
LM50-1001-1
Flowline side mount bracket, 2 inch NPT female threads, polypropylene (PP), and 2 inch NPT male x 1
inch NPT female reducer bushing (PVC), for use with Flowline DL14, DL24, DS14, DL10, DX10, LU27,
LU77, and LU80 series ultrasonic level sensors
1
0.6
$41.00
LM52-1400
Flowline reducer bushing, 2 inch NPT male x 1 inch NPT female threads, PVC, for use with Flowline DL14,
DL24, DS14, DL10, DX10, LU27, LU77, and LU80 series ultrasonic level sensors
1
0.2
$13.00
LM52-2400
Flowline reducer bushing, 3 inch NPT male x 2 inch NPT female threads, PVC, for use with Flowline DL34,
LU20, LU23, LU28, LU29, LU74, LU78, LU81, LU83, and LU84 series ultrasonic level sensors
1
0.6
$26.00
LM52-1890
Flowline low-profile bulkhead fitting, 1 inch NPT female x slip socket, with mounting nut, PVC, for use with
Flowline DL14, DL24, DS14, DL10, DX10, LU27, LU77 and LU80 series ultrasonic level sensors
1
0.5
$37.00
LM52-2890
Flowline low-profile bulkhead fitting, 2 inch NPT female x slip socket, with mounting nut, PVC, for use
with Flowline DL34, LU20, LU23, LU28, LU29, LU74, LU78, LU81, LU83, and LU84 series ultrasonic level
sensors
1
1.2
$60.00
LM52-1850
Flowline mounting flange, 1 inch NPT female threads, PVC, for use with Flowline DL14, DL24, DS14,
DL10, DX10, LU27, LU77, and LU80 series ultrasonic level sensors
1
0.5
$41.00
LM52-2850
Flowline mounting flange, 2 inch NPT female threads, PVC, for use with Flowline DL34, LU20, LU23,
LU28, LU29, LU74, LU78, LU81, LU83, and LU84 series ultrasonic level sensors
1
1.0
$60.00
204038
Replacement mounting gasket, for use with Flowline DL14, DL10, DX10, and DS14 series ultrasonic level
sensors
1
0.1
$5.00
200128
Replacement mounting gasket, for use with Flowline DL24, LU27, LU77, and LU80 series ultrasonic level
sensors
1
0.1
$9.00
200129
Replacement mounting gasket, for use with Flowline DL34, LU23, LU28, LU29, LU74, LU78, LU81, LU83,
and LU84 series ultrasonic level sensors
1
0.1
$13.00
When installing the 1” NPT level sensors care should be used to mechanically isolate the sensor housing from the tank. This can easily
be done by using any of the Flowline mounting accessories which are designed to provide the isolation needed.
Dimensions
inches [mm]
LM50-1001
LM50-1001-1
Book 2 (14.1)
eLE-22
Level Sensors
1-800-633-0405
Prices as of April 15, 2015. Check Web site for most current prices.
Ultrasonic Liquid Level Sensor
Accessories
Dimensions
Drives
Soft Starters
Motors
inches [mm]
LM52-1400
Company
Information
Power
Transmission
LM52-2400
Motion: Servos
and Steppers
Motor Controls
Sensors:
Proximity
Sensors:
Photoelectric
Sensors:
Encoders
Sensors:
Limit Switches
Sensors:
Current
LM52-1890
Sensors:
Pressure
LM52-2890
Sensors:
Temperature
Sensors:
Level
Sensors:
Flow
Pushbuttons
and Lights
Stacklights
Signal
Devices
Process
LM52-1850
Relays and
Timers
LM52-2850
Pneumatics:
Air Prep
Pneumatics:
Directional Control
Valves
Pneumatics:
Cylinders
Pneumatics:
Tubing
Pneumatics:
Air Fittings
Appendix
Book 2
Terms and
Conditions
Book 2 (14.1)
www.automationdirect.com/ultrasonic-level-sensors
Level Sensors
eLE-23
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
