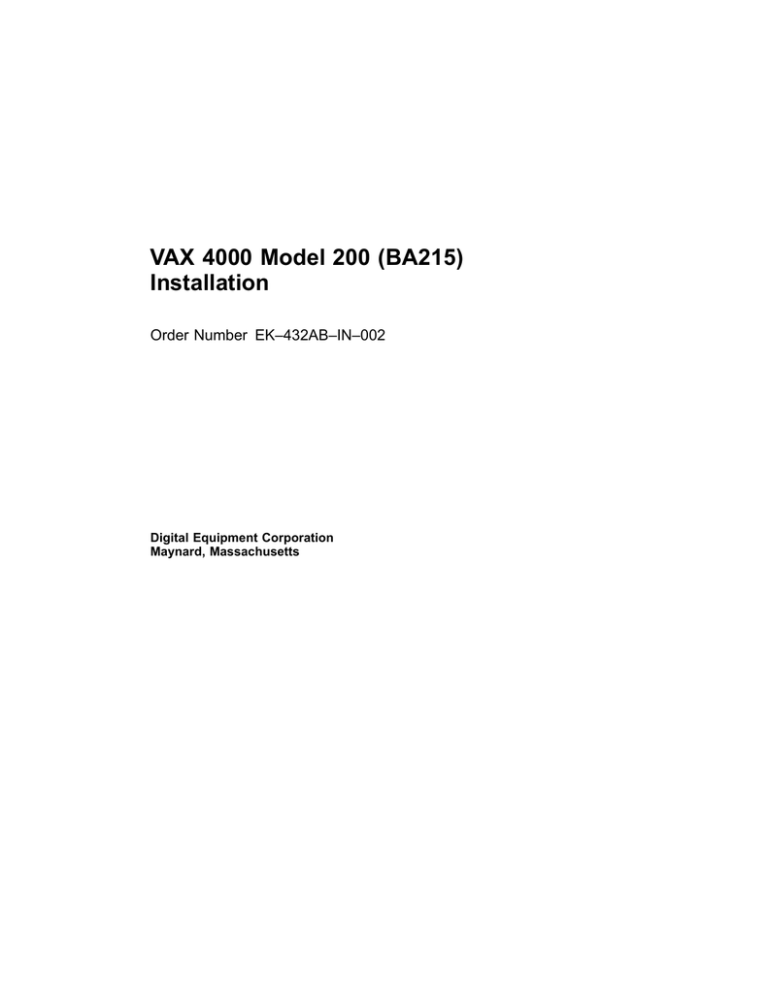

VAX 4000 Model 200 (BA215)

Installation

Order Number EK–432AB–IN–002

Digital Equipment Corporation

Maynard, Massachusetts

First Printing, December 1990

Revised, June 1991

The information in this document is subject to change without notice and should not be construed as a commitment by Digital Equipment Corporation.

Digital Equipment Corporation assumes no responsibility for any errors that may appear in this document.

The software, if any, described in this document is furnished under a license and may be used or copied only in accordance with the terms of such license. No responsibility is assumed for the use or reliability of software or equipment that is not supplied by Digital Equipment

Corporation or its affiliated companies.

Restricted Rights: Use, duplication or disclosure by the U.S. Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer

Software clause at DFARS 252.227–7013.

© Digital Equipment Corporation 1990, 1991. All rights reserved.

Printed in U.S.A.

The Reader’s Comments form at the end of this document requests your critical evaluation to assist in preparing future documentation.

The following are trademarks of Digital Equipment Corporation: CompacTape, CX, DDCMP,

DEC, DECconnect, DECdirect, DECnet, DECscan, DECserver, DECUS, DECwindows,

DELNI, DEMPR, DESQA, DESTA, DSRVB, DSSI, IVAX, KDA, KLESI, KRQ50, MicroVAX,

MSCP, Q-bus, Q22-bus, RA, RQDX, RV20, SA, SDI, ThinWire, TK, TMSCP, TQK, TS05, TU,

VAX, VAX 4000, VAXcluster, VAX DOCUMENT, VAXELN, VAXlab, VAXserver, VMS, VT, and the DIGITAL logo.

FCC NOTICE: The equipment described in this manual generates, uses, and may emit radio frequency energy. The equipment has been type tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such radio frequency interference when operated in a commercial environment. Operation of this equipment in a residential area may cause interference, in which case the user at his own expense may be required to take measures to correct the interference.

S1664

This document was prepared using VAX DOCUMENT, Version 1.2.

Contents

6.3

6.3.1

6.3.2

6.4

6.5

6.5.1

6.5.2

5

6

6.1

6.2

3

4

1

2

4.1

4.2

Preface

6.5.3

6.5.4

6.6

6.6.1

6.6.2

6.7

6.7.1

vii

Verify Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Check the Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Position the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Install the Console Terminal . . . . . . . . . . . . . . . . . . . . . . . . .

Perform Setup Operations . . . . . . . . . . . . . . . . . . . . . . . . .

Connect the Terminal to the System . . . . . . . . . . . . . . . . .

Set the System Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8

Connect Additional Devices to the System . . . . . . . . . . . . . . .

10

Connecting Terminals and Serial Printers . . . . . . . . . . . . .

13

Connecting Parallel Printers to the System . . . . . . . . . . . .

17

4

5

5

6

1

1

Connecting Synchronous Modems to the System . . . . . . . .

18

DSV11 Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18

DPV11 or KMV1A Module . . . . . . . . . . . . . . . . . . . . . . .

18

Connecting Asynchronous Modems to the System . . . . . . .

18

Connecting an Internal Modem to Telephone Lines . . . . . .

20

DFA01 Modems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

20

RJ11C/CA11A, RJ12C/CA12A, and RJ13C/CA13A

Telephone Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

21

RJ41S/CA41A and RJ45S/CA45A Telephone Service . . .

Setting Up Terminal Lines . . . . . . . . . . . . . . . . . . . . . . .

24

28

Connecting to an Ethernet Network at the CPU Cover

Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

29

Making a ThinWire Network Connection at the CPU

Cover Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30

Making a Standard Network Connection at the CPU

Cover Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

34

Connecting to an Ethernet Network at the DESQA Module 36

Making a ThinWire Network Connection at the DESQA

Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

37

iii

6.7.2

7

8

9

Making a Standard Network Connection at the DESQA

Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Connect the DSSI Cable — Dual Host Only . . . . . . . . . . . . . .

Connect the System Power Cable . . . . . . . . . . . . . . . . . . . . . .

Turn On the System and Select a Language . . . . . . . . . . . . .

43

45

48

50

10 Attach the Front Panel to the System . . . . . . . . . . . . . . . . . .

53

11 After Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54

Appendix A Starting and Modifying VMS Factory-Installed

Software

A.1

Pre-Startup Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . .

A–1

A.2

Startup Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

A–2

A.2.1

Modifying FIS for a Standalone System . . . . . . . . . . . . . . .

A–3

A.2.2

Modifying FIS for a Simple VAXcluster Network . . . . . . . .

A–7

A.2.3

Modifying FIS for a Complex Network or Dual-Host

System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–11

A.2.3.1

A.2.3.2

Configuring for Dual-Host Systems . . . . . . . . . . . . . . . . A–12

Checking Your Modification Work . . . . . . . . . . . . . . . . . A–12

Index

Figures

1

2

Shipping Carton Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sliding the System into Position . . . . . . . . . . . . . . . . . . . . . .

3

4

Connecting a VT300-Series or VT400-Series Console Terminal 7

5

6

System Controls and Indicators — Integrated Storage

Elements, System Controls, and CPU Cover Panel . . . . . . . .

System Controls and Indicators — TK-Series Tape Drives . .

9

10

7

8

Connecting Devices to the CXA16 Module . . . . . . . . . . . . . . .

15

Connecting Devices to the Cable Concentrator . . . . . . . . . . . .

16

9

Mounting the Cable Concentrator . . . . . . . . . . . . . . . . . . . . .

17

Connecting a Modem to a CXY08 Module . . . . . . . . . . . . . . .

19

10 Disconnecting the Telephone Line — Single Line and

Multiline Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

21

3

4

iv

11 Installing the Telephone Cord — Single Line and Multiline

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

22

12 Connecting a Modem to a Telephone — Single Line and

Multiline Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23

13 Connecting a Modem to a Wall-Mounted Jack (Data Jack

Service) — Telephone to Wall-Jack Connection . . . . . . . . . . .

25

14 Connecting a Modem to a Wall-Mounted Jack (Data Jack

Service) — Telephone to DFA01 Connection . . . . . . . . . . . . . .

27

15 Ethernet Connector Switch on the CPU Cover Panel . . . . . . .

29

16 ThinWire Cable, T-Connector, and Terminator . . . . . . . . . . . .

30

17 Making a ThinWire Ethernet Connection at the CPU Cover

Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

31

18 Grounding the ThinWire Ethernet at the CPU Cover Panel .

33

19 Making a Standard Ethernet Connection at the CPU Cover

Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

35

20 DESQA ThinWire/Standard Ethernet Connector Switch . . . .

37

21 ThinWire Cable, T-Connector, and Terminator . . . . . . . . . . . .

38

22 Making a ThinWire Ethernet Connection at the DESQA

Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

39

23 Forming the Upper Cable in a Loop at the DESQA Module . .

40

24 Grounding the ThinWire Ethernet at the DESQA Module . . .

42

25 Making a Standard Ethernet Connection at the DESQA

Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

44

26 Removing the DSSI Terminators . . . . . . . . . . . . . . . . . . . . . .

46

27 Connecting the DSSI Cable . . . . . . . . . . . . . . . . . . . . . . . . . .

47

28 Power Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

49

29 Attaching the Power Cable to the System . . . . . . . . . . . . . . .

50

30 Language Selection Menu . . . . . . . . . . . . . . . . . . . . . . . . . . .

51

31 Successful Self-Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

52

32 Saving the Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

52

33 Attaching the Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . .

53

v

Tables

1 Module Identification Labels . . . . . . . . . . . . . . . . . . . . . . . . .

11

vi

Preface

This manual tells you how to install your system, using the following steps.

1. Verify site preparation

2. Check the shipment

3. Position the system

4. Install the console terminal

5. Set the system controls

6. Connect additional devices to the system

7. Connect the DSSI cable — dual host only

8. Connect the system power cable

9. Turn on the system and select a language

10. Attach the front panel

If you are installing a dual-host system, you must repeat each step for each host. For more information on dual-host systems, refer to your system

Operation manual and to VAX 4000 Dual-Host Systems.

A glossary in your system Operation manual will help you understand new words and abbreviations that appear in this manual.

CAUTION:

Before installing the system, review your system warranty. The terms of your agreement with Digital may require that a Digital service representative install the system. Contact your local Digital representative if you have any questions.

NOTE:

Some of the devices mentioned in this manual are designed for timesharing systems and may not be suitable for server systems. If you have a server system, contact your Digital representative if you have any questions about whether a device is appropriate for your system.

vii

Conventions

The following conventions are used in this manual.

Convention

Key

XXXX

Return

NOTE

CAUTION

WARNING

Meaning

A terminal key used in text and examples. For example,

Break indicates that you press the Break key on your terminal keyboard.

Bold, monospaced type and the symbol for the Return key indicate interactive input that you must supply. For example:

>>>

BOOT MUA0

Return

That line tells you to enter the command BOOT MUA0 at the console terminal.

Provides general information about the current topic.

Provides information to prevent damage to equipment or software.

Provides information to prevent personal injury.

The following warning symbols appear on the power supply. Please review their meaning:

Indicates risk of electric shock.

To reduce the risk of injury, do not remove modules, Integrated

Storage Elements (ISEs), or the power supply.

No userserviceable parts are inside. Refer servicing questions to your

Digital service representative or your qualified self-maintenance personnel.

The equipment is not designed for connection to an IT power system (a power system without a directly grounded neutral conductor). The equipment should be plugged into a dedicated

(isolated) ground circuit.

viii

1 Verify Site Preparation

You may have received a copy of the system Site Preparation manual, which describes the physical, environmental, and electrical requirements for your system. A copy of that manual is also included in your Customer Hardware

Information Kit. If you have not done so, read that manual and follow its instructions for preparing your site.

• The installation instructions that follow assume your site meets all the requirements listed in the Site Preparation manual.

• These instructions also assume all terminal data lines, telephone lines, and network lines that you plan to connect to your system are in place and clearly labeled.

You will need the following tools to install your system. They are not included in your shipment.

• Scissors

• Phillips (cross point) screwdriver

• Adjustable wrench

If you are installing a dual-host system, you must repeat each step in the installation procedure for each host.

2 Check the Shipment

Before unpacking your system, find the Product Delivery Document. It is attached to the outside of a carton and is labeled with a blue "i" symbol.

That document lists your order and how it breaks out into the items shipped.

Your shipment may include several cartons:

• One carton contains the system.

• A smaller carton contains the console terminal, if ordered.

• Another carton contains hardware documentation, software documentation, and software licenses. That carton also contains system software and diagnostic software if you ordered those items separately.

VAX 4000 Model 200 (BA215) Installation

1

Depending on your order, your shipment may also include cartons containing:

• Additional terminal(s)

• Printer(s)

• Modem(s)

• Expander(s)

Make sure your shipment is complete by checking that each item listed as shipped on the Product Delivery Document appears on a Content Listing or on a barcode label on the outside of one of the cartons in your shipment.

NOTE:

Save all packing materials until you are sure you will not reship any items in the shipment. And save all items in the shipment until you are sure you will not use them.

Use the unpacking illustrations on the cartons as a guide to unpack your shipment, one carton at a time. Check the contents of each carton against the Content Listing on its side to ensure you received all items.

Release the shipping brackets according to the instructions on the yellow label attached to the front of the system. Then remove the yellow label.

WARNING:

The system weighs 38.5 kilograms (85 pounds) with all options installed. Two or more people should move the system.

If any item is missing or damaged:

• Contact your delivery agent.

• Contact your Digital sales representative.

If you ordered a dual-host system, the carton containing the second system includes the same items as the first carton plus a BC21M–09 DSSI cable.

DSSI stands for Digital Storage Systems Interconnect.

Figure 1 shows the contents of the shipping carton.

2

VAX 4000 Model 200 (BA215) Installation

Figure 1: Shipping Carton Contents

Installation

Checklist

Anti Static Anti Static

Keys to

Front Panel

System

Power Cable

Bus Node ID Plugs

DECconnect

Office Cable

Adapter H8575-A

Screwdriver

A1

Front Panel

Hand Holds

System

Serial

Number Label

MLO-005579

VAX 4000 Model 200 (BA215) Installation

3

CAUTION:

Before continuing the installation, verify that your system power requirements match your power source. The correct voltage for the system is listed on the serial number label next to the power supply (see Figure 1).

• If the voltage matches your power source, continue the installation.

• If the voltage does not match your power source, do not continue the installation. Contact your Digital sales representative.

3 Position the System

You can move your system into position in one of two ways as shown in

Figure 2.

Figure 2: Sliding the System into Position

Hand Holds

System Slides

Front to Back

A1

System Rolls

Left to Right

MLO-000645

4

VAX 4000 Model 200 (BA215) Installation

WARNING:

Do not use the hand holds to lift the system.

• Roll it sideways.

• Slide or walk it backward or forward by gripping the hand holds on the side.

Leave space behind the system for routing cables. Once installation is complete, you can place the system base directly against a wall. The oversized base ensures enough space for proper ventilation.

The next step in installing your system is to install the console terminal.

4 Install the Console Terminal

You will use the console terminal to communicate with your system.

1. Unpack the terminal and its documentation.

2. Use the instructions in the terminal installation guide to connect the various parts of the terminal.

3. Turn on the terminal.

The terminal performs a self-test. The documentation for the terminal describes a successful self-test and error messages you receive if the terminal is not operating properly.

Once the terminal passes its self-test, you are ready to perform setup operations.

4.1 Perform Setup Operations

Setup instructions for terminals vary according to model or according to which read-only memory (ROM) is installed in the terminal. Be sure to:

• Read the documentation provided with your terminal.

• Follow the setup instructions for your terminal.

NOTE:

A new terminal from Digital has the baud rate set to 9600. If your terminal is new and you want to use that rate, you can skip the baud rate setup instructions.

If you have a dual-host system, you can use one terminal with dual sessions instead of two terminals. See your terminal documentation for instructions.

Once you test the terminal and perform setup operations, you are ready to connect the terminal to your system.

VAX 4000 Model 200 (BA215) Installation

5

4.2 Connect the Terminal to the System

You will attach one end of a cable to the CPU cover panel and the other end of the cable to a communication port on the back of the terminal.

• The CPU cover panel is on the front of the system and covers backplane slots 1 and 2.

• The port on the back of the terminal varies with the type of terminal.

Refer to the instructions that follow to connect a VT300-series or VT400series terminal.

1. Turn off the terminal.

2. Find the console terminal cable. It is labeled DECconnect Office Cable, has a DEC–423 modular plug on each end, and can be found in the accessories package.

3. Connect the terminal cable to the DEC–423 modular jack labeled 1 on the rear of the terminal, according to the instructions in your terminal installation guide.

4. Feed the other end of the cable under the system base, from behind or from the side. Then draw up the cable and insert it into the modified modular jack shown in Figure 3.

6

VAX 4000 Model 200 (BA215) Installation

Figure 3: Connecting a VT300-Series or VT400-Series Console Terminal

Break Enable/

Disable Switch

A1

A1

LED

DISPLAY

Power-Up

Mode Switch

Modified

Modular

Jack

DECconnect

Office Cable

DECconnect

Office Cable

Feed Cable

Under System

You are now ready to set the controls on your system.

MLO-000646

VAX 4000 Model 200 (BA215) Installation

7

5 Set the System Controls

The system controls are on the mass storage shelf and in the card cage area.

1. On the mass storage shelf, check the setting of the Write-Protect button,

Ready button, and Halt button shown in Figure 4 and the Cartridge

Insert/Release handle shown in Figure 5.

• Write-Protect button — Make sure that button is in the out (writeenabled) position.

• Ready button — Make sure that button is in the out (on-line) position.

• Halt button — Make sure that button is set to the out (run) position.

• Cartridge Insert/Release handle — If a TK-series tape drive is installed, make sure that handle is closed (pushed in).

Verify that a bus node ID plug is inserted into each Integrated Storage

Element (see DRIVE Unit Number in Figure 4).

2. In the card cage area, check the setting of the Power switch, Power-Up

Mode switch, and Break Enable/Disable switch shown in Figure 4.

• Power switch — It should be off (set at 0).

• Power-Up Mode switch — Set that switch to the Language Inquiry mode (uppermost position, indicated by a human profile).

• Break Enable/Disable switch — Set that switch to break enabled

(up, indicated by a dot inside a circle).

8

VAX 4000 Model 200 (BA215) Installation

Figure 4: System Controls and Indicators — Integrated Storage

Elements, System Controls, and CPU Cover Panel

Integrated Storage Element

Controls and Indicators

D R I V E

U n i t N u m b e r

F a u l t

W r i t e -

P r o t e c t

R e a d y

1 0

Break

Enable/

Disable

Switch

Standard

Ethernet

Connector

A1

LED

Display

Power-Up

Mode

Switch

Modified

Modular

Jack

S Y S T E M

ThinWire

Ethernet

Connector

R e s t a r t / H a l t

R u n

Ethernet

Connector

Switch

A1

Mass Storage

Shelf

Power Switch

Card Cage Area

MLO-005580

VAX 4000 Model 200 (BA215) Installation

9

Figure 5: System Controls and Indicators — TK-Series Tape Drives

Cartridge

Insert/Release

Handle

MLO-006525

You are now ready to connect additional devices to the system.

6 Connect Additional Devices to the System

You can connect additional devices at this time, or you can complete the installation (skip to step 7) before connecting additional devices.

• If you have devices that must be installed before you load system software, install them now.

• Otherwise, skip to step 7 if you prefer to connect additional devices later.

Use the following instructions when you are ready to connect the devices.

CAUTION:

Make sure the Power switch is off (set at 0).

Make all connections directly to the appropriate module cover.

• Begin with the module at the far right.

• As you complete connections for each module, move left to the next module.

10

VAX 4000 Model 200 (BA215) Installation

The following numbered sections tell you how to connect each type of device.

To help you make the proper connections, each module cover has an identifying label at the top. That label contains the module number and option number. Table 1 lists the identifying labels for all modules you can use on your system. Use the table to identify the modules as you connect additional devices to your system. Not all modules require additional connections.

Table 1: Module Identification Labels

Module

Number

Option

Number Description

CPU and Memory

M7622–AA MS650–BA

M7622–BA

M7626–AA

MS650–BB

KA660–AA

M7626–BA

M8578–00

Mass Storage

M5976–SA

M7164, M7165

KA660–BA

MRV11

KZQSA

KDA50

System memory, 16 megabytes

System memory, 8 megabytes

System CPU (multiuser)

System CPU (server)

Programmable read-only memory

M7206–PA

M7530

M7546–00

M7552–PA

M7559–00

TSV05

TSV05

TQK50

KRQ50

TQK70

M7740–PA

M7769

KLESI

KFQSA

Communications

M3108–PA DSV11

TLZ04/RRD-series adapter

Intelligent board controller (RA-series disks and

ESE20)

TS05 tape drive controller (old)

TS05 tape drive controller (new)

TK50 tape drive controller

RRD-series disc drive controller

TK70 tape drive controller

RV20 write-once optical disk (or TU81E tape) controller

DSSI mass-storage adapter

M3118–YA CXA16

2-line synchronous serial interface (full modem support)

16-line asynchronous serial interface (RS–423–A, no modem support)

VAX 4000 Model 200 (BA215) Installation

11

Table 1 (Cont.): Module Identification Labels

Module

Number

Option

Number Description

M3118–YB CXB16

M3119–YA

M3121–PA

M3127–PA

M7500–PA

M7531–PA

M7651–PA

M8020–PA

M8049–PA

Miscellaneous

A026–PA

A030–PA

CXY08

DFA01

DESQA

KMV1A

DIV32

DRV1W

DPV11

DRV1J

AXV11

ADQ32

16-line asynchronous serial interface (RS–422, noise immune)

8-line asynchronous serial interface (full modem support)

2-line asynchronous serial interface with integral modem

Ethernet adapter

Programmable data communication interface

ISDN controller

Real-time parallel interface

Synchronous serial line interface

Parallel I/O interface, 64-line

A1008–PA

A1009–PA

M3125–PA

M4002–PA

M7168, M7168,

M7169

M7168, M7169

M7533–AB

M7616

M7658–PA

M8086–PA

M8634–PA

ADV11

AAV11

IBQ01

KWV11

VCB02–J

VCB02–K

DEQRA

KXJ11

DRQ3B

LPV11

IEQ11

D/A and A/D converter

32-channel, single-ended, or 16-differential-channel analog to digital converter

16-channel, single-ended, or 8-differential-channel analog to digital converter

Digital to analog converter

BITBUS to Q-bus DMA controller

Programmable real-time clock

Graphics controller, 8-plane

Graphics controller, 4-plane

DEC TRNcontroller 100 (token ring adapter)

J11 CPU, 512-kilobyte RAM, 64-kilobyte programmable read-only memory, Q-bus peripheral processor

Real-time parallel interface

Dual parallel printer interface

IEEE instrument bus DMA controller

12

VAX 4000 Model 200 (BA215) Installation

Table 1 (Cont.): Module Identification Labels

Module

Number

Option

Number Description

M9404, M9405 None BA21X–SF Q-bus expansion kit

CAUTION:

Do not operate the system without Digital module covers. They are required to protect the equipment and to meet international regulatory standards. Do not substitute other covers as they may not meet the required specifications.

6.1 Connecting Terminals and Serial Printers

You can connect up to 16 terminals and/or serial printers for each CXA16 or

CXB16 module installed in the system. If your site was prepared properly, the lines for the additional terminals and printers are clearly labeled and terminate near the system.

• You do not connect the terminals and printers directly to the system, but to a cable concentrator (H3104) that has connections for up to eight terminals and printers.

• You then connect the cable concentrator to the system with a BC16D cable.

VAX 4000 Model 200 (BA215) Installation

13

For each CXA16 or CXB16 module, two H3104 cable concentrators and two

BC16D cables are shipped with your system.

To connect additional terminals and printers:

1. Find an H3104 cable concentrator and a BC16D cable.

2. Feed one end of the BC16D cable under the system from the back or side and insert it into the connector as shown in Figure 6.

• If you are connecting two BC16D cables, connect the first to the connector labeled 8–15 on the module cover.

• If you are connecting one BC16D cable, connect that cable to the connector labeled 0–7.

Lock the connector in place by using the bail latches.

14

VAX 4000 Model 200 (BA215) Installation

Figure 6: Connecting Devices to the CXA16 Module

Bail

Latches

A1

BC16D

Cable

Feed Cable

Under System and

Through Opening

MLO-000649

VAX 4000 Model 200 (BA215) Installation

15

3. Insert the other end of the BC16D cable into the cable concentrator shown in Figure 7. Lock the connector in place by using the bail latches.

Figure 7: Connecting Devices to the Cable Concentrator

H3104 Cable

Concentrator

(Rear View)

BC16D Cable

H3104 Cable

Concentrator

(Front View)

Modified

Modular Jack

Bail

Latches

To System

To Terminals and Printers

MLO-002274

4. Insert each printer and terminal cable into one of the modified modular jacks on the cable concentrator as shown in Figure 7.

5. If you have not done so, connect the terminal or printer to the other end of the cable. Your terminal or printer documentation shows how to connect the cable.

If the printer or terminal does not have a modified modular jack connection, use a passive adapter (H8575–A), available in 25-pin and

9-pin models.

Follow the same procedure for connecting a second BC16D cable to the module, except insert the cable into the connector labeled 0–7.

16

VAX 4000 Model 200 (BA215) Installation

You can mount the cable concentrator on a wall. Wall mounting keeps cables off the floor. Use two screws as shown in Figure 8.

Figure 8: Mounting the Cable Concentrator

To Wall

MLO-000651

NOTE:

Be sure you mount the cable concentrator less than 7.6 meters (25 feet) from the system, to ensure the BC16D cable reaches the system.

6.2 Connecting Parallel Printers to the System

You can connect up to two parallel printers for each LPV11 module installed in your system.

To connect parallel printers to the LPV11 module:

1. Find a BC27L–30 cable.

2. Feed one end of that cable under the system from the back or side.

Then insert it into the connector labeled J1 on the module cover. Lock the connector in place by using the bail latches.

3. Insert the other end of the cable into the printer.

Follow the same procedure for connecting a second printer to the LPV11 module, except insert the cable into the connector labeled J2 on the module cover.

VAX 4000 Model 200 (BA215) Installation

17

6.3 Connecting Synchronous Modems to the System

You can connect to a DSV11, DPV11 or KMV1A module.

6.3.1 DSV11 Module

You can connect up to two synchronous modems for each DSV11 module installed in your system.

To connect a synchronous modem to a DSV11 module, using a protocol adapter and extension cable:

1. Feed the socket end of the 0.6-meter (24-inch) adapter cable (BC19–

B/D/E/F) under the system from the back or side and connect it to the module. Tighten the two screws on the cable connector using a screwdriver.

2. Connect the extension cable (BC55D, BC22F or BC19L) to the other end of the adapter cable. Secure the cables by tightening the two screws at the connection.

3. Connect the other end of the extension cable to the modem. Refer to your modem documentation for the location of the connector.

6.3.2 DPV11 or KMV1A Module

You can connect one synchronous modem for each DPV11 or KMV1A module installed in your system.

To connect a synchronous modem to a DPV11 or KMV1A module:

1. Find a BC22E or BC22F cable.

2. Feed one end of the cable under the system from the back or side and insert it into the connector on the DPV11 or KMV1A module cover. Lock the connector in place by using the bail latches.

3. Insert the other end of the cable into the modem. Refer to your modem document for the location of the connector.

6.4 Connecting Asynchronous Modems to the System

You connect asynchronous modem lines to the CXY08 module which supports up to eight lines.

To connect a modem to a CXY08 module:

1. Find a BC19N–12 cable.

2. Feed one end of the cable under the system from the back or side and insert it into the connector as shown in Figure 9.

18

VAX 4000 Model 200 (BA215) Installation

Figure 9: Connecting a Modem to a CXY08 Module

Bail

Latches

A1

BC19N-12

Cable

Assembly

Feed Cable

Under System and

Through Opening

MLO-000652

VAX 4000 Model 200 (BA215) Installation

19

• If you are connecting two BC19N–12 cables, connect the first to the connector labeled 4–7 on the module cover.

• If you are connecting one cable, connect it to the connector labeled

0–3.

Lock the connector in place with the bail latches.

3. Attach a modem to one of the four connectors at the opposite end of the cable. If you want to place the modem farther away from the system, attach a BC22F modem cable between the cable assembly and the modem. Refer to your modem documentation for the location of the connector.

Repeat the same procedure for connecting a second BC19N cable, except insert the cable into the connector labeled 0–3.

6.5 Connecting an Internal Modem to Telephone Lines

NOTE:

The DFA01 modem is available for U.S. and Canadian customers. Depending on the country you live in, the Telecommunication

Administration (PTT) may not let you connect private integral modems to the public switched telephone network. Call your Digital representative for information on modem availability in your country.

6.5.1 DFA01 Modems

The DFA01 module contains two modems, A and B. Each requires its own telephone.

Each DFA01 modem connects to one of the following dial-up telephone services.

• RJ11C (United States) and CA11A (Canada) standard single-line telephone service. The switchpacks are factory set for that service.

If you have it, you have one wall-mounted modular telephone jack per telephone.

• RJ12C/RJ13C (United States) and CA12A/CA13A (Canada) telephone service. The switchpacks are factory set for that service. If you have it, you have one wall-mounted modular telephone jack per telephone.

• RJ41S/RJ45S (United States) and CA41A/CA45A (Canada) data jack telephone service. If you have it, you have two wall-mounted modular telephone jacks per telephone.

NOTE:

If you do not know which telephone service you are using, call your telephone company.

20

VAX 4000 Model 200 (BA215) Installation

6.5.2 RJ11C/CA11A, RJ12C/CA12A, and RJ13C/CA13A Telephone

Service

Use the following procedure to connect the DFA01 modem to RJ11C/CA11A,

RJ12C/CA12A or RJ13C/CA13A telephone service.

1. Disconnect the telephone line from the wall-mounted modular telephone jack. Leave the other end of the telephone line connected to the telephone as shown in Figure 10.

Figure 10: Disconnecting the Telephone Line — Single Line and

Multiline Service

Wall-Mounted

Modular

Telephone Jack

Locking Tab

Squeeze

Locking Tab and Pull from Jack

Telephone

MLO-000653

VAX 4000 Model 200 (BA215) Installation

21

2. Take one end of one of the cords included with the modem (17–00089–

01) and insert it into the top jack on the module cover (modem A). The top jack is marked with the line icon as shown in Figure 11.

Figure 11: Installing the Telephone Cord — Single Line and Multiline

Service

DFA01 Cover

Panel

Line Icon

Wall-Mounted

Modular

Telephone Jack

Modem

A

Modem

B

Telephone Cord

(17-00089-01)

MLO-000654

3. Insert the other end of the cord into the wall-mounted telephone jack.

22

VAX 4000 Model 200 (BA215) Installation

4. To install voice communication on modem A, take the end of the telephone line that you disconnected from the wall jack in step 1 and insert it into the second jack from the top of the module cover as shown in Figure 12. That jack is marked with the telephone icon.

Figure 12: Connecting a Modem to a Telephone — Single Line and

Multiline Service

DFA01 Cover

Panel

Wall-Mounted

Modular

Telephone Jack

Line Icon

Modem

A

Telephone

Icon

Modem

B

Telephone

MLO-000655

If you do not plan to use modem B, do not perform the following step.

5. Set up modem B by following the same procedure you used to set up modem A. Notice, however, that the jack positions on the module cover

VAX 4000 Model 200 (BA215) Installation

23

are reversed for modem B. The bottom jack is marked with a line icon; the second jack from the bottom is marked with a telephone icon.

a. Connect the wall-mounted modular jack to the bottom jack on the module cover.

b. Connect the telephone line to the second jack from the bottom of the module cover.

6.5.3 RJ41S/CA41A and RJ45S/CA45A Telephone Service

Use the following procedure to connect the DFA01 modem to RJ41S/CA41A or RJ45S/CA45A data-jack telephone service.

• You need a standard eight-wire telephone cord (not supplied with the modem).

• If you plan to use modems A and B, you need two telephones, one for each modem.

Do not unplug the telephone line from the wall-mounted modular telephone jack.

1. Insert one end of the telephone cord into the top jack on the module cover (modem A) as shown in Figure 13. The top jack is marked with the line icon.

24

VAX 4000 Model 200 (BA215) Installation

Figure 13: Connecting a Modem to a Wall-Mounted Jack (Data Jack

Service) — Telephone to Wall-Jack Connection

DFA01 Cover

Panel

Line Icon

Modem

A

Telephone

Icon

Modem

B

Telephone Wall-

Mounted

Modular

Telephone

Jacks

MLO-000656

2. Insert the other end of the telephone cord into a second wall-mounted modular telephone jack.

If you require voice communication on modem A, refer to step 4.

If you do not plan to use modem B, skip step 3 and proceed with step

4.

VAX 4000 Model 200 (BA215) Installation

25

3. If you plan to use modem B: a. Insert a second eight-wire telephone line into the bottom jack on the module cover, marked with a line icon. (Notice that the jack positions are reversed for modem B.) b. Insert the other end of the cord into a wall-mounted modular telephone jack.

If you require voice communication on modem B, refer to step 4.

4. If you require voice communication with a modem, you can install it in one of two ways:

• The first way of installing voice communication is established for modems A and B in the preceding steps. The telephone is connected to the wall-mounted modular telephone jack, which is in turn connected to the module cover (see Figure 13).

• The second way of installing voice communication is by connecting the telephone to the module cover, which is in turn connected to the wall-mounted modular telephone jack as shown in Figure 14.

26

VAX 4000 Model 200 (BA215) Installation

Figure 14: Connecting a Modem to a Wall-Mounted Jack (Data Jack

Service) — Telephone to DFA01 Connection

DFA01 Cover

Panel

Modem

A

Telephone

Modem

B

Wall-

Mounted

Modular

Telephone

Jacks

MLO-000657 a. Leave connected the eight-wire telephone cord that attaches the module cover to a wall-mounted modular telephone jack.

b. Disconnect the telephone line from the wall-mounted modular telephone jack. Leave the telephone line connected to the telephone.

VAX 4000 Model 200 (BA215) Installation

27

c. Connect the telephone line from the telephone to the module cover.

• To install voice communication on modem A, insert the telephone line into the second jack from the top of the module cover, marked with the telephone icon.

• To install voice communication on modem B, insert the telephone line into the second jack from the bottom of the module cover, marked with the telephone icon.

6.5.4 Setting Up Terminal Lines

Before you can use the DFA01 modem, you must set up the operating system software to recognize the modem.

Set up the operating system software to support the following four terminal lines for the modem.

• Modem A — primary channel

• Modem A — on-line control channel (OLC)

• Modem B — primary channel

• Modem B — on-line control channel (OLC)

Refer to your operating system documentation to determine how to make permanent terminal line definitions, so that every time the system is turned on, the terminal lines are configured for proper operation.

You may need to define the following terminal line characteristics.

• Modem control — to support full EIA modem control.

• Speed, parity, and data bits — terminal lines should be set to 2400 baud, parity disabled, and 8 data bits to coincide with the modem power-up defaults.

• Dial up — to support dial-up operation.

• Hang up — to disable automatic hang up of the lines when logging out or when completing a dialog with the modem using terminal emulation software.

With automatic hang up disabled, you can modify the modem operating parameters (from application software or when using a terminal emulator). You can then exit the program without the modem resetting those parameters to power-up default values.

28

VAX 4000 Model 200 (BA215) Installation

6.6 Connecting to an Ethernet Network at the CPU Cover

Panel

An Ethernet Connector switch on the CPU cover panel (Figure 15) selects a standard or ThinWire connector. You must select one or the other.

Figure 15: Ethernet Connector Switch on the CPU Cover Panel

Ethernet

Connector

Switch

ThinWire

Ethernet

Connector

A1

T-Connector

MLO-005698

• To select the ThinWire connector, slide the switch down. Then go to

Section 6.6.1.

• To select the standard connector, slide the switch up. Then go to

Section 6.6.2.

An indicator next to the selected connector lights when your system is turned on, indicating an active connection.

VAX 4000 Model 200 (BA215) Installation

29

6.6.1 Making a ThinWire Network Connection at the CPU Cover Panel

To make a ThinWire network connection at the CPU cover panel:

1. Find the T-connector and two terminators. They are on the ThinWire connector, below the Ethernet Connector switch.

Figure 16 shows how the T-connector, terminators, and ThinWire cable connectors fit together.

Figure 16: ThinWire Cable, T-Connector, and Terminator

Connector

Connector

T-Connector

Terminator

MLO-000659

2. Remove the terminator from the bottom of the T-connector shown in

Figure 17. Push in and turn it counterclockwise until it unlocks.

30

VAX 4000 Model 200 (BA215) Installation

Figure 17: Making a ThinWire Ethernet Connection at the CPU Cover

Panel

Ethernet

Connector

Switch

A1

ThinWire

Ethernet

Connector

T-Connector

Feed Cable

Under System and

Through Opening

MLO-000660

3. Plug the T-connector into the ThinWire connector. Turn the T-connector clockwise until it locks in place.

VAX 4000 Model 200 (BA215) Installation

31

4. Connect the ThinWire cable to the T-connector as shown in Figure 17.

• If your system requires one connection to the network: a. Connect the ThinWire cable to the lower end of the T-connector.

b. Connect a terminator to the other end of the T-connector.

Push in and turn the connector or terminator clockwise until it locks in place.

• If your system is a link in a network and connects to two additional components: a. Connect a ThinWire cable to one end of the T-connector.

b. Remove the terminator from the other end and connect a second

ThinWire cable to it.

Push in and turn the connectors clockwise until they lock in place.

5. Connect the ThinWire cable to one of the following devices.

• A ThinWire Ethernet Multiport Repeater (DEMPR), which can be connected to a baseband Ethernet cable and which connects up to eight ThinWire segments in a local area network

• A ThinWire Ethernet Singleport Repeater (DESPR), which can be connected to a baseband Ethernet cable and which connects one

ThinWire segment

• A ThinWire Ethernet adapter in another system or workstation

NOTE:

Contact your network manager or Digital service representative if you have questions about network configurations.

When the ThinWire cable is connected to a DEMPR or DESPR, the ground is provided by the DEMPR or DESPR chassis. If you are using a singlesegment ThinWire Ethernet local area network (LAN) with no DEMPR or

DESPR, you may need to ground the ThinWire connector on the CPU cover panel.

CAUTION:

Each ThinWire Ethernet segment must have only one grounding point.

To ground a single-segment ThinWire network at the CPU cover panel:

32

VAX 4000 Model 200 (BA215) Installation

1. Remove the steel nut, lock washer, and plastic washer from the

ThinWire Ethernet connector on the CPU cover panel as shown in

Figure 18.

Figure 18: Grounding the ThinWire Ethernet at the CPU Cover Panel

Plastic

Washer

Lock

Washer

Steel Nut

MLO-000706

2. Discard the plastic washer.

3. Replace and tighten the lock washer and the steel nut.

VAX 4000 Model 200 (BA215) Installation

33

6.6.2 Making a Standard Network Connection at the CPU Cover Panel

To make a standard network connection at the CPU cover panel:

1. Find the Ethernet transceiver cable. It has a plug at one end and a socket at the other end.

2. Make sure the sliding lock on the standard Ethernet connector on the

CPU cover panel (Figure 19) is in the up position. Then feed the plug end of the cable under the system from the back or side and insert it into the connector. Slide the lock down to secure the connection.

34

VAX 4000 Model 200 (BA215) Installation

Figure 19: Making a Standard Ethernet Connection at the CPU Cover

Panel

Sliding

Lock

A1

Standard

Ethernet

Connector

Feed Cable

Under System and

Through Opening

MLO-000658

VAX 4000 Model 200 (BA215) Installation

35

3. Connect the other end of the cable to one of the following devices.

• An H4000 or H4005 transceiver on a traditional baseband Ethernet cable

• A DELNI interconnect, which can be connected to a baseband

Ethernet cable and which connects up to eight systems in a local area network

• A DESTA adapter, which can connect the Ethernet transceiver cable to ThinWire Ethernet cabling

• A standard adapter in another system or workstation

NOTE:

Contact your network manager or Digital service representative if you have questions about network configurations.

6.7 Connecting to an Ethernet Network at the DESQA

Module

If your DESQA module does not have an Ethernet Connector switch

(Figure 20):

• If you want to connect to ThinWire Ethernet, go to Section 6.7.1.

• If you want to connect to standard Ethernet, call your Digital service representative.

If your DESQA module has an Ethernet Connector switch, you must select a ThinWire or a standard connector:

• To select the ThinWire connector, set that switch to the out position.

Then go to Section 6.7.1.

• To select the standard connector, set that switch to the in position. Then go to Section 6.7.2.

An indicator next to the selected connector lights when your system is turned on, indicating an active connection.

36

VAX 4000 Model 200 (BA215) Installation

Figure 20: DESQA ThinWire/Standard Ethernet Connector Switch

Ethernet Connector

Switch

MLO-004023

6.7.1 Making a ThinWire Network Connection at the DESQA Module

If your DESQA module has an Ethernet Connector switch, make sure that switch is set to the out position.

VAX 4000 Model 200 (BA215) Installation

37

A T-connector and two terminators are on the DESQA module. Figure 21 shows how the T-connector, terminators, and ThinWire cable connectors fit together.

Figure 21: ThinWire Cable, T-Connector, and Terminator

Connector

Connector

T-Connector

Terminator

MLO-000659

To make a ThinWire network connection at the DESQA module:

1. Remove the T-connector from the module.

Push in and turn it counterclockwise until it unlocks.

2. Remove the terminators from the T-connector. Push in and turn them counterclockwise until they unlock.

3. Connect the ThinWire cable to the T-connector as shown in Figure 22.

38

VAX 4000 Model 200 (BA215) Installation

Figure 22: Making a ThinWire Ethernet Connection at the DESQA

Module

ThinWire Ethernet

Connector

A1

T-Connector

MLO-005581

• If your system requires one connection to the network: a. Connect the ThinWire cable to the upper end of the T-connector.

b. Connect a terminator to the other end of the T-connector.

Push in and turn the connector or terminator clockwise until it locks in place.

• If your system is a link in a network and connects to two additional components: a. Connect a ThinWire cable to one end of the T-connector.

b. Connect a second ThinWire cable to the other end of the Tconnector.

Push in and turn the connectors clockwise until they lock in place.

4. Insert the T-connector into the ThinWire connector on the module as shown in Figure 22. Push in and turn the T-connector clockwise until it locks in place.

VAX 4000 Model 200 (BA215) Installation

39

5. Use the cable clamp shipped with the module to form the upper cable in a loop approximately 10 centimeters (4 inches) in diameter as shown in Figure 23.

Figure 23: Forming the Upper Cable in a Loop at the DESQA Module

Recommended

Diameter Is

10 Centimeters (4 Inches)

Cable Clamp

MLO-004020

6. Connect the ThinWire cable to one of the following devices.

• A ThinWire Ethernet Multiport Repeater (DEMPR), which can be connected to a baseband Ethernet cable and which connects up to eight ThinWire segments in a local area network

• A ThinWire Ethernet Singleport Repeater (DESPR), which can be connected to a baseband Ethernet cable and which connects one

ThinWire segment

• A ThinWire Ethernet adapter in another system or workstation

NOTE:

Contact your network manager or Digital service representative if you have questions about network configurations.

40

VAX 4000 Model 200 (BA215) Installation

When the ThinWire cable is connected to a DEMPR or DESPR, the ground is provided by the DEMPR or DESPR chassis. If you are using a singlesegment ThinWire Ethernet local area network with no DEMPR or DESPR, you may need to ground the ThinWire connector on the DESQA module.

CAUTION:

Each ThinWire Ethernet segment must have only one grounding point.

To ground a single-segment ThinWire network on the DESQA module, connect a grounding clamp (90–08927–00) and an unshrouded T-connector

(12–25534–01) as shown in Figure 24, next page. Contact your Digital sales representative concerning those parts.

VAX 4000 Model 200 (BA215) Installation

41

Figure 24: Grounding the ThinWire Ethernet at the DESQA Module

Hole for Address

Label Carrier

Terminal Ring

Ground Wire

(14 AWG)

Grounding

Clamp

Terminator

T-Connector

ThinWire

MLO-000664

42

VAX 4000 Model 200 (BA215) Installation

6.7.2 Making a Standard Network Connection at the DESQA Module

If your DESQA module does not have an Ethernet Connector switch, call your Digital service representative.

If your DESQA module has an Ethernet Connector switch and you set it to the in (standard) position:

1. Find the Ethernet transceiver cable. It has a plug at one end and a socket at the other end.

2. Make sure the sliding lock on the standard Ethernet connector on the module is in the up position.

VAX 4000 Model 200 (BA215) Installation

43

3. Feed the plug end of the cable under the system from the back or side and insert it into the connector as shown in Figure 25. Slide down the lock to secure the connection.

Figure 25: Making a Standard Ethernet Connection at the DESQA

Module

Sliding

Lock

A1

Standard

Ethernet

Connector

MLO-005582

4. Connect the other end of the cable to one of the following devices.

• An H4000 transceiver on a traditional baseband Ethernet cable

• A DELNI interconnect, which can be connected to a baseband

Ethernet cable and which connects up to eight systems in a local area network

NOTE:

Contact your network manager or Digital service representative if you have questions about network configurations.

44

VAX 4000 Model 200 (BA215) Installation

7 Connect the DSSI Cable — Dual Host Only

If you are not installing a dual-host system, skip to step 8.

If you are installing a dual-host system:

NOTE:

If you want to renumber the system ISEs, refer to your Operation manual.

1. For ease of discussion, call one of the systems host A, the other host B.

VAX 4000 Model 200 (BA215) Installation

45

2. Remove the DSSI terminator from the host A DSSI In/Out connector shown in Figure 26. Squeeze the spring clips at the top and bottom of the terminator as you pull it straight out.

Figure 26: Removing the DSSI Terminators

Host A Host B

MLO-005583

3. Repeat the previous step for host B.

4. Find the 2.74-meter (9-foot) DSSI cable labeled BC21M–09, shipped with your system.

46

VAX 4000 Model 200 (BA215) Installation

5. Feed either end of that cable under host A from the back or side. Then insert the cable connector into the DSSI In/Out connector by fitting the cable connector over the two guide pins shown in Figure 27.

Figure 27: Connecting the DSSI Cable

Host A Host B

MLO-005584

Tighten the screws by hand, then use a screwdriver to secure the connection.

VAX 4000 Model 200 (BA215) Installation

47

6. Repeat the previous step for host B using the opposite end of the DSSI cable.

8 Connect the System Power Cable

CAUTION:

Before continuing the installation, verify that your system power requirements match your power source. The correct voltage for the system is listed on the serial number label next to the power supply (see Figure 1).

• If the voltage matches your power source, continue the installation.

• If the voltage does not match your power source, do not continue the installation. Contact your Digital sales representative.

Connect the power cable to your system as follows.

1. Make sure the Power switch is set to off (0).

2. Make sure all devices connected to your system are turned off.

3. Find the power cable shipped with your system.

48

VAX 4000 Model 200 (BA215) Installation

4. Make sure the plug end of that cable matches your wall outlet or other power source. Several types of plugs are shown in Figure 28.

Figure 28: Power Cables

100 - 125 V

200 - 250 V

MLO-000665

VAX 4000 Model 200 (BA215) Installation

49

5. Feed the socket end of the cable under the system from the back or side, and insert the cable into the power supply as shown in Figure 29.

Figure 29: Attaching the Power Cable to the System

To Outlet

Feed Power Cable

Under System and Through Opening

MLO-000666

6. Insert the plug end of the cable into your wall outlet or other power source.

You are now ready to turn on your system and select a language.

9 Turn On the System and Select a Language

The language you select controls only the language of the console program which is part of the firmware in the CPU. That firmware lets you give commands to the system and also generates error messages.

NOTE:

For a dual-host system: You must turn on each host separately. If you want a language other than English (United States/Canada), you must select a language for each host.

50

VAX 4000 Model 200 (BA215) Installation

Turn on your system(s) and select a language for each as follows.

1. Turn on your console terminal and wait until it performs its self-tests successfully.

2. Turn on your system by setting the Power switch to on (1).

The switch should glow orange.

Within a few moments a language selection menu should appear on your console terminal as shown in Figure 30.

NOTE:

If you are using an older terminal that does not support multiple languages, the language selection menu does not appear and the system defaults to English (United States/Canada).

Figure 30: Language Selection Menu

KA660-A Vn.n VMB n.n

1) Dansk

2) Deutsch (Deutschland/Österreich)

3) Deutsch (Schweiz)

4) English (United Kingdom)

5) English (United States/Canada)

6) Español

7) Français (Canada)

8) Français (France/Belgique)

9) Français (Suisse)

10) Italiano

11) Nederlands

12) Norsk

13) Português

14) Suomi

15) Svenska

(1..15):

3. Select a language by typing its number and

Return

.

NOTE:

If you do not select a language within 30 seconds, the system defaults to English (United States/Canada).

VAX 4000 Model 200 (BA215) Installation

51

Within a few moments the console terminal should display a series of numbers as the system tests itself. The example in Figure 31 shows that display after successful testing.

Figure 31: Successful Self-Tests

KA660-A Vn.n, VMB n.n

Performing normal system tests.

95..94..93..92..91..90..89..88..87..86..85..84..83..82..81..80..

79..78..77..76..75..74..73..72..71..70..69..68..67..66..65..64..

63..62..61..60..59..58..57..56..55..54..53..52..51..50..49..48..

47..46..45..44..43..42..41..40..39..38..37..36..35..34..33..32..

31..30..29..28..27..26..25..24..23..22..21..20..19..18..17..16..

15..14..13..12..11..10..09..08..07..06..05..04..03..

Tests completed.

>>>

If the self-tests do not start or do not complete successfully, as shown in Figure 31, your system may have a problem. For instructions on finding the source of the problem, refer to your system Troubleshooting

and Diagnostics manual which is included in the Customer Hardware

Information Kit.

4. If the self-tests complete successfully and you want to save the language you selected (so you need not select it each time you turn on the system), turn the Power-Up Mode switch to Run mode, which is indicated by an arrow on the CPU cover panel as shown in Figure 32.

Figure 32: Saving the Language

MLO-004255

Now you are ready to attach the front panel.

52

VAX 4000 Model 200 (BA215) Installation

10 Attach the Front Panel to the System

If you plan to start up factory-installed software immediately following the installation, do not attach the front panel at this time.

Attach the front panel as shown in Figure 33.

NOTE:

The window on the front panel must be open. Instructions for operating the window controls are provided in your system Operation manual.

Figure 33: Attaching the Front Panel

1. Pull out the release latch on the front panel.

Release

Latch

MLO-000669

VAX 4000 Model 200 (BA215) Installation

53

2. Holding the panel with both hands, place it flush against the front of the system, about an inch above the bottom.

3. Insert the hooks on the rear of the panel into the slots on the system.

Then slide the panel down until it locks in place.

4. Secure the panel by pushing in the release latch.

11 After Installation

Digital strongly recommends that you run the diagnostic software for your system before you install system software or start factory-installed software the first time. The diagnostics:

• Verify the system configuration.

• Check to see if each device is working properly.

The diagnostic software is on a tape cartridge labeled MV DIAG CUST

TK50. Your system Troubleshooting and Diagnostics manual tells you how to run the diagnostic software.

You should now read your system Operation manual to learn how to use the system. You must know how to operate the system controls and the disk or tape drive before you install system software or run diagnostic software.

If you have factory-installed software on your system, see Appendix A for the startup procedure. Otherwise, install the software that you ordered with your system.

NOTE:

A system with VMS factory-installed software has a yellow sticker on the front of the system.

54

VAX 4000 Model 200 (BA215) Installation

Appendix A

Starting and Modifying VMS

Factory-Installed Software

This appendix tells you how to start and modify VMS factory-installed software (FIS), which is on your system disk if you ordered one or more

ISEs.

FIS must be modified to accommodate customized passwords and system environment particulars. You make the modifications during a startup procedure that is executed when you start FIS the first time.

The requirements for modifying FIS depend on how your system will be used. For example, your system can be configured as a:

• Standalone system

• Dual-host system

• Simple VAXcluster network

• System in a more complex VAXcluster network with distributed resource sharing and sophisticated disk management

CAUTION:

If you want to modify FIS to obtain a dual-host or VAXcluster system, you should have a good understanding of DSSI architecture and

VAXcluster software operation. If you do not have that understanding, you should read the manuals listed in Section A.1 or call your Digital service representative.

A.1 Pre-Startup Requirements

Before you begin the startup procedure, you should:

1. Determine how your system will be configured.

2. Read through the startup procedure to make sure you have the correct information to enter for your configuration.

Starting and Modifying VMS Factory-Installed Software

A–1

3. If your system will be part of a cluster or network, ask your network coordinator or system administrator for your system:

DECnet node name

DECnet node address

Cluster group number

Cluster password

4. If you are not familiar with networking and clustering, examine the following manuals.

VMS VAXcluster Manual

Guide to DECnet–VAX Networking

VMS Networking Manual

A.2 Startup Procedure

If you have a dual-host system, you can start with either host.

1. Enter the console mode.

a. Set the Power switch to off (0).

b. Set the Break Enable/Disable switch to enable (up, dot inside circle).

c. Set the Power switch to on (1).

Wait for your system to complete its self-tests and display the console prompt (

>>>

).

2. Make sure the system disk is on line and is not write-protected.

• The Run/Ready button should be in (lit).

• The Write-Protect button should be out (not lit).

3. If your system will be configured as a cluster with a nonzero allocation class, see your system Operation manual for information on how to program parameters for ISEs.

4. Define the system disk as the default boot device.

>>>

SET BOOT DIA0

Return

5. Boot the FIS.

>>>

BOOT

Return

A–2

VAX 4000 Model 200 (BA215)

6. Set the Break Enable/Disable switch to disable (down, dot outside circle).

The system displays a banner and then prompts you for the date and time.

VAX/VMS Version Vn.n

Major version id = 1 Minor version id = 0

Please enter date and time (DD-MMM-YYYY HH:MM):

7. Enter the date and time in the format shown. For example:

Please enter date and time (DD-MMM-YYYY HH:MM):

03-JUL-1991 12:00

Return

Some messages are displayed, followed by a prompt:

=====================================================

Modifying Factory Installed Software for Customer Use

%SET-I-NEWAUDSRV, identification of new audit server......

%LICENSE-F-EMTLDB, license database contains no license records

.

.

.

Do you want to enter Customer’s cluster and password information(Y/N)?

8. Refer to the appropriate section to complete the startup procedure for a:

• Standalone system, Section A.2.1

• Simple VAXcluster network, Section A.2.2

• Dual-host system or complex VAXcluster network, Section A.2.3

A.2.1 Modifying FIS for a Standalone System

The following procedure modifies FIS for a standalone system.

Do you want to enter Customer’s cluster and password information(Y/N)?

1. Enter Y (type Y and

Return

).

The system asks you to confirm the date and time.

The system time is dd-mmm-yyyy hh:mm:ss:ss

Is this correct? (Y/N)

2. If the date and time are incorrect, enter N. With that answer, the system reprompts you to enter the correct date and time and then to review it.

If you enter Y, the system displays the following prompt.

Will this node be a cluster member (Y/N)?

3. Enter N.

Starting and Modifying VMS Factory-Installed Software

A–3

If DECwindows is on the system disk, you will see the following prompt.

Do you want DECwindows as the default windowing system? (Y/N)

NOTE:

It is easy to set DECwindows as the default windowing system at a later stage.

To do that, you must modify the VMS system generation parameter, WINDOW_SYSTEM, generate a new set of bootstrap parameters, and boot the system again.

See the VMS

Installation and Operations Manual, the Guide to Setting Up a VMS

System, or the VMS System Generation Utility Manual for more information.

4. If you want DECwindows as the default windowing system, enter Y.

Otherwise, enter N.

The system displays prompts asking for account passwords.

5. Enter them as shown below.

NOTE:

The passwords shown are samples. You should enter your own passwords. Remember to record them. If you forget a password, you cannot log in.

Enter new password for account SYSTEM:

PANCAKES

Return

Re-enter the password for account SYSTEM:

PANCAKES

Return

%UAF-I-MDFYMSG, user record(s) updated

Enter new password for account SYSTEST:

BRATHWURST

Return

Re-enter the password for account SYSTEST:

BRATHWURST

Return

%UAF-I-MDFYMSG, user record(s) updated

Enter new password for account FIELD:

ZIRHUMBA

Return

Re-enter the password for account FIELD:

ZIRHUMBA

Return

%UAF-I-MDFYMSG, user record(s) updated

The system verifies the passwords and rejects any that can be easily guessed. The following status messages are displayed if the passwords are acceptable.

%VMS-I-PWD_OKAY, account password for SYSTEM verified

%VMS-I-PWD_OKAY, account password for SYSTEST verified

%VMS-I-PWD_OKAY, account password for FIELD verified

Then the following status message is displayed.

Creating RIGHTS database file, SYS$SYSTEM:RIGHTSLIST.DAT

Ignore any messages of this type.

%SYSTEM-F-DUPIDENT, duplicate identifier

A–4

VAX 4000 Model 200 (BA215)

The following status message is displayed when the FIS setup procedure completes.

%UAF-I-RDBDONEMSG, rights database modified

The system then displays messages that remind you to perform certain tasks after the software is installed:

• Register any Product Authorization Keys (PAKs).

• Back up the system disk.

• Tailor the system disk.

Finally, the system displays the following message, followed by other status messages.

Running AUTOGEN -- Please wait

At this point the system shuts itself down and then reboots from the default boot device. The process takes several minutes, and the system displays a series of information messages:

SHUTDOWN -- Perform an Orderly System Shutdown

.

.

.

VAX/VMS Version Vn.n

.

.

.

SYSTEM

Major version id = 1 Minor version id = 0 job terminated at 24-JUL-1991 14:47:28.34

Accounting information:

Buffered I/O count:

Direct I/O count:

Page faults:

133

12

325

Peak working set size:

Peak virtual size:

Mounted volumes:

Charged CPU time: 0 00:00:55.23

Elapsed time:

401

2379

0

0 00:01:31.24

6. Press

Return

.

The system prompts you for a username and password.

7. Log in to the SYSTEM account as shown below.

Welcome to VAX/VMS

USERNAME:

SYSTEM

Return

PASSWORD:

PANCAKES

Return

%LICENSE-I-NOLICENSE, no license is active for this software product

%LOGIN-LOGOPRCON, login allowed from OPA0:

Welcome to VAX/VMS

$

The system prompt (

$

) indicates the completion of the startup procedure.

Starting and Modifying VMS Factory-Installed Software

A–5

If you do not enter the correct password, the system displays the following message.

User authorization failure

If you forget your password, follow the instructions for breaking into the system given in Guide to Setting Up a VMS System.

8. You should now perform the following operations.

• Register any PAKs you received with your system.

• Back up the system disk.

• Delete unwanted files.

To register PAKs:

$

@SYS$UPDATE:VMSLICENSE

Return

If you make a mistake while entering a PAK:

1. Continue the data entry sequence.

2. Reject the data at the end of the sequence when your system asks you to confirm the data.

Your system then gives you an opportunity to reenter the data correctly.

See the VMS License Management Utility Manual for any additional information you may need.

Your system Operation manual provides information on backing up the system disk and deleting unwanted files. Read carefully to determine the exact sequence of backup and tailoring functions needed, based on the amount of tailoring required and the backup resources available to you.

See the VMS Installation and Operations Manual for more information on entering PAKs, customizing and testing your system, startup and shutdown, and backup procedures.

Later you can use the NETCONFIG.COM and CLUSTER_CONFIG.COM

command procedures to include your system in a network and cluster, provided you have the appropriate software licenses and PAKs. See the

VMS VAXcluster Manual, the Guide to DECnet–VAX Networking, and the

VMS Networking Manual for more information.

A–6

VAX 4000 Model 200 (BA215)

A.2.2 Modifying FIS for a Simple VAXcluster Network

If you want to use your system as part of a simple VAXcluster network, where disks are shared between different systems in the same network, you need a node name and node ID which you can obtain from your network coordinator.

The following procedure configures FIS for use as a server in a simple

VAXcluster network. The configuration can be modified later, if required, using standard VMS procedures.

Do you want to enter Customer’s cluster and password information(Y/N)?

1. Enter Y (type Y and

Return

).

The system asks you to confirm the date and time.

The system time is dd-mmm-yyyy hh:mm:ss:ss

Is this correct? (Y/N)

2. If the date and time are incorrect, enter N. With that answer, the system reprompts you to enter the correct date and time and then to review it.

If you enter Y, the system displays the following prompt.

Will this node be a cluster member (Y/N)?

3. Enter Y.

A series of system prompts are displayed.

4. Respond to those prompts as listed below.

What is the node’s DECnet node name?

Enter the DECnet node name (for example, JUPITR). It can be from one to six alphanumeric characters long and cannot include dollar signs or underlines.

What is the node’s DECnet node address?

Enter the DECnet node address (for example, 2.2). You can obtain it from your network coordinator.

Will the Ethernet be used for cluster communications (Y/N)?

Enter Y. The Ethernet is required for cluster (SCS internode) communications in local area and mixed-interconnect configurations.

Enter this cluster’s group number:

Starting and Modifying VMS Factory-Installed Software

A–7

Enter a number in the range of 1 to 4095 or 61440 to 65535. You can obtain the number from your network coordinator.

Enter the cluster’s password:

Enter the password. It can be from 1 to 31 alphanumeric characters long and can include dollar signs and underlines. You can obtain it from your network coordinator.

Re-enter the cluster’s password for verification:

Reenter the password.

Will JUPITR be a disk server (Y/N)?

Enter Y. In local area and mixed-interconnect configurations, the system disk is served to the cluster. See the VMS VAXcluster Manual for information on served cluster disks.

Will JUPITR serve HSC disks (Y)?

Enter N.

Will JUPITR serve RFxx disks (Y)?

Enter Y.

Enter a value for JUPITR’s ALLOCLASS parameter:

Enter 0 or the desired allocation class for your system.

Does this cluster contain a quorum disk (Y/N)?

Enter N.

If DECwindows is on the system disk, you will see the following prompt.

Do you want DECwindows as the default windowing system? (Y/N)

NOTE:

It is easy to set DECwindows as the default windowing system at a later stage.

To do that, you must modify the VMS system generation parameter, WINDOW_SYSTEM, generate a new set of bootstrap parameters, and boot the system again.

See the VMS

Installation and Operations Manual, the Guide to Setting Up a VMS

System, or the VMS System Generation Utility Manual for more information.

5. If you want DECwindows as the default windowing system, enter Y.

Otherwise, enter N.

The system displays prompts asking for account passwords.

A–8

VAX 4000 Model 200 (BA215)

6. Enter them as shown below.

NOTE:

The passwords shown are samples. You should enter your own passwords. Remember to record them. If you forget a password, you cannot log in.

Enter new password for account SYSTEM:

PANCAKES

Return

Re-enter the password for account SYSTEM:

PANCAKES

Return

%UAF-I-MDFYMSG, user record(s) updated

Enter new password for account SYSTEST:

BRATHWURST

Return

Re-enter the password for account SYSTEST:

BRATHWURST

Return

%UAF-I-MDFYMSG, user record(s) updated

Enter new password for account FIELD:

ZIRHUMBA

Return

Re-enter the password for account FIELD:

ZIRHUMBA

Return

%UAF-I-MDFYMSG, user record(s) updated

Your system verifies the passwords and rejects any that can be easily guessed. The following status messages are displayed if the passwords are acceptable.

%VMS-I-PWD_OKAY, account password for SYSTEM verified

%VMS-I-PWD_OKAY, account password for SYSTEST verified

%VMS-I-PWD_OKAY, account password for FIELD verified

Then the following status message is displayed.

Creating RIGHTS database file, SYS$SYSTEM:RIGHTSLIST.DAT

Ignore any messages of this type.

%SYSTEM-F-DUPIDENT, duplicate identifier

The following status message is displayed when the FIS setup procedure completes.

%UAF-I-RDBDONEMSG, rights database modified

Then the system displays messages that remind you to perform certain tasks after the software is installed.

• Register any Product Authorization Keys (PAKs).

• Back up the system disk.

• Tailor the system disk.

Finally, the system displays the following message, followed by other status messages.

Running AUTOGEN -- Please wait

Starting and Modifying VMS Factory-Installed Software

A–9

At this point, the system shuts itself down and then reboots from the default boot device. The process takes several minutes, and the system displays a series of information messages.

SHUTDOWN -- Perform an Orderly System Shutdown

VAX/VMS Version Vn.n

.

.

.

SYSTEM

Major version id = 1 Minor version id = 0 job terminated at 24-JUL-1991 14:47:28.34

Accounting information:

Buffered I/O count:

Direct I/O count:

Page faults:

133

12

325

Peak working set size:

Peak virtual size:

Mounted volumes:

Charged CPU time: 0 00:00:55.23

Elapsed time:

401

2379

0

0 00:01:31.24

7. Press

Return

.

The system prompts you for a username and password.

8. Log in to the SYSTEM account as shown below.

Welcome to VAX/VMS

USERNAME:

SYSTEM

Return

PASSWORD:

PANCAKES

Return

%LICENSE-I-NOLICENSE, no license is active for this software product

%LOGIN-LOGOPRCON, login allowed from OPA0:

Welcome to VAX/VMS

$

The system prompt (

$

) indicates the completion of the startup procedure.

If you do not enter the correct password, the system displays the following message.

User authorization failure

If you forget your password, follow the instructions for breaking into the system given in Guide to Setting Up a VMS System.

9. You should now perform the following operations.

• Register any PAKs you received with your system.

• Back up the system disk.

• Delete unwanted files.

To register PAKs:

$

@SYS$UPDATE:VMSLICENSE

Return

A–10

VAX 4000 Model 200 (BA215)

If you make a mistake while entering a PAK:

1. Continue the data entry sequence.

2. Reject the data at the end of the sequence when your system asks you to confirm the data.

Your system then gives you an opportunity to reenter the data correctly.

See the VMS License Management Utility Manual for any additional information you may need.

Your system Operation manual provides information on backing up the system disk and deleting unwanted files. Read carefully to determine the exact sequence of backup and tailoring functions needed, based on the amount of tailoring required and the backup resources available to you.

See the VMS Installation and Operations Manual for more information on entering PAKs, customizing and testing your system, startup and shutdown, and backup procedures.

In a VAXcluster network, queues for printer and batch processing operations can be configured to work on other systems in the cluster. See your network coordinator for details of queues that are available in your network. If you are setting up a new network, see the VMS VAXcluster

Manual for a discussion on setting up remote printer and batch processing queues.

You can use the NETCONFIG.COM command procedure to include your system in a network, provided you have the appropriate software licenses and PAKs. See the VMS VAXcluster Manual, the Guide to DECnet–VAX

Networking, and the VMS Networking Manual for more information.

A.2.3 Modifying FIS for a Complex Network or Dual-Host

System

In a complex network or dual-host system you may want to enter the disk allocation class and quorum disk information for the network. That information lets disks be shared on a selective basis between some systems on the network. Quorum disk information also allows more rigorous definition of cluster operations during the removal of systems from the network.

In addition, queues for printer and batch processing operations can be set up, allowing work to be executed on other systems in the network.

See the VMS VAXcluster Manual, the Guide to DECnet–VAX Networking, and the VMS Networking Manual for information on setting up systems as members of complex networks and setting up remote printer and batch processing queues.

Starting and Modifying VMS Factory-Installed Software

A–11

A.2.3.1 Configuring for Dual-Host Systems

The VMS Installation and Operations manual tells you how to configure a dual-host system for cluster operation. You can set up the system for operation as a:

• Pair of boot servers for a new local area cluster to which you intend to add satellites

• Two-node cluster to which you do not intend to add satellites

• Pair of boot servers that you want to add to an existing cluster

NOTE:

You must assign the same allocation class to both systems and to the

ISEs. The allocation class must be different from that of other systems and hierarchical storage controllers (HSCs) in a cluster. Refer to your system

Operation manual for information on setting parameters for ISEs.

The following software licenses are required to configure a dual-host system.

Host A

VMS

VAXcluster

DECnet full-function

Host B

VMS

VAXcluster

DECnet end-node

A.2.3.2 Checking Your Modification Work

You can use two commands to check your work after you modify FIS for a dual-host system.

• Use SHOW DEVICE D to list the ISEs. Make sure the number of ISEs listed matches the number in your dual-host system.

Too many ISEs indicates an incorrect allocation class setting for an

ISE.

Too few ISEs indicates an incorrect unit number for an ISE.

• Use SHOW DEVICE DI/FULL to check that the alternate host name for your dual-host system is displayed.

A–12

VAX 4000 Model 200 (BA215)

A

A026–PA module, 12

A030–PA module, 12

A1008–PA module, 12

A1009–PA module, 12

AAV11 option, 12

Additional devices, connecting, 10

ADQ32 option, 12

ADV11 option, 12

After installation, 54

Asynchronous modems, connecting,

18

Attaching

See Connecting

AXV11 option, 12

B

BA21X–SF option, 13

C

CA11A, CA12A, and CA13A telephone service, 21

CA41A and CA45A telephone service, 24

Card cage area, setting controls, 8

Checking shipment, 1 software modification work, A–12

Configuring software for dual-host systems, A–12

Connecting additional devices, 10 asynchronous modems, 18 console terminal, 5, 6 devices, additional, 10

Index

Connecting (Cont.)

DSSI cable, dual host, 45

Ethernet network at CPU cover panel, 29

Ethernet network at DESQA module, 36 front panel, 53 internal modem, 20 modems, asynchronous, 18 modems, synchronous, 18 parallel printers, 17 power cable, system, 48 serial printers, 13 standard network at CPU cover panel, 34 standard network at DESQA module, 43 synchronous modems, 18 system power cable, 48 telephone lines, 20 terminals and serial printers, 13

ThinWire network at CPU cover panel, 30

ThinWire network at DESQA module, 37

VT300-series console terminals, 6

VT400-series console terminals, 6

Console terminal connecting, 5, 6 setup operations, 5

Controls

See System controls

CPU cover panel

Ethernet network connections, 29 standard network connections, 34

ThinWire network connections,

30

Index–1

CXA16 option, 11

CXB16 option, 12

CXY08 option, 12

D

DEQRA–CA option, 12

DESQA module

Ethernet network connections, 36 standard network connections, 43

ThinWire network connections,

37

DESQA option, 12

Devices, connecting additional, 10

DFA01 modem, 20

DFA01 option, 12

DIV32 option, 12

DPV11 option, 12

DPV11 or KMV1A module, 18

DRQ3B option, 12

DRV1J option, 12

DRV1W option, 12

DSSI cable, dual host connection, 45

DSV11 module, 18

DSV11 option, 11

Dual host connection, DSSI cable,

45

E

Ethernet network connections

CPU cover panel, 29

DESQA module, 36

I

F

Factory-installed software

See VMS factory-installed software

FIS

See VMS factory-installed software

Front panel, connecting, 53

IBQ01 option, 12

Identification labels, module, 11

IEQ11 option, 12

Installing

See Connecting

Internal modem, connecting, 20

K

KA660–AA option, 11

KA660–BA option, 11

KDA50 option, 11

KFQSA option, 11

KLESI option, 11

KMV1A module, 18

KMV1A option, 12

KRQ50 option, 11

KWV11 option, 12

KXJ11 option, 12

KZQSA option, 11

L

Labels, module identification, 11

Language, selecting, 50

LPV11 option, 12

M

M3108–PA module, 11

M3118–YA module, 11

M3118–YB module, 12

M3119–YA module, 12

M3121–PA module, 12

M3125–PA module, 12

M3127–PA module, 12

M4002–PA module, 12

M5976–SA module, 11

M7164 module, 11

M7165 module, 11

M7168 module, 12

M7169 module, 12

M7206–PA module, 11

M7500–PA module, 12

M7530 module, 11

M7531–PA module, 12

Index–2

M7533–AB module, 12

M7546–00 module, 11

M7552–PA module, 11

M7559–00 module, 11

M7616 module, 12

M7622–AA module, 11

M7622–BA module, 11

M7626–AA module, 11

M7626–BA module, 11

M7651–PA module, 12

M7658–PA module, 12

M7740–PA module, 11

M7769 module, 11

M8020–PA module, 12

M8049–PA module, 12

M8086–PA module, 12

M8578–00 module, 11

M8634–PA module, 12

M9404 module, 13

M9405 module, 13

Mass storage shelf, setting controls,

8

Modems asynchronous, connecting, 18

DFA01, 20 internal, connecting, 20 synchronous, connecting, 18

Modifying VMS factory-installed software, A–1 checking modification work, A–12 complex network or dual-host system, A–11 configuring dual-host systems,

A–12 dual-host system, A–11 simple VAXcluster system, A–7 standalone system, A–3

Module identification labels, 11

Modules

A026–PA, 12

A030–PA, 12

A1008–PA, 12

A1009–PA, 12

DPV11, 18

Modules (Cont.)

DSV11, 18

KMV1A, 18

M3108–PA, 11

M3118–YA, 11

M3118–YB, 12

M3119–YA, 12

M3121–PA, 12

M3125–PA, 12

M3127–PA, 12

M4002–PA, 12

M5976–SA, 11

M7164, 11

M7165, 11

M7168, 12

M7169, 12

M7206–PA, 11

M7500–PA, 12

M7530, 11

M7531–PA, 12

M7533–AB, 12

M7546–00, 11

M7552–PA, 11

M7559–00, 11

M7616, 12

M7622–AA, 11

M7622–BA, 11

M7626–AA, 11

M7626–BA, 11

M7651–PA, 12

M7658–PA, 12

M7740–PA, 11

M7769, 11

M8020–PA, 12

M8049–PA, 12

M8086–PA, 12

M8578–00, 11

M8634–PA, 12

M9404, 13

M9405, 13

MRV11 option, 11

MS650–BA option, 11

MS650–BB option, 11

Index–3

N

Network

See Ethernet network

O

Options

AAV11, 12

ADQ32, 12

ADV11, 12

AXV11, 12

BA21X–SF, 13

CXA16, 11

CXB16, 12

CXY08, 12

DEQRA–CA, 12

DESQA, 12

DFA01, 12

DIV32, 12

DPV11, 12

DRQ3B, 12

DRV1J, 12

DRV1W, 12

DSV11, 11

IBQ01, 12

IEQ11, 12

KA660–AA, 11

KA660–BA, 11

KDA50, 11

KFQSA, 11

KLESI, 11

KMV1A, 12

KRQ50, 11

KWV11, 12

KXJ11, 12

KZQSA, 11

LPV11, 12

MRV11, 11

MS650–BA, 11

MS650–BB, 11

TQK50, 11

TQK70, 11

TSV05, 11

VCB02–J, 12

Index–4

Options (Cont.)

VCB02–K, 12

P

Parallel printers, connecting, 17

Performing console terminal setup operations, 5

Positioning system, 4

Postinstallation requirements, 54

Power cable

See System power cable

Preparation, verifying site, 1

Pre-startup requirements, VMS factory-installed software, A–1

Printers

See Parallel printers or Serial printers

R

RJ11C/CA11A, RJ12C/CA12A, and

RJ13C/CA13A telephone service, 21

RJ41S/CA41A and RJ45S/CA45A telephone service, 24

S

Selecting language, 50

Serial printers, connecting, 13

Setting system controls card cage area, 8 mass storage shelf, 8

Setting up terminal lines, 28

Setup operations console terminal, 5

Shipment, checking, 1

Site preparation, verifying, 1

Software, system

See VMS factory-installed software

Standard network connections

CPU cover panel, 34

DESQA module, 43

Starting and modifying VMS factoryinstalled software, A–1

Startup procedure, VMS factoryinstalled software, A–2

Synchronous modems, connecting,

18

System front panel, connecting, 53 positioning, 4 selecting language, 50 turning on and selecting language, 50

System controls, setting, 8

System power cable, connecting, 48

System software

See VMS factory-installed software

T

Telephone lines, connecting, 20

Telephone service

RJ11C/CA11A, RJ12C/CA12A, and RJ13C/CA13A, 21

RJ41S/CA41A and RJ45S/CA45A,

24

Terminal

See Console terminal

Terminal lines, setting up, 28

Terminals and serial printers, connecting, 13

ThinWire network connections

CPU cover panel, 30

DESQA module, 37

TQK50 option, 11

TQK70 option, 11

TSV05 option, 11

Turning on system and selecting language, 50

V

VCB02–J option, 12

VCB02–K option, 12

Verifying site preparation, 1

VMS factory-installed software

VMS factory-installed software

(Cont.) checking modification work, A–12 complex network or dual-host system, A–11 configuring dual-host systems,

A–12 dual-host system, A–11 modifying, A–1 pre-startup requirements, A–1 simple VAXcluster system, A–7 standalone system, A–3 starting and modifying, A–1 startup procedure, A–2

VT300-series console terminals, connecting, 6

VT400-series console terminals, connecting, 6

Index–5
