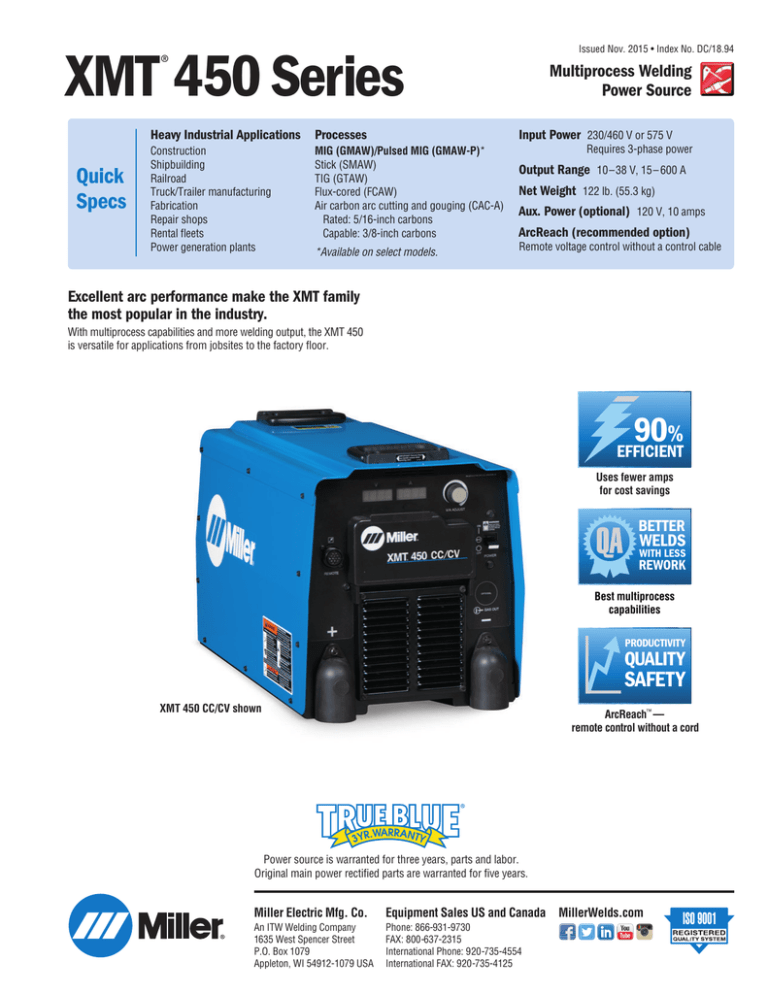

XMT 450 Series Quick

XMT 450 Series Quick
Issued Nov. 2015 • Index No. DC/18.94
®
XMT 450 Series
Quick
Specs
Heavy Industrial Applications
Processes
Construction
Shipbuilding
Railroad
Truck/Trailer manufacturing
Fabrication
Repair shops
Rental fleets
Power generation plants
MIG (GMAW)/Pulsed MIG (GMAW-P)*
Stick (SMAW)
TIG (GTAW)
Flux-cored (FCAW)
Air carbon arc cutting and gouging (CAC-A)
Rated: 5/16-inch carbons
Capable: 3/8-inch carbons
Multiprocess Welding
Power Source
Input Power 230/460 V or 575 V
*Available on select models.
Requires 3-phase power
Output Range 10–38 V, 15– 600 A
Net Weight 122 lb. (55.3 kg)
Aux. Power (optional) 120 V, 10 amps
ArcReach (recommended option)
Remote voltage control without a control cable
Excellent arc performance make the XMT family
the most popular in the industry.
With multiprocess capabilities and more welding output, the XMT 450
is versatile for applications from jobsites to the factory floor.
90%
EFFICIENT
Uses fewer amps
for cost savings
BETTER
WELDS
WITH LESS
REWORK
Best multiprocess
capabilities
PRODUCTIVITY
QUALITY
SAFETY
XMT 450 CC/CV shown
ArcReach™ —
remote control without a cord
Power source is warranted for three years, parts and labor.
Original main power rectified parts are warranted for five years.
Miller Electric Mfg. Co.
Equipment Sales US and Canada MillerWelds.com
An ITW Welding Company
1635 West Spencer Street
P.O. Box 1079
Appleton, WI 54912-1079 USA
Phone: 866-931-9730
FAX: 800-637-2315
International Phone: 920-735-4554
International FAX: 920-735-4125
®
Choosing the Correct XMT 450
XMT 450 CC/CV
Flexibility and simplicity make this the most popular model. It has the core
multiprocess capabilities along with the flexibility of a 14-pin for spool guns,
feeders, and remote controls.
XMT 450 MPa
Built-in pulse programs for manufacturing and fabrication applications that have
benefits for standard steels, high-strength steels and aluminum.
Recommended Option
Remote control of the power source without a cord.
With an ArcReach-equipped SuitCase® feeder and power source you can change the output voltage
at the feeder, and save a trip to the power supply. No extra control cable to purchase, maintain,
string or unstring — saving time and money.
XMT 450 CC/CV
230/460 V, 400 V (CE) or 575 V, 3-phase
Input Power
Carbon Arc Gouging
Rated: 5/16-inch carbons, Capable: 3/8-inch carbons
122 lb. (55.3 kg)
Net Weight
Output Connections
Stick/TIG/MIG
Pulsed MIG
Available with ArcReach™ (recommended option)
Insight Core™
SuitCase X-TREME™ Feeders
Bench Feeders
Spool Guns
Remote Controls
2
230/460 V or 575 V, 3-phase
450 A at 38 VDC, 100% duty cycle
Weld Output
Compatible
Accessories
XMT 450 MPa
1/2-inch stud
Tech Talk
Remote control of the power
source without a cord
ArcReach technology uses the existing
weld cable to communicate welding
control information between the
feeder and power source. This technology
eliminates the need for control cords, and
their associated problems and costs.
®
XMT 450 Series Features
Multiprocess weld quality
Welder friendly control panel
High-quality performance in all welding
processes.
Process selector switch reduces the
number of control setup combinations
without reducing any features.
Adaptive Hot Start ™ makes starting
stick electrodes easy without creating
an inclusion.
Large, dual digital meters are easy to
view and are presettable to ease setting
weld output.
Infinite arc control available in the
stick and wire modes for easier fine
tuning of tough-to-weld materials and
out-of-position applications.
Ultra-tough, polycarbonate-blended
cover protects front controls from
damage.
Lift-Arc™ provides arc starting that
minimizes contamination of the electrode
and without the use of high-frequency.
Reliability
Primary voltage display shows what
primary voltage the power source is
linked for without removing the side
panels. Saves time and assures you that
the power source has been correctly
linked for available input voltage.
Wind Tunnel Technology.™ Internal air flow that
protects electrical components and PC boards from
dirt, dust debris… greatly improving reliability.
Auto Remote Sense™ enables unit to
automatically use remote control if
connected to remote control receptacle.
XMT 450 CC/CV panel shown
Versatility
14-pin receptacle has the flexibility to
be used with spool guns, feeders, and
remote controls.
Optional 115-volt auxiliary power
provides 10 amps of circuit-breakerprotected power for coolant systems, etc.
Optional Welding Intelligence™ system.
XMT CC/CV and MPa models are Insight
capable to monitor weld voltage, amperage,
and arc-time and percentage.
Fan-On-Demand™ cooling system operates only
when needed, reducing noise, energy use and the
amount of contaminants pulled through machine.
Unique case design helps protect internal
components from dirt and dust. To connect
input power cord and/or set unit up for correct
input power, remove the easy-to-handle panel
(1/3 case). The remaining two-thirds of the case
never needs to be removed!
3
®
Additional XMT 450 MPa Features
Built-in pulse programs
for manufacturing and
fabrication applications
that have benefits for
standard steels,
high-strength steels
and aluminum.
Setup indicator lights
• Arc control indicator
• Wire type indicator
• Gas type indicator
• Setup button
Added capabilities with Insight Core.
When using an MPa Plus feeder, wire
deposition is added to the Insight Core
capabilities.
Advanced arc control enables an improved pulse welding arc. The operator has more control over
puddle and bead characteristics using SharpArc. In addition, the unit provides a more robust and
stable arc at very low arc length, reducing heat input, and providing the ability to weld on a wider
range of material thickness.
Additional features when using
a 70 Series MPa Plus feeder or
XR-AlumaFeed® feeder.
SharpArc® controls the arc in pulsed MIG mode and
(0 setting)
(50 setting)
gives total control over the arc cone shape, puddle
fluidity and bead profile. If a gas is used other than
what is listed in the chart above, SharpArc can be
Low Setting
High Setting
adjusted to help customize your arc to the gas being
used. Lower SharpArc™ settings widen the arc cone, increase puddle fluidity and flattens the weld bead.
Built-in pulsed MIG programs provide reduced heat affected zone, weld in all positions, great for
thick-to-thin metal, good gap filling ability and faster travel speeds and deposition. See the table below
for the wide range of pulsed MIG (GMAW-P) welding applications the XMT MPa models can handle.
Wire Types — diameter in inches (mm)
Gas Types
Steel
.035 (0.9) STL, .045 (1.2) STL,
.052 (1.4) STL, 1/16 (1.6) STL
ARGN CO2 (argon/carbon dioxide)
80 ARGN CO2 (argon/carbon dioxide)
ARGN OXY (argon/oxygen)
Steel 100S
.035 (0.9) STL, .045 (1.2) STL, 1/16 (1.6) STL
100S C5 (95 argon/5 carbon dioxide)
Metal Core
.045 (1.2) MCOR, .052 (1.4) MCOR,
1/16 (1.6) MCOR
ARGN CO2 (argon/carbon dioxide)
Stainless Steel
.035 (0.9) SSTL, .045 (1.2) SSTL
TRI MIX (tri-gas mixture)
ARGN OXY (argon/oxygen)
ARGN CO2 (argon/carbon dioxide)
1/16 (1.6) SSTL
ARGN CO2 (argon/carbon dioxide)
.035 (0.9) AL4X (4000 Series)
.040 (1.0) AL4X (4000 Series)
3/64 (1.2) AL4X (4000 Series)
1/16 (1.6) AL4X (4000 Series)
ARGN (argon)
.035 (0.9) AL49 (4943)
.040 (1.0) AL49 (4943)
3/64 (1.2) AL49 (4943)
1/16 (1.6) AL49 (4943)
ARGN (argon)
.035 (0.9) AL5X (5000 Series)
.040 (1.0) AL5X (5000 Series)
3/64 (1.2) AL5X (5000 Series)
1/16 (1.6) AL5X (5000 Series)
ARGN (argon)
HE AR25 (helium/argon)
.035 (0.9) NI, .045 (1.2) NI
ARGN HE (argon/helium)
ARGN (argon)
Aluminum
Nickel
1/16 (1.6) NI
ARGN (argon)
Copper Nickel
.035 (0.9) CUNI, .045 (1.2) CUNI
HE ARGN (helium/argon)
Silicon Bronze
.035 (0.9) SIBR, .045 (1.2) SIBR
ARGN (argon)
Titanium
.035 (0.9) TI-5, .045 (1.2) TI-5
ARGN HE25 (75 argon/25 helium)
.035 (0.9) TI-5, .045 (1.2) TI-5, 1/16 (1.6) TI-2
ARGN HE50 (50 argon/50 helium)
1/16 (1.6) TI-2
HE100 (100 helium)
4
Synergic pulsed MIG. As you increase/
decrease the wire feed speed, the pulse
parameters increase/decrease, matching
the right amount of power output to
match the wire speed, eliminating the
need to make additional adjustments.
Profile Pulse™
provides TIG
appearance with
MIG simplicity
and productivity. Achieve “stacked dimes”
without gun manipulation. Profile Pulse
frequency can be changed to increase or
decrease the spacing between the ripple
pattern to achieve the desired weld
appearance.
Added capabilities with Insight Core.™
When using an MPa Plus feeder, wire
deposition is added to the Insight Core
capabilities.
™
ArcReach Features and Advantages (Available on select CC/CV models.)
Remote in use indicator provides
convenient feedback indicating an
ArcReach wire feeder is controlling
the power source. While under
ArcReach control, process and
voltage/amperage adjustments are
locked out, preventing accidental
changes by personnel other than
the welding operator.
NEW! Auto-Bind automatically
establishes an exclusive
communication between the power
source and the wire feeder, using
the existing weld cables upon
system power up.
Fleet compatibility. ArcReach-equipped power sources
and wire feeders work with non-ArcReach equipment;
however, the complete ArcReach benefit is only realized
with the ArcReach system.
LED process indicator. Front panel
process selections are illuminated
with an LED that identifies the active
process. This enables the selected
weld process to be seen at a
distance from the power source.
Includes new carbon arc gouging
mode for enhanced arc stability
and control, and two new stick
modes (EXX10 and EXX18)
designed to reduce spatter and
enhance arc starts.
ArcReach provides remote voltage control at the wire feeder without needing a control cable.
MORE
WELDS
IN LESS
TIME
Increased productivity
BETTER
WELDS
WITH LESS
REWORK
Improved weld quality
FEWER
CABLES
TO MAINTAIN
More arc-on time and reduced exposure to workplace
hazards for operators can be realized using ArcReach
because less time is spent going back to the welding power
supply to set process and arc voltage.
Auto-Process Select.™ System automatically changes to
MIG/FCAW (with gas) if electrode positive polarity is
detected or FCAW (no gas) if electrode negative polarity is
detected, when ArcReach communication is established
between the feeder and the XMT — reducing the need to
access the power supply.
Automatic return to panel settings. System automatically
returns to XMT setting when ArcReach communication
is terminated. For example, if the XMT is set to gouging
at 350 amps and an ArcReach feeder is connected, the
XMT will go to a MIG/FCAW process. If the feeder is
disconnected, the XMT will go back to its previous setting
(gouging at 350 amps).
Less operator fatigue by not needing to move or reposition
both heavy secondary weld leads bundled with control cords
on the jobsite. Control cables are not used.
Remote override of XMT. When an ArcReach feeder is
connected to an XMT the feeder has full control and the
XMT controls are disabled. While under ArcReach control,
process and voltage/amperage adjustments are locked
out, preventing accidental changes by personnel other
than the welding operator.
Operator can precisely set arc voltage at the feeder and
monitor the actual arc voltage and current delivered to the
weld using the digital meters on the feeder. This removes
guesswork when it comes to adhering to weld procedures.
Save time by no longer needing to troubleshoot welding
system problems that result from damaged control cords.
Eliminate costly control cord repairs because control
cords are not used.
Reduced maintenance
5
Specifications (Subject to change without notice.)
Model
Input
Power
XMT 450
CC/CV
Threephase
Voltage
Range in
CV Mode
Amperage
Range in
CC Mode
10–38 V
15 – 600 A
Rated Output
450 A at 38 VDC,
100% duty cycle
XMT 450
MPa
*KVA is 23.5 on 575 V.
Amps Input at Rated Load Output, 60 Hz
230 V 400 V 460 V 575 V KVA KW
Max. OpenCircuit
Voltage
51
32.1
27.6
24.4
22
90 VDC
51
—
27.6
23.6
21.6* 18.3
18.9
Dimensions
H: 17.25 in. (438 mm)
W: 14.5 in. (368 mm)
D: 27.125 in. (689 mm)
Net
Weight
122 lb.
(55.3 kg)
Certified by Canadian Standards Association to both the Canadian and U.S. Standards.
Performance Data
Duty Cycle Chart
700
56%
600
3-phase operation
Welding Amperes
500
400
300
200
150
100
10
15
20
25
30
40
50
60
70
80
90 100
% Duty Cycle
Genuine Miller Accessories
®
XMT 350
6-pack
shown.
XMT 450 CC/CV Rack
#907 607 4-pack rack, fused 460 V
#907 608 4-pack rack, fused 575 V
XMT 450 CC/CV ArcReach Rack
#907 700 4-pack rack, fused 460 V
Conveniently houses multiple XMT power
sources for multiple welders. Features include:
Provision to parallel power sources on
common work connections
Two lifting eyes for transportation
Rugged skids for dragging or pushing
For detailed information on customized
inverter rack systems see Lit. Index No.
DC/18.81.
6
MIGRunner ™ Cart
#195 445 For single feeders
Small footprint and easily maneuverable, with
dual-cylinder rack low enough that you do not
have to lift bottles. Durable ergonomic handles
are designed for comfort.
Note: Not compatible with dual wire feeders.
Running Gear Cylinder Rack
#300 408 For single or dual feeders
Holds two large gas cylinders and has gun cable
hangers and a consumable drawer in front. A
convenient handle allows the cart to be pulled
easily through doorways. Power source and
single or dual feeders can be mounted to cart
and secured.
Genuine Miller Accessories (Continued)
®
Remote Controls
Wire Feeders/Guns
Wireless Remote Foot
Control #300 429
For remote current and
contactor control. Receiver
plugs directly into the
14-pin receptacle of Miller
machine. 90-foot (27.4 m) operating range.
Wireless Remote Hand
Control #300 430
For remote current and
contactor control.
Receiver plugs directly
into the
14-pin receptacle of Miller machine. 300-foot
(91.4 m) operating range.
SuitCase® X-TREME™ 8VS
#951 582
SuitCase® X-TREME™ 12VS
#951 543
Lightweight, portable wire feeder for a variety of
wires up to .062 inch. Holds up to an 8-inch
(8VS) or 12-inch (12VS) spool of wire. Operates
on open-circuit voltage eliminating the need for
a control/power cord. See Lit. Index No. M/6.41.
RFCS-14 Foot Control
#043 554
Foot current and
contactor control.
Includes 20-foot (6 m)
cord and 14-pin plug.
RHC-14 Hand Control*
#242 211 020
20-foot (6 m) cord
#242 211 100
100-foot (30.5 m) cord
Miniature hand control for remote current and
contactor control. Dimensions: 4 x 4 x 3.25
inches (102 x 102 x 82 mm). Includes cord and
14-pin plug.
*Custom lengths available in 5-foot increments up to
50 feet and 10-foot increments up to 100 feet.
RCC-14 Remote Contactor and Current Control
#151 086
East/west rotary-motion fingertip control attaches
to TIG torch using two hook-and-loop fasteners.
Includes 26.5-foot (8 m) cord and 14-pin plug.
RCCS-14 Remote Contactor and Current
Control #043 688
North/south rotary-motion fingertip control
attaches to TIG torch using two hook-and-loop
fasteners. Includes 26.5-foot (8 m) cord and
14-pin plug.
Extension Cables for Remote Controls
and 24 VAC Wire Feeders*
#242 208 025 25 ft. (7.6 m)
#242 208 050 50 ft. (15 m)
#242 208 080 80 ft. (24.3 m)
14-pin plug to 14-pin socket. Not for use with
XR-AlumaFeed or 70 Series MPa feeder.
*Custom lengths available in 5-foot increments up to
50 feet and 10-foot increments up to 100 feet.
SuitCase® X-TREME™ 8VS ArcReach
#951 588 With Bernard™ S-Gun™
#951 584 With Bernard™ Q300
SuitCase® X-TREME™ 12VS ArcReach
#951 589 With Bernard™ S-Gun™
#951 581 With Bernard™ Q300
Portable feeder designed to run off of arc
voltage. ArcReach provides remote control of
the power source without a cord — saving time
and money.
SuitCase® 12RC #951 580
Lightweight, portable wire
feeder for a variety of wires
up to .062 inch. Holds up to a
12-inch (12RC) spool of wire.
Operates using 14-pin control
receptacle. See Lit. Index No.
M/6.5.
XR™-S Control
#300 601
XR™-D Control
#300 687
Controls offer
unsurpassed
performance and reliability for feeding aluminum
and other difficult-to-feed wire types. Models
include .035-inch and factory-installed 3/64-inch
drive rolls. See Lit. Index No. M/1.7.
XR-AlumaFeed™ #300 509
Advanced push-pull wire feeder
designed for high-volume,
high-production aluminum
MIG welding where quality and
consistency is a high priority.
See Lit. Index No. DC/34.0
70 Series
S-74S #951 196
S-74D #951 198
S-74DX #951 200
Features Posifeed™ wire
drive assembly and handles a variety of wires up
to 1/8 inch. Includes Bernard™ Q-Gun™. Dual-wire
models also available. See Lit. Index No. M/3.0.
70 Series MPa Plus
S-74 MPa Plus #951 291
D-74 MPa Plus #951 292
Same features as traditional 70 Series plus more.
Handles a variety of wires up to 5/64 inch. Includes
Bernard™ Q-Gun™. Works synergically with
MPa power sources. See Lit. Index No. M/3.0.
Extension Cables*
#247 831 025 25 ft. (7.6 m)
#247 831 050 50 ft. (15.2 m)
#247 831 080 80 ft. (24.4 m)
Eleven conductors to support contactor control
and remote voltage control on all Miller
electronic CV 14-pin power sources. Additional
functions supported when using MPa power
sources include synergic pulsed MIG, remote
process select and side select capabilities.
*Custom lengths available in 5-foot increments up to
50 feet and 10-foot increments up to 100 feet.
Spoolmatic® 30A
#130 831
WC-24 (#137 549)
required for use with
14-pin receptacles,
order separately. A one-pound, air-cooled spool
gun that extends the weld process range by
adding a handy portable system for small wire
MIG. Rated 200 amps at 100% duty cycle.
Includes 30-foot (9.1 m) cable assembly.
WC-24 Weld Control #137 549
Required to use Spoolmatic 30A
spool gun. Designed for use with
Miller CV power sources with 14-pin
receptacles and supplying 24 VAC.
Welding Intelligence™
Insight Core™
14-pin Module
#301 072
Easy-to-install
module brings
Insight Core capabilities to your existing fleet.
This simplified, Internet-based weld data solution
collects, transmits and presents actionable
information to any Web-connected device.
Insight Core can help you increase productivity,
improve weld quality and manage costs.
7
Ordering Information
Power Source and Options
Stock No.
Description
XMT® 450 CC/CV
#907 481
#907 482
#907 525
230/460 V
575 V
400 V with auxiliary power and CE
XMT® 450 MPa
#907 479
#907 479 001
#907 480
#907 480 001
230/460 V
230/460 V with auxiliary power
575 V
575 V with auxiliary power
XMT® 450 CC/CV ArcReach™
#907 481 003
#907 481 004
#907 482 002
230/460 V
230/460 V with auxiliary power
575 V
XMT® 450 Rack
Gas Valve Kit
Qty.
See page 6. For more information, see Lit. Index No. DC/18.81
#300 928
For XMT 450
Accessories
MIGRunner™ Cart
#195 445
For single feeders
Running Gear Cylinder Rack
#300 408
For single or dual feeders
Wireless Remote Foot Control
#300 429
Foot control with wireless 90 ft. (27.4 m) operating range
Wireless Remote Hand Control
#300 430
Hand control with wireless 300 ft. (91.4 m) operating range
RFCS-14
#043 554
Foot control
RHC-14
#242 211 020
#242 211 100
Hand control with 20 ft. (6 m) cord
Hand control with 100 ft. (30.5 m) cord
RCC-14
#151 086
Fingertip control
RCCS-14
#043 688
Remote Controls
Extension Cables
Fingertip control
See page 7
Wire Feeders/Guns
SuitCase® X-TREME 8VS
#951 582
See Lit. Index No. M/6.41
SuitCase® X-TREME™ 12VS
#951 543
See Lit. Index No. M/6.41
SuitCase® X-TREME 8VS ArcReach™
#951 588
#951 584
With Bernard™ S-Gun™
With Bernard™ Q300 Gun
SuitCase® X-TREME™ 12VS ArcReach™
#951 589
#951 581
With Bernard™ S-Gun™
With Bernard™ Q300 Gun
SuitCase® 12RC
#951 580
See Lit. Index No. M/6.5
XR™-S Control
#300 601
Standard model with wire feed speed digital display, jog/purge,
run-in control, and trigger hold. See Lit. Index No. M/1.7
XR™-D Control
#300 687
Enhanced model has same features as XR-S model plus advanced digital
and programming capabilities. See Lit. Index No. M/1.7
XR-AlumaFeed™
#300 509
Advanced model adds Profile Pulse™, synergic control, trigger schedule
select, lock capabilities and flow meter
70 Series
#951 196
#951 198
#951 200
S-74S. See Lit. Index No. M/3.0
S-74D. See Lit. Index No. M/3.0
S-74DX. See Lit. Index No. M/3.0
70 Series MPa Plus
#951 291
#951 292
S-74 MPa (single-wire). Works synergically with MPa power sources
D-74 MPa (dual-wire). Works synergically with MPa power sources
Spoolmatic® 30A Spool Gun
#130 831
Requires WC-24 for use with 14-pin receptacles
WC-24 Weld Control
#137 549
Required for use with Spoolmatic® 30A and power sources with 14-pin
Bernard MIG Guns
See Welding Components and Parts Guide
Welding Intelligence
See page 7
™
Date:
Distributed by:
© 2015 Miller Electric Mfg. Co.
Total Quoted Price:
Price
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
