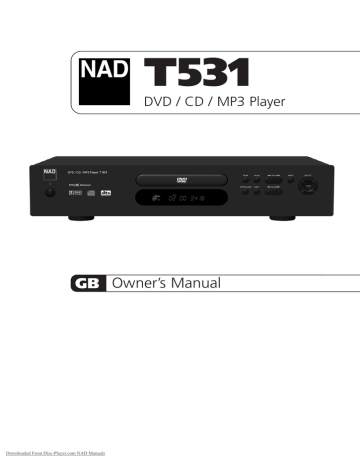

T531

DVD / CD / MP3 Player

GB

F

D

S

Owner’s Manual

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 2

Introduction

SAFETY PRECAUTIONS

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE

THIS PRODUCT TO RAIN OR MOISTURE

CAUTION

THIS DVD RECEIVER EMPLOYS A LASER SYSTEM.

TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS OWNER’S MANUAL CAREFULLY AND

RETAIN FOR FUTURE REFERENCE, SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN

AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE.

USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER

RADIATION WHEN OPEN THE ENCLOSURE. DO NOT STARE INTO BEAM.

THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED

WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

WARNING : CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE

PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

RECORD YOUR MODEL NUMBER (NOW, WHILE YOU CAN SEE IT)

The model and serial number of your new DVD player are located on the back of the DVD player cabinet.

For your future convenience, we suggest that you record these numbers here:

MODEL NO. ____________________________

SERIAL NO. ____________________________

This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE

89/336/EEC, 93/68/EEC and 73/23/EEC.

GB

2

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 3

INTRODUCTION

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Identification of Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Front Panel/Display window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Preparing the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Operating with the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

CONNECTIONS

Connecting to Surround Sound System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-11

Enjoying Dolby Digital Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Enjoying Dolby Pro Logic Surround Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Enjoying 2 Channel Digital Stereo Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Enjoying DTS Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Connecting to an Stereo System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Connecting to a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

INITIAL SETTINGS

Selection of initial settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Selecting disc Languages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Selecting rating level and password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-17

Selecting TV Aspect. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Selecting Menu Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Selecting Digital Audio Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Table of Languages and Their Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

BASIC OPERATIONS

Basic Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-24

Special Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-26

Still Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Frame Advance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Skipping chapters and tracks forward or back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Scanning at High Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Playing in Slow-Motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

OPERATION USING (GRAPHICAL USER INTERFACE) MENU ICONS

General Information about GUI menu icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Detailed description of each GUI menu icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

ADVANCED OPERATION

Using a title menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Using a DVD menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Memorizing Settings for Viewed DVDs (Last Condition Memory) . . . . . . . . . . . . . . . . . . . . . 30

Changing subtitle language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Changing audio soundtrack language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Viewing from another angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Producing a 3D Surround effect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Storing markers in memory to be viewed (listened to) again . . . . . . . . . . . . . . . . . . . . . . . . 34

Zoom Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Random Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Program Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Playback with MP3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37-38

REFERENCE

Disc Requirements/Copyright Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Before Calling Service Personnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Introduction

TABLE OF CONTENTS

GB

3

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 4

Introduction

IDENTIFICATION OF CONTROLS

FRONT PANEL

POWER button and indicator

Disc tray

MENU button

SKIP buttons

PAUSE button

PLAY button

ARROW buttons

GB

Display window

Remote sensor

OPEN / CLOSE button

STOP button

SCAN buttons

SELECT / ENTER button

DISPLAY WINDOW

Operating status indicator

CD indicator

DVD indicator

MP3 CD DVD

PROGRAM indicator

RANDOM indicator

Repeat playback mode indicators

TITLE CHP/TRK PROG.

RANDOM ALL A B

MP3 indicator

Angle icon indicator

Chapter/Track number indicator

Title number indicator

Total playing time / elapsed time indicators

4

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 5

Introduction

IDENTIFICATION OF CONTROLS

REAR PANEL

COAXIAL DIGITAL AUDIO OUT jack

TV SYSTEM SELECT Switch

Refer to explanation below

TO TV (SCART) jack

AUDIO OUT (L/R) jacks

OPTICAL DIGITAL AUDIO OUT jack

Remove the dust protection cap from the connector and connect the optical digital cable (not supplied) firmly so that the configurations of both the cable and the connector match. Keep the dust protection cap and always reattach the cap when not using the connector to protect against dust.

VIDEO OUT jack

S-VIDEO OUT jack

VIDEO OUTPUT SELECT Switch

POWER CORD

Connect to an AC 110-240V, 50/60Hz outlet only.

Dust protection cap

TV SYSTEM SELECT

You can enjoy NTSC or PAL discs by using your TV SYSTEM SELECT switch to choose the appropriate system.

If you try to play back PAL disc with NTSC-TV. The player will not playback the disc.

When the selected TV SYSTEM SELECT switch does not coincide with the system of your TV, normal colour picture may not be displayed.

Select the TV SYSTEM SELECT switch when the power is turned off.

When you playback NTSC disc with PAL-TV, some discs may produce black bands at the top and bottom of the screen.

Position of TV SYSTEM SELECT switch

PAL

NTSC

AUTO

Connected TV

PAL

NTSC

MULTI SYSTEM TV

Available disc

NTSC/PAL DVD disc

NTSC DVD disc

NTSC/PAL DVD disc

GB

5

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 6

GB

Introduction

IDENTIFICATION OF CONTROLS

REMOTE CONTROL

You will find instructions for each of the remote control function in the appropriate sections of this instruction manual

POWER button

REPEAT button

SETUP button

SUBTITLE button

AUDIO button

*** TITLE button

SELECT/ENTER button

DISPLAY button

ZOOM button

FWD/REV SCAN button

STOP button

PAUSE/SETUP button

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

SELECT

ENTER

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

STOP

PAUSE/STEP SLOW

RETURN

OPEN/CLOSE button

A-B button

RANDOM button

ANGLE button

SOUND button

* MENU button

** ARROW buttons

RETURN button

MARKER-SEARCH button

PLAY button

FWD/REV SKIP button

SLOW button

PROGRAM button

Number buttons

CLEAR button

1

4

7

CLEAR

2

5

3

6

8 9

PROGRAM

0

*MENU BUTTON

Use the MENU button to display the menu screen included on DVD video discs. To operate a menu screen, follow the instructions in Using a DVD Menu (page 29).

** DIRECTIONAL ARROW BUTTONS

(up, down, left, right) for use in high-lighting a selection on a GUI menu screen, TITLE and

MENU screen.

***TITLE BUTTON

Use the TITLE button to display the title screen included on DVD video discs. To operate a menu screen, follow the instructions in Using a

Title Menu (page 29).

6

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 7

Introduction

IDENTIFICATION OF CONTROLS

PREPARING THE REMOTE CONTROL

Insert the batteries into the remote control so you can use it to operate the DVD player.

1 Open the battery cover

2 Insert batteries (AAA size)

• Make sure to match the + and - on the batteries to the marks inside the battery compartment.

3 Close the cover

NOTES ON BATTERIES

• Improper use of batteries may cause battery leakage and corrosion.

• To operate the remote control correctly, follow the instructions.

• Do not insert the batteries into the remote control in the wrong direction.

• Do not charge, heat, open, or short-circuit the batteries.

• Do not throw the batteries into fire.

• Do not leave dead or exhausted batteries in the remote control.

• Do not use different types of batteries together, or mix old and new batteries.

• If you do not use the remote control for a long period of time, remove the batteries to avoid possible damage from battery corrosion.

• If the remote control does not function correctly or if the operating range becomes reduced, replace all batteries with new ones.

• If battery leakage occurs, wipe the battery liquid from the battery compartment, then insert new batteries.

• The batteries should last about one year with normal use.

OPERATING WITH THE REMOTE CONTROL

This section shows you how to use the remote control.

Point the remote control at the remote control sensor and press the buttons.

GB

30° 30°

23 ft (7m)

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

SELECT

ENTER

Distance: About 23 ft (7 m) from the front of the remote sensor

Angle: About 30 in each direction of the front of the remote sensor

• Do not expose the remote sensor of the DVD player to a strong light source such as direct sunlight or illumination. If you do so, you may not be able to operate the DVD player with the remote control.

NOTES ON THE REMOTE CONTROL

• Point the remote control at the remote sensor on the DVD player.

• Do not drop or give the remote control a shock.

• Do not leave the remote control near an extremely hot or humid place.

• Do not spill water or put anything wet on the remote control.

• Do not disassemble the remote control.

Downloaded From Disc-Player.com NAD Manuals

7

T531 manual (GB) 6/11/01 11:13 pm Page 8

Introduction

NOTES ON DISCS

This section shows you how to handle, clean and store discs.

ON HANDLING DISCS

• Do not touch the playback side of the disc.

• Do not attach paper or tape to discs.

ON CLEANING DISCS

• Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outward with a soft cloth. Always keep the disc clean.

• If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth.

• Do not use any type of solvents such as thinner, benzine, commercially available cleaners or anti-static spray for vinyl LPs. They may damage the disc.

GB

ON STORING DISCS

• Do not store discs in a place subject to direct sunlight or near heat sources.

• Do not store discs in places subject to moisture and dust such as a bathroom or near a humidifier.

• Store discs vertically in a case. Stacking or placing objects on discs outside of their case may cause warping.

ABOUT THIS OWNER’S MANUAL

This owner’s manual explains the basic instructions of this DVD player.

Some DVD video discs have functions that may not be explained in this owner’s manual. Therefore, some instructions may differ from this owner’s manual, and there may be extra instructions. In this case, follow the instructions displayed on the TV screen or package.

may appear on the TV screen during operation. This icon means the function explained in this owner’s manual is not available on that specific DVD video disc.

8

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 9

Connections

CONNECTING TO THE SURROUND SOUND SYSTEM

ENJOYING DOLBY DIGITAL SOUND

You can enjoy the high quality dynamic sound of Dolby Digital, Dolby Pro Logic and 2 Channel Digital Stereo.

DOLBY DIGITAL

Dolby Digital is the surround sound technology used in theatres showing the latest movies, and is now available to reproduce this realistic effect in the home. You can enjoy motion picture and live concert DVD video discs by connecting the DVD player to a 5.1 channel receiver equipped with a Dolby

Digital decoder or Dolby Digital processor.

PAL

NTSC

AUTO

DIGITAL

OUT

OPTICAL

TO TV

DIGITAL

OUT

COAXIAL

S-VIDEO

COMPONENT

VIDEO

OUTPUT

S-VIDEO

OUT

AUDIO

OUT

L

R

VIDEO

OUT

To DIGITAL OUT

(COAXIAL OR OPTICAL)

75 ohm coaxial cable or optical cable

To enjoy Dolby Digital sound from this DVD player you need the following:

• DVD recorded in Dolby Digital

5.1

• 5.1 channel receiver equipped with a Dolby Digital decoder, or Dolby Digital processor and power amplifier

• 5 speakers and 1 sub woofer

To enjoy Dolby Digital sound

You need to select Dolby Digital on the SETUP menu

Receiver equipped with a Dolby

Digital decoder.

Front speaker

(left)

To digital audio input.

Rear speaker

(left surround)

To S-VIDEO OUT or VIDEO OUT

S-Video cable or Video cable

To S-video input or

Video input

Centre speaker

Rear Speaker

(right surround)

Connection example

Front speaker

(right)

Subwoofer

NOTES

• Refer to the owner’s manual of your audio equipment as well.

• When you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

• The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.

• Turn off the receiver before you connect or disconnect the DVD player’s power cord. If you leave the receiver power on, the speakers may be damaged.

GB

Manufactured under license from Dolby Laboratories.

Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished works. Copyright 1992-1997 Dolby

Laboratories. All rights reserved.

9

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 10

Connections

CONNECTING TO THE SURROUND SOUND SYSTEM

ENJOYING DOLBY PRO LOGIC SURROUND SOUND

If your A/V receiver has a Dolby Pro Logic decoder, refer to the following connection diagram.

PAL

NTSC

AUTO

DIGITAL

OUT

OPTICAL

TO TV

DIGITAL

OUT

COAXIAL

S-VIDEO

COMPONENT

VIDEO

OUTPUT

S-VIDEO

OUT

AUDIO

OUT

L

R

VIDEO

OUT

Connect one or two rear speakers.

Note: The surround effect is greatly enhanced by using two surround speakers

To VIDEO OUT

Video cable

To AUDIO OUT

Audio cable

Connection example

To audio input

Receiver equipped with

Dolby Pro Logic Surround

GB

Front Speaker (left)

Rear speaker (left)

To video input

Centre speaker

Front speaker

(right)

Rear speaker (right)

WITH A RECEIVER EQUIPPED WITH DOLBY DIGITAL

Connect the equipment the same way as described in Enjoying Dolby Digital Sound on page 9. Refer to that receiver’s owner’s manual and set the receiver so you can enjoy Dolby Pro Logic Surround sound.

WARNING

Do not set the Digital Audio Output of this DVD player to Dolby Digital unless you are connecting the DIGITAL OUT jack of this DVD player to an AV decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well as the speakers (Refer to Selecting Digital

Audio Output on page 20).

10

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 11

Connections

CONNECTING TO THE SURROUND SOUND SYSTEM

ENJOYING 2 CHANNEL DIGITAL STEREO SOUND

You can enjoy the dynamic sound of 2 Channel Digital Stereo by connecting this DVD player to a receiver equipped with a digital audio input and speaker system (right and left front speakers).

To DIGITAL OUT

(COAXIAL or OPTICAL)

75 ohm coaxial cable or optical cable

To S-VIDEO OUT or VIDEO OUT

To S-video input or Video input

S-Video cable or Video cable

Connection example

To digital audio input

Front speaker

(left)

PAL

NTSC

AUTO

DIGITAL

OUT

OPTICAL

TO TV

DIGITAL

OUT

COAXIAL

S-VIDEO

COMPONENT

VIDEO

OUTPUT

S-VIDEO

OUT

AUDIO

OUT

L

R

VIDEO

OUT

Receiver equipped with a digital audio input.

Front speaker

(right)

ENJOYING DTS SOUND

Your A/V Receiver or processor must be equipped with a DTS Decoder

The digital output (see selecting digital output page 20) must be set to “stream”.

The disc must have a DTS soundtrack

To DIGITAL OUT

(COAXIAL or OPTICAL)

75 ohm coaxial cable or optical cable

To S-video input or Video input

To S-VIDEO OUT or VIDEO OUT

S-Video cable or

Video cable

PAL

NTSC

AUTO

DIGITAL

OUT

OPTICAL

TO TV

DIGITAL

OUT

COAXIAL

S-VIDEO

COMPONENT

VIDEO

OUTPUT

S-VIDEO

OUT

AUDIO

OUT

R

L

VIDEO

OUT

Connection example

To digital audio input

Front speaker (left)

Rear speaker

(left surround)

Receiver equipped with a DTS decoder.

Front speaker

(right)

Centre speaker

Rear speaker

(right surround)

Sub woofer

NOTES

• Refer to the owner’s manual of your receiver as well.

• Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

• The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.

• Turn off the receiver before you connect or disconnect the DVD player’s power cord. If you leave the receiver power on, the speakers may be damaged.

GB

DTS and DTS Digital Out are trademarks of Digital Theater Systems Inc.

Downloaded From Disc-Player.com NAD Manuals

11

T531 manual (GB) 6/11/01 11:13 pm Page 12

Connections

CONNECTING TO A STEREO SYSTEM

PAL

NTSC

AUTO

DIGITAL

OUT

OPTICAL

TO TV

DIGITAL

OUT

COAXIAL

S-VIDEO

COMPONENT

VIDEO

OUTPUT

S-VIDEO

OUT

To AUDIO OUT (L/R)

AUDIO

OUT

L

R

VIDEO

OUT

To VIDEO OUT

TO S-VIDEO OUT

Video cable (supplied)

Audio cable (supplied)

S-video cable

If the TV has an S-video input, connect the DVD player with the

S-video cable.

To S-video input

To video input

TV or monitor with audio/visual inputs

To audio inputs of the amplifier

Audio system

GB

NOTES

• Refer to the owner’s manual of your audio system as well.

• Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

• If you place the DVD player near a tuner or radio, the radio broadcast sound might be distorted. In this case, move the DVD player away from the tuner and radio.

• The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.

• Turn off the receiver before you connect or disconnect the DVD player’s power cord. If you leave the receiver power on, the speakers may be damaged.

WARNING

Do not set the Digital Audio Output of this DVD player to Dolby Digital unless you are connecting the DIGITAL OUT jack of this DVD player to an AV decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well as the speakers (Refer to Selecting Digital

Audio Output on page 20).

12

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 13

Connections

CONNECTING TO A TV

PAL

NTSC

AUTO

DIGITAL

OUT

OPTICAL

TO TV

To SCART

VIDEO OUTPUT SELECT switch

DIGITAL

OUT

COAXIAL

S-VIDEO

COMPONENT

VIDEO

OUTPUT

S-VIDEO

OUT

AUDIO

OUT

L

R

VIDEO

OUT

To S-VIDEO OUT

21-pin SCART cable (not supplied)

To AUDIO (L/R)/VIDEO OUT

Audio/Video cable (supplied)

For using SCART’s RGB signal, set the VIDEO

OUTPUT switch to COMPONENT or for using

S-VIDEO OUT jack, set the VIDEO OUTPUT switch to S-VIDEO

To 21-pin SCART socket

To video input

To audio input

To S-video input

TV or monitor with audio/video inputs

If the TV has an S-video input, connect the DVD player with the

S-video cable.

NOTES

• Refer to the owner’s manual of your TV as well.

• Before you connect the DVD player to your TV, be sure to turn off the power and unplug both units from the wall outlet before making any connections.

• Connect the DVD player to your TV directly. If you connect the DVD player to a VCR, the playback picture will be distorted because DVD video discs are copy protected.

• In case of the TV set corresponding to RGB signal, the RGB signal is automatically selected in the TV (Only when the VIDEO OUTPUT Switch is set to COMPONENT on the Rear Panel).

WARNING

Do not set the Digital Audio Output of this DVD player to Dolby Digital unless you are connecting the DIGITAL OUT jack of this DVD player to an AV decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well as the speakers (Refer to Selecting Digital

Audio Output on page 20).

GB

13

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 14

Initial Settings

SELECTION OF INITIAL SETTINGS

GB

1

2,3

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

SELECT

ENTER

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

STOP

PAUSE/STEP SLOW

RETURN

1

4

7

CLEAR

2

5

3

6

8 9

PROGRAM

0

Once the initial settings have been completed, the player can always be operated under the same conditions (especially with DVD discs). The settings will be retained in the memory until they are changed, even if the power is switched off.

SELECTION OF INITIAL SETTINGS

1 Press SETUP in the stop or playback mode. The SETUP menu is displayed.

Disc Audio

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Original

English

French

German

Spanish

Italian

Chinese

Polish

Hungarian

Russian

Other — — — —

2 Press

to select the desired item. The screen will show the current setting for the selected item, and the alternate setting(s).

Disc Audio (see page 15.)

Disc Subtitle (see page 15.)

Disc Menu (see page 15.)

Rating (see page 16.)

Password (see page 17.)

TV Aspect (see page 18.)

Menu Language (see page 19.)

Digital Audio Output (see page 20.)

Others (see page 21.)

3 Press and then to select the desired setting and

press SELECT/ENTER. Some items require additional steps. (See the respective page.)

When the alternate setting is selected the screen returns to the Initial

Settings display.

To exit SETUP menu

Press SETUP, RETURN or PLAY.

14

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 15

Initial Settings

SELECTING DISC LANGUAGE

This is to select the audio soundtrack language, subtitle language and the language used in title menus or DVD menus which will always be used for every disc to be played back.

When you play back a DVD video disc, the DVD player automatically displays the pre-selected subtitle language if it is included on the disc.

to select “Disc Audio” and 1 At the setup screen, press press

Disc Audio

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Original

English

French

German

Spanish

Italian

Chinese

Polish

Hungarian

Russian

Other — — — —

2 Press to select the desired language and then press

SELECT/ENTER

Disc Audio

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Original

English

French

German

Spanish

Italian

Chinese

Polish

Hungarian

Russian

Other — — — —

Original : The original language of each disc will be selected.

English : The English will be Selected.

Other : Another language can be selected. You can input 4-digit language code. (Refer to the language codes on page 22. Press

CLEAR if an incorrect language code is entered.)

The Disc Subtitle and Disc Menu are selected by the same method.

NOTE

• If the language selected is not available on the disc, the original language designated by each disc will be selected.

1,2

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

SELECT

ENTER

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

STOP

PAUSE/STEP SLOW

RETURN

1

4

7

CLEAR

2

5

3

6

8 9

PROGRAM

0

GB

15

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 16

GB

Initial Settings

SELECTING RATING LEVEL AND PASSWORD

1,2

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

SELECT

ENTER

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

STOP

PAUSE/STEP SLOW

RETURN

1

4

7

CLEAR

2

5

3

6

8 9

PROGRAM

0

This is to prohibit the playing of specified DVDs which are unsuitable for children.

• Some DVD discs contain a restriction level which enables parents to remove scenes or prevent playback of discs by children. DVD players are equipped with a password designed to prevent children from changing the level.

SELECTING RATING LEVEL (DVD ONLY)

1 At the SETUP screen, press to select “Rating” and press

2 Press

Disc Audio

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

3

2

5

4

8

7

6

1

Unlock to select the desired level and press SELECT/ENTER

Disc Audio

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

3

2

5

4

1

8 Blocked

7 Blocked

6

Unlock

You cannot play DVD video discs rated higher than the level you selected unless you cancel the parental lock function.

For example, when you select level 7, discs rated higher than level 7 are blocked and cannot be played.

The parent lock level is equivalent to the following USA movie ratings.

Level 7: NC-17

Level 3: PG

Level 6: R

Level 1: G

Level 4: PG 13

Some titles do not match with the rating level described as above.

If you change the level and enter a password, playback of all DVDs with ratings higher than your selection will be blocked, unless the correct password is entered again. For example: if you change the level to 5 , the

DVD player will not play discs with ratings of 6 , 7 or 8 unless the correct password is entered on the remote control.

16

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 17

SETTING YOUR PASSWORD (DVD ONLY)

If you change the rating level to 7 or lower, you must enter a 4-digit password to prevent playback of discs with higher ratings.

1 At the SETUP screen, press press

Disc Audio

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others to select “Password” and

New

— — — —

2 Input a 4-digit password and press SELECT/ENTER

Example : 1234

Do not forget your password.

3 Input the 4-digit password again and press SELECT/ENTER to

verify. Setting is finished.

• The rating is locked. Any disc whose rating is higher than the setting, cannot be played back unless the correct password is entered.

TO CHANGE/CLEAR MEMORIZED PASSWORD

1 At the SETUP screen, press press to select “Password” and

Change

Clear

Disc Audio

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

2 Input your password and press SELECT/ENTER

3 To change or clear your password, press to select the

“Change” or “Clear” and press SELECT/ENTER. To change the rating level/password, follow the steps on page 16-17 again.

TO CLEAR YOUR 4-DIGIT PASSWORD

If you forget your password, to clear the current password, follow the procedure below.

At the SETUP screen

1 Press to select “Password” Item

2 Enter 6-digit number “210499” and then press SELECT/ENTER

The 4-digit password is cleared.

3 Enter a new password

Refer to ‘Setting your password’

Initial Settings

SELECTING RATING LEVEL AND PASSWORD

1,2,3

2,3

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

SELECT

ENTER

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

STOP

PAUSE/STEP SLOW

RETURN

1

4

7

CLEAR

2

5

3

6

8 9

PROGRAM

0

GB

17

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 18

Initial Settings

SELECTING TV ASPECT

GB

1,2

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

SELECT

ENTER

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

STOP

PAUSE/STEP SLOW

RETURN

1

4

7

CLEAR

2

5

3

6

8 9

PROGRAM

0

Select the appropriate screen type according to your TV set; conventional size screen (4:3) or wide-screen (16:9).

1 At the SETUP screen, press press

Disc Audio

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others to select “TV Aspect” and

4:3 Letterbox

4:3 Panscan

16:9 Wide

2 Press

SELECT/ENTER to select the desired Aspect and press

Disc Audio

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

4:3 Letterbox

4:3 Panscan

16:9 Wide

4 3 Letterbox : The video material not formatted in the Pan & Scan style is played back in the letterbox style (black bands appear at top and bottom of screen).

4 3 Panscan : Select when a conventional TV set is connected. The video material formatted in the Pan & Scan style is played back in that style (the left and right edges are cut off).

16 9 Wide : Select when a wide-screen TV set is connected. Played in

FULL size. (Setting the wide-screen TV to FULL mode is also necessary.)

4:3 Letterbox

Cut Off

4:3 Panscan

16:9 Wide

• Each screen shows an example when the video material for a widescreen is played. (This setting does not affect the video material for conventional size.).

18

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 19

Initial Settings

SELECTING MENU LANGUAGE

Selects language for SETUP menus and displays on the TV..

1 At the SETUP screen, press and press

Disc Audio

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others to select “Menu Language”

English

Spanish

French

German

Italian

2 Press to select the desired Language and SELECT/ENTER

Disc Audio

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

English

Spanish

French

German

Italian

1,2

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

SELECT

ENTER

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

STOP

PAUSE/STEP SLOW

RETURN

1

4

7

CLEAR

2

5

3

6

8 9

PROGRAM

0

GB

19

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 20

GB

Initial Settings

SELECTING DIGITAL AUDIO OUTPUT

1,2

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

SELECT

ENTER

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

STOP

PAUSE/STEP SLOW

RETURN

1

4

7

CLEAR

2

5

3

6

8 9

PROGRAM

0

Playback Disc

Stream/PCM

96 kHz Linear PCM

DVD

PCM

DTS DVD DTS bit Stream

OUTPUT

Dolby Digital/PCM PCM only

PCM PCM

Not Output Not Output

Dolby Digital DVD Dolby Digital bit

Stream

Dolby Digital bit

Stream

PCM

MPEG DVD MPEG bit Stream PCM PCM

Audio CD PCM PCM PCM

DTS Audio CD DTS bit Stream DTS bit Stream DTS bit Stream

Each DVD disc has a variety of audio output options. Set the player’s

Digital Audio Output according to the type of audio system you use.

1 At the SETUP screen, press and press

Disc Audio

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others to select Digital Audio Output

DOLBY

DIGITAL

/PCM

Stream/PCM

PCM

2 Press

SELECT/ENTER to select the desired output and press

Disc Audio

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

DOLBY

DIGITAL

/PCM

Stream/PCM

PCM

Others

DOLBY DIGITAL/PCM : Select DOLBY DIGITAL/PCM if an active digital output is supplied to a Dolby Digital decoder, (or an amplifier or other equipment with Dolby Digital decoder). In this mode, the T531 will automatically switch between Dolby Digital and Stereo PCM depending on the program encoded on the disc, with Dolby Digital given priority.

DTS is not possible with this setting.

Stream/PCM : Select Stream/PCM if an active digital output is supplied to an amplifier or other equipment with DTS decoder, Dolby Digital decoder and MPEG decoder.

PCM : Select PCM if an active digital output is supplied to an amplifier or other equipment with linear PCM only (or MD recorder or DAT deck).

5.1 Surround Sound modes are not possible with this setting.

NOTES

• When you are not using the player’s digital audio output, don’t select any of the options.

• If an active digital audio output signal is supplied to a receiver or other equipment without a corresponding digital decoding capability, a very loud noise may be produced which could permanently damage the speakers.

• The DTS DVD disc sound is played back only when the DVD player is connected to a receiver with a DTS decoder.

20

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 21

Initial Settings

OTHERS

The DRC and Pseudo PAL settings can be changed.

1 At the SETUP screen, press

Disc Audio

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others to select “Others” and press

DRC On

Pseudo PAL On

2 Press

to select the desired items and press SELECT/ENTER. The setting of the selected items are changed between On and Off.

DRC (DYNAMIC RANGE COMPRESSION) ON/OFF

On : Select this option to turn on the Dynamic Range Compression circuitry so that the dialogue remains clear even at low volume levels.

Off : Select this option to turn off the Dynamic Range Compression and have the soundtrack presented exactly as it was created.

PSEUDO PAL ON/OFF

On : A NTSC DVD disc can be played back with the PAL colour system TV set, depending on the disc.

Off : A NTSC DVD disc cannot be played back with the PAL colour system TV set.

ABOUT DRC (DYNAMIC RANGE COMPRESSION)

With the DVD format you have the opportunity to hear a programs soundtrack in the most accurate and realistic presentation possible, thanks to the use of digital audio technology. However, in certain instances you may wish to slightly compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones) so that you may listen to a movie at a lower volume without losing dialogue intelligibility.

NOTES

• The DRC function works only during playback of Dolby Digital recorded discs.

• The level of Dynamic Range Compression may differ depending on the DVD disc.

• When playing karaoke, connect appropriate audio equipment (such as an amplifier) to the DVD video player.

• The Pseudo PAL can be displayed when the SYSTEM selector on the rear panel is switched to PAL mode.

• If there are any problems during playback of a NTSC disc, select the Pseudo PAL to On mode.

• The picture can be streamed according to TV type when the Pseudo PAL is in On mode.

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

1,2

SELECT

ENTER

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

RETURN

GB

21

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 22

Initial Settings

TABLE OF LANGUAGES AND THEIR CODES

Enter the appropriate code number for the initial settings “Audio”, “Subtitle” and/or “Menu” (see page 15)

Breton

Catalan

Corsican

Czech

Welsh

Danish

German

Bhutani

Greek

English

Esperanto

Spanish

Estonian

Basque

Persian

Finnish

Fiji

Language

Afar

Abkhazian

Afrikaans

Ameharic

Arabic

Assamese

Aymara

Azerbaijani

Bashkir

Byelorussian

Bulgarian

Bihari

Bengali; Bangla

Tibetan

6976

6978

6979

6983

6984

6985

7065

7073

7074

6682

6765

6779

6783

6789

6865

6869

6890

6588

6590

6665

6669

6671

6672

6678

6679

Code

6565

6566

6570

6577

6582

6583

Code

7079

7082

7089

7165

7168

7176

7178

7185

7265

7273

7282

7285

7289

7365

7378

7383

7384

7387

7465

7473

7487

7565

7575

7576

7577

7578

7579

7583

7585

7589

7665

Language

Faroese

French

Frisian

Irish

Scots Gaelic

Galician

Guarani

Gujarati

Hausa

Hindi

Croatian

Hungarian

Armenian

Interlingua

Indonesian

Icelandic

Italian

Hebrew

Japanese

Yiddish

Javanese

Georgian

Kazakh

Greenlandic

Cambodian

Kannada

Korean

Kashmiri

Kurdish

Kirghiz

Latin

8084

8185

8277

8279

8285

8365

8368

8372

8373

7865

7869

7876

7879

7982

8065

8076

8083

7775

7776

7778

7779

7782

7783

7784

7789

Code

7678

7679

7684

7686

7771

7773

Language

Lingala

Laothian

Lithuanian

Latvian, Lettish

Malagasy

Maori

Macedonian

Malayalam

Mongolian

Moldavian

Marathi

Malay

Maltese

Burmese

Nauru

Nepali

Dutch

Norwegian

Oriya

Panjabi

Polish

Pashto, Pushto

Portuguese

Quechua

Rhaeto-Romance

Rumanian

Russian

Sanskrit

Sindhi

Serbo-Croatian

Singhalese

Tigrinya

Turkmen

Tagalog

Tonga

Turkish

Tatar

Twi

Ukrainian

Urdu

Uzbek

Vietnamese

Volapük

Wolof

Xhosa

Yoruba

Chinese

Zulu

Language

Slovak

Slovenian

Samoan

Shona

Somali

Albanian

Serbian

Sudanese

Swedish

Swahili

Tamil

Telugu

Tajik

Thai

8582

8590

8673

8679

8779

8872

8979

9072

9085

8473

8475

8476

8479

8482

8484

8487

8575

8382

8385

8386

8387

8465

8469

8471

8472

Code

8375

8376

8377

8378

8379

8381

GB

22

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 23

Basic Operations

BASIC PLAYBACK

This section shows you the basics on how to play back a DVD video disc

PREPARATIONS

• When you want to play back DVD video discs, turn on the TV and select the video input source connected to the DVD player.

• When you want to enjoy the sound of DVD video discs or audio CDs from the audio system, turn on the audio system and select the input source connected to the DVD player.

• For connection details, see pages 9-11.

• Set the playback picture size according to the aspect ratio of the connected TV at the SETUP menu (TV Aspect).

• If you do not have the necessary equipment to enjoy Dolby Digital sound, set the Digital Audio Output at the SETUP menu to PCM .

1 Press POWER. The DVD player turns on and the power indicator lights.

2 Press OPEN/CLOSE. The disc tray opens.

• You can open the disc tray by pressing this button even if the

DVD player is in standby mode.

3 Place a disc on the disc tray with the playback side down.

• There are two different disc sizes. Place the disc in the correct guide on the disc tray. If the disc is out of the guide, it may damage the disc and cause the DVD player to malfunction.

• Do not place anything except 3 discs or 5 discs on the disc tray.

4 Press PLAY. The disc tray is automatically closed and playback begins.

• If the disc is placed in upside down (and it is a single sided disc),

NO DISC or DISC ERROR appears on the TV screen.

MP3 CD DVD TITLE CHP/TRK PROG.

RANDOM ALL A B

Operating Status indicator

• If you insert an audio CD, the CD indicator lights up in the DVD display. The title number does not appear.

• After playing back all of the chapters in the title, the DVD player automatically stops and returns to the menu screen.

3

1

4

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

SELECT

ENTER

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

STOP

PAUSE/STEP SLOW

RETURN

1

4

7

CLEAR

2

5

3

6

8 9

PROGRAM

0

2

GB

WHEN A MENU SCREEN APPEARS ON THE TV SCREEN

In case of interactive DVDs with control, a menu screen appears on the

TV screen. Perform step 5 on page 24 to start play.

Example of interactive DVD on-screen menu

23

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 24

GB

Basic Operations

BASIC PLAYBACK

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

SELECT

ENTER

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

STOP

RETURN

5

5 Press item.

and press SELECT/ENTER, or press the numeric button(s), to select the desired

1

2

3

4

Play of the selected item now begins.

• For further information, also refer to the jacket or case of the disc you are playing.

AFTER OPERATION

When the unit is not in use, remove the disc and press POWER to turn off the power.

NOTES

• Do not move the DVD player during playback. Doing so may damage the disc and the DVD player.

• Use the OPEN/CLOSE button on the remote control or DVD player to open and close the disc tray. Do not push the disc tray while it is moving. Doing so may cause the DVD player to malfunction.

• Do not push up the disc tray or put any objects other than discs on the disc tray. Doing so may cause the DVD video player to malfunction.

• Keep your fingers well clear of the disc tray as it is closing. Be especially careful with children’s fingers around the closing disc tray as there is a risk of personal injury.

• When appears on the TV screen while a button is pressed, it means that this function is not available on the disc you are playing.

• Depending on the DVD disc, some operations may be different or restricted. Refer to the jacket or case of the disc you are playing.

SCREEN SAVER

The screen saver is useful to prevent your display from becoming damaged. The screen saver picture appears when you leave the DVD player in stop mode for about 5 minutes.

AUTOMATIC POWER OFF FUNCTION

After the Screen Saver has been engaged for about 5 minutes, the DVD player will automatically turn itself off.

Screen Saver

24

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 25

Basic Operations

SPECIAL PLAYBACK

STOPPING PLAY

Press STOP during playback

RESUME PLAY

When play is stopped, the unit records the point where STOP was pressed (RESUME function).

Press PLAY and play will resume from this point.

NOTES

• Resume function will be cleared when the STOP is pressed on the

STOP mode.

• Resume function will be cleared when the power is turned off and then on.

• Opening the disc tray cancels Resume function.

• The Resume function may not be available on some DVD discs.

STILL PICTURE (PAUSE)

Press PAUSE/STEP during playback

DVD The player will be placed in the still picture mode.

CD The player will be placed in the pause mode.

FRAME ADVANCE (DVD ONLY)

Press PAUSE/STEP during still playback. (Each time you press PAUSE/STEP, the picture advances one frame)

To resume normal playback, press PLAY

SKIPPING CHAPTERS AND TRACKS

Skipping forward

Press SKIP during playback

A chapter (DVD) or a track (CD) is skipped each time the button is pressed.

Skipping back

Press SKIP during playback

When the button is pressed once midway through a chapter/track, the player returns to the start of that chapter/track. When it is pressed again, a chapter/track is skipped each time the button is pressed.

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

STOP

PAUSE / STEP

SELECT

ENTER

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

STOP

PAUSE/STEP SLOW

RETURN

PLAY

SKIP

1

4

7

CLEAR

2

5

3

6

8 9

PROGRAM

0

GB

25

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 26

GB

Basic Operations

BASIC PLAYBACK

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

SCAN

SELECT

ENTER

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

STOP

PAUSE/STEP SLOW

RETURN

1

4

7

CLEAR

2 3

5 6

8 9

PROGRAM

0

PLAY

SLOW

You can play back discs at various speeds.

TO SCAN AT FAST FORWARD OR FAST REVERSE

PLAYBACK

Press the SCAN or button during playback

[TV screen]

X2 X2

• The speed of advance (reverse) is relatively slow at first. When the button is pressed again, the speed becomes faster. (Each time the button is pressed, the speed increases up to 4 steps (DVD) or 1 step

(CD).)

• The speed will be retained even after the button is released.

To return to normal playback, press PLAY

NOTE

• The DVD player does not play back sound during the high speed reverse and forward playback of DVD video discs. However, the DVD player plays back sound during fast forward or fast reverse playback of audio CDs.

PLAYING IN SLOW-MOTION (DVD ONLY)

Press SLOW or during playback

The playback speed becomes 1/16 of the normal speed.

[TV screen]

1/16 1/16

• The speed of slow-motion is slow at first. When the button is pressed again, the speed becomes faster. Each time the button is pressed, the speed increase up to 4 steps.

• The speed will be retained even after the button is released.

To return to normal playback, press PLAY

NOTES

• The sound is muted during slow-motion playback.

• Subtitles do not appear on the screen during slow motion playback.

• The SLOW buttons do not work with Audio CDs.

26

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 27

Operation Using Menu Icons (Graphical User Interface)

GENERAL INFORMATION ABOUT GUI MENU ICONS

This unit features GUI Menu Icons showing disc information (title/chapter/track number, elapsed playing time, audio/subtitle language, angle, and sound) and player information (repeat play, play mode, marker, etc.). Some icons only show the indicated information. Other icons allow the settings to be changed.

COMMON PROCEDURES

1 Press DISPLAY during playback.

• Title function can be accessed from the stop mode.

2 Press to select the desired item.

• The current selected item is indicated by a yellow frame on its GUI menu icons.

3 Press to select the desired setting.

• When numbers are displayed (e.g. title number), the numeric buttons can also be used for setting instead of

• For some functions, the setting will be registered immediately; for others, SELECT/ENTER must be pressed.

To clear the GUI Menu Icons, press DISPLAY again

2,3

1

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

SELECT

ENTER

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

RETURN

EXAMPLES OF GUI MENU ICONS

(The screens may differ depending on the disc contents.)

DVD GUI

0:16:57

1 ENG

D

6 CH

OFF

1

1

1

NORM.

CD GUI

1

16:57

STER.

NORM.

DVD and CD GUI

1/5

CHAPT

A B

OFF

GB

27

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 28

Operation Using Menu Icons (Graphical User Interface)

DETAILED DESCRIPTION OF EACH GUI MENU ICON

Press DISPLAY during playback

[TV screen] DVD GUI

1

1

0:16:57

1 ENG

D

6 CH

OFF

1

NORM.

(Press

FUNCTION

to select desired item)

To show the current title number, and to jump to the desired title number.

To show the current chapter number and to jump to the desired chapter number.

To show the elapsed time and directly select scenes by the desired time.

SELECTION METHOD

or Numeric

SELECT/ENTER or Numeric

SELECT/ENTER SKIP

Numeric

SELECT/ENTER

To show the current audio soundtrack language, encoding method, channel number and to change the setting.

To show the current subtitles language and to change the setting.

To show the current angle number and to change the angle.

To show the current sound (NORMAL or 3D SURROUND) and to change the setting.

AUDIO

SUBTITLE

ANGLE

GB

Press DISPLAY during playback

[TV screen] CD GUI

1

16:57

STER.

NORM.

(Press

FUNCTION

to select desired item)

To show the current track number and to jump to the desired track number.

SELECTION METHOD

or Numeric

SELECT/ENTER SKIP

To show the elapsed time. (Display only)

To show the current audio (STEREO, LEFT, RIGHT) and to select to the desired audio channel.

To show the current sound (NORMAL or 3D SURROUND) and to change the setting.

AUDIO

NOTES

• Some DVD discs may not provide all of the above GUI menu icons.

28

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 29

Advanced Operation

USING A TITLE MENU

Some movie discs may contain two or more titles. If the disc has a title menu recorded on it, the TITLE button can be used to select the movie title. (The details of operation differ depending on the disc used.)

• Selecting a title may not be possible on certain DVD discs.

1 Press TITLE.

A list of the titles on the disc is displayed.

1

TITLE MENU

SELECT

ENTER

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

STOP

PAUSE/STEP SLOW

RETURN

2

2

Pressing TITLE again to resume play from the scene when TITLE was first pressed.

2 Press and press ENTER or PLAY, or press the numeric button(s), to select desired title.

The selected title now starts playing.

Some DVDs have unique menu structures called DVD menus. For example, DVDs programmed with complex contents provide guide menus, and those recorded with various languages provide menus for audio and subtitle language. Although the DVD menu’s contents and operation differ from disc to disc, the following explains the basic operation when this feature is used.

1 Press MENU during play.

The DVD menu available on the disc is now displayed.

1

2

3

4

Pressing MENU again resumes play from the scene when MENU was first pressed.

• Resume play may not be possible on certain discs.

2 Press and press ENTER, or press the numeric button(s), to select desired item.

USING A DVD MENU

TITLE MENU

1

SELECT

ENTER

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

STOP

PAUSE/STEP SLOW

RETURN

2

1

4

7

CLEAR

2 3

5

8

6

9

PROGRAM

0

The selected item is now executed.

GB

F

D

E

I

P

S

29

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 30

Advanced Operation

MEMORIZING SETTINGS FOR VIEWED DVDS (CONDITION MEMORY)

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

This unit stores, in memory, settings for DVDs you watched. Settings remain in memory even if you remove the disc from the player, or switch power to the player OFF. Settings are stored in memory for use any time automatically. If you load a disc that has its settings memorized, the “Memorized Disc Resume?” message will appear on the TV screen. When you start playing the disc, the memorized settings are automatically recalled.

You can memorize details for the following six settings.

Latest Stop Position (Page 25)

TV Aspect (Page 18)

Disc Audio Language (Page 15)

Disc Subtitle Language (Page 15)

Disc Menu Language (Page 15)

1 Load the DVD that was memorized.

It will appear on the TV screen as below

If the screen is left for more than 10 seconds, play back will start automatically.

2

SELECT

ENTER

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

STOP

PAUSE/STEP SLOW

RETURN

1

4

7

CLEAR

2 3

5

8

6

9

PROGRAM

0

Resume disc from last position?

1. No 2. Yes

2 Press or to select “Yes” and press SELECT/ENTER

The memorized settings are automatically recalled.

GB

NOTES

• Settings are stored in memory for use any time.

• You can store settings for up to 15 DVDs in memory. If you memorize settings for more than 15 DVD previously memorized settings are erased in order from the last recently memorized setting.

Consequently, if you try to call up these previously memorized settings, you will get the latest settings that have taken their place.

• Switching of the audio mode etc., is automatic on some discs.

• This unit does not store settings in memory, if you remove the disc from the player or switch power to the player OFF when DVD or title menu is displayed on the TV screen.

30

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 31

Advanced Operation

CHANGING SUBTITLE LANGUAGE

It is possible to change the subtitle language to a different language from the one selected at the initial settings. (See page 15 for further info.)

This operation works only with discs on which multiple subtitle languages are recorded.

1 Press SUBTITLE during playback. When no subtitles are recorded, “OFF” will be displayed instead of the language number.

OFF

2 Press SUBTITLE repeatedly until the desired language is

selected. Number of the subtitle language being played back is shown

To eliminate the On Screen Subtitles.

Press SUBTITLE repeatedly to select OFF at step 2.

1 ENG

NOTES

• In some cases, the subtitle language is not changed to the selected one immediately.

• When a disc supporting the closed caption is played, the subtitle and the closed caption may overlap each other on the TV screen. In this case, turn the subtitle off.

• When the desired language is not selected even after pressing the button several times, it means that the language is not available on the disc.

• When the power is turned on or the disc is removed, subtitles appears in the language selected at the initial settings. If this language is not recorded on the disc, the disc’s priority language appears.

1,2

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

SELECT

CHANGING AUDIO SOUNDTRACK LANGUAGE

It is possible to change the audio soundtrack language to a different language from the one selected at the initial settings in case of DVD disc. (See page 15 for further info.) This operation works only with discs on which multiple audio soundtrack languages are recorded.

And it is possible to change the audio channel in case of audio CD.

DVD

1 Press AUDIO during play. Number of the audio soundtrack language being played back.

1 ENG

D

6 CH

2 Press AUDIO repeatedly until the desired language (or encoding method, channel number) is selected.

2 FRE

D

6 CH

1,2

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

SELECT

CD

1 Press AUDIO during play.

STER.

2 Press AUDIO repeatedly until the desired sound is selected.

LEFT

NOTES

• When the desired language is not selected even after pressing the button several times, it means that the language is not available on the disc.

• When the power is turned on or the disc is removed, the language heard is the one selected at the initial settings. If this language is not recorded on the disc, only the available language on the disc will be heard.

• Some discs may not respond to Audio feature.

31

Downloaded From Disc-Player.com NAD Manuals

GB

T531 manual (GB) 6/11/01 11:13 pm Page 32

GB

Advanced Operation

VIEWING FROM ANOTHER ANGLE

1,2

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

Some DVDs may contain scenes which have been shot simultaneously from a number of different angles.

For these discs, the same scene can be viewed from each of these different angles using the ANGLE button. (The recorded angles differ depending on the disc used.)

1 Press ANGLE during playback. Number of angle being played back.

2 Press ANGLE repeatedly until the desired angle is selected.

1

2

1 2 3

SELECT

FOR YOUR REFERENCE

The ANGLE indicator will blink in the DVD display window at scenes recorded at different angles to indicate that angle switching is possible. The angle number can be programmed beforehand; the angle will be switched to the selected number when the ANGLE indicator blinks.

NOTE

• This function only works for discs having scenes recorded at different angles.

PRODUCING A 3D SURROUND EFFECT

1,2

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

SELECT

This unit can produce a 3D Surround effect, using Spatializer technology, which simulates multi-channel audio playback from two conventional stereo speakers instead of the five or more speakers normally required to listen to multi-channel audio from a home theatre. This feature works with DVD discs encoded with Dolby Pro Logic and Dolby Digital audio tracks.

1 Press SOUND during playback. Each time this button is pressed, the TV screen displays changes.

NORM.

2 Press SOUND repeatedly until the desired sound is selected.

3D SUR

NOTE

• This 3D Surround effect may not be available on some DVD discs, such as those recorded with a mono audio sound-track.

• Turn off the TV surround sound and other surround effects when using this 3D surround effect.

• For best 3D Surround effect using only two speakers it is recommended that the two speakers be positioned approximately 2m to 2.5m apart, and the listening position should be 2m to 2.5m away from the speakers.

32

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 33

REPEATING VIEWING (LISTENING)

Press REPEAT during playback

Each time this button is pressed, the TV screen changes as shown below and the disc will repeat a chapter or title (DVD) or a track (CD).

DVD

Repeat of chapter being played

Repeat of title being played

Cancel repeat mode

(normal play)

CD

Repeat of track being played

Repeat of entire disc contents

Cancel repeat mode

(normal play)

To enjoy program repeat play (CD)

If REPEAT is pressed during program play, repeat play is operated as below.

Repeat of the current programmed track

Repeat of all programs

Cancel repeat mode

(Program play)

To return to normal play

Press REPEAT several times until OFF is displayed.

REPEATING SECTIONS BETWEEN TWO SPECIFIC POINTS (A-B REPEAT)

1 Press A-B during play at the point where repeat play is to start (A). You can select OFF at this step by pressing CLEAR.

2 Press A-B during play at the point where repeat play is to be concluded (B). Repeat play of the selection between points A and B starts.

To return to normal play

Press A-B once OFF is displayed.

NOTES

• Repeat play works only with discs for which the elapsed playing time appears in the DVD display window during playback.

• Repeat play may not work correctly with some DVDs.

• A-B repeat play works only within a title DVD or a track CD.

• Some subtitles recorded around point A or B may fail to appear (DVD).

• Repeat and Play may not work with MP-3 encoded CD-R and CD-RW.

Advanced Operation

REPEAT PLAY

CHAPT

TRACK

TRACK

TITLE

ALL

ALL

A *

A B

OFF

OFF

OFF

OFF

GB

33

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 34

GB

Advanced Operation

STORING MARKERS IN MEMORY TO BE VIEWED (LISTENED TO) AGAIN

3

1

4

Storing a MARKER in the DVD memory is similar to marking your page in a book. It allows you to quickly return to any point on the disc.

STORING A MARKER IN THE MEMORY

1 Press MARKER during play at the starting point to be viewed (listened to) again

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

SELECT

ENTER

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

STOP

PAUSE/STEP SLOW

RETURN

2

4

1/5

4

Indicates 1/5 is stored in the memory.

Up to 5 markers can be stored in the memory.

RECALLING/CLEARING A MARKER

2 Press SEARCH during playback

Maker

Picture 1

Maker

Picture 4

Maker

Picture 2

Maker

Picture 5

Maker

Picture 3

Present


1

4

7

CLEAR

2

5

3

6

8 9

PROGRAM

0

3 Press to select the marker to be recalled/cleared.

4 Press PLAY or SELECT/ENTER to recall a marker. Or press CLEAR to clear a marker.

Play resumes from the point corresponding to the selected marker, or the selected marker is cleared.

• The Present Picture is not cleared.

NOTE

• These operations work only with discs for which the elapsed playing time appears in the DVD display window during playback or stop.

• Some subtitles recorded around the marker may fail to appear (DVD).

• All the markers are cleared when the power is turned off or the disc is removed and when TV Aspect mode is changed on the SETUP menu.

• The marker is not stored when the DVD or title menu is displayed on the TV screen.

34

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 35

Advanced Operation

ZOOM FEATURE

The Zoom feature allows you to ZOOM-IN and enlarge the picture on the screen to either 4 times (X4) or 16 times (X16) its normal size.

TITLE MENU

X4

2 SELECT

ENTER

X16

(X4) (X16) (Normal)

1 Press ZOOM during normal playback or still playback. The square frame will be displayed in the centre of the picture. If no button is pressed for more than 10 seconds, the square frame will disappear.

Each press of the ZOOM button changes the TV screen in the left sequence. The magnification level will be displayed in the upper right corner of the zoom area.

1,4

2 If you press buttons, the zoom point shifts

3 Press SELECT/ENTER. The selected frame is displayed in full size on the TV screen.

4 To resume normal playback. Press ZOOM repeatedly until the normal picture is restored.

NOTE

• Some discs may not respond to the Zoom feature.

• Zoom does not work on subtitles or menus included on DVD video discs.

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

STOP

PAUSE/STEP SLOW

RETURN

1

4

2

5

3

6

3

RANDOM PLAY

NOTE

• This function only works with audio CD discs. Random does not work with DVD movies.

You can playback titles or tracks in random order. (Random playback)

RANDOM PLAY (CD)

1 Press RANDOM during normal playback or stop mode. The DVD player automatically starts random playback and the RANDOM indicator in the DVD display window appears.

2 To resume normal playback, press RANDOM. The RANDOM indicator in the DVD display lights up

NOTE

• Random playback may not be possible on certain discs.

• If you press the SKIP or track randomly and starts playback.

button during random playback, the DVD player goes to another

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

1,2

SELECT

ENTER

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

RETURN

GB

35

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 36

GB

Advanced Operation

PROGRAM PLAY

The player plays the tracks on the disc in the order you specify.

NOTE

.

• Program play function is possible only with audio CDs. It does not work with DVD movie discs

1 Press PROGRAM during playback or stop mode. The program playback screen appears on the TV screen.

Program

Step

Total Time

1

00:00

POWER OPEN/CLOSE

SETUP REPEAT A-B RANDOM

AUDIO SUBTITLE ANGLE SOUND

TITLE MENU

2,3

3

SELECT

ENTER

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

STOP

PAUSE/STEP SLOW

RETURN

1

4

7

CLEAR

2 3

5

8

6

9

PROGRAM

0

To exit the screen, press PLAY or PROGRAM.

2 Press

Program

1 5 19

Clear All and press the numeric button(s)to select the desired track number.

Step 3

Total Time 08:32

Clear All

1

Repeat step 2 to select another track.

Up to 20 tracks can be programmed.

3 Press PLAY or SELECT/ENTER to exit the screen. The selected track is stored in the memory and play now begins in the programmed sequence.

• If you press PROGRAM to exit the screen, the selected tracks are not memorized.

After playback of all tracks programmed

Play is stopped.

CLEARING THE PROGRAM

To clear the programmed tracks one by one

Press to select the unwanted number and then press CLEAR.

To clear all programmed tracks

Press to select Clear All and then press SELECT/ENTER. Press PLAY or SELECT/ENTER to exit the screen. If you press PROGRAM to exit the screen, the programs are not cleared. (The programs are also cleared when the power is turned off or the disc removed.)

36

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 37

Advanced Operation

PLAYBACK WITH MP3

TO PLAY AN MP3 DISC

1 Load an MP3 disc. The MP3 menu is displayed.

2 Press and then press SELECT/ENTER

3 Press buttons to select the directory where MP3 files that you want to play are located button to select the desired MP3 file of the selected directory of your disc

If you want to return to the previous menu, press the RETURN button.

MP3

ABCD

MP3-1

MP3-2

MP3-3

MP3-4

MP3-5

MP3-6

MP3-7

MP3-8

MP3-9

MP3

MP3-1

..

TRACK_1

TRACK_2

TRACK_3

TRACK_4

TRACK_5

TRACK_6

TRACK_7

TRACK_8

MP3

MP3-1

..

TRACK_1

TRACK_2

TRACK_3

TRACK_4

TRACK_5

TRACK_6

TRACK_7

TRACK_8

Program

Clear All

Program

Clear All

Program

Clear All

4 Press SELECT/ENTER or PLAY to start playback of the file

FOR YOUR REFERENCE

• Press SKIP or SKIP to play the next file or previous file during playback.

• Press TITLE to move to 1st page of current directory during playback and press TITLE again to move to the next page within 5 seconds.

• Press MENU to move to the Root Directory during playback.

TO PLAY AN MP3 FILE REPEATEDLY

• If you press REPEAT button once during play, the current MP3 file will play repeatedly.

• If you press REPEAT button twice during play, the directory will play repeatedly.

• If you press REPEAT button three times, the repeat play will be cancelled.

Prog

Progr

MP3

MP3-1

..

TRACK_1

TRACK_2

TRACK_3

TRACK_4

TRACK_5

TRACK_6

TRACK_7

TRACK_8

MP3

MP3-1

..

TRACK_1

TRACK_2

TRACK_3

TRACK_4

TRACK_5

TRACK_6

TRACK_7

TRACK_8

REPEAT symbol

NOTES

• The directory and file name is only displayed in English.

• If there is an impossible code to display, it will be displayed underlined (_) instead of English.

• If a directory has no MP3 file, the is displayed with the directory name.

• This unit can play up to 256 files per disc. A disc recorded with more than 256 files cannot be played.

• The maximum allowable depth of nested directory is 50.

• Disc format is compatible with ISO9660 only.

• If you record mp3 files using the software which cannot create a FILE SYSTEM, for example Direct-CD etc., it is impossible to playback mp3 files. We therefore recommend that you use Easy-CD Creator , which creates an ISO9660 file system.

• A single session disc requires mp3 files in the first track. If there is no mp3 file in the 1st track, it cannot playback mp3 files. If you wish to playback mp3 files, format all the data in the disc or use a new one.

• If there are already data files which are not mp3 files on the CD-R disc, please, do not use that disc; use a new one instead. However, if the disc is a CD-RW disc, this does not apply.

TITLE

1

4

2

5

3

6

MENU

2,3,4 SELECT

ENTER

4

DISPLAY

ZOOM MARKER – SEARCH

SCAN PLAY SKIP

STOP

PAUSE/STEP

SLOW

RETURN

GB

37

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 38

GB

Advanced Operation

PLAYBACK WITH MP3

TO PROGRAM PLAY AN MP3 FILE

1 Follow steps 1 and 2 on previous page.

2 Select an MP3 file to program with

MP3

MP3-1

..

TRACK_1

TRACK_2

TRACK_3

TRACK_4

TRACK_5

TRACK_6

TRACK_7

TRACK_8

MP3

MP3-1

..

TRACK_1

TRACK_2

TRACK_3

TRACK_4

TRACK_5

TRACK_6

TRACK_7

TRACK_8

MP3

MP3-1

..

TRACK_1

TRACK_2

TRACK_3

TRACK_4

TRACK_5

TRACK_6

TRACK_7

TRACK_8

Program

Clear All

Program

TRACK_2

TRACK_7

TRACK_6

TRACK_9

Clear All

Program

TRACK_2

TRACK_7

TRACK_6

TRACK_9

3 Press PROGRAM button to add an MP3 file to the program list. Repeat steps 2 - 3 to select another track. Up to 60 files can be programmed.

4 Press button and select the desired MP3 file and press SELECT/ENTER or PLAY button to

play. If you want to enter the main menu, press button.

Clear All

TITLE MENU

2,4

SELECT

ENTER

4

DISPLAY

ZOOM MARKER – SEARCH

SCAN

PLAY

SKIP

STOP

PAUSE/STEP SLOW

RETURN

1

4

7

CLEAR

2

5

3

6

8 9

PROGRAM

0 3

CLEARING THE PROGRAM

To clear the programs one by one

Press to select the unwanted MP3 file on the program list and then press CLEAR.

To clear all the programs

Press to select the Clear All and press SELECT/ENTER.

TO PLAY AN MP3 PROGRAM REPEATEDLY

• If you press REPEAT button once during play, the current MP3 file will play repeatedly.

• If you press REPEAT button twice during play, the all MP3 files on the program list will play repeatedly.

• If you press REPEAT button three times, the repeat play will be cancelled.

Program

TRACK_2

TRACK_7

TRACK_6

TRACK_9

Program

TRACK_2

TRACK_7

TRACK_6

TRACK_9

Clear All

Clear All

REPEAT symbol

38

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 39

Reference

DISC REQUIREMENTS / COPYRIGHT INFORMATION

PLAYABLE DISCS

This DVD player can play back the following discs.

Disc Mark Contents Disc size Maximum playback time

DVD video discs

Audio CDs

Audio+ Video

(moving pictures)

Audio

12 cm

8 cm

12 cm

8 cm

Approx. 4 hours (single sided disc)

Approx. 8 hours (double sided disc)

Approx. 80 minutes (single sided disc)

Approx. 160 minutes (double sided disc)

74 minutes

20 minutes

In addition this unit can play back a CD-R or CD-RW that contains audio titles or MP3 files

You cannot playback discs other than those listed above. (Video CD CD-ROM, CD-Extra, CD-G, photo CD, and CD-i discs cannot be played on this

DVD player.)

REGION MANAGEMENT INFORMATION

Region Management Information: This DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD player, this DVD player cannot play that disc.

The Region number of this DVD player is 2.

2

NOTES ON UNAUTHORIZED DISCS

You may not be able to play back some DVD video discs on this player if they were purchased from outside your geographic area or made for business purposes. When you try to play back an unauthorized disc, “Check Regional Code” appears on the TV screen.

NOTES ON COPYRIGHT

It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, and rent copyrighted material without permission.

DVD video discs are copy protected, and any recordings made from these discs will be distorted.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision

Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

GB

39

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 40

GB

Reference

BEFORE CALLING SERVICE PERSONNEL

SYMPTOMS AND CORRECTION

Check the following guide for the possible cause of a problem before contacting service.

No power

The power is on, but the DVD player does not work.

No picture

No sound

SYMPTOM CAUSE

• The power cord is disconnected

• No disc is inserted.

• The TV is not set to receive DVD signal output.

• The video cable is not connected securely.

• The connected TV power is turned off.

• The equipment connected with the audio cable is not set to receive DVD signal output.

• The audio cables are not connected securely.

• The power of the equipment connected with the audio cable is turned off.

• The Digital Audio Output is set to the wrong position.

CORRECTION

• Plug the power cord into the wall outlet securely.

• Insert a disc (Check that the DVD or, audio

CD indicator in the DVD display is lit).

• Select the appropriate video input mode on the TV so that the picture from the

DVD player appears on the TV screen.

• Connect the video cable into the jacks securely.

• Turn on the TV.

• Select the correct input mode of the audio receiver so you can listen to the sound from the DVD player.

The playback picture is poor

The DVD player does not start playback

The remote control does not work properly.

• The disc is dirty.

• No disc is inserted.

• An unplayable disc is inserted.

• The disc is placed upside down.

• The disc is not placed within the guide.

• The disc is dirty.

• A menu is on the TV screen.

• The Rating level is set.

• The remote control is not pointed at the remote sensor of the DVD player.

• The remote control is too far from the

DVD player.

• There is an obstacle in the path of the remote control and the DVD player.

• The batteries in the remote control are exhausted.

• Connect the audio cable into the jacks securely.

• Turn on the equipment connected with the audio cable.

• Set the Digital Audio Output to the correct position, then turn on the DVD player again by pressing the POWER button.

• Clean the disc.

• Insert a disc (Check that the DVD, or audio

CD indicator in the DVD display is lit).

• Insert a playable disc (Check the disc type, color system and Regional code).

• Place the disc with the playback side down.

• Place the disc on the disc tray correctly inside the guide.

• Clean the disc.

• Press the SETUP button to turn off the menu screen.

• Cancel the Rating function or change the rating level.

• Point the remote control at the remote sensor of the DVD player.

• Operate the remote control within about

23 ft (7 m).

• Remove the obstacle.

• Replace the batteries with new ones.

40

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 41

DVD PLAYER / OUTPUTS / SUPPLIED ACCESSORIES

DVD PLAYER

Power supply AC 110-240V, 50/60Hz

Power consumption 16 W

Mass 3.0 kg

External dimensions (W X H X D) 430 x 88 x 247 mm

Signal system PAL 625/50 , NTSC 525/60

Laser Semiconductor laser, wavelength 650 nm

Frequency range (audio) 4 Hz to 20 kHz

Signal-to-noise ratio (audio) More than 100 dB (EIAJ)

Dynamic range (audio) More than 95 dB (EIAJ)

Harmonic distortion (audio) 0.008 %

Operating conditions Temperature: 5°C to 35°C

Operation status Horizontal

OUTPUTS

Video output 1.0 V (p-p), 75Ω, negative sync.,

RCA jack x 1/SCART(TOTV)

S-video output (Y) 1.0 V (p-p), 75Ω, negative sync.,

Mini DIN 4-pin x 1

(C) 0.3 V (p-p), 75Ω

Audio output (digital audio) 0.5 V (p-p), 75Ω, RCA jack x 1

Audio output (optical audio) Optical connector x 1

Audio output (analog audio) 2.0 Vrms (1 kHz, 0 dB), 330Ω,

RCA jack (L, R) x 1/SCART(TOTV)

SUPPLIED ACCESSORIES

Video cable 1

Audio cable 1

Remote control 1

Batteries 2

• Designs and specifications are subject to change without notice.

Reference

SPECIFICATIONS

GB

41

Downloaded From Disc-Player.com NAD Manuals

T531 manual (GB) 6/11/01 11:13 pm Page 42

www.NADelectronics.com

©2001 NAD ELECTRONICS INTERNATIONAL

All rights reserved. No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International

T531 Manual 09/01 Printed in Korea

Downloaded From Disc-Player.com NAD Manuals

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
