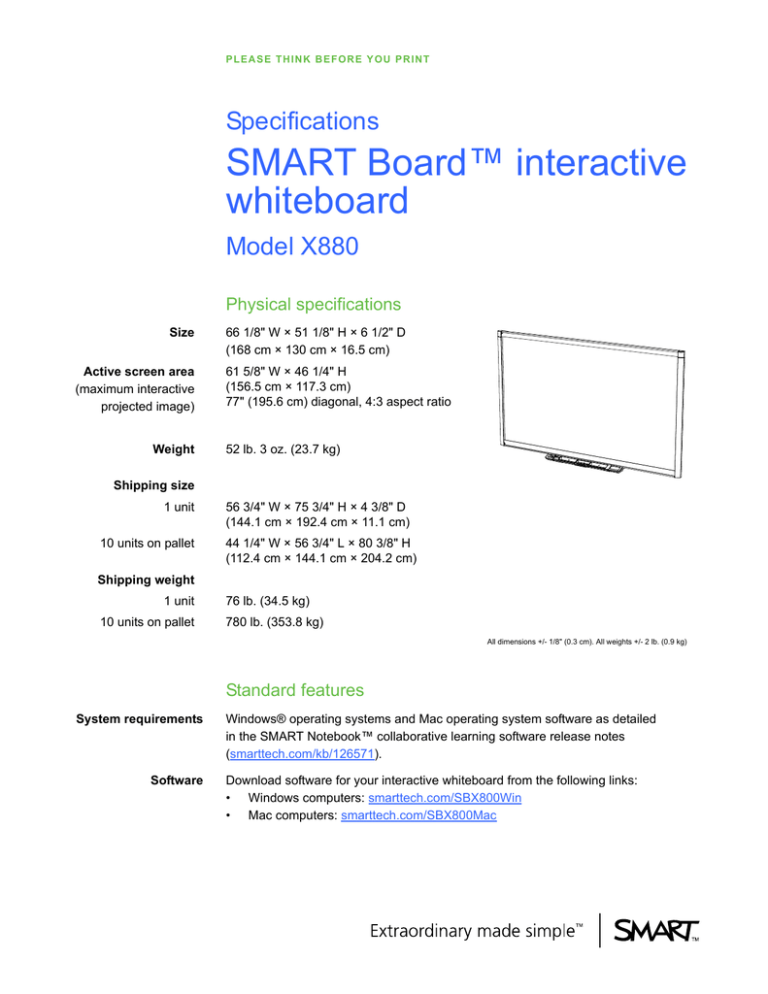

Specifications
SMART Board™ interactive
whiteboard
Model X880
Physical specifications
Size
Active screen area
(maximum interactive
projected image)
Weight
66 1/8" W × 51 1/8" H × 6 1/2" D
(168 cm × 130 cm × 16.5 cm)
61 5/8" W × 46 1/4" H
(156.5 cm × 117.3 cm)
77" (195.6 cm) diagonal, 4:3 aspect ratio
52 lb. 3 oz. (23.7 kg)
Shipping size
1 unit
10 units on pallet
56 3/4" W × 75 3/4" H × 4 3/8" D
(144.1 cm × 192.4 cm × 11.1 cm)
44 1/4" W × 56 3/4" L × 80 3/8" H
(112.4 cm × 144.1 cm × 204.2 cm)
Shipping weight
1 unit
10 units on pallet
76 lb. (34.5 kg)
780 lb. (353.8 kg)
All dimensions +/- 1/8" (0.3 cm). All weights +/- 2 lb. (0.9 kg)
Standard features
System requirements
Software
Windows® operating systems and Mac operating system software as detailed
in the SMART Notebook™ collaborative learning software release notes
(smarttech.com/kb/126571).
Download software for your interactive whiteboard from the following links:
• Windows computers: smarttech.com/SBX800Win
• Mac computers: smarttech.com/SBX800Mac
2
Touch and gestures
Dual sketch capabilities
SMART Ink™
Lockable pen option
Pen tray
Pens and eraser
Resolution
Screen surface
Digitizing technology
|
SPE CIF I CA TI ONS – S M A RT B O A R D I NT E R A C T I V E W HI TE B O A R D –
MOD EL X88 0
Perform mouse functions with your finger, and write digital ink with a pen tray pen or
erase it with the eraser. The object awareness feature enables you to pick up a pen,
and then write, select or erase without putting the pen back in the tray.
Enables two users to draw simultaneously on the interactive whiteboard surface
Smoothes out the appearance of the digital ink, improving the legibility of your
handwriting. The ink becomes an object you can move and manipulate.
Hold down a pen color button on the pen tray until its light flashes to lock the
interactive whiteboard in pen mode. In this mode you can use any device as a pen.
Early education students and students with special needs can use an object like a
tennis ball to write more easily on the surface.
Removable end caps for optional accessories. Optical sensors in the pen tray detect
when you lift a pen or eraser from the tray. Color buttons on the pen tray enable you to
select pen color.
Two ergonomic pens with a comfort grip and a rectangular eraser
Touch resolution is approximately 4000 × 4000.
The hard-coated steel surface is durable, optimized for projection, compatible with
dry-erase markers and easily cleaned with whiteboard cleaner.
Four camera DViT™ (Digital Vision Touch) technology
Frame finish
Two-tone gray (dark gray approximates Pantone® Charcoal Gray 18-0601 TPX)
Wall-mount bracket
32" (81.3 cm) wide bracket with five screws and toggle bolt anchors to support a
wall-mounted interactive whiteboard
Computer connection
Power requirements
Environmental
compliance
Regulatory certifications
Warranty
16' (5 m) USB 2.0 cable, 6' (1.8 m) power cable
Power consumption is less than 7 W (100V to 240V AC, 50/60 Hz, 5V DC 2.0A).
China EIP, EU RoHS, WEEE
CE, CSA (U.S./Canada), FCC
Five-year limited equipment warranty upon registration. See warranty document for
details.
Storage and operating specifications
Storage
Operation
-40°F to 120°F (-40°C to 50°C)
41°F to 95°F (5°C to 35°C) with up to 80% humidity, non-condensing
SMART order number
SBX880
77" (195.6 cm) diagonal SMART Board interactive whiteboard
3
|
SPE CIF I CA TI ONS – S M A RT B O A R D I NT E R A C T I V E W HI TE B O A R D –
MOD EL X88 0
Physical dimensions
66 1/8" (168 cm)
61 5/8" (156.5 cm)
46 1/4" (117.3 cm)
51 1/8" (130 cm)
2 7/8" ( 7.3 cm)
5 5/8" (14.4 cm)
c
.6
95
1
(
"
77
m)
35 3/4" (90.7 cm)
6 1/2" (16.5 cm)
www.smarttech.com/support www.smarttech.com/contactsupport
Support +1.403.228.5940 or Toll Free 1.866.518.6791 (U.S./Canada)
© 2010 SMART Technologies ULC. All rights reserved. SMART Board, SMART Notebook, SMART Ink, DViT, smarttech and the SMART logo are trademarks or registered trademarks of SMART
Technologies ULC in the U.S. and/or other countries. US5448263; US6141000; US6337681; US6421042; US6563491; US6674424; US6747636; US6760009; US6803906; US6829372;
US6919880; US6954197; US7184030; US7236162; US7289113; US7342574; US7379622; US7411575; US7532206; US7619617; US7626577; US7643006; US7692625; CA2058219;
CA2386094; EP1297488; EP1739528; JP4033582; JP4052498; JP4057200; ZL0181236.0; and DE60124549. Other patents pending. All third-party product and company names may be
trademarks of their respective owners. Contents are subject to change without notice. 11/2010.
