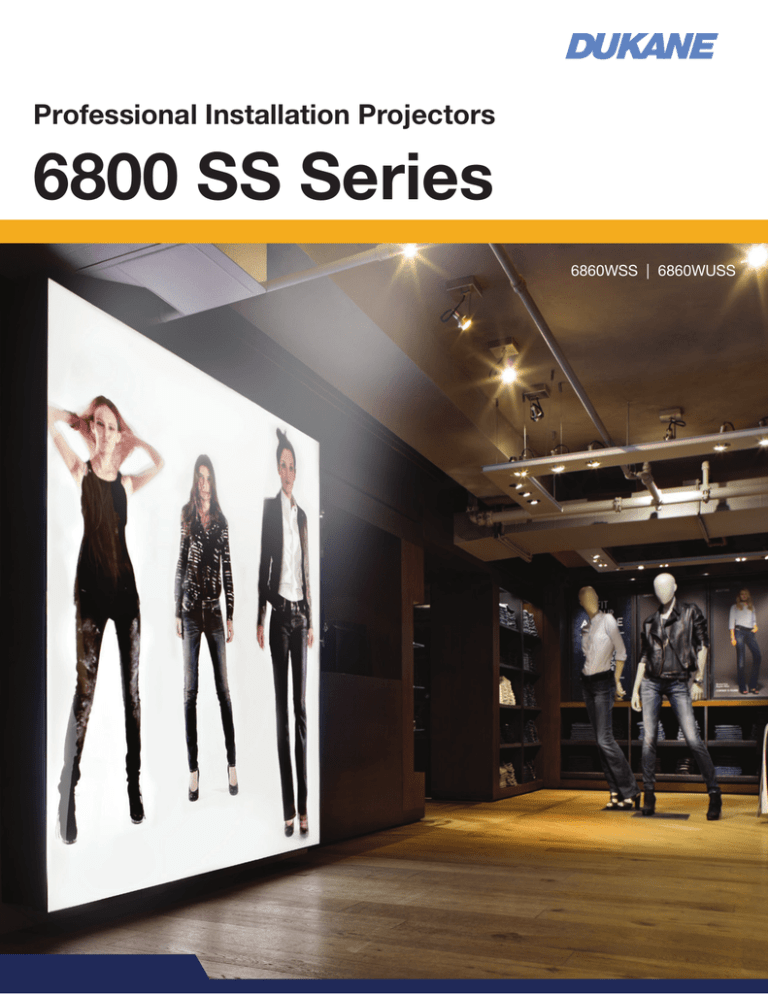

6800 SS Series Professional Installation Projectors 6860WSS | 6860WUSS

6800 SS Series Professional Installation Projectors 6860WSS  |  6860WUSS
Professional Installation Projectors
6800 SS Series
6860WSS | 6860WUSS
Powerful installation projectors with
laser-phosphor light source supports
new, demanding projection applications.
Laser Light Module
•• 20,000-plus hours of virtually maintenance-free
operation
•• High-brightness, lower power consumption
enhances applications such as retail, digital
signage and theme parks
•• Ability to control brightness creating a stable
Integrated and Powerful
•• Project uncompressed FHD video with integrated HDBaseT
•• High performance video processing/scaling creates life-like images
•• Integrated software applications such as DisplayNote®, Crestron Roomview,
AMX Beacon and PJ Link allow for complete interactivity and control
•• Tile Matrix enables 4Kx2K resolution
image over longer time periods
Flexible
•• Enjoy greater installation flexibility with a complete line of optional bayonet style lenses (6) for quick and easy exchange. Lens throw distances
range from 2.8 to 120.8 ft
•• Tilt-free installation capabilities make these projector ideal for almost any install environment, including portrait orientation
•• +/- 50% vertical lens shift and +/- 15% horizontal lens shift capabilities make alignment easy
Screen Splitter
Dukane is committed to bringing the latest
and greatest innovation to projectors. Multidisplay capabilities and TileMatrix
technologies are integrated into the new
6800 SS Series projectors. This processing
is all done internally and therefore
eliminates the additional hardware typically
required to produce a beautiful 4K
resolution image.
Stacking correction
Edge blending
The industry’s first built-in stacking correction
capabilities (up to four projectors) allows the
projectors to boost an image’s brightness up to
24,000 lumens, which is ideal for larger-sized
screens and environments with heavy ambient
light. This feature also prevents the complete
loss of an image, which can happen when using
only one projector.
This function seamlessly blends multiple projected images to display a single
high-resolution image.
Built-In HDBaseT Support
Simplify your installations with HDBaseT. Optimized for video applications and supporting uncompressed full HD digital video, audio, ethernet, power
and various control signals. With only a single cable (up to 100m) to run, infrastructure and labor costs are reduced, installations are significantly easier,
and there is no cable clutter to manage. With uncompressed HD video support, images have never been more stunning. What’s more, control signals
are contained in the same cable.
GET CONNECTED WITH A WIDE SELECTION OF INPUTS
•
•
Dual computer inputs ensure quick switching between presentations
Four audio inputs (two mini stereo [Comp1 & Comp2] and HDMI™) make it easy to add sound to enhance your presentations
Remote control
DisplayPort
Wall color correction presets
Input panel cover
Wired and wireless backlit
remote allows you to adjust
for complete control of the
projectors menu structure in
a well lit or dark environment.
Direct controls such as lamp
mode, aspect ratio, volume
and input selection eliminates
multiple button pushes.
This input provides
6800 SS Series
models with expanded
connectivity with
advanced technology.
These provide for adaptive color tone
correction to display properly on non-white
surfaces.
This optional accessory
creates a clean look for
your installation, while
hiding signal cables and the
power cord.
On a
green wall...
BEFORE
auto wall correction
AFTER
auto wall correction
ADVANCED SOFTWARE FEATURES
Cornerstone
3D
Geometric Correction
Enhanced keystone correction allows for
horizontal, vertical and diagonal image
correction for aligned images even when the
projector is set up at an angle to the screen.
When combined with active shutter
glasses and 3D emitter, the
6800 SS Series Projectors create
3D images from a computer or
Blu-ray player. The 6860WUSS /
6860WSS utilize the 3D sync line
output from the projector to
connect to the 3D emitter. Optional
3D glasses and emitters from
XPAND are available from Dukane.
Projecting an image isn’t
confined to a standard
flat screen or wall with the
Dukane 6800 SS Series.
Geometric correction allows
these models to project an
image on spheres, cylinders,
corner angles and many more
non-standard surfaces.
Tilt-free
Portrait mode
The projector can be rotated freely
(360°) to orient the image depending
on the installation requirements
Allows the projector to be rotated (and screen if
necessary) to a vertical alignment so that portrait
content can be viewed without black bars on the
side when landscape mode is used.
Specifications
for PX602WL/PX602UL
OPTICAL
UNIQUE FEATURES
3D Reform™ allows you to square the image by adjusting
horizontally, vertically or diagonally when the projector cannot
be placed parallel or perpendicular to the screen
Advanced AccuBlend™ ensures detailed images when nonnative resolution sources are connected to the projector
Display Technology
6860WSS: 0.65” DMD
6860WUSS: 0.67 DMD
Light Output (lumens)
6000 normal / Eco = variable
Resolution
Native
Maximum
Contrast Ratio (up to)
6860WSS: WXGA 1280 x 800
6860WUSS: WUXGA 1920 x 1200
4K 4096 x 2160
10,000:1 with auto iris
Laser Life (up to)
Screen Size (diagonal)
Throw Ratio
NP33ZL
NP34ZL
NP35ZL
NP36ZL
NP37ZL
NP38ZL
20,000 hours
50 to 300 in. / 1.27 to 7.62m
Discreet source keys for source selection
Projection Distance
Remote diagnostics enable the user to monitor and make
adjustments to the projector remotely
Projection Angle
6860WSS: 2.8 to 120.8 ft. / 0.9 to 36.8m
6860WUSS: 2.58 to 114.9 ft. / 0.79 to 35.0m
6860WSS: 53.1 to 17.5° tele / 5.7 to 22.0° wide
6860WUSS: 3.2 to 18.0° tele / 6.0 to 23.0° wide
6860WSS: 2.8 to 120.8 ft. / 0.9 to 36.8m
6860WUSS: 2.58 to 114.9 ft. / 0.79 to 35.0m
6860WSS: 53.1 to 17.5° tele / 5.7 to 22.0° wide
6860WUSS: 3.2 to 18.0° tele / 6.0 to 23.0° wide
AutoSense™ automatically syncs with any computer signal
and features one-touch image optimization
64-step image magnification with location control
Built-in HTTP page for control and monitoring over a LAN
network. Email notification of error messages or lamp end-oflife can be sent to remote locations.
WARRANTY
Five (5) year limited warranty plus Dukane’s 1 year Peace of
Mind Loaner Program
IN THE BOX
Remote control, batteries, power cord, product registration
card.
ORDERING MODEL NUMBERS
6860WSS (white, no lens)
6860WSS-L (white with NP36ZL lens)
6860WSS-B (black, no lens)
6860WSS-LB (black with NP36ZL lens)
6860WUSS (white, no lens)
6860WUSS-L (white with NP35ZL lens)
6860WUSS-B (black, no lens)
6860WUSS-LB (black with NP35ZL lens)
Lens*
Zoom
Zoom Ratio
Focus
F-number, f-number
NP33ZL
NP34ZL
NP35ZL
NP36ZL
NP37ZL
NP38ZL
Shift
Keystone Correction
0.75-0.95:1
0.95 - 1.2:1
1.23 - 1.52:1
1.28 - 1.6:1
1.52 - 2.92:1
2.9-5.5:1
Variable
Powered
Powered
F= 2.3 to 2.53, f= 11.11 to 14.06mm
F= 2.3 to 2.57, f= 14.03 to 17.95mm
F= 2.0 to 2.32, f= 18.07 to 22.59mm
F= 2.0 to 2.32, f= 18.07 to 22.59mm
F= 2.3 to 3.39, f= 22.56 to 42.87mm
F= 2.3 to 2.74, f= 42.63 to 80.91mm Powered +/0.5 vertical, +/-0.15 horizontal+/- 40° horizontal,
+/- 40° vertical
SIGNAL COMPATIBILITY/
CON
NECTIVITY
Synchronization Range
Horizontal
Vertical
Supported Video Standards
SD/HD Video Signal Compatibility
PC Signal Compatibility
Macintosh Compatibility
Input/Output Terminals
RGB1 (analog)
RGB2 (analog)
RGB3 (digital)
RGB4 (digital)
RGB5 (digital)
Option Slot
Monitor Out
3D Sync Line
External Control
Sync Compatibility
Networking
ELECTRICAL
Power Requirements
Input Current
Power Consumption (ECO off/ECO Mode/Standby/
Standyby-Power Saving)
MECHANICAL
Optional Lenses
Installation Orientation
Dimensions (WxDxH)
Net Weight
Fan Noise
Regulations
ENVIRONMENTAL
Operating Temperature
Humidity
Storage
Analog: 15-100kHz, Digital: 15-153kHz
Analog: 48-120Hz, Digital: 24-120Hz
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
1080p, 1080i, 720p, 576p, 576i, 480p, 480i
VGA, SVGA, XGA, SXGA, SXGA+, WXGA, UXGA, FHD,
WUXGA, 2K, QXGA, WQXGA, 4k
Yes
VGA 15-pin D-sub
5-BNC
HDMI w/ HDCP
DisplayPort w/ HDCP
HDBaseT
OPS Option Slot
HDMI
3Pin D
RS-232, IR, HDBaseT, Wired LAN, DDC/CI, USB
Separate Sync / Composite Sync / Sync on G
HDBaseT, RJ-45
100 – 240V AC, 50/60Hz
6.8 - 2.5A
590W / 460W / 4.15W / 0.28W
NP33ZL, NP34ZL, NP35ZL, NP36ZL, NP37ZL, NP38ZL
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
19.1 x 22.6 x 8.5 in. / 484 x 575 x 217mm
40.8 lbs. / 18.5 kg
39 dB normal / 34 dB eco
USA: UL 1950 FCC Class B, Canada: CSA950 (C-UL), NOM
41° – 104°F / 5° – 40°C
20-80% non-condensing
-14° – 122°F / -10° – 50°C
ACCESSORIES
PRG-UNV
NP33ZL
NP34ZL
NP35ZL
NP36ZL
NP37ZL
NP38ZL
NP02LM1
RMT-PJ35
NP01PW1
RGBCBL-PJPX
NP07CV
SB-01HC
SB-04HC
N8000-8830
N8000-8822
Ceiling mount
0.75 - 0.95:1 zoom lens
0.95 - 1.22 zoom lens
6860WUSS 1.23 - 1.52 zoom lens
6860WSS 1.28 - 1.6:1 zoom lens
1.52 - 2.9:1 zoom lens
2.9 - 5.5:1 zoom lens
Wireless LAN module
Replacement remote control
Power cable
RGB cable
Safety Cover for Portrait Installation
SD-SDI-Input Card
3G/HD/SD-SDI input Card
OPS PC with Intel Core i5, 320GB Hard Drive, Windows Embedded Standard 7
OPS PC with Intel Celeron, 320GB Hard Drive, Windows Embedded Standard 7
* Lens does not ship with the projector.
Additional accessories are available, including screens, carts, mount accessories and replacement cables. Visit www.dukaneav.com for details.
HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC. All other brand or product names are
trademarks or registered trademarks of their respective holders. Product specifications
subject to change.
