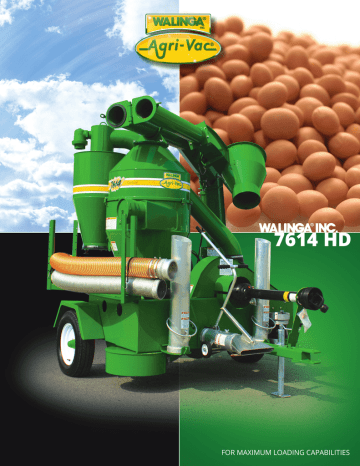

7614 HD
FOR MAXIMUM LOADING CAPABILITIES
FOR MAXIMUM LOADING CAPABILITIES
7614 HD Agri-Vac
HD
AVAILABLE OPTIONS
• Self contained hydraulics on 7614 HD
• Full Rhino Lined Receiver Tank and boom cyclone
• Stainless steel delivery lines
STANDARD ACCESSORIES
SPECIFICATIONS FOR:
Walinga Pneumatic Grain Moving Unit Model 7614 HD
7614 PC HD
7614 DLX HD
Height96" (244 cm)
Width92" (234 cm)
Length107" (272 cm)
Weight
3102 lbs (1410 kg)
Discharge Height13' - 8" minimum (4.16 m)
hp required
130-150 hp
PTO speed
1000 RPM
Line size6" and 7" (150 mm & 175 mm)
Tires
Two standard farm implement
Wheels15" (38 cm), 5 stud
Blower
614 Walinga Super Chrome,
SRT (Sound Reduction Type), positive displacement blower
Airlock
2018 cast iron shell, precision
machined housing, 10 vane rotor
Hardox steel tips, hydraulically
driven, reversible rotation
Drive
Tongue mounted drive shaft with
V-type 5 groove sheaves & belts
Hydraulics
Hoses & quick couplings
Open/closed centre system
Receiver32" dia. (81 cm) two piece, single inlet
Precleaner24" dia. (61 cm)
Safety
Vacuum/Pressure relief valves
96" (244 cm)
92" (234 cm)
107" (272 cm)
3302 lbs (1498 kg)
13' - 8" minimum (4.16 m)
130-150 hp
1000 RPM
6" and 7" (150 mm & 175 mm)
Two standard farm implement
15" (38 cm), 5 stud
614 Walinga Super Chrome,
SRT (Sound Reduction Type),
positive displacement blower
2018 cast iron shell, precision
machined housing, 10 vane rotor
Hardox steel tips, hydraulically
driven, reversible rotation
Tongue mounted drive shaft with
V-type 5 groove sheaves & belts
Self Contained
• Dual inlets on 7614 HD
• Hose carrier
• Precleaner on 7614 HD
• Extra chrome SRT (Sound
Reduction Type) Blower
• Chrome plated airlock
• Hydraulic-rotating truck loading kit with cyclone
• One 7″ dia. x 12′ (175 mm x 3.65 m) stainless
steel delivery line
• 6″ (150 mm) cleanup hose package
• One 7″ (175 mm) dia. suction nozzle
• One 6″ dia. x 12′ (150 mm x 3.65 m) stainless
steel delivery line
• One 6″ (150 mm) dia. suction nozzle
• One 6″ dia. x 12′ (150 mm x 3.65 m) rubber
clean-up hose with swivel coupling
• One 6″ (150 mm) dia. suction nozzle with
clean-up attachment floor sweep with wheels
• One 6″ to 7″ adapter (150 mm-175 mm)
• Rhino liner covering high wear areas in receiver
tank and boom cyclone
32" dia. (81 cm) two piece,
dual inlets
24" dia. (61 cm)
Vacuum/Pressure relief valves
7614 HD & 7614 DLX HD
CAPACITY*
Bu/hr*Tonnes/hr*
Corn & Barley5500
140
Wheat 5000136
Soybeans4800 131
*Capacities based on using 12′ (3.65 m) suction line and truck loading kit. Capacity will vary with condition
of product. Due to continuous product development, specifications are subject to change without
notice. Some items shown may be optional.
7614 DLX HD REAR VIEW
Floor Sweep Nozzle
