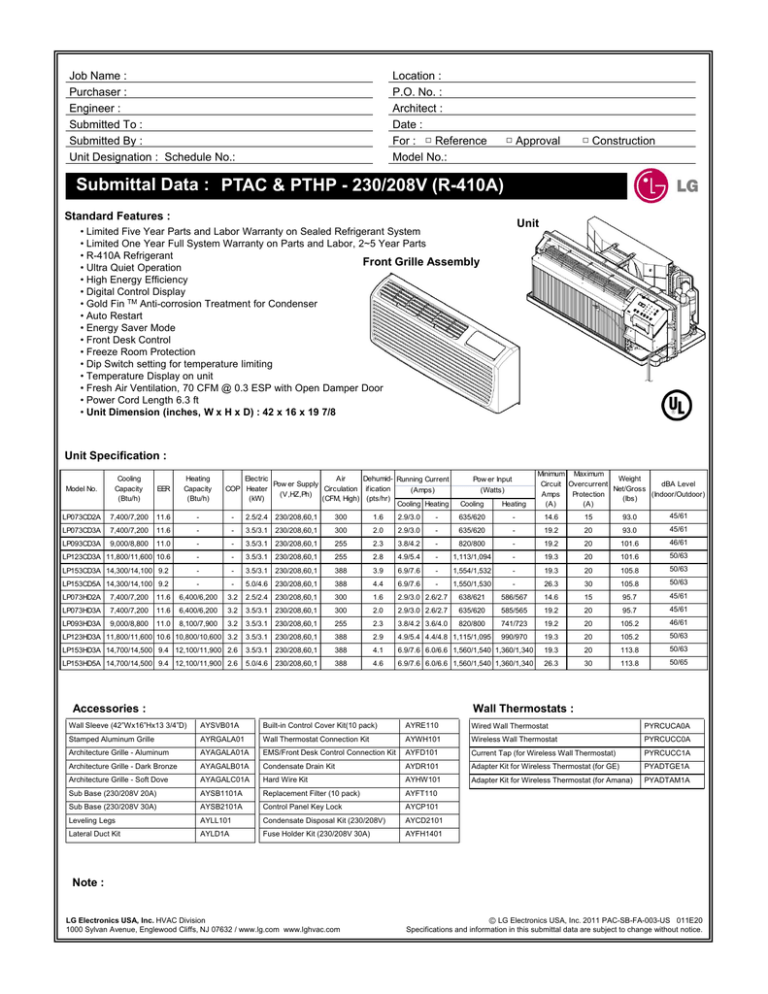

LG Submittal
Job Name :
Purchaser :
Engineer :
Submitted To :
Submitted By :
Unit Designation : Schedule No.:
Location :
P.O. No. :
Architect :
Date :
For : □ Reference
Model No.:
□ Approval
□ Construction
Submittal Data : PTAC & PTHP - 230/208V (R-410A)
Standard Features :
Unit
• Limited Five Year Parts and Labor Warranty on Sealed Refrigerant System
• Limited One Year Full System Warranty on Parts and Labor, 2~5 Year Parts
• R-410A Refrigerant
Front Grille Assembly
• Ultra Quiet Operation
• High Energy Efficiency
• Digital Control Display
• Gold Fin TM Anti-corrosion Treatment for Condenser
• Auto Restart
• Energy Saver Mode
• Front Desk Control
• Freeze Room Protection
• Dip Switch setting for temperature limiting
• Temperature Display on unit
• Fresh Air Ventilation, 70 CFM @ 0.3 ESP with Open Damper Door
• Power Cord Length 6.3 ft
• Unit Dimension (inches, W x H x D) : 42 x 16 x 19 7/8
Unit Specification :
Electric
Air
Dehumid- Running Current
Pow er Supply
COP Heater
Circulation ification
(Amps)
(V,HZ,Ph)
(kW)
(CFM, High) (pts/hr)
Cooling Heating
Minimum Maximum
Weight
Circuit Overcurrent
dBA Level
Net/Gross
Amps
Protection
(Indoor/Outdoor)
(lbs)
(A)
(A)
Model No.
Cooling
Capacity
(Btu/h)
EER
Heating
Capacity
(Btu/h)
LP073CD2A
7,400/7,200
11.6
-
-
2.5/2.4 230/208,60,1
300
1.6
2.9/3.0
-
635/620
-
14.6
15
93.0
45/61
LP073CD3A
7,400/7,200
11.6
-
-
3.5/3.1 230/208,60,1
300
2.0
2.9/3.0
-
635/620
-
19.2
20
93.0
45/61
LP093CD3A
9,000/8,800
11.0
-
-
3.5/3.1 230/208,60,1
255
2.3
3.8/4.2
-
820/800
-
19.2
20
101.6
46/61
LP123CD3A 11,800/11,600 10.6
-
-
3.5/3.1 230/208,60,1
255
2.8
4.9/5.4
-
1,113/1,094
-
19.3
20
101.6
50/63
LP153CD3A 14,300/14,100 9.2
-
-
3.5/3.1 230/208,60,1
388
3.9
6.9/7.6
-
1,554/1,532
-
19.3
20
105.8
50/63
LP153CD5A 14,300/14,100 9.2
-
-
5.0/4.6 230/208,60,1
388
4.4
6.9/7.6
-
1,550/1,530
-
26.3
30
105.8
50/63
Pow er Input
(Watts)
Cooling
Heating
LP073HD2A
7,400/7,200
11.6
6,400/6,200
3.2
2.5/2.4 230/208,60,1
300
1.6
2.9/3.0 2.6/2.7
638/621
586/567
14.6
15
95.7
45/61
LP073HD3A
7,400/7,200
11.6
6,400/6,200
3.2
3.5/3.1 230/208,60,1
300
2.0
2.9/3.0 2.6/2.7
635/620
585/565
19.2
20
95.7
45/61
LP093HD3A
9,000/8,800
11.0
8,100/7,900
3.2
3.5/3.1 230/208,60,1
255
2.3
3.8/4.2 3.6/4.0
820/800
741/723
19.2
20
105.2
46/61
LP123HD3A 11,800/11,600 10.6 10,800/10,600 3.2
3.5/3.1 230/208,60,1
388
2.9
4.9/5.4 4.4/4.8 1,115/1,095
990/970
19.3
20
105.2
50/63
LP153HD3A 14,700/14,500 9.4 12,100/11,900 2.6
3.5/3.1 230/208,60,1
388
4.1
6.9/7.6 6.0/6.6 1,560/1,540 1,360/1,340
19.3
20
113.8
50/63
LP153HD5A 14,700/14,500 9.4 12,100/11,900 2.6
5.0/4.6 230/208,60,1
388
4.6
6.9/7.6 6.0/6.6 1,560/1,540 1,360/1,340
26.3
30
113.8
50/65
Wall Thermostats :
Accessories :
Wall Sleeve (42”Wx16”Hx13 3/4”D)
AYSVB01A
Built-in Control Cover Kit(10 pack)
AYRE110
Wired Wall Thermostat
PYRCUCA0A
Stamped Aluminum Grille
AYRGALA01
Wall Thermostat Connection Kit
AYWH101
Wireless Wall Thermostat
PYRCUCC0A
Architecture Grille - Aluminum
AYAGALA01A
EMS/Front Desk Control Connection Kit
AYFD101
Current Tap (for Wireless Wall Thermostat)
PYRCUCC1A
Architecture Grille - Dark Bronze
AYAGALB01A
Condensate Drain Kit
AYDR101
Adapter Kit for Wireless Thermostat (for GE)
PYADTGE1A
Architecture Grille - Soft Dove
AYAGALC01A
Hard Wire Kit
AYHW101
Adapter Kit for Wireless Thermostat (for Amana)
PYADTAM1A
Sub Base (230/208V 20A)
AYSB1101A
Replacement Filter (10 pack)
AYFT110
Sub Base (230/208V 30A)
AYSB2101A
Control Panel Key Lock
AYCP101
Leveling Legs
AYLL101
Condensate Disposal Kit (230/208V)
AYCD2101
Lateral Duct Kit
AYLD1A
Fuse Holder Kit (230/208V 30A)
AYFH1401
Note :
LG Electronics USA, Inc. HVAC Division
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 / www.lg.com www.lghvac.com
Ⓒ LG Electronics USA, Inc. 2011 PAC-SB-FA-003-US 011E20
Specifications and information in this submittal data are subject to change without notice.
