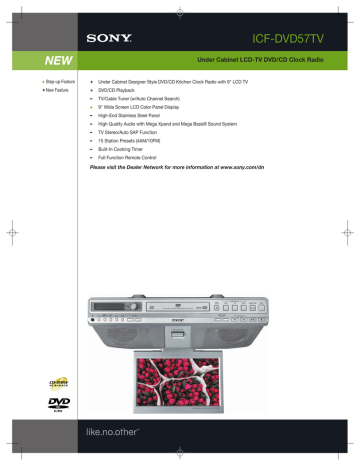

Under Cabinet LCD-TV DVD/CD Clock Radio
Step-up Feature
' New Feature
Under Cabinet Designer Style DVD/CD Kitchen Clock Radio with 9" LCD TV
DVD/CD Playback
TV/Cable Tuner (w/Auto Channel Search)
9" Wide Screen LCD Color Panel Display
High-End Stainless Steel Panel
High Quality Audio with Mega Xpand and Mega Bass® Sound System
TV Stereo/Auto SAP Function
15 Station Presets (4AM/10FM)
Built-In Cooking Timer
Full Function Remote Control
Please visit the Dealer Network for more information at www.sony.com/dn
Under Cabinet LCD-TV DVD/CD Clock Radio
' Under Cabinet Designer Style DVD/CD Kitchen Clock Radio with 9" LCD
TV brings a multi-media entertainment center into the kitchen and mounts under
a cabinet so it takes up no precious counter space.
Channel Selection: (TV) VHF: 2-13; UHF: 14-69; CATV: 1-125
' DVD/CD Playback plays all your favorite movies on DVD, plus all of your CD
music, including CD-R and CD-RW discs.
Antenna System: 75-ohm external antenna terminal for VHF/UHF
Format(s) Supported: CDA, CD-R, CD-RW, CDV, DVD Video, DVD-R, DVD-RW
Frequency Range: FM; 87.5 - 108 MHz; AM: 530 - 1710kHz
Screen Size: 9"
9" Wide Screen LCD Color Panel Display watch your favorite shows on this
large LCD screen
Day/Night Function: Time: 12 hour system
High-End Stainless Steel Panel Matches with today's most popular kitchen
designs and appliance styles.
Input(s): TV: Composite A/V
High Quality Audio with Mega Xpand and Mega Bass® Sound System
Music, TV and DVD movie audio by creating a wider stereo effect and enhances
reproduction of rich bass tones for a more complete and enjoyable listening
TV/Cable Tuner (w/Auto Channel Search): Channel 2-69, Cable 125
Channels Tune into television stations either from a terrestrial antenna or a cable
television. Auto channel search allows convenient programming of only the
channels you choose to receive.
Display: Wide LCD color monitor; TFT active matrix; 336,960 pixels
Output(s): Optical Digital Audio Out
Power Requirements: AC 120 Volts, 60Hz
Power Handling Capacity: With 6-ohm load, both channels driven from 100-10,000HZ, rated
1.4 W per channel minimum RMS power, with no more than 10% total harmonic distortion in
AC operation
Output Power: 1.8W + 1.8W (at 10% harmonic distortion)
Speaker Unit: 77mm (3 1/8") dia., 6 Ohm
Weight: 10 lbs, 5.3 oz (4.7 Kg)
TV Stereo/Auto SAP Functions watch your favorite TV shows in stereo, or
choose second audio program (where available) to enjoy multi-language features.
Dimensions (WHD): 15 3/4 x 4 7/8 x 12 3/4" (400 x 123 x 322.5mm) Incl. projecting parts and
15 Station Presets (4AM/10FM) offer convenient one-button tuning to 10 of
your favorite FM and 4 AM radio stations
Color: Silver with Aluminum Panel Accents
Built-In Cooking Timer eliminates the need for an additional timer unit for food
preparation or other purposes, and automatically alerts you to the time you set
Full Function Remote Control For DVD, CD, TV and radio tuner, and all
general functions of the unit such as volume, power and menu fuctions.
UPC Code: 0272426645480
©2005 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, Mega
Bass and Remote Commander are trademarks of Sony.
Features and specifications are subject to change without notice. Non-metric weights and measures are
Sony Electronics, Inc. • 16450 West Bernardo Drive • San Diego, CA 92127 • 1-800-222-7669 • www.sony.com
Last Updated 2005-05-16
