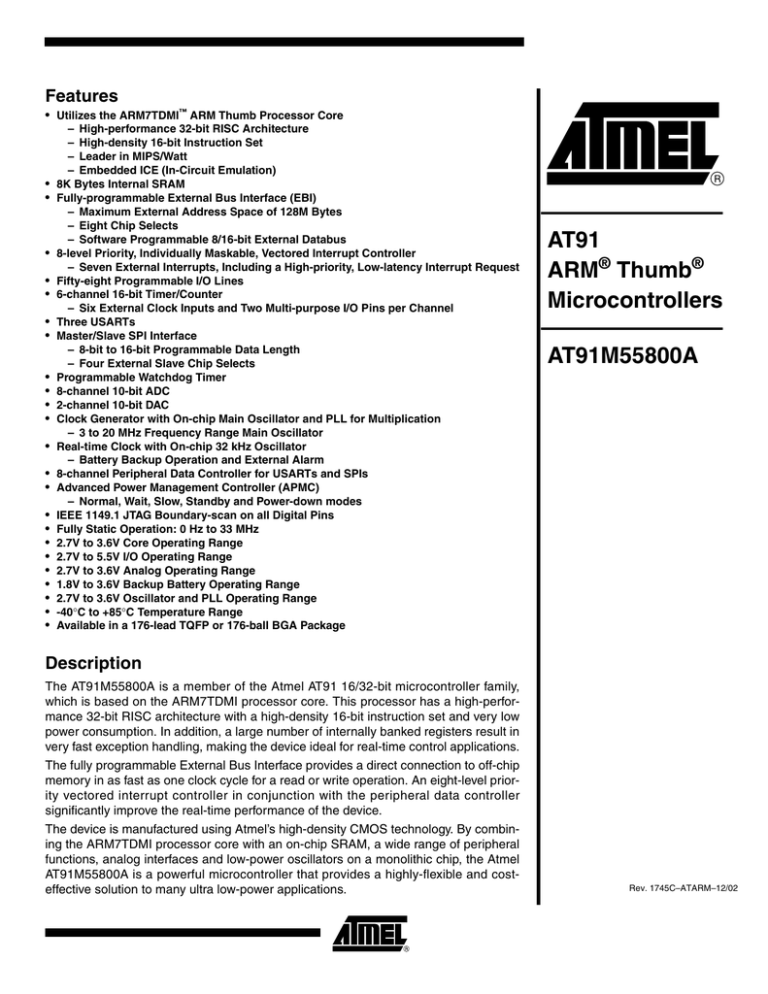

Features

Utilizes the ARM7TDMI

ARM Thumb Processor Core

– High-performance 32-bit RISC Architecture

– High-density 16-bit Instruction Set

– Leader in MIPS/Watt

– Embedded ICE (In-Circuit Emulation)

8K Bytes Internal SRAM

Fully-programmable External Bus Interface (EBI)

– Maximum External Address Space of 128M Bytes

– Eight Chip Selects

– Software Programmable 8/16-bit External Databus

8-level Priority, Individually Maskable, Vectored Interrupt Controller

– Seven External Interrupts, Including a High-priority, Low-latency Interrupt Request

Fifty-eight Programmable I/O Lines

6-channel 16-bit Timer/Counter

– Six External Clock Inputs and Two Multi-purpose I/O Pins per Channel

Three USARTs

Master/Slave SPI Interface

– 8-bit to 16-bit Programmable Data Length

– Four External Slave Chip Selects

Programmable Watchdog Timer

8-channel 10-bit ADC

2-channel 10-bit DAC

Clock Generator with On-chip Main Oscillator and PLL for Multiplication

– 3 to 20 MHz Frequency Range Main Oscillator

Real-time Clock with On-chip 32 kHz Oscillator

– Battery Backup Operation and External Alarm

8-channel Peripheral Data Controller for USARTs and SPIs

Advanced Power Management Controller (APMC)

– Normal, Wait, Slow, Standby and Power-down modes

IEEE 1149.1 JTAG Boundary-scan on all Digital Pins

Fully Static Operation: 0 Hz to 33 MHz

2.7V to 3.6V Core Operating Range

2.7V to 5.5V I/O Operating Range

2.7V to 3.6V Analog Operating Range

1.8V to 3.6V Backup Battery Operating Range

2.7V to 3.6V Oscillator and PLL Operating Range

-40

°C to +85°C Temperature Range

Available in a 176-lead TQFP or 176-ball BGA Package

Description

The AT91M55800A is a member of the Atmel AT91 16/32-bit microcontroller family, which is based on the ARM7TDMI processor core. This processor has a high-performance 32-bit RISC architecture with a high-density 16-bit instruction set and very low power consumption. In addition, a large number of internally banked registers result in very fast exception handling, making the device ideal for real-time control applications.

The fully programmable External Bus Interface provides a direct connection to off-chip memory in as fast as one clock cycle for a read or write operation. An eight-level priority vectored interrupt controller in conjunction with the peripheral data controller significantly improve the real-time performance of the device.

The device is manufactured using Atmel’s high-density CMOS technology. By combining the ARM7TDMI processor core with an on-chip SRAM, a wide range of peripheral functions, analog interfaces and low-power oscillators on a monolithic chip, the Atmel

AT91M55800A is a powerful microcontroller that provides a highly-flexible and costeffective solution to many ultra low-power applications.

AT91

ARM

®

Thumb

®

Microcontrollers

AT91M55800A

Rev. 1745C–ATARM–12/02

1

Pin Configurations

A15

A16

A17

A18

A19

VDDIO

GND

A20

GND

A8

A9

A10

A11

A12

A13

A14

AT91M55800A

GND

GND

NCS0

NCS1

NCS2

NCS3

NLB/A0

A1

A2

A3

A4

A5

A6

A7

VDDIO

D1

D2

D3

D4

A21

A22

A23

D0

D5

D6

D7

VDDCORE

VDDIO

Table 1. Pin Configuration for 176-lead TQFP Package

28

29

30

31

24

25

26

27

20

21

22

23

16

17

18

19

12

13

14

15

8

9

10

11

6

7

4

5

Pin

1

2

3

36

37

38

39

32

33

34

35

40

41

42

43

44

72

73

74

75

68

69

70

71

64

65

66

67

60

61

62

63

56

57

58

59

52

53

54

55

48

49

50

51

Pin

45

46

47

80

81

82

83

76

77

78

79

84

85

86

87

88

GND

PB23/TIOA1

PB24/TIOB1

PB25/TCLK2

PB26/TIOA2

PB27/TIOB2

PA0/TCLK3

PA1/TIOA3

PA2/TIOB3

PA3/TCLK4

PA4/TIOA4

PA5/TIOB4

PA6/TCLK5

VDDIO

GND

PA7/TIOA5

AT91M55800A

GND

GND

D8

D9

D10

D11

D12

D13

D14

D15

PB19/TCLK0

PB20/TIOA0

PB21/TIOB0

PB22/TCLK1

VDDIO

PA8/TIOB5

PA9/IRQ0

PA10/IRQ1

PA11/IRQ2

PA12/IRQ3

PA13/FIQ

PA14/SCK0

PA15/TXD0

PA16/RXD0

PA17/SCK1

PA18/TXD1/NTRI

VDDCORE

VDDIO

Notes: 1. Analog pins

2. Battery backup pins

112

113

114

115

116

117

118

119

104

105

106

107

108

109

110

111

100

101

102

103

96

97

98

99

92

93

94

95

Pin

89

90

91

120

121

122

123

124

125

126

127

128

129

130

131

132

AT91M55800A

GND

GND

PA19/RXD1

PA20/SCK2

PA21/TXD2

PA22/RXD2

PA23/SPCK

PA24/MISO

PA25/MOSI

PA26/NPCS0/NSS

PA27/NPCS1

PA28/NPCS2

PA29/NPCS3

VDDIO

GND

VDDPLL

XIN

XOUT

GNDPLL

148

149

150

151

PLLRC

VDDBU

(2)

XIN32

(2)

XOUT32

(2)

NRSTBU

(2)

GNDBU

(2)

WAKEUP

(2)

SHDN

(2)

GNDBU

(2)

VDDA

(1)

AD0

(1)

AD1

(1)

AD2

(1)

AD3

(1)

AD4

(1)

AD5

(1)

AD6

(1)

AD7

(1)

ADVREF

(1)

DAVREF

(1)

DA0

(1)

DA1

(1)

GNDA

(1)

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

VDDCORE 175

VDDIO 176

140

141

142

143

144

145

146

147

Pin

133

134

135

136

137

138

139

GND

PB8

PB9

PB10

PB11

PB12

PB13

PB14

PB15

PB16

PB17

NWDOVF

MCKO

VDDIO

GND

PB18/BMS

AT91M55800A

GND

GND

NCS4

NCS5

NCS6

NCS7

PB0

PB1

PB2

PB3/IRQ4

PB4/IRQ5

PB5

PB6/AD0TRIG

PB7/AD1TRIG

VDDIO

JTAGSEL

TMS

TDI

TDO

TCK

NTRST

NRST

NWAIT

NOE/NRD

NWE/NWR0

NUB/NWR1

VDDCORE

VDDIO

2

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

NCS7

NCS6

GND

DAVREF

NCS2

NUB/NWR1

NWE/NWR0

NOE/NRD

TD0

TDI

PB17

PB11

AT91M55800A

NCS1

NWAIT

NRST

NTRST

PB18/BMS

NWDOVF

PB16

PB12

PB10

PB9

PB8

PB7/AD1TRIG

PB3/IRQ4

PB2

NCS5

NCS4

DA1

GNDA

Table 2. Pin Configuration for 176-ball BGA Package

B6

B7

B8

B3

B4

B5

A12

A13

A14

A15

B1

B2

B9

B10

B11

B12

B13

B14

B15

A6

A7

A8

A9

A10

A11

Pin

A1

A2

A3

A4

A5

D6

D7

D8

D3

D4

D5

C12

C13

C14

C15

D1

D2

D9

D10

D11

D12

D13

D14

D15

C6

C7

C8

C9

C10

C11

Pin

C1

C2

C3

C4

C5

PB0

VDDIO

DA0

ADVREF

A2

A1

NCS3

GND

TCK

JTAGSEL

GND

PB15

AT91M55800A

A0/NLB

NCS0

VDDIO

VDDCORE

TMS

VDDIO

MCK0

PB13

PB6/AD0TRIG

VDDIO

PB4/IRQ5

PB14

PB5

PB1

GND

VDDCORE

AD7

VDDA

AD6

AD5

NRSTBU

GNDBU

A10

A7

VDDIO

A6

AT91M55800A

A4

A3

A5

GND

GND

AD4

VDDBU

XOUT32

F6

F7

F8

F3

F4

F5

E12

E13

E14

E15

F1

F2

F9

F10

F11

F12

F13

F14

F15

E6

E7

E8

E9

E10

E11

Pin

E1

E2

E3

E4

E5

A13

A11

AD3

AD2

GND

XIN32

A15

A14

AT91M55800A

A12

A9

A8

GND

AD1

AD0

WAKEUP

GND

H6

H7

H8

H3

H4

H5

G12

G13

G14

G15

H1

H2

H9

H10

H11

H12

H13

H14

H15

G6

G7

G8

G9

G10

G11

Pin

G1

G2

G3

G4

G5

3

1745C–ATARM–12/02

Table 2. Pin Configuration for 176-ball BGA Package (Continued)

Pin AT91M55800A Pin AT91M55800A Pin

GND

SHDN

VDDPLL

PLLRC

A19

A22

A21

A17

A18

VDDIO

A16

PA29/NPCS3

PA28/NPCS2

VDDIO

PA27/NPCS1

GNDPLL

K7

K8

K9

K4

K5

K6

K1

K2

K3

J13

J14

J15

K10

K11

K12

K13

K14

K15

J10

J11

J12

J7

J8

J9

J4

J5

J6

J1

J2

J3

M7

M8

M9

M4

M5

M6

L13

L14

L15

M1

M2

M3

M10

M11

M12

M13

M14

M15

L10

L11

L12

L7

L8

L9

L4

L5

L6

L1

L2

L3

PA22RXD2

PA26/NPCS0/NSS

XOUT

D2

D3

VDDCORE

GND

GND

PB21/TIOB0

GND

PB27/TIOB2

PA0/TCLK3

A20

A23

D0

D1

PA25/MOSI

GND

PA23/SPCK

GND

PA21/TXD2

PA24/MISO

XIN

P7

P8

P9

P4

P5

P6

N13

N14

N15

P1

P2

P3

P10

P11

P12

P13

P14

P15

N7

N8

N9

N10

N11

N12

N4

N5

N6

N1

N2

N3

AT91M55800A

D4

D6

VDDIO

D14

PB19/TCLK0

VDDIO

PB25/TCLK2

PA1/TIOA3

VDDIO

PA8/TIOB5

PA9/IRQ0

VDDCORE

VDDIO

PA19/RXD1

GND

D5

D7

D8

D9

D15

PB22/TCLK1

PB26/TIOA2

PA2/TIOB3

PA7/TIOA5

PA10/IRQ1

PA11/IRQ2

PA13/FIQ

PA17SCK1

PA18/TXD1/NTRI

PA20/SCK2

R7

R8

R9

R4

R5

R6

Pin

R1

R2

R3

R10

R11

R12

R13

R14

R15

AT91M55800A

D10

D11

D12

D13

PB20/TIOA0

PB23/TIOA1

PB24/TIOB1

PA3/TCLK4

PA4/TIOA4

PA5/TIOB4

PA6/TCLK5

PA12/IRQ3

PA14/SCK0

PA15/TXD0

PA16/RXD0

4

AT91M55800A

1745C–ATARM–12/02

1745C–ATARM–12/02

89

88

AT91M55800A

Figure 1. 176-lead TQFP Pinout

132

133

176

45

1 44

Figure 2. 176-ball BGA Pinout

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

G

H

E

F

A

B

C

D

L

M

N

P

R

J

K

5

Pin Description

Module

EBI

AIC

Timer

USART

SPI

PIO

WD

ADC

DAC

TCLK0 - TCLK5

TIOA0 - TIOA5

TIOB0 - TIOB5

SCK0 - SCK2

TXD0 - TXD2

RXD0 - RXD2

SPCK

MISO

MOSI

NSS

NPCS0 - NPCS3

PA0 - PA29

PB0 - PB27

NWDOVF

AD0-AD7

AD0TRIG

AD1TRIG

ADVREF

DA0 - DA1

DAVREF

Name

A0 - A23

D0 - D15

NCS0 - NCS7

NWR0

NWR1

NRD

NWE

NOE

NUB

NLB

NWAIT

BMS

IRQ0 - IRQ5

FIQ

Function

Address bus

Data bus

Chip select

Lower byte 0 write signal

Lower byte 1 write signal

Read signal

Write enable

Output enable

Upper byte-select

Lower byte-select

Wait input

Boot mode select

External interrupt request

Fast external interrupt request

Timer external clock

Multipurpose timer I/O pin A

Multipurpose timer I/O pin B

External serial clock

Transmit data output

Receive data input

SPI clock

Master in slave out

Master out slave in

Slave select

Peripheral chip select

Parallel I/O port A

Parallel I/O port B

Watchdog timer overflow

Analog input channels 0 - 7

ADC0 external trigger

ADC1 external trigger

Analog reference

Analog output channels 0 - 1

Analog reference

I/O

Input

Output

I/O

I/O

Output

Analog in

Input

Input

I/O

I/O

I/O

Output

Input

I/O

I/O

Input

Analog ref

Analog out

Analog ref

Output

Output

Output

Output

Input

Input

Input

Input

Type

Output

I/O

Output

Output

Output

Output

Low

Low

Low

Low

Low

Low

Low

Low

Active

Level

Low

Low

Low

Low

Comments

Used in Byte-write option

Used in Byte-write option

Used in Byte-write option

Used in Byte-select option

Used in Byte-select option

Used in Byte-select option

Used in Byte-select option

Sampled during reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

Input after reset

Input after reset

Open drain

PIO-controlled after reset

PIO-controlled after reset

6

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

Module

Clock

APMC

Reset

JTAG/ICE

Power

TMS

TDI

TDO

TCK

NTRST

VDDA

GNDA

VDDBU

GNDBU

VDDCORE

VDDIO

VDDPLL

GND

GNDPLL

Name

XIN

XOUT

PLLRC

XIN32

XOUT32

MCKO

WAKEUP

SHDN

NRST

NRSTBU

NTRI

JTAGSEL

Pin Description (Continued)

Function

Main oscillator input

Main oscillator output

RC filter for PLL

32 kHz oscillator input

32 kHz oscillator output

System clock

Wakeup request

Shutdown request

Hardware reset input

Hardware reset input for battery part

Tri-state mode select

Selects between ICE and JTAG mode

Test mode select

Test data input

Test data output

Test clock

Test reset input

Analog power

Analog ground

Power backup

Ground backup

Digital core power

Digital I/O power

Main oscillator and PLL power

Digital ground

PLL ground

Type

Input

Output

Input

Input

Output

Output

Input

Output

Input

Input

Input

Input

Input

Input

Output

Input

Input

Analog pwr

Analog gnd

Power

Ground

Power

Power

Power

Ground

Ground

Low

Low

Active

Level

Comments

Tri-state after backup reset

Schmidt trigger

Schmidt trigger

Low

Sampled during reset

Low

Schmidt trigger, internal pull-up

Schmidt trigger, internal pull-up

Schmidt trigger, internal pull-up

Schmidt trigger, internal pull-up

7

1745C–ATARM–12/02

Block Diagram

JTAGSEL

NTRST

TMS

TDO

TDI

TCK

PB0

PB1

PB2

PB5

PB8

PB9

PB10

PB11

PB12

PB13

PB14

PB15

PB16

PB17

PB3/IRQ4

PB4/IRQ5

PA9/IRQ0

PA10/IRQ1

PA11/IRQ2

PA12/IRQ3

PA13/FIQ

PA14/SCK0

PA15/TXD0

PA16/RXD0

PA17/SCK1

PA18/TXD1/NTRI

PA19/RXD1

PA20/SCK2

PA21/TXD2

PA22/RXD2

PA23/SPCK

PA24/MISO

PA25/MOSI

PA26/NPCS0/NSS

PA27/NPCS1

PA28/NPCS2

PA29/NPCS3

P

I

O

B

P

I

O

A

NWDOVF

VDDA

DA0

DAVREF

DA1

PB6/AD0TRIG

AD0

AD1

AD2

AD3

ADVREF

AD4

AD5

AD6

AD7

PB7/AD1TRIG

GNDA

Embedded

ICE

ARM7TDMI Core

AIC:

Advanced

Interrupt

Controller

USART0

2 PDC

Channels

USART1

USART2

2 PDC

Channels

2 PDC

Channels

Internal RAM

8K Bytes

ASB

Controller

SPI: Serial

Peripheral

Interface

2 PDC

Channels

PIOA Controller

WD: Watchdog Timer

Chip ID

DAC0

DAC1

4-Channel

ADC0

ASB

AMBA Bridge

APB

Reset

EBI User

Interface

PIOB

Controller

TC: Timer

Counter

Block 0

TC0

TC1

TC2

TC: Timer

Counter

Block 1

TC3

TC4

TC5

Clock

Generator

PLL

PB18/BMS

APMC:

Advanced

Power

Management

Controller

P

I

O

B

PB19/TCLK0

PB22/TCLK1

PB25/TCLK2

PB20/TIOA0

PB21/TIOB0

PB23/TIOA1

PB24/TIOB1

PB26/TIOA2

PB27/TIOB2

P

I

O

A

PA0/TCLK3

PA3/TCLK4

PA6/TCLK5

PA1/TIOA3

PA2/TIOB3

PA4/TIOA4

PA5/TIOB4

PA7/TIOA5

PA8/TIOB5

VDDPLL

MCKO

XIN

16 MHz

XOUT

PLLRC

GNDPLL

VDDBU

SHDN

WAKEUP

NRST

VDDIO, VDDCORE

GND

D0 - D15

A1 - A23

A0/NLB

NRD/NOE

NWR0/NWE

NWR1/NUB

NWAIT

NCS0 - NCS7

4-Channel

ADC1

Analog

RTC:

Real Time

Clock

Battery Backup

NRSTBU

XIN32

32.768 kHz

XOUT32

GNDBU

8

AT91M55800A

1745C–ATARM–12/02

Architectural

Overview

Memory

Peripherals

System Peripherals

AT91M55800A

The AT91M55800A microcontroller integrates an ARM7TDMI with its embedded ICE interface, memories and peripherals. Its architecture consists of two main buses, the

Advanced System Bus (ASB) and the Advanced Peripheral Bus (APB). Designed for maximum performance and controlled by the memory controller, the ASB interfaces the

ARM7TDMI processor with the on-chip 32-bit memories, the External Bus Interface

(EBI) and the AMBA

Bridge. The AMBA Bridge drives the APB, which is designed for accesses to on-chip peripherals and optimized for low power consumption.

The AT91M55800A microcontroller implements the ICE port of the ARM7TDMI processor on dedicated pins, offering a complete, low cost and easy-to-use debug solution for target debugging.

The AT91M55800A microcontroller embeds 8K bytes of internal SRAM. The internal memory is directly connected to the 32-bit data bus and is single-cycle accessible.

The AT91M55800A microcontroller features an External Bus Interface (EBI), which enables connection of external memories and application-specific peripherals. The EBI supports 8- or 16-bit devices and can use two 8-bit devices to emulate a single 16-bit device. The EBI implements the early read protocol, enabling faster memory accesses than standard memory interfaces.

The AT91M55800A microcontroller integrates several peripherals, which are classified as system or user peripherals. All on-chip peripherals are 32-bit accessible by the

AMBA Bridge, and can be programmed with a minimum number of instructions. The peripheral register set is composed of control, mode, data, status and enable/disable/status registers.

An on-chip, 8-channel Peripheral Data Controller (PDC) transfers data between the onchip USARTs/SPI and the on and off-chip memories without processor intervention.

One PDC channel is connected to the receiving channel and one to the transmitting channel of each USART and of the SPI.

Most importantly, the PDC removes the processor interrupt handling overhead and significantly reduces the number of clock cycles required for a data transfer. It can transfer up to 64K contiguous bytes. As a result, the performance of the microcontroller is increased and the power consumption reduced.

The External Bus Interface (EBI) controls the external memory and peripheral devices via an 8- or 16-bit data bus and is programmed through the APB. Each chip select line has its own programming register.

The Advanced Power Management Controller (APMC) optimizes power consumption of the product by controlling the clocking elements such as the oscillators and the PLL, system and user peripheral clocks, and the power supplies.

The Advanced Interrupt Controller (AIC) controls the internal interrupt sources from the internal peripherals and the eight external interrupt lines (including the FIQ), to provide an interrupt and/or fast interrupt request to the ARM7TDMI. It integrates an 8-level priority controller and, using the Auto-vectoring feature, reduces the interrupt latency time.

The Real-time Clock (RTC) peripheral is designed for very low power consumption, and combines a complete time-of-day clock with alarm and a two-hundred year Gregorian calendar, complemented by a programmable periodic interrupt.

The Parallel Input/Output Controllers (PIOA and PIOB) control the 58 I/O lines. They enable the user to select specific pins for on-chip peripheral input/output functions, and

9

1745C–ATARM–12/02

User Peripherals

general-purpose input/output signal pins. The PIO controllers can be programmed to detect an interrupt on a signal change from each line.

The Watchdog (WD) can be used to prevent system lock-up if the software becomes trapped in a deadlock.

The Special Function (SF) module integrates the Chip ID and Reset Status registers.

Three USARTs, independently configurable, enable communication at a high baud rate in synchronous or asynchronous mode. The format includes start, stop and parity bits and up to 8 data bits. Each USART also features a Timeout and a Time Guard Register, facilitating the use of the two dedicated Peripheral Data Controller (PDC) channels.

The six 16-bit Timer/Counters (TC) are highly programmable and support capture or waveform modes. Each TC channel can be programmed to measure or generate different kinds of waves, and can detect and control two input/output signals. Each TC also has three external clock signals.

The SPI provides communication with external devices in master or slave mode. It has four external chip selects which can be connected to up to 15 devices. The data length is programmable, from 8- to 16-bits.

The two identical 4-channel 10-bit analog-to-digital converters (ADC) are based on a

Successive Approximation Register (SAR) approach.

Associated Documentation

Information

Internal architecture of processor

ARM/Thumb instruction sets

Embedded in-circuit-emulator

Mapping

Peripheral operation

Peripheral user interface

Mechanical characteristics

Ordering information

Timings

DC Characteristics

Document Title

ARM7TDMI (Thumb) Datasheet

AT91M55800A Datasheet

AT91M55800A Summary Datasheet

AT91M55800A Electrical Characteristics Datasheet

Literature Number

0673B

1745A

1745AS

1727A

10

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

Product Overview

Power Supplies

Input/Output

Considerations

The AT91M55800A has 5 kinds of power supply pins:

• VDDCORE pins, which power the chip core

• VDDIO pins, which power the I/O Lines

• VDDPLL pins, which power the oscillator and PLL cells

• VDDA pins, which power the analog peripherals ADC and DAC

• VDDBU pins, which power the RTC, the 32768 Hz oscillator and the Shut-down

Logic of the APMC

VDDIO and VDDCORE are separated to permit the I/O lines to be powered with 5V, thus resulting in full TTL compliance.

The following ground pins are provided:

• GND for both VDDCORE and VDDIO

• GNDPLL for VDDPLL

• GNDA for VDDA

• GNDBU for VDDBU

All of these ground pins must be connected to the same voltage (generally the board electric ground) with wires as short as possible. GNDPLL, GNDA and GNDBU are provided separately in order to allow the user to add a decoupling capacitor directly between the power and ground pads. In the same way, the PLL filter resistor and capacitors must be connected to the device and to GNDBU with wires as short as possible.

Also, the main oscillator crystal and the 32768 Hz crystal external load capacitances must be connected respectively to GNDPLL and to GNDBU with wires as short as possible.

The main constraints applying to the different voltages of the device are:

• VDDBU must be lower than or equal to VDDCORE

• VDDA must be higher than or equal to VDDCORE

• VDDCORE must be lower than or equal to VDDIO

The nominal power combinations supported by the AT91M55800A are described in the following table:

Table 3. Nominal Power Combinations

VDDIO

3V

VDDCORE

3V

VDDA

3V

VDDPLL

3V

VDDBU

3V

Maximum Operating

Frequency

33 MHz

3.3V

5V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

33 MHz

After the reset, the peripheral I/Os are initialized as inputs to provide the user with maximum flexibility. It is recommended that in any application phase, the inputs to the

AT91M55800A microcontroller be held at valid logic levels to minimize the power consumption.

11

1745C–ATARM–12/02

Master Clock

Reset

NRST Pin

Watchdog Reset

Master Clock is generated in one of the following ways, depending on programming in the APMC registers:

• From the 32768 Hz low-power oscillator that clocks the RTC

• The on-chip main oscillator together with a PLL generate a software-programmable main clock in the 500 Hz to 33 MHz range. The main oscillator can be bypassed to allow the user to enter an external clock signal.

The Master Clock (MCK) is also provided as an output of the device on the pin MCKO, whose state is controlled by the APMC module.

Reset restores the default states of the user interface registers (defined in the user interface of each peripheral), and forces the ARM7TDMI to perform the next instruction fetch from address zero. Aside from the program counter, the ARM7TDMI registers do not have defined reset states.

NRST is active low-level input. It is asserted asynchronously, but exit from reset is synchronized internally to the MCK. At reset, the source of MCK is the Slow Clock (32768

Hz crystal), and the signal presented on MCK must be active within the specification for a minimum of 10 clock cycles up to the rising edge of NRST, to ensure correct operation.

The watchdog can be programmed to generate an internal reset. In this case, the reset has the same effect as the NRST pin assertion, but the pins BMS and NTRI are not sampled. Boot Mode and Tri-state Mode are not updated. If the NRST pin is asserted and the watchdog triggers the internal reset, the NRST pin has priority.

Emulation Functions

Tri-state Mode

JTAG/ICE Debug Mode

The AT91M55800A provides a Tri-state Mode, which is used for debug purposes. This enables the connection of an emulator probe to an application board without having to desolder the device from the target board. In Tri-state Mode, all the output pin drivers of the AT91M55800A microcontroller are disabled.

To enter Tri-state Mode, the pin NTRI must be held low during the last 10 clock cycles before the rising edge of NRST. For normal operation the pin NTRI must be held high during reset, by a resistor of up to 400K Ohm.

NTRI is multiplexed with I/O line PA18 and USART 1 serial data transmit line TXD1.

Standard RS232 drivers generally contain internal 400K Ohm pull-up resistors. If TXD1 is connected to a device not including this pull-up, the user must make sure that a high level is tied on NTRI while NRST is asserted.

ARM Standard Embedded In-Circuit Emulation is supported via the JTAG/ICE port. It is connected to a host computer via an external ICE Interface. The JTAG/ICE debug mode is enabled when JTAGSEL is low.

In ICE Debug Mode the ARM Core responds with a non-JTAG chip ID which identifies the core to the ICE system. This is not JTAG compliant.

12

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

IEEE 1149.1 JTAG Boundaryscan

JTAG Boundary-scan is enabled when JTAGSEL is high. The functions SAMPLE,

EXTEST and BYPASS are implemented. There is no JTAG chip ID. The Special Function module provides a chip ID which is independent of JTAG.

It is not possible to switch directly between JTAG and ICE operations. A chip reset must be performed (NRST and NTRST) after JTAGSEL is changed.

Memory Controller

Internal Memories

Boot Mode Select

The ARM7TDMI processor address space is 4G bytes. The memory controller decodes the internal 32-bit address bus and defines three address spaces:

• Internal memories in the four lowest megabytes

• Middle space reserved for the external devices (memory or peripherals) controlled by the EBI

• Internal peripherals in the four highest megabytes

In any of these address spaces, the ARM7TDMI operates in Little-Endian mode only.

The AT91M55800A microcontroller integrates an 8-Kbyte SRAM bank. This memory bank is mapped at address 0x0 (after the remap command), allowing ARM7TDMI exception vectors between 0x0 and 0x20 to be modified by the software. The rest of the bank can be used for stack allocation (to speed up context saving and restoring), or as data and program storage for critical algorithms. All internal memory is 32 bits wide and single-clock cycle accessible. Byte (8-bit), half-word (16-bit) or word (32-bit) accesses are supported and are executed within one cycle. Fetching Thumb or ARM instructions is supported and internal memory can store twice as many Thumb instructions as ARM ones.

The ARM reset vector is at address 0x0. After the NRST line is released, the

ARM7TDMI executes the instruction stored at this address. This means that this address must be mapped in nonvolatile memory after the reset.

The input level on the BMS pin during the last 10 clock cycles before the rising edge of the NRST selects the type of boot memory (see Table 4).

The pin BMS is multiplexed with the I/O line PB18 that can be programmed after reset like any standard PIO line.

Table 4. Boot Mode Select

BMS

1

Boot Mode

External 8-bit memory on NCS0

0 External 16-bit memory on NCS0

13

1745C–ATARM–12/02

Remap Command

Abort Control

The ARM vectors (Reset, Abort, Data Abort, Prefetch Abort, Undefined Instruction,

Interrupt, Fast Interrupt) are mapped from address 0x0 to address 0x20. In order to allow these vectors to be redefined dynamically by the software, the AT91M55800A microcontroller uses a remap command that enables switching between the boot memory and the internal RAM bank addresses. The remap command is accessible through the EBI User Interface, by writing one in RCB of EBI_RCR (Remap Control Register).

Performing a remap command is mandatory if access to the other external devices (connected to chip selects 1 to 7) is required. The remap operation can only be changed back by an internal reset or an NRST assertion.

The abort signal providing a Data Abort or a Prefetch Abort exception to the ARM7TDMI is asserted when accessing an undefined address in the EBI address space.

No abort is generated when reading the internal memory or by accessing the internal peripherals, whether the address is defined or not.

14

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

External Bus Interface

Peripherals

Peripheral Registers

Peripheral Interrupt Control

The External Bus Interface handles the accesses between addresses 0x0040 0000 and

0xFFC0 0000. It generates the signals that control access to the external devices, and can configure up to eight 16-Mbyte banks. In all cases it supports byte, half-word and word aligned accesses.

For each of these banks, the user can program:

• Number of wait states

• Number of data float times (wait time after the access is finished to prevent any bus contention in case the device is too long in releasing the bus)

• Data bus width (8-bit or 16-bit)

• With a 16-bit wide data bus, the user can program the EBI to control one 16-bit device (Byte Access Select Mode) or two 8-bit devices in parallel that emulate a 16bit memory (Byte-write Access mode).

The External Bus Interface features also the Early Read Protocol, configurable for all the devices, that significantly reduces access time requirements on an external device.

The AT91M55800A peripherals are connected to the 32-bit wide Advanced Peripheral

Bus. Peripheral registers are only word accessible – byte and half-word accesses are not supported. If a byte or a half-word access is attempted, the memory controller automatically masks the lowest address bits and generates a word access.

Each peripheral has a 16-Kbyte address space allocated (the AIC only has a 4-Kbyte address space).

The following registers are common to all peripherals:

• Control Register – Write-only register that triggers a command when a one is written to the corresponding position at the appropriate address. Writing a zero has no effect.

• Mode Register – read/write register that defines the configuration of the peripheral.

Usually has a value of 0x0 after a reset.

• Data Register – read and/or write register that enables the exchange of data between the processor and the peripheral.

• Status Register – Read-only register that returns the status of the peripheral.

• Enable/Disable/Status Registers – shadow command registers. Writing a one in the

Enable Register sets the corresponding bit in the Status Register. Writing a one in the Disable Register resets the corresponding bit and the result can be read in the

Status Register. Writing a bit to zero has no effect. This register access method maximizes the efficiency of bit manipulation, and enables modification of a register with a single non-interruptible instruction, replacing the costly read-modify-write operation.

Unused bits in the peripheral registers are shown as “–” and must be written at 0 for upward compatibility. These bits read 0.

The Interrupt Control of each peripheral is controlled from the status register using the interrupt mask. The status register bits are ANDed to their corresponding interrupt mask bits and the result is then ORed to generate the Interrupt Source signal to the Advanced

Interrupt Controller.

The interrupt mask is read in the Interrupt Mask Register and is modified with the Interrupt Enable Register and the Interrupt Disable Register. The enable/disable/status (or mask) makes it possible to enable or disable peripheral interrupt sources with a non-

15

1745C–ATARM–12/02

Peripheral Data Controller

interruptible single instruction. This eliminates the need for interrupt masking at the AIC or Core level in real-time and multi-tasking systems.

An on-chip, 8-channel Peripheral Data Controller (PDC) transfers data between the onchip USARTs/SPI and the on and off-chip memories without processor intervention.

One PDC channel is connected to the receiving channel and one to the transmitting channel of each USART and SPI.

The user interface of a PDC channel is integrated in the memory space of each peripheral. It contains a 32-bit address pointer register and a 16-bit count register. When the programmed data is transferred, an end of transfer interrupt is generated by the corresponding peripheral.

Most importantly, the PDC removes the processor interrupt handling overhead and significantly reduces the number of clock cycles required for a data transfer. It can transfer up to 64K contiguous bytes. As a result, the performance of the microcontroller is increased and the power consumption reduced.

System Peripherals

APMC: Advanced Power

Management Controller

RTC: Real-time Clock

AIC: Advanced Interrupt

Controller

The AT91M55800A Advanced Power Management Controller allows optimization of power consumption. The APMC enables/disables the clock inputs of most of the peripherals and the ARM Core. Moreover, the main oscillator, the PLL and the analog peripherals can be put in standby mode allowing minimum power consumption to be obtained. The APMC provides the following operating modes:

• Normal: clock generator provides clock to the entire chip except the RTC.

• Wait mode: ARM Core clock deactivated

• Slow Clock mode: clock generator deactivated, master clock 32 kHz

• Standby mode: RTC active, all other clocks disabled

• Power down: RTC active, supply on the rest of the circuit deactivated

The AT91M55800A features a Real-time Clock (RTC) peripheral that is designed for very low power consumption. It combines a complete time-of-day clock with alarm and a two-hundred year Gregorian calendar, complemented by a programmable periodic interrupt.

The time and calendar values are coded in Binary-Coded Decimal (BCD) format. The time format can be 24-hour mode or 12-hour mode with an AM/PM indicator.

Updating time and calendar fields and configuring the alarm fields is performed by a parallel capture on the 32-bit data bus. An entry control is performed to avoid loading registers with incompatible BCD format data or with an incompatible date according to the current month/ year/century.

The AIC has an 8-level priority, individually maskable, vectored interrupt controller, and drives the NIRQ and NFIQ pins of the ARM7TDMI from:

• The external fast interrupt line (FIQ)

• The six external interrupt request lines (IRQ0 - IRQ5)

• The interrupt signals from the on-chip peripherals.

The AIC is largely programmable offering maximum flexibility, and its vectoring features reduce the real-time overhead in handling interrupts.

16

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

PIO: Parallel I/O Controller

WD: Watchdog

SF: Special Function

The AIC also features a spurious vector, which reduces Spurious Interrupt handling to a minimum, and a protect mode that facilitates the debug capabilities.

The AT91M55800A has 58 programmable I/O lines. 13 pins are dedicated as generalpurpose I/O pins. The other I/O lines are multiplexed with an external signal of a peripheral to optimize the use of available package pins. The PIO lines are controlled by two separate and identical PIO Controllers called PIOA and PIOB. The PIO controller enables the generation of an interrupt on input change and insertion of a simple input glitch filter on any of the PIO pins.

The Watchdog is built around a 16-bit counter, and is used to prevent system lock-up if the software becomes trapped in a deadlock. It can generate an internal reset or interrupt, or assert an active level on the dedicated pin NWDOVF. All programming registers are password-protected to prevent unintentional programming.

The AT91M55800A provides registers which implement the following special functions.

• Chip identification

• RESET status

User Peripherals

USART: Universal

Synchronous/

Asynchronous Receiver

Transmitter

TC: Timer Counter

SPI: Serial Peripheral

Interface

ADC: Analog-to-digital

Converter

The AT91M55800A provides three identical, full-duplex, universal synchronous/asynchronous receiver/transmitters.

Each USART has its own baud rate generator, and two dedicated Peripheral Data Controller channels. The data format includes a start bit, up to 8 data bits, an optional programmable parity bit and up to 2 stop bits.

The USART also features a Receiver Timeout register, facilitating variable-length frame support when it is working with the PDC, and a Time-guard register, used when interfacing with slow remote equipment.

The AT91M55800A features two Timer Counter blocks that include three identical 16-bit timer counter channels. Each channel can be independently programmed to perform a wide range of functions including frequency measurement, event counting, interval measurement, pulse generation, delay timing and pulse-width modulation.

The Timer Counters can be used in Capture or Waveform mode, and all three counter channels can be started simultaneously and chained together.

The SPI provides communication with external devices in master or slave mode. It has four external chip selects that can be connected to up to 15 devices. The data length is programmable, from 8- to 16-bit.

The two identical 4-channel 10-bit analog-to-digital converters (ADC) are based on a

Successive Approximation Register (SAR) approach.

Each ADC has 4 analog input pins, AD0 to AD3 and AD4 to AD7, digital trigger input pins AD0TRIG and AD1TRIG, and provides an interrupt signal to the AIC. Both ADCs share the analog power supply pins VDDA and GNDA, and the input reference voltage pin ADVREF.

Each channel can be enabled or disabled independently, and has its own data register.

The ADC can be configured to automatically enter Sleep mode after a conversion

17

1745C–ATARM–12/02

DAC: Digital-to-analog

Converter

sequence, and can be triggered by the software, the Timer Counter, or an external signal.

Each DAC has an analog output pin, DA0 and DA1, and provides an interrupt signal to the AIC DA0IRQ and DA1IRQ. Both DACs share the analog power supply pins VDDA and GNDA, and the input reference DAVREF.

18

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

Memory Map

Figure 3. AT91M55800A Memory Map Before and after Remap Command

Before Remap

Function Size Abort Control Address

0xFFFFFFFF

Address

0xFFFFFFFF

On-chip

Peripherals

4M Bytes No

After Remap

Function Size Abort Control

On-chip

Peripherals

4M Bytes No

0xFFC00000

0xFFBFFFFF

0xFFC00000

0xFFBFFFFF

Reserved

External

Devices

(up to 8)

Up to 8 Devices

Programmable Page Size

1, 4, 16, 64M Bytes

Yes

0x00400000

0x003FFFFF

On-chip RAM 1M Byte

0x00300000

0x002FFFFF

Reserved

On-chip

Device

1M Byte

0x00200000

0x001FFFFF

Reserved

On-chip

Device

1M Byte

0x00100000

0x000FFFFF

0x00000000

External

Devices Selected by NCS0

1M Byte

No

No

No

No

0x00400000

0x003FFFFF

0x00300000

0x002FFFFF

Reserved

On-chip

Device

0x00200000

0x001FFFFF

0x00100000

0x000FFFFF

Reserved

On-chip

Device

On-chip RAM

0x00000000

Reserved

1M Byte No

1M Byte No

1M Byte No

1M Byte No

19

1745C–ATARM–12/02

20

Peripheral Memory Map

Figure 4. AT91M55800A Peripheral Memory Map

Address Peripheral Peripheral Name

0xFFFFFFFF

AIC Advanced Interrupt Controller

0xFFFFF000

Reserved

0xFFFFBFFF

WD WatchdogTimer

0xFFFF8000

0xFFFF7FFF

APMC

Advanced Power

Management Controller

0xFFFF4000

0xFFFF3FFF

PIO B Parallel I/O Controller B

0xFFFF0000

0xFFFEFFFF

Parallel I/O Controller A

PIO A

0xFFFEC000

Reserved

0xFFFD7FFF

TC 3,4,5 Timer Counter Channels 3,4,5

0xFFFD4000

0xFFFD3FFF

TC 0,1,2

Timer Counter Channels 0,1,2

0xFFFD0000

0xFFFCBFFF

0xFFFC8000

0xFFFC7FFF

0xFFFC4000

0xFFFC3FFF

0xFFFC0000

0xFFFBFFFF

USART2

USART1

USART0

Reserved

Universal Synchronous/

Asynchronous

Receiver/Transmitter 2

Universal Synchronous/

Asynchronous

Receiver/Transmitter 1

Universal Synchronous/

Asynchronous

Receiver/Transmitter 0

SPI

Serial Peripheral Interface

0xFFFBC000

0xFFFBBFFF

RTC

Real-time Clock

0xFFFB8000

0xFFFB7FFF

ADC1

Analog-to-digital Converter 1

0xFFFB4000

0xFFFB3FFF

ADC0

Analog-to-digital Converter 0

0xFFFB0000

0xFFFAFFFF

DAC1

Digital-to-analog Converter 1

0xFFFAC000

0xFFFABFFF

DAC0

Digital-to-analog Converter 0

0xFFFA8000

Reserved

0xFFF03FFF

SF Special Function

0xFFF00000

Reserved

0xFFE03FFF

EBI

External Bus Interface

0xFFE00000

Reserved

0xFFC00000

Size

4K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

EBI: External Bus

Interface

The EBI generates the signals that control the access to the external memory or peripheral devices. The EBI is fully-programmable and can address up to 128M bytes. It has eight chip selects and a 24-bit address bus.

The 16-bit data bus can be configured to interface with 8- or 16-bit external devices.

Separate read and write control signals allow for direct memory and peripheral interfacing.

The EBI supports different access protocols allowing single-clock cycle memory accesses.

The main features are:

• External memory mapping

• 8 active-low chip select lines

• 8- or 16-bit data bus

• Byte-write or byte-select lines

• Remap of boot memory

• Two different read protocols

• Programmable wait state generation

• External wait request

• Programmable data float time

The EBI User Interface is described on page 46.

21

1745C–ATARM–12/02

External Memory

Mapping

The memory map associates the internal 32-bit address space with the external 24-bit address bus.

The memory map is defined by programming the base address and page size of the

external memories (see EBI User Interface registers EBI_CSR0 to EBI_CSR7). Note

that A0 - A23 is only significant for 8-bit memory; A1 - A23 is used for 16-bit memory.

If the physical memory device is smaller than the programmed page size, it wraps around and appears to be repeated within the page. The EBI correctly handles any valid access to the memory device within the page (see Figure 5).

In the event of an access request to an address outside any programmed page, an

Abort signal is generated. Two types of Abort are possible: instruction prefetch abort and data abort. The corresponding exception vector addresses are respectively 0x0000

000C and 0x0000 0010. It is up to the system programmer to program the error handling routine to use in case of an Abort (see the ARM7TDMI datasheet for further information).

Figure 5. External Memory Smaller than Page Size

Base + 4M Byte

Memory

Map

1-Mbyte Device

1-Mbyte Device

1-Mbyte Device

1-Mbyte Device

Hi

Low

Hi

Low

Hi

Low

Hi

Low

Base + 3M Byte

Base + 2M Byte

Base + 1M Byte

Repeat 3

Repeat 2

Repeat 1

Base

22

AT91M55800A

1745C–ATARM–12/02

EBI Pin Description

AT91M55800A

Name

A0 - A23

D0 - D15

NCS0 - NCS7

NRD

NWR0 - NWR1

NOE

NWE

NUB, NLB

NWAIT

Description

Address bus (output)

Data bus (input/output)

Active low chip selects (output)

Read Enable (output)

Lower and upper write enable (output)

Output enable (output)

Write enable (output)

Upper and lower byte-select (output)

Wait request (input)

The following table shows how certain EBI signals are multiplexed:

Multiplexed Signals

A0

NRD

NLB

NOE

NWR0

NWR1

NWE

NUB

Functions

8- or 16-bit data bus

Byte-write or byte-select access

Byte-write or byte-select access

Byte-write or byte-select access

Type

Output

I/O

Output

Output

Output

Output

Output

Output

Input

23

1745C–ATARM–12/02

Data Bus Width

A data bus width of 8 or 16 bits can be selected for each chip select. This option is controlled by the DBW field in the EBI_CSR (Chip-select Register) for the corresponding chip select.

Figure 6 shows how to connect a 512K x 8-bit memory on NCS2.

Figure 6. Memory Connection for an 8-bit Data Bus

EBI

D0 - D7

D8 - D15

A1 - A18

A0

NWR1

NWR0

NRD

NCS2

D0 - D7

A1 - A18

A0

Write Enable

Output Enable

Memory Enable

Figure 7 shows how to connect a 512K x 16-bit memory on NCS2.

Figure 7. Memory Connection for a 16-bit Data Bus

EBI

D0 - D7

D8 - D15

A1 - A19

NLB

NUB

NWE

NOE

NCS2

D0 - D7

D8 - D15

A0 - A18

Low Byte Enable

High Byte Enable

Write Enable

Output Enable

Memory Enable

Byte-write or Byte-select

Access

Each chip select with a 16-bit data bus can operate with one of two different types of write access:

• Byte-write Access supports two Byte-write and a single read signal.

• Byte-select Access selects upper and/or lower byte with two byte-select lines, and separate read and write signals.

This option is controlled by the BAT field in the EBI_CSR (Chip-select Register) for the corresponding chip select.

Byte-write Access is used to connect 2 x 8-bit devices as a 16-bit memory page.

• The signal A0/NLB is not used.

• The signal NWR1/NUB is used as NWR1 and enables upper byte writes.

• The signal NWR0/NWE is used as NWR0 and enables lower byte writes.

• The signal NRD/NOE is used as NRD and enables half-word and byte reads.

Figure 8 shows how to connect two 512K x 8-bit devices in parallel on NCS2.

24

AT91M55800A

1745C–ATARM–12/02

1745C–ATARM–12/02

AT91M55800A

Figure 8. Memory Connection for 2 x 8-bit Data Busses

EBI

D0 - D7

D8 - D15

A1 - A19

A0

NWR1

NWR0

NRD

NCS2

D0 - D7

A0 - A18

Write Enable

Read Enable

Memory Enable

D8 - D15

A0 - A18

Write Enable

Read Enable

Memory Enable

Byte-select Access is used to connect 16-bit devices in a memory page.

• The signal A0/NLB is used as NLB and enables the lower byte for both read and write operations.

• The signal NWR1/NUB is used as NUB and enables the upper byte for both read and write operations.

• The signal NWR0/NWE is used as NWE and enables writing for byte or half word.

• The signal NRD/NOE is used as NOE and enables reading for byte or half word.

Figure 9 shows how to connect a 16-bit device with byte and half-word access (e.g. 16bit SRAM) on NCS2.

Figure 9. Connection for a 16-bit Data Bus with Byte and Half-word Access

EBI

D0 - D7

D8 - D15

A1 - A19

NLB

NUB

NWE

NOE

NCS2

D0 - D7

D8 - D15

A0 - A18

Low Byte Enable

High Byte Enable

Write Enable

Output Enable

Memory Enable

25

Boot on NCS0

Figure 10 shows how to connect a 16-bit device without byte access (e.g. Flash) on

NCS2.

Figure 10. Connection for a 16-bit Data Bus Without Byte-write Capability.

EBI

D0 - D7

D8 - D15

A1 - A19

NLB

NUB

NWE

NOE

NCS2

D0 - D7

D8 - D15

A0 - A18

Write Enable

Output Enable

Memory Enable

Depending on the device and the BMS pin level during the reset, the user can select either an 8-bit or 16-bit external memory device connected on NCS0 as the Boot Memory. In this case, EBI_CSR0 (Chip-select Register 0) is reset at the following configuration for chip select 0:

• 8 wait states (WSE = 1, NWS = 7)

• 8-bit or 16-bit data bus width, depending on BMS

Byte access type and number of data float time are respectively set to Byte-write Access and 0. With a nonvolatile memory interface, any values can be programmed for these parameters.

Before the remap command, the user can modify the chip select 0 configuration, programming the EBI_CSR0 with exact boot memory characteristics. The base address becomes effective after the remap command, but the new number of wait states can be changed immediately. This is useful if a boot sequence needs to be faster.

26

AT91M55800A

1745C–ATARM–12/02

Read Protocols

Standard Read Protocol

AT91M55800A

The EBI provides two alternative protocols for external memory read access: standard and early read. The difference between the two protocols lies in the timing of the NRD

(read cycle) waveform.

The protocol is selected by the DRP field in EBI_MCR (Memory Control Register) and is valid for all memory devices. Standard read protocol is the default protocol after reset.

Note: In the following waveforms and descriptions, NRD represents NRD and NOE since the two signals have the same waveform. Likewise, NWE represents NWE, NWR0 and

NWR1 unless NWR0 and NWR1 are otherwise represented. ADDR represents A0 - A23 and/or A1 - A23.

Standard read protocol implements a read cycle in which NRD and NWE are similar.

Both are active during the second half of the clock cycle. The first half of the clock cycle allows time to ensure completion of the previous access as well as the output of address and NCS before the read cycle begins.

During a standard read protocol, external memory access, NCS is set low and ADDR is valid at the beginning of the access while NRD goes low only in the second half of the master clock cycle to avoid bus conflict (see Figure 11). NWE is the same in both protocols. NWE always goes low in the second half of the master clock cycle (see Figure 12).

Figure 11. Standard Read Protocol

MCK

ADDR or

NCS

NRD

NWE

27

1745C–ATARM–12/02

Early Read Protocol

Early Read Wait State

Early read protocol provides more time for a read access from the memory by asserting

NRD at the beginning of the clock cycle. In the case of successive read cycles in the same memory, NRD remains active continuously. Since a read cycle normally limits the speed of operation of the external memory system, early read protocol can allow a faster clock frequency to be used. However, an extra wait state is required in some cases to avoid contentions on the external bus.

Figure 12. Early Read Protocol

MCK

ADDR or

NCS

NRD

NWE

In early read protocol, an early read wait state is automatically inserted when an external write cycle is followed by a read cycle to allow time for the write cycle to end before the subsequent read cycle begins (see Figure 13). This wait state is generated in addition to any other programmed wait states (i.e. data float wait).

No wait state is added when a read cycle is followed by a write cycle, between consecutive accesses of the same type or between external and internal memory accesses.

Early read wait states affect the external bus only. They do not affect internal bus timing.

Figure 13. Early Read Wait State

Write Cycle

MCK

Early Read Wait Read Cycle

ADDR

NCS

NRD

NWE

28

AT91M55800A

1745C–ATARM–12/02

Write Data Hold Time

AT91M55800A

During write cycles in both protocols, output data becomes valid after the falling edge of the NWE signal and remains valid after the rising edge of NWE, as illustrated in the figure below. The external NWE waveform (on the NWE pin) is used to control the output data timing to guarantee this operation.

It is therefore necessary to avoid excessive loading of the NWE pins, which could delay the write signal too long and cause a contention with a subsequent read cycle in standard protocol.

Figure 14. Data Hold Time

MCK

ADDR

NWE

Data output

In early read protocol the data can remain valid longer than in standard read protocol due to the additional wait cycle which follows a write access.

29

1745C–ATARM–12/02

Wait States

Standard Wait States

The EBI can automatically insert wait states. The different types of wait states are listed below:

• Standard wait states

• Data float wait states

• External wait states

• Chip select change wait states

Early read wait states (as described in Read Protocols)

Each chip select can be programmed to insert one or more wait states during an access on the corresponding device. This is done by setting the WSE field in the corresponding

EBI_CSR. The number of cycles to insert is programmed in the NWS field in the same register.

Below is the correspondence between the number of standard wait states programmed and the number of cycles during which the NWE pulse is held low:

0 wait states 1/2 cycle

1 wait state 1 cycle

For each additional wait state programmed, an additional cycle is added.

Figure 15. One Wait State Access

1 Wait State Access

MCK

ADDR

NCS

NWE

NRD

(1)

(2)

Notes: 1. Early Read Protocol

2. Standard Read Protocol

30

AT91M55800A

1745C–ATARM–12/02

Data Float Wait State

AT91M55800A

Some memory devices are slow to release the external bus. For such devices it is necessary to add wait states (data float waits) after a read access before starting a write access or a read access to a different external memory.

The Data Float Output Time (t

DF

) for each external memory device is programmed in the

TDF field of the EBI_CSR register for the corresponding chip select. The value (0 - 7 clock cycles) indicates the number of data float waits to be inserted and represents the time allowed for the data output to go high impedance after the memory is disabled.

Data float wait states do not delay internal memory accesses. Hence, a single access to an external memory with long t

DF internal memory.

will not slow down the execution of a program from

The EBI keeps track of the programmed external data float time during internal accesses, to ensure that the external memory system is not accessed while it is still busy.

Internal memory accesses and consecutive accesses to the same external memory do not have added Data Float wait states.

Figure 16. Data Float Output Time

MCK

ADDR

NCS

NRD

(1) (2) t

DF

D0-D15

Notes: 1. Early Read Protocol

2. Standard Read Protocol

31

1745C–ATARM–12/02

External Wait

Chip Select Change Wait

States

The NWAIT input can be used to add wait states at any time. NWAIT is active low and is detected on the rising edge of the clock.

If NWAIT is low at the rising edge of the clock, the EBI adds a wait state and changes neither the output signals nor its internal counters and state. When NWAIT is deasserted, the EBI finishes the access sequence.

The NWAIT signal must meet setup and hold requirements on the rising edge of the clock.

Figure 17. External Wait

MCK

ADDR

NWAIT

NCS

NWE

NRD

(1)

(2)

Notes: 1. Early Read Protocol

2. Standard Read Protocol

A chip select wait state is automatically inserted when consecutive accesses are made to two different external memories (if no wait states have already been inserted). If any wait states have already been inserted, (e.g., data float wait) then none are added.

32

AT91M55800A

1745C–ATARM–12/02

1745C–ATARM–12/02

AT91M55800A

Figure 18. Chip Select Wait

Mem 1

MCK

NCS1

NCS2

NRD

(1)

NWE

(2)

Notes: 1. Early Read Protocol

2. Standard Read Protocol

Chip Select Wait Mem 2

33

Memory Access

Waveforms

Figures 19 through 22 show examples of the two alternative protocols for external memory read access.

Figure 19. Standard Read Protocol with no t

DF

34

AT91M55800A

1745C–ATARM–12/02

Figure 20. Early Read Protocol with no t

DF

AT91M55800A

1745C–ATARM–12/02

35

Figure 21. Standard Read Protocol with t

DF

36

AT91M55800A

1745C–ATARM–12/02

Figure 22. Early Read Protocol with t

DF

AT91M55800A

1745C–ATARM–12/02

37

Figures 23 through 29 show the timing cycles and wait states for read and write access to the various AT91M55800A external memory devices. The configurations described are as follows:

Table 5. Memory Access Waveforms

Figure Number Number of Wait States

27

28

29

23

24

25

26

1

1

0

1

0

0

1

Bus Width

16

16

16

8

8

8

16

Size of Data Transfer

Word

Word

Half-word

Word

Half-word

Byte

Byte

38

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

Figure 23. 0 Wait States, 16-bit Bus Width, Word Transfer

READ ACCESS

·

Standard Protocol

NRD

D0 - D15

Internal Bus

·

Early Protocol

NRD

D0 - D15

MCK

A1 - A23

NCS

NLB

NUB

WRITE ACCESS

·

Byte Write/

Byte Select Option

NWE

D0 - D15

ADDR

B

2

B

1

B

2

B

1

B

2

B

1

X X B

2

B

1

ADDR+1

B

4

B

3

B

4

B

3

B

4

B

3

B

4

B

3

B

2

B

1

39

1745C–ATARM–12/02

Figure 24. 1 Wait State, 16-bit Bus Width, Word Transfer

1 Wait State

MCK

A1 - A23

ADDR

NCS

NLB

NUB

READ ACCESS

·

Standard Protocol

NRD

D0 - D15

Internal Bus

·

Early Protocol

NRD

D0 - D15

WRITE ACCESS

·

Byte Write/

Byte Select Option

NWE

D0 - D15

B

2

B

1

B

2

B

1

B

2

B

1

X X B

2

B

1

1 Wait State

ADDR+1

B

4

B

3

B

4

B

3

B

4

B

3

B

4

B

3

B

2

B

1

40

AT91M55800A

1745C–ATARM–12/02

Figure 25. 1 Wait State, 16-bit Bus Width, Half-word Transfer

1 Wait State

MCK

A1 - A23

NCS

NLB

NUB

READ ACCESS

·

Standard Protocol

NRD

D0 - D15

Internal Bus

·

Early Protocol

NRD

D0 - D15

WRITE ACCESS

·

Byte Write/

Byte Select Option

NWE

D0 - D15

B

2

B

1

B

2

B

1

B

2

B

1

X X B

2

B

1

AT91M55800A

41

1745C–ATARM–12/02

Figure 26. 0 Wait States, 8-bit Bus Width, Word Transfer

MCK

A0 - A23

ADDR ADDR+1

NCS

READ ACCESS

·

Standard Protocol

NRD

D0 - D15

Internal Bus

·

Early Protocol

NRD

X B

1

X X X B

1

X B

2

X X B

2

B

1

ADDR+2

X B

3

X B

3

B

2

B

1

ADDR+3

X B

4

B

4

B

3

B

2

B

1

D0 - D15

WRITE ACCESS

X B

1

X B

2

X B

3

X B

4

NWR0

NWR1

D0 - D15

X B

1

X B

2

X B

3

X B

4

42

AT91M55800A

1745C–ATARM–12/02

Figure 27. 1 Wait State, 8-bit Bus Width, Half-word Transfer

1 Wait State

MCK

A0 - A23

ADDR

NCS

READ ACCESS

·

Standard Protocol

NRD

D0 - D15

Internal Bus

·

Early Protocol

NRD

D0 - D15

WRITE ACCESS

X B

1

X B

1

X X X B

1

1 Wait State

ADDR+1

X B

2

AT91M55800A

X B

2

X X B

2

B

1

NWR0

NWR1

D0 - D15

X B

1

X B

2

43

1745C–ATARM–12/02

Figure 28. 1 Wait State, 8-bit Bus Width, Byte Transfer

1 Wait State

MCK

A0 - A23

NCS

EAD ACCESS

andard Protocol

NRD

D0-D15

Internal Bus

arly Protocol

NRD

D0 - D15

RITE ACCESS

NWR0

NWR1

D0-D15

X B

1

X B

1

XB

1

X X X B

1

44

AT91M55800A

1745C–ATARM–12/02

Figure 29. 0 Wait States, 16-bit Bus Width, Byte Transfer

MCK

A1-A23

Internal Address

ADDR X X X 0

ADDR X X X 0

NCS

NLB

NUB

READ ACCESS

·

Standard Protocol

NRD

D0-D15

Internal Bus

·

Early Protocol

NRD

D0-D15

WRITE ACCESS

·

Byte Write Option

NWR0

NWR1

D0-D15

·

Byte Select Option

NWE

X B

1

X X X B

1

XB

1

B

1

B

1

1745C–ATARM–12/02

ADDR X X X 0

ADDR X X X 1

B

2

X

X X B

2

X

B

2

X

B

2

B

2

AT91M55800A

45

EBI User Interface

The EBI is programmed using the registers listed in the table below. The Remap Control

Register (EBI_RCR) controls exit from Boot Mode (See “Boot on NCS0” on page 26.)

The Memory Control Register (EBI_MCR) is used to program the number of active chip selects and data read protocol. Eight Chip-select Registers (EBI_CSR0 to EBI_CSR7) are used to program the parameters for the individual external memories. Each

EBI_CSR must be programmed with a different base address, even for unused chip selects.

Base Address: 0xFFE00000 (Code Label EBI_BASE)

Table 6. EBI Memory Map

Offset Register

0x00 Chip-select Register 0

Name

EBI_CSR0 Read/Write

0x04

0x08

0x0C

0x10

0x14

0x18

0x1C

0x20

Chip-select Register 1

Chip-select Register 2

Chip-select Register 3

Chip-select Register 4

Chip-select Register 5

Chip-select Register 6

Chip-select Register 7

Remap Control Register

EBI_CSR1

EBI_CSR2

EBI_CSR3

EBI_CSR4

EBI_CSR5

EBI_CSR6

EBI_CSR7

EBI_RCR

0x24 Memory Control Register

Notes: 1. 8-bit boot (if BMS is detected high)

2. 16-bit boot (if BMS is detected low)

EBI_MCR

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Write-only

Read/Write

0x0000203E

(1)

0x0000203D

(2)

0x10000000

0x20000000

0x30000000

0x40000000

0x50000000

0x60000000

0x70000000

0

46

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

EBI Chip Select Register

Register Name:

Access Type:

EBI_CSR0 - EBI_CSR7

Read/Write

Reset Value:

See Table 6

Absolute Address:

0xFFE00000 - 0xFFE0001C

31 30 29 28 27 26 25 24

BA

23 22

BA

21

13

CSEN

5

WSE

20

12

BAT

4

19

11

1

1

0

1

1

0

0

0

0

1

1

0

1

NWS

0

0

1

1

0

1

0

1

0

1

0

Number of Standard Wait States

1

2

3

6

7

4

5

8

• WSE: Wait State Enable (Code Label EBI_WSE)

0 = Wait state generation is disabled. No wait states are inserted.

1 = Wait state generation is enabled.

18

10

TDF

2

17

9 15

7

PAGES

14

6

• DBW: Data Bus Width

3

NWS

1

DBW

1

1

0

0

0

1

0

1

• NWS: Number of Wait States

This field is valid only if WSE is set.

Code Label

Data Bus Width

EBI_DBW

Reserved –

16-bit data bus width

EBI_DBW_16

8-bit data bus width

Reserved

EBI_DBW_8

Code Label

EBI_NWS

EBI_NWS_1

EBI_NWS_2

EBI_NWS_3

EBI_NWS_4

EBI_NWS_5

EBI_NWS_6

EBI_NWS_7

EBI_NWS_8

DBW

16

8

PAGES

0

47

1745C–ATARM–12/02

• PAGES: Page Size

PAGES

0

0

1

1

0

1

0

1

• TDF: Data Float Output Time

Page Size

1M Byte

4M Bytes

16M Bytes

64M Bytes

Active Bits in Base Address

12 Bits (31-20)

10 Bits (31-22)

8 Bits (31-24)

6 Bits (31-26)

Code Label

EBI_PAGES

EBI_PAGES_1M

EBI_PAGES_4M

EBI_PAGES_16M

EBI_PAGES_64M

1

1

0

1

1

0

0

0

0

1

1

0

1

TDF

0

0

1

• BAT: Byte Access Type

1

0

1

0

1

0

1

0

Number of Cycles Added after the Transfer

0

1

2

5

6

3

4

7

Code Label

EBI_TDF

EBI_TDF_0

EBI_TDF_1

EBI_TDF_2

EBI_TDF_3

EBI_TDF_4

EBI_TDF_5

EBI_TDF_6

EBI_TDF_7

BAT

0

1

Selected BAT

Byte-write access type

Byte-select access type

Code Label

EBI_BAT

EBI_BAT_BYTE_WRITE

EBI_BAT_BYTE_SELECT

• CSEN: Chip Select Enable (Code Label EBI_CSEN)

0 = Chip select is disabled.

1 = Chip select is enabled.

• BA: Base Address (Code Label EBI_BA)

These bits contain the highest bits of the base address. If the page size is larger than 1M byte, the unused bits of the base address are ignored by the EBI decoder.

48

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

EBI Remap Control Register

Register Name:EBI_RCR

Access Type:Write-only

Absolute Address:0xFFE00020

Offset:

0x20

15

7

31

23

14

6

30

22

13

5

29

21

12

4

28

20

11

3

27

19

• RCB: Remap Command Bit (Code Label EBI_RCB)

0 = No effect.

1 = Cancels the remapping (performed at reset) of the page zero memory devices.

10

2

26

18

EBI Memory Control Register

Register Name:EBI_MCR

Access Type:Read/Write

Reset Value:0

Absolute Address:0xFFE00024

Offset:

0x24

15

7

31

23

14

6

30

22

13

5

29

21

• DRP: Data Read Protocol

12

4

DRP

28

20

11

3

27

19

10

2

26

18

DRP

0

1

Selected DRP

Standard read protocol for all external memory devices enabled

Early read protocol for all external memory devices enabled

1

9

25

17

1

9

25

17

Code Label

EBI_DRP

EBI_DRP_STANDARD

EBI_DRP_EARLY

0

8

24

16

8

0

RCB

24

16

49

1745C–ATARM–12/02

APMC: Advanced

Power Management

Controller

The AT91M55800A features an Advanced Power Management Controller, which optimizes both the power consumption of the device and the complete system. The APMC controls the clocking elements such as the oscillators and the PLL, the core and the peripheral clocks, and has the capability to control the system power supply.

Main Power is used throughout this document to identify the voltages powering the

AT91M55800A and other components of the system, with the exception of the Battery

Backup voltage, which is applied to the VDDBU. Main Power supplies VDDIO,

VDDCORE and, if required, the analog voltage VDDA. A battery or battery capacitor generally supplies the Battery Backup Power.

The APMC consists of the following elements:

• The RTC Oscillator, which provides the Slow Clock at 32768 Hz.

• The Main Oscillator, which provides a clock that depends on the frequency of the crystal connected to the XIN and XOUT pins.

• The Phase Lock Loop.

• The ARM Core Clock Controller, which allows entry to the Idle Mode.

• The Peripheral Clock Controller, which conserves the power consumption of unused peripherals.

• The Master Clock Output Controller.

• The Shut-down Logic, which controls the Main Power.

Figure 30. APMC Module

WAKEUP

NRSTBU

Reset Control

Shut-down

Logic

Alarm

APMC

SHDN

XIN32

XOUT32

RTC

OSC

VDDBU

VDDIO/VDDCORE

RTC

(1)

XIN

XOUT

Main OSC

OSC Timer

PLL

PLL Timer

Device

Clock

Control

IRQ

Control

Slow Clock_SLCK

Arm Clock

0

Peripheral Clocks n

ARM Interrupt (IRQ and FIQ)

SLCKIRQ

APMCIRQ

Advanced Peripheral Bus

Note: The RTC peripheral is described in a separate section.

50

AT91M55800A

1745C–ATARM–12/02

Operating Modes

AT91M55800A

Five operating modes are supported by the APMC and offer different power consumption levels and event response latency times.

• Normal Mode:

The Main Power supply is switched on; the ARM Core Clock is enabled and the peripheral clocks are enabled according to the application requirements.

• Idle Mode:

The Main Power is switched on; the ARM Core Clock is disabled and waiting for the next interrupt (or a main reset); the peripheral clocks are enabled according to the application requirements and the PDC transfers are still possible.

• Slow Clock Mode:

Similar to Normal Mode, but the Main Oscillator and the PLL are switched off to save power; the device core and peripheral run in Slow Clock Mode; Note that Slow

Clock Mode is the mode selected after the reset.

• Standby Mode:

A combination of the Slow Clock Mode and the Idle Mode, which enables the processor to respond quickly to a wake-up event by keeping very low power consumption.

• Power-down Mode:

The Main Power supply is turned off at the external power source until a programmable edge on the wake-up signal or a programmable RTC Alarm occurs.

51

1745C–ATARM–12/02

Figure 31. APMC Block Diagram

WKEDG

WAKEUP

Edge Detector

Backup

Reset

WKACKC

ALWKEN

ALSHEN

SHDALC

WKACKS

Wake-up

Acknowledge

Alarm

Shut-down

Alarm

Output

Controller

SHDALS

SHDN

Shut-down

Alarm

RTC Alarm

NRSTBU

Backup Reset Reset

Control

RTC (1)

Slow Clock

XIN32

XOUT32

RTC

Oscillator

Battery Power

VDDBU

NIRQ

NFIQ

XIN

XOUT

APMC_SCDR

Set

IDLE MODE

FF

MOSCEN

Main

Oscillator

MOSCBYP

APMC_SCSR

MUL

PLL

Clear

MCK (Master Clock)

APMC_PCER

APMC_PCDR

APMC_PCSR

CSS

Prescaler

ARM7TDMI

Clock

Peripheral Clocks

52

Note: 1. The RTC is described in another chapter

AT91M55800A

Main Power

VDDIO

VDDCORE

PRES

MCKODS

MCKO

1745C–ATARM–12/02

AT91M55800A

Slow Clock Generator

The AT91M55800A has a very low power 32 kHz oscillator powered by the backup battery voltage supplied on the VDDBU pins. The XIN32 and XOUT32 pins must be connected to a 32768 Hz crystal. The oscillator has been especially designed to connect to a 6 pF typical load capacitance crystal and does not require any external capacitor, as it integrates the XIN32 and XOUT32 capacitors to ground. For a higher typical load capacitance, two external capacitances must be wired as shown in Figure 32:

Figure 32. Higher Typical Load Capacitance

XIN32 XOUT32 GNDPLL

Backup Reset Controller

Slow Clock

Clock Generator

Main Oscillator

C

L1

C

L2

The backup reset controller initializes the logic supplied by the backup battery power. A simple RC circuit connected to the NRSTBU pin provides a power-on reset signal to the

RTC and the shutdown logic. When the reset signal increases and as the startup time of the 32 kHz oscillator is around 300 ms, the AT91M55800A maintains the internal backup reset signal for 32768 oscillator clock cycles in order to guarantee the backup power supplied logic does not operate before the oscillator output is stabilized.

Alternatively, a reset supervisor can be connected to the NRSTBU pin in place of the

RC.

The Slow Clock is the only clock considered permanent in an AT91M55800A-based system and is essential in the operations of the APMC (Advanced Power Management

Controller). In any use-case, a 32768 Hz crystal must be connected to the XIN32 and

XOUT32 pins in order to ensure that the Slow Clock is present.

The clock generator consists of the main oscillator, the PLL and the clock selection logic with its prescaler. It aims at selecting the Master Clock, called MCK throughout this datasheet. The clock generator also contains the circuitry needed to drive the MCKO pin with the master clock signal.

The Main Oscillator is designed for a 3 to 20 MHz fundamental crystal. The typical crystal connection is illustrated in Figure 33. The 1 k

Ω resistor is only required for crystals with frequencies lower than 8 MHz. The oscillator contains 25 pF capacitances on each

XIN and XOUT pin. Consequently, CL1 and CL2 can be removed when a crystal with a load capacitance of 12.5 pF is used.

53

1745C–ATARM–12/02

Figure 33. Typical Crystal Connection of Main Oscillator

XIN XOUT GNDPLL

1K

Phase Lock Loop

PLL Filter

C

L1

C

L2

The Main Oscillator can be bypassed if the MOSCBYP bit in the Clock Generator Mode

Register (APMC_CGMR) is set to 1. In this case, any frequency (up to the maximum specified in the electrical characteristics datasheet) can be input on the XIN pin. If the

PLL is used, a minimum input frequency is required.

To minimize the power required to start up the system, the Main Oscillator is disabled after the reset. The software can deactivate the Main Oscillator to reduce the power consumption by clearing the MOSCEN bit in APMC_CGMR. The MOSCS (Main Oscillator Status) bit in APMC_SR is automatically cleared, indicating that the Main Oscillator is off.

Writing the MOSCEN bit in APMC_CGMR reactivates the Main Oscillator and loads the value written in the OSCOUNT field in APMC_CGMR in the oscillator counter. Then, the oscillator counter decrements every 8 clock cycles and when it reaches 0, the MOSCS bit is set and can provide an interrupt.

The Main Oscillator output signal feeds the phase lock loop, which aims at multiplying the frequency of its input signal by a number up to 64. This number is programmed in the MUL field of APMC_CGMR and the multiplication ratio is the programmed value plus one (MUL+1). If a null value is programmed into MUL, the PLL is automatically disabled to save power.

The PLL is disabled at reset to minimize the power consumption.

A start-up sequence must be executed to enable the PLL if it is disabled. This sequence is started by writing a new MUL value in APMC_CGMR. This automatically clears the

LOCK bit in APMC_SR and loads the PLL counter with the value programmed in the

PLLCOUNT field. Then, the PLL counter decrements at each Slow Clock cycle.

Note: Programming one in PLLCOUNT is the minimum allowed and guarantees at least 2 Slow

Clock cycles before the lock bit is set. Programming n in PLLCOUNT guarantees (n+1) the delay of Slow Clock cycles. When the PLL Counter reaches 0, the LOCK bit in

APMC_SR is set and can cause an interrupt. Programming MUL or PLLCOUNT before the LOCK bit is set may lead to unpredictable behavior.

If the PLL multiplication is changed while the PLL is already active, the LOCK bit in

APMC_SR is automatically cleared and the same sequence is restarted. The PLL is automatically bypassed while the frequency is changing (while LOCK is 0). If the Main

Oscillator is reactivated at the same time the PLL is enabled, the LOCK bit is set only when both the Main Oscillator and the PLL are stabilized.

The Phase Lock Loop has a dedicated PLLRC pin which must connect with an appropriate second order filter made up of one resistor and two capacitors. If the integrated PLL

54

AT91M55800A

1745C–ATARM–12/02

Master Clock Selection

AT91M55800A

is not used, it can remain disabled. The PLLRC pin must be grounded if the resistor and the capacitors need to be saved. The following figure shows a typical filter connection.

Figure 34. Typical Filter Connection

PLLRC

C

2 R

C

1

GNDPLL

In order to obtain optimal results with a 16 MHz input frequency and a 32 MHz output frequency, the typical component values for the PLL filter are:

R = 287

Ω - C1 = 680 nF - C2 = 68 nF

The lock time with these values is about 3.5 µs in this example.

The MCK (Master Clock) can be selected through the CSS field in APMC_CGMR between the Slow Clock, the output of the Main Oscillator or the output of the PLL.

The following CSS field definitions are forbidden and the write operations are not taken into account by the APMC:

• deselect the Slow Clock if the Main Oscillator is disabled or its output is not stabilized

• disable the PLL without having first selected the Slow Clock or the Main Oscillator clock

• select the PLL clock and, in the same register, write disable the PLL

• select either the Main Oscillator or the PLL clocks and, in the same register, write disable the Main Oscillator

• disable the Main Oscillator without having first selected the Slow Clock

This clock switch is performed in some Slow Clocks and PLLs or Main Oscillator clock cycles as described in the state machine diagram below:

55

1745C–ATARM–12/02

Figure 35. Clock Switch

5 SLCK Cycles

PLL Clock Mode

7 SLCK Cycles

+

3 PLL Clock Cycles

Slow Clock Mode

4 SLCK Cycles

+

3 PLL Clock Cycles

3 SLCK Cycles

+

3 Oscillator Clock Cycles

5 SLCK Cycles

5 SLCK Cycles

+

3 PLL Clock Cycles

4 SLCK Cycles

+

3 Oscillator Clock Cycles

Oscillator Clock Mode

56

AT91M55800A

1745C–ATARM–12/02

Slow Clock Interrupt

Prescaler

Master Clock Output

System Clock

Peripheral Clocks

AT91M55800A

The APMC also features the Slow Clock interrupt, allowing the user to detect when the

Master Clock is actually switched to the Slow Clock. Switching from the Slow Clock to a higher frequency is generally performed safely, as the processor is running slower than the target frequency. However, switching from a high frequency to the Slow Clock requires the high frequency to be valid during the switch time. The Slow Clock interrupt permits the user to know exactly when the switch has been achieved, thus, when the

Main Oscillator or the PLL can be disabled.

The prescaler is the last stage to provide the master clock. It permits the selected clock to be divided by a power of 2 between 1 and 64. The default value is 1 after the reset.

The prescaler allows the microcontroller operating frequency to reach down to 512 Hz.

Precautions must be taken when defining a master clock lower than the Slow Clock, as some peripherals (RTC and APMC) can still operate at Slow Clock frequency. In this case, access to the peripheral registers that are updated at 32 kHz cannot be ensured.

The Master Clock can be output to the MCKO pad. The MCKO pad can be tri-stated to minimize power consumption by setting the bit MCKODS (Master Clock Output Disable) in APMC_CGMR (default is MCKO enabled).

The AT91M55800A has only one system clock: the ARM Core clock. It can be enabled and disabled by writing to the System Clock Enable (APMC_SCER) and System Clock

Disable Registers (APMC_SCDR). The status of the ARM Core clock (at least for debug purposes) can be read in the System Clock Status Register (APMC_SCSR).

The ARM Core clock is enabled after a reset and is automatically re-enabled by any enabled interrupt.

When the ARM Core clock is disabled, the current instruction is finished before the clock is stopped.

Note: Stopping the ARM Core does not prevent PDC transfers.

Each peripheral clock integrated in the AT91M55800A can be individually enabled and disabled by writing to the Peripheral Clock Enable (APMC_PCER) and Peripheral Clock

Disable (APMC_PCDR) Registers. The status of the peripheral clocks can be read in the Peripheral Clock Status Register (APMC_PCSR).

When a peripheral clock is disabled, the clock is immediately stopped. When the clock is re-enabled, the peripheral resumes action where it left off.

In order to stop a peripheral, it is recommended that the system software waits until the peripheral has executed its last programmed operation before disabling the clock. This is to avoid data corruption or erroneous behavior of the system.

The peripheral clocks are automatically disabled after a reset.

The bits that control the peripheral clocks are the same as those that control the Interrupt Sources in the AIC.

57

1745C–ATARM–12/02

Shut-down and Wake-up

The APMC (Advanced Power Management Controller) integrates shut-down and wakeup logic to control an external main power supply. This logic is supplied by the Battery

Backup Power. This feature makes the Power-down mode possible.

If the SHDN pin is connected to the shut-down pin of the main power supply, the Shutdown command (SHDALC) in APMC_PCR disables the main power. The shut-down input of the converter is generally pulled up or down by a resistor, depending on its active level.

There are 3 ways to exit Power-down mode and restart the main power:

• An alarm programmed in the RTC occurs and the bit ALWKEN in APMC_PMR is set.

• An edge defined by the field WKEDG in APMC_PMR occurs on the pin WAKEUP.

• The user opens the Shut-down line with an external jumper or push-button.

Figure 36 shows a typical application using the Shut-down and Wake-up features.

Figure 36. Shut-down and Wake-up Features

AT91M55800

Power

Supply

DC/DC Converter

VDDIO

VDDCORE

SHD

GND

VDDBU

Resistor required by some DC/DC

Converters

Battery

Backup

-

+

Shut-down

Jumper

Disable

NRSTBU

GNDBU

SHDN

WAKE-UP

Main Start Up

58

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

To accommodate the different types of main power supply available, and different signals that can command the shut-down of this device, tri-state, level 0 and level 1 are user-definable for the Shut-down pin. The Wake-up pin can be configured as detected on the positive or negative edge, and at high or low level. They are selected by the

SHDALS and WKACKS fields in APMC_PMR.

Alarm

If the Shut-down feature is not used, the pin SHDN can be used as an Alarm Output Signal from the RTC Alarm. The Alarm State corresponds to Shut-down, and the

Acknowledge or Non-Alarm State corresponds to Wake-up.

The alarm control logic is the same as that for Shut-down. The SHDALC command in

APMC_PCR (defined by the field SHDALS in APMC_PMR) and the WKACKS command in APMC_PCR (defined by the field WKACKS field in APMC_PMR) control the

SHDN pin.

The alarm can be positioned by an RTC Alarm and be acknowledged by a programmable edge on the WAKEUP pin. The Backup Reset initializes the logic in Non-Alarm

State.

First Start-up Sequence

At initial startup, or after VDDBU has been disconnected, the battery-supplied logic must be initialized.

The Battery Backup Reset sets the following default state:

• Shut-down Logic

Initialized in the Wake-up state (or Non Alarm)

• The Power Mode Register

Shut-down defines SHDN as level 0 (SHDALS = 1)

Wake-up defines SHDN as tri-state (WKACKS = 0)

• The Real-time Clock Configuration and Data Registers

A simple RC network can be used as a power-on reset for the battery supply.

The pin SHDN is tri-stated by default. An external resistor must hold the main power supply shut-down pin in the inactive state. The shut-down logic can be programmed with the correct active level of the power supply shut-down input during the first start-up sequence.

The first time the system is powered up, the SHDN pin is tri-stated because different power supplies use different logic levels for their shut-down input signals. To minimize backup battery power consumption, there is no internal pull-up or pull-down on this signal.

If the power supply needs a logic level on its shut-down input in order to start the main power supply then an external “Force Start Up” jumper is required to provide this level.

The jumper provides the necessary level on the SHDN to maintain the power supply when the AT91 boots, and it can be removed until the next loss of battery power.

59

1745C–ATARM–12/02

APMC User Interface

Base Address:0xFFFF4000 (Code Label APMC_BASE)

Table 7. APMC Memory Map

Offset

0x00

Register

System Clock Enable Register

0x24

0x28

0x2C

0x30

0x34

0x38

0x3C

0x04

0x08

0x0C

0x10

0x14

0x18

0x1C

0x20

System Clock Disable Register

System Clock Status Register

Reserved

Peripheral Clock Enable Register

Peripheral Clock Disable Register

Peripheral Clock Status Register

Reserved

Clock Generator Mode Register

Reserved

Power Control Register

Power Mode Register

Status Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Name

APMC_SCER

APMC_SCDR

APMC_SCSR

APMC_PCER

APMC_PCDR

APMC_PCSR

APMC_CGMR

APMC_PCR

APMC_PMR

APMC_SR

APMC_IER

APMC_IDR

APMC_IMR

R/W

R

W

W

R

W

R/W

W

Access

W

W

R

W

W

R

Main Reset

0x1

0

0

0

0x1

Backup Reset

60

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

APMC System Clock Enable Register

Register Name:APMC_SCER

Access Type:Write-only

Offset:

0x00

31

23

30

22

29

21

15

7

14

6

13

5

• CPU: System Clock Enable Bit

0 = No effect.

1 = Enables the System Clock.

12

4

28

20

APMC System Clock Disable Register

Register Name:APMC_SCDR

Access Type:Write-only

Offset:

0x04

31

30

29

23

15

7

22

14

6

21

13

5

• CPU: System Clock Disable Bit

0 = No effect.

1 = Disables the System Clock.

28

20

12

4

11

3

27

19

10

2

26

18

27

19

11

3

26

18

10

2

9

1

25

17

8

0

CPU

24

16

25

17

9

1

24

16

8

0

CPU

61

1745C–ATARM–12/02

APMC System Clock Status Register

Register Name:APMC_SCSR

Access Type:Read-only

Reset Value:0x1

Offset:

0x08

31

23

15

7

30

22

14

6

29

21

13

5

• CPU: System Clock Status Bit

0 = System Clock is disabled.

1 = System Clock is enabled.

28

20

12

4

APMC Peripheral Clock Enable Register

Register Name:APMC_PCER

Access Type:Write-only

Offset:

0x10

31

23

30

22

29

21

28

20

15

ADC0

7

TC1

14

PIOB

6

TC0

13

PIOA

5

SPI

12

4

US2

• Peripheral Clock Enable (per peripheral)

0 = No effect.

1 = Enables the peripheral clock.

27

19

11

3

26

18

10

2

25

17

9

1

27

19

11

TC5

3

US1

26

18

DAC1

10

TC4

2

US0

25

17

DAC0

9

TC3

1

24

16

ADC1

8

TC2

0

24

16

8

0

CPU

62

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

APMC Peripheral Clock Disable Register

Register Name:APMC_PCDR

Access Type:Write-only

Offset:

0x14

31

23

30

22

29

21

28

20

15

ADC0

7

TC1

14

PIOB

6

TC0

13

PIOA

5

SPI

12

4

US2

• Peripheral Clock Disable (per peripheral)

0 = No effect.

1 = Disables the peripheral clock.

APMC Peripheral Clock Status Register

Register Name:APMC_PCSR

Access Type:Read-only

Reset Value:0x0

Offset:

0x18

31

23

30

22

29

21

28

20

15

ADC0

7

TC1

14

PIOB

6

TC0

13

PIOA

5

SPI

12

4

US2

• Peripheral Clock Status (per peripheral)

0 = The peripheral clock is disabled.

1 = The peripheral clock is enabled.

11

TC5

3

US1

27

19

26

18

DAC1

10

TC4

2

US0

25

17

DAC0

9

TC3

1

24

16

ADC1

8

TC2

0

27

19

11

TC5

3

US1

26

18

DAC1

10

TC4

2

US0

25

17

DAC0

9

TC3

1

24

16

ADC1

8

TC2

0

63

1745C–ATARM–12/02

APMC Clock Generator Mode Register

Register Name:APMC_CGMR

Access Type:Read/Write

Reset Value:0x0

Offset:

0x20

29 31

23

30

22 21

28

20

OSCOUNT

27

PLLCOUNT

26

19 18

15 14 13 12 11 10

CSS MUL

7

6 5

PRES

4 3

2

MCKODS

25

17

9

24

16

8

1

MOSCEN

0

MOSCBYP

• MOSCBYP: Main Oscillator Bypass (Code Label APMC_MOSC_BYP)

0 = Crystal must be connected between XIN and XOUT.

1 = External clock must be provided on XIN.

• MOSCEN: Main Oscillator Enable (Code Label APMC_MOSC_EN)

0 = Main Oscillator is disabled.

1 = Main Oscillator is enabled.

Note: When operating in Bypass Mode, the Main Oscillator must be disabled. MOSCEN and MOSCBYP bits must never be set together.

• MCKODS: Master Clock Output Disable (Code Label APMC_MCKO_DIS)

0 = The MCKO pin is driven with the Master Clock (MCK).

1 = The MCKO pin is tri-stated.

• PRES: Prescaler Selection

1

1

0

1

1

0

0

0

0

1

1

0

1

PRES

0

0

1

1

0

1

0

1

0

1

0

Prescaler Selected

None. Prescaler Output is the selected clock.

Selected clock is divided by 2

Selected clock is divided by 4

Selected clock is divided by 8

Selected clock is divided by 16

Selected clock is divided by 32

Selected clock is divided by 64

Reserved

Code Label

APMC_PRES_NONE

APMC_PRES_DIV2

APMC_PRES_DIV4

APMC_PRES_DIV8

APMC_PRES_DIV16

APMC_PRES_DIV32

APMC_PRES_DIV64

• MUL: Phase Lock Loop Factor

0 = The PLL is deactivated, reducing power consumption to a minimum.

1 - 63 = The PLL output is at a higher frequency (MUL+1) than the input if the bit lock is set in APMC_SR.

64

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

• CSS: Clock Source Selection

1

1

0

0

CSS

0

1

0

1

Clock Source Selection

Low-frequency clock provided by the RTC

Main oscillator Output or external clock

Phase Lock Loop Output

Reserved

Code Label

APMC_CSS_LF

APMC_CSS_MOSC

APMC_CSS_PLL

• OSCOUNT: Main Oscillator Counter

Specifies the number of 32,768 Hz divided by 8 clock cycles for the main oscillator start-up timer to count before the main oscillator is stabilized, after the oscillator is enabled. The main oscillator counter is a down-counter which is preloaded with the OSCOUNT value when the MOSCEN bit in the Clock Generator Mode register (CGMR) is set, but only if the OSCOUNT value is different from 0x0.

• PLLCOUNT: PLL Lock Counter

Specifies the number of 32,768 Hz clock cycles for the PLL lock timer to count before the PLL is locked, after the PLL is started. The PLL counter is a down-counter which is preloaded with the PLLCOUNT value when the MUL field in the

Clock Generator Mode register (CGMR) is modified, but only if the MUL value is different from 0 (PLL disabled) and also the PLLCOUNT value itself different from 0x0. PLLCOUNT must be loaded with a minimum value of 2 in order to guarantee a time of at least one slow clock period.

APMC Power Control Register

Register Name:APMC_PCR

Access Type:Write-only

Offset:

0x28

31

23

30

22

29

21

15

7

14

6

13

5

12

4

28

20

11

3

27

19

10

2

26

18

25

17

9

1

WKACKC

24

16

8

0

SHDALC

• SHDALC: Shut-down or Alarm Command (Code Label APMC_SHDALC)

0 = No effect.

1 = Configures the SHDN pin as defined by the field SHDALS in APMC_PMR.

• WKACKC: Wake-up or Alarm Acknowledge Command (Code Label APMC_WKACKC)

0 = No effect.

1 = Configures the SHDN pin as defined by the field WKACKS in APMC_PMR.

Note: If both the SHDALC and WKACKS bits are set, the WKACKS command has priority.

65

1745C–ATARM–12/02

APMC Power Mode Register

Register Name:APMC_PMR

Access Type:Read/Write

Backup Reset Value:0x1

Offset:

0x2C

31

23

15

7

WKEDG

30

22

14

6

29

21

13

5

ALSHEN

28

20

12

4

ALWKEN

27

19

11

3

26

18

10

2

WKACKS

• SHDALS: Shut-down or Alarm Output Selection

This field defines the state of the SHDAL pin when shut-down or alarm is requested.

1

1

0

0

SHDALS

0

1

0

1

Shut-down or Alarm Output Selected

Tri-stated

Level 0

Level 1

Reserved

Code Label

APMC_SHDALS_OUT_TRIS

APMC_SHDALS_OUT_LEVEL0

APMC_SHDALS_OUT_LEVEL1

• WKACKS: Wake-up or Alarm Acknowledge Output Selection

This field defines the state of the WKACKS pin when wake-up or alarm acknowledge is requested.

0

0

1

1

WKACKS

0

1

0

1

Wake-up or Alarm Acknowledge Output

Selected

Tri-stated

Level 0

Level 1

Reserved

• ALWKEN: Alarm Wake-up Enable (Code Label APMC_WKEN)

0 = The alarm from the RTC has no wake-up effect.

1 = The alarm from the RTC commands a wake-up.

• ALSHEN: Alarm Shut-down Enable (Code Label APMC_ALSHEN)

0 = The alarm from the RTC has no shut-down effect.

1 = If ALWKEN is 0, the alarm from the RTC commands a shut-down.

Code Label

APMC_WKACKS_OUT_TRIS

APMC_WKACKS_OUT_LEVEL_0

APMC_WKACKS_OUT_LEVEL_1

25

17

9

1

SHDALS

24

16

8

0

66

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

• WKEDG: Wake-up Input Edge Selection

This field defines the edge to detect on the Wake-up pin (WAKEUP) to provoke a wake-up.

1

1

0

0

WKEDG

0

1

0

1

Wake-up Input Edge Selection

None. No edge is detected on wake-up.

Positive edge

Negative edge

Both edges

Code Label

APMC_WKEDG_NONE

APMC_WKEDG_POS_EDG

APMC_WKEDG_NEG_EDG

APMC_WKEDG_BOTH_EDG

APMC Status Register

Register Name:APMC_SR

Access Type:Read-only

Offset:

0x30

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

25

17

9

1

LOCK

24

16

8

0

MOSCS

• MOSCS: Main Oscillator Status (Code Label APMC_MOSCS)

0 = Main Oscillator output signal is not stabilized or the Main Oscillator is disabled.

1 = The Main Oscillator is enabled and its output is stabilized. Actually, this bit indicates that the Main Oscillator counter reached 0.

• LOCK: PLL Lock Status (Code Label APMC_PLL_LOCK)

0 = PLL output signal or main oscillator output signal is not stabilized, or the main oscillator is disabled.

1 = Main Oscillator is enabled and its output is stabilized and the PLL output signal is stabilized. Actually, this bit is set when the PLL Lock Counter reaches 0.

67

1745C–ATARM–12/02

APMC Interrupt Enable Register

Register Name:APMC_IER

Access Type:Write-only

Offset:

0x34

31

23

30

22

29

21

15

7

14

6

13

5

12

4

28

20

• MOSCS: Main Oscillator Interrupt Enable (Code Label APMC_MOSCS)

0 = No effect.

1 = Enables the Main Oscillator Stabilized Interrupt.

• LOCK: PLL Lock Interrupt Enable (Code Label APMC_PLL_LOCK)

0 = No effect.

1 = Enables the PLL Lock Interrupt.

APMC Interrupt Disable Register

Register Name:APMC_IDR

Access Type:Write-only

Offset:

0x38

31

23

30

22

29

21

15

7

14

6

13

5

12

4

28

20

11

3

27

19

11

3

27

19

• MOSCS: Main Oscillator Interrupt Disable (Code Label APMC_MOSCS)

0 = No effect.

1 = Disables the Main Oscillator Stabilized Interrupt.

• LOCK: PLL Lock Interrupt Disable (Code Label APMC_PLL_LOCK)

0 = No effect.

1 = Disables the PLL Lock Interrupt.

10

2

26

18

10

2

26

18

25

17

9

1

LOCK

24

16

8

0

MOSCS

25

17

9

1

LOCK

24

16

8

0

MOSCS

68

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

APMC Interrupt Mask Register

Register Name:APMC_IMR

Access Type:Read-only

Reset Value:0x0

Offset:

0x3C

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

• MOSCS: Main Oscillator Interrupt Mask (Code Label APMC_MOSCS)

0 = The Main Oscillator Interrupt is disabled.

1 = The Main Oscillator Interrupt is enabled.

• LOCK: PLL Lock Interrupt Mask (Code Label APMC_PLL_LOCK)

0 = The PLL Lock Interrupt is disabled.

1 = The PLL Lock Interrupt is enabled.

26

18

10

2

25

17

9

1

LOCK

24

16

8

0

MOSCS

69

1745C–ATARM–12/02

RTC: Real-time Clock

The AT91M55800A features a Real-time Clock (RTC) peripheral that is designed for very low power consumption. It combines a complete time-of-day clock with alarm and a two-hundred year Gregorian calendar, complemented by a programmable periodic interrupt.

The time and calendar values are coded in Binary-Coded Decimal (BCD) format. The time format can be 24-hour mode or 12-hour mode with an AM/PM indicator.

Updating time and calendar fields and configuring the alarm fields is performed by a parallel capture on the 32-bit data bus. An entry control is performed to avoid loading registers with incompatible BCD format data or with an incompatible date according to the current month/ year/century.

Year 2000 Conformity

The Real-time Clock complies fully with the Year 2000 Conformity Requirements as stated in the British Standards Institution Document Ref BSI-DISC PD2000-1: “Year

2000 conformity shall mean that neither performance nor functionality is affected by dates prior to, during and after the year 2000”.

It has been tested to be compliant with the four associated rules:

1.

No value for current date will cause any interruption in operation.

2.

Date-based functionality must behave consistently for dates prior to, during and after year 2000.

3.

In all interfaces and data storage, the century in any date must be specified either explicitly or by unambiguous algorithms or inferencing rules.

4.

Year 2000 must be recognized as a leap year.

The RTC represents the year as a four-digit number (1998, 1999, 2000, 2001, etc.) so that the century is unambiguously identified, in accordance with Rule 3.

Figure 37. RTC Block Diagram

RTCIRQ

SLCK:

Slow Clock

32768 Divider

Time

Date

AIC

Advanced

Peripheral

Bus

Bus Interface

Entry

Control

Interrupt

Control

70

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

Functional Description

The RTC provides a full Binary-Coded Decimal (BCD) clock which includes century

(19/20), year (with leap years), month, date, day, hours, minutes and seconds.

The valid year range is 1900 to 2099, a two-hundred year Gregorian calendar achieving full Y2K compliance.

The RTC can operate in 24-hour mode or in 12-hour mode with an AM/PM indicator.

Corrections for leap years are included (all years divisible by 4 being leap years, including year 2000). This is correct up to the year 2099.

Timing

Alarm

Error Checking

The RTC is updated in real-time at one second intervals in normal mode for the counters of seconds, at 1 minute intervals for the counter of minutes and so on.

Due to the asynchronous operation of the RTC with respect to the rest of the chip, to be certain that the value read in the RTC registers (century, year, month, date, day, hours, minutes, seconds) are valid and stable, it is necessary to read these registers twice. If the data is the same both times, then it is valid. Therefore, a minimum of two and a maximum of three accesses is required.

The RTC has five programmable fields with which to program an alarm: MONTH and

DATE in the Calendar Alarm Register (RTC_CAR), and SEC, MIN and HOUR in the

Time Alarm Register (RTC_TAR). Each of these fields can be enabled or disabled using the bits MTHEN, DATEN, SECEN, MINEN, HOUREN to match the alarm condition.

• If all the fields are enabled, an alarm flag is generated (the corresponding flag is asserted and an interrupt generated if enabled) at a given month, date, hour, minute and second.

• If only the “seconds” field is enabled, then an alarm is generated every minute.

• Depending on the combination of fields enabled, a large number of possibilities are available to the user ranging from minutes to 365/366 days.

A verification on user interface data is performed when accessing the century, year, month, date, day, hours, minutes, seconds and alarms. A check is performed on illegal

BCD entries such as illegal date of the month with regards to the year and century configured.

If one of the time fields is not correct, the data is not loaded into the register/counter and a flag is set in the Valid Entry Register (RTC_VER). This flag cannot be reset by the user. It is reset as soon as an acceptable value is programmed. This avoids any further side effects in the hardware. The same processing is done for the alarm.

The following checks are processed:

1.

Century (check if it is in range 19 - 20)

2.

Year (BCD entry check)

3.

Date (check range 01 - 31)

4.

Month (check if it is in BCD range 01 - 12, check validity regarding “date”)

5.

Day (check range 1 - 7)

6.

Hour (BCD check, in 24-hour mode check range 00 - 23 and check that AM/PM flag is not set if RTC is set in 24-Hour mode, in 12-Hour mode check range 01 -

12)

7.

Minute (check BCD and range 00 - 59)

71

1745C–ATARM–12/02

Updating Time/Calendar

8.

Second (check BCD and range 00 - 59)

Note: If the 12-hour mode is selected by means of the RTC_MODE register, a 12-hour value can be programmed and the returned value on RTC_TIME will be the corresponding 24hour value. The entry control checks the value of the AM/PM indicator (bit 22 of

RTC_TIME register) to determine the range to be checked.

To update any of the time/calendar fields, the user must first stop the RTC by setting the corresponding field in the Mode Register (RTC_MR). Bit UPDTIM must be set to update time fields (hour, minute, second) and bit UPDCAL must be set to update calendar fields

(century, year, month, date, day).

Then the user must poll or wait for the interrupt (if enabled) of bit ACKUPD in the Status

Register (RTC_SR). Once the bit reads 1 (the user must clear this status bit by writing

ACKUPD to 1 in RTC_SCR), the user can write to the appropriate register.

Once the update is finished, the user must reset (0) UPDTIM and/or UPDCAL in the

Mode Register (RTC_MR).

When programming the calendar fields, the time fields remain enabled. This avoids a time slip in case the user stays in the calendar update phase for several tens of seconds or more.

72

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

RTC User Interface

Base Address:0xFFFB8000 (Code Label RTC_BASE)

Table 8. RTC Memory Map

Offset Register

0x0000

0x0004

0x0008

0x000C

0x0010

0x0014

0x0018

0x001C

0x0020

0x0024

0x0028

0x002C

Mode Register

Hour Mode Register

Time Register

Calendar Register

Time Alarm Register

Calendar Alarm Register

Status Register

Status Clear Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Valid Entry Register

Name

RTC_MR

RTC_HMR

RTC_TIMR

RTC_CALR

RTC_TAR

RTC_CAR

RTC_SR

RTC_SCR

RTC_IER

RTC_IDR

RTC_IMR

RTC_VER

Access

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read-only

Write-only

Write-only

Write-only

Read-only

Read-only

Reset State

0x00000000

0x00000000

0x00000000

0x01819819

0x00000000

0x00000000

0x00000000

0x00000000

0x00000000

73

1745C–ATARM–12/02

RTC Mode Register

Register Name:RTC_MR

Access: Read/Write

Offset:

0x00

15

7

31

23

14

6

30

22

13

5

29

21

12

4

28

20

11

3

27

19

10

2

26

18

25

17

24

16

CEVSEL

9 8

1

UPDCAL

TEVSEL

0

UPDTIM

• UPDTIM: Update Request Time Register (Code Label RTC_UPDTIM)

0 = Enables the RTC time counting.

1 = Stops the RTC time counting.

Time counting consists of second, minute and hour counters. Time counters can be programmed once this bit is set.

• UPDCAL: Update Request Calendar Register (Code Label RTC_UPDCAL)

0 = Disables the RTC calendar counting.

1 = Stops the RTC calendar counting.

Calendar counting consists of day, date, month, year and century counters. Calendar counters can be programmed once this bit is set.

• TEVSEL: Time Event Selection

The event which generates the flag TIMEV in RTC_SR (Status Register) depends on the value of TEVSEL.

1

1

0

0

1

1

0

0

TEVSEL

0

1

0

1

Event

Minute change

Hour change

Every day at midnight

Every day at noon

Code Label

RTC_TEVSEL_MN_CHG

RTC_TEVSEL_HR_CHG

RTC_TEVSEL_EVDAY_MD

RTC_TEVSEL_EVDAY_NOON

• CEVSEL: Calendar Event Selection

The event which generates the flag CALEV in RTC_SR depends on the value of CEVSEL.

CEVSEL

0

1

0

1

Event

Week change

(every Monday at time 00:00:00)

Month change

(every 01 of each month at time 00:00:00)

Year change

(every January 1st at time 00:00:00)

Reserved

Code Label

RTC_CEVSEL_WEEK_CHG

RTC_CEVSEL_MONTH_CHG

RTC_CEVSEL_YEAR_CHG

74

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

RTC Hour Mode Register

Register Name:RTC_HMR

Access Type:Read/Write

Reset State:0x0

Offset:

0x04

31

23

15

7

30

22

14

6

• HRMOD: 12/24 Hour Mode

HRMOD

0

1

29

21

13

5

Selected HRMOD

24-Hour mode is selected

12-Hour mode is selected

28

20

12

4

27

19

11

3

26

18

10

2

25

17

9

1

24

16

8

0

HRMOD

Code Label

RTC_24_HRMOD

RTC_12_HRMOD

RTC Time Register

Register Name:RTC_TIMR

Access Type:Read/Write

Reset State:0x0

Offset:

0x08

31

30

23

15

7

22

AMPM

14

6

29

21

28

20

27

19

HOUR

26

18

25

17

24

16

13

5

12

4

11

MIN

3

SEC

10

2

9

1

8

0

• SEC: Current Second (Code Label RTC_SEC)

The range that can be set is 0 - 59 (BCD).

The lowest four bits encode the units. The higher bits encode the tens.

• MIN: Current Minute (Code Label RTC_MIN)

The range that can be set is 0-59 (BCD).

The lowest four bits encode the units. The higher bits encode the tens.

• HOUR: Current Hour (Code Label RTC_HOUR)

The range that can be set is 1 - 12 (BCD) in 12-hour mode or 0 - 23 (BCD) in 24-hour mode.

• AMPM: Ante Meridiem Post Meridiem Indicator (Code Label RTC_AMPM)

This bit is the AM/PM indicator in 12-hour mode. It must be written at 0 if HRMOD in RTC_HMR defines 24-Hour mode.

0 = AM.

1 = PM.

75

1745C–ATARM–12/02

RTC Calendar Register

Register Name:RTC_CALR

Access Type:Read/Write

Reset State:0x01819819

Offset:

0x0C

31

23

15

30

22

DAY

14

29 28 27

DATE

26 25 24

21

13

20

12

19

11

18

MONTH

10

17

9

16

8

YEAR

7

6

5 4 3

CENT

2 1 0

• CENT: Current Century (Code Label RTC_CENT)

The range that can be set is 19 - 20 (BCD).

The lowest four bits encode the units. The higher bits encode the tens.

• YEAR: Current Year (Code Label RTC_YEAR)

The range that can be set is 00 - 99 (BCD).

The lowest four bits encode the units. The higher bits encode the tens.

• MONTH: Current Month (Code Label RTC_MONTH)

The range that can be set is 01 - 12 (BCD).

The lowest four bits encode the units. The higher bits encode the tens.

• DAY: Current Day (Code Label RTC_DAY)

The range that can be set is 1 - 7 (BCD).

The significance of the number (which number represents which day) is user defined as it has no effect on the date counter.

• DATE: Current Date (Code Label RTC_DATE)

The range that can be set is 01 - 31 (BCD).

The lowest four bits encode the units. The higher bits encode the tens.

76

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

RTC Time Alarm Register

Register Name:RTC_TAR

Access Type:Read/Write

Reset State:0x0

Offset:

0x10

31

23

HOUREN

15

MINEN

7

SECEN

30

22

AMPM

14

6

29

21

13

5

28

20

12

4

27

19

11

MIN

3

SEC

HOUR

• SEC: Second Alarm

This field is the alarm field corresponding to the BCD-coded second counter.

• SECEN: Second Alarm Enable

26

18

10

2

25

17

9

1

24

16

8

0

SECEN

0

1

Selected SECEN

The second matching alarm is disabled.

The second matching alarm is enabled.

• MIN: Minute Alarm

This field is the alarm field corresponding to the BCD-coded minute counter.

• MINEN: Minute Alarm Enable

Code Label

RTC_SEC_ALARM_DIS

RTC_SEC_ALARM_EN

MINEN

0

1

Selected MINEN

The minute matching alarm is disabled.

The minute matching alarm is enabled.

Code Label

RTC_MIN_ALARM_DIS

RTC_MIN_ALARM_EN

• HOUR: Hour Alarm

This field is the alarm field corresponding to the BCD-coded hour counter.

• AMPM: AM/PM Indicator

This bit is the AM/PM indicator in 12-Hour mode. It must be written at 0 if HRMOD in RTC_HMR defines 24-Hour mode.

• HOUREN: Hour Alarm Enable

HOUREN

0

1

Selected HOUREN

The hour matching alarm is disabled.

The hour matching alarm is enabled.

Code Label

RTC_HOUR_ALARM_DIS

RTC_HOUR_ALARM_EN

77

1745C–ATARM–12/02

RTC Calendar Alarm Register

Register Name:RTC_CAR

Access Type:Read/Write

Reset State:0x0

Offset:

0x14

29 31

DATEN

23

MTHEN

15

7

30

22

14

6

21

13

5

28

20

12

4

27

19

11

3

DATE

• MONTH: Month Alarm

This field is the alarm field corresponding to the BCD-coded month counter.

• MTHEN: Month Alarm Enable

26

18

MONTH

10

2

25

17

MTHEN

0

1

Selected MTHEN

The month matching alarm is disabled.

The month matching alarm is enabled.

• DATE: Date Alarm

This field is the alarm field corresponding to the BCD-coded date counter.

• DATEN: Date Alarm Enable

Code Label

RTC_MONTH_ALARM_DIS

RTC_MONTH_ALARM_EN

DATEN

0

1

Selected DATEN

The date matching alarm is disabled.

The date matching alarm is enabled.

Code Label

RTC_DATE_ALARM_DIS

RTC_DATE_ALARM_EN

1

9

24

16

0

8

78

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

RTC Status Register

Register Name:RTC_SR

Access Type:Read-only

Reset State:0x0

Offset:

0x18

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

CALEV

27

19

11

3

TIMEV

26

18

10

2

SEC

25

17

9

1

ALARM

24

16

8

0

ACKUPD

• ACKUPD: Acknowledge for Update (Code Label RTC_ACKUPD)

0 = Time and Calendar registers cannot be updated.

1 = Time and Calendar registers can be updated.

• ALARM: Alarm Flag (Code Label RTC_ALARM)

0 = No alarm matching condition occurred.

1 = An alarm matching condition has occurred.

• SEC: Second Event (Code Label RTC_SEC)

0 = No second event has occurred since the last clear.

1 = At least one second event has occurred since the last clear.

• TIMEV: Time Event (Code Label RTC_TIMEV)

0 = No time event has occurred since the last clear.

1 = At least one time event has occurred since the last clear.

The time event is selected in the TEVSEV field in RTC_CR and can be any one of the following events: minute change, hour change, noon, midnight (day change).

• CALEV: Calendar Event (Code Label RTC_CALEV)

0 = No calendar event has occurred since the last clear.

1 = At least one calendar event has occurred since the last clear.

The calendar event is selected in the CEVSEL field in RTC_CR and can be any one of the following events: week change, month change, year change.

79

1745C–ATARM–12/02

RTC Status Clear Register

Register Name:RTC_SCR

Access Type:Write-only

Offset:

0x1C

15

7

31

23

14

6

30

22

13

5

29

21

28

20

12

4

CALEV

27

19

11

3

TIMEV

• ACKUPD: Acknowledge for Update Interrupt Clear (Code Label RTC_ACKUPD)

0 = No effect.

1 = Clears Acknowledge for Update status bit.

• ALARM: Alarm Flag Interrupt Clear (Code Label RTC_ALARM)

0 = No effect.

1 = Clears Alarm Flag bit.

• SEC: Second Event Interrupt Clear (Code Label RTC_SEC)

0 = No effect.

1 = Clears Second Event bit.

• TIMEV: Time Event Interrupt Clear (Code Label RTC_TIMEV)

0 = No effect.

1 = Clears Time Event bit.

• CALEV: Calendar Event Interrupt Clear (Code Label RTC_CALEV)

0 = No effect.

1 = Clears Calendar Event bit.

10

2

SEC

26

18

25

17

9

1

ALARM

24

16

8

0

ACKUPD

80

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

RTC Interrupt Enable Register

Register Name:RTC_IER

Access Type:Write-only

Offset:

0x20

15

7

31

23

14

6

30

22

13

5

29

21

28

20

12

4

CALEV

27

19

11

3

TIMEV

• ACKUPD: Acknowledge Update Interrupt Enable (Code Label RTC_ACKUPD)

0 = No effect.

1 = The acknowledge for update interrupt is enabled.

• ALARM: Alarm Interrupt Enable (Code Label RTC_ALARM)

0 = No effect.

1 = The alarm interrupt is enabled.

• SEC: Second Event Interrupt Enable (Code Label RTC_SEC)

0 = No effect.

1 = The second periodic interrupt is enabled.

• TIMEV: Time Event Interrupt Enable (Code Label RTC_TIMEV)

0 = No effect.

1 = The selected time event interrupt is enabled.

• CALEV: Calendar Event Interrupt Enable (Code Label RTC_CALEV)

0 = No effect.

1 = The selected calendar event interrupt is enabled.

10

2

SEC

26

18

25

17

9

1

ALARM

24

16

8

0

ACKUPD

81

1745C–ATARM–12/02

RTC Interrupt Disable Register

Register Name:RTC_IDR

Access Type:Write-only

Offset:

0x24

15

7

31

23

14

6

30

22

13

5

29

21

28

20

12

4

CALEV

27

19

11

3

TIMEV

• ACKUPD: Acknowledge Update Interrupt Disable (Code Label RTC_ACKUPD)

0 = No effect.

1 = The acknowledge for update interrupt is disabled.

• ALARM: Alarm Interrupt Disable (Code Label RTC_ALARM)

0 = No effect.

1 = The alarm interrupt is disabled.

• SEC: Second Event Interrupt Disable (Code Label RTC_SEC)

0 = No effect.

1 = The second periodic interrupt is disabled.

• TIMEV: Time Event Interrupt Disable (Code Label RTC_TIMEV)

0 = No effect.

1 = The selected time event interrupt is disabled.

• CALEV: Calendar Event Interrupt Disable (Code Label RTC_CALEV)

0 = No effect.

1 = The selected calendar event interrupt is disabled.

10

2

SEC

26

18

25

17

9

1

ALARM

24

16

8

0

ACKUPD

82

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

RTC Interrupt Mask Register

Register Name:RTC_IMR

Access Type:Read-only

Reset State:0x0

Offset:

0x28

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

CALEV

27

19

11

3

TIMEV

• ACKUPD: Acknowledge Update Interrupt Mask (Code Label RTC_ACKUPD)

0 = The acknowledge for update interrupt is disabled.

1 = The acknowledge for update interrupt is enabled.

• ALARM: Alarm Interrupt Mask (Code Label RTC_ALARM)

0 = The alarm interrupt is disabled.

1 = The alarm interrupt is enabled.

• SEC: Second Event Interrupt Mask (Code Label RTC_SEC)

0 = The second periodic interrupt is disabled.

1 = The second periodic interrupt is enabled.

• TIMEV: Time Event Interrupt Mask (Code Label RTC_TIMEV)

0 = The selected time event interrupt is disabled.

1 = The selected time event interrupt is enabled.

• CALEV: Calendar Event Interrupt Mask (Code Label RTC_CALEV)

0 = The selected calendar event interrupt is disabled.

1 = The selected calendar event interrupt is enabled.

26

18

10

2

SEC

25

17

9

1

ALARM

24

16

8

0

ACKUPD

83

1745C–ATARM–12/02

RTC Valid Entry Register

Register Name:RTC_VER

Access Type:Read-only

Reset State:0x0

Offset:

0x2C

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

NVCAL

• NVT: Non-Valid Time (Code Label RTC_NVT)

0 = No invalid data has been detected in RTC_TIMR.

1 = RTC_TIMR has contained invalid data since it was last programmed.

• NVC: Non-Valid Calendar (Code Label RTC_NVC)

0 = No invalid data has been detected in RTC_CALR.

1 = RTC_CALR has contained invalid data since it was last programmed.

• NVTAL: Non-Valid Time Alarm (Code Label RTC_NVTAL)

0 = No invalid data has been detected in RTC_TAR.

1 = RTC_TAR has contained invalid data since it was last programmed.

• NVCAL: Non-Valid Calendar Alarm (Code Label RTC_NVCAL)

0 = No invalid data has been detected in RTC_CAR.

1 = RTC_CAR has contained invalid data since it was last programmed.

26

18

10

2

NVTAL

25

17

9

1

NVC

24

16

8

0

NVT

84

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

WD: Watchdog Timer

The AT91M55800A has an internal Watchdog Timer that can be used to prevent system lock-up if the software becomes trapped in a deadlock.

In normal operation the user reloads the watchdog at regular intervals before the timer overflow occurs. If an overflow does occur, the watchdog timer generates one or a combination of the following signals, depending on the parameters in WD_OMR (Overflow

Mode Register):

• If RSTEN is set, an internal reset is generated (WD_RESET as shown in Figure 38).

• If IRQEN is set, a pulse is generated on the signal WDIRQ which is connected to the

Advanced Interrupt Controller

• If EXTEN is set, a low level is driven on the NWDOVF signal for a duration of 8 MCK cycles.

The watchdog timer has a 16-bit down counter. Bits 12 - 15 of the value loaded when the watchdog is restarted are programmable using the HPVC parameter in WD_CMR

(Clock Mode). Four clock sources are available to the watchdog counter: MCK/32,

MCK/128, MCK/1024 or MCK/4096. The selection is made using the WDCLKS parameter in WD_CMR. This provides a programmable time-out period of 4 ms to 8 sec. with a

33 MHz system clock.

All write accesses are protected by control access keys to help prevent corruption of the watchdog should an error condition occur. To update the contents of the mode and control registers it is necessary to write the correct bit pattern to the control access key bits at the same time as the control bits are written (the same write access).

Figure 38. Watchdog Timer Block Diagram

MCK/32

MCK/128

MCK/1024

MCK/4096

Advanced

Peripheral

Bus (APB)

WD_RESET

WDIRQ

Clock Select

Control Logic

Overflow

Clear

CLK_CNT

16-Bit

Programmable

Down Counter

NWDOVF

85

1745C–ATARM–12/02

WD User Interface

WD Base Address: 0xFFFF8000 (Code Label WD_BASE)

Table 9. WD Memory Map

Offset

0x00

0x04

0x08

0x0C

Register

Overflow Mode Register

Clock Mode Register

Control Register

Status Register

Name

WD_OMR

WD_CMR

WD_CR

WD_SR

WD Overflow Mode Register

Name:

WD_OMR

Access: Read/Write

Reset Value:0

Offset:

0x00

31

30

29

23

15

22

14

21

13

28

20

12

27

19

11

OKEY

7 6

OKEY

5 4 3

EXTEN

• WDEN: Watchdog Enable (Code Label WD_WDEN)

0 = Watchdog is disabled and does not generate any signals.

1 = Watchdog is enabled and generates enabled signals.

• RSTEN: Reset Enable (Code Label WD_RSTEN)

0 = Generation of an internal reset by the Watchdog is disabled.

1 = When overflow occurs, the Watchdog generates an internal reset.

• IRQEN: Interrupt Enable (Code Label WD_IRQEN)

0 = Generation of an interrupt by the Watchdog is disabled.

1 = When overflow occurs, the Watchdog generates an interrupt.

• EXTEN: External Signal Enable (Code Label WD_EXTEN)

0 = Generation of a pulse on the pin NWDOVF by the Watchdog is disabled.

1 = When an overflow occurs, a pulse on the pin NWDOVF is generated.

• OKEY: Overflow Access Key (Code Label WD_OKEY)

Used only when writing WD_OMR. OKEY is read as 0.

0x234 = Write access in WD_OMR is allowed.

Other value = Write access in WD_OMR is prohibited.

2

IRQEN

26

18

10

Read/Write

Read/Write

Write-only

Read-only

25

17

9

1

RSTEN

0

0

0

24

16

8

0

WDEN

86

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

WD Clock Mode Register

Name:

WD_CMR

Access: Read/Write

Reset Value:0

Offset:

0x04

31

23

30

22

15 14

29

21

13

28

20

12

27

19

11

26

18

10

25

17

9

24

16

8

CKEY

7

CKEY

6

• WDCLKS: Clock Selection

5 4

HPCV

3 2 1

WDCLKS

0

0

1

0

WDCLKS

0

1 1

1

0

Clock Selected

MCK/32

MCK/128

MCK/1024

MCK/4096

Code Label

WD_WDCLKS

WD_WDCLKS_MCK32

WD_WDCLKS_MCK128

WD_WDCLKS_MCK1024

WD_WDCLKS_MCK4096

• HPCV: High Pre-load Counter Value (Code Label WD_HPCV)

Counter is preloaded when watchdog counter is restarted with bits 0 to 11 set (FFF) and bits 12 to 15 equaling HPCV.

• CKEY: Clock Access Key (Code Label WD_CKEY)

Used only when writing WD_CMR. CKEY is read as 0.

0x06E: Write access in WD_CMR is allowed.

Other value: Write access in WD_CMR is prohibited.

WD Control Register

Name:

WD_CR

Access: Write-only

Offset:

0x08

31

23

15

30

22

14

29

21

13

28

20

12

27

19

11

26

18

10

25

17

9

24

16

8

RSTKEY

7 6 5 4 3 2 1 0

RSTKEY

• RSTKEY: Restart Key (Code Label WD_RSTKEY)

87

1745C–ATARM–12/02

0xC071 = Watch Dog counter is restarted.

Other value = No effect.

WD Status Register

Name:

WD_SR

Access: Read-only

Reset Value:0x0

Offset:

0x0C

31

30

23

15

7

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

25

17

9

1

24

16

8

0

WDOVF

• WDOVF: Watchdog Overflow (Code Label WD_WDOVF)

0 = No watchdog overflow.

1 = A watchdog overflow has occurred since the last restart of the watchdog counter or since internal or external reset.

WD Enabling Sequence

To enable the Watchdog Timer, the sequence is as follows:

1.

Disable the Watchdog by clearing the bit WDEN:

Write 0x2340 to WD_OMR

This step is unnecessary if the WD is already disabled (reset state).

2.

Initialize the WD Clock Mode Register:

3.

Write 0x373C to WD_CMR

(HPCV = 15 and WDCLKS = MCK/8)

4.

Restart the timer:

Write 0xC071 to WD_CR

5.

Enable the watchdog:

Write 0x2345 to WD_OMR (interrupt enabled)

88

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

AIC: Advanced

Interrupt Controller

The AT91M55800A has an 8-level priority, individually maskable, vectored interrupt controller. This feature substantially reduces the software and real-time overhead in handling internal and external interrupts.

The interrupt controller is connected to the NFIQ (fast interrupt request) and the NIRQ

(standard interrupt request) inputs of the ARM7TDMI processor. The processor’s NFIQ line can only be asserted by the external fast interrupt request input: FIQ. The NIRQ line can be asserted by the interrupts generated by the on-chip peripherals and the external interrupt request lines: IRQ0 to IRQ5.

An 8-level priority encoder allows the customer to define the priority between the different NIRQ interrupt sources.

Internal sources are programmed to be level sensitive or edge-triggered. External sources can be programmed to be positive or negative edge-triggered or high- or lowlevel sensitive.

The interrupt sources are listed in Table 10 and the AIC programmable registers in

Table 11.

Figure 39. Advanced Interrupt Controller Block Diagram

FIQ Source

Advanced Peripheral

Bus (APB)

Internal Interrupt Sources

External Interrupt Sources

Memorization

Control

Logic

Memorization

Prioritization

Controller

NFIQ

Manager

NFIQ

NIRQ

Manager

NIRQ

ARM7TDMI

Core

Note: After a hardware reset, the AIC pins are controlled by the PIO Controller. They must be configured to be controlled by the peripheral before being used.

89

1745C–ATARM–12/02

Table 10. AIC Interrupt Sources

Interrupt Source Interrupt Name

28

29

30

31

24

25

26

27

20

21

22

23

16

17

18

19

12

13

14

15

10

11

8

9

6

7

4

5

2

3

0

1

AD1IRQ

DA0IRQ

DA1IRQ

RTCIRQ

APMCIRQ

SLCKIRQ

IRQ5

IRQ4

IRQ3

IRQ2

IRQ1

IRQ0

COMMRX

COMMTX

TC2IRQ

TC3IRQ

TC4IRQ

TC5IRQ

WDIRQ

PIOAIRQ

PIOBIRQ

AD0IRQ

FIQ

SWIRQ

US0IRQ

US1IRQ

US2IRQ

SPIRQ

TC0IRQ

TC1IRQ

Interrupt Description

Fast interrupt

Software interrupt

USART Channel 0 interrupt

USART Channel 1 interrupt

USART Channel 2 interrupt

SPI interrupt

Timer Channel 0 interrupt

Timer Channel 1 interrupt

Timer Channel 2 interrupt

Timer Channel 3 interrupt

Timer Channel 4 interrupt

Timer Channel 5 interrupt

Watchdog interrupt

Parallel I/O Controller A interrupt

Parallel I/O Controller B interrupt

Analog-to-digital Converter Channel 0 interrupt

Analog-to-digital Converter Channel 1 interrupt

Digital-to-analog Converter Channel 0 interrupt

Digital-to-analog Converter Channel 1 interrupt

Real-time Clock interrupt

Advanced Power Management Controller interrupt

Reserved

Reserved

Slow Clock Interrupt

External interrupt 5

External interrupt 4

External interrupt 3

External interrupt 2

External interrupt 1

External interrupt 0

RX Debug Communication Channel interrupt

TX Debug Communication Channel interrupt

90

AT91M55800A

1745C–ATARM–12/02

Hardware Interrupt

Vectoring

Priority Controller

Interrupt Handling

Interrupt Masking

AT91M55800A

The hardware interrupt vectoring reduces the number of instructions to reach the interrupt handler to only one. By storing the following instruction at address 0x00000018, the processor loads the program counter with the interrupt handler address stored in the

AIC_IVR register. Execution is then vectored to the interrupt handler corresponding to the current interrupt.

ldr PC,[PC,# -&F20]

The current interrupt is the interrupt with the highest priority when the Interrupt Vector

Register (AIC_IVR) is read. The value read in the AIC_IVR corresponds to the address stored in the Source Vector Register (AIC_SVR) of the current interrupt. Each interrupt source has its corresponding AIC_SVR. In order to take advantage of the hardware interrupt vectoring it is necessary to store the address of each interrupt handler in the corresponding AIC_SVR, at system initialization.

The NIRQ line is controlled by an 8-level priority encoder. Each source has a programmable priority level of 7 to 0. Level 7 is the highest priority and level 0 the lowest.

When the AIC receives more than one unmasked interrupt at a time, the interrupt with the highest priority is serviced first. If both interrupts have equal priority, the interrupt with the lowest interrupt source number (see Table Table 10) is serviced first.

The current priority level is defined as the priority level of the current interrupt at the time the register AIC_IVR is read (the interrupt which is serviced).

In the case when a higher priority unmasked interrupt occurs while an interrupt already exists, there are two possible outcomes depending on whether the AIC_IVR has been read.

• If the NIRQ line has been asserted but the AIC_IVR has not been read, then the processor reads the new higher priority interrupt handler address in the AIC_IVR register and the current interrupt level is updated.

• If the processor has already read the AIC_IVR then the NIRQ line is reasserted.

When the processor has authorized nested interrupts to occur and reads the

AIC_IVR again, it reads the new, higher priority interrupt handler address. At the same time the current priority value is pushed onto a first-in last-out stack and the current priority is updated to the higher priority.

When the end of interrupt command register (AIC_EOICR) is written the current interrupt level is updated with the last stored interrupt level from the stack (if any). Hence at the end of a higher priority interrupt, the AIC returns to the previous state corresponding to the preceding lower priority interrupt which had been interrupted.

The interrupt handler must read the AIC_IVR as soon as possible. This de-asserts the

NIRQ request to the processor and clears the interrupt in case it is programmed to be edge-triggered. This permits the AIC to assert the NIRQ line again when a higher priority unmasked interrupt occurs.

At the end of the interrupt service routine, the end of interrupt command register

(AIC_EOICR) must be written. This allows pending interrupts to be serviced.

Each interrupt source, including FIQ, can be enabled or disabled using the command registers AIC_IECR and AIC_IDCR. The interrupt mask can be read in the Read-only register AIC_IMR. A disabled interrupt does not affect the servicing of other interrupts.

91

1745C–ATARM–12/02

Interrupt Clearing and

Setting

Fast Interrupt Request

Software Interrupt

Spurious Interrupt

All interrupt sources which are programmed to be edge-triggered (including FIQ) can be individually set or cleared by respectively writing to the registers AIC_ISCR and

AIC_ICCR. This function of the interrupt controller is available for auto-test or software debug purposes.

The external FIQ line is the only source which can raise a fast interrupt request to the processor. Therefore, it has no priority controller.

The external FIQ line can be programmed to be positive or negative edge-triggered or high- or low-level sensitive in the AIC_SMR0 register.

The fast interrupt handler address can be stored in the AIC_SVR0 register. The value written into this register is available by reading the AIC_FVR register when an FIQ interrupt is raised. By storing the following instruction at address 0x0000001C, the processor loads the program counter with the interrupt handler address stored in the AIC_FVR register.

ldr PC,[PC,# -&F20]

Alternatively, the interrupt handler can be stored starting from address 0x0000001C as described in the ARM7TDMI datasheet.

Interrupt source 1 of the advanced interrupt controller is a software interrupt. It must be programmed to be edge-triggered in order to set or clear it by writing to the AIC_ISCR and AIC_ICCR.

This is totally independent of the SWI instruction of the ARM7TDMI processor.

When the AIC asserts the NIRQ line, the ARM7TDMI enters IRQ mode and the interrupt handler reads the IVR. It may happen that the AIC de-asserts the NIRQ line after the core has taken into account the NIRQ assertion and before the read of the IVR.

This behavior is called a Spurious Interrupt.

The AIC is able to detect these Spurious Interrupts and returns the Spurious Vector when the IVR is read. The Spurious Vector can be programmed by the user when the vector table is initialized.

A Spurious Interrupt may occur in the following cases:

• With any sources programmed to be level sensitive, if the interrupt signal of the AIC input is de-asserted at the same time as it is taken into account by the ARM7TDMI.

• If an interrupt is asserted at the same time as the software is disabling the corresponding source through AIC_IDCR (this can happen due to the pipelining of the ARM Core).

The same mechanism of Spurious Interrupt occurs if the ARM7TDMI reads the IVR

(application software or ICE) when there is no interrupt pending. This mechanism is also valid for the FIQ interrupts.

Once the AIC enters the Spurious Interrupt management, it asserts neither the NIRQ nor the NFIQ lines to the ARM7TDMI as long as the Spurious Interrupt is not acknowledged. Therefore, it is mandatory for the Spurious Interrupt Service Routine to acknowledge the “Spurious” behavior by writing to the AIC_EOICR (End of Interrupt) before returning to the interrupted software. It also can perform other operation(s), e.g.

trace possible undesirable behavior.

92

AT91M55800A

1745C–ATARM–12/02

Protect Mode

AT91M55800A

The Protect Mode permits reading of the Interrupt Vector Register without performing the associated automatic operations. This is necessary when working with a debug system.

When a Debug Monitor or an ICE reads the AIC User Interface, the IVR could be read.

This would have the following consequences in normal mode:

• If an enabled interrupt with a higher priority than the current one is pending, it would be stacked.

• If there is no enabled pending interrupt, the spurious vector would be returned.

In either case, an End of Interrupt Command would be necessary to acknowledge and to restore the context of the AIC. This operation is generally not performed by the debug system. Hence the debug system would become strongly intrusive, and could cause the application to enter an undesired state.

This is avoided by using Protect Mode.

The Protect Mode is enabled by setting the AIC bit in the SF Protect Mode Register.

When Protect Mode is enabled, the AIC performs interrupt stacking only when a write access is performed on the AIC_IVR. Therefore, the Interrupt Service Routines must write (arbitrary data) to the AIC_IVR just after reading it.

The new context of the AIC, including the value of the Interrupt Status Register

(AIC_ISR), is updated with the current interrupt only when IVR is written.

An AIC_IVR read on its own (e.g. by a debugger), modifies neither the AIC context nor the AIC_ISR.

Extra AIC_IVR reads performed in between the read and the write can cause unpredictable results. Therefore, it is strongly recommended not to set a breakpoint between these 2 actions, nor to stop the software.

The debug system must not write to the AIC_IVR as this would cause undesirable effects.

The following table shows the main steps of an interrupt and the order in which they are performed according to the mode:

Action

Calculate active interrupt

(higher than current or spurious)

Normal Mode

Read AIC_IVR

Protect Mode

Read AIC_IVR

Determine and return the vector of the active interrupt

Read AIC_IVR Read AIC_IVR

Memorize interrupt Read AIC_IVR Read AIC_IVR

Push on internal stack the current priority level

Acknowledge the interrupt

(1)

Read AIC_IVR Write AIC_IVR

Read AIC_IVR Write AIC_IVR

No effect

(2)

Write AIC_IVR –

Notes: 1. NIRQ de-assertion and automatic interrupt clearing if the source is programmed as level sensitive

2. Note that software which has been written and debugged using Protect Mode will run correctly in Normal Mode without modification. However in Normal Mode the

AIC_IVR write has no effect and can be removed to optimize the code.

93

1745C–ATARM–12/02

AIC User Interface

Base Address: 0xFFFFF000 (Code Label AIC_BASE)

Table 11. AIC Memory Map

Offset

0x000

0x004

0x07C

0x080

0x084

0x0FC

0x100

0x104

0x108

0x10C

0x110

0x114

0x118

0x11C

0x120

0x124

0x128

0x12C

0x130

Register

Source Mode Register 0

Source Mode Register 1

Source Mode Register 31

Source Vector Register 0

Source Vector Register 1

Source Vector Register 31

IRQ Vector Register

FIQ Vector Register

Interrupt Status Register

Interrupt Pending Register

Interrupt Mask Register

Core Interrupt Status Register

Reserved

Reserved

Interrupt Enable Command Register

Interrupt Disable Command Register

Interrupt Clear Command Register

Interrupt Set Command Register

End of Interrupt Command Register

Name

AIC_SMR0

AIC_SMR1

AIC_SMR31

AIC_SVR0

AIC_SVR1

AIC_SVR31

AIC_IVR

AIC_FVR

AIC_ISR

AIC_IPR

AIC_IMR

AIC_CISR

AIC_IECR

AIC_IDCR

AIC_ICCR

AIC_ISCR

AIC_EOICR

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read-only

Read-only

Read-only

Read-only

Read-only

Read-only

Write-only

Write-only

Write-only

Write-only

Write-only

0

0

0

0

0

0

0

0

0

0

0

(see Note 1)

0

0

0x134 Spurious Vector Register AIC_SPU Read/Write 0

Note: 1. The reset value of this register depends on the level of the External IRQ lines. All other sources are cleared at reset.

94

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

AIC Source Mode Register

Register Name: AIC_SMR0...AIC_SMR31

Access Type:Read/Write

Reset Value: 0

15

7

31

23

14

6

30

22

SRCTYPE

13

5

29

21

12

4

28

20

11

3

27

19

10

2

26

18

• PRIOR: Priority Level (Code Label AIC_PRIOR)

Program the priority level for all sources except source 0 (FIQ).

The priority level can be between 0 (lowest) and 7 (highest).

The priority level is not used for the FIQ, in the SMR0.

• SRCTYPE: Interrupt Source Type (Code Label AIC_SRCTYPE)

Program the input to be positive or negative edge-triggered or positive or negative level sensitive.

The active level or edge is not programmable for the internal sources.

25

17

9

1

PRIOR

SRCTYPE

0 0

Internal

Sources Code Label Internal

Level

Sensitive

AIC_SRCTYPE_INT_LEVEL_SENSITIVE

0

1

1

1

0

1

Edgetriggered

Level

Sensitive

Edgetriggered

AIC_SRCTYPE_INT_EDGE_TRIGGERED

AIC_SRCTYPE_INT_LEVEL_SENSITIVE

AIC_SRCTYPE_INT_EDGE_TRIGGERED

External

Sources

Low-level

Sensitive

Negative

Edgetriggered

High-level

Sensitive

Positive Edgetriggered

Code Label External

AIC_SRCTYPE_EXT_LOW_LEVEL

AIC_SRCTYPE_EXT_NEGATIVE_EDGE

AIC_SRCTYPE_EXT_HIGH_LEVEL

AIC_SRCTYPE_EXT_POSITIVE_EDGE

8

0

24

16

95

1745C–ATARM–12/02

AIC Source Vector Register

Register Name: AIC_SVR0..AIC_SVR31

Access Type:Read/Write

Reset Value:0

31 30 29 28 27 26 25

VECTOR

23 22 21 20 19 18 17

VECTOR

15 14 13 12 11 10 9

VECTOR

7 6 5 4 3 2 1

VECTOR

• VECTOR: Interrupt Handler Address

The user may store in these registers the addresses of the corresponding handler for each interrupt source.

24

16

8

0

AIC Interrupt Vector Register

Register Name: AIC_IVR

Access Type:Read-only

Reset Value:0

Offset:

0x100

31 30 29 28 27 26 25 24

IRQV

23 22 21 20 19 18 17 16

IRQV

15 14 13 12 11 10 9 8

IRQV

7 6 5 4 3 2 1 0

IRQV

• IRQV: Interrupt Vector Register

The IRQ Vector Register contains the vector programmed by the user in the Source Vector Register corresponding to the current interrupt.

The Source Vector Register (1 to 31) is indexed using the current interrupt number when the Interrupt Vector Register is read.

When there is no current interrupt, the IRQ Vector Register reads 0.

96

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

AIC FIQ Vector Register

Register Name: AIC_FVR

Access Type:Read-only

Reset Value:0

Offset:

0x104

31 30 29 28 27 26 25 24

FIQV

23 22 21 20 19 18 17 16

FIQV

15 14 13 12 11 10 9 8

FIQV

7 6 5 4 3 2 1 0

FIQV

• FIQV: FIQ Vector Register

The FIQ Vector Register contains the vector programmed by the user in the Source Vector Register 0 which corresponds to FIQ.

AIC Interrupt Status Register

Register Name: AIC_ISR

Access Type:Read-only

Reset Value:0

Offset:

0x108

15

7

31

23

14

6

30

22

13

5

29

21

12

4

28

20

11

3

27

19

• IRQID: Current IRQ Identifier (Code Label AIC_IRQID)

The Interrupt Status Register returns the current interrupt source number.

26

18

10

2

IRQID

9

1

25

17

8

0

24

16

97

1745C–ATARM–12/02

AIC Interrupt Pending Register

Register Name: AIC_IPR

Access Type:Read-only

Reset Value:Undefined

Offset:

0x10C

31

COMMRX

23

SLCKIRQ

15

ADC0IRQ

7

TC1IRQ

30

COMMTX

22

14

PIOBIRQ

6

TC0IRQ

29

IRQ0

21

13

PIOAIRQ

5

SPIRQ

• Interrupt Pending

0 = Corresponding interrupt is inactive.

1 = Corresponding interrupt is pending.

28

IRQ1

20

APMCIRQ

12

WDIRQ

4

US2IRQ

AIC Interrupt Mask Register

Register Name: AIC_IMR

Access Type:Read-only

Reset Value:0

Offset:

0x110

31

COMMRX

23

SLCKIRQ

15

ADC0IRQ

7

TC1IRQ

30

COMMTX

22

14

PIOBIRQ

6

TC0IRQ

29

IRQ0

21

13

PIOAIRQ

5

SPIRQ

• Interrupt Mask

0 = Corresponding interrupt is disabled.

1 = Corresponding interrupt is enabled.

28

IRQ1

20

APMCIRQ

12

WDIRQ

4

US2IRQ

27

IRQ2

19

RTCIRQ

11

TC5IRQ

3

US1IRQ

27

IRQ2

19

RTCIRQ

11

TC5IRQ

3

US1IRQ

26

IRQ3

18

DAC1IRQ

10

TC4IRQ

2

US0IRQ

25

IRQ4

17

DAC0IRQ

9

TC3IRQ

1

SWIRQ

24

IRQ5

16

ADC1IRQ

8

TC2IRQ

0

FIQ

26

IRQ3

18

DAC1IRQ

10

TC4IRQ

2

US0IRQ

25

IRQ4

17

DAC0IRQ

9

TC3IRQ

1

SWIRQ

24

IRQ5

16

ADC1IRQ

8

TC2IRQ

0

FIQ

98

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

AIC Core Interrupt Status Register

Register Name: AIC_CISR

Access Type:Read-only

Reset Value:0

Offset:

0x114

31

23

15

7

30

22

14

6

29

21

13

5

• NFIQ: NFIQ Status (Code Label AIC_NFIQ)

0 = NFIQ line inactive.

1 = NFIQ line active.

• NIRQ: NIRQ Status (Code Label AIC_NIRQ)

0 = NIRQ line inactive.

1 = NIRQ line active.

28

20

12

4

AIC Interrupt Enable Command Register

Register Name: AIC_IECR

Access Type:Write-only

Offset:

0x120

31

COMMRX

23

SLCKIRQ

15

ADC0IRQ

7

TC1IRQ

30

COMMTX

22

14

PIOBIRQ

6

TC0IRQ

29

IRQ0

21

13

PIOAIRQ

5

SPIRQ

28

IRQ1

20

APMCIRQ

12

WDIRQ

4

US2IRQ

• Interrupt Enable

0 = No effect.

1 = Enables corresponding interrupt.

27

IRQ2

19

RTCIRQ

11

TC5IRQ

3

US1IRQ

27

19

11

3

26

18

10

2

25

17

9

1

NIRQ

26

IRQ3

18

DAC1IRQ

10

TC4IRQ

2

US0IRQ

25

IRQ4

17

DAC0IRQ

9

TC3IRQ

1

SWIRQ

24

IRQ5

16

ADC1IRQ

8

TC2IRQ

0

FIQ

24

16

8

0

NFIQ

99

1745C–ATARM–12/02

AIC Interrupt Disable Command Register

Register Name: AIC_IDCR

Access Type:Write-only

Offset:

0x124

31

COMMRX

23

SLCKIRQ

15

ADC0IRQ

7

TC1IRQ

30

COMMTX

22

14

PIOBIRQ

6

TC0IRQ

29

IRQ0

21

13

PIOAIRQ

5

SPIRQ

28

IRQ1

20

APMCIRQ

12

WDIRQ

4

US2IRQ

• Interrupt Disable

0 = No effect.

1 = Disables corresponding interrupt.

AIC Interrupt Clear Command Register

Register Name: AIC_ICCR

Access Type:Write-only

Offset:

0x128

31

COMMRX

23

SLCKIRQ

15

ADC0IRQ

7

TC1IRQ

30

COMMTX

22

14

PIOBIRQ

6

TC0IRQ

29

IRQ0

21

13

PIOAIRQ

5

SPIRQ

28

IRQ1

20

APMCIRQ

12

WDIRQ

4

US2IRQ

• Interrupt Clear

0 = No effect.

1 = Clears corresponding interrupt.

27

IRQ2

19

RTCIRQ

11

TC5IRQ

3

US1IRQ

27

IRQ2

19

RTCIRQ

11

TC5IRQ

3

US1IRQ

26

IRQ3

18

DAC1IRQ

10

TC4IRQ

2

US0IRQ

25

IRQ4

17

DAC0IRQ

9

TC3IRQ

1

SWIRQ

24

IRQ5

16

ADC1IRQ

8

TC2IRQ

0

FIQ

26

IRQ3

18

DAC1IRQ

10

TC4IRQ

2

US0IRQ

25

IRQ4

17

DAC0IRQ

9

TC3IRQ

1

SWIRQ

24

IRQ5

16

ADC1IRQ

8

TC2IRQ

0

FIQ

100

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

AIC Interrupt Set Command Register

Register Name: AIC_ISCR

Access Type:Write-only

Offset:

0x12C

31

COMMRX

23

SLCKIRQ

15

ADC0IRQ

7

TC1IRQ

30

COMMTX

22

14

PIOBIRQ

6

TC0IRQ

29

IRQ0

21

13

PIOAIRQ

5

SPIRQ

28

IRQ1

20

APMCIRQ

12

WDIRQ

4

US2IRQ

• Interrupt Set

0 = No effect.

1 = Sets corresponding interrupt.

27

IRQ2

19

RTCIRQ

11

TC5IRQ

3

US1IRQ

26

IRQ3

18

DAC1IRQ

10

TC4IRQ

2

US0IRQ

25

IRQ4

17

DAC0IRQ

9

TC3IRQ

1

SWIRQ

24

IRQ5

16

ADC1IRQ

8

TC2IRQ

0

FIQ

AIC End of Interrupt Command Register

Register Name: AIC_EOICR

Access Type:Write-only

Offset:

0x130

31

30

29

23

15

7

22

14

6

21

13

5

28

20

12

4

11

3

27

19

10

2

26

18

1

9

25

17

0

8

24

16

The End of Interrupt Command Register is used by the interrupt routine to indicate that the interrupt treatment is complete.

Any value can be written because it is only necessary to make a write to this register location to signal the end of interrupt treatment.

101

1745C–ATARM–12/02

AIC Spurious Vector Register

Register Name:AIC_SPU

Access Type:Read/Write

Reset Value:0

Offset:

0x134

31 30 29 28 27 26

SPUVEC

23 22 21 20 19 18

SPUVEC

15 14 13 12 11 10

SPUVEC

7 6 5 4 3

SPUVEC

• SPUVEC: Spurious Interrupt Vector Handler Address

The user may store the address of the Spurious Interrupt handler in this register.

2

9

1

25

17

8

0

24

16

102

AT91M55800A

1745C–ATARM–12/02

Standard Interrupt

Sequence

AT91M55800A

It is assumed that:

• The Advanced Interrupt Controller has been programmed, AIC_SVR are loaded with corresponding interrupt service routine addresses and interrupts are enabled.

• The Instruction at address 0x18(IRQ exception vector address) is ldr pc, [pc, #-&F20]

When NIRQ is asserted, if the bit I of CPSR is 0, the sequence is:

1.

The CPSR is stored in SPSR_irq, the current value of the Program Counter is loaded in the IRQ link register (r14_irq) and the Program Counter (r15) is loaded with 0x18. In the following cycle during fetch at address 0x1C, the ARM Core adjusts r14_irq, decrementing it by 4.

2.

The ARM Core enters IRQ mode, if it is not already.

3.

When the instruction loaded at address 0x18 is executed, the Program Counter is loaded with the value read in AIC_IVR. Reading the AIC_IVR has the following effects:

Set the current interrupt to be the pending one with the highest priority. The current level is the priority level of the current interrupt.

De-assert the NIRQ line on the processor. (Even if vectoring is not used, AIC_IVR must be read in order to de-assert NIRQ)

Automatically clear the interrupt, if it has been programmed to be edge-triggered

Push the current level on to the stack

Return the value written in the AIC_SVR corresponding to the current interrupt

4.

The previous step has effect to branch to the corresponding interrupt service routine. This should start by saving the Link Register(r14_irq) and the

SPSR(SPSR_irq). Note that the Link Register must be decremented by 4 when it is saved, if it is to be restored directly into the Program Counter at the end of the interrupt.

5.

Further interrupts can then be unmasked by clearing the I bit in the CPSR, allowing re-assertion of the NIRQ to be taken into account by the core. This can occur if an interrupt with a higher priority than the current one occurs.

6.

The Interrupt Handler can then proceed as required, saving the registers which are used and restoring them at the end. During this phase, an interrupt of priority higher than the current level will restart the sequence from step 1. Note that if the interrupt is programmed to be level sensitive, the source of the interrupt must be cleared during this phase.

7.

The I bit in the CPSR must be set in order to mask interrupts before exiting, to ensure that the interrupt is completed in an orderly manner.

8.

The End Of Interrupt Command Register (AIC_EOICR) must be written in order to indicate to the AIC that the current interrupt is finished. This causes the current level to be popped from the stack, restoring the previous current level if one exists on the stack. If another interrupt is pending, with lower or equal priority than old current level but with higher priority than the new current level, the NIRQ line is reasserted, but the interrupt sequence does not immediately start because the I bit is set in the core.

103

1745C–ATARM–12/02

9.

The SPSR (SPSR_irq) is restored. Finally, the saved value of the Link Register is restored directly into the PC. This has effect of returning from the interrupt to whatever was being executed before, and of loading the CPSR with the stored

SPSR, masking or unmasking the interrupts depending on the state saved in the

SPSR (the previous state of the ARM Core).

Note: The I bit in the SPSR is significant. If it is set, it indicates that the ARM Core was just about to mask IRQ interrupts when the mask instruction was interrupted. Hence, when the SPSR is restored, the mask instruction is completed (IRQ is masked).

104

AT91M55800A

1745C–ATARM–12/02

PIO: Parallel I/O

Controller

Multiplexed I/O Lines

Output Selection

I/O Levels

Filters

AT91M55800A

The AT91M55800A has 58 programmable I/O lines. 13 pins are dedicated as generalpurpose I/O pins. The other I/O lines are multiplexed with an external signal of a peripheral to optimize the use of available package pins. The PIO lines are controlled by two separate and identical PIO Controllers called PIOA and PIOB. The PIO controller enables the generation of an interrupt on input change and insertion of a simple input glitch filter on any of the PIO pins.

Some I/O lines are multiplexed with an I/O signal of a peripheral. After reset, the pin is controlled by the PIO Controller and is in input mode.

When a peripheral signal is not used in an application, the corresponding pin can be used as a parallel I/O. Each parallel I/O line is bi-directional, whether the peripheral defines the signal as input or output. Figure 40 shows the multiplexing of the peripheral signals with Parallel I/O signals.

If a pin is multiplexed between the PIO Controller and a peripheral, the pin is controlled by the registers PIO_PER (PIO Enable) and PIO_PDR (PIO Disable). The register

PIO_PSR (PIO Status) indicates whether the pin is controlled by the corresponding peripheral or by the PIO Controller.

If a pin is a general multi-purpose parallel I/O pin (not multiplexed with a peripheral),

PIO_PER and PIO_PDR have no effect and PIO_PSR returns 1 for the bits corresponding to these pins.

When the PIO is selected, the peripheral input line is connected to zero.

The user can enable each individual I/O signal as an output with the registers PIO_OER

(Output Enable) and PIO_ODR (Output Disable). The output status of the I/O signals can be read in the register PIO_OSR (Output Status). The direction defined has effect only if the pin is configured to be controlled by the PIO Controller.

Each pin can be configured to be driven high or low. The level is defined in four different ways, according to the following conditions.

If a pin is controlled by the PIO Controller and is defined as an output (see Output Selection above), the level is programmed using the registers PIO_SODR (Set Output Data)

and PIO_CODR (Clear Output Data). In this case, the programmed value can be read in

PIO_ODSR (Output Data Status).

If a pin is controlled by the PIO Controller and is not defined as an output, the level is determined by the external circuit.

If a pin is not controlled by the PIO Controller, the state of the pin is defined by the peripheral (see peripheral datasheets).

In all cases, the level on the pin can be read in the register PIO_PDSR (Pin Data

Status).

Optional input glitch filtering is available on each pin and is controlled by the registers

PIO_IFER (Input Filter Enable) and PIO_IFDR (Input Filter Disable). The input glitch filtering can be selected whether the pin is used for its peripheral function or as a parallel

I/O line. The register PIO_IFSR (Input Filter Status) indicates whether or not the filter is activated for each pin.

105

1745C–ATARM–12/02

Interrupts

User Interface

Multi-driver (Open Drain)

Each parallel I/O can be programmed to generate an interrupt when a level change occurs. This is controlled by the PIO_IER (Interrupt Enable) and PIO_IDR (Interrupt Disable) registers which enable/disable the I/O interrupt by setting/clearing the corresponding bit in the PIO_IMR. When a change in level occurs, the corresponding bit in the PIO_ISR (Interrupt Status) is set whether the pin is used as a PIO or a peripheral and whether it is defined as input or output. If the corresponding interrupt in PIO_IMR

(Interrupt Mask) is enabled, the PIO interrupt is asserted.

When PIO_ISR is read, the register is automatically cleared.

Each individual I/O is associated with a bit position in the Parallel I/O user interface registers. Each of these registers are 32 bits wide. If a parallel I/O line is not defined, writing to the corresponding bits has no effect. Undefined bits read zero.

Each I/O can be programmed for multi-driver option. This means that the I/O is configured as open drain (can only drive a low level) in order to support external drivers on the same pin. An external pull-up is necessary to guarantee a logic level of one when the pin is not being driven.

Registers PIO_MDER (Multi-driver Enable) and PIO_MDDR (Multi-driver Disable) control this option. Multi-driver can be selected whether the I/O pin is controlled by the PIO

Controller or the peripheral. PIO_MDSR (Multi-driver Status) indicates which pins are configured to support external drivers.

106

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

Figure 40. Parallel I/O Multiplexed with a Bi-directional Signal

PIO_OSR

Pad

Pad Output Enable

Pad Output

Pad Input

Filter

0

1

PIO_MDSR

1

0

PIO_IFSR

1

0

PIO_PSR

1

0

OFF

Value

(1)

0

1

PIO_PSR

PIO_ODSR

PIO_PDSR

Event

Detection

PIO_ISR

PIO_IMR

Peripheral

Output

Enable

Peripheral

Output

Peripheral

Input

PIOIRQ

Note:

1. See “PIO Connection Tables.”

107

1745C–ATARM–12/02

PIO Connection Tables

Table 12. PIO Controller A Connection Table

PIO Controller Peripheral

10

11

12

13

8

9

6

7

Bit

Number

0

1

4

5

2

3

PA6

PA7

PA8

PA9

PA10

PA11

PA12

PA13

Port

Name

PA0

PA1

PA2

PA3

PA4

PA5

Port Name

TCLK3

TIOA3

TIOB3

TCLK4

TIOA4

TIOB4

TCLK5

TIOA5

TIOB5

IRQ0

IRQ1

IRQ2

IRQ3

FIQ

Signal Description

Timer 3 Clock signal

Timer 3 Signal A

Timer 3 Signal B

Timer 4 Clock signal

Timer 4 Signal A

Timer 4 Signal B

Timer 5 Clock signal

Timer 5 Signal A

Timer 5 Signal B

External Interrupt 0

External Interrupt 1

External Interrupt 2

External Interrupt 3

Fast Interrupt

Signal

Direction

Input

Bi-directional

Bi-directional

Input

Bi-directional

Bi-directional

Input

Bi-directional

Bi-directional

Input

Input

Input

Input

Input

18

19

20

21

14

15

16

17

PA14

PA15

PA16

PA17

PA18

PA19

PA20

PA21

SCK0

TXD0

RXD0

SCK1

TXD1

RXD1

SCK2

TXD2

USART 0 Clock signal

USART 0 transmit data

USART 0 receive data

USART 1 Clock signal

USART 1 transmit data

USART 1 receive data

USART 2 Clock signal

USART 2 transmit data

Bi-directional

Output

Input

Bi-directional

Output

Input

Bi-directional

Output

26

27

28

29

22

23

24

25

PA22

PA23

PA24

PA25

PA26

PA27

PA28

PA29

RXD2

SPCK

MISO

MOSI

NPCS0

NPCS1

NPCS2

NPCS3

USART 2 receive data

SPI Clock signal

SPI Master In Slave Out

SPI Master Out Slave In

SPI Peripheral Chip Select 0

SPI Peripheral Chip Select 1

SPI Peripheral Chip Select 2

SPI Peripheral Chip Select 3

Input

Bi-directional

Bi-directional

Bi-directional

Bi-directional

Output

Output

Output

0

0

0

0

1

30 – – – – –

31 – – – – –

Note: 1. The OFF value is the default level seen on the peripheral input when the PIO line is enabled.

0

0

0

0

0

0

0

0

0

0

0

0

0

OFF

Value

(1)

0

0

0

0

0

0

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

Reset State

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

98

99

100

101

94

95

96

97

86

91

92

93

82

83

84

85

78

79

80

81

72

75

76

77

Pin

Number

66

67

68

69

70

71

108

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

Table 13. PIO Controller B Connection Table

PIO Controller Peripheral

10

11

12

13

8

9

6

7

Bit

Number

0

1

4

5

2

3

PB6

PB7

PB8

PB9

PB10

PB11

PB12

PB13

Port

Name

PB0

PB1

PB2

PB3

PB4

PB5

Port Name

IRQ4

IRQ5

AD0TRIG

AD1TRIG

Signal Description

External Interrupt 4

External Interrupt 5

ADC0 External Trigger

ADC1 External Trigger

Input

Input

Signal

Direction

Input

Input

18

19

20

21

14

15

16

17

PB14

PB15

PB16

PB17

PB18

PB19

PB20

PB21

BMS

TCLK0

TIOA0

TIOB0

Boot Mode Select

Timer 0 Clock signal

Timer 0 Signal A

Timer 0 Signal B

Input

Input

Bi-directional

Bi-directional

26

27

28

29

22

23

24

25

PB22

PB23

PB24

PB25

PB26

PB27

TCLK1

TIOA1

TIOB1

TCLK2

TIOA2

TIOB2

Timer 1 Clock signal

Timer 1 Signal A

Timer 1 Signal B

Timer 2 Clock signal

Timer 2 Signal A

Timer 2 Signal B

Input

Bi-directional

Bi-directional

Input

Bi-directional

Bi-directional

0

0

0

0

0

0

30 – – – – –

31 – – – – –

Note: 1. The OFF value is the default level seen on the peripheral input when the PIO line is enabled.

0

0

0

0

0

0

OFF

Value

(1)

0

0

0

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

Reset State

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

64

65

58

61

62

63

163

55

56

57

155

156

157

158

151

152

153

154

145

146

149

150

Pin

Number

139

140

141

142

143

144

109

1745C–ATARM–12/02

PIO User Interface

PIO Controller A Base Address:0xFFFEC000 (Code Label PIOA_BASE)

PIO Controller B Base Address:0xFFFF0000 (Code Label PIOB_BASE)

Table 14. PIO Controller Memory Map

Offset

0x00

0x04

0x08

0x0C

0x10

0x14

0x18

0x1C

0x20

0x24

0x28

0x2C

0x30

0x34

0x38

0x3C

0x40

0x44

0x48

0x4C

0x50

0x54

0x58

Register

PIO Enable Register

PIO Disable Register

PIO Status Register

Reserved

Output Enable Register

Output Disable Register

Output Status Register

Reserved

Input Filter Enable Register

Input Filter Disable Register

Input Filter Status Register

Reserved

Set Output Data Register

Clear Output Data Register

Output Data Status Register

Pin Data Status Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Interrupt Status Register

Multi-driver Enable Register

Multi-driver Disable Register

Multi-driver Status Register

Name

PIO_PER

PIO_PDR

PIO_PSR

PIO_OER

PIO_ODR

PIO_OSR

PIO_IFER

PIO_IFDR

PIO_IFSR

PIO_SODR

PIO_CODR

PIO_ODSR

PIO_PDSR

PIO_IER

PIO_IDR

PIO_IMR

PIO_ISR

PIO_MDER

PIO_MDDR

PIO_MDSR

Write-only

Write-only

Read-only

Write-only

Write-only

Read-only

Write-only

Write-only

Read-only

Write-only

Write-only

Read-only

Read-only

Write-only

Write-only

Read-only

Read-only

Write-only

Write-only

Read-only

0x3FFF FFFF (A)

0x0FFF FFFF (B)

0

0

0

(see Note 1)

0

(see Note 2)

0

0x5C Reserved – – –

Notes: 1. The reset value of this register depends on the level of the external pins at reset.

2. This register is cleared at reset. However, the first read of the register can give a value not equal to zero if any changes have occurred on any pins between the reset and the read.

110

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

PIO Enable Register

Register Name:PIO_PER

Access Type:Write-only

Offset:

0x00

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to enable individual pins to be controlled by the PIO Controller instead of the associated peripheral.

When the PIO is enabled, the associated peripheral (if any) is held at logic zero.

1 = Enables the PIO to control the corresponding pin (disables peripheral control of the pin).

0 = No effect.

PIO Disable Register

Register Name: PIO_PDR

Access Type:Write-only

Offset:

0x04

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to disable PIO control of individual pins. When the PIO control is disabled, the normal peripheral function is enabled on the corresponding pin.

1 = Disables PIO control (enables peripheral control) on the corresponding pin.

0 = No effect.

111

1745C–ATARM–12/02

PIO Status Register

Register Name:PIO_PSR

Access Type:Read-onlyRead-only

Offset:

0x08

Reset Value:0x3FFFFFFF (A)

0x0FFFFFFF (B)

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register indicates which pins are enabled for PIO control. This register is updated when PIO lines are enabled or disabled.

1 = PIO is active on the corresponding line (peripheral is inactive).

0 = PIO is inactive on the corresponding line (peripheral is active).

PIO Output Enable Register

Register Name:PIO_OER

Access Type:Write-only

Offset:

0x10

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to enable PIO output drivers. If the pin is driven by a peripheral, this has no effect on the pin, but the information is stored. The register is programmed as follows:

1 = Enables the PIO output on the corresponding pin.

0 = No effect.

112

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

PIO Output Disable Register

Register Name:PIO_ODR

Access Type:Write-only

Offset:

0x14

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to disable PIO output drivers. If the pin is driven by the peripheral, this has no effect on the pin, but the information is stored. The register is programmed as follows:

1 = Disables the PIO output on the corresponding pin.

0 = No effect.

PIO Output Status Register

Register Name:PIO_OSR

Access Type:Read-only

Offset:

0x18

Reset Value:0

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register shows the PIO pin control (output enable) status which is programmed in PIO_OER and PIO ODR. The defined value is effective only if the pin is controlled by the PIO. The register reads as follows:

1 = The corresponding PIO is output on this line.

0 = The corresponding PIO is input on this line.

113

1745C–ATARM–12/02

PIO Input Filter Enable Register

Register Name:PIO_IFER

Access Type:Write-only

Offset:

0x20

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to enable input glitch filters. It affects the pin whether or not the PIO is enabled. The register is programmed as follows:

1 = Enables the glitch filter on the corresponding pin.

0 = No effect.

PIO Input Filter Disable Register

Register Name:IO_IFDR

Access Type:Write-only

Offset:

0x24

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to disable input glitch filters. It affects the pin whether or not the PIO is enabled. The register is programmed as follows:

1 = Disables the glitch filter on the corresponding pin.

0 = No effect.

114

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

PIO Input Filter Status Register

Register Name:PIO_IFSR

Access Type:Read-only

Offset:

0x28

Reset Value:0

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register indicates which pins have glitch filters selected. It is updated when PIO outputs are enabled or disabled by writing to PIO_IFER or PIO_IFDR.

1 = Filter is selected on the corresponding input (peripheral and PIO).

0 = Filter is not selected on the corresponding input.

Note: When the glitch filter is selected, and the PIO Controller clock is disabled, either the signal on the peripheral input or the corresponding bit in PIO_PDSR remains at the current state.

PIO Set Output Data Register

Register Name:PIO_SODR

Access Type:Write-only

Offset:

0x30

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to set PIO output data. It affects the pin only if the corresponding PIO output line is enabled and if the pin is controlled by the PIO. Otherwise, the information is stored.

1 = PIO output data on the corresponding pin is set.

0 = No effect.

115

1745C–ATARM–12/02

PIO Clear Output Data Register

Register Name:PIO_CODR

Access Type:Write-only

Offset:

0x34

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to clear PIO output data. It affects the pin only if the corresponding PIO output line is enabled and if the pin is controlled by the PIO. Otherwise, the information is stored.

1 = PIO output data on the corresponding pin is cleared.

0 = No effect.

PIO Output Data Status Register

Register Name:PIO_ODSR

Access Type:Read-only

Offset:

0x38

Reset Value:0

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register shows the output data status which is programmed in PIO_SODR or PIO_CODR. The defined value is effective only if the pin is controlled by the PIO Controller and only if the pin is defined as an output.

1 = The output data for the corresponding line is programmed to 1.

0 = The output data for the corresponding line is programmed to 0.

116

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

PIO Pin Data Status Register

Register Name:PIO_PDSR

Access Type:Read-only

Offset:

0x3C

Reset Value:Undefined

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register shows the state of the physical pin of the chip. The pin values are always valid, regardless of whether the pins are enabled as PIO, peripheral, input or output. The register reads as follows:

1 = The corresponding pin is at logic 1.

0 = The corresponding pin is at logic 0.

PIO Interrupt Enable Register

Register Name:PIO_IER

Access Type:Write-only

Offset:

0x40

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

This register is used to enable PIO interrupts on the corresponding pin. It has effect whether PIO is enabled or not.

1 = Enables an interrupt when a change of logic level is detected on the corresponding pin.

0 = No effect.

8

P8

0

P0

24

P24

16

P16

117

1745C–ATARM–12/02

PIO Interrupt Disable Register

Register Name:PIO_IDR

Access Type:Write-only

Offset:

0x44

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to disable PIO interrupts on the corresponding pin. It has effect whether the PIO is enabled or not.

1 = Disables the interrupt on the corresponding pin. Logic level changes are still detected.

0 = No effect.

PIO Interrupt Mask Register

Register Name:PIO_IMR

Access Type:Read-only

Offset:

0x48

Reset Value:0

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register shows which pins have interrupts enabled. It is updated when interrupts are enabled or disabled by writing to

PIO_IER or PIO_IDR.

1 = Interrupt is enabled on the corresponding input pin.

0 = Interrupt is not enabled on the corresponding input pin.

118

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

PIO Interrupt Status Register

Register Name:PIO_ISR

Access Type:Read-only

Offset:

0x4C

Reset Value:0

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register indicates for each pin when a logic value change has been detected (rising or falling edge). This is valid whether the PIO is selected for the pin or not and whether the pin is an input or an output.

The register is reset to zero following a read, and at reset.

1 = At least one input change has been detected on the corresponding pin since the register was last read.

0 = No input change has been detected on the corresponding pin since the register was last read.

PIO Multi-driver Enable Register

Register Name:PIO_MDER

Access Type:Write-only

Offset:

0x50

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to enable PIO output drivers to be configured as open drain to support external drivers on the same pin.

1 = Enables multi-drive option on the corresponding pin.

0 = No effect.

119

1745C–ATARM–12/02

PIO Multi-driver Disable Register

Register Name: PIO_MDDR

Access Type:Write-only

Offset:

0x54

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

This register is used to disable the open drain configuration of the output buffer.

1 = Disables the multi-driver option on the corresponding pin.

0 = No effect.

10

P10

2

P2

26

P26

18

P18

PIO Multi-driver Status Register

Register Name:PIO_MDSR

Access Type:Read-only

Reset Value:0x0

Offset:

0x58

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

This register indicates which pins are configured with open drain drivers.

1 = PIO is configured as an open drain.

0 = PIO is not configured as an open drain.

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

120

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

SF: Special Function

Registers

The AT91M55800A provides registers which implement the following special functions.

• Chip identification

• RESET status

Chip Identifier

The following chip identifier values are covered in this datasheet:

Product

AT91M55800A

Revision

A

Chip ID

0x15580040

SF User Interface

Chip ID Base Address = 0xFFF00000 (Code Label SF_BASE)

Table 15. SF Memory Map

Offset

0x00

0x04

Register

Chip ID Register

Chip ID Extension Register

0x08 Reset Status Register

0x0C

0x10

0x14

0x18

Reserved

Reserved

Reserved

Protect Mode Register

Name

SF_CIDR

SF_EXID

SF_RSR

SF_PMR

Read-only

Read-only

Read-only

Read/Write

Hardwired

Hardwired

See register description

0x0

121

1745C–ATARM–12/02

Chip ID Register

Register Name:SF_CIDR

Access Type:Read-only

Offset:

0x00

30 31

EXT

23

15

7

0

22

14

6

1

ARCH

29

NVPTYP

21

13

NVDSIZ

5

0

28

20

12

4

27

19

11

3

26

ARCH

18

VDSIZ

10

2

VERSION

NVPSIZ

25

17

9

1

• VERSION: Version of the chip (Code Label SF_VERSION)

This value is incremented by one with each new version of the chip (from zero to a maximum value of 31).

• NVPSIZ: Nonvolatile Program Memory Size

0

0

0

0

1

1

1

0

0

0

NVPSIZ

0

1

0

1

0

Others

1

1

0

1

1

Size

None

32K Bytes

64K Bytes

128K Bytes

256K Bytes

Reserved

Code Label: SF_NVPSIZ

SF_NVPSIZ_NONE

SF_NVPSIZ_32K

SF_NVP_SIZ_64K

SF_NVP_SIZ_128K

SF_NVP_SIZ_256K

• NVDSIZ: Nonvolatile Data Memory Size

0 0

NVDSIZ

0

Others

0

Size

None

Reserved

• VDSIZ: Volatile Data Memory Size

VDSIZ

0

0

0

0

1

0

1

0

0

0

1

0

0

0

0

0

0

0

1

0

Others

Size

None

1K Bytes

2K Bytes

4K Bytes

8K Bytes

Reserved

Code Label: SF_NVDSIZ

SF_NVDSIZ_NONE

Code Label: SF_VDSIZ

SF_VDSIZ_NONE

SF_VDSIZ_1K

SF_VDSIZ_2K

SF_VDSIZ_4K

SF_VDSIZ_8K

8

0

24

16

122

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

• ARCH: Chip Architecture

Code of Architecture: Two BCD digits

ARCH

0110 0011

0100 0000

0101 0101

Selected ARCH

AT91x63yyy

AT91x40yyy

AT91x55yyy

• NVPTYP: Nonvolatile Program Memory Type

0

1

NVPTYP

0

0

1

0

Type

“M” Series or “F” Series

“R” Series

Note: All other codes are reserved.

• EXT: Extension Flag (Code Label SF_EXT)

0 = Chip ID has a single-register definition without extensions

1 = An extended Chip ID exists (to be defined in the future).

Chip ID Extension Register

Register Name:SF_EXID

Access Type:Read-only

Offset:

0x04

This register is reserved for future use. It will be defined when needed.

Code Label: SF_ARCH

SF_ARCH_AT91x63

SF_ARCH_AT91x40

SF_ARCH_AT91x55

Code Label: SF_NVPTYP

SF_NVPTYP_M

SF_NVPTYP_R

123

1745C–ATARM–12/02

Reset Status Register

Register Name:SF_RSR

Access Type:Read-only

Offset:

0x08

15

7

31

23

14

6

30

22

13

5

29

21

12

4

28

20

11

3

27

19

10

2

26

18

9

1

25

17

8

0

24

16

RESET

• RESET: Reset Status Information

This field indicates whether the reset was demanded by the external system (via NRST) or by the Watchdog internal reset request.

Reset

0x6C

0x53

Cause of Reset

External Pin

Internal Watchdog

Code Label

SF_EXT_RESET

SF_WD_RESET

SF Protect Mode Register

Register Name:SF_PMR

Access Type:Read/Write

Reset Value:0x0

Offset:

0x18

31 30 29 28

PMRKEY

23 22 21 20

PMRKEY

15

7

14

6

13

5

AIC

12

4

• PMRKEY: Protect Mode Register Key

Used only when writing SF_PMR. PMRKEY is reads 0.

0x27A8: Write access in SF_PMR is allowed.

Other value: Write access in SF_PMR is prohibited.

• AIC: AIC Protect Mode Enable (Code Label SF_AIC)

0 = The Advanced Interrupt Controller runs in Normal Mode.

1 = The Advanced Interrupt Controller runs in Protect Mode.

27

19

11

3

124

AT91M55800A

26

18

10

2

25

17

1

9

24

16

0

8

1745C–ATARM–12/02

AT91M55800A

USART: Universal

Synchronous/

Asynchronous

Receiver/Transmitter

Figure 41. USART Block Diagram

The AT91M55800AA provides three identical, full-duplex, universal synchronous/asynchronous receiver/transmitters which are connected to the Peripheral Data Controller.

The main features are:

• Programmable Baud Rate Generator

• Parity, Framing and Overrun Error Detection

• Line Break Generation and Detection

• Automatic Echo, Local Loopback and Remote Loopback channel modes

• Multi-drop Mode: Address Detection and Generation

• Interrupt Generation

• Two Dedicated Peripheral Data Controller channels

• 5-, 6-, 7-, 8- and 9-bit character length

ASB

AMBA

Peripheral Data Controller

Receiver

Channel

Transmitter

Channel

PIO:

Parallel

I/O

Controller

APB

USART Channel

Control Logic

Receiver RXD

USxIRQ

Interrupt Control

MCK

MCK/8

Baud Rate Generator

Baud Rate Clock

Transmitter TXD

SCK

125

1745C–ATARM–12/02

Pin Description

Table 16. USART Channel External Signals

Name Description

SCK

USART Serial clock can be configured as input or output:

SCK is configured as input if an External clock is selected (USCLKS[1] = 1)

SCK is driven as output if the External Clock is disabled (USCLKS[1] = 0) and Clock output is enabled (CLKO = 1)

Transmit Serial Data is an output TXD

RXD Receive Serial Data is an input

Notes: 1. After a hardware reset, the USART clock is disabled by default. The user must configure the Power Management Controller before any access to the User Interface of the USART.

2. After a hardware reset, the USART pins are deselected by default (see “PIO: Parallel I/O Controller” on page 105). The user

must configure the PIO Controller before enabling the transmitter or receiver. If the user selects one of the internal clocks,

SCK can be configured as a PIO.

126

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

Baud Rate Generator

The Baud Rate Generator provides the bit period clock (the Baud Rate clock) to both the

Receiver and the Transmitter.

The Baud Rate Generator can select between external and internal clock sources. The external clock source is SCK. The internal clock sources can be either the master clock

MCK or the master clock divided by 8 (MCK/8).

Note: In all cases, if an external clock is used, the duration of each of its levels must be longer than the system clock (MCK) period. The external clock frequency must be at least 2.5 times lower than the system clock.

When the USART is programmed to operate in Asynchronous Mode (SYNC = 0 in the

Mode Register US_MR), the selected clock is divided by 16 times the value (CD) written in US_BRGR (Baud Rate Generator Register). If US_BRGR is set to 0, the Baud Rate

Clock is disabled.

Baud Rate =

Selected Clock

16 x CD

When the USART is programmed to operate in Synchronous Mode (SYNC = 1) and the selected clock is internal (USCLKS[1] = 0 in the Mode Register US_MR), the Baud Rate

Clock is the internal selected clock divided by the value written in US_BRGR. If

US_BRGR is set to 0, the Baud Rate Clock is disabled.

Baud Rate

=

Selected Clock

CD

SCK

1

In Synchronous Mode with external clock selected (USCLKS[1] = 1), the clock is provided directly by the signal on the SCK pin. No division is active. The value written in

US_BRGR has no effect.

Figure 42. Baud Rate Generator

USCLKS [0]

USCLKS [1]

MCK

0

0

MCK/8

1

CLK

CD

16-bit Counter

OUT

CD

SYNC

0

>1

1

0

0

Divide by 16

0

1

Baud Rate

Clock

1

SYNC

USCLKS [1]

127

1745C–ATARM–12/02

Receiver

Asynchronous Receiver

The USART is configured for asynchronous operation when SYNC = 0 (bit 7 of

US_MR). In asynchronous mode, the USART detects the start of a received character by sampling the RXD signal until it detects a valid start bit. A low level (space) on RXD is interpreted as a valid start bit if it is detected for more than 7 cycles of the sampling clock, which is 16 times the baud rate. Hence a space which is longer than 7/16 of the bit period is detected as a valid start bit. A space which is 7/16 of a bit period or shorter is ignored and the receiver continues to wait for a valid start bit.

When a valid start bit has been detected, the receiver samples the RXD at the theoretical mid-point of each bit. It is assumed that each bit lasts 16 cycles of the sampling clock

(one bit period) so the sampling point is 8 cycles (0.5-bit periods) after the start of the bit.

The first sampling point is therefore 24 cycles (1.5-bit periods) after the falling edge of the start bit was detected. Each subsequent bit is sampled 16 cycles (1-bit period) after the previous one.

Figure 43. Asynchronous Mode: Start Bit Detection

16 x Baud

Rate Clock

RXD

Sampling

True Start

Detection

D0

Figure 44. Asynchronous Mode: Character Reception

Example: 8-bit, parity enabled 1 stop

0.5-bit periods

1-bit period

RXD

Sampling D0 D1

True Start Detection

D2 D3 D4 D5 D6 D7

Parity Bit

Stop Bit

128

AT91M55800A

1745C–ATARM–12/02

Synchronous Receiver

Receiver Ready

Parity Error

Framing Error

Time-out

AT91M55800A

When configured for synchronous operation (SYNC = 1), the receiver samples the RXD signal on each rising edge of the Baud Rate clock. If a low level is detected, it is considered as a start. Data bits, parity bit and stop bit are sampled and the receiver waits for the next start bit. See example in Figure 45.

Figure 45. Synchronous Mode: Character Reception

Example: 8-bit, parity enabled 1 stop

SCK

RXD

Sampling D0 D1

True Start Detection

D2 D3 D4 D5 D6 D7

Parity Bit

Stop Bit

When a complete character is received, it is transferred to the US_RHR and the RXRDY status bit in US_CSR is set. If US_RHR has not been read since the last transfer, the

OVRE status bit in US_CSR is set.

Each time a character is received, the receiver calculates the parity of the received data bits, in accordance with the field PAR in US_MR. It then compares the result with the received parity bit. If different, the parity error bit PARE in US_CSR is set. When the character is completed and as soon as the character is read, the parity status bit is cleared.

If a character is received with a stop bit at low level and with at least one data bit at high level, a framing error is generated. This sets FRAME in US_CSR.

This function allows an idle condition on the RXD line to be detected. The maximum delay for which the USART should wait for a new character to arrive while the RXD line is inactive (high level) is programmed in US_RTOR (Receiver Time-out). When this register is set to 0, no time-out is detected. Otherwise, the receiver waits for a first character and then initializes a counter which is decremented at each bit period and reloaded at each byte reception. When the counter reaches 0, the TIMEOUT bit in US_CSR is set.

The user can restart the wait for a first character with the STTTO (Start Time-out) bit in

US_CR.

Calculation of time-out duration:

Duration

=

Value

4

BitPeriod

129

1745C–ATARM–12/02

Transmitter

Time-guard

Multi-drop Mode

The transmitter has the same behavior in both synchronous and asynchronous operating modes. Start bit, data bits, parity bit and stop bits are serially shifted, lowest significant bit first, on the falling edge of the serial clock. See example in Figure 46.

The number of data bits is selected in the CHRL field in US_MR.

The parity bit is set according to the PAR field in US_MR.

The number of stop bits is selected in the NBSTOP field in US_MR.

When a character is written to US_THR (Transmit Holding), it is transferred to the Shift

Register as soon as it is empty. When the transfer occurs, the TXRDY bit in US_CSR is set until a new character is written to US_THR. If Transmit Shift Register and US_THR are both empty, the TXEMPTY bit in US_CSR is set.

The Time-guard function allows the transmitter to insert an idle state on the TXD line between two characters. The duration of the idle state is programmed in US_TTGR

(Transmitter Time-guard). When this register is set to zero, no time-guard is generated.

Otherwise, the transmitter holds a high level on TXD after each transmitted byte during the number of bit periods programmed in US_TTGR.

Idle state duration between two characters

=

Time-guard value

Bit period

When the field PAR in US_MR equals 11X (binary value), the USART is configured to run in multi-drop mode. In this case, the parity error bit PARE in US_CSR is set when data is detected with a parity bit set to identify an address byte. PARE is cleared with the

Reset Status Bits Command (RSTSTA) in US_CR. If the parity bit is detected low, identifying a data byte, PARE is not set.

The transmitter sends an address byte (parity bit set) when a Send Address Command

(SENDA) is written to US_CR. In this case, the next byte written to US_THR will be transmitted as an address. After this any byte transmitted will have the parity bit cleared.

Figure 46. Synchronous and Asynchronous Modes: Character Transmission

Example: 8-bit, parity enabled 1 stop

Baud Rate

Clock

TXD

Start

Bit

D0 D1 D2 D3 D4 D5 D6 D7 Parity

Bit

Stop

Bit

130

AT91M55800A

1745C–ATARM–12/02

Break

Transmit Break

AT91M55800A

A break condition is a low signal level which has a duration of at least one character

(including start/stop bits and parity).

The transmitter generates a break condition on the TXD line when STTBRK is set in

US_CR (Control Register). In this case, the character present in the Transmit Shift Register is completed before the line is held low.

To cancel a break condition on the TXD line, the STPBRK command in US_CR must be set. The USART completes a minimum break duration of one character length. The TXD line then returns to high level (idle state) for at least 12-bit periods to ensure that the end of break is correctly detected. Then the transmitter resumes normal operation.

The BREAK is managed like a character:

• The STTBRK and the STPBRK commands are performed only if the transmitter is ready (bit TXRDY = 1 in US_CSR)

• The STTBRK command blocks the transmitter holding register (bit TXRDY is cleared in US_CSR) until the break has started

• A break is started when the Shift Register is empty (any previous character is fully transmitted). US_CSR.TXEMPTY is cleared. The break blocks the transmitter shift register until it is completed (high level for at least 12-bit periods after the STPBRK command is requested)

In order to avoid unpredictable states:

• STTBRK and STPBRK commands must not be requested at the same time

• Once an STTBRK command is requested, further STTBRK commands are ignored until the BREAK is ended (high level for at least 12-bit periods)

• All STPBRK commands requested without a previous STTBRK command are ignored

• A byte written into the Transmit Holding Register while a break is pending but not started (bit TXRDY = 0 in US_CSR) is ignored

• It is not permitted to write new data in the Transmit Holding Register while a break is in progress (STPBRK has not been requested), even though TXRDY = 1 in

US_CSR.

• A new STTBRK command must not be issued until an existing break has ended

(TXEMPTY=1 in US_CSR).

131

1745C–ATARM–12/02

The standard break transmission sequence is:

1.

Wait for the transmitter ready

(US_CSR.TXRDY = 1)

2.

Send the STTBRK command

(write 0x0200 to US_CR)

3.

Wait for the transmitter ready

(bit TXRDY = 1 in US_CSR)

4.

Send the STPBRK command

(write 0x0400 to US_CR)

The next byte can then be sent:

5.

Wait for the transmitter ready

(bit TXRDY = 1 in US_CSR)

6.

Send the next byte

(write byte to US_THR)

Each of these steps can be scheduled by using the interrupt if the bit TXRDY in US_IMR is set.

For character transmission, the USART channel must be enabled before sending a break.

132

AT91M55800A

1745C–ATARM–12/02

Receive Break

Peripheral Data

Controller

Interrupt Generation

Channel Modes

AT91M55800A

The receiver detects a break condition when all data, parity and stop bits are low. When the low stop bit is detected, the receiver asserts the RXBRK bit in US_CSR. An end of receive break is detected by a high level for at least 1-bit + 1/16 of a bit period in asynchronous operating mode or at least one sample in synchronous operating mode.

RXBRK is also asserted when an end of break is detected.

Both the beginning and the end of a break can be detected by interrupt if the bit

US_IMR.RXBRK is set.

Each USART channel is closely connected to a corresponding Peripheral Data Controller channel. One is dedicated to the receiver. The other is dedicated to the transmitter.

Note: The PDC is disabled if 9-bit character length is selected (MODE9 = 1) in US_MR.

The PDC channel is programmed using US_TPR (Transmit Pointer) and US_TCR

(Transmit Counter) for the transmitter and US_RPR (Receive Pointer) and US_RCR

(Receive Counter) for the receiver. The status of the PDC is given in US_CSR by the

ENDTX bit for the transmitter and by the ENDRX bit for the receiver.

The pointer registers (US_TPR and US_RPR) are used to store the address of the transmit or receive buffers. The counter registers (US_TCR and US_RCR) are used to store the size of these buffers.

The receiver data transfer is triggered by the RXRDY bit and the transmitter data transfer is triggered by TXRDY. When a transfer is performed, the counter is decremented and the pointer is incremented. When the counter reaches 0, the status bit is set

(ENDRX for the receiver, ENDTX for the transmitter in US_CSR) and can be programmed to generate an interrupt. Transfers are then disabled until a new non-zero counter value is programmed.

Each status bit in US_CSR has a corresponding bit in US_IER (Interrupt Enable) and

US_IDR (Interrupt Disable) which controls the generation of interrupts by asserting the

USART interrupt line connected to the Advanced Interrupt Controller. US_IMR (Interrupt

Mask Register) indicates the status of the corresponding bits.

When a bit is set in US_CSR and the same bit is set in US_IMR, the interrupt line is asserted.

The USART can be programmed to operate in three different test modes, using the field

CHMODE in US_MR.

Automatic echo mode allows bit by bit re-transmission. When a bit is received on the

RXD line, it is sent to the TXD line. Programming the transmitter has no effect.

Local loopback mode allows the transmitted characters to be received. TXD and RXD pins are not used and the output of the transmitter is internally connected to the input of the receiver. The RXD pin level has no effect and the TXD pin is held high, as in idle state.

Remote loopback mode directly connects the RXD pin to the TXD pin. The Transmitter and the Receiver are disabled and have no effect. This mode allows bit by bit retransmission.

133

1745C–ATARM–12/02

Figure 47. Channel Modes

Automatic Echo

Receiver RXD

Transmitter

Disabled

Local Loopback

Receiver

Transmitter

TXD

Disabled

RXD

Disabled

V

DD

TXD

Remote Loopback

Receiver

V

DD

Disabled

RXD

Transmitter

Disabled

TXD

134

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

USART User Interface

Base Address USART0:

Base Address USART1:

Base Address USART2:

Table 17. USART Memory Map

0xFFFC0000 (Code Label USART0_BASE)

0xFFFC4000 (Code Label USART1_BASE)

0xFFFC8000 (Code Label USART2_BASE)

0x18

0x1C

0x20

0x24

0x28

0x2C

0x30

0x34

0x38

0x3C

Offset

0x00

0x04

0x08

0x0C

0x10

0x14

Register

Control Register

Mode Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Channel Status Register

Receiver Holding Register

Transmitter Holding Register

Baud Rate Generator Register

Receiver Time-out Register

Transmitter Time-guard Register

Reserved

Receive Pointer Register

Receive Counter Register

Transmit Pointer Register

Transmit Counter Register

Name

US_CR

US_MR

US_IER

US_IDR

US_IMR

US_CSR

US_RHR

US_THR

US_BRGR

US_RTOR

US_TTGR

US_RPR

US_RCR

US_TPR

US_TCR

Write-only

Read/write

Write-only

Write-only

Read-only

Read-only

Read-only

Write-only

Read/write

Read/write

Read/write

Read/write

Read/write

Read/write

Read/Write

0

0

0

0

0

0

0

0

0x18

0

0

135

1745C–ATARM–12/02

USART Control Register

Name:

Access Type:

Offset:

US_CR

Write-only

0x00

31

23

15

7

TXDIS

30

22

14

6

TXEN

29

21

13

5

RXDIS

28

20

12

SENDA

4

RXEN

27

19

11

STTTO

3

RSTTX

26

18

10

STPBRK

2

RSTRX

25

17

9

STTBRK

1

24

16

8

RSTSTA

0

• RSTRX: Reset Receiver (Code Label US_RSTRX)

0 = No effect.

1 = The receiver logic is reset.

• RSTTX: Reset Transmitter (Code Label US_RSTTX)

0 = No effect.

1 = The transmitter logic is reset.

• RXEN: Receiver Enable (Code Label US_RXEN)

0 = No effect.

1 = The receiver is enabled if RXDIS is 0.

• RXDIS: Receiver Disable (Code Label US_RXDIS)

0 = No effect.

1 = The receiver is disabled.

• TXEN: Transmitter Enable (Code Label US_TXEN)

0 = No effect.

1 = The transmitter is enabled if TXDIS is 0.

• TXDIS: Transmitter Disable (Code Label US_TXDIS)

0 = No effect.

1 = The transmitter is disabled.

• RSTSTA: Reset Status Bits (Code Label US_RSTSTA)

0 = No effect.

1 = Resets the status bits PARE, FRAME, OVRE and RXBRK in the US_CSR.

• STTBRK: Start Break (Code Label US_STTBRK)

0 = No effect.

1 = If break is not being transmitted, start transmission of a break after the characters present in US_THR and the

Transmit Shift Register have been transmitted.

• STPBRK: Stop Break (Code Label US_STPBRK)

0 = No effect.

1 = If a break is being transmitted, stop transmission of the break after a minimum of one character length and transmit a high level during 12 bit periods.

• STTTO: Start Time-out (Code Label US_STTTO)

0 = No effect.

1 = Start waiting for a character before clocking the time-out counter.

• SENDA: Send Address (Code Label US_SENDA)

0 = No effect.

1 = In Multi-drop Mode only, the next character written to the US_THR is sent with the address bit set.

136

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

USART Mode Register

Name:

Access Type:

Reset State:

Offset:

US_MR

Read/Write

0

0x04

31

30

23

15

22

14

CHMODE

7 6

CHRL

29

21

13

NBSTOP

28

20

12

5

USCLKS

4

• USCLKS: Clock Selection (Baud Rate Generator Input Clock)

USCLKS

0

0

1

0

1

X

Selected Clock

MCK

MCK/8

External (SCK)

3

27

19

11

• CHRL: Character Length

CHRL

0

0

1

1

0

1

0

1

Character Length

Five bits

Six bits

Seven bits

Eight bits

Start, stop and parity bits are added to the character length.

• SYNC: Synchronous Mode Select (Code Label US_SYNC)

0 = USART operates in Asynchronous Mode.

1 = USART operates in Synchronous Mode.

• PAR: Parity Type

0

1

1

0

0

0

1

0

1

PAR

0

0

1

1 x x

0

1

0

Parity Type

Even Parity

Odd Parity

Parity forced to 0 (Space)

Parity forced to 1 (Mark)

No parity

Multi-drop mode

26

18

CLKO

10

PAR

2

25

17

MODE9

9

1

Code Label: US_CLKS

US_CLKS_MCK

US_CLKS_MCK8

US_CLKS_SCK

24

16

8

SYNC

0

Code Label: US_CHRL

US_CHRL_5

US_CHRL_6

US_CHRL_7

US_CHRL_8

Code Label: US_PAR

US_PAR_EVEN

US_PAR_ODD

US_PAR_SPACE

US_PAR_MARK

US_PAR_NO

US_PAR_MULTIDROP

137

1745C–ATARM–12/02

• NBSTOP: Number of Stop Bits

The interpretation of the number of stop bits depends on SYNC.

1

1

0

0

NBSTOP

0

1

0

1

Asynchronous (SYNC = 0)

1 stop bit

1.5 stop bits

2 stop bits

Reserved

Synchronous (SYNC = 1)

1 stop bit

Reserved

2 stop bits

Reserved

• CHMODE: Channel Mode

CHMODE

0

0

1

1

0

1

0

1

Mode Description

Normal Mode

The USART Channel operates as an Rx/Tx USART.

Automatic Echo

Receiver Data Input is connected to TXD pin.

Local Loopback

Transmitter Output Signal is connected to Receiver Input Signal.

Remote Loopback

RXD pin is internally connected to TXD pin.

• MODE9: 9-Bit Character Length (Code Label US_MODE9)

0 = CHRL defines character length.

1 = 9-Bit character length.

• CKLO: Clock Output Select (Code Label US_CLKO)

0 = The USART does not drive the SCK pin.

1 = The USART drives the SCK pin if USCLKS[1] is 0.

Code Label: US_NBSTOP

US_NBSTOP_1

US_NBSTOP_1_5

US_NBSTOP_2

Code Label: US_CHMODE

US_CHMODE_NORMAL

US_CHMODE_AUTOMATIC_ECHO

US_CHMODE_LOCAL_LOOPBACK

US_CHMODE_REMODE_LOOPBACK

138

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

USART Interrupt Enable Register

Name:

Access Type:

Offset:

US_IER

Write-only

0x08

31

23

15

7

PARE

30

22

14

6

FRAME

29

21

13

5

OVRE

28

20

12

4

ENDTX

27

19

11

3

ENDRX

• RXRDY: Enable RXRDY Interrupt (Code Label US_RXRDY)

0 = No effect.

1 = Enables RXRDY Interrupt.

• TXRDY: Enable TXRDY Interrupt (Code Label US_TXRDY)

0 = No effect.

1 = Enables TXRDY Interrupt.

• RXBRK: Enable Receiver Break Interrupt (Code Label US_RXBRK)

0 = No effect.

1 = Enables Receiver Break Interrupt.

• ENDRX: Enable End of Receive Transfer Interrupt (Code Label US_ENDRX)

0 = No effect.

1 = Enables End of Receive Transfer Interrupt.

• ENDTX: Enable End of Transmit Transfer Interrupt (Code Label US_ENDTX)

0 = No effect.

1 = Enables End of Transmit Transfer Interrupt.

• OVRE: Enable Overrun Error Interrupt (Code Label US_OVRE)

0 = No effect.

1 = Enables Overrun Error Interrupt.

• FRAME: Enable Framing Error Interrupt (Code Label US_FRAME)

0 = No effect.

1 = Enables Framing Error Interrupt.

• PARE: Enable Parity Error Interrupt (Code Label US_PARE)

0 = No effect.

1 = Enables Parity Error Interrupt.

• TIMEOUT: Enable Time-out Interrupt (Code Label US_TIMEOUT)

0 = No effect.

1 = Enables Reception Time-out Interrupt.

• TXEMPTY: Enable TXEMPTY Interrupt (Code Label US_TXEMPTY)

0 = No effect.

1 = Enables TXEMPTY Interrupt.

26

18

10

2

RXBRK

25

17

9

TXEMPTY

1

TXRDY

24

16

8

TIMEOUT

0

RXRDY

139

1745C–ATARM–12/02

USART Interrupt Disable Register

Name:

Access Type:

Offset:

US_IDR

Write-only

0x0C

31

23

15

7

PARE

30

22

14

6

FRAME

29

21

13

5

OVRE

28

20

12

4

ENDTX

27

19

11

3

ENDRX

• RXRDY: Disable RXRDY Interrupt (Code Label US_RXRDY)

0 = No effect.

1 = Disables RXRDY Interrupt.

• TXRDY: Disable TXRDY Interrupt (Code Label US_TXRDY)

0 = No effect.

1 = Disables TXRDY Interrupt.

• RXBRK: Disable Receiver Break Interrupt (Code Label US_RXBRK)

0 = No effect.

1 = Disables Receiver Break Interrupt.

• ENDRX: Disable End of Receive Transfer Interrupt (Code Label US_ENDRX)

0 = No effect.

1 = Disables End of Receive Transfer Interrupt.

• ENDTX: Disable End of Transmit Transfer Interrupt (Code Label US_ENDTX)

0 = No effect.

1 = Disables End of Transmit Transfer Interrupt.

• OVRE: Disable Overrun Error Interrupt (Code Label US_OVRE)

0 = No effect.

1 = Disables Overrun Error Interrupt.

• FRAME: Disable Framing Error Interrupt (Code Label US_FRAME)

0 = No effect.

1 = Disables Framing Error Interrupt.

• PARE: Disable Parity Error Interrupt (Code Label US_PARE)

0 = No effect.

1 = Disables Parity Error Interrupt.

• TIMEOUT: Disable Time-out Interrupt (Code Label US_TIMEOUT)

0 = No effect.

1 = Disables Receiver Time-out Interrupt.

• TXEMPTY: Disable TXEMPTY Interrupt (Code Label US_TXEMPTY)

0 = No effect.

1 = Disables TXEMPTY Interrupt.

26

18

10

2

RXBRK

25

17

9

TXEMPTY

1

TXRDY

24

16

8

TIMEOUT

0

RXRDY

140

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

USART Interrupt Mask Register

Name:

Access Type:

Reset Value:

Offset:

US_IMR

Read-only

0x0

0x10

31

23

15

7

PARE

30

22

14

6

FRAME

29

21

13

5

OVRE

28

20

12

4

ENDTX

27

19

11

3

ENDRX

• RXRDY: RXRDY Interrupt Mask (Code Label US_RXRDY)

0 = RXRDY Interrupt is Disabled.

1 = RXRDY Interrupt is Enabled.

• TXRDY: TXRDY Interrupt Mask (Code Label US_TXRDY)

0 = TXRDY Interrupt is Disabled.

1 = TXRDY Interrupt is Enabled.

• RXBRK: Receiver Break Interrupt Mask (Code Label US_RXBRK)

0 = Receiver Break Interrupt is Disabled.

1 = Receiver Break Interrupt is Enabled.

• ENDRX: End of Receive Transfer Interrupt Mask (Code Label US_ENDRX)

0 = End of Receive Transfer Interrupt is Disabled.

1 = End of Receive Transfer Interrupt is Enabled.

• ENDTX: End of Transmit Transfer Interrupt Mask (Code Label US_ENDTX)

0 = End of Transmit Transfer Interrupt is Disabled.

1 = End of Transmit Transfer Interrupt is Enabled.

• OVRE: Overrun Error Interrupt Mask (Code Label US_OVRE)

0 = Overrun Error Interrupt is Disabled.

1 = Overrun Error Interrupt is Enabled.

• FRAME: Framing Error Interrupt Mask (Code Label US_FRAME)

0 = Framing Error Interrupt is Disabled.

1 = Framing Error Interrupt is Enabled.

• PARE: Parity Error Interrupt Mask (Code Label US_PARE)

0 = Parity Error Interrupt is Disabled.

1 = Parity Error Interrupt is Enabled.

• TIMEOUT: Time-out Interrupt Mask (Code Label US_TIMEOUT)

0 = Receive Time-out Interrupt is Disabled.

1 = Receive Time-out Interrupt is Enabled.

• TXEMPTY: TXEMPTY Interrupt Mask (Code Label US_TXEMPTY)

0 = TXEMPTY Interrupt is Disabled.

1 = TXEMPTY Interrupt is Enabled.

26

18

10

2

RXBRK

25

17

9

TXEMPTY

1

TXRDY

24

16

8

TIMEOUT

0

RXRDY

141

1745C–ATARM–12/02

USART Channel Status Register

Name:

Access Type:

Reset:

Offset:

US_CSR

Read-only

0x18

0x14

31

23

15

7

PARE

30

22

14

6

FRAME

29

21

13

5

OVRE

28

20

12

4

ENDTX

27

19

11

3

ENDRX

26

18

10

2

RXBRK

25

17

9

TXEMPTY

1

TXRDY

24

16

8

TIMEOUT

0

RXRDY

• RXRDY: Receiver Ready (Code Label US_RXRDY)

0 = No complete character has been received since the last read of the US_RHR or the receiver is disabled.

1 = At least one complete character has been received and the US_RHR has not yet been read.

• TXRDY: Transmitter Ready (Code Label US_TXRDY)

0 = US_THR contains a character waiting to be transferred to the Transmit Shift Register, or an STTBRK command has been requested.

1 = US_THR is empty and there is no Break request pending TSR availability.

Equal to zero when the USART is disabled or at reset. Transmitter Enable command (in US_CR) sets this bit to one.

• RXBRK: Break Received/End of Break (Code Label US_RXBRK)

0 = No Break Received nor End of Break detected since the last “Reset Status Bits” command in the Control Register.

1 = Break Received or End of Break detected since the last “Reset Status Bits” command in the Control Register.

• ENDRX: End of Receive Transfer (Code Label US_ENDRX)

0 = The End of Transfer signal from the Peripheral Data Controller channel dedicated to the receiver is inactive.

1 = The End of Transfer signal from the Peripheral Data Controller channel dedicated to the receiver is active.

• ENDTX: End of Transmit Transfer (Code Label US_ENDTX)

0 = The End of Transfer signal from the Peripheral Data Controller channel dedicated to the transmitter is inactive.

1 = The End of Transfer signal from the Peripheral Data Controller channel dedicated to the transmitter is active.

• OVRE: Overrun Error (Code Label US_OVRE)

0 = No byte has been transferred from the Receive Shift Register to the US_RHR when RxRDY was asserted since the last “Reset Status Bits” command.

1 = At least one byte has been transferred from the Receive Shift Register to the US_RHR when RxRDY was asserted since the last “Reset Status Bits” command.

• FRAME: Framing Error (Code Label US_FRAME)

0 = No stop bit has been detected low since the last “Reset Status Bits” command.

1 = At least one stop bit has been detected low since the last “Reset Status Bits” command.

• PARE: Parity Error (Code Label US_PARE)

1 = At least one parity bit has been detected false (or a parity bit high in multi-drop mode) since the last “Reset Status

Bits” command.

0 = No parity bit has been detected false (or a parity bit high in multi-drop mode) since the last “Reset Status Bits” command.

• TIMEOUT: Receiver Time-out (Code Label US_TIMEOUT)

0 = There has not been a time-out since the last “Start Time-out” command or the Time-out Register is 0.

1 = There has been a time-out since the last “Start Time-out” command.

• TXEMPTY: Transmitter Empty (Code Label US_TXEMPTY)

0 = There are characters in either US_THR or the Transmit Shift Register or a Break is being transmitted.

1 = There are no characters in US_THR and the Transmit Shift Register and Break is not active.

Equal to zero when the USART is disabled or at reset. Transmitter Enable command (in US_CR) sets this bit to one.

142

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

USART Receiver Holding Register

Name:

Access Type:

Reset State:

Offset:

US_RHR

Read-only

0

0x18

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

25

17

9

1

RXCHR

• RXCHR: Received Character

Last character received if RXRDY is set. When number of data bits is less than 9 bits, the bits are right-aligned.

All unused bits read zero.

24

16

8

RXCHR

0

USART Transmitter Holding Register

Name:

Access Type:

Offset:

US_THR

Write-only

0x1C

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

25

17

9

1

24

16

8

TXCHR

0

TXCHR

• TXCHR: Character to be Transmitted

Next character to be transmitted after the current character if TXRDY is not set. When number of data bits is less than 9 bits, the bits are right-aligned.

143

1745C–ATARM–12/02

USART Baud Rate Generator Register

Name:

Access Type:

Reset State:

Offset:

US_BRGR

Read/Write

0

0x20

31

23

15

30

22

14

29

21

13

28

20

12

27

19

11

CD

7 6 5 4 3 2

CD

• CD: Clock Divisor

This register has no effect if Synchronous Mode is selected with an external clock.

26

18

10

1

CD

0

1

2 to 65535

Disables Clock

Clock Divisor bypass

Baud Rate (Asynchronous Mode) = Selected clock/(16 x CD)

Baud Rate (Synchronous Mode) = Selected clock/CD

Notes: 1. In Synchronous Mode, the value programmed must be even to ensure a 50:50 mark:space ratio.

2. Clock divisor bypass (CD = 1) must not be used when internal clock MCK is selected (USCLKS = 0).

25

17

9

24

16

8

0

144

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

USART Receiver Time-out Register

Name:

Access Type:

Reset State:

Offset:

US_RTOR

Read/Write

0

0x24

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

25

17

9

1

24

16

8

0

TO

• TO: Time-out Value

When a value is written to this register, a Start Time-out Command is automatically performed.

TO

0

1 - 255

Disables the RX Time-out function.

The Time-out counter is loaded with TO when the Start Time-out Command is given or when each new data character is received (after reception has started).

Time-out duration = TO x 4 x Bit period

USART Transmitter Time-guard Register

Name:

Access Type:

Reset State:

Offset:

US_TTGR

Read/Write

0

0x28

31

30

29

23

15

7

22

14

6

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

TG

• TG: Time-guard Value

TG

0

1 - 255

Disables the TX Time-guard function.

TXD is inactive high after the transmission of each character for the time-guard duration.

Time-guard duration = TG x Bit period

25

17

9

1

24

16

8

0

145

1745C–ATARM–12/02

USART Receive Pointer Register

Name:

Access Type:

Reset State:

Offset:

US_RPR

Read/Write

0

0x30

31 30 29 28 27

RXPTR

23 22 21 20 19

RXPTR

15 14 13 12

RXPTR

7 6 5 4

RXPTR

• RXPTR: Receive Pointer

RXPTR must be loaded with the address of the receive buffer.

11

3

USART Receive Counter Register

Name:

Access Type:

Reset State:

Offset:

US_RCR

Read/Write

0

0x34

31

23

15

30

22

14

29

21

13

28

20

12

RXCTR

7 6 5 4

RXCTR

• RXCTR: Receive Counter

RXCTR must be loaded with the size of the receive buffer.

0: Stop Peripheral Data Transfer dedicated to the receiver.

1 - 65535: Start Peripheral Data transfer if RXRDY is active.

27

19

11

3

10

2

26

18

26

18

10

2

9

1

25

17

8

0

24

16

25

17

9

1

24

16

8

0

146

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

USART Transmit Pointer Register

Name:

Access Type:

Reset State:

Offset:

US_TPR

Read/Write

0

0x38

31 30 29 28 27

TXPTR

23 22 21 20 19

TXPTR

15 14 13 12 11

TXPTR

7 6 5 4

TXPTR

• TXPTR: Transmit Pointer

TXPTR must be loaded with the address of the transmit buffer.

3

USART Transmit Counter Register

Name:

Access Type:

Reset State:

Offset:

US_TCR

Read/Write

0

0x3C

31

23

30

22

29

21

28

20

15 14 13 12

TXCTR

7 6 5 4

TXCTR

• TXCTR: Transmit Counter

TXCTR must be loaded with the size of the transmit buffer.

0: Stop Peripheral Data Transfer dedicated to the transmitter.

1 - 65535: Start Peripheral Data transfer if TXRDY is active.

11

3

27

19

10

2

26

18

26

18

10

2

9

1

25

17

8

0

24

16

25

17

9

1

24

16

8

0

147

1745C–ATARM–12/02

TC: Timer Counter

The AT91M55800A features two Timer Counter Blocks, each containing three identical

16-bit timer counter channels. Each channel can be independently programmed to perform a wide range of functions including frequency measurement, event counting, interval measurement, pulse generation, delay timing and pulse-width modulation.

Each Timer Counter channel has three external clock inputs, five internal clock inputs, and two multi-purpose input/output signals which can be configured by the user. Each channel drives an internal interrupt signal which can be programmed to generate processor interrupts via the AIC (Advanced Interrupt Controller).

Each Timer Counter block has two global registers which act upon all three TC channels. The Block Control Register allows the three channels to be started simultaneously with the same instruction. The Block Mode Register defines the external clock inputs for each Timer Counter channel, allowing them to be chained.

The internal configuration of a single Timer Counter Block is shown in Figure 48.

Figure 48. TC Block Diagram

Parallel IO

Controller

MCK/2

MCK/8

MCK/32

MCK/128

MCK/1024

TCLK0

TCLK1

TCLK2

TIOA1

TIOA2 XC0

XC1

XC2

TC0XC0S

Timer Counter

Channel 0

TIOA

TIOB

TIOA0

TIOB0

SYNC

INT

TCLK0

TCLK1

TCLK2

TIOA0

TIOB0

TCLK0

TCLK1

TIOA0

TIOA2

TCLK2

XC0

XC1

XC2

TC1XC1S

Timer Counter

Channel 1

TIOA

TIOB

TIOA1

TIOB1

SYNC

INT

TIOA1

TIOB1

TCLK0

TCLK1

TCLK2

TIOA0

TIOA1

XC0

XC1

XC2

TC2XC2S

Timer Counter

Channel 2

TIOA

TIOB

TIOA2

TIOB2

SYNC

INT

TIOA2

TIOB2

Timer Counter Block

Advanced

Interrupt

Controller

148

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

Signal Name Description

Channel Signals

XC0, XC1, XC2

TIOA

TIOB

Description

External Clock Inputs

Capture Mode: General-purpose input

Waveform Mode: General-purpose output

Capture Mode: General-purpose input

Waveform Mode: General-purpose input/output

Interrupt signal output INT

SYNC

Block 0 Signals

TCLK0, TCLK1, TCLK2

TIOA0

TIOB0

TIOA1

TIOB1

TIOA2

TIOB2

Block 1 Signals

TCLK3, TCLK4, TCLK5

TIOA3

TIOB3

TIOA4

TIOB4

TIOA5

Synchronization input signal

Description

External Clock Inputs for Channels 0, 1, 2

TIOA signal for Channel 0

TIOB signal for Channel 0

TIOA signal for Channel 1

TIOB signal for Channel 1

TIOA signal for Channel 2

TIOB signal for Channel 2

Description

External Clock Inputs for Channels 3, 4, 5

TIOA signal for Channel 3

TIOB signal for Channel 3

TIOA signal for Channel 4

TIOB signal for Channel 4

TIOA signal for Channel 5

TIOB5 TIOB signal for Channel 5

Notes:

1. After a hardware reset, the TC clock is disabled by default ( See “APMC: Advanced Power Management Controller” on page

50.). The user must configure the Power Management Controller before any access to the User Interface of the TC.

2. After a hardware reset, the Timer Counter block pins are controlled by the PIO Controller. They must be configured to be controlled by the peripheral before being used.

149

1745C–ATARM–12/02

Timer Counter

Description

Counter

Clock Selection

Each Timer Counter channel is identical in operation. The registers for channel pro-

gramming are listed below “Signal Name Description” on page 149.

Each Timer Counter channel is organized around a 16-bit counter. The value of the counter is incremented at each positive edge of the input clock. When the counter reaches the value 0xFFFF and passes to 0x0000, an overflow occurs and the bit

COVFS in TC_SR (Status Register) is set.

The current value of the counter is accessible in real-time by reading TC_CV. The counter can be reset by a trigger. In this case, the counter value passes to 0x0000 on the next valid edge of the clock.

At block level, input clock signals of each channel can either be connected to the external inputs TCLK0, TCLK1 or TCLK2, or be connected to the configurable I/O signals

TIOA0, TIOA1 or TIOA2 for chaining by programming the TC_BMR (Block Mode).

Each channel can independently select an internal or external clock source for its counter:

• Internal clock signals: MCK/2, MCK/8, MCK/32, MCK/128, MCK/1024

• External clock signals: XC0, XC1 or XC2

The selected clock can be inverted with the CLKI bit in TC_CMR (Channel Mode). This allows counting on the opposite edges of the clock.

The burst function allows the clock to be validated when an external signal is high. The

BURST parameter in the Mode Register defines this signal (none, XC0, XC1, XC2).

Note: In all cases, if an external clock is used, the duration of each of its levels must be longer than the system clock (MCK) period. The external clock frequency must be at least 2.5 times lower than the system clock.

Figure 49. Clock Selection

CLKS

CLKI

MCK/2

MCK/8

MCK/32

MCK/128

MCK/1024

XC0

XC1

XC2

Selected

Clock

BURST

1

150

AT91M55800A

1745C–ATARM–12/02

Clock Control

AT91M55800A

The clock of each counter can be controlled in two different ways: it can be enabled/disabled and started/stopped.

• The clock can be enabled or disabled by the user with the CLKEN and the CLKDIS commands in the Control Register. In Capture Mode it can be disabled by an RB load event if LDBDIS is set to 1 in TC_CMR. In Waveform Mode, it can be disabled by an RC Compare event if CPCDIS is set to 1 in TC_CMR. When disabled, the start or the stop actions have no effect: only a CLKEN command in the Control

Register can re-enable the clock. When the clock is enabled, the CLKSTA bit is set in the Status Register.

• The clock can also be started or stopped: a trigger (software, synchro, external or compare) always starts the clock. The clock can be stopped by an RB load event in

Capture Mode (LDBSTOP = 1 in TC_CMR) or a RC compare event in Waveform

Mode (CPCSTOP = 1 in TC_CMR). The start and the stop commands have effect only if the clock is enabled.

Figure 50. Clock Control

Selected

Clock

Trigger

CLKSTA CLKEN CLKDIS

Q S

R

Q S

R

Timer Counter Operating

Modes

Stop

Event

Disable

Event

Counter

Clock

Each Timer Counter channel can independently operate in two different modes:

• Capture Mode allows measurement on signals

• Waveform Mode allows wave generation

The Timer Counter Mode is programmed with the WAVE bit in the TC Mode Register. In

Capture Mode, TIOA and TIOB are configured as inputs. In Waveform Mode, TIOA is always configured to be an output and TIOB is an output if it is not selected to be the external trigger.

151

1745C–ATARM–12/02

Trigger

A trigger resets the counter and starts the counter clock. Three types of triggers are common to both modes, and a fourth external trigger is available to each mode.

The following triggers are common to both modes:

• Software Trigger: Each channel has a software trigger, available by setting SWTRG in TC_CCR.

• SYNC: Each channel has a synchronization signal SYNC. When asserted, this signal has the same effect as a software trigger. The SYNC signals of all channels are asserted simultaneously by writing TC_BCR (Block Control) with SYNC set.

• Compare RC Trigger: RC is implemented in each channel and can provide a trigger when the counter value matches the RC value if CPCTRG is set in TC_CMR.

The Timer Counter channel can also be configured to have an external trigger. In Capture Mode, the external trigger signal can be selected between TIOA and TIOB. In

Waveform Mode, an external event can be programmed on one of the following signals:

TIOB, XC0, XC1 or XC2. This external event can then be programmed to perform a trigger by setting ENETRG in TC_CMR.

If an external trigger is used, the duration of the pulses must be longer than the system clock (MCK) period in order to be detected.

152

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

Capture Operating Mode

This mode is entered by clearing the WAVE parameter in TC_CMR (Channel Mode

Register). Capture Mode allows the TC Channel to perform measurements such as pulse timing, frequency, period, duty cycle and phase on TIOA and TIOB signals which are considered as input.

Figure 51 shows the configuration of the TC Channel when programmed in Capture

Mode.

Capture Registers A and B

(RA and RB)

Trigger Conditions

Status Register

Registers A and B are used as capture registers. This means that they can be loaded with the counter value when a programmable event occurs on the signal TIOA.

The parameter LDRA in TC_CMR defines the TIOA edge for the loading of register A, and the parameter LDRB defines the TIOA edge for the loading of Register B.

RA is loaded only if it has not been loaded since the last trigger or if RB has been loaded since the last loading of RA.

RB is loaded only if RA has been loaded since the last trigger or the last loading of RB.

Loading RA or RB before the read of the last value loaded sets the Overrun Error Flag

(LOVRS) in TC_SR (Status Register). In this case, the old value is overwritten.

In addition to the SYNC signal, the software trigger and the RC compare trigger, an external trigger can be defined.

Bit ABETRG in TC_CMR selects input signal TIOA or TIOB as an external trigger.

Parameter ETRGEDG defines the edge (rising, falling or both) detected to generate an external trigger. If ETRGEDG = 0 (none), the external trigger is disabled.

The following bits in the status register are significant in Capture Operating Mode:

• CPCS: RC Compare Status

There has been an RC Compare match at least once since the last read of the status

• COVFS: Counter Overflow Status

The counter has attempted to count past $FFFF since the last read of the status

• LOVRS: Load Overrun Status

RA or RB has been loaded at least twice without any read of the corresponding register, since the last read of the status

• LDRAS: Load RA Status

RA has been loaded at least once without any read, since the last read of the status

• LDRBS: Load RB Status

RB has been loaded at least once without any read, since the last read of the status

• ETRGS: External Trigger Status

An external trigger on TIOA or TIOB has been detected since the last read of the status

153

1745C–ATARM–12/02

Figure 51. Capture Mode

CPCS

LOVRS

COVFS

LDRBS

LDRAS

ETRGS

TC_SR

TC_IMR

154

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

Waveform Operating

Mode

Compare Register A, B and C

(RA, RB and RC)

In Waveform Operating Mode, RA, RB and RC are all used as compare registers.

RA Compare is used to control the TIOA output. RB Compare is used to control the

TIOB (if configured as output). RC Compare can be programmed to control TIOA and/or

TIOB outputs.

RC Compare can also stop the counter clock (CPCSTOP = 1 in TC_CMR) and/or disable the counter clock (CPCDIS = 1 in TC_CMR).

As in Capture Mode, RC Compare can also generate a trigger if CPCTRG = 1. Trigger resets the counter so RC can control the period of PWM waveforms.

External Event/Trigger

Conditions

This mode is entered by setting the WAVE parameter in TC_CMR (Channel Mode

Register).

Waveform Operating Mode allows the TC Channel to generate 1 or 2 PWM signals with the same frequency and independently programmable duty cycles, or to generate different types of one-shot or repetitive pulses.

In this mode, TIOA is configured as output and TIOB is defined as output if it is not used as an external event (EEVT parameter in TC_CMR).

Figure 52 shows the configuration of the TC Channel when programmed in Waveform

Operating Mode.

An external event can be programmed to be detected on one of the clock sources (XC0,

XC1, XC2) or TIOB. The external event selected can then be used as a trigger.

The parameter EEVT in TC_CMR selects the external trigger. The parameter EEVT-

EDG defines the trigger edge for each of the possible external triggers (rising, falling or both). If EEVTEDG is cleared (none), no external event is defined.

If TIOB is defined as an external event signal (EEVT = 0), TIOB is no longer used as output and the TC channel can only generate a waveform on TIOA.

When an external event is defined, it can be used as a trigger by setting bit ENETRG in

TC_CMR.

As in Capture Mode, the SYNC signal, the software trigger and the RC compare trigger are also available as triggers.

Output Controller

The output controller defines the output level changes on TIOA and TIOB following an event. TIOB control is used only if TIOB is defined as output (not as an external event).

The following events control TIOA and TIOB: software trigger, external event and RC compare. RA compare controls TIOA and RB compare controls TIOB. Each of these events can be programmed to set, clear or toggle the output as defined in the corresponding parameter in TC_CMR.

The tables below show which parameter in TC_CMR is used to define the effect of each event.

Parameter

ASWTRG

AEEVT

ACPC

ACPA

TIOA Event

Software trigger

External event

RC compare

RA compare

155

1745C–ATARM–12/02

Status

Parameter

BSWTRG

BEEVT

BCPC

BCPB

TIOB Event

Software trigger

External event

RC compare

RB compare

If two or more events occur at the same time, the priority level is defined as follows:

1.

Software trigger

2.

External event

3.

RC compare

4.

RA or RB compare

The following bits in the status register are significant in Waveform Mode:

• CPAS: RA Compare Status

There has been a RA Compare match at least once since the last read of the status

• CPBS: RB Compare Status

There has been a RB Compare match at least once since the last read of the status

• CPCS: RC Compare Status

There has been a RC Compare match at least once since the last read of the status

• COVFS: Counter Overflow

Counter has attempted to count past $FFFF since the last read of the status

• ETRGS: External Trigger

External trigger has been detected since the last read of the status

156

AT91M55800A

1745C–ATARM–12/02

Figure 52. Waveform Mode

Output Controller Output Controller

AT91M55800A

CPCS

CPBS

CPAS

COVFS

ETRGS

TC_SR

TC_IMR

157

1745C–ATARM–12/02

TC User Interface

TC Block 0 Base Address: 0xFFFD0000 (Code Label TCB0_BASE)

TC Block 1 Base Address: 0xFFFD4000 (Code Label TCB1_BASE)

Table 18. TC Global Memory Map

Name Offset

0x00

0x40

0x80

0xC0

0xC4

Channel/Register

TC Channel 0

TC Channel 1

TC Channel 2

TC Block Control Register

TC Block Mode Register

TC_BCR

TC_BMR

Access

See Table 19

See Table 19

See Table 19

Write-only

Read/Write

Reset State

0

TC_BCR (Block Control Register) and TC_BMR (Block Mode Register) control the TC block. TC Channels are controlled by the registers listed in Table 19. The offset of each of the Channel registers in Table 19 is in relation to the offset of the corresponding channel as mentioned in Table 18.

Table 19. TC Channel Memory Map

Offset Register

0x00

0x04

0x08

0x0C

0x10

0x14

0x18

0x1C

Channel Control Register

Channel Mode Register

Reserved

Reserved

Counter Value

Register A

Register B

Register C

0x20

0x24

0x28

0x2C

Status Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Note: 1. Read-only if WAVE = 0

Name

TC_CCR

TC_CMR

TC_CV

TC_RA

TC_RB

TC_RC

TC_SR

TC_IER

TC_IDR

TC_IMR

Write-only

Read/Write

Read/Write

Read/Write

(1)

Read/Write

(1)

Read/Write

Read-only

Write-only

Write-only

Read-only

0

0

0

0

0

0

158

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

TC Block Control Register

Register Name:

Access Type:

Offset:

TC_BCR

Write-only

0xC0

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

25

17

9

1

• SYNC: Synchro Command (Code Label TC_SYNC)

0 = No effect.

1 = Asserts the SYNC signal which generates a software trigger simultaneously for each of the channels.

24

16

8

0

SYNC

TC Block Mode Register

Register Name:

Access Type:

Reset State:

Offset:

TC_BMR

Read/Write

0

0xC4

31

23

15

7

30

22

14

6

29

21

13

5

TC2XC2S

• TC0XC0S: External Clock Signal 0 Selection

28

20

12

4

0

0

1

1

TC0XC0S

0

1

0

1

Signal Connected to XC0

TCLK0

None

TIOA1

TIOA2

27

19

11

3

TC1XC1S

26

18

10

2

25

17

9

1

TC0XC0S

24

16

8

0

Code Label: TC_TC0XC0S

TC_TCLK0XC0

TC_NONEXC0

TC_TIOA1XC0

TC_TIOA2XC0

159

1745C–ATARM–12/02

• TC1XC1S: External Clock Signal 1 Selection

TC1XC1S

0

0

1

1

0

1

0

1

Signal Connected to XC1

TCLK1

None

TIOA0

TIOA2

• TC2XC2S: External Clock Signal 2 Selection

TC2XC2S

1

1

0

0

0

1

0

1

Signal Connected to XC2

TCLK2

None

TIOA0

TIOA1

Code Label: TC_TC1XC1S

TC_TCLK1XC1

TC_NONEXC1

TC_TIOA0XC1

TC_TIOA2XC1

Code Label: TC_TC2XC2S

TC_TCLK2XC2

TC_NONEXC2

TC_TIOA0XC2

TC_TIOA1XC2

TC Channel Control Register

Register Name:

Access Type:

Offset:

TC_CCR

Write-only

0x00

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

• CLKEN: Counter Clock Enable Command (Code Label TC_CLKEN)

0 = No effect.

1 = Enables the clock if CLKDIS is not 1.

• CLKDIS: Counter Clock Disable Command (Code Label TC_CLKDIS)

0 = No effect.

1 = Disables the clock.

• SWTRG: Software Trigger Command (Code Label TC_SWTRG)

0 = No effect.

1 = A software trigger is performed: the counter is reset and clock is started.

26

18

10

2

SWTRG

25

17

9

1

CLKDIS

24

16

8

0

CLKEN

160

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

TC Channel Mode Register: Capture Mode

Register Name:

Access Type:

Reset State:

Offset:

TC_CMR

Read/Write

0

0x04

31

30

29

28

23

15

WAVE=0

7

LDBDIS

22

14

CPCTRG

6

LDBSTOP

21

13

5

BURST

20

12

4

1

1

1

1

0

0

0

0

• TCCLKS: Clock Selection

TCCLKS

0

0

0

0

1

1

1

1

0

1

0

1

0

1

0

1

Clock Selected

MCK/2

MCK/8

MCK/32

MCK/128

MCK/1024

XC0

XC1

XC2

27

19

11

3

CLKI

LDRB

26

18

10

ABETRG

2

Code Label: TC_CLKS

TC_CLKS_MCK2

TC_CLKS_MCK8

TC_CLKS_MCK32

TC_CLKS_MCK128

TC_CLKS_MCK1024

TC_CLKS_XC0

TC_CLKS_XC1

TC_CLKS_XC2

25

24

17

LDRA

9

1

TCCLKS

ETRGEDG

16

8

0

• CLKI: Clock Invert (Code Label TC_CLKI)

0 = Counter is incremented on rising edge of the clock.

1 = Counter is incremented on falling edge of the clock.

• BURST: Burst Signal Selection

BURST

1

1

0

0

0

1

0

1

Selected BURST

The clock is not gated by an external signal.

XC0 is ANDed with the selected clock.

XC1 is ANDed with the selected clock.

XC2 is ANDed with the selected clock.

Code Label: TC_BURST

TC_BURST_NONE

TC_BURST_XC0

TC_BURST_XC1

TC_BURST_XC2

• LDBSTOP: Counter Clock Stopped with RB Loading (Code Label TC_LDBSTOP)

0 = Counter clock is not stopped when RB loading occurs.

1 = Counter clock is stopped when RB loading occurs.

• LDBDIS: Counter Clock Disable with RB Loading (Code Label TC_LDBDIS)

0 = Counter clock is not disabled when RB loading occurs.

1 = Counter clock is disabled when RB loading occurs.

161

1745C–ATARM–12/02

• ETRGEDG: External Trigger Edge Selection

ETRGEDG

0

0

1

1

0

1

0

1

Edge

None

Rising edge

Falling edge

Each edge

Code Label: TC_ETRGEDG

TC_ETRGEDG_EDGE_NONE

TC_ETRGEDG_RISING_EDGE

TC_ETRGEDG_FALLING_EDGE

TC_ETRGEDG_BOTH_EDGE

162

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

• ABETRG: TIOA or TIOB External Trigger Selection

ABETRG

0

1

Selected ABETRG

TIOB is used as an external trigger.

TIOA is used as an external trigger.

• CPCTRG: RC Compare Trigger Enable (Code Label TC_CPCTRG)

0 = RC Compare has no effect on the counter and its clock.

1 = RC Compare resets the counter and starts the counter clock.

• WAVE = 0 (Code Label TC_WAVE)

0 = Capture Mode is enabled.

1 = Capture Mode is disabled (Waveform Mode is enabled).

• LDRA: RA Loading Selection

LDRA

1

1

0

0

0

1

0

1

Edge

None

Rising edge of TIOA

Falling edge of TIOA

Each edge of TIOA

• LDRB: RB Loading Selection

LDRB

0

0

1

1

0

1

0

1

Edge

None

Rising edge of TIOA

Falling edge of TIOA

Each edge of TIOA

Code Label: TC_ABETRG

TC_ABETRG_TIOB

TC_ABETRG_TIOA

Code Label: TC_LDRA

TC_LDRA_EDGE_NONE

TC_LDRA_RISING_EDGE

TC_LDRA_FALLING_EDGE

TC_LDRA_BOTH_EDGE

Code Label: TC_LDRB

TC_LDRB_EDGE_NONE

TC_LDRB_RISING_EDGE

TC_LDRB_FALLING_EDGE

TC_LDRB_BOTH_EDGE

163

1745C–ATARM–12/02

TC Channel Mode Register: Waveform Mode

Register Name:

Access Type:

Reset State:

Offset:

TC_CMR

Read/Write

0

0x4

29 28 31 30

BSWTRG

23 22

15

WAVE=1

ASWTRG

14

CPCTRG

21

13

BEEVT

AEEVT

20

12

ENETRG

7

CPCDIS

6

CPCSTOP

5

BURST

4

1

1

1

1

0

0

0

0

• TCCLKS: Clock Selection

TCCLKS

0

0

0

0

1

1

1

1

0

1

0

1

0

1

0

1

Clock Selected

MCK/2

MCK/8

MCK/32

MCK/128

MCK/1024

XC0

XC1

XC2

27

19

11

3

CLKI

BCPC

ACPC

EEVT

26

18

10

2

25 24

BCPB

17

ACPA

9

1

TCCLKS

EEVTEDG

16

8

0

Code Label: TC_CLKS

TC_CLKS_MCK2

TC_CLKS_MCK8

TC_CLKS_MCK32

TC_CLKS_MCK128

TC_CLKS_MCK1024

TC_CLKS_XC0

TC_CLKS_XC1

TC_CLKS_XC2

• CLKI: Clock Invert (Code Label TC_CLKI)

0 = Counter is incremented on rising edge of the clock.

1 = Counter is incremented on falling edge of the clock.

• BURST: Burst Signal Selection

BURST

1

1

0

0

0

1

0

1

Selected BURST

The clock is not gated by an external signal.

XC0 is ANDed with the selected clock.

XC1 is ANDed with the selected clock.

XC2 is ANDed with the selected clock.

Code Label: TC_BURST

TC_BURST_NONE

TC_BURST_XC0

TC_BURST_XC1

TC_BURST_XC2

• CPCSTOP: Counter Clock Stopped with RC Compare (Code Label TC_CPCSTOP)

0 = Counter clock is not stopped when counter reaches RC.

1 = Counter clock is stopped when counter reaches RC.

• CPCDIS: Counter Clock Disable with RC Compare (Code Label TC_CPCDIS)

0 = Counter clock is not disabled when counter reaches RC.

1 = Counter clock is disabled when counter reaches RC.

164

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

• EEVTEDG: External Event Edge Selection

EEVTEDG

0

0

1

1

0

1

0

1

Edge

None

Rising edge

Falling edge

Each edge

• EEVT: External Event Selection

Code Label: TC_EEVTEDG

TC_EEVTEDG_EDGE_NONE

TC_EEVTEDG_RISING_EDGE

TC_EEVTEDG_FALLING_EDGE

TC_EEVTEDG_BOTH_EDGE

0

0

EEVT

0

1

Signal Selected as

External Event

TIOB

XC0

TIOB Direction

Input

(1)

Output

Code Label: TC_EEVT

TC_EEVT_TIOB

TC_EEVT_XC0

1 0 XC1 Output

TC_EEVT_XC1

1 1 XC2 Output

TC_EEVT_XC2

Note: If TIOB is chosen as the external event signal, it is configured as an input and no longer generates waveforms.

• ENETRG: External Event Trigger Enable (Code Label TC_ENETRG)

0 = The external event has no effect on the counter and its clock. In this case, the selected external event only controls the TIOA output.

1 = The external event resets the counter and starts the counter clock.

• CPCTRG: RC Compare Trigger Enable (Code Label TC_CPCTRG)

0 = RC Compare has no effect on the counter and its clock.

1 = RC Compare resets the counter and starts the counter clock.

• WAVE = 1 (Code Label TC_WAVE)

0 = Waveform Mode is disabled (Capture Mode is enabled).

1 = Waveform Mode is enabled.

• ACPA: RA Compare Effect on TIOA

0

0

1

1

ACPA

0

1

0

1

Effect

None

Set

Clear

Toggle

Code Label: TC_ACPA

TC_ACPA_OUTPUT_NONE

TC_ACPA_SET_OUTPUT

TC_ACPA_CLEAR_OUTPUT

TC_ACPA_TOGGLE_OUTPUT

• ACPC: RC Compare Effect on TIOA

ACPC

1

1

0

0

0

1

0

1

Effect

None

Set

Clear

Toggle

Code Label: TC_ACPC

TC_ACPC_OUTPUT_NONE

TC_ACPC_SET_OUTPUT

TC_ACPC_CLEAR_OUTPUT

TC_ACPC_TOGGLE_OUTPUT

165

1745C–ATARM–12/02

• AEEVT: External Event Effect on TIOA

AEEVT

0

0

1

1

0

1

0

1

Effect

None

Set

Clear

Toggle

• ASWTRG: Software Trigger Effect on TIOA

ASWTRG

0

0

1

1

0

1

0

1

Effect

None

Set

Clear

Toggle

• BCPB: RB Compare Effect on TIOB

BCPB

1

1

0

0

0

1

0

1

Effect

None

Set

Clear

Toggle

• BCPC: RC Compare Effect on TIOB

BCPC

0

0

1

1

0

1

0

1

Effect

None

Set

Clear

Toggle

• BEEVT: External Event Effect on TIOB

BEEVT

1

1

0

0

0

1

0

1

Effect

None

Set

Clear

Toggle

• BSWTRG: Software Trigger Effect on TIOB

BSWTRG

1

1

0

0

0

1

0

1

Effect

None

Set

Clear

Toggle

166

AT91M55800A

Code Label: TC_AEEVT

TC_AEEVT_OUTPUT_NONE

TC_AEEVT_SET_OUTPUT

TC_AEEVT_CLEAR_OUTPUT

TC_AEEVT_TOGGLE_OUTPUT

Code Label: TC_ASWTRG

TC_ASWTRG_OUTPUT_NONE

TC_ASWTRG_SET_OUTPUT

TC_ASWTRG_CLEAR_OUTPUT

TC_ASWTRG_TOGGLE_OUTPUT

Code Label: TC_BCPB

TC_BCPB_OUTPUT_NONE

TC_BCPB_SET_OUTPUT

TC_BCPB_CLEAR_OUTPUT

TC_BCPB_TOGGLE_OUTPUT

Code Label: TC_BCPC

TC_BCPC_OUTPUT_NONE

TC_BCPC_SET_OUTPUT

TC_BCPC_CLEAR_OUTPUT

TC_BCPC_TOGGLE_OUTPUT

Code Label: TC_BEEVT

TC_BEEVT_OUTPUT_NONE

TC_BEEVT_SET_OUTPUT

TC_BEEVT_CLEAR_OUTPUT

TC_BEEVT_TOGGLE_OUTPUT

Code Label: TC_BSWTRG

TC_BSWTRG_OUTPUT_NONE

TC_BSWTRG_SET_OUTPUT

TC_BSWTRG_CLEAR_OUTPUT

TC_BSWTRG_TOGGLE_OUTPUT

1745C–ATARM–12/02

AT91M55800A

TC Counter Value Register

Register Name:

Access Type:

Reset State:

Offset:

TC_CVR

Read-only

0

0x10

31

30

29

23

15

22

14

21

13

7 6 5

• CV: Counter Value (Code Label TC_CV)

CV contains the counter value in real-time.

28

20

12

4

CV

CV

27

19

11

3

TC Register A

Register Name:

Access Type:

Reset State:

Offset:

31

23

15

7

22

14

TC_RA

Read-only if WAVE = 0, Read/Write if WAVE = 1

0

0x14

30

29

28

27

21

13

20

12

19

11

RA

6 5 4 3

RA

• RA: Register A (Code Label TC_RA)

RA contains the Register A value in real-time.

26

18

10

2

26

18

10

2

25

17

9

1

24

16

8

0

25

17

9

1

24

16

8

0

167

1745C–ATARM–12/02

TC Register B

Register Name:

Access Type:

Reset State:

Offset:

31

23

15

7

22

14

TC_RB

Read-only if WAVE = 0, Read/Write if WAVE = 1

0

0x18

30

29

28

27

21

13

20

12

19

11

RB

6 5 4 3

RB

• RB: Register B (Code Label TC_RB)

RB contains the Register B value in real-time.

TC Register C

Register Name:

Access Type:

Reset State:

Offset:

31

23

15

22

14

TC_RC

Read/Write

0

0x1C

30

29

21

13

7 6 5

• RC: Register C (Code Label TC_RC)

RC contains the Register C value in real-time.

28

20

12

4

RC

RC

27

19

11

3

26

18

10

2

26

18

10

2

25

17

9

1

24

16

8

0

25

17

9

1

24

16

8

0

168

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

TC Status Register

Register Name:

Access Type:

Offset:

TC_SR

Read/Write

0x20

31

23

15

7

ETRGS

30

22

14

6

LDRBS

29

21

13

5

LDRAS

28

20

12

4

CPCS

27

19

11

3

CPBS

26

18

MTIOB

10

2

CPAS

25

17

MTIOA

9

1

LOVRS

24

16

CLKSTA

8

0

COVFS

• COVFS: Counter Overflow Status (Code Label TC_COVFS)

0 = No counter overflow has occurred since the last read of the Status Register.

1 = A counter overflow has occurred since the last read of the Status Register.

• LOVRS: Load Overrun Status (Code Label TC_LOVRS)

0 = Load overrun has not occurred since the last read of the Status Register or WAVE = 1.

1 = RA or RB have been loaded at least twice without any read of the corresponding register since the last read of the

Status Register, if WAVE = 0.

• CPAS: RA Compare Status (Code Label TC_CPAS)

0 = RA Compare has not occurred since the last read of the Status Register or WAVE = 0.

1 = RA Compare has occurred since the last read of the Status Register, if WAVE = 1.

• CPBS: RB Compare Status (Code Label TC_CPBS)

0 = RB Compare has not occurred since the last read of the Status Register or WAVE = 0.

1 = RB Compare has occurred since the last read of the Status Register, if WAVE = 1.

• CPCS: RC Compare Status (Code Label TC_CPCS)

0 = RC Compare has not occurred since the last read of the Status Register.

1 = RC Compare has occurred since the last read of the Status Register.

• LDRAS: RA Loading Status (Code Label TC_LDRAS)

0 = RA Load has not occurred since the last read of the Status Register or WAVE = 1.

1 = RA Load has occurred since the last read of the Status Register, if WAVE = 0.

• LDRBS: RB Loading Status (Code Label TC_LDRBS)

0 = RB Load has not occurred since the last read of the Status Register or WAVE = 1.

1 = RB Load has occurred since the last read of the Status Register, if WAVE = 0.

• ETRGS: External Trigger Status (Code Label TC_ETRGS)

0 = External trigger has not occurred since the last read of the Status Register.

1 = External trigger has occurred since the last read of the Status Register.

• CLKSTA: Clock Enabling Status (Code Label TC_CLKSTA)

0 = Clock is disabled.

1 = Clock is enabled.

• MTIOA: TIOA Mirror (Code Label TC_MTIOA)

0 = TIOA is low. If WAVE = 0, this means that TIOA pin is low. If WAVE = 1, this means that TIOA is driven low.

1 = TIOA is high. If WAVE = 0, this means that TIOA pin is high. If WAVE = 1, this means that TIOA is driven high.

• MTIOB: TIOB Mirror (Code Label TC_MTIOB)

0 = TIOB is low. If WAVE = 0, this means that TIOB pin is low. If WAVE = 1, this means that TIOB is driven low.

1 = TIOB is high. If WAVE = 0, this means that TIOB pin is high. If WAVE = 1, this means that TIOB is driven high.

169

1745C–ATARM–12/02

TC Interrupt Enable Register

Register Name:

Access Type:

Offset:

TC_IER

Write-only

0x24

31

23

15

7

ETRGS

30

22

14

6

LDRBS

29

21

13

5

LDRAS

• COVFS: Counter Overflow (Code Label TC_COVFS)

0 = No effect.

1 = Enables the Counter Overflow Interrupt.

• LOVRS: Load Overrun (Code Label TC_LOVRS)

0 = No effect.

1: Enables the Load Overrun Interrupt.

• CPAS: RA Compare (Code Label TC_CPAS)

0 = No effect.

1 = Enables the RA Compare Interrupt.

• CPBS: RB Compare (Code Label TC_CPBS)

0 = No effect.

1 = Enables the RB Compare Interrupt.

• CPCS: RC Compare (Code Label TC_CPCS)

0 = No effect.

1 = Enables the RC Compare Interrupt.

• LDRAS: RA Loading (Code Label TC_LDRAS)

0 = No effect.

1 = Enables the RA Load Interrupt.

• LDRBS: RB Loading (Code Label TC_LDRBS)

0 = No effect.

1 = Enables the RB Load Interrupt.

• ETRGS: External Trigger (Code Label TC_ETRGS)

0 = No effect.

1 = Enables the External Trigger Interrupt.

28

20

12

4

CPCS

27

19

11

3

CPBS

26

18

10

2

CPAS

25

17

9

1

LOVRS

24

16

8

0

COVFS

170

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

TC Interrupt Disable Register

Register Name:

Access Type:

Offset:

TC_IDR

Write-only

0x28

31

23

15

7

ETRGS

30

22

14

6

LDRBS

29

21

13

5

LDRAS

• COVFS: Counter Overflow (Code Label TC_COVFS)

0 = No effect.

1 = Disables the Counter Overflow Interrupt.

• LOVRS: Load Overrun (Code Label TC_LOVRS)

0 = No effect.

1 = Disables the Load Overrun Interrupt (if WAVE = 0).

• CPAS: RA Compare (Code Label TC_CPAS)

0 = No effect.

1 = Disables the RA Compare Interrupt (if WAVE = 1).

• CPBS: RB Compare (Code Label TC_CPBS)

0 = No effect.

1 = Disables the RB Compare Interrupt (if WAVE = 1).

• CPCS: RC Compare (Code Label TC_CPCS)

0 = No effect.

1 = Disables the RC Compare Interrupt.

• LDRAS: RA Loading (Code Label TC_LDRAS)

0 = No effect.

1 = Disables the RA Load Interrupt (if WAVE = 0).

• LDRBS: RB Loading (Code Label TC_LDRBS)

0 = No effect.

1 = Disables the RB Load Interrupt (if WAVE = 0).

• ETRGS: External Trigger (Code Label TC_ETRGS)

0 = No effect.

1 = Disables the External Trigger Interrupt.

28

20

12

4

CPCS

27

19

11

3

CPBS

26

18

10

2

CPAS

25

17

9

1

LOVRS

24

16

8

0

COVFS

171

1745C–ATARM–12/02

TC Interrupt Mask Register

Register Name:

Access Type:

Reset State:

Offset:

TC_IMR

Read-only

0

0x2C

31

30

23

15

7

ETRGS

22

14

6

LDRBS

29

21

13

5

LDRAS

• COVFS: Counter Overflow (Code Label TC_COVFS)

0 = The Counter Overflow Interrupt is disabled.

1 = The Counter Overflow Interrupt is enabled.

• LOVRS: Load Overrun (Code Label TC_LOVRS)

0 = The Load Overrun Interrupt is disabled.

1 = The Load Overrun Interrupt is enabled.

• CPAS: RA Compare (Code Label TC_CPAS)

0 = The RA Compare Interrupt is disabled.

1 = The RA Compare Interrupt is enabled.

• CPBS: RB Compare (Code Label TC_CPBS)

0 = The RB Compare Interrupt is disabled.

1 = The RB Compare Interrupt is enabled.

• CPCS: RC Compare (Code Label TC_CPCS)

0 = The RC Compare Interrupt is disabled.

1 = The RC Compare Interrupt is enabled.

• LDRAS: RA Loading (Code Label TC_LDRAS)

0 = The Load RA Interrupt is disabled.

1 = The Load RA Interrupt is enabled.

• LDRBS: RB Loading (Code Label TC_LDRBS)

0 = The Load RB Interrupt is disabled.

1 = The Load RB Interrupt is enabled.

• ETRGS: External Trigger (Code Label TC_ETRGS)

0 = The External Trigger Interrupt is disabled.

1 = The External Trigger Interrupt is enabled.

28

20

12

4

CPCS

27

19

11

3

CPBS

26

18

10

2

CPAS

25

17

9

1

LOVRS

24

16

8

0

COVFS

172

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

SPI: Serial Peripheral

Interface

The AT91M55800A includes an SPI which provides communication with external devices in master or slave mode.

The SPI has four external chip selects which can be connected to up to 15 devices. The data length is programmable, from 8- to 16-bit.

As for the USART, a 2-channel PDC can be used to move data between memory and the SPI without CPU intervention.

Pin Description

Seven pins are associated with the SPI Interface. When not needed for the SPI function, each of these pins can be configured as a PIO.

Support for an external master is provided by the PIO Controller Multi-driver option. To configure an SPI pin as open-drain to support external drivers, set the corresponding bits in the PIO_MDSR register (see ).

An input filter can be enabled on the SPI input pins by setting the corresponding bits in the PIO_IFSR.

The NPCS0/NSS pin can function as a peripheral chip select output or slave select input. Refer to Table 20 for a description of the SPI pins.

Figure 53. SPI Block Diagram

MCK

MCK/32

Serial Peripheral Interface

Parallel IO

Controller

APB

INT

MISO

MOSI

SPCK

NPCS0/NSS

NPCS1

NPCS2

NPCS3

MISO

MOSI

SPCK

NPCS0/NSS

NPCS1

NPCS2

NPCS3

Advanced

Interrupt Controller

173

1745C–ATARM–12/02

Table 20. SPI Pins

Pin Name

Master In Slave Out

Mnemonic

MISO

Mode

Master

Slave

Function

Serial data input to SPI

Serial data output from SPI

Master Out Slave In

Serial Clock

MOSI

SPCK

Master

Slave

Master

Slave

Master

Serial data output from SPI

Serial data input to SPI

Clock output from SPI

Clock input to SPI

Peripheral Chip Selects

Peripheral Chip Select/

Slave Select

NPCS[3:1]

NPCS0/

NSS

Master

Master

Slave

Select peripherals

Output: Selects peripheral

Input: low causes mode fault

Input: chip select for SPI

Notes: 1. After a hardware reset, the SPI clock is disabled by default. The user must configure the Power Management Controller before any access to the User Interface of the SPI.

2. After a hardware reset, the SPI pins are deselected by default (see “PIO: Parallel I/O Controller” on page 105). The user

must configure the PIO Controller to enable the corresponding pins for their SPI function. NPCS0/NSS must be configured as open drain in the Parallel I/O Controller for multi-master operation.

Master Mode

Fixed Peripheral Select

In Master Mode, the SPI controls data transfers to and from the slave(s) connected to the SPI bus. The SPI drives the chip select(s) to the slave(s) and the serial clock

(SPCK). After enabling the SPI, a data transfer begins when the ARM core writes to the

SP_TDR (Transmit Data Register).

Transmit and Receive buffers maintain the data flow at a constant rate with a reduced requirement for high priority interrupt servicing. When new data is available in the

SP_TDR (Transmit Data Register) the SPI continues to transfer data. If the SP_RDR

(Receive Data Register) has not been read before new data is received, the Overrun

Error (OVRES) flag is set.

The delay between the activation of the chip select and the start of the data transfer

(DLYBS) as well as the delay between each data transfer (DLYBCT) can be programmed for each of the four external chip selects. All data transfer characteristics including the two timing values are programmed in registers SP_CSR0 to SP_CSR3

(Chip Select Registers). See Table 21.

In master mode the peripheral selection can be defined in two different ways:

• Fixed Peripheral Select: SPI exchanges data with only one peripheral

• Variable Peripheral Select: Data can be exchanged with more than one peripheral

Figures 54 and 55 show the operation of the SPI in Master Mode. For details concerning the flag and control bits in these diagrams, see the tables in the Programmer’s Model,

starting on page 181.

This mode is ideal for transferring memory blocks without the extra overhead in the transmit data register to determine the peripheral.

Fixed Peripheral Select is activated by setting bit PS to zero in SP_MR (Mode Register).

The peripheral is defined by the PCS field, also in SP_MR.

This option is only available when the SPI is programmed in master mode.

174

AT91M55800A

1745C–ATARM–12/02

Variable Peripheral Select

Chip Selects

Mode Fault Detection

AT91M55800A

Variable Peripheral Select is activated by setting bit PS to one. The PCS field in

SP_TDR (Transmit Data Register) is used to select the destination peripheral. The data transfer characteristics are changed when the selected peripheral changes, according to the associated chip select register.

The PCS field in the SP_MR has no effect.

This option is only available when the SPI is programmed in master mode.

The Chip Select lines are driven by the SPI only if it is programmed in Master Mode.

These lines are used to select the destination peripheral. The PCSDEC field in SP_MR

(Mode Register) selects 1 to 4 peripherals (PCSDEC = 0) or up to 15 peripherals (PCS-

DEC = 1).

If Variable Peripheral Select is active, the chip select signals are defined for each transfer in the PCS field in SP_TDR. Chip select signals can thus be defined independently for each transfer.

If Fixed Peripheral Select is active, Chip Select signals are defined for all transfers by the field PCS in SP_MR. If a transfer with a new peripheral is necessary, the software must wait until the current transfer is completed, then change the value of PCS in

SP_MR before writing new data in SP_TDR.

The value on the NPCS pins at the end of each transfer can be read in the SP_RDR

(Receive Data Register).

By default, all NPCS signals are high (equal to one) before and after each transfer.

A mode fault is detected when the SPI is programmed in Master Mode and a low level is driven by an external master on the NPCS0/NSS signal.

When a mode fault is detected, the MODF bit in the SP_SR is set until the SP_SR is read and the SPI is disabled until re-enabled by bit SPIEN in the SP_CR (Control

Register).

175

1745C–ATARM–12/02

Figure 54. Functional Flow Diagram in Master Mode

SPI Enable

1

TDRE

0

0 Fixed Peripheral

PS

1

Variable Peripheral

NPCS = SP_TDR(PCS) NPCS = SP_MR(PCS)

Delay DLYBS

Serializer = SP_TDR(TD)

TDRE = 1

Data Transfer

SP_RDR(RD) = Serializer

RDRF = 1

Delay DLYBCT

TDRE

1

NPCS = 0xF

Delay DLYBCS

0

0 Fixed Peripheral

PS

1

Variable Peripheral

Same Peripheral

SP_TDR(PCS)

New Peripheral

NPCS = 0xF

Delay DLYBCS

NPCS = SP_TDR(PCS)

176

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

Figure 55. SPI in Master Mode

SP_MR(MCK32)

MCK

MCK/32

0

1

SPI

Master

Clock

SPCK Clock Generator

SP_CSRx[15:0]

SPIDIS SPIEN

S

R

Q

MISO

SP_RDR

PCS

LSB

Serializer

RD

MSB

SP_TDR

PCS TD

SP_MR(PCS)

SP_MR(PS)

1

0

SP_MR(MSTR)

SP_SR

M

O

D

F

T

D

R

E

R

D

R

F

O

V

R

E

S

P

I

E

N

S

SP_IER

SP_IDR

SP_IMR

SPIRQ

SPCK

MOSI

NPCS3

NPCS2

NPCS1

NPCS0

177

1745C–ATARM–12/02

Slave Mode

In Slave Mode, the SPI waits for NSS to go active low before receiving the serial clock from an external master.

In slave mode CPOL, NCPHA and BITS fields of SP_CSR0 are used to define the transfer characteristics. The other Chip Select Registers are not used in slave mode.

Figure 56. SPI in Slave Mode

SCK

NSS

SPIDIS SPIEN

S

R

Q

MOSI

SP_RDR

RD

LSB MSB

Serializer

SP_TDR

TD

MISO

SP_SR S

P

I

E

N

S

T

D

R

E

R

D

R

F

O

V

R

E

SP_IER

SP_IDR

SP_IMR

SPIRQ

178

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

Data Transfer

The following waveforms show examples of data transfers.

Figure 57. SPI Transfer Format (NCPHA equals One, 8 bits per transfer)

SPCK cycle (for reference) 1

2 3 4

5

7

SPCK

(CPOL=0)

SPCK

(CPOL=1)

MOSI

(from master)

MSB 6 5 4 3 2 1

8

LSB

MISO

(from slave)

NSS (to slave)

MSB 6 5 4 3 2 1 LSB

X

Figure 58. SPI Transfer Format (NCPHA equals Zero, 8 bits per transfer)

SPCK cycle (for reference) 1

2 3 4

5

SPCK

(CPOL=0)

SPCK

(CPOL=1)

MOSI

(from master)

MSB 6 5 4 3

MISO

(from slave) X MSB 6

NSS (to slave)

5 4 3

7 8

2 1 LSB

2 1 LSB

179

1745C–ATARM–12/02

Figure 59. Programmable Delays (DLYBCS, DLYBS and DLYBCT)

Chip Select 1

Change peripheral

Chip Select 2

No change of peripheral

SPCK Output

Clock Generation

Peripheral Data

Controller

DLYBCS DLYBS DLYBCT DLYBCT

In master mode the SPI Master Clock is either MCK or MCK/32, as defined by the

MCK32 field of SP_MR. The SPI baud rate clock is generated by dividing the SPI Master Clock by a value between 4 and 510. The divisor is defined in the SCBR field in each

Chip Select Register. The transfer speed can thus be defined independently for each chip select signal.

CPOL and NCPHA in the Chip Select Registers define the clock/data relationship between master and slave devices. CPOL defines the inactive value of the SPCK.

NCPHA defines which edge causes data to change and which edge causes data to be captured.

In Slave Mode, the input clock low and high pulse duration must strictly be longer than two system clock (MCK) periods.

The SPI is closely connected to two Peripheral Data Controller channels. One is dedicated to the receiver. The other is dedicated to the transmitter.

The PDC channel is programmed using SP_TPR (Transmit Pointer) and SP_TCR

(Transmit Counter) for the transmitter and SP_RPR (Receive Pointer) and SP_RCR

(Receive Counter) for the receiver. The status of the PDC is given in SP_SR by the

SPENDTX bit for the transmitter and by the SPENDRX bit for the receiver.

The pointer registers (SP_TPR and SP_RPR) are used to store the address of the transmit or receive buffers. The counter registers (SP_TCR and SP_RCR) are used to store the size of these buffers.

The receiver data transfer is triggered by the RDRF bit and the transmitter data transfer is triggered by TDRE. When a transfer is performed, the counter is decremented and the pointer is incremented. When the counter reaches 0, the status bit is set (SPENDRX for the receiver, SPENDTX for the transmitter in SP_SR) and can be programmed to generate an interrupt. While the counter is at zero, the status bit is asserted and transfers are disabled.

180

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

SPI Programmer’s Model

SPI Base Address: 0xFFFBC000 (Code Label SPI_BASE)

Table 21. SPI Memory Map

0x18

0x1C

0x20

0x24

0x28

0x2C

0x30

0x34

0x38

0x3C

Offset

0x00

0x04

0x08

0x0C

0x10

0x14

Register

Control Register

Mode Register

Receive Data Register

Transmit Data Register

Status Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Receive Pointer Register

Receive Counter Register

Transmit Pointer Register

Transmit Counter Register

Chip Select Register 0

Chip Select Register 1

Chip Select Register 2

Chip Select Register 3

Name

SP_CR

SP_MR

SP_RDR

SP_TDR

SP_SR

SP_IER

SP_IDR

SP_IMR

SP_RPR

SP_RCR

SP_TPR

SP_TCR

SP_CSR0

SP_CSR1

SP_CSR2

SP_CSR3

Write-only

Read/Write

Read-only

Write-only

Read-only

Write-only

Write-only

Read-only

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

0

0

0

0

0

0

0

0

0

0

0

0

181

1745C–ATARM–12/02

SPI Control Register

Register Name:

Access Type:

Offset:

SP_CR

Write-only

0x00

31

23

15

7

SWRST

30

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

• SPIEN: SPI Enable (Code Label SP_SPIEN)

0 = No effect.

1 = Enables the SPI to transfer and receive data.

• SPIDIS: SPI Disable (Code Label SP_SPIDIS)

0 = No effect.

1 = Disables the SPI.

All pins are set in input mode and no data is received or transmitted.

If a transfer is in progress, the transfer is finished before the SPI is disabled.

If both SPIEN and SPIDIS are equal to one when the control register is written, the SPI is disabled.

• SWRST: SPI Software reset (Code Label SP_SWRST)

0 = No effect.

1 = Resets the SPI.

A software triggered hardware reset of the SPI interface is performed.

25

17

9

1

SPIDIS

SPI Mode Register

Register Name:

Access Type:

Reset State:

Offset:

SP_MR

Read/Write

0

0x04

31 30 29 28 27 26

DLYBCS

23

15

7

LLB

22

14

6

21

13

5

20

12

4

19

11

3

MCK32

• MSTR: Master/Slave Mode (Code Label SP_MSTR)

0 = SPI is in Slave mode.

1 = SPI is in Master mode.

MSTR configures the SPI Interface for either master or slave mode operation.

18

10

2

PCSDEC

PCS

25

17

9

1

PS

24

16

8

0

SPIEN

24

16

8

0

MSTR

182

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

• PS: Peripheral Select

PS

0

1

Selected PS

Fixed Peripheral Select

Variable Peripheral Select

Code Label: SP_PS

SP_PS_FIXED

SP_PS_VARIABLE

• PCSDEC: Chip Select Decode (Code Label SP_PCSDEC)

0 = The chip selects are directly connected to a peripheral device.

1 = The four chip select lines are connected to a 4- to 16-bit decoder.

When PCSDEC equals one, up to 16 Chip Select signals can be generated with the four lines using an external 4- to 16bit decoder.

The Chip Select Registers define the characteristics of the 16 chip selects according to the following rules:

SP_CSR0 defines peripheral chip select signals 0 to 3.

SP_CSR1

SP_CSR2

SP_CSR3 defines peripheral chip select signals 4 to 7.

defines peripheral chip select signals 8 to 11.

defines peripheral chip select signals 12 to 15

(1)

.

Note: 1. The 16th state corresponds to a state in which all chip selects are inactive. This allows a different clock configuration to be defined by each chip select register.

• MCK32: Clock Selection (Code Label SP_DIV32)

0 = SPI Master Clock equals MCK.

1 = SPI Master Clock equals MCK/32.

• LLB: Local Loopback Enable (Code Label SP_LLB)

0 = Local loopback path disabled.

1 = Local loopback path enabled.

LLB controls the local loopback on the data serializer for testing in master mode only.

• PCS: Peripheral Chip Select (Code Label SP_PCS)

This field is only used if Fixed Peripheral Select is active (PS=0).

If PCSDEC=0:

PCS = xxx0

PCS = xx01

NPCS[3:0] = 1110 (Code Label SP_PCS0)

NPCS[3:0] = 1101 (Code Label SP_PCS1)

PCS = x011

PCS = 0111

PCS = 1111

(x = don’t care)

NPCS[3:0] = 1011 (Code Label SP_PCS2)

NPCS[3:0] = 0111 (Code Label SP_PCS3) forbidden (no peripheral is selected)

If PCSDEC=1:

NPCS[3:0] output signals = PCS.

• DLYBCS: Delay Between Chip Selects (Code Label SP_DLYBCS)

This field defines the delay from NPCS inactive to the activation of another NPCS. The DLYBCS time guarantees nonoverlapping chip selects and solves bus contentions in case of peripherals having long data float times.

If DLYBCS is less than or equal to six, six SPI Master Clock periods will be inserted by default.

Otherwise, the following equation determines the delay:

Delay_ Between_Chip_Selects = DLYBCS * SPI_Master_Clock_period

183

1745C–ATARM–12/02

SPI Receive Data Register

Register Name:

Access Type:

Reset State:

Offset:

SP_RDR

Read-only

0

0x08

31

23

15

30

22

14

29

21

13

28

20

12

27

19

11

26

18

10

PCS

25

17

9

24

16

8

RD

7 6 5 4 3 2 1 0

RD

• RD: Receive Data (Code Label SP_RD)

Data received by the SPI Interface is stored in this register right-justified. Unused bits read zero.

• PCS: Peripheral Chip Select Status

In Master Mode only, these bits indicate the value on the NPCS pins at the end of a transfer. Otherwise, these bits read zero.

184

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

SPI Transmit Data Register

Register Name:

Access Type:

Offset:

SP_TDR

Write-only

0x0C

31

23

15

30

22

14

29

21

13

28

20

12

27

19

11

26

18

10

PCS

25

17

9

24

16

8

TD

7 6 5 4 3 2 1 0

TD

• TD: Transmit Data (Code Label SP_TD)

Data which is to be transmitted by the SPI Interface is stored in this register. Information to be transmitted must be written to the transmit data register in a right-justified format.

• PCS: Peripheral Chip Select

This field is only used if Variable Peripheral Select is active (PS = 1) and if the SPI is in Master Mode.

If PCSDEC = 0:

PCS = xxx0

PCS = xx01

NPCS[3:0] = 1110

NPCS[3:0] = 1101

PCS = x011

PCS = 0111

PCS = 1111

(x = don’t care)

NPCS[3:0] = 1011

NPCS[3:0] = 0111 forbidden (no peripheral is selected)

If PCSDEC = 1:

NPCS[3:0] output signals = PCS.

185

1745C–ATARM–12/02

SPI Status Register

Register Name:

Access Type:

Reset State:

Offset:

SP_SR

Read-only

0

0x10

31

23

15

7

30

22

14

6

29

21

13

5

SPENDTX

28

20

12

4

SPENDRX

27

19

11

3

OVRES

26

18

10

2

MODF

9

1

TDRE

25

17

24

16

SPIENS

8

0

RDRF

• RDRF: Receive Data Register Full (Code Label SP_RDRF)

0 = No data has been received since the last read of SP_RDR.

1 = Data has been received and the received data has been transferred from the serializer to SP_RDR since the last read of SP_RDR.

• TDRE: Transmit Data Register Empty (Code Label SP_TDRE)

0 = Data has been written to SP_TDR and not yet transferred to the serializer.

1 = The last data written in the Transmit Data Register has been transferred in the serializer.

TDRE equals zero when the SPI is disabled or at reset. The SPI enable command sets this bit to one.

• MODF: Mode Fault Error (Code Label SP_MODF)

0 = No Mode Fault has been detected since the last read of SP_SR.

1 = A Mode Fault occurred since the last read of the SP_SR.

• OVRES: Overrun Error Status (Code Label SP_OVRES)

0 = No overrun has been detected since the last read of SP_SR.

1 = An overrun has occurred since the last read of SP_SR.

An overrun occurs when SP_RDR is loaded at least twice from the serializer since the last read of the SP_RDR.

• SPENDRX: End of Receiver Transfer (Code Label SP_ENDRX)

0 = The End of Transfer signal from the Peripheral Data Controller channel dedicated to the receiver is inactive.

1 = The End of Transfer signal from the Peripheral Data Controller channel dedicated to the receiver is active.

• SPENDTX: End of Transmitter Transfer (Code Label SP_ENDTX)

0 = The End of Transfer signal from the Peripheral Data Controller channel dedicated to the transmitter is inactive.

1 = The End of Transfer signal from the Peripheral Data Controller channel dedicated to the transmitter is active.

• SPIENS: SPI Enable Status (Code Label SP_SPIENS)

0 = SPI is disabled.

1 = SPI is enabled.

186

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

SPI Interrupt Enable Register

Register Name:

Access Type:

Offset:

SP_IER

Write-only

0x14

31

23

15

7

30

22

14

6

29

21

13

5

SPENDTX

28

20

12

4

SPENDRX

27

19

11

3

OVRES

26

18

10

2

MODF

• RDRF: Receive Data Register Full Interrupt Enable (Code Label SP_RDRF)

0 = No effect.

1 = Enables the Receiver Data Register Full Interrupt.

• TDRE: SPI Transmit Data Register Empty Interrupt Enable (Code Label SP_TDRE)

0 = No effect.

1 = Enables the Transmit Data Register Empty Interrupt.

• MODF: Mode Fault Error Interrupt Enable (Code Label SP_MODF)

0 = No effect.

1 = Enables the Mode Fault Interrupt.

• OVRES: Overrun Error Interrupt Enable (Code Label SP_OVRES)

0 = No effect.

1 = Enables the Overrun Error Interrupt.

• SPENDRX: End of Receiver Transfer Interrupt Enable (Code Label SP_ENDRX)

0 = No effect.

1 = Enables the End of Receiver Transfer Interrupt.

• SPENDTX: End of Transmitter Transfer Interrupt Enable (Code Label SP_ENDTX)

0 = No effect.

1 = Enables the End of Transmitter Transfer Interrupt.

25

17

9

1

TDRE

24

16

8

0

RDRF

187

1745C–ATARM–12/02

SPI Interrupt Disable Register

Register Name:

Access Type:

Offset:

SP_IDR

Write-only

0x18

31

23

15

7

30

22

14

6

29

21

13

5

SPENDTX

28

20

12

4

SPENDRX

27

19

11

3

OVRES

26

18

10

2

MODF

• RDRF: Receive Data Register Full Interrupt Disable (Code Label SP_RDRF)

0 = No effect.

1 = Disables the Receiver Data Register Full Interrupt.

• TDRE: Transmit Data Register Empty Interrupt Disable (Code Label SP_TDRE)

0 = No effect.

1 = Disables the Transmit Data Register Empty Interrupt.

• MODF: Mode Fault Interrupt Disable (Code Label SP_MODF)

0 = No effect.

1 = Disables the Mode Fault Interrupt.

• OVRES: Overrun Error Interrupt Disable (Code Label SP_OVRES)

0 = No effect.

1 = Disables the Overrun Error Interrupt.

• SPENDRX: End of Receiver Transfer Interrupt Disable (Code Label SP_ENDRX)

0 = No effect.

1 = Disables the End of Receiver Transfer Interrupt.

• SPENDTX: End of Transmitter Transfer Interrupt Disable (Code Label SP_ENDTX)

0 = No effect.

1 = Disables the End of Transmitter Transfer Interrupt.

25

17

9

1

TDRE

24

16

8

0

RDRF

188

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

SPI Interrupt Mask Register

Register Name:

Access Type:

Reset State:

Offset:

SP_IMR

Read-only

0

0x1C

31

23

15

7

30

22

14

6

29

21

13

5

SPENDTX

28

20

12

4

SPENDRX

27

19

11

3

OVRES

• RDRF: Receive Data Register Full Interrupt Mask (Code Label SP_RDRF)

0 = Receive Data Register Full Interrupt is disabled.

1 = Receive Data Register Full Interrupt is enabled.

• TDRE: Transmit Data Register Empty Interrupt Mask (Code Label SP_TDRE)

0 = Transmit Data Register Empty Interrupt is disabled.

1 = Transmit Data Register Empty Interrupt is enabled.

• MODF: Mode Fault Interrupt Mask (Code Label SP_MODF)

0 = Mode Fault Interrupt is disabled.

1 = Mode Fault Interrupt is enabled.

• OVRES: Overrun Error Interrupt Mask (Code Label SP_OVRES)

0 = Overrun Error Interrupt is disabled.

1 = Overrun Error Interrupt is enabled.

• SPENDRX: End of Receiver Transfer Interrupt Mask (Code Label SP_ENDRX)

0 = End of Receiver Transfer Interrupt is disabled.

1 = End of Receiver Transfer Interrupt is enabled.

• SPENDTX: End of Transmitter Transfer Interrupt Mask (Code Label SP_ENDTX)

0 = End of Transmitter Transfer Interrupt is disabled.

1 = End of Transmitter Transfer Interrupt is enabled.

26

18

10

2

MODF

9

1

TDRE

25

17

24

16

8

0

RDRF

189

1745C–ATARM–12/02

SPI Receive Pointer Register

Name:

Access Type:

Reset State:

Offset:

SP_RPR

Read/Write

0

0x20

31 30 29 28 27

RXPTR

23 22 21 20 19

RXPTR

15 14 13 12

RXPTR

7 6 5 4

RXPTR

• RXPTR: Receive Pointer

RXPTR must be loaded with the address of the receive buffer.

11

3

SPI Receive Counter Register

Name:

Access Type:

Reset State:

Offset:

SP_RCR

Read/Write

0

0x24

31

23

15

30

22

14

29

21

13

28

20

12

RXCTR

7 6 5 4

RXCTR

• RXCTR: Receive Counter

RXCTR must be loaded with the size of the receive buffer.

0: Stop Peripheral Data Transfer dedicated to the receiver.

1 - 65535: Start Peripheral Data transfer if RDRF is active.

27

19

11

3

10

2

26

18

26

18

10

2

9

1

25

17

8

0

24

16

25

17

9

1

24

16

8

0

190

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

SPI Transmit Pointer Register

Name:

Access Type:

Reset State:

Offset:

SP_TPR

Read/Write

0

0x28

31 30 29 28 27

TXPTR

23 22 21 20 19

TXPTR

15 14 13 12 11

TXPTR

7 6 5 4

TXPTR

• TXPTR: Transmit Pointer

TXPTR must be loaded with the address of the transmit buffer.

3

SPI Transmit Counter

Register

Name:

Access Type:

Reset State:

Offset:

SP_TCR

Read/Write

0

0x2C

31

30

23

15

22

14

29

21

13

28

20

12

TXCTR

7 6 5 4

TXCTR

• TXCTR: Transmit Counter

TXCTR must be loaded with the size of the transmit buffer.

0: Stop Peripheral Data Transfer dedicated to the transmitter.

1 - 65535: Start Peripheral Data transfer if TDRE is active.

27

19

11

3

10

2

26

18

26

18

10

2

9

1

25

17

8

0

24

16

25

17

9

1

24

16

8

0

191

1745C–ATARM–12/02

SPI Chip Select Register

Register Name:

Access Type:

Reset State:

Offset:

SP_CSR0.. SP_CSR3

Read/Write

0

0x30......0x3C

31 30 29 28 27 26 25 24

DLYBCT

23 22 21 20 19 18 17 16

DLYBS

15 14 13 12 11 10 9 8

SCBR

7 6

BITS

5 4 3

2

1

NCPHA

0

CPOL

• CPOL: Clock Polarity (Code Label SP_CPOL)

0 = The inactive state value of SPCK is logic level zero.

1 = The inactive state value of SPCK is logic level one.

CPOL is used to determine the inactive state value of the serial clock (SPCK). It is used with NCPHA to produce a desired clock/data relationship between master and slave devices.

• NCPHA: Clock Phase (Code Label SP_NCPHA)

0 = Data is changed on the leading edge of SPCK and captured on the following edge of SPCK.

1 = Data is captured on the leading edge of SPCK and changed on the following edge of SPCK.

NCPHA determines which edge of SPCK causes data to change and which edge causes data to be captured. NCPHA is used with CPOL to produce a desired clock/data relationship between master and slave devices.

• BITS: Bits Per Transfer

The BITS field determines the number of data bits transferred. Reserved values should not be used.

0110

0111

1000

1001

1010

1011

1100

1101

1110

1111

BITS[3:0]

0000

0001

0010

0011

0100

0101

Bits Per Transfer

8

9

10

11

12

13

14

15

16

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Code Label: SP_BITS

SP_BITS_8

SP_BITS_9

SP_BITS_10

SP_BITS_11

SP_BITS_12

SP_BITS_13

SP_BITS_14

SP_BITS_15

SP_BITS_16

192

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

• SCBR: Serial Clock Baud Rate (Code Label SP_SCBR)

In Master Mode, the SPI Interface uses a modulus counter to derive the SPCK baud rate from the SPI Master Clock

(selected between MCK and MCK/32). The Baud rate is selected by writing a value from 2 to 255 in the field SCBR. The following equation determines the SPCK baud rate:

SPCK_Baud_Rate =

SPI_Master_Clock_frequency

2 x SCBR

Giving SCBR a value of zero or one disables the baud rate generator. SPCK is disabled and assumes its inactive state value. No serial transfers may occur. At reset, baud rate is disabled.

• DLYBS: Delay Before SPCK (Code Label SP_DLYBS)

This field defines the delay from NPCS valid to the first valid SPCK transition.

When DLYBS equals zero, the NPCS valid to SPCK transition is 1/2 the SPCK clock period.

Otherwise, the following equation determines the delay:

NPCS_to_SPCK_Delay = DLYBS * SPI_Master_Clock_period

• DLYBCT: Delay Between Consecutive Transfers (Code Label SP_DLYBCT)

This field defines the delay between two consecutive transfers with the same peripheral without removing the chip select. The delay is always inserted after each transfer and before removing the chip select if needed.

When DLYBCT equals zero, a delay of four SPI Master Clock periods are inserted.

Otherwise, the following equation determines the delay:

Delay_After_Transfer = 32 * DLYBCT * SPI_Master_Clock_period

193

1745C–ATARM–12/02

ADC: Analog-todigital Converter

Figure 60. Block Diagram

AD0TRIG

AD0

AD1

AD2

AD3

VDDA

ADVREF

GNDA

AD4

AD5

AD6

AD7

AD1TRIG

The AT91M55800A features two identical 4-channel 10-bit Analog-to-digital converters

(ADC) based on a Successive Approximation Register (SAR) approach.

Each ADC has 4 analog input pins (AD0 to AD3 and AD4 to AD7), digital trigger input pins (AD0TRIG and AD1TRIG), and provides an interrupt signal to the AIC. Both ADCs share the analog power supply pins (VDDA and GNDA) and the input reference voltage pin (ADVREF).

ADC 0

Analog-to-digital Converter

ADC 1

Analog-to-digital Converter

ADIRQ0

ADIRQ1

APB

Advanced

Peripheral

Bus

Table 22. ADC Pin Description

Pin Name

VDDA

GNDA

ADVREF

AD0 - AD7

AD0TRIG, AD1TRIG

Description

Analog power supply

Analog ground

Reference voltage

Analog input channels

External triggers

194

AT91M55800A

1745C–ATARM–12/02

Analog-to-digital

Conversion

Conversion Results

Conversion Triggers

Sleep Mode

AT91M55800A

The ADC has an internal sample-and-hold circuit that holds the sampled analog value during a complete conversion.

The reference voltage pin ADVREF allows the analog input conversion range to be set between 0 and ADVREF. Analog inputs between these voltages convert to values based on a linear conversion.

The ADC uses the ADC Clock to perform the conversion. To convert a single analog value to a 10-bit digital data requires 11 ADC clock cycles. The ADC Clock frequency is selected in the PRESCAL field of the Mode Register (ADC_MR).

When a conversion is complete, the resulting 10-bit digital value is stored in the Convert

Data Register (ADC_CDR) of the selected channel, and the corresponding EOC flag in the Status Register (ADC_SR) is set. This bit can provide an interrupt signal and is automatically cleared when the corresponding Convert Data Register (ADC_CDR) is read.

If the ADC_CDR is not read before further incoming data is converted, the corresponding Overrun Error (OVRE) flag is set in the Status Register (ADC_SR).

The ADC offers an 8-bit or 10-bit operating mode. By default after a reset, the ADC operates in 10-bit mode. If the bit RES in ADC_MR is set, the 8-bit mode is selected.

When operating in 10-bit mode, the field DATA in ADC_CDR is fully significant.

When operating in 8-bit mode, only the 8 lowest bits of DATA are significant and the 2 highest bits read 0.

Conversions of the active analog channels are started with a software or a hardware trigger. The software trigger is provided by writing the bit START in the Control Register

(ADC_CR).

The hardware trigger can be one of the TIOA outputs of the Timer Counter channels, or the external trigger input of the ADC (AD0TRIG for the ADC0 or AD1TRIG for ADC1).

The hardware trigger is selected with the field TRGSEL in the Mode Register

(ADC_MR). The selected hardware trigger is enabled with the bit TRGEN in the Mode

Register (ADC_MR).

If a hardware trigger is selected, the start of a conversion is detected at each rising edge of the selected signal. If one of the TIOA outputs is selected, the corresponding Timer

Counter channel must be programmed in Waveform Mode.

Only one start command is necessary to initiate a conversion sequence on all the channels. The ADC hardware logic automatically performs the conversions on the active channels, then waits for a new request. The Channel Enable (ADC_CHER) and Channel Disable (ADC_CHDR) Registers enable the analog channels to be enabled or disabled independently.

The AT91 ADC Sleep Mode maximizes power saving by deactivating the ADC when it is not being used for conversions. Sleep Mode is selected by setting the bit SLEEP in the

Mode Register ADC_MR.

When a start conversion request occurs, the ADC is automatically activated. As the analog cell requires a start-up time, the logic waits during this time and starts the conversion sequence on the enabled channel. When all conversions are complete, the ADC is deactivated until the next trigger.

This permits an automatic conversion sequence with minimum CPU intervention and optimized power consumption.

195

1745C–ATARM–12/02

ADC User Interface

Base Address ADC 0:0xFFFB0000 (Code Label ADC0_BASE)

Base Address ADC 1:0xFFFB4000 (Code Label ADC1_BASE)

Table 23. ADC Memory Map

Offset

0x00

0x04

0x08

0x0C

0x10

0x14

0x18

0x1C

Register

Control Register

Mode Register

Reserved

Reserved

Channel Enable Register

Channel Disable Register

Name

ADC_CR

ADC_MR

ADC_CHER

ADC_CHDR

Channel Status Register ADC_CHSR

Reserved –

0x20

0x24

0x28

0x2C

0x30

0x34

0x38

0x3C

Status Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Convert Data Register 0

Convert Data Register 1

Convert Data Register 2

Convert Data Register 3

ADC_SR

ADC_IER

ADC_IDR

ADC_IMR

ADC_CDR0

ADC_CDR1

ADC_CDR2

ADC_CDR3

Write-only

Read/Write

Write-only

Write-only

Read-only

Read-only

Write-only

Write-only

Read-only

Read-only

Read-only

Read-only

Read-only

0

0

0

0

0

0

0

0

196

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

ADC Control Register

Register Name:

Access Type:

Offset:

ADC_CR

Write-only

0x00

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

• SWRST: Software Reset (Code Label ADC_SWRST)

0 = No effect.

1 = Resets the ADC simulating a hardware reset.

• START: Start Conversion (Code Label ADC_START)

0 = No effect.

1 = Begins analog-to-digital conversion and clears all EOC bits.

27

19

11

3

26

18

10

2

25

17

9

1

START

24

16

8

0

SWRST

197

1745C–ATARM–12/02

ADC Mode Register

Register Name:

Access Type:

Reset State:

Offset:

ADC_MR

Read/Write

0

0x04

31

30

23

15

7

22

14

6

5

SLEEP

29

21

13

• TRGEN: Trigger Enable .

28

20

12

4

RES

27

19

26

18

11

3

10

PRESCAL

2

TRGSEL

TRGEN

0

1

Selected TRGEN

Hardware triggers are disabled. Starting a conversion is only possible by software.

Hardware trigger selected by TRGSEL field is enabled.

• TRGSEL: Trigger Selection

This field selects the hardware trigger.

TTRGSEL

0 0 0

1

1

1

0

1

0

0

0

1

1

1

0

0

1

1

0

1

1

0

1

0

Selected TRGSEL

TIOA0

TIOA1

TIOA2

TIOA3

TIOA4

TIOA5

External trigger

Reserved

• RES: Resolution.

RES

0

1

Selected RES

10-bit resolution

8-bit resolution

25

17

9

1

Code Label

ADC_TRGEN_DIS

ADC_TRGEN_EN

Code Label

ADC_10_BIT_RES

ADC_8_BIT_RES

24

16

8

0

TRGEN

Code Label: ADC_B_TTRGSEL

ADC_TRG_TIOA0

ADC_TRG_TIOA1

ADC_TRG_TIOA2

ADC_TRG_TIOA3

ADC_TRG_TIOA4

ADC_TRG_TIOA5

ADC_TRG_EXT

198

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

• SLEEP: Sleep Mode

SLEEP

0

1

Selected SLEEP

Normal Mode

Sleep Mode

Code Label

ADC_NORMAL_MODE

ADC_SLEEP_MODE

• PRESCAL: Prescaler Rate Selection (ADC_PRESCAL)

This field defines the conversion clock in function of the Master Clock (MCK):

ADCClock = MCK ((PRESCAL +1)

The ADC clock range is between MCK/2 (PRESCAL = 0) and MCK /128 (PRESCAL = 63). PRESCAL must be programmed in order to provide an ADC clock frequency according to the parameters given in the AT91M55800A Electrical

Datasheet, literature number 1727.

1745C–ATARM–12/02

199

ADC Channel Enable Register

Register Name:

Access Type:

Offset:

ADC_CHER

Write-only

0x10

31

30

29

23

15

7

22

14

6

21

13

5

• CH: Channel Enable (Code Label ADC_CHx)

0 = No effect.

1 = Enables the corresponding channel.

28

20

12

4

ADC Channel Disable

Register

Register Name:

Access Type:

Offset:

ADC_CHDR

Write-only

0x14

31

30

23

15

7

22

14

6

13

5

29

21

• CH: Channel Disable (Code Label ADC_CHx)

0 = No effect.

1 = Disables the corresponding channel.

12

4

28

20

27

19

11

3

CH3

26

18

10

2

CH2

25

17

9

1

CH1

24

16

8

0

CH0

11

3

CH3

27

19

10

2

CH2

26

18

9

1

CH1

25

17

8

0

CH0

24

16

200

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

ADC Channel Status Register

Register Name:

Access Type:

Reset State:

Offset:

ADC_CHSR

Read-only

0

0x18

31

30

29

23

15

7

22

14

6

21

13

5

• CH: Channel Status (Code Label ADC_CHx)

0 = Corresponding channel is disabled.

1 = Corresponding channel is enabled.

28

20

12

4

27

19

11

3

CH3

26

18

10

2

CH2

ADC Status Register

Register Name:

Access Type:

Reset State:

Offset:

ADC_SR

Read-only

0

0x20

31

23

15

7

30

22

14

6

13

5

29

21

12

4

28

20

27

19

11

OVRE3

3

EOC3

26

18

10

OVRE2

2

EOC2

• EOC: End of Conversion (Code Label ADC_EOCx)

0 = Corresponding analog channel is disabled, or the conversion is not finished.

1 = Corresponding analog channel is enabled and conversion is complete.

• OVRE: Enable Overrun Error Interrupt (Code Label ADC_OVREx)

0 = No overrun on the corresponding channel since the last read of ADC_SR.

1 = There has been an overrun on the corresponding channel since the last read of ADC_SR.

25

17

9

OVRE1

1

EOC1

25

17

9

1

CH1

24

16

8

OVRE0

0

EOC0

24

16

8

0

CH0

201

1745C–ATARM–12/02

ADC Interrupt Enable Register

Register Name:

Access Type:

Offset:

ADC_IER

Write-only

0x24

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

27

19

11

OVRE3

3

EOC3

• EOC: End of Conversion Interrupt Enable (Code Label ADC_EOCx)

0 = No effect.

1 = Enables the End of Conversion Interrupt.

• OVRE: Overrun Error Interrupt Enable (Code Label ADC_OVREx)

0 = No effect.

1 = Enables the Overrun Error Interrupt.

ADC Interrupt Disable Register

Register Name:

Access Type:

Offset:

ADC_IDR

Write-only

0x28

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

27

19

11

OVRE3

3

EOC3

• EOC: End of Conversion Interrupt Disable (Code Label ADC_EOCx)

0 = No effect.

1 = Disables the End of Conversion Interrupt.

• OVRE: Overrun Error Interrupt Disable (Code Label ADC_OVREx)

0 = No effect.

1 = Disables the Overrun Error Interrupt.

26

18

10

OVRE2

2

EOC2

26

18

10

OVRE2

2

EOC2

25

17

9

OVRE1

1

EOC1

25

17

9

OVRE1

1

EOC1

24

16

8

OVRE0

0

EOC0

24

16

8

OVRE0

0

EOC0

202

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

ADC Interrupt Mask Register

Register Name:

Access Type:

Reset State:

Offset:

ADC_IMR

Read-only

0

0x2C

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

27

19

11

OVRE3

3

EOC3

• EOC: End of Conversion Interrupt Mask (Code Label ADC_EOCx)

0 = End of Conversion Interrupt is disabled.

1 = End of Conversion Interrupt is enabled.

• OVRE: Overrun Error Interrupt Mask (Code Label ADC_OVREx)

0 = Overrun Error Interrupt is disabled.

1 = Overrun Error Interrupt is enabled.

26

18

10

OVRE2

2

EOC2

25

17

9

OVRE1

1

EOC1

24

16

8

OVRE0

0

EOC0

ADC Convert Data

Register

Register Name:

Access Type:

Reset State:

Offset:

ADC_CDR0 to ADC_CDR3

Read-only

0

0x30 to 0x3C

31

30

29

23

15

7

22

14

6

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

25

17

9

1

DATA

24

16

8

0

DATA

• DATA: Converted Data

The analog-to-digital conversion data is placed into this register at the end of a conversion and remains until a new conversion is completed. The Convert Data Register (CDR) is only loaded if the corresponding analog channel is enabled.

DATA

0 or 1

0 or 1

Selected DATA

10-bits Data

8-bits Data

Code Label: ADC_CDRx

ADC_DATA_10BITS

ADC_DATA_8BITS

203

1745C–ATARM–12/02

DAC: Digital-toanalog Converter

The AT91M55800A features two identical 1-channel 10-bit Digital-to-analog converters

(DAC).

Each DAC has an analog output pin (DA0 and DA1) and provides an interrupt signal to the AIC (DA0IRQ and DA1IRQ). Both DACs share the analog power supply pins VDDA and GNDA, and the input reference pin DAVREF.

Pin Name

VDDA

GNDA

Meaning

Analog power supply

Analog ground

DA0

DA1

Analog output, channel 0

Analog output, channel 1

Figure 61. DAC Block Diagram

Advanced

Peripheral

Bus

DAnIRQ

Control Logic

Data Holding

Register

Data Output

Register

TIOA0....TIOA5

Trigger Selection

10-bit DAC

+

-

VDDA

GNDA

DAn

DAVREF

204

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

Conversion Details

8- or 10-bit Conversion

Mode

Trigger Selection

Digital-to-analog conversions are possible only if the DAC has been enabled in the

APMC and the startup time has elapsed. This startup time is a maximum of 5 µsec, and is indicated more precisely in the Electrical Characteristics datasheet of the device as parameter t

DASU

.

Digital inputs are converted to output voltages on a linear conversion between 0 and

DAVREF. The analog output voltages on DA0 and DA1 pins are determined by the following equation:

DA = DAVREF x (DAC_DOR / 1024)

When DAC_DOR (Data Output Register) is loaded, the analog output voltage is available after a settling time of approximately 5 µsec. The exact value depends on the power supply voltage and the analog output load, and is indicated in the Electrical Characteristics Sheet of the device as parameter t

DAST

.

The output register cannot be written directly and any data transfer to the DAC must be performed by writing in DAC_DHR (Data Holding Register). The transfer from

DAC_DHR to DAC_DOR is performed automatically or when an hardware trigger occurs, depending on the bit TRGEN in DAC_MR (Mode Register).

The DAC integrates an output buffer enabling the reduction of the output impedance, and the possibility of driving external loads directly, without having to add an external operational amplifier. The maximum load supported by the output buffer is indicated in the Electrical Characteristics of the device.

Bit RES in the Mode Register (DAC_MR) selects between 8-bit or 10-bit modes of operation. In 8-bit mode, the data written in DAC_DHR is automatically shifted left two bits and the two lowest bits are written 0. The bit RES also affects the type of transfers performed by the PDC channel:

• in 8-bit mode, only a byte transfer is performed .

• in 10-bit mode, a half-word transfer (16 bits) is performed.

A conversion is triggered when data is written in DAC_DHR and TRGEN in DAC_MR is 0.

If TRGEN is 1, a hardware trigger is selected by the field TTRGSEL between the Timer

Counter Channel outputs TIOA. In this case, the corresponding Timer Counter channel must be programmed in Waveform Mode, and each time the DAC detects a rising edge on the TC output, it transfers the last data written in DAC_DHR into DAC_DOR.

The bit DATRDY traces the fact that a valid data has been written in DAC_DHR and not yet been transferred in DAC_DOR. An interrupt can be generated from this status bit to tell the software to load the following value.

205

1745C–ATARM–12/02

DAC User Interface

Base Address DAC 0:0xFFFA8000 (Code Label DAC0_BASE)

Base Address DAC 1:0xFFFAC000 (Code Label DAC1_BASE)

Table 24. DAC Memory Map

Offset

0x00

Register

Control Register

0x04

0x08

0x0C

0x10

0x14

0x18

0x1C

Mode Register

Data Holding Register

Data Output Register

Status Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Name

DAC_CR

DAC_MR

DAC_DHR

DAC_DOR

DAC_SR

DAC_IER

DAC_IDR

DAC_IMR

Write-only

Read/Write

Read/Write

Read-only

Read-only

Write-only

Write-only

Read-only

0

0

0

0

0

206

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

DAC Control Register

Register Name: DAC_CR

Access Type:

Write-only

Offset: 0x00

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

• SWRST: Software Reset (Code Label DAC_SWRST)

0 = No effect.

1 = Resets the DAC. A software-triggered reset of the DAC interface is performed.

25

17

9

1

24

16

8

0

SWRST

207

1745C–ATARM–12/02

DAC Mode Register

Register Name: DAC_MR

Access Type:

Reset State:

Read/Write

0

Offset: 0x04

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

RES

27

19

11

3

• TTRGEN: Timer Trigger Enable (Code Label DAC_TTRGEN_EN)

TTRGEN

0

1

Selected TTRGEN

The data written into the Data Holding Register (DAC_DHR) is transferred one main clock cycle later to the data output register (DAC_DOR).

The data transfer from the DAC_DHR to the DAC_DOR is synchronized by the timer trigger.

• TTRGSEL: Timer Trigger Selection

Only used if TTRGEN = 1

26

18

10

2

TTRGSEL

25

17

9

1

Code Label

DAC_TTRGEN_DIS

DAC_TTRGEN_EN

24

16

8

0

TTRGEN

1

1

0

1

0

0

0

• RES: Resolution

TTRGSEL

0

0

1

0

1

1

0

RES

0

1

1

X

1

0

0

1

0

Selected Timer Trigger

TIOA0

TIOA1

TIOA2

TIOA3

TIOA4

TIOA5

Reserved

Selected RES

10-bit resolution

8-bit resolution

Code Label

DAC_TTRGSEL

DAC_TRG_TIOA0

DAC_TRG_TIOA1

DAC_TRG_TIOA2

DAC_TRG_TIOA3

DAC_TRG_TIOA4

DAC_TRG_TIOA5

Code Label

DAC_10_BIT_RES

DAC_8_BIT_RES

208

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

DAC Data Holding Register

Register Name: DAC_DHR

Access Type:

Reset State:

Read/Write

0

Offset: 0x08

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

25

17

9

1

DATA

24

16

8

0

DATA

• DATA: Data to be Converted (Code Label DAC_DATA_10BITS or DAC_DATA_8BITS depending on RES)

Data that is to be converted by the DAC is stored in this register. Data to be converted must be written in a right-aligned format.

In 8-bit resolution mode (RES = 1), data written into the Data Holding Register will be shifted to the left by 2 bits and the two LSBs will be 0.

In both 8-bit and 10-bit modes, data will be read as written after the adjustments are done. All non-significant bits read 0.

DAC Output Register

Register Name: DAC_DOR

Access Type:

Read-only

Reset State: 0

Offset: 0x0C

31

23

15

7

30

22

14

6

13

5

29

21

12

4

28

20

11

3

27

19

10

2

26

18

25

17

9

1

DATA

DATA

• DATA: Data being Converted (Code Label DAC_DATA_10BITS or DAC_DATA_8BITS depending on RES)

Data being converted is stored, in a right-aligned format, in this register.

All non-significant bits read 0.

24

16

8

0

209

1745C–ATARM–12/02

DAC Status Register

Register Name: DAC_SR

Access Type:

Reset State:

Read-only

0

Offset: 0x10

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

25

17

1

9

24

16

8

0

DATRDY

• DATRDY: Data Ready for Conversion (Code Label DAC_DATRDY)

0 = Data has been written to the Data Holding Register and not yet transferred to the Data Output Register.

1 = The last data written in the Data Holding Register has been transferred to the Data Output Register. This is equal to

0 when the Timer Trigger is disabled or at reset. Enabling the Timer Trigger sets this bit to 1.

210

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

DAC Interrupt Enable Register

Register Name: DAC_IER

Access Type:

Write-only

Offset: 0x14

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

• DATRDY: Data Ready for Conversion Interrupt Enable (Code Label DAC_DATRDY)

0 = No effect.

1 = Enables the Data Ready for Conversion Interrupt.

DAC Interrupt Disable Register

Register Name: DAC_IDR

Access Type:

Write-only

Offset: 0x18

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

• DATRDY: Data Ready for Conversion Interrupt Disable (Code Label DAC_DATRDY)

0 = No effect.

1 = Disables the Data Ready for Conversion Interrupt.

25

17

9

1

25

17

9

1

24

16

8

0

DATRDY

24

16

8

0

DATRDY

211

1745C–ATARM–12/02

DAC Interrupt Mask Register

Register Name: DAC_IMR

Access Type:

Reset State:

Read-only

0

Offset: 0x1C

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

• DATRDY: Data Ready for Conversion Interrupt Mask (Code Label DAC_DATRDY)

0 = Data Ready for Conversion Interrupt is disabled.

1 = Data Ready for Conversion Interrupt is enabled.

25

17

1

9

24

16

8

0

DATRDY

212

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

JTAG Boundary-scan

Register

The Boundary-scan Register (BSR) contains 256 bits which correspond to active pins and associated control signals.

Each AT91M55800A input pin has a corresponding bit in the Boundary-scan Register for observability.

Each AT91M55800A output pin has a corresponding 2-bit register in the BSR. The

OUTPUT bit contains data which can be forced on the pad. The CTRL bit can put the pad into high impedance.

Each AT91M55800A in/out pin corresponds to a 3-bit register in the BSR. The OUTPUT bit contains data that can be forced on the pad. The INPUT bit is for the observability of data applied to the pad. The CTRL bit selects the direction of the pad.

Table 25. JTAG Boundary-scan Register

Bit

Number

256

Pin Name

NWAIT

NRST

243

242

241

240

247

246

245

244

251

250

249

248

255

254

253

252

235

234

233

232

239

238

237

236

231

230

PB18/BMS

MCKO

NWDOVF

PB17

PB16

PB15

PB14

PB13

PB13

PB12

Pin Type

INPUT

INPUT

IN/OUT

OUTPUT

OUTPUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

Associated BSR

Cells

INPUT

INPUT

OUTPUT

INPUT

CTRL

OUTPUT

CTRL

OUTPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

213

1745C–ATARM–12/02

Table 25. JTAG Boundary-scan Register (Continued)

Bit

Number

229

Pin Name Pin Type

PB11 IN/OUT

200

199

198

197

204

203

202

201

208

207

206

205

212

211

210

209

216

215

214

213

220

219

218

217

224

223

222

221

228

227

226

225 PB10

PB9

PB8

PB7/AD1TRIG

PB6/AD0TRIG

PB5

PB4/IRQ5

PB3

PB2

PB1

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

CTRL

OUTPUT

INPUT

CTRL

Associated BSR

Cells

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

214

AT91M55800A

1745C–ATARM–12/02

1745C–ATARM–12/02

Table 25. JTAG Boundary-scan Register (Continued)

Bit

Number

196

Pin Name Pin Type

PB0 IN/OUT

167

166

165

164

163

171

170

169

168

175

174

173

172

179

178

177

176

183

182

181

180

187

186

185

184

191

190

189

188

195

194

193

192

NCS7

NCS6

NCS5

NCS4

PA29NPCS3

PA28NPCS2

PA27NPCS1

PA26NPCS0

PA25MOSI

PA24MISO

PA23SPCK

PA22RXD2

PA21TXD2

PA21TXD2

OUTPUT

OUTPUT

OUTPUT

OUTPUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

AT91M55800A

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

Associated BSR

Cells

OUTPUT

INPUT

CTRL

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

215

Table 25. JTAG Boundary-scan Register (Continued)

Bit

Number

162

Pin Name Pin Type

PA20SCK2 IN/OUT

133

132

131

130

137

136

135

134

141

140

139

138

145

144

143

142

149

148

147

146

153

152

151

150

157

156

155

154

161

160

159

158 PA19RXD1

PA18/TXD1/NTRI

PA17/SCK1

PA16/RXD0

PA15/TXD0

PA14/SCK0

PA13/FIQ

PA12/IRQ3

PA11/IRQ2

PA10/IRQ1

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

CTRL

OUTPUT

INPUT

CTRL

Associated BSR

Cells

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

216

AT91M55800A

1745C–ATARM–12/02

1745C–ATARM–12/02

Table 25. JTAG Boundary-scan Register (Continued)

Bit

Number

129

Pin Name Pin Type

PA9/IRQ0 IN/OUT

100

99

98

97

96

104

103

102

101

108

107

106

105

112

111

110

109

116

115

114

113

120

119

118

117

124

123

122

121

128

127

126

125 PA8/TIOB5

PA7/TIOA5

PA6/CLK5

PA5/TIOB4

PA4/TIOA4

PA3/TCLK4

PA2/TIOB3

PA1/TIOA3

PA0/TCLK3

PB27/TIOB2

PB26/TIOA2

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

AT91M55800A

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

Associated BSR

Cells

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

217

Table 25. JTAG Boundary-scan Register (Continued)

Bit

Number

95

Pin Name Pin Type

66

65

64

63

70

69

68

67

62

61

74

73

72

71

78

77

76

75

82

81

80

79

86

85

84

83

90

89

88

87

94

93

92

91

PB25/TCLK2

PB24/TIOB1

PB23/TIOA1

PB22/TCLK1

PB21TIOB0

PB20/TIOA0

PB19/TCLK0

D15

D14

D13

D12

D11

D10

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

218

AT91M55800A

INPUT

CTRL

INPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

Associated BSR

Cells

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

INPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

1745C–ATARM–12/02

1745C–ATARM–12/02

Table 25. JTAG Boundary-scan Register (Continued)

Bit

Number

60

Pin Name Pin Type

D9 IN/OUT

59

58

D8 IN/OUT

57

56 D[15:8] IN/OUT

31

30

29

28

27

26

35

34

33

32

39

38

37

36

43

42

41

40

47

46

45

44

51

50

49

48

55

54

53

52

D7

D6

D5

D4

D3

D2

D1

D0

D[7:0]

A23

A22

A21

A20

A19

A18

A17

A16

A[23:16]

A15

A14

A13

A12

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

AT91M55800A

CTRL

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

Associated BSR

Cells

INPUT

OUTPUT

INPUT

OUTPUT

CTRL

INPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

OUTPUT

CTRL

OUTPUT

OUTPUT

OUTPUT

OUTPUT

219

12

11

10

9

16

15

14

13

20

19

18

17

24

23

22

21

4

3

2

6

5

8

7

Table 25. JTAG Boundary-scan Register (Continued)

Bit

Number

25

Pin Name

A11

Pin Type

OUTPUT

A3

A2

A1

NLB/A0

A[7:0]

NCS3

NCS2

NCS1

NCS0

A10

A9

A8

A[15:8]

A7

A6

A5

A4

NUB/NWR1

NUB/NWR0

NOE/NRD

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

IN/OUT

IN/OUT

IN/OUT

1

NCS[7:0]

NUB/NWR1

NWE/NWR0

NOE/NRD

IN/OUT

CTRL

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

INPUT

Associated BSR

Cells

OUTPUT

OUTPUT

OUTPUT

OUTPUT

CTRL

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

CTRL

220

AT91M55800A

1745C–ATARM–12/02

AT91M55800A

Table of Contents

Features................................................................................................. 1

Description ............................................................................................ 1

Pin Configurations................................................................................ 2

Pin Description ..................................................................................... 6

Block Diagram....................................................................................... 8

Architectural Overview......................................................................... 9

Memory................................................................................................................. 9

Peripherals............................................................................................................ 9

Product Overview ............................................................................... 11

Power Supplies................................................................................................... 11

Input/Output Considerations ............................................................................... 11

Master Clock....................................................................................................... 12

Reset .................................................................................................................. 12

Emulation Functions ........................................................................................... 12

Memory Controller .............................................................................................. 13

External Bus Interface ........................................................................................ 15

Peripherals .......................................................................................... 15

System Peripherals............................................................................................. 16

User Peripherals ................................................................................................. 17

Memory Map........................................................................................ 19

EBI: External Bus Interface................................................................ 21

External Memory Mapping.................................................................................. 22

EBI Pin Description............................................................................................. 23

Data Bus Width................................................................................................... 24

Byte-write or Byte-select Access ....................................................................... 24

Boot on NCS0..................................................................................................... 26

Read Protocols ................................................................................................... 27

Write Data Hold Time ......................................................................................... 29

Wait States ......................................................................................................... 30

Memory Access Waveforms ............................................................................... 34

i

1745C–ATARM–12/02

ii

EBI User Interface .............................................................................................. 46

EBI Chip Select Register .................................................................................... 47

EBI Remap Control Register .............................................................................. 49

EBI Memory Control Register ............................................................................. 49

APMC: Advanced Power Management Controller ........................... 50

Operating Modes ................................................................................................ 51

Slow Clock Generator......................................................................................... 53

Clock Generator.................................................................................................. 53

System Clock...................................................................................................... 57

Peripheral Clocks................................................................................................ 57

Shut-down and Wake-up .................................................................................... 58

Alarm .................................................................................................................. 59

First Start-up Sequence...................................................................................... 59

APMC User Interface.......................................................................................... 60

APMC System Clock Enable Register................................................................ 61

APMC System Clock Disable Register ............................................................... 61

APMC System Clock Status Register................................................................. 62

APMC Peripheral Clock Enable Register ........................................................... 62

APMC Peripheral Clock Disable Register........................................................... 63

APMC Peripheral Clock Status Register ............................................................ 63

APMC Clock Generator Mode Register.............................................................. 64

APMC Power Control Register ........................................................................... 65

APMC Power Mode Register.............................................................................. 66

APMC Status Register........................................................................................ 67

APMC Interrupt Enable Register ........................................................................ 68

APMC Interrupt Disable Register........................................................................ 68

APMC Interrupt Mask Register ........................................................................... 69

RTC: Real-time Clock ......................................................................... 70

Year 2000 Conformity......................................................................................... 70

Functional Description ........................................................................................ 71

RTC User Interface............................................................................................. 73

RTC Mode Register ............................................................................................ 74

RTC Hour Mode Register ................................................................................... 75

RTC Time Register ............................................................................................. 75

RTC Calendar Register ...................................................................................... 76

RTC Time Alarm Register................................................................................... 77

RTC Calendar Alarm Register ............................................................................ 78

RTC Status Register........................................................................................... 79

RTC Status Clear Register ................................................................................. 80

RTC Interrupt Enable Register ........................................................................... 81

RTC Interrupt Disable Register........................................................................... 82

RTC Interrupt Mask Register .............................................................................. 83

RTC Valid Entry Register.................................................................................... 84

AT91M55800A

1745C–ATARM–12/02

1745C–ATARM–12/02

AT91M55800A

WD: Watchdog Timer ......................................................................... 85

WD User Interface .............................................................................................. 86

WD Overflow Mode Register .............................................................................. 86

WD Clock Mode Register ................................................................................... 87

WD Control Register........................................................................................... 87

WD Status Register ............................................................................................ 88

WD Enabling Sequence...................................................................................... 88

AIC: Advanced Interrupt Controller .................................................. 89

Hardware Interrupt Vectoring.............................................................................. 91

Priority Controller ................................................................................................ 91

Interrupt Handling ............................................................................................... 91

Interrupt Masking ................................................................................................ 91

Interrupt Clearing and Setting............................................................................. 92

Fast Interrupt Request ........................................................................................ 92

Software Interrupt ............................................................................................... 92

Spurious Interrupt ............................................................................................... 92

Protect Mode ...................................................................................................... 93

AIC User Interface .............................................................................................. 94

AIC Source Mode Register ................................................................................. 95

AIC Source Vector Register................................................................................ 96

AIC Interrupt Vector Register.............................................................................. 96

AIC FIQ Vector Register ..................................................................................... 97

AIC Interrupt Status Register.............................................................................. 97

AIC Interrupt Pending Register........................................................................... 98

AIC Interrupt Mask Register ............................................................................... 98

AIC Core Interrupt Status Register ..................................................................... 99

AIC Interrupt Enable Command Register ........................................................... 99

AIC Interrupt Disable Command Register ........................................................ 100

AIC Interrupt Clear Command Register............................................................ 100

AIC Interrupt Set Command Register ............................................................... 101

AIC End of Interrupt Command Register .......................................................... 101

AIC Spurious Vector Register........................................................................... 102

Standard Interrupt Sequence............................................................................ 103

PIO: Parallel I/O Controller............................................................... 105

PIO Connection Tables .................................................................................... 108

PIO User Interface ............................................................................................ 110

PIO Enable Register ......................................................................................... 111

PIO Disable Register ........................................................................................ 111

PIO Status Register .......................................................................................... 112

PIO Output Enable Register ............................................................................. 112

PIO Output Disable Register ............................................................................ 113

PIO Output Status Register .............................................................................. 113

iii

iv

PIO Input Filter Enable Register ....................................................................... 114

PIO Input Filter Disable Register ...................................................................... 114

PIO Input Filter Status Register ........................................................................ 115

PIO Set Output Data Register .......................................................................... 115

PIO Clear Output Data Register ....................................................................... 116

PIO Output Data Status Register...................................................................... 116

PIO Pin Data Status Register ........................................................................... 117

PIO Interrupt Enable Register........................................................................... 117

PIO Interrupt Disable Register.......................................................................... 118

PIO Interrupt Mask Register ............................................................................. 118

PIO Interrupt Status Register............................................................................ 119

PIO Multi-driver Enable Register ...................................................................... 119

PIO Multi-driver Disable Register ..................................................................... 120

PIO Multi-driver Status Register ....................................................................... 120

SF: Special Function Registers ....................................................... 121

Chip Identifier.................................................................................................... 121

SF User Interface.............................................................................................. 121

Chip ID Register ............................................................................................... 122

Chip ID Extension Register............................................................................... 123

Reset Status Register....................................................................................... 124

SF Protect Mode Register ................................................................................ 124

USART: Universal Synchronous/ Asynchronous Receiver/Transmitter ....................................................................................................... 125

Pin Description.................................................................................................. 126

Baud Rate Generator........................................................................................ 127

Receiver............................................................................................................ 128

Transmitter........................................................................................................ 130

Multi-drop Mode................................................................................................ 130

Break ................................................................................................................ 131

Peripheral Data Controller ................................................................................ 133

Interrupt Generation.......................................................................................... 133

Channel Modes................................................................................................. 133

USART User Interface ...................................................................................... 135

USART Control Register................................................................................... 136

USART Mode Register ..................................................................................... 137

USART Interrupt Enable Register..................................................................... 139

USART Interrupt Disable Register.................................................................... 140

USART Interrupt Mask Register ....................................................................... 141

USART Channel Status Register...................................................................... 142

USART Receiver Holding Register................................................................... 143

USART Transmitter Holding Register............................................................... 143

USART Baud Rate Generator Register ............................................................ 144

USART Receiver Time-out Register................................................................. 145

AT91M55800A

1745C–ATARM–12/02

1745C–ATARM–12/02

AT91M55800A

USART Transmitter Time-guard Register......................................................... 145

USART Receive Pointer Register..................................................................... 146

USART Receive Counter Register ................................................................... 146

USART Transmit Pointer Register.................................................................... 147

USART Transmit Counter Register .................................................................. 147

TC: Timer Counter ............................................................................ 148

Signal Name Description .................................................................................. 149

Timer Counter Description................................................................................ 150

Capture Operating Mode .................................................................................. 153

Waveform Operating Mode............................................................................... 155

TC User Interface ............................................................................................. 158

TC Block Control Register ................................................................................ 159

TC Block Mode Register................................................................................... 159

TC Channel Control Register............................................................................ 160

TC Channel Mode Register: Capture Mode ..................................................... 161

TC Channel Mode Register: Waveform Mode.................................................. 164

TC Counter Value Register............................................................................... 167

TC Register A ................................................................................................... 167

TC Register B ................................................................................................... 168

TC Register C ................................................................................................... 168

TC Status Register ........................................................................................... 169

TC Interrupt Enable Register ............................................................................ 170

TC Interrupt Disable Register ........................................................................... 171

TC Interrupt Mask Register............................................................................... 172

SPI: Serial Peripheral Interface ....................................................... 173

Pin Description.................................................................................................. 173

Master Mode..................................................................................................... 174

Slave Mode....................................................................................................... 178

Data Transfer.................................................................................................... 179

Clock Generation .............................................................................................. 180

Peripheral Data Controller ................................................................................ 180

SPI Programmer’s Model.................................................................................. 181

SPI Control Register ......................................................................................... 182

SPI Mode Register............................................................................................ 182

SPI Receive Data Register ............................................................................... 184

SPI Transmit Data Register .............................................................................. 185

SPI Status Register .......................................................................................... 186

SPI Interrupt Enable Register ........................................................................... 187

SPI Interrupt Disable Register .......................................................................... 188

SPI Interrupt Mask Register.............................................................................. 189

SPI Receive Pointer Register ........................................................................... 190

SPI Receive Counter Register.......................................................................... 190

SPI Transmit Pointer Register .......................................................................... 191

v

SPI Transmit Counter Register......................................................................... 191

SPI Chip Select Register .................................................................................. 192

ADC: Analog-to-digital Converter ................................................... 194

Analog-to-digital Conversion............................................................................. 195

Conversion Results........................................................................................... 195

Conversion Triggers ......................................................................................... 195

Sleep Mode....................................................................................................... 195

ADC User Interface........................................................................................... 196

ADC Control Register ....................................................................................... 197

ADC Mode Register.......................................................................................... 198

ADC Channel Enable Register ......................................................................... 200

ADC Channel Disable Register ........................................................................ 200

ADC Channel Status Register .......................................................................... 201

ADC Status Register......................................................................................... 201

ADC Interrupt Enable Register ......................................................................... 202

ADC Interrupt Mask Register............................................................................ 203

ADC Convert Data Register.............................................................................. 203

DAC: Digital-to-analog Converter ................................................... 204

Conversion Details............................................................................................ 205

8- or 10-bit Conversion Mode ........................................................................... 205

Trigger Selection............................................................................................... 205

DAC User Interface........................................................................................... 206

DAC Control Register ....................................................................................... 207

DAC Mode Register.......................................................................................... 208

DAC Data Holding Register .............................................................................. 209

DAC Output Register ........................................................................................ 209

DAC Status Register......................................................................................... 210

DAC Interrupt Enable Register ......................................................................... 211

DAC Interrupt Disable Register ........................................................................ 211

DAC Interrupt Mask Register............................................................................ 212

JTAG Boundary-scan Register........................................................ 213

Document Details ............................................................................. 221

Revision History................................................................................................ 221

Table of Contents ................................................................................ i

vi

AT91M55800A

1745C–ATARM–12/02

Atmel Headquarters

Corporate Headquarters

2325 Orchard Parkway

San Jose, CA 95131

TEL 1(408) 441-0311

FAX 1(408) 487-2600

Europe

Atmel Sarl

Route des Arsenaux 41

Case Postale 80

CH-1705 Fribourg

Switzerland

TEL (41) 26-426-5555

FAX (41) 26-426-5500

Asia

Room 1219

Chinachem Golden Plaza

77 Mody Road Tsimhatsui

East Kowloon

Hong Kong

TEL (852) 2721-9778

FAX (852) 2722-1369

Japan

9F, Tonetsu Shinkawa Bldg.

1-24-8 Shinkawa

Chuo-ku, Tokyo 104-0033

Japan

TEL (81) 3-3523-3551

FAX (81) 3-3523-7581

Atmel Operations

Memory

2325 Orchard Parkway

San Jose, CA 95131

TEL 1(408) 441-0311

FAX 1(408) 436-4314

Microcontrollers
