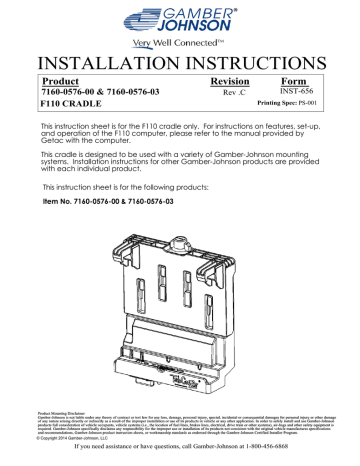

INSTALLATION INSTRUCTIONS
Product
7160-0576-00 & 7160-0576-03
F110 CRADLE
Revision
Rev .C
Form
INST-656
Printing Spec: PS-001
This instruction sheet is for the F110 cradle only. For instructions on features, set-up,
and operation of the F110 computer, please refer to the manual provided by
Getac with the computer.
This cradle is designed to be used with a variety of Gamber-Johnson mounting
systems. Installation instructions for other Gamber-Johnson products are provided
with each individual product.
This instruction sheet is for the following products:
Item No. 7160-0576-00 & 7160-0576-03
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
© Copyright 2014 Gamber-Johnson, LLC
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
F110 CRADLE FEATURE IDENTIFICATON
Key lockable
Wing Turn Latch
Top Hooks
Slide Plate
Base
Tri RF Connector
Guide Pins
1/4-20unc Threaded Inserts
(GJ Hole Pattern and
Vesa 75mm Hole Pattern)
GPS
WWAN
WLAN
INSERTING THE COMPUTER INTO THE CRADLE
Figure 1
1. With the slide plate in the open
position, insert the bottom of the
computer into the cradle. The guide
pins on the dock will help to align the
computer.
Supports
Then rotate the top of the comptuter
under the top hooks until the
computer is resting on the two supports
sticking out from the slide plate.
(see Figues 1, 2 & 3)
Figure 2
3. Push downward on the wing turn
latch until the slide plate is holding the
computer in place, then turn the latch
to hold the slide plate in the
downward position. (See Figure 4)
4. (Optional) The key lock can now
be used for security purposes.
Figure 3
TO REMOVE THE COMPUTER
1. Unlock if locked.
3. Rotate the wing turn latch 90 deg.
The slide plate is spring loaded and
should raise with your hand when you
release the pressure on the slide plate.
4. Rotate the top of the computer out
of the cradle to remove.
Figure 4
