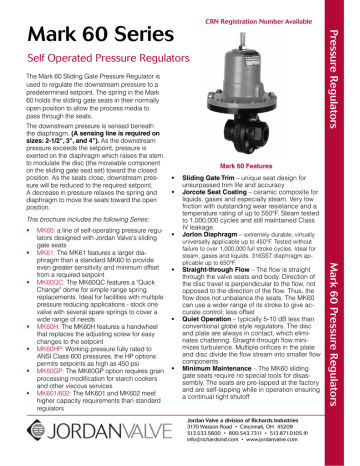

Mark 60 Series

Self Operated Pressure Regulators

CRN Registration Number Available

The Mark 60 Sliding Gate Pressure Regulator is used to regulate the downstream pressure to a predetermined setpoint. The spring in the Mark

60 holds the sliding gate seats in their normally open position to allow the process media to pass through the seats.

The downstream pressure is sensed beneath the diaphragm. (A sensing line is required on

sizes: 2-1/2", 3", and 4").

As the downstream pressure exceeds the setpoint, pressure is exerted on the diaphragm which raises the stem to modulate the disc (the moveable component on the sliding gate seat set) toward the closed position. As the seats close, downstream pressure will be reduced to the required setpoint.

A decrease in pressure relaxes the spring and diaphragm to move the seats toward the open position.

This brochure includes the following Series:

• MK60: a line of self-operating pressure regulators designed with Jordan Valve's sliding gate seats

• MK61: The MK61 features a larger diaphragm than a standard MK60 to provide even greater sensitivity and minimum offset from a required setpoint

• MK60QC: The MK60QC features a "Quick

Change" dome for simple range spring replacements. Ideal for facilities with multiple pressure reducing applications - stock one valve with several spare springs to cover a wide range of needs

• MK60H: The MK60H features a handwheel that replaces the adjusting screw for easy changes to the setpoint

• MK60HP: Working pressure fully rated to

ANSI Class 600 pressures, the HP options permits setpoints as high as 450 psi

• MK60GP: The MK60GP option requires grain processing modification for starch cookers and other viscous services

• MK601/602: The MK601 and MK602 meet higher capacity requirements than standard regulators

Mark 60 Features

• Sliding Gate Trim

– unique seat design for unsurpassed trim life and accuracy

• Jorcote Seat Coating

– ceramic composite for liquids, gases and especially steam. Very low friction with outstanding wear resistance and a temperature rating of up to 550°F. Steam tested to 1,000,000 cycles and still maintained Class

IV leakage.

• Jorlon Diaphragm

– extremely durable, virtually universally applicable up to 450°F. Tested without failure to over 1,000,000 full stroke cycles. Ideal for steam, gases and liquids. 316SST diaphragm applicable up to 650°F.

• Straight-through Flow

– The flow is straight through the valve seats and body. Direction of the disc travel is perpendicular to the flow, not opposed to the direction of the flow. Thus, the flow does not unbalance the seats. The MK60 can use a wider range of its stroke to give accurate control; less offset

• Quiet Operation

– typically 5-10 dB less than conventional globe style regulators. The disc and plate are always in contact, which eliminates chattering. Straight-through flow minimizes turbulence. Multiple orifices in the plate and disc divide the flow stream into smaller flow components

• Minimum Maintenance

– The MK60 sliding gate seats require no special tools for disassembly. The seats are pre-lapped at the factory and are self-lapping while in operation ensuring a continual tight shutoff

Jordan Valve a division of Richards Industries

3170 Wasson Road • Cincinnati, OH 45209

513.533.5600 • 800.543.7311 • 513.871.0105 (f) [email protected] • www.jordanvalve.com

Ideal for gas and liquids

Superior for steam

M ark

60 S elf

-O perated

p reSSure

r egulatOrS

F eatures

& B eneFits

Optimized, low rate springs for increased accuracy

Heavy duty housing can withstand full inlet pressure rating

Breather port for actuator venting

Jorlon diaphragm – proprietary modified PTFE excellent for high cycling, chemical resistance, steam service

Straight through flow: less noise, less wear, better rangeability, longer seat life

All Stainless Steel internals extend seat, trim life

Internal sensing simplifies installation, improves response time

Sliding Gate Trim – reduce or replace trim with ease

-2-

Jorcote – advanced ceramic coating delivers superior wear resistance and ensures extended

Class IV shutoff

M ark

60 S elf

-O perated

p reSSure

r egulatOrS s peciFications

– MK60/60Qc/61/60Hp

Sizes:

(note: 1/4" & 3/8" sizes use 1/2" body with reducers)

• Mark 60: 1/4" – 4" (DN8 – DN100)

• Mark 60QC: 1/4" – 2" (DN8 – DN50)

• Mark 61: 1/4" – 3/4" (DN8 – DN20)

• Mark 60HP: 1/4" – 4" (DN8 – DN100)

End Connections:

• Threaded – FNPT, BSPT, BSPP (1/2" – 2" only)

• ANSI Flanges (150#, 300#)

• DIN Flanges (PN 10/16, PN 25/40)

Spring Housing:

• CI or DI – 1/4" – 2" (DN8 – DN50)

• DI/Steel – 2-1/2" – 4" (DN65 – DN100)

Body Materials:

• Ductile Iron

• Bronze (1/2" – 2"; DN15 – DN50)

• Carbon Steel (A216 WCB)

• Stainless Steel (A351/CF8M)

Trim Materials:

• 303SST – Standard on Ductile Iron, Bronze, Carbon Steel valves

• 316SST – Standard on Stainless Steel valves

• Monel, Hastelloy and other Alloys available

Reduced Pressure Control Ranges:

Select a range to match your setpoint. For optimal performance, your setpoint should fall in the upper portion of the selected range.

Model

60 & 60QC

60HP

61

Size (DN)

1/4" – 3/4"

(DN8 – DN20)

1" – 2"

(DN25 – DN50)

2-1/2" – 4"

(DN65 – DN100)

1/2" – 2"

(DN15 – DN40)

2-1/2" – 4"

(DN65 – DN100)

1/4" – 3/4"

(DN8 – DN20)

35 – 160

95 – 220

1 – 5

3 – 8

5 – 20

10 – 30

20 – 45

30 – 95

60 – 160

7 – 18

10 – 25

15 – 35

75 – 190

100 – 320

150 – 450

30 – 75

65 – 110

1 – 5

2 – 12

2 – 25

10 – 35

20 – 55

20 – 80

40 – 115

25 – 160

30 – 180

PSI

Spring Ranges

2 – 23

10 – 38

20 – 55

30 – 85

Bar

0,14 – 1,6

0,69 – 2,6

1,4 – 3,8

2,1 – 5,9

2,4 – 11,0

6,6 – 15,2

0,07 – 0,34

0,21 – 0,55

0,34 – 1,4

0,69 – 2,1

1,4 – 3,1

2,1 – 6,6

4,1 – 11,0

0,48 – 1,2

0,69 – 1,7

1,0 – 2,4

5,2 – 13,1

6,9 – 22,1

10,3 – 31,0

2,07 – 5,17

4,5 – 7,6

0,07 – 0,34

0,14 – 0,83

0,14 – 1,7

0,69 – 2,4

1,4 – 3,8

1,4 – 5,5

2,8 – 7,9

1,7 – 11,0

2,1 – 12,4

Seat Materials:

• Jorcote on SST – Standard

• Other materials available – Consult factory

Diaphragm Materials:

• Stainless Steel – Standard on 1/4" – 2" (DN8 – DN50)

• Jorlon – 1/2" – 4" (DN15 – DN100)

• Buna-N – Standard on 2-1/2" – 4" (DN65 – DN100)

• Viton – Optional

Service:

Steam, water, oil, gas, air and chemicals

Shutoff:

ANSI Class IV

Options:

• Double Bolting:

increases the pressure rating of the valve and ensures a tight seal between the spring housing and the body for services with high inlet pressures

• High Pressure Spring Housing:

The HP option is an elongated spring housing that features a large spring for high pressure setpoints (up to 450 psi/31bar)

• Handwheel:

the H option is a handwheel that is mounted on the adjusting screw to allow for easy setpoint changes

• Exotic Alloys:

where service conditions dictate the use of specialty materials, the Mark 60 Series can be produced with bodies, trim and seats in Monel, Alloy

20, Hastelloy B, Hastelloy C, Titanium and others

• GP Option:

grain processing modification for starch cookers and other viscous services. Available on Stainless Steel valves in 1/4" – 2" sizes only (DN8 – DN50)

• Cryogenic Service:

CR option is a special spring housing for use if valve is in cryogenic service

CV Values & Maximum Differential Pressures

Cv (Kv)

0.84 (0,74)

1.6 (1,4)

2.5 (2,2)

4.4 (3,8)

6.4 (5,5)

9.5 (8,2)

15 (12,9)

25 (21,5)

30 (25,8)

55 (47,3)

115 (99)

200 (172)

Size (DN)

1/4" (DN8)

3/8" (DN12)

1/2" & 3/4"

(DN15 & DN20)

1" & 1-1/4"

(DN25 & DN32)

1-1/2" (DN40)

2" (DN50)

2-1/2" (DN65)

3" (DN75)

4" (DN100)

Seat Material Max. ∆P PSI (bar)

Jorcote 400 (27,6)

Jorcote 400 (27,6)

Jorcote

Jorcote

Jorcote

Jorcote

Jorcote

Jorcote

Jorcote

400 (27,6)

400 (27,6)

325 (22,4)

325 (22,4)

150 (10,34)

150 (10,34)

150 (10,34)

-3-

Low Flow Cv's:

reduced Cv's (Kv's) are available. Cv

(Kv) ratings of smaller sized valves can be supplied in a larger valve size

0.42 (0,36) 0.21 (0,18) 0.08 (0,07) 0.04 (0,03) 0.02 (0,02)

0.008 (0,007) 0.004 (0,003) 0.002 (0,002) 0.0008 (0,007)*

* N/A in 316SS
