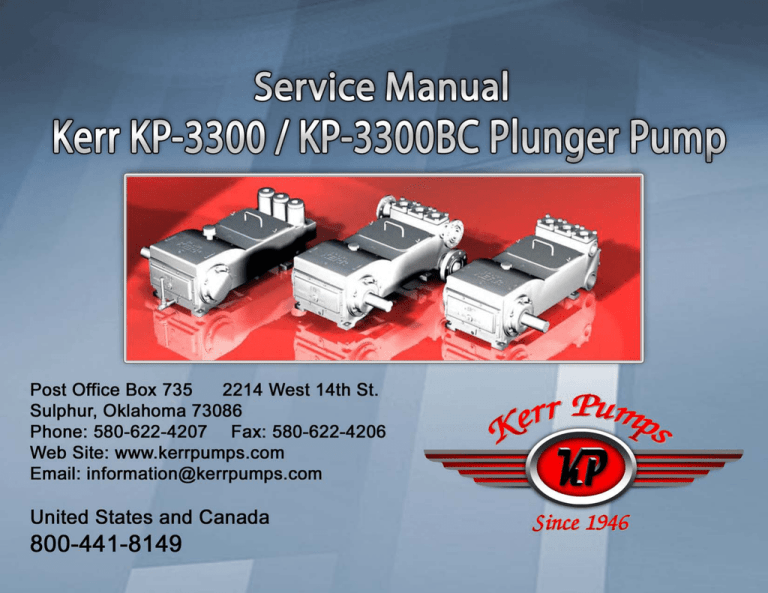

KERR PUMP CORPORATION SERVICE MANUAL

EIGHTEENTH EDITION

NEW PUMP WARRANTY

A. Kerr Machine Co. (Kerr Pump Corporation) warrants its new pumps to be free from defective materials and/or workmanship for a period of  one year from the date of sale by the Distributor, provided that the new pump is registered in accordance with Paragraph No. 2 hereof,  properly installed and operated in accordance with the Company’s Service Manual, and all other terms of this warranty agreement are  complied with by the purchaser.  As hereinafter provided, this warranty includes the replacement of parts and labor to correct any deficiency.

All defective parts must be returned to the Company’s Home Office for examination before this warranty is effective.  This warranty applies  to parts, which have been replaced under this warranty only so long as the original pump warranty is effective.  This warranty is for the  exclusive benefit of the purchaser and is not transferable.

B. Each Distributor of a new pump will provide the customer with a registration blank furnished to him by the Company which must state the  date of sale, be signed by the purchaser and the Distributor, and delivered to the Home Office of the Company within fifteen (15) days of the  date of sale.

C. In the event of a claim under this warranty, made within the one‐year warranty period, the purchaser must notify the Distributor, and the

Distributor shall contact Kerr Pump Corporation before any repairs or service calls are made.

D. All warranty claims must be sent to Kerr Pump Corporation Home Office on the authorized warranty claim form provided by Kerr Pump

Corporation, and available from the Distributor before any warranty claim will be considered.  It is understood that Kerr Pump Corporation  will deteriorate due to ordinary wear, therefore, the following credits shall apply to all replacement parts, labor, surface freight, travel time  and mileage allowance furnished under this warranty.  i. For the first ninety (90) days from the date of sale by the Distributor, 100% credit will be allowed on a current list price basis.  ii. From 91 to 180 days from the date of sale by the Distributor, 75% credit will be allowed on a current list price basis.  iii. From 181 days to 270 days by the Distributor, 50% credit will be allowed on a current list price basis.  iv. From 271 days to one year after the date of sale by the Distributor, 25% credit will be allowed on a current list price basis.

The credit given to the Distributor for replacement parts or pumps under this warranty is based upon the Distributor’s net cost paid Kerr

Pumps for such replacement parts or pumps.

E. In the event of a warranty claim under this warranty made within ninety (90) days of the date of sale by the Distributor, Kerr Pump

Corporation, before any repairs are made, shall be contacted by the Distributor and given the option of having the Distributor either repair or  replace the pump.

F. Upon any claim under this warranty, other than a claim wherein Kerr Pump Corporation at its option replaced the pump as provided in

Paragraph No. 5 hereof, the Distributor will make the necessary repairs an/or replacement, and Kerr Pump Corporation shall allow the cost of  labor on warranty claims.  The labor cost may include travel time not to exceed (8) hours of actual travel time.  Kerr Pump Corporation will  pay surface freight on warranty shipments.  After making the necessary repairs and/or replacements, the Distributor will bill the customer for  the full amount due for the repair.  Thereafter, the Distributor will submit the warranty claim form provided by Kerr Pump Corporation to the

Kerr Pump Corporation Home Office for consideration.  In the event the warranty claim is honored by Kerr Pump Corporation a Credit

Memorandum will be issued to the Distributor in the amount determined by the table in Paragraph No. 4 hereof.  Thereafter, the customer’s  invoice will be credited by the Distributor in the same percentage allowed the Distributor by Kerr Pump Corporation

If requested by Kerr Pump Corporation the purchaser or the Distributor shall return the alleged defective product to Kerr Pump Corporation  factory, freight prepaid, for examination and testing.  If Kerr Pump Corporation determines the product is defective Kerr Pump Corporation  will either repair or replace such product with a like of Kerr Pump Corporation manufacture, f.o.b. to the Distributor or allow the Distributor  credit to an amount equal to the invoiced value of the defective product.  The responsibility of Kerr Pump Corporation is limited to the  repairing or replacing defective material manufactured by it, provided Kerr Pump Corporation examination discloses to its satisfaction that  such material has not been altered or repaired, other than by Kerr Pump Corporation approved procedures, subject to misuse, improper  maintenance, negligence or accident.  Kerr Pump Corporation will not be responsible for loss of liquid or for damage of any kind, or from any  cause, to any person or property of any person, or for loss of revenue of profit, or for any other special incidental or consequential damages.

G. The warranty applies only to new Kerr Pump Corporation.  The Company specifically excludes from this warranty the following.  i. All plungers, valves, plunger packing, valve springs, seals gaskets, and corrosion and/or erosion damage caused by the fluid handled by  the Company’s pump.  ii. In addition, after the expiration of the pump warranty all replacement parts are no longer in warranty.

H. In extreme cases where in the opinion of Kerr Pump Corporation, if a pump has been misused or is being misused, Kerr Pump Corporation  reserves the option to offer to redeem the pump from the purchaser.  Should the purchaser refuse to allow the pump to be redeemed and  chooses to continue improper operation, the warranty will be void.

I. Any parts or equipment which Kerr Pump Corporation supplies and does not manufacture shall be subject only to the warranties of Kerr

Pump Corporation vendors to the extent Kerr Pump Corporation can enforce such warranties.

J. Any repairs to, alterations of, or work done on alleged defective products without Kerr Pump Corporation specific written authorization shall  void Kerr Pump Corporation warranty applicable thereto.

K. Any action for breach of warranty or other action under this agreement must be commenced within (1) year after such cause of action arises.

This limited warranty is in lieu of all other warranties, expressed or implied, including any implied warranty or merchantability or fitness.

TROUBLESHOOTING GUIDE

Problem

Unusual pounding, knocking broken  valve spring

Loss of pressure or volume

Consistent, rhythmic knock

Packing failure (Excessive)

Abnormal wear of fluid end parts

Abnormal wear of power end parts

Heat in power end

Reason/Solution

• Insufficient fluid at high speed.

• Suction line is improper size or is constricted. (Trash in line, valve partly opened, etc.)

• Possibility of gas in the fluid causing the roughness.

• Foreign matter may be holding valves open.

• Worn valves.

• Broken springs.

• Improper bearing adjustment.

• Worn bearings or connecting rods.

• NOTE: Valve noise is common and normal in high‐speed pumps.  It should not cause concern unless  it becomes erratic.

• Improper installation.

• Improper type of lubrication.

• Incorrect type of packing for particular installation.

• (Contact Kerr Pump Corporation if you are unsure.)

• Abrasive or corrosive fluid.

• Lack of oil, overload on pump, foreign matter in oil.

• A new pump will run hot for a short period (2 or 3 days).  See above for persistent heating.  Pump  will operate near 140˚ F. under average conditions.

• Check for air in pump by bleeding at cover caps.

• Too much spring tension Reciprocating pumps have very limited pick up.

INSTALLATION INSTRUCTIONS



WARNING



Read everything in this section before attempting to run or connect your pump.





  The importance of proper installation cannot be overstressed.  As the reciprocating pump is almost unable to lift fluid, proper suction  flooding is a must.  This is the First step toward satisfactory operation.



  The Kerr Pumps Engineering Service will be happy to advise you in your installation problems.  As almost every installation varies, you cannot  exercise too much care in making certain your installation is proper.

Before Starting The Pump, read carefully the maintenance section in the following pages.

For best results, follow these installation guidelines.



(A)  PRESSURE RELIEF VALVE (REQUIRED)

(B)  BY‐PASSED FLUID SHOULD BE PIPED BACK IN SUCTION SUPPLY TANK WHEN POSSIBLE

(C)  USE FLEXIBLE HOSE IN DISCHARGE LINE WHEN POSSIBLE

(D)  DISCHARGE SHUT‐OFF VALVE (OPTIONAL‐USED FOR TOTAL SHUT‐DOWN OR SERVICE ONLY)

(E)  DISCHARGE AND SUCTION ON EITHER SIDE OF FLUID END ON ALL MODELS.

(F)  PULSATION “DAMPENERS” MAY BE USED IN EITHER THE SUCTION OR DISCHARGE PIPING OR BOTH.  DISCHARGE

DAMPENERS SHOULD BE CAPABLE OF HANDLING PUMP DISCHARGE MAXIMUM PRESSURE

  To start the pump, open the suction line valve and permit the intake chamber to fill on the pump.  Air may be bled off by opening the valve  covers slightly until there is a constant fluid flow.  After bleeding, open the discharge line valve and start the pump.  Roughness may occur from  cavitation (air in line) or from starvation (lack of fluid).  Eliminate these troubles before permitting continuous operation.







1) CENTERLINE OF PUMP SUCTION (INLET) TO BE SLIGHTLY

HIGHER THAN CENTERLINE OF SUCTION (INLET) VALVE - SO

ANY AIR IN SUCTION SYSTEM PROMPTLY REACHES PUMP

AND IS EXPELLED

2) SLOPE BYPASS LINE SO LOW POINT DRAIN WILL FULLY

EMPTYRELIEF AND CHOKE VALVES AND ALL LIQUID IN

BYPASS CIRCUIT

3) DO NOT LOCATE PIPING OR OTHER EQUIPMENT IN FRONT

OF OR ABOVE PUMP FLIUD END PREVENTING SERVICING –

REFER TO MANUFACTURER FOR MINIMUM CLEARANCES

4) LOCATE CHARGING PUMP AT POINT SHOWN. – IF

CHARGING PUMP IS NECESSARY (FOR VOLATILE FLUIDS,

FOR EXAMPLE)

5) IF DESIRED, A TWO-WAY MOTOR OPERATED BYPASS VALVE MAY

BE USED RATHER THAN MANUAL TYPE – IT SHOULD BE DESIGN TO

OPEN AUOMATICALLY WHILE STARTING OR STOPPING

6) BYPASS LINE SHOULD FEED LIQUID INTO TANK BELOW MINIMUM

LIQUID LEVEL

7) TO REMOVE PIPING STRAIN AND VIBRATION A FLEXIBLE HOSE,

EXPANSION JOINT OR SWIVLE JOINT PAIR SHOULD BE

POSITIONED TO MINIMIZE EFFECTS OF PIPING THERMAL

EXPANSION, CONTRACTION AND PIPING WEIGHT

8) SUCTION SIZED FOR 1 ½ TO 2 FT/SEC MAX FLOW RATE.

DISCHARGED SIZED FOR 8 TO 10 FT/SEC MAX FLOW RATE –

SUCTION AND DISCHARGE MUST BE SUPPORTED AND

ANCHORED

9) TO PROTECT SUCTION SYSTEM AGAINST

HAZARD OF DISCHARGE PRESSURE ENTRY

(AS WHEN PUMP IS IDLE), A SMALL RELIEF

VALVE IS OFTEN CONNECTED HERE

10) ALL SYSTEM COMPONENTS MUST HAVE

ADEQUATE PRESSURE RATINGS FOR

OPERATING, STARTING AND UPSET

CONDITIONS. IN ORDER TO REDUCE

POTENTIAL HAZARDS, PARTICULAR

ATTENTION IS RECOMMENDED FOR THE

SURGE CONDITION THAT WILL RESULT

DOWNSTREAM OF THE REFLIEF VALVE

WHEN NORMAL DISCHARGE IS BLOCKED

-AS A GENERAL RULE, FLUID LEVEL MUST BE HIGHER THAN THE PUMP FLUID END AS PLUNGERS CANNOT LIFT FLUID. 10 FEET OF HEAD IS A GOOD RULE OF THUMB.

-CAUTION SHOULD BE TAKEN TO KEEP FITTINGS OUT OF THE SUCTION AND DISCHARGE PIPING AS THESE WILL RESULT IN POOR PERFORMANCE. EACH 90-DEGREE TURN IN

THESE LINES RESULTS IN GREAT LOSS OF PUMPING EFFICIENCY.



PREVENTIVE MAINTENANCE



DAILY



A. Check and Maintain Lubricant Levels.

Standard Lubricant:

AGMA Grade (ASTM D 2422):  4 EP



ISO Viscosity Grade:  150

Viscosity in SSU @ 100 degree F:  625‐765





Synthetic Lubricant:

SAE Viscosity Grade (J306‐8):  75W‐90

MONTHLY

A. Drain and refill crankcase.  It is recommended that oil be changed after the first week of operation.

B. Wash oil filler cap in kerosene.

C. Check valves for excessive wear, broken or bent springs, etc.

D. Check crankshaft bearings for endplay.  (See section on crankshaft)

E. Keep all nuts, studs, etc. tight.

F. Check valve covers for leaks.

G. Check all seals and gaskets for leaks

PUMP CAPACITIES (APPROXIMATE)

KD‐1250

KJ‐2250

KZ‐3150

2 qts.  KT‐3350  16 qts.

3 qts.  KT‐3400  16 qts.

2 qts.    Use SAE 30 weight non‐detergent motor oil ONLY

KM‐3250  4 qts.

KM‐3300  4 qts.

KP‐3300  12 qts.

R335/R340  16 qts.

Q5450  22.5 gal.

KB‐3500  20 qts.

KA‐3500  36 qts.

KSB‐6400  36 qts.

KSB‐6500  36 qts.

KCP‐6300  24 qts.





PLANETARY GEAR REDUCERS

#6

#8

#9

17 ozs.

42 ozs.

42 ozs.





GENERAL



B. If pump has lubricating facilities for stuffing boxes, check level of lubricant.

C. Maintain packing gland tension on packing (Do not over‐tighten)

D. Visually inspect pump for apparent trouble.

E. Keep the pump clean.

  Replace any work part before its eventual failure.  Use the following instructions for removal and replacement of parts.  Don’t hesitate to call  on Kerr Pumps for help if necessary.

SERVICE PROCEDURES (ALL MODELS)

A. WING GUIDED VALVES  i. DISCHARGE VALVES:  The discharge valve and seat can be exposed by first removing the discharge valve cover cap.  Once the  discharge cover cap has been removed you may lift out the discharge valve spring and the discharge valve.  The valve seat will be held  in place by a taper fit and must be “pulled” with an appropriate valve‐pulling tool (available from the Kerr Pumps Dealers).  Once the  valve and seat have been removed they should be resurfaced or replaced if badly worn.  To replace the discharge valve, first clean and  inspect the seat bore for washout defects and then drop the seat into the bore.  Replace the valve into the seat and strike the top of

the valve a couple of good blows utilizing a brass bar and hammer to seat the valve seat in the fluid end valve bore.  Replace the valve  spring and cover cap after inspecting the spring and the seal of the cover cap.  ii. SUCTION VALVES:  The suction valves are located in the chamber directly below the suction or end valve cover caps.  The suction  valves are serviced in the identical manner as the discharge valves.  Note:  Discharge valves must be removed prior to any removal of  the suction valves.

Service Procedure for KZ‐3150 Valves

iii. DISCHARGE VALVES:  The discharge valve and seat can be exposed by first removing the discharge valve cover plate.  Once the  discharge cover cap has been removed you may lift out the discharge valve spring, discharge valve and valve seat.  Once the valve and  seat have been removed they should be replaced if badly worn.  To replace discharge valve, first clean and inspect the seat bore for  wash out defects and then drop the seat into the bore.  Replace valve in seat then valve spring and cover cap, always‐inspecting o’ring  seals between seats and cover caps.  iv. SUCTION VALVES:  The suction valves are located in the chamber directly below the discharge valve seat.  The suction valves are  serviced in the identical manner as the discharge valves.

B. DISC TYPE VALVES:  All disc‐type valves are exposed for removal in a similar manner as the wing‐guided valves.  Instead of removing the valve  body; the upper portion of the valve is removed by removal of the valve capscrew, spring retainer, valve spring, and valve spacer sleeve.  The  valve seat is then “pulled” from the fluid‐end utilizing an authorized Kerr Valve Puller.  Note:  In all Kerr Pumps with disc‐type valves the  discharge and suction valves are identical.

C. BALL AND SEAT VALVES:  In pumps with block/billet type fluid‐ends the valves are ball and seat design.  These are exposed for  removal/inspection by removal of the appropriate valve cover.  The flat seats are kept in place by a screw‐in valve retainer that can be best  removed with a Kerr Valve Wrench made for the appropriate pump.  Springs are normally incorporated with the discharge valves while the  suction valves operate with a “free ball”.  A copper washer/gasket is used under all valve seats for a seal.  When installing or removing a flat  type valve seat a good “rap” on top of the valve wrench will “seat/unseat” the seat and copper gasket prior final tightening or removal.

Failure to “seat” the valve seat in this manner can result in the “washing out” of the fluid‐end.  For pressurized suction, valves will need to be  spring loaded.  Call Kerr Pumps for this change.

D. PLUNGERS:  Following the removal of the suction valve, the plunger may be removed by breaking the union between the plunger and pony  rod and forcing the plunger out the back of the fluid‐end.  Loosening the packing nut/gland will facilitate the removal of the plunger.  The  reverse of this procedure is used to install a plunger.  Lubrication and some slight force may be used to pass plunger through the packing.

Always retighten the plunger and pony rod union periodically following the removal of the plunger to insure it is securely made up and will  not vibrate loose.

E. PLUNGER PACKING:  This manual includes illustrations of the packing sets for each model pump.  Generally, once the plunger has been  removed from the pump, the packing can be exposed for removal by completely removing whatever device is used to tighten the packing (i.e.  the packing or stuffing box nut or gland).  There will be various amounts of metal rings and packing components depending upon the type of  packing and the model of pump (refer to appropriate illustration or chart).  After the removal of all rings and equipment from the stuffing  box; thoroughly clean it and inspect for damage, which might keep the new packing from working properly.  If the stuffing box is in  satisfactory condition, install the new packing as per the appropriate illustration.  It is a good idea to lubricate new packing with a light oil  prior to installation.  Most of the standard packing used in pumps should be tightened with the original equipment‐packing wrench while the  pump is running under normal operating pressure.  After a two or three hour run‐in, check the packing for tightness and re‐adjust as  necessary.  Packing should be checked for tightness on a periodic basis, but it is not a good idea to attempt to periodically tighten the packing  as part of routine maintenance.  This tends to “wear out” the packing prematurely.  When the packing leaks in an excessive amount it should  be replaced.  There is no value in constantly “re‐tightening” leaking packing.

If your pump is equipped with optional “spring loaded” packing, there is no adjustment in this equipment during its operational life.  The  stuffing box nut is initially tightened as much as possible and there is no further adjustment.  Note: In all cases the spring goes in the stuffing  box before the packing rings.

When using the optional Kevlar or Teflon packing, be sure to rotate the “splits” so that none are “aligned” to insure that the packing holds  properly.  Normally, this packing is not lubricated and requires less tension on the stuffing box nut during operation.



CAUTION:

  An “airtight” seal is not desirable with this plunger packing.  Some slight dripage is desirable during operation.  Attempts to

tighten packing until it completely “seals off” will result in premature failure from too much friction.  The Kevlar & Teflon packing must be

allowed to drip a small amount to assure normal life.

F. PONY ROD and PONY ROD PACKING:  Kerr Pumps use two pony rod sealing arrangements, models KD‐1250, KJ‐2250, KM‐3250  and KCP‐6300  use a screw in seal gland, all other models use a bolt in seal gland, these glands use press in oil seals with snap ring retainers.  Some Bolt in  gland use adjustable packing arrangements with bolt in or screw in followers to adjust packing.  By unscrewing plunger from pony rod a gap  may be facilitated to allow the removal of the various sealing arrangements.  A special wrench will be needed to remove and replace pony  rod to crosshead.  (This wrench is available from Kerr Dealers)  All pony rods have a jam nut to align tighten pony rod to crosshead, care must  be exercised in installing new seal on pony rod not to damage it.

G. DISASSEMBLY OF POWER END



CAUTION

 Prior to disassembly of any power end, the plunger, pony rod, and pony rod seal housing must be removed.

Expose the crankshaft and connecting rods by removing the pan cover.  Connecting rod caps may now be removed and the connecting rod  and crosshead should be shoved all the way to the rear (toward the fluid end) to facilitate crankshaft removal out either side as convenient.

The connecting rods and crossheads may now be taken out the front cavity exposed by removing the crankshaft.  Connecting rods may be  removed from the crosshead by loosening the setscrew and driving out the wrist pin from the crosshead.  A bronze bushing is used in the rod  it may be driven out of the rod and replaced with a new bushing.  Reassembly is the reverse of the above outlined sequence with the  following considerations for “fits” or tolerance:    i. General:  All Kerr components are machined on modern production machine tools and are of the same specifications and close  tolerances you would expect in a modern automobile engine.  It must be pointed out that at top speed (350 to 400 RPM) your pump  will not even be approaching idle speed for a gasoline engine so “field fits” are possible and practical when making repairs and  replacements away from the factory.  All procedures outlined below are possible with only hand tools and absolutely no instruments,  special tools, or gauges are needed.  ii. Connecting rod and wrist pin:  Proper fit will find the wrist pin turning freely in its bore in the connecting rod, but it should have no

“wobble” that is discernable up and down the main axis of the connecting rod.  This looseness in the wrist pin fit is the most probable  cause of “knocking” which is traceable to the power end of most all pumps.  The only solution for loose fitting wrist pins is to discard  the connecting rod wrist pin bushing and replace with a new one.  If any wear is visible on the wrist pin it should always be replaced.  iii. Crankshaft End Play and Lateral adjustments:  Adjustment of the Taper Roller bearings used in all Kerr Pumps is accomplished by  removing or adding shims under the bearing housing.  Shims are taken out or added until the crankshaft (without connecting rods)  will turn freely, but with no endplay felt when attempting to pull or push the jackshaft end of the crankshaft along its long axis.  Some  lateral adjustment is possible by removing shims from one side of the crankshaft and adding them to the opposite side.  (Note:

Lateral adjustment is the “centering” of the crankshaft in the power frame housing.)  iv. Connecting Rod to Crankshaft fitting:  Factory bored connecting rods will normally fit the standard crankshaft journal just by bolting  the cap on the rod with the standard rod shims being used.  If the caps do require adjustment this is accomplished by removing or  adding various thicknesses of rod shims.  The standard connecting rod shim used on all Kerr Pumps is 1/32” thick and is comprised of

.002” laminates, which can be “pealed “ off separately.  Proper fit of the connecting rod will allow the pump crankshaft to be rotated  while not allowing in‐and‐out slack in the connecting rod along its long or main axis.  A well‐fitted rod will have none of the in‐and‐out  slack, but should be free enough to be moved from side to side on the rod journal.  This insures the rod not being too tight.  A point of

caution when installing the connecting rod assembly in the pump is to make certain the oil holes in the rod are “UP” and not toward  the bottom of the pump.  This will result in lubrication failure in these parts and the pump will fail in a short period of time.  An  additionally important step is to make sure that the rod cap is bolted back on the rod as it came off.  The rod and cap carry a “mark”  or “number” which allows you to match them back properly.  Failure to do this will cause the rod not to fit the journal for which it was  made.



H. Power End/Fluid End Connection:  A common misconception is that there is some form of fluid seal between the power end and the fluid  end.  This is false.  The fluid end is merely bolted to the power frame.  It can be removed by breaking the plunger connection, backing off the  packing nut or gland, removing the various fluid end bolts, and sliding the entire fluid end off the power frame.  Corrosion may tend to seize  the two components together making their separation difficult in some isolated cases.  On models KP‐3300, KT‐3350/KT‐3400 and R335/R340  the bolted in stuffing box assemblies must be removed prior to removal of the entire fluid end.  They are held in place by four studs each.  On  all other units the stuffing boxes can be left intact.  On the remaining pumps (with the exception KD‐1250B, KJ‐2250B, KM‐3250B, and KCP‐

6300) the stuffing boxes are held in place in the fluid end by a friction or “press” fit.  They should be removed with a hydraulic press if  possible.  These press‐in type stuffing boxes carry a gasket and/or an o‐ring to insure a good seal.  The boxes on the KD‐1250B, KJ‐2250B, KM‐

3250B, and KCP‐6300 are screw‐in type and carry only a copper gasket.







TECHNICAL DATA SHEET



PCN: ______

SHORT TERM STORAGE PREPARATION PROCEDURE

Supercedes PCN: _____

T.D.S. NO.

Date

4.2

03‐10‐06

1.0  SCOPE

This procedure applies to Kerr Pumps ONLY.  Storage procedures for any other unit components or accessories (gear reducers, engines, etc.) are to be prepared to the specific  manufacture’s recommendations.

1.1  Short‐term storage is defined as storage and/or transient time less than six (6) months in an environment defined in Paragraph 2.  If storage exceeding six months is  expected, the Long Term Pump Storage Preparation Procedure should be followed.

1.2  Kerr Pumps will only prepared for short term storage if so specified in the purchaser or customer order control document.

2.0  STORAGE ENVIRONMENT

A minimal environmental condition, to be met by the customer or purchaser, is a closed shelter to eliminate effects of sun, wind, sand or other debris.  Large temperature and  humidity changes should be avoided to prevent coating deterioration or contamination by moisture.

3.0  PRESERVATIVE PRODUCT

3.1  The specified rust preservative will protect the internal power end parts from corrosion due to atmospheric moisture, and may be left in the pump when filled with  appropriate lubricant and placed into service.  The elevated temperature of service will cause rapid depletion of the preventative protection.

3.2

The following rust preventative products or their equivalents are recommended for use in Kerr Pumps and usually available in 5 gallon, 55 gallon



  containers:

CITGO:  RUST‐O‐LINE OIL 10

SHELL:  ENSIS OIL N

4.0  PROCEDURE

4.1  Preparation from; factory testing, inventory, or a distributor rebuild facility.

‐  Drain any oil that may be in the power end, and then fill the complete power end cavity with the specified rust preventative.  After 15 to 20 minutes, drain the rust  preventative back into its storage drum for future use.

‐  Remove and clean oil level gages, pressure gages and breather caps.   Replace with pipe plugs in threaded openings.  All breathers shall be replaced with airtight seals,  plugs or gasketed plates.  No venting is recommended as it may allow moist air in.







TECHNICAL DATA SHEET



PCN: ______  Supercedes PCN: _____

T.D.S. NO.

Date  03‐10‐06

4.2



4.1.1

4.1.2

4.1.3

4.1.4

4.1.5

4.1.6

Remove the wiper box seals and cap/plug the seal opening.

Clean the pump outer surfaces prior to painting.

If painting is required mask crank and lubricator shaft surfaces and keyways.  If painting does not apply, go to Para. 4.1.8.

Paint as specified by the customer order or as required.

Apply a thin layer of grease to the exposed oil seal lips.

Apply a thin layer of heavy rust preventative to the exposed crank and lubricator shaft surfaces and keyways.

4.1.7

4.1.8

4.1.9

Wrap the exposed crank and lubricator shafts with waxed tape.

Carefully wrap the following parts prior to placing them into polyurethane bags.  Oil level gages, lube pressure gages, and breather caps.

Finish box, crate and mark the parts from Para. 4.1.2 after final inspection (see Para. 4.2.2).

4.2  Shipping/Receiving (New Pumps Only)

4.2.1  All pumps and accessories (as applicable) will be final inspected by Kerr Pump personnel prior to shipping.  Any witnessed or third party inspection will be  signed‐off by the purchaser or customer representative prior to final crating and shipment.

4.2.2  Export crating will be performed by either an approved Kerr Pump source or as specified by the purchaser or customer.  Any third party inspection will be  coordinated with the source.

4.2.3  Upon receipt of the shipment, the purchaser or customer is responsible for inspection and repair of damaged coatings at the expense of the shipper.

5.0  WARRANTY/START‐UP

5.1

5.2

5.3

Pumps prepared per the above procedure qualify for the “Standard Terms & Conditions” in force on the date of shipment.

If the pump storage period is less than 6 months, follow the Short Term Pump Preparation Procedure.

Prior to start‐up:

5.3.1

Remove all storage caps, plugs, and covers.

5.3.2

Replace any damaged or cracked O‐rings or gaskets.

5.3.3

Inspect power end shaft oil seals and replace if cracked, split or damaged.

5.3.4

Install crankcase drain plug, lubrication level site glass and breather cap.

5.3.5

Install, if applicable, any oil pressure and/or temperature gage.

5.3.6

Check the connection of the plunger and pony rod to the crosshead prior to, and after, initial run‐in of the pump.

5.3.7

Fill the crankcase to the proper level with the specified lubricant.





TECHNICAL DATA SHEET



PCN: ______

TITLE:  LONG TERM STORAGE PREPARATION PROCEDURE

Supercedes PCN: _____

T.D.S. NO.

Date

4.3

03‐10‐06

1.0  SCOPE

This procedure applies to Kerr Pumps ONLY.  Storage procedures for any other unit components or accessories (gear reducers, engines, etc.) are to be prepared to the specific  manufacture’s recommendations.

                1.1  Long‐term storage is defined as storage and/or transient time exceeding six (6) months in an environment defined in Paragraph 2.  If storage for less than six  months is expected, the Short Term Pump Storage Preparation Procedure should be followed.

                1.2  Kerr Pumps will only prepare for short term storage if so specified in the purchaser or customer order control document.

2.0  STORAGE ENVIRONMENT

A minimal environmental condition, to be met by the customer or purchaser, is a closed shelter to eliminate effects of sun, wind, sand or other debris.  Large temperature and  humidity changes should be avoided to prevent preventative deterioration or contamination by moisture.

3.0  RUST PREVENTATIVE PRODUCT

3.1  The recommended rust preservative should protect the internal power end parts from corrosion due to atmospheric moisture, and may be left in the pump  when filled with appropriate lubricant and placed into service.  The elevated temperature of service will cause rapid depletion of the preventative protection.

3.2  The following rust preventative products or their equivalents are recommended for use in Kerr Pumps and usually available in 5 gallon, 55 gallon containers:

CITGO:  RUST‐O‐LINE OIL 10

SHELL:  ENSIS OIL N

4.0  PROCEDURE

4.1  Preparation from; factory testing, inventory, or a distributor rebuild facility.

4.1.1  Drain any oil that may be in the power end and then fill the complete power end cavity with the specified rust preventative.  After 15 to 20 minutes,  drain the rust preventative back into its storage drum for future use.

4.1.2  Remove all plungers, pony rods (if applicable), baffle discs, packing and junk rings.

4.1.3  Remove and clean oil level gages, pressure gages and breather caps.   Replace with pipe plugs in threaded openings.





TECHNICAL DATA SHEET



PCN: ______



Supercedes PCN: _____



T.D.S. NO.

4.3

Date  03‐10‐06

4.1.4

4.1.5

4.1.6

4.1.7

All breathers shall be replaced with airtight seals, plugs or gasketed plates.  No venting is recommended as it may allow moist air in.

Remove the wiper box seals and cap/plug the seal opening.

Clean the pump outer surfaces prior to painting.

If painting is required mask crank and lubricator shaft surfaces and keyways.  If painting does not apply, go to Para. 4.1.9.

4.1.8

4.1.9

Paint as specified by the customer order or as required.

Apply a thin layer of grease to the exposed oil seal lips.

4.1.10  Apply a thin layer of heavy rust preventative to the exposed crank and lubricator shaft surfaces and keyways.

4.1.11  Wrap the exposed crank and lubricator shafts with waxed tape.

4.1.12  Carefully wrap the following parts prior to placing them into polyurethane bags.  Oil level gages, lube pressure gages, and breather caps.

4.1.13  Finish box, crate and mark the parts from Para. 4.1.10 after final inspection (see Para. 4.2.2).

4.2  Shipping/Receiving (New Pumps Only)

4.2.1

4.2.2

4.2.3

All pumps and accessories (as applicable) will be final inspected by Kerr Pump personnel prior to shipping.  Any witnessed or third party inspection will be  signed‐off by the purchaser or customer representative prior to final crating and shipment.

Export crating will be performed by either an approved Kerr Pump source or as specified by the purchaser or customer.  Any third party inspection will be  coordinated with the source.

Upon receipt of the shipment, the purchaser or customer is responsible for inspection and repair of damaged coatings at the expense of the shipper.

5.0  WARRANTY / START‐UP

5.1  Pumps prepared per the above procedure qualify for the “Standard Terms & Conditions” in force on the date of shipment.

5.2

5.3

If the pump storage period will exceed 6 months, follow the Long‐Term Pump Preparation Procedure.

Prior to start‐up:

5.3.1

Remove all storage caps, plugs, and covers.

5.3.2

Install the packing, junk rings, plungers, pony rods (if applicable), baffle discs, and wiper box seals.  Replace any damaged or cracked O‐rings or gaskets.

5.3.3

5.3.4

5.3.5

5.3.6

5.3.7

Inspect power end shaft oil seals and replace if cracked, split or damaged.

Install crankcase drain plug, lubrication level site glass and breather cap.

Install, if applicable, any oil pressure and/or temperature gage.

Check the connection of the plunger and pony rod to the crosshead prior to, and after, initial run‐in of the pump.

Fill the crankcase to the proper level with the specified lubricant.



TYPE

ASS'Y

DISC

SEAT

STEM

TYPE

PULLER

ASS'Y

KA-306

VALVE

SEATING

TOOL

KP-276

PONY ROD

SEAL TOOL

AP-71T

VALVE

INSERT

TOOL

SPECIAL TOOLS

FOR KP-3300,

XP-3300

AP-425

STUFFING

BOX NUT

WRENCH

PONY

ROD

WRENCH

"OLD

STYLE

COVER

WRENCH

How To Put Inserts In Valves

Using Kerr Valve Insert Tool

1) Push Valve Insert over valve legs. Hint: (Insert will be more pliable if heated first-- warm to the touch not hot).

2) Put Tool between valve and valve insert with groove against valve.

3) Holding Valve insert down with thumb.

4) While holding valve down with thumb, rotate around valve with tool. (Similar to mounting a tire on a rim).

5) Continue rotating around valve with tool until insert is completely in groove.

INSTRUCTIONS FOR CHANGING DISC VALVES (Revision B)

1. Remove Capscrews from Top and

End Cover Plates

4. Screw Kerr Pump Valve Puller into seat approximately ¾”

2. Remove Round Cover Caps; inspect o’rings for damage;

5. Hold Puller Stem from turning;

Rotate large nut until seat releases

3. Unscrew Valve Capscrew; Remove

Capscrew, Spring Retainer, Spring,

Spacer, and Disc

6. Remove Valve Seat from Puller;

Remove remaining valves

INSTRUCTIONS FOR CHANGING DISC VALVES (Revision B) (cont.)

7. Remove Suction Valve Seat

Through End Port

10. Torque valve capscrew to Kerr Pump specs

8. To Install Valve Assembly; Insert through End Port

11. Install Discharge Valve, following procedure 9.

9. Use a 1” wooden dowel rod to drive valve seat assembly into seating area using several firm but, not heavy blows with a hammer; CAUTION: heavy blows will damage valve

12. Install Cover Caps and torque Cover

Plate capscrews to Kerr Pump Specs

INSTRUCTIONS FOR CHANGING WING/GUIDED VALVES

1. Remove Capscrews from Top and

End Cover Plates

4. Insert Kerr Valve Seat Puller through valve seat with eccentric offset to engage valve seat. NOTE: Puller stud may be removed when pulling wing/guided valve seats.

2. Remove Round Cover Caps; inspect o’rings for damage;

5. Hold Puller Stem from turning;

Rotate large nut until seat releases

3. Remove Discharge Spring and

Discharge Valve

6. Remove Valve Seat from Puller;

Spacer on Puller may need to be removed when pulling Suction Valve

Seats; Remove remaining valves

INSTRUCTIONS FOR CHANGING WING/GUIDED VALVES (cont.)

7. Remove Suction Valves, springs, and seats through End Port

10. Install Discharge Valves after Suction

Valves have been installed, always be sure short springs are on Suction Valve and Long Spring on Discharge Valves

8. To Install Suction Valve & Seat, insert Valve Seat and Valve Body through End Port

9. Use metal rod to drive valve seat assembly into seating area using several firm but, not heavy blows with a hammer

11. Install Cover Caps and torque Cover

Plate capscrews to Kerr Pump Specs

KP-3300

ITEM NO.

1

2

3

4

5

6

PART NUMBER

KP-42SS

KM-505

KP-37

KP-34

KP-38

KP-41SS-1

DESCRIPTION

VALVE SEAT SS DISC TYPE

VALVE SPRING

SPACER SLEEVE DISC VALVE

CAPSCREW DISC VALVE SS

DELRIN ISC D

SPRING RETAINER, KP DISC VALVE SS

QTY.

1

1

1

1

1

1

A

A

KP-40SS-1

NEW STYLE

4

DELRIN DISC VALVE

WITH STAINLESS STEEL SEAT

6

2

3

5

1

1

2

KP-3300 PLUNGER TYPE TORQUE SPECIFICATIONS

7

8

9

3

.000" - .005"

SHAFT END PLAY

5

6

WHEN ADJUSTING THE ENDPLAY

OF THE TAPERED ROLLER BEARINGS

USED ON THE CRANKSHAFT,

DIAL INDICATORS AND SHIMS MUST

BE PROPERLY USED. INCORRECT

BEARING ADJUSTMENT MAY RESULT

IN EXCESSIVE NOISE, TEMPERATURE, AND

REDUCED BEARING LIFE. Kerr Pumps

RECOMMENDS BETWEEN .000” - .005”

OF INTERNAL AXIAL CLEARANCE

(END PLAY) WHEN ASSEMBLED. FINAL

ADJUSTMENT MUST BE MADE USING A

DIAL INDICATOR.

INSURE THE CONNECTING RODS ARE

DISCONNECTED TO ALLOW FREE

CRANKSHAFT MOTION.

7

8

7

8

2

3

2

3

CONNECTING ROD CAPSCREW

BEARING HOUSING CAPSCREW

FLUID END STUD NUT

PLUNGER TO PONY ROD

NOTE: WHEN USING LUBRICANTS,

REDUCE TORQUE AS FOLLOWS:

W H ITE LEA D

G R A PH ITE

O IL

G R EA SE

A N TI - SEIZE CO M PO UN D

125 ft-lb (169 Nm)

75 ft-lb (102 Nm)

120 ft-lb (163 Nm)

300 ft-lb (407 Nm)

R ED UC E TO R Q UE 25 %

R ED UC E TO R Q UE 30 %

R ED UC E TO R Q UE 40 %

R ED UC E TO R Q UE 40 %

R ED UC E TO R Q UE 45 %

KP-32

KP-29

KT-52L

KP-43

KP-45

KT-52S

KP-44

KP-31

KP-32

KP-45

AP-71

KP-34

(OPTIONAL)

KP-40SS

KP-30

KP-28

KP-14T

AP-16

KP-1

KP-20

KP-18

KP-12

KP-10

KP-11

AP-351

OPTIONAL

KB-41

KP-36

KP-37

KP-38

KP-42SS

KP-69

KP-21A

KP-15

KP-15A

KP-21T

KP-25-000

KP-64

STUFFING

BOX STUD

KP-57

PACKING

RING

KP-58

LANTERN

RING

*KP-66

TOP PHENOLIC RING

KP-54

STUFFING

BOX NUT

KP-55

GASKET

KP-53

STUFFING

BOX

KP-65

STUFFING BOX

STUD NUT

*SOLD AS A SET ONLY

KP-3300

*KP-66

PACKING

PACKING ARRANGEMENT

KP-56

PACKING

SPACER RING

838 NON-ADJUSTABLE "A" BOX 2 1/2" PLUNGERS

KP-3300

THREE SEALS TO

CRANKCASE OIL

KP-24

KP-22S

KP-22

KP-22G

KP-22A

PONY ROD

PACKING GLAND

ASSEMBLY

KP-3300BC

1

KP-3300BC PLUNGER TYPE PUMP TORQUE SPECIFICATION

10

7

2

8

9

5

6

3

.003"-.004" CONNECTING ROD AT

CRANKSHAFT

.001" .002" CONNECTING ROD AT

WRIST PIN

.000" - .005"

SHAFT END PLAY

WHEN ADJUSTING THE ENDPLAY

OF THE TAPERED ROLLER BEARINGS

USED ON THE CRANKSHAFT,

DIAL INDICATORS AND SHIMS MUST

BE PROPERLY USED. INCORRECT

BEARING ADJUSTMENT MAY RESULT

IN EXCESSIVE NOISE, TEMPERATURE, AND

REDUCED BEARING LIFE. Kerr Pumps

RECOMMENDS BETWEEN .000” - .005”

OF INTERNAL AXIAL CLEARANCE

(END PLAY) WHEN ASSEMBLED. FINAL

ADJUSTMENT MUST BE MADE USING A

DIAL INDICATOR.

INSURE THE CONNECTING RODS ARE

DISCONNECTED TO ALLOW FREE

CRANKSHAFT MOTION.

NOTE: WHEN USING LUBRICANTS,

REDUCE TORQUE AS FOLLOWS:

W H ITE LEA D

G R A PH ITE

O IL

G R EA SE

A N TI - SEIZE CO M PO UN D

R ED UC E TO R Q UE 25 %

R ED UC E TO R Q UE 30 %

R ED UC E TO R Q UE 40 %

R ED UC E TO R Q UE 40 %

R ED UC E TO R Q UE 45 %

14.75

24.1

12.38

6.375

.75

2 1/2

KEYWAY 5/8 X 5/16

2"-NPT

2.0

13.50

12.00

38.3

28.2

19.0

1/4"-NPT

4.25

27.125

2"-NPT

DISCHARGE

14.66

7.33

8.000

13.5

4.125

10.125

5.625

5.062

3"-NPT

SUCTION

2.25

GENERAL DIMENSIONS FOR KP-3300BC

18.8

4X 9/16

MOUNT

HOLES

1

KP-3300BC PLUNGER TYPE TORQUE SPECIFICATIONS

10

8

7

2

11

9

5

6

3

.003"-.004" CONNECTING ROD AT

CRANKSHAFT

.001" .002" CONNECTING ROD AT

WRIST PIN

.000" - .005"

SHAFT END PLAY

WHEN ADJUSTING THE ENDPLAY

OF THE TAPERED ROLLER BEARINGS

USED ON THE CRANKSHAFT,

DIAL INDICATORS AND SHIMS MUST

BE PROPERLY USED. INCORRECT

BEARING ADJUSTMENT MAY RESULT

IN EXCESSIVE NOISE, TEMPERATURE, AND

REDUCED BEARING LIFE. Kerr Pumps

RECOMMENDS BETWEEN .000” - .005”

OF INTERNAL AXIAL CLEARANCE

(END PLAY) WHEN ASSEMBLED. FINAL

ADJUSTMENT MUST BE MADE USING A

DIAL INDICATOR.

INSURE THE CONNECTING RODS ARE

DISCONNECTED TO ALLOW FREE

CRANKSHAFT MOTION.

7

8

7

8

3

4

3

4

BEARING HOUSING CAPSCREW

WRIST PIN SET SCREW AND JAM NUT

FLUID END STUD NUT

PLUNGER TO PONY ROD

NOTE: WHEN USING LUBRICANTS,

REDUCE TORQUE AS FOLLOWS:

W H ITE LEA D

G R A PH ITE

O IL

G R EA SE

A N TI - SEIZE CO M PO UN D

75 ft-lb (102 Nm)

30 ft-lb (41 Nm)

120 ft-lb (163 Nm)

300 ft-lb (407 Nm)

R ED UC E TO R Q UE 25 %

R ED UC E TO R Q UE 30 %

R ED UC E TO R Q UE 40 %

R ED UC E TO R Q UE 40 %

R ED UC E TO R Q UE 45 %

11

12

6

9

5

4

8

3

ITEM NO.

QTY. PART NO.

1 1 KP-29BC

2

3

3 KP-81HT

6 KP-85

4

5

6

3 KP-80HT

3 KT-52L

3 KP-30BC

9

10

7

8

11

12

3 KT-52S

6 KP-82HT

6 KP-32

3 KP-31BC

1 AP-71

24 KP-35

7

2

3

8

9

DESCRIPTION

FLUID END, BOLTED CAP

SUCTION VALVE, HEAT TREATED

ABRASIVE RESISTANT VALVE INSERT

DISCHARGE VALVE, HEAT TREATED

SPRING, LONG DISCHARGE

TOP COVER CAP

SPRING, VALVE SUCTION SHORT

VALVE SEAT, HEAT TREATED

COVER CAP O-RING

TOP COVER CAP

FLUID END DRAIN PLUG

COVER CAP CAPSCREW

12

10

KP-29BC

KP-31BC

KP-32

KB-41

KP-36

KP-37

KP-34

KP-36

KP-35

KP-31BC

KP-32

KP-42

KP-29BC

AP-71

KT-52L

LONG SPRING

KP-80HT

TOP VALVE

KP-85

INSERT

KP-82HT

VALVE SEAT

KP-300

DISCHARGE

VALVE ASSEMBLY

KT-52S

SHORT SPRING

KP-81HT

BOTTOM VALVE

KP-85

INSERT

KP-82HT

VALVE SEAT

KP-305

SUCTION

VALVE ASSEMBLY

KP-35

KP-34

KP-70

KP-28

KP-26

KP-14

AP-16T KP-1

KP-69

KP-21A

KP-62

PACKING RING

KM-61

LANTERN RING

KP-64

STUFFING

BOX STUD

KP-55

GASKET

KP-15

KP-15A

KP-21T

KP-25-000

*KM-63

TOP PHENOLIC

RING

KP-60

STUFFING

BOX NUT

KP-59

STUFFING

BOX

*SOLD AS A SET

KP-65

STUFFING BOX

STUD NUT

KP-3300

*KM-63

PACKING

KP-61

PACKING

SPACER RING

838 NON-ADJUSTABLE "C" BOX 1.750" & 2.000" PLUNGERS

PACKING ARRANGEMENT

KP-3300BC

KP-20

KP-10

KP-11

AP-72

THREE SEALS TO

CRANKCASE OIL

KP-24

KP-22

KP-22G

KP-22S

KP-22-A

PONY ROD

PACKING GLAND

ASSEMBLY

KP-31BC

KP-32

KB-41

KP-36

KP-37

KP-38

KP-42

KP-34

KB-41

KP-36

KP-35

KP-31SSBC

KP-32

KP-42

KP-29BC

AP-71

KT-52L

LONG SPRING

KP-80HT

TOP VALVE

KP-85

INSERT

KP-82HT

VALVE SEAT

KP-300

DISCHARGE

VALVE ASSEMBLY

KT-52S

SHORT SPRING

KP-81HT

BOTTOM VALVE

KP-85

INSERT

KP-82HT

VALVE SEAT

KP-305

SUCTION

VALVE ASSEMBLY

KP-35

KP-34 KP-64CS

KP-94

KP-28

KP-26

KP-14

KP-69

KP-21A

KP-22S

KP-24

KP-93SL

TOP ADAPTER

KP-93SL

BOTTOM ADAPTER

KP-89

KP-94

KP-95

KP-88V

PACKING

KP-86SL-225

KP-87 KP-86SL-225-A

KP-3300BC

KP-15

KP-15A

KP-21T

KP-22

AP-16T KP-1

KP-20

KP-25-000

KP-18

KP-12

KP-10

KP-11

AP-351

OPTIONAL

THREE SEALS TO

CRANKCASE OIL

KP-24

KP-22

KP-22G

KP-22S

KP-22-A

PONY ROD

PACKING GLAND

ASSEMBLY

KP-87

ORING

*KP-66J

TOP PHENOLIC RING

KP-58

LANTERN RING

KP-54

KP-86A

BOX

KP-57

PACKING RING

*SOLD AS A SET ONLY

*KP-66J

PACKING

KP-86A STUFFING BOX WITH

838 NON-ADJUSTABLE A BOX

PACKING ARRANGEMENT

SPACER RING

KP-11

KP-12

KP-14

KP-14T

KP-15

KP-15A

AP-16

AP-16T

KP-16

KP-17A

KP-17

KP-17

KP-18

KP-20

KP-21

KP-21T

KP-21A

KP-21S-AB

KP-22

KP-22F

Part Number

KP-1

KP-2

KP-2S

KP-3

KP-3S

KP-4

KP-5

KP-6

KP-7

KP-8-005

KP-8-010

KP-8-015

KP-9

KP-9-8

KP-10

Kerr KP-3300/KP-3300BC Plunger Type Pump

Description

Pump Case

Crankshaft - Heat Treated

Crankshaft - (Steel)

Crankshaft Oil Seal

Crankshaft Oil Seal For Crankshaft 120S-8

Bearing Housing (Blind Side)

Bearing Housing (Shaft Side)

Bearing Housing Capscrews

Bearing Housing Gaskets

Main Bearing Adjusting Shims .005

Main Bearing Adjusting Shims .010

Main Bearing Adjusting Shims .015

Main Bearings

Main Bearings For Crankshaft 120-8

Pan Cover

Pan Cover Capscrews

Pan Cover Gasket

Crosshead

Crosshead (Tapered)

Wrist Pin

Wrist Pin Bushing

Breather Cap (Oil Filler)

Breather Cap (Oil Filler) Threaded Style

Wrist Pin Set Screws & Nut

Connecting Rod (Inserted Both Ends)

Connecting Rod Only (No Inserts - Requires inserts both ends)

Connecting Rod Only (No Inserts - Requires inserts both ends)

Connecting Rod Capscrews

Connecting Rod Shim

Pony Rod & Jam Nut (Old Style)

Pony Rod & Jam Nut (New Style)

Pony Rod Washer

Alignment Seal Sleave

Pony Rod Gland Snap Ring Style

Pony Rod Gland Follower Style

3

6

6

3

3

3

3

6

3

1

3

3

3

3

3

1

1

10

1

3

1

1

1

1

1

# Req

1

1

12

2

As Req.

As Req.

As Req.

2

2

1

KP-22A

KP-22G

KP-22S

KP-23

KP-24

KP-24F

KP-24V

KP-25-000

KP-25-015

KP-25-030

KP-25-045

KP-25-060

KP-28

KP-28H

KP-29S

KP-29AB

KP-29BCAB

KP-29BCD

KP-29BCDX

KP-29BCS

KP-29BCSS

KP-29BCFS

KP-29CBXAB

KP-29CBXDX

KP-29CBXS

KP-29CBXSS

KA-30

KA-30

KP-30AB

KP-30S

KP-30SS

KP-30BCAB

KP-30BCD

KP-30BCDX

KP-30BCS

KP-30BCSS

Kerr KP-3300/KP-3300BC Plunger Type Pump

Pony Rod Gland Assy (KP-22, KP-22G, KP-22S, KP-24)

Gasket, Pony Rod Gland

Pony Rod Gland Snap Ring

Pony Rod Gland Bolted Follower

Pony Rod Oil Seal (Req. 3 per Gland)

Pony Rod Packing Follower Type

Pony Rod Oil Seal

Connecting Rod Insert Bearing (Std)

Connecting Rod Insert Bearing (.015)

Connecting Rod Insert Bearing (.030)

Connecting Rod Insert Bearing (.045)

Connecting Rod Insert Bearing (.060)

Pony Rod Splash Guard

Pony Rod Splash Guard HSN

Fluid End Vessel Only Thd Plug (Forged Steel)

Fluid End Vessel Only Thd Plug (ALBZ)

Fluid End Vessel Only Bolted Cap (Side Ports) (ALBZ)

Fluid End Vessel Only Bolted Cap Plug (Ductile)

Fluid End Vessel Only Bolted Cap (Duplex Stainless)

Fluid End Vessel Only Bolted Cap (Cast Steel)

Fluid End Vessel Only Bolted Cap (316 Stainless Steel)

Fluid End Vessel Only Bolted Cap (Forged Steel)

Fluid End Vessel Only Bolted Cap Captured Box (ALBZ)

Fluid End Vessel Only Bolted Cap Captured Box (Duplex Stainless)

Fluid End Vessel Only Bolted Cap Captured Box (Cast Steel)

Fluid End Vessel Only Bolted Cap Captured Box (316 Stainless Steel)

Pony Rod Gland Capscrews SS

Pony Rod Gland Capscrews SS

Top Cover Cap Threaded (ALBZ)

Top Cover Cap Threaded (Steel)

Top Cover Cap Threaded (Stainless Steel)

Top Cover Cap Bolted (ALBZ)

Top Cover Cap (Ductile) (Bolted Cap)

Top Cover Cap Bolted (Duplex Stainless)

Top Cover Cap Bolted (Steel)

Top Cover Cap Bolted (Stainless Steel)

6

3

3

3

3

1

1

12

3

3

3

3

1

1

1

1

1

1

1

1

3

3

3

1

1

3

3

3

3

3

3

3

3

3

3 Per Set~

3

KP-38

KP-38SS

KP-38T

KP-39

KP-40-1SS

KP-40M

KP-40SS

KP-40AB

KP-40SSSS

KP-40SST

KP-40MT

KB-41

KP-41-1SS

KP-42M

KP-42SS

KP-43

KP-44

KP-45

KP-46

KP-47

KP-31AB

KP-31S

KP-31SS

KP-31BCAB

KP-31BCD

KP-31BCDX

KP-31BCS

KP-31BCSS

KP-32A

KP-32N

KP-32V

KP-33

KP-34

KP-35

KP-36

KP-37

Kerr KP-3300/KP-3300BC Plunger Type Pump

End Cover Cap Threaded (ALBZ)

End Cover Cap Threaded (Steel)

End Cover Cap Threaded (Stainless Steel)

End Cover Cap Bolted (ALBZ)

End Cover Cap Bolted (Ductile)

End Cover Cap Bolted (Duplex Stainless)

End Cover Cap Bolted (Steel)

End Cover Cap Bolted (Stainless Steel)

Cover Cap O' Ring, Aflas

Cover Cap O-Ring, Nitrile

Cover Cap O' Ring, Viton

Pony Rod Gland Bolted Follower

Capscrew Disc Valve

Cover Cap Capscrew

Spring Disc Valve

Spacer Sleeve Disc Valve

Delrin Disc

Stainless Steel Disc

Titanium Disc

Valve Seat ALBZ Disc Type

Delrin Disc Valve New Style CW SS Seat

Delrin Disc Valve Complete with Monel Seat

Delrin Disc Valve Complete with SS Seat

Delrin Disc Valve Complete with AlBz Seat

SS Disc Valve Complete with SS Seat

Titanium Disc Valve Complete with SS Seat

Titanium Disc Valve Complete with Monel Seat

Spring Retainer Disc Valve

Spring Retainer, KP Disc Valve Stainless Steel

Valve Seat Monel Disc Type

Valve Seat Stainless Steel Disc Type

Discharge Valve ALBZ Wing Guided

Suction Valve ALBZ Wing Guided

Valve Seat ALBZ Wing Guided

Discharge Valve Monel Wing Guided

Suction Valve Monel Wing Guided

3

6

3

3

1 per valv

1 per valv

1 per valv

1 per valv

6

6

6

6

6

6

6

1 per valv

6

1 per valv

1 per valv

3

3

3

3

3

3

3

3

3

6

6

6

6

1 per valv

24

1 per valv

1 per valv

KP-48

KP-49

KP-50

KP-51

KT-52L

KT-52S

KP-53AB

KP-53DX

KP-53S

KP-53SS

KP-54AB

KP-54S

KP-54SS

KP-54L

KP-55

KP-56-200AB

KP-56-225AB

KP-56-250AB

KP-56-200DX

KP-56-225DX

KP-56-250DX

KP-56-200S

KP-56-225S

KP-56-250S

KP-56-200SS

KP-56-225SS

KP-56-250SS

KP-57-200AB

KP-57-225AB

KP-57-250AB

KP-57-200DX

KP-57-225DX

KP-57-250DX

KP-57-200S

KP-57-225S

KP-57-250S

Kerr KP-3300/KP-3300BC Plunger Type Pump

Valve Seat Monel Wing Guided

Discharge Valve Stainless Steel Wing Guided

Suction Valve Stainless Steel Wing Guided

Valve Seat Stainless Steel Wing Guided

Valve Springs Discharge Long

Valve Springs Suction Short

Stuffing Box A Size (ALBZ)

Stuffing Box A Size (Duplex Stainless)

Stuffing Box A Size (Steel)

Stuffing Box A Size (Stainless Steel)

Stuffing Box Nut (ALBZ)

Stuffing Box Nut (Steel) Use With KT-86-300 SB

Stuffing Box Nut (Stainless Steel) Use With KT-86-300 SB

Stuffing Box Nut Lock

Stuffing Box Gasket

Packing Spacer Ring A Size 2 (ALBZ)

Packing Spacer Ring A Size 2 1/4 (ALBZ)

Packing Spacer Ring A Size 2 1/2 (ALBZ)

Packing Spacer Ring A Size 2 (Duplex Stainless)

Packing Spacer Ring A Size 2 1/4 (Duplex Stainless)

Packing Spacer Ring A Size 2 1/2 (Duplex Stainless)

Packing Spacer Ring A Size 2 (Steel)

Packing Spacer Ring A Size 2 1/4 (Steel)

Packing Spacer Ring A Size 2 1/2 (Steel)

Packing Spacer Ring A Size 2 (Stainless Steel)

Packing Spacer Ring A Size 2 1/4 (Stainless Steel)

Packing Spacer Ring A Size 2 1/2 (Stainless Steel)

Packing Ring A Size 2 (ALBZ)

Packing Ring A Size 2 1/4 (ALBZ)

Packing Ring A Size 2 1/2 (ALBZ)

Packing Ring A Size 2 (Duplex Stainless)

Packing Ring A Size 2 1/4 (Duplex Stainless)

Packing Ring A Size 2 1/2 (Duplex Stainless)

Packing Ring A Size 2 (Steel)

Packing Ring A Size 2 1/4 (Steel)

Packing Ring A Size 2 1/2 (Steel)

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

6

3

3

3

3

6

3

3

KP-57-200SS

KP-57-225SS

KP-57-250SS

KP-57KT-200AB

KP-57KT-225AB

KP-57KT-250AB

KP-57KT-200S

KP-57KT-225S

KP-57KT-250S

KP-57KT-200SS

KP-57KT-225SS

KP-57KT-250SS

KP-58-200AB

KP-58-225AB

KP-58-250AB

KP-58-200S

KP-58-225S

KP-58-250S

KP-58-200SS

KP-58-225SS

KP-58-250SS

KP-58K-200AB

KP-58K-225AB

KP-58K-250AB

KP-58K-200S

KP-58K-225S

KP-58K-250S

KP-58K-200SS

KP-58K-225SS

KP-58K-250SS

KP-59AB

KP-59S

KP-59SS

KP-60AB

KP-60S

KP-60SS

Kerr KP-3300/KP-3300BC Plunger Type Pump

Packing Ring A Size 2 (Stainless Steel)

Packing Ring A Size 2 1/4 (Stainless Steel)

Packing Ring A Size 2 1/2 (Stainless Steel)

Packing Ring A Size 2 (ALBZ) Use With Kevlar or Teflon Packing

Packing Ring A Size 2 1/4 (ALBZ) Use With Kevlar or Teflon Packing

Packing Ring A Size 2 1/2 (ALBZ) Use With Kevlar or Teflon Packing

Packing Ring A Size 2 (Steel) Use With Kevlar or Teflon Packing

Packing Ring A Size 2 1/4 (Steel) Use With Kevlar or Teflon Packing

Packing Ring A Size 2 1/2 (Steel) Use With Kevlar or Teflon Packing

Packing Ring A Size 2 (Stainless Steel) Use With Kevlar or Teflon Packing

Packing Ring A Size 2 1/4 (Stainless Steel) Use With Kevlar or Teflon Packing

Packing Ring A Size 2 1/2 (Stainless Steel) Use With Kevlar or Teflon Packing

Lantern Ring (for Mechanical Lubrication) A Size 2 (ALBZ)

Lantern Ring (for Mechanical Lubrication) A Size 2 1/4 (ALBZ)

Lantern Ring (for Mechanical Lubrication) A Size 2 1/2 (ALBZ)

Lantern Ring (for Mechanical Lubrication) A Size 2 (Steel)

Lantern Ring (for Mechanical Lubrication) A Size 2 1/4 (Steel)

Lantern Ring (for Mechanical Lubrication) A Size 2 1/2 (Steel)

Lantern Ring (for Mechanical Lubrication) A Size 2 (Stainless Steel)

Lantern Ring (for Mechanical Lubrication) A Size 2 1/4 (Stainless Steel)

Lantern Ring (for Mechanical Lubrication) A Size 2 1/2 (Stainless Steel)

Lantern Ring (for Mechanical Lubrication) A Size 2 (ALBZ)

Lantern Ring (for Mechanical Lubrication) A Size 2 1/4 (ALBZ)

Lantern Ring (for Mechanical Lubrication) A Size 2 1/2 (ALBZ)

Lantern Ring (for Mechanical Lubrication) A Size 2 (Steel)

Lantern Ring (for Mechanical Lubrication) A Size 2 1/4 (Steel)

Lantern Ring (for Mechanical Lubrication) A Size 2 1/2 (Steel)

Lantern Ring (for Mechanical Lubrication) A Size 2 (Stainless Steel)

Lantern Ring (for Mechanical Lubrication) A Size 2 1/4 (Stainless Steel)

Lantern Ring (for Mechanical Lubrication) A Size 2 1/2 (Stainless Steel)

Stuffing Box C Size (ALBZ)

Stuffing Box C Size (Steel)

Stuffing Box C Size (Stainless Steel)

Stuffing Box Nut (ALBZ)

Stuffing Box Nut C Size (Steel)

Stuffing Box Nut C Size (Stainless Steel)

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

KM-61-125AB

KM-61-150AB

KM-61-175AB

KM-61-200AB

KM-61-125S

KM-61-150S

KM-61-175S

KM-61-200S

KM-61-125SS

KM-61-150SS

KM-61-175SS

KM-61-200SS

KM-61K-125AB

KM-61K-150AB

KM-61K-175AB

KM-61K-200AB

KM-61K-125S

KM-61K-150S

KM-61K-175S

KM-61K-200S

KM-61K-125SS

KM-61K-150SS

KM-61K-175SS

KM-61K-200SS

KP-61-125AB

KP-61-150AB

KP-61-175AB

KP-61-200AB

KP-61-125S

KP-61-150S

KP-61-175S

KP-61-200S

KP-61-125SS

KP-61-150SS

KP-61-175SS

KP-61-200SS

Kerr KP-3300/KP-3300BC Plunger Type Pump

Size C Lantern Ring 1 1/4 (ALBZ)

Size C Lantern Ring 1 1/2 (ALBZ)

Size C Lantern Ring 1 3/4 (ALBZ)

Size C Lantern Ring 2 (ALBZ)

Size C Lantern Ring 1 1/4 (Steel)

Size C Lantern Ring 1 1/2 (Steel)

Size C Lantern Ring 1 3/4 (Steel)

Size C Lantern Ring 2 (Steel)

Size C Lantern Ring 1 1/4 (Stainless Steel)

Size C Lantern Ring 1 1/2 (Stainless Steel)

Size C Lantern Ring 1 3/4 (Stainless Steel)

Size C Lantern Ring 2 (Stainless Steel)

Size C Lantern Ring 1 1/4 (ALBZ)

Size C Lantern Ring 1 1/2 (ALBZ)

Size C Lantern Ring 1 3/4 (ALBZ)

Size C Lantern Ring 2 (ALBZ)

Size C Lantern Ring 1 1/4 (Steel)

Size C Lantern Ring 1 1/2 (Steel)

Size C Lantern Ring 1 3/4 (Steel)

Size C Lantern Ring 2 (Steel)

Size C Lantern Ring 1 1/4 (Stainless Steel)

Size C Lantern Ring 1 1/2 (Stainless Steel)

Size C Lantern Ring 1 3/4 (Stainless Steel)

Size C Lantern Ring 2 (Stainless Steel)

Size C Spacer Ring 1 1/4 (ALBZ)

Size C Spacer Ring 1 1/2 (ALBZ)

Size C Spacer Ring 1 3/4 (ALBZ)

Size C Spacer Ring 2 (ALBZ)

Size C Spacer Ring 1 1/4 (Steel)

Size C Spacer Ring 1 1/2 (Steel)

Size C Spacer Ring 1 3/4 (Steel)

Size C Spacer Ring 2 (Steel)

Size C Spacer Ring 1 1/4 (Stainless Steel)

Size C Spacer Ring 1 1/2 (Stainless Steel)

Size C Spacer Ring 1 3/4 (Stainless Steel)

Size C Spacer Ring 2 (Stainless Steel)

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

KP-62-125AB

KP-62-150AB

KP-62-175AB

KP-62-200AB

KP-62-125S

KP-62-150S

KP-62-175S

KP-62-200S

KP-62-125SS

KP-62-150SS

KP-62-175SS

KP-62-200SS

KM-63J-0838-125

KM-63J-0838-150

KM-63J-0838-175

KM-63J-0838-200

KM-63J-0858-125

KM-63J-0858-150

KM-63J-0858-175

KM-63-0858-200

KM-63T-125

KM-63T-150

KM-63T-175

KM-63T-200

KP-64

KP-64CS

KP-65

KP-66J-0838-200

KP-66J-0838-225

KP-66J-0838-250

KP-66J-0858-200

KP-66J-0858-225

KP-66J-0858-250

KP-66K-200

KP-66K-225

KP-66K-250

Kerr KP-3300/KP-3300BC Plunger Type Pump

Size C Packing Ring 1 1/4 (ALBZ)

Size C Packing Ring 1 1/2 (ALBZ)

Size C Packing Ring 1 3/4 (ALBZ)

Size C Packing Ring 2 (ALBZ)

Size C Packing Ring 1 1/4 (Steel)

Size C Packing Ring 1 1/2 (Steel)

Size C Packing Ring 1 3/4 (Steel)

Size C Packing Ring 2 (Steel)

Size C Packing Ring 1 1/4 (Stainless Steel)

Size C Packing Ring 1 1/2 (Stainless Steel)

Size C Packing Ring 1 3/4 (Stainless Steel)

Size C Packing Ring 2 (Stainless Steel)

838 Packing 1 1/4"

838 Packing 1 1/2"

838 Packing 1 3/4

838 Packing 2"

858 Packing 1 1/4

858 Packing 1 1/2

858 Packing 1 3/4

858 Packing 2"

Teflon Packing 1 1/4

Teflon Packing 1 1/2

Teflon Packing 1 3/4

Teflon Packing 2

Fluid End Stud

Fluid End Capscrew Sockethead

Stuffing Box / Fluid End Stud Nut

838 Plunger Packing (Non Adjustable) for Size A Box 2

838 Plunger Packing (Non Adjustable) for Size A Box 2 1/4

838 Plunger Packing (Non Adjustable) for Size A Box 2 1/2

858 Plunger Packing (Non Adjustable) for Size A Box 2

858 Plunger Packing (Non Adjustable) for Size A Box 2 1/4

858 Plunger Packing (Non Adjustable) for Size A Box 2 1/2

Kevlar Plunger Packing for Size A Box 2

Kevlar Plunger Packing for Size A Box 2 1/4

Kevlar Plunger Packing 2 1/2" X 3"

12

12

24

3 sets

3 sets

3 sets

3 sets

3 sets

3 sets

3 sets

3 sets

3 sets

3 sets

3 sets

3 sets

3 sets

3 sets

3 sets

3 sets

3 sets

3

3

3

3

3 sets

3 sets

3 sets

3 sets

3

3

3

3

3

3

3

3

KP-68-150

KP-68-175

KP-68-200

KP-68-225

KP-68-250

KP-69-125

KP-69-150

KP-69-175

KP-69-200

KP-69-225

KP-69-250

KP-70

KP-70L

KP-70DL

KP-70FL

AP-72AB

AP-72S

AP-72SS

KP-73

KP-75

KP-66T-200

KP-66T-225

KP-66T-250

KP-66V-0805-225

KP-66V-0805-250

KP-66V-0758-225

KP-66V-0758-250

KP-66J-0858-225DP

KP-67K-125

KP-67K-150

KP-67K-175

KP-67K-200

KP-67V-0805-200

KP-67V-0758-200

KP-67VPK-0758-200

KP-68-125

Kerr KP-3300/KP-3300BC Plunger Type Pump

Teflon Plunger Packing for Size A Box 2

Teflon Plunger Packing for Size A Box 2 1/4

Teflon Plunger Packing for Size A Box 2 1/2

805 Pressure Rings 2 1/4

805 Pressure Rings 2 1/2

758 Pressure Rings 2 1/4

758 Pressure Rings 2 1/2

858 Plunger Double Packing (Non Adjustable)

Kevlar Packing 1 1/4

Kevlar Packing 1 1/2

Kevlar Packing 1 3/4

Kevlar Packing 2

805 Pressure Rings 2

758 Pressure Rings 2

758/PK Follower Pressure Rings 2

Plunger 1 1/4 (Stainless Steel)

Plunger 1 1/2 (Stainless Steel)

Plunger 1 3/4 (Stainless Steel)

Plunger 2 (Stainless Steel)

Plunger 2 1/4 (Stainless Steel)

Plunger 2 1/2 (Stainless Steel)

Plunger 1 1/4 (Colmonoy 730)

Plunger 1 1/2 (Colmonoy 730)

Plunger 1 3/4 (Colmonoy 730)

Plunger 2 (Colmonoy 730)

Plunger 2 1/4 (Colmonoy 730)

Plunger 2 1/2 (Colmonoy 730)

Plunger Chamber Cover

Plunger Chamber Cover Standard Lubrication

Plunger Chamber Cover Drip Lubricator System

Plunger Chamber Cover Force Lubricator System

1/8 NPT Oil Level/Stuffing Box Hex Plug (AB)

1/8 NPT Oil Level/Stuffing Box Hex Plug (Steel)

1/8 NPT Oil Level/Stuffing Box Hex Plug (Stainless Steel)

Cover Cap Wrench

Valve Puller Disk Type

1

1

1

1

1

3

3

3

3

3

1

1

3

3

3

3

3

3

3

3

3 sets

3 sets

3 sets

3 sets

3 sets

3 sets

3 sets

3

3 sets

3 sets

3 sets

3 sets

3 sets

3 sets

3 sets

3 sets

KP-76

KP-76M

KP-76M-1

KP-76M-2

KP-76M-3

KP-76M-4

KP-76M-5

KP-76M-5

AP-77T

KP-80ARSS

KP-80HT

KP-81ARSS

KP-81HT

KP-82ARSS

KP-82HT

KP-85R

KP-85B

KP-85A

KP-85HT

KP-86AVB-250

KP-86SL-225DX

KP-86SL-225S

KP-86SL-225SS

KP-86SL-250AB

KP-86SL-250DX

KP-86SL-250S

KP-86SL-250SS

KP-86A-AB

KP-86C-225

KP-86C-225SS

KP-86A-S

KP-86A-SS

KP-86CAB

KP-86CS

KP-86CSS

KP-86SL-225AB

Kerr KP-3300/KP-3300BC Plunger Type Pump

Valve Puller Wing Type

Valve Puller Wing Guide Pin Type

Rod, Puller

Pin Set, Puller

Head, Puller

Spacer Washer, Puller

Nut,Puller

O-Ring, Puller

Valve Insert Tool

Abrasive Resistant Discharge Valve Stainless Steel

Discharge Valve, Heat Treated, A/R with Insert

Abrasive Resistant Suction Valve Stainless Steel

Suction Valve, Heat Treated, A/R with Insert

Abrasive Resistant Valve Seat Stainless Steel

Valve Seat, Heat Treated, A/R

Abrasive Resistant Valve Insert Red

Abrasive Resistant Valve Insert Blue

Valve Insert Aflas

Valve Insert High Temp Urethane

Stuffing Box Vaporless (ALBZ)

Stuffing Box (Duplex Stainless)

Stuffing Box (Steel)

Stuffing Box (Stainless Steel)

Stuffing Box (ALBZ)

Stuffing Box (Duplex Stainless)

Stuffing Box (Steel)

Stuffing Box (Stainless Steel)

Stuffing Box (ALBZ)

Stuffing Box Vaporless (Steel)

Stuffing Box Vaporless (Stainless Steel)

Stuffing Box (Steel)

Stuffing Box (Stainless Steel)

Stuffing Box (ALBZ)

Stuffing Box (Steel)

Stuffing Box (Stainless Steel)

Stuffing Box (ALBZ)

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

6

6

3

3

3

3

3

1

3

3

3

1

1

1

1

1

1

1

Kerr KP-3300/KP-3300BC Plunger Type Pump

KP-87A

KP-87N

KP-87-I

KP-87-O

KM-88V-0805-150

KM-88V-0805-175

KM-88V-0758-125

KM-88V-0758-150

Stuffing Box O'Ring Aflax

Stuffing Box O'Ring Nitrile

Stuffing Box Inner O'Ring Nitrile

Stuffing Box Outer O-Ring, Nitrile

805 Pressure Rings 1 1/2

805 Pressure Rings 1 3/4

758 Pressure Rings 1 1/4

758 Pressure Rings 1 1/2

KM-88V-0758-175 758 Pressure Rings 1 3/4

KM-88VPK-0758-125 758/PK Follower Pressure Rings 1 1/4

KM-88VPK-0758-150 758/PK Follower Pressure Rings 1 1/2

KM-88VPK-0758-175 758/PK Follower Pressure Rings 1 3/4

KM-88VGPK-225 758/PK Follower Pressure Rings 2 1/4

KP-88VGPK-250

KP-88-1058-125

KP-88-1058-150

758/PK Follower Pressure Rings 2 1/2

1058 Pressure Rings SSF 1 1/4

1058 Pressure Rings SSF 1 1/5

KP-88-1058-175

KP-88-1058-200

KP-88-1058-225

KP-88-1058-250

KP-89A-250

KP-89C-125

KP-90A-250

KP-90C-125

KP-90SL-150AB

KP-90SL-150S

KP-90SL-150SS

KP-90SL-175AB

KP-90SL-175S

KP-90SL-175SS

KP-90SL-200AB

KP-90SL-200S

KP-90SL-200SS

KP-90SL-225AB

KP-90SL-225S

KP-90SL-225SS

1058 Pressure Rings SSF 1 3/4

1058 Pressure Rings SSF 2

1058 Pressure Rings SSF 2 1/4

1058 Pressure Rings SSF 2 1/2

Packing Ring (ALBZ)

Packing Ring (Stainless Steel)

Seals Poly Pack 2 ea Set

Seals Poly Pack 2 ea Set

805 Spring Loaded Packing Set 1 1/2 (ALBZ)

805 Spring Loaded Packing Set 1 1/2 (Steel)

805 Spring Loaded Packing Set 1 1/2 (Stainless Steel)

805 SF Spring Loaded Packing Set 1 3/4 (ALBZ)

805 SF Spring Loaded Packing Set 1 3/4 (Steel)

805 SF Spring Loaded Packing Set 1 3/4 (Stainless Steel)

805 SF Spring Loaded Packing Set 2 (ALBZ)

805 SF Spring Loaded Packing Set 2 (Steel)

805 SF Spring Loaded Packing Set 2 (Stainless Steel)

805 SF Spring Loaded Packing Set 2 1/4 (ALBZ)

805 SF Spring Loaded Packing Set 2 1/4 (Steel)

805 SF Spring Loaded Packing Set 2 1/4 (Stainless Steel)

3

3

3

3

3

3

3

3

3

3

3

3

3 sets

3 sets

3 sets

3 sets

3

3

3

3

3 sets

3 sets

3 sets

3 sets

3 sets

3 sets

3 sets

3 sets

3

3

3

3

3 sets

3 sets

3 sets

3 sets

Kerr KP-3300/KP-3300BC Plunger Type Pump

KP-90SL-250AB

KP-90SL-250S

KP-90SL-250SS

KP-90GSL-150AB

KP-90GSL-150S

KP-90GSL-150SS

KP-90GSL-175AB

KP-90GSL-175S

KP-90GSL-175SS

KP-90GSL-200AB

KP-90GSL-200S

KP-90GSL-200SS

KP-90GSL-225AB

KP-90GSL-225S

KP-90GSL-225SS

KP-90GSL-250AB

805 SF Spring Loaded Packing Set 2 1/2 (ALBZ)

805 SF Spring Loaded Packing Set 2 1/2 (Steel)

805 SF Spring Loaded Packing Set 2 1/2 (Stainless Steel)

758 SF Spring Loaded Packing Set 1 1/2 (ALBZ)

758 SF Spring Loaded Packing Set 1 1/2 (Steel)

758 SF Spring Loaded Packing Set 1 1/2 (Stainless Steel)

758 SF Spring Loaded Packing Set 1 3/4 (ALBZ)

758 SF Spring Loaded Packing Set 1 3/4 (Steel)

758 SF Spring Loaded Packing Set 1 3/4 (Stainless Steel)

758 SF Spring Loaded Packing Set 2 (ALBZ)

758 SF Spring Loaded Packing Set 2 (Steel)

758 SF Spring Loaded Packing Set 2 (Stainless Steel)

758 SF Spring Loaded Packing Set 2 1/4 (ALBZ)

758 SF Spring Loaded Packing Set 2 1/4 (Steel)

758 SF Spring Loaded Packing Set 2 1/4 (Stainless Steel)

758 SF Spring Loaded Packing Set 2 1/2 (ALBZ)

KP-90GSL-250S

KP-90GSL-250SS

758 SF Spring Loaded Packing Set 2 1/2 (Steel)

758 SF Spring Loaded Packing Set 2 1/2 (Stainless Steel)

KP-90GSLSSF-175AB 1058 SSF Spring Loaded Packing Set 1 3/4 (ALBZ)

KP-90GSLSSF-175S 1058 SSF Spring Loaded Packing Set 1 3/4 (Steel)

KP-90GSLSSF-175SS 1058 SSF Spring Loaded Packing Set 1 3/4 (Stainless Steel)

KP-90GSLSSF-200AB 1058 SSF Spring Loaded Packing Set 2 (ALBZ)

KP-90GSLSSF-200S 1058 SSF Spring Loaded Packing Set 2 (Steel)

KP-90GSLSSF-200SS 1058 SSF Spring Loaded Packing Set 2 (Stainless Steel)

KP-90GSLSSF-225AB 1058 SSF Spring Loaded Packing Set 2 1/4 (ALBZ)

KP-90GSLSSF-225S 1058 SSF Spring Loaded Packing Set 2 1/4 (Steel)

KP-90GSLSSF-225SS 1058 SSF Spring Loaded Packing Set 2 1/4 (Stainless Steel)

KP-90GSLSSF-250AB 1058 SSF Spring Loaded Packing Set 2 1/2 (ALBZ)

KP-90GSLSSF-250S 1058 SSF Spring Loaded Packing Set 2 1/2 (Steel)

KP-90GSLSSF-250SS 1058 SSF Spring Loaded Packing Set 2 1/2 (Stainless Steel)

KP-91A-250 Seal Holder O'Rings 2 ea

KP-91C-125 Seal Holder O'Rings 2 ea

KP-92-250

KP-93SL-150AB

KP-93SL-150SS

KP-93A-250AB

Plunger for Vaporless Box KP-86AVB

Packing Adapters Spring Loaded AB

Packing Adapters Spring Loaded (Stainless Steel)

Spacer Seal Holder (ALBZ)

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

Kerr KP-3300/KP-3300BC Plunger Type Pump

KP-93C-125AB

KP-93C-125SS

KP-93LSL-150AB

KP-93SL-150AB

KP-93SL-175AB

KP-93SL-200AB

KP-93SL-225AB

KP-93SL-250AB

KP-93SL-150S

KP-93SL-175S

KP-93SL-200S

KP-93SL-225S

KP-93SL-250S

KP-93SL-150SS

KP-93SL-175SS

KP-93SL-200SS

Spacer Seal Holder (ALBZ)

Spacer Seal Holder (Stainless Steel)

Spacer Ring For SL Lubricated SF Packing Set 1 1/2 (ALBZ)

Packing Adapters Spring Loaded 1 1/2 (ALBZ)

Packing Adapters Spring Loaded 1 3/4 (ALBZ)

Packing Adapters Spring Loaded 2 (ALBZ)

Packing Adapters Spring Loaded 2 1/4 (ALBZ)

Packing Adapters Spring Loaded 2 1/2 (ALBZ)

Packing Adapters Spring Loaded 1 1/2 (Steel)

Packing Adapters Spring Loaded 1 3/4 (Steel)

Packing Adapters Spring Loaded 2 (Steel)

Packing Adapters Spring Loaded 2 1/4 (Steel)

Packing Adapters Spring Loaded 2 1/2 (Steel)

Packing Adapters Spring Loaded 1 1/2 (Stainless Steel)

Packing Adapters Spring Loaded 1 3/4 (Stainless Steel)

Packing Adapters Spring Loaded 2 (Stainless Steel)

KP-93SL-225SS

KP-93SL-250SS

Packing Adapters Spring Loaded 2 1/4 (Stainless Steel)

Packing Adapters Spring Loaded 2 1/2 (Stainless Steel)

KP-93SL-LAN-150AB Lantern Ring For SL SF Packing 1 1/2

KP-94-150

KP-94A-250AB

KP-94A-250SS

KP-94C-125

KP-95-225L

Stuffing Box Nut (Stainless Steel)

Vaporless Box (ALBZ)

Vaporless Box (Stainless Steel)

Stuffing Box Nut (Stainless Steel)

Packing Spring 2 1/4 O.D. (Long)

KP-95-225S

KP-95-250

KP-95W-225

KP-95W-250

KP-95W-300

KP-113

Packing Spring 2 1/4 O.D. (Short)

Packing Spring 2 1/2 O.D.

Wave Spring 2-1/4 OD

Wave Spring 2-1/2 OD

Wave Spring 3 OD

Gasket Set Complete -- Contents: (1) KP-3, (2) KP-7, (1) KP-12, (3) KP-22G, (3) KP-24, (3) KP-28, (6) KP-32, (3)

KP-55

AP-114

KP-114A

KP-114DL

KP-114R

KP-115H

Force Feed Lubricator 3 Feed

Lubrication System Complete

Drip Lubricator System Complete

Drip Lubrication System Reservoir

Lubricator Hose Kit Complete

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

1

1

1

1

1

KP-130

AP-132

KP-133

KP-134

AP-135

KPC-150

KPC-175

KPC-200

KPC-225

KPC-250

KP-276

KP-277

KP-300AB

KP-300ARSS

KP-300HT

KP-300M

KP-300SS

KP-305AB

KP-305ARSS

KP-305HT

AP-116

KP-117

AP-117L-6

KP-118

KP-119

KP-120-1

KP-120-6

KP-120-GM3-GS2

KP-120-8

KP-121

KP-124

KP-125-6

KP-125-8

KP-125-GS2

KP-125-GM3

KPC-125

Kerr KP-3300/KP-3300BC Plunger Type Pump

55 Single Pump for Forced Feed Lubricator

Crankshaft Lubrication Sheave

Lubricator Driven Sheave

Lubrication Belt

Lubricator Bracket

Spiral Retainer Ring, Planetary Gear

Crankshaft, Splined Hydraulic Drive 40 Tooth Spline #6

Crankshaft, Hyd Mtrs SAI - Int Spln GM3 - GS2

Crankshaft, Splined Hydraulic Drive 21 Tooth Spline #8

Crankshaft, Hydraulic Drive 1 1/4 Straight Keyed Drive

Crankshaft Splined Adapter for Auburn #6

Bearing Housing, Hydraulic Drive for Auburn # 6

Bearing Housing, Hyd Drive for Auburn #8

Bearing Housing, Hyd Mtr SAI GS2 Internal Spline

Bearing Housing, Hyd Mtr SAI GM3 Internal Spline

Plunger 1 1/4 (Ceramic)

Bearing Housing, Extensions Shaft

Auxiliary Shaft

Bearing Housing, Extension Shaft for Lube System

Bearing Housing, Standard Drive for Lube System

Oil Seal, Bearing Housing Extension Shaft

Plunger 1 1/2 (Ceramic)

Plunger 1 3/4 (Ceramic)

Plunger 2 (Ceramic)

Plunger 2 1/4 (Ceramic)

Plunger 2 1/2 (Ceramic)

Installation Tool for Pony Rod Seal

Pony Rod Installation Wrench

Discharge Valve Assy (ALBZ) (KP-43, KP-45 & KT-52L)

Abrasive Resistant Discharge Valve Complete (KP-80ARSS, KP-82ARSS & KT- 52L)

Abrasive Resistant Discharge Valve Complete (KP-80HT, KP-82HT & KT- 52L)

Monel Discharge Valve Complete (KP-46, KP-48, KT-52L)

Stainless Steel Discharge Valve Assy (KP-49, KP-51 & KT-52L)

Suction Valve Assy (ALBZ) (KP-44, KP-45 & KT-52S)

Abrasive Resistant Suction Valve Complete (KP-81ARSS, KP-82ARSS & KT-52S)

Abrasive Resistant Suction Valve Complete (KP-81HT, KP-82HT & KT-52S)

1

3

3

3

3

3

3

1

3

3

3

3

1

1

3

3

3

1

1

1

1

1

1

1

3

1

1

1

1

1

1

1

1

3

1

1

Kerr KP-3300/KP-3300BC Plunger Type Pump

KP-305M

KP-305SS

KA-306

AP-324-6-3

AP-324-8-4

AP-324-6-4

AP-330

AP-330H

AP-330S

AP-330B

AP-330-1

AP-330-2

AP-331

AP-351

AP-352

AP-425

Monel Suction Valve Complete (KP-47, KP-48, KT-52S)

Stainless Steel Suction Valve Complete (KP-50, KP-51 & KP-52S)

Valve Seat Seating Tool

# 6 Planetary Gear Assembly 3.75:1 14 Tooth Input Spline SAE C Bolt Mount

# 8 Planetary Gear Assembly 4-Bolt C Mount, 14 Tooth Input Sline

# 6 Planetary Gear Assembly With 1 1/2 Male Input Shaft 4.5:1

SAE C 4 Bolt Drive Assembly 1-1/2 Male Input Shaft

Housing, SAE C 4 Bolt Drive Assembly 1-1/2 Male Input Shaft

Input Shaft, SAE C 4 Bolt Drive Assembly 1-1/2 Male Input Shaft

Bearings, SAE C 4 Bolt Drive Assembly 1-1/2 Male Input Shaft

Oil Seal, SAE C 4 Bolt Drive Assembly 1-1/2 Male Input Shaft

Snap Ring, SAE C 4 Bolt Drive Assembly 1-1/2 Male Input Shaft

O'Ring, #8 Auburn Input Drive Assembly

Oil Level Sight Glass

Oil Level Sight Plug

Wrench, Stuffing Box Nut

KP-430

AP-450

KP-800-125

KP-800-150

KP-800-175

KP-800-200

KP-800-225

Cover Cap Capscrew

Sunstrand Motor Series 90

Plunger, Kerramic 1 1/4

Plunger, Kerramic 1 1/2

Plunger, Kerramic 1 3/4

Plunger, Kerramic 2

Plunger, Kerramic 2 1/4

KP-800-250 Plunger, Kerramic 2 1/2

All prices and part numbers are subject to change without prior notice.

1

1

1

1

1

1

2

1

1

1

1

1

1

3

3

1

3

3

3

3

3

24

1

3

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
