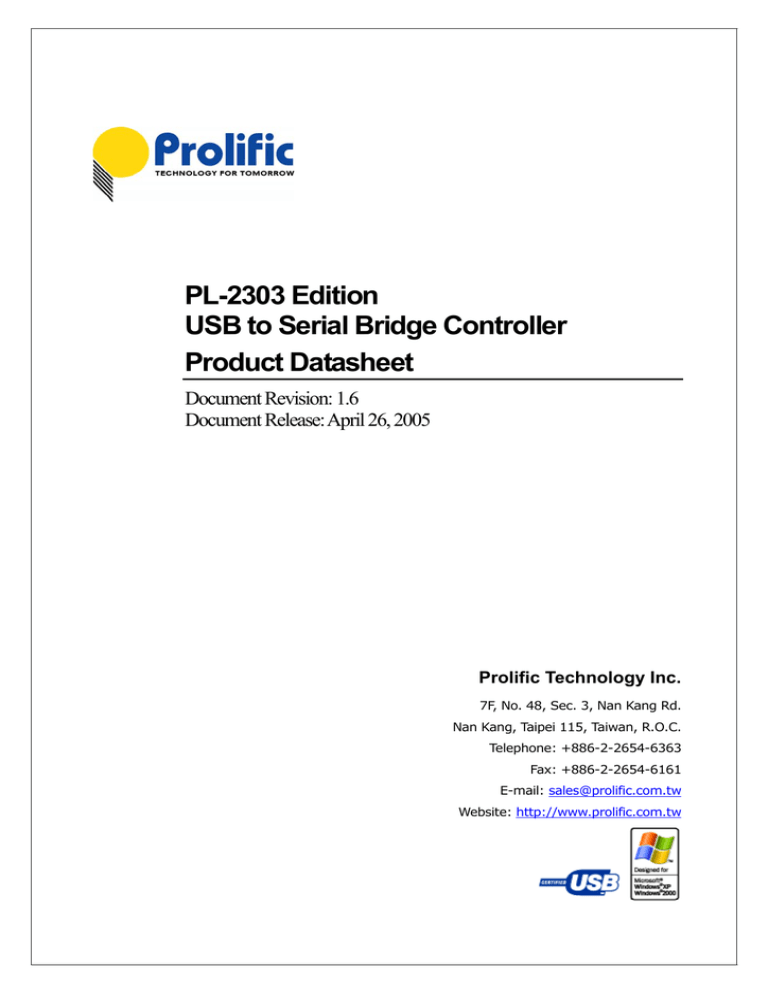

PL-2303 Edition
USB to Serial Bridge Controller
Product Datasheet
Document Revision: 1.6
Document Release: April 26, 2005
Prolific Technology Inc.
7F, No. 48, Sec. 3, Nan Kang Rd.
Nan Kang, Taipei 115, Taiwan, R.O.C.
Telephone: +886-2-2654-6363
Fax: +886-2-2654-6161
E-mail: [email protected]
Website: http://www.prolific.com.tw
Revised Date:
April 26, 2005
ds_pl2303_v16.doc
Disclaimer
All the information in this document is subject to change without prior notice. Prolific Technology Inc.
does not make any representations or any warranties (implied or otherwise) regarding the accuracy
and completeness of this document and shall in no event be liable for any loss of profit or any other
commercial damage, including but not limited to special, incidental, consequential, or other damages.
Trademarks
The Prolific logo is a registered trademark of Prolific Technology Inc. All brand names and product
names used in this document are trademarks or registered trademarks of their respective holders.
Copyrights
Copyright © 2005 Prolific Technology Inc. All rights reserved.
No part of this document may be reproduced or transmitted in any form by any means without the
express written permission of Prolific Technology Inc.
PL-2303 Product Datasheet
-2-
Document Version 1.6
Revised Date:
April 26, 2005
ds_pl2303_v16.doc
Revision History
Revision
1.6
Description
Date
Modify Temperature Characteristics (Sec 8.4)
April 26, 2005
Added List of Figures and List of Tables
Modify Features section
Improve clarity of Pin Assignment diagram
o
Correct Minimum Operating Temperature to 0 C
1.5
February 02, 2005
Modify Operating Voltage
Add EEPROM Timing Diagram
Add Reset Timing Diagram
Added Ordering Information
Added Reel Packing Information
1.4
Add Windows CE .NET support feature
August 29, 2002
1.3
Buffer for upstream and downstream data flow – change
from 96 to 256 bytes
August 01, 2002
For Chip Version H (date code 0206)
Add OS Support in Features Section
1.2
Correct default values in Table 5. Device Configuration
Register
July 03, 2002
Add Suspend Current in DC Characteristics Section
Move Operating Temperature in DC Characteristics to new
section
PL-2303 Product Datasheet
-3-
Document Version 1.6
Revised Date:
April 26, 2005
ds_pl2303_v16.doc
Table of Contents
1.0
FEATURES........................................................................................................6
2.0
INTRODUCTION ...............................................................................................6
3.0
FUNCTIONAL BLOCK DIAGRAM....................................................................7
4.0
PIN ASSIGNMENT OUTLINE ...........................................................................8
5.0
PIN ASSIGNMENT & DESCRIPTION ...............................................................9
6.0
DATA FORMATS & PROGRAMMABLE BAUD RATE GENERATOR............10
7.0
EXTERNAL EEPROM AND DEVICE CONFIGURATION ............................... 11
8.0
ELECTRICAL, TEMPERATURE & TIMING CHARACTERISTICS.................13
8.1 Absolute Maximum Ratings ................................................................................. 13
8.2 DC Characteristics ............................................................................................... 13
8.3 Clock Characteristics ........................................................................................... 13
8.4 Temperature Characteristics ................................................................................ 14
8.5 USB Transceiver Characteristics ......................................................................... 14
8.6 EEPROM Timing Diagram ................................................................................... 14
8.7 Reset Timing Diagram ......................................................................................... 15
9.0
OUTLINE DIAGRAM.......................................................................................16
9.1 SSOP28 Package................................................................................................ 16
10.0 REEL PACKING INFORMATION ....................................................................17
10.1 Carrier Tape (SSOP-28)....................................................................................... 17
10.2 Reel Dimension ................................................................................................... 18
11.0 ORDERING INFORMATION ...........................................................................18
PL-2303 Product Datasheet
-4-
Document Version 1.6
Revised Date:
April 26, 2005
ds_pl2303_v16.doc
List of Figures
Figure 3-1 Block Diagram of PL-2303....................................................................................... 7
Figure 4-1 Pin Assignment Outline of PL-2303 ......................................................................... 8
Figure 8-1 Byte Write Timing Diagram .................................................................................... 14
Figure 8-2 Selective Read Timing Diagram ............................................................................ 15
Figure 8-3 Reset Timing Diagram ........................................................................................... 15
Figure 9-1 Outline Diagram of PL-2303 SSOP28 ................................................................... 16
Figure 10-1a SSOP28 Carrier Tape ........................................................................................ 17
Figure 10-1b IC Reel Placements ........................................................................................... 17
Figure 10-2 Reel Dimension ................................................................................................... 18
List of Tables
Table 5-1 Pin Assignment & Description ................................................................................... 9
Table 6-1 Supported Data Formats ......................................................................................... 10
Table 6-2 Baud Rate Setting ................................................................................................... 10
Table 7-1 EEPROM Contents ................................................................................................. 11
Table 7-2 Device Configuration Register ................................................................................ 11
Table 8-1 Absolute Maximum Ratings..................................................................................... 13
Table 8-2 DC Characteristics .................................................................................................. 13
Table 8-3 Clock Characteristics .............................................................................................. 13
Table 8-4 Temperature Characteristics ................................................................................... 14
Table 8-5 USB Transceiver Characteristics ............................................................................ 14
Table 8-6 Power-On Reset...................................................................................................... 15
Table 9-1 Package Dimension ................................................................................................ 16
Table 10-2 Reel Part Number Information .............................................................................. 18
Table 11-1 Ordering Information.............................................................................................. 18
PL-2303 Product Datasheet
-5-
Document Version 1.6
Revised Date:
April 26, 2005
ds_pl2303_v16.doc
1.0 Features
Fully compliant with USB Specification v1.1 and USB CDC v1.1
Supports RS232 Serial interface
Supports automatic handshake mode
Supports Remote wake-up and power management
256-bytes buffer each for upstream and downstream data flow
Supports default ROM or external EEPROM for device configuration
On-chip USB transceiver
On-chip crystal oscillator running at 12MHz
Supports Windows 98/SE, ME, 2000, XP, Windows CE3.0, CE .NET, Linux, and Mac OS
Designed for Windows XP/2000 Certified Logo Drivers
USB-IF Logo Compliant with TID 10240590
28-Pin SSOP package
2.0 Introduction
The PL-2303 operates as a bridge between one USB port and one standard RS232 Serial port. The
two large on-chip buffers accommodate data flow from two different buses. The USB bulk-type data is
adopted for maximum data transfer. Automatic handshake is supported at the Serial port. With these, a
much higher baud rate can be achieved compared to the legacy UART controller.
This device is also compliant with USB power management and remote wakeup scheme. Only
minimum power is consumed from the host during Suspend. By integrating all the function in a
SSOP-28 package, this chip is suitable for cable embedding. Users just simply hook the cable into PC
or hub’s USB port, and then they can connect to any RS-232 devices.
PL-2303 Product Datasheet
-6-
Document Version 1.6
Revised Date:
April 26, 2005
ds_pl2303_v16.doc
3.0 Functional Block Diagram
USB Port
USB
Transceiver
REGISTER/
Control
USB
CONFIG/
Unit
SIE
STATUS/
CONTROL
DOWN
UP
STREAM
STREAM
BUFFER
BUFFER
CLOCK
SYNTHESIZER
RS-232 SERIAL
INTERFACE
EEPROM
OSCILLATOR
INTERFACE
Serial Port
I2C Bus
Figure 3-1 Block Diagram of PL-2303
PL-2303 Product Datasheet
-7-
Document Version 1.6
Revised Date:
April 26, 2005
ds_pl2303_v16.doc
4.0 Pin Assignment Outline
SSOP 28 PACKAGE
(TOP VIEW)
TXD
1
28
OSC2
DTR_N
2
27
OSC1
RTS_N
3
26
PLL_TEST
VDD_232
4
25
GND_PLL
RXD
5
24
VDD_PLL
RI_N
6
23
LD_MODE
GND
7
22
TRI_MODE
VDD
8
21
GND
DSR_N
9
20
VDD
DCD_N
10
19
RESET
CTS_N
11
18
GND_3V3
SHTD_N
12
17
VDD_3V3
EE_CLK
13
16
DM
EE_DATA
14
15
DP
Figure 4-1 Pin Assignment Outline of PL-2303
PL-2303 Product Datasheet
-8-
Document Version 1.6
Revised Date:
April 26, 2005
ds_pl2303_v16.doc
5.0 Pin Assignment & Description
Table 5-1 Pin Assignment & Description
Pin
No.
1
2
3
4
Name
TXD
DTR_N
RTS_N
VDD_232
Type
O
O
O
P
Description
Data output to Serial port
Data Terminal Ready, active low
Request To Send, active low
RS-232 VDD. The RS-232 output signals (Pin 1 ~ Pin 3) are
designed for 5V, 3.3V or 3V operation. VDD_232 should be
connected to the same power level of the RS-232 interface.
(The RS-232 input signals are always 5V~3V tolerant.)
Note: This document version only provides 5V DC
characteristic information. Refer to future revisions for updates.
5
6
7
8
9
10
11
12
13
RXD
RI_N
GND
VDD
DSR_N
DCD_N
CTS_N
SHTD_N
EE_CLK
I
I
P
P
I
I
I
O
I/O
14
15
16
17
18
19
20
21
22
EE_DATA
DP
DM
VDD_3V3
GND_3V3
RESET
VDD
GND
TRI_STATE
I/O
I/O
I/O
P
P
I
P
P
I
23
LD_MD/
SHTD
I/O
24
25
26
27
28
VDD_PLL
GND_PLL
PLL_TEST
OSC1
OSC2
P
P
I
I
O
Type:
I – Input signal
O – Output signal
PL-2303 Product Datasheet
Data input from Serial Bus
Ring Indicator, active low
Ground
Power
Data Set Ready, active low
Data Carrier Detect, active low
Clear To Send, active low
Shut Down RS232 Transceiver
During Reset, this pin is input for simulation purpose. During
normal operation, this pin is Serial ROM clock
Serial ROM data signal
USB DPLUS signal
USB DMINUS signal
3.3V power for USB transceiver
3.3V ground
System Reset
Power
Ground
Tri-State
This pin is referred after reset.
High: RS-232 output inactive during Suspend.
Low: RS-232 output tri-state during Suspend.
Load Mode/SHTD
This pin is input during reset. Pull high with a 220K resistor to
indicate the heavy load USB device (500mA). Pull down with
a 220K resistor to indicate the light load USB device 100mA).
After reset, this pin becomes output. It output the inverse of
SHTD_N.
5V power for PLL
Ground for PLL
PLL test mode control
Crystal oscillator input
Crystal oscillator output
I/O – Bi-directional signal
-9-
P – Power/Ground
Document Version 1.6
Revised Date:
April 26, 2005
ds_pl2303_v16.doc
6.0 Data Formats & Programmable Baud Rate Generator
The PL2303 controller supports versatile data formats and has a programmable baud rate generator.
The supported data formats are shown on Table 6-1. The programmable baud rate generator supports
baud rates up to 1.2M bps as shown in Table 6-2.
Table 6-1 Supported Data Formats
Description
Stop bits
Parity type
Data bits
1
1.5
2
None
Odd
Even
Mark
Space
5, 6, 7, 8, or 16
Table 6-2 Baud Rate Setting
dwDTERate
0012C000h
000E1000h
00096000h
00070800h
00038400h
0001C200h
0000E100h
00009600h
00007080h
00004B00h
00003840h
00002580h
00001C20h
000012C0h
00000E10h
00000960h
00000708h
000004B0h
00000258h
0000012Ch
00000096h
0000004Bh
PL-2303 Product Datasheet
Baud Rate
1228800
921600
614400
460800
230400
115200
57600
38400
28800
19200
14400
9600
7200
4800
3600
2400
1800
1200
600
300
150
75
- 10 -
Document Version 1.6
Revised Date:
April 26, 2005
ds_pl2303_v16.doc
7.0 External EEPROM and Device Configuration
PL-2303 allows storing the configuration data in an external EEPROM. After reset, the first two bytes of
EEPROM are checked. If the value is 067Bh, the EEPROM is valid and the contents of the EEPROM
are loaded as the chip’s default parameters. Otherwise, the chip’s default setting is used. The content
of EEPROM is shown in table below.
The Device Configuration Register is used to control some vendor-specific functions. The meaning of
each bit in Device Configuration Register is shown in Table 7-2. Reserved and unused pins always set
to the default value.
Table 7-1 EEPROM Contents
Bytes
1:0
Name
EECHK
3:2
5:4
7:6
10:8
VID
PID
RN
DCR
Description
When the EEPROM is programmed, these two bytes is configured as
067B. After reset, they will be checked for the value. If matched, the
following information will be loaded as the default parameters.
USB Vendor ID
Product ID
Release number (BCD)
Device Configuration Register
Table 7-2 Device Configuration Register
Name
23
22
Bits
RESERVED
TRI_OUT
21
RW_MODE
20
WURX
19
WUDSR
18
WURI
17
WUDCD
PL-2303 Product Datasheet
Definition
Reserved
RS-232 Output Tri-state:
1: RS-232 output tri-state
0: RS-232 output in output mode
Remote Wakeup Mode:
0: When engages remote wakeup, the device issues
disconnect signal
1: When engages remote wakeup, the device issues
resume signal
Enable Wake Up Trigger on RXD:
0 – Disabled;
1 – Enable Wake Up Trigger on RXD state changes.
Enable Wake Up Trigger on DSR:
0 – Disabled;
1 – Enable Wake Up Trigger on DSR state changes.
Enable Wake Up Trigger on RI:
0 – Disabled;
1 – Enable Wake Up Trigger on RI state changes.
Enable Wake Up Trigger on DCD:
0 – Disabled;
1 – Enable Wake Up Trigger on DCD state changes.
- 11 -
Default
0
0
1
0
0
1
0
Document Version 1.6
Revised Date:
April 26, 2005
ds_pl2303_v16.doc
Name
16
Bits
WUCTS
15
14
13
12
RESERVED
RESERVED
RESERVED
RW_INH
11:6
5:4
RESERVED
RTSM
3:1
0
RESERVED
RSPDM
PL-2303 Product Datasheet
Definition
Enable Wake Up Trigger on CTS:
0 – Disabled;
1 – Enable Wake Up Trigger on CTS state changes.
Always set to one
Always set to zero
Always set to zero
Remote Wake Inhibit:
1 – Inhibit the USB Remote Wakeup function
0 – Enable the USB Remote Wakeup function
Always set to zero
RTS Control Method:
00b – RTS is controlled by ControlBitMap. Signal is active
low;
01 – RTS is controlled by ControlBitMap. Signal is active
high;
10 – Drive RTS active when Downstream Data Buffer is
NOT EMPTY; otherwise Drive RTS inactive.
11 – Drive RTS inactive when Downstream Data Buffer is
NOT EMPTY; otherwise Drive RTS active.
Always set to zero
RS-232 Transceiver Shut-Down Mode:
1: Shut down the transceiver when USB SUSPEND is
engaged
0: Do not shut down the transceiver even when USB
SUSPEND is engaged
- 12 -
Default
0
1
0
0
0
0
0
0
1
Document Version 1.6
Revised Date:
April 26, 2005
ds_pl2303_v16.doc
8.0 Electrical, Temperature & Timing Characteristics
8.1 Absolute Maximum Ratings
Table 8-1 Absolute Maximum Ratings
Items
Ratings
Power Supply Voltage
-0.3 to 6.0 V
Input Voltage
-0.3 to VDD+0.3 V
Output Voltage
-0.3 to VDD+0.3 V
Storage Temperature
-55 to 150 C
o
8.2 DC Characteristics
Table 8-2 DC Characteristics
Parameter
Power Supply Current
Input Voltage
Low
High
Output Voltage
Low
High
Schmitt Trigger Threshold Voltage*1
Negative going
Positive going
Output Voltage, 3.3V*2
Low
High
Input Leakage Current
Tri-state Leakage Current
Input Capacitance
Output Capacitance
Bi-directional Buffer Capacitance
Operating Voltage Range
Suspend Current
Symbol
IDD
Min
0.5
Typ
19
Max
24
Units
mA
VIL
VIH
-0.7* VDD
---
0.3* VDD
--
V
V
VOL
VOH
-3.5
---
0.4
--
V
V
VtVt+
---
1.10
1.87
---
V
V
----3
3
3
5
400
0.4
-1
10
---5.25
490
V
V
uA
uA
Pf
Pf
Pf
V
uA
VOL
VOH
IL
Ioz
CIN
COUT
CBID
-ISUS
-2.4
-1
-10
---4.4
--
*1. RS232 pins RXD_I, RI_I, DSR_I, DCD_I, CTS_I are 5V TTL Schmitt Trigger inputs.
*2. RS232 pins TXD, DTR_N, RTS_N are 3.3V tri-state outputs.
8.3 Clock Characteristics
Table 8-3 Clock Characteristics
Parameter
Frequency of Operation
Clock Period
Duty Cycle
PL-2303 Product Datasheet
Min
Typ
Max
Units
11.976
12.000
12.024
MHz
83.1
83.3
83.5
ns
45
50
55
%
- 13 -
Document Version 1.6
Revised Date:
April 26, 2005
ds_pl2303_v16.doc
8.4 Temperature Characteristics
Table 8-4 Temperature Characteristics
Parameter
Symbol
Operating Temperature
Min
--
Junction Operation Temperature
Typ
(1)
-40
TJ
Max
--
-40
25
Unit
(1)
85
o
115
o
C
C
Note: (1) – Test condition: Baud rate 115200 bps loop testing (4096 bytes/loop, random/fix 0xFF data transfer) over 30 minutes.
8.5 USB Transceiver Characteristics
Table 8-5 USB Transceiver Characteristics
Parameter
Symbol
Min
Typ
Max
Units
Rise and Fall Times:
(10%─90%)
(90%─10%)
TR
TF
4
4
8
8
15
15
ns
ns
Cross Point
VCR
1.3
--
2.0
V
Output Impedance
RD
23
28
33
ohm
High Level Output
VOH
2.8
--
--
V
Low Level Output
VOL
--
--
0.7
V
High Level Input
VIH
2.0
--
--
V
Low Level Input
VIL
--
--
0.8
V
Note: CL: 50pf
8.6 EEPROM Timing Diagram
8.6.1 Byte Write Timing
Figure 8-1 Byte Write Timing Diagram
PL-2303 Product Datasheet
- 14 -
Document Version 1.6
Revised Date:
April 26, 2005
ds_pl2303_v16.doc
8.6.2 Selective Read Timing
Figure 8-2 Selective Read Timing Diagram
8.7 Reset Timing Diagram
Figure 8-3 Reset Timing Diagram
Table 8-6 Power-On Reset
PL-2303 Product Datasheet
- 15 -
Document Version 1.6
Revised Date:
April 26, 2005
ds_pl2303_v16.doc
9.0 Outline Diagram
9.1 SSOP28 Package
Table 9-1 Package Dimension
Symbol
Millimeter
Min
Nom
Inch
Max
Min
0.38
0.009
Nom
Max
b
0.22
0.015
E
7.40
7.80
8.20
0.291
0.307
0.323
E1
5.00
5.30
5.60
0.197
0.209
0.220
L
0.55
0.75
0.95
0.021
0.030
0.037
R1
0.09
D
9.9
0.402
0.413
0.004
10.2
A
10.5
0.390
2.0
0.079
e
0.65
0.0256
L1
1.25
0.050
A1
0.05
A2
1.65
0.020
1.75
1.85
0.065
0.069
0.073
Figure 9-1 Outline Diagram of PL-2303 SSOP28
PL-2303 Product Datasheet
- 16 -
Document Version 1.6
Revised Date:
April 26, 2005
ds_pl2303_v16.doc
10.0 Reel Packing Information
10.1 Carrier Tape (SSOP-28)
Figure 10-1a SSOP28 Carrier Tape
Notes:
1.
2.
3.
4.
5.
6.
7.
10 sprocket hole pitch cumulative tolerance ±0.2
Camber not to exceed 1mm in 100mm.
Material: Black Polystyrene.
Ao and Bo measured on a plane 0.3mm above the bottom of the pocket.
Ko measured from a plane on the inside bottom of the pocket to the top surface of the carrier.
Pocket position relative to sprocket hole measured as true position of pocket, not pocket hole.
IC quantity per one reel: 1,000 (min) ~ 2,000 (max)
Figure 10-1b IC Reel Placements
PL-2303 Product Datasheet
- 17 -
Document Version 1.6
Revised Date:
April 26, 2005
ds_pl2303_v16.doc
10.2 Reel Dimension
Figure 10-2 Reel Dimension
Table 10-2 Reel Part Number Information
Part Number
RD33008SW-T + RD33008SW-T
Normal Hub
Width
W1 +0.3mm
16mm
16.8mm
-0.2mm
W2 Max
22.2mm
11.0 Ordering Information
Table 11-1 Ordering Information
Part Number
Package Type
PL-2303
PL-2303 Product Datasheet
28-pin SSOP
- 18 -
Document Version 1.6
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
