Agilent N9912A FieldFox RF Analyzer Quick Fact Sheet Features

Agilent N9912A FieldFox RF Analyzer Quick Fact Sheet Features
Quick Fact Sheet

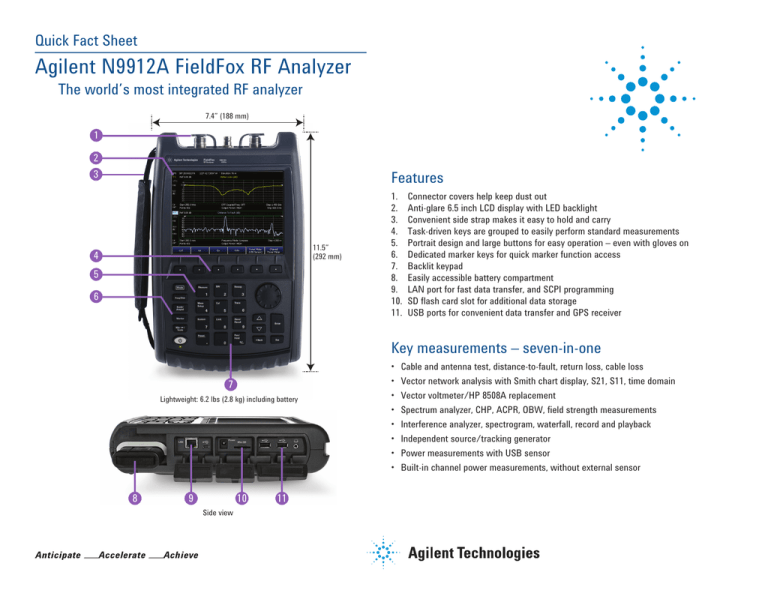

Agilent N9912A FieldFox RF Analyzer
The world’s most integrated RF analyzer
7.4” (188 mm)
1
2
3
Features
4
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
11.5”
(292 mm)
5
6
Connector covers help keep dust out
Anti-glare 6.5 inch LCD display with LED backlight
Convenient side strap makes it easy to hold and carry
Task-driven keys are grouped to easily perform standard measurements
Portrait design and large buttons for easy operation – even with gloves on
Dedicated marker keys for quick marker function access
Backlit keypad
Easily accessible battery compartment
LAN port for fast data transfer, and SCPI programming
SD flash card slot for additional data storage
USB ports for convenient data transfer and GPS receiver
Key measurements – seven-in-one
7
Lightweight: 6.2 lbs (2.8 kg) including battery
8
9
10
Side view
11
•
•
•
•
•
•
•
•
Cable and antenna test, distance-to-fault, return loss, cable loss
Vector network analysis with Smith chart display, S21, S11, time domain
Vector voltmeter/HP 8508A replacement
Spectrum analyzer, CHP, ACPR, OBW, field strength measurements
Interference analyzer, spectrogram, waterfall, record and playback
Independent source/tracking generator
Power measurements with USB sensor
Built-in channel power measurements, without external sensor
Quick Fact Sheet
FieldFox key specifications
Function
Description
Cable and antenna analyzer
Frequency
Speed
Directivity
Dynamic range
2 MHz to 6 GHz
Less than 1.5 ms per point, up to 1001 points
> 42 dB
72 dB
Spectrum analyzer
Frequency
Speed
DANL
Phase noise
TOI
Internal storage
External storage
Connectivity
Display
Environmental
Temperature
Internal battery
Dimensions
Weight
100 kHz to 6 GHz, usable to 5 kHz
750 ms (span: 20 MHz) RBW: 3 kHz, VBW: 3 kHz, 1 second full span (6 GHz)
-148 dBm
-88 dBc at 10 kHz
-96 dBc, +18 dBm
Minimum 16 MB, up to 1000 traces
1 x micro SD slot and 2 x USB 2.0
2 x USB 2.0; 1 x mini USB; 1 x LAN
Bright 6.5” color anti-glare LCD
Meets MIL-PRF-28800F Class 2 specification
Operating: -10 °C to +55 °C, Non-operating: -51 °C to +71 °C
Lithium Ion, 4 hours operating time. Replace easily in the field without tools.
11.5” X 7.4” X 2.8” (292 mm X 188 mm X 72 mm)
Lightweight 6.2 lbs/2.8 kg including battery
The FieldFox base unit consists of a 4 GHz cable and antenna analyzer. The following accessories
are included as standard:
• AC/DC adapter
• Battery
• Soft carrying case
• Quick Reference Guide
FieldFox options
Model No. Description
N9912A
Option 104
Option 106
Option 110
Option 111
Option 230
Option 231
Option 235
Option 236
Option 302
Option 303
Option 308
Option 010
Option 311
FieldFox RF Analyzer
4 GHz cable and antenna analyzer. This option is standard in the base price.
6 GHz cable and antenna analyzer
Transmission measurement (for insertion loss or gain measurement)
QuickCal
4 GHz spectrum analyzer (requires Option 104), includes tracking generator, independent source
6 GHz spectrum analyzer (requires Option 106), includes tracking generator, independent source
Preamplifier for spectrum analyzer (requires Option 230 or 231)
Interference analyzer
External USB power sensor support
Network analyzer capability (Option 110 recommended)
Vector voltmeter
Network analyzer time domain (requires Option 303)
Channel power meter
Technical data, availability and pricing subject to change without notice.
© Agilent Technologies, Inc. 2012, Printed in USA, April 2, 2012
5990-3344EN
FieldFox accessories
Model No. Description
N9910X-800
N9910X-801
N9910X-802
N9910X-803
85514A
85515A
N9910X-810
N9910X-811
N9910X-812
N9910X-813
N9910X-820
N9910X-821
N9910X-843
N9910X-845
N9910X-846
N9910X-860
N9910X-861
N9910X-870
N9910X-872
N9910X-873
N9910X-874
N9910X-875
N9910X-881
T-calibration kit, DC-6 GHz, Type-N (m)
T-calibration kit, DC-6 GHz, Type-N (f)
T-calibration kit, DC-6 GHz, 7/16 DIN (m)
T-calibration kit, DC-6 GHz, 7/16 DIN (f)
4-in-1 OSLT mechanical calibration kit, DC to 9 GHz, Type-N (m), 50 Ω
4-in-1 OSLT mechanical calibration kit, DC to 9 GHz, Type-N (f), 50 Ω
Rugged phase-stable cable, Type-N (m) to Type-N (m), 5 ft
Rugged phase-stable cable, Type-N (m) to Type-N (f), 5 ft
Rugged phase-stable cable, Type-N (m) to Type-N (m), 12 ft
Rugged phase-stable cable, Type-N (m) to Type-N (f), 12 ft
Antenna, directional, multiband, 800 MHz to 2500 MHz, 10 dBi
Antenna, telescopic whip, 70 MHz to 1 GHz
Coaxial adapter, Type-N (m) to 7/16 DIN (f)
Adapter kit – Type-N (f) to 7/16 (f), Type-N (f) to 7/16 (m), Type-N (f) to Type-N (f)
Coaxial adapter, 50 Ω Type-N (m) to 75 Ω Type-N (f) (quantity two required for 75 Ω measurements)
Fixed attenuator, 40 dB, 100 W, DC-3 GHz, Type-N (m) to Type-N (f)
Fixed attenuator, 40 dB, 50 W, DC-8.5 GHz, Type-N (m) to Type-N (f)
Extra battery
External battery charger
AC/DC adapter
External bias-tee, 2.5 MHz to 6 GHz, 1 W, 0.5 A
DC car charger and adapter
Hard transit case
Key differentiators
• Integrated QuickCal calibrates without a
calibration kit.
• Immediate calibration with CalReady.
• 50 percent faster than traditional handheld
instruments.
• Superior dynamic range (96 dB) and
sensitivity (-148 dBm) in the spectrum
analyzer mode; high dynamic range ideal for
interference detection.
• Easy-to-use, task driven user interface.
Recommended service options
Optimized for the following
applications
•
•
•
•
Wireless service providers.
Aerospace and defense customers.
TV and broadcasting customers.
Contractor for the above.
Additional two years of Return-to-Agilent warranty
Additional two years of Return-to-Agilent calibrations
For more information go to www.agilent.com/find/removealldoubt
