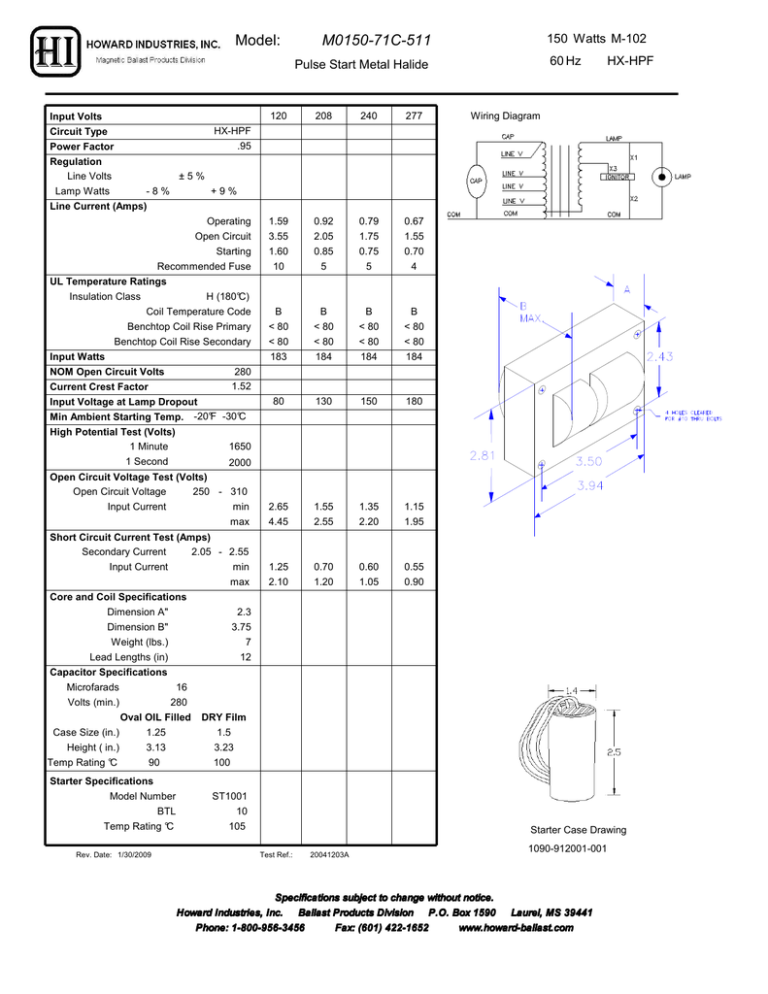

M0150-71C-511 Model: M-102 150

M0150-71C-511 Model: M-102 150
Model:
150 Watts M-102
M0150-71C-511
60 Hz
Pulse Start Metal Halide
Input Volts
120
208
240
277
HX-HPF
Wiring Diagram
HX-HPF
Circuit Type
.95
Power Factor
Regulation
Line Volts
±5%
Lamp Watts
-8%
+9%
Line Current (Amps)
Operating
1.59
0.92
0.79
0.67
Open Circuit
3.55
2.05
1.75
1.55
Starting
1.60
0.85
0.75
0.70
10
5
5
4
Recommended Fuse
UL Temperature Ratings
Insulation Class
H (180°C)
Coil Temperature Code
B
B
B
B
Benchtop Coil Rise Primary
< 80
< 80
< 80
< 80
Benchtop Coil Rise Secondary
< 80
< 80
< 80
< 80
183
184
184
184
80
130
150
180
min
2.65
1.55
1.35
1.15
max
4.45
2.55
2.20
1.95
min
1.25
0.70
0.60
0.55
max
2.10
1.20
1.05
0.90
Input Watts
280
1.52
NOM Open Circuit Volts
Current Crest Factor
Input Voltage at Lamp Dropout
Min Ambient Starting Temp. -20°F -30°C
High Potential Test (Volts)
1 Minute
1650
1 Second
2000
Open Circuit Voltage Test (Volts)
250 - 310
Open Circuit Voltage
Input Current
Short Circuit Current Test (Amps)
Secondary Current
2.05 - 2.55
Input Current
Core and Coil Specifications
Dimension A"
2.3
Dimension B"
3.75
Weight (lbs.)
7
Lead Lengths (in)
12
Capacitor Specifications
Microfarads
16
Volts (min.)
280
Case Size (in.)
Height ( in.)
Temp Rating °C
Oval OIL Filled
1.25
DRY Film
1.5
3.13
3.23
90
100
Starter Specifications
Model Number
ST1001
BTL
10
Temp Rating °C
105
Rev. Date: 1/30/2009
Starter Case Drawing
Test Ref.:
20041203A
1090-912001-001
Specifications subject to change without notice.
Howard Industries, Inc.
Ballast Products Division P.O. Box 1590
Laurel, MS 39441
Phone: 1-800-956-3456
Fax: (601) 422-1652
www.howard-ballast.com
