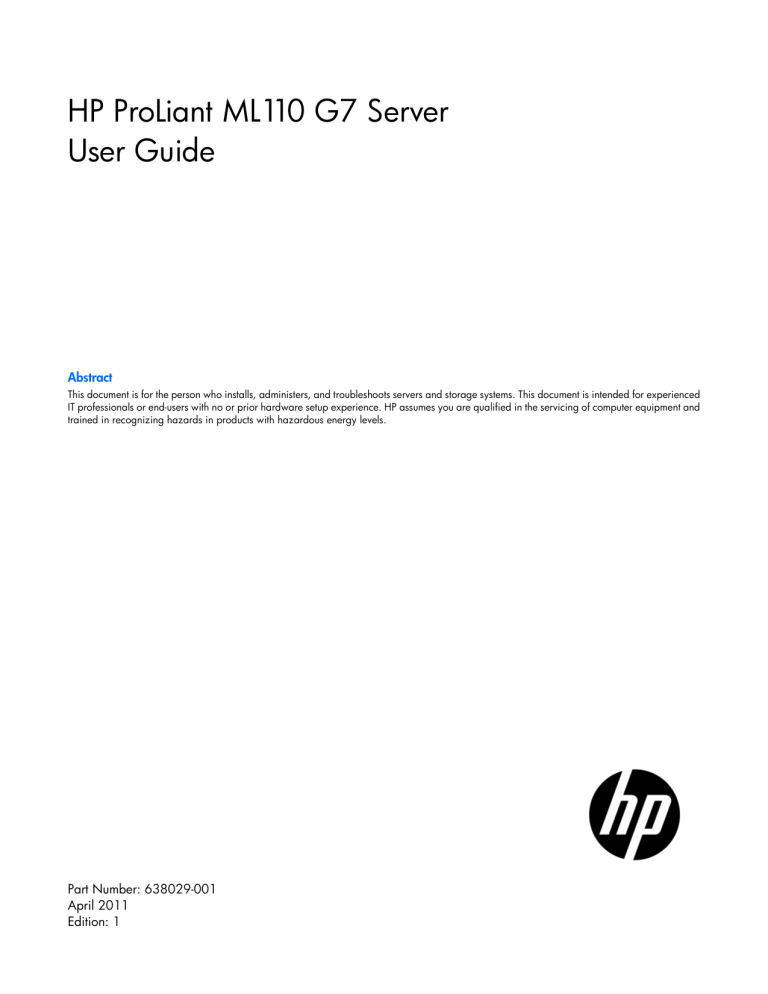

HP ProLiant ML110 G7 Server

User Guide

Abstract

This document is for the person who installs, administers, and troubleshoots servers and storage systems. This document is intended for experienced

IT professionals or end-users with no or prior hardware setup experience. HP assumes you are qualified in the servicing of computer equipment and trained in recognizing hazards in products with hazardous energy levels.

Part Number: 638029-001

April 2011

Edition: 1

© Copyright 2011 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. Bluetooth is a trademark owned by its proprietor and used by

Hewlett-Packard Company under license.

Contents

Component identification ............................................................................................................... 7

Front panel components ............................................................................................................................. 7

Front panel LEDs and buttons ...................................................................................................................... 7

Rear panel components .............................................................................................................................. 8

Rear panel LEDs and buttons ....................................................................................................................... 9

System board components ........................................................................................................................ 10

System maintenance switch ............................................................................................................. 11

System board LEDs ........................................................................................................................ 11

NMI functionality ........................................................................................................................... 12

DIMM slot locations ....................................................................................................................... 12

SAS and SATA device numbering ............................................................................................................. 13

SAS and SATA hard drive LEDs ................................................................................................................. 14

SAS and SATA hard drive LED combinations .............................................................................................. 14

Smart Array SAS RAID controller card components ...................................................................................... 15

BBWC module LEDs ................................................................................................................................ 16

FBWC module LEDs ................................................................................................................................. 17

Fan locations .......................................................................................................................................... 18

Operations ................................................................................................................................. 19

Power up the server ................................................................................................................................. 19

Power down the server ............................................................................................................................. 19

Removing the front bezel .......................................................................................................................... 19

Installing the front bezel ........................................................................................................................... 20

Removing the access panel ....................................................................................................................... 20

Installing the access panel ........................................................................................................................ 21

Removing the air baffle ............................................................................................................................ 21

Installing the air baffle ............................................................................................................................. 22

Removing the full-length expansion board retainer ....................................................................................... 23

Installing the full-length expansion board retainer ........................................................................................ 23

Setup ......................................................................................................................................... 25

Optional installation services .................................................................................................................... 25

Optimum environment .............................................................................................................................. 25

Space and airflow requirements ...................................................................................................... 25

Temperature requirements ............................................................................................................... 26

Power requirements ....................................................................................................................... 26

Electrical grounding requirements .................................................................................................... 26

Identifying the contents of the server shipping carton .................................................................................... 27

Installing hardware options ....................................................................................................................... 27

Powering up and configuring the server ..................................................................................................... 27

Installing the operating system................................................................................................................... 27

Registering the server ............................................................................................................................... 28

Hardware options installation ....................................................................................................... 29

Introduction ............................................................................................................................................ 29

Memory options ...................................................................................................................................... 29

Memory subsystem architecture ....................................................................................................... 29

Contents 3

Single- and dual-rank DIMMs .......................................................................................................... 29

DIMM identification ....................................................................................................................... 30

UDIMM maximum memory configurations ......................................................................................... 30

Installing a DIMM .......................................................................................................................... 30

Memory configuration .................................................................................................................... 31

General DIMM slot population guidelines ......................................................................................... 32

SAS and SATA hard drive options ............................................................................................................. 32

Hard drive guidelines ..................................................................................................................... 32

Removing a hard drive blank .......................................................................................................... 32

Removing a hard drive ................................................................................................................... 33

Installing a hard drive .................................................................................................................... 34

Hot-plug LFF hard drive cage option ................................................................................................. 35

Hot-plug SFF hard drive cage option ................................................................................................ 38

Optical drive option ................................................................................................................................ 40

Installing the redundant hot-plug power supply ............................................................................................ 42

Installing a storage controller .................................................................................................................... 46

Installing the BBWC battery/FBWC capacitor pack and cache module .......................................................... 47

Expansion board options .......................................................................................................................... 49

Removing an expansion slot cover ................................................................................................... 50

Installing an expansion board ......................................................................................................... 50

Hard drive LED cable option ..................................................................................................................... 51

HP Trusted Platform Module option ............................................................................................................ 51

Installing the Trusted Platform Module board ..................................................................................... 52

Retaining the recovery key/password .............................................................................................. 53

Enabling the Trusted Platform Module ............................................................................................... 54

Cabling ..................................................................................................................................... 55

Storage cabling ...................................................................................................................................... 55

Non-hot-plug four LFF SATA hard drive cabling ................................................................................. 55

Hot-plug four LFF SAS hard drive cabling .......................................................................................... 56

Hot-plug eight SFF SAS hard drive cabling ........................................................................................ 56

Smart Array SAS RAID controller card cabling ............................................................................................ 57

Four LFF Smart Array SAS RAID controller card cabling ...................................................................... 57

Eight SFF Smart Array SAS RAID controller card cabling..................................................................... 58

Power cabling......................................................................................................................................... 59

Four LFF hard drive non-hot-plug, nonredundant power cabling ........................................................... 59

Four LFF hard drive hot-plug, redundant power cabling ...................................................................... 60

Eight SFF hard drive hot-plug, redundant power cabling ..................................................................... 61

Optical drive cabling ............................................................................................................................... 62

Configuration and utilities ............................................................................................................ 63

Configuration tools .................................................................................................................................. 63

SmartStart software ........................................................................................................................ 63

HP ROM-Based Setup Utility ............................................................................................................ 63

Array Configuration Utility .............................................................................................................. 65

Option ROM Configuration for Arrays ............................................................................................. 66

Re-entering the server serial number and product ID ........................................................................... 66

Management tools ................................................................................................................................... 67

Automatic Server Recovery ............................................................................................................. 67

ROMPaq utility .............................................................................................................................. 67

Integrated Lights-Out 3 technology ................................................................................................... 67

Erase Utility .................................................................................................................................. 68

USB support .................................................................................................................................. 68

Diagnostic tools ...................................................................................................................................... 68

Contents 4

HP Insight Diagnostics .................................................................................................................... 68

HP Insight Diagnostics survey functionality ........................................................................................ 69

Integrated Management Log ........................................................................................................... 69

Remote support and analysis tools ............................................................................................................. 69

HP Insight Remote Support software ................................................................................................. 69

Keeping the system current ....................................................................................................................... 70

Drivers ......................................................................................................................................... 70

Version control .............................................................................................................................. 70

ProLiant Support Packs ................................................................................................................... 71

Operating System Version Support .................................................................................................. 71

Firmware ...................................................................................................................................... 71

HP Smart Update Manager ............................................................................................................. 71

Change control and proactive notification ........................................................................................ 72

Care Pack .................................................................................................................................... 72

Troubleshooting .......................................................................................................................... 73

Troubleshooting resources ........................................................................................................................ 73

Pre-diagnostic steps ................................................................................................................................. 73

Important safety information ............................................................................................................ 73

Symptom information ..................................................................................................................... 75

Prepare the server for diagnosis ...................................................................................................... 75

Loose connections ................................................................................................................................... 77

Service notifications ................................................................................................................................. 78

Server health LEDs ................................................................................................................................... 78

Troubleshooting flowcharts ....................................................................................................................... 78

Start diagnosis flowchart ................................................................................................................ 78

General diagnosis flowchart ........................................................................................................... 79

Server power-on problems flowchart ................................................................................................ 81

POST problems flowchart ............................................................................................................... 84

OS boot problems flowchart ........................................................................................................... 86

Server fault indications flowchart ..................................................................................................... 87

POST error messages and beep codes ....................................................................................................... 89

Battery replacement .................................................................................................................... 91

Regulatory compliance notices ..................................................................................................... 92

Regulatory compliance identification numbers ............................................................................................. 92

Federal Communications Commission notice ............................................................................................... 92

FCC rating label ............................................................................................................................ 92

Class B equipment ......................................................................................................................... 92

Declaration of conformity for products marked with the FCC logo, United States only ....................................... 93

Modifications .......................................................................................................................................... 93

Cables ................................................................................................................................................... 93

Canadian notice (Avis Canadien) .............................................................................................................. 93

European Union regulatory notice ............................................................................................................. 94

Disposal of waste equipment by users in private households in the European Union ......................................... 94

Japanese notice ...................................................................................................................................... 95

BSMI notice ............................................................................................................................................ 95

Korean notice ......................................................................................................................................... 95

Chinese notice ........................................................................................................................................ 96

Laser compliance .................................................................................................................................... 96

Battery replacement notice ........................................................................................................................ 96

Taiwan battery recycling notice ................................................................................................................. 97

Power cord statement for Japan ................................................................................................................. 97

Contents 5

Acoustics statement for Germany (Geräuschemission) .................................................................................. 97

Electrostatic discharge ................................................................................................................. 98

Preventing electrostatic discharge .............................................................................................................. 98

Grounding methods to prevent electrostatic discharge .................................................................................. 98

Specifications ............................................................................................................................. 99

Environmental specifications ..................................................................................................................... 99

Mechanical specifications ........................................................................................................................ 99

Power supply specifications ...................................................................................................................... 99

Technical support ...................................................................................................................... 101

Before you contact HP ............................................................................................................................ 101

HP contact information ........................................................................................................................... 101

Customer Self Repair ............................................................................................................................. 101

Acronyms and abbreviations ...................................................................................................... 109

Index ....................................................................................................................................... 112

Contents 6

Component identification

Front panel components

Item

1

2

Description

Optical drive bay

USB connectors (4)

Front panel LEDs and buttons

Component identification 7

Item Description

1

System health LED

2

3

4

5

6

7

8

NIC 1 link/activity LED

Hard drive activity LED

System power button/LED

Power status LED

NIC 2 link/activity LED

UID button/LED

Optical drive activity LED

Status

Green = Normal

Amber = System degraded

Red = System critical

Green = Network link

Flashing green = Network link and activity

Off = No link to network (If the power is off, view the rear panel NIC

LEDs for status.)

Flashing green = Drive active

Off = No drive activity

Green = System on

Amber = System in standby, but power is still applied

Off = Power cord not attached or power supply failed

Green = System on

Amber = System in standby, but power is still applied

Off = Power cord not attached or power supply failed

Green = Network link

Flashing green = Network link and activity

Off = No link to network (If the power is off, view the rear panel NIC

LEDs for status.)

Blue = Activated

Flashing blue = System being remotely managed

Off = Deactivated

Flashing green = Drive active

Off = No drive activity

Rear panel components

1

2

3

Item Description

Kensington lock notch

Power supply connector

PCIe slot cover retainer latch

Component identification 8

8

9

10

11

12

13

14

6

7

4

5

Slot 1 PCIe2x16 (16, 8, 4, 1)

Slot 2 PCIe2x8 (4, 1)

Slot 3 PCIe2x8 (4, 1)

Slot 4 PCIe2x4 (1)

USB connectors (4)

HP dedicated iLO management port (option)

UID button/LED

10/100/1000 NIC1 connector/shared iLO management port

10/100/1000 NIC2 connector

Video connector

Serial connector

Rear panel LEDs and buttons

Item Description

1

2

3

4

Status

UID LED/button

HP dedicated iLO management port option LEDs

Flashing blue = Activated

Off = System being managed remotely/deactivated

Green = Network link

Flashing green = Network link and activity

Off = No link to network

NIC activity LED Green = Network activity

Flashing green = Network activity

Off = No network activity

NIC link LED Green = Network link

Off = No network link

Component identification 9

System board components

14

15

16

17

18

10

11

12

13

6

7

8

9

4

5

2

3

23

24

25

26

19

20

21

22

Item Description

1

HP dedicated iLO management connector

System maintenance switch

RPS cable connector (1x5 pin)

System fan connector (2x3 pin)

Processor socket

DIMM slots (4)

Power connector (24-pin)

Processor-heatsink fan assembly connector (2x3 pin)

PCI fan connector (2x3 pin)

RPS cable connector (2x8 pin)

Internal USB connector

System battery

I 2 C cable connector

SATA cable connectors (2)

SMB bus connector

Temperature sensor cable connector

SD card connector

Mini-SAS cable connector

Front I/O connector

Front USB cable connectors (2)

PCIe2x16 slot (16, 8, 4, 1)

PCIe2x8 slot (4, 1)

PCIe2x8 slot (4, 1)

PCIe2x4 slot (1)

Power supply connector (4-pin)

TPM connector

Component identification 10

Item Description

27

Rear USB connectors (4)

System maintenance switch

Position

1

2

3

4

5

6

Default

Off

Off

Off

Off

Function

Off = iLO 3 security is enabled

On = iLO 3 security is disabled

Off = System configuration can be changed

On = System configuration is locked

Reserved

Reserved

Off = Power-on password is enabled

On = Power-on password is disabled

Off = No function

On = Clear NVRAM

7

8

9

10

Reserved

Reserved

Reserved

Reserved

When the system maintenance switch position 6 is set to the On position, the system is prepared to erase all system configuration settings from both CMOS and NVRAM.

CAUTION: Clearing CMOS and/or NVRAM deletes configuration information. Be sure to properly configure the server or data loss could occur.

System board LEDs

Component identification 11

Item LED description

1

2

Power supply 1 failure

Power supply 2

(redundant) failure

Status

Red = Power supply 1 failed

Off = Normal

Red = Power supply 2 failed

Off = Normal

NMI functionality

An NMI crash dump enables administrators to create crash dump files when a system is hung and not responding to traditional debug mechanisms.

Crash dump log analysis is an essential part of diagnosing reliability issues, such as hangs in operating systems, device drivers, and applications. When crashes freeze a system, administrators must cycle the system power. Resetting the system erases any information that support issue analysis, but the NMI feature preserves that information by performing a memory dump before a hard reset.

The administrator must use the iLO Virtual NMI feature to force the OS to invoke the NMI handler and generate a crash dump log.

For additional information, see the HP website

( http://h20000.www2.hp.com/bc/docs/support/SupportManual/c00797875/c00797875.pdf

).

DIMM slot locations

DIMM slots are numbered sequentially for the processor.

Populate the DIMM slots in the following sequence:

1 DIMM: 2A

2 DIMMs: 2A+4B

3 DIMMs: 2A+4B+1C

4 DIMMs: All DIMMs

Component identification 12

SAS and SATA device numbering

LFF device bay numbering

SFF device bay numbering

Component identification 13

SAS and SATA hard drive LEDs

Item Description

1

Fault/UID LED (amber/blue)

2

Online LED (green)

SAS and SATA hard drive LED combinations

Online/activity

LED (green)

On, off, or flashing

On, off, or flashing

On

On

Flashing regularly

(1 Hz)

Flashing regularly

(1 Hz)

Flashing irregularly

Flashing irregularly

Fault/UID LED

(amber/blue)

Interpretation

Alternating amber and blue

The drive has failed, or a predictive failure alert has been received for this drive; it also has been selected by a management application.

Steadily blue

Amber, flashing regularly (1 Hz)

Off

Amber, flashing regularly (1 Hz)

The drive is operating normally, and it has been selected by a management application.

A predictive failure alert has been received for this drive.

Replace the drive as soon as possible.

The drive is online, but it is not active currently.

Off

Do not remove the drive. Removing a drive may terminate the current operation and cause data loss.

The drive is part of an array that is undergoing capacity expansion or stripe migration, but a predictive failure alert has been received for this drive. To minimize the risk of data loss, do not replace the drive until the expansion or migration is complete.

Do not remove the drive. Removing a drive may terminate the current operation and cause data loss.

The drive is rebuilding, or it is part of an array that is undergoing capacity expansion or stripe migration.

Amber, flashing regularly (1 Hz)

Off

The drive is active, but a predictive failure alert has been received for this drive. Replace the drive as soon as possible.

The drive is active, and it is operating normally.

Component identification 14

Online/activity

LED (green)

Off

Fault/UID LED

(amber/blue)

Steadily amber

Off

Amber, flashing regularly (1 Hz)

Off

Interpretation

A critical fault condition has been identified for this drive, and the controller has placed it offline. Replace the drive as soon as possible.

A predictive failure alert has been received for this drive. Replace the drive as soon as possible.

The drive is offline, a spare, or not configured as part of an array.

Off

Smart Array SAS RAID controller card components

Item

3

4

1

2

Description

Expansion board connector

Mini-SAS cable connector

Mini-SAS cable connector

Cache module connector

Component identification 15

BBWC module LEDs

Item ID Color

1

Green

2

3

4

Green

Amber

Green

Auxiliary Power LED. This LED illuminates steadily when

3.3V auxiliary voltage is detected. The auxiliary voltage is used to preserve BBWC data and is available any time that the system power cords are connected to a power supply.

Battery Health LED. To interpret the illumination patterns of this LED, see the following table.

BBWC Status LED. To interpret the illumination patterns of this LED, see the following table.

LED3 pattern LED4 pattern Interpretation

Description

System Power LED. This LED illuminates steadily when the system is powered up and 12-V system power is available.

This power supply is used to maintain the battery charge and provide supplementary power to the cache microcontroller.

One blink every two seconds

Double blink, then pause

The system is powered down, and the cache contains data that has not yet been written to the drives. Restore system power as soon as possible to prevent data loss.

If 3.3 V auxiliary power is available, as indicated by LED 2, then data preservation time is extended. If no auxiliary power is available, only battery power preserves the data. A fully-charged battery can normally preserve data for at least two days.

The battery lifetime also depends on the cache module size. For more information, see the controller QuickSpecs on the HP website

( http://www.hp.com

).

The cache microcontroller is waiting for the host controller to communicate.

Component identification 16

LED3 pattern LED4 pattern Interpretation

One blink per second

Steady glow

One blink per second

One blink per second

Steady glow

Off

One blink per second

The battery pack is below the minimum charge level and is being charged. Features that require a battery (such as write cache, capacity expansion, stripe size migration, and RAID migration) are temporarily unavailable until charging is complete. The recharge process takes between 15 minutes and 2 hours, depending on the initial capacity of the battery.

The battery pack is fully charged, and posted write data is stored in the cache.

The battery pack is fully charged, and write data is not posted in the cache.

An alternating green and amber blink pattern indicates that the cache microcontroller is executing from within its boot loader and receiving new flash code from the host controller.

There is a short circuit across the battery terminals or within the battery pack. BBWC features are disabled until the battery pack is replaced.

The life expectancy of a battery pack is typically more than three years.

An open circuit is across the battery terminals or within the battery pack. BBWC features are disabled until the battery pack is replaced.

The life expectancy of a battery pack is typically more than three years.

FBWC module LEDs

The FBWC module has two single-color LEDs (green and amber). The LEDs are duplicated on the reverse side of the cache module to facilitate status viewing.

Green LED

Off

Flashing (1 Hz)

Flashing (1 Hz)

On

Amber LED

On

On

Off

Off

Interpretation

A backup is in progress.

A restore is in progress.

The capacitor pack is charging.

The capacitor pack has completed charging.

Component identification 17

Green LED

Flashing (2 Hz)

Alternating with amber LED

On

Off

Amber LED

Flashing (2 Hz)

Alternating with green LED

On

Off

Interpretation

One of the following conditions exists:

The charging process has timed out.

The capacitor pack is not connected.

The flash code image failed to load.

The flash code is corrupt.

Fan locations

Item

1

2

3

Description

System fan

Processor-heatsink fan assembly

PCI fan

Component identification 18

Operations

Power up the server

To power up the server, press the Power On/Standby button.

Power down the server

WARNING: To reduce the risk of personal injury, electric shock, or damage to the equipment, remove the power cord to remove power from the server. The front panel Power On/Standby button does not completely shut off system power. Portions of the power supply and some internal circuitry remain active until AC power is removed.

IMPORTANT: If installing a hot-plug device, it is not necessary to power down the server.

1.

2.

Back up the server data.

Shut down the operating system as directed by the operating system documentation.

NOTE: If the operating system automatically places the server in Standby mode, omit the next step.

3.

Press the Power On/Standby button to place the server in Standby mode. When the server activates

Standby power mode, the system power LED changes to amber.

IMPORTANT: Pressing the UID button illuminates the blue UID LEDs on the front and rear panels.

In a rack environment, this feature facilitates locating a server when moving between the front and rear of the rack.

4.

Disconnect the power cords.

The system is now without power.

Removing the front bezel

1.

2.

If performing a non hot-plug installation or maintenance procedure, power down the server (" Power down the server " on page 19 ).

Unlock and open the front bezel.

Operations 19

3.

Pull out the bezel.

Installing the front bezel

1.

2.

Insert the bezel.

Close and lock the bezel.

3.

Power on the server (" Power up the server " on page 19 , "

Powering up and configuring the server " on page 27 ).

Removing the access panel

WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the internal system components to cool before touching them.

Operations 20

1.

2.

3.

4.

5.

CAUTION: For proper cooling do not operate the server without the access panel, baffles, expansion slot covers, or blanks installed. If the server supports hot-plug components, minimize the amount of time the access panel is open.

Power off the server if performing a non-hot-plug installation or maintenance procedure (" Power down the server " on page 19 ).

Unlock and open the front bezel.

Remove the thumbscrew on the access panel.

Slide the access panel back.

Lift the access panel to remove it.

Installing the access panel

CAUTION: Do not operate the server for long periods with the access panel open or removed.

Operating the server in this manner results in improper airflow and improper cooling that can lead to thermal damage.

1.

2.

3.

Place the access panel on the chassis, and slide it toward the front of the server.

Tighten the thumbscrew.

Close and lock the bezel.

IMPORTANT: Be sure that the panel is locked into place securely before powering up the server.

4.

Power up the server (on page 19 , "

Powering up and configuring the server " on page 27 ).

Removing the air baffle

CAUTION: For proper cooling do not operate the server without the access panel, baffles, expansion slot covers, or blanks installed. If the server supports hot-plug components, minimize the amount of time the access panel is open.

1.

2.

3.

Power down the server (on page 19 ).

Unlock the front bezel.

Remove the access panel (" Removing the access panel " on page 20 ).

CAUTION: Do not detach the cable that connects the battery pack to the cache module.

Detaching the cable causes any unsaved data in the cache module to be lost.

Operations 21

4.

Remove the air baffle.

Installing the air baffle

CAUTION: For proper cooling do not operate the server without the access panel, baffles, expansion slot covers, or blanks installed. If the server supports hot-plug components, minimize the amount of time the access panel is open.

1.

Insert the air baffle.

2.

3.

4.

Install the access panel (" Installing the access panel " on page 21 ).

Close and lock the bezel.

Power on the server (" Power up the server " on page 19 , "

Powering up and configuring the server " on page 27 ).

Operations 22

Removing the full-length expansion board retainer

1.

2.

3.

4.

5.

Power down the server (on page 19 ).

Remove the access panel (" Removing the access panel " on page 20 ).

Remove the air baffle (" Removing the air baffle " on page 21 ).

Open the PCI slot cover retainer latch.

Remove the full-length expansion board retainer.

Installing the full-length expansion board retainer

1.

2.

3.

4.

Power down the server (on page 19 ).

Remove the access panel (" Removing the access panel " on page 20 ).

Remove the air baffle (" Removing the air baffle " on page 21 ).

Open the PCI slot cover retainer latch.

Operations 23

5.

Install the full-length expansion board retainer, and then close the PCIe slot cover retainer latch.

6.

7.

Install the access panel (" Installing the access panel " on page 21 ).

Power up the server (on page 19 , "

Powering up and configuring the server " on page 27 ).

Operations 24

Setup

Optional installation services

Delivered by experienced, certified engineers, HP Care Pack services help you keep your servers up and running with support packages tailored specifically for HP ProLiant systems. HP Care Packs let you integrate both hardware and software support into a single package. A number of service level options are available to meet your needs.

HP Care Pack Services offer upgraded service levels to expand your standard product warranty with easy-to-buy, easy-to-use support packages that help you make the most of your server investments. Some of the Care Pack services are:

Hardware support o

6-Hour Call-to-Repair o o

4-Hour 24x7 Same Day

4-Hour Same Business Day

Software support o o o

Microsoft® operating systems

Linux operating systems

HP ProLiant Essentials (HP SIM and RDP)

Integrated hardware and software support o o o o

Critical Service

Proactive 24

Support Plus

Support Plus 24

Startup and implementation services for both hardware and software

For more information on HP Care Pack Services, see the HP website

( http://www.hp.com/services/carepack ).

Optimum environment

When installing the server, select a location that meets the environmental standards described in this section.

Space and airflow requirements

Leave at least a 7.6-cm (3-inch) clearance space at the front and back of the server for proper ventilation.

Setup 25

Temperature requirements

To ensure continued, safe, and reliable equipment operation, install or position the system in a well-ventilated, climate-controlled environment.

The maximum recommended TMRA for most server products is 35°C (95°F). The temperature in the room where the server is located must not exceed 35°C (95°F).

CAUTION: To reduce the risk of damage to the equipment when installing third-party options:

Do not permit optional equipment to impede airflow around the server beyond the maximum allowable limits.

• Do not exceed the manufacturer’s TMRA.

Power requirements

Installation of this equipment must comply with local and regional electrical regulations governing the installation of information technology equipment by licensed electricians. This equipment is designed to operate in installations covered by NFPA 70, 1999 Edition (National Electric Code) and NFPA-75, 1992

(code for Protection of Electronic Computer/Data Processing Equipment). For electrical power ratings on options, see the product rating label or the user documentation supplied with that option.

CAUTION: Protect the server from power fluctuations and temporary interruptions with a regulating uninterruptible power supply (UPS). This device protects the hardware from damage caused by power surges and voltage spikes and keeps the system in operation during a power failure.

When installing more than one server, you might have to use additional power distribution devices to safely provide power to all devices. Observe the following guidelines:

Balance the server power load between available AC supply branch circuits.

Do not allow the overall system AC current load to exceed 80% of the branch circuit AC current rating.

Do not use common power outlet strips for this equipment.

Provide a separate electrical circuit for the server.

Electrical grounding requirements

The server must be grounded properly for proper operation and safety. In the United States, you must install the equipment in accordance with NFPA 70, 1999 Edition (National Electric Code), Article 250, as well as any local and regional building codes. In Canada, you must install the equipment in accordance with

Canadian Standards Association, CSA C22.1, Canadian Electrical Code. In all other countries, you must install the equipment in accordance with any regional or national electrical wiring codes, such as the

International Electrotechnical Commission (IEC) Code 364, parts 1 through 7. Furthermore, you must be sure that all power distribution devices used in the installation, such as branch wiring and receptacles, are listed or certified grounding-type devices.

Because of the high ground-leakage currents associated with multiple servers connected to the same power source, HP recommends the use of a PDU that is either permanently wired to the building’s branch circuit or includes a nondetachable cord that is wired to an industrial-style plug. NEMA locking-style plugs or those complying with IEC 60309 are considered suitable for this purpose. Using common power outlet strips for the server is not recommended.

Setup 26

Identifying the contents of the server shipping carton

Unpack the server shipping carton and locate the materials and documentation necessary for installing the server.

The contents of the server shipping carton include:

Server

Power cord

Hardware documentation, Documentation CD, and software products

In addition to the supplied items, you may need:

Operating system or application software

Hardware options

Installing hardware options

Install any hardware options before initializing the server. For options installation information, refer to the

option documentation. For server-specific information, refer to "Hardware options installation (on page 29 )."

Powering up and configuring the server

To power up the server, press the Power On/Standby button.

While the server boots, RBSU and the ORCA utility are automatically configured to prepare the server for operating system installation.

To configure these utilities manually:

Press the F8 key when prompted during the array controller initialization to configure the array controller using ORCA.

Press the F9 key when prompted during the boot process to change the server settings using RBSU. The system is set up by default for the English language.

For more information on the automatic configuration, refer to the

HP ROM-Based Setup Utility User Guide

located on the Documentation CD.

Installing the operating system

To operate properly, the server must have a supported operating system installed. For the latest information on supported operating systems, see the HP website ( http://www.hp.com/go/supportos ).

Methods to install an operating system on the server include:

SmartStart assisted installation—Insert the SmartStart CD into the DVD-ROM drive and reboot the server.

Manual installation—Insert the operating system CD into the DVD-ROM drive and reboot the server. You might have to obtain additional drivers from the HP website ( http://www.hp.com/support ).

For more information, see the SmartStart installation poster in the HP ProLiant Essentials Foundation Pack included with the server.

Setup 27

Registering the server

To register the server, refer to the HP Registration website ( http://register.hp.com

).

Setup 28

Hardware options installation

Introduction

If more than one option is being installed, read the installation instructions for all the hardware options and identify similar steps to streamline the installation process.

WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the internal system components to cool before touching them.

CAUTION: To prevent damage to electrical components, properly ground the server before beginning any installation procedure. Improper grounding can cause electrostatic discharge.

Memory options

The server memory subsystem supports only UDIMMs.

The server supports single- and dual-rank PC3-10600E (DDR3) DIMMs operating at a speed of 1,333 MHz.

Depending on the processor model and the number of DIMMs installed, the memory clock speed might be reduced to 1,066 or 800 MHz. For more information, see "General DIMM slot population guidelines (on

page 32 )."

Memory subsystem architecture

The memory subsystem in this server is divided into channels. Each channel supports two DIMM slots.

Channel Slot Slot number

A

B

C

A

D

B

1

2

3

4

This server supports UDIMMs.

DIMM slots in this server are identified by number and by letter. Slot numbers are reported by ROM messages during boot and for error reporting.

Single- and dual-rank DIMMs

DIMM configuration requirements are based on these classifications:

Single-rank DIMM −One set of memory chips that is accessed while writing to or reading from the memory.

Dual-rank DIMM −Two single -rank DIMMs on the same module, with only one rank accessible at a time.

Hardware options installation 29

The server memory control subsystem selects the proper rank within the DIMM when writing to or reading from the DIMM.

Dual-rank DIMMs provide the greatest capacity with the existing memory technology. For example, if current

DRAM technology supports 2-GB single-rank DIMMs, a dual-rank DIMM would be 4-GB.

DIMM identification

To determine DIMM characteristics, use the label attached to the DIMM and the following illustration and table.

Item Description

1

2

3

4

Size

Rank

Data width

Voltage rating

Definition

1R = Single-rank

2R = Dual-rank

4R = Quad-rank x4 = 4-bit x8 = 8-bit

L = Low voltage (1.35v)

Blank or omitted = Standard

5

6

Memory speed

DIMM type

10600 = 1333-MHz

8500 = 1066-MHz

R = RDIMM (registered)

E = UDIMM (unbuffered with ECC)

For the latest supported memory information, see the QuickSpecs on the HP website ( http://www.hp.com

).

UDIMM maximum memory configurations

The server supports a maximum of 16 GB, using 1-GB, 2-GB, and 4-GB single- or dual-rank UDIMMs.

Installing a DIMM

Hardware options installation 30

CAUTION: To avoid damage to the hard drives, memory, and other system components, the air baffle, drive blanks, and access panel must be installed when the server is powered up.

NOTE: The server does not support Elpida 1G/2G/4G UDIMM memory.

1.

2.

3.

4.

Power down the server (on page 19 ).

Remove the access panel (" Removing the access panel " on page 20 ).

Open the DIMM slot latches.

Install the DIMM.

5.

6.

Install the access panel (" Installing the access panel " on page 21 ).

Power on the server (" Power up the server " on page 19 , "

Powering up and configuring the server " on page 27 ).

Memory configuration

To optimize server availability, the server supports Advanced ECC This feature provides the greatest memory capacity for a given DIMM size, while providing up to 8-bit error correction, depending on the specific

DIMM type. This mode is the default option for this server.

Advanced Memory Protection options are configured in RBSU. If the requested AMP mode is not supported by the installed DIMM configuration, the server boots in Advanced ECC mode. For more information, see

"HP ROM-Based Setup Utility (on page 63 )."

For the latest memory configuration information, see the QuickSpecs on the HP website

( http://www.hp.com

).

ECC memory configuration

ECC memory is the default memory protection mode for this server. Standard ECC can correct single-bit memory errors and detect multi-bit memory errors. When multi-bit errors are detected by using Standard

ECC, the error is sent to the server and causes the server to halt.

Hardware options installation 31

General DIMM slot population guidelines

The HP ProLiant ML110 G7 Server has four memory slots.

The HP ProLiant ML110 G7 Server supports two channels with two UDIMM slots per channel.

Memory channel A consists of the two UDIMMs that are closest to the processor.

Memory channel B consists of the two UDIMMs that are furthest from the processor.

Different types of processors have different types of memory support.

The server supports single and dual-rank 1,066 and 1,333 MT/s ECC UDIMMs.

The server supports up to 16 GB (4x4-GB) for UDIMMs.

The server does not support: o o

LV-DIMMs

RDIMMs

Non-ECC UDIMMs o

When installing DIMMs: o

If the processor is not installed, do not install DIMMs. o o o

Populate DIMMs from heaviest load (double-rank) to lightest load (single-rank).

Use HP-qualified UDIMMs.

The farthest DIMM (either CHA or CHB) must be populated first.

SAS and SATA hard drive options

The server provides non-hot-plug capability through an embedded SATA controller. To obtain hot-plug capability, install an optional controller and hot-plug cable option kit. The server supports up to four non-hot-plug or hot-plug LFF hard drives and up to eight hot-plug SFF hard drives.

Hard drive guidelines

When adding hard drives to the server, observe the following general guidelines:

The system automatically sets all drive numbers.

If only one hard drive is used, install it in the bay with the lowest drive number.

Drives must be the same capacity to provide the greatest storage space efficiency when drives are grouped together into the same drive array.

Optional storage controllers provide support for hot-plug capability and drive LEDs. Controller options are:

The embedded controller supports non-hot-plug SATA hard drives. Drive LEDs are not supported.

Optional SATA controllers support hot-plug SATA hard drives and drive LEDs.

Optional SAS controllers support hot-plug SAS or SATA hard drives and drive LEDs.

Removing a hard drive blank

Hardware options installation 32

CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays are populated with either a component or a blank.

Remove the component as indicated.

Removing a hard drive

IMPORTANT: Hot-plug capability and drive LED support are only available when a supported optional controller is installed in the server.

1.

2.

Back up all data on the hard drive.

Remove the front bezel (" Removing the front bezel " on page 19 ).

CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays are populated with either a component or a blank.

Hardware options installation 33

3.

Remove the hard drive.

Installing a hard drive

The server supports up to four non-hot-plug SATA hard drives, four LFF hot-plug SAS hard drives, and eight

SFF SAS hot-plug hard drives.

CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays are populated with either a component or a blank.

IMPORTANT: Hot-plug capability and drive LED support are only available when a supported optional controller is installed in the server.

IMPORTANT: If only one hard drive is installed, install it in the bay with the lowest device number.

1.

2.

Remove the front bezel (" Removing the front bezel " on page 19 ).

Remove the existing hard drive blank (" Removing a hard drive blank " on page 32 ).

Hardware options installation 34

3.

Prepare the hard drive.

4.

Install the hard drive.

Hot-plug LFF hard drive cage option

1.

Power down the server (on page 19 ).

2.

3.

4.

5.

Remove the front bezel (" Removing the front bezel " on page 19 ).

Remove the access panel (" Removing the access panel " on page 20 ).

Remove any hard drives installed (" Removing a hard drive " on page 33 ).

Disconnect all cables from the drive cage.

Hardware options installation 35

6.

Using a T-15 Torx screwdriver, remove the four screws, and then remove the hard drive cage from the drive cage bay.

7.

8.

Slide the optional drive cage assembly partially into the server chassis.

Connect the cabling to the hard drive cage. Connect the mini-SAS cable by choosing one of the following: o

For SATA RAID support, connect the cable directly to the system board.

Item

1

2

3

Description

Connect the power cable

Connect the mini-SAS cable to the system board mini-SAS cable connector

Connect the I 2 C cable

Hardware options installation 36

o

Connect the cable to an HP Smart Array SAS RAID controller.

3

9.

Item

1

2

Description

Connect the power cable

Connect the mini-SAS cable to the HP Smart Array SAS

RAID controller

Connect the I

2

C cable

Slide the drive cage assembly fully into the server chassis and install the four screws.

10.

Install the hard drives and hard disk blanks in the hard drive cage.

CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays are populated with either a component or a blank.

Hardware options installation 37

11.

12.

13.

Install the access panel. (" Installing the access panel " on page 21 )

Install the front bezel (" Installing the front bezel " on page 20 ).

Power on the server (" Power up the server " on page 19 , "

Powering up and configuring the server " on page 27 ).

Hot-plug SFF hard drive cage option

1.

Power down the server (on page 19 ).

2.

3.

4.

5.

Remove the front bezel (" Removing the front bezel " on page 19 ).

Remove the access panel (" Removing the access panel " on page 20 ).

Remove any hard drives installed (" Removing a hard drive " on page 33 ).

Disconnect all cables from the drive cage.

Hardware options installation 38

6.

Using a T-15 Torx screwdriver, remove the four screws, and then remove the hard drive cage from the drive cage bay.

7.

8.

Slide the optional drive cage assembly partially into the server chassis.

Connect the cabling to the hard drive cage.

3

4

Item

1 and 2

Description

Connect both mini-SAS cables to the HP Smart Array SAS

RAID Controller card connector

Connect the power cable

Connect the I

2

C cable

Hardware options installation 39

9.

Slide the drive cage assembly fully into the server chassis and install the four screws.

10.

Install the hard drives and hard drive blanks in the hard drive cage.

CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays are populated with either a component or a blank.

11.

12.

13.

Install the access panel (" Installing the access panel " on page 21 ).

Install the front bezel (" Installing the front bezel " on page 20 ).

Power on the server (" Power up the server " on page 19 , "

Powering up and configuring the server " on page 27 ).

Optical drive option

1.

2.

Power down the server (on page 19 ).

Remove the front bezel (" Removing the front bezel " on page 19 ).

Hardware options installation 40

3.

4.

Remove the access panel (" Removing the access panel " on page 20 ).

Remove the optical drive blank. Retain the blank for future use.

5.

Install the optical drive into the optical drive cage. When fully inserted, the assembly locking latch clicks.

Hardware options installation 41

6.

Connect the optical drive and power cables to the optical drive.

7.

8.

9.

Install the access panel (" Installing the access panel " on page 21 ).

Install the front bezel (" Installing the front bezel " on page 20 ).

Power on the server (" Power up the server " on page 19 , "

Powering up and configuring the server " on page 27 ).

Installing the redundant hot-plug power supply

CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays are populated with either a component or a blank.

1.

2.

3.

4.

Power down the server (on page 19 ).

Remove the front bezel (" Removing the front bezel " on page 19 ).

Remove the access panel (" Removing the access panel " on page 20 ).

Disconnect the power cables from the nonredundant power supply.

Hardware options installation 42

5.

Remove the nonredundant power supply.

6.

Disconnect and remove all devices from the two media drive bays. o

Remove the media drive (" Optical drive option " on page 40 ).

NOTE: Only the upper media drive bay is available after installation of the RPS Enablement Kit.

Hardware options installation 43

o

Remove the EMI shield, if installed.

7.

Install the redundant power supply cage.

8.

Insert the redundant power supply backplane module into the server chassis. Align the left edge of the redundant power supply module with the guide mark on the chassis.

NOTE: The RPS Option Kit is sold separately.

Hardware options installation 44

9.

Install one or two redundant power supplies into the redundant power supply cage. When fully inserted, the release lever locks.

NOTE: To install a second redundant power supply in the redundant power supply cage, first remove the cage EMI shield.

Hardware options installation 45

10.

Remove the four screws, and then loosen the drive cage.

12.

13.

14.

15.

16.

11.

Route and connect the redundant power supply cables to the system board (" Four LFF hard drive hot-plug, redundant power cabling " on page 60 ).

Insert the four screws to tighten the drive cage.

Install any device originally in the upper media drive bay.

Install the access panel (" Installing the access panel " on page 21 ).

Install the front bezel (" Installing the front bezel " on page 20 ).

Power on the server (" Power up the server " on page 19 , "

Powering up and configuring the server " on page 27 ).

Installing a storage controller

IMPORTANT: For additional installation and configuration information, refer to the documentation that ships with the option.

1.

2.

3.

4.

5.

6.

7.

8.

9.

Power down the server (on page 19 ).

Remove the bezel (" Removing the front bezel " on page 19 ).

Remove the access panel (" Removing the access panel " on page 20 ).

Remove the hard drive cables.

Install the storage controller into slot 1.

For more information, see the documentation that ships with the option.

Connect the storage controller cable to the controller and to the hard drive.

For server-specific instructions, see the server installation sheet and the documentation that ships with the storage controller.

Install the access panel (" Installing the access panel " on page 21 ).

Install the bezel (" Installing the front bezel " on page 20 ).

Power up the server (on page 19 , "

Powering up and configuring the server " on page 27 ).

Hardware options installation 46

Installing the BBWC battery/FBWC capacitor pack and cache module

CAUTION: To prevent a server malfunction or damage to the equipment, do not add or remove the battery pack while an array capacity expansion, RAID level migration, or stripe size migration is in progress.

CAUTION: After the server is powered down, wait 15 seconds and then check the amber LED before unplugging the cable from the cache module. If the amber LED blinks after 15 seconds, do not remove the cable from the cache module. The cache module is backing up data, and data is lost if the cable is detached.

IMPORTANT: The battery pack might have a low charge when installed. In this case, a POST error message is displayed when the server is powered up, indicating that the battery pack is temporarily disabled. No action is necessary on your part. The internal circuitry automatically recharges the batteries and enables the battery pack. This process might take up to four hours.

During this time, the cache module functions properly, but without the performance advantage of the battery pack.

CAUTION: Do not use this controller with cache modules designed for other controller models, because the controller can malfunction and you can lose data. Also, do not transfer this cache module to a different controller module, because you can lose data.

NOTE: The data protection and the time limit also apply if a power outage occurs. When power is restored to the system, an initialization process writes the preserved data to the hard drives.

1.

2.

3.

Back up all data.

Close all applications.

Power down the server (on page 19 ).

CAUTION: In systems that use external data storage, be sure that the server is the first unit to be powered down and the last to be powered back up. Taking this precaution ensures that the system does not erroneously mark the drives as failed when the server is powered up.

4.

5.

6.

7.

8.

Remove the bezel (" Removing the front bezel " on page 19 ).

Remove the access panel (" Removing the access panel " on page 20 ).

Remove the air baffle (" Removing the air baffle " on page 21 ).

Install the storage controller, if not installed (" Installing a storage controller " on page 46 ).

Remove the full-length expansion board retainer, if any full-length expansion boards are installed

(" Removing the full-length expansion board retainer " on page 23 ).

Hardware options installation 47

9.

Install the cache module on the controller.

10.

Connect the battery/capacitor pack cable to the connector on the top of the cache module.

Hardware options installation 48

11.

Connect the battery/capacitor pack cable to the pack.

12.

Install the battery/capacitor pack.

14.

15.

16.

17.

13.

Install the full-length expansion board retainer, if any full-length expansion boards were removed

(" Installing the full-length expansion board retainer " on page 23 ).

Install the air baffle (" Installing the air baffle " on page 22 ).

Install the access panel (" Installing the access panel " on page 21 ).

Install the bezel (" Installing the front bezel " on page 20 ).

Power up the server (on page 19 , "

Powering up and configuring the server " on page 27 ).

Expansion board options

The server supports PCIe Gen 2 expansion boards.

Hardware options installation 49

Removing an expansion slot cover

CAUTION: For proper cooling do not operate the server without the access panel, baffles, expansion slot covers, or blanks installed. If the server supports hot-plug components, minimize the amount of time the access panel is open.

1.

2.

3.

4.

5.

Power down the server (on page 19 ).

Remove the access panel (" Removing the access panel " on page 20 ).

Remove the air baffle (" Removing the air baffle " on page 21 ).

Remove the full-length expansion board retainer, if any full-length expansion boards are installed

(" Removing the full-length expansion board retainer " on page 23 ).

Push out to remove the slot cover.

Installing an expansion board

1.

Power down the server (on page 19 ).

2.

3.

4.

5.

Remove the access panel (" Removing the access panel " on page 20 ).

Remove the air baffle (" Removing the air baffle " on page 21 ).

Remove the full-length expansion board retainer, if any full-length expansion boards are installed

(" Removing the full-length expansion board retainer " on page 23 ).

Remove the expansion slot cover (" Removing an expansion slot cover " on page 50 ).

Hardware options installation 50

6.

Install the expansion board.

7.

8.

9.

10.

Connect any required internal or external cables to the expansion board. See the documentation that ships with the expansion board.

Install the full-length expansion board retainer, if any full-length expansion boards were removed

(" Installing the full-length expansion board retainer " on page 23 ).

Install the air baffle (" Installing the air baffle " on page 22 ).

Install the access panel (" Installing the access panel " on page 21 ).

Hard drive LED cable option

The SAS hard drive LED cable provides LED functionality for non-hot-plug SAS hard drives when an optional

SAS controller and an optional SAS controller cable are installed.

1.

Power down the server (on page 19 ).

2.

3.

4.

5.

6.

7.

8.

Remove the bezel (" Removing the front bezel " on page 19 ).

Remove the access panel (" Removing the access panel " on page 20 ).

Install the optional SAS controller. For more information, see "Expansion board options."

Connect the SAS hard drive LED cable to the system board (pin J40) and to the SAS controller.

Install the access panel (" Installing the access panel " on page 21 ).

Install the bezel (" Installing the front bezel " on page 20 ).

Power up the server (on page 19 , "

Powering up and configuring the server " on page 27 ).

HP Trusted Platform Module option

Use these instructions to install and enable a TPM on a supported server. This procedure includes three sections:

1.

2.

Installing the Trusted Platform Module board.

Retaining the recovery key/password (on page 53 ).

Hardware options installation 51

3.

Enabling the Trusted Platform Module (on page 54 ).

Enabling the TPM requires accessing the ROM-Based Setup Utility (RBSU) (" HP ROM-Based Setup

Utility " on page 63 ). For more information about RBSU, see the HP website

( http://www.hp.com/support/smartstart/documentation ).

TPM installation requires the use of drive encryption technology, such as the Microsoft® Windows®

BitLocker™ Drive Encryption feature. For more information on BitLocker™, see the Microsoft website

( http://www.microsoft.com

).

CAUTION: Always observe the guidelines in this document. Failure to follow these guidelines can cause hardware damage or halt data access.

When installing or replacing a TPM, observe the following guidelines:

Do not remove an installed TPM. Once installed, the TPM becomes a permanent part of the system board.

When installing or replacing hardware, HP service providers cannot enable the TPM or the encryption technology. For security reasons, only the customer can enable these features.

When returning a system board for service replacement, do not remove the TPM from the system board.

When requested, HP Service provides a TPM with the spare system board.

Any attempt to remove an installed TPM from the system board breaks or disfigures the TPM security rivet. Upon locating a broken or disfigured rivet on an installed TPM, administrators should consider the system compromised and take appropriate measures to ensure the integrity of the system data.

When using BitLocker™, always retain the recovery key/password. The recovery key/password is required to enter Recovery Mode after BitLocker™ detects a possible compromise of system integrity.

HP is not liable for blocked data access caused by improper TPM use. For operating instructions, see the encryption technology feature documentation provided by the operating system.

Installing the Trusted Platform Module board

WARNING: To reduce the risk of personal injury, electric shock, or damage to the equipment, remove the power cord to remove power from the server. The front panel Power On/Standby button does not completely shut off system power. Portions of the power supply and some internal circuitry remain active until AC power is removed.

WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the internal system components to cool before touching them.

1.

2.

3.

4.

5.

Power down the server (on page 19 ).

Place the server on a flat, level work surface.

Remove the bezel (" Removing the front bezel " on page 19 ).

Remove the access panel (" Removing the access panel " on page 20 ).

Remove the system fan.

CAUTION: Any attempt to remove an installed TPM from the system board breaks or disfigures the TPM security rivet. Upon locating a broken or disfigured rivet on an installed TPM, administrators should consider the system compromised and take appropriate measures to ensure the integrity of the system data.

Hardware options installation 52

6.

Install the TPM board. Press down on the connector to seat the board.

7.

Install the TPM security rivet by pressing the rivet firmly into the system board.

8.

9.

10.

11.

Install the system fan.

Install the access panel (" Installing the access panel " on page 21 ).

Install the bezel (" Installing the front bezel " on page 20 ).

Power up the server (on page 19 , "

Powering up and configuring the server " on page 27 ).

Retaining the recovery key/password

The recovery key/password is generated during BitLocker™ setup, and can be saved and printed after

BitLocker™ is enabled. When using BitLocker™, always retain the recovery key/password. The recovery key/password is required to enter Recovery Mode after BitLocker™ detects a possible compromise of system integrity.

To help ensure maximum security, observe the following guidelines when retaining the recovery key/password:

Always store the recovery key/password in multiple locations.

Hardware options installation 53

Always store copies of the recovery key/password away from the server.

Do not save the recovery key/password on the encrypted hard drive.

Enabling the Trusted Platform Module

1.

When prompted during the start-up sequence, access RBSU by pressing the F9 key.

2.

3.

4.

5.

6.

7.

8.

From the Main Menu, select Server Security .

From the Server Security Menu, select Trusted Platform Module .

From the Trusted Platform Module Menu, select TPM Functionality .

Select Enable , and then press the Enter key to modify the TPM Functionality setting.

Press the Esc key to exit the current menu, or press the F10 key to exit RBSU.

Reboot the server.

Enable the TPM in the OS. For OS-specific instructions, see the OS documentation.

CAUTION: When a TPM is installed and enabled on the server, data access is locked if you fail to follow the proper procedures for updating the system or option firmware, replacing the system board, replacing a hard drive, or modifying OS application TPM settings.

For more information on firmware updates and hardware procedures, see the

HP Trusted Platform Module

Best Practices White Paper

on the HP website ( http://www.hp.com/support ).

For more information on adjusting TPM usage in BitLocker™, see the Microsoft website

( http://technet.microsoft.com/en-us/library/cc732774.aspx

).

Hardware options installation 54

Cabling

Storage cabling

Non-hot-plug four LFF SATA hard drive cabling

Item

3

4

1

2

5

Description

Optical drive bay (1 to 2)

Non-hot-plug LFF hard drive bay (1 to 4)

Optical drive bay cable

Non-hot-plug LFF hard disk drive SATA to mini-SAS cable

Power supply unit

Cabling 55

Hot-plug four LFF SAS hard drive cabling

Item

3

4

1

2

5

6

7

Description

Optical drive bay

Hot-plug LFF hard drive bay (1 to 4)

LFF backplane

Optical drive bay cable

I 2 C cable

Mini-SAS cable to Smart Array SAS RAID P212 controller card

Hot-plug RPS module

Hot-plug eight SFF SAS hard drive cabling

Cabling 56

Item

3

4

1

2

5

6

7

Description

Optical drive bay

Hot-plug SFF hard drive bay (1 to 8)

SFF backplane

Optical drive bay cable

I 2 C cable

Mini-SAS cables (2) to Smart Array SAS RAID P410 controller card

Hot-plug RPS module

Smart Array SAS RAID controller card cabling

Four LFF Smart Array SAS RAID controller card cabling

Item

1

2

3

4

5

Description

Optical drive bay

Hard drive bay (1 to 4)

Optical drive bay cable

Mini-SAS cable to Smart Array SAS RAID P212 controller card

Power supply unit

Cabling 57

Eight SFF Smart Array SAS RAID controller card cabling

Item

3

4

1

2

5

6

7

Description

Optical drive bay

Hot-plug SFF hard drive bay (1 to 8)

SFF backplane

Optical drive bay cabling

I 2 C cable

Mini-SAS cables (2) to Smart Array SAS RAID P410 controller card

Power supply unit

Cabling 58

Power cabling

Four LFF hard drive non-hot-plug, nonredundant power cabling

Item

3

4

5

1

2

6

7

8

9

10

Description

Optical drive bay power cable

Optional optical drive bay power cable

Hard drives 3 and 4 cables

Hard drives 1 and 2 cables

Power cable (24-pin)

Power cable (4-pin)

Non-hot-plug power supply unit

Optical drive bay

Optional optical drive bay

Non-hot-plug LFF hard drive bay (1 to 4)

Cabling 59

Four LFF hard drive hot-plug, redundant power cabling

Item

7

8

5

6

3

4

1

2

9

10

Description

Optical drive bay power cable

LFF backplane power cable

Power cable (24-pin)

RPS cable (16-pin)

RPS cable (3-pin)

Power cable (4-pin)

RPS cable (5-pin)

Hot-plug RPS module

Optical drive bay

Hot-plug LFF hard drive bay (1 to 4)

Cabling 60

Eight SFF hard drive hot-plug, redundant power cabling

Item

7

8

5

6

3

4

1

2

9

10

Description

Optical drive bay power cable

SFF backplane power cable

Power cable (24-pin)

RPS cable (16-pin)

RPS cable (3-pin)

Power cable (4-pin)

RPS cable (5-pin)

Hot-plug RPS module

Optical drive bay

Hot-plug SFF hard drive bay (1 to 8)

Cabling 61

Optical drive cabling

Item

3

4

1

2

5

Description

Optical drive bay

Optional optical drive bay

Optical drive bay cable

Optional optical drive bay cable

Power supply unit

Cabling 62

Configuration and utilities

Configuration tools

SmartStart software

SmartStart is a collection of software that optimizes single-server setup, providing a simple and consistent way to deploy server configuration. SmartStart has been tested on many ProLiant server products, resulting in proven, reliable configurations.

SmartStart assists the deployment process by performing a wide range of configuration activities, including:

Preparing the system for installing "off-the-shelf" versions of leading operating system software

Installing optimized server drivers, management agents, and utilities automatically with every assisted installation

Testing server hardware using the Insight Diagnostics Utility (" HP Insight Diagnostics " on page 68 )

Installing software drivers directly from the CD. With systems that have Internet connection, the

SmartStart Autorun Menu provides access to a complete list of ProLiant system software.

Enabling access to the Array Configuration Utility (on page 65

) and Erase Utility (on page 68 )

SmartStart is included in the HP Insight Foundation suite for ProLiant. For more information about SmartStart software, see the HP Insight Foundation suite for ProLiant or the HP website

( http://www.hp.com/go/foundation ).

SmartStart Scripting Toolkit

The SmartStart Scripting Toolkit is a server deployment product that allows you to build an unattended automated installation for high-volume server deployments. The SmartStart Scripting Toolkit is designed to support ProLiant BL, ML, DL, and SL servers. The toolkit includes a modular set of utilities and important documentation that describes how to apply these tools to build an automated server deployment process.

The Scripting Toolkit provides a flexible way to create standard server configuration scripts. These scripts are used to automate many of the manual steps in the server configuration process. This automated server configuration process cuts time from each deployment, making it possible to scale rapid, high-volume server deployments.

For more information, and to download the SmartStart Scripting Toolkit, see the HP website

( http://www.hp.com/servers/sstoolkit ).

HP ROM-Based Setup Utility

RBSU is a configuration utility embedded in ProLiant servers that performs a wide range of configuration activities that can include the following:

Configuring system devices and installed options

Enabling and disabling system features

Configuration and utilities 63

Displaying system information

Selecting the primary boot controller

Configuring memory options

Language selection

For more information on RBSU, see the

HP ROM-Based Setup Utility User Guide

on the Documentation CD or the HP website ( http://www.hp.com/support/smartstart/documentation ).

Using RBSU

To use RBSU, use the following keys:

To access RBSU, press the F9 key during power-up when prompted.

To navigate the menu system, use the arrow keys.

To make selections, press the Enter key.

To access Help for a highlighted configuration option, press the F1 key.

IMPORTANT: RBSU automatically saves settings when you press the Enter key. The utility does not prompt you for confirmation of settings before you exit the utility. To change a selected setting, you must select a different setting and press the Enter key.

Default configuration settings are applied to the server at one of the following times:

Upon the first system power-up

After defaults have been restored

Default configuration settings are sufficient for proper typical server operation, but configuration settings can be modified using RBSU. The system will prompt you for access to RBSU with each power-up.

Auto-configuration process

The auto-configuration process automatically runs when you boot the server for the first time. During the power-up sequence, the system ROM automatically configures the entire system without needing any intervention. During this process, the ORCA utility, in most cases, automatically configures the array to a default setting based on the number of drives connected to the server.

NOTE: The server may not support all the following examples.

NOTE: If the boot drive is not empty or has been written to in the past, ORCA does not automatically configure the array. You must run ORCA to configure the array settings.

Drives installed

1

2

3, 4, 5, or 6

More than 6

Drives used

1

2

3, 4, 5, or 6

0

RAID level

RAID 0

RAID 1

RAID 5

None

To change any ORCA default settings and override the auto-configuration process, press the F8 key when prompted.

Configuration and utilities 64

For more information on RBSU, see the

HP ROM-Based Setup Utility User Guide

on the Documentation CD or the HP website ( http://www.hp.com/support/smartstart/documentation ).

Boot options

Near the end of the boot process, the boot options screen is displayed. This screen is visible for several seconds before the system attempts to boot from a supported boot device. During this time, you can do the following:

Access RBSU by pressing the F9 key.

Access the System Maintenance Menu (which enables you to launch ROM-based Diagnostics or

Inspect) by pressing the F10 key.

Access the boot menu by pressing the F11 key.

Force a PXE Network boot by pressing the F12 key.

BIOS Serial Console

BIOS Serial Console allows you to configure the serial port to view POST error messages and run RBSU remotely through a serial connection to the server COM port. The server that you are remotely configuring does not require a keyboard and mouse.

For more information about BIOS Serial Console, see the

BIOS Serial Console User Guide

on the

Documentation CD or the HP website ( http://www.hp.com/support/smartstart/documentation ).

Array Configuration Utility

ACU is a browser-based utility with the following features:

Runs as a local application or remote service

Supports online array capacity expansion, logical drive extension, assignment of online spares, and

RAID or stripe size migration

Suggests the optimum configuration for an unconfigured system

Provides different operating modes, enabling faster configuration or greater control over the configuration options

Remains available any time that the server is on

Displays on-screen tips for individual steps of a configuration procedure

Beginning with ACU version 8.28.13.0, provides diagnostic functionality on the Diagnostics tab

(formerly known as Array Diagnostics Utility).

For optimum performance, the minimum display settings are 1024 × 768 resolution and 16-bit color. Servers running Microsoft® operating systems require one of the following supported browsers:

Internet Explorer 6.0 or later

Mozilla Firefox 2.0 or later

For Linux servers, see the README.TXT file for additional browser and support information.

For more information, see the

Configuring Arrays on HP Smart Array Controllers Reference Guide

on the

Documentation CD or the HP website ( http://www.hp.com

).

Configuration and utilities 65

Option ROM Configuration for Arrays

Before installing an operating system, you can use the ORCA utility to create the first logical drive, assign

RAID levels, and establish online spare configurations.

The utility also provides support for the following functions:

Reconfiguring one or more logical drives

Viewing the current logical drive configuration

Deleting a logical drive configuration

Setting the controller to be the boot controller

If you do not use the utility, ORCA will default to the standard configuration.

For more information regarding array controller configuration, refer to the controller user guide.

For more information regarding the default configurations that ORCA uses, refer to the

HP ROM-Based Setup

Utility User Guide

on the Documentation CD.

Re-entering the server serial number and product ID

After you replace the system board, you must re-enter the server serial number and the product ID.

1.

2.

3.

During the server startup sequence, press the F9 key to access RBSU.

Select the Advanced Options menu.

Select Service Options .

4.

5.

6.

7.

8.

9.

10.

11.

Select Serial Number . The following warnings appear:

WARNING! WARNING! WARNING! The serial number is loaded into the system during the manufacturing process and should NOT be modified. This option should only be used by qualified service personnel. This value should always match the serial number sticker located on the chassis.

Warning: The serial number should ONLY be modified by qualified personnel.

This value should always match the serial number located on the chassis.

Press the Enter key to clear the warning.

Enter the serial number and press the Enter key.

Select Product ID . The following warning appears:

Warning: The Product ID should ONLY be modified by qualified personnel. This value should always match the Product ID on the chassis.

Enter the product ID and press the Enter key.

Press the Esc key to close the menu.

Press the Esc key to exit RBSU.

Press the F10 key to confirm exiting RBSU. The server automatically reboots.

Configuration and utilities 66

Management tools

Automatic Server Recovery

ASR is a feature that causes the system to restart when a catastrophic operating system error occurs, such as a blue screen, ABEND, or panic. A system fail-safe timer, the ASR timer, starts when the System Management driver, also known as the Health Driver, is loaded. When the operating system is functioning properly, the system periodically resets the timer. However, when the operating system fails, the timer expires and restarts the server.

ASR increases server availability by restarting the server within a specified time after a system hang or shutdown. At the same time, the HP SIM console notifies you by sending a message to a designated pager number that ASR has restarted the system. You can disable ASR from the HP SIM console or through RBSU.

ROMPaq utility

The ROMPaq utility enables you to upgrade the system firmware (BIOS). To upgrade the firmware, insert a

ROMPaq USB Key into an available USB port and boot the system. In addition to ROMPaq, Online Flash

Components for Windows and Linux operating systems are available for updating the system firmware.

The ROMPaq utility checks the system and provides a choice (if more than one exists) of available firmware revisions.

For more information, see the Download drivers and software page for the server. To access the server-specific page, enter the following web address into the browser: http://www.hp.com/support/

<servername>

For example: http://www.hp.com/support/dl360g6

Integrated Lights-Out 3 technology

The iLO 3 subsystem is a standard component of selected ProLiant servers that provides server health and remote server manageability. The iLO 3 subsystem includes an intelligent microprocessor, secure memory, and a dedicated network interface. This design makes iLO 3 independent of the host server and its operating system.

In addition to remote management features, iLO 3 is also responsible for managing the health of the ProLiant server. The intelligence of iLO 3 manages the Sea of Sensors thermal control, directs power management functions, and monitors the health of server components.

The iLO 3 subsystem provides secure remote access from any authorized network client. The enhancements to iLO 3 enable customers to get work done faster by providing turbo-charged remote access performance, a streamlined user experience, and enhanced standards support.

Using iLO 3, you can do the following:

Access a high-performance and secure Remote Console to the server from anywhere in the world.

Use the shared iLO 3 Remote Console to collaborate with up to six server administrators.

Remotely mount high-performance Virtual Media devices to the server.

Securely and remotely control the power state of the managed server.

Configuration and utilities 67

Send alerts from iLO 3 regardless of the state of the host server.

Access advanced troubleshooting features through the iLO 3 interface.

For more information about iLO 3 features (which may require an iLO Advanced Pack or iLO Advanced for

BladeSystem license), see the iLO 3 documentation on the Documentation CD or on the HP website

( http://www.hp.com/go/ilo ).

Erase Utility

CAUTION: Perform a backup before running the System Erase Utility. The utility sets the system to its original factory state, deletes the current hardware configuration information, including array setup and disk partitioning, and erases all connected hard drives completely. Refer to the instructions for using this utility.

Run the Erase Utility if you must erase the system for the following reasons:

You want to install a new operating system on a server with an existing operating system.

You encounter an error when completing the steps of a factory-installed operating system installation.

To access the Erase Utility, use the System Erase button on the home screen of the SmartStart CD (" SmartStart software " on page 63 ).

USB support

HP provides both standard USB 2.0 support and legacy USB 2.0 support. Standard support is provided by the OS through the appropriate USB device drivers. Before the OS loads, HP provides support for USB devices through legacy USB support, which is enabled by default in the system ROM.

Legacy USB support provides USB functionality in environments where USB support is not available normally.

Specifically, HP provides legacy USB functionality for the following:

POST

RBSU

Diagnostics

DOS

Operating environments which do not provide native USB support

Diagnostic tools

HP Insight Diagnostics

HP Insight Diagnostics is a proactive server management tool, available in both offline and online versions, that provides diagnostics and troubleshooting capabilities to assist IT administrators who verify server installations, troubleshoot problems, and perform repair validation.

HP Insight Diagnostics Offline Edition performs various in-depth system and component testing while the OS is not running. To run this utility, launch the SmartStart CD.

Configuration and utilities 68

HP Insight Diagnostics Online Edition is a web-based application that captures system configuration and other related data needed for effective server management. Available in Microsoft® Windows® and Linux versions, the utility helps to ensure proper system operation.

For more information or to download the utility, refer to the HP website ( http://www.hp.com/servers/diags ).

HP Insight Diagnostics survey functionality

HP Insight Diagnostics (on page 68 ) provides survey functionality that gathers critical hardware and software

information on ProLiant servers.

This functionality supports operating systems that may not be supported by the server. For operating systems supported by the server, see the HP website ( http://www.hp.com/go/supportos ).

If a significant change occurs between data-gathering intervals, the survey function marks the previous information and overwrites the survey data files to reflect the latest changes in the configuration.

Survey functionality is installed with every SmartStart-assisted HP Insight Diagnostics installation, or it can be

installed through the HP PSP (" ProLiant Support Packs " on page 71 ).

NOTE: The current version of SmartStart provides the memory spare part numbers for the server.

To download the latest version, see the HP website ( http://www.hp.com/support ).

Integrated Management Log

The IML records hundreds of events and stores them in an easy-to-view form. The IML timestamps each event with 1-minute granularity.

You can view recorded events in the IML in several ways, including the following:

From within HP SIM

From within Survey Utility

From within operating system-specific IML viewers o

For NetWare: IML Viewer o o

For Windows®: IML Viewer

For Linux: IML Viewer Application

From within the iLO 3 user interface

From within HP Insight Diagnostics (on page 68 )

For more information, see the Management CD in the HP Insight Foundation suite for ProLiant.

Remote support and analysis tools

HP Insight Remote Support software

HP strongly recommends that you install HP Insight Remote Support software to complete the installation or upgrade of your product and to enable enhanced delivery of your HP Warranty, HP Care Pack Service, or

HP contractual support agreement. HP Insight Remote Support supplements your monitoring 24 x 7 to ensure maximum system availability by providing intelligent event diagnosis, and automatic, secure submission of hardware event notifications to HP, which will initiate a fast and accurate resolution, based on your product’s

Configuration and utilities 69

service level. Notifications may be sent to your authorized HP Channel Partner for on-site service, if configured and available in your country. The software is available in two variants:

HP Insight Remote Support Standard: This software supports server and storage devices and is optimized for environments with 1–50 servers. Ideal for customers who can benefit from proactive notification but do not need proactive service delivery and integration with a management platform.

HP Insight Remote Support Advanced: This software provides comprehensive remote monitoring and proactive service support for nearly all HP servers, storage, network, and SAN environments, plus selected non-HP servers that have a support obligation with HP. It is integrated with HP Systems Insight

Manager. A dedicated server is recommended to host both HP Systems Insight Manager and HP Insight

Remote Support Advanced.

Details for both versions are available on the HP website ( http://www.hp.com/go/insightremotesupport ).

To download the software, go to Software Depot ( http://www.software.hp.com

).

Select Insight Remote Support from the menu on the right.

Keeping the system current

Drivers

IMPORTANT: Always perform a backup before installing or updating device drivers.

The server includes new hardware that may not have driver support on all OS installation media.

If you are installing a SmartStart-supported OS, use the SmartStart software (on page 63 ) and its Assisted

Path feature to install the OS and latest driver support.

If you are installing drivers from the SmartStart CD, be sure that you are using the latest SmartStart version that your server supports. To verify that your server is using the latest supported version, see the HP website

( http://www.hp.com/support ). For more information, see the documentation provided with the SmartStart

CD.

If you do not use the SmartStart CD to install an OS, drivers for some of the new hardware are required.

These drivers, as well as other option drivers, ROM images, and value-add software can be downloaded from the HP website ( http://www.hp.com/support ).

To directly locate the OS drivers for a particular server, enter the following web address into the browser: http://www.hp.com/support/<

servername

>

In place of

<servername>

, enter the server name.

For example: http://www.hp.com/support/dl360g6 ( http://www.hp.com/support/dl360g6 )

Version control

The VCRM and VCA are Web-enabled Insight Management Agents tools that HP SIM uses to facilitate and schedule software update tasks to the entire enterprise.

Configuration and utilities 70

VCRM manages the repository for Windows and Linux PSPs as well as online firmware. Administrators can browse a graphical view of the PSPs or configure VCRM to automatically update the repository with

Internet downloads of the latest software from HP.

VCA compares installed software versions and available updates. Administrators can configure VCA to point to a repository managed by VCRM.

For more information about version control tools, see the

HP Systems Insight Manager Help Guide

and the

Version Control User Guide

on the HP Systems Insight Manager website ( http://www.hp.com/go/hpsim ).

ProLiant Support Packs

PSPs represent operating system-specific bundles of ProLiant optimized drivers, utilities, and management agents. Refer to the PSP website ( http://h18000.www1.hp.com/products/servers/management/psp.html

).

Operating System Version Support

For information about specific versions of a supported operating system, refer to the operating system support matrix ( http://www.hp.com/go/supportos ).

Firmware

The Smart Update Firmware DVD is an organized firmware collection for ProLiant servers and options

powered by HP Smart Update Manager (on page 71 ). The Smart Update Firmware DVD combines the

following resources on a single DVD:

Firmware Maintenance CD

HP BladeSystem Firmware Deployment Tool (FDT)

The HP BladeSystem online firmware bundles

The ProLiant BladeSystem Release Sets

Offline, automatic mode for HP ProLiant BL, DL, ML, and 100 Series servers

Firmware deployment support for HP ProLiant 100 Series servers

HP Smart Update Manager

The HP Smart Update Manager provides intelligent and flexible firmware and software deployment. This technology assists in reducing the complexity of provisioning and updating HP ProLiant Servers, options, and

Blades within the datacenter. HP SUM is delivered on The Smart Update Firmware DVD, ProLiant Support

Packs, and Easy Set-up CDs.

HP SUM enables system administrators to upgrade ROM images efficiently across a wide range of servers and options. This tool has the following features:

Enables GUI and a command-line, scriptable interface

Enables scriptable, command-line deployment

Requires no agent for remote installations

Enables dependency checking, which ensures appropriate install order and dependency checking between components

Configuration and utilities 71

Deploys software and firmware on Windows and Linux operating systems

Performs local or remote (one-to-many) online deployment

Deploys firmware and software together

Supports offline and online deployment

Deploys necessary component updates only (except Linux RPMs)

Downloads the latest components from Web (except Linux RPMs)

Enables direct update of BMC firmware (iLO and LO100i)

For more information about HP Smart Update Manager and to access the

HP Smart Update Manager User

Guide

, see the HP website ( http://www.hp.com/go/foundation ).

Change control and proactive notification

HP offers Change Control and Proactive Notification to notify customers 30 to 60 days in advance of upcoming hardware and software changes on HP commercial products.

For more information, refer to the HP website ( http://www.hp.com/go/pcn ).

Care Pack

HP Care Pack Services offer upgraded service levels to extend and expand bundled services with easy-to-buy, easy-to-use support packages that help you make the most of your server investments. For more information, see the HP website ( http://www.hp.com/services/carepack ).

Configuration and utilities 72

Troubleshooting

Troubleshooting resources

The

HP ProLiant Servers Troubleshooting Guide

provides procedures for resolving common problems and comprehensive courses of action for fault isolation and identification, error message interpretation, issue resolution, and software maintenance on ProLiant servers and server blades. This guide includes problem-specific flowcharts to help you navigate complex troubleshooting processes. To view the guide, select a language:

English ( http://www.hp.com/support/ProLiant_TSG_en )

French ( http://www.hp.com/support/ProLiant_TSG_fr )

Italian ( http://www.hp.com/support/ProLiant_TSG_it )

Spanish ( http://www.hp.com/support/ProLiant_TSG_sp )

German ( http://www.hp.com/support/ProLiant_TSG_gr )

Dutch ( http://www.hp.com/support/ProLiant_TSG_nl )

Japanese ( http://www.hp.com/support/ProLiant_TSG_jp )

Pre-diagnostic steps

WARNING: To avoid potential problems, ALWAYS read the warnings and cautionary information in the server documentation before removing, replacing, reseating, or modifying system components.

IMPORTANT: This guide provides information for multiple servers. Some information may not apply to the server you are troubleshooting. Refer to the server documentation for information on procedures, hardware options, software tools, and operating systems supported by the server.

1.

2.

3.

4.

Review the important safety information (on page 73 ).

Gather symptom information (on page 75 ).

Prepare the server for diagnosis (on page 75 ).

Use the Start diagnosis flowchart (on page 78 ) to begin the diagnostic process.

Important safety information

Familiarize yourself with the safety information in the following sections before troubleshooting the server.

Important safety information

Before servicing this product, read the

Important Safety Information

document provided with the server.

Troubleshooting 73

Symbols on equipment

The following symbols may be placed on equipment to indicate the presence of potentially hazardous conditions.

This symbol indicates the presence of hazardous energy circuits or electric shock hazards. Refer all servicing to qualified personnel.

WARNING: To reduce the risk of injury from electric shock hazards, do not open this enclosure. Refer all maintenance, upgrades, and servicing to qualified personnel.

This symbol indicates the presence of electric shock hazards. The area contains no user or field serviceable parts. Do not open for any reason.

WARNING: To reduce the risk of injury from electric shock hazards, do not open this enclosure.

This symbol on an RJ-45 receptacle indicates a network interface connection.

WARNING: To reduce the risk of electric shock, fire, or damage to the equipment, do not plug telephone or telecommunications connectors into this receptacle.

This symbol indicates the presence of a hot surface or hot component. If this surface is contacted, the potential for injury exists.

WARNING: To reduce the risk of injury from a hot component, allow the surface to cool before touching.

27.2 kg

60.0 lb

This symbol indicates that the component exceeds the recommended weight for one individual to handle safely.

WARNING: To reduce the risk of personal injury or damage to the equipment, observe local occupational health and safety requirements and guidelines for manual material handling.

These symbols, on power supplies or systems, indicate that the equipment is supplied by multiple sources of power.

WARNING: To reduce the risk of injury from electric shock, remove all power cords to completely disconnect power from the system.

Warnings and cautions

WARNING: Only authorized technicians trained by HP should attempt to repair this equipment.

All troubleshooting and repair procedures are detailed to allow only subassembly/module-level repair. Because of the complexity of the individual boards and subassemblies, no one should attempt to make repairs at the component level or to make modifications to any printed wiring board. Improper repairs can create a safety hazard.

WARNING: To reduce the risk of personal injury or damage to the equipment, be sure that:

The leveling feet are extended to the floor.

• The full weight of the rack rests on the leveling feet.

The stabilizing feet are attached to the rack if it is a single-rack installation.

The racks are coupled together in multiple-rack installations.

• Only one component is extended at a time. A rack may become unstable if more than one component is extended for any reason.

Troubleshooting 74

WARNING: To reduce the risk of electric shock or damage to the equipment:

Do not disable the power cord grounding plug. The grounding plug is an important safety feature.

• Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.

Unplug the power cord from the power supply to disconnect power to the equipment.

• Do not route the power cord where it can be walked on or pinched by items placed against it.

Pay particular attention to the plug, electrical outlet, and the point where the cord extends from the server.

27.2 kg

60.0 lb

WARNING: To reduce the risk of personal injury or damage to the equipment:

• Observe local occupation health and safety requirements and guidelines for manual handling.

Obtain adequate assistance to lift and stabilize the chassis during installation or removal.

• The server is unstable when not fastened to the rails.

• When mounting the server in a rack, remove the power supplies and any other removable module to reduce the overall weight of the product.

CAUTION: To properly ventilate the system, you must provide at least 7.6 cm (3.0 in) of clearance at the front and back of the server.

CAUTION: The server is designed to be electrically grounded (earthed). To ensure proper operation, plug the AC power cord into a properly grounded AC outlet only.

Symptom information

Before troubleshooting a server problem, collect the following information:

What events preceded the failure? After which steps does the problem occur?

What has been changed since the time the server was working?

Did you recently add or remove hardware or software? If so, did you remember to change the appropriate settings in the server setup utility, if necessary?

How long has the server exhibited problem symptoms?

If the problem occurs randomly, what is the duration or frequency?

To answer these questions, the following information may be useful:

Run HP Insight Diagnostics (on page 68 ) and use the survey page to view the current configuration or

to compare it to previous configurations.

Refer to your hardware and software records for information.

Refer to server LEDs and their statuses.

Prepare the server for diagnosis

1.

Be sure the server is in the proper operating environment with adequate power, air conditioning, and humidity control. For required environmental conditions, see the server documentation.

Troubleshooting 75

2.

3.

4.

5.

6.

Record any error messages displayed by the system.

Remove all diskettes, CD-ROMs, DVD-ROMs, and USB drive keys.

Power down the server and peripheral devices if you will be diagnosing the server offline. If possible, always perform an orderly shutdown: a.

b.

Exit any applications.

Exit the operating system. c.

Power down the server (on page 19 ).

Disconnect any peripheral devices not required for testing (any devices not necessary to power up the server). Do not disconnect the printer if you want to use it to print error messages.

Collect all tools and utilities, such as a Torx screwdriver, loopback adapters, ESD wrist strap, and software utilities, necessary to troubleshoot the problem. o

You must have the appropriate Health Drivers and Management Agents installed on the server. o o

To verify the server configuration, connect to the System Management homepage and select Version

Control Agent . The VCA gives you a list of names and versions of all installed HP drivers,

Management Agents, and utilities, and whether they are up-to-date.

HP recommends you have access to the server documentation for server-specific information.

HP recommends you have access to the SmartStart CD for value-added software and drivers required during the troubleshooting process. Download the current version of SmartStart from the

HP website ( http://www.hp.com/servers/smartstart ).

Performing processor procedures in the troubleshooting process

Before performing any troubleshooting steps that involve processors, review the following guidelines:

Be sure that only authorized personnel perform the troubleshooting steps that involve installing, removing, or replacing a processor.

Always locate the documentation for your processor model before performing any steps that require installing, removing, or replacing a processor. If you cannot locate the hard copy of the instructions that shipped with the processor, see the processor instructions in this document.

Some processor models require the use of a processor installation tool, and specific steps are documented to ensure that you do not damage the processor or processor socket on the system board.

For server models that have pins inside the processor socket, remember that THE PINS ON THE SYSTEM

BOARD ARE VERY FRAGILE AND EASILY DAMAGED . If you damage the socket, you must replace the system board.

Depending on the server model, the contacts may be on the processor or they may be inside the processor socket. Never touch the contacts. THE PINS ON THE SYSTEM BOARD ARE VERY FRAGILE AND

EASILY DAMAGED . If the contacts inside the processor socket are damaged, the system board must be replaced.

Always complete all other troubleshooting procedures before removing or replacing a processor.

Breaking the server down to the minimum hardware configuration

During the troubleshooting process, you may be asked to break the server down to the minimum hardware configuration. A minimum configuration consists of only the components needed to boot the server and successfully pass POST.

Troubleshooting 76

When requested to break the server down to the minimum configuration, uninstall the following components, if installed:

All additional DIMMs

Leave only the minimum required to boot the server—either one DIMM or a pair of DIMMs. For more information, see the memory guidelines in the server user guide.

All additional cooling fans, if applicable

For the minimum fan configuration, see the server user guide.

All additional power supplies, if applicable (leave one installed)

All hard drives

All optical drives (DVD-ROM, CD-ROM, and so forth)

All optional mezzanine cards

All expansion boards

Before removing the components, be sure to determine the minimum configuration for each component and follow all guidelines in the server user guide.

Always use the recommended minimum configuration above before removing any processors. If you are unable to isolate the issue with the configuration above, you will then remove all but one of the additional processors.

CAUTION: Before removing or replacing any processors, be sure to follow the guidelines

provided in "Performing processor procedures in the troubleshooting process (on page 76 )."

Failure to follow the recommended guidelines can cause damage to the system board, requiring replacement of the system board.

Loose connections

Action :

Be sure all power cords are securely connected.

Be sure all cables are properly aligned and securely connected for all external and internal components.

Remove and check all data and power cables for damage. Be sure no cables have bent pins or damaged connectors.

If a fixed cable tray is available for the server, be sure the cords and cables connected to the server are routed correctly through the tray.

Be sure each device is properly seated. Avoid bending or flexing circuit boards when reseating components.

If a device has latches, be sure they are completely closed and locked.

Check any interlock or interconnect LEDs that may indicate a component is not connected properly.

If problems continue to occur, remove and reinstall each device, checking the connectors and sockets for bent pins or other damage.

Troubleshooting 77

Service notifications

To view the latest service notifications, refer to the HP website ( http://www.hp.com/go/bizsupport ). Select the appropriate server model, and then click the Troubleshoot a Problem link on the product page.

Server health LEDs

Some servers have an internal health LED and an external health LED, while other servers have a single system health LED. The system health LED provides the same functionality as the two separate internal and external health LEDs. Depending on the model, the internal health LED and external health LED may either appear solid or they may flash. Both conditions represent the same symptom.

For the location of server LEDs and information on their statuses, see the server documentation on the HP website ( http://www.hp.com/support ).

Troubleshooting flowcharts

To effectively troubleshoot a problem, HP recommends that you start with the first flowchart in this section,

"Start diagnosis flowchart (on page 78 )," and follow the appropriate diagnostic path. If the other flowcharts

do not provide a troubleshooting solution, follow the diagnostic steps in "General diagnosis flowchart (on

page 79 )." The General diagnosis flowchart is a generic troubleshooting process to be used when the

problem is not server-specific or is not easily categorized into the other flowcharts.

The available flowcharts include:

Start diagnosis flowchart (on page 78 )

General diagnosis flowchart (on page 79 )

Server power-on problems flowchart (on page 81 )

POST problems flowchart (on page 84 )

OS boot problems flowchart (on page 86 )

Server fault indications flowchart (on page 87 )

Start diagnosis flowchart

Use the following flowchart to start the diagnostic process.

Item

1

See

"General diagnosis flowchart (on page 79 )"

2

3

"Power-on problems flowchart (" Server power-on problems flowchart " on page 81 )"

"POST problems flowchart (on page 84 )"

4

"OS boot problems flowchart (on page 86 )"

5

"Server fault indications flowchart (on page 87 )"

Troubleshooting 78

General diagnosis flowchart

1

2

The General diagnosis flowchart provides a generic approach to troubleshooting. If you are unsure of the problem, or if the other flowcharts do not fix the problem, use the following flowchart.

Item See

"Symptom information (on page 75 )"

"Loose connections (on page 77 )"

3

"Service notifications (on page 78 )"

4

The most recent version of a particular server or option firmware is available on the HP Support website ( http://www.hp.com/support ).

Troubleshooting 79

6

7

Item

5

8

9

10

See

"General memory problems are occurring" in the

HP ProLiant Servers

Troubleshooting Guide

located on the Documentation CD or see

"Troubleshooting resources (on page 73 )"

Server maintenance and service guide, located on the Documentation CD or the HP website ( http://www.hp.com/products/servers/platforms )

"Hardware problems" in the

HP ProLiant Servers Troubleshooting

Guide

located on the Documentation CD or see "Troubleshooting

resources (on page 73 )"

Server maintenance and service guide, located on the Documentation

CD or the HP website

( http://www.hp.com/products/servers/platforms )

"Breaking the server down to the minimum hardware configuration (on

page 76 )" or in the

HP ProLiant Servers Troubleshooting Guide

located on

the Documentation CD or see "Troubleshooting resources (on page 73 )"

"Server information you need" in the

HP ProLiant Servers

Troubleshooting Guide

located on the Documentation CD or see

"Troubleshooting resources (on page 73 )"

"Operating system information you need" in the

HP ProLiant Servers

Troubleshooting Guide

located on the Documentation CD or see

"Troubleshooting resources (on page 73 )"

"HP contact information (on page 101 )"

Troubleshooting 80

Server power-on problems flowchart

Symptoms:

The server does not power on.

The system power LED is off or amber.

Troubleshooting 81

The external health LED is red or amber.

The internal health LED is red or amber.

NOTE: For the location of server LEDs and information on their statuses, refer to the server documentation.

Possible causes:

Improperly seated or faulty power supply

Loose or faulty power cord

Power source problem

Power on circuit problem

Improperly seated component or interlock problem

Faulty internal component

Item See

1

2

3

"Server health LEDs (on page 78 )" and "Component identification (on

page 7 )"

"HP Insight Diagnostics (on page 68 )" or in the

HP ProLiant Servers

Troubleshooting Guide

located on the Documentation CD or see

"Troubleshooting resources (on page 73 )"

"Loose connections (on page 77 )"

4

5

6

7

8

Server maintenance and service guide, located on the Documentation CD, or the HP website ( http://www.hp.com/products/servers/platforms )

"Integrated Management Log (on page 69 )" or in the

HP ProLiant Servers

Troubleshooting Guide

located on the Documentation CD or see

"Troubleshooting resources (on page 73 )"

"Power source problems" in the

HP ProLiant Servers Troubleshooting Guide

located on the Documentation CD or see "Troubleshooting resources (on

page 73 )"

"Power supply problems" in the

HP ProLiant Servers Troubleshooting

Guide

located on the Documentation CD or see "Troubleshooting

resources (on page 73 )"

Server maintenance and service guide, located on the Documentation

CD, or the HP website

( http://www.hp.com/products/servers/platforms )

"System open circuits and short circuits" in the

HP ProLiant Servers

Troubleshooting Guide

located on the Documentation CD or see

"Troubleshooting resources (on page 73 )"

Troubleshooting 82

Troubleshooting 83

POST problems flowchart

Symptoms:

Server does not complete POST

NOTE: The server has completed POST when the system attempts to access the boot device.

Server completes POST with errors

Possible problems:

Improperly seated or faulty internal component

Faulty KVM device

Faulty video device

Item See

1

2

"Video problems" in the

HP ProLiant Servers Troubleshooting Guide

located on the Documentation CD or see "Troubleshooting resources (on

page 73 )"

KVM or iLO 3 documentation

3

"POST error messages and beep codes (on page 89 )"

4

"Symptom information (on page 75 )"

5

6

7

"Port 85 and iLO messages" in the

HP ProLiant Servers Troubleshooting

Guide

located on the Documentation CD or see "Troubleshooting resources

(on page 73 )"

"Server health LEDs (on page 78 )" and "Component identification (on

page 7 )"

"Loose connections (on page 77 )"

8

9

10

11

12

"General memory problems are occurring" in the

HP ProLiant Servers

Troubleshooting Guide

located on the Documentation CD or see

"Troubleshooting resources (on page 73 )"

Server maintenance and service guide, located on the Documentation CD or the HP website ( http://www.hp.com/products/servers/platforms ).

"Breaking the server down to the minimum hardware configuration (on

page 76 )" or in the

HP ProLiant Servers Troubleshooting Guide

located on

the Documentation CD or see "Troubleshooting resources (on page 73 )"

"Hardware problems" in the

HP ProLiant Servers Troubleshooting

Guide

located on the Documentation CD or see "Troubleshooting

resources (on page 73 )"

Server maintenance and service guide, located on the Documentation

CD or the HP website

( http://www.hp.com/products/servers/platforms )

"HP contact information (on page 101 )"

Troubleshooting 84

Item

13

See

"Server information you need" in the

HP ProLiant Servers

Troubleshooting Guide

located on the Documentation CD or see

"Troubleshooting resources (on page 73 )"

"Operating system information you need" in the

HP ProLiant Servers

Troubleshooting Guide

located on the Documentation CD or see

"Troubleshooting resources (on page 73 )"

Troubleshooting 85

OS boot problems flowchart

Symptoms:

Server does not boot a previously installed operating system

Server does not boot SmartStart

Possible causes:

Corrupted operating system

Hard drive subsystem problem

Incorrect boot order setting in RBSU

Item See

1

2

HP ROM-Based Setup Utility User Guide

(

http://www.hp.com/servers/smartstart

)

"POST problems flowchart (on page 84 )"

3

4

5

6

7

8

9

10

"Hard drive problems" in the

HP ProLiant Servers Troubleshooting

Guide

located on the Documentation CD or see "Troubleshooting

resources (on page 73 )"

Controller documentation

"HP Insight Diagnostics (on page 68 )" or in the

HP ProLiant Servers

Troubleshooting Guide

located on the Documentation CD or see

"Troubleshooting resources (on page 73 )"

"CD-ROM and DVD drive problems" in the

HP ProLiant Servers

Troubleshooting Guide

located on the Documentation CD or see

"Troubleshooting resources (on page 73 )"

Controller documentation

"Loose connections (on page 77 )"

"General memory problems are occurring" in the

HP ProLiant Servers

Troubleshooting Guide

located on the Documentation CD or see

"Troubleshooting resources (on page 73 )"

"Operating system problems" in the

HP ProLiant Servers

Troubleshooting Guide

located on the Documentation CD or see

"Troubleshooting resources (on page 73 )"

"HP contact information (on page 101 )"

"Breaking the server down to the minimum hardware configuration (on

page 76 )" in the

HP ProLiant Servers Troubleshooting Guide

located on the

Documentation CD or see "Troubleshooting resources (on page 73 )"

"Hardware problems" in the

HP ProLiant Servers Troubleshooting

Guide

located on the Documentation CD or see "Troubleshooting

resources (on page 73 )"

Server maintenance and service guide, located on the Documentation

CD or the HP website

( http://www.hp.com/products/servers/platforms )

"General diagnosis flowchart (on page 79 )"

Troubleshooting 86

Server fault indications flowchart

Symptoms:

Server boots, but a fault event is reported by Insight Management Agents

Server boots, but the internal health LED, external health LED, or component health LED is red or amber

NOTE: For the location of server LEDs and information on their statuses, refer to the server documentation.

Troubleshooting 87

4

5

2

3

Possible causes:

Improperly seated or faulty internal or external component

Unsupported component installed

Redundancy failure

System overtemperature condition

Item See

1

6

7

8

"Integrated Management Log (on page 69 )" or in the

HP ProLiant

Servers Troubleshooting Guide

located on the Documentation CD or

see "Troubleshooting resources (on page 73 )"

"Event list error messages" in the

HP ProLiant Servers Troubleshooting

Guide

located on the Documentation CD or see "Troubleshooting

resources (on page 73 )"

"Component identification (on page 7 )"

"Server health LEDs (on page 78 )"

System Management Homepage ( https://localhost:2381 )

"Power-on problems flowchart (" Server power-on problems flowchart " on page 81 )"

"HP Insight Diagnostics (on page 68 )" or in the

HP ProLiant Servers

Troubleshooting Guide

located on the Documentation CD or see

"Troubleshooting resources (on page 73 )"

"Hardware problems" in the

HP ProLiant Servers Troubleshooting

Guide

located on the Documentation CD or see "Troubleshooting

resources (on page 73 )"

Server maintenance and service guide, located on the Documentation

CD or the HP website

( http://www.hp.com/products/servers/platforms )

"Smart Array SCSI Diagnosis feature" or in the

HP ProLiant Servers

Troubleshooting Guide

located on the Documentation CD or see

"Troubleshooting resources (on page 73 )"

Server maintenance and service guide, located on the Documentation

CD or the HP website

( http://www.hp.com/products/servers/platforms )

"HP contact information (on page 101 )"

Troubleshooting 88

POST error messages and beep codes

For a complete listing of error messages, refer to the "POST error messages" in the

HP ProLiant Servers

Troubleshooting Guide

located on the Documentation CD or on the HP website

( http://www.hp.com/support ).

Troubleshooting 89

WARNING: To avoid potential problems, ALWAYS read the warnings and cautionary information in the server documentation before removing, replacing, reseating, or modifying system components.

Troubleshooting 90

Battery replacement

If the server no longer automatically displays the correct date and time, you might have to replace the battery that provides power to the real-time clock.

WARNING: The computer contains an internal lithium manganese dioxide, a vanadium pentoxide, or an alkaline battery pack. A risk of fire and burns exists if the battery pack is not properly handled. To reduce the risk of personal injury:

Do not attempt to recharge the battery.

• Do not expose the battery to temperatures higher than 60°C (140°F).

Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.

Replace only with the spare designated for this product.

1.

2.

3.

Power down the server (on page 19 ).

Remove the access panel (" Removing the access panel " on page 20 ).

Remove the battery.

To replace the component, reverse the removal procedure.

For more information about battery replacement or proper disposal, contact an authorized reseller or an authorized service provider.

Battery replacement 91

Regulatory compliance notices

Regulatory compliance identification numbers

For the purpose of regulatory compliance certifications and identification, this product has been assigned a unique regulatory model number. The regulatory model number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to this regulatory model number. The regulatory model number is not the marketing name or model number of the product.

Federal Communications Commission notice

Part 15 of the Federal Communications Commission (FCC) Rules and Regulations has established Radio

Frequency (RF) emission limits to provide an interference-free radio frequency spectrum. Many electronic devices, including computers, generate RF energy incidental to their intended function and are, therefore, covered by these rules. These rules place computers and related peripheral devices into two classes, A and

B, depending upon their intended installation. Class A devices are those that may reasonably be expected to be installed in a business or commercial environment. Class B devices are those that may reasonably be expected to be installed in a residential environment (for example, personal computers). The FCC requires devices in both classes to bear a label indicating the interference potential of the device as well as additional operating instructions for the user.

FCC rating label

The FCC rating label on the device shows the classification (A or B) of the equipment. Class B devices have an FCC logo or ID on the label. Class A devices do not have an FCC logo or ID on the label. After you determine the class of the device, refer to the corresponding statement.

Class B equipment

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit that is different from that to which the receiver is connected.

Consult the dealer or an experienced radio or television technician for help.

Regulatory compliance notices 92

Declaration of conformity for products marked with the FCC logo, United States only

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For questions regarding this product, contact us by mail or telephone:

Hewlett-Packard Company

P. O. Box 692000, Mail Stop 530113

Houston, Texas 77269-2000

1-800-HP-INVENT (1-800-474-6836). (For continuous quality improvement, calls may be recorded or monitored.)

For questions regarding this FCC declaration, contact us by mail or telephone:

Hewlett-Packard Company

P. O. Box 692000, Mail Stop 510101

Houston, Texas 77269-2000

1­281 -514-3333

To identify this product, refer to the part, series, or model number found on the product.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Hewlett-Packard Company may void the user’s authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods in order to maintain compliance with FCC Rules and Regulations.

Canadian notice (Avis Canadien)

Class A equipment

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment

Regulations.

Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

Class B equipment

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment

Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

Regulatory compliance notices 93

European Union regulatory notice

Products bearing the CE marking comply with the following EU Directives:

Low Voltage Directive 2006/95/EC

EMC Directive 2004/108/EC

Ecodesign Directive 2009/125/EC, where applicable

CE compliance of this product is valid if powered with the correct CE-marked AC adapter provided by HP.

Compliance with these directives implies conformity to applicable harmonized European standards

(European Norms) that are listed in the EU Declaration of Conformity issued by HP for this product or product family and available (in English only) either within the product documentation or at the following HP website

( http://www.hp.eu/certificates ) (type the product number in the search field).

The compliance is indicated by one of the following conformity markings placed on the product:

For non-telecommunications products and for EU harmonized telecommunications products, such as

Bluetooth® within power class below 10mW.

For EU non-harmonized telecommunications products (If applicable, a 4-digit notified body number is inserted between CE and !).

Please refer to the regulatory label provided on the product.

The point of contact for regulatory matters is Hewlett-Packard GmbH, Dept./MS: HQ-TRE, Herrenberger

Strasse 140, 71034 Boeblingen, GERMANY.

Disposal of waste equipment by users in private households in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Regulatory compliance notices 94

Japanese notice

BSMI notice

Korean notice

Class A equipment

Class B equipment

Regulatory compliance notices 95

Chinese notice

Class A equipment

Laser compliance

This product may be provided with an optical storage device (that is, CD or DVD drive) and/or fiber optic transceiver. Each of these devices contains a laser that is classified as a Class 1 Laser Product in accordance with US FDA regulations and the IEC 60825-1. The product does not emit hazardous laser radiation.

Each laser product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser

Notice No. 50, dated June 24, 2007; and with IEC 60825-1:2007.

WARNING: Use of controls or adjustments or performance of procedures other than those specified herein or in the laser product's installation guide may result in hazardous radiation exposure. To reduce the risk of exposure to hazardous radiation:

Do not try to open the module enclosure. There are no user-serviceable components inside.

• Do not operate controls, make adjustments, or perform procedures to the laser device other than those specified herein.

Allow only HP Authorized Service technicians to repair the unit.

The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration implemented regulations for laser products on August 2, 1976. These regulations apply to laser products manufactured from August 1, 1976. Compliance is mandatory for products marketed in the United States.

Battery replacement notice

WARNING: The computer contains an internal lithium manganese dioxide, a vanadium pentoxide, or an alkaline battery pack. A risk of fire and burns exists if the battery pack is not properly handled. To reduce the risk of personal injury:

Do not attempt to recharge the battery.

Do not expose the battery to temperatures higher than 60°C (140°F).

• Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.

Batteries, battery packs, and accumulators should not be disposed of together with the general household waste. To forward them to recycling or proper disposal, use the public collection system or return them to HP, an authorized HP Partner, or their agents.

For more information about battery replacement or proper disposal, contact an authorized reseller or an authorized service provider.

Regulatory compliance notices 96

Taiwan battery recycling notice

The Taiwan EPA requires dry battery manufacturing or importing firms in accordance with Article 15 of the

Waste Disposal Act to indicate the recovery marks on the batteries used in sales, giveaway or promotion.

Contact a qualified Taiwanese recycler for proper battery disposal.

Power cord statement for Japan

Acoustics statement for Germany (Geräuschemission)

Schalldruckpegel

L

pA

< 70 dB(A)

Zuschauerpositionen (bystander positions), Normaler Betrieb (normal operation)

Nach ISO 7779:1999 (Typprüfung)

Regulatory compliance notices 97

Electrostatic discharge

Preventing electrostatic discharge

To prevent damaging the system, be aware of the precautions you need to follow when setting up the system or handling parts. A discharge of static electricity from a finger or other conductor may damage system boards or other static-sensitive devices. This type of damage may reduce the life expectancy of the device.

To prevent electrostatic damage:

Avoid hand contact by transporting and storing products in static-safe containers.

Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.

Place parts on a grounded surface before removing them from their containers.

Avoid touching pins, leads, or circuitry.

Always be properly grounded when touching a static-sensitive component or assembly.

Grounding methods to prevent electrostatic discharge

Several methods are used for grounding. Use one or more of the following methods when handling or installing electrostatic-sensitive parts:

Use a wrist strap connected by a ground cord to a grounded workstation or computer chassis. Wrist straps are flexible straps with a minimum of 1 megohm ± 10 percent resistance in the ground cords. To provide proper ground, wear the strap snug against the skin.

Use heel straps, toe straps, or boot straps at standing workstations. Wear the straps on both feet when standing on conductive floors or dissipating floor mats.

Use conductive field service tools.

Use a portable field service kit with a folding static-dissipating work mat.

If you do not have any of the suggested equipment for proper grounding, have an authorized reseller install the part.

For more information on static electricity or assistance with product installation, contact an authorized reseller.

Electrostatic discharge 98

Specifications

Environmental specifications

Specification Value

Temperature range*

Operating

10 ° C to 35 ° C (50 ° F to 95 ° F)

Shipping

Storage

-30 ° C to 50 ° C (-22 ° F to 122 ° F)

-30°C to 60°C (-22°F to 140°F)

Maximum wet bulb temperature

28 ° C (82.4

° F)

Relative humidity

(noncondensing)**

Operating

10% to 90%

Non-operating

5% to 95%

* All temperature ratings shown are for sea level. An altitude derating of 1°C per 300 m (1.8°F per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed.

** Storage maximum humidity of 95% is based on a maximum temperature of 45°C (113°F). Altitude maximum for storage corresponds to a pressure minimum of 70 KPa.

Mechanical specifications

Specification Value

Dimensions

Height

Depth

Width

Weight (maximum)

36.74 cm (14.46 in)

47.3 cm (18.60 in)

17.48 cm (6.882 in)

14.68 kg (32.30 lb)

Power supply specifications

Depending on installed options, the server is configured with one of the following power supplies:

HP ProLiant 460W Power Supply

NOTE: If two 460W power supplies are installed, one serves as the redundant power supply.

Specification

Input requirements

Rated input voltage

Value

100 to 120 VAC, 200 to

240 VAC

Specifications 99

Rated input frequency

Rated input current

Rated input power

BTUs per hour

50 Hz to 60 Hz

5.5 A at 100 VAC

2.6 A at 200 VAC

526 W at 100V AC input

505 W at 200V AC input

1794 at 100V AC input

1725 at 200V AC input

Power supply output

Rated steady-state power

Maximum peak power

Rated output power

460 W at 100V to 120V AC input

460 W at 200V to 240V AC input

460 W at 100V to 120V AC input

460 W at 200V to 240V AC input

ATX 350W Power Supply

Specification Value

Input requirements

Rated input voltage

Rated input frequency

Rated input current

Efficiency

100V to 240V

50Hz to 60Hz

6A at 100VAC

3A at 200VAC

No less than 70% at 100% load

No less than 70% at 50% load

No less than 70% at 20% load

Power supply output

350W

Specifications 100

Technical support

Before you contact HP

Be sure to have the following information available before you call HP:

Technical support registration number (if applicable)

Product serial number

Product model name and number

Product identification number

Applicable error messages

Add-on boards or hardware

Third-party hardware or software

Operating system type and revision level

HP contact information

For the name of the nearest HP authorized reseller:

See the Contact HP worldwide (in English) webpage

( http://welcome.hp.com/country/us/en/wwcontact.html

).

For HP technical support:

In the United States, for contact options see the Contact HP United States webpage

( http://welcome.hp.com/country/us/en/contact_us.html

). To contact HP by phone: o

Call 1-800-HP-INVENT (1-800-474-6836). This service is available 24 hours a day, 7 days a week. For continuous quality improvement, calls may be recorded or monitored. o

If you have purchased a Care Pack (service upgrade), call 1-800-633-3600. For more information about Care Packs, refer to the HP website ( http://www.hp.com/hps ).

In other locations, see the Contact HP worldwide (in English) webpage

( http://welcome.hp.com/country/us/en/wwcontact.html

).

Customer Self Repair

HP products are designed with many Customer Self Repair (CSR) parts to minimize repair time and allow for greater flexibility in performing defective parts replacement. If during the diagnosis period HP (or HP service providers or service partners) identifies that the repair can be accomplished by the use of a CSR part, HP will ship that part directly to you for replacement. There are two categories of CSR parts:

Mandatory —Parts for which customer self repair is mandatory. If you request HP to replace these parts, you will be charged for the travel and labor costs of this service.

Technical support 101

Optional —Parts for which customer self repair is optional. These parts are also designed for customer self repair. If, however, you require that HP replace them for you, there may or may not be additional charges, depending on the type of warranty service designated for your product.

NOTE: Some HP parts are not designed for customer self repair. In order to satisfy the customer warranty,

HP requires that an authorized service provider replace the part. These parts are identified as "No" in the

Illustrated Parts Catalog.

Based on availability and where geography permits, CSR parts will be shipped for next business day delivery. Same day or four-hour delivery may be offered at an additional charge where geography permits.

If assistance is required, you can call the HP Technical Support Center and a technician will help you over the telephone. HP specifies in the materials shipped with a replacement CSR part whether a defective part must be returned to HP. In cases where it is required to return the defective part to HP, you must ship the defective part back to HP within a defined period of time, normally five (5) business days. The defective part must be returned with the associated documentation in the provided shipping material. Failure to return the defective part may result in HP billing you for the replacement. With a customer self repair, HP will pay all shipping and part return costs and determine the courier/carrier to be used.

For more information about HP's Customer Self Repair program, contact your local service provider. For the

North American program, refer to the HP website ( http://www.hp.com/go/selfrepair ).

Réparation par le client (CSR)

Les produits HP comportent de nombreuses pièces CSR (Customer Self Repair = réparation par le client) afin de minimiser les délais de réparation et faciliter le remplacement des pièces défectueuses. Si pendant la période de diagnostic, HP (ou ses partenaires ou mainteneurs agréés) détermine que la réparation peut être effectuée à l'aide d'une pièce CSR, HP vous l'envoie directement. Il existe deux catégories de pièces CSR:

Obligatoire - Pièces pour lesquelles la réparation par le client est obligatoire. Si vous demandez à HP de remplacer ces pièces, les coûts de déplacement et main d'œuvre du service vous seront facturés.

Facultatif - Pièces pour lesquelles la réparation par le client est facultative. Ces pièces sont également conçues pour permettre au client d'effectuer lui-même la réparation. Toutefois, si vous demandez à HP de remplacer ces pièces, l'intervention peut ou non vous être facturée, selon le type de garantie applicable à votre produit.

REMARQUE: Certaines pièces HP ne sont pas conçues pour permettre au client d'effectuer lui-même la réparation. Pour que la garantie puisse s'appliquer, HP exige que le remplacement de la pièce soit effectué par un Mainteneur Agréé. Ces pièces sont identifiées par la mention "Non" dans le Catalogue illustré.

Les pièces CSR sont livrées le jour ouvré suivant, dans la limite des stocks disponibles et selon votre situation géographique. Si votre situation géographique le permet et que vous demandez une livraison le jour même ou dans les 4 heures, celle-ci vous sera facturée. Pour bénéficier d'une assistance téléphonique, appelez le

Centre d'assistance technique HP. Dans les documents envoyés avec la pièce de rechange CSR, HP précise s'il est nécessaire de lui retourner la pièce défectueuse. Si c'est le cas, vous devez le faire dans le délai indiqué, généralement cinq (5) jours ouvrés. La pièce et sa documentation doivent être retournées dans l'emballage fourni. Si vous ne retournez pas la pièce défectueuse, HP se réserve le droit de vous facturer les coûts de remplacement. Dans le cas d'une pièce CSR, HP supporte l'ensemble des frais d'expédition et de retour, et détermine la société de courses ou le transporteur à utiliser.

Pour plus d'informations sur le programme CSR de HP, contactez votre Mainteneur Agrée local. Pour plus d'informations sur ce programme en Amérique du Nord, consultez le site Web HP

( http://www.hp.com/go/selfrepair ).

Technical support 102

Riparazione da parte del cliente

Per abbreviare i tempi di riparazione e garantire una maggiore flessibilità nella sostituzione di parti difettose, i prodotti HP sono realizzati con numerosi componenti che possono essere riparati direttamente dal cliente (CSR, Customer Self Repair). Se in fase di diagnostica HP (o un centro di servizi o di assistenza

HP) identifica il guasto come riparabile mediante un ricambio CSR, HP lo spedirà direttamente al cliente per la sostituzione. Vi sono due categorie di parti CSR:

Obbligatorie – Parti che devono essere necessariamente riparate dal cliente. Se il cliente ne affida la riparazione ad HP, deve sostenere le spese di spedizione e di manodopera per il servizio.

Opzionali – Parti la cui riparazione da parte del cliente è facoltativa. Si tratta comunque di componenti progettati per questo scopo. Se tuttavia il cliente ne richiede la sostituzione ad HP, potrebbe dover sostenere spese addizionali a seconda del tipo di garanzia previsto per il prodotto.

NOTA: alcuni componenti HP non sono progettati per la riparazione da parte del cliente. Per rispettare la garanzia, HP richiede che queste parti siano sostituite da un centro di assistenza autorizzato. Tali parti sono identificate da un "No" nel Catalogo illustrato dei componenti.

In base alla disponibilità e alla località geografica, le parti CSR vengono spedite con consegna entro il giorno lavorativo seguente. La consegna nel giorno stesso o entro quattro ore è offerta con un supplemento di costo solo in alcune zone. In caso di necessità si può richiedere l'assistenza telefonica di un addetto del centro di supporto tecnico HP. Nel materiale fornito con una parte di ricambio CSR, HP specifica se il cliente deve restituire dei componenti. Qualora sia richiesta la resa ad HP del componente difettoso, lo si deve spedire ad HP entro un determinato periodo di tempo, generalmente cinque (5) giorni lavorativi. Il componente difettoso deve essere restituito con la documentazione associata nell'imballo di spedizione fornito. La mancata restituzione del componente può comportare la fatturazione del ricambio da parte di HP.

Nel caso di riparazione da parte del cliente, HP sostiene tutte le spese di spedizione e resa e sceglie il corriere/vettore da utilizzare.

Per ulteriori informazioni sul programma CSR di HP contattare il centro di assistenza di zona. Per il programma in Nord America fare riferimento al sito Web HP ( http://www.hp.com/go/selfrepair ).

Customer Self Repair

HP Produkte enthalten viele CSR-Teile (Customer Self Repair), um Reparaturzeiten zu minimieren und höhere

Flexibilität beim Austausch defekter Bauteile zu ermöglichen. Wenn HP (oder ein HP Servicepartner) bei der

Diagnose feststellt, dass das Produkt mithilfe eines CSR-Teils repariert werden kann, sendet Ihnen HP dieses

Bauteil zum Austausch direkt zu. CSR-Teile werden in zwei Kategorien unterteilt:

Zwingend – Teile, für die das Customer Self Repair-Verfahren zwingend vorgegeben ist. Wenn Sie den

Austausch dieser Teile von HP vornehmen lassen, werden Ihnen die Anfahrt- und Arbeitskosten für diesen

Service berechnet.

Optional – Teile, für die das Customer Self Repair-Verfahren optional ist. Diese Teile sind auch für Customer

Self Repair ausgelegt. Wenn Sie jedoch den Austausch dieser Teile von HP vornehmen lassen möchten, können bei diesem Service je nach den für Ihr Produkt vorgesehenen Garantiebedingungen zusätzliche

Kosten anfallen.

HINWEIS : Einige Teile sind nicht für Customer Self Repair ausgelegt. Um den Garantieanspruch des

Kunden zu erfüllen, muss das Teil von einem HP Servicepartner ersetzt werden. Im illustrierten Teilekatalog sind diese Teile mit „No“ bzw. „Nein“ gekennzeichnet.

Technical support 103

CSR-Teile werden abhängig von der Verfügbarkeit und vom Lieferziel am folgenden Geschäftstag geliefert.

Für bestimmte Standorte ist eine Lieferung am selben Tag oder innerhalb von vier Stunden gegen einen

Aufpreis verfügbar. Wenn Sie Hilfe benötigen, können Sie das HP technische Support Center anrufen und sich von einem Mitarbeiter per Telefon helfen lassen. Den Materialien, die mit einem CSR-Ersatzteil geliefert werden, können Sie entnehmen, ob das defekte Teil an HP zurückgeschickt werden muss. Wenn es erforderlich ist, das defekte Teil an HP zurückzuschicken, müssen Sie dies innerhalb eines vorgegebenen

Zeitraums tun, in der Regel innerhalb von fünf (5) Geschäftstagen. Das defekte Teil muss mit der zugehörigen

Dokumentation in der Verpackung zurückgeschickt werden, die im Lieferumfang enthalten ist. Wenn Sie das defekte Teil nicht zurückschicken, kann HP Ihnen das Ersatzteil in Rechnung stellen. Im Falle von Customer

Self Repair kommt HP für alle Kosten für die Lieferung und Rücksendung auf und bestimmt den

Kurier-/Frachtdienst.

Weitere Informationen über das HP Customer Self Repair Programm erhalten Sie von Ihrem Servicepartner vor Ort. Informationen über das CSR-Programm in Nordamerika finden Sie auf der HP Website unter

( http://www.hp.com/go/selfrepair ).

Reparaciones del propio cliente

Los productos de HP incluyen muchos componentes que el propio usuario puede reemplazar (

Customer Self

Repair

, CSR) para minimizar el tiempo de reparación y ofrecer una mayor flexibilidad a la hora de realizar sustituciones de componentes defectuosos. Si, durante la fase de diagnóstico, HP (o los proveedores o socios de servicio de HP) identifica que una reparación puede llevarse a cabo mediante el uso de un componente

CSR, HP le enviará dicho componente directamente para que realice su sustitución. Los componentes CSR se clasifican en dos categorías:

Obligatorio: componentes para los que la reparación por parte del usuario es obligatoria. Si solicita a

HP que realice la sustitución de estos componentes, tendrá que hacerse cargo de los gastos de desplazamiento y de mano de obra de dicho servicio.

Opcional: componentes para los que la reparación por parte del usuario es opcional. Estos componentes también están diseñados para que puedan ser reparados por el usuario. Sin embargo, si precisa que HP realice su sustitución, puede o no conllevar costes adicionales, dependiendo del tipo de servicio de garantía correspondiente al producto.

NOTA: Algunos componentes no están diseñados para que puedan ser reparados por el usuario. Para que el usuario haga valer su garantía, HP pone como condición que un proveedor de servicios autorizado realice la sustitución de estos componentes. Dichos componentes se identifican con la palabra "No" en el catálogo ilustrado de componentes.

Según la disponibilidad y la situación geográfica, los componentes CSR se enviarán para que lleguen a su destino al siguiente día laborable. Si la situación geográfica lo permite, se puede solicitar la entrega en el mismo día o en cuatro horas con un coste adicional. Si precisa asistencia técnica, puede llamar al Centro de asistencia técnica de HP y recibirá ayuda telefónica por parte de un técnico. Con el envío de materiales para la sustitución de componentes CSR, HP especificará si los componentes defectuosos deberán devolverse a HP. En aquellos casos en los que sea necesario devolver algún componente a HP, deberá hacerlo en el periodo de tiempo especificado, normalmente cinco días laborables. Los componentes defectuosos deberán devolverse con toda la documentación relacionada y con el embalaje de envío. Si no enviara el componente defectuoso requerido, HP podrá cobrarle por el de sustitución. En el caso de todas sustituciones que lleve a cabo el cliente, HP se hará cargo de todos los gastos de envío y devolución de componentes y escogerá la empresa de transporte que se utilice para dicho servicio.

Technical support 104

Para obtener más información acerca del programa de Reparaciones del propio cliente de HP, póngase en contacto con su proveedor de servicios local. Si está interesado en el programa para Norteamérica, visite la página web de HP siguiente ( http://www.hp.com/go/selfrepair ).

Customer Self Repair

Veel onderdelen in HP producten zijn door de klant zelf te repareren, waardoor de reparatieduur tot een minimum beperkt kan blijven en de flexibiliteit in het vervangen van defecte onderdelen groter is. Deze onderdelen worden CSR-onderdelen (Customer Self Repair) genoemd. Als HP (of een HP Service Partner) bij de diagnose vaststelt dat de reparatie kan worden uitgevoerd met een CSR-onderdeel, verzendt HP dat onderdeel rechtstreeks naar u, zodat u het defecte onderdeel daarmee kunt vervangen. Er zijn twee categorieën CSR-onderdelen:

Verplicht: Onderdelen waarvoor reparatie door de klant verplicht is. Als u HP verzoekt deze onderdelen voor u te vervangen, worden u voor deze service reiskosten en arbeidsloon in rekening gebracht.

Optioneel: Onderdelen waarvoor reparatie door de klant optioneel is. Ook deze onderdelen zijn ontworpen voor reparatie door de klant. Als u echter HP verzoekt deze onderdelen voor u te vervangen, kunnen daarvoor extra kosten in rekening worden gebracht, afhankelijk van het type garantieservice voor het product.

OPMERKING: Sommige HP onderdelen zijn niet ontwikkeld voor reparatie door de klant. In verband met de garantievoorwaarden moet het onderdeel door een geautoriseerde Service Partner worden vervangen.

Deze onderdelen worden in de geïllustreerde onderdelencatalogus aangemerkt met "Nee".

Afhankelijk van de leverbaarheid en de locatie worden CSR-onderdelen verzonden voor levering op de eerstvolgende werkdag. Levering op dezelfde dag of binnen vier uur kan tegen meerkosten worden aangeboden, indien dit mogelijk is gezien de locatie. Indien assistentie gewenst is, belt u een HP Service

Partner om via de telefoon technische ondersteuning te ontvangen. HP vermeldt in de documentatie bij het vervangende CSR-onderdeel of het defecte onderdeel aan HP moet worden geretourneerd. Als het defecte onderdeel aan HP moet worden teruggezonden, moet u het defecte onderdeel binnen een bepaalde periode, gewoonlijk vijf (5) werkdagen, retourneren aan HP. Het defecte onderdeel moet met de bijbehorende documentatie worden geretourneerd in het meegeleverde verpakkingsmateriaal. Als u het defecte onderdeel niet terugzendt, kan HP u voor het vervangende onderdeel kosten in rekening brengen. Bij reparatie door de klant betaalt HP alle verzendkosten voor het vervangende en geretourneerde onderdeel en kiest HP zelf welke koerier/transportonderneming hiervoor wordt gebruikt.

Neem contact op met een Service Partner voor meer informatie over het Customer Self Repair programma van HP. Informatie over Service Partners vindt u op de HP website ( http://www.hp.com/go/selfrepair ).

Reparo feito pelo cliente

Os produtos da HP são projetados com muitas peças para reparo feito pelo cliente (CSR) de modo a minimizar o tempo de reparo e permitir maior flexibilidade na substituição de peças com defeito. Se, durante o período de diagnóstico, a HP (ou fornecedores/parceiros de serviço da HP) concluir que o reparo pode ser efetuado pelo uso de uma peça CSR, a peça de reposição será enviada diretamente ao cliente.

Existem duas categorias de peças CSR:

Obrigatória – Peças cujo reparo feito pelo cliente é obrigatório. Se desejar que a HP substitua essas peças, serão cobradas as despesas de transporte e mão-de-obra do serviço.

Technical support 105

Opcional – Peças cujo reparo feito pelo cliente é opcional. Essas peças também são projetadas para o reparo feito pelo cliente. No entanto, se desejar que a HP as substitua, pode haver ou não a cobrança de taxa adicional, dependendo do tipo de serviço de garantia destinado ao produto.

OBSERVAÇÃO: Algumas peças da HP não são projetadas para o reparo feito pelo cliente. A fim de cumprir a garantia do cliente, a HP exige que um técnico autorizado substitua a peça. Essas peças estão identificadas com a marca "No" (Não), no catálogo de peças ilustrado.

Conforme a disponibilidade e o local geográfico, as peças CSR serão enviadas no primeiro dia útil após o pedido. Onde as condições geográficas permitirem, a entrega no mesmo dia ou em quatro horas pode ser feita mediante uma taxa adicional. Se precisar de auxílio, entre em contato com o Centro de suporte técnico da HP para que um técnico o ajude por telefone. A HP especifica nos materiais fornecidos com a peça CSR de reposição se a peça com defeito deve ser devolvida à HP. Nos casos em que isso for necessário, é preciso enviar a peça com defeito à HP dentro do período determinado, normalmente cinco (5) dias úteis.

A peça com defeito deve ser enviada com a documentação correspondente no material de transporte fornecido. Caso não o faça, a HP poderá cobrar a reposição. Para as peças de reparo feito pelo cliente, a

HP paga todas as despesas de transporte e de devolução da peça e determina a transportadora/serviço postal a ser utilizado.

Para obter mais informações sobre o programa de reparo feito pelo cliente da HP, entre em contato com o fornecedor de serviços local. Para o programa norte-americano, visite o site da HP

( http://www.hp.com/go/selfrepair ).

Technical support 106

Technical support 107

Technical support 108

Acronyms and abbreviations

ABEND

abnormal end

ACU

Array Configuration Utility

AMP

Advanced Memory Protection

ASR

Automatic Server Recovery

BBWC

battery-backed write cache

CSA

Canadian Standards Association

CSR

Customer Self Repair

DDR

double data rate

IEC

International Electrotechnical Commission

iLO

Integrated Lights-Out

IML

Integrated Management Log

ISEE

Instant Support Enterprise Edition

Acronyms and abbreviations 109

NMI

non-maskable interrupt

NVRAM

non-volatile memory

ORCA

Option ROM Configuration for Arrays

PCIe

peripheral component interconnect express

PCI-X

peripheral component interconnect extended

POST

Power-On Self Test

PSP

ProLiant Support Pack

RBSU

ROM-Based Setup Utility

RDIMM

Registered Dual In-line Memory Module

RDP

Rapid Deployment Pack

RPS

Redundant power supply

SAS

serial attached SCSI

SATA

serial ATA

SFF

small form-factor

Acronyms and abbreviations 110

SIM

Systems Insight Manager

TMRA

recommended ambient operating temperature

TPM

trusted platform module

UDIMM

Unregistered Dual In-Line Memory Module

UID

unit identification

UPS

uninterruptible power system

USB

universal serial bus

Acronyms and abbreviations 111

Index

A

access panel 20, 21

air baffle 21, 22

Array Configuration Utility (ACU) 65

ASR (Automatic Server Recovery) 67

authorized reseller 101

auto-configuration process 64

Automatic Server Recovery (ASR) 67

B

battery 91, 96

battery-backed write cache battery pack 47

bezel 19 bezel, front 19 bezel, removing 19

BIOS Serial Console 65

BIOS upgrade 67

blank, hard drive 32

boot options 65

BSMI notice 95

buttons 7 buttons, front panel 7

buttons, rear panel 9

C

cables 55, 77, 93

cabling 55, 56, 57, 59, 60, 61, 62

cabling, hard drive 55, 56 cabling, hard drive backplane 55, 56 cabling, hot-plug SAS hard drive 56

cache module 47

Canadian notice 93

capacitor pack 17, 47

Care Pack 72

cautions 74

Change Control 72

Chinese notice 96

components 7 components, front panel 7 components, identification 7

components, system board 10, 11, 12

configuration of system 27, 63

connection problems 77

connectors 7

contacting HP 101

CSR (customer self repair) 101 customer self repair (CSR) 101

D

device numbers 13

diagnostic tools 67, 68 diagnostics utility 68

DIMM identification 30

DIMM population guidelines 32

DIMM slot locations 12

DIMM slots 12

DIMMs 12, 29

DIMMs, installation 30

DIMMs, single- and dual-rank 29

drive LEDs 14

drivers 70

E

electrical grounding requirements 26

electrostatic discharge 98

enabling the Trusted Platform Module 54

environmental requirements 25

environmental specifications 99

Erase Utility 68

error messages 89

European Union notice 94

expansion board options 49

expansion boards 49, 50 expansion slot covers 50 expansion slot covers, removing 50

F

fan module locations 18 fans 18

FBWC module 17, 47

FBWC module LEDs 17

FCC rating label 92

features 7

Federal Communications Commission (FCC)

notice 92, 93

Index 112

firmware 71

front bezel 19, 20

front panel buttons 7 front panel components 7 front panel LEDs 7

G

general diagnosis flowchart 79

grounding methods 98

grounding requirements 26

H

hard drive blanks 32

Hard drive cage option 35

hard drive guidelines 32

hard drive LED cable 51

hard drive LED combinations 14

hard drive LEDs 14, 51

hard drive, removing 33

hard drives 14, 32, 33, 35

hard drives, determining status of 14

hard drives, installing 29, 34, 35, 38

hardware options installation 27, 29, 32

health driver 67

health LEDs 78

help resources 101

hot-plug SAS hard drive options 32

Hot-plug SAS/SATA hard drive cabling 56

HP Insight Diagnostics 68, 69

HP Insight Remote Support software 69

HP Smart Update Manager overview 71

HP technical support 101

I

identification number 92

iLO 3 (Integrated Lights-Out 3) 67

IML (Integrated Management Log) 69

Important Safety Information document 73

Insight Diagnostics 68, 69, 70

installation, server options 27, 29

installing a DIMM 30

installing a hot-plug SAS hard drive 57, 58

installing hardware 29

installing the access panel 21

installing the full-length expansion board retainer 23

installing the Trusted Platform Module board 52

Integrated Management Log (IML) 69

J

Japanese notice 95

K

Korean notices 95

L

laser devices 96

LEDs 7, 14

LEDs, battery pack 16

LEDs, front panel 7

LEDs, hard drive 14

LEDs, rear panel 9

LEDs, SAS hard drive 14

LEDs, system board 11

LEDs, troubleshooting 73

loose connections 77

M

management tools 67

media drive 40

memory 30, 31 memory configurations 30, 31

memory options 29 memory subsystem architecture 29

N

NMI jumper 12

non-hot-plug expansion board, installing 50

non-redundant power supply cabling 59

O

operating systems 27, 71

optimum environment 25

Option ROM Configuration for Arrays (ORCA) 66

optional eight-bay SFF hard drive cage 35

Optional four-bay LFF hard drive cage 35

options installation 25, 27, 29

ORCA (Option ROM Configuration for Arrays) 66

OS boot problems flowchart 86

P

PCI expansion slots 19

PCIe expansion boards 15

phone numbers 101

population guidelines 32

POST error messages 89

Index 113

POST problems flowchart 84

power cord 74, 97

power distribution unit (PDU) 26

Power On button 19, 27

power requirements 26

power supply 42

power supply cabling 59, 60

powering down 19

powering up 19, 64

pre-diagnostic steps 73

preparation procedures 19, 75

problem diagnosis 73

processors 76

ProLiant Support Pack (PSP) 71

PSPs, overview 71

R

rack stability 74 rack warnings 74

RBSU (ROM-Based Setup Utility) 63

rear panel buttons 9

rear panel components 8

rear panel LEDs 9

redundant power supply cabling 60

registering the server 28

regulatory compliance notices 92, 94

removing a hot-plug SAS hard drive 33

removing the access panel 20

removing the full-length expansion board retainer 23

required information 101

retaining the recovery key/password 53

ROMPaq utility 67

S

safety considerations 73

SAS and SATA device numbers 13

SAS and SATA hard drive guidelines 32

SAS device numbers 13

SAS drive numbers 14

SAS hard drive cabling 57, 58

SAS hard drive guidelines 32

SAS hard drive LEDs 14

SATA drives 13, 14

SATA hard drive guidelines 32

SATA hard drive LEDs 14

scripted installation 63

serial number 66

series number 92

server fault indications flowchart 87

server features and options 29

server power-on problems flowchart 81

server, front panel components 7

server, rear panel components 8, 9

service notifications 78

shipping carton contents 27

SmartStart autorun menu 63

SmartStart Scripting Toolkit 63

SmartStart, overview 63

space and airflow requirements 25

specifications 99 specifications, environmental 99 specifications, power 99

start diagnosis flowchart 78

static electricity 98

storage controller 46

support 69, 101

supported operating systems 71

switch, system maintenance 11

symbols on equipment 74

symptom information 75

system board components 10

system board LEDs 11

system components 7

system maintenance switch 11

T

Taiwan battery recycling notice 97

technical support 101 telephone numbers 101

temperature requirements 26

TPM (Trusted Platform Module) 51, 52, 54

troubleshooting 73

troubleshooting flowcharts 78

U

UDIMM configuration 30

USB support 68

utilities 63 utilities, deployment 63

V

ventilation 25

Version Control 70

W

warnings 74

website, HP 101

Index 114

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents

Languages
