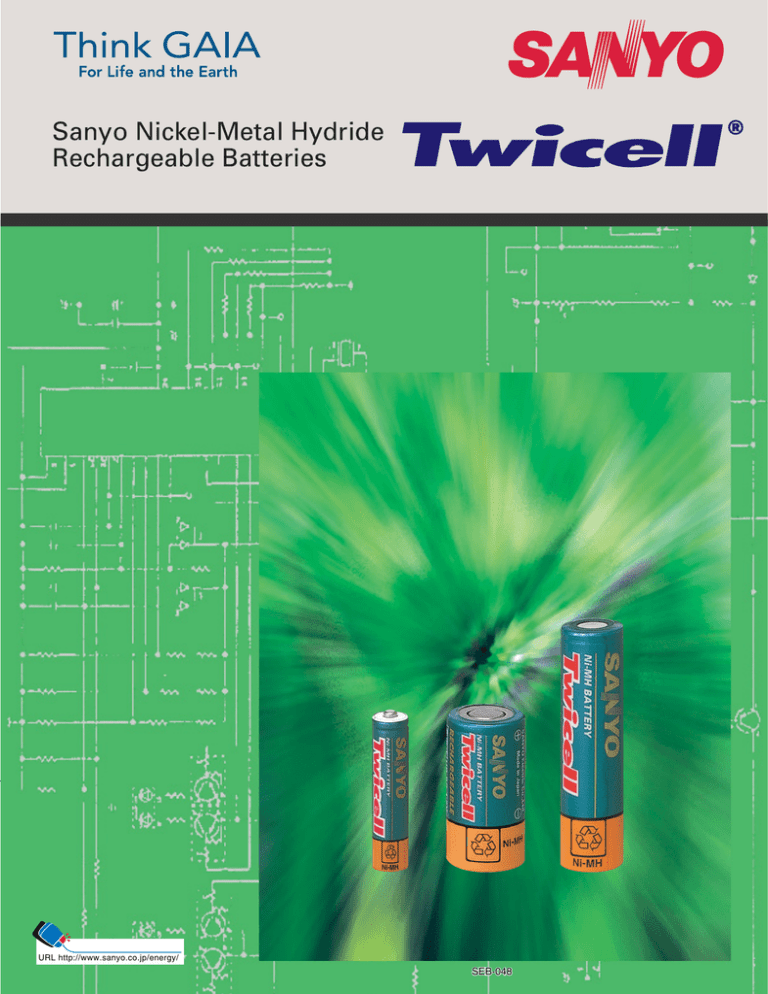

Sanyo Nickel-Metal Hydride
Rechargeable Batteries
URL http://www.sanyo.co.jp/energy/
SEB-048
Twicell Batteries Handling Precautions
Carefully read this instruction manual before using Twicell batteries for the first time.
Important : For your safety and that of your customers observe all cautionary information provided in
this manual. Save this manual for future reference. The following information is intended to highlight
potential safety hazards that can be associated with the misuse, misapplication or damage to Twicell
batteries. Please carefully evaluate the information in this section when using Twicell batteries (single
cell or packed cells) or when using or manufacturing equipment incorporating Twicell batteries.
This manual is no substitute for your independent evaluation of equipment incorporating Twicell batteries. Customers incorporating Twicell batteries into their equipment must assure that their completed
product has been properly designed, manufactured and tested. End users of equipment incorporating
Twicell batteries should also be provided with sufficient warnings and instructions on their safe operation. As appropriate, some or all of the following warnings and information should be incorporated by
you into the instruction manual accompanying your equipment.
DANGER!
●Failure
1
to carefully observe the following procedures and precautions can result in leakage of battery fluid (electrolyte), heat generation, bursting,
fire and serious personal injury!
・Never dispose of Twicell batteries in a fire or heat
them.
Doing so may melt the insulation, damage the gas
release vents or protective devices, ignite hydrogen gas, cause leakage of battery fluid (electrolyte), heat generation, bursting and fire.
+ (positive) and ○
− (negative)
・Do not connect the ○
terminals of Twicell batteries together with electrically conductive materials, including lead wires. Do
not transport or store Twicell batteries with their
uncovered terminals or connected with a metal
necklace or other conductive material. Doing so
may short circuit a battery, which would result in
excessive current flow and possibly cause leakage
of battery fluid, heat generation, bursting and fire.
When carrying or storing batteries, use a special
case.
・Only charge Twicell batteries using those specific
chargers that satisfy Sanyo's specifications. Only
charge batteries under the conditions specified by
Sanyo. Failure to follow proper charging procedures may cause excessive current flow, loss of
control during charging, leakage of battery fluid,
heat generation, bursting and fire.
・Never disassemble Twicell batteries. Doing so
may cause an internal or external short circuit or
result in exposed material of battery reacting
chemically with the air. It may also cause heat
generation, bursting and fire. Also, this is dangerous as it may cause splashing of alkaline fluid.
・Never modify or reconstruct Twicell batteries.
Protective devices to prevent danger are built into
batteries(single cell or packed cells). If these are
damaged, excessive current flow may cause loss
of control during charging or discharging of the battery, leakage of battery fluid, heat generation,
bursting and fire.
・Never solder lead wires directly on to Twicell batteries.
The heat of the soldering operation may melt the
insulation, damage the gas release vents or protective devices, cause leakage of battery fluid, heat
generation, bursting and fire.
+ (positive) and ○
− (negative) terminals of Twi・The ○
cell batteries are predetermined. Do not force the
terminal connection to a charger or equipment. If
the terminals can not be easily connected to the
+ and ○
− termicharger or equipment, check if the ○
nals are correctly positioned. If the terminals are
reversed, during charging the battery may be discharged rather than charged. Furthermore, reversed connections may cause abnormal chemical
reaction in the battery, the flow of abnormal currents, leakage of battery fluid, heat generation,
bursting and fire.
・The gas release vent which release internal gas is
+ positive terminal of the Twicell batlocated in the ○
tery. For this reason, never deform this section or
cover or obstruct its gas release structure. If this
section is deformed or covered or obstructed, the
gas release vent will not function properly, possibly
causing leakage of battery fluid, heat generation,
bursting and fire.
・Do not directly connect Twicell batteries to a direct power source or the cigarette lighter socket in
a car. High voltage may cause excessive current
flow, leakage of battery fluid, heat generation,
bursting and fire.
・Do not use Twicell batteries in any equipment
other than those specified by Sanyo. Depending
on the equipment being used, doing so may cause
abnormal current flow, leakage of battery fluid,
heat generation, bursting and fire.
●Twicell
batteries contain the strong colorless alkaline solution(electrolyte). The alkaline solution is
extremely corrosive and will cause skin damage. If
any fluid from Twicell battery comes in contact with
a user's eyes, they should immediately flush their
eyes and wash them thoroughly with clean water
enough from the tap or another source and consult
a doctor urgently. The strong alkaline solution can
damage eyes and lead to permanent loss of eyesight.
●When Twicell batteries are to be incorporated in
equipment or housed within a case, avoid air-tight
structures as this may lead to the equipment or
case being damaged or may be harmful to users.
WARNING!
●Do
not apply water, seawater or other oxidizing
reagents to Twicell batteries, as this can cause rust
and heat generation. If a battery becomes rusted,
the gas release vent may no longer operate, and
can result in bursting.
●Do not connect more than 21 Twicell batteries in
series, as this may cause electrical shocks, leakage of battery fluid and heat generation.
●Keep Twicell batteries or the equipment out of
the reach of babies and small children, in order to
avoid them to swallow batteries. In the event the
batteries are swallowed, consult a doctor immediately.
●Do not charge or use Twicell batteries with the ○
+
− terminals reversed. Charging batteries with
and ○
the terminals reversed may discharge rather than
charge the batteries, or it may cause abnormal
chemical reaction in the batteries. Using batteries
with the terminals reversed may discharge with of
abnormal current, leakage of battery fluid, heat
generation, bursting and fire.
●Do not over-charge Twicell batteries by exceeding the predetermined charging period specified by
the battery charger's instructions or indicator. If
Twicell batteries are not fully charged after the battery charger's predetermined charging period has
elapsed, stop the charging process. Prolonged
charging may cause leakage of battery fluid, heat
generation, bursting. Be sure to handle recharged
batteries carefully as they may be hot.
●Do not remove the outer tube from a battery or
damage it. Doing so will expose the battery to the
risk of a short circuit, and may cause leakage of
battery fluid, heat generation, bursting and fire.
● If Twicell batteries leak fluid, change color,
change shape, or change in any other way, do not
use them, otherwise they may cause heat generation, bursting and fire.
●Twicell batteries contain the strong colorless alkaline solution(electrolyte). If the skin or clothing
comes in contact with fluid from Twicell battery,
thoroughly wash the area immediately with clean
water from the tap or another source. Battery fluid
can irritate the skin.
●When the operating time of a Twicell battery becomes much shorter than its initial operating time
even after recharged, it should be replaced to a
new battery as its battery life has ended.
CAUTION!
●Do
not strike or drop Twicell batteries. Sharp impacts or concussions to Twicell batteries may
cause leakage of battery fluid, heat generation,
bursting and fire.
●Store Twicell batteries out of the reach of babies
and small children. When charging or using a battery, do not let babies or small children remove the
battery from the charger or the equipment being
used.
●Children should not use Twicell batteries unless
they have been carefully instructed on the contents
of this instruction manual and their parents or guardians have confirmed that the children understand
and appreciate the proper usage and safety hazards presented by the batteries.
●Be sure to charge Twicell batteries within a temperature range of 0 to 40 C(degrees Celsius).
When used at temperatures outside this range(0 to
40 C) the batteries may cause leakage of battery
fluid or heat generation. It could also impair performance or shorten service life of Twicell batteries.
●Do not charge Twicell battery when it has been
cooled to 0 C or below. Doing so may cause leakage of battery fluid, impair performance or shorten
operating life of Twicell batteries.
●Do not use or store battery at high temperature,
such as in strong direct sunlight, in cars during hot
weather, or directly in front of a heater. This may
cause leakage of battery fluid. It could also impair
performance and shorten operating life of Twicell
batteries.
●Do not use old and new batteries mixed together,
or batteries at different charge levels. Do not use
the Twicell battery mixed together with a dry cell or
other battery of different capacity, type, or brand
name. This may cause leakage of battery fluid and
heat generation.
●When more than two batteries are to be used together, charge them simultaneously prior to use. If
they are not charged at the same time, it could
cause leakage of battery fluid and heat generation.
●Do not connect Twicell batteries in parallel as
this may cause leakage of battery fluid, heat generation, bursting and fire.
●For the recommended charging method for Twicell batteries, read the battery charger's instruction
manual carefully.
●If Twicell batteries do not perform or function well
with certain equipment, refer to the instruction
manual or warnings of the subject equipment.
●Do not charge Twicell batteries beyond the recommended time described in the instruction manual for charger or equipment. Over charging cause
leakage of battery fluid, heat generation, bursting
and fire. It could also impair performance and
shorten service life of Twicell batteries.
●After long term storage, there is a possibility that
the battery could not be fully charged. In order to
fully charge it, charge and discharge the battery for
a few times.
●Be sure to turn off the equipment after use of
Twicell batteries, as this may result in leakage of
battery fluid.
●After they have been removed from equipment,
store Twicell batteries in a dry place and within the
recommended storage temperature range. This
will help preserve the batteries' performance and
durability and to minimize the possibility of leakage
of battery fluid or corrosion. (For the indicated storage temperature range, refer to the rating table of
this catalog. Sanyo recommends a temperature
range from -20 to 30 C for longer service life).
●Before using the Twicell, be sure to read the operation manual and all precautions carefully, then
store the manual and precautions carefully to use
as reference when the need arises. If you have
specific questions about the operation manual or
the precautions, contact Sanyo at the location listed on the last page of this manual.
●If corrosion, heat generation or other abnormalities with new Twicell batteries are detected. Immediately stop using them and return them to the
store that they were purchased from.
● If the Twicell battery terminals become dirty,
clean them with a soft dry cloth prior to use. Dirt
on the terminals can result in poor contact with the
equipment, loss of power, or inability to charge.
o
o
o
o
Twicell Line up
A broad range of Twicell is available. Twicell significantly contributes to the compact, lightweight, multi-function
and low-cost features of various portable equipment
High capacity Twicell
High durability Twicell
For communication equipment, notebook computers, etc
For cordless phones, razors, power back-up uses, etc
High-rate discharge Twicell
Dry cell compatible Twicell
For power tools, electric motor applications, etc
For digital cameras, audio equipment, etc
■Features of Twicell Batteries
Extended service life and superior economy
Despite discharge capacity that is virtually equal to that of conventional dry cells, Sanyo Twicell batteries feature minimal internal resistance
and exhibit excellent discharge characteristics under high-rate discharge current conditions. With output power much higher than that of dry
cells. In addition, even though the batteries are stored for a long time, the original capacity is almost recovered by repeated
charging/discharging, offering excellent storage characteristics.
Wide-ranging lineup and interchangeability with dry cells
Customized assembled batteries tailored to specific equipment space requirements are also available.
Excellent high-rate discharge performance and overcharge/overdischarge capability
Sanyo's original electrode manufacturing process and current collectors minimize internal resistance, which in turn enables high-rate
discharging and guarantees stable discharge voltage.
Improved reliability
In 1990, SANYO began the mass-production of twicell batteries.Sanyo twicell batteries are manufactured under strict quality control
conditions,and undergo 100% inspection before shipment. This assures superior reliability.
Simple to maintain and strong
The special sealed construction eliminates the need to replenish the electrolyte, for easier maintenance. As Sanyo Twicell batteries may be
installed in any direction in equipment, they are exceptionally easy to handle. Moreover, Twicell batteries employ a rigid metal casing for
superior resistance to shock and vibration.
2
High Capacity Twicell
High Cost Performance,
High Energy Density
■Features
Characteristics(HR-AAU)
1.7
1.6
︵
Rapid charging capability
120
Cell voltage
1It
0.5It
Cell temperature
1It
0.5It
1.5
1.3
1.1
Cell voltage V
A broad range of high capacity Twicell is available. High capacity
Twicell is ideal for more compact, efficient applications.
20
40
60
80
100
40
20
at:20℃
0
160
140
120
●Discharge Characteristics
︵
A broad range
0
0.1It
Charge input(%)
︶
*Needs special charge control circuit.
80
60
1.4
1.2
When a specifically designed charger is used, Twicell batteries can
be charged in only 1.1 hours*. A charge control module is also
available.
100
0.1It
Charge temperature ℃
︶
High capacity Twicell has shown the high energy density by using
newly developed materials and constitution. High capacity Twicell
can contribute to prolonging the running time of the equipment.
Cell voltage V
●Charge Characteristics
︵
︶
High capacity
1.6
1.4
0.2It
1.2
1It
3It
1.0
Charge:0.1It×16h
at:20℃
0.8
0.6
0
20
40
60
80
100
120
Discharge capacity(%)
■Use
●Temperature Characteristics
︶
Discharge capacity %
For audio, 2-way radios and other communication devices.
For notebook computers, etc.
120
100
80
60
40
Charge:0.1It ×16h, at 20℃
Rest:3h
Discharge:1It(E.V.=1.0V)
20
0
0
10
20
30
40
︵
Ambient temperature(℃)
●Charge/Discharge Cycle Characteristics
︶
Discharge capacity %
120
100
80
Charge:1It(-ΔV=10mV)
Rest:1h
Discharge:1It(E.V.=1.0V)
Rest:1h
at:20℃
60
40
20
0
0
100
200
300
400
500
︵
Number of cycles
D
H
Cylindrical type
■Ratings
〈High capacity Twicell〉
Model No.
HR-AAAU
HR-5/4AAAU
HR-AAU
HR-4/5AU
HR-AU
HR-4/3AU
HR-4/3FAU
3
Voltage
Typical Capacity
Minimum Capacity
(V)
(mAh)*1
(mAh)*2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
730
850
1650
2150
2700
4000
4500
650
760
1500
1950
2450
3600
4100
Quick-Charge*3
Current(mA)*3
730
850
1650
2150
2700
3000
3000
Dimensions(mm) (incl. tube)*4
Weight
Time(hr.)
Diameter(D)
Height(H)
(approx.g)*4
1.1
1.1
1.1
1.1
1.1
1.5
1.5
10.5
10.5
14.2
17.0
17.0
17.0
18.0
44.5
50.0
50.0
43.0
50.0
67.5
67.5
13
15
28
35
40
55
62
Notes
For audio, 2-way radios and other communication devices
For audio, 2-way radios and other communication devices
For 2-way radios and other communication devices
For 2-way radios and other communication devices
For 2-way radios and other communication devices
For notebook computers, etc.
For notebook computers, camcorders, portable DVD players, etc.
*1 Typical capacity when a single cell is discharged at 0.2It after being charged at 0.1It for 16 hours.
*2 Minimum capacity when a single cell is discharged at 0.2It after being charged at 0.1It for 16 hours. *3 Consult Sanyo according to conditions of use. *4 Including tube.
High Durability Twicell
Superior Reliability
and Stable Characteristics
■Features
Characteristics(HR-AAC)
1.7
1.6
120
100
1It
Cell voltage
1.5
0.1It
1It
1.3
40
0.1It
Cell temperature
20
︵
1.2
A powerful range
1.1
80
60
1.4
at:20℃
0
20
40
60
80
100
120
160
140
Cell temperature ℃
︶
High durability Twicell realizes superior service life than high
capacity Twicell at continuous low-rate charging and charge and
discharge cycles. High durability Twicell offers better performance
for cordless phones, power back-up uses, etc.
Cell voltage V
●Charge Characteristics
︵
︶
Superior service life
0
Charge input(%)
A broad range of high durability Twicell is available. High durability
Twicell is available for many applications.
●Discharge Characteristics
Cell voltage V
︶
Newly developed "T series" realizes higher durability than
conventional "C series" for emergency lights, etc.
︵
■Use
1.6
1.4
0.2It
1.2
1.0
3It
0.8
0.6
T series : For emergency lights, power back-up uses, etc.
C series : For cordless phones, razors, power back-up uses, etc.
1It
Charge:0.1It ×16h
at:20℃
0
20
40
60
80
100
120
Discharge capacity(%)
●Temperature Characteristics
︶
Discharge capacity %
120
100
80
60
40
Charge:0.1It ×16h, at 20℃
Rest:3h
Discharge:1It(E.V.=1.0V)
20
0
0
10
20
Ambient temperature(℃)
30
40
︵
●Charge/Discharge Cycle Characteristics
Discharge capacity %
︶
︵
D
H
120
100
80
60
Charge:1It(-ΔV=10mV)
Rest:1h
Discharge:1It(E.V.=1.0V)
Rest:1h
20℃
40
20
Cylindrical type
0
0
100
200
300
400
500
Number of cycles
■Ratings
〈High durability Twicell〉
Model No.
HR-4/5FAUPT
HR-5/4SCUT
Typical Capacity
Minimum Capacity
(V)
(mAh)*1
(mAh)*2
1.2
1.2
1650
3250
1500
3000
〈High durability Twicell〉
Model No.
HR-4UC
HR-4/5AAUC
HR-AAC
HR-2/3AUC NEW
HR-4/5AUC
HR-4/3FAUPC
HR-4/3FAUC
HR-SCC
<T series>
Voltage
Quick-Charge*3
Current(mA)*3
1650
3250
Dimensions(mm) (incl. tube)*4
Time(hr.)
Diameter(D)
1.1
1.1
18.1
23.0
*5
Height(H)
43.2
50.0
*5
Weight
(approx.g)*4
39
67
Notes
For emergency lights, power back-up uses, etc.
For emergency lights, power back-up uses, etc.
<C series>
Voltage
Typical Capacity
Minimum Capacity
(V)
(mAh)*1
(mAh)*2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
650
1100
1000
1000
1700
3200
3700
2100
600
1000
950
950
1550
3050
3300
1900
Quick-Charge*3
Current(mA)*3
650
1100
1000
1000
1700
3200
3000
2100
Time(hr.)
1.1
1.1
1.1
1.1
1.1
1.1
1.5
1.1
Dimensions(mm) (incl. tube)*4
Diameter(D)
10.5
14.2
14.2
17.0
17.0
*5
18.1
18.0
23.0
Height(H)
44.5
43.0
50.0
28.5
43.0
*5
67.0
67.5
43.7
Weight
(approx.g)*4
13
23
27
23
35
59
62
59
Notes
For cordless phones, toothbrushes, etc.
For razors, cordless phones, toothbrushes, etc.
For razors, cordless phones, toothbrushes, etc.
For razors, toothbrushes, etc.
For razors, toothbrushes, etc.
For power back-up uses, etc.
For power back-up uses, etc.
For power back-up uses, etc.
*1 Typical capacity when a single cell is discharged at 0.2It after being charged at 0.1It for 16 hours. *2 Minimum capacity when a single cell is discharged at 0.2It after being charged at 0.1It for 16 hours.
*3 Consult Sanyo according to conditions of use. *4 Including tube. *5 With paper tube. Other cells are with heat shrink tube.
4
High-rate Discharge Twicell
Stable Discharge Voltage
at High-rate Discharge
■Features
●Charge Characteristics
Superior high-rate discharge characteristics
Cell voltage V
Characteristics(HR-4/3FAUP)
︶
︵
Sanyo's original electrode manufacturing process and current
collectors minimize internal resistance, which in turn enables highrate discharging and guarantees stable discharge voltage.
1.7
1.6
1.5
1.4
1.3
1.2
1.1
1.0
Improved reliability with wide operating temperature
1It
0.5It
0.1It
at:20℃
0
20
40
60
80
100
120
140
160
Charge input(%)
●Discharge Characteristics
In addition to displaying only minimal variation in performance over
a wide temperature range.
Cell voltage V
︶
︵
A powerful range
High-rate discharge Twicell consists of wide variation. It enables to
be used many applications.
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
5A
10A
30A
20A
40A
Charge:1It(-ΔV=10mV)
at:20℃
0
20
40
60
80
100
120
Discharge capacity(%)
■Use
●Temperature Characteristics
︶
Discharge capacity %
For power tools, cordless cleaners, electric motor applications, etc.
120
100
80
60
40
Charge:1It(-ΔV=10mV, at 20℃)
Rest:3h
Discharge:5A(E.V.=0.8V)
20
0
-10
0
10
20
30
40
︵
Ambient temperature(℃)
●Charge/Discharge Cycle Characteristics
︶
Discharge capacity %
120
100
80
Charge:1It(-ΔV=10mV)
Rest:15min
Discharge:5A(E.V.=0.8V)
Rest:15min
at:20℃
60
40
20
0
0
100
200
300
400
500
︵
Number of cycles
D
H
Cylindrical type
■Ratings
〈High-rate discharge Twicell〉
Voltage
Typical Capacity
Minimum Capacity
(V)
(mAh)*1
(mAh)*2
HR-4/5FAUP
1.2
HR-4/3FAUP
1.2
HR-SCUP
HR-SCU
HR-D
HR-DU
1.2
1.2
1.2
1.2
1950
3600
4000
2600
3000
7300
10000
1800
3400
3750
2400
2700
6500
9300
Model No.
5
Quick-Charge*3
Current(mA)*3
1950
3600
4000
2600
3000
5000
5000
Dimensions(mm) (incl. tube)*4
Time(hr.)
Diameter(D)
1.1
18.1
1.1
18.1
1.1
1.1
1.7
2.2
23.5
*5
23.5
34.0
34.0
*5
*5
*5
*5
Height(H)
43.2
67.0
*5
*5
*5
*5
44.2
*5
44.2
59.3
59.3
Weight
(approx.g)*4
39
59
60
54
59
175
175
Notes
For power tools, cleaners, electric motor applications, etc.
For notebook computers, electric motor applications,
camcorders, portable DVD players, etc.
For power tools, cleaners, electric motor applications, etc.
For power tools, cleaners, electric motor applications, etc.
For electric motor applications, etc.
For electric motor applications, etc.
*1 Typical capacity when a single cell is discharged at 0.2It after being charged at 0.1It for 16 hours. *2 Minimum capacity when a single cell is discharged at 0.2It after being charged at 0.1It for 16 hours.
*3 Consult Sanyo according to conditions of use. *4 Including tube. *5 With paper tube. Other cells are with heat shrink tube.
Dry Cell Compatible Twicell
High Capacity and Convenience
■Features
Portable charger which can charge
AA/AAA size batteries at a time quickly
and have auto voltage function for
AC100V-240V
Dry cell compatible shape
Dry cell compatible Twicell can be used for most of equipment
using AA and AAA size dry cells.
Top level capacity in retail use rechargeable battery.
The charger for
Nickel-Metal Hydride batteries
The equipment which need the high capacity like the digital camera
is suitable.
NC-MQR02N
■Features
Long charge/dischargecycle life as well as offering
outstanding economy
●NC-MQR02N can charge AA/AAA size Nickel-Metal Hydride
batteries at a time.
AA size Nickel-Metal Hydride batteries (HR-3U, Typ.2700mAh type)
: approx. 305min.(four batteries), approx.135min.(two batteries)
AAA size Nickel-Metal Hydride batteries (HR-4U, Typ.1000mAh type)
: approx. 205min.(two batteries)
Twicell can reduce waste (the amount of used batteries) than that
of dry cell.
●Newly developed control systems prevent the battery
from overcharging and charging error.
A powerful range
with low self-discharge and high discharge voltage is
developed.
Newly developed peak detection and pulse control systems prevent the
battery from overcharging and charging error. And the light informs the
charging status.
●Light weight and compact design.
NC-MQR02N is handy to carry. Weight : approx.95g (except the batteries),
Thickness : 27.5mm. And they have the storage space of plug.
■Use
For digital cameras, PDA and audio equipment, remort controller,
clock, etc.
AA size
HR-3UTG
AA size
AAA size
HR-3U
HR-4UTG
AAA size
HR-4U
D
H
■Ratings
Cylindrical type
〈Dry cell compatible Twicell〉
Quick-Charge*3
Voltage
Typical Capacity
Minimum Capacity
(V)
(mAh)*1
(mAh)*2
Current(mA)*3
Time(hr.)
HR-4UTG
HR-4U
HR-3UTG
1.2
1.2
1.2
1.2
750
930
1900
2300
2500
800
1000
2000
2500
2700
1.1
1.1
1.1
HR-3U
800
1000
2000
2500
2700
Model No.
1.1
Dimensions(mm) (incl. tube)*4
Weight
Diameter(D)
Height(H)
(approx.g)*4
10.5
10.5
14.35
14.35
14.35
44.5
44.5
50.4
50.4
50.4
13
13
27
30
31
Notes
For remort controller, clock, PDA, audio equipment, etc.
For PDA, audio equipment, etc.
For remort controller, clock, PDA, audio equipment, etc.
For digital cameras, information equipment, etc.
*1 Typical capacity when a single cell is discharged at 0.2It after being charged at 0.1It for 16 hours. *2 Minimum capacity when a single cell is discharged at 0.2It after being charged at 0.1It for 16 hours.
*3 Consult Sanyo according to conditions of use. *4 Including tube.
6
After revision
Type
High Capacity Twicell
High durability Twicell
Radio
●
●
Music Player
●
Wireless Speaker
●
●
Wireless Microphone
●
●
DVD player
●
●
Camcorder
●
●
Notebook Computer
●
●
PDA,Data Entry
●
●
Cordless Mouse
●
●
Portable Printer
●
Aplication
Audio
Camera
information
●
Cordless Phone
Toy
●
●
●
Power Tool
●
●
●
●
Fire Alam
●
Emergency light
●
●
Photograhic Lighting Equipment
●
●
●
Light
●
●
●
●
Remoto contorol Toys
●
●
●
Game Machine
●
●
Medical Equipment
●
Construction
Sola-powred Equipment
●
Electric Motor applications、Electirc carrier
●
●
Power Assisted Bicyles or Vehicles
●
Measuring Instrument
●
●
Robots
Othera
●
●
Medical
Transport
●
●
●
Electric Razor,Toothbrushes
Emergency Comunication
Light
●
●
Vacuum Cleaner
Emergency
●
●
Base station Back-up
Power Tool
●
●
●
2Way Radio
Home Application
●
Digital Camera
Uninterrupted Power Systems (UPS)
Communication
High-Rate Discharge Twicell Dry cell compatible Twicell
●
●
●
Security machinery
●
Remoto contoroller
●
Dry Cell-applied Products
●
●
※Typical applications are shown in the table. For other purposes, consult Sanyo.
Precautions for Incorporating Assembled Batteries
●When batteries are used at high temperature, their
charge efficiency decreases and degradation of their
performance and material properties is accelerated.
To prevent this, keep the battery away from heat
generating parts such as in transformers, and
attempt to improve the heat diffusion of equipment
and battery.
●Reverse charging of battery may cause leakage of
electrolyte (strong alkaline aqueous solution), thus
calling for alkaline-resistant materials in the periphery
of the battery. Together with the electrolyte, oxygen
or hydrogen gas may leak. During design, measures
must be incorporated to prevent combustion. which
may be caused by sparks from motors or switches.
●Avoid contact-type connections such as those
employing a spring, as an oxidized coating will form
on the contact surface after prolonged periods of
use, leading to possible improper contact. If a
USA
EUROPE
ASIA
●SANYO
●SANYO
●SANYO
CANADA
Component Europe GmbH
TEL : (+49)89-4600950
FAX : (+49)89-460095190
●France Office
TEL : (+33)1-30155137
FAX : (+33)1-30155135
●UK Office
TEL : (+44)1923-246363
FAX : (+44)1923-477479
●SANYO
Canada Inc.
TEL :(+1)905-760-9944
FAX :(+1)905-760-9945
Energy (HK) Company Ltd.
TEL : (+852)2301-2213
FAX : (+852)2301-2191
●SANYO Energy (Taiwan) Company Ltd.
TEL : (+886)2-8780-8810
FAX : (+886)2-8780-8850
●SANYO Energy (Singapore)
Corp., Pte. Ltd.
TEL : (+65)6736-3100
FAX :(+65)6736-1230
AUSTRALIA
●SANYO
Oceania Pty. Ltd.
TEL : (+61)2-9815-5822
FAX :(+61)2-9815-5981
For more detailed information, contact the above:
Any and all information described or contained this
brochure are subject to change without notice due to
product / technology improvement, etc.
●Select the material for the connection plate that has
excellent resistance to alkaline. The materials that
contain copper may cause a trouble like rust.
●Avoid direct attachment to a printed board, as
leakage will corrode the board. If direct attachment is
necessary, please consult with Sanyo representative.
SANYO Electric Group has received
Environmental Management System ISO
14001 certification.
Certified by ISO 9000S
Energy (USA) Corporation
TEL :(+1)469-362-5600
FAX :(+1)469-362-5699
●New Jersey Office
TEL :(+1)973-256-8923
FAX :(+1)973-256-8375
contact-type connection is used, remove the battery
and wipe the contact with a cloth every few months
to improve conductivity.
SANYO Electric Co., Ltd.
〈Mobile Energy Company〉
〈Factory, Sales〉
Sumoto-city, Hyogo, Japan
TEL: (+81)799-24-4111
FAX: (+81)799-24-4123
●
●
Printed in Japan 2008.03. 6,000
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
