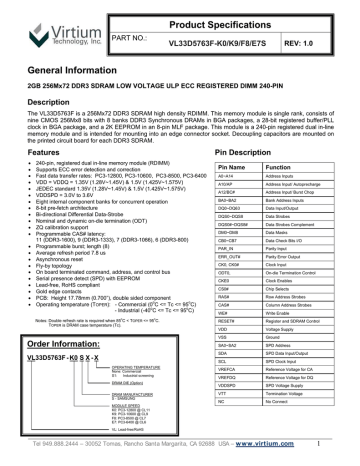

Product Specifications

PART NO.:

VL33D5763F-K0/K9/F8/E7S REV: 1.0

General Information

2GB 256Mx72 DDR3 SDRAM LOW VOLTAGE ULP ECC REGISTERED DIMM 240-PIN

Description

The VL33D5763F is a 256Mx72 DDR3 SDRAM high density RDIMM. This memory module is single rank, consists of nine CMOS 256Mx8 bits with 8 banks DDR3 Synchronous DRAMs in BGA packages, a 28-bit registered buffer/PLL clock in BGA package, and a 2K EEPROM in an 8-pin MLF package. This module is a 240-pin registered dual in-line memory module and is intended for mounting into an edge connector socket. Decoupling capacitors are mounted on the printed circuit board for each DDR3 SDRAM.

240-pin, registered dual in-line memory module (RDIMM)

Supports ECC error detection and correction

Fast data transfer rates: PC3-12800, PC3-10600, PC3-8500, PC3-6400

VDD = VDDQ = 1.35V (1.28V~1.45V) & 1.5V (1.425V~1.575V)

JEDEC standard 1.35V (1.28V~1.45V) & 1.5V (1.425V~1.575V)

VDDSPD = 3.0V to 3.6V

Eight internal component banks for concurrent operation

8-bit

Bi-directional Differential Data-Strobe

Nominal and dynamic on-die termination (ODT)

ZQ calibration support

Programmable CAS# latency:

11 (DDR3-1600), 9 (DDR3-1333), 7 (DDR3-1066), 6 (DDR3-800)

Programmable burst; length (8)

Average refresh period 7.8 us

Asynchronous

Fly-by

On board terminated command, address, and control bus

Serial presence detect (SPD) with EEPROM

Lead-free, RoHS compliant

Gold edge contacts

PCB:

Operating temperature (T

OPER

): - Commercial (0 o

- Industrial (-40 o

C <= Tc <= 95

C <= Tc <= 95 o o

C)

C)

Notes: Double refresh rate is required when 85 o

C < T

OPER

<= 95 o

C.

T

OPER

is DRAM case temperature (Tc).

Order Information:

VL33D5763F K0 S X -

X

OPERATING TEMPERATURE

None: Commercial

S1: Industrial screening

DRAM DIE (Option)

DRAM MANUFACTURER

S - SAMSUNG

MODULE SPEED

K0: PC3-12800 @ CL11

K9: PC3-10600 @ CL9

F8: PC3-8500 @ CL7

E7: PC3-6400 @ CL6

VL: Lead-free/RoHS

Pin Name

A12/BC#

DQS0#~DQS8#

CB0~CB7

ERR_OUT#

CK0, CK0#

ODT0,

RAS#

CAS#

RESET#

VDD

Register and SDRAM Control

Voltage Supply

VSS Ground

SDA

SCL

VREFCA

VREFDQ

VDDSPD

Function

Address Input/ Burst Chop

Data Strobes Complement

Data Check Bits I/O

Parity Error Output

Clock Input

On-die Termination Control

Row Address Strobes

Column Address Strobes

SPD Data Input/Output

SPD Clock Input

Reference Voltage for CA

Reference Voltage for DQ

SPD Voltage Supply

Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA –

w w w .virtium.com

1

Product Specifications

PART NO.:

VL33D5763F-K0/K9/F8/E7S REV: 1.0

240-PIN DDR3 RDIMM FRONT SIDE

Pin Configuration

240-PIN DDR3 RDIMM BACK SIDE

Pin Name Pin Name Pin Name Pin Name

VREFDQ 121 VSS 151 VSS 181 A1 211 VSS

2 VSS 32 VSS 62

3 DQ0 33 DQS3# 63

VDD 92 VSS

CK1 * 93 DQS5#

122 DQ4 152 DM3 182 VDD 212 DM5

123 DQ5 153 NC 183 VDD 213 NC

CK1# 94 DQS5 CK0 214 VSS

VDD 125

6 DQS0# 36 DQ26 66 VDD 96 DQ42 126 NC 156 DQ31 186 VDD 216 DQ47

VREFCA EVENT#* 217 VSS

PAR_IN 128 DQ6 158 CB4

9 DQ2 39 CB0 69 VDD 99 DQ48 129 DQ7 159 CB5 189

100 BA1 220 VSS

11 VSS 41 VSS 71 BA0 VDD 221 DM6

12 DQ8 42 DQS8# 72 VDD 102 RAS# 222 NC

103 CS0# 223 VSS

CAS# 134 DM1 164 CB6 194

15 DQS1# 45 CB2 75 VDD 105 DQ50 135 NC 165 CB7 195 ODT0 225 DQ55

106 136 VSS 166 VSS 196 A13 226 VSS

ODT1 137 DQ14 167 197

18 DQ10 48 VTT 78 VDD 108 DQ56

CS2# 109 139 VSS 169 VSS 229 VSS

20 VSS 50 CKE0 80 VSS 110 VSS

111 141 DQ21 171 *

112 142 VSS 172 A14

201 DQ37 231 NC

202 VSS 232 VSS

83 VSS 143 DM2 173 VDD 203

115 VSS 235 VSS

26 VSS 56 A7 86 VSS 116 VSS

29 VSS 59 A4 89 VSS 119 SA2

*: These pins are not used in this module.

Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA –

w w w .virtium.com

2

PART NO.:

Function Block Diagram

Product Specifications

VL33D5763F-K0/K9/F8/E7S REV: 1.0

DQ24

DQ25

DQ26

DQ27

DQ28

DQ29

DQ30

DQ31

Vss

DQS8

DQS8#

DM8

CB0

CB1

CB2

CB3

CB4

CB5

CB6

CB7

Vss

DQ16

DQ17

DQ18

DQ19

DQ20

DQ21

DQ22

DQ23

Vss

DQS3

DQS3#

DM3

RCS0#

DQS0

DQS0#

DM0

DQ0

DQ1

DQ2

DQ3

DQ4

DQ5

DQ6

DQ7

Vss

DQS1

DQS1#

DM1

DQ8

DQ9

DQ10

DQ11

DQ12

DQ13

DQ14

DQ15

Vss

DQS2

DQS2#

DM2

DM

DQ0

DQ1

DQ2

DQ3

DQ4

DQ5

DQ6

DQ7

ZQ

CS# DQS DQS#

D0

DM

DQ0

DQ1

DQ2

DQ3

DQ4

DQ5

DQ6

DQ7

ZQ

CS# DQS DQS#

D1

DM

DQ0

DQ1

DQ2

DQ3

DQ4

DQ5

DQ6

DQ7

ZQ

CS# DQS DQS#

D2

DM

DQ0

DQ1

DQ2

DQ3

DQ4

DQ5

DQ6

DQ7

ZQ

CS# DQS DQS#

D3

DM

DQ0

DQ1

DQ2

DQ3

DQ4

DQ5

DQ6

DQ7

ZQ

CS# DQS

D8

DQS#

DQ48

DQ49

DQ50

DQ51

DQ52

DQ53

DQ54

DQ55

Vss

DQS7

DQS7#

DM7

DQ40

DQ41

DQ42

DQ43

DQ44

DQ45

DQ46

DQ47

Vss

DQS6

DQS6#

DM6

DQ56

DQ57

DQ58

DQ59

DQ60

DQ61

DQ62

DQ63

Vss

DQS4

DQS4#

DM4

DQ32

DQ33

DQ34

DQ35

DQ36

DQ37

DQ38

DQ39

Vss

DQS5

DQS5#

DM5

DM

DQ0

DQ1

DQ2

DQ3

DQ4

DQ5

DQ6

DQ7

ZQ

DM

DQ0

DQ1

DQ2

DQ3

DQ4

DQ5

DQ6

DQ7

ZQ

DM

DQ0

DQ1

DQ2

DQ3

DQ4

DQ5

DQ6

DQ7

ZQ

DM

DQ0

DQ1

DQ2

DQ3

DQ4

DQ5

DQ6

DQ7

ZQ

CS# DQS DQS#

D4

CS# DQS DQS#

D5

CS# DQS DQS#

D6

CS# DQS DQS#

D7

Command, address, control, and clock line terminations

RA0-RA14, RBA0-RBA2

RRAS#, RCAS#, RWE#,

RCS0#, RCKE0, RODT0

DDR3

SDRAM

39 ohm +/-5%

VTT

PCK0

PCK0#

DDR3

SDRAM

36 ohm +/-5%

0.1uF

VDD

CS0#

A0-A14

BA0-BA2

RAS#

CAS#

WE#

CKE0

ODT0

22 ohm +/-5%

CK0

CK0#

120 ohm

+/-1%

T

E

R

/

P

L

L

1:2

R

E

G

I

S

PAR_IN

RESET#

22 ohm +/-5%

QERR#

RST #

RCS0# -> CS0#: SDRAMs D0-D8

RA0-RA14 -> A0-A14: SDRAMs D0-D8

RBA0-RBA2 -> BA0-BA2: SDRAMs D0-D8

RRAS# -> RAS#: SDRAMs D0-D8

RCAS# -> CAS#: SDRAMs D0-D8

RWE# -> WE#: SDRAMs D0-D8

RCKE0 -> CKE0: SDRAMs D0-D8

RODT0 -> ODT0: SDRAMs D0-D8

PCK0

PCK0#

Err_Out#

RESET#: SDRAMs D0-D8

Serial PD

SCL

Vss

WP

A0 A1 A2

SA0 SA1 SA2

SDA

VDDSPD

VDD

VTT

VREFCA

VREFDQ

VSS

Serial PD

D0-D8

D0-D8

D0-D8

D0-D8

D0-D8

Notes:

1. Unless otherw ise noted, resistor values are 15 ohms +/-5%

2. ZQ resistors are 240 ohms +/-1%

Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA –

w w w .virtium.com

3

Product Specifications

PART NO.:

VL33D5763F-K0/K9/F8/E7S

Absolute Maximum Ratings

Symbol Parameter

VDD Voltage on VDD pin relative to VSS

VDDQ Voltage on VDDQ pin relative to VSS

VIN, VOUT Voltage on any pin relative to VSS

-0.4

-0.4

-0.4

-55

Address, BA,

RAS#, CAS#,WE#,

CS#, CKE, ODT

IL

Input leakage current; Any input 0V<VIN<VDD;

VREF input 0V<VIN<0.95V;

Other pins not under test = 0V

CK, CK# -5

REV: 1.0

1.975

1.975

1.975

100

150 uA

V

V

V

0

C

IOZ

IVREF

Output leakage current;

0V<VOUT<VDDQ; DQs and ODT are disabled

DQ, DQS, DQS#

VREF supply leakage current; VREF = Valid VREF level

-5

-9

5

9 uA uA

DC Operating Conditions

Symbol Parameter Min Max

1.2825 1.35 1.45 V 1,2

VDDQ I/O Supply Voltage

VREFDQ (DC) I/O reference voltage DQ bus

VREFCA (DC) Input reference voltage CMD/ADD bus

1.2825

0.49 x VDD

0.49 x VDD

1.35

0.5 x VDD

0.5 x VDD

1.45

0.51 x VDD

0.51 x VDD

V

V

V

1,2

3,4

3,4

VTT Termination Reference Voltage -0.483 x VDDQ 0.5 x VDDQ +0.517 x VDDQ V

Notes:

1. Under all conditions VDDQ must be less than or equal to VDD.

2. VDDQ tracks with VDD. AC parameters are measured with VDD and VDDQ tied together.

3. The AC peak noise on VREF may not allow VREF to deviate from VREF(DC) by more than +/-1% VDD

4. For reference: approximate VDD/2 +/-15mV.

5. VTT termination voltage in excess of stated limit will adversely affect the command and address signals’ voltage margin and will reduce timing margins.

5

Operating Temperature Condition

Symbol Parameter

T

OPER

Operating

Commercial

Industrial

Rating Units Notes

0 to 95

-40 to +95

0

C 1,2

Notes:

1. Operating temperature is the case surface temperature on the center/top side of the DRAM. For the measurement conditions, please refer to JEDEC JESD51-2.

2. At -40 to +85

85 o o

C, operation temperature range, all DRAM specifications will be supported. The refresh rate is required to double when

C < TOPER <= 95 o

C.

Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA –

w w w .virtium.com

4

Product Specifications

PART NO.:

VL33D5763F-K0/K9/F8/E7S REV: 1.0

Input DC Logic Level

All voltages referenced to VSS

Symbol Parameter Min Unit

Command and Address

VIHCA(DC)

VILCA(DC)

Input High (Logic 1) Voltage

(DDR3-800/1066/1333/1600)

Input Low (Logic 0) Voltage

(DDR3-800/1066/1333/1600)

DQ and DM

VREF + 0.09

VSS

VDD

VREF - 0.09

V

V

VIHDQ(DC)

VILDQ(DC)

Input High (Logic 1) Voltage (DDR3-800/1066/1333/1600)

Input Low (Logic 0) Voltage

(DDR3-800/1066/1333/1600)

VREF + 0.09

VSS

VDD

VREF - 0.09

V

V

Input AC Logic Level

All voltages referenced to VSS

Symbol Parameter Min Unit

Command and Address

VIHCA(AC)

VILCA(AC)

Input High (Logic 1) Voltage

Input Low (Logic 0) Voltage

(DDR3-800/1066/1333/1600)

(DDR3-800/1066/1333/1600)

DQ and DM

VIHDQ(AC)

VILDQ(AC)

VIHDQ(AC)

VILDQ(AC)

Input High (Logic 1) Voltage (

DDR3-800/1066)

Input Low (Logic 0) Voltage

(DDR3-800/1066)

Input High (Logic 1) Voltage

(DDR3-1333/1600)

Input Low (Logic 0) Voltage (DDR3-1333/1600)

VREF + 0.160

-

VREF + 0.160

-

VREF + 0.135

-

Input/Output Capacitance

TA=25

0

C, f=100MHz

-

VREF - 0.160

-

VREF - 0.160

-

VREF - 0.135

V

V

V

V

V

V

Input capacitance (A0~A14, BA0~BA2, RAS#, CAS#, WE#)

Input capacitance (CKE0, ODT0, CS0#)

Input capacitance (CK0, CK0#)

Input/Output capacitance

(DQ, DQS, DQS#, DM, CB)

K0 (DDR3-1600)

K9 (DDR3-1333)

F8 (DDR3-1066)

E7 (DDR3-800)

CIN1

CIN2

CIN3

CIO

5.5

5.5

5.5

5.5

5.5

5.5

6.5

6.5

6.5

6.5

6.7

7 pF pF pF

Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA –

w w w .virtium.com

5 pF pF pF

Product Specifications

PART NO.:

VL33D5763F-K0/K9/F8/E7S REV: 1.0

IDD Specification

Condition Symbol

(DDR3-1600) (DDR3-1333) (DDR3-1066)

E7

(DDR3-800)

Unit

Operating one bank active-precharge current;

tCK= tCK(IDD); tRC= tRC(IDD); tRAS= tRAS MIN(IDD); CKE is HIGH, CS# is HIGH between valid commands; Address bus inputs are SWITCHING; Data bus inputs are SWITCHING.

Operating one bank active-read-precharge current;

IOUT = 0mA; BL = 8; CL = CL(IDD); AL = 0; tCK= tCK(IDD); tRC= tRC(IDD); tRAS= tRAS MIN(IDD); tRCD= tRCD(IDD);

CKE is HIGH, CS# is HIGH between valid commands;

Address bus inputs are SWITCHING; Data pattern is same as

IDD4W.

Precharge power-down current;

All device banks idle; tCK= tCK(IDD); CKE is LOW; Other control and address bus inputs are STABLE; Data bus inputs are FLOATING.

Precharge standby current;

All device banks idle; tCK= tCK(IDD); CKE is HIGH; CS# is

HIGH; Other control and address bus inputs are SWITCHING;

Data bus inputs are SWITCHING.

Precharge quiet standby current;

All device banks idle; tCK= tCK(IDD); CKE is HIGH; CS# is

HIGH; Other control and address bus inputs are STABLE;

Data bus inputs are FLOATING.

Active power-down current;

All device banks open; tCK= tCK(IDD); CKE is LOW; Other control and address bus inputs are STABLE; Data bus inputs are FLOATING.

Active standby current;

All device banks open; tCK= tCK(IDD); tRP= tRP(IDD); tRAS= tRAS MAX(IDD)); CKE is HIGH, CS# is HIGH between valid commands; Other control and address bus inputs are

SWITCHING; Data bus inputs are SWITCHING.

Operating burst read current;

All device banks open; Continuous burst reads; IOUT = 0mA;

BL = 8; CL = CL(IDD); AL = 0; tCK= tCK(IDD); tRAS= tRAS

MAX(IDD); tRP= tRP(IDD); CKE is HIGH, CS# is HIGH between valid commands; Address bus inputs are

SWITCHING; Data pattern is same as IDD4W.

Operating burst write current;

All device banks open; Continuous burst writes; BL = 8; CL =

CL(IDD); AL = 0; tCK= tCK(IDD); tRAS= tRAS MAX(IDD); tRP= tRP(IDD); CKE is HIGH, CS# is HIGH between valid commands; Address bus inputs are SWITCHING; Data bus inputs are SWITCHING.

Burst refresh current;

tCK=tCK(IDD); Refresh command at every tRFC(IDD) interval; CKE is HIGH; CS# is HIGH between valid commands; Other control and address bus inputs are

SWITCHING; Data bus inputs are SWITCHING.

Self refresh current;

CK and CK# at 0V; CKE < 0.2V; Other control and address bus inputs are FLOATING; Data bus inputs are FLOATING.

Operating bank interleave read current;

All bank interleaving reads; IOUT = 0mA; BL = 8; CL =

CL(IDD); AL = tRCD(IDD) - 1*tCK(IDD); tCK= tCK(IDD); tRC= tRC(IDD); tRRD = tRRD(IDD); tRCD = 1*tCK(IDD) ; CKE is

HIGH; CS# is HIGH between valid commands; Address bus inputs are STABLE during DESELECTs; Data pattern is same as IDD4R.

IDD7* 1225 1180 955

Note: IDD specification is based on Samsung D-die components.

*: Value calculated as one module rank in this operating condition, and all other module ranks in IDD2P (CKE LOW) mode.

**: Value calculated reflects all module ranks in this operating condition.

955 mA

Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA –

w w w .virtium.com

6

Product Specifications

PART NO.:

VL33D5763F-K0/K9/F8/E7S REV: 1.0

AC TIMING PARAMETERS & SPECIFICATIONS

K0 K9

(DDR3-1333)

F8

(DDR3-1066)

E7

(DDR3-800)

Unit

MIN MAX MIN MAX MIN MAX MIN MAX

Clock Timing

Minimum Clock Cycle Time (DLL off mode) tCK(DLL_OFF) 8 - 8 - 8 - 8 - ns

Average Clock Period tCK(avg)

Clock Period

Average high pulse width

Average low pulse width

Clock Period Jitter tCK(abs) tCH(avg) tCL(avg) tJIT(per)

1.25 <1.50 1.5 <1.875 1.875 <2.5 2.5 3.3 tCK(avg)min

+

tJIT(per)min tCK(avg)max

+ tJIT(per)max tCK(avg)min

+ tJIT(per)min tCK(avg)max

+ tJIT(per)max tCK(avg)min

+ tJIT(per)min tCK(avg)max

+ tCK(avg)min

+

tJIT(per)max tJIT(per)min tCK(avg)max

+

tJIT(per)max

0.47 0.53 0.47 0.53 0.47 0.53 0.47 0.53 ns ns tCK(avg)

0.47

-70

0.53

70

0.47

-80

0.53

80

0.47

-90

0.53

90

0.47

-100

0.53

100 tCK(avg) ps

Clock Period Jitter during DLL locking period tJIT(per, lck)

Cycle to Cycle Period Jitter

Cycle to Cycle Period Jitter during DLL locking period

Cumulative error across 2 cycles tJIT(cc) tJIT(cc, lck) tERR(2per) tERR(3per) Cumulative error across 3 cycles

Cumulative error across 4 cycles tERR(4per) tERR(5per) Cumulative error across 5 cycles

Cumulative error across 6 cycles tERR(6per) tERR(7per) Cumulative error across 7 cycles

Cumulative error across 8 cycles tERR(8per) tERR(9per) Cumulative error across 9 cycles

Cumulative error across 10 cycles tERR(10per) tERR(11per) Cumulative error across 11 cycles

Cumulative error across 12 cycles

Cumulative error across n = 13, 14 ... 49, 50 cycles

Absolute clock HIGH pulse width tERR(12per) tERR(nper) tCH(abs) tCL(abs) Absolute clock Low pulse width

Data Timing

DQS,DQS# to DQ skew, per group, per access

DQ output hold time from DQS, DQS#

DQ low-impedance time from CK, CK#

DQ high-impedance time from CK, CK#

Data setup time to DQS, DQS# referenced to Vih(ac)Vil(ac) levels

Data hold time to DQS, DQS# referenced to

Vih(ac)Vil(ac) levels

DQ and DM Input pulse width for each input tQH tLZ(DQ) tHZ(DQ) tDIPW

-60

-155

-163

-169

-175

-103

-122

-136

-147

-180

-184

-188

0.43

0.43

0.38

-450

-

360

140

120

60

155

163

169

175

103

122

136

147

180

184

188

-

-

-

225

225

-

-70 70 -80 80

160

140

180

160

-177

-186

-193

-200

-118

-140

-155

-168

118

140

155

168

177

186

193

200

-132

-157

-175

-188

-200

-209

-217

-224

-205

-210

205

210

-231

-237

231

237

-215 215 -242 242 tERR(nper)min =(1+ 0.68ln(n))*tJIT(per)min

tERR(nper)max=(1+ 0.68ln(n))*tJIT(per)max

0.43 - 0.43 -

0.43 - 0.43 -

200

209

217

224

132

157

175

188

0.38

-500

-

400

-

250

250

-

0.38

-600

-

490

-

300

300

-

-90

-222

-232

-241

-249

-147

-175

-194

-209

-257

-263

-269

0.43

0.43

0.38

-800

-

600

200

180

90

222

232

241

249

147

175

194

209

257

263

269

-

-

-

400

400

- tCK(avg) ps ps ps ps ps ps ps ps ps ps ps ps ps ps ps ps ps ps tCK(avg) tCK(avg)

Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA –

w w w .virtium.com

7

PART NO.:

Product Specifications

VL33D5763F-K0/K9/F8/E7S REV: 1.0

Data Strobe Timing

DQS, DQS# differential READ Postamble

DQS, DQS# output high time

DQS, DQS# output low time

AC TIMING PARAMETERS & SPECIFICATIONS

K0 K9

(DDR3-1333)

F8

(DDR3-1066)

E7

(DDR3-800)

Unit

MIN MAX MIN MAX MIN MAX MIN MAX

tRPST tQSH tQSL

0.3

0.4

0.4

-

-

-

0.3

0.4

0.4

-

-

-

0.3

0.38

0.38

-

-

-

0.3

0.38

0.38

-

-

- tCK tCK(avg) tCK(avg)

DQS, DQS# rising edge output access time from rising CK, CK#

DQS, DQS# low-impedance time

(Referenced from

DQS, DQS# high-impedance time

(Referenced from RL+BL/ 2)

DQS, DQS# differential input low pulse width

DQS, DQS# differential input high pulse width

DQS, DQS# rising edge to CK, CK# rising edge

DQS,DQS# failing edge setup time to CK,

CK# rising edge

DQS,DQS# failing edge hold time to CK,

CK# rising edge

Command and Address Timing tDQSCK -225 225 -255 255 -300 300 -400 400 ps tDQSL 0.45 0.55 0.45 0.55 0.45 0.55 0.45 0.55 tCK

Internal READ Command to PRECHARGE

Command delay

Delay from start of internal write transaction to internal read command tRTP tWTR max

(4tCK,7.5ns) max

(4tCK,7.5ns)

-

- max

(4tCK,7.5ns) max

(4tCK,7.5ns)

-

- max

(4tCK,7.5ns) max

(4tCK,7.5ns)

-

- max

(4tCK,7.5ns) max

(4tCK,7.5ns)

-

-

Mode Register Set command cycle time

Mode Register Set command update delay

CAS# to CAS# command delay

Auto precharge write recovery + precharge time

Multi-Purpose Register Recovery Time

ACTIVE to PRECHARGE command period

ACTIVE to ACTIVE command period for

1KB page size

ACTIVE to ACTIVE command period for

2KB page size

Four activate window for 1KB page size

Four activate window for 2KB page size

Command and Address setup time to CK,

CK# referenced to Vih(ac) / Vil(ac) levels

Command and Address hold time from CK,

CK# referenced to Vih(ac) / Vil(ac) levels

Control & Address Input pulse width for each input tMRD tMOD tCCD tDAL(min) tMPRR tRAS tRRD tRRD tFAW tFAW

4 max

(12tCK,15ns)

4

1

35 max

(4tCK,6ns) max

(4tCK,7.5ns)

30

40

-

-

-

4 max

(12tCK,15ns)

4

-

-

-

4 max

(12tCK,15ns)

4

-

-

-

4 max

(12tCK,15ns)

4

- nCK

-

- nCK

WR + roundup (tRP / tCK(AVG))

- 1 nCK nCK - 1 - 1 -

9*tREFI 36 9*tREFI 37.5 9*tREFI 37.5 9*tREFI ns

-

-

- max

(4tCK,6ns) max

(4tCK,7.5ns)

30

-

-

- max

(4tCK,7.5ns) max

(4tCK,10ns)

37.5

-

-

- max

(4tCK,10ns) max

(4tCK,10ns)

40

-

-

- ns

- 45 - 50 - 50 - ns tIPW 560 - 620 - 780 - 900 - ps

Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA –

w w w .virtium.com

8

Product Specifications

PART NO.:

VL33D5763F-K0/K9/F8/E7S REV: 1.0

Refresh Timing

2Gb REFRESH to REFRESH OR

REFRESH to ACTIVE command interval

Average periodic refresh interval

(0°C<= TCASE <= 85 °C)

Average periodic refresh interval

(85°C<= TCASE <= 95 °C)

Calibration Timing

AC TIMING PARAMETERS & SPECIFICATIONS

K0 K9

(DDR3-1333)

F8

(DDR3-1066)

E7

(DDR3-800)

Unit

MIN MAX MIN MAX MIN MAX MIN MAX

tRFC 160 - 160 - 160 - 160 - ns

Power-up and RESET calibration time tZQinitI 512 - 512 - 512 - 512 - tCK

Normal operation Full calibration time tZQoper 256 - 256 - 256 - 256 - tCK

Reset Timing

Exit Reset from CKE HIGH to a valid command

Self Refresh Timing

Exit Self Refresh to commands not requiring a locked DLL

Exit Self Refresh to commands requiring a locked DLL

Minimum CKE low width for Self refresh entry to exit timing

Valid Clock Requirement after Self Refresh

Entry (SRE)

Valid Clock Requirement before Self

Refresh Exit (SRX)

Power Down Timing

Exit Power Down with DLL to any valid command; Exit Precharge Power Down with

DLL frozen to commands not requiring a locked DLL

Exit Precharge Power Down with DLL frozen to commands requiring a locked DLL

CKE minimum pulse width

Command pass disable delay

Power Down Entry to Exit Timing

Timing of ACT command to Power Down entry

Timing of PRE command to Power Down entry

Timing of RD/RDA command to Power

Down entry

Timing of WR command to Power Down entry BL8 (OTF, MRS), BL4OTF

Timing of WRA command to Power Down entry BL8 (OTF, MRS), BL4OTF

Timing of WR command to Power Down entry (BL4MRS)

Timing of WRA command to Power Down entry (BL4MRS)

Timing of REF command to Power Down entry

Timing of MRS command to Power Down entry tXPR tXS tCKESR tCKSRE tCKSRX max

(5tCK, tRFC

+ 10ns) max(5tC, tRFC+10ns) tCKE(min) +

1tCK max(5tC,

10ns) max(5tC,

10ns)

-

-

-

-

-

- max

(5tCK, tRFC

+ 10ns) max(5tC, tRFC +10ns)

-

- tCKE(min) +

1tCK max(5tCK,

10ns) max(5tCK,

10ns)

-

-

- tXP tXPDLL tCKE tCPDED tPD max

(3tCK,6ns) max

(10tCK,24ns) max (3tCK,

5.625ns)

1 tCKE(min)

-

-

-

-

9*tREFI max

(3tCK,6ns) max

(10tCK,24ns) max (3tCK,

5.625ns)

1 tCKE(min)

-

-

-

-

9*tREFI max

(3tCK,7.5ns) max

(10tCK,24ns) max (3tCK,

5.625ns)

1 tCKE(min)

-

-

-

-

9*tREFI max

(3tCK,7.5ns) max

(10tCK,24ns) max (3tCK,

7.5ns)

1 tCKE(min)

-

-

-

-

9*tREFI tRDPDEN tWRPDEN tWRAPDEN tWRPDEN tWRAPDEN

RL + 4 +1

WL + 4

+(tWR/ tCK)

WL+4+WR+

1

WL + 2

+(tWR/ tCK)

WL+2+WR+

1

-

-

- max

(5tCK, tRFC

+ 10ns) max(5tC, tRFC+10ns) tCKE(min) +

1tCK max(5tCK,

10ns) max(5tCK,

10ns)

-

-

- max

(5tCK, tRFC

+ 10ns) max(5tC, tRFC +10ns) tCKE(min) +

1tCK max(5tCK,

10ns) max(5tCK,

10ns)

-

-

- nCK tCK

-

-

RL + 4 +1

WL + 4

+(tWR/ tCK)

-

-

RL + 4 +1

WL + 4

+(tWR/ tCK)

-

-

RL + 4 +1

WL + 4

+(tWR/ tCK)

-

- nCK

- WL+4+WR+1 - WL+4+WR+1 - WL+4+WR+1 - nCK

-

WL + 2

+(tWR/ tCK)

-

WL + 2

+(tWR/ tCK)

-

WL + 2

+(tWR/ tCK)

- nCK

- WL+2+WR+1 - WL+2+WR+1 - WL+2+WR+1 - nCK

Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA –

w w w .virtium.com

9

Product Specifications

PART NO.:

VL33D5763F-K0/K9/F8/E7S REV: 1.0

AC TIMING PARAMETERS & SPECIFICATIONS

K0 K9

(DDR3-1333)

F8

(DDR3-1066)

E7

(DDR3-800)

Unit

MIN MAX MIN MAX MIN MAX MIN MAX

ODT Timing

ODT high time without write command or with write command and BC4

ODT high time with Write command and BL8

Asynchronous RTT turn-on delay (Power-

Down with DLL frozen)

Asynchronous RTT turn-off delay (Power-

Down with DLL frozen)

ODT turn-on

RTT_NOM and RTT_WR turn-off time from

ODTL off reference

ODTH8 tAON

6

-225

-

225

6

-250

-

250

6

-300

-

300

6

-400

-

400 nCK ps

Write Leveling Timing

First DQS pulse rising edge after tDQSS margining mode is programmed

DQS/DQS delay after tDQS margining mode is programmed

Hold time for tDQSS latch

Write leveling output delay tWLH tWLO

165

0

-

7.5

195

0

-

9

245

0

-

9

325

0

-

9 ps ns

Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA –

w w w .virtium.com

10

PART NO.:

Package Dimensions

Product Specifications

VL33D5763F-K0/K9/F8/E7S

FRONT VIEW

133.35

REV: 1.0

0.70 R MAX

(6X)

2.50 D

(2X)

2.30 TYP

2.20 TYP

1.50 TYP

PIN 1

1.50 +/-0.10

0.75 R

1.00

TYP

0.80

TYP

17.78

1.27 +/-0.10

54.68

TYP

9.50

PIN 120

123.00

TYP

3.67

MAX

BACK VIEW

3.05 TYP

5.175 (2X)

PIN 240

71.00

TYP

5.00

TYP

47.00

TYP

3.00 TYP

(2X)

PIN 121

Note: 1. All dimensions are in millimeters with tolerance +/- 0.15mm unless otherwise specified.

2. The dimensional diagram is for reference only.

Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA –

w w w .virtium.com

11

Revision History:

PART NO.:

Product Specifications

VL33D5763F-K0/K9/F8/E7S REV: 1.0

04/14/2011 1.0 All Spec

Tel 949.888.2444 – 30052 Tomas, Rancho Santa Margarita, CA 92688 USA –

w w w .virtium.com

12

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
