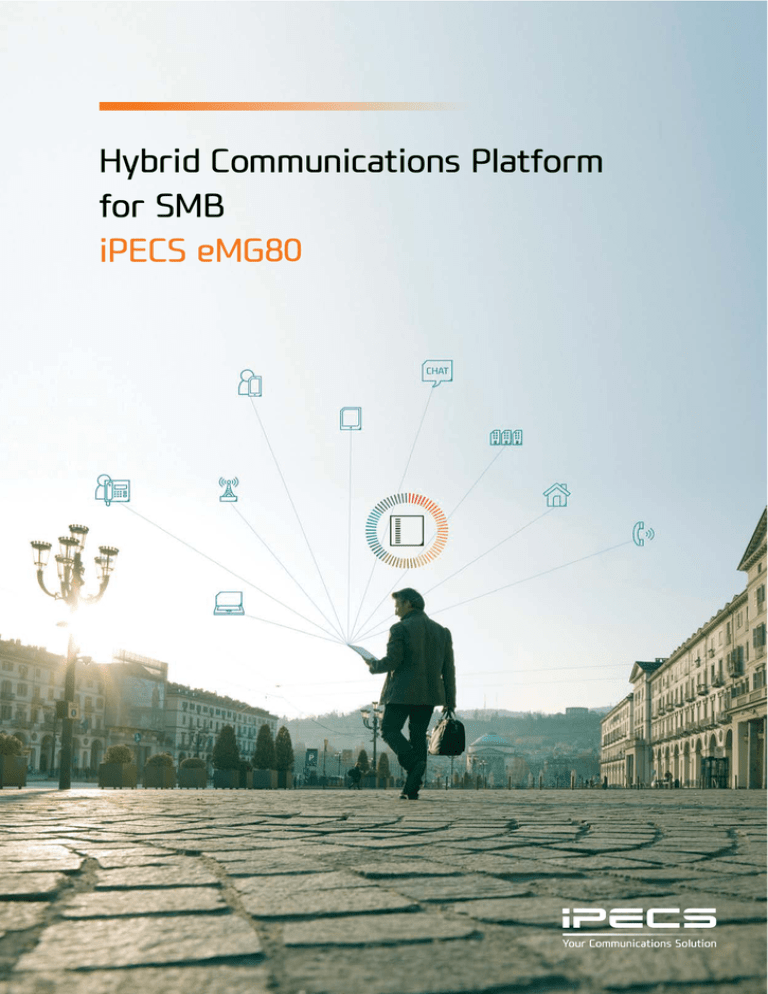

Hybrid Communications Platform
for SMB
iPECS eMG80
Experience a rich featured and cost effective
communications solution in a trendy design
IP/TDM Hybrid communication platform, iPECS eMG80
iPECS eMG80 adopts VoIP technologies running in
optimized IP/TdM hybrid switching platform. The ability
to communicate seamlessly over IP networks delivers
advantages over existing hybrid technologies permittions with iPECS eMG80 in a simple and cost effective
manner.
2012 KAId design Award
(Korea Association of Industrial designers)
Seamless expendability for SMBs
Simple installation and maintenance
With iPECS eMG80, you can start small with 8~12 users
and grow seamlessly to more than 100 ports. Employing a
multi-cabinet (KSU) architecture that allows four KSU and
one expansion KSU to configure a dynamic system. iPECS
eMG80 delivers cost effective communications to small and
growing businesses and affordable expandability to medium
size businesses.
The iPECS eMG80 adopts advanced HTML5 based Web admin, which is an intuitive simple solution to system configuration and maintenance. The Web Manager Install Wizard
presents the basic installation in a series of simple steps for
an easy basic installation in English or other local language.
Cost effective and expandable VoIP Technology
iPECS eMG80 platform includes advanced VoIP technology
supporting low cost SIP trunking, on and off-premise mobility,
remote connectivity and multi-site networking with minimal
cost to overcome geographical boundaries.
Rich features and applications
The rich feature set spans all the basic features and functions
of a modern communications platform such as Transfer, Caller Id, MOH, etc. and delivers advanced functions including
an integrated multi-level Auto Attendant and Voice Mail with
both mobile and E-mail notification.
“ Start with built-in VoIP card for smaller needs
and expand with optional VoIP for future use ”
SIP Trunking (VoIP Provider)
eMG80 KSU
8ch
Built-in
8ch
Option
“ Cost effective mobility
and multi-site connections ”
VoIP
VoIP
Max 16ch
On the road
Home/Teleworking
Wi-Fi
Phone
2
iPECS
Communicator
Rich Feature Set
Mobile Extension
Integrated Auto Attendant /Voice Mail
The integrated AA/VM application is provided through the Voice
Store and Forward (VSF) Gateway incorporated in the KSU main
board and includes an application processor, four (4) access
channels and 1 hour of storage. Further the MEMU option expands the storage to 16 hours of voice and VVMU option provides
and additional 4 channels and 16 hours of storage.
Your mobile phone may be registered to a station allowing the
mobile phone to place and receive calls through the system.
dId calls are sent to your iPECS IP or LdP Phone and your
registered mobile phone simultaneously. If the mobile phone
is paired with a Hunt group station, Hunt group calls routed to
the station can also ring to your mobile phone. From your
mobile phone you may access the facilities of the iPECS to
place internal and external calls as well as activate and access
features. To access system facilities and resources, you call
your dId number from your mobile. When the call is received,
the system matches the Calling Line Id (CLI) to the mobile
phone and provides you with system dial tone.
IP-Attendant
The IP-Attendant is a Windows based PC application that provides a visualization of the Attendant functionality to simplify
Attendant control of features and functions including displays
of call, user and system status. The IP-Attendant provides
the PC mic and speaker for audio so that a separate desktop
phone is not required.
Centralized Attendant
When you place an Attendant call (dial “0”) from a station in any
networked system, the call may be routed to a Centralized Attendant. The local System Attendant activates Attendant dNd,
which routes local Attendant calls to the Central Attendant.
Automatic Call Distribution (ACD)
agent monitoring and supervision, and call record statistics
as well as ACd event messages for management reporting. The
caller may receive announcements then route to an available
agent. When no agent is available, calls queue to the group
awaiting a free agent. Should the calls overflow based on the
number of queued calls or queued duration, the calls can be
routed to an alternate destination.
Web Call Back
E-mail Notification
When the system stores a new voice message, it will check
the notification settings for your mailbox. If E-mail notification
is configured, the system will send you an E-mail notification.
If configured, the voice message is attached as an *.wav file.
The Station User Web portal offers a Web Call Back feature.
In the portal, you may be permitted to request the system to
establish a telephone call between two telephone numbers. The
call is subject to the dialing restrictions of the station number
associated with the portal access. A SMdR record is generated
Centralized Voice Mail
An external Voice Mail may be attached to a system in a network
to provide centralized Voice Mail services to the stations of all
systems in the network.
Personal Groups
A Personal Group consisting of your master station and group
member stations (maximum 32 including your master station)
ter station receives a call, all members also receive the call and
when placing a call using the master station number, access and
dialing restrictions can be used. Each member can still receive
calls to their individual stations.
Green Power Save
The system can disable the power to LdP Phones and SLTs
(Single Line Telephone) connected to the system at pre-determined times such as at night or during holidays when no one will
be using the phones. In addition to the automatic control, power
to the phones can be manually controlled from the Web Admin.
3
Applications
Every business has different communications needs and
meeting these needs is critical for your business communications solution. Ericsson-LG iPECS eMG80 offers
different needs and requirements in your business.
iPECS UCS
A powerful multimedia collaboration and productivity enhancing tool
• Real-time presence information displaying user status at a glance
• Selecting the best communications method based on the user presence information; via voice, E-mail, Instant Messaging or video
• Mobile UC enabled
• Multi-party video conferencing among up to 6 users
• 1:1 video call on mobile phone
iPECS UCS Client (PC & Mobile)
iPECS Communicator
A SIP based softphone for users who need to keep seamless
communications with a single number
• Phone book / call log / paging
• 3way conference call
• SMS/broadcast message sending and receiving
• One-touch blind/consult transfer
iPECS Communicator on Android or iOS
iPECS Attendant
An IP Attendant solution which includes a soft phone function
and hotel features
• Operating without an external phone
• Call recording / Call statistics / Call history
• Check in/out, wake up call, room status, room cut off
iPECS Attendant (PC)
iPECS IPCR
A call recording and monitoring solution tightly integrated
with iPECS call platforms and contact centers
• Centralized or distributed call recording
• Encryption enabled call recording
• Multi party conference call recording up to 13 party access
4
iPECS IPCR (PC)
Terminals
The iPECS eMG80 supports an extensive range of terminals such as digital and IP phones, SIP phones, dECT,
Mobile Client, and IP Conference Phone. These terminals are designed for business users who require a range of
feature-rich telephony devices to match your constantly changing business needs. The iPECS eMG80 gives you
access to a large portfolio of terminals and clients to suit your unique business telephony needs.
IP Phones
LIP-9070
LIP-8050E
LIP-8040E
LIP-8024E
LIP-8012E
LIP-8008E
LIP-8002E/AE
• 7” TFT color display with Capacitive Touch
• WVGA resolution
• Android OS
• Gigabit support
• Media play, picture viewer
• 1.3M pixel CMOS camera
(1280 x 1024)
• Built-in software application
• Memory : Main 512MB ddR2 /
4GB Storage
• Video communications among
iPECS video clients
(UCS, 8050V, Phontage)
• 4.3” Wide Color Graphic screen
• 5 Programmable feature keys
• USB interface [USB 2.0]
• LLdP-MEd / 802.1x / EAP-Md5
• VLAN, Open VPN support
• Gigabit support
• Informative large 9 Line backlit LCd
• User programmable 10 feature
keys with LCd labeling
• BLF information with triple color LEd
• Professional headset integration
via RJ11
• LLdP-MEd / 802,1x security
support
• Open VPN support
• Gigabit support
• 4 Line backlit LCd
• User programmable 24
feature keys
• BLF information with triple
color LEd
• More informative display with
feature icons
• LLdP-MEd / 802.1x security
support
• Open VPN support
• Gigabit support
• 3 Line backlit LCd
• User programmable 12
feature keys
• BLF information with triple
color LEd
• Gigabit support
• High quality voice codecs
• Enhanced quality conference call
• LLdP-MEd / 802.1x security
support
• Open VPN support
• 4 Line LCd
• User programmable 8 feature
keys
• BLF information with triple
color LEd
• Enhanced quality conference
call
• High quality voice codecs
• LLdP-MEd / 802.1x security
support
• 2 Line LCd, Grey scale graphic
display
• User programmable 4 feature
keys
• LLdP-MEd
• LIP-8002E (PoE support ) / LIP8002AE (non PoE with adapter)
LIP-8012dSS
LIP-8048dSS
LIP-8012LSS
LIP-8040LSS
LIP-9070 dSS48
E-BTMU (Bluetooth dongle)
• dSS keys :
12 w/ triple color LEd
• Underlay : Paper
• Power supply :
Via external up to 4
• dSS keys :
48 w/ triple color LEd
• Underlay : Paper
• Power supply :
Via external up to 4
• dSS keys :
12 w/ triple color LEd
• Underlay : LCd
• Power supply :
Via keyset up to 2
• dSS keys :
40 w/ triple color LEd
• Underlay : LCd
• Power supply :
Via extemal or PoE up to 9
• dSS keys :
48 w/ triple color LEd
• Underlay : Paper
• Power supply :
Via external & up to 2
• Optional Module
• Bluetooth v2.1 + EdR
• Support smart phone and headset
/ 30 for iPECS protocol
Digital Phones
DECT Phones
LdP-7004d
LdP-7004N
LdP-7008d
LdP-7016d
LdP-7024d
LdP-7024Ld
GdC-500H
• 1 Line LCd
• 2 Flexible buttons
• 2 Flexible buttons
• 5 Fixed buttons
• OHd(On-hook dialing)
• Message waiting lamp
• 2 Line LCd
• 8 Flexible buttons
• 3 Line LCd
• 16 Flexible buttons
• 3 Line LCd
• 24 Flexible buttons
• 9 Line LCd
• 24 Flexible buttons
• Speaker phone
• Headset Jack
• 3 Soft buttons
• Navigation button
• Additional device port for
SLT / FAX
• Speaker phone
• Wall mountable
• 3 Soft buttons
• Navigation button
• Additional device port for
SLT / FAX
• Call recording
• Speaker phone
• Wall mountable
• Optional Bluetooth
• 3 Soft buttons
• Navigation button
• Additional device port for
SLT / FAX
• Call recording
• Speaker phone
• Wall mountable
• Optional Bluetooth
• Protocol : Standard GAP +
Ericsson-LG Proprietary
• Buttons : Easy access via 2 soft
keys, 5 way navigation
• Languages : 7 languages
(English, Italian, Spanish,
Swedish, Russian, Turkey,
German)
• Bluetooth : Yes
• OHd(On-hook dialing)
• Message waiting lamp
• Speakerphone : Yes
LdP-9008d
LdP-9030d
LdP-9048dSS
GdC-450H
• 2 Line LCd with high visibility
backlighting
• 7 Flexible buttons
• 8 Programmable buttons
• Wall mountable
• Enhanced high quality
conference calling
• 3 Line LCd with high visibility
backlighting
• 7 Flexible buttons
• 30 Programmable buttons
• 3 Soft keys
• Wall mountable
• Optional Bluetooth
• More extenslon handling with
optional dSS
• 48 Programmable buttons
• Compatible with LdP-9030d
• Up to 5 dSS consoles supported
• Protocol : Standard GAP +
Ericsson-LG Proprietary
• Buttons : Easy access via 2 soft
keys, 5 way navigation
• Languages : 5 languages
(English, Italian, Spanish,
Swedish, Russian)
• Bluetooth : No
• Speakerphone : No
• Cable Length : 600m
• Recommended Talk/stand-by
options via tilting handset
5
Platform for Communications
Wireless & Mobile
dECT
WiFi
Extension
Embedded
AA/VM
iPECS
Communicator
SLT
digital Phone
IP Phone
Misc. device
PSTN
LCO
SMdR
FAX
MOH
Loud Bell
External
pages
Alarm
Sensor
Backup
Battery
door
Phone
PMS
IPCR
CTI
Web Admin
UCS
Phontage
BRI
ISDN
PRI
iPECS eMG80
E1/R2/T1
Internet
IP Trunk
door
Opener
UC & Application
Remote
Web Admin
Router
Attendant
On the Road
• LGCM(PSTN)
• SLTM(SLT, FAX)
• IP Phone
• iPECS UCS
• iPECS Communicator
• Phontage
• IP Phone
• iPECS UCS
• iPECS Communicator
• Phontage
• iPECS UCS
• iPECS Communicator
• Phontage
Port Configuration
KSUA / KSUI / KSUAd / KSUId+EKSU
KSU
Max Ports
Analog/BRI* trunk
Trunks
PRI/T1
IP trunk(SIP/H.323)
Remote Gateway
Max Ports
SLT
Extensions
VM channel
VoIP channel
digital
Max
36/62/36/62
12
48/74/48/74
12
12
24
-/30/-/30
-
-/30/-/30
16
-
16
8
-
8
104**/104/108***/108
32
136/136/140/140
31/31/28/28
32
63/63/60/60
24
24
48
23/23/16/16
24
47/47/40/40
IP
32
-
32
dECT
48
-
48
without VVMU
4
-
4
with VVMU
8
-
8
without VVMU
8
-
8
with VVMU
16
-
16
Hybrid(SLT or digital)
* BRI : In KSUI and KSUId
** HYB(8) + dECT(48) + SLIB(16) + IP PHONE(32) = 104
*** dSIB(12) + dECT(48) + SLIB(16) + IP PHONE(32) = 108
6
EKSU
Product Components
Item
Board
KSU
Description
Key Service Unit, eMG80 cabinet, KSU and EKSU
KSUA
MBUA
4 CO, 1 dKT and 7 Hybrid Interfaces
Voice Mail (2-channel/1-Hour default, 8-channel/31-hours max.)
VoIP (2-channels default, 16-channel max.)
KSUAd
MBUAd
4 CO, 8 dKT and 4 SLT Interfaces
Voice Mail (2-channel/1-Hour default, 8-channel/31-hours max.)
VoIP (2-channels default, 16-channel max.)
KSUI
MBUI
1 dKT and 7 Hybrid Interfaces
Voice Mail (2-channel/1-Hour default, 8-channel/31-hours max.)
VoIP (2-channels default, 16-channel max.)
KSUId
MBUId
8 dKT and 4 SLT Interfaces
Voice Mail (2-channel/1-Hour default, 8-channel/31-hours max.)
VoIP (2-channels default, 16-channel max.)
EKSU
EXBU
4 CO and 8 Hybrid
PSU
-
Interface Boards
Function Boards
Power Supply Unit, pre-installed in each cabinet
eMG80-CH204
2 CO Line and 4 Hybrid Interface Board
eMG80-CH408
4 CO Line and 8 Hybrid Interface Board
eMG80-CS416
4 CO Line and 16 SLT Interface Board
eMG80-BH104
1 BRI (2B+d) and 4 Hybrid Interface Board
eMG80-BH208
2 BRI (2B+d) and 8 Hybrid Interface Board
eMG80-HYB8
8 Hybrid Interface Board
eMG80-SLB16
16 SLT Interface Board
eMG80-PRIU
1 PRI/E1R2 or T1 (30 or 24 channels) Interface Unit
eMG80-BRUI2
2 BRI (2B+d) Interface Unit
eMG80-WTIB4
4 Wireless Terminal Interface Board (24 channels)
eMG80-VVMU
8 VoIP, 4 VM Channel, 1 hour default plus 15 hours VM storage – licenses required for VoIP,
VM channel and VM storage
eMG80-MEMU
Memory Expansion Module Unit for VM (15 hours)
eMG80-MOdU
Modem Unit
MG-CMU4
eMG80-RMB
4 Call Metering Unit,, 4 channel daughter board for MBU, EMBU and analog CO Line Interface boards
19” Rack Mounting Bracket (Option)
Specifications
Item
Description
AC Voltage Input
PSU
External Backup Battery
Operating Environment
dimension
Weight
100~240 +/- 10% Volt AC @ 47-63 Hz
AC Power consumption
90 Watts
AC Input Fuse
2A @250 Volt AC
dC Output Voltage
+5, -5, +27, +30 Volt dC
Input Voltage
+24 Volt dC (+12 VdC x 2 each KSU)
Battery Fuse
5.0A @250 Volts AC, 5AG
Charging Current
Max. 200 mA
Battery Load Current
Max. 200 mA
Temperature
0 (o C) - 40 (o C)
Humidity
0 - 80% (non-condensing)
KSU
307 mm(W) x 294 mm(H) x126.6 mm(d)
Expansion KSU
307 mm(W) x 294 mm(H) x126.6 mm(d)
KSU
2.03 Kg
Expansion KSU
1.99 Kg
7
The content of this document is subject to revision without
notice due to continued progress in methodology, design and
manufacturing. Ericsson-LG shall have no liability for any error or
damage of any kind resulting from the use of this document
© Ericsson-LG Co., Ltd. 2013 Ver. 1.0
Ericsson-LG Co., Ltd.
508, Nonhyeon-ro, Gangnam-gu,
Seoul, Korea
Telephone +82 2 3777 1114
Fax +82 2 2005 2323
www.ericssonlg.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
