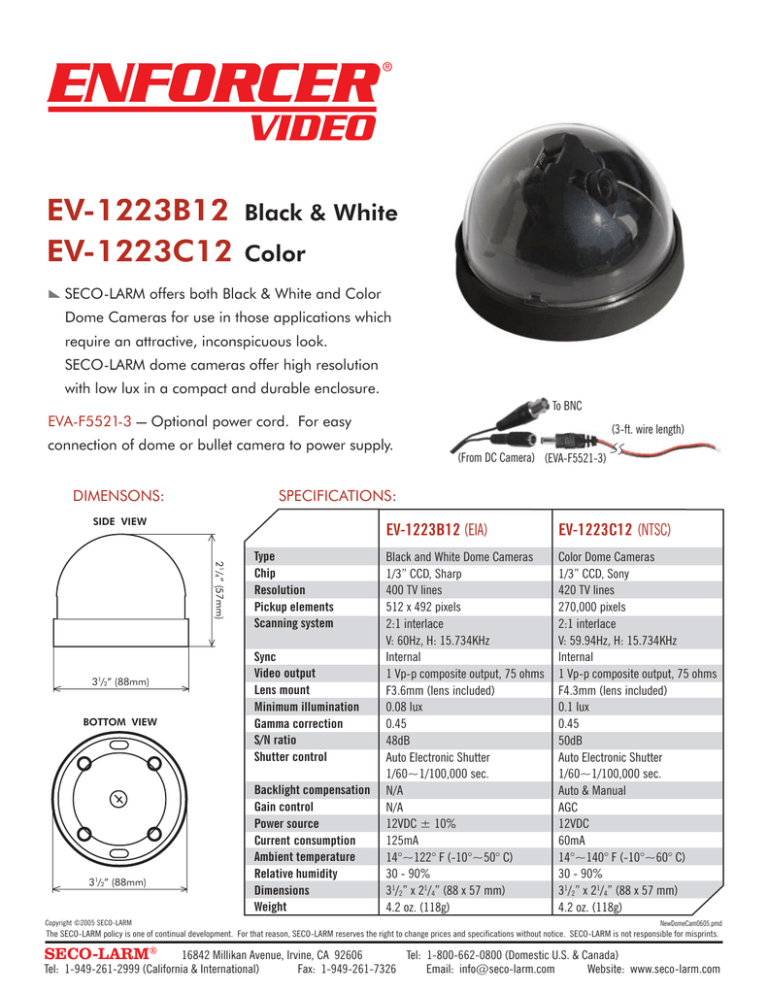

EV 1223C12
ENFORCER
®
VIDEO
EV-1223B12
EV-1223C12
Black & White
Color
SECO-LARM offers both Black & White and Color
Dome Cameras for use in those applications which
require an attractive, inconspicuous look.
SECO-LARM dome cameras offer high resolution
with low lux in a compact and durable enclosure.
To BNC
EVA-F5521-3 -- Optional power cord. For easy
connection of dome or bullet camera to power supply.
DIMENSONS:
21/4” (57mm)
BOTTOM VIEW
31/2” (88mm)
Copyright ©2005 SECO-LARM
(From DC Camera) (EVA-F5521-3)
SPECIFICATIONS:
SIDE VIEW
31/2” (88mm)
(3-ft. wire length)
Type
Chip
Resolution
Pickup elements
Scanning system
Sync
Video output
Lens mount
Minimum illumination
Gamma correction
S/N ratio
Shutter control
Backlight compensation
Gain control
Power source
Current consumption
Ambient temperature
Relative humidity
Dimensions
Weight
EV-1223B12 (EIA)
EV-1223C12 (NTSC)
Black and White Dome Cameras
1/3” CCD, Sharp
400 TV lines
512 x 492 pixels
2:1 interlace
V: 60Hz, H: 15.734KHz
Internal
1 Vp-p composite output, 75 ohms
F3.6mm (lens included)
0.08 lux
0.45
48dB
Auto Electronic Shutter
1/60~1/100,000 sec.
N/A
N/A
12VDC ± 10%
125mA
14°~122° F (-10°~50° C)
30 - 90%
31/2” x 21/4” (88 x 57 mm)
4.2 oz. (118g)
Color Dome Cameras
1/3” CCD, Sony
420 TV lines
270,000 pixels
2:1 interlace
V: 59.94Hz, H: 15.734KHz
Internal
1 Vp-p composite output, 75 ohms
F4.3mm (lens included)
0.1 lux
0.45
50dB
Auto Electronic Shutter
1/60~1/100,000 sec.
Auto & Manual
AGC
12VDC
60mA
14°~140° F (-10°~60° C)
30 - 90%
31/2” x 21/4” (88 x 57 mm)
4.2 oz. (118g)
NewDomeCam0605.pmd
The SECO-LARM policy is one of continual development. For that reason, SECO-LARM reserves the right to change prices and specifications without notice. SECO-LARM is not responsible for misprints.
SECO-LARM® 16842 Millikan Avenue, Irvine, CA 92606
Tel: 1-800-662-0800 (Domestic U.S. & Canada)
Tel: 1-949-261-2999 (California & International)
Fax: 1-949-261-7326
Email: [email protected]
Website: www.seco-larm.com
