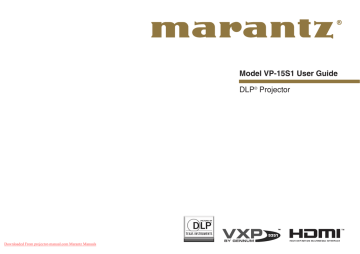

Model VP-15S1 User Guide

DLP

®

Projector

VP-15S1_U_cover 07.7.5 11:01 AM ページ2

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF

PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION:

POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE

LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE

CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

NOTE:

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

IMPORTANT SAFETY

INSTRUCTIONS

READ BEFORE OPERATING EQUIPMENT

This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.

1.

Read these instructions.

2.

Keep these instructions.

3.

Heed all warnings.

4.

Follow all instructions.

5.

Do not use this apparatus near water.

6.

Clean only with dry cloth.

7.

Do not block any ventilation openings. Install in accordance with the manufacture's instructions.

8.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10.

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11.

Only use attachments/accessories specified by the manufacturer.

12.

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13.

Unplug this apparatus during lightning storms or when unused for long periods of time.

14.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Additional Safety Information!

• This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

• Apparatus shall not be exposed to dripping or splashing and that no objects filled as vases, shall be placed on the apparatus.

• When the switch is in the OFF position, the apparatus isn’t completely switched-off from the MAINS.

DECLARATION OF CONFORMITY

This device complies with Part 15 of the FCC rules.

Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party: Marantz America, Inc.

100 Corporate Drive,

Mahwah, NJ, 07430, U.S.A.

TEL: 630-741-0300

Type of Product:

Model:

DLP Projector

VP-15S1

This Class B digital apparatus complies with

Canadian ICES-003.

Downloaded From projector-manual.com Marantz Manuals

Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada.

VP-15S1_U_cover 07.7.5 11:01 AM ページ3

ENGLISH

FOREWORD

This section must be read carefully before any connection is made to the mains supply.

WARRANTY

For warranty information, contact your local

Marantz distributor.

RETAIN YOUR PURCHASE RECEIPT

Your purchase receipt is your permanent record of a valuable purchase. It should be kept in a safe place to be referred to as necessary for insurance purposes or when corresponding with Marantz.

IMPORTANT

When seeking warranty service, it is the responsibility of the consumer to establish proof and date of purchase. Your purchase receipt or invoice is adequate for such proof.

FOR U.K. ONLY

This undertaking is in addition to a consumer’s statutory rights and does not affect those rights in any way.

EQUIPMENT MAINS WORKING SETTING

Your Marantz product has been prepared to comply with the household power and safety requirements that exist in your area.

COPYRIGHT

Recording and playback of some material may require permission. For further information refer to the following:

Copyright Act 1956

Dramatic and Musical Performers Act 1958

Performers Protection Acts 1963 and 1972

Any subsequent statutory enactments and orders

WARNINGS

– Do not expose the equipment to rain or moisture.

– Do not remove the cover from the equipment.

– Do not insert anything into the equipment through the ventilation holes.

– Do not handle the mains cord with wet hands.

– Do not cover the ventilation with any items such as tablecloths, newspapers, curtains, etc.

– No naked flame sources, such as lighted candles, should be placed on the equipment.

– When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rules that apply in your country or area.

– Make a space of about 0.2 meter around the unit.

– When the projector is mounted on the ceiling, the Ceiling Mount Kit approved by MARANTZ must be used for installation.

– Do not look into the lens when the projector is turned on. It could damage your eyesight.

– Unplug the projector from the wall outlet if it is not to be used for a few days.

– No objects filled with liquids, such as vases, shall be placed on the equipment.

– When the switch is in the OFF position, the equipment is not completely switched off from MAINS.

– The equipment shall be installed near the power supply so that the power supply is easily accessible.

Lamp Handing Precautions

DANGER

This SHP uses a high voltage glass mercury vapor lamp. The lamp can break or fail to light if handled wrongly during replacement or because of the projector’s surrounding temperature.

Lamp life also varies according to the lamp with some even breaking or failing to light as soon as they are used the first time. If the lamp breaks, glass fragments may be scattered inside the lamp unit and projector, and gas inside the lamp bulb that contains mercury vapor may be emitted from the projector’s vent.

Before use, carefully read the projector user guide and the lamp replacement instructions. Remember to handle the lamp with care. In the event of serious trouble, call for Marantz authorized dealer.

• Do not look directly into the lamp with bare eyes while lit. The bright light can cause sore eyes and impair vision.

• Do not directly expose skin to the light of the lamp. Direct exposure can inflame the skin.

• Do not drop, impact, subject to excessive force or otherwise damage the lamp.

• Replacing the lamp runs the risk of burns and electric shock, therefore shut OFF power supply, unplug the AC power cord from AC power outlet and wait at least 60 minutes for the lamp to cool down before attempting to replace it.

• If the lamp breaks, unplug the AC power cord from AC power outlet and call for Marantz authorized dealer to replace it. Do not replace the lamp yourself or clean up broken glass inside the projector as this can result in cuts and burns to you or damages inside the projector.

• If the projector is hung from a ceiling or installed in a high place, it is extremely dangerous to replace the lamp. In this case, do not replace or handle the damaged lamp yourself.

CAUTION

• The chance of the lamp breaking is high after extended use. It is recommended to replace the lamp when near the end of its designed life. Do not use a lamp beyond the maximum lighting time.

• Use only Marantz original lamp units. Check the model code of the lamp unit matches that in the user guide.

• Before replacing the lamp, read carefully

“Lamp Unit Replacement” in the user guide.

Replace the lamp as explained therein.

• Entrust disposal of a used lamp to a licensed industrial waste handler or return it to the place of purchase. Do not break the lamp or discard with general waste.

• If the lamp breaks, leave the area immediately and stay away for at least 30 minutes, and ventilate the room so as not to inhale the mercury vapor.

• If you inhale the mercury vapor, see a physician immediately and follow his instructions.

Downloaded From projector-manual.com Marantz Manuals

VP-15S1_U_cover 07.7.5 11:01 AM ページ4

FRANÇAIS

AVANT-PROPOS

Prière de lire ce chapitre avant de brancher l’appareil sur le secteur.

GARANTIE

Pour des informations sur la garantie, contacter le distributeur local Marantz.

CONSERVER L’ATTESTATION D’ACHAT

L’attestation d’achat est la preuve permanente d’un achat de valeur. La conserver en lieu sur pour s’y reporter aux fins d’obtention d’une couverture d’assurance ou dans le cadre de correspondances avec Marantz.

IMPORTANT

Pour l’obtention d’un service couvert par la garantie, il incombe au client d’établir la preuve de l’achat et d’en corroborer la date. Le reçu ou la facture constituent des preuves suffisantes.

REGLAGE DE L’ALIMENTATION

SECTEUR DE L’APPAREIL

Cet appareil Marantz a été conçu pour respecter les exigences de votre région en matière d’alimentation secteur et de sécurité.

DRUITS D' AUTEUR

L’enregistrement et la lecture de certaines informations sonores nécessitent une autorisation.

Pour de plus amples renseignements, consultez:

La loi de 1956 sur les Copyright

Loi concernant les Acteurs et Musiciens 1958

Lois de Protection des Artistes 1963 et 1972

Les décrets et règlements ultérieurs qui s’y rapportent

AVERTISSEMENTS

– Ne pas exposer l’appareil à la pluie ni à l’humidité.

– Ne pas essayer de retirer le boîtier de l’appareil.

– Ne rien insérer dans l’appareil par les orifices de ventilation.

– Ne pas manipuler le cordon d’alimentation avec les mains mouillées.

– Ne pas recouvrir les ouïes de ventilation avec un objet quelconque comme une nappe, un journal, un rideau, etc.

– Ne placer aucune source de flamme nue, comme une bougie allumée, sur l'appareil.

– Pour mettre au rebut les piles usées, respecter les lois gouvernementales ou les règlements officiels concernant l’environnement qui s'appliquent à votre pays ou région.

– Veiller à ce qu’aucun objet ne soit à moins de

0,2 mètre des côtés de l'appareil.

– Pour monter le projecteur au plafond, vous devez utiliser un kit de montage au plafond approuvé par MARANTZ pour l'installation.

– Ne regardez pas dans l'objectif quand le projecteur est allumé. Cela pourrait endommager votre vue.

– Débranchez le projecteur de la prise murale s'il ne doit pas être utilisé pendant plusieurs jours.

– Aucun objet rempli de liquide, un vase par exemple, ne doit être placé sur l'appareil.

– Lorsque l'interrupteur est sur la position OFF, l'appareil n'est pas complètement déconnecté du SECTEUR (MAINS).

– L'appareil sera installé près de la source d'alimentation, de sorte que cette dernière soit facilement accessible.

Précautions à prendre pour la manipulation de la lampe

DANGER

Ce SHP utilise une lampe à vapeur de mercure en verre à haute tension. Cette lampe peut se casser ou ne pas s'allumer si elle est manipulée incorrectement pendant son remplacement ou du fait de la température ambiante du projecteur.

La durée de service d'une lampe varie aussi en fonction de la lampe, certaines se cassant ou ne s'allumant pas aussitôt qu'elles sont utilisées pour la première fois. Si la lampe se casse, des fragments de verre peuvent se répandre à l'intérieur de l'unité lampe et du projecteur, et le gaz à l'intérieur de l'ampoule de la lampe qui contient de la vapeur de mercure peut être émis par l'orifice du projecteur.

Avant utilisation, lisez attentivement le guide de l'utilisateur du projecteur et les instructions de remplacement de la lampe. Pensez à manipuler la lampe avec précautions. En cas de problème sérieux, contactez un distributeur agréé Marantz.

• Ne regardez pas directement la lampe sans protection pour les yeux pendant qu'elle est allumée. Sa lumière brillante peut faire mal aux yeux et affaiblir la vue.

• N'exposez pas directement la peau à la lumière de la lampe. Une exposition directe peut provoquer une inflammation de la peau.

• Ne laissez pas tomber la lampe, ne la heurtez pas, ne la soumettez pas à une force excessive ni ne l'endommager.

• Le remplacement de la lampe fait courir un risque de brûlure et de choc électrique ; il faut donc couper l'alimentation électrique, débrancher le cordon d'alimentation secteur de la prise secteur et attendre au moins 60 minutes que la lampe refroidisse avant d'essayer de la remplacer.

• Si la lampe se casse, débranchez le cordon d'alimentation secteur de la prise secteur et contactez un distributeur agréé Marantz pour qu'il la remplace. Ne remplacez pas la lampe vous-même ni ne nettoyez le verre brisé à l'intérieur du projecteur car vous pourriez vous couper et vous brûler ou endommager l'intérieur du projecteur.

• Si le projecteur est accroché au plafond ou installé dans un endroit en hauteur, il est extrêmement dangereux de remplacer la lampe.

Dans ce cas, ne remplacez ni ne manipulez vous-même la lampe endommagée.

ATTENTION

• Le risque que la lampe se casse est élevé après une utilisation prolongée. Il est recommandé de remplacer la lampe lorsqu'elle approche de sa durée de service spécifiée. N'utilisez pas une lampe au-delà du temps d'éclairage maximum.

• N'utilisez que des unités lampes d'origine

Marantz. Vérifiez que le code de modèle de l'unité lampe correspond à celui indiqué dans le guide de l'utilisateur.

• Avant de remplacer la lampe, lisez attentivement "Remplacement de l'unité lampe" dans le guide de l'utilisateur.

Remplacez la lampe conformément aux explications de cette section.

• Confiez la mise au rebut d'une lampe usée à un service de déchets industriels licencié ou retournez-la où vous l'avez achetée. Ne cassez pas la lampe ni ne la jetez avec les ordures ménagères.

• Si la lampe se casse, sortez immédiatement de la zone pendant au moins 30 minutes, et aérez la pièce afin de ne pas inhaler la vapeur de mercure.

• Si vous inhalez de la vapeur de mercure, consultez immédiatement un médecin et suivez ses instructions.

Downloaded From projector-manual.com Marantz Manuals

VP-15S1_U_cover 07.7.5 11:01 AM ページ5

ESPAÑOL

PROLOGO

Antes de conectar el equipo a la corriente, debe leer este capítulo.

GARANTIA

Para obtener información acerca de la garantia póngase en contacto con su distribuidor Marantz.

GUARDE SU RECIBO DE COMPRA

Su recibo de compra es su prueba permanente de haber adquirido un aparato de valor, Este recibo deberá guardarlo en un lugar seguro y utilizarlo como referencia cuando tenga que hacer uso del seguro o se ponga en contacto con Marantz.

IMPORTANTE

Cuando solicite el servicio otorgado por la garantia el usuario tiene la responsabilidad de demonstrar cuando efectuó la compra. En este caso, su recibo de compra será la prueba apropiada.

SELECCION DEL VOLTAJE DE

ALIMENTACION

Este producto Marantz se ha preparado para estar conforme con los requisitos de alimentación eléctrica doméstica y de seguridad que hay en su zona.

COPYRIGHT

La grabación y reproducción de determinado material puede necesitar permiso. Para más información consulte lo siguiente:

Acta sobre copyright de 1958

Acta de la Sociedad General de Autores de

1958

Acta de Protección de la Propiedad

Intelectual de Autores de 1963 y 1972

Cualquier acta, estatuto y órdenes subsiguientes

ADVERTENCIAS

– No exponga el equipo a la lluvia ni a la humedad.

– No extraiga la tapa del equipo.

– No introduzca nada en el interior del equipo a través de los orificios de ventilación.

– No maneje el cable de alimentación con las manos mojadas.

– No cubra la ventilación con objetos como manteles, periódicos, cortinas, etc.

– No deben colocarse sobre el equipo elementos con fuego, por ejemplo velas encendidas.

– Cuando se eliminen baterías usadas, deben cumplirse las reglamentaciones oficiales o las normas de protección medioambiental aplicables en su país o en su zona.

– Deje un espacio de unos 0,2 metro alrededor de la unidad.

– Cuando el proyector se monte en el techo deberá utilizarse para la instalación el juego de montaje en el techo aprobado por

MARANTZ.

– No mira al objetivo cuando el proyector esté encendido. Podría lesionarse la vista.

– Desenchufe el proyector de la toma de corriente si no lo va a utilizar durante unos pocos días.

– No se deben colocar sobre el aparato recipientes que contengan líquidos, como por ejemplo jarrones.

– Cuando el interruptor está en la posición

OFF, el equipo no está completamente desconectado de la alimentación MAINS.

– El equipo se instalará cerca de la fuente de alimentación de manera que resulte fácil acceder a ella.

Precauciones para la manipulación de la lámpara

PELIGRO

Esta lámpara SHP de vidrio y de alto voltaje contiene vapor de mercurio. La lámpara puede romperse o no encenderse si es manipulada incorrectamente durante el recambio o debido a la temperatura ambiente del proyector.

La vida útil también varía según las lámparas, algunas de las cuales se rompen o no se encienden al cabo del primer uso. Si la lámpara se rompe, los fragmentos de cristal se pueden desparramar por el interior de la unidad de la lámpara y del proyector, y el gas con vapor de mercurio contenido en la bombilla se puede escapar a través del sistema de ventilación del proyector.

Antes de usar el aparato, lea con cuidado la guía de usuario del proyector y las instrucciones de recambio de la lámpara. No olvide manipular con cuidado la lámpara. En caso de producirse problemas serios, avise a un distribuidor autorizado de Marantz.

• No mire directamente a la lámpara sin protección en los ojos cuando ésta esté encendida. La luz brillante puede irritar los ojos e impedir la visión.

• No exponga directamente la piel a la luz de la lámpara. La exposición directa puede inflamar la piel.

• No deje caer la lámpara, ni la golpee, ni la someta a presiones excesivas, ya que de lo contrario la lámpara se daña.

• El recambio de la lámpara entraña el riesgo de quemaduras y descargas eléctricas, y por lo tanto, deberá apagar el aparato, desenchufar el cable de alimentación del tomacorriente de

CA, y esperar al menos 60 minutos a que la lámpara se enfríe antes de intentar recambiarla.

• Si la lámpara se rompe, desenchufe el cable de alimentación de CA y avise a un distribuidor autorizado de Marantz para recambiarla. No recambie la lámpara usted mismo ni limpie los cristales rotos en el interior del proyector, pues podría sufrir cortes y quemaduras y ocasionar daños en el interior del proyector.

• Si el proyector cuelga del techo o está instalado en un lugar elevado, el recambio de la lámpara es extremadamente peligroso. En tal caso, no recambie ni manipule usted mismo la lámpara dañada.

PRECAUCIÓN

• La probabilidad de que la lámpara se rompa es alta después de un uso prolongado. Se recomienda recambiar la lámpara cerca de la fecha de expiración de su vida útil prevista.

No utilice una lámpara más tiempo del máximo de iluminación previsto.

• Utilice sólo lámparas originales de Marantz.

Compruebe que el código del modelo de la lámpara coincide con el de la guía de usuario.

• Antes de recambiar la lámpara, lea atentamente la sección “Recambio de la lámpara” en la guía de usuario. Recambie la lámpara tal y como viene allí explicado.

• Confíe el desecho de la lámpara usada a un manipulador autorizado de desechos industriales o devuélvala al lugar donde la compró. No rompa la lámpara ni la deseche en la basura normal.

• Si la lámpara se rompe, abandone la zona inmediatamente y permanezca alejado durante al menos 30 minutos, ventilando la habitación con objeto de no inhalar el vapor de mercurio.

• Si inhala vapor de mercurio, consulte inmediatamente a su médico y siga sus instrucciones.

Downloaded From projector-manual.com Marantz Manuals

VP-15S1_U_cover 07.7.5 11:01 AM ページ6

PORTUGUÊS

INTRODUÇÃO

Esta secção deverá ser lida antes de efectuar qualquer ligação àcorrente.

GARANTIA

Para informações sobre a garantia, contactar o distribuidor Marantz local.

GUARDAR O RECIBO DE COMPRA

O recibo é o registo permanente da compra que fez. Deve ser guardado num local seguro, para ser apresentado em questões relacionadas com o seguro ou para quando tiver de contactar a

Marantz.

IMPORTANTE

Quando procurar assisténcia técnica ao abrigo da garantia, é da responsabilidade do consumidor estabelecer a prova e data de compra. O recibe é prova adequada.

REGULAÇÃO DO EQUIPAMENTO

CONFORME A ALIMENTAÇÃO DA REDE

O seu produto Marantz foi condicionado a satisfazer os requisitos domésticos de energia e segurança existentes na sua zona.

DIREITOS DE AUTOR

Poderá ser necessária autorização para a gravação e a leitura de determinado material. Para mais informações deverá consultar o seguinte:

Lei do direito de autor de 1956 (Copyright

Act)

Lei dos artistas relacionados com a música e com o teatro de 1958 (Dramatic and Musical

Performers Act)

Leis de protecção dos artistas de 1963 e de

1972 (Performers Protection Acts)

Quaisquer regulamentos e despachos estatutários posteriores

ADVERTÊNCIAS

– Não exponha o equipamento à chuva nem à humidade.

– Não retire a tampa do equipamento.

– Não atire nada para dentro do equipamento através dos orificíos de ventilação.

– Não manuseie o cabo de alimentação com as mãos molhadas.

– Não cobrir os orifícios de ventilação com objectos tais como toalhas de mesa, jornais, cortinas, etc.

– Não colocar chamas abertas tais como velas acesas, sobre o aparelho.

– Ao deitar foras as pilhas usadas, favor observar os regulamentos governamentais ou as regras com respeito ao meio ambiente que se aplicam no seu país ou área de residência.

– Deixar um espaço de cerca de 0,2 metro ao redor do aparelho.

– Quando o projector for montado no tecto, o

Kit de Montagem no Tecto aprovado pela

MARANTZ deverá ser utilizado para a instalação.

– Não olhe para dentro da lente quando o projector é activado. Isto pode danificar a visão.

– Desligue o projector da tomada de parede se este não estiver para ser utilizado durante alguns dias.

– Não colocar recipientes com água, tal como vasos, sobre o aparelho.

– Quando o interruptor está na posição OFF, o equipamento não fica totalmente desligado de MAINS.

– O aparelho deve ser instalado próximo a uma tomada de energia para fácil acesso.

Precauções para o manuseio da lâmpada

CUIDADO

Esta lâmpada SHP é uma lâmpada feita de vidro que contém vapor de mercúrio a alta pressão. A lâmpada pode quebrar ou não acender caso seja manuseada incorrectamente durante a substituição ou devido à temperatura ambiente onde se encontra o projector.

A vida útil da lâmpada também varia conforme a lâmpada, com casos de quebra ou falha em acender na primeira vez que a lâmpada é utilizada.

Se a lâmpada quebrar, estilhaços de vidro podem cair dentro do compartimento da lâmpada e do projector, e o gás de dentro da lâmpada que contém vapor de mercúrio poderá ser emitido através da saída do projector.

Antes de o utilizar, leia cuidadosamente o guia do utilizador do projector bem como as instruções para substituição da lâmpada. Lembre-se de manusear a lâmpada com cuidado. No caso de problemas, entre em contacto com o representante autorizado da Marantz.

• Não olhar directamente na lâmpada acesa sem protecção ocular. A luz forte pode causar irritação nos olhos ou prejudicar a visão.

• Não expor a pele directamente à luz da lâmpada. Exposição directa pode causar inflamação na pele.

• Não derrubar, bater, nem usar força excessiva, pois pode danificar a lâmpada.

• Devido ao risco de queimaduras e choque eléctrico ao substituir a lâmpada, desligue a alimentação, desligue o cabo de alimentação da tomada de CA e espere pelo menos 60 minutos para arrefecer antes de substituir a lâmpada.

• Se a lâmpada quebrar, desligue o cabo de alimentação de CA da tomada e entre em contacto com o representante autorizado da

Marantz para que faça a substituição. Não tente fazer a substituição nem limpar os estilhaços de vidro de dentro do projector, pois pode resultar em cortes e queimaduras ou ainda danos ao projector.

• Se o projector estiver instalado no teto ou qualquer lugar alto, é extremamente perigoso substituir a lâmpada. Nesse caso, não tente fazer a substituição nem manusear o lâmpada danificada.

AVISO

• A probabilidade da lâmpada quebrar aumenta depois de um longo período de utilização. É recomendável substituir a lâmpada quando a vida útil da mesma estiver próxima do fim.

Não utilizar a lâmpada além do tempo máximo determinado.

• Utilizar apenas lâmpadas genuínas Marantz.

Confirme que o código do modelo da lâmpada corresponde com o listado no guia do utilizador.

• Antes de substituir a lâmpada, leia cuidadosamente a secção “Substituição da lâmpada” no guia do utilizador. Substitua a lâmpada de acordo com as instruções dadas.

• Para jogar uma lâmpada usada, solicite os serviços de uma companhia autorizada a colectar lixo industrial ou devolva a lâmpada na loja onde a adquiriu. Não quebrar a lâmpada nem jogá-la com o lixo comum.

• Se a lâmpada quebrar, saia da sala imediatamente, ventile o ambiente para evitar inalar o vapor de mercúrio e não retorne por pelo menos 30 minutos.

• Se inalar o vapor de mercúrio, consulte um médico imediatamente e siga as suas instruções.

Downloaded From projector-manual.com Marantz Manuals

VP-15S1_U_cover 07.7.5 11:01 AM ページ7

DEUTSCH

VORWORT

Dieser Abschnitt muß gelesen werden, bevor das

Gerät an eine Netzsteckdose angeschlossen wird.

GARANTIE

Bei Garantiefragen wenden Sie sich bitte an Ihren

Marantz-Händler.

HEBEN SIE IHRE QUITTING GUT AUF

Die Quittung dient Ihnen als bleibende Unterlage für Ihren wertvollen Einkauf Das Aufbewahren der

Quittung ist wichtig, da die darin enthaltenen

Angaben für Versicherungswecke oder bei

Korrespondenz mit Marantz angeführt werden müssen.

WICHTIG!

Bei Garantiefragen muß der Kunde eine

Kaufunterlage mit Kaufdatum vorlegen. Ihren

Quittung oder Rechnung ist als Unterlage ausreichend.

NETZSPANNUNGS-EINSTELLUNG DES

GERÄTES

Dieses Marantz-Produkt entspricht den

Netzspannungs- und Sicherheitsanforderungen, die im Vertriebsgebiet gelten.

VP-12S4 kann nur mit einer Spannung von 230 V

AC betrieben werden.

COPYRIGHT

Für die Aufnahme und Wiedergabe von gewissen

Materialien kann eine Genehmigung erforderlich sein. Die folgenden Vorschriften müssen beachtet werden:

Copyright Act 1956

Dramatic and Musical Performers Act 1958

Performers Protection Acts 1963 and 1972

Jegliche nachfolgenden Gesetze und

Vorschriften

Downloaded From projector-manual.com Marantz Manuals

WARNHINWEISE

– Das Gerät nicht Regen oder Feuchtigkeit aussetzen.

– Die Abdeckung nicht vom Gerät abnehmen.

– Keine Gegenstände durch die

Belüftungsschlitze stecken.

– Das Netzkabel nicht mit feuchten oder nassen Händen anfassen.

– Decken Sie die Lüftungsöffnungen nicht mit einem Tischtuch, einer Zeitung, einem

Vorhang usw. ab.

– Es dürfen keine Gegenstände mit offener

Flamme, wie etwa brennende Kerzen, auf dem Gerät aufgestellt werden.

– Beachten Sie bei der Entsorgung der verbrauchten Batterien alle geltenden lokalen und überregionalen Regelungen.

– Auf allen Geräteseiten muß ein

Zwischenraum von ungefähr 0,2 meter vorhanden sein.

– Wenn der Projektor an der Decke montiert werden soll, muß der von MARANTZ vorgesehene Einbauteilesatz für die

Deckenmontage verwendet werden.

– Bei eingeschaltetem Projektor nicht in das

Objektiv schauen. Bei Nichtbeachtung können Augenschäden die Folge sein.

– Wenn der Projektor mehrere Tage nicht verwendet werden soll, ist der Stecker aus der Wandsteckdose herauszuziehen.

– Auf das Gerät dürfen keine mit Flüssigkeiten gefüllte Behälter, wie etwa eine Vase, gestellt werden.

– Wenn der Schalter ausgeschaltet ist (OFF-

Position), ist das Gerät nicht vollständig vom

Stromnetz (MAINS) abgetrennt.

– Das Gerät sollte in der Nähe einer

Netzsteckdose aufgestellt werden, damit es leicht an das Stromnetz angeschlossen werden kann.

Sicherheitsvorkehrungen zum Umgang mit der Lampe

GEFAHR

Dieser Projektor verwendet SHP-Lampe, eine

Hochspannungsglaslampe mit Quecksilberdampf.

Die Lampe kann zerbrechen oder unter

Umständen nicht leuchten, falls Sie sie beim

Austauschen falsch handhaben oder infolge der

Umgebungstemperatur des Projektors.

Die Lampenlebensdauer variiert je nach Lampe, wobei einige Lampen möglicherweise gleich bei der ersten Verwendung zerbrechen oder nicht leuchten.

Falls eine Lampe zerbricht, können die Scherben in der Lampeneinheit und im Projektor verstreut werden; außerdem kann das durch das Zerbrechen der Lampe freigesetzte Gas, das Quecksilberdampf enthält, durch die Entlüftungsöffnungen des Projektors ausströmen.

Lesen Sie die Bedienungsanleitung des Projektors und die Anleitungen zum Austauschen der Lampe vor der ersten Inbetriebnahme aufmerksam durch. Bedenken

Sie bitte, dass sorgfältige Handhabung gefragt ist.

Sollten ernste Probleme auftreten, wenden Sie sich bitte an einen autorisierten Marantz-Fachhändler.

• Sehen Sie nicht mit den bloßen Augen direkt in die leuchtende Lampe. Das helle Licht der

Lampe kann zu schmerzenden Augen führen und die Sehkraft beeinträchtigen.

• Achten Sie darauf, dass das Licht der Lampe nicht direkt auf Ihre Haut trifft. Trifft das Licht direkt auf Ihre Haut, kann sich diese entzünden.

• Lassen Sie die Lampe nicht fallen, stoßen Sie sie nicht an, setzen Sie sie keine allzu großen

Kraftanwendung aus, und beschädigen Sie sie auch sonst nicht.

• Beim Austauschen der Lampe besteht die

Gefahr von Verbrennungen und Stromschlag.

Schalten Sie den Projektor daher aus, ziehen

Sie das Netzkabel aus der Steckdose und warten Sie mindestens 60 Minuten, damit sich die Lampe auskühlt, bevor Sie sie austauschen.

• Falls die Lampe zerbricht, ziehen Sie das

Netzkabel aus der Steckdose und wenden Sie sich an einen autorisierten Marantz-

Fachhändler, um die Lampe austauschen zu lassen. Versuchen Sie nicht selbst, die Lampe auszutauschen bzw. das zerbrochene Glas aus dem Projektor zu entfernen, da Sie sich dabei schneiden oder verbrennen bzw. das

Projektorinnere beschädigen könnten.

• Falls der Projektor an eine Decke gehängt oder an einem hoch gelegenen Ort installiert wird, ist das Austauschen der Lampe besonders gefährlich. Versuchen Sie in diesem

Fall nie, die beschädigte Lampe selbst auszutauschen oder zu handhaben.

VORSICHT

• Nach langem Gebrauch ist die Gefahr, dass die Lampe zerbricht, groß. Wir empfehlen, die

Lampe gegen Ende ihrer festgelegten

Lebensdauer auszutauschen. Verwenden Sie die Lampe nicht nach ihrer maximalen

Beleuchtungslebensdauer.

• Verwenden Sie nur die originellen Marantz-

Lampeneinheiten. Überprüfen Sie, ob der

Modellcode der Lampeneinheit mit dem in der

Bedienungsanleitung angeführten Code

übereinstimmt.

• Lesen Sie vor dem Austauschen der Lampe den Abschnitt “Austauschen der

Lampeneinheit” aufmerksam durch. Tauschen

Sie die Lampe so aus, wie es in diesem

Abschnitt beschrieben ist.

• Entsorgen Sie die Lampe gemäß den geltenden Umweltschutzregelungen bzw.

bringen Sie in das Geschäft zurück, in dem Sie sie erworben haben. Zerbrechen Sie die

Lampe nicht, um sie mit dem normalen

Hausmüll zu entsorgen.

• Sollte die Lampe zerbrechen, verlassen Sie den Arbeitsbereich unverzüglich und bleiben

Sie mindestens 30 Minuten von diesem Ort fern. Entlüften Sie den Raum gut, um den

Quecksilberdampf nicht einzuatmen.

• Sollten Sie versehentlich Quecksilberdampf einatmen, suchen Sie unverzüglichen einen

Arzt auf und befolgen Sie seine Anweisungen.

VP-15S1_U_cover 07.7.5 11:01 AM ページ8

ITALIANO

INTRODUZIONE

Leggete questa sezione prima di effettuare qualsiasi collegamento con la rete.

GARANZIA

L’apparecchio è coperto da una garanzia di buon funzionamento della durata di un anno, o del periodo previsto dalla legge, a partire dalla data di acquisto comprovata da un documento attestante il nominativo del Rivenditore e la data di vendita. La garanzia sarà prestata con la sostituzione o la riparazione gratuita delle parti difettose.

Non sono coperti da garanzia difetti derivanti da uso improprio, errata installazione, manutenzione effettuata da personale non autorizzato o, comunque, da circostanze che non possano riferirsi a difetti di funzionamento dell’apparecchio.

Sono inoltre esclusi dalla garanzia gli interventi inerenti l’installazione e l’allacciamento agli impianti di alimentazione.

Gli apparecchi verranno riparati presso i nostri

Centri di Assistenza Autorizzati. Le spese ed i rischi di trasporto sono a carico del cliente.

La casa costruttrice declina ogni responsabilità per danni diretti o indiretti provocati dalla inosservanza delle prescrizioni di installazione, uso e manutenzione dettagliate nel presente manuale o per guasti dovuti ad uso continuato a fini professionali.

REGOLAZIONE DELLA TENSIONE DI

FUNZIONAMENTO DELL’APPARECCHIO

Il vostro apparecchio Marantz è stato predisposto per l’adattamento alla tensione ed alle norme di sicurezza esistenti nella vostra zona.

VP-12S4 può essere alimentato soltanto da corrente alternata a 230 V.

DIRITTI D’AUTORE

La registrazione e la riproduzione di certi materiali necessita di un permesso.

Per ulteriori informazioni consultate quanto segue:

Copyright Act 1956

Dramatic and Musical Performers Act 1972

Qualsiasi legge o normativa successiva

AVVERTENZE

– Non esporre l’apparecchio alla pioggia o all’umidità.

– Non rimuovere il coperchio dell’apparecchio.

– Non introdurre oggetti all’interno dell’apparecchio attraverso i fori di ventilazione.

Downloaded From projector-manual.com Marantz Manuals

– Non toccare il cavo di alimentazione con le mani bagnate.

– Non coprire le fessure di ventilazione con tovaglie, giornali, tende od oggetti analoghi.

– Non posare sull'apparecchio sorgenti di fiamme scoperte quali candele accese.

– Smaltire le pile usate in conformità alle norme governative o disposizioni ambientali vigenti nel proprio paese o zona.

– Lasciare 0,2 metro liberi tutto intorno l'unità.

– Se il proiettore viene montato sul soffitto, si deve usare per l'installazione il Corredo di installazione sul soffitto della MARANTZ.

– Non guardare nel proiettore quando questo è acceso. Ciò può danneggiarvi la vista.

– Se si prevede di non doverlo usare per qualche tempo, scollegare il proiettore dalla presa di corrente.

– Non mettere sull'apparecchiatura alcun contenitore di liquido, come ad esempio dei vasi.

– Quando l'interruttore è nella posizione OFF, l'apparecchiatura non è completamente scollegata da MAINS.

– L’apparecchio va installato in prossimità della fonte di alimentazione, in modo che quest’ultima sia facilmente accessibile.

Precauzioni d'uso della lampada

PERICOLO

Questa è una lampada SHP di vetro a vapori di mercurio ad alta tensione. Potrebbe rompersi o guastarsi se non viene maneggiata correttamente durante la sostituzione o se il proiettore è soggetto a una temperatura eccessiva.

La durata delle lampade è variabile ed alcune potrebbero addirittura rompersi o non accendersi la prima volta che vengono utilizzate. Se la lampada si rompe, le schegge di vetro potrebbero venire sparse all'interno dell'unità lampada e del proiettore e il gas all'interno della lampada, che contiene vapori di mercurio, potrebbe essere espulso dalle aperture di ventilazione del proiettore.

Prima dell'uso, leggere con attenzione la guida d'uso del proiettore e le istruzioni di sostituzione della lampada. Maneggiare sempre la lampada con attenzione. Nel caso di guasti gravi, rivolgersi al rivenditore autorizzato Marantz.

• Non guardare direttamente verso la lampada accesa a occhio nudo. La luce intensa può abbagliare e danneggiare la vista.

• Non esporre direttamente la pelle alla luce della lampada. L'esposizioni diretta potrebbe irritare la pelle.

• Non far cadere, urtare o sottoporre a forza eccessiva, altrimenti si guasta la lampada.

• La sostituzione della lampada comporta il rischio di bruciature e scosse elettriche, perciò prima di sostituirla, spegnere l'alimentazione, scollegare il cavo di alimentazione c.a. dalla corrispondente presa e attendere almeno 60 minuti che la lampada si raffreddi.

• Se la lampada si rompe, scollegare il cavo di alimentazione c.a. dalla corrispondente presa e chiamare il rivenditore autorizzato Marantz affinché la sostituisca. Non sostituirla personalmente, né raccogliere le schegge di vetro nel proiettore per non subire tagli o bruciature e non danneggiare l'interno del proiettore.

• Se il proiettore è appeso al soffitto o installato in una posizione elevata, è molto pericoloso sostituire la lampada. In questo caso, non sostituire o maneggiare la lampada guasta personalmente.

ATTENZIONE

• La probabilità che la lampada si rompa è elevata dopo che è stata usata per molto tempo. Si consiglia di sostituire la lampada quando si avvicina al termine della vita utile.

Non usare la lampada oltre il limite della vita utile.

• Usare unicamente lampade Marantz originali.

Verificare che il codice del modello dell'unità lampada corrisponda a quello indicato nella guida dell'utente.

• Prima di sostituire la lampada, leggere con attenzione "Sostituzione dell'unità lampada" nella guida per l'utente. Sostituire la lampada come indicato in tali istruzioni.

• Incaricare dello smaltimento della lampada usata un apposito servizio di smaltimento di rifiuti industriali oppure restituirla al rivenditore.

Non rompere la lampada o gettarla con i rifiuti normali.

• Se la lampada si rompe, lasciare il locale immediatamente e non farvi ritorno per almeno

30 minuti; arieggiare il locale in modo da non inalare i vapori di mercurio.

• Se vengono inalati i vapori di mercurio, rivolgersi immediatamente a un medico e seguirne le istruzioni.

SUOMI

VARO

Laite on liitettava suojamaadoitus-koskettimilla varustettuun pistorasiaan.

KONGERIKET NORGE

FORSIKTIG

Apparatet ma tilkoples jordet stikkontakt.

SVENSKA

OBSERVERA

Apparaten skall anslutas till jordat uttag.

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ1

TABLE OF CONTENTS

IMPORTANT SAFEGUARDS ................................................................................................2

Caution Concerning the Setup of the Projector........................................................................2

Caution Concerning the Lamp Replacement ...........................................................................2

Caution Concerning the Lamp Unit ..........................................................................................2

Notes on Operation ...................................................................................................................2

FEATURES ............................................................................................................................3

ACCESSORIES......................................................................................................................3

PROJECTOR LAYOUT AND FUNCTIONAL OVERVIEW ....................................................4

Front and Top View ...................................................................................................................4

Rear and Terminals View ..........................................................................................................5

Bottom View ..............................................................................................................................5

Remote Controller .....................................................................................................................6

Remote Controller Operational Range ......................................................................................8

Preparing the Remote Controller...............................................................................................8

CONNECTION........................................................................................................................9

Connection with AC Power Supply............................................................................................9

Connection with Video Equipments...........................................................................................9

Connection with a HD-Video, DVD Player, Satellite, Cable Tuner or PC................................10

Advanced Connection .............................................................................................................10

INITIAL SETTING.................................................................................................................11

Turning on the Power ..............................................................................................................11

Zooming and Focusing............................................................................................................11

Detail Focusing........................................................................................................................11

Adjusting the Image Position...................................................................................................12

Adjusting the Height ................................................................................................................12

Keystone Correction................................................................................................................12

INSTALLATION ...................................................................................................................13

Recommended Setting............................................................................................................13

Screen Size and Projection Distance (inch) VP-15S1............................................................14

Screen Size and Projection Distance (mm) VP-15S1 ............................................................14

Screen Size and Projection Distance (inch) VP-15S1L..........................................................15

Screen Size and Projection Distance (mm) VP-15S1L ..........................................................15

Lens shift position VP-15S1 ...................................................................................................16

Lens shift position VP-15S1L .................................................................................................17

BASIC OPERATIONS..........................................................................................................18

Turning on the Power ..............................................................................................................18

Selecting the Input Signal Source ...........................................................................................18

Selecting the Aspect Mode......................................................................................................18

The Screen Images in a 16:9 screen ......................................................................................19

Downloaded From projector-manual.com Marantz Manuals

The Screen Images in a 4:3 screen ........................................................................................20

To Turn off the Power..............................................................................................................20

OPERATIONS ......................................................................................................................21

Menu Structure........................................................................................................................21

Functions by Signal .................................................................................................................22

Picture Mode ...........................................................................................................................24

How to Operate Menus ...........................................................................................................24

Picture Adjust ..........................................................................................................................25

Fine Menu 1 ............................................................................................................................26

Fine Menu 2 ............................................................................................................................26

Input Signal .............................................................................................................................27

RGB/HD Adjust .......................................................................................................................27

HDMI .......................................................................................................................................28

Display.....................................................................................................................................28

OSD/Blanking..........................................................................................................................29

Configration .............................................................................................................................30

MAINTENANCE ...................................................................................................................31

Lamp Life and Replace Lamp .................................................................................................31

Replacing Lamp Unit ...............................................................................................................31

Cleaning the Lens ...................................................................................................................33

Replacement Parts..................................................................................................................33

Optional Accessories...............................................................................................................33

TROUBLESHOOTING .........................................................................................................34

ERROR MODE .....................................................................................................................35

ON SCREEN MESSAGE .....................................................................................................35

GLOSSARY..........................................................................................................................35

SPECIFICATIONS................................................................................................................36

DIMENSIONS .......................................................................................................................37

VP-15S1 ..................................................................................................................................37

VP-15S1L ................................................................................................................................37

– For Europe –

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. This product and the accessories packed together are the applicable product to the WEEE directive except batteries.

Please dispose of any materials in accordance with your local recycling regulations.

When discarding the unit, comply with your local rules or regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

1

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ2

IMPORTANT SAFEGUARDS

Caution Concerning the Lamp Replacement

There is potential glass particle hazard if the lamp ruptures.

Caution Concerning the Lamp Unit

There is a potential hazard of glass particle if the lamp ruptures.

In case of lamp rupture,contact your nearest Marantz Authorized Dealer or Service Center for a replacement.

See “Replacing Lamp Unit”. (

P.31)

Caution Concerning the Setup of the Projector

For minimal servicing and to maintain high image quality, avoid humidity, dust and cigarette smoke.

When the projector is subjected to these environments,the lens and part of ventilation holes must be cleaned more often than usual. As long as the projector is properly maintained in this manner, use in these environments will not reduce the overall operation life. Please note that all internal cleaning must be performed by an Marantz Authorized Dealer, or Service Center.

• Do not expose the projector to extreme heat or cold.

Operating temperature:41 °F to 95 °F (+5 °C to 35 °C)

Storage temperature:–4 °F to 140 °F (–20 °C to +60 °C)

95˚F

(+35˚C)

41˚F

(+5˚C)

WARNING

THIS COVER IS PROVIDED WITH

INTERLOCK TO REDUCE THE RISK OF

EXCESSIVE ULTRAVIOLET RADIATION.

DO NOT DEFEAT ITS PORPOSE OR

ATTEMPT TO SERVICE WITHOUT

REMOVING COVER COMPLETELY.

For USA

WARNING

THIS COVER IS PROVIDED WITH

INTERLOCK TO REDUCE THE RISK OF

EXCESSIVE ULTRAVIOLET RADIATION.

DO NOT DEFEAT ITS PORPOSE OR

ATTEMPT TO SERVICE WITHOUT

REMOVING COVER COMPLETELY.

For Europe

CAUTION HOT

UNPLUG THE POWER CORD AND

WAIT 60 MINUTES BEFORE

CHANGING THE LAMP.

ATTENTION CHAUD

DEBRANCER LE CORD ON

D'ALIMENTION ET ATENDER 60

MINUTES AVANT DE CHANGER

LAMPE.

WARNUNG HEISS

ZIEHEN SIE DEN NETZSTECKER

AB UND WARTEN SIE 60 MINUTEN,

BEVOR SIE DIE GLUHLAMPE

WECHSELN.

CAUTION : HIGH PRESSURE LAMP

MAY EXPLODED IF IMPROPERLY HANDLED.

CAUTION HOT : UNPLUG

THE POWER CORD AND WAIT

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

60 MINUTES BEFORE CHARGING

THE LAMP.

MODEL NO. VP-16S1 / U1M

AC 120V 60HZ 2.0A

ATTENTION : LA LAMPE SOUS

HAUTE PRESSION PEUT SI ELLE, N'EST

PAS MANIPULEE CORRECTEMENT,

CONFIER L'OPERATION A UN

PERSONNEL D'ENTRETIEN QUALIFIE.

ATTENTION CHAUD :

DEBRANCER LE CORD ON

D'ALOMENTION ET ATENDER

60 MINUTES AVANT DE

CHANGER LAMPE.

SERIAL NO.

Notes on Operation

For USA

CAUTION :

HIGH PRESSURE LAMP

MAY EXPLODED IF IMPROPERLY HANDLED.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

CAUTION HOT :

UNPLUG

THE POWER CORD AND WAIT

60 MINUTES BEFORE CHARGING

THE LAMP.

ATTENTION :

LA LAMPE SOUS

HAUTE PRESSION PEUT SI ELLE, N'EST

PAS MANIPULEE CORRECTEMENT,

CONFIER L'OPERATION A UN

PERSONNEL D'ENTRETIEN QUALIFIE.

ATTENTION CHAUD :

DEBRANCER LE CORD ON

D'ALOMENTION ET ATENDER

60 MINUTES AVANT DE

CHANGER LAMPE.

SERIAL NO.

• The exhaust ventilative hole, the lamp cage cover and adjacent areas may get extremely hot during projector operation. To prevent injury,do not touch these areas until they have sufficiently cooled down.

• Allow at least 1 foot (30 cm)of space between the exhaust ventilative hole and the nearest wall or obstruction.

• If the cooling fan becomes obstructed, a protection device will automatically turn off the projector lamp.

least 10 minutes.

Then turn on the power by plugging the power cord back in. This will return the projector to the normal operating condition.

MADE IN JAPAN

FABRIQUE AU JAPON

For Europe

CAUTION

HIGH PRESSURE LAMP MAY EXPLODED IF

IMPROPERLY HANDLED. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

ATTENTION

LA LAMPE SOUS HAUTE PRESSION PEUT

EXPLOSER SI ELLE, N'EST PAS MANIPULEE

CORRECTEMENT, CONFIER L'OPERATION

A UN PERSONNEL D'ENTRETIEN QUALIFIE.

VORSICHT :

BEI FALSCHER HANDHABUNG

KANN DIE HOCHDRUCKLAMPE

EXPLODIEREN UBERLASSEN

SIE WARTUNGSARBEITEN

NUR FACHPERSONAL.

M

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ3

FEATURES

Incorporates the latest DLP ® chip -- “1080p DLP ® ” (1920 x 1080 pixel, 16:9 wide panel). Using an optimized system for movie viewing with specially designed image circuits and optical parts, the VP-

15S1 bring high color reproduction with the pitch black of movie films that reproduces images in rich tones and crisp black.

Images are sharply detailed, smooth and high quality owing to a powerful chip that builds into a dedicated processor an image processing IC featuring Gennum’s proud “VXP TM ” high quality contouring technology, “TruMotionHD TM ”, “FineEdge TM ”, “RealityExpansion TM ” and “FidelityEngine TM ”.

Konica Minolta optical system custom-made for Marantz.

A large 98mm 6-segment color wheel.

4 Picture Modes (Theater, Standard, Dynamic, User)

5 built-in preset gammas

Fine-adjustment menus that allow the user to adjust images as they like

18 user menus for saving adjusted images

Color temperature setting (5250K, 5800K, 6500K, 7500K, 9300K)

Black level adjustment

Supports input of NTSC, PAL, SECAM and satellite broadcasts (480i/p, 540p, 576i/p, 720p, 1035i,

1080i/p).

Rich array of input jacks including HDCP supporting HDMI digital input jack and dual system component jacks

1.45x zoom lens

Lens shift feature for vertically positioning the projection point

Digital correction of vertical keystone distortion

Projection modes for functional, hanging and rear projection

Remote controller with all back-lit keys

Equipped with RS-232C port and 12V trigger terminal for custom installation

Marantz system bus port

Low operating noise thanks to a die-cast silent duct, hermetically sealed color wheel motor and fan speed control

Highly rigid die-cast chassis to minimize radiating noise

2000 hr long-life 200W SHP lamp with double-shielded safety structure

ACCESSORIES

• Lens Cap x 1

• Remote Controller x 1

STANDBY ON

IRIS LAMP C.TEMP

COMP.1

COMP.2

S-VIDEO

C1 C2 S

HDMI 1

H1

AUX 1

A1

HDMI 2

H2

AUX 2

A2

VIDEO

V

RGB

GAMMA

USER

G1

G2

G3

THTR

STD DYN G4

B1

V-MUTE

BLANKING

B2 B3

MENU

M

OFF

ENTER INPUT

A

ASPECT

I

INFO.

CINEMA VCR MODE BLACK LEVEL

BLACK

PATTERN

FULL NOR ZOOM THRU

• AAA Size Batteries x 2

Digital Light Processing, DLP, DLP logo and DLP Medallion logo are registered trademarks of Texas

Instruments.

VXP, Visual Excellence Processing and the VXP Logo are trademarks or registered trademarks of

Gennum Corporation.

– All trademarked product names mentioned in this manual are the property of their respective companies.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

• AC Power Code

For USA

00MZC01802110

For Europe

00MZC02003190

• User Guide x 1

• Warranty Card

(1 copy each for USA, CANADA)

Comes with USA model only.

Downloaded From projector-manual.com Marantz Manuals

3

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ4

PROJECTOR LAYOUT AND FUNCTIONAL OVERVIEW

Front and Top View

!3

!0

ON indicator

Lights up blue when power is ON. When power is shut OFF, the lamp flashes for about 1 minute before going out.

!1

STANDBY indicator

Lights up green when the projector is on standby.

!2

WARNING/LAMP indicator

Flashes or lights up when something is wrong with the lamp cover, lamp, fan, or temperature inside the projector.

For more information on the error mode, see the

“Error Mode List” (

P.35)

!3

Ventilation holes (intake)

!4

Ventilation holes (exhaust)

Projection

Lens

Notes:

• Do not place anything near the ventilation holes to avoid overheat inside the unit.

• Do not place your hand or objects near the ventilation holes; the air is coming out.

!4

IR sensor

q

Focus ring (

P.11)

Adjust the picture focus.

w

Zoom ring (

P.11)

Adjust the size of the projected image.

e

Lens Shift knob (

P.12)

Manually adjust the position of the image vertically.

r

/ I button (

P.18)

Press to turn the projector ON or STANDBY mode. t

MENU button (

P.21)

Display the on-screen menu.

y

ENTER button

Press to enter the selected menu item.

u

INPUT SELECT button (

P.18)

Selects the input signal (COMPONENT 1,

COMPONENT 2, S-VIDEO, VIDEO, RGB, HDMI 1 and HDMI 2).

i

PATTERN button (

P.11)

Projects a focus pattern on the screen.

o

The

3

/

4

/

1

/

2

buttons

Control the MENU cursor.

Note: Pixel defects

DLP ® chip is one of the most advanced technologies for consumer products. The

DLP ® chip made by high precision technology, however some pixel defects may be found on the projected image. We are trying our best to control the quality in order to reduce the number of defective pixels. It is almost impossible to have zero pixel defects, even using the most advanced technology. This is not a problem only for Marantz, but all DLP

® projector manufactures. Therefore we have to note that the warranty does not cover the

DLP ® chip for pixel defects. We appreciate your understandings.

Note: Lamp

SHP lamp is one of the most advanced technologies for consumer products. The lamp made by high precision technology, however some lamps might be failing before it reaches its life. And projector’s brightness is getting darker along with accumulated lamp usage hours. We are trying our best to control the quality in order to reduce lamp failures. It is almost impossible to have zero failure, even using the most advanced technology. This is not a problem only for Marantz, but all projector manufactures. Therefore we have to note that the warranty does not cover the SHP lamp for lamp failures: explosion, and nonlighting except initial use. And also we have to note that the warranty does not cover the SHP lamp for lamp failures: flickering, and getting darker along with accumulated lamp usage hours. We appreciate your understandings.

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ5

Rear and Terminals View

IR sensor

Ventilation holes

(exhaust)

Ventilation holes (intake)

Bottom View

Ventilation holes (intake)

x z

Lamp cover

Lamp cover securing screw

Adjustable feet

z x

Adjustable feet

z

AC IN (

P.9)

Connect the supplied AC power code.

x

RGB IN

Connect the analog RGB output from an IBM VGA or compatible equipment.

c

COMPONENT VIDEO IN 1 and 2

Terminals 1 and 2 have each Y, P

B

/C

B

, P

R

/C

R terminals. Connect them to the component video output of a video device, AV amp/processor, DVD player, etc.

v

S-VIDEO IN

Connect the S-VIDEO output from a video equipment.

b

VIDEO IN

Connect the composite video output from a video equipment.

n

TRIG.1(TRIGGER 1)

When the unit is turned on, 12V is output. When the unit is turned off, no voltage is output. This allows such as a powered up/down screen,whenever the projector is turned on or off.

,

TRIG.2(TRIGGER 2)

Select ON or OFF at each aspect mode, such as

Full, Normal, Zoom, V-Stretch and Through to control screen aspect ratio with powered up/down dual aspect ratio screen.

Note:

• Do not use TRIG.1, as the power source.

• To connect with external devices, use an ordinal 3.5mm mini-plug (mono) cable.

m

REMOTE IN/OUT

By connecting this projector to another Marantz audio component using a supplied System Control cable, you can remotely operate the components as a single system.

• When connecting to component with a remote sensor (such as the SR9500,SR8500), be sure to connect the "REMOTE CONTROL IN" jack of this projector to the "REMOTE CONTROL

OUT" jack of the component with the remote sensor.

.

HDMI IN 1 and 2

Connect the digital signal (TMDS compliant, single link only)

Note:

To use the HDMI terminal, please follow the cautions on page 10.

⁄0

RS-232C

This is the control port for the custom installer.

Note:

For connections, use the control adaptor cable.

(Mini jack to RCA)

Notes:

• Do not use TRIG.2, as the power source.

• To connect with external devices, use an ordinal 3.5mm mini-plug (mono) cable.

z

Adjustment lever (

P.12)

Lift the projector and turn the adjustment lever right or left. The adjustable feet will extend from the projector. Then, release the lever, the adjustable feet is locked.

x

Screw holes for ceiling mount kit

Downloaded From projector-manual.com Marantz Manuals

5

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ6

Remote Controller

a

STANDBY ON

s d f g h j k l ¡ 0 ¡ 1

¡ 2 ¡ 3 ¡ 4

¡ 5 ¡ 6 ¡ 7

IRIS LAMP C.TEMP

GAMMA

COMP.1

C1

COMP.2

S-VIDEO

C2 S

USER

G1

HDMI 1

H1

HDMI 2

H2

VIDEO

V G2

AUX 1

A1

AUX 2

A2 RGB G3

THTR STD DYN G4

B1

V-MUTE

BLANKING

B2 B3

MENU

M

OFF

¡ 8 ¡ 9 ™0 ™1

™2

™3

™4

™5

™6

™7 ™8

ENTER

INPUT

A

ASPECT

I

INFO.

CINEMA VCR MODE BLACK LEVEL

BLACK

PATTERN

FULL NOR ZOOM THRU

REMOTE CONTROLLER

RC-11VPS1

™9

£8

£9

¢0

¢1

£0

£1

£2

£3

£4

£5

£6

£7 a

STANDBY button (

P.20)

Turn the projector off.

s

IRIS button

Switches lens and illumination aperture.

d

LAMP button

Switches the lamp between the normal and energy-saving modes.

f

C.TEMP button

Sets color temperature to 1, 2, 3, 4, 5 or HB.

g

GAMMA button

Sets the gamma curve to Theater, Standard,

Dynamic, A, B, C, D or E, when the picture mode is set to User.

h

COMP. 1 (Component video in 1) button (

P.18)

Selects the device connected to the COMPONENT

VIDEO IN 1 jack as the input source.

j

COMP. 2 (Component video in 2) button (

P.18)

Selects the device connected to the COMPONENT

VIDEO IN 2 jack as the input source.

k

S-VIDEO button (

P.18)

Select the S-VIDEO IN signal.

l

HDMI 1 button (

P.18)

Select the HDMI 1 IN signal.

¡0

HDMI 2 button (

P.18)

Select the HDMI 2 IN signal.

¡1

VIDEO button (

P.18)

Select the VIDEO IN signal.

¡2

A1 button

This button does not work with this projector.

¡3

A2 button

This button does not work with this projector.

¡4

RGB button (

P.18)

Select the RGB IN signal.

¡5

THEATER (THTR) button (

P.24)

Select the Theater picture mode.

Theater mode is designed for high fidelity black appearance and is good for movie pictures.

Every time THTR button is pressed, the selection rotates in the order of Theater 1

Theater 2

Theater 3

Default.

¡6

STANDARD (STD) button (

P.24)

Select the STANDARD picture mode.

Standard mode is good for normal pictures.

Every time the button is pressed, the selection rotates in the order of Standard 1

Standard 2

Standard 3

Default.

¡7

DYNAMIC (DYN) button (

P.24)

Select the Dynamic picture mode.

Dynamic mode is good for visually dynamic pictures.

Every time the button is pressed, the selection rotates in the order of Dynamic 1

Dynamic 3

Default.

Dynamic 2

¡8

B1 button (

P.29)

Selects Blanking Memory 1.

¡9

B2 button (

P.29)

Selects Blanking Memory 2.

™0

B3 button (

P.29)

Selects Blanking Memory 3.

™1

OFF button (

P.29)

Turns the blanking mode off.

™2

V-MUTE button

Turn the picture into black. Press again to resume.

™3

3

/

4

/

1

/

2

/ ENTER buttons

Press the cursor buttons (

3

[UP],

4

[DOWN],

1

[LEFT],

2

[RIGHT]) to select menu items. Press the ENTER button to enter the selected menu item.

™4

ASPECT (Aspect select) button

(

P.18)

Selects the aspect ratio. Every time the button is pressed, the selection rotates in the order of Full

Normal

Zoom

V-Stretch

Through.

™5

VCR MODE button (

P.26)

Turns the VCR mode on and off.

™6

CINEMA button (

P.26)

Turns the 2-3 pull down mode on and off.

™7

FULL button (

P.18)

Sets aspect ratio to full mode.

™8

NORMAL button (

P.18)

Sets aspect ratio to normal mode.

™9

ON button (

P.18)

Turn the projector on.

£0

USER G1 button (

P.24)

Selects the user mode.

The user mode is for enjoying images at a userselected gamma curve.

Every time the button is pressed, the selection rotates in the order of User 1

User 2

User 3.

For more information on how to select gamma curve. (

P.25)

£1

USER G2 button (

P.24)

Selects the user mode.

The user mode is for enjoying images at a userselected gamma curve.

Every time the button is pressed, the selection rotates in the order of User 4

User 5

User 6.

For more information on how to select gamma curve. (

P.25)

£2

USER G3 button (

P.24)

Selects the user mode.

The user mode is for enjoying images at a userselected gamma curve.

Every time the button is pressed, the selection rotates in the order of User 7

User 8

User 9.

For more information on how to select gamma curve. (

P.25)

£3

USER G4 button

This button does not work with this projector.

£4

LIGHT button

Lights all buttons for about 10 sec.

£5

MENU button (

P.21)

Display the on-screen menu.

If pressed again, the on-screen menu disappears.

£6

INFO. button (

P.31)

Turn the information menu on or off.

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ7

£7

INPUT (Input signal select) button (

P.18)

Selects the input signal. Every time the

3

/

4 buttons are pressed, the input signal rotates in the order of COMPONENT 1

COMPONENT 2

S-

VIDEO

VIDEO

RGB

HDMI 1

HDMI 2.

£8

BLACK LEVEL button (

P.26)

Sets the black level.

During analog signal input ......0 IRE/7.5 IRE

During HDMI signal input ........Expand/Normal

£9

PATTERN button (

P.11)

Projects a focus pattern on the screen.

¢0

ZOOM button (

P.18)

Sets aspect ratio to zoom mode.

¢1

THROUGH button (

P.18)

Sets aspect ratio to through mode.

Downloaded From projector-manual.com Marantz Manuals

7

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ8

Remote Controller Operational Range

Operate the remote controller within a distance of approximately 5m from the IR sensor (remote sensor) on the projector.

Remote control operation may not be possible if the remote control unit’s transmitter is not pointing in the direction of the remote sensor or if there is an obstruction between the transmitter and the remote sensor.

Preparing the Remote Controller

1.

Take the cover off the battery case on the remote control backside.

Battery case cover

Notes :

• Do not mix alkaline and manganese batteries.

• Do not mix old and new batteries.

Remote

Controller

Remote

Controller

5m 60

5m

60

VP-15S1

VP-15S1

Remote

Controller

120

5m

60

5m

Remote

Controller

Remote

Controller

2.

Insert two AAA size batteries.

Make sure the polarities match the + and – marks inside the battery compartment.

AAA size batteries

3.

Reattach the battery case cover as before.

Battery case cover

CAUTIONS ON BATTERIES

• Use AAA alkaline batteries in this remote controller.

• If the remote control unit does not operate from close to the main unit, replace the batteries with new ones, even if less then a year has passed.

• The included battery is only for verifying operation. Replace it with a new battery as soon as possible.

• When inserting the batteries, be careful to do so in the proper direction, following the + and - marks in the remote control unit’s battery compartment.

• To prevent damage or battery fluid leakage:

- Do not use a new battery with an old one.

- Do not use two different types of batteries.

- Do not short-circuit, disassemble, heat or dispose of batteries in flames.

• Remove the batteries when not planning to use the remote control unit for a long period of time.

• If the batteries should leak, carefully wipe off the fluid from the inside of the battery compartment, then insert new batteries.

• When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rules that apply in your country or area.

5m

60

VP-15S1

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ9

CONNECTION

When making connections be sure to:

• Turn off all equipment before making any connections.

• Use the proper cables for each connection.

• Securely insert the plug into the port to connect cables. Loose cables can lead to trouble and damage.

When pulling out a cable:

• Be sure to grab the plug, not the cable itself.

Connection with Video Equipments

You can connect this projector to a VCR, DVD player and other video equipment.

Connecting a video source using S-VIDEO IN and VIDEO IN terminals.

1.

Connect one of the S-video cable to the S-VIDEO IN terminal, or one end of the video cable to the VIDEO

IN terminal on the projector.

2.

Connect the other end of the S-video cable or the video cable to the S-video output terminal or video output terminal of the video source.

Connecting a DVD player to the COMPONENT VIDEO IN 1 or 2 terminal

(Devices can be connected to both terminals at the same time.)

1.

Connect the individual terminals of the component video cable into the COMPONENT VIDEO IN 1 or 2 terminal of the projector.

2.

Connect the other end of the cable to the corresponding terminals on a DVD player.

Connection with AC Power Supply

Connect the supplied AC power cord into the AC IN socket of the projector.

The STANDBY indicator lights up and the projector goes into the standby mode.

Note :

Make sure the AC power cord is firmly connected into the AC IN socket.

Component cable

(commercially available)

COMPONENT VIDEO OUT

STANDBY FL OFF

DVD Player

Component cable

(commercially available)

COMPONENT VIDEO OUT

STANDBY FL OFF

DVD Player

S-video cable (commercially available)

S-VIDEO OUT

SUOMI

VARO

Laite on liitettava suojamaadoitus-koskettimilla varustettuun pistorasiaan.

Video cable

(commercially available)

VIDEO OUT

VCR

KONGERIKET NORGE

FORSIKTIG

Apparatet ma tilkoples jordet stikkontakt.

SVENSKA

OBSERVERA

Apparaten skall anslutas till jordat uttag.

Downloaded From projector-manual.com Marantz Manuals

9

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ10

Connection with a HD-Video, DVD Player, Satellite, Cable Tuner or PC

You can connect this projector to HD-Video /PC using RGB IN port, or DVD Plyer /Satellite /Cable Tuner

/PC using HDMI IN port.

1.

Connect one end of the RGB cable to the RGB IN port, or one end of the HDMI cable to the HDMI IN port on the projector.

2.

Connect the other end to the corresponding port on a HD-Video, Satellite, Cable Tuner or personal computer.

3.

If using DVI-A or DVI-D output, use respectively a DVI-A-RGB or DVI-D-HDMI conversion cable.

Advanced Connection

You can control total home theater system using PC or Marantz receiver equipment.

For installing below system, consult with Marantz authorized dealer.

RS-232C cable

(female-female, straight type, commercially available)

RS-232C

Note :

When projecting a video image from a device connected to the HDMI terminal, follow the procedure below.

1. Turn on power of this unit. (

P.18)

2. Set the input video source to HDMI input. (

P.18)

3. Turn on power of the device connected to the HDMI terminal of the unit (i.e. DVD player).

If the procedure above is not followed, projected image may corrupt.

For the details of the HDMI terminal on the device connected with the unit, see the instruction manual of the device.

External Controller

Screen

3.5mm Mini Plug (Mono)

(commercially available)

RGB (D-Sub monitor) cable

(commercially available)

DVI-D out

DVI-A OUT

DVI-D OUT or

HDMI OUT

HD-Video / Satellite /

Cable Tuner / DVD Player

Monitor output

RGB out or or

DVI-D out

DVI-D out

Control Adapter cable

(commercially available)

REMOTE CONTROL IN

REMOTE CONTROL OUT

Control Adapter cable

(commercially available)

Receiver equipment

HDMI-HDMI cable or HDMI-DVD-D cable

(commercially available)

IBM VGA or

Compatible PC

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ11

INITIAL SETTING

Turning on the Power

1.

Connect the supplied AC power cord. (

P.9)

2.

Press the ON button on the remote controller or the / I button on the projector.

The ON indicator lights up.

STANDBY ON

IRIS LAMP C.TEMP

GAMMA

COMP.1

C1

HDMI 1

H1

AUX 1

A1

COMP.2

C2

S-VIDEO

S

HDMI 2

H2

AUX 2

A2

VIDEO

V

RGB

USER

G1

G2

G3

THTR STD DYN G4

Zooming and Focusing

Project an image on the screen roughly at first.

1.

Turn the Zoom ring and adjust to the desired size within the zoom range.

WIDE: Enlarges (zooms in) the projected image.

TELE: Reduces (zooms out) the projected image.

2.

Turn the Focus ring until the image on the screen becomes clear.

WIDE

Detail Focusing

You can strictly focus the image with focus pattern.

1.

Press the PATTERN button to project the focus pattern on the screen.

V-MUTE MENU

M

ENTER INPUT

A

ASPECT

CINEMA

I

INFO.

VCR MODE BLACK LEVEL PATTERN

BLACK

FULL NOR ZOOM THRU

2.

Turn the Focus ring to make an adjustment.

Adjust the focus for the sharpest image possible to obtain, using focus pattern.

TELE

1.

2.

3.

Press the PATTERN button again to hide the focus pattern. This completes fine focusing.

Note :

Focus Pattern Color by Lens Shift Position (

P.16)

The focus pattern changes color depending on the lens position. There are two colors and they can be used for checking the quality of the projected image. The white focus pattern uses the highest optical performance to maximize the sharpness of the projected image. To enjoy the highest sharpness, it is recommended to position the lens within this range.

When the lens is shifted outside the aforementioned range, the focus pattern turns green. Rough focusing in this range looses image sharpness.

Adjusting the zoom position from WIDE to TELE enhances sharpness even at the same lens position.

Downloaded From projector-manual.com Marantz Manuals

11

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ12

Adjusting the Image Position

You can adjust the image position with the Lens Shift knob.

Turn the Lens Shift knob to clockwise : The image goes up.

Clockwise

Up

Turn the Lens Shift knob to counterclockwise : The image goes down.

Counterclockwise

Adjusting the Height

You can position the projected image by changing the height of the projector’s adjusters.

1.

Move the adjuster lever to the left or right to enable adjuster changing. Carefully lift the projector.

2.

Once having positioned the projector, return the adjuster lever as before to lock in place. Check the adjusters are securely locked before releasing your hands from the projector.

3.

Turn the adjuster to fine-adjust the height.

Returning the Projector to its Initial Position

Slightly lift the projector, turn the adjuster lever to the left or right, then carefully set the projector down.

Keystone Correction

When the projecting image is a trapezoid, correct it in Keystone and in the Display Menu.

See “Display”. (

P.28)

When using the keystone feature to correct a trapezoidal image, picture contours can look like staircases because of image correction.

Keystone

(Electronic keystone correction)

Down

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ13

INSTALLATION

Recommended Setting

Installing on a tabletop

Screen

Screen upper end

Range from light axis to upper end

Light axis (center)

Installing level

Screen lower end

Height from installing level to light axis

Projection distance lens head

Mounting on the ceiling

Screen

Screen upper end

Range from light axis to upper end

Light axis (center)

Height from installing level to light axis

Screen lower end

Projection distance lens head

CAUTION

– For ceiling installation, consult with Marantz authorized dealer.

– Do not look into the lens when the projector is turned on. It could damage your eyesight.

Downloaded From projector-manual.com Marantz Manuals

13

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ14

Screen Size and Projection Distance (inch) VP-15S1

Screen size

(Diagonal)

Screen Size and Projection Distance (mm) VP-15S1

Screen size

(Diagonal)

Projection distance

16 : 9 Screen

In case of displaying the 16:9 picture on the whole of the

16:9 screen.

Width

: Image size = Screen size

16:9 Screen Size (1.77:1 Aspect Ratio) Projection Distance

Diagonal Width Height Minimum Maximum inch inch inch inch inch

70

72

80

82

84

61

62 12/16

69 12/16

71 8/16

34 5/16

35 5/16

39 4/16

40 3/16

88 6/16

90 15/16

101 5/16

103 14/16

129 1/16

132 13/16

147 13/16

90

92

100

73 3/16

78 7/16

80 3/16

41 3/16

44 2/16

45 2/16

106 7/16

114 3/16

116 13/16

151 9/16

155 5/16

166 8/16

106

110

120

87 3/16

92 6/16

95 14/16

49

51 15/16

53 15/16

127 2/16

134 14/16

140 1/16

170 4/16

185 4/16

196 7/16

123

133

135

104 9/16

107 3/16

115 15/16

58 13/16

60 5/16

65 3/16

153

156 14/16

169 12/16

203 15/16

222 11/16

228 4/16

150

170

200

250

117 11/16

130 12/16

148 3/16

174 5/16

217 14/16

66 3/16

73 9/16

83 6/16

98 1/16

122 9/16

To calculate the installation measurement (unit : inch)

Minimum = 1 5/16 x Screen Size - 2 2/16

172 6/16

191 12/16

217 9/16

256 6/16

321

247

250 12/16

278 13/16

316 4/16

372 6/16

465 15/16

Maximum= 1 14/16 x Screen Size - 1 15/16

Note :

When installing the projector, consider

±5% tolerance for the Projection Distance in the above table.

4 : 3 Screen

In case of displaying the 16:9 picture on the whole of the 4:3 screen.

Width

: Image size

: Screen size

4:3 Screen Size (1.33:1 Aspect Ratio)

Diagonal Width Height

Projection Distance

Minimum Maximum inch inch inch inch inch

70

72

80

56

57 10/16

64

42

43 3/16

48

82

84

65 10/16

67 3/16

72

49 3/16

50 6/16

54

90

92

100

106

110

120

123

133

135

150

170

200

73 10/16

80

84 13/16

88

96

98 6/16

106 6/16

108

120

136

55 3/16

60

63 10/16

66

72

73 13/16

79 13/16

81

90

102

250

160

200

120

150

To calculate the installation measurement (unit : inch)

108 8/16

111 10/16

124 5/16

127 7/16

130 10/16

140 1/16

143 4/16

155 14/16

165 6/16

171 11/16

187 8/16

192 4/16

208

211 3/16

234 14/16

266 8/16

313 14/16

392 14/16

158 5/16

162 14/16

181 3/16

185 13/16

190 6/16

204 2/16

208 11/16

227

240 12/16

249 14/16

272 12/16

279 10/16

302 9/16

307 2/16

341 7/16

387 4/16

455 14/16

570 6/16

Minimum = 1 9/16 x Screen Size - 2 2/16

Maximum= 2 5/16 x Screen Size - 1 15/16

Note :

When installing the projector, consider

±5% tolerance for the Projection Distance in the above table.

Projection distance

16 : 9 Screen

In case of displaying the 16:9 picture on the whole of the

16:9 screen.

Width

: Image size = Screen size

4 : 3 Screen

In case of displaying the 16:9 picture on the whole of the 4:3 screen.

Width

: Image size

: Screen size

16:9 Screen Size (1.77:1 Aspect Ratio) Projection Distance

Diagonal Width Height Minimum Maximum inch mm mm mm mm

92

100

106

110

120

123

82

84

90

70

72

80

133

135

150

170

200

250

1550

1594

1771

1815

1860

1992

2037

2214

2347

2435

2657

2723

2944

2989

3321

3763

4428

5535

872

897

996

1021

1046

1121

1146

1245

1320

1370

1494

1532

1656

1681

1868

2117

2491

3113

2243

2308

2571

2636

2702

2899

2964

3227

3423

3555

3883

3981

4309

4375

4867

5523

6507

8147

To calculate the installation measurement (unit : mm)

Minimum = 32.8 x Screen Size - 53.4

Maximum= 47.5 x Screen Size - 48.8

Note :

When installing the projector, consider

±

5% tolerance for the Projection Distance in the above table.

3276

3371

3751

3846

3941

4226

4321

4701

4986

5176

5651

5794

6269

6364

7076

8026

9451

11826

4:3 Screen Size (1.33:1 Aspect Ratio) Projection Distance

Diagonal inch

Width mm

Height mm

Minimum mm

Maximum mm

70

72

80

82

84

90

92

100

106

110

120

123

133

135

150

170

200

250

2438

2499

2703

2743

3048

3454

4064

5080

1422

1463

1626

1666

1707

1829

1869

2032

2154

2235

1067

1097

1219

1250

1280

1372

1402

1524

1615

1676

1829

1875

2027

2057

2286

2591

3048

3810

2754

2834

3155

3235

3315

3556

3636

3957

4197

4358

4759

4879

5280

5360

5962

6764

7967

9972

4018

4134

4599

4715

4832

5180

5296

5761

6110

6342

6923

7098

7679

7795

8666

9828

11571

14476

To calculate the installation measurement (unit : mm)

Minimum = 40.1 x Screen Size - 53.4

Maximum= 58.1 x Screen Size - 48.8

Note :

When installing the projector, consider

±

5% tolerance for the Projection Distance in the above table.

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ15

Screen Size and Projection Distance (inch) VP-15S1L

Screen size

(Diagonal)

Screen Size and Projection Distance (mm) VP-15S1L

Screen size

(Diagonal)

Projection distance

16 : 9 Screen

In case of displaying the 16:9 picture on the whole of the

16:9 screen.

Width

: Image size = Screen size

16:9 Screen Size (1.77:1 Aspect Ratio) Projection Distance

Diagonal Width Height Minimum Maximum inch

60

70

72 inch

52 5/16

61

inch

29 7/16

34 5/16

80

82

84

90

92

100

106

110

120

123

133

135

150

170

200

250

300

62 12/16

69 12/16

71 8/16

73 3/16

78 7/16

80 3/16

87 3/16

92 6/16

95 14/16

104 9/16

107 3/16

115 15/16

117 11/16

130 12/16

148 3/16

174 5/16

217 14/16

261 8/16

35 5/16

39 4/16

40 3/16

41 3/16

44 2/16

45 2/16

49

51 15/16

53 15/16

58 13/16

60 5/16

65 3/16

66 3/16

73 9/16

83 6/16

98 1/16

122 9/16

147 1/16

To calculate the installation measurement (unit : inch) inch

-

-

-

147 3/16

150 15/16

154 10/16

165 14/16

169 10/16

184 10/16

195 13/16

203 5/16

222

227 10/16

246 6/16

250 2/16

278 3/16

315 10/16

371 12/16

465 5/16

558 14/16

inch

-

-

-

222 3/16

227 13/16

233 7/16

250 5/16

255 15/16

278 6/16

295 4/16

306 8/16

334 9/16

343

371 1/16

376 11/16

418 14/16

475

559 5/16

699 12/16

840 4/16

Minimum = 2 13/16 x Screen Size - 2 9/16

Maximum= 1 14/16 x Screen Size - 2 9/16

Note :

When installing the projector, consider

±

5% tolerance for the Projection Distance in the above table.

4 : 3 Screen

In case of displaying the 16:9 picture on the whole of the 4:3 screen.

Width

: Image size

: Screen size

4:3 Screen Size (1.33:1 Aspect Ratio)

Diagonal Width Height

Projection Distance

Minimum Maximum inch

90

92

100

106

110

120

123

80

82

84

60

70

72

133

135

150

170

200

250

300 inch

48

56

57 10/16

64

65 10/16

67 3/16

72

73 10/16

80

84 13/16

88

96

98 6/16

106 6/16

108

120

136

160

200

240

inch

36

42

43 3/16

48

49 3/16

50 6/16

54

55 3/16

60

63 10/16

66

72

73 13/16

79 13/16

81

90

102

120

150

180

inch

-

157 11/16

162 4/16

180 9/16

185 3/16

189 12/16

203 8/16

208 1/16

226 6/16

240 2/16

249 4/16

272 2/16

279

301 14/16

306 8/16

340 13/16

386 10/16

455 4/16

569 12/16

684 3/16

inch

To calculate the installation measurement (unit : inch)

Minimum = 3 7/16 x Screen Size - 2 9/16

Maximum= 2 5/16 x Screen Size - 2 9/16

Note :

When installing the projector, consider

±

5% tolerance for the Projection Distance in the above table.

203 13/16

238 4/16

245 2/16

272 10/16

279 8/16

286 6/16

307

313 15/16

341 7/16

362 1/16

375 13/16

410 3/16

420 9/16

454 15/16

461 13/16

513 6/16

582 3/16

685 6/16

857 6/16

1029 6/16

Downloaded From projector-manual.com Marantz Manuals

Projection distance

16 : 9 Screen

In case of displaying the 16:9 picture on the whole of the

16:9 screen.

Width

: Image size = Screen size

16:9 Screen Size (1.77:1 Aspect Ratio)

Diagonal Width Height

Projection Distance

Minimum Maximum inch

60

70

72

80

82

84

90

92

100

106

110

120

123

133

135

150

170

200

250

300 mm

1328

1550

1594

1771

1815

1860

1992

2037

2214

2347

2435

2657

2723

2944

2989

3321

3763

4428

5535

6641

mm

747

872

897

996

1021

1046

1121

1146

1245

1320

1370

1494

1532

1656

1681

1868

2117

2491

3113

3736

mm

-

-

-

3735

3830

3925

4210

4305

4685

4970

5160

5635

5778

6253

6348

7060

8010

9435

11810

14185

mm

-

-

-

5640

5782

5925

6353

6495

7066

7493

7779

8492

8706

9419

9561

10631

12057

14196

17761

21326

To calculate the installation measurement (unit : mm)

Minimum = 71.3 x Screen Size - 64.4

Maximum= 47.5 x Screen Size - 64.8

Note :

When installing the projector, consider

±

5% tolerance for the Projection Distance in the above table.

4 : 3 Screen

In case of displaying the 16:9 picture on the whole of the 4:3 screen.

Width

: Image size

: Screen size

4:3 Screen Size (1.33:1 Aspect Ratio)

Diagonal Width Height

Projection Distance

Minimum Maximum inch mm mm mm mm

60

70

1219

1422

1463

914

1067

1097

-

4002

4118

5174

6047

6221

72

80

82

1626

1666

1707

1219

1250

1280

4583

4699

4816

6920

7094

7269

84

90

92

100

1829

1869

2032

2154

1372

1402

1524

1615

5164

5280

5745

6094

7793

7967

8666

9189

106

110

120

2235

2438

2499

1676

1829

1875

6326

6907

7082

9539

10412

10674

123

133

135

2703

2743

3048

2027

2057

2286

7663

7779

8650

11547

11721

13031

150

170

200

250

3454

4064

5080

6096

2591

3048

3810

4572

9812

11555

14460

17365

14777

17396

21761

26126

300

To calculate the installation measurement (unit : mm)

Minimum = 87.3 x Screen Size - 64.4

Maximum= 58.1 x Screen Size - 64.8

Note :

When installing the projector, consider

±

5% tolerance for the Projection Distance in the above table.

15

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ16

Lens shift position VP-15S1

Standard condition (From -85% to +100%)

VP-15S1

Screen Position

(+100%)

0.5H

Up

0% (Center)

-85%

0.4H

Down

Extended mounting condition (From +100% to +165%)

Screen Position

0.3H Up

More

+165%

+100%

VP-15S1

0% (Center)

Screen Height = 1H

CAUTION:

In the expanded mounting condition (green focus pattern), the corners of the picture may appear dark or distorted.

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ17

Lens shift position VP-15S1L

Standard condition (From -85% to +165%)

VP-15S1L

Screen Positon

+165%

0.8 H Up

0% (Center)

-85%

0.4H Down

Screen Height = 1H

Downloaded From projector-manual.com Marantz Manuals

17

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ18

BASIC OPERATIONS

Turning on the Power

Press the ON button on the remote controller or the / I button on the projector.

The ON indicator lights up.

STANDBY ON

IRIS LAMP C.TEMP

GAMMA

COMP.1

C1

HDMI 1

H1

AUX 1

A1

COMP.2

C2

S-VIDEO

S

USER

G1

HDMI 2

H2

AUX 2

A2

VIDEO

V

RGB

G2

G3

THTR STD DYN G4

Selecting the Input Signal Source

Switch to the equipment connected to the projector.

Every time the INPUT button of the projector or the INPUT

3 button of the remote controller is pressed, the input signal rotates in the order of COMPONENT 1

COMPONENT 2

S-VIDEO

VIDEO

RGB

HDMI 1

HDMI 2. When the INPUT

4 button of the remote controller is pressed, the input signal rotates in the opposite order. An input signal can also be directly selected by pressing one of the COMP.1,

COMP.2, S-VIDEO, VIDEO, RGB, HDMI 1 and HDMI 2 buttons on the remote control.

IRIS

AUX 1

A1

LAMP

AUX 2

A2

C.TEMP

COMP.1

C1

COMP.2

S-VIDEO

C2 S

HDMI 1

H1

HDMI 2

H2

VIDEO

V

USER

G1

G2

RGB

GAMMA

G3

THTR STD DYN G4

B1

V-MUTE

BLANKING

B2 B3 OFF

MENU

M

ENTER INPUT

A

ASPECT

I

INFO.

Selecting the Aspect Mode

You can select 5 kinds of ASPECT mode using remote controller.

Pressing the ASPECT button on the remote control rotates the aspect ratio in the order of FULL

NORMAL

ZOOM

V-

STRETCH

THROUGH, allowing you to select an aspect ratio.

An aspect ratio can also be directly selected by pressing one of the FULL, NORMAL, ZOOM or THROUGH buttons on the remote controller. A selection can also be made from the menu. (

P.26)

B1

V-MUTE

BLANKING

B2 B3 OFF

MENU

M

ENTER

INPUT

A

ASPECT

CINEMA

I

INFO.

VCR MODE BLACK LEVEL PATTERN

BLACK

FULL NOR ZOOM THRU

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ19

The Screen Images in a 16:9 screen

• Press the ZOOM button, the NORMAL button or the FULL button on the remote controller for the 4:3 aspect ratio video source.

• Press the FULL button on the remote controller for 16:9 aspect ratio video source, such as 1080i,

1035i, and 720p video systems.

• Use Zoom mode when projecting a 480i, 480p, 576i, or 576p squeezed image with a 2.35: 1 aspect ratio.

• Use V-Stretch mode when projecting a 720p, 1080i, or 1080p squeezed image with a 2.35: 1 aspect ratio.

V-Stretch mode

The 2.35:1 image is shown across the entire screen. The vertical component of the aspect ratio is elongated in this case. This function is best used when a 720p, 1080i, or 1080p squeezed image is input.

Through mode

Images are shown at the same resolution as RGB/video signals.

Original Source Image

16 : 9 video source 4 : 3 video source

Full mode

The 16:9 squeezed image is displayed with the correct aspect.

The 4:3 image is enlarged horizontally.

Normal mode

The picture in normal ratio 4:3 is displayed.

Zoom mode

A 2.35:1 image is displayed in the entire screen.

This function is best used when a 480i, 480p, 576i, or 576p squeezed image is input.

Downloaded From projector-manual.com Marantz Manuals

19

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ20

The Screen Images in a 4:3 screen

• Press the ZOOM button, the NORMAL button or the FULL button on the remote controller for the 4:3 aspect ratio video source.

• Press the FULL button on the remote controller for 16:9 aspect ratio video source, such as 1080i,

1035i, and 720p video systems.

• Use Zoom mode when projecting a 480i, 480p, 576i, or 576p squeezed image with a 2.35: 1 aspect ratio.

• Use V-Stretch mode when projecting a 720p, 1080i, or 1080p squeezed image with a 2.35: 1 aspect ratio.

Original Source Image

16 : 9 video source 4 : 3 video source

V-Stretch mode

The 2.35:1 image is shown across the entire screen. This function is best used when a 720p, 1080i, or

1080p squeezed image is input.

Through mode

Images are shown at the same resolution as RGB/video signals.

Full mode

The 16:9 squeezed image is displayed with the correct aspect.

Normal mode

Zoom mode

A 2.35:1 image is displayed in the entire screen.

This function is best used when a 480i, 480p,

576i, or 576p squeezed image is input.

The 4:3 image is enlarged horizontally.

The picture in normal ratio 4:3 is displayed.

To Turn off the Power

1.

Press the STANDBY button on the remote controller or the / I button on the projector.

2.

The fan continues running for about 1 minute to internally cool the projector. In the meantime, the ON indicator on the projector flashes a blue color and buttons on the projector and remote control are irresponsive to touch. Once the fan stops, the ON indicator goes out and the STANDBY indicator lights up a green color to indicate the projector is on standby.

STANDBY ON

IRIS

AUX 1

A1

LAMP

AUX 2

A2

C.TEMP

COMP.1

C1

COMP.2

S-VIDEO

C2 S

HDMI 1

H1

HDMI 2

H2

VIDEO

V

USER

G1

G2

RGB

GAMMA

G3

Notes :

- Do not pull out the AC power cord until the projector turns in standby mode.

- Do not pull out the power cord suddenly in the state of “POWER ON." It can cause a breakdown.

- If the WARNING indicator lights up or blinks a yellow color, check that the fan has stopped then unplug the AC power cord from its outlet.

- The projector will not be turned on if the ON button on the remote controller or the / I button on the projector is pressed immediately after turning off. Press the ON button on the remote controller

- When on standby, power to the projector is not OFF completely. If not planning to use the projector for an extended period of time, unplug the AC power cord from AC power outlet as explained above.

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ21

OPERATIONS

Menu Structure

Main Menu

Picture Mode

P.24

Picture Adjust

P.25

Fine Menu 1

P.26

Fine Menu 2

P.26

Theater

Standard

Dynamic

User

Item

Default / 1* / 2 / 3

Default / 1* / 2 / 3

Default / 1* / 2 / 3

1* / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9

Gamma

Contrast

Brightness

Color

Tint

Sharpness

Color Temp.

Lamp Mode

Iris

Theater

Standard

Dynamic

A

B

C

D

E

-50

-50

0* 50

0* 50

-50

R10

0* 50

0* G10

0* 50

1 / 2 / 3* / 4 / 5 / HB

Normal* / Economy

1 / 2 / 3*

Noise Reduction

R Gain

G Gain

B Gain

R Bias

G Bias

B Bias

Luminance Gain

Chroma Delay

0*

-50

-50

-50

-50

-50

-50

-50

-5

Aspect Full*

Normal

Zoom

V-Stretch

Cinema

VCR Mode

Through

Auto* / Off

On / Off*

Black Level 0 IRE* / 7.5 IRE

During HDMI input, “Expand” or “Normal*” is shown.

FRC

CEC

Auto 1* / Auto 2 / 60Hz / 50Hz / 48Hz

Picture Shift V

On / Off*

Overscan

-50 0* 50

Enable* / Disable

50

0* 50

0* 50

0* 50

0* 50

0* 50

0* 50

0* 50

0* 5

* Default setting

Downloaded From projector-manual.com Marantz Manuals

Main Menu

Input Signal

P.27

Item

Component 1

720p

1035i

1080i

1080p

Component 2

720p

1035i

1080i

1080p

S-Video

Video

RGB

HDMI 1

720p

1035i

1080i

1080p

1035i

1080i

1080p

HDMI 2

1035i

1080i

1080p

Auto*

480i/576i

480p

540p

576p

Auto*

480i/576i

480p

576p

720p

Auto*

480i/576i

480p

540p

576p

Auto*

480i/576i

480p

540p

576p

Auto*

NTSC

PAL

SECAM

Auto*

NTSC

PAL

SECAM

Auto*

480i/576i

480p

576p

720p

Main Menu

RGB/HD Adjust

P.27

HDMI

P.28

Display

P.28

Item

Mode

Readjust

Resolution H

Resolution V

Position H

Position V

Phase

Clamp Position

Clamp Width

CSC HDMI 1

YC

B

C

R

4:4:4

YC

B

C

R

4:2:2

CSC HDMI 2

YC

B

C

R

4:4:4

YC

B

C

R

4:2:2

Deep Color HDMI 1

Deep Color HDMI 2

Keystone

Scale

Width

Position H

Position V

Installation

Memory3

R + Ceiling

Auto*

Memory1

Memory2

0*

Yes / No*

25

0*

-50

25

0* 50

-10

-10

0* 10

0* 10

-50 0* 50

-50 0* 50

Auto*

8bit

10bit

12bit

Auto*

8bit

10bit

12bit

Auto*

RGB

YP

B

P

R

4:4:4

YP

B

P

R

4:2:2

Auto*

RGB

YP

B

P

R

4:4:4

YP

B

P

R

4:2:2

-25

-100

0* 25

0*

-100

-50

-50

0*

0* 50

0* 50

F + Ceiling

Main Menu

OSD/Blanking

P.29

Config.

(Configuration)

P.30

Item

Menu Position

Center-R

Bottom-L

Bottom

Bottom-R

Top-L*

Top

Top-R

Center-L

Center

Language

Status Info.

Português

Italiano

Power-OFF Confirm.

Blanking Memory

Blanking Top

Blanking Bottom

Blanking Left

Blanking Right

English*

Deutsch

Français

Español

Enable* / Disable

Enable / Disable*

Off* / 1 / 2 / 3

0*

0*

0*

0*

100

100

100

100

Auto Power OFF

Trigger 2 Full

Trigger 2 Normal

Trigger 2 Zoom

Trigger 2 V-Stretch

Trigger 2 Through

Remote Control

Reset Lamp Life

Reset All

Enable / Disable*

On* / Off

On* / Off

On* / Off

On* / Off

On* / Off

Wireless* / Wired

Yes / No

Yes / No

21

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ22

Functions by Signal

Picture Mode

Picture Adjust

Fine Menu 1

Fine Menu 2

RGB/HD Adjust

Theater

Standard

Dynamic

User

Gamma

Contrast

Brightness

Color

Tint

Sharpness

Color Temp.

Lamp Mode

Iris

Noise Reduction

R Gain

G Gain

B Gain

R Bias

G Bias

B Bias

Luminance Gain

Chroma Delay

Aspect

Cinema

VCR Mode

Black Level

FRC

CEC

Picture Shift V

Overscan

Mode

Readjust

Resolution H

Resolution V

Position H

Position V

Phase

Clamp Position

Clamp Width

NO SIGNAL

ANY INPUT

VIDEO or S-VIDEO

NTSC

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*4

*9

*9

*9

*9

*9

*1

*9

*9

PAL/SECAM 480i/576i

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*4

*9

*9

*9

*9

*9

*1

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*4

*9

*9

*9

*9

*9

*1

*9

*9

COMPONENT

VALID SIGNAL

480p/576p

*5

*5

*5

*5

*5

*5

*6

*6

*9

*2

*3

*4

1080i/720p/

1080p/540p

*1

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*1

*9

*9

*4

480i/576i

*9

*9

*9

*9

*9

*9

*9

*9

*9

*4

*9

*9

*1

*9

*9

RGB

480p/576p

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*9

*1

*9

*9

*4

Other

*5

*6

*6

*10

*3

*4

*5

*5

*5

*5

*5

*9

*9

*9

*9

*9

*9

*9

*9

*9

*2

*9

*9

*1

*9

*9

HDMI

*4

*7

*11

*5 *11

*6 *11

*6 *11

*5 *11

*5 *11

*9

*9

*9

*9

*9

*9

*9

*9

*9

*2

*3

*9

*9

*9

*9

*1

*9

*9

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ23

HDMI

Display

OSD/Blanking

Configuration

NO SIGNAL

CSC HDMI 1

CSC HDMI 2

Deep Color HDMI 1

Deep Color HDMI 2

Keystone

Scale

Width

Position H

Position V

Installation

Menu Position

Language

Status Info.

Power-OFF Confirm.

Blanking Memory

Blanking Top

Blanking Bottom

Blanking Left

Blanking Right

Auto Power Off

Trigger 2 Full

Trigger 2 Normal

Trigger 2 Zoom

Trigger 2 V-Strech

Trigger 2 Through

Remote Control

Reset Lamp Life

Reset All

ANY INPUT

VIDEO or S-VIDEO

NTSC

*8

*8

*8

*8

PAL/SECAM 480i/576i

*8

*8

*8

*8

*8

*8

*8

*8

COMPONENT

VALID SIGNAL

480p/576p

*8

*8

*8

*8

1080i/720p/

1080p/540p

RGB

480p/576p

*8

*8

*8

*8

480i/576i

*8

*8

*8

*8

*8

*8

*8

*8

*1 Can be selected only when User is selected for the Picture Mode.

*2 On only when interlaced signals are input. (Off for progressive signals.)

*3 On only when 1035i / 1080i signals are input.

*4 On when Aspect is set to V-Stretch for HD signals. For other signals, On when Aspect is set to Zoom or V-Stretch.

*5 On when the RGB/HD Adjust mode is set to Memory.

*6 On when the RGB/HD Adjust mode is set to Memory. However, as an exception, it is Off when Aspect is set to Through or V-Stretch.

*7 On when 480i/p or 576i/p signals are input.

*8 On when Blanking Memory is selected for OSD/Blanking.

*9 Cannot be selected when the default is selected for Picture Mode.

*10 Can be selected when the input signal is 540p, 720p, 1035i, 1080i, or 1080p.

*11 Off when the input signal is 480i/p or 576i/p.

Downloaded From projector-manual.com Marantz Manuals

Other

*8

*8

*8

*8

HDMI

*8

*8

*8

*8

23

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ24

Picture Mode

This unit has four picture modes: Theater, Standard, Dynamic and User. The picture quality recommended by Marantz is already set for each mode. The User mode has eight gamma curves that can be chosen and saved by users. Also, the Theater, Standard and Dynamic modes three indexes for memorizing picture quality adjustments. Similarly, the User mode has nine, making a total of 18 indexes available for use.

How to Operate Menus

This projector has menus that make setting and adjustment easy.

1.

Press the MENU button. The MENU screen appears on the screen.

Standard 1

Picture Adjust

Fine Menu 1

Fine Menu 2

Input Signal

RGB/HD Adjust

HDMI

Display

OSD/Blanking

Config.

Theater

Standard

Dynamic

User

Default

1

Default

1

Default

1

2

3

User 1

Picture Adjust

Fine Menu 1

Fine Menu 2

Input Signal

RGB/HD Adjust

HDMI

Display

OSD/Blanking

Config.

Main menu

Gamma

Contrast

Brightness

Color

Tint

Sharpness

Color Temp.

Lamp Mode

Iris

Menu item

0

0

0

0

0

A

3

Normal

1

A

B

C

D

E

Theater

Standard

Dynamic

Setting or adjustment level

Picture mode Index

Theater

Standard

Dynamic

User

Default, 1, 2, 3

Default, 1, 2, 3

Default, 1, 2, 3

1, 2, 3, 4, 5, 6, 7, 8, 9

– Theater: Reproduces the black suited for movie software.

– Standard: Suited for normal movie software.

– Dynamic: Suited for visually dynamic image software.

– User 1-9: Enable the user to adjust the gamma curve as preferred. (

P.25).

Picture mode selection

There are two ways to select the Picture mode: selecting a mode from the MENU screen or pressing the picture mode buttons (THTR, STD, DYN) on the remote controller. To use the remote controller buttons to select a picture mode, make sure the MENU screen does not appear on the screen and press the desired picture mode button any number of times. (

P.6)

To select an picture mode from the menu, do as follows.

1. Press the MENU button. The MENU screen appears on the screen.

2. Use the

3

/

4 buttons to select the Picture Mode displayed at the top of the menu.

3. Press the ENTER button to display the picture mode selection screen. Use the

3

,

4

,

2 and

1 buttons to select an picture mode.

4. Press the ENTER button to decide the selected picture mode. Once the mode has been entered, the screen returns to the previous menu.

Memorizing settings in an index

The settings made in “Picture Adjust” and “Fine Menu 1” of the main menu are automatically memorized in the currently selected picture mode. Therefore, first select an picture mode and index, and then make settings.

2.

Use the

3 and

4 buttons to select a menu (Picture Adjust, Fine Menu 1, Fine Menu 2, Input Signal,

RGB/HD Adjust, Display, OSD/Blanking, Config) and press the

2 button.

For image mode selection, see “Picture Mode”. (

P.24)

3.

Use the

3 and

4 buttons to select a menu item and press the

2 button.

4.

Use the

3

,

4

,

1 and

2 buttons to make the setting or adjustment of the selected item.

• The current setting or adjustment level is displayed to the right of each menu item.

5.

Press the MENU button again to close the menu.

2, 3, 4 1, 5

B1

V-MUTE

BLANKING

B2 B3 OFF

MENU

M

ENTER

INPUT

A

ASPECT

I

INFO.

CINEMA VCR MODE BLACK LEVEL PATTERN

BLACK

1, 5

2, 3, 4

– Adjustment bar

When there is a “ ” right of a menu item, this

2 acts as a button for engaging an adjustment mode. In the adjustment mode, the menu disappears and only an adjustment bar, like that shown below, appears along the bottom of the display. Use the

1 and

2 buttons to adjust the item to the desired level. Press the

3 button to return to the menu.

Contrast 0

Note : When default is selected, “Picture Adjust” and “Fine Menu 1” cannot be selected from the menu.

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ25

Picture Adjust

Picture quality in each of the picture modes can be adjusted to your liking and those adjustments can be saved in memory.

– Gamma setting

To change the type of Gamma curve, set the Picture Mode (

☞ p.24) to User (1 – 9). Select “Gamma” from the displayed menu followed by the desired gamma curve (A, B, C, D, E, Theater, Standard or

Dynamic).

A B C D E

Theater Dynamic

Gamma

Contrast

Item

Brightness

Color

Tint

Sharpness

Color Temp.

(Color Temperature)

Lamp Mode

Iris

User 1

Picture Adjust

Fine Menu 1

Fine Menu 2

Input Signal

RGB/HD Adjust

HDMI

Display

OSD/Blanking

Config.

Gamma

Contrast

Brightness

Color

Tint

Sharpness

Color Temp.

Lamp Mode

Iris

0

0

0

0

0

A

3

Normal

1

Adjustments

A, B, C, D, E, Theater,

Standard, Dynamic

-50

Ô

0

Ô

50

(Weak) (Default) (Strong)

-50

Ô

0

Ô

50

(Dark) (Default) (Bright)

-50

Ô

0

Ô

50

(Light) (Default) (Deep)

R10

Ô

0

Ô

G10

(Purple) (Default) (Green)

0 50

1 2 3 4 5 HB

(Red)

Normal, Economy

(Blue)

1

Contrast (High)

2 3

(Low)

Brightness (Low) (High)

Sets the lens and illumination aperture.

– Color Temp. (Color Temperature)

1 : Red comes out strong. Color temperature is about 5250 K.

2 : Red is mildly strong. Color temperature is about 5800 K.

3 : Normal. Color temperature is about 6500 K.

4 : Blue is mildly strong. Color temperature is about 7500 K.

5 : Blue comes out strong. Color temperature is about 9300 K.

HB : High Bright : Display brightest image.

NOTES:

- To adjust picture quality, set the index to a mode other than the default. See “Picture Mode”.

(

P.24)

- The Gamma cannot be set unless User (1 - 9) is set for the Picture Mode (

P.24).

- Tint cannot be adjusted for RGB input. For details, see “Functions by Signal.” (

P.22-23)

- The settings made in Picture Adjust are saved in the currently selected Picture Mode index.

Downloaded From projector-manual.com Marantz Manuals

25

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ26

Fine Menu 1

By adjusting this Fine Menu, you can make fine picture adjustment.

Standard 1

Picture Adjust

Fine Menu 1

Fine Menu 2

Input Signal

RGB/HD Adjust

HDMI

Display

OSD/Blanking

Config.

Noise Reduction

R Gain

G Gain

B Gain

R Bias

G Bias

B Bias

Luminance Gain

Chroma Delay

0

0

0

0

0

0

0

0

0

R Gain

G Gain

B Gain

R Bias

G Bias

B Bias

Item

Noise Reduction

Luminance Gain

Chroma Delay

– Noise Reduction

Adjust the noise reduction.

– R Gain

This menu allows the users to set the gain for red.

– G Gain

This menu allows the users to set the gain for green.

– B Gain

This menu allows the users to set the gain for blue.

– R Bias

This menu allows the users to set the bias for red.

– G Bias

This menu allows the users to set the bias for green.

– B Bias

This menu allows the users to set the bias for blue.

– Luminance Gain

This menu allows the users to set the luminance gain.

– Chroma Delay

This menu allows the users to set the chrominance delay.

Adjustments

0 50

-50

Ô

0

Ô

50

-50

Ô

0

Ô

50

-50

Ô

0

Ô

50

-50

Ô

0

Ô

50

-50

Ô

0

Ô

50

-50

Ô

0

Ô

50

-50

Ô

0

Ô

50

-5

Ô

0

Ô

5

Note :

• The settings made in Fine Menu 1 are saved in the currently selected Picture Mode index (Default excluded).

Fine Menu 2

Standard 1

Picture Adjust

Fine Menu 1

Fine Menu 2

Aspect

Cinema

VCR Mode

Full

Auto

On

Item

Aspect

Adjustments

Full, Normal, Zoom,

V-Stretch, Through

Auto, Off

Input Signal

RGB/HD Adjust

HDMI

Display

OSD/Blanking

Black Level

FRC

CEC

Picture Shift V

Overscan

0

0 IRE

Auto 1

Off

Enable

Cinema

VCR Mode

Black level

On, Off

0 IRE, 7.5 IRE /Expand,

Normal (For HDMI input)

Auto 1, Auto 2, 60Hz,

Config.

FRC

50Hz, 48Hz

CEC

Picture Shift V

Overscan

– Cinema

Auto : Automatically selects the cinema mode when a video signal is input.

NTSC: 3-2 pull down, PAL: 2-2 pull down

Off : Pull-down processing is not performed.

On, Off

-50

Ô

0

Ô

50

Enable, Disable

– VCR Mode

On : A projector is forced into the intra-field only deinterlacing mode.

Off : A projector is used with external field memories and operates in the full set of deinterlacing modes, i.e., motion adaptive video deinterlacing and full frame film source deinterlacing using 3:2 pulldown detection (2:2 pulldown for 625/50 sources).

– Black level

Select the black level by a video source.

– FRC (Frame Rate Conversion)

Auto 1 : Frame Rate Conversion function is basically off. However FRC turns on automatically depending on vertical frequency of input signal. Normally, use this mode.

Auto 2 : Use this mode when the image stops momentarily.

60Hz : Frame Rate Conversion function is “On”. (59.94Hz fixed)

50Hz : Frame Rate Conversion function is “On”. (50.00Hz fixed)

48Hz : Frame Rate Conversion function is “On”. (47.95Hz fixed)

– CEC (Chroma Error Correction)

On : Reduces CUE (Chroma Up-sampling Error) of 1080i signals.

Off : Normally, use this mode.

– Picture Shift V

When Aspect on the Picture Adjust menu is set to “Zoom” or “V-Stretch”, this setting allows the user to move the projected image vertically in order to see parts on the image not appearing on the screen.

– Overscan

Selects whether to show or hide picture borders with NTSC, PAL, SECAM, 480i, 480p, 576i and 576p signals.

Enable: Does not display borders of image signals. (Normally, use this mode.)

Disable: Displays the entire image signal.

Notes :

• There are some parameters can not adjust according to input signal.

• The settings made in Fine Menu 2 are saved in each currently selected input signal source.

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ27

Input Signal

Standard 1

Picture Adjust

Fine Menu 1

Fine Menu 2

Input Signal

RGB/HD Adjust

HDMI

Display

OSD/Blanking

Config.

Component 1

Component 2

S-Video

Video

RGB

HDMI1

HDMI2

Auto

Auto

Auto

Auto

Auto

Auto

Auto

Component1,

Component2

S-Video

Video

RGB

Item Adjustments

Auto, 480i/576i, 480p, 540p, 576p,

720p, 1035i, 1080i, 1080p

Auto, NTSC, PAL, SECAM

Auto, NTSC, PAL, SECAM

Auto, 480i/576i, 480p, 540p, 576p,

720p, 1035i, 1080i, 1080p

HDMI 1, HDMI 2 Auto, 480i/576i, 480p, 576p, 720p,

1035i, 1080i, 1080p

NTSC(NTSC-3.58)

: Conventional analog broadcasting used mainly in USA, Canada, Taiwan, Korea, and

Japan.

PAL(PAL-4.43)

: Conventional analog broadcasting used mainly in United Kingdom and Germany.

SECAM

480p

540p

: Conventional analog broadcasting used mainly in France and Russia.

: Standard digital broadcasting

: Special digital broadcasting

(for example: RCA DTC100)

576p

: Standard digital broadcasting

720p, 1080p

: High Definition digital broadcasting

1035i

: Japanese "Hi-Vision" broadcasting

Downloaded From projector-manual.com Marantz Manuals

RGB/HD Adjust

Standard 1

Picture Adjust

Fine Menu 1

Fine Menu 2

Input Signal

RGB/HD Adjust

HDMI

Display

OSD/Blanking

Config.

1 2 3

Mode

Readjust

Resolution H

Resolution V

Position H

Position V

Phase

Clamp Position

Clamp Width

0

0

0

0

0

0

0

Memory 1

Item

Mode

Readjust

Resolution H

Resolution V

Position H

Position V

Phase

Clamp Position

Clamp Width

Adjustments

Auto, Memory 1, Memory 2, Memory 3

Yes, No

0

Ô

25

(Default) (Large)

0

Ô

25

(Default) (Large)

-50

Ô

0

Ô

50

(Left) (Default) (Right)

-10

Ô

0

Ô

10

(Down) (Default) (Up)

-10

Ô

0

Ô

10

(Backward) (Default) (Forward)

-50

Ô

0

Ô

50

(Backward) (Default) (Forward)

-50

Ô

0

Ô

50

(Small) (Default) (Large)

– Mode

Auto: Each item is adjusted automatically.

Memory1-3: If something wrong with Auto Adjust, select Memory, please adjust each item manually.

– Readjust

Select to readjust settings automatically for each item in this menu.

– Resolution H, V

Adjusts the horizontal and vertical resolution of the RGB/HD input signals.

– Position H, V

Adjust the position of the input signal. H adjusts the horizontal position of the input signal. V adjusts the vertical position of the input signal.

– Phase

Adjust the phase of the DMD dots and the computer signal input from the RGB IN. Adjust the picture to where it looks clearest.

– Clamp Position, Width

Adjusts the clamp position and width used in RGB/HD input.

27

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ28

HDMI

Standard 1

Picture Adjust

Fine Menu 1

Fine Menu 2

Input Signal

RGB/HD Adjust

HDMI

Display

OSD/Blanking

Config.

CSC HDMI 1

CSC HDMI 2

Deep Color HDMI 1

Deep Color HDMI 2

Auto

Auto

Auto

Auto

Item

CSC HDMI 1,

CSC HDMI 2

Deep Color HDMI 1,

Deep Color HDMI 2

Adjustments

Auto, RGB, YP

B

P

R

4:4:4, YP

B

P

R

4:2:2,

YC

B

C

R

4:4:4, YC

B

C

R

4:2:2

Select the color space conversion for

HDMI input.

Auto, 8Bit, 10Bit, 12Bit

Select the color depth for HDMI input.

– CSC HDMI 1/CSC HDMI 2

Auto: The color space is automatically selected based on the input signal.

RGB: This is effective for DVI and similar signals.

YP

B

P

R

: This is effective for 720p, 1080i, and other high-resolution TV signals.

YC

B

C

R

: This is effective for 480p, 480i, and other standard TV signals.

– Deep Color HDMI 1/Deep Color HDMI 2

Auto: This automatically selects the color depth based on the input signal.

Normally, use at Auto.

8/10/12bit: Select this option when the video displayed in Auto is not correct.

The input settings for the color depth are set to 8Bit, 10Bit, and 12Bit.

Display

Standard 1

Picture Adjust

Fine Menu 1

Fine Menu 2

Input Signal

RGB/HD Adjust

HDMI

Display

OSD/Blanking

Config.

Keystone

Scale

Width

Position H

Position V

Installation

0

0

0

0

0

Front

Item Adjustments

Keystone

(Electronic vertical keystone correction)

Scale

Width

Position H

Position V

Installation

-25

( )

0

( )

25

( )

-100

(Min)

-100

(Min)

-50

(Left)

0

(Default)

-50

(Down)

0

(Default)

0

(Max)

0

(Max)

50

(Right)

50

(Up)

Front, Rear, F+Ceiling,

R+Ceiling

– Keystone

Adjust trapezoid image to rectangle image.

– Scale

Reduces the image without changing the aspect ratio. The image can be reduced to about 70% the original size.

– Width

Reduces the image width without changing the image height. The width can be reduced to about 75% the original size.

– Position H, V

Adjust the position of the input signal. H adjusts the horizontal position of the input signal. V adjusts the vertical position of the input signal.

– Instllation

Sets the installation mode of the projector.

Front: Select to set the projector on a tabletop and project from in front of the screen.

Rear: Select to set the projector on a tabletop and project from behind the screen.

F + Ceiling: Select to mount the projector on the ceiling and project from in front of the screen.

R + Ceiling: Select to mount the projector on the ceiling and project from behind the screen.

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ29

OSD/Blanking

Item

Menu Position

Language

Status Info.

Standard 1

Picture Adjust

Fine Menu 1

Fine Menu 2

Input Signal

RGB/HD Adjust

HDMI

Display

OSD/Blanking

Config.

Menu Position

Language

Status Info.

Power-OFF Confirm.

Top-L

English

Enable

Disable

Memory 1 Blanking Memory

Blanking Top

Blanking Bottom

Blanking Left

Blanking Right

0

0

0

0

Power-OFF Confirm.

Blanking Memory

Blanking Top

Blanking Bottom

Blanking Left

Blanking Right

Adjustments

Top-L, Top, Top-R, Center-L, Center, Center-R,

Bottom-L, Bottom, Bottom-R

English, Deutsch, Français, Español,

Português, Italiano

Enable, Disable

Enable, Disable

Off, Memory 1, Memory 2, Memory 3

0

0

100

100

0

0

100

100

– Menu Position

OSD position is selected from 9 positions.

– Status Info.

Enable: Displays the current status of the projector for a set amount of time in the upper right-hand corner of the screen at startup and whenever the Input Source, Picture Mode, Aspect ratio or other setting is changed.

Disable: Does not display Status Info.

– Power-OFF Confirm.

Disable: Directly puts the projector on standby without displaying the confirmation message when power is shut off from the button on the remote controller or the /I button on the projector.

Enable: Displays a confirmation message asking whether to shut the power off or continue use when power is shut off from the button on the remote controller or the /I button on the projector. To shut off the power immediately, select “Yes” and press the ENTER button. To not shut off the power, select “No” and press the ENTER button.

– Blanking Memory

Sets the blanking mode with which part of the screen can be hidden in black bands. To use this mode or change the setting, select from Memory 1 to 3.

Off: Turns the blanking mode off. No masking occurs.

Memory 1-3: Memorize the blanking width of the top, bottom, left and right masks set with the below features. Up to three settings can be memorized.

Downloaded From projector-manual.com Marantz Manuals

– Blanking Top, Bottom, Left and Right

Set the blanking width of the top, bottom, left and right masks, which are then memorized in Memory 1

– 3 of Blanking Memory. Each can be set from 0 (no mask) to a maximum 100.

29

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ30

Configration

Standard 1

Picture Adjust

Fine Menu 1

Fine Menu 2

Input Signal

RGB/HD Adjust

HDMI

Display

OSD/Blanking

Config.

Auto Power Off

Trigger 2 Full

Trigger 2 Normal

Trigger 2 Zoom

Trigger 2 V-stretch

Trigger 2 Through

Remote Control

Reset Lamp Life

Reset All

Disable

On

On

On

On

On

Item

Auto Power Off

Trigger 2 Full

Trigger 2 Normal

Trigger 2 Zoom

Trigger 2 V-stretch

Trigger 2 Through

Remote Control

Reset Lamp Life

Reset All

Adjustments

Enable, Disable

On, Off

On, Off

On, Off

On, Off

On, Off

Wireless, Wired

Yes, No

Yes, No

– Auto Power Off

When the auto power off feature is set to Enable, power to the projector automatically shuts off if no signals are received and no operations are performed for about 10 consecutive minutes. If 9 minutes pass without the projector receiving any signals or being operated in anyway, the below message appears on the screen.

Auto Power Off

It will be standby mode soon.

About 1 minute after the message appears on the screen, power to the projector shuts off.

Note:

After the above message appears on the screen, pressing any button on the projector or remote control other than the / I button on the projector and the ON or STANDBY buttons on the remote control resets the auto power off feature.

The auto power off feature will activate again if, after that, the projector goes without receiving any signals or being operated in anyway for 10 consecutive minutes.

– Tigger 2

Select either 12V output or 0V output by choosing On or Off for each aspect mode. Full, Normal,

Zoom, V-stretch and Through.

This allows you to control such as a powered dual aspect screen with the outputs for the aspect modes.

On: Output DC 12V.

Off: No output.

– Remote Control

Wireless: Set to use the included remote controller.

Wired: Set to control the projector from either Marantz’s AV components connected to the

REMOTE CONTROL IN/OUT terminals or a PC or other device connected to the RS-

232C terminal of the projector. The included remote controller cannot be used in this case.

When this item is selected, a confirmation message appears asking whether to change the currently selected mode to the other mode or not. To change the mode, select “Yes” and press the ENTER button on the projector. To keep the same mode, select ‘No” and press the ENTER button.

Notes:

- To prevent misoperation, the ENTER button of the remote controller does not respond to touch when the Wired/Wireless setting is displayed. Press the ENTER button of the projector to enter the setting.

- To change from Wired to Wireless, set “Wireless” from the menu using the buttons of the projector.

– Reset Lamp Life

If the lamp is replaced before reaching its 2000 hours lamp life, be sure to reset the lamp’s life counter. To do this, select “Reset Lamp Life” from the Configuration menu. When the user selects this item, the following message appears:

Select “Yes”, and press the ENTER button. Then the lamp life is initialized.

– Reset All

All settings are reset to the factory default settings except the lamp life.

When the user selects this item, the following message appears:

Select “Yes”, and press the ENTER button.

Reset Lamp Life ?

Yes

Yes

No

Reset All ?

No

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ31

MAINTENANCE

Lamp Life and Replace Lamp

Lamp Life

Display the remaining lamp life by pressing the

INFO. button on the remote controller.

Information

Video Input

Picture Mode

Gamma

Aspect

Lamp Mode

Iris

Lamp Life

Total Time

Component 1 - 1080i / 60

User 1

A

Normal

Economy

1

921 Hours

3653 Hours

ENTER INPUT

A

ASPECT

I

INFO.

CINEMA VCR MODE BLACK LEVEL PATTERN

BLACK

Notes:

• The maximum life limit of the lamp is 2000 hours. Although we care very much about quality, the lamp can rarely breaks down if running time exceeds 1000 hours. Therefore we recommend to replace the lamp if Lamp

Life gets under 1000 hours. The lamp cannot be used exceeding the maximum life limit.

• This product is checked under strict quality control when it is shipped out form factory.

“Total Hours” in the menu includes the time for this check. So “Total Hours” may not be 0 hours when it is used first time.

Downloaded From projector-manual.com Marantz Manuals

– When the lamp life becomes less than 100 hours and the unit is still on, the remaining lamp life is displayed on the screen automatically.

Warning

Lamp Life 100 Hours

– When the lamp life becomes less than 5 hours, the remaining lamp life is displayed on the screen .

Initialize the Lamp Life

The lamp has a lamp life of 2000 hours. The projector is designed to shut OFF power if the lamp is used beyond this 2000 hours lamp life. In such case, replace the lamp and reset the lamp life counter as follows.

1.

After the message “Lamp Life 0 Hours” appears, power to the projector shuts OFF.

(

Promptly replace the lamp with a new one.

P.31 “Replacing Lamp Unit”)

2.

Once the lamp has been replaced, press the

ON button on the remote control or the

/ I

button on the projector.

The below message appears on the screen for 120 seconds.

Yes

New Lamp ?

No

Warning

Lamp Life 5 Hours

3.

Select “Yes”, using the

1

/

2 buttons.

4.

Press the ENTER button. The lamp life indicator is now initialized.

A1 A2 RGB G3

THTR STD DYN G4

B1

V-MUTE

BLANKING

B2 B3 OFF

MENU

M

ENTER INPUT

A I

To clear the warning, press the MENU button.

– Approximately 2 minutes after the lamp reaches the end of its lamp life, power to the projector shuts OFF and the WARNING indicator lights up a yellow color. If the below message appears on the screen and power shuts OFF soon thereafter, promptly replace the lamp with a new one. (See “Replacing

Lamp Unit”

P.31)

3.

4.

2.

2.

Warning

Lamp Life 0 Hours

STANDBY ON

IRIS LAMP C.TEMP

GAMMA

COMP.1

C1

HDMI 1

H1

AUX 1

A1

COMP.2

S-VIDEO

C2

HDMI 2

H2

S

VIDEO

V

USER

G1

G2

AUX 2

A2 RGB G3

THTR STD DYN G4

B1

V-MUTE

BLANKING

B2 B3 OFF

MENU

M

ENTER

INPUT

A

ASPECT

CINEMA

I

INFO.

VCR MODE BLACK LEVEL PATTERN

BLACK

4.

3.

Replacing Lamp Unit

CAUTION:

• Do not touch the lamp and the lamp unit carelessly. It is extremely hot. Wait at least one hour for the lamp to cool down before handling.

• Do not loosen any screws except for those mentioned below.

• The lamp may break if handled improperly.

• Do not use other than a Marantz replacement lamp unit.

How to replace the Lamp Unit

PREPARATION:

When replacing the lamp, turn off the power for the projector. After the cooling fan stops, disconnect the power cord and wait for one hour until the lamp is cooled down completely, then replace the lamp.

1.

Press the STANDBY button on the remote controller or the / I button on the projector to turn the projector off.

STANDBY ON

IRIS LAMP C.TEMP

GAMMA

COMP.1

COMP.2

S-VIDEO USER

C1

HDMI 1 HDMI 2

H1

C2

H2

S

VIDEO

V

G1

G2

AUX 1

A1

AUX 2

A2 RGB G3

2.

After the cooling fan stops, Unplug the AC power cord.

31

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ32

3.

Wait at the least one hour for the lamp and lamp unit to cool down.

5.

Remove the lamp cover screw.

4.

Read the caution and warning labels on the unit.

Lamp cover

8.

Holding the handle and pull the lamp unit out toward your side.

11.

Install the lamp cover back in its original position and fasten with the fastening screw.

(a)

Lamp unit

A

WARNING

THIS COVER IS PROVIDED WITH

INTERLOCK TO REDUCE THE RISK OF

EXCESSIVE ULTRAVIOLET RADIATION.

DO NOT DEFEAT ITS PORPOSE OR

ATTEMPT TO SERVICE WITHOUT

REMOVING COVER COMPLETELY.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

ATTENTION : LA LAMPE SOUS

HAUTE PRESSION PEUT SI ELLE, N'EST

PAS MANIPULEE CORRECTEMENT,

CONFIER L'OPERATION A UN

PERSONNEL D'ENTRETIEN QUALIFIE.

60 MINUTES BEFORE CHARGING

THE LAMP.

ATTENTION CHAUD :

DEBRANCER LE CORD ON

D'ALOMENTION ET ATENDER

60 MINUTES AVANT DE

CHANGER LAMPE.

SERIAL NO.

B

A

For USA

WARNING

THIS COVER IS PROVIDED WITH

INTERLOCK TO REDUCE THE RISK OF

EXCESSIVE ULTRAVIOLET RADIATION.

DO NOT DEFEAT ITS PORPOSE OR

ATTEMPT TO SERVICE WITHOUT

REMOVING COVER COMPLETELY.

For Europe

CAUTION HOT

UNPLUG THE POWER CORD AND

WAIT 60 MINUTES BEFORE

CHANGING THE LAMP.

ATTENTION CHAUD

DEBRANCER LE CORD ON

D'ALIMENTION ET ATENDER 60

MINUTES AVANT DE CHANGER

LAMPE.

WARNUNG HEISS

ZIEHEN SIE DEN NETZSTECKER

AB UND WARTEN SIE 60 MINUTEN,

BEVOR SIE DIE GLUHLAMPE

WECHSELN.

6.

Remove the lamp cover in the direction of the arrow.

Lamp cover

B

For USA

7.

Open the cover sheet and remove the two

CAUTION :

HIGH PRESSURE LAMP

MAY EXPLODED IF IMPROPERLY HANDLED.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

CAUTION HOT :

UNPLUG

THE POWER CORD AND WAIT

60 MINUTES BEFORE CHARGING

THE LAMP.

ATTENTION :

LA LAMPE SOUS

HAUTE PRESSION PEUT SI ELLE, N'EST

PAS MANIPULEE CORRECTEMENT,

CONFIER L'OPERATION A UN

PERSONNEL D'ENTRETIEN QUALIFIE.

ATTENTION CHAUD :

DEBRANCER LE CORD ON

D'ALOMENTION ET ATENDER

60 MINUTES AVANT DE

CHANGER LAMPE.

SERIAL NO.

screws (slotted head screwdriver required) that lock down the lamp unit. Do not remove

MADE IN JAPAN

FABRIQUE AU JAPON

Cover sheet

For Europe

CAUTION

HIGH PRESSURE LAMP MAY EXPLODED IF

IMPROPERLY HANDLED. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

ATTENTION

LA LAMPE SOUS HAUTE PRESSION PEUT

EXPLOSER SI ELLE, N'EST PAS MANIPULEE

CORRECTEMENT, CONFIER L'OPERATION

A UN PERSONNEL D'ENTRETIEN QUALIFIE.

VORSICHT :

BEI FALSCHER HANDHABUNG

KANN DIE HOCHDRUCKLAMPE

EXPLODIEREN UBERLASSEN

SIE WARTUNGSARBEITEN

NUR FACHPERSONAL.

M

9.

Install a new lamp unit in position securely.

10.

Lock the lamp unit in place with the two screws removed in step 7. Press on the handle until it folds over and close the cover sheet.

(b)

12.

Plug in the video projector and turn on the power and project the image.

• If the lamp is replaced before reaching its

(

2000 hours lamp life, see “Reset Lamp Life”

P.30).

• If the lamp is replaced after reaching its

2000 hours lamp life, see “Initialize the Lamp

Life” (

P.31).

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ33

Cleaning the Lens

If the lens becomes dirty or smudged, clean it with a soft dry cloth only. Use optical lens cleaners that are approved for eyeglasses or cameras. Do not use a dampen cloth, detergent solution, or thinner.

It may damage the lens and remain as stains.

Optional Accessories

Lamp Unit : LU-12VPS3

Replacement Parts

When replacement parts are required, be sure to inform a Marantz authorized service center. Use only replacement parts specified by Marantz.

Unauthorized substitutions may result in fire, electric shock, or other hazards. And, the warranty may not be guaranteed.

Ceiling Mount kit : MOUNT 20

This kit is specially designed to mount the unit on ceiling.

Extension Pole : EXT-10

This tool is to adjust height with the Ceiling

Mount Kit MOUNT 20.

Downloaded From projector-manual.com Marantz Manuals

CAUTION

:

For ceiling installation, consult with the

Marantz Authorized dealer.

33

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ34

TROUBLESHOOTING

Try the following troubleshooting before calling for service.

1.

Are the connections made properly ?

2.

Are you operating the unit properly, following the instructions ?

If the unit does not operate properly, check the items shown in the following table.

If any trouble cannot be solved by the instructions below, malfunction of the internal circuitry is suspected; immediately unplug the AC power cord and contact

Marantz dealer or service center.

Symptom

No power

Image is not displayed.

Poor color.

Picture is too dark.

Picture is not clear.

Picture rolls.

Possible Cause

AC power cord is not connected correctly.

Lamp cover is not closed correctly.

A signal cable is not connected correctly.

Selected input is incorrect.

The picture mute is active.

Picture is not adjusted properly.

Lamp life is running out.

Contrast or brightness is not adjusted properly.

Picture is out of focus.

Dew is on the lens.

A signal cable is not properly connected.

Batteries are exhausted.

The distance to the unit is too far.

The Remote

Controller does not work.

IR sensor on unit is obstructed.

The “Wired” position in the Menu is selected.

Remedy

Connect the AC power cord properly.

Close the cover properly. (

P.32)

Connect a signal cable properly.

Select the correct input source. (

P.18)

Press the V-MUTE button to release the mute.

Adjust the picture in the MENU mode.

Replace the lamp. (

P.31)

Adjust contrast or brightness properly.

Adjust the focus. (

P.11)

Run the projector for about two hours.

Connect a signal cable properly.

Replace batteries. (

P.8)

Make the distance between the unit and the remote control closer. (

P.8)

Remove any obstacles.

Select the “Wireless” position. (

P.30)

Notes:

• If the lamp still does not function after the replacement and initialization of the lamp life, contact a Marantz authorized dealer, or service center.

• This projector uses a microcomputer. External noise can cause malfunctions. In such case, shut power OFF and unplug the power cable from AC power outlet. Then, plug the AC power cable back in, press the / I button on the projector or the ON button on the remote control and check operation.

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ35

ERROR MODE

WARNING/LAMP indicator, ON indicator, and STANDBY indicator diagnose error mode of the projector as follows.

Error mode

Lamp cover

WARNING

/LAMP

ON

Indicators

ON

OFF

STANDBY

Flashing

Possible Cause Recommendation

Close the cover correctly.

Lamp

Temperature

Fan

Other

ON

Flashing

Flashing

Flashing

OFF

OFF

OFF

OFF

OFF

Flashing

ON

OFF

The lamp cover is not closed properly.

The lamp has failed, or the lamp is completely worn out.

Projector internal temperature is higher than the allowed level.

Trouble has occurred with the fan.

Internal program error

Replace the lamp and reset lamp life.

Check if anything is blocking the exhaust vent.

Shut power OFF and

ON again.

ON SCREEN MESSAGE

Use the list below to check the message displayed on the screen.

Message

NO SIGNAL

REPLACE LAMP!

No input signal.

Meaning

The lamp has reached the end of its life.

Improper signal feed to the projector.

OUT OF RANGE

Remedy

Properly connect the cables.

Replace the lamp and reset lamp life.

Adjust resolution, V(Hz) : refresh rate of the equipment, referring to the Timing Chart.

GLOSSARY

Aspect ratio

Width and height ratio of an image. The normal aspect ratio of a computer and video image is 4 :

3. There are also wide images with an aspect ratio of 16 : 9 and 21 : 9.

Black Level (Black setup)

The signal level which represents black picture intensity.

For NTSC system for USA, this level is 7.5IRE.

NORMAL: 16 (Black) – 235 (White)

For NTSC system for Japan and DVD, this level is 0IRE.

EXPAND: 0 (Black) – 246 (White)

Color Temperature

White color hue.

Low color temperature implies a warmer (more yellow/red) light.

High color temperature implies a colder (more blue) light.

Keystone

Distortion of the image caused by projection to a wrong vertical angle.

Downloaded From projector-manual.com Marantz Manuals

35

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ36

SPECIFICATIONS

Optical characteristics

Panel

1080p DLP ®

(1920 x 1080 pixels)

Lamp

Lens

Super High Pressure 200W DC

VP-15S1: f: 30.7 to 44.5mm

VP-15S1L: f: 44.5 to 66.75mm

Projection size

70 to 250 inches

Input/Output

VIDEO IN

RCA x 1

NTSC-3.58/PAL-4.43/SECAM

Composite video 1.0Vp-p/

75 Ohm

S-VIDEO IN

COMPONENT

IN

RGB/HD IN

HDMI IN

REMOTE

CONTROLLER IN

REMOTE

CONTROLLER OUT

AC IN

TRIG.1 OUT,

TRIG.2 OUT

RS-232C

S-Connector x 1

NTSC-3.58/PAL-4.43/SECAM

S-Video

3RCA x 2

Y, C

B

/P

B

, C

R

/P

R

D-sub M 15 pin x 1

Analog RGB

HD:1080i, 720p, 480p

HDMI x 2

HDMI 1.3 compliant

(single link only)

Mini jack type x 1

Mini jack type x 1

3 Prong Grounding Type

Mini Jack x 2

Output: DC12V or 0V

RS-232C receptacle plug x 1

General

Power requirement

For USA: AC 120V/60Hz

For Europe: AC 230V/50Hz

Power consumption

< 350 W

Standby consumption For USA: < 0.3 W (AC 120V)

For Europe: < 0.5 W (AC 230V)

Chassis isolation

Safety

Class-1

UL60950-1

CSA C22.2 E60950

EN60950-1

EMC

Dimensions

FCC Part-15 Class-B

EN55022 Class-B

VP-15S1:

15

15/16

(W) x 18

5/16

(D) x 6

1/8

(H) inch

404.5(W) x 489.5(D) x 158(H) mm

VP-15S1L:

15

15/16

(W) x 19

19/32

(D) x 6

1/8

(H) inch

404.5(W) x 497.5(D) x 158(H) mm

Net weight

13 kg

OperatingTemperature 5 to 35 °C

Operating humidity

30 to 85%

Storage Temperature – 20 to 60 °C

Storage humidity

30 to 85%

Accessories

• Lens cap x 1

• Remote controller x 1

• Batteries x 2

• AC power code x 1

• User Guide x 1

(1 copy each for USA, CANADA)

Comes with USA model only.

Specifications may be subjected to change without any prior notice.

Timing chart

Format

576/50p

540/60p

720/24p

720/25p

720/30p

720/50p

720/60p

1035/60i

1080/50i

1080/60i

NTSC 3.58

NTSC 4.43

PAL-B/G

PAL M

PAL N

PAL 60

SECAM

480/60i

480/60p

576/50i

576/48p

1080/24PsF

1080/25PsF

1080/30PsF

1080/24p

1080/25p

1080/30p

1080/50p

1080/60p

640 x

[email protected]

640 x

[email protected]

640 x [email protected]

640 x

[email protected]

640 x

[email protected]

640 x [email protected]

640 x [email protected]

640 x

[email protected]

800 x

[email protected]

800 x [email protected]

800 x

[email protected]

800 x

[email protected]

800 x [email protected]

1024 x

[email protected]

1024 x

[email protected]

1024 x [email protected]

1024 x

[email protected]

1280 x

[email protected]

1600 x [email protected]

Resolution V (Hz)

-

-

-

-

-

-

1920 x 1080

1920 x

1080

640 x

350

640 x 350

640 x

400

640 x

400

640 x 480

640 x

480

640 x

480

640 x 480

800 x

600

800 x

600

800 x 600

800 x

600

800 x

600

1024 x 768

1024 x 768

1024 x

768

1024 x

768

1280 x 1024

1600 x

1200

-

720 x 487

720 x

483

720 x

576

720 x 576

720 x 576

1920 x

540

1280 x

720

1280 x 720

1280 x

720

1280 x

720

1280 x 720

1920 x

1035

1920 x

1080

1920 x 1080

1920 x

1080

1920 x

1080

1920 x 1080

1920 x

1080

1920 x

1080

1920 x 1080

70

75

85

60

60

75

85

60

56

60

72

23.98 / 24

25

29.97 / 30

23.98 / 24

25

29.97 / 30

50

59.94 / 60

70

85

70

85

60

72

75

85

50

59.94 / 60

23.98 / 24

25

29.97 / 30

50

59.94 / 60

59.94 / 60

50

59.94 / 60

59.94 / 60

59.94 / 60

50

59.94 / 60

50

59.94 / 60

50

59.94 / 60

59.94 / 60

50

48

H (KHz)

35.156

37.879

48.077

46.875

53.673

48.363

56.476

60.023

68.678

63.981

75

26.978/27

28.125

33.716/33.75

26.978/27

28.125

33.716/33.75

62.5

67.433/67.5

31.469

37.861

31.469

37.861

31.469

37.861

37.5

43.269

15.734/15.75

15.734/15.75

15.625

15.734/15.75

15.625

15.734/15.75

15.625

15.734/15.75

31.469/31.5

15.625

30

31.25

33.746/33.78

17.985/18

18.75

22.478/22.5

37.5

44.955/45

33.716/33.75

28.125

33.716/33.75

Comp.1/2 CVBS/S-Video RGB HDMI

VP-15S1_U_01_ENG 07.7.5 11:05 AM ページ37

DIMENSIONS

VP-15S1

Top

Bottom

5

3/4

(145.75)

3

11/16

(93.5)

8/16

( 64)2

7

5/16

(185.25)

4

11/16

(110.0)

VP-15S1L

Top

Bottom

5

3/4

(145.75)

3

11/16

(93.5)

7

5/16

(185.25)

4

11/16

(110.0)

8/16

( 64)2

Front

7

3/16

(182.5)

3

1/4

( 82.6)

8

12/16

(222.0)

Rear

12/16

(19.75)

6

12/16

(171.0)

4

1/8

(105.0)

6

1/16

(153.5)

Downloaded From projector-manual.com Marantz Manuals

Front

7

3/16

(182.5)

3

1/4

( 82.6)

8

12/16

(222.0)

Rear

12/16

(19.75)

6

12/16

(171.0)

4

1/8

(105.0)

6

1/16

(153.5)

Unit : inch (mm)
