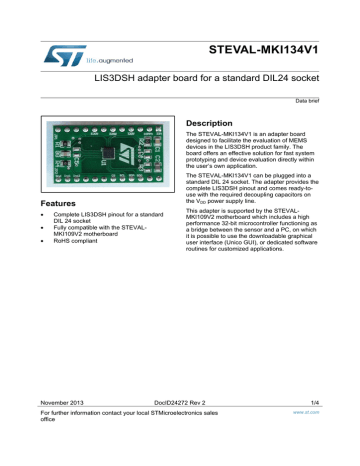

STEVAL-MKI134V1
LIS3DSH adapter board for a standard DIL24 socket
Data brief
Description
The STEVAL-MKI134V1 is an adapter board
designed to facilitate the evaluation of MEMS
devices in the LIS3DSH product family. The
board offers an effective solution for fast system
prototyping and device evaluation directly within
the user’s own application.
The STEVAL-MKI134V1 can be plugged into a
standard DIL 24 socket. The adapter provides the
complete LIS3DSH pinout and comes ready-touse with the required decoupling capacitors on
the VDD power supply line.
Features
•
•
•
Complete LIS3DSH pinout for a standard
DIL 24 socket
Fully compatible with the STEVALMKI109V2 motherboard
RoHS compliant
November 2013
This adapter is supported by the STEVALMKI109V2 motherboard which includes a high
performance 32-bit microcontroller functioning as
a bridge between the sensor and a PC, on which
it is possible to use the downloadable graphical
user interface (Unico GUI), or dedicated software
routines for customized applications.
DocID24272 Rev 2
For further information contact your local STMicroelectronics sales
office
1/4
www.st.com
2/4
C3
100nF
Do Not Mount
C5
220nF
DocID24272 Rev 2
5
4
ADC1 16
3
Vdd
CS
Res
SDO
GND
SDA
Vdd_IO
GND
SCL
NC
15
SCL
ADC2
NC
14
2
1
+
Vdd_IO
0R
R1
C2
10uF
C1
100nF
INT2
Res
INT1
GND
GND
0R
R3
4u7
C4
0R
R2
VCC
13
9
10
11
12
INT2
INT1
ADC3
U1
LIS3DSH
Do Not Mount
VCC
0R
R4
VCC
ADC3
ADC2
ADC1
Vdd_IO
JP2
24
23
22
21
20
19
18
17
16
15
14
13
Header 12 Header 12
1
2
3
4
5
6
7
8
9
10
11
12
JP1
INT2
INT1
SDO
SDA
SCL
CS
1
8
Schematic diagram
STEVAL-MKI134V1
Schematic diagram
Figure 1: STEVAL-MKI134V1 circuit schematic
CS
7
SDO
6
SDA
STEVAL-MKI134V1
2
Revision history
Revision history
Table 1: Document revision history
Date
Revision
Changes
22-Feb-2013
1
Initial release.
15-Nov-2013
2
Updated features and description to include information on the
STEVAL-MKI109V2 motherboard and related software.
DocID24272 Rev 2
3/4
STEVAL-MKI134V1
