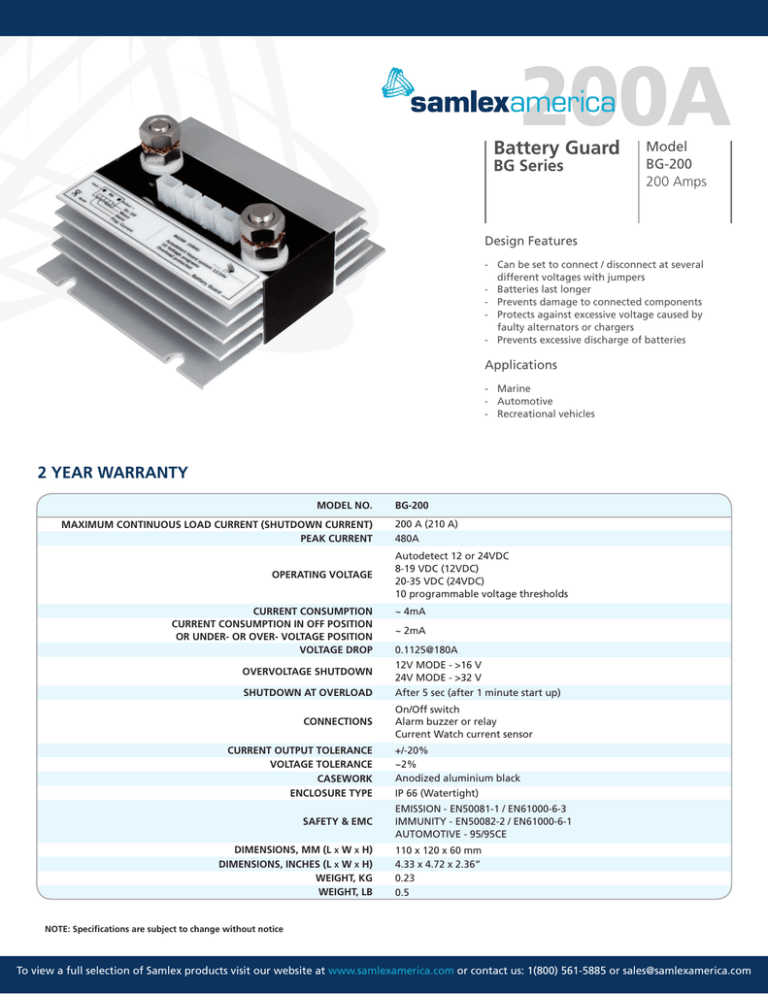

200A Battery Guard BG Series

200A Battery Guard  BG Series
200A
Battery Guard
BG Series
Model
BG-200
200 Amps
Design Features
-- Can be set to connect / disconnect at several
different voltages with jumpers
-- Batteries last longer
-- Prevents damage to connected components
-- Protects against excessive voltage caused by
faulty alternators or chargers
-- Prevents excessive discharge of batteries
Applications
-- Marine
-- Automotive
-- Recreational vehicles
2 YEAR WARRANTY
Model No.
Maximum Continuous Load Current (Shutdown Current)
Peak Current
Operating Voltage
Current Consumption
Current Consumption in OFF Position
or under- or over- voltage position
Voltage Drop
BG-200
200 A (210 A)
480A
Autodetect 12 or 24VDC
8-19 VDC (12VDC)
20-35 VDC (24VDC)
10 programmable voltage thresholds
~ 4mA
~ 2mA
[email protected]
Overvoltage Shutdown
12V MODE - >16 V
24V MODE - >32 V
Shutdown at Overload
After 5 sec (after 1 minute start up)
Connections
Current Output Tolerance
Voltage Tolerance
Casework
Enclosure Type
Safety & EMC
Dimensions, mm (L x w x h)
Dimensions, INCHES (L x w x h)
Weight, KG
Weight, LB
On/Off switch
Alarm buzzer or relay
Current Watch current sensor
+/-20%
~2%
Anodized aluminium black
IP 66 (Watertight)
EMISSION - EN50081-1 / EN61000-6-3
IMMUNITY - EN50082-2 / EN61000-6-1
AUTOMOTIVE - 95/95CE
110 x 120 x 60 mm
4.33 x 4.72 x 2.36”
0.23
0.5
NOTE: Specifications are subject to change without notice
